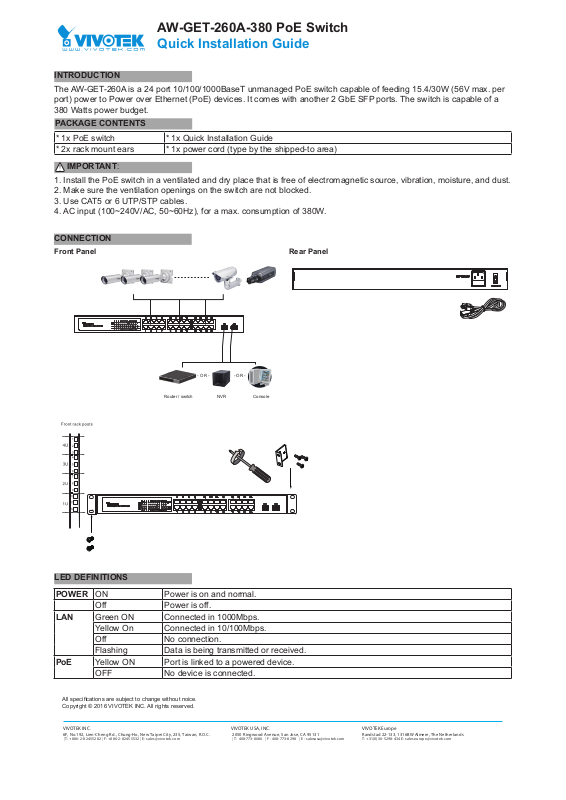

Vivotek AW-GET-260A-380 Installation Guide

AW-GET-260A-380 PoE Switch

Quick Installation Guide

INTRODUCTION

The AW-GET-260A is a 24 port 10/100/1000BaseT unmanaged PoE switch capable of feeding 15.4/30W (56V max. per
port) power to Power over Ethernet (PoE) devices. It comes with another 2 GbE SFP ports. The switch is capable of a
380 Watts power budget.

PACKAGE CONTENTS

* 1x PoE switch * 1x Quick Installation Guide
* 2x rack mount ears * 1x power cord (type by the shipped-to area)

IMPORTANT

:

1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the switch are not blocked.

3. Use CAT5 or 6 UTP/STP cables.

4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 380W.

CONNECTION

Front Panel Rear Panel

- OR - - OR -

ConsoleNVRRouter / switch

LED DEFINITIONS

POWER

ON Power is on and normal.
Off Power is off.

LAN

Green ON Connected in 1000Mbps.
Yellow On Connected in 10/100Mbps.
Off No connection.
Flashing Data is being transmitted or received.

PoE

Yellow ON Port is linked to a powered device.
OFF No device is connected.
