DVR 794HDv4

Wi-Fi Action Camcorder

User Manual

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

CONTENTS

Introduction .................................................................................................................................. 3

What’s Included ............................................................................................................................ 4

Parts of the Camcorder ................................................................................................................ 5

Initial Camcorder Setup ................................................................................................................ 6

INSTALLING AND CHARGING THE BATTERY ........................................................................................................................................ 6

INSTALLING THE MICRO SD MEMORY CARD ..................................................................................................................................... 8

POWERING ON – OFF / ENERGY SAVE ............................................................................................................................................ 9

USING THE CAMCORDER ........................................................................................................................................................... 10

Main Camcorder Modes .............................................................................................................. 11

Camcorder Mounts and Accessories .......................................................................................... 13

WATERPROOF CASE ................................................................................................................................................................. 13

INSTALLING THE BICYCLE MOUNT ................................................................................................................................................ 14

INSTALLING THE HELMET MOUNTING SYSTEM ................................................................................................................................ 15

Using Your Action Camcorder .................................................................................................... 15

POWERING ON YOUR CAMCORDER .............................................................................................................................................. 15

CHANGING CAMCORDER MODE .................................................................................................................................................. 15

NAVIGATING THE MENUS .......................................................................................................................................................... 17

VIDEO CAPTURE – STANDARD MODE ........................................................................................................................................... 18

VIDEO CAPTURE – CAR CARRYING MODE ...................................................................................................................................... 22

PHOTO CAPTURE MODE ........................................................................................................................................................... 26

PLAYBACK MODE .................................................................................................................................................................... 30

DELETING CAPTURED IMAGES ..................................................................................................................................................... 35

MENU OPTIONS ..................................................................................................................................................................... 37

PLAYBACK MODE: HDTV .......................................................................................................................................................... 45

Wireless Remote Control ........................................................................................................... 46

USING THE ACTION CAMCORDER VIA THE REMOTE CONTROL ............................................................................................................... 46

CHANGING THE BATTERY OF THE REMOTE CONTROL .......................................................................................................................... 47

Camcorder Technical Specifications ........................................................................................... 48

Vivitar Action Cam - Mobile Device Application .......................................................................... 49

MOBILE DEVICE REQUIREMENTS ................................................................................................................................................. 49

INSTALLING THE VIVITAR ACTION CAM APPLICATION......................................................................................................................... 49

CONNECTING YOUR ACTION CAM TO YOUR MOBILE DEVICE ............................................................................................................... 50

USING THE VIVITAR ACTION CAM APPLICATION............................................................................................................................... 51

Vivitar Experience Image Manager Software ............................................................................. 73

COMPUTER SYSTEM REQUIREMENTS ............................................................................................................................................ 73

INSTALLING THE SOFTWARE – USING THE CD ROM ......................................................................................................................... 74

INSTALLING THE SOFTWARE – USING THE ONLINE LINK ..................................................................................................................... 76

CONNECTING THE CAMCORDER TO THE COMPUTER ......................................................................................................................... 76

GETTING VIDEOS AND PHOTOS FROM THE CAMCORDER TO THE COMPUTER ........................................................................................... 77

GETTING STARTED! .................................................................................................................................................................. 78

TRANSFERRING IMAGES MANUALLY FROM THE CAMCORDER TO THE COMPUTER ..................................................................................... 78

Camcorder Maintenance ............................................................................................................ 80

MEMORY CARD MAINTENANCE .................................................................................................................................................. 80

DEVICE MAINTENANCE ............................................................................................................................................................. 81

Troubleshooting .......................................................................................................................... 82

CAMCORDER .......................................................................................................................................................................... 82

VIVITAR EXPERIENCE IMAGE MANAGER......................................................................................................................................... 84

Sakar Warranty Card .................................................................................................................. 85

Technical Support ....................................................................................................................... 86

Introduction

Thank you for purchasing the Vivitar DVR 794HDv4 Full HD Wi-Fi Action Camcorder. Everything you need to take high definition digital videos and photos is included with your camcorder. This unique, ultraportable camera design is adapted specifically for this camera and can be used to capture special moments in many different environments.

Vivitar makes capturing those special moments as easy as possible.

Please read this manual carefully first in order to get the most out of your digital camcorder.

NOTE:

 Your digital action camcorder supports a Class 6 or higher Micro SD card with a capacity

expansion up to 32GB. In order to use your digital action camcorder normally, please insert the Micro SD Memory card before use. Please format the Micro SD Memory Card before first use. Micro SD Memory cards are not included and need to be purchased separately.

 This camcorder is a plug and play device. You can download the pictures and videos

without the software by directly accessing the camera’s memory card from your computer. We would however recommend that you install the Vivitar Experience Image Manager software to enjoy the full Vivitar experience.

What’s Included

1. Wi-Fi Action Camcorder

6. Wireless Remote Control

2. USB Cable

7. Bicycle Mount

3. AC Adapter

8. Helmet Mount & Strap

4. Vivitar Experience Installation CD

9. Lithium Battery

5. Waterproof Casing

10. Camera Shield

NOTE: Micro SD Card not included.

Parts of the Camcorder

Shutter / OK Button

Wi-Fi Button / Down Button

Power / Mode Button

Battery Cover

Lens

10.

LCD Screen

Charging (Blue) / Busy (Red) LED Indicator

11.

Working LED Indicator

Microphone

12.

Speaker

Menu / Display Button

13.

Micro SD Card Slot

Wi-Fi Button LED Indicator

14.

Mini HDMI Port

15.

Micro USB Port

Initial Camcorder Setup

INSTALLING AND CHARGING THE BATTERY

TO INSTALL THE LITHIUM BATTERY:

1. If the camera is inside the waterproof casing, please take it out of the casing.

2. Push and hold the battery cover lever up to the unlock/open position, until it flips open.

3. Insert the battery into the battery compartment as shown. Make sure to place the battery according to the correct polarity as shown inside the battery compartment.

4. Close the battery cover.

TO CHARGE THE LITHIUM BATTERY:

1. Power off the camcorder.

2. Open the USB cover. Connect the included USB cable to the camcorder and connect the other end of the cable to a power source such as the included AC charger or to a computer. Please refer to the images shown below for reference.

CHARGING USING THE AC CHARGER:

CHARGING USING THE COMPUTER:

3. During the time the camcorder is charging, the LED charging status indicator light (blue) is on. It takes about 3 to 4 hours to fully charge the battery. When the battery is fully charged the LED status indicator light turns off.

NOTE:

Battery Indicator

Description

The battery level is full.

The battery level is half.

The battery level is low, indicating to prepare for recharging the built-in lithium battery.

Once ‘Low Battery’ appears on the LCD, this indicates that the battery level is completely exhausted

and the camcorder automatically turns off after a few seconds. Please fully recharge the battery.

 While the device is charging it cannot be used to capture images.  When the camcorder is on, connecting it to a computer will not charge the device. Make sure

the camcorder is powered off to recharge.

BATTERY INDICATOR:

NOTE: When the battery capacity drops to a low level, the battery icon will flash on the display,

indicating that the camcorder requires to be recharged. Please charge the battery. When the battery icon flickers, the camcorder will shut down automatically.

INSTALLING THE MICRO SD MEMORY CARD

Make sure a High Speed Class 6 or higher Micro SD Memory card has been properly inserted into your camcorder. A Micro SD Card must be inserted before use. Micro SD Memory card not included.

INSTALLING THE MEMORY CARD:

To properly insert the Micro SD Card, follow the instructions below:

1. Power off the camcorder.

2. Open the Micro SD Card cover.

3. Insert the Micro SD Card into the Micro SD Card slot in the direction as shown above.

4. Gently press the Micro SD Card until you hear a slight clicking sound. This indicates the memory card has been inserted correctly.

5. To remove the card, gently press on the edge of the card to release it and pull the card out.

IMPORTANT:

 Please power the camcorder off before installing or taking out the memory card.  If the card is inserted or removed while the camcorder's power is on, it may damage the card

and/or any recorded data. Always confirm that the power is off before inserting the card into the camcorder.

 Make sure there is room on the Micro SD Memory Card for additional images. If the Micro SD

Memory Card is full, additional images will not be added to the memory card.

POWERING ON – OFF / ENERGY SAVE

TO POWER ON THE CAMCORDER:

1. Press and hold the Power button for about 2 seconds.

2. The LCD displays turns on and a sound can be heard from the camcorder’s speaker.

TO POWER OFF THE CAMCORDER:

Press the MODE button to select the mode.

Press the Shutter/OK button to capture your videos and photos.

1. Press and hold the Power button for about 2 seconds.

2. A sound can be heard from the camcorder’s speaker and the camcorder powers off.

ENERGY SAVE AND AUTO POWER OFF:

ENERGY SAVE: The camera automatically enters Sleep Mode (Energy Save) after one minute of inactivity to save energy. Once the camera is in Sleep Mode, the Charging/Busy LED Indicator light (red light, front side of camera) remains on. Short press any camera button to reactivate the camera. AUTO POWER OFF: Your camcorder also has an auto power off feature that will automatically turn off your camcorder after a specific period of time that your camera is left idle. The auto power off time settings can be set from the ‘Power Save’ settings menu.

NOTE: Shutdown due to low power. When the camera’s power is extremely low, the LCD will display the Low Battery Power icon . The camera will automatically power off. Please

recharge the battery.

USING THE CAMCORDER

Main Camcorder Modes

Video Capture Mode

Use this mode to capture videos with your digital camcorder. To record a video, please check that the DV is in Video mode. If the video icon is not

displayed on the LCD screen, short press the Power/Mode button repeatedly until it appears. To start recording, press the Shutter/OK button. Press the Shutter/OK button again to stop recording. The video is automatically saved to your camcorder’s memory card.

Car Carrying Capture Mode

Use this mode to capture videos in motion with your camcorder. To take a video, please check that the DV is in Car Carrying mode. If the car carrying

icon is not displayed on the LCD screen, short press the Power/Mode button repeatedly until it appears. Press the Shutter/OK button to capture your video. The video is automatically saved to your camcorder’s memory card. NOTE:

1) In Car Carrying mode, a passage of video is kept every three minutes in recording. After the storage card is full, the earliest passage will be deleted, and video will be recorded in a circulating way.

2) Boot after choosing Car Carrying mode, normal shutdown again after boot, then connecting to the car charger will automatically enter the Car Carrying mode and start the video recording.

Your camera has different modes for the various camera functions. Short press the Power/Mode button to toggle between the Video Capture, Photo Capture and Playback Modes.

Photo Capture Mode

Use this mode to capture pictures with your camcorder. To take a photo, please check that the DV is in Photo mode. If the photo icon is not

displayed on the LCD screen, short press the Power/Mode button repeatedly until it appears. Press the Shutter/OK button to capture your photo. The picture is automatically saved to your camcorder’s memory card.

Playback Mode (Car, Video, JPG)

Use this mode to view and manage your captured videos and photos via your camcorder. Please check that the DV is in Playback mode. If the Playback icon is not displayed on the LCD screen, short press the Power/Mode button repeatedly until it appears.

NOTE: Your captured images can be also viewed either on the computer, on your television or your mobile device. Playback Mode on the Computer: After turning on your camcorder, connect it to your

computer via the supplied USB cable to view the images on your computer. Playback Mode on the HDTV: After turning on your camcorder and connecting it to an HDTV via an HDMI cable (purchased separately), it enters Playback Mode. Mobile Device: After downloading the Vivitar Action Cam app to your mobile device and connecting it via Wi-Fi to your camera, tap the Playback Media icon to view your captured images.

Camcorder Mounts and Accessories

3 1

WATERPROOF CASE

1. Shutter Release

2. Clamp (Securing Latch)

3. Power/Mode Button

4. Menu Button

5. Wi-Fi Button

Your action cam comes with a waterproof casing for underwater action and added durability. To assemble your camera to the case, follow the instructions below:

1. Open the latch on the waterproof casing. To open the case, insert a finger at the half circle of the latch by prying the latch up - away from the case.

2. Insert the camera lens forward into the case.

3. Before sealing the waterproof case, make sure the camera housing’s rubber seal is clean. Carefully check whether the waterproof ring of the casing is flat and smooth. Close the door and secure the latch.

4. After putting the device in and closing the cover of the waterproof casing, carefully check

whether the waterproof ring is deformed due to pressure.

5. While the camcorder is in the waterproof casing, press the POWER/MODE button to select either Video or Photo Capture Mode. Press the Shutter button for recording your videos and capturing your photos.

NOTE:

 A single hair or grain of sand can cause a leak. You can test by closing the case without

inserting the camera. Submerse the case completely in water for about a minute. Remove the case from the water, dry off its exterior with a towel, and then open the case. If the entire interior is dry, the case is safe for use under water.

 Before opening the waterproof casing and putting the device in, carefully check whether the

waterproof ring of the casing is flat and smooth.

 After placing the device into the waterproof casing and closing the cover, carefully check

whether the waterproof ring is deformed due to pressure.

 After every use in salt water you will need to rinse the outside of the housing with non-salt

water and dry. Not doing this can eventually cause corrosion of the hinge pin and salt buildup in the seal, which can cause failure.

 To clean the seal, rinse in fresh water and shake dry (drying with a cloth may cause lint to

compromise the seal). Re-install the seal into the grooves of the housing.

INSTALLING THE BICYCLE MOUNT

INSTALLING THE HELMET MOUNTING SYSTEM

Using Your Action Camcorder

POWERING ON YOUR CAMCORDER

1. Press and hold the POWER button for about 2 seconds to turn on the camcorder.

The LCD screen briefly displays the ‘Vivitar’ screen and opens to the Video Capture Mode.

2. Press and hold the POWER button again for about 2 seconds to turn the power off.

CHANGING CAMCORDER MODE

CAMCORDER MODES

1. Video Capture Mode (Standard) - Use this mode to capture videos with your camcorder.

2. Video Capture Mode (Car Carrying) – Use this mode to capture videos in motion with your camcorder.

3. Photo Capture Mode - Use this mode to capture photos with your camcorder.

4. Playback Mode (for photos and videos) – Connect to your camcorder to your computer or television to use this mode to view your captured photos and videos.

SWITCHING MODES

After turning on the camcorder, short press the POWER/MODE button to switch between the four modes in turn:

When in Video Capture Mode - Standard, this icon will display on the top-left corner of the

LCD display.

When in Video Capture Mode – Car Carrying, this icon will display on the top-left corner

of the LCD display. The display appears upside down.

When in Photo Capture Mode, this icon will display on the top-left corner of the LCD

display.

When in Playback Mode, the Playback icon and list of media ‘CAR, VIDEO, JPG’ will

display on the LCD display.

 In Video Capture Mode, press the SHUTTER button to start recording and press it again to

stop.

 In Car Carrying Video Capture Mode, press the SHUTTER button to start recording and press

it again to stop.

 In Photo Capture Mode, press the SHUTTER button to take photo.  In Playback Mode, press the SHUTTER button to play back your selected Video.

NAVIGATING THE MENUS

VIDEO CAPTURE, PHOTO CAPTURE AND PLAYBACK MENUS

To access the Main Menu for each Mode:

1. Press the MENU / DISP. button to open the Main Menus for the current mode.

2. Press the  DOWN (WI-FI) button to select a specific menu.

The selected option appears highlighted.

3. Press the SHUTTER/OK button to confirm and save your selection and open the options

for the menu you have selected.

4. To select a specific option, press the  DOWN (WI-FI) button to select an option and then the SHUTTER/OK button to save the selected option and return to the menu screen.

NOTE: To go back from the submenus or exit the Main Menu, press the MENU / DISP. button.

GENERAL CAMCORDER SETTINGS MENUS

To access the General Camcorder Settings Menu:

1. Press the MENU button to open the menu screen while in any mode.

2. Short press the POWER/MODE button to select the tab with the General Camcorder Settings icon .

NOTE: If you have already highlighted a menu item and would like to enter the Settings Menu, press the  DOWN (WI-FI) button until there is no menu item highlighted. This indicates that the top, left current tab (Video, Photo, or Playback) is selected. You can now short press the POWER/MODE button to switch to the Settings tab.

3. Press the  DOWN (WI-FI) button to select a specific menu.

The selected option appears highlighted.

4. Press the SHUTTER/OK button to confirm and save your selection and open the options

for the menu you have selected.

5. To select a specific option, press the  DOWN (WI-FI) button to select an option and then

the SHUTTER/OK button to save the selected option and return to the menu screen.

NOTE:

 At any time you can press the MENU button to exit the menus and return to the previous

screen.

 Once you change a setting, the setting is saved by your camera until you manually change

the setting or restore the camera’s default factory settings.

 After selecting your desired setting, some settings appear as an icon on the LCD screen in

Capture Mode – indicating the option selected.

VIDEO CAPTURE – STANDARD MODE

The Video Capture Mode allows you to capture videos with your digital camcorder.

After powering on your camcorder, the camcorder automatically enters the Video Capture Mode – either Standard or Car Carrying mode, depending on what mode was last used prior to powering off your camcorder. If needed, press the POWER/MODE button until the Video Capture icon appears.

TAKING A VIDEO

1. Selecting the Scene with the LCD Display: Use the LCD display to direct the camcorder at the scene you would like to capture.

NOTE: The time available for video capture (as per the installed memory card size and selected resolution) is shown on the top right of the LCD screen.

2. Changing Resolution: If you would like to change the resolution, press the MENU button and then press the  DOWN (WIFI) button to select ‘Movie Size’. Next, press the SHUTTER/OK button to view the Movie Size options. Press the  DOWN (WIFI) button to select an option and then press the SHUTTER/OK button to confirm the option. The Movie Size options include:

 1080P - 1080P (30fps)  720P - 720P (60fps)  720P - 720P (30fps)

3. Capturing the Video:

Button

Description

SHUTTER / OK

 STARTS/STOPS: Starts and stops the video capture.  ENTERS SUBMENU/SAVES SELECTION: Within the Menu, enters the

selected menu’s submenu list and saves the selected submenu option.

 OPENS/EXITS MENU: Opens and exits the menu options for Video

Capture Mode and General Camera Settings.

NOTE: Use the DOWN (Wi-Fi) button to navigate within the menu options.

POWER / MODE

 POWERS ON/OFF:

LONG PRESS: Powers the camcorder on and off.

 START: Press the SHUTTER/OK button to start the video capture.

The camcorder’s LED busy light (red) turns on and blinks. All icons disappear and the elapsed time appears on the top right corner of the LCD screen along with a blinking icon REC that indicates the recording is in progress.

 STOP: Press the SHUTTER/OK button again to stop the video recording.

4. The video is automatically saved to the camcorder’s Micro SD Memory card.

NOTE:

 While capturing your video, after approximately one minute of video capture, the LCD display

turns off in order to save power. The busy LED light remains on and the video continues to be captured. Press the any button to reactivate the LCD display.

 After recording the video, the updated amount of available time left to capture additional

videos as per your memory card size and selected resolution size appears on the LCD screen.

 If the memory card is full or the battery level is low, the camera will automatically stop

recording the video

VIDEO CAPTURE MODE BUTTONS

 SELECTS MODE/ENTERS CAMCORDER SETTINGS MENU:

SHORT PRESS:

- Standby Mode: Toggles between the Video Capture – Standard Mode, Car Carrying Mode, Photo Capture Mode and Playback Mode.

- Menu Mode: Toggles between the current mode menu and the camcorder setting menus.

 DOWN / WI-FI

 WIFI: Connects or disconnects camera to Wi-Fi.  NAVIGATES MENU: Down button used to navigate within the Menus,

toggling between the menu options.

Item

Function

Description

Mode Selection

Displays the current selected Mode:

Video Capture – Standard Mode

Frames Per Second

Displays the recording frame rate. The frames per second options include: 30fps, 60fps

VIDEO CAPTURE MODE LCD ICON STATUS DESCRIPTION

The following icons appear on the LCD screen and indicate the selected menu options and camera status.

Video Mode Recording Mode

Movie Size Selection

Displays the selected Movie Size Setting. The Movie Size options include:

1080P (60fps), 720P (60fp), 720P (30fps)

Video Quality

Displays the selected Video Quality. The Video Quality options include: Super Fine, Fine, Normal

Video Counter / Record Indicator

 Standby Mode: Video Counter

Displays the amount of time available for video capture as per selected Movie Size and memory card size.

 Record Mode: Record Indicator

Displays the elapsed time as the video is being recorded and a blinking REC icon appears. Note that Standby icons do not appear while recording is in progress.

Battery Indicator

Displays the current status of the battery level.

The battery level is full.

The battery level is empty. Indication to

recharge the battery. The low battery icon will flash on the LCD screen when the battery

level is low. Once ‘Low Battery’ appears on the LCD, this indicates that the battery level

is completely exhausted and the camcorder automatically turns off after a few seconds. Please fully recharge the battery.

Recording Indicator

Displays a flashing REC icon when recording is in progress.

Recording Length

Displays the elapsed time of the recording in progress.

VIDEO CAPTURE – CAR CARRYING MODE

The Video Capture Mode allows you to capture videos with your digital camcorder. After powering on your camcorder, the camcorder automatically enters the Video Capture Mode – either Standard or Car Carrying (Driving) Mode, depending on what mode was last used prior to powering off your camcorder. If needed, short press the POWER / MODE button once to enter the Car Carrying Mode.

TAKING A VIDEO

1. Selecting the Scene with the LCD Display: Use the LCD display to direct the camcorder at the scene you would like to capture.

NOTE:

 If you are holding the camcorder as in standard mode, the LCD icons appear

upside-down on the LCD screen.

 The time available for video capture (as per the installed memory card size and

selected resolution) is shown on the top right of the LCD screen.

 1080P - 1080P (30fps)  720P - 720P (60fps)  720P - 720P (30fps)

3. Capturing the Video:

 START: Press the SHUTTER/OK button to start the video capture.

The camcorder’s LED busy light turns on and blinks. All icons disappear and the elapsed time appears on the top right corner of the LCD screen along with a blinking

REC icon that indicates the recording is in progress.

 STOP: Press the SHUTTER/OK button again to stop the video recording.

4. The video is automatically saved to the camcorder’s Micro SD Memory card.

Button

Description

SHUTTER / OK

 STARTS/STOPS: Starts and stops the video capture.  ENTERS SUBMENU/SAVES SELECTION: Within the Menu, enters the

selected menu’s submenu list and saves the selected submenu option.

 OPENS/EXITS MENU: Opens and exits the menu options for Video

Capture Mode and General Camera Settings.

NOTE: Use the DOWN/Wi-Fi button to navigate within the menu options.

POWER / MODE

 POWERS ON/OFF:

LONG PRESS: Powers the camcorder on and off.

 SELECTS MODE/ENTERS CAMCORDER SETTINGS MENU:

SHORT PRESS:

- Standby Mode: Toggles between the Video Capture – Standard Mode, Car Carrying Mode, Photo Capture Mode and Playback Mode.

NOTE:

 In Car Carrying (Driving) Mode, a passage of video is kept every three minutes in recording.

After the memory card is full, the earliest passage will be deleted, and video will be recorded in a circulating (looping) way.

 To have the Car Carrying Mode be the default mode when powering on your action cam, enter

the Car Carrying Mode then power off the camcorder. When you power on your camcorder the next time it will be by default in the Car Carrying Video Capture Mode. You can connect the camera using a car charger and when powering on the camcorder it automatically opens to the Car Carrying Mode and starts recording.

 After recording the video, the updated amount of available time left to capture additional

videos as per your memory card size and selected resolution size appears on the LCD screen.

 If the memory card is full or the battery level is low, the camera will automatically stop

recording the video.

VIDEO CAPTURE – CAR CARRYING MODE BUTTONS

- Menu Mode: Toggles between the current mode menu and the camcorder setting menus.

 DOWN / WI-FI

 WIFI: Connects or disconnects camera to Wi-Fi.  NAVIGATES MENU: Down button used to navigate within the Menus,

toggling between the menu options.

Item

Function

Description

Mode Selection

Displays the current selected Mode:

Video Capture – Car Carrying (Driving) Mode

Frames Per Second

Displays the recording frame rate. The frames per second options include: 30fps, 60fps

VIDEO CAPTURE – CAR CARRYING MODE LCD ICON STATUS DESCRIPTION

The following icons appear on the LCD screen and indicate the selected menu options and camera status.

Car Carrying (Driving) Mode Recording Mode

Movie Size Selection

Displays the selected Movie Size Setting. The Movie Size options include:

1080P (60fps), 720P (60fp), 720P (30fps)

Video Quality

Displays the selected Video Quality. The Video Quality options include: Super Fine, Fine, Normal

Video Counter / Record Indicator

 Standby Mode: Video Counter

Displays the amount of time available for video capture as per selected Movie Size and memory card size.

 Record Mode: Record Indicator

Displays the elapsed time as the video is being recorded and a blinking REC icon appears. Note that Standby icons do not appear while recording is in progress.

Battery Indicator

Displays the current status of the battery level.

The battery level is full.

The battery level is empty. Indication to

recharge the battery. The low battery icon will flash on the LCD screen when the battery

level is low. Once ‘Low Battery’ appears on the LCD, this indicates that the battery level

is completely exhausted and the camcorder automatically turns off after a few seconds. Please fully recharge the battery.

Recording Indicator

Displays a flashing REC icon when recording is in progress.

Recording Length

Displays the elapsed time of the recording in progress.

PHOTO CAPTURE MODE

The Photo Capture Mode allows you to capture photos with your digital camcorder. When you first power on the camcorder, the Video Capture Mode will be active. In order to open the Photo Capture Mode, short press the POWER/MODE button until the Photo icon appears on the top left of the LCD screen.

TAKING A PHOTO

1. Selecting the Scene with the LCD Display: Use the LCD display to direct the camcorder at the scene you would like to capture.

2. Changing Resolution: If you would like to change the resolution, press the MENU button and then press the  DOWN (WIFI) button to select ‘Resolution’. Next, press the SHUTTER/OK button to view the Resolution options. Press the  UP (WIFI) button to select an option and then press the SHUTTER/OK button to confirm the option. The Resolution options include: The Resolution options include:

14MP (4416x3312) 12MP (4000x3000) 10MP (3648x2736) 8MP (3264x2448)) 5MP (2592x1944) 3MP (2048x1536)

3. Press the SHUTTER/OK button to capture the photo.

The amount of photos that can be captured with the available memory and selected resolution appears on the top, right corner of the LCD screen.

4. The photo is automatically saved to the camcorder’s Micro SD Memory card.

PHOTO CAPTURE MODE BUTTONS

Button

Description

SHUTTER/OK

 PHOTO CAPTURE: Press to take the picture.  ENTERS and SAVES SELECTION: Within the Menu, enters and

saves the selected Menu Option.

Opens and exits the menu options for Photo Capture Mode and General Camera Settings.

NOTE: Use the DOWN/Wi-Fi button to navigate within the menu options.

POWER / MODE

 POWERS ON/OFF:

LONG PRESS: Powers the camcorder on and off.

 SELECTS MODE/ENTERS CAMCORDER SETTINGS MENU:

SHORT PRESS:

- Standby Mode: Toggles between the Video Capture – Standard Mode, Car Carrying Mode, Photo Capture Mode and Playback Mode.

- Menu Mode: Toggles between the current mode menu and the camcorder setting menus.

 DOWN / WI-FI

 WIFI: Connects or disconnects camera to Wi-Fi.  NAVIGATES MENU: Down button used to navigate within the Menus,

toggling between the menu options.

PHOTO CAPTURE MODE LCD ICON STATUS DESCRIPTION

Item

Function

Description

Mode Selection

Displays the current selected Mode:

Photo Capture Mode

Photo Resolution

Displays the selected Resolution Setting. The Resolution options include:

14M (4416x3312), 12MP (4000x3000), 10MP (3648x2736), 8MP (3264x2448), 5MP (2592x1944), 3MP (2048x1536)

Quality

Displays the selected photo Quality. The Quality options include: Super Fine, Fine, Normal

Self-Timer / Photo Burst

Displays the selected Self-Timer or Photo Burst Mode setting.

NOTE:

- No icon appears when the setting is off.

- The Self-Timer and Photo Burst options can work

only one at a time, not simultaneously. When one option is on, the other is off.

The following icons appear on the LCD screen and indicate the selected menu options and camera status.

The Self-Timer options include: OFF (no Icon), 2 seconds, 10 seconds, Double

The Photo Burst Mode options include:

OFF (no Icon), 3 photos, 5 photos, 10 photos

Photo Counter

Displays the amount of photos available for photo capture as per selected photo resolution and memory card size.

Battery Indicator

Displays the current status of the battery level.

The battery level is full.

The battery level is empty. Indication to

recharge the battery. The low battery icon will flash on the LCD screen when the battery

level is low. Once ‘Low Battery’ appears on the LCD, this indicates that the battery level

is completely exhausted and the camcorder automatically turns off after a few seconds. Please fully recharge the battery.

NOTE:

Some icons appear only when the selected setting is ON as per the selected option. These settings include: Photo Burst Mode, Self-Timer. If the selection is set to OF, then no icon is displayed on the LCD.

PLAYBACK MODE

Playback Main Menu Screen

The Playback mode allows you to review, protect and delete photos and videos that you’ve captured with you camcorder. To enter Playback Mode, power on your camcorder and then short press the POWER/MODE

button until the camera enters Playback Mode. ‘CAR, VIDEO, JPG’ appear on the screen.

VIEWING CAPTURED IMAGES

While in Playback mode, you can scroll through your captured videos and photos to view each image. The following Playback Main Menu list appears on the screen:

To select which type of image to view:

1. Press the  DOWN (WI-FI) button to scroll and select between:

- CAR (Car Carrying Video Playback)

- VIDEO (Standard Video Playback Mode)

- JPG (Photo Playback)

2. Press the SHUTTER/OK button to select the highlighted option. This then opens a screen for that selected image type with the last captured image appearing on screen.

PLAYBACK MODE BUTTONS

Button

Description

SHUTTER/OK

 FILE TYPE SELECT: Press to select the highlighted CAR, VIDEO or

JPG and enter the corresponding Playback screen.

 VIDEO PLAYBACK – CAR and VIDEO

- START: Starts video playback of the selected file.

- PAUSE/RESUME: Pauses video playback. Resumes playing the

paused video.

 OPEN/EXIT MENU: Opens and exits the menu options for Playback

Mode and General Camera Settings.

NOTE: Use the DOWN/Wi-Fi button to navigate within the menu options.

 VIDEO PLAYBACK– CAR and VIDEO

- STOP: Stops a playing video.

POWER / MODE

 POWERS ON/OFF:

LONG PRESS: Powers the camcorder on and off.

 SELECTS MODE/ENTERS CAMCORDER SETTINGS MENU:

SHORT PRESS – from the Playback Main Menu list:

- Standby Mode: Toggles between the Video Capture – Standard Mode, Car Carrying Mode, Photo Capture Mode and Playback Mode.

- Menu Mode: Toggles between the current mode menu and the camcorder setting menus.

 DOWN / WI-FI

 WIFI: Connects or disconnects camera to Wi-Fi.  NAVIGATES MENU: Down button used to navigate within the Menus,

toggling between the menu options.

 PLAYBACK FILE NAVIGATION: Scrolls between the captured files.

VIDEO PLAYBACK: PLAYING CAPTURED VIDEOS ON YOUR CAMCORDER

To play your captured videos:

1. Enter Playback Mode: After powering on your camcorder, short press the POWER/MODE button until the camcorder displays the Playback Mode. The Playback Menu list appears: CAR, VIDEO, JPG

2. Select Video Type:

Use the  DOWN (WI-FI) to select and highlight either CAR or VIDEO from the Playback Main Menu list to view your captured videos.

3. Select Video File:

Press the SHUTTER/OK button to confirm your selection and enter the selected Video Playback Mode. Press the  DOWN (WI-FI) button to scroll through the videos and select a video file.

4. Play your selected Video File: PLAY: Press the SHUTTER/OK button to play the selected video. PAUSE: Press the SHUTTER/OK button to pause and resume playing the video.

While playing the video the PAUSE icon appears on the bottom of the screen, indicating that you can press the SHUTTER/OK button to pause the video.

RESUME PLAY: While the video is paused the PAUSE icon appears in the middle of the screen, and the PLAY icon appears on the bottom of the screen, indicating that the

video is paused and that you can press the SHUTTER/OK button to resume playing the video. STOP: Press the MENU button to stop the playing video.

VIDEO PLAYBACK MODE LCD ICON STATUS DESCRIPTION

Item

Function

Description

Mode Selection

Displays the current selected Mode:

Playback Mode

Protected/Locked Image

(Locked images only)

The lock icon indicates that the file has been protected/locked. The lock icon appears only on locked files. Files that do not display this icon are unlocked.

Total Captured Video Time

Displays the total time of the recorded video.

Date and Time

Displays the date and time of the recorded video.

File Numbering

Indicates serial number of the current file / total number of files

Current Playback Time

Displays the current point of time of the video as it is playing.

Video Playback Controls

 PAUSE: While playing the video the PAUSE icon

appears on the bottom of the screen, indicating that you can press the SHUTTER/OK button to pause the video.

 RESUME PLAY: While the video is paused the

Selected Video File Screen

Video Playback Screen

PAUSE icon appears in the middle of the screen, and the PLAY icon appears on the

bottom of the screen, indicating that the video is paused and that you can press the SHUTTER/OK button to resume playing the video.

 STOP: Indicates that you can press the MENU

button to stop the playing video.

Video Frame Image

Displays the first frame of the selected video file.

PHOTO PLAYBACK: VIEWING PHOTOS ON YOUR CAMCORDER

To view your captured photos:

1. Enter Playback Mode: After powering on your camcorder, short press the POWER/MODE button until the camcorder displays the Playback Mode.

2. Select Media Type:

Use the  DOWN (WIFI) button to select PHOTO from the Playback Main Menu and then press SHUTTER/OK button to view your captured videos. The last captured photo is shown on the screen.

3. Select Photo:

Press the  DOWN (WIFI) button to scroll through your photos.

PHOTO PLAYBACK MODE LCD ICON STATUS DESCRIPTION

Item

Function

Description

Mode Selection

Displays the current selected Mode:

Playback Mode

Protected/Locked Image (Locked images only)

The lock icon indicates that the file has been protected/locked. The lock icon appears only on locked files. Files that do not display this icon are unlocked.

File Numbering

Indicates serial number of the current file / total number of files

DELETING CAPTURED IMAGES

While in the Playback Mode, you can delete captured videos and photos saved to the Micro SD Memory card in your camcorder using the Playback menu.

1. Enter the Playback Mode.

2. Select the file you would like to delete.

3. Press the MENU button to enter the Playback Mode menu options.

NOTE: To exit the menu options, press the MENU button.

4. Press the  DOWN (WIFI) button to select and highlight the ‘Delete…’ menu option.

5. Press the SHUTTER/OK button to enter the ‘Delete’ menu options. The following options appear:

- Single: This option deletes the selected image.

- All: This option deletes all unlocked images (videos and photos).

Press the  DOWN (WIFI) button to select an option and then press the SHUTTER/OK button to confirm.

6. A window then appears to confirm your selected ‘Delete’ option. The following options appear:

- Yes: This option deletes the selected file (if Single was selected) or all files (if All was selected).

- No: This option returns to the previous ‘Delete’ menu screen without deleting the image(s).

Use the  DOWN (WIFI) button to select an option and then press the SHUTTER/OK button to confirm.

7. To exit and return to the Playback menu screen, select ‘No’ at any time and confirm by pressing the SHUTTER/OK button.

Caution: Please use the ‘Delete’ feature with care. Once images are deleted they are

permanently deleted from the Micro SD Memory card. Please make sure that you only use this feature once you have downloaded and saved all the images you wish to your computer.

MENU OPTIONS

Menu Name and Description

Menu Options

Menu Options Details

Movie Size

The Movie Size menu allows you to choose the desired size of the video taken by your camera. Keep in mind that videos with a higher resolution will also take up more of

your camera’s memory.

1080P (Default)

1080P (30fps)

720P

720P (60fps)

720P

720P (30fps)

Video Quality

The Video Quality menu allows you to select the desired quality level of the images taken by your camera. Keep in mind that images with a higher image quality level will also take up more memory on your camera.

Super Fine

(Default)

Fine

Normal

Displays the video Quality options.

Slow Motion

The Slow Motion option captures your video in slow motion.

OFF (Default) ON

White Balance

The White Balance feature allows your camera to adjust the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Balance setting to match your current environment will allow the camera to properly balance the colors in the images that are taken with your camera.

Auto (Default)

Automatic white balance.

Daylight

White balance selected for daylight surrounding.

Cloudy

White balance selected for cloudy surrounding.

Tungsten

White balance selected for tungsten lighting.

Fluorescent

White balance selected for fluorescent surrounding.

See the ‘Navigating the Menus’ section for instructions how to access the Mode Menus and the General Camera Settings Menus.

VIDEO CAPTURE MODE MENUS

To open the Video Capture menu options, press the MENU button while in Video Capture Mode. The following menus appear for both Standard and Car Carrying Video Capture Modes: Movie Size, Video Quality, Slow Motion, White Balance, Date Stamp

Date Stamp

When you capture an image with your camera, the Date Stamp feature allows the image to include a date stamp or date and time stamp displaying when the image was taken.

Off (Default) Date Date & Time

Off – No date or time

appears on the saved image. Date – The date appears on the saved image. Date & Time – Both the date and the time of image capture appear on the saved image.

Menu Name and Description

Menu Options

Menu Option Details

Resolution

The Resolution menu allows you to choose the desired size of the images taken by your camera. Keep in mind that images with a higher resolution will also take up more of

your camera’s memory.

14M pixel resolution

4416 x 3312

12M pixel resolution

4000 x 3000

10M pixel resolution

3648 x 2736

8M pixel resolution

3264 x 2448

5M pixel resolution (Default)

2592 x 1944

3M pixel resolution

2048 x 1536

Quality

The Quality menu allows you to select the desired quality level of the images taken by your camera. Keep in mind that images with a higher image quality level will also take up more memory on your camera.

Super Fine (Default)

Fine

Normal

Displays the picture Quality setting.

Metering

The Metering setting will affect how your camera focuses when capturing an image. Depending on your selection, the camera will be more sensitive to focusing on particular

Center

Multi-spot

(Default)

Center – Averages the light

metered from the entire frame, but giving greater weight to the subject in the center.

PHOTO CAPTURE MODE MENUS

To open the Photo Capture menu options, press the MENU button while in Photo Capture Mode. The following menus appear: Resolution, Quality, Metering, White Balance, Exposure, Self-Timer, Photo Burst

areas in the display and adjust the image color and lighting accordingly.

Spot

Multi-spot – Used in

standard conditions the camera divides and adjusts the settings of the image into several zones for light metering such as complex light conditions, position of subject, brightness, background, direct light and scenes. Spot – Meters the area within the spot point frame at the center of the LCD to set the exposure on the subject in the center of the monitor.

White Balance

Auto (Default)

Automatic white balance.

Daylight

White balance selected for daylight surrounding.

Cloudy

White balance selected for cloudy surrounding.

Fluorescent

White balance selected for fluorescent surrounding.

Incandescent

(Tungsten)

White balance selected for incandescent lighting.

Exposure

The Light Exposure setting helps you control

the amount of light that enters your camera’s

lens. This setting should be adjusted when the environment is lighter or darker than normal. When the environment has more light than is needed, reduce the exposure setting (by using the negative - count) to reduce the amount of light allowed into the lens by your camera. If the environment has less light (darker) than is needed, increase the exposure setting (by using the positive + count) to increase the amount of light allowed into the lens by your camera.

±2.0

±1.0

0 (Default)

Displays selected EV± value.

Self-Timer

The Self Timer menu allows you to set a

delay between the time that the camera’s

Shutter button is pressed and the actual

OFF (Default) - no icon

OFF – The photo is taken as soon as you press the Shutter button. No icon appears on the screen.

capture of the picture. This is an optimal

feature if you don’t just want to take the

picture but would also like to be in the picture yourself. Just set the Self Timer, press the Shutter button on your camera and position yourself in front of the camera as desired.

10S

Double

2S - Set a 2-second delay

from when you press the Shutter button until the photo is taken. The 2 second Self Timer icon appears on the screen.

10S - Set a 10-second delay from when you press the Shutter button until the photo is taken. The 10 second Self Timer icon appears on the screen.

Double – Takes two self-timer photos, one after the other. The first is the 10 second Self timer setting, and immediately after the 2 second self-timer begins.

Photo Burst

When enabled, the ‘Burst Mode’ feature allows you to take rapid snapshots in a row with a single click of the Shutter button. This feature can be effective when trying to capture a particular moment in a sporting event or other scenes with quick movements.

OFF (Default) - no icon

OFF - Normal image

capture - one photo at a time (Default). No icon appears on the screen. 3 - Captures three continuous photos. 5 - Captures five continuous photos. 10 - Captures ten continuous photos.

PLAYBACK MODE MENUS

Menu Name and Description

Menu Options

Menu Option Details

Protect

Pictures and videos taken with your

camcorder can be protected or “locked” to

prevent any deletion or alteration being made to the files. First select the image you would like to protect or unprotect and then select the appropriate menu option to either lock/protect or unlock/unprotect one image or all images.

Single Protect All Unprotect All

Single - Protects/locks or

unlocks the selected image (video or photo).

Protect All - Protects/locks all images (videos and photos) saved to the memory card.

Unprotect All - Unlocks all images (videos and photos) saved to the memory card.

NOTE:

 Protected/locked

images appear with a protect/lock icon while viewing the image in Playback Mode. Images that are not locked do not display the lock icon.

 Protected/locked images

cannot be deleted. You must first unlock the image(s) and then select

the ‘Delete File’ menu

option.

Delete

Single

Single – Deletes the one

To open the Playback menu options, press the MENU button while in Playback Mode.

VIDEO AND PHOTO PLAYBACK MENUS

The following menus appear when a video or photo is selected:

Protect, Delete

While in the Playback Mode, you can delete pictures and videos from your camcorder through the ‘Delete’ menu. You can delete a single photograph / video clip, or delete all images saved to the SD card.

IMPORTANT: Keep in mind that deleting will permanently remove the selected images on your camera’s memory card.

All

selected file (photo/video).

All – Deletes all the photos and videos.

NOTE:

 Images that are

protected/locked cannot be deleted. First unlock the image(s), and then proceed with deletion.

 It is highly recommend

first to save and download your images before deleting.

Menu Name and Description

Menu Options

Menu Options Details

Power Save

You can use the ‘Power Save’ feature in order

to conserve your camcorder’s battery life. The

designated time represents when your camcorder will automatically power off. When the camcorder sits idle for the designated period of time, the camcorder will shut off completely and will need to be powered on again with the power button before the next use.

Off 1 min. 3 min. (Default) 5min.

OFF - The camcorder

remains on until you power it off. 1min - The camcorder powers off after 1 minute of sitting idle. 3min - The camcorder powers off after 3 minutes of sitting idle. 5min - The camcorder powers off after 5 minutes of sitting idle.

Screen Save

You can use the ‘Screen Save’ feature in

Off 1 min. (Default)

OFF - The camcorder

remains on and does not enter standby mode.

CAMCORDER SETTINGS MENUS

The following menus appear:

Power Save, Screen Save, Screen Rotation, Date & Time, Language, Light Frequency, System, Format

order to temporarily turn off the LCD screen in order to conserve your camcorder’s battery life. The selected time represents when your camcorder will automatically be placed into standby mode. When the camcorder sits idle for the designated period of time, the camcorder LCD screen will turn black, indicating that the camera is in standby mode. Push the OK button to reactivate the camcorder.

3 min. 5 min.

1min - The camcorder

enters standby mode after 1 minute of sitting idle. 3min - The camcorder enters standby mode after 3 minutes of sitting idle. 5min - The camcorder enters standby mode after 5 minutes of sitting idle.

Screen Rotation

The ‘Screen Rotation’ feature allows you to

flip the view on the LCD screen 180 degrees for all modes.

Off (Default) On

OFF - The scene on the

LCD screen remains normal. ON - The scene on the LCD screen is flipped upside down, 180 degrees.

Date & Time

The ‘Date & Time’ menu allows you to set

your camcorder’s date and time. This date

and time will appear on the captured images when the Date Stamp is set to be active from the Video Capture Mode menu.

YY/MM/DD HR:MIN.

To set the YY/MM/DD and Hour: Minutes:

- Press the DOWN (WI-FI) button to change each setting and specify the date and time. The selected setting goes down in the numbers each time you press the button.

- Short press the POWER/MODE button to toggle and move between each time and date setting.

- Press the Shutter/OK button to save your setting.

Language

You can select your camera’s language

setting by selecting the desired language from the Language menu.

English (Default) French Dutch Spanish Italian Portuguese German Russian

Selects the camera display language.

Light Frequency

The options in the ‘Frequency’ menu

50 HZ (Default) 60 HZ

50HZ – UK, Europe and Australia 60HZ – US, Canada and

represent the frequency of the electrical current in fluorescent lighting sources in your locale. If your camcorder is set to a frequency

that does not match your country’s electric

current, you may see waves on the images taken by your camcorder.

South America

System

The System menu allows you to reset the camcorder to the factory default settings and view camera and installed memory card information.

Factory Reset : > Yes, No

System Info. Card Info.

Factory Reset – Allows

you to reset the camera settings to the default factory settings. Select

‘YES’ to reset the

camcorder to the factory settings. System Info - Displays the camera firmware version. Card Info - Displays SD card size and current amount of free space.

Format

You can use the Format menu to delete all of

the content that is currently on your camera’s

memory card. This option will automatically delete all of the content at one time. If you would like to delete individual images, use the Delete menu in the camera’s Playback Mode. Keep in mind that formatting the memory card will permanently delete all of the content on your camera’s memory card. Please make sure you have backed up the images that you want before you proceed with the format of the memory card.

Yes

No (Default)

Formats the Micro SD Memory Card in your camera. Yes – Automatically deletes all images on the memory card. The memory card will be completely formatted No – Does not delete the images on your memory card.

Exits the ‘Format’ submenu

screen without deleting all images

PLAYBACK MODE: HDTV

Diagram of connection

Signal transmission

Connect the video camera to an HDTV with a HD cable as shown in the following figure. Display signals in the camera will output into the HDTV automatically, and you can browse HD videos and photos that are recorded or taken on the HDTV. HDMI cable sold separately.

NOTE: Before connecting or removing the HDMI cable, first stop video recording, playback and disconnect Wi-Fi.

To view your captured images on an HDTV for playback:

1. Insert the Com end of the HDMI cable to the DV, and the other end (output) to the HD input of the HDTV, as shown above.

2. In Playback Mode, short press Power/Mode button to switch between Car Mode videos, Standard videos, and photos.

3. When there are several photos or videos, press the DOWN/Wi-Fi button to select the photo or video. When a video file is selected, press the Shutter/OK button to play it, and press the Menu button to stop playing.

4. In Playback Mode, press MENU button to protect or delete the file. Press the DOWN/Wi-Fi button to switch between the protect and delete options. Press the Shutter/OK button to confirm. Press the MENU button to exit.

Wireless Remote Control

1. Power Button

2. Photo Button

3. Video Button

4. Button Indicator (Red)

5. Strap

6. Buckle

The wireless remote control allows you to power on/off the camcorder, take photos and record videos at 30m away without operating the camcorder directly, just by the press of a button.

NOTE: When pressing any button the two indicator lamps on both sides light in red simultaneously.

USING THE ACTION CAMCORDER VIA THE REMOTE CONTROL

1. Power On: Press and hold the Power button until the indicator light goes off. The camcorder will power on and the buzzer will beep once.

2. Video Capture: Once the camcorder is on, press the Video button to start recording. To stop recording, press the Video button again. The video will be saved to the camcorder’s memory card automatically.

3. Photo Capture: To take phots by remote control, press the Photo button. The photo will be saved to the camcorder’s memory card automatically.

4. Power Off: To turn off the camera, press the Power button again. The buzzer will beep once.

CHANGING THE BATTERY OF THE REMOTE CONTROL

When the battery level is low, you will need to change the battery. Open the batter cover carefully with a coin and avoid scratching the surface.

1. To change the battery, put a coin in the slot at the center of the battery cover and unscrew

the cover according to the directions marked on it.

2. Replace the old battery with the new one. Pay attention to the +/- signs.

3. Place the battery cover back on the new battery and screw the cover closed.

Camcorder Technical Specifications

Image Sensor

CMOS Sensor

Video Resolution

1080P@30fps, 720P@60fps, 720P@30fps

Photo Resolution

14M (4416x3312), 12MP(4000x3000), 10MP(3648x2736), 8MP(3264x2448), 5MP(2592x1944), 3MP (2048x1536)

File Format

H.264 MOV (Video), JPG (Photo)

External Memory

Class 6 Micro SD Memory card or higher, up to 32GB

LCD Display

Mono LCD

Lens

Fixed Wide Angle 120°

White Balance

Auto, Daylight, Cloudy, Fluorescent, Incandescent

Frequency

50Hz, 60Hz

Photo Burst (Continuous Shot)

Off (single photo), 3, 5, 10 continuous photos

Self-Timer

Off, 2 seconds, 10 seconds Double

Auto Power Off (Power Save)

Off, 1 minute, 3 minutes, 5 minutes

Language

English, French, Dutch, Spanish, Italian, Portuguese, German, Russian

Interface

USB 2.0

System Requirements for Vivitar Experience

WINDOWS XP (SP3), Vista (SP1), WINDOWS 7 or higher; MAC OSX v10.5.x or higher

Battery

1100mAH removable lithium battery

Vivitar Action Cam - Mobile Device Application

Android QR Code

iOS QR Code

The Vivitar Action Cam application allows you to use your mobile device as a remote control for your Action Camcorder. You can remotely capture photos and record videos, adjust camera settings, and preview the photos and playback the videos taken by your Acton Cam. You can also easily download the captured videos and photos from the Action Cam to your mobile device and then share these captured images online. Pictures and videos from your mobile device can also be previewed using the Vivitar Action Cam app.

MOBILE DEVICE REQUIREMENTS

 iOS: iPhone / iPad with iOS 7 or above  Android: Android phone / tablet with OS 4.3 or above

INSTALLING THE VIVITAR ACTION CAM APPLICATION

To install “Vivitar Action Cam” application on your mobile device, please follow the steps below:

1. Locate the application in the online store: Android OS devices: Search for “Vivitar Action Cam” in the Google Play Store, or scan the QR code in the manual or on the gift box to find the application. Apple iOS devices: Search for “Vivitar Action Cam” in the Apple App Store or scan the QR code in the manual or on the gift box to find the application.

2. Follow the instructions to install the “Vivitar Action Cam” application on your smartphone or tablet. When installation is complete, the LCD on your smartphone or tablet will display the “Action Cam” app icon.

CONNECTING YOUR ACTION CAM TO YOUR MOBILE DEVICE

SETTING UP THE WI-FI CONNECTION ON YOUR ACTION CAMCORDER:

1. Make sure you have installed a TF card and power on your Action Camcorder.

2. Power on your camcorder.

3. Press the Wi-Fi button on the side of the camera to enable the Wi-Fi connection.

- ‘Waiting for Wi-Fi Connection…’ first appears on the LCD screen.

- The Wi-Fi button’s red LED light blinks indicating it is searching for the Wi-Fi connection.

NOTE: The camcorder will search for the connection for one minute. After the minute has passed without the Wi-Fi connection being made between the camcorder and your mobile device, the camcorder’s Wi-Fi automatically turns off. Press the camcorder’s Wi-Fi button again when needed.

SETTING UP THE WI-FI CONNECTION ON YOUR MOBILE DEVICE:

1. Open ‘Settings’ on your mobile device and select Wi-Fi.

2. Enable Wi-Fi on your smartphone or tablet and search for the camera’s wireless AP signal: DVR794HD.

3. Tap this network name to select your action camcorder’s Wi-Fi network connection. You will be prompted for the first time to join the network and enter a password to the network. Enter password: 1234567890. When connected successfully, a check appears by the camcorder’s selected Wi-Fi network on your smartphone or tablet.

4. The camcorder’s red LED Wi-Fi light stops blinking to indicate the successful connection. The camcorder’s LCD screen displays the following details: ‘WiFi Connection Ready!’.

LAUNCH THE MOBILE DEVICE APPLICATION:

Tap the Vivitar Action Cam application icon on the Home Screen or from the App list of the smartphone or tablet to open the Vivitar Action Cam app. Now you can preview images from your phone, from your camera and use your mobile device to control the camcorder settings and capture your images.

USING THE VIVITAR ACTION CAM APPLICATION

The Vivitar Action Cam application gives you the option to connect three different Vivitar Action Camcorders to the application and to remotely record videos and photos. The Vivitar Action Cam application presents you with the following features:

(1) Home Screen, (2) Live Camera Mode (Videos and Photos), (3) Playback Mode

NOTE: After connection, only one Action Camcorder can be used with the app at a time.

1. HOME SCREEN

The Home screen allows you to connect your camera(s) and enter the Video and Photo live capture modes as per the connected and selected camcorder. You can also access your photos and videos you have captured on your mobile device from the Home screen.

HOME SCREEN OPTIONS

The following options appear on the Home screen: ADD NEW CAMERA, MEDIA ON MY PHONE, MENU

ADD NEW CAMERA - AND CONNECT

Make sure your Mobile device and your Vivitar Action Cam are connected. See

CONNECTING YOUR ACTION CAM TO YOUR MOBILE DEVICE for more information.

The top section of the Home screen shows the list of Action Camcorders – those that are connected or disconnected.

 Tap + Add New Camera to connect the camera to the app. You

are now able to control the camera with the Vivitar Action Cam app.

 Once connected, the selected camera appears as “Connected” in

blue text with a check mark in the Home screen. Tap the ‘Connected’ button to open the Video Capture Live Camera Mode and begin capturing your images remotely.

 When your camera status appears as “Disconnected” on the Home

screen, you need to reconnect your camera to the app.

CONNECTED/DISCONNECTED CAMERA OPTIONS:

- TO ADD AND USE ANOTHER CAMERA: First pair the additional camera to your mobile device (see CONNECTING YOUR

ACTION CAM TO YOUR MOBILE DEVICE for more information) and then tap + Add

New Camera. This connected camera becomes the active camera for the application.

- TO CHANGE TO A DIFFERENT CAMERA THAT HAS ALREADY BEEN ADDED BUT APPEARS AS DISCONNECTED: Connect the app to the selected camera’s Wi-Fi (via the smartphone/tablet’s Wi-Fi settings) and then open the app and tap the connected camera’s ‘Connected’ button from the Home screen. This selects the desired camera and opens the Video Capture Mode live camera using the selected camera.

- TO RECONNECT WHEN YOUR ACTION CAM STATUS APPEARS AS ‘DISCONNECTED’ ON THE APP: You need to reconnect your camera to the application. Make sure your camera’s Wi-Fi

is on. Push the camera’s Wi-Fi button to activate the Wi-Fi if needed. Go to the Wi-Fi settings on your mobile device and connect to the camera’s Wi-Fi network. The network name ‘DVR794HD’ appears – select this network. Go back to the app’s home

screen and your camera will be marked as ‘Connected’ on the main screen. See

CONNECTING YOUR ACTION CAM TO YOUR MOBILE DEVICE for more

information.

- To view the options for your added camera, both connected or disconnected camera: Long tap the button of the added camera to open the following options: Connect: Reconnects and opens the connected Action Cam Live Mode screen. Rename: Allows you to change the name of the camera displayed on the button. Delete: Removes the selected camera from the list. Cancel: Exits the menu and returns to the Home screen. NOTE: The Cancel option appears on iOS devices only.

MEDIA ON MY PHONE

The bottom section of the Home Screen displays the photos and videos you have already captured and saved on your smartphone or tablet.

- Tap Photos to open the ‘Photos’ section in the ‘Media on My Mobile Device’ screen and view your photos from your mobile device.

- Tap Videos to open the ‘Videos’ section in the ‘Media on My Mobile Device’ screen and view your videos from your mobile device.

Tap Menu on the top right of the screen to view the following information:

 About  Help (online)  User Manual (online)  License

NOTE: On some Android OS mobile devices, the Menu button does not appear as shown above. The Menu options appear when you tap the mobile device’s Menu button.

IMPORTANT - To access the online Help or User Manual:

Please make sure your mobile device is connected to a Wi-Fi network with an Internet connection. If your mobile device is not connected to the Internet via mobile data, then

please open your mobile device’s Wi-Fi settings and disconnect your mobile device from the camera’s Wi-Fi network by selecting a Wi-Fi network with an Internet connection from

the list of available networks that appears in the Wi-Fi settings list. Only then will you be able to view the online Manual and online Help. To resume using the camera after viewing the Help or Manual, reconnect to the camera’s Wi-Fi by pressing the camera’s Wi-Fi button and then selecting the camera from the Wi-Fi list on your mobile device’s Wi-Fi Settings list.

2. LIVE CAMERA MODE

No.

DISPLAY / SETTING

DESCRIPTION & ICON

BACK

iOS: Tap the Back icon to return to the Home screen. Android: Tap the back button on the phone to return to the

apps Home screen.

RECORDING TIME

TIME LEFT: Displays the time left on your

camera for capturing videos during standby mode.

ELAPSED TIME: During the recording of your

1 2

5 6

7 8

9 10

11 12

VIDEO CAPTURE MODE

After tapping and selecting your connected camera, the default mode is the Video Capture Mode. The application is in Live Camera Mode and you can now begin capturing your images.

NOTE: When you rotate your mobile device you can capture your videos in Portrait and Landscape views.

video in Regular or Slow Motion video record, the TIME LEFT changes to ELAPSED TIME, which displays the recording time and the recording signal.

VIDEO RESOLUTION SETTINGS

Displays the current selected Video Resolution. Tap the Video Resolution icon to change resolution setting. The Video Resolution settings include:

REGULAR VIDEO/SLOW MOTION VIDEO: FHD 1080P 30fps, HD 720P 60fps, HD 720P 30fps

PLAYBACK MODE

Tap the Playback Mode icon to open Playback Mode

and view thumbnails of the captured videos and photos from your camera.

CAMERA NAME

Displays the name of the connected camera.

CAMERA SETTINGS

Tap the Camera Settings icon to display the Camera

Settings options. See ‘Camera Settings’ for more details. The Camera Settings options include: Frequency, Date

Stamp. Camera information, Change Camera password, Format storage, and Time-Lapse settings (Type, Interval, Duration).

CAMERA WI-FI INDICATOR

Displays the camera’s Wi-Fi signal status.

CAMERA BATTERY LEVEL

Displays the battery level of the camera.

VIDEO FLIP SETTINGS

The Video Flip allows you to change the video capture by flipping the scene 180 degrees. Tap the Video Flip icon to toggle between the options. The Video Flip settings include:

Normal (Default)

Flip

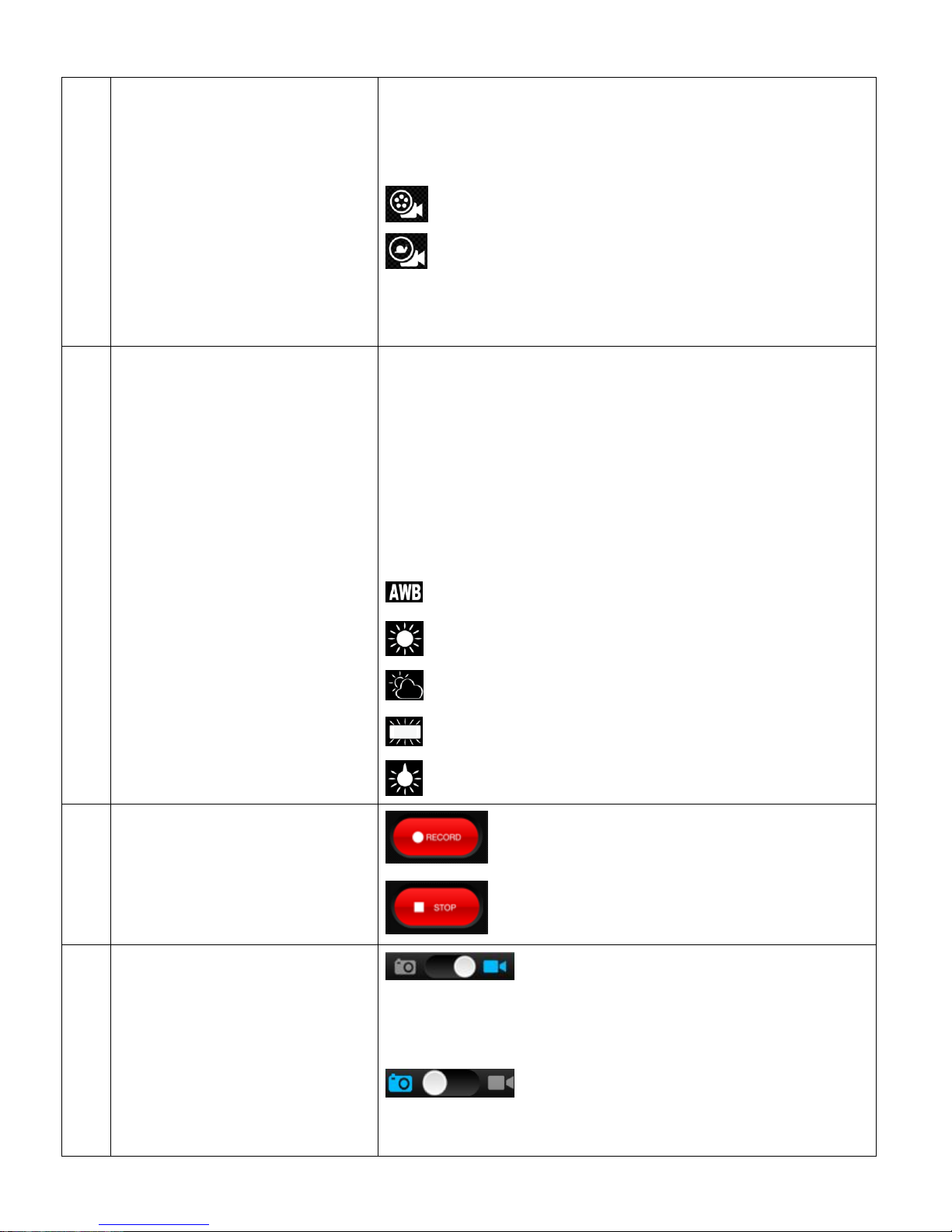

VIDEO MODE SETTINGS

The Video Mode Settings allow you to change from

Normal Video Capture to Time-Lapse Video Capture to Slow Motion Video Capture by tapping the Video Mode icon. The Video Mode settings include:

Regular Video (Default)

Slow Motion Video

NOTE: ‘REGULAR VIDEO’ or ‘SLOW MOTION’ appear on the screen as per the selected setting.

WHITE BALANCE SETTINGS

White Balance allows your camera to adjust the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Balance setting to match your current environment will allow the camera to properly balance the colors in the images that are taken with your camera. Tap the White Balance icon to open a menu that displays the list of setting options. The White Balance settings include:

AUTO

DAYLIGHT

CLOUDY

FLUORESCENT

INCANDESCENT

SHUTTER BUTTON

START AND STOP VIDEO CAPTURE

Tap the Record button to start recording a video.

Tap the Stop button to stop recording the video.

SWITCH MODES

Slide the mode indicator to the Video icon

to switch to Video Capture Mode. The default mode when launching the Vivitar Action Cam app is Video Capture Mode.

Slide the mode indicator to the Photo

icon to switch to Photo Capture Mode. NOTE: The selected Mode is shown in blue.

PHOTO CAPTURE MODE

No.

DISPLY / SETTING

DESCRIPTION & ICON

BACK

iOS: Tap the Back icon to return to the Home screen. Android: Tap the back button on the phone to return to the

apps Home screen.

PHOTOS LEFT

Displays the amount of photos available to

capture.

5 6

7 8

9 10

1 2

After tapping and selecting your connected camera, the default mode is the Video Capture Mode.

To change to Photo Capture Mode, slide the Switch Mode indicator to the Photo icon.

The application is in Live Camera Mode and you can now begin capturing your images.

NOTE: When you rotate your mobile device you can capture your photos in Portrait and Landscape views.

PHOTO RESOLUTION SETTINGS

Displays the current selected Photo Resolution. Tap the Photo Resolution icon to change the open a menu that allows you to set the Photo Resolution. The Photo Resolution settings include:

14M (4320x3240), 12M (4000x3000), 10M (3648x2736), 8M (3264x2448), 5M (2592x1944), 3M (2048x1536)

PLAYBACK MODE

Tap the Playback Mode icon to open Playback Mode

and view thumbnails of the captured videos and photos from your camera.

CAMERA NAME

Displays the name of the connected camera.

CAMERA SETTINGS

Tap the Camera Settings icon to display the Camera

Settings options. See ‘Camera Settings’ for more details. The Camera Settings options include: Frequency, Date

Stamp. Camera information, Change Camera password, Format storage, and Time-Lapse settings (Type, Interval, Duration).

CAMERA WI-FI INDICATOR

Displays the camera’s Wi-Fi signal status.

CAMERA BATTERY LEVEL

Displays the battery level of the camera.

SELF TIMER SETTINGS

Displays the current Self Timer setting.

The ‘Self Timer’ settings allows you to set a delay between

the time that the camera’s Shutter button is tapped and the

actual capture of the picture. This is an optimal feature if

you don’t just want to take the picture but would also like to

be in the picture yourself. Just set the desired Self-Timer delay, tap the Shutter button on your camera and position yourself in front of the camera as desired. Tap the Self Timer icon to open a menu and set the Self Timer setting. The Self Timer settings include:

OFF (Default)

2 seconds 10 seconds

CONTINUOUS SHOOTING/ BURST SETTINGS

Displays the current Continuous Shooting selection. Tap the Continuous shooting icon to open the menu options and set the Continuous Shooting setting. When enabled, this feature allows you to take 3, 5 or 10 rapid snapshots in a row with a single click of the shutter button. This feature can be effective when trying to capture a particular moment in a sporting event or other scenes with quick movements. The Continuous Shooting settings include:

OFF (Default, one photo is taken)

3 photos 5 Photos 10 Photos

WHITE BALANCE SETTINGS

Displays the current White Balance setting. White Balance allows your camera to adjust the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Balance setting to match your current environment will allow the camera to properly balance the colors in the images that are taken with your camera. Tap the White Balance icon to open a menu that displays the list of setting options. The White Balance settings include:

AUTO (Default)

DAYLIGHT

CLOUDY

FLUORESCENT

INCANDESCENT

SHUTTER BUTTON

Tap the Shutter button to take a picture.

SWITCH MODES

Slide the mode indicator to the Video

icon to switch to Video Capture Mode. The default mode when launching the Vivitar Action Cam app is Video Capture Mode.

Slide the mode indicator to the Photo

icon to switch to Photo Capture Mode.

NOTE: The selected Mode is shown in blue.

SETTING

DESCRIPTION

FREQUENCY

The ‘Frequency’ options represent the frequency of the electrical

current in fluorescent lighting sources in your locale. If your camera is set to a frequency that does not match your country’s electric current, you may see waves on the images taken by your camera. The Frequency options include:

50Hz – UK, Europe and Australia 60Hz – US, Canada and South America (default)

CAMERA INFORMATION

The Camera Information displays the camera model name and FW version.

FORMAT STORAGE

You can use the Format Storage to delete all of the content that is currently on your camera’s memory card. Keep in mind that formatting the memory card will permanently delete all of the content on your camera’s memory card. This option will delete all of the content at one time. If you would like to delete individual images, use the delete option in the Playback mode. Please ensure you have backed up your images before you attempt this. The Format Camera options include:

- OK: To format the camera’s memory card tap OK. All captured images will be deleted.

- CANCEL: To exit without formatting the memory card, tap Cancel.

LIVE CAPTURE MODE: CAMERA SETTINGS

Tap the Camera Settings icon to access your Action Camcorder settings.

3. PLAYBACK MODE

The Vivitar Action Cam application can playback the following captured media:  Media on Your Camera:

The media captured using your Vivitar Action Cam and saved to your camera’s memory card.

 Media on Your Mobile Device:

Media captured using your smartphone/tablet and saved to your mobile device.

MEDIA ON ‘MY CAMERA (CAMERA NAME APPEARS)’

The photos and videos that have been saved to the camera’s micro SD Memory Card, either from being captured using the Vivitar Action Cam application or the media you have previously captured using your camera can be viewed, deleted, downloaded or shared in Playback Mode.

Tap the Playback icon in the Live Camera Mode to open the Media on ‘My Camera’ screen.

PHOTOS

Select the Photos tab on the top of the screen to view the photos on your camera’s Memory Card. Your captured photos are shown in Thumbnail view, with the latest captured photo at the top. The photos can be downloaded to your mobile device, shared or deleted.

FULL SCREEN VIEW: View Photo

1. VIEW FULL SCREEN: Tap on a photo to view it in full screen mode. When you rotate your mobile device, the captured photos can be displayed in Portrait or Landscape view.

2. NEXT/PREVIOUS:  To continue viewing other photos also in full screen mode swipe left or right to see

the next or previous photos.

NOTE: On iOS

- Alternatively, tap the Previous and Next buttons on the bottom of the screen.

- Short tap the screen to view the full screen without the display of image information and icons. Tap again to redisplay the onscreen icons and information.

3. DELETE (Single Photo):

 To delete a single image tap the Delete icon.  Tap on the ‘Delete’ (iOS) or ‘Confirm’ (Android) option to delete the photo or tap

‘Cancel’ to keep the photo. This option deletes one photo at a time.

4. SHARE/DOWNLOAD (single image):  Tap the Share/Download icon to download and save the image or share the image

via mail, message or other options as per your installed mobile apps. This share option allows you to share one photo at a time.

NOTE: Android mobile devices can download the file to your mobile device, but do not include the Share options in this view.

5. EXIT FULL SCREEN VIEW: To return to the Thumbnail view of all your captured images, tap the Back button.

THUMBNAIL VIEW: View Photos

In Thumbnail View you can select a photo or photos to be deleted from your memory card, or downloaded to your mobile device.

1. To Select Photos: SELECT (single or multiple photos):

 To select a photo tap and hold the thumbnail image.  The thumbnail appears with a blue box around it indicating that the image is

selected.

 You can short tap other photos to add to the selection of images.  The ‘Delete’, ‘Download’ and ‘Cancel (iOS) /  (Deselect – Android)’ options

appear above the thumbnail images.

2. To Delete Photos:

DELETE (single or multiple photos):

 Select the desired thumbnail image(s).

 Tap the Delete icon.  Tap on the ‘Confirm Delete / Confirm’ option to delete the selected photo(s) or tap

‘Cancel’ to exit the menu without deleting.

3. To Download Photos:

DOWNLOAD (single or multiple photos):

 Select the desired thumbnail image(s).

 Tap the Download icon.  On iOS: A window appears and displays the total number of files, the download

time, and the total size of the download. On Android: A window appears asking if you are sure you want to download.

 Tap on the ‘Confirm download / Confirm’ option to download the selected

photo(s) or tap ‘Cancel’ to exit the menu without downloading. Once the files are successfully downloaded a ‘Download Complete’ window appears.

4. To Cancel the Thumbnail View Selection:

CANCEL:

Tap ‘Cancel’ (iOS) or tap the Check Mark ‘’ (Android) to return to the Thumbnail View. All selected images will appear deselected in the Thumbnail View.

VIDEOS

Select the Videos tab on the top of the screen to view the video files saved to your camera’s Memory Card. Your captured videos are shown in Thumbnail view, with the latest captured video at the top. The videos can be downloaded to your mobile device or deleted.

IMPORTANT NOTE: VIDEO STREAMING NOT SUPPORTED

The videos saved on your camera’s memory card cannot be played using the Vivitar Action Cam (Android and iOS). To play a video, please first download the selected video file(s) to your mobile device or to your computer and then play the video. Please see the following sections in the manual for details how to download: ‘Thumbnail View:

Videos > To download videos’, and ‘GETTING VIDEOS AND PHOTOS FROM THE CAMCORDER TO THE COMPUTER’.

THUMBNAIL VIEW: Videos

In Thumbnail View the selected video(s) can be downloaded to your mobile device or deleted from your memory card.

1. To Select Videos: SELECT (single or multiple videos):

 To select a video, tap and hold the thumbnail image.  The thumbnail appears with a blue box around it indicating that the image is

selected.

 You can short tap other videos to add files to the selection. The ‘Delete’,

‘Download’ and ‘Cancel (iOS) /  (Deselect – Android)’ options appear above the

thumbnail images.

2. To Delete Videos: DELETE (single or multiple videos):

 Select the desired thumbnail image(s).  Tap the Delete icon.

 Tap on the ‘Confirm Delete / Confirm’ option to delete the selected video(s) or tap

‘Cancel’ to keep the exit the menu without deleting.

3. To Download Videos:

DOWNLOAD (single or multiple videos):

 Select the desired thumbnail image(s).

 Tap the Download icon.  On iOS: A window appears and displays the total number of files, the download

time, and the total size of the download. On Android: A window appears asking if you are sure you want to download.

 Tap on the ‘Confirm download / Confirm’ option to download the selected video(s)

or tap ‘Cancel’ to exit the menu without downloading. Once the files are successfully downloaded a ‘Download Complete’ window appears.

IMPORTANT NOTE: ON ANDROID ONLY

DOWNLOADED VIDEOS: .MOV VIDEO FILE FORMAT > VIDEO PLAYBACK In some Android mobile devices, the .MOV file types after being downloaded from your camera’s memory card to your mobile device may not appear in the mobile device’s Gallery. Please note that the files are saved to the following directory on the mobile device: Primary/ActionCam. The downloaded .MOV video saved to your mobile device may not playback using the Vivitar Action Cam app or the native Android video player. If this is the case, you can download a third party Android app from the Play Store that supports .MOV video format. Then you can playback the downloaded .MOV videos via your mobile device and via the Vivitar Action Cam app.

4. To Cancel the Thumbnail View Selection:

CANCEL:

Tap ‘Cancel’ (iOS) or tap the Check Mark ‘’ (Android) to return to the Thumbnail View. All selected images will appear deselected in the Thumbnail View.

MEDIA ON MY PHONE (NAME OF YOUR MOBILE DEVICE)

Tap on Photos or Videos from the Home screen to open the Media on My Phone screen to view the photos and videos saved on your mobile device.

PHOTOS

Select the Photos tab to view the photos on your mobile device. The following options appear in the Thumbnail view:

 THUMBS VIEW: Tap Thumbs to view thumbnails of the photos on your mobile device.

This is the default view when selecting ‘Photos’ from the Home screen.

 ALBUMS VIEW: Tap Albums to open the Albums list view.

The Thumbs View and Albums View include the following options:

 FULL SCREEN VIEW: Tap on a thumbnail image of a photo to see it in full screen.

 (iOS) /  (Android) SLIDESHOW: Tap, hold and select photo(s), then tap Slideshow or

the Slideshow icon to run a slideshow of the selected photos.

 SHARE: Tap, hold and select photo(s), then tap Share to view share options. Select one

of the options and follow the prompts to share photos. NOTE: You may be prompted to login to the selected Share option.

1) THUMBNAIL VIEW: Photos

In Thumbnail View you can select a single photo or multiple photos to be shared or view your selected photos as a Slideshow.

1. To Select Photos: SELECT PHOTO(S):

 To select a photo tap and hold the thumbnail image.  The thumbnail appears with a blue box around it indicating that the image is

selected.

 You can short tap other photos to add to the selection of images.  The ‘Slideshow’, ‘Share’ and ‘X (Cancel - iOS) /  (Cancel, Deselect - Android)’

options appear by the thumbnail images.

2. To View Photo Slideshow: SLIDESHOW:

 Select the desired thumbnail images.

 Tap the (iOS) /  (Android) Slideshow icon.  The photos will then begin to be displayed as a looping Slideshow on you mobile

device.

 Tap the Stop button then Cancel (iOS) or the Back (Android) button to stop

the Slideshow.

3. To Share Photos: SHARE (single or multiple photos):

 Select the desired thumbnail image(s) from the Thumbnail View.  Tap the Share icon.

 A window appears and displays the total number of selected files, and a list of the

social networks options such as Facebook, Twitter, Flickr, and Google+.

 Tap one of the applications options to select it and then tap OK (iOS) or Upload

(Android) to continue or Cancel to exit the Share options window. NOTE:

- Make sure your mobile device is connected to a Wi-Fi network with an Internet connection.

- If you have an account, you may be prompted to login to the selected Share option.

- If you do not have an account in the selected social network, you will be prompted

to add or create an account. Continue as instructed to complete the creation of your account.

4. To Cancel the Thumbnail View Selection: CANCEL:

Tap ‘X’ (iOS) or ‘’ (Android) to deselect the selected photo(s) in the Thumbnail View.

2) ALBUMS VIEW: Photos

 Tap Albums to open the Albums list view.  A list of albums appears.  Each album is shown with a thumbnail photo image, album name and amount of

pictures in the album.

 Tap on a specific album to view thumbnails of all the photos in the album. These photos

can be selected and displayed as a Slideshow or shared.

NOTE: See the above section ‘THUMBNAIL VIEW: Photos’ for information regarding

how to select photos, view the Slideshow and share your photos.

 Tap Back to return to the Albums list view.

VIDEOS

Select the Videos tab to view and playback the videos on your mobile device. The following options appear in the Thumbnail view:

 THUMBS VIEW: Tap Thumbs to view thumbnails of the videos on your mobile device.

 PLAYLIST VIEW: Tap Playlists, then tap on a Playlist to view thumbnails of the videos in

the Playlist.

The Thumbs View and Playlists View include the following options:  VIEW FULL SCREEN AND PLAYBACK VIDEO: Tap on a video to open and playback in full

screen mode. Tap the screen to show or hide video player controls.

 Share: Tap, hold and select video (only one vide can be selected at a time), then tap

Share to view share options. Select one of the options and follow the prompts to share the

video.

NOTE: You may be prompted to login to the selected Share option.

THUMBNAIL VIEW: Videos

In Thumbnail View you can playback a selected video or share your selected video.

1. To Play Your Video:

PLAY VIDEO:

 Tap on a video thumbnail to view it in full screen mode.  The selected video automatically begins to play in full screen.

Use the onscreen controls to play, pause, rewind, fast forward and stop the playing video.

NOTE: You can rotate your mobile device to watch the Video Playback in Landscape or Portrait views.

 To exit the Playback view and return to the Thumbnail view tap Done (iOS) or the

Back button (Android).

IMPORTANT NOTE: ON ANDROID MOBILE DEVICES ONLY

VIDEO PLAYBACK OF .MOV FORMAT FILES ONLY: If you have videos with the .MOV file format saved on your mobile device (including videos downloaded from your Action Cam) please note the following: In some mobile devices, the .MOV file types may not appear in the mobile device’s Gallery. The files are saved to the following directory on the phone: Primary/ActionCam. The downloaded video saved to your mobile device in some instances may not playback using the Vivitar Action Cam app or the native Android video player. If this is the case with your mobile device, you can first download from the Play Store a third party Android app that supports .MOV file format and then playback the .MOV videos from your mobile device or from the Vivitar Action Cam app.

2. To Select a Video: SELECT VIDEO:

 To select a video, tap and hold the thumbnail image.  The thumbnail appears with a blue box around it indicating that the image is

selected. Only one image can be selected.

 The ‘Share’ and ‘X’ (iOS) or ‘’ (Android) Cancel/Deselect and Delete (Android

only) options appear by the thumbnail images.

3. To Share Videos: SHARE (single video):

 Long tap a thumbnail to select it from the Thumbnail View.  Tap the Share icon.

 A window appears and displays the total number of selected files, and a list of the

social networks options such as Facebook, Flickr, YouTube and Vimeo.

 Tap one of the applications options to select it and then tap ‘OK’ (iOS) or ‘Upload’

(Android) to continue or ‘Cancel’ to exit the Share options window. NOTE:

- Make sure your mobile device is connected to a Wi-Fi network with an Internet connection.

- If you have an account, you may be prompted to login to the selected Share

option.

- If you do not have an account in the selected social network, you will be prompted

to add or create an account. Continue as instructed to complete the creation of your account.

 To deselect the selected video, tap ‘X’ (iOS) or ‘’ (Android).

PLAYLISTS VIEW: Videos

 Tap Playlists to open the Playlists view.  A list of albums appears.  Each Playlist is shown with a thumbnail photo image, playlist name and number of

videos in the playlist.

 Tap on a specific playlist to view thumbnails of all the videos in the playlist. The videos

can be played and shared.

NOTE: See the above section ‘THUMBNAIL VIEW: Videos’ for information regarding

how to select videos, playback the video and share your videos.

 Tap Back to return to the Albums list view.

Vivitar Experience Image Manager Software

COMPUTER SYSTEM REQUIREMENTS

To be able to download videos and photos to your computer using the ‘Vivitar Experience Image Manager’ Software, you will need the following minimum configuration:

WINDOWS OS

 MICROSOFT® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or

Windows 7

 Pentium® 4 processor (or above)

 1 GB RAM, 250 MB available hard disk space

 16-bit Color monitor, 1024 X 768 recommended screen resolution  CD-ROM Drive  QuickTime® 6 or higher  MICROSOFT ® Internet Explorer 7 or higher  Windows Media Player 10 or higher  DirectX 9 or higher

 Internet connection required

MACINTOSH OS

 Intel processor running MACINTOSH OS X v10.5.x or later  1 GB RAM, 250 MB available hard disk space  Display: 1024 x 768 or higher-resolution monitor  QuickTime® 6 or higher  CD-ROM Drive  Internet connection required

NOTE: Make sure the latest compatible Adobe® Flash® Player is installed on your computer.

INSTALLING THE SOFTWARE – USING THE CD ROM

You must be connected to the Internet to install and run the Vivitar Experience Image Manager Software.

1. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open.

2. On WINDOWS OS: The Vivitar Experience Image Manager Installer window appears. If the

window does not appear, open the application’s CD/DVD drive and click on “Setup.exe” to

launch the installer.

3. On MACINTOSH OS: Click the icon that appears on the desktop to install the Vivitar Experience Image Manager.

4. If you do not have Internet access at the time of inserting the CD-ROM, connect to the Internet and then click the “Install Vivitar Experience Image Manager” button to begin the installation.

NOTE: If you do not have Internet access, you can still download media from the camcorder. Click the “How to transfer photos and videos from my camera to my computer” button for instructions.

5. If you have Internet access, the “Choose your language” window opens, choose your language and click “Next” to open the next window.

6. Select your camera model from the list and click “Next” to open the next window.

7. Click “Next” to confirm your camera model selection and to install the application.

8. Please wait while the application is being installed on your computer.

9. Please review the license terms. On WINDOWS OS and Macintosh: Click the “I accept the terms of this license agreement” and then click “Next” to continue.

10. On WINDOWS OS only: Let the “Vivitar Experience Image Manager” installer create the folder to where the program will be installed, and then click “Install”.

11. Please wait while the application continues the installation process on your computer. On MACINTOSH OS: If needed, please follow instructions to install the Adobe® Flash® Player. This requires Internet connection.

12. On WINDOWS OS: Click the “Close” button when the installation is complete. Click the “Launch Vivitar Experience Image Manager” to open the application. On MACINTOSH OS: Click the “Quit” button when the installation is complete. Click the “Launch Vivitar Experience Image Manager” to open the application.

13. If you close the application you can run the Vivitar Experience Image Manager from the Programs (PC) or Applications (Mac) menu on your computer.

INSTALLING THE SOFTWARE – USING THE ONLINE LINK

The Vivitar Experience Image Manager Software can also be downloaded and installed via the following online links:

WINDOWS OS: http://tinyurl.com/viviwin MAC OS: http://tinyurl.com/vivimac

1. Enter the appropriate URL (shown above) into a web browser on your computer.

2. The file for installing the software automatically begins to download to your computer. Please note that the web page appears empty, however the download automatically begins.

3. Locate the downloaded application files on your computer’s ‘Downloads’ folder once the download is complete: On WINDOWS OS the file name is: vivitargeneric_win.exe ON MAC OS in file name is: vivitargeneric_mac.pkg

4. Double click on the downloaded application file to install the Vivitar Experience Image Manager Software.

5. Follow all instructions

6. Once installation is complete, the Vivitar Experience Image Manager opens automatically.

CONNECTING THE CAMCORDER TO THE COMPUTER

1. Use the supplied USB cable to connect your camcorder to your computer.

2. Power the camcorder ON if it does not turn on automatically upon the connection to the computer.

3. The first time you connect the device to the computer you may have to wait a few seconds until the computer recognizes the device.

GETTING VIDEOS AND PHOTOS FROM THE CAMCORDER TO THE COMPUTER

The Micro SD Memory card needs to be inserted. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

1. Select the “Get Images” button from the Main menu.

2. The “Get media from device” window opens.

3. You can select to download photos, videos or both.

4. Select your camera (removable disk) from the device window. If your camera is the only USB device connected then it will be selected automatically.

5. Select a location on the computer where to place the new photo and video files.

6. Add the new photo and video files to albums if desired.

7. Select to remove the media files from the selected device (removable disk) after the import.

8. Click the “Get Media” button to transfer the files from your camera to your computer.

9. A media download progress bar appears on the bottom left showing the number of media files downloading to your computer. A message appears when the download is complete.

10. The photo and video files that you selected are now downloaded to your computer to the selected folder ready for your use.

GETTING STARTED!

Using the Vivitar Experience Image Manager you can:  Upload and manage videos to and from the most popular photo sharing and social networking

sites - Facebook, Flickr, Picasa, MySpace, Photobucket, Twitter, and YouTube

 Seamlessly transfer photos and videos from one social network to another  Organize your images by creating offline and online albums  Edit images using automatic and manual tools  Use automatic “Geotagging” with built in Google Maps

For more details on how to use the Vivitar Experience Image Manager open the Help file or click the “Take a Tour” button on the application’s Home screen.

TRANSFERRING IMAGES MANUALLY FROM THE CAMCORDER TO THE COMPUTER

WINDOWS OS

1. Use the supplied USB cable to connect your camcorder to your computer’s USB port.

2. Power on the camcorder.

3. A window appears on your computer with a list of options, select “Open folder to view files” and click ‘OK’.

4. Open the DCIM folder and the folder inside to view the media files.

5. Select the media and copy the files from this folder into your computer. Optionally, select the files and choose ‘Copy’ from the Edit menu. Then select a folder and choose ‘Paste’ from the Edit menu.

6. We recommend that you copy the photos into the Pictures/My Pictures folder and the videos into the Videos/My Videos folder.

7. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

MACINTOSH OS

1. Use the supplied USB cable to connect your camcorder to your computer’s USB port.

2. Power on the camcorder.

3. The camcorder’s device icon appears on the desktop.

4. Click on the device icon and open the DCIM folder and the folder inside to view the media files.

5. Select the files and drag them into your computer. Optionally, select the files and choose ‘Copy’ from the Finder’s Edit menu. Then select a folder and choose ‘Paste’ from the Edit menu.

6. We recommend that you copy the photos into the Pictures folder and the videos into the Movies folder.

7. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

TRANSFERRING PHOTOS AND VIDEOS: APPLE IPAD

NOTE: Please check your device packaging for compatibility with the iPad.

APPLE IPAD CAMERA CONNECTION:

For models that are compatible with the iPad, photos and videos can be imported from your digital camcorder to your iPad by following either one of the options below:

1. Connecting your digital camcorder to your iPad using an iPad Camera Connector: Plug the Camera Connector into the dock connector port on your iPad, then attach your digital camcorder using a USB cable (included) to the Camera Connector.

NOTE: iPad Camera Connector not included. This may be purchased separately.

2. Using an iPad SD Card Reader: Connect the SD Card Reader to your iPad, then insert your digital camcorder's Micro SD Memory card into the slot to import photos and videos directly from your camera's SD card.

NOTE: iPad SD Card Reader not included. This may be purchased separately. After you make the connection, your iPad automatically opens the Photos application. This allows you choose which photos and videos to import, then organizes them into albums.

Camcorder Maintenance

Please read the information below carefully before using your camcorder for proper and safe operation, so as to use the camcorder to its fullest and maintain its performance.

MEMORY CARD MAINTENANCE

 For the first time of using a new memory card, or when there is unrecognized data for the

camera or images with other cameras in the memory card, please make sure to firstly format the memory card. Note: Please back up the data if the memory card inside has been previously used. After that, format the memory card of this video camera.

 Please power the camera off before plugging in or taking out the memory card.  Keep the memory card clean and prevent it from contacting liquid. In case of liquid contacted,

clean and dry it with a piece of soft cloth.

 In case of idle use, please keep the memory card in a guard staple.  Please note that the memory card will get hot after long-term use. This is normal.  It is recommended to backup the important data from your memory card to other media such

as soft disk, hard disk or CD.

 To ensure image quality, minimum Class 6 High-Speed card is needed.  The following situations may cause loss or damage of the data on your memory card:

1. Improper use of the memory card.

2. The memory card has been bent, dropped or collided.

3. The memory card has been placed under high temperature or moist environment or expose to sunshine directly.

4. Electrostatic or electromagnetic field exists around the memory card.

5. The memory card has been taken out or the power supply interrupted while the camera or computer is connected to the memory card (i.e. during reading, writing and formatting).

6. Taking out the memory card while powering off, while recording, deleting (formatting) or reading.

7. Do not touch the metal contact surface of the memory card with fingers or metal materials.

8. The service life of the memory card has expired (please replace the memory card regularly).

DEVICE MAINTENANCE

 Take good care of the video camera and prevent water or sand particles from entering the

video camera when it is used on the beach or near water. Please note that water, sand particles, dust or component containing salt may damage the video camera.

 Use the camera with the waterproof case when needed.  Keep the video camera free of dust and chemical materials. Place it in a cool, dry and well

ventilated place. Do not place the video camera in a high temperature, moist or dusty place.

 If dirt or stains accumulate on the video camera or on its lens, use a soft, clean and dry rag to

wipe it away gently. If the video camera or its lens is stained with sand particles, blow them away gently. Do not use cloth to wipe arbitrarily. Otherwise, it may scratch the surface of video camera or its lens.

 Do not touch the lens surface with fingers.  If it is required to clean the camera surface, first blow away the sand dust accumulated on the

surface, and then wipe the camera gently with a rag or tissue appropriate for optical equipment. Please use a cleaning agent specifically for a video camera when wiping if necessary. Do not use organic solvent to clean the video camera.

 The digital camcorder is a delicate device:

1. Please handle your camcorder with care to avoid damaging it.

2. Do not expose your camcorder to heat sources.

3. Do not use you camcorder in wet or moist conditions without the waterproof casing.

4. Use proper protective cover to avoid lens and display from being scratched.

Troubleshooting

CAMCORDER

Q: Micro SD card is not working.

- Make sure the Micro SD memory card is inserted correctly into the camcorder’s memory slot. Push the Micro SD memory card into the slot unit you hear a slight clicking sound which means the Micro SD memory card is inserted properly.

- Make sure that you are using a Class 6 or higher Micro SD car (up to 32GB).

- Make sure there is room on the Micro SD memory card for additional pictures. If the memory card is full, additional pictures cannot be saved to the card.

Q: Pictures out of focus.

- Make sure you have sufficient lighting for every shot you take. The photo may come out blurry and/or underexposed if there is not enough light.

- Stability while taking the shot will also largely determine the quality of the pictures taken. Please take pictures with steady hands and do not move them until after you hear the Shutter sound.

- Always keep a steady hand when taking photos. If possible use the supplied shield or waterproof casing and attach your camera to the helmet mount.

Q: I get a FILE ERROR when deleting the images. How do I fix this issue?

Typically, this sort of error occurs when there are files on your Micro SD memory card that are not supported by your camera. To avoid getting this error message, copy all files and folders on your memory card to your computer or any other mass storage device, and then delete them off of your memory card before inserting it in your camera. You may also try formatting your memory card before inserting it in your camera, but please note that this will permanently delete all files currently stored on the memory card. For best results, we recommend using a separate Micro SD card exclusively with your camcorder.

Q: When scrolling through my pictures and videos in the camcorder’s Playback Mode, my screen freezes. How do I fix this?

This often happens when your Micro SD memory card has other files stored in it that are not supported by the camera. To fix the problem:

1. Transfer the other files/folders to your computer or to another storage device and then delete them from your Micro SD memory card.

2. Power off the camcorder. Take out the Micro SD memory card and reinsert the Micro SD memory card into the camcorder.

3. For best results, it is recommended using a separate Class 6 or higher Micro SD memory card exclusively for your camcorder.

Q: When I open/close Wi-Fi or finish recording, my camcorder freezes.

This often happens when you finish recording and the camcorder has not yet finished saving the large video file to your memory card. To fix the problem:

1. Use a Class 6 or higher Micro SD memory card to make sure the video can be saved to your memory card efficiently.

2. When you want to change modes or open/close Wi-Fi, double check the camcorder’s status

first. The status icons flicker when in use and stop flickering when the camcorder’s action has

been completed.

VIVITAR EXPERIENCE IMAGE MANAGER

Q: I have taken photos and selected the “Get Images” button. I get a message that the images were successfully transferred but the photos do not appear on my computer. What do I do?

First ensure that you have in fact taken photos. Press the Shutter button to take some sample photos and then try downloading them again. With test photos, if the camera's power is off before you upload them to the computer, the photos

are not stored in the camera’s memory. These photos should be uploaded quickly before the

camera's power is off. If the photos are saved to the SD memory card, then all the photos should appear.

Q: How do I make sure I don't lose important pictures?

This camera requires an SD card for normal use. If the camera's power is off, nothing will happen to the images stored on the SD memory card. We recommend always downloading your photos to your computer as soon as possible to prevent unintentional data loss.

Q: I deleted images using the Vivitar Experience™ Image Manager. The images were also

deleted from my computer. How do I recover images that I accidently deleted?

All images deleted using the Vivitar Experience™ Image Manager are sent to your computer’s

Recycle or Trash Bin and can be retrieved from there.

Sakar Warranty Card

Sakar US Sakar International Attention: Service Department 195 Carter Drive Edison, NJ 08817

Sakar UK/Europe Attention: Service Department 2D, Siskin Parkway East 4020 Middlemarch Business Park Coventry, CV3 4SU

Sakar Australia Return faulty camera to the Refund Counter at the store where purchased

This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship will be repaired at no charge for parts or labor for a period of one year from the time of purchase.

What Is Not Covered By Warranty:

Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident.

What to Do When Service Is Required:

When returning your defective product (postage pre-paid) for service, your package should include:

1. Copy of original bill of sale.

2. A detailed written description of the problem.

3. Your return address and telephone number (Daytime).

MAIL TO ADDRESS BELOW:

Technical Support

For technical support issues please visit our website at www.vivitar.com. You can find manuals, software and FAQ’s at the website. Can’t find what you are looking for? E-mail us at

support@vivitar.com and one of our technical support team members will answer your

questions. For phone support in the US please call 1-800-592-9541, in the UK call 0800 917 4831, in Australia call 1800-006-614. If you would like to call from anywhere else, please visit

www.vivitar.com for your local toll free number.

DVR794HDv4_1.0_130316-TA_FW_VER:00.01.09

Vivitar DVR 794HDv4, DVR 794SHD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
