Vivitar DVR 787HD User Manual
DVR 787HD
Full HD Action Camcorder
User Manual
© 2009-2013 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.
1
Contents
Introduction .................................................................................................................................. 2
What’s Included ............................................................................................................................ 3
Parts of the Camcorder ................................................................................................................ 4
Initial Camcorder Setup ................................................................................................................ 5
Main Camcorder Modes ............................................................................................................... 9
Camcorder Technical Specifications ........................................................................................... 10
Camcorder Mounts and Accessories ........................................................................................... 11
Powering On Your Camcorder .................................................................................................... 13
Changing Camcorder Mode ....................................................................................................... 13
Video Capture Mode .................................................................................................................. 15
Vehicle Mounted Video Capture Mode ....................................................................................... 17
Photo Capture Mode .................................................................................................................. 19
Playback Mode ........................................................................................................................... 21
Computer System Requirements ............................................................................................... 24
Installing the Software ................................................................................................................ 25
Connecting the Camcorder to the Computer .............................................................................. 26
Getting Videos from the Camcorder to the Computer ................................................................ 27
Getting Started! .......................................................................................................................... 28
Transferring Images Manually from the Camcorder to the Computer ......................................... 28
Connecting to a High Definition TV ............................................................................................ 30
Using the Remote Control .......................................................................................................... 31
Camcorder Maintenance ............................................................................................................ 32
Sakar Warranty Card .................................................................................................................. 34
Technical Support ....................................................................................................................... 35
Troubleshooting .......................................................................................................................... 35
2
Introduction
Thank you for purchasing this Full HD Digital Action Camcorder. Everything you need to take high
definition digital videos and photos is included with your camcorder.
Your digital camera supports H.264 HD video format and creates sharp photos. The unique,
ultraportable camera design is adapted specifically for this camera and can be used to capture
special moments in many different environments.
Vivitar makes capturing those special moments as easy as possible.
Please read this manual carefully first in order to get the most out of your digital camcorder.
NOTE:
Your digital action camcorder supports a Class 4 or higher Micro SD card with a capacity
expansion up to 32GB.
In order to use your digital action camcorder normally, please insert the Micro SD Memory
card before use.
Micro SD Memory cards are not included and need to be purchased separately.
This camera is a plug and play device. You can download the pictures and videos without
the software by directly accessing the memory card from your computer. We would

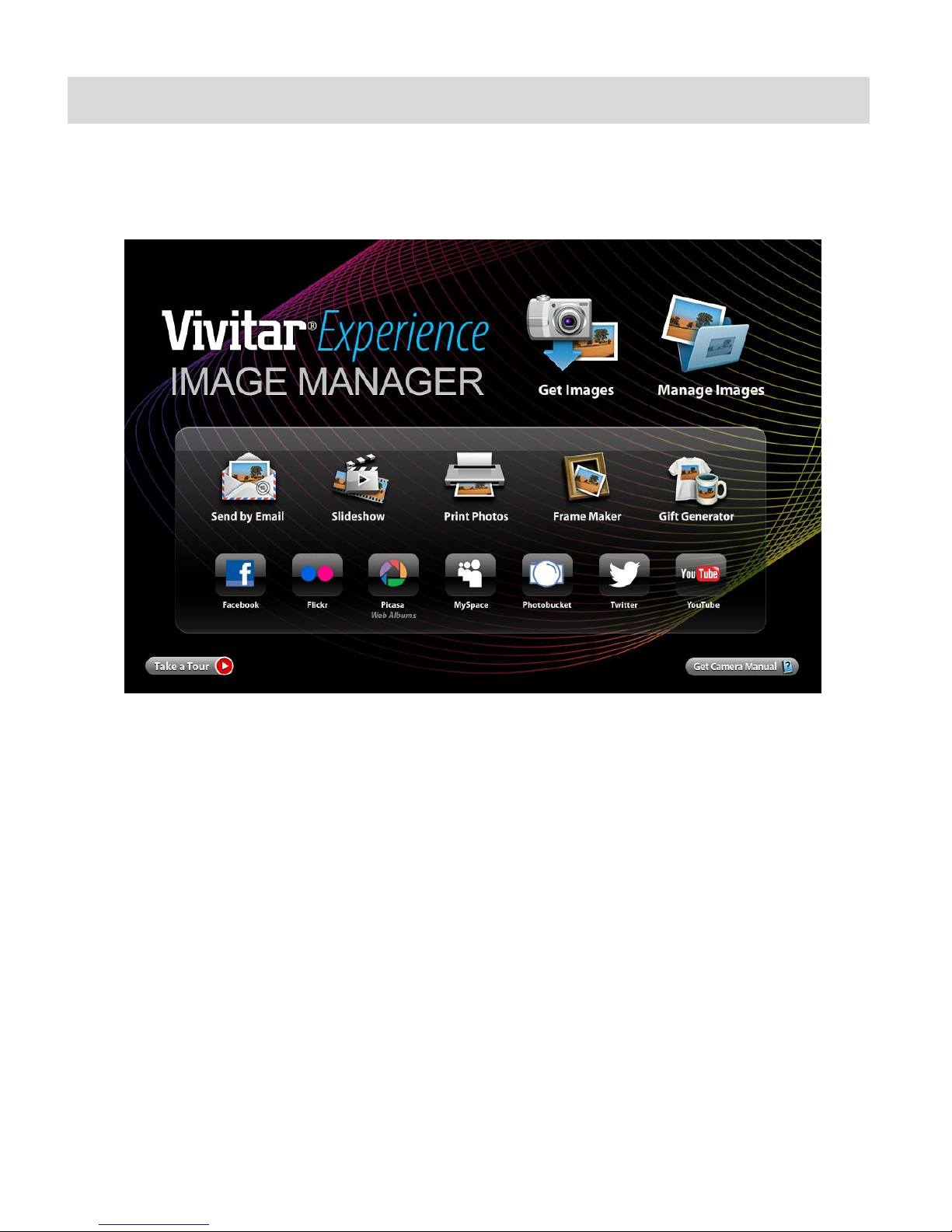

however recommend that you install the Vivitar Experience Image Manager software to
enjoy the full Vivitar experience.
3
What’s Included
1. Digital Camcorder

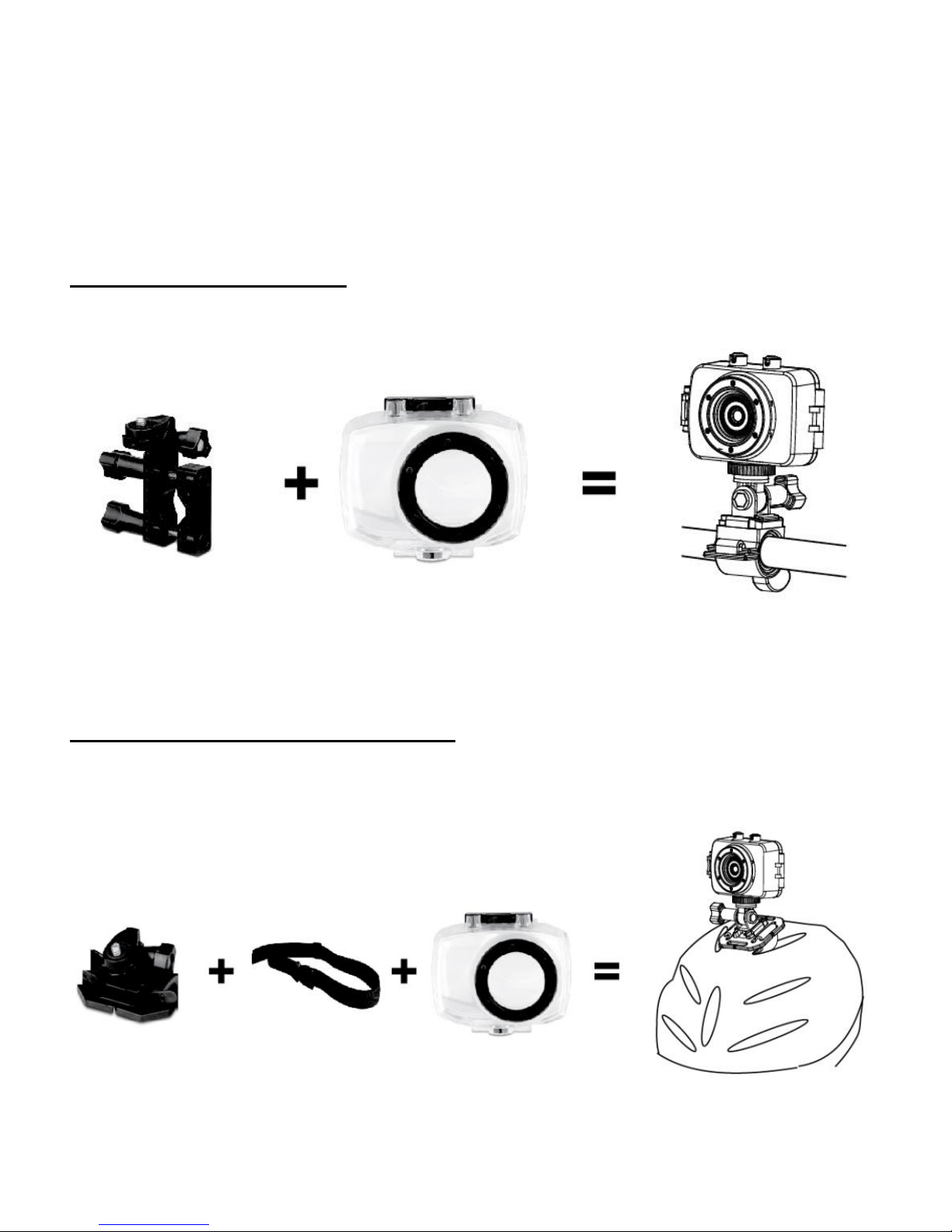

6. Helmet Mount
2. USB Cable
7. Helmet Band
3. AC Adapter
8. Waterproof Casing
4. Vivitar Experience Installation CD
9. Remote Control
5. Bicycle Mount
NOTE:
Built-in Lithium Battery included (not shown).
Micro SD Card not included.
4

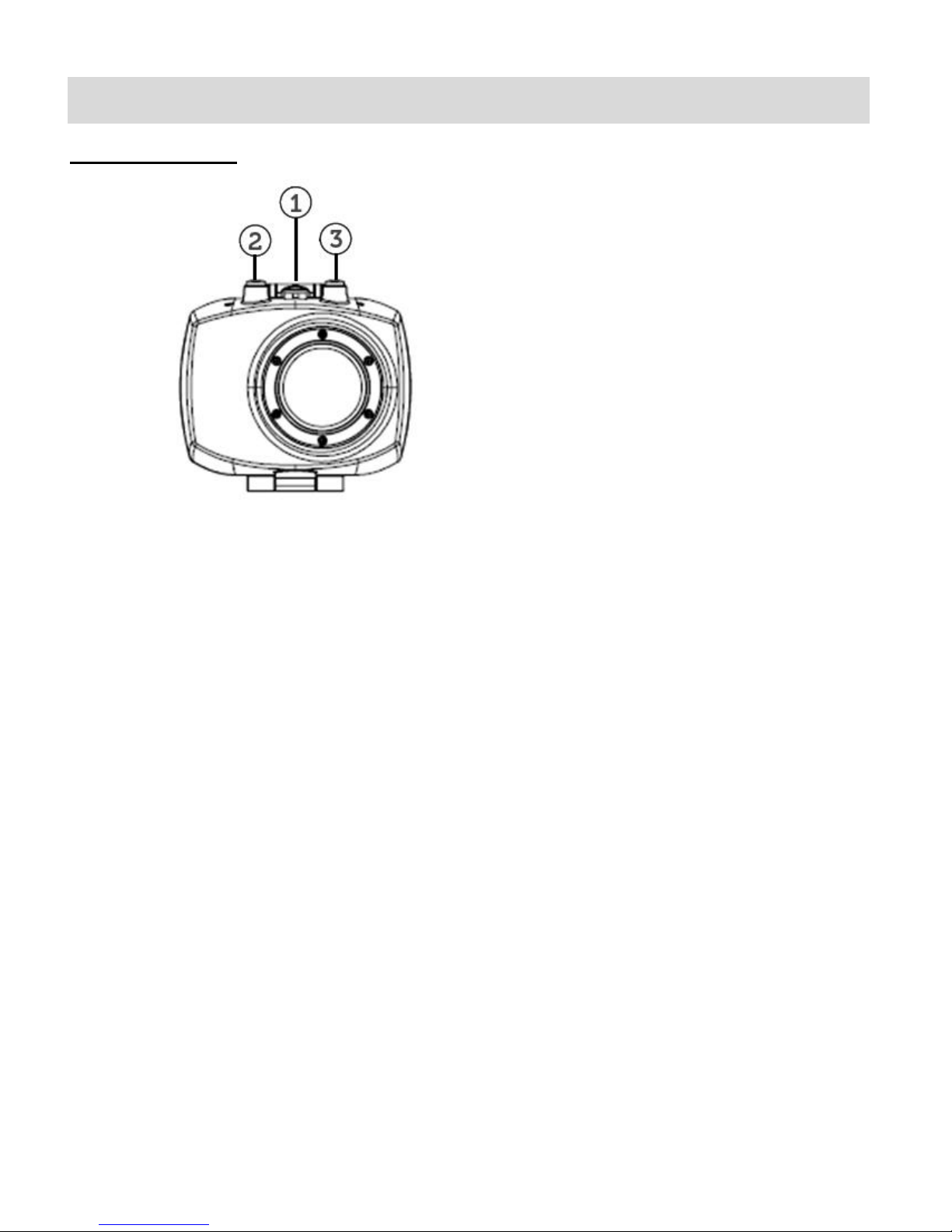

Parts of the Camcorder
1.
Screen Indicator Light
9.
Infrared Light
2.
Display Button
10.
HDMI Out Port
3.
LCD Touch Screen
11.
Lens
4.
Micro SD Memory Card Slot
12.
USB Interface
5.
Reset Button (behind the USB Cover)
13.
Self-Timer/Busy/Charging LED Light
6.
Shutter Photo/Video Button
14.
Ventilation Holes
7.
Microphone
15.
Tripod Socket
8.
Power Button
5
Initial Camcorder Setup
Charging the Battery
Installing the Micro SD Memory Card
To Charge the Built-in Lithium Battery:
Use the supplied USB cable to connect
the camcorder to the computer’s USB
port or to the AC Adapter (and then to
an available electric wall socket).
The charge light will turn off when the
battery is fully charged.
Class 4 or higher Micro SD Memory
card (up to 32GB) needed for normal
use. Micro SD Memory Card not
included.
Using the Camcorder
6
Charging the Battery
Make sure the built-in lithium battery has been fully charged before using your camcorder.
To charge the battery, follow one of the steps below:
A. Charge the battery using the supplied USB connection cable and your computer.
1. Power off the camcorder.
2. Connect the smaller end of the USB cable into the USB slot on your camcorder
Connect the other end of the USB cable to the USB port on your computer. (See
figure 2)
3. The charge light will turn off when the battery is fully charged. (See figures 3 and 4)
B. Charge the battery using the supplied USB cable and the supplied AC Adapter.
7
1. Power off the camcorder.
Battery Indicator
Description
The battery level is full.
The battery level is half.
The battery level is low, indicating to prepare for
recharging the built-in lithium battery.
If the no battery level icon shows, the battery is almost
exhausted and the camcorder automatically turns off after
a moments.
2. Connect the smaller end of USB cable into the USB slot on your camcorder.
Connect the other end of the USB cable to the AC Adapter and then plug the AC
Adapter into a power socket. (See figure 2)
3. The charge light will turn off when the battery is fully charged. (See figures 3 and 4)
Battery Indicator:
Installing the Micro SD Memory Card
Make sure a Class 4 or higher Micro SD Memory card has been properly inserted into your
camcorder. A Micro SD Card must be inserted before use. Micro SD Memory card not included.
To properly insert the Micro SD Card:
1. Power off the camcorder.
2. Open the Micro SD cover.
3. Insert the Micro SD Card into the Micro SD Card slot in the direction as shown above.
4. Gently press the Micro SD Card until you hear a slight clicking sound. This indicates the
memory card has been inserted correctly.
5. To remove the card, gently press on the edge of the card to release it and pull the card out.
Note: If the card is inserted or removed while the camcorder's power is on, it may damage the
card and/or any recorded data. Always confirm that the power is off before inserting the card
into the camcorder.
8
Powering On/Power Off/Energy Save
1. Power On:
Press and hold the POWER button, located on top of the camcorder, for 2 seconds to turn
on the camcorder. The screen of the display is activated and the camcorder is powered on.
2. Power Off:
Press the POWER button once while the camera is idle to shut the camcorder off.
NOTE: When the battery capacity drops to a low level, the icon: will appear on the LCD
display, indicated that the camcorder requires to be recharged. Please charge the battery.
When the battery icon turns red and flickers, the video camera will shut down automatically.
3. Auto Screen Off – Energy Save:
When the idle time of the camera reaches the automatic screen-off time, it will automatically
turn off the screen to save power. After turning off the screen, the screen-off light will be on.
Press the Display button to reactivate the LCD screen.
9

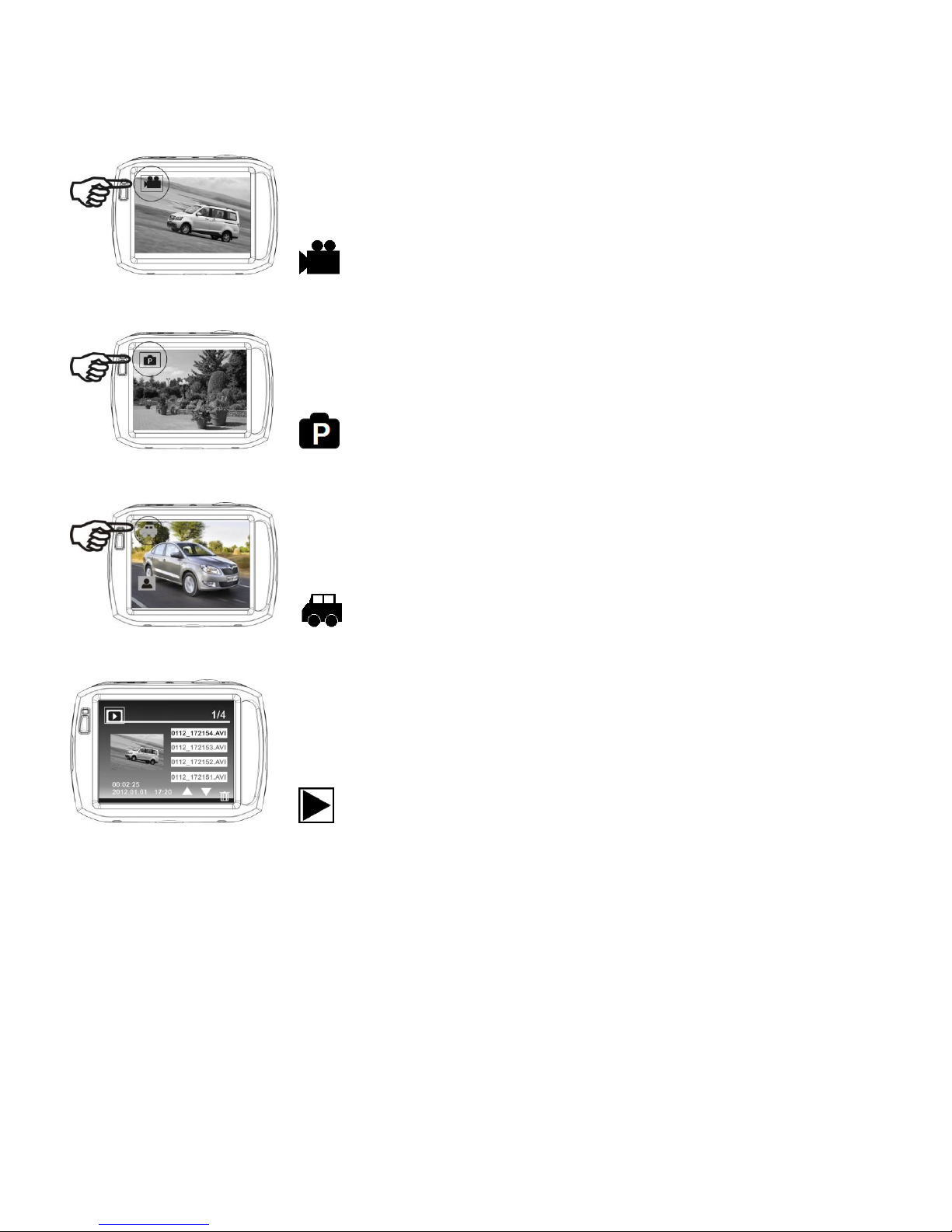

Main Camcorder Modes

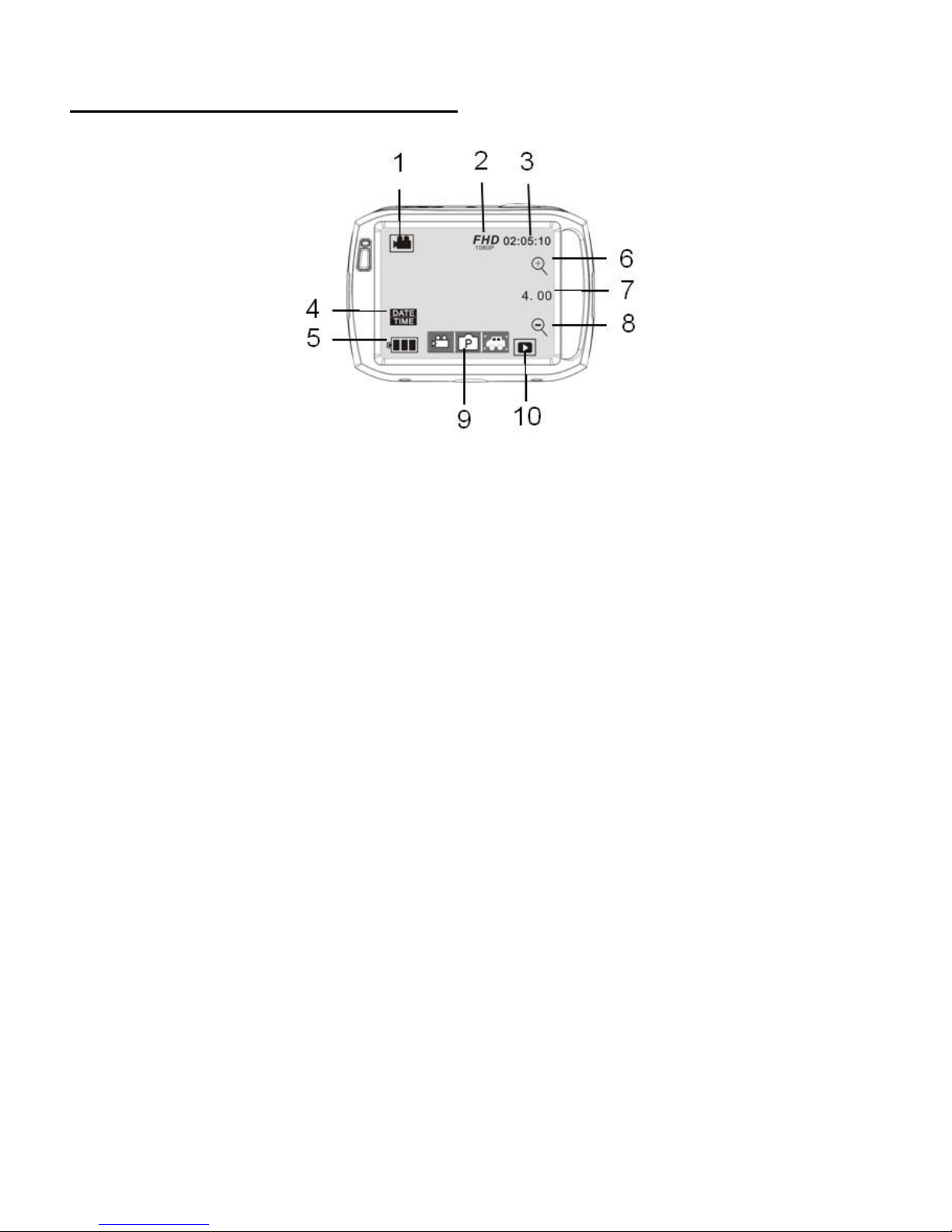

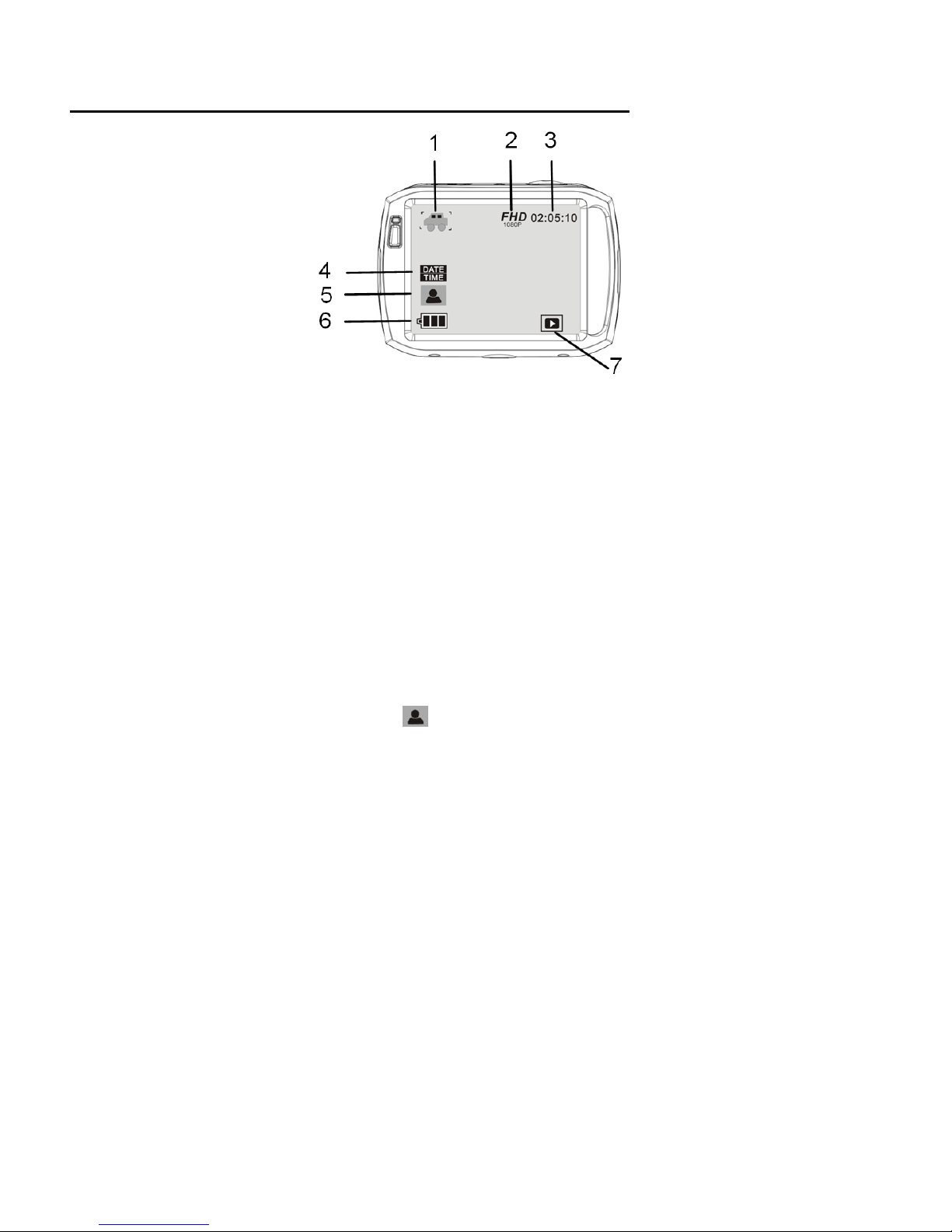

Video Capture Mode
Use this mode to capture videos with your digital camcorder.
To take a video, aim your camcorder as desired and press the Shutter button to start
recording. A blinking, red record indicator appears on the LCD screen while the recording
is in progress. To stop the recording, press the Shutter button again. The video is
automatically saved to your camcorder’s memory card.
Photo Capture Mode
Use this mode to capture pictures with your camcorder.
To take a picture, aim your camcorder as desired and press the Shutter button.
The picture is automatically saved to your camcorder’s memory card.

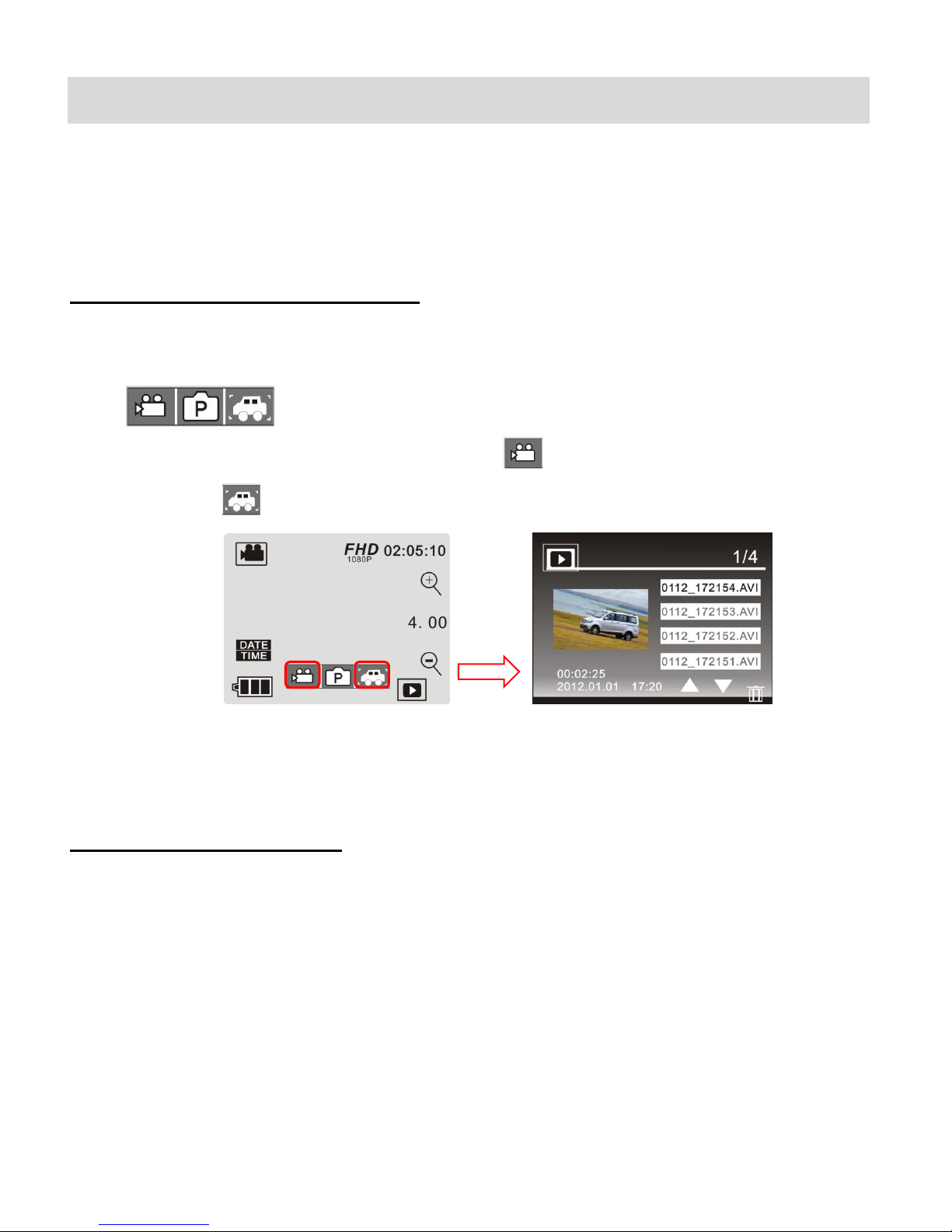

Vehicle Mounted Video Capture Mode
Use this mode to capture videos with your camcorder while you are in motion and using the
helmet or bicycle mount.
To take a video, place the camcorder on the desired mount. Press the Shutter button to
start recording. A blinking, red record indicator appears on the LCD screen while the
recording is in progress. To stop the recording, press the Shutter button again. The video
is automatically saved to your camcorder’s memory card.

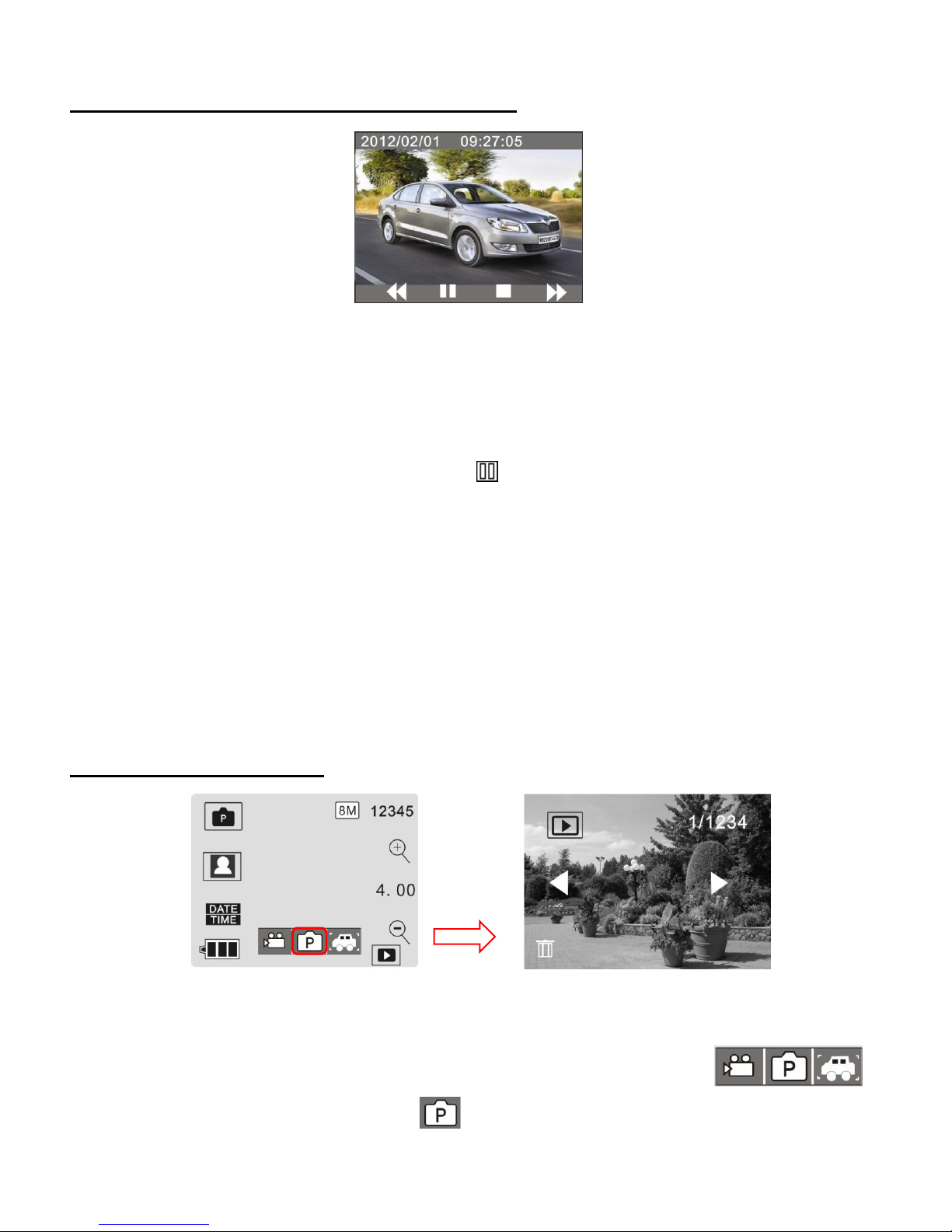

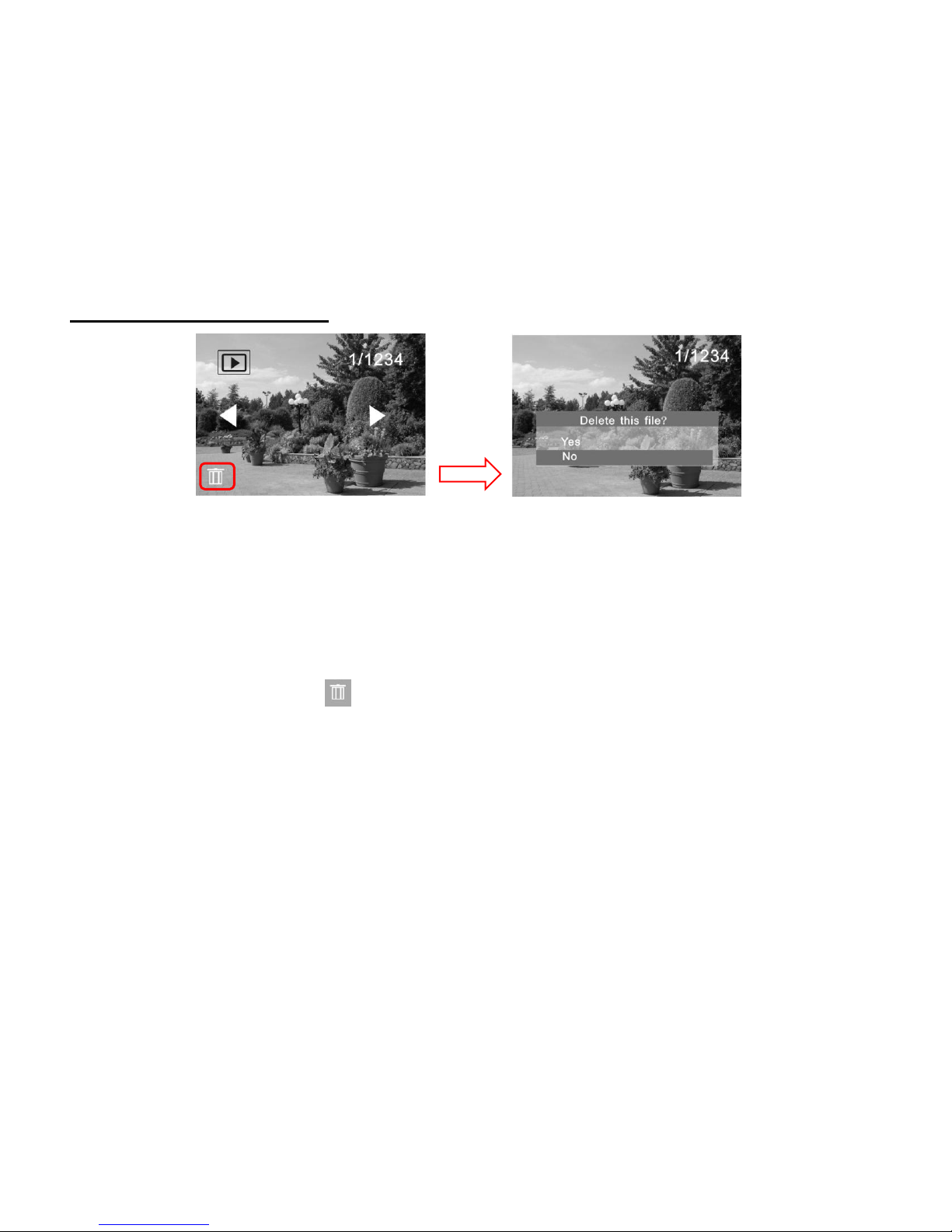

Playback Mode (Photos & Videos)
Use this mode to view and manage the photos and videos on your camcorder.
Touch the Playback icon on the LCD screen to open the Playback mode for photos and
videos. You can scroll through the photos and videos that you’ve previously taken to view
or delete them as desired.
10
Camcorder Technical Specifications
Image Sensor
CMOS Sensor
Video Resolution
HD: 1280x720 (60 frames/sec.) HD: 1280x720 (30
frames/sec), FHD: 1920x1080 (30 frames/sec.)
Photo Resolution
12M (4000 × 3000), 10M (3648x2736), 8M (3264x2448),
5M (2560×1920)
File Format
AVI (Video), JPEG (Photo)
External Memory
Class 4 Micro SD Memory card or higher, up to 32GB
LCD Display
2.4”TFT, Touch Screen
Zoom
4X Digital Zoom
Lens
F3.1 f=2.9mm
Shutter
Electric Shutter
ISO
Auto
Scene
Auto
White Balance
Auto
Light Exposure
Auto
Metering
Center
Face Detect
Yes
Interface
High Speed USB 2.0
System Requirements
WINDOWS XP (SP3), Vista (SP1), WINDOWS 7 or higher;
MAC OSX v10.5.x and above
Battery
Built-in 3.7V rechargeable lithium battery
