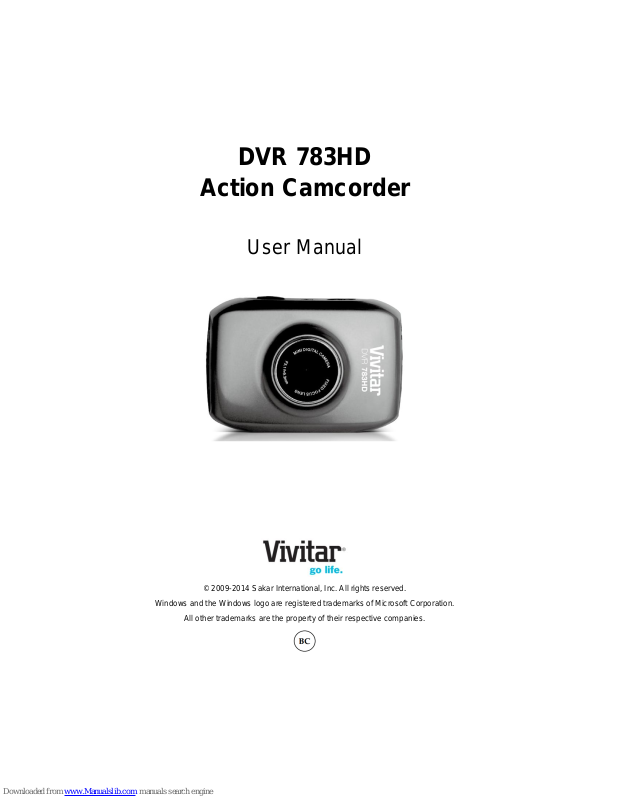

DVR 783HD

Action Camcorder

User Manual

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

CONTENTS

Introduction .................................................................................................................................. 2

What’s Included ............................................................................................................................ 3

Parts of the Camcorder ................................................................................................................ 4

Initial Camcorder Setup ................................................................................................................ 5

Main Camcorder Modes ............................................................................................................. 10

Camcorder Technical Specifications ............................................................................................ 11

Camcorder Mounts and Accessories .......................................................................................... 12

Powering On Your Camcorder .................................................................................................... 14

Video Capture Mode .................................................................................................................. 15

Photo Capture Mode .................................................................................................................. 17

Playback Mode ........................................................................................................................... 19

Menu Options ............................................................................................................................. 21

Computer System Requirements ............................................................................................... 34

Installing the Software ................................................................................................................ 35

Connecting the Camcorder to the Computer .............................................................................. 36

Getting Photos and Videos from the Camcorder to the Computer ............................................. 37

Getting Started! .......................................................................................................................... 38

Transferring Images Manually from the Camcorder to the Computer ......................................... 38

Camcorder Maintenance ............................................................................................................ 40

Sakar Warranty Card .................................................................................................................. 41

Technical Support ....................................................................................................................... 42

Troubleshooting .......................................................................................................................... 42

Introduction

Thank you for purchasing this digital HD Action Camcorder. Everything you need to take quality digital videos and photos is included with your camcorder.

Vivitar makes capturing those special moments as easy as possible.

Please read this manual carefully first in order to get the most out of your digital camcorder.

NOTE:

 Your digital action camcorder supports a Micro SD Memory Card (up to 32GB, Class 4 or

higher). In order to use your digital action camcorder normally, please insert the Micro SD Memory card before use. Micro SD Memory cards are not included and need to be purchased separately.

 This camera is a plug and play device. You can download the pictures and videos without

the software by directly accessing the memory card from your computer. We would however recommend that you install the ‘Vivitar Experience Image Manager’ Software to enjoy the full Vivitar experience.

What’s Included

1. Action Camcorder

6. Waterproof Casing

2. USB Cable

7. Bicycle Mount

3. AC Adapter

8. Helmet Mount

4. Vivitar Experience Installation CD

9. Helmet Mount Strap

5. Stand Accessory

NOTE:

 Built-in Lithium Battery included (not shown).  Micro SD Card not included.

Parts of the Camcorder

Micro SD Memory Card Slot

Reset Button

USB Interface

Power Button

Microphone

Shutter Button

Wrist Strap Connector

Lens

LED Charge Light Indicator

10.

LED Busy Light Indicator

11.

UP / Zoom In Button

12.

OK / SET Button

13.

Down / Zoom Out Button

14.

Mode Switch: Photo, Video, Playback

15.

LCD Screen

Initial Camcorder Setup

CHARGING THE BATTERY

To charge the battery, follow either one of the charging methods below:

CHARGING VIA THE COMPUTER

1. Power off the camera.

2. Use the supplied USB cable to connect the smaller end of the USB cable into the USB slot on the camcorder. Connect the other end to the USB interface of your computer. See images below: 1 and 2.

3. The charge light will turn off when the battery is fully charged. See images below: 3 and 4.

CHARGING VIA THE AC ADAPTER

1. Power off the camera.

2. Use the supplied USB cable to connect the smaller end of the USB cable into the USB slot on the camcorder. Connect the other end to the cable to the AC Adapter and then plug the AC Adapter into a power socket. See images below: 1 and 2.

3. The charge light will turn off when the battery is fully charged. See images below: 3 and 4.

BATTERY INDICATOR

Battery Indicator

Description

The battery level is full.

The battery level is half.

The battery level is low, indicating to prepare for recharging the built-in lithium battery.

If the no battery level icon shows, the battery is almost exhausted and the camcorder automatically turns off after a moments.

‘Low Battery’ flashes once the battery level is completely

exhausted and the camcorder automatically turns off after a few seconds.

The following icons appear on the camera and indicate the status of the camera’s battery power level:

INSTALLING THE MICRO SD MEMORY CARD

Make sure a Micro SD Memory card Class 4 or higher (up to 32 GB) has been properly inserted into your camcorder. Micro SD Memory card not included. To properly insert the Micro SD Memory Card:

1. Power off the camcorder.

2. Insert the Micro SD Card into the Micro SD Card slot in the direction as shown on the camcorder (see SD icon by the Micro SD card slot).

3. Gently press the Micro SD Card until you hear a slight clicking sound. This indicates the memory card has been inserted correctly.

4. If the memory card has successfully been inserted an icon appears on the LCD screen.

5. To remove the card, gently press on the edge of the card to release it and pull the card out.

6. If the card is inserted or removed while the camcorder's power is on, it may damage the card and/or any recorded data. Always confirm that the power is off before inserting the card into the camcorder.

NOTE: Make sure there is room on the Micro SD Memory Card to capture images. If the memory card is full, additional images cannot be captured and saved to the card.

TURNING ON AND USING THE CAMERA

Press the POWER button, located on top of the camcorder, to turn on the camcorder.

NOTE: If the camcorder becomes unresponsive, insert a thin pin into the RESET

hole and gently push the pin until you hear a slight ‘click’ sound. The camcorder will then reset.

Main Camcorder Modes

VIDEO CAPTURE MODE

Use this mode to capture videos with your digital camcorder. Slide the MODE Switch to the Video Capture icon to open the Video Capture Mode. To take a video, aim your camcorder as desired and press the Shutter button to start recording. A blinking, red record indicator appears on the LCD screen while the recording is in progress. To stop the recording, press the Shutter button again. The video is automatically saved to your camcorder’s memory card.

PHOTO CAPTURE MODE

Use this mode to capture pictures with your camcorder. Slide the MODE Switch to the Photo Capture icon to open the Photo Capture Mode. To take a picture, aim your camcorder as desired and press the Shutter button. The picture is automatically saved to your camcorder’s memory card.

PLAYBACK MODE (PHOTOS & VIDEOS)

Use this mode to view and manage the photos and videos on your camcorder. Slide the MODE Switch to the Playback icon to open the Playback mode for photos and

videos. You can scroll through the photos and videos that you’ve previously taken to view

or delete them as desired.

Camcorder Technical Specifications

Image Sensor

CMOS Sensor

Video Resolution

HD (1280×720)@30fps VGA (640x480)@60fps

Photo Resolution

5.1MP (2592x1944)

3.0MP (2048x1536)

1.3MP (1280x960)

File Format

AVI (Video), JPEG (Photo)

External Memory

Micro SD Memory card, Class 4 or higher, up to 32GB

LCD Display

1.77”TFT

Zoom

4X Digital Zoom

Focus Range

120CM-Infinity

White Balance

Auto, Daily, Cloudy, Fluorescent, Tungsten

Light Exposure

+3, +2, +1, Auto, -1, -2, -3

Metering

Center, Multi, Spot

Auto Power Off

Off, 1 min., 3 min., 5 min.

Interface

USB 2.0

System Requirements

MICROSOFT® Windows XP (SP3), Vista (SP1) or 7 MACINTOSH OSX v10.5.x and above

Battery

Built-in Lithium Battery

Camcorder Mounts and Accessories

WATERPROOF CASE

1. Clamp

2. Shutter Release

3. Power Button

1. Insert a finger at the half circle of the clamp by prying the clamp up - away from the case.

2. Before sealing the case, inspect the water sealing gasket to be sure it’s in good condition. You can test the gasket by closing the case without inserting the camcorder. Submerse the case completely in a bowl of water for about a minute. Remove the case from the water, dry off its exterior with a towel, and then open the case. If the entire interior is dry, the case and gasket are safe for use under water.

3. There are just two buttons required for recording video and images: the Shutter Button and the Power Button.

4. Remember to put the Mode Switch in your desired recording position before inserting the camcorder in the waterproof case. There is no external button for the Mode Switch.

INSTALLING THE BICYCLE MOUNT: HANDLEBAR CLAMP

INSTALLING THE HELMET MOUNTING SYSTEM

MOUNTING ADAPTER

1. This Mounting Adapter allows you to attach mounting accessories that have a ¼-20 screw.

2. The camcorder will clip right into this adapter.

Powering On Your Camcorder

TURNING POWER ON AND OFF

1. Long press the POWER button to turn on the camcorder.

2. Long press the POWER button again to turn the power off.

AUTO POWER OFF – POWER SAVING FEATURE:

Your digital camcorder includes an Auto Power Off power feature that automatically turns off your camcorder after a specified time that your camcorder is left idle. The specified time can be set using the ‘Power Save’ menu option. Once the camcorder is automatically powered off, you can long press the POWER button to power on the camcorder.

Video Capture Mode

The Video Capture Mode allows you to capture videos with your digital camcorder. To enter Playback Mode, slide the MODE Switch to the middle, to the Video Capture icon.

The Video Capture icon appears on the LCD screen.

TAKING A VIDEO

1. Selecting the Scene with the LCD Display: While in Video Capture Mode use the LCD display to direct the camcorder at the scene you would like to capture. NOTE: The time available for video capture (as per the installed memory card size and selected resolution) is shown on the top right of the LCD screen.

2. Zoom Options: Press the Up/Zoom In or Down/Zoom Out button to better set the camcorder display if desired. NOTE: While using the Zoom options, the zoom magnification is indicated on the bottom right of the LCD screen.

3. Changing Resolution: If you would like to change the resolution, press the OK (MENU/SET) button and then press the Down button to select ‘Movie Size’. Next, press the OK button to view the Movie Size options. Press the Up/Down button to select an option and then press the OK button to confirm the option. The following are the resolution options:

HD HD (1280x720)@30fps 640 VGA (640x480)@60fps

4. Capturing the Video: START: Press the Shutter button to start the video capture. The camcorder’s LED busy light turns on and the elapsed time appears on the top right corner of the LCD screen indicating the recording is in progress. STOP: To stop the video recording, press the Shutter button again.

5. The video is automatically saved to the camcorder’s Micro SD card.

NOTE:  When using the Waterproof Case, make sure to set the zoom and camcorder settings before

placing it into the case.

 While capturing your video, after approximately two minutes of video capture, the LCD display

turns off in order to save power. The busy LED light remains on and the video continues to be captured. Press the Shutter button to reactivate the LCD display.

Photo Capture Mode

The Photo Capture Mode allows you to capture photos with your digital camcorder. To enter Photo Capture Mode, slide the MODE Switch to the top, to the Photo Capture icon.

The Photo Capture icon appears on the LCD screen.

TAKING A PICTURE

1. Selecting the Scene with the LCD Display: While in Photo Capture Mode use the LCD display to direct the camcorder at the scene you would like to capture.

3. Changing Resolution: If you would like to change the resolution, press the OK (MENU/SET) button and then press the Down button to select ‘Resolution’. Next, press the OK button to view the Resolution options. Press the Up/Down button to select an option and then press the OK button to confirm the option. The following are the resolution options:

5M 5MP (2582X1944) 3M 3MP (2048x1536) 1M 1.3MP (1280×960)

4. Press the Shutter button to capture the photo. The amount of photos that can be captured with the available memory and selected resolution appears on the top, right corner of the LCD screen.

5. The photo is automatically saved to the camcorder’s Micro SD card.

NOTE:  When using the Waterproof Case, make sure to set the zoom and camcorder settings before

placing it into the case.

 While capturing your video, after approximately two minutes of video capture, the LCD display

turns off in order to save power. The busy LED light remains on and the video continues to be captured. Touch the Shutter button to reactivate the LCD display.

Playback Mode

The Playback mode allows you to review and delete photos and videos that you’ve captured with you camcorder. To enter Playback Mode, slide the MODE Switch to the bottom, to the Playback icon.

The Photo Capture icon appears on the LCD screen.

VIEWING CAPTURED IMAGES

While in Playback mode, you can scroll through your captured images to view each image.

 Press the Down button to view the next image.  Press the Up button to view the previous image.  Videos appear with the Video icon displayed on the bottom, left corner of the LCD screen.

Photos appear with the Camera icon displayed on the bottom, left corner of the LCD screen.

 The numbered sequence of captured images is shown on the top, right of the LCD

screen.

NOTE: Quick press the POWER button to view captured car mode images.

PLAYING CAPTURED VIDEOS ON YOUR CAMCORDER

Scroll through your captured images to select the video you would like to play.  PLAY: Press the Shutter button to begin playing your selected video.

While the video is playing the icons disappear. The elapsed time is displayed as well as the OK and Pause indicators.

 PAUSE: Pause the video by pressing the Up button.

Press the Up button again to continue playing the video.

 STOP: Stop the playing video by pressing the OK button.

NOTE: Your camcorder does not include a speaker. In order to hear the sound of the captured video you must view the file on your computer. Connect your camcorder via the supplied USB cable to your computer and then you can either download or view directly from the camcorder on your computer. See the following sections for more information:

- ‘Getting Photos and Videos from the Camera to the Computer’

- ‘Transferring Images Manually from the Camcorder to the Computer’

DELETING CAPTURED IMAGES

While in the Playback mode, you can delete captured videos and photos saved to the Micro SD Memory card in your camcorder using the Playback menu.

1. Enter the Playback Mode. The last captured image (video or photo) appears.

2. Select the image you would like to delete.

3. Press the OK button to enter the Playback Mode menu options. NOTE: To exit the menu options, press the Shutter button.

4. Press the Up or Down button to highlight the ‘Delete’ menu option.

5. Press OK to enter the ‘Delete’ menu options. The following options appear:

- One: This option deletes the selected image.

- All: This option deletes all images (videos and photos) Press the Up or Down button to select an option and then press the OK button to confirm.

6. A window then appears to confirm your selected ‘Delete’ option. The following options appear:

- Yes: This option deletes the selected file (if One was selected) or all files (if All was selected).

- No: This option returns to the previous ‘Delete’ menu screen without deleting the image(s). Press the Up or Down button to select an option and then press the OK button to confirm

Menu Options

NAVIGATING THE MENUS

MODE MENUS

To enter the menu options for Photo Capture, Video Capture and Playback Modes:

1. Press the OK (Menu/Set) button. By default the current mode menus appear with the current mode menu icon on top highlighted: the Photo Capture icon, the Video Capture icon or the Playback icon.

2. Press the Up or Down button to select a menu option. The menu option appears highlighted.

3. Press OK to select the highlighted menu option and enter the submenu options.

4. Press the Up or Down button to select a submenu option. The submenu option appears highlighted.

5. Press the OK button to confirm and save the selection. NOTE: You may be prompted to reconfirm your selection. Use the Up or Down button to select the appropriate confirmation and then press the OK button to save the selection.

6. To exit the menu at any time, press the Shutter button.

NOTE:

 For most menu settings, an icon reflecting your selection displays on the LCD screen.  The settings are saved by your digital camcorder until you manually change the setting or

restore the camera’s default factory settings.

CAMCORDER SETTING MENUS

To enter the menu options for the camcorder settings:

1. Press the OK (Menu/Set) button.

2. The default menu displays the current Mode menu with the current Mode menu icon (Photo Capture, Video Capture, or Playback) highlighted. To change to the camcorder setting menus quick press the POWER button. The camcorder settings menu icon appears highlighted. NOTE: Before pressing the Power button to change menus, make sure that the Mode icon on top is selected and not one of the Mode menu options. If a Mode menu option is selected, use the Up button to highlight the top Mode menu icon and then quick press the Power button to select to the camcorder settings menu icon.

3. Press the Up or Down button to select a menu option. The menu option appears highlighted.

4. Press OK to select the highlighted menu option and enter the submenu options.

5. Press the Up or Down button to select a submenu option. The submenu option appears highlighted.

6. Press the OK button to confirm and save the selection. NOTE: You may be prompted to reconfirm your selection. Use the Up or Down button to select the appropriate confirmation and then press the OK button to save the selection.

7. To exit the menu at any time, press the Shutter button.

VIDEO CAPTURE MODE MENUS

To open the Video Capture menu options, press the OK button while in Video Capture Mode. The following menus appear:

MOVIE SIZE

The ‘Movie Size’ menu allows you to choose the desired size of the videos taken by your camcorder. Keep in mind that videos with a higher resolution will also take up more space on your camcorder’s memory card. The ‘Movie Size’ menu options include:

 HD 1280 x 720 (default)  640 640 x 480

REC INTERVAL

The ‘Rec Interval’ menu options include:

 OFF (Default)  1 minute  3 minutes  5 minutes

METERING

The ‘Metering’ setting will affect how your camera focuses when capturing an image. Depending

on your selection, the camera will be more sensitive to focusing on particular areas in the display and adjust the image color and lighting accordingly. The ‘Metering’ menu options include:  Center – Averages the light metered from the entire frame, but giving greater weight to the

subject in the center.

 Multi – Used in standard conditions the camera divides and adjusts the settings of the image

into several zones for light metering such as complex light conditions, position of subject, brightness, background, direct light and scenes. (Default)

 Spot – Meters the area within the spot point frame at the center of the LCD to set the

exposure on the subject in the center of the monitor.

WHITE BALANCE

The ‘White Balance’ feature allows your camcorder to adjust the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Balance setting to match your current environment will allow the camcorder to properly balance the colors in the images that are taken with your camcorder. The ‘White Balance’ menu options include:

 Auto (Default)  Daylight  Cloudy  Fluorescent  Tungsten

EFFECT

The ‘Effect’ menu allows you to choose a color effect to add to the images taken with your camera. The ‘Effect’ menu options include:

 Normal (Default)  B & W  Sepia  Negative  Red  Green  Blue

DATE STAMP

The ‘Date Stamp’ menu options include:

 OFF Off – Does not display date nor time on the captured video. (Default)  Date Date – Displays the date on the captured video.  D&T Date & Time – Displays the date and time on the captured video.

PHOTO CAPTURE MODE MENUS

To open the Photo Capture menu options, press the OK button while in Photo Capture Mode. The following menus appear:

RESOLUTION

The ‘Resolution’ menu allows you to choose the desired size of the photos taken by your camcorder. Keep in mind that photos with a higher resolution will also take up more space on your camcorder’s memory card. The ‘Resolution’ menu options include:

 5M 5MP (2582X1944, Default)  3M 3MP (2048x1536)  1M 1.3MP (1280×960)

QUALITY

The 'Quality’ menu allows you to select the desired quality level of the images taken by your camcorder. Keep in mind that photos with a higher image quality level will also take up more memory on your camcorder’s memory card. The ‘Quality’ menu options include:

 Super Fine  Fine (Default)  Normal

METERING

The ‘Metering’ setting will affect how your camera focuses when capturing an image. Depending

subject in the center.

 Multi – Used in standard conditions the camera divides and adjusts the settings of the image

into several zones for light metering such as complex light conditions, position of subject, brightness, background, direct light and scenes. (Default)

 Spot – Meters the area within the spot point frame at the center of the LCD to set the

exposure on the subject in the center of the monitor.

WHITE BALANCE

 Auto (Default)  Daylight  Cloudy  Fluorescent  Tungsten

EXPOSURE

The ‘Exposure’ setting helps you control the amount of light that enters your camera’s lens. This

setting should be adjusted when the environment is lighter or darker than normal. When the environment has more light than is needed, reduce the exposure setting (by using the negative - count) to reduce the amount of light allowed into the lens by your camera. If the environment has less light (darker) than is needed, increase the exposure setting (by using the positive + count) to increase the amount of light allowed into the lens by your camera. The ‘Exposure’ menu options include:

-2.0EV ~ +2.0EV (+0.0 Default)

NOTE: Short press the POWER button to toggle between the Exposure setting options.

SELF TIMER – BURST (DRIVER MODE)

The ‘Self Timer’ feature allows you to set a delay between the time that the camcorder’s Shutter button is pressed and the actual capture of the picture.

This is an optimal feature if you don’t just want to take the picture but would also like to be in the

picture yourself. Just set the desired Self-Timer delay, press the Shutter button on your camcorder and position yourself in front of the camcorder as desired.

When enabled, the ‘Burst/Multi-Snapshots’ feature allows you to take three rapid snapshots in a row with a single click of the Shutter button. This feature can be effective when trying to capture a particular moment in a sporting event or other scenes with quick movements.

The menu options include:

 OFF Normal image capture (Default)  Self-Timer 2S Sets a 2 second delay before capturing the photo.  Self-Timer 10S Sets a 10 second delay before capturing the photo.  Burst Captures three continues photos.

EFFECT

The ‘Effect’ menu allows you to choose a color effect to add to the images taken with your camera. The ‘Effect’ menu options include:

 Normal (Default)  B & W  Sepia  Negative  Red  Green  Blue

DATE STAMP

The ‘Date Stamp’ menu options include:

PLAYBACK MODE MENUS

To open the Playback menu options, press the OK button while in Playback Mode. The following menus appear:

LOCK…

Pictures and videos taken with your camcorder can be protected or “locked” to prevent any deletion or alteration being made to the files. First select the image you would like to lock or unlock and then select the appropriate menu option to either lock or unlock one image or all images. The ‘Lock’ menu options include:

 Lock/Unlock One Locks or unlocks the selected image (video or photo).  Lock All Locks all images (videos and photos) saved to the memory card.  Unlock All Unlocks all images (videos and photos) saved to the memory card.

NOTE:

 Any image that is locked displays a lock symbol on the LCD screen when viewing that

image in the Playback Mode. Images that are not locked do not display the lock symbol.

 Remember that you cannot delete images while they are locked. First unlock the image then

proceed to delete.

DELETE…

While in the Playback Mode, you can delete images from your camera through the ‘Delete’ menu. The ‘Delete’ menu options include:

 One Deletes the selected image (video or photo).  All Deletes all images (videos and photos).

To delete an image or all images:

1. Enter the Playback Mode. The last captured image (video or photo) appears.

2. Select the image you would like to delete.

3. Press the OK button to enter the Playback Mode menu options. NOTE: To exit the menu options, press the Shutter button.

4. Press the Up or Down button to highlight the ‘Delete’ menu option.

5. Press OK to enter the ‘Delete’ menu options. The following options appear:

- One: This option deletes the selected image.

- All: This option deletes all images (videos and photos) Press the Up or Down button to select an option and then press the OK button to confirm.

6. A window then appears to confirm your selected ‘Delete’ option. The following options appear:

- Yes: This option deletes the selected file (if One was selected) or all files (if All was selected).

- No: This option returns to the previous ‘Delete’ menu screen without deleting the image(s). Press the Up or Down button to select an option and then press the OK button to confirm

Caution: Please use the ‘Delete’ feature with care. Once images are deleted they are permanently deleted from the Micro SD card. Please make sure that you only use this feature once you have downloaded and saved all the images you wish to your computer. Remember: Protected/Locked cannot be deleted. To delete a locked image, first unlock the image, then select delete and follow the prompts to delete.

SLIDE SHOW…

You can view a Slide Show of all the pictures taken with your camcorder while in Playback Mode. The ‘Slide Show’ menu allows you to set the interval length of time that each picture will display during the Slide Show. The Slide Show menu appears active only when a photo is selected in Playback Mode. This feature is not available for video files. The ‘Slide Show’ menu options include:

 Start Select ‘Start’ to begin the Slide Show of your captured photos.  Interval Select ‘Interval’ to set the interval length of time that each picture displays during

the Slide Show. The interval length time options include 1 sec (Default) to 10 seconds. NOTE: Press the POWER button to toggle between the interval length options.

 Repeat Select ‘Repeat’ to loop the Slide Show or play it only once.

The Repeat options include

- ‘No’ (Default) – Plays the Slide Show once.

- ‘Yes’ - Plays the Slide Show continuously. To stop the looping of the Side Show, press the OK button.

NOTE: Press the POWER button to toggle between the Repeat options.

CAMCORDER SETTING MENUS

To open the settings for the camcorder:

1. Press the OK (Menu/Set) button while in any mode.

Power button to select to the camcorder settings menu icon.

The following menus appear:

AUTO REVIEW

The ‘Auto Review’ menu allows you to set the time the preview of the photo is shown on the LCD screen after it has been captured. The ‘Auto Review’ menu options include:

 Off No preview image is shown on the LCD.  1S The preview image is shown for 1 second on the LCD after the photo has been

captured. (Default)

 3S The preview image is shown for 3 seconds on the LCD after the photo has been

captured.

POWER FREQUENCY

The options in the ‘Frequency’ menu represent the frequency of the electrical current in

fluorescent lighting sources in your locale. If your camcorder is set to a frequency that does not

match your country’s electric current, you may see waves on the images taken by your

camcorder. The ‘Power Frequency’ menu options include:

50Hz UK, Europe and Australia 60Hz US, Canada and South America

POWER SAVE

You can use the ‘Power Save’ feature in order to conserve you camcorder’s battery life. The designated time represents when your camcorder will automatically power off. When the camcorder sits idle for the designated period of time, the camcorder will shut off completely and will need to be powered on again with the power button before the next use. The ‘Power Save’ menu options include:

 OFF The camcorder remains on. (Default)  1min The camcorder powers off after 1 minute of sitting idle.

 3min The camcorder powers off after 3 minutes of sitting idle.  5min The camcorder powers off after 5 minutes of sitting idle.

DATE & TIME

The ‘Date & Time’ menu allows you to set your camcorder’s date and time. This date and time will appear on the captured images when the Date Stamp is set to be active. To set the MM/DD/YY and Hour: Minutes:

- Press the Up or Down button to change each setting and specify the date and time.

- Short press the POWER button to toggle and move between the time and date settings.

- Press OK to save and confirm the date and time setting.

LANGUAGE

You can select your camcorder’s language setting by selecting the desired language from the ‘Language’ menu. The ‘Language’ menu options include:

 English  French  Spanish

FORMAT…

You can use the ‘Format’ menu to delete all of the content that is currently on your camcorder’s memory card.

Keep in mind that formatting the memory card will permanently delete all of the content on your camcorder’s memory card.

This option will delete all of the content at one time. If you would like to delete individual images, use the ‘Delete’ menu in the camcorder’s Playback Mode. NOTE: Restoring factory defaults or formatting the camera may result in the loss of data. Please ensure you have backed up your images before you attempt this.

The ‘Format’ menu options include:  Yes Automatically deletes all images on the memory card.

The memory card will be completely formatted.

 No Does not delete the images on your memory card.

Exits the ‘Format’ submenu screen without deleting all images.

RESET ALL…

Use the ‘Reset All’ menu to reset your camcorder settings to the Factory Default Settings. The ‘Reset All’ menu options include:

 Yes Automatically resets to the Factory Default Settings.  No Does not reset to the Factory Default Settings.

Exits the ‘Reset All’ submenu screen without resetting and keeps the current settings.

Computer System Requirements

To be able to download videos and photos to your computer, you will need the following minimum configuration:

WINDOWS OS

 Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 or

above

 Pentium® 4 processor (or above)

 1 GB of RAM, 250 MB available hard disk space

 16-bit Color monitor, 1024 X 768 recommended screen resolution  CD-ROM Drive  QuickTime® 6 or higher  Microsoft® Internet Explorer 7 or higher  Windows Media Player 10 or higher  DirectX 9 or higher

MACINTOSH OS

 INTEL processor running MACINTOSH OS X v10.5.x or later  1 GB RAM, 250 MB available hard disk space  Display: 1024 x 768 or higher-resolution monitor  QuickTime® 6 or higher

NOTE:

 Internet connection required.  Make sure the latest compatible Adobe® Flash® Player is installed on your computer.

Installing the Software

You must be connected to the Internet to install and run the Vivitar Experience™ Image Manager software.

1. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open.

2. WINDOWS: The Vivitar Experience™ Image Manager Installer window appears. If the

window does not appear, open the application’s CD/DVD drive and click on “Setup.exe” to

launch the installer. MACINTOSH: Click the icon that appears on the desktop to install the Vivitar Experience™ Image Manager.

3. If you do not have Internet access at the time of inserting the CD-ROM, connect to the Internet and then click the “Install Vivitar Experience™ Image Manager” button to begin the installation.

Note: If you do not have Internet access, you can still download media from the camera.

Click the “How to transfer photos and videos from my camera to my computer” button for

instructions.

4. If you have Internet access, the “Choose your language” window opens. Choose your language and click “Next” to open the next window.

5. Select your camera model from the list and click “Next” to open the next window.

6. Click “Next” to confirm your camera model selection and to install the application.

7. Please wait while the application is being installed on your computer.

8. Please review the license terms. On WINDOWS and MACINTOSH: Click the “I accept the terms of this license agreement” and then click “Next” to continue.

9. WINDOWS only: Let the “Vivitar Experience™ Image Manager” installer create the folder to where the program will be installed, and then click “Install”.

10. Please wait while the application continues the installation process on your computer.

11. WINDOWS: Click the “Close” button when the installation is complete. Click the “Launch Vivitar Experience™ Image Manager” to open the application.

12. MACINTOSH: Click the “Quit” button when the installation is complete. Click the “Launch Vivitar Experience™ Image Manager” to open the application.

13. If you close the application you can run the Vivitar Experience™ Image Manager from the Programs (WINDOWS) or Applications (MACINTOSH) menu on your computer.

Connecting the Camcorder to the Computer

1. Use the supplied USB cable to connect your digital camcorder to your computer.

2. Power the camcorder ON.

3. The first time you connect the device to the computer you may have to wait a few seconds until the computer recognizes the device.

Getting Photos and Videos from the Camcorder to the Computer

The Micro SD Memory card needs to be inserted. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

1. Select the “Get Images” button from the Main menu.

2. The “Get media from device” window opens.

3. You can select to download videos.

4. Select your camera (removable disk) from the device window. If your camera is the only USB device connected then it will be selected automatically.

5. Select a location on the computer where to place the new video files.

6. Add the new video files to albums if desired.

7. Select to remove the media files from the selected device (removable disk) after the import.

8. Click the “Get Media” button to transfer the videos from your camera to your computer.

9. A media download progress bar appears on the bottom left showing the number of media files downloading to your computer. A message appears when the download is complete.

10. The video files that you selected are now downloaded to your computer to the selected folder ready for your use.

Getting Started!

Using the Vivitar Experience Image Manager you can:  Upload and manage videos to and from the most popular photo sharing and social networking

sites - Facebook, Flickr, Picasa, MySpace, Photobucket, Twitpic, Twitgoo and YouTube

 Seamlessly transfer videos from one social network to another  Organize your images by creating offline and online albums  Edit images using automatic and manual tools  Use automatic “Geotagging” with built in Google Maps

For more details on how to use the Vivitar Experience Image Manager open the Help file or click the “Take a Tour” button on the application’s Home screen.

Transferring Images Manually from the Camcorder to the Computer

WINDOWS OS

1. Use the supplied USB cable to connect your camcorder to your computer’s USB port.

2. Power on the camcorder. The ‘MSDC’ connection icon displays on the LCD screen.

3. A window appears on your computer with a list of options, select “Open folder to view files” and click ‘OK’.

4. Open the DCIM folder and the folder inside to view the media files.

5. Select the media and copy the files from this folder into your computer. Optionally, select the files and choose ‘Copy’ from the Edit menu. Then select a folder and choose ‘Paste’ from the Edit menu.

6. We recommend that you copy the photos into the Pictures/My Pictures folder and the videos into the Videos/My Videos folder.

7. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

MACINTOSH

1. Use the supplied USB cable to connect your camcorder to your computer’s USB port.

2. Power on the camcorder. The ‘MSDC’ connection icon displays on the LCD screen.

3. The camcorder’s device icon appears on the desktop.

4. Click on the device icon and open the DCIM folder and the folder inside to view the media files.

5. Select the files and drag them into your computer. Optionally, select the files and choose ‘Copy’ from the Finder’s Edit menu. Then select a folder and choose ‘Paste’ from the Edit menu.

6. We recommend that you copy the photos into the Pictures folder and the videos into the Movies folder.

7. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

TRANSFERRING PHOTOS AND VIDEOS: APPLE IPAD

NOTE: Please check your device packaging for compatibility with the iPad.

APPLE IPAD CAMERA CONNECTION:

For models that are compatible with the iPad, photos and videos can be imported from your digital camcorder to your iPad by following either one of the options below:

1. Connecting your digital camcorder to your iPad using an iPad Camera Connector:

2. Plug the Camera Connector into the dock connector port on your iPad, and then attach your digital camcorder using a USB cable (included) to the Camera Connector.

3. NOTE: iPad Camera Connector not included. This may be purchased separately.

4. Using an iPad SD Card Reader:

Connect the SD Card Reader to your iPad, and then insert your digital camcorder's Micro SD Memory card into the slot to import photos and videos directly from your camera's SD card.

NOTE: iPad SD Card Reader not included. This may be purchased separately.

After you make the connection, your iPad automatically opens the Photos application. This allows you choose which photos and videos to import, then organizes them into albums.

Camcorder Maintenance

The digital camcorder is a delicate device. Please handle your camcorder with care to avoid damaging it. Do not expose your camcorder to heat sources. Do not use you camcorder in wet or moist conditions without the waterproof casing.

Sakar Warranty Card

Sakar US Sakar International Attention: Service Department 195 Carter Drive Edison, NJ 08817

Sakar UK/Europe Attention: Service Department 2D, Siskin Parkway East 4020 Middlemarch Business Park Coventry, CV3 4PE

Sakar Australia Return faulty camera to the Refund Counter at the store where purchased

This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship will be repaired at no charge for parts or labor for a period of one year from the time of purchase.

What Is Not Covered By Warranty:

Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident.

What to Do When Service Is Required:

When returning your defective product (postage pre-paid) for service, your package should include:

5. Copy of original bill of sale.

6. A detailed written description of the problem.

7. Your return address and telephone number (Daytime).

MAIL TO ADDRESS BELOW:

Technical Support

For technical support issues please visit our website at www.vivitar.com. You can find manuals,

software and FAQ’s at the website. Can’t find what you are looking for? E-mail us at

support@vivitar.com and one of our technical support team members will answer your questions. For phone support in the US please call 1-800-592-9541, in the UK call 0800 917 4831, in Australia call 1800-006-614. If you would like to call from anywhere else, please visit

www.vivitar.com for your local toll free number.

Troubleshooting

Q: I have taken photos and selected the “Get Images” button. I get a message that the

images were successfully transferred but the photos do not appear on my computer. What do I do?

First ensure that you have in fact taken photos. Press the Shutter button to take some sample photos or videos and then try downloading them again. If the photos are saved to the SD memory card then all the photos should appear.

Q: How do I make sure I don't lose important pictures?

This camcorder requires a Micro SD card for normal use. If the camera powers off nothing will happen to the images stored on the memory card. We recommend always downloading your photos and videos to your computer as soon as possible to prevent unintentional data loss.

Q: I deleted images using the Vivitar Experience Image Manager. The images were also deleted from my computer. How do I recover images that I accidently deleted?

All images deleted using the Vivitar Experience Image Manager are sent to your computer’s

Recycle or Trash Bin and can be retrieved from there.

DVR783HD_1.0_042014-TA

Vivitar DVR 783HD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
