INTRODUCTION

Overview

Your new digital video camera is a miniature camcorder that will capture motion video as well as 2 megapixel still images.

Using the 1.5" TFT color image LCD monitor, you can record images and then review them in detail. 64MB internal (built-in) memory lets you capture and store video and images without the need for an additional

memory card. However , you may wish to expand the memory capacity of your camera (up to 512 MB) by purchasing a Secure Digital (SD) memory card.

Video clips and images that you have captured can be transferred to your computer using the USB cable. A USB driver is required only for Windows 98 users. Windows Me/2000/XP users may simply plug their camera directly into a USB port on their PC and begin transferring images to your computer. If you have a memory card, you may also wish to purchase an SD card reader for your PC. A card reader makes downloads even faster and more efficient.

You can enhance and retouch your images and videos on your computer using the provided editing software, or other software you may already own.

You may share your images and videos with your friends via e-mail, in a report, or on a website. The possibilities are endless.

When shooting digital still images, an automatic flash sensor detects the shooting (lighting) conditions and determines whether the flash should be used for your digital still images. This feature helps ensure that your still images turn out right.

We truly hope you enjoy your new DV camera!

Package contents

Carefully unpack your new DV camera and ensure that you have the following items. In the event that any item is missing or damaged, promptly contact Vivitar Customer Service.

 Digital video camera  Camera strap  User’s manual  Camera pouch  USB cable  Software CD-ROM  AV cable

Optional accessories

 SD memory card  AC power adapter  2 x AA alkaline batteries

Note:

 The product and accessories that come with your camera may be different from those described in this manual.

This is due to the fact that different retailers often specify slightly different product inclusions and accessories

to suit their market requirements, customer demographics, and geographical preferences. Products often

vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards,

cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique product

color, appearance, and internal memory capacity. Contact your dealer for precise product definition and

included accessories.

 For drivers, revisions to this manual, and manuals in other languages please updates, refer to our website.

GETTING TO KNOW YOUR DIGITAL VIDEO CAMERA

Front view

1. Lens

2. Microphone

3. Flash

4. Self-timer LED

5. Battery/SD card cover

6. Tripod socket

Rear view

1. LCD monitor

2. Speaker

3. Power/Menu button

4. Arrow (up)

5. Arrow (right)

T Zoom in

6. Arrow (down)

7. Arrow (left)

W Zoom out

8. Record/ Stop

9. System LED indicator

10. OK OK

11. Still-Image shutter

12. Delete

13. Playback

14.A/V OUT (Audio/Video Out) jack

15.USB connector

16.DC-in connector

17.Strap eyelet

Flash

Self-timer

Digital zoom

Pause

LCD information

These indicators are displayed when recording still-images or video clips:

1. Zoom state

2. Sound level (applies to video only)

Low sound level Mild sound level Medium sound level High sound level Fully sound level Mute

3. Battery level Full battery power Fairly consumed Nearly exhausted Virtually no battery power

4. Memory Card indicator

5. Flash mode

Auto flash (Auto 1)

Auto flash (Auto 2) Flash off

6. Self-timer indicator

(still images only)

7. White balance

8. EV compensation

9. Still-Image resolution

Automatic (no icon) Daylight Shade Fluorescent-1 Fluorescent-2 Lamp (incandescent)

Large 1600 x 1200

Medium 800 x 600

10. Possible number of shots remaining

11. Still image mode icon

12. Image/ Video quality Super fine Fine Normal

13. Recordable movie time

available

14. Record mode icon

These indicators are displayed when playing back video clips:

1. Folder number and video number

2. Sound level Low sound level Mild sound level Medium sound level High sound level Fully sound level Mute

3. Battery level Full battery power Fairly consumed Nearly exhausted Virtually no battery power

4. Memory Card indicator (if present)

5. Pause / Play indicator

6. Counter

7. Movie icon

8. Video quality Super fine Fine Normal

These indicators are displayed when playing back still images:

1. Folder number and image number

2. Battery level Full battery power Fairly consumed Nearly exhausted Virtually no battery power

3. Memory Card indicator (if present)

4. Date (if date imprint is on)

5. Exposure time for this image

6. Aperture value for this image

7. Still image icon

8. Image quality Super fine

Fine Normal

9. Image size

Large 1600 x 1200

Medium 800 x 600

LED indicators and audible tones

Indicator Status Description/Activity Sound

LED indicator Solid green The camera is powering up No LED indicator Solid green The camera is powered and ready Yes *(1) LED indicator Blinking red Charging the flash No LED indicator Blinking green Image is being recorded to the memory card No LED indicator Blinking green USB communication/transfer in progress No LED indicator Solid green The camera is ready to record images (or movies) Yes *(1) Self-timer indicator Blinking blue The still-image self-timer function is activated Yes *(1) ––Error message Yes *(3) ––Valid button event Yes *(1)

*(1) The camera sounds one beep. *(3) The camera sounds three beeps.

GETTING STARTED

You can use 2 AA size batteries (Alkaline, Ni-MH), one CR-V3 or an AC power adapter (optional accessory) to power your DV camera. Battery power is convenient for capturing images or video clips while an AC power adapter is useful when transferring images to your computer.

Installing the batteries

1. Slide the battery cover downward (away from the lens).

2. Insert the batteries, noting correct polarity (+ or -).

3. Close the battery cover.

Note:

 If you will not be using the batteries for an extended period of time, remove them from the camera to prevent

leakage or corrosion.

 Never use manganese batteries.  Never use batteries of different type (together) or mix old and new batteries.  Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and

reduce camera performance. (Such damage is not covered under the warranty).

Using an AC power adapter (optional accessory)

1. Connect one end of the AC power adapter to the jack labeled “DC IN”.

2. Connect the other end to an electrical outlet.

Note:

 Make sure to use only the AC power adapter specified for the camera. Damage caused by the use of an

incorrect adapter is not covered under the warranty.

 Using an AC power adapter while transferring images to your computer prevents unexpected automatic

power off of the camera.

Attaching the hand strap

To prevent accidental dropping of the camera, always use the hand strap. Attach the hand strap as follows:

1. Thread the small loop of the hand strap through the strap eyelet on the camera.

2. Pull the large loop through the small loop until the strap is firmly secured.

Inserting an SD memory card (optional accessory)

The camera comes with 64MB of internal memory, allowing you to record video clips and captured images. However, you may expand the memory capacity by using an optional Secure Digital (SD) memory card so you can store more images and video clips.

1. Slide the battery cover downward (away from the lens)

2. Insert the SD memory card pins-first, so that the label of the card faces the battery. When inserted in the correct orientation, the edge of the memory card should protrude only about 1/16th of an inch, well below the edge of the camera body.

3. Close the battery/memory card cover.

To remove an SD memory card

1. Make sure the camera is off.

2. Open the SD/battery card cover.

3. Press lightly on the edge of the memory card and it will eject.

Note:

 To prevent valuable data from being accidentally erased

from an SD card, you can slide the write protect tab (on the side of the SD memory card) to “LOCK”.

 To save, edit, or erase data on an SD memory card,

you must unlock the card.

Tur ning on your digital video camera

1. Swing the LCD panel away from the camera body.

2. Press and hold the power/menu button on the top to turn on your camera. Hold the power button for about two seconds.

 To turn off your digital video camera, press again power/menu button.

Hold the power button for about four seconds.

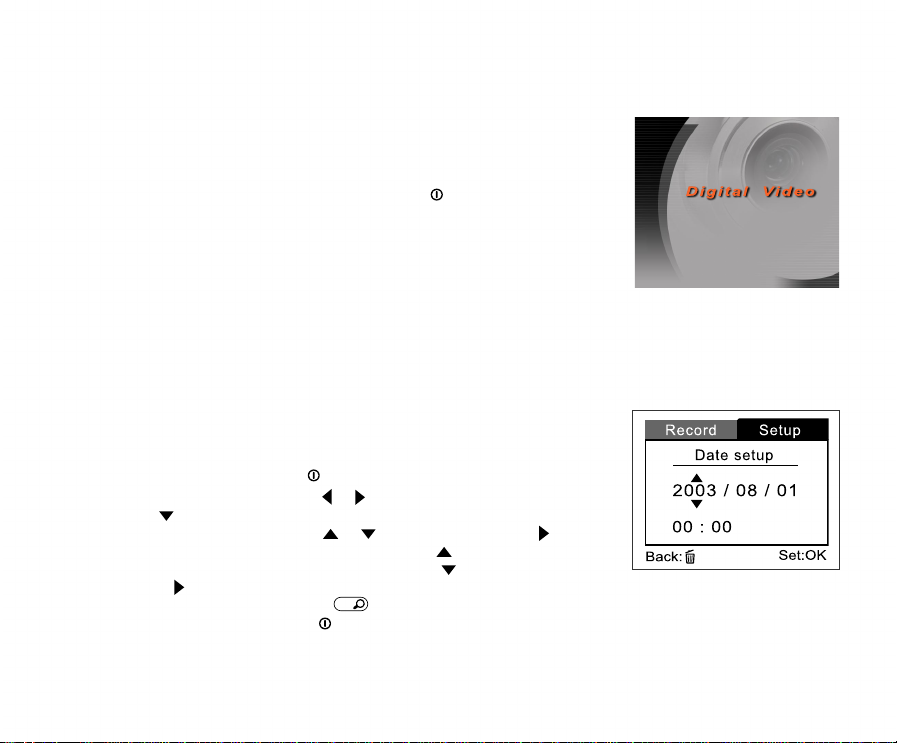

Setting the date and time

The date and time setting screen will automatically appear when:

 The camera is powered-on for the first time;  The camera is powered-on after the batteries have been removed for an extended period of time.

To adjust the date or time at any other time:

1. With the camera ON, press the power/menu button briefly.

2. Select Setup menu by using the or buttons.

3. Press the button to enter the main menu.

4. Select Date setup by using the or buttons, and press the button.

 To increase the value for each option, press the button.  To decrease the value for each option, press the button.  Press the button to move to the next field.

5. When all options are set, press the OK button.

6. To exit the menu mode press the power/menu button again.

CAPTURING STILL IMAGES

Basic settings

Digital zoom (Preview)

Using the digital zoom, the image in the LCD display can be enlarged by pressing the (T) telephoto button so that the subject appears closer or appears further away by pressing the (W) wide-angle button.

Note

 although the image in the LCD may be zoomed up to 2.5x, the still-image will be captured at 1X (no zoom.)

1. Turn on your digital video camera.

2. Open the LCD monitor.

3. Press the (T) telephoto button to activate the zoom function.

 Digital zoom’s range is from 1x to 2.5x.  The digital zoom magnification appears on the LCD monitor.

4. Use the (T) telephoto button or (W) wide-angle button to adjust the zoom state.

Note:

 It is not possible to capture a zoomed still-mage (Only videos use zoom for capture).

Self-timer

Use the self-timer when taking group shots.The self-timer duration is 10 seconds. After the self-timer is set, the shutter automatically releases after 10 seconds.

The self-timer LED starts blinking slowly for 7 seconds and then rapidly for the last 3 seconds.The self-timer can be used for still-images, not videos.

1. Secure your camera on a tripod or place it on a stable surface.

2. Turn on your camera.

3. Compose the picture.

4. Press the self-timer button.

 The count down is displayed on the LCD monitor.

5. Press the shutter button.

 To cancel the self-timer photography at any time,

press the self-timer again to disrupt the sequence.

Note:

 After an image is taken using the self-timer, the self-timer mode is turned off.  If you wish to take another image using the self-timer, repeat these steps.

flash

The flash is designed to function automatically when lighting conditions warrant the use of flash. You can capture an image using a suitable flash mode to your circumstances.The flash works only with still images and is disabled when capturing a video.

1. Turn on your camera.

2. Press the button repeatedly until your desired flash mode appears on the LCD monitor.

3. Compose the picture and press the shutter button.

The camera has three flash modes: Auto flash (Auto 1), Auto flash (Auto 2) and Flash off.

Flash Mode Description

Auto Flash The flash fires automatically according to the ambient lighting

(Auto 1) conditions.

Use this mode for general photography.

Auto Flash The flash fires automatically according to the ambient lighting

(Auto 2) conditions.

Use this mode for close photography.

Flash Off The flash will not fire.

Select this mode when taking images in a place where flash photography is prohibited, or when the distance to the subject is

beyond the effective range of the flash.

Image resolution and quality

You can select resolution and compression settings for your still images. You may select still image resolution of either 1600x1200 and 800x600. Use 1600 x 1200 higher resolution if you prefer a larger print. However, this will also produce a larger file size.

You may also specify an image compression setting, selecting from Super Fine, Fine, and Normal. Higher quality images will yield better images, but require more memory space.

High resolution and quality settings are recommended for printed output and situations requiring the finest detail. Lower resolution and quality images take up less memory space and may be quite suitable for sharing images via e-mail, in a report, or on a web page.

To change image resolution and quality settings:

1. Press the power/menu button to display the menu options.

2. Select Record menu by using the or buttons.

3. Press the button to enter the main menu.

4. Select Image size or Image quality by using the or buttons,

and press the button.

5. Change the settings with the or buttons

and then press the OK button.

6. Press the power/menu button again to exit from the menu mode.

7. Compose your picture.

8. Press the shutter button.

Number of recordable images

The frame counter indicates the approximate number of images that can be stored in the internal memory (or SD memory card ) at the current image quality and resolution settings. The number of recordable images will vary depending on the recorded subject (scene complexity) and the capacity of the memory card.

Resolution

1600 x 1200 pixels

Quality

Compression ratio

Super fine 4:1 91 86 Fine 8:1 136 129

64MB internal memory

64MB SD memory card

Normal 12:1 182 173

800 x 600 pixels

Super fine 4:1 364 346 Fine 8:1 546 519 Normal 12:1 728 692

* The above data shows the standard testing results. The actual capacity varies according to shooting conditions and settings.

RECORD MODE

Recording video clips

The digital video camera records MPEG-4 video at a resolution of 320x240 pixels at a frame rate of 25 fps.

1. Press the power/menu button to turn on your camera.

2. To start recording a video clip by press the record button.

 The zoom state, the battery level, card indicator, the movie mode

and the elapsed time will display on the LCD monitor when recording a video clip.

 To stop recording, press the record button again.

The table below indicates the approximate duration of recording time that you can record at each setting based on 64MB internal memory.

Resolution

320 x 240 pixels

Note:

 In record mode, the digital zoom function can be used.  In record mode, the self-timer cannot be activated.  In record mode, the flash mode is automatically set to [Off].  In record mode, the minimum ilumination level is 110 lux.

Video Quality Estimated Recording Time

Super fine Approx. 5 min. Fine Approx. 12 min. Normal Approx. 17 min.

Viewing video clips

To view a recorded video clip, follow these steps:

1. Turn on your camera.

2. Press the playback/ pause button.

3. Select the video clip you want to view by using the or buttons.

 To pause playback at any time, press the playback/ pause button again.  To stop playback, press the

Pressing the or the OK button while playing a video clip will change the status as follows:

button.

The first frame of the movie

button

button or time out

Movie playback starts

button

Movie playback pauses

Note:

 While viewing a recorded video clip, press the OK button to display thumbnail images.  To play a video clip on your PC use Windows Multi-media Player 9.0. WMP version 8 (or earlier) will not play an

MPEG-4 ASF video file. Please update to WMP 9 version from www.microsoft.com. Also note that Windows 98 Second edition, Me, 2000, or XP is required.

 To adjust the sound level, press the button will increase the volume, press the button to decrease the

volume.

PLAYBACK MODE

In the playback mode, you can view, magnify, protect, and delete images. You can even run a slide show. Playback mode also provides a thumbnail image display, allowing you quickly search for the image or movie you want.

Viewing images

1. Turn on your camera.

2. Press the playback/ pause button.

3. Select the image you want to view by using the or buttons.

 To view the previous image, press the button.  To view the next image, press the button.  The LCD monitor displays the detailed information such as image size,

image quality, date, exposure time,aperture value, file and folder number.

Note:

 You can also view your images on the TV screen. Connect one end of the A/V cable to the A/V OUT jack of

the camera and the other end to the video input socket on your TV. Turn on both TV and DV camera and press the button to display images and videos on your TV screen.

 When connected to a TV the LCD monitor on your DV camera will automatically turn off to save power.  You may specify the video-output standard (NTSC or PAL) in the setup menus.

Zoom playback

While reviewing your still-images, you may enlarge (zoom -in) a selected portion of the image. This magnification allows you to view fine details.

1. Turn on your camera.

2. Press the playback/ pause button.

 The last image frame appears on the LCD monitor.

3. Use the or buttons to select the frame you want to enlarge.

4. Zoon-in by pressing the OK button.

 When the image is enlarged, you will see a red frame

with a red box inside. The red frame indicates the entire image, while the red box shows the location of the currently enlarged area within the context of the entire image.

5. Use the , , or buttons to select the area to enlarge.

6. To display the regular size, press the OK button.

Note:

 Press the OK (zoom) button cycles the display: 1x -> 2x -> 4x -> Thumbnail-> 1x

Displaying thumbnail images

This function allows you to view up to nine thumbnail images on the LCD monitor simultaneously so that you can quickly scan for a particular image.

1. Turn on your camera.

2. Press the playback/ pause button.

 The last image frame appears on the LCD monitor.

3. Press the OK button.

 Nine thumbnail images appear on the LCD monitor

(assuming there are nine or more recorded images in the memory).

4. Use the , , or buttons to move the cursor to select the

image to be displayed at regular size.

5. Press the OK button to display the selected image on the full screen.

Note:

 While displaying thumbnail images, press the delete button, the screen will display “Delete this ?” you

may choose [Yes] or [No] by using the / buttons. To confirm your choice, press the OK button.

Slide show display

The slide show function enables you to play your images back automatically in sequential order as a slide show. This is a very useful and entertaining feature reviewing recorded images and for presentations.

1. Turn on your camera.

2. Press the playback/ pause button.

3. Press the power/menu button.

4. Select Slide show by using the or buttons, and press the button.

5. Set the playback interval by using the or buttons and press the OK button.

 The slideshow starts displaying your images on the LCD monitor,

one by one, at the specified interval.

 To stop the slide show, press the  To pause the slide show display, press the playback/ pause button.  To resume the slide show, press the playback/ pause button again.

Note:

 You can adjust the slideshow display interval within the range of 1 to 9 seconds.

button.

Deleting video clips and images

Your still-images and video clips are stored in either internal memory, or on an SD memory card. Whenever a memory card is inserted, the camera will automatically use the card, exclusively , in preference to internal memory. If the card is removed, the camera will revert to using internal memory. It is possible to have images stored on both card and internal memory.

To delete a video clip or image that has been recorded in internal memory, do not insert a memory card in the camera.

Delete one video clip/ image at a time

1. Turn on your camera.

2. Press the playback/ pause button to view the recorded video clips/images.

3. Select an unwanted video clip/image by using the or buttons.

4. Press the button.

5. “Delete this?” message appears on the image.

 Use the or buttons to select [Yes], and then press

the OK button to confirm.

 If you want to cancel the deletion, select [No].

6. Repeat the above steps to delete further video clips or images.

 If all video clips/images are deleted, the [ No images!] message pops up.

jpg

Delete all video clips/images at once

1. Press the playback/ pause button to view the recorded video clips/ images.

2. Press the menu button.

3. Select Playback menu by using the or buttons.

4. Select “Delete all” by using the or buttons, and then press the button.

5. Use the or buttons to select [Yes], then press the OK button to confirm.

A progress bar displays, indicating the progress of deleting.

 If you want to cancel the deletion, then select [No].  If all video clips/images are deleted, [ No images!] pops up.  To return to the preview mode, press the or shutter/record buttons.

Protecting video clips/images

You can pr otect video clips or images from accidental erasure by selecting the protection function in the Playback menu. To protect an image or video follow the steps:

Protecting one video clip/image

2. Turn on your camera.

3. Press the playback/ pause button, then press the menu button.

4. Select Protect by using the or buttons, and press the button.

5. Use the or buttons to select ” One image” and then press the button.

 To protect all images, select ”All images” in this step.

6. Select ”Lock” by using the or buttons and then press the OK button.

 If a video clip/image is protected, the protection icon will appear on the protected clip or image  To exit the playback menu, press the or shutter/record buttons.

Removing protection from a video clip/image

1. Perform the steps above 1 to 4 in “ Protecting one video clip/image ”.

2. Select ” Unlock” by pressing the or buttons and then press the OK button to confirm.

SYSTEM CONNECTIONS

Installing the USB Driver on a Windows PC

The USB driver on the CD-ROM is exclusively for Windows 98 Second Edition. Windows 2000, Me, XP computers do not need to install the USB driver.

1. Insert the product CD-ROM into the CD-ROM drive. The welcome screen appears.

2. Click “Install USB Driver”. Follow the on-screen instructions to complete the installation. After the USB driver installation is complete, restart your computer.

Connecting the Camera to Your Computer to download your images and movies clips:

1. Connect one end of the USB cable to an available USB port on your computer.

2. Connect the other end of the USB cable to the USB connector on the camera.

3. Turn the camera on. Your computers operating system will recognize the camera.

4. From the Windows desktop double click on “My Computer”

5. Look for a new “removable disk” icon. This “removable disk” is actually the memory (or memory card) in your camera. Typically, the camera will be assigned drive letter “e” or higher.

6. Double click on the removable disk and locate the DCIM folder.

7. Double click on the DCIM folder to open it to find more folders such as “100CAMEA”. Your recorded images and video clips will be inside these folders.

8. Copy & Paste or Drag-N-Drop image and video files to a folder on your computer

Note:

 When the camera is turned on and connected to your computer, it is considered to be a disk drive, just like a

floppy disk or CD. You can download (transfer) images by copying them from the “removable disk” to your computer hard driver as described in the prior section.

Open the “removable disk” and subsequent folders by double clicking on them. Double click on the folder. Your images are inside these folder(s). Select the images that you want, then choose “Copy” from the “Edit” menu. Open the destination location (folder) and choose “Paste” from the “Edit” menu. You may also drag and drop image files from the camera to a desired location.

Note:

 Memory card users may prefer to use a memory card reader (highly recommended). Memory card readers

offer advantages in terms of convenience, speed, and cost-savings. While connected to your computer the batteries in your camera will be continue to be used. A card reader, which has no batteries and uses USB power from your computer, will save considerably on batteries.

Installing PhotoSuite

PhotoSuite is a very user-friendly image-editing program. With PhotoSuite, you can retouch, compose and organize your images. It contains a variety of templates, such as photo frames, birthday cards, calendars and more. Get your images ready and go explore this amazing program.

To Install PhotoSuite

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive. The welcome screen appears.

2. Click “Install PhotoSuite”. Follow the on-screen instructions to complete the installation.

Note:

 For information on how to use PhotoSuite to edit and retouch your recorded images, please refer to its online

help.

 For Windows 2000/XP users, make sure to install and use the PhotoSuite while logged in as a user with an

Administrator account.

Installing PhotoVista

PhotoVista is an easy-to-use program that lets you create spectacular 3600 panoramic images in a snap. When you view these panoramas, you get the experience of being totally immersed in a realistic environment. PhotoVista’s powerful engine quickly and automatically stitches images together, and its intuitive interface will let even a novice get great results in minutes.

To Install PhotoVista

1. Insert the CD-ROM packaged with the camera into the CD-ROM drive. The welcome screen appears.

2. Click “Install PhotoVista”. Follow the on-screen instructions to complete the installation.

Note:

 For information on how to use PhotoVista to create spectacular 360

online help.

 For Windows 2000/XP users, make sure to install and use the PhotoVista while logged in as a user with an

Administrator account.

 For Windows XP users which OS version does not include Service Pack 1 or higher, be sure to link to http:java.

sun.com/getjava/download.html first and download the Java Virtual Machine installation. For more detail

information about Java, please refer to its on-line help at http:java.sun.com/getjava/help.html. Photovista system requirements: Windows 98/200/Me/XP (Service Pack 1 or higher)

panoramic images, please refer to its

Installing WinDVD Creator SVCD

WinDVD Creator is an easy-use software to help you to edit recorded video clips and make your own DVDs. WinDVD Creator lets you easily transfer your recorded videos from a camcorder, add picture, music, titles, transitions between scenes, special effects or edit the length you prefer. This program also includes Automatic Scene Detection that automatically breaks up the video you transfer

into both short clips and scenes.

To Install WinDVD Creator SVCD

1. Insert the CD-ROM into the CD-ROM drive.

2. Click “Install WinDVD Creator SVCD”. Follow the on-screen instructions to compete the installation.

WinDVD Creator System requirements:

Computer Component Minimum Requirement Recommended

Processor Celeron 800Mhz Pentium III 600Mhz

RAM 128 MB 256MB Operating System Windows 98SE / ME 2000 / XP Sound On board AC'97 Codec Windows compatible sound card that supports

Video On board Windows compatible Windows compatible AGP or PCI graphic

PCI graphic card card (overlay support is recommended) (overlay support is recommended)

Hard Drive * 70 MB available spece * 620MB for every hour of VCD quality MEPG-1 video

* 2 GB for every hour of DVD quality MPEG-2 video CD or DVD burner Required for VCD and DVD burning Video sources DV cameras, camcorders.

*For Direct DVD Support, requires P4

1.6GHz higher for real-time requirement

48KHz playback (PCI recommended)

Menu Options

Record Menu

You can use the Record menu to select istill-mage size(resolution), image quality or video quality. You can also adjust exposure, white balance or ISO speed.

To access the Record menu, press the button.

Image size

Set the desired image size.

1600 x 1200 800 x 600

Image quality

Set the still-image quality (compression ratio) at which the image is saved.

Super fine Fine Normal

Video quality

Set the video quality (compression ratio) at which the video clip is saved.

Super fine Fine

Normal

Exposure

Your DV camera adjusts the exposure of each scene automatically. However, if the subject is very dark, or very bright, you may override the DV camera automatic exposure determination to make the subject brighter or darker. This is called EV compensation. The EV compensation of your DV camera can be adjusted from -1.8EV to +1.8EV in 0.3EV step.

To select the EV compensation you wish, first press the button. Increase or decrease the EV compensation and press the or buttons to confirm.

Suggestions for using EV Compensation

Use Positive (+) Compensation for-

 Imaging printed text (black characters on white paper)  Backlit portraits  Very bright scenes (such as snowfields) and highly reflective subjects  Shots made up predominantly of sky

Use Negative (-) Compensation for-

 Spot lighted subjects, particularly against dark backgrounds  Imaging of printed text (white characters on black paper)  Scenes with low reflectivity, such as shots of green or dark foliage

White balance

The human eye adapts to changes in light so that white objects still appear white even when the light changes. With DV camera, however, the color of the subject is influenced by the color of the light surrounding it. This color adjustment is called “white balance adjustment”. This setting allows you to set the white balance when taking photographs under specific lighting condition.

To set the white balance, first press the button. Then choose the white balance you prefer by using the or buttons, then press OK button to confirm.

Auto: Automatic adjustment

[ ] Daylight: For recording outdoors on a bright day [ ] Shade: For recording outdoors on a cloudy day [ ] Fluorescent-1: Cool white fluorescent (W3900-4500K) [ ] Fluorescent-2: Day white fluorescent (W4600-5400K) [ ] Lamp: For recording under lamp light

ISO

You may specify the ISO to be used when an image is taken. A higher ISO sensitivity value increases the camera’s sensitivity to light. However, higher ISO also introduces more noise (speckles) into the image. With a higher sensitivity selected, images can be taken with less light.

To set the ISO speed, first press the button. Then choose the ISO speed you prefer by using the or button, then press OK button to confirm.

[Auto] : Automatic ISO adjustment [100 ] : Sensitivity equivalent to ISO100 [200 ] : Sensitivity equivalent to ISO200 [400 ] : Sensitivity equivalent to ISO400

Speaker

Setup Menu

You can select your preferences and DV camera settings in Setup mode. Press the power button and navigate to the option you wish to configure by using the or buttons.

Setup menu items: Format, Beep, Speaker, LCD brightness,

Power off, Reset to default, Date type, Date setup, Date imprint, Video out, Light freq. and Language.

Format

This option formats the internal memory (or SD memory card) and erases all stored images and data.

To perform the format function, first press the button. Then select [No] or [Yes] by using the or buttons, then press OK button to confirm. A progress bar displays the formatting progress.

[ No ] : Does not format the internal memory/SD card [YES] : Formats the internal memory/SD card and erase all images

Beep

The DV camera will makes a sound (beep) each time you press a camera button if this function is enabled. Press the button. Select [On] or [Off] by using the or buttons, then press OK button to confirm.

[On] : Enable beeper [Off] : Disable beeper

Speaker Volume

You may adjust the volume of the speaker - used when movies are played back.

To set the sound level, first press the button. Then increase or decrease the sound using the or buttons, then press

button to confirm.

The volume level can be adjusted from 0 to 5.

LCD brightness

This option adjusts the brightness of the LCD monitor.

To adjust the LCD brightness, first press the button. Then increase or decrease the LCD brightness by using the or buttons, then press OK button to confirm. The adjustment is from -5 to +5.

Power off

If your DV camera is unused for a certain period of time while the camera is powered on, the DV camera will switch to an idle mode, and eventually turn itself off to conserve power.

Inactivity period (Batteries) Inactivity period (AC Power Adapter) Camera Status

60 seconds 60 seconds Stay idle

3 minutes 30 minutes Shut off

If the camera is idle, re-activate the camera by pressing any button. If the camera has powered-of f then you must turn the camera on again by pressing the power button. To change the power saving interval, first press the button. Then select the power-off interval you prefer by using the or buttons and then press OK button to confirm. Select from [3 Min], [5 Min], [10 Min], [30 Min], [Cancel]

Reset to default

If you wish to restore all camera settings to their original stettings, select this option and then press the button. Then select [ No] or [Yes] by using the or button and then press OK button to confirm.

Date type

You can select the date type that is imprinted on your image.

To set the date type, first press the button. Then select the date type you prefer by using the or buttons and then press OK button to confirm.

[Y/M/D] : Year/Month/Day [D/M/Y] : Day/Month/Year [M/D/Y] : Month/Day/Year

Date setup

After removing the batteries from the camera, the date and time will return to the default setting. If this happens, you may reset the date and time. For more information about the date setup, refer to “Setting the date and time”.

Date imprint

If you select the imprint feature, the date will be embedded into your images. To enable this function, first press the button. Then select [On] or [Off] by using the or buttons and then press OK button to confirm.

Video out frequence

You can view your images on a TV or record them to a video tape. Remember to select the video output standard appropriate to your location.

To set this option, first press the button. Then using the or button to select your TV receiving system [NTSC] or [PAL] and then press OK button to confirm.

[NTSC] : Select this format when located in the U.S.A., Canada, Japan, Korea, Taiwan, Central America [ PAL ] : Select this format when located in Australia, Belgium, China, Denmark, Finland, Germany,

or Mexico. Great Britain, Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain Sweden,

Switzerland, Thailand or Norway.

Light freq.

You may set the frequency of the camera sensor to work optimally with local lighting. To set this option, first press the button. Then using the or button to select [50Hz] or [60Hz] and then press

button to confirm.

Language

This option allows you to select the operating language for the menus and the texts displayed on the LCD monitor.

 The provided languages are [English], [Français], [Deutsch],[Español], [Portuguès], [Italiano],

[ ], [ ], [ ]

Playback menu

Use the Playback menu to transfer your recorded video clips/captured images to a memory card or to create an on-camera slide show displaying. You may also use the Playback menu to protect or delete all images from the camera’s memory card or an internal memory.

To access the Playback menu, press the button first and then press the button. Scroll through the menu options by using the / button.

Playback menu items: Protect, Delete all, Slide show and Copy to card.

Protect

This feature prevents images from being deleted accidentally. Refer to section in this manual titled “Protecting video clips/images” for further detail.

Delete all

Refer to section in this manual titled “ Deleting video clips/ images”

Slide show

Your camera can display your images sequentially as a slide show at a selected interval.

[1 Sec], [3 Sec], [5 Sec], [7 Sec], [9 Sec]

Copy to card

This feature allows you to copy your images from the camera’s internal memory to a memory card. Of course, you can only do this if you have a memory card installed and some images in internal memory.

[ No ]: Does not copy the images [Yes]: Copy all images to the memory card

CONNECTING YOUR DIGITAL VIDEO CAMERA

TO OTHER DEVICES

CAMERA SPECIFICATIONS

Item Description

Image sensor 1/2" CMOS Effective pixels 2.0 Mega Pixels Still image resolution 1600 x 1200; 800 x 600 Video image resolution 320 x 240 Image quality Super fine , Fine, Normal Recording media 64MB internal memory; SD memory card (optional)(up to 512 MB) Lens F-no:2.8, 5G All glass, Focus range: 1.4m~infinity LCD monitor High resolution(130k dots)1.5" LTPS color LCD Self-timer 10-second delay Digital zoom Video mode: up to 2.5X/ Playback mode: 2X/4X Exposure compensation Automatic with Manual EV compensation: -1.8 ~ +1.8 EV (0.3 EV steps) White balance Automatic with presets for

ISO Automatic/ 100/ 200/ 400 Light frequency 50/ 60Hz Video & Audio formats MPEG 4 SP (video); IMA-ADPCM(Audio) Supported standards EXIF 2.1, DCF1.1, JPEG Interface DC IN jack, USB connector, VIDEO OUT jack (NTSC or PAL) Power 2 x AA Alkaline batteries(optional),

Software applications For still-image:PhotoSuite & PhotoVista

Dimensions 90mm x 65mm x 31mm (3.5”x2.6”x1.2”) Weight Approx 123g (4.4 ounces)(without batteries and the SD memory card)

Daylight, Shade, Fluorescent 1, Fluorescent 2, Lamp

2 x AA Ni-MH batteries(optional) CR-V3(optional), AC power adapter (3.0V/2.5A)(optional)

For video :WinDVD Creator SVCD

Windows Media Player 9.0 (WMP*.ASF file)

* Design and specifications are subject to change without notice.

APPENDIX

Error Messages

LCD MONITOR DISPLAY MEANING

MEMORY ERROR Internal memory access error CARD ERROR Optional SD card access error MEMORY FULL There is not enough memory space to store another image or video clip

in the internal memory.

NO IMAGES There are no images stored in the internal memory or on an optional SD

card USB ERROR USB transmission error CARD FULL There is not enough space to store image or video clip on the SD card LOW LIGHT Poor lighting will diminish image quality “LOW BATTERY” The battery power is nearly exhausted and is going to shutdown “AUTO” within 6 seconds. “6” The screen will display a shut-down (count-down) timer (from 6 to 1).

Vivitar DVR-200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
