The K-1205 Entry Phone is a two-way, handsfree telephone with 12 buttons for calling individual residences in an apartment building. It also has
a built-in color CCTV video camera. The rugged stainless steel faceplate
has a printed directory housed in a waterproof, scratch-resistant lens.
Each button is beside the tenants name in the directory so there are no
confusing codes to deal with. Calling a particular tenant is as easy as
pressing a single button. The K-1205 has a built in speed dialer that can
handle up to 12 primary phone numbers, each with 22 digits. If there is
no answer at the first number, a second number can be called automatically. Once the tenant answers their phone, a single touch tone command
can activate the door strike relay. For “no phone line” applications, the K-
1205 is compatible with the C-3000 no CO (phone line) controller. The
high resolution video camera is mounted on an adjustable bracket so it
can be positioned just right to view the outside visitor.
The K-1205-EWP shares all of the features of the K-1205 in addition to
Enhanced Weather Protection (EWP) for outdoor installations where the
unit is exposed to precipitation or condensation. EWP products feature
foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with
internally sealed, field-adjustable trim pots and DIP switches for easy onsite programming.
12 Button Apartment Entry Phone with Built
in Door Strike Relay and Camera
PPhhoonnee......771155..338866..8888661
1
wwwwww..vviikkiinnggeelleeccttrroonniiccss..ccoom
m
• Vandal Resistant Features: 14 gauge louvered 316
stainless steel faceplate with permanent laser etched
graphics, stainless steel speaker/mic screen, heavy
duty metal keypad and hex drive mounting screws.
• Weather Resistant Features: Marine grade 316
stainless steel faceplate and screws. Internally sealed
keypad. Mylar speaker. Self-draining mic mount.
Faceplate, mic and speaker gaskets.
• K-1205-EWP is designed to meet IP66 Ingress
Protection Rating (see DOD# 859 for more information)
• Built-in high resolution color video camera with wide
viewing, tilt/swivel adjustments and wide operating
temperature of -30°F to 150°F
• Operates on 12 to 24 volts AC/DC
• 12 speed dial buttons (22 digits each)
• 12 alternate number positions (22 digits each)
• One button operation (no call button)
• Hang-up on CPC, busy, silence, time-out or dial tone
• Touch tone restriction from microphone
• Integral relays for camera control and door strike
• Works with C-1000B for increased security
• Works with C-3000 for “No CO” (phone line) operation
• 50 keyless entry codes and postal lock input
PPrraaccttiicce
e
T
T
EELLEECCOOM
M
S
S
OOLLUUTTIIOONNSSFFOORRTTHHE
E
221
1
SST
T
C
C
EENNTTUURRY
Y
TECHNICAL
TECHNICAL
FFeeaattuurrees
s
SSppeecciiffiiccaattiioonns
s
• Small apartment buildings
• Professional buildings
• Gated communities
AApppplliiccaattiioonns
s
iinnffoo@@vviikkiinnggeelleeccttrroonniiccss..ccoom
m
K-1205
K-1205
K-1205-EWP
K-1205-EWP
Multi-Button Handsfree
Entry Phone with Camera
August 29, 2012
Model K-1205 (shown in optional
VE-5x10-SS, not included)
Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Shipping weight: 2.5 kg (5.5 lbs.)
Operating Temp: -35°C to 66°C (-30°F to 150°F)
Relay Contact Rating:
Door Strike: 5A @ 30VDC/250VAC Maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (13) gel-filled butt connectors (3M Scotchlok UR2)
(See page 2 for complete specifications)
Page 2
Camera Specifications
Power: 3.5-6V DC regulated 150mA (5V DC regulated adapter included)
Image Sensor: 1/4” color CMOS
Video Output: 1 VP-P composite, NTSC, 75 ohms
Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
Sensitivity: 0.26 LUX (20 IRE) F 2.0
Lens: 3.4mm, pinhole 70° FOV (Field of View)
Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A)
IR Compatibility: This camera is equipped with an OLP (Optical Low Pass)
filter to maintain correct video color in outside applications. The standard
camera is NOT
compatible with IR illuminators. If IR illumination is required,
you will need to replace the exisiting camera with a Viking model VCAM-1IR.
For more information, see DOD# 190.
Maximum Wire Run Length: 750 ft with *RG59/RG6 for video and CAT5
for power (3 pairs) and entry phone audio (1 pair). 150 ft with CAT5E for
video, power and entry phone audio (longer video runs are possible by using
video balun transceivers, see Installation section F, page 5). * Note: RG59
or RG6 with solid center conductor and 95% bare copper braid shield.
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The customer
MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14) calendar days from the
date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor
will then replace the product over the counter at no charge. The distributor will then return the product to Viking using the same
R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't followed
the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA) number.
The customer MUST have a complete description of the problem, with all pertinent information regarding the defect, such as
options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individually boxed. All equipment
should be wrapped to avoid packing material lodging in or sticking to the equipment. Include ALL parts of the equipment. C.O.D.
or freight collect shipments cannot be accepted. Ship cartons prepaid to: Viking Electronics, 1531 Industrial St, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manufactured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others.
NO OTHER WARRANTIES
. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FIT-
NESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES
. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAM-
AGES ARISING OUT OF OR RELATED TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL
BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED
AS SUCH.
2
If trouble is experienced with the K-1205, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 (715) 386-8666
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
Connection to Party Line Service is subject to State Tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak
hours, such as early morning or late evenings.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This
is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the side of this
equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a
telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of
the REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to a line, as determined by the total REN's, contact the local telephone company. For products approved after July 23, 2001, the REN for
this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by the ACTA. If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this K-1205 does not disable your alarm equipment. If you have questions
about what will disable alarm equipment, consult your telephone company or a qualified installer.
If the K-1205 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make
the necessary modifications to maintain uninterrupted service.
SSppeecciiffiiccaattiioonns
s
Entry Phone Specifications
Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Operating Temp: -35°C to 66°C (-30°F to 150°F)
Shipping weight: 2.5 kg (5.5 lbs.)
Connections: (13) gel-filled butt connectors (3M Scotchlok UR2)
Entry Phone / Camera Specifications
Power: 12 to 24V AC or DC, 12V DC adapter provided.
Note: To assure operation during a power outage, a UPS
should be used. Operating Temperature: -34° C to 65° C
(-30° F to 150° F)
Humidity: Standard model: 5% to 95% non-condensing,
EWP model: Up to 100%
Relay Contact Rating: Door Strike: 5A @ 30VDC/250VAC
Maximum, Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC
Connections: (13) gel-filled butt connectors (3M
Scotchlok UR2)
Recommended Surface Mount Box: Viking model VE5x10 (DOD# 424)
Diagram A
70° Lens FOV
Rotate
Left 30°
Camera Lens
Rotate
Right 30°
Page 3
IInnssttaallllaattiioon
n
The K-1205 can be powered from any source supplying 12 to 24 volts, AC or
DC. A 12 volt DC adapter is supplied with the product. When using the included adapter, the plug on the adapter cord will have to be removed. The power
connections to the K-1205 (black wires) are not polarity sensitive.
There are also 8 more wires connected to the K-1205 controller board. Two
wires are for the incoming phone line, three are from the high current door
strike relay and the last three are from the camera relay. Gel filled butt connectors are provided for easier connection to building wiring. The table at the
right describes each wire’s function.
0
9
865
3
Color
Black
Black
Green
Red
Brown
Orange
Yellow
Blue
Violet
White
Function
Power In
Power In
Phone Line In
Phone Line In
Door Strike Relay common
Door Strike Relay NC
Door Strike Relay NO
Camera Relay common
Camera Relay NC
Camera Relay NO
A. Mounting
To install a directory, remove the four screws that mount the directory
lens to the front of the K-1205 using the included Allen wrench. Insert
a paper directory behind the lens and secure the two back onto the
front panel being careful to align the names with the front panel graphics. For your convenience, the back of this document has pre-printed
directory forms.
B. Changing the Directory
C. Wiring the K-1205 Controller Board
The K-1205 is designed to be
installed in a sheltered location, and
is not meant to be used outdoors.
For outdoor applications use the K-
1205-EWP. The K-1205 can either
be installed as a flush mount unit
using the included rough in box, or
as a surface mount unit using an
optional VE-5x10. The rough in box
uses the inner set of four holes on
the face plate while the VE-5x10
uses the outside set of holes. A set of
dummy screws and nuts are provided to fill the unused mounting holes.
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC
outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.
!
3
D. Wiring the K-1205 Camera
1. Using RG59 for Video and CAT5 for Camera Power (Recommended)
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC outlet and the telephone line.
It is recommended that a surge protector be installed to protect against such surges.
!
Important: To operate the K-1200 during a power failure, a UPS should be installed.
Side View
of the K-1200
10.0"
0.952"
9.5"
Front View
of the K-1205
5.00"
4.50"
2.596"
0.425"
8.65"
(8) #6-32 x 3/4"
Marine Grade
Stainless Steel
Flathead, 5/64"
Hexdrive Screws
(included)
#
©
VIKING
14 Gauge Marine Grade 316
Stainless Steel Faceplate
Zinc-Plated Steel
Rough-In Box (included)
2.5"
4.5"
Paper Directory
Directory
Lens
9.12"
Optional VE-5x10 Surface
Mount Box (not included),
see DOD# 424
5.22"
- or -
3.69"
10.14"
Back View of
the K-1205
G
Model:
xxxxxxxxx
S/N: XXXXXX
IN
P/N: xxxxxxxxx
Viking Electronics, Inc. (715)386-8861
IK
1531 Industrial St., Hudson, WI 54016
V
DEV:
3-Wire Gel-Filled Butt
Connectors included
(3M Scotchlok UR2)
RoHS
Yellow (Video)
- Black (GND)
+ Red (6VDC)
Center conductor
stripped back 5/8"
Twisted foil and braided shield
Yellow/Red
Black
**** Female "F" to Wire or "BNC" to Wire
Converter Cable (not included)
** Camera GND (-) W/O
** Camera Pwr (+) Orange
*** RG59 or RG6 Shielded
Video Cable, up to 1000 ft
OR
**** For ease of installation, a Viking Female
"F" to Wire Converter Cable can be used (Part
# 261217) or "BNC" to wire converter cable
(Part # U213510) can be used. Go to
www.vikingelectronics.com and click on
"Spare Parts" to order.
CAT5 Cable
** Up to 250 ft
"F"
Connector
"F" to Phono Plug
Adapter
Shack part #278-252)
Camera GND (-)
W/O
Orange
Camera Power (+)
(Radio
Connectors (not included)
To unused input on TV,
VHF modulator, whole
house video distribution
equipment, IP video
encoder (Axis M7001), etc.
5V DC Adapter
(included)
Black
(-)
(+)
Black with
White Stripe
Crimp-on Splice
!
120V AC
Page 4
4
Another internal relay in the K-1205 can be used to
trigger a camera controller. When the K-1205
makes a call, it will energize the relay and hold it on
until the call is done.
* Note: To prevent unwanted radio interference,
route the connecting wires through the included
ferrite core.
** Note: The gel-filled (water-tight) butt connectors
are designed for insulation displacement on 19-26
gauge wire with a maximum insulation of 0.082
inches. Cut off stripped ends prior to terminating.
B. Connecting Camera Control to the K-1205 Internal Relay
* Note: Up to 150 ft video cable run length can be achieved using CAT5E or CAT6 cable. Longer cable runs can be used if a passive or active video Balun transceiver is used on
each end of the cable. Generally, passive transceivers can achieve up to 750 ft cable runs where active transceivers can achieve up to 3000 ft runs depending on cable type, etc.
The type of video balun transceiver required is specific to your cable run length. For more information on video balun transceivers go to: www.northernvideo.com.
Caution: When routing CAT5E or CAT6 cable, maintain a minimum distance of 3 ft from any parallel high voltage wire (110 VAC) and a minimum of 2 ft from crossing any high voltage wire. For installations where RF noise is expected (commercial applications) or wire runs are near high voltage (110 VAC) wires, a shielded video cable such as RG6 is recommended.
** Note: The maximum camera power supply wire run length is 250 ft of 24 gauge wire (CAT 5/6), longer runs are possible by doubling pairs, increasing the wire gauge or
using a 6V DC 200mA power adapter (Viking part # L122110). Go to www.vikingelectronics.com and click on “Spare Parts”.
2. Using CAT5E or CAT6 for Video and Camera Power (see Caution below)
*** Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield.
The K-1205 provides a dry contact output that
can be used for operation of a door strike. To
use this feature, the Door Strike Code and
Door Strike Time must be set in programming.
In this mode, when the Door Strike Code is
detected, the K-1205 will energize the relay for
the period of time selected in the Door Strike
Time (see Programming section E and F).
If a Postal Lock is required, connect the normally open contacts of the lock to the two
white wires coming from the two pin connector
on the lower portion of the control board.
When the postal lock is momentarily actuated,
the door strike will energize for the programmed Door Strike Time.
* Note: To prevent unwanted radio interference, route
the connecting wires through the included ferrite core.
AApppplliiccaattiioonns
s
A. Connecting a Doorstrike to the K-1205 Internal Relay
** Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum insulation of 0.082 inches. Cut off
stripped ends prior to terminating.
Back View of
the K-1205
Video Out (+)
Video GND (-)
W/G Green
W/O
Orange
Camera GND (-)
Camera Power (+)
G
Model:
xxxxxxxxx
S/N: XXXXXX
IN
P/N: xxxxxxxxx
Viking Electronics, Inc. (715)386-8861
IK
1531 Industrial St., Hudson, WI 54016
V
3-Wire Gel-Filled Butt
Connectors included
(3M Scotchlok UR2)
Yellow (Video)
- Black (GND)
Video Out (+) W/G
Video GND (-) Green
** Camera GND (-) W/O
RoHS
DEV:
+ Red (6VDC)
** Camera Pwr (+) Orange
CAT5E or
CAT6 Cable
(see Caution below)
* Up to 150 ft
To unused input on TV, VHF
modulator, whole house video
distribution equipment, IP video
encoder (Axis M7001), etc.
Phono (RCA) Plug,
F Connector, Etc.
5V DC Adapter
(included)
Black
(4) Crimp-on Splice
Connectors (not included)
(-)
120V AC
(+)
Black with
White Stripe
(-)
(+)
!
* Ferrite Core
(included)
G
Model:
S/N: XXXXXX
IN
P/N: xxxxxxxxx
Viking Electronics, Inc. (715)386-8861
IK
1531 Industrial St., Hudson, WI 54016
V
xxxxxxxxx
RoHS
DEV:
Rear View
of the K-1205
Black
Black
Red
Green
Brown (COM)
Yellow (N.O.)
Orange (N.C.)
White
White
120V AC
120V AC
CO Line
Doorstrike/Magnetic Lock
Postal Lock
Switch (N.O.)
** Gel-Filled Butt Connectors (included)
120V AC
G
Model:
xxxxxxxxx
S/N: XXXXXX
IN
P/N: xxxxxxxxx
Viking Electronics, Inc. (715)386-8861
IK
1531 Industrial St., Hudson, WI 54016
V
Rear View
of the K-1205
DEV:
RoHS
* Ferrite Core
(included)
Black
Black
Red
Green
Blue (COM)
Violet (NC)
White (NO)
Controller
or
** Gel-Filled Butt
Connectors (included)
(not included)
CO Line
Camera
Page 5
2. Accessing the Programming Mode without the Security Code
In some instances it may be a concern
that the Door Strike relay is outside the
door. In this situation, a second controller
such as a C-1000B can be used. Be sure
to disable the door strike code for the K-
1205 (see Programming section G).
Notes: 1. The C-1000B must be in the
“Analog Station Mode” (refer to the C-
1000B Technical Practice). 2. The K1205’s keyless entry code can not be
used in this application. 3. The K-1205
will hang-up during door strike activation.

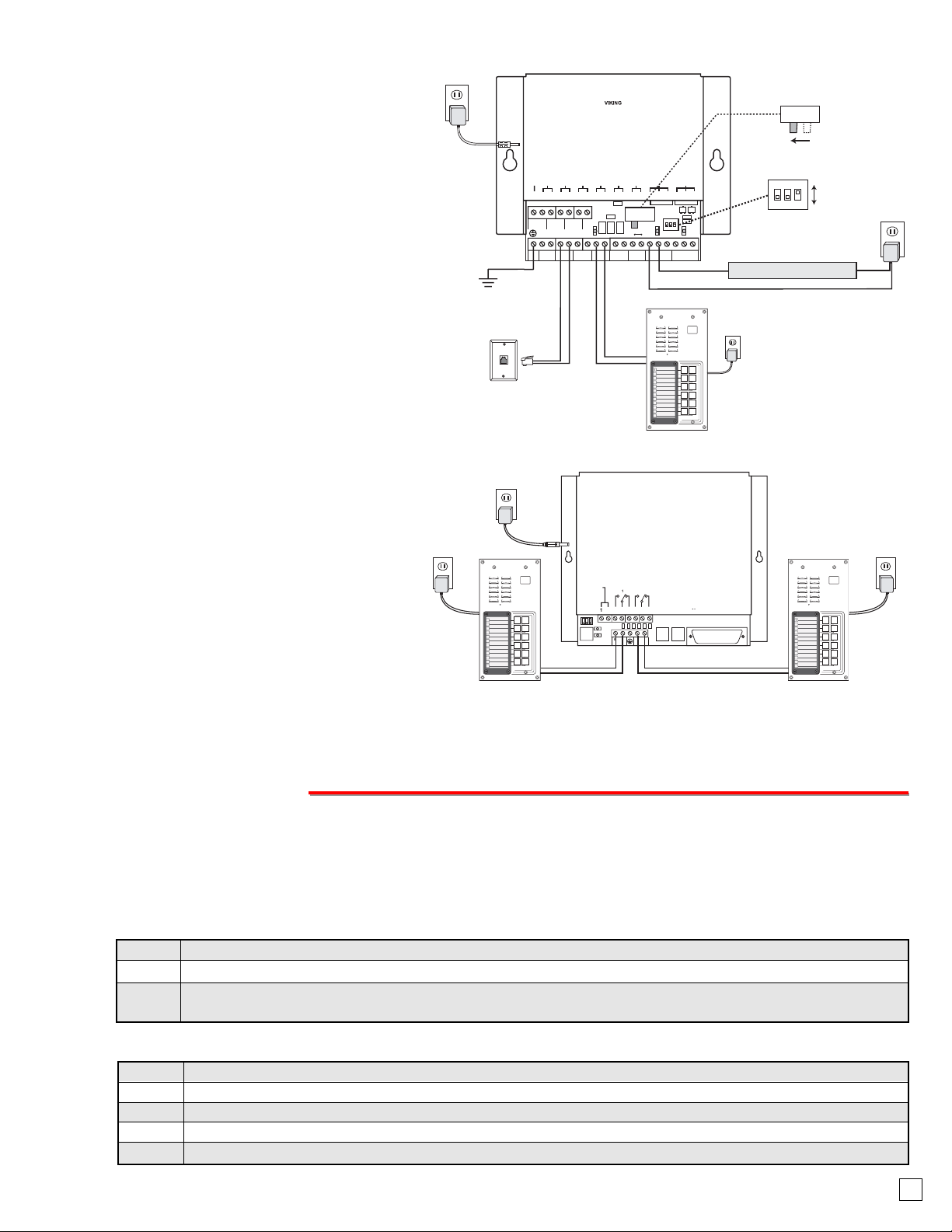

D. Using the K-1205 with a C-3000
C. Using the K-1205 with a C-1000B
Step 1. Move DIP switch 1 to the ON position (sets unit to answer incoming calls).
Step 2. From a touch tone phone, call the line attached to the K-1205.
Step 3. When the K-1205 answers, listen for the beep and then enter a “#“ followed by the 6-digit security code (factory
set to 845464). A double beep should be heard indicating you have entered the programming mode.
PPrrooggrraammmmiinng
g
A. Accessing The Programming Mode
1. Accessing the Programming Mode with the Security Code
Step 1. Move DIP switch 1 to the ON position (sets unit to answer incoming calls).
Step 2. Move DIP switch 4 to the ON position (incoming calls enter programming without security code, see section B).
Step 3. From a touch tone phone call the line attached to the K-1205.
Step 4. When the K-1205 answers, a double beep should be heard indicating you have entered the programming mode.
Step 5. When finished programming, move DIP switch 4 back to the OFF position.
O
E
OU
O
O
S
SS
CO
C
ELECTRONICS
0
#
9
8
7
6
5
3
1
For a “No CO” installation, a Viking C-3000 No
CO controller can be used with the K-1205.
Note, the K-1205 will need to be programmed
on a separate CO line or use the Viking DLE-
200B. The door strike can be controlled by the
K-1205 or the internal relay on the C-3000, just
be sure to disable the door strike feature in the
other unit. The keyless entry feature of the C-
3000 can not be used. If not using keyless entry
codes, use the C-3000 to control the doorstrike.
If using keyless entry codes (up to 50), use the
K-1205 to control the doorstrike. The K-1205
speed dial position should be programmed with
the C-3000 line selection command “1” to “12”.
(Refer to the C-3000 Technical Practice for
more details).
V
G
©
M
G
E
S
6
12 U
T
R
1
356
S
E
OOR
S
S
H
3
J21X
12 APARTMENT LINES IN/OUT
8
E
I
S
L
OCK
INPUT
PHO
2
O
N
PWR
IN
US
ONO
F
F
0
#
9
8
7
6
5
3
2
0
#
9
8
7
6
5
3
1
The K-1205 Entry Controller can be programmed from any Touch Tone phone using a C.O. line, analog PABX/KSU,
or a DLE-200B Line Simulator.
5
Notes: 1. In this application, the C-3000 keyless entry feature is not available.
Use the keyless entry feature of the K-1205 and wire both door strike relays in
parallel. 2. The K-1205 will hang-up during the doorstrike activation.
120V AC
13.8V AC
Adapter
(included)
* Earth
Ground
CO line or Analog
PABX/KSU Station
Model C-1000B (not included)
VIKING
PWR 13.8 VAC
NE LIN
H
GND
123456789
SIG GND
SIG GND
VIDEO 1 IN
VIDEO 2 IN
EARTH
C.O. LINE
GND
INPUT
©
HUDSON, WI 54016
DOOR ENTRY / CCTV VIDEO
CONTROLLER
T
NTA
T
NE
PH
EYLE
INE
CLOSURE INPUT
T
DOORBOX 1
SIG GND
VIDEO OUT
KEYLESS
C.C. INPUT
10 11 12 13
CONTACT
OUTPUT
C
LED1
DOOR
DOORBOX
BOX 1
13VAC PWR
COM N.O. N.C. - - - - AUX.
OUT TO
PHONES
Green
MODEL C-1000B
TPUT
DOORBOX
PWR OU
TALK BATTERY
OFF ON
DOOR
BOX 2
Red
DOORBOX 2
DOOR
STRIKE 1
14 15 16 17 18 19
ON
1 2 3
C
LED2CLED3
N.O. COM N.C.
DOOR STRIKE 1
DOOR
STRIKE 2
N.O. COM N.C.
DOOR STRIKE 2
Talk Battery Switch
OFF ON
DIP Switches
ON
1 2 3
Doorstrike/Magnetic Lock 2
250V AC maximum
120V AC
ON
OFF
120V AC
5A@30V DC/
©
VIKING
Model
K-1205
VIKIN
LECTRONIC
HUDSON, WI 5401
NIT APARTMEN
D
TRIKE
MULTI-MODUL
NTERCONNECT
NE
UT I
Green
ODEL C-3000
R
Red
120V AC
Model
K-1205
IKIN
POWE
3.8 VAC
ENTRY CONTROLLER MODULE
DOOR
POSTA
TRIK
L
WITC
1
©
VIKING
1 2
PROGRAM PHONE
Red
Green
E
PHONE 1
Model C-3000
(not included)
2
©
VIKING
120V AC
Model
K-1205
Page 6
F. Door Strike Time
The actual time the door strike relay is energized is controlled by location #40. The time can be set from 00 to 99 seconds, (an entry
of “00” gives 0.5 seconds). In order to use this feature, be sure the relay door strike code is set (see section G).
6
E. Speed Dial Numbers
The K-1205 Entry Controller can be programmed with up to twelve 46 digit numbers. Each number can also be programmed with
special features such as pauses, and the Touch Tones “Q” and “#”. Each of the special characters count as a single digit. Each of
the speed dial positions #01 to #12 pertain to the corresponding button on the front of the K-1205. The button “0” uses position #10,
the “Q” uses position #11 and the “#” uses position #12. To program a speed dial position, enter programming (see section A) then
enter the desired number followed by the selected position. To clear a position, only enter a “#“ followed by the position number with
out any preceding number. The K-1205 also has the capability to dial a second phone number if there is no answer or busy at the
first number. This can be used if the tenant wants the visitor to call their cell phone if they are not at home. To program a second
number, be sure that position #43 is programmed with the desired maximum ring time, then enter the first number to be dialed, followed by “#24”. A single beep should be heard. Next enter the second number to be dialed followed by “#“ plus the memory location. The total number of digits cannot exceed 46 for each position (45 digits if two numbers are programmed).The following are
examples of speed dial number entries:
B. Security Code (memory location #47)
This six digit number can be used to access the programming mode. The security code has been factory set to 845464 (V-I-K-I-N-
G). It is recommended that you change the security code to a personal 6 digit number. To change the security code, access programming (see Programming section A). Enter six digits 0-9 followed by #47. If you have forgotten your security code, follow the
steps in Programming section A, 2. Accessing the Programming Mode Without the Security Code). Note: The security code
must be six digits in length and can NOT contain a
Q
or #.
C. Keyless Entry Codes
The K-1205 can be programmed with up to 50 keyless entry codes. This feature allows a visitor to let themselves in by entering a
preprogrammed code on the K-1205 keypad. Each keyless code can contain from 1 to 6 digits and is programmed by entering the
digits into any of the locations #50 to #99. To clear a location enter “#” followed by the position number without any preceding number. The “Q” and “#” keys can also be used in the keyless codes by substituting “#20” and “#21” (respectively) when programming
a keyless position.
D. Quick Programming Features
The K-1205 is programmed through the incoming phone line. The programming commands are structured so that they do not
interfere with the commands of a C-1000B controller.
#01 - #12
#40
#41
#42
#43
#44
#45
#47
#50 - #99
- then -
Enter Memory Location
Speed dial numbers ..................................................................................................
Door strike time in sec (factory 05, 00 =.5 sec)**........................................................
Door strike code (factory 6, no digits disables) ..........................................................
Maximum call time in min (factory 3, 0 = .5 min, no digits disables)** .......................
Maximum ring time in sec (factory 20, 00 disables)** ...............................................
Silence Time Out in sec (factory 10, 00 disables)** ..................................................
Talk/listen delay time in .1 sec (factory 2)** ...............................................................
Security code (factory 845464)** ...............................................................................
Keyless entry codes ..................................................................................................
Dial a (
Q) ..................................................................................................................
Dial a (#) ...................................................................................................................
Add a 4 second pause ..............................................................................................
Add a 1 second pause .............................................................................................
Second phone number selector ................................................................................
Normal dialing speed* ..............................................................................................
Fast dialing speed .....................................................................................................
Hang up on dial tone enable* ...................................................................................
Hang up on dial tone disable ....................................................................................
Reset all programming to factory default settings ...................................................
Hang up from programming ......................................................................................
0-46 digits***
2 digits
1-2 digits
1 digit
2 digits
2 digits
1 digit
6 digits
1-6 digits
#20
#21
#22
#23
#24
#30
#31
#32
#33
###
##7
Enter Digits
then
then
then
then
then
then
then
then
then
Step 2 - Enter Digits
5551234#01
9#233334444#07
23#20#21#08
22#24 (beep) 33#12
Step 1 (see section A)
Enter programming
Enter programming
Enter programming
Enter programming
To Program the K-1205 to...
...store 555-1234 at the first button position
...store a 9, a 1 second pause, then 333-4444 in the seventh button position
...store a 23
Q# in the eight position
...store a first number of 22 and a second number of 33 in the “#“
button position
*Factory settings
** Cannot contain “Q“ or “#“ (see #20 and #21)
*** 45 digits maximum if two numbers are pro-
grammed in one memory location
Notes: 1. A single or double beep indicates a
valid entry, three beeps indicate an error. 2.
“Q“ or “#“, pauses or second phone number
selector occupy one digit of memory
.
Page 7
H. Maximum Call Time
In some installations, it maybe desirable to limit the length of the call to the tenant. This can be done by programming position #42.
The maximum call time can be set from 1 minute to 9 minutes by entering the appropriate number in position #42. A “0” will yield a
30 second time. To disable the call timer enter “#42” without any preceding digit.
I. Maximum Ring Time
This timer sets the maximum amount of time the K-1205 will look for the call to be answered. If this timer expires and the tenant has
not answered, the call will be terminated or the K-1205 will dial the second phone number (if programmed). The factory setting is
20 seconds, and to disable this feature, enter “00” into position 43.
L. Dialing Speed
On some phone lines, a faster rate of dialing is allowed. The dialing speed of the K-1205 can be altered to take advantage of this
faster rate. The normal dialing speed is 5 digits per second and is selected by entering “#30” (factory setting) while in programming.
To increase the speed to 10 digits per second, enter “#31”. If the faster rate is selected, be sure to test each number to assure proper operation.
M. Hang Up on Return to Dial Tone
The K-1205 is factory set to hang up if continuous audio is detected after dialing. In most situations this would happen if the tenant
hung up and the service that the K-1205 is connected to provides a dial tone following the hang up. In some instances due to noisy
lines or loud background noise, the call may be terminated before the tenant hangs up. If this occurs, enter “#33” when in programming. This will disable return to dial tone feature and stop the K-1205 from hanging up prematurely. To enable this feature enter “#32”
when in programming.
G. Door Strike Code
A one or two digit door strike code can be entered by programming position #41. When in programming, enter the one or two digit
code followed by “#41”. Note: “
Q” and “#” can be entered as valid characters of the door strike code by substituting “#20” and #21”
(respectively) when programming the door strike code (see section D). To disable the door strike relay, enter “#41” without any pre-
ceding numbers. The following are examples of door strike code entries:
Switch
1
1
2 & 3
2 & 3
4
4
Position
ON
OFF
ON
OFF
ON
OFF
Description
Incoming calls answered (factory setting)
Incoming calls not answered
Audio Detection normal (factory setting)
Audio Detection more sensitive
Learn Mode - Any incoming calls are automatically entered into the programming mode,
no security code required. Use this option if
you have forgotten your security code.
Normal operation mode (factory setting)
O. DIP Switch Programming/Speaker and Microphone Adjustments
Two POTs are provided to increase or decrease speaker volume and microphone sensitivity. In certain noisy locations the microphone sensitivity may need to be decreased as shown below. Caution: Setting the microphone gain too high may cause distort-
ed audio, prevent the distant party from breaking over and inhibit second number redialing.
Turn POTS clockwise to increase
(as viewed from the back of the board)
Note: On some phone lines, busy and
ring back tones maybe very soft. In
these installations, set DIP switches 2
and 3 to the OFF position.
K. Talk/Listen Delay
This time represents the amount of time the K-1205 will delay before switching back to the microphone mode after it was in the
speaker mode (VOX switching time). It is in 100 msec increments and stored in position 45.
J. Silence Time Out
This time out is started once the call has been connected and is reset every time audio is detected on the phone line. If it expires,
the call will be terminated. This is useful on systems that are silent when the tenant hangs up to assure the K-1205 disconnects. It
is factory set to 10 seconds and can be disabled by entering “00” in position 44.
N. Special Commands
To clear all speed dial positions and set all modes back to factory setting, enter “###“ while in programming. Caution, all previous
programming will be lost. Normally when the K-1205 is in the programming mode, it will hang up the line if no commands are detect-
ed for 20 seconds. To hang up immediately, enter “##7”.
7
Step 2 - Enter Digits
99#41
3#41
#20#20#41
#211#41
Step 1 (see section A)
Enter programming
Enter programming
Enter programming
Enter programming
To Program the Door Strike Code to...
”99”
”3”
”
QQ”
”#1”
ON
OFF
Speaker
Volume POT
123on4
1 2 3 4
Microphone
Sensitivity POT
Page 8
8
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
DOD# 183 ZF302650 Rev DPrinted in the U.S.A.
PPrroodduuccttSSuuppppoorrttLLiinnee......771155..338866..8866666
6
FFaaxxBBaacckkLLiinnee......771155.
.338866..44334455
When a visitor is at the K-1205, they just need to find the name of the tenant they want to visit on the directory and press the associated button. The K-1205 will then seize the phone line and speed dial the number programmed for that name. When the tenant answers
the call, they can let the visitor in by entering the Door Strike Code on their telephone keypad. The tenant can converse with the visitor
for up to 10 seconds after the Door Strike Code is dialed (to verify the visitor has been granted entry). The K-1205 is able to determine
if the door strike command is coming from the apartment or the caller, to prevent entry using a hand held touch tone dialer. If the tenant
chooses not to let the visitor in, they can simply hang up the phone. The K-1205 will drop the line when busy, reorder, CPC signals are
detected, when programmable maximum call time out, silence time out, maximum ring timers expire or 10 seconds after a door strike
activation. Only the buttons that have a programmed phone number are active (except “#” when used for keyless entry). After a button
is pressed, and the call is initiated, it can be canceled by momentarily pressing any button on the panel.
If a second number is programmed for the selected tenant, and there is no answer or busy after dialing the first number, the K-1205 will
hang-up, pause, seize the line, and then dial this second number. In this manner the call can be routed to a cell phone if the tenant is not
at home. The tenant can still let the visitor in using the Door Strike Code.
It is also possible to talk to a visitor before they press a directory button. Make sure DIP switch 1 is on (Auto Answer, see section O) and
then call the phone number of the K-1205. The K-1205 will answer the ringing line and send a single beep. At this time the user is free
to converse with the visitor. For security reasons, the tenant is blocked from operating the door strike in this mode.
To use the keyless entry feature, momentarily press or press and hold the “#“ key on the K-1205 keypad. When momentarily pressed, 1
beep will be heard and if held for 2 seconds (or longer), 2 beeps will be heard. In either case, the K-1205 is then ready to accept the keyless code. Continue by entering one of the previously programmed keyless codes. The K-1205 will pause a few seconds to make sure
there are no more keypad entries, and then actuates the Door Strike relay if valid. If an incorrect code is entered, the K-1205 will beep 3
times and the user has to start over and enter a correct code.
If a Postal Lock is used, a momentary closure of the postal lock switch will energize the door strike for the programmed Door Strike Time.
OOppeerraattiioon
n
Directory Forms
Loading...
