Viking K-1200-EWP Technical Practice

The K-1200 Entry Phone is a two-way, handsfree telephone with 12
buttons for calling individual residences in an apartment building.
The rugged stainless steel faceplate has a printed directory housed
in a waterproof, scratch-resistant lens. Each button is beside the ten­ants name in the directory so there are no confusing codes to deal
with. Calling a particular tenant is as easy as pressing a single but­ton. The K-1200 has a built in speed dialer that can handle up to 12
primary phone numbers, each with 22 digits. If there is no answer at
the first number, a second number can be called automatically. Once
the tenant answers their phone, a single touch tone command can
activate the door strike relay. For “no phone line” applications, the K-
1200 is compatible with the C-3000 no CO (phone line) controller.

The K-1200-EWP shares all of the features of the K-1200 in addition
to Enhanced Weather Protection (EWP) for outdoor installations
where the unit is exposed to precipitation or condensation. EWP
products feature foam rubber gaskets and boots, sealed connec­tions, gel-filled butt connectors, as well as urethane or thermal plas­tic potted circuit boards with internally sealed, field-adjustable trim

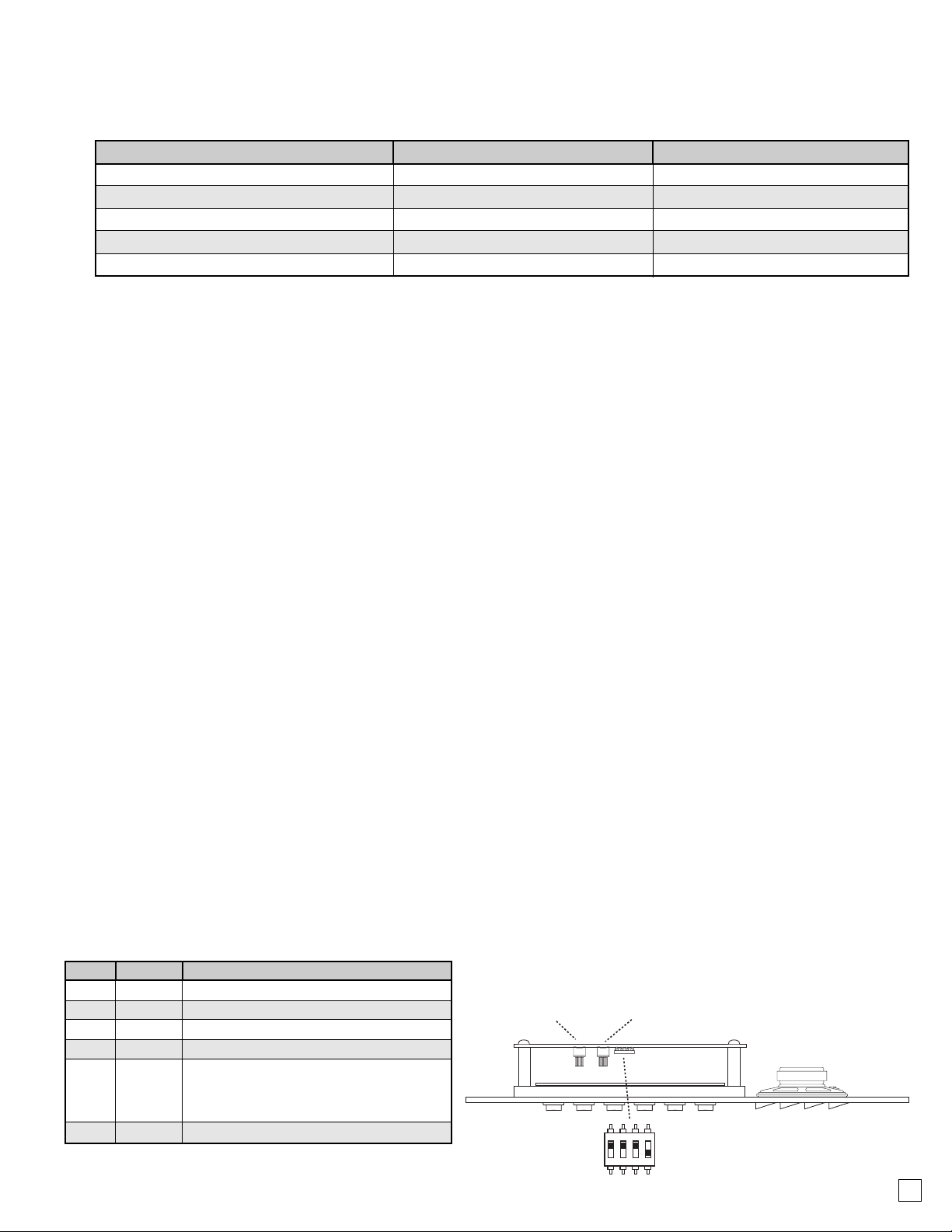

pots and DIP switches for easy on-site programming.

12 Button Apartment Entry Phone with

Built-In Door Strike Relay

PPhhoonnee......771155..338866..8888661

1

wwwwww..vviikkiinnggeelleeccttrroonniiccss..ccoom

m

• Vandal Resistant Features: 14 gauge louvered 316

stainless steel faceplate with permanent laser etched
graphics, stainless steel speaker/mic screen, heavy
duty metal keypad and hex drive mounting screws.

• Weather Resistant Features: Marine grade 316

stainless steel faceplate and screws. Internally sealed
keypad. Mylar speaker. Self-draining mic mount.
Faceplate, mic and speaker gaskets.

• K-1200-EWP is designed to meet IP66 Ingress
Protection Rating (see DOD# 859 for more information)

• Operates on 12 to 24 volts AC/DC

• 12 speed dial buttons (22 digits each)

• 12 alternate number positions (22 digits each)

• One button operation (no call button)

• Hang-up on CPC, busy, silence, time-out or dial tone

• Touch tone restriction from microphone

• Integral relays for camera control and door strike

• Works with C-1000B for increased security

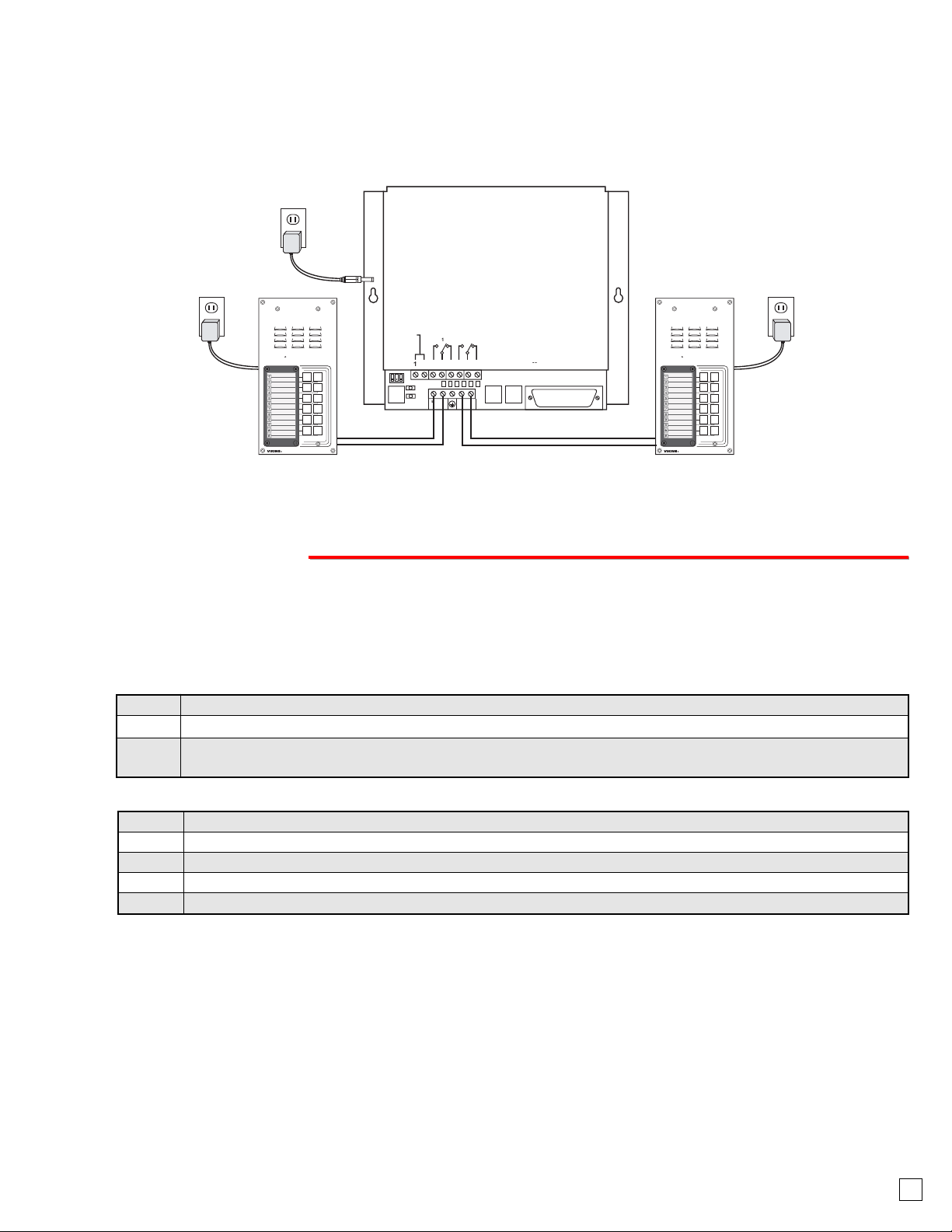

• Works with C-3000 for “No CO” (phone line) operation

• 50 keyless entry codes

• See model K-1205 for integral camera

• Postal lock input

• Optional VE-5x10 surface mount back box (DOD# 424)

Power: 12 to 24 Volts AC or DC, 12VDC adapter provided

Note: To assure operation during a power outage, a UPS should be used.

Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")
Shipping weight: 2.2 kg (4.8 lbs.)
Operating Temp: -35°C to 66°C (-30°F to 150°F)
Relay Contact Rating:

Door Strike: 5A @ 30VDC/250VAC Maximum
Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC

Connections: (8) gel-filled butt connectors (3M Scotchlok UR2)

PPrraaccttiicce

e

T

T

EELLEECCOOM

M

S

S

OOLLUUTTIIOONNSSFFOORRTTHHE

E

221

1

SST

T

C

C

EENNTTUURRY

Y

TECHNICAL

TECHNICAL

FFeeaattuurrees

s

SSppeecciiffiiccaattiioonns

s

• Small apartment buildings

• Professional buildings

• Gated communities

AApppplliiccaattiioonns

s

iinnffoo@@vviikkiinnggeelleeccttrroonniiccss..ccoom

m

K-1200

K-1200

K-1200-EWP

K-1200-EWP

Multi-Button Handsfree

Entry Phone

May 25, 2011
