BLADDERSCAN

BVM9500

Operations & Maintenance Manual

0900 ‑1596 ‑ 0 6 ‑ 6 0

BLADDERSCAN

BVM9500

Operations & Maintenance Manual

Effective: February 23, 2016

Caution: Federal (United States) law restricts this

device to sale by or on the order of a physician.

CONTACT INFORMATION

To obtain additional information regarding your BladderScan system,

please contact Verathon® Customer Care or visit verathon.com/support.

Verathon Inc.

20001 North Creek Parkway

Bothell, WA 98011 U.S.A.

800.331.2313 (US and Canada only)

425.867.13 48

Fax: 425.883.2896

verathon.com

Verathon Medical (Europe) B.V.

Willem Fenengastraat 13

1096 BL Amsterdam

The Netherlands

Tel: +31 (0) 20 210 30 91

Fax: +31 (0) 20 210 30 92

verathon.com

0123

Verathon, the Verathon torch symbol, BladderScan, the BladderScan symbol, ScanPoint, and NeuralHarmonics are trademarks or registered trademarks, and Total Reliability Plan is a service mark of Verathon Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.

Information in this manual may change at any time without notice. For the most up‑to‑date information, see the documentation available at verathon.com/product‑documentation.

TABLE OF CONTENTS

IMPORTANT INFORMATION .................................................................................................................................1

Overview ............................................................................................................................................................1

Product Description .........................................................................................................................................1

Notice to All Users ...........................................................................................................................................1

Statement of Prescription .................................................................................................................................2

Statement of Intended Use ..............................................................................................................................2

Safety Information ..............................................................................................................................................2

Safety & Performance Summary ....................................................................................................................... 2

Biological Safety ..............................................................................................................................................2

Contraindications .............................................................................................................................................2

Cautions & Warnings ....................................................................................................................................... 2

INTRODUCTION ....................................................................................................................................................5

Parts & Features .................................................................................................................................................. 5

Probe Components ..........................................................................................................................................6

Console Components ......................................................................................................................................6

Battery Charger/Wireless Hub ..........................................................................................................................7

Components & Accessories .................................................................................................................................8

Icons & Buttons ..................................................................................................................................................9

Battery Status Indicator .................................................................................................................................... 9

Instrument Buttons ..........................................................................................................................................9

Display Screens ................................................................................................................................................. 12

Sleep Mode ......................................................................................................................................................29

Memory Optimization During Power Down .......................................................................................................30

Operations & Maintenance Manual: Table of Contents

SETTING UP ......................................................................................................................................................... 31

Procedure 1. Unpack the Box & Check the Components ........................................................................... 31

Procedure 2. Charge the Batteries ............................................................................................................32

Procedure 3. Install a Battery Pack in the Console .....................................................................................32

Procedure 4. Enter the Clinic Name ..........................................................................................................33

Procedure 5. Set the Date & Time .............................................................................................................35

Procedure 6. Load a Roll of Thermal Paper ...............................................................................................36

Procedure 7. Assemble the Medical Cart (Optional) ..................................................................................37

Procedure 8. Install the ScanPoint with QuickPrint Software (Optional) .....................................................39

Procedure 9. Watch the Training Video ..................................................................................................... 39

USING THE INSTRUMENT ...................................................................................................................................40

Procedure 1. Prepare for the Exam ...........................................................................................................40

Procedure 2. Measure Bladder Volume & UEBW ....................................................................................... 41

Procedure 3. Record a Voice Annotation ...................................................................................................49

Procedure 4. Delete a Saved Exam ...........................................................................................................50

Procedure 5. Print an Exam ...................................................................................................................... 51

HISTOGRAM OF COST SAVINGS .........................................................................................................................52

CLEANING & MAINTENANCE ............................................................................................................................. 53

Procedure 1. Clean the Instrument ...........................................................................................................53

Procedure 2. Regular Inspections & Maintenance ......................................................................................54

Procedure 3. Run a Self‑Test ..................................................................................................................... 54

Procedure 4. Calibrate the Instrument ...................................................................................................... 55

Device Repair .................................................................................................................................................... 55

Unit Disposal ....................................................................................................................................................55

TROUBLESHOOTING ...........................................................................................................................................56

Help Resources .................................................................................................................................................56

Icons on the BladderScan Console ..................................................................................................................... 57

Diagnosing Problems ........................................................................................................................................57

Instrument Does Not Turn On ........................................................................................................................57

Printer Problems.............................................................................................................................................58

Factory Reset ................................................................................................................................................. 59

Procedure 1. Restore Factory Conﬁguration .............................................................................................. 59

WARRANTY.........................................................................................................................................................60

Disclaimer of Additional Warranties ................................................................................................................... 60

PRODUCT SPECIFICATIONS ................................................................................................................................. 61

Instrument Speciﬁcations .................................................................................................................................. 61

Accuracy Speciﬁcations .................................................................................................................................. 62

Operating Conditions .....................................................................................................................................62

Storage Conditions ........................................................................................................................................62

Battery Charger/Wireless Hub Speciﬁcations......................................................................................................63

Storage Conditions ........................................................................................................................................63

Battery Speciﬁcations ........................................................................................................................................64

Electromagnetic Effects .....................................................................................................................................64

SYMBOL DIRECTORY ..........................................................................................................................................65

GLOSSARY ...........................................................................................................................................................66

Operations & Maintenance Manual: Table of Contents

iii

IMPORTANT INFORMATION

OVERVIEW

PRODUCT DESCRIPTION

The BladderScan BVM9500 is a portable ultrasound instrument that provides noninvasive measurements of urinary bladder volume, bladder wall thickness and Ultrasound‑Estimated Bladder Weight (UEBW). The device consists of an ultrasound probe that scans the patient’s bladder and a compact, battery‑operated console that provides an array of measurement‑related information.

The BladderScan BVM9500 is noninvasive and comfortable for the patient. It is quick, accurate, reliable, and easy to use. When the user releases the scan button, within seconds, the BVM9500 measures ultrasonic reﬂections on multiple planes inside the body and produces a three‑dimensional image. Based on this image, the BladderScan BVM9500 calculates and displays the bladder volume, bladder wall thickness and UEBW. A sonographer is not required.

NeuralHarmonics® technology in the BVM9500, sharpens accuracy and accelerates speed of bladder volume measurement. Volume measurements made with NeuralHarmonics technology are more accurate than those from conventional two‑dimensional ultrasound, as they are based on a more complex, multifaceted image of the bladder. This technology, applying multi‑spectral analysis to a robust data set, helps reduce margin of error and minimize uncertainty in essential measurements of bladder function.

If needed, after a scan has been taken, a unique aiming icon guides the operator to optimal probe placement with a comprehensive display showing the bladder in two cross sectional images verifying that a complete scan has been achieved. Bladder volume, patient type, directional aiming with real‑time feedback, battery status, and usage rate indicators are all displayed on the device’s LCD screen.

BladderScan BVM9500 measurements can be printed via an onboard printer or transmitted using HIPAA‑compliant ScanPoint® image management technology for storage and archiving on Verathon® servers. Stored exams can be accessed at any time from your ofﬁce's computer or viewing or printing. Note: Use of ScanPoint software is optional.)

Exam results may also be transmitted to a computer running ScanPoint with QuickPrint software via a proprietary wireless connection. ScanPoint with QuickPrint allows the user to archive data, calibrate the device, update software, print, and transfer data through a Web‑based interface.

A Calibration Targeting System, consisting of a spiral‑shaped calibration target along with a special calibration container, allows the user to easily calibrate the device by scanning a known target.

The BladderScan BVM9500 system also includes a universal battery charger for the custom, user‑replaceable Lithium‑ion battery incorporated in the system. The BladderScan BVM9500 may be mounted on a wheeled cart which holds the instrument securely and provides a holder for the probe and a bottle of ultrasound gel.

NOTICE TO ALL USERS

The system should be used only by individuals who have been trained and authorized by a physician or the institution providing patient care. All users must read this entire manual prior to using the system. Do not attempt to operate this instrument until you thoroughly understand all instructions and procedures in this manual. Failure to comply with these instructions may compromise the performance of the device and the reliability of its measurements.

Operations & Maintenance Manual: Important Information

STATEMENT OF PRESCRIPTION

Caution: Federal (United States) law restricts this device to sale by or on the order of a physician.

STATEMENT OF INTENDED USE

The BladderScan BVM9500 is intended to project ultrasound energy through the lower abdomen to obtain an image of the bladder and measure urinary bladder volume and bladder wall mass noninvasively.

SAFETY INFORMATION

SAFETY & PERFORMANCE SUMMARY

• The BladderScan BVM9500 computes the volume of the urinary bladder based upon twenty‑four cross‑sectional ultrasound images.

• To achieve accurate measurements, have the patient rest quietly in a supine position.

• Errors in usage tend to result in the underestimation of bladder volume, except in cases where the probe is moved during scanning. In this case, the measurement may overestimate the patient’s bladder volume.

• We recommend that new users measure patients with moderately full bladders rather than initially attempting to locate a bladder with a low urinary volume.

BIOLOGICAL SAFETY

To date, exposure to pulsed diagnostic ultrasound has not been shown to produce adverse effects. However, ultrasound should be used only by medical professionals when clinically indicated, using the lowest possible exposure times indicated by clinical need.

The ultrasound output power of the system is not user adjustable and is limited to the minimum level necessary for effective performance. Data on acoustic output levels can be found in the Instrument

Speciﬁcations chapter on page61.

CONTRAINDICATIONS

The system is not intended for fetal use or for use on pregnant patients.

CAUTIONS & WARNINGS

Warnings indicate that injury, death, or other serious adverse reactions may result from use or misuse of the device. Cautions indicate that use or misuse of the device may cause a problem, such as a malfunction, failure, or damage to the product. Throughout the manual, pay attention to sections labeled Important, as these contain reminders or summaries of the following cautions as they apply to a speciﬁc component or usesituation. Please heed the following warnings and cautions.

PRECAUTIONS

CAUTION

If your BladderScan BVM9500 suffers from a conﬁguration loss and displays the Home screen for a BladderScan BVI9400 instrument, complete the Restore Factory Conﬁguration procedure on page59.

CAUTION

When using the BladderScan BVM9500 with optional ScanPoint® software, your computer must be minimally certiﬁed to EN / IEC / CSA / UL 60950 or 60101‑1 standards. This conﬁguration ensures that compliance to the EN/IEC 60601‑1‑1 system standard is maintained. Anyone connecting additional equipment to the BladderScan BVM9500 signal input port or signal output port conﬁgures a medical system, and is therefore responsible for ensuring that the system complies with EN/IEC 60601‑1‑1. If you need assistance, contact your biomedical staff, Verathon

representative, or Verathon Customer Care.

CAUTION

Risk of Fire and Burns. Regarding the battery, do not disassemble, heat above 60° C (140° F),

or incinerate. Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly according to local recycling or waste regulations.

CAUTION

Hazardous materials present. Ensure proper disposal. The BladderScan BVM9500 and

related devices may contain lead, mineral oils, batteries, and other environmentally hazardous materials. When the BladderScan BVM9500 has reached the end of its useful service life, return the device, charging cradle, and related accessories to a Verathon

Service Center for proper

disposal. Alternatively, follow your local protocols for hazardous waste disposal.

WARNINGS

CAUTION

Bluetooth and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you are using the BladderScan BVM9500 Bluetooth link and Wireless LAN devices simultaneously, you may experience less than optimal network performance or even loose your network connection. If this happens, you may need to move the BladderScan instrument and ScanPoint

host computer to an area away from the 2.4 GHz

wireless LAN devices (40 meters/44 yards, or more).

WARNING

Potential patient hazard. To date, exposure to low‑power, pulsed diagnostic ultrasound has not

been shown to produce adverse effects. However, medical professionals should use ultrasound only when clinically indicated, using the lowest exposure times possible to obtain accurate measurements. The ultrasonic output of the BladderScan BVM9500 is not user‑adjustable and is limited to the minimum level necessary for effective performance. For more information about the acoustic output levels of this device, please refer to the section Instrument Speciﬁcations on page61.

Operations & Maintenance Manual: Important Information

WARNING

Risk of inaccurate measurements/results. When using the BladderScan BVM9500 be aware

of the following conditions which can affect ultrasound transmission and the accuracy of exam results.

• Use care when scanning patients who have had supra‑pubic or pelvic surgery. Scar tissue, surgical incisions, sutures, and staples can affect ultrasound transmission and accuracy.

• Do not use the BladderScan BVM9500 on a patient with open skin or wounds in the suprapubic region or mid‑abdominal area.

• Do not use the BladderScan BVM9500 on a patient with ascites.

• If you scan a patient with a catheter in his/her bladder, the catheter may affect measurement accuracy. However, the information obtained from the measurement could still be clinically useful for detecting problems such as a blocked catheter.

WARNING

Ensure proper distance from patient. When transmitting data to or from your computer,

make sure the BladderScan BVM9500, accessories, and computer are outside the patient vicinity (more than six feet [2 meters] from the patient).

WARNING

Risk of explosion. If you use the system in the presence of ﬂammable anesthetics, the hazard of

potential explosion exists.

WARNING

Risk of explosion, ﬁre, or serious injury. The BladderScan BVM9500 is provided with two

Lithium‑ion batteries. Never short circuit the battery pack by either accidentally or intentionally bringing the battery terminals into contact with any other conductive object. This could cause serious injury or ﬁre and could also damage the battery pack and the BladderScan device.

Never expose the battery pack to abnormal shock, vibration, or pressure. The main battery pack’s internal protective covering could fail, causing it to overheat or ignite, resulting in caustic liquid leakage, or explosion or ﬁre, possibly resulting in serious injury.

INTRODUCTION

PARTS & FEATURES

The BladderScan BVM9500 has two main components: the console and the probe. The console and probe are linked by a detachable cable. The BladderScan BVM9500 controls and indicators are illustrated in

Figure 1.

Figure 1. BladderScan BVM9500 Controls and Indicators

Main Display

Battery Pack

5 Variable Function Buttons

Adjust Brightness

Probe (Scan button on hand grip)

Console

Aiming Display

Battery Status Indicator

Printer (behind display)

Battery Packs

Adjust Volume

Power On/Off

Battery charger/ wireless hub

Microphone (above display)

Operations & Maintenance Manual: Introduction

PROBE COMPONENTS

The probe transmits and receives ultrasound waves, automatically moving its internal probe 360º to scan 24 different planes to produce a three‑dimensional image of the bladder. The probe is attached to the console by a cable. The probe has three main features:

Table 1. Probe Components

PART NAME PURPOSE

Scan button Press to take a scan.

Aiming Display

Microphone Records voice annotations.

The LCD displays directional arrows to assure that the bladder is centered within the scanning cone.

CONSOLE COMPONENTS

The console provides all operating controls for the scanning process by means of ﬁve variable function buttons. The measured bladder volume and UEBW and target‑shaped aiming icons are clearly displayed on the LCD screen. The console also provides controls for adjusting brightness and volume, turning the power on/off, interfacing with a ScanPoint®‑equipped computer (optional), and adjusting user settings and preferences. The console also houses the battery and the printer. The console’s controls and features are described in the following table:

Table 2. Console Components

PART NAME PURPOSE

Main Display

Power on/off Toggles main power on/off

Volume

Brightness Press to adjust display brightness dimmer/brighter.

5 Variable Function Buttons

Printer/Printer Door Press to release the printer door.

Displays the bladder volume measurement, patient type, settings, and instrument status.

Press to adjust volume up/down on voice annotation playback, start up sound, and “scan complete” tone.

Depending on device mode, the buttons provide access to all instrument functions for scanning, recording annotations, printing, connecting to ScanPoint (optional), accessing the training video, and setting user preferences.

BATTERY CHARGER/WIRELESS HUB

The BladderScan BVM9500 is powered by a Lithium‑ion (Li‑Ion) battery. The battery charger provided with the system can charge two batteries while simultaneously functioning as the wireless hub linking the BVM9500 to the ScanPoint® host computer. A battery icon on the instrument display is always present, indicating battery status. The user can change the battery whenever necessary. Removing a discharged battery and replacing it with a fresh battery will not erase any saved exams or user settings.

To provide power to the batteries, the battery charger/wireless hub must be plugged into a wall outlet using the power cord provided. Use only the battery charger provided with the BVM9500. Any other battery charger may damage the battery. The battery charger automatically detects whether a Lithium‑ion battery is being charged.

To provide wireless communication between the BVM9500 and the ScanPoint host computer, plug the battery charger/wireless hub USB connector into a USB port on the ScanPoint host computer. The battery charger/wireless hub maintains an operating distance of up to 120 feet (36 meters) between the ScanPoint computer and the BVM9500, regardless of barriers such as walls, ceilings, or windows.

Note: Use of ScanPoint with QuickPrint software is optional.

Figure 2. Battery Charger/Wireless Hub

Table 3. Battery Charger/Wireless Hub Components

PART NAME PURPOSE

Battery charger/ wireless hub

Power adapter and power cord

USBcable Connects the battery charger/wireless hub to the ScanPoint host computer.

Operations & Maintenance Manual: Introduction

Charges the lithium‑ion batteries and receives and sends information to/from a BVM9500 instrument within communication range.

Connects the battery charger/wireless hub to the wall outlet.

COMPONENTS & ACCESSORIES

Table 4. Components & Accessories

BVM9500 console

BVM9500 probe

Battery charger/wireless hub

Lithium‑ion battery (2 provided)

Thermal Paper Roll for the printer

BladderScan BVM9500 Medical Cart (optional)

ScanPoint® with QuickPrint user documentation (optional)

Calibration Kit (optional—requires ScanPoint with QuickPrint software. Includes Calibration Container, Calibration Target, etc.)

Acoustic Coupling Gel, 0.25 liter (optional)

Universal Accessory Basket for Medical Cart (optional)

DESCRIPTION

ICONS & BUTTONS

This section describes BladderScan BVM9500 displays and button functions.

The console display presents information that varies depending on the current instrument function.

The functions of the ﬁve buttons below the display vary according to current instrument mode and function. Button functions are indicated by icons in the display footer, immediately above the each button.

BATTERY STATUS INDICATOR

A battery status indicator appears in the header of all BVM9500 screens. Depending on current level of battery charge, one of the following symbols will be displayed:

Indicates a fully charged battery.

Indicates a battery 50% to 75% charged.

Indicates a battery 25% to 50% charged.

Indicates a battery that is nearly discharged and can power only a few more scans.

Indicates the battery must be changed.

INSTRUMENT BUTTONS

Power On/Off, Brightness (/), and Volume (/) are located on the lower half of the console. Scan (on the probe). The ﬁve buttons below the console LCD have variable functions depending on current instrument mode as follows:

Table 5. Instrument Buttons

SCREEN/MODE ACTIVE BUTTONS

Start up screen

Appears when the instrument is ﬁrst turned on.

Home Screen

Appears when the instrument is turned on.

Scan Screen:

Appears when the operator presses and releases the Scan button.

Power, Volume, Brightness

(1) ‑ (5) No function.

Power, Scan: opens Aim/Scan screen, (1) Patient Type: toggle between two bladder volume modes: female with uterus, all other patients, (2)

Tutorial: opens Tutorial screen, (3) Settings: opens Settings screen (4) Review: opens the Review screen, (5) ScanPoint®: transmits saved exams to

ScanPoint.

Power: No function

Scan: Press to take a scan.

Buttons (1) ‑ (5): No action.

Operations & Maintenance Manual: Introduction

SCREEN/MODE ACTIVE BUTTONS

Results Screen

Appears when the operator releases the SCAN button (after aiming).

Review Screen

Review, replay, print, or delete saved exams.

Tutorial Screen

View the menu of training modules.

Video Viewing Screen

The video viewing screen.

Settings Screen

Edit clinic name, date & time, general preferences, savings preferences, and self‑test options.

Power, Scan: opens Aim/Scan screen:

(1) Record:press to record voice annotation, press Stop to end voice annotation, (2) Print:print to onboard printer, (3) Play:press to play voice annotation; otherwise, no function, (4) Zoom:Image Zoom screen for manual measurement of bladder wall thickness. (5) Home:return to Home screen.

Power, Scan, (1) Next: select next exam in memory, (2)Print: print to on‑board printer, (3) Return/Play: On ﬁrst Review screen, switches to second screen for additional data (UEBW, Bladder Wall Thickness); On second Review screen, plays voice annotation for currently selected exam, (4)

Delete: delete currently selected exam, (5) Home: return to Home screen.

Power, (1) Skip to next tutorial, (2) Skip to previous tutorial, (3) Select tutorial for viewing (4) No function, (5)Home (return to Home screen).

Power, (1) No function, (2) Play/Pause, (3) Return to Tutorial (4) No function, (5)Home (return to Home screen).

Power, (1)Select next setting in list, (2)Select previous setting in list,

(3)Enter (proceed to the selected screen), (4)No action, (5)Home (return to Home screen).

Alpha‑Numeric Screen

Displays alpha‑numeric characters for entering information.

Date & Time Screen

Allows the user to set the date and time

Power, (1)Move down, (2)Move right, (3)Add currently selected character, (4)Delete currently selected character, (5)Return to main setup screen.

Power, (1)Move forward to next changeable unit, (2)Move back to previous changeable unit, (3)Add/toggle units as appropriate (hold down to move faster), (4)Decrease/toggle units as appropriate (hold down to move faster), (5)Save current date/time entries and return to main setup screen.

SCREEN/MODE ACTIVE BUTTONS

Power, (1)Select next setting in list, (2)Select previous setting in list,

(3)Select next option/Enter, (4)Select previous option, (5)Home (return to Home screen).

Preferences list and options:

General Preferences Screen

Set preferences for language, time and date format, time zone, UTI rate and cost, and currency.

Languages: English (default), Chinese Simpliﬁed, Chinese Traditional, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Portuguese, Spanish, Swedish, Turkish.

Date for yy‑mm‑dd

Time Format: 12‑hour, 24‑hour

Calibration Warning: On (default), Off. When “On” is selected, a calibration warning will appear in the display header when the device is due for calibration.

Print Report Type: B‑Mode (default), C‑Mode

Print UEBW: On (default). Off

UTI Rate: 1–100 % in increments of 1%

UTI Cost: $10–100,000 in increments of $1

Catheter Cost: $1–1000 in increments of $1

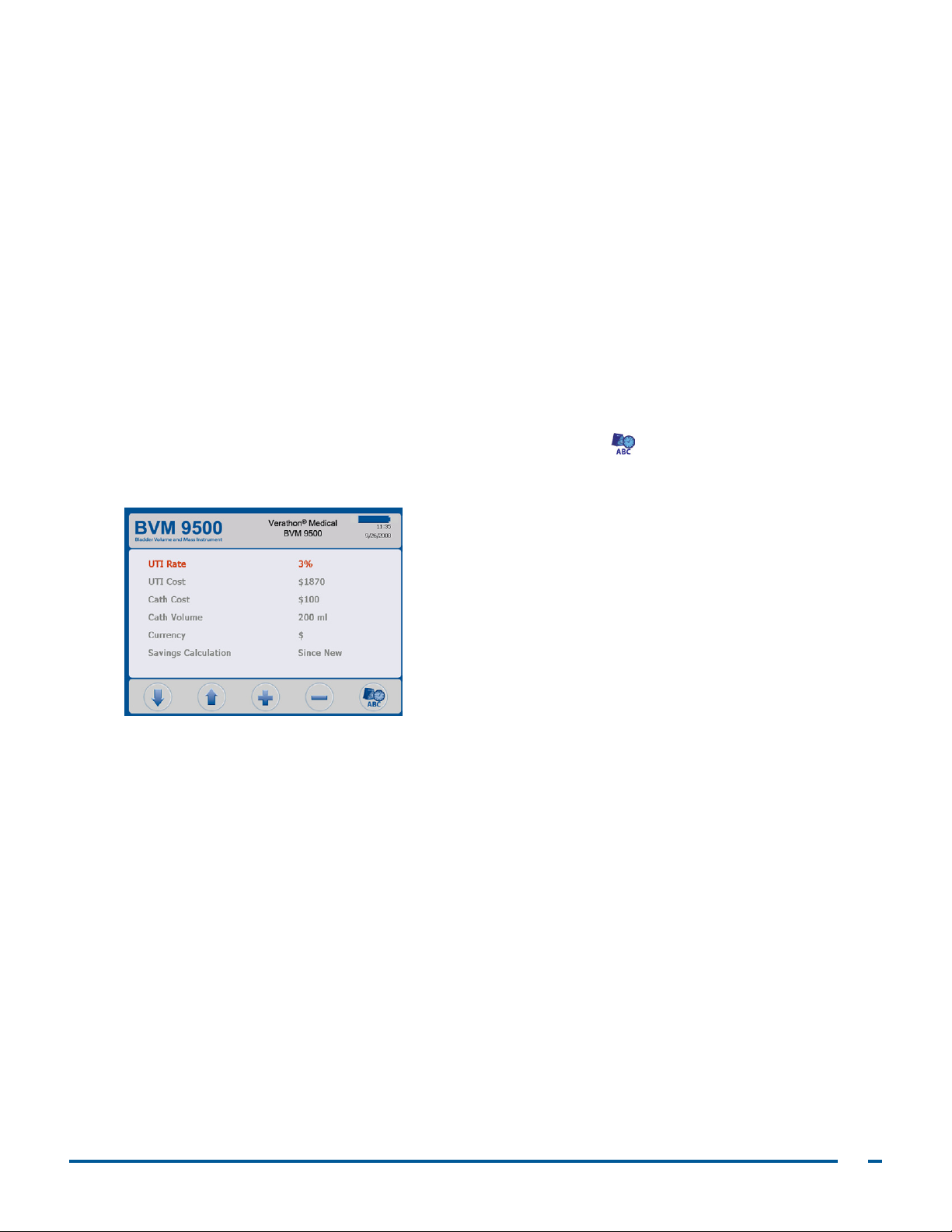

Saving Preferences Screen

Catheter Volume: 20–100mL in increments of 20mL

Currency: $ / € / £ / ¥

Savings Calculation: Since new, Since 1/1/2006, Reset Now, Print Since New, Print Recent, Hide Savings.

Self‑Test Screen (1) to (4): No function; (5) Return to Settings screen

(Note: Only available when used with ScanPoint with QuickPrint software.)

ScanPoint® Screen

Power, (1)No function, (2)No function, (3)No function, (4)Cancel, (5)No

function.

Operations & Maintenance Manual: Introduction

DISPLAY SCREENS

HOME SCREEN

The Home screen appears when the BVM9500 is ﬁrst powered on. The Home screen serves as a starting point for all of the instrument functions.

Press the button to toggle between Male and Female modes.

The Bladder Volume Mode home screen displays:

• A list of saved exam results (10maximum) saved in chronological order. Yellow folders hold saved exams. Gray folders represent empty spaces still available for saving exam results.

• A Cost Saving Summary. Displays the savings to your organization from using the BladderScan. BVM9500 rather than catheterization. The values used to determine the savings are user‑variable and entered from the Savings Preferences Screen (Refer to page27 for more information about using this screen).

Figure 3. Home Screen: Bladder Volume Mode

Saved exams (yellow)

Battery Status Indicator

Available memory for 8 more exams (gray)

Cost Savings Summary

Table 6. Home Screen Buttons

BUTTON FUNCTION

Press to toggle between two possible scan options:

Take a bladder volume measurement of a female patient who has not had a hysterectomy. (When the female icon is illuminated, the BVM9500 will assume the patient has a uterus.)

Take a bladder volume measurement of a male patient, or a female patient who has had a hysterectomy.

Press to view the training video.

Go to the Settings screen (set the time, date, institution name, and user preferences).

Press to review a previously saved exam. (This button will be gray (inactive) if there are no previously saved exams to review.)

Press to initiate communication with the ScanPoint® host computer. Saved and annotated exams will be automatically uploaded to the host computer. (ScanPoint software must be previously installed and a connection open. Use of the ScanPoint software is optional.)

Operations & Maintenance Manual: Introduction

SCAN SCREEN

The Scan screen (Figure 4) appears and displays a progressively updating image of the bladder outline. When the ultrasound measurement is complete, the Results screen opens automatically.

The ﬁve buttons below the display do not function during the scan.

Figure 4. Scan Screen

RESULTS SCREEN

The Results screen (Figure 5) appears automatically when a scan is complete. The Results screen displays the bladder outline, the calculated bladder volume and the ultrasound‑estimated bladder weight (UEBW).

Figure 5. Results Screen

In Figure 5, a standard deviation value indicating the UEBW measurement conﬁdence is displayed as a +/‑ range.

In some cases, the UEBW measurement will be expressed as an approximate value, using a ≈ symbol (Figure 6). This means that the measurement is an approximate result only and you should re‑aim and re‑scan to get a more accurate reading. The table below provides guidance on interpreting data displayed on the Results Screen.

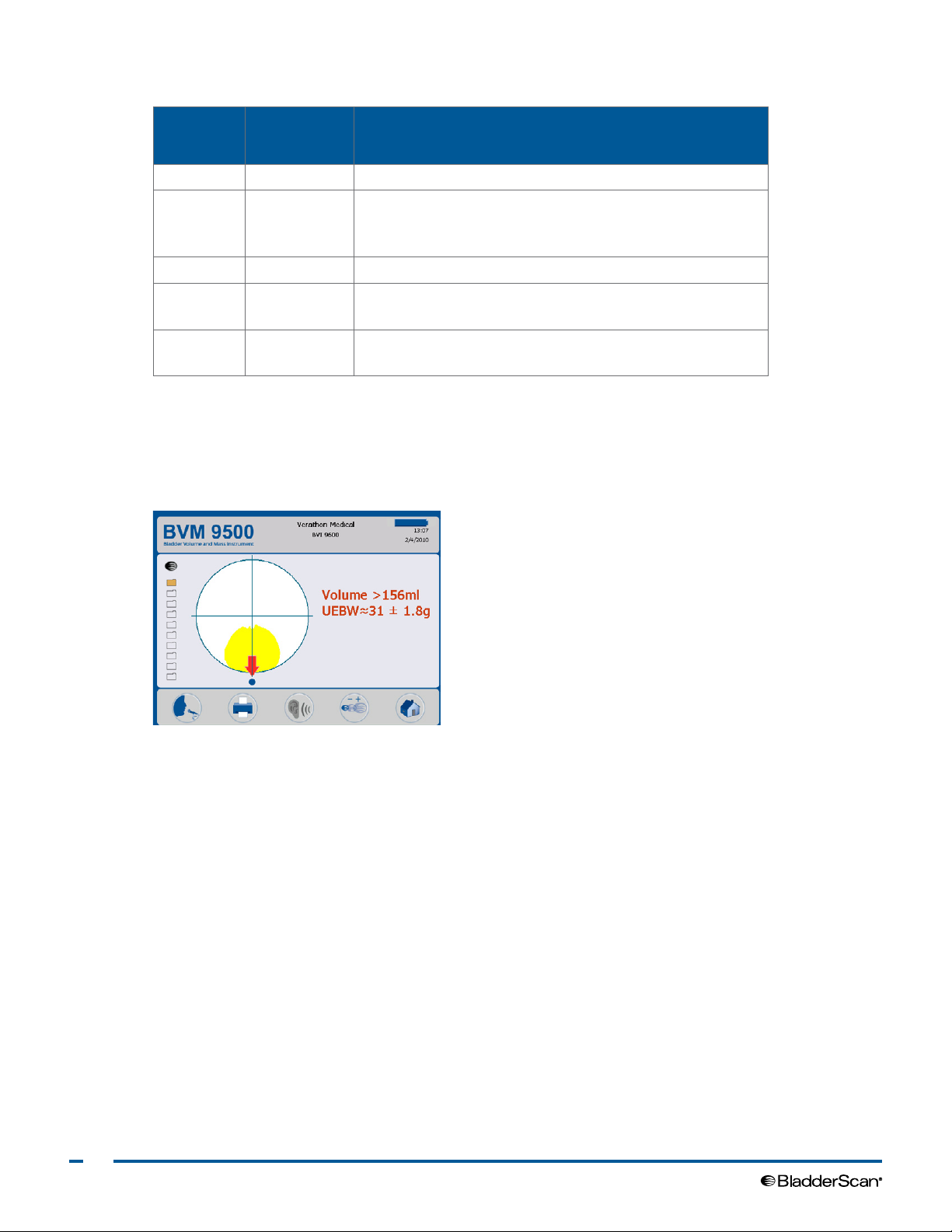

Figure 6. Results Screen with Approximate UEBW value

Operations & Maintenance Manual: Introduction

Table 7. Interpreting Results Screen UEBW Measurement Data

AIMING ARROW

PRESENT?

UEBW

MEASUREMENT

SYMBOL

RECOMMENDED ACTION

No = Accept UEBW measurement

No ≈

Adjust probe pressure and/or probe angle and scan again. Depending on patient anatomy, it may not be possible to get an = sign.

No > Bladder volume is too large for UEBW measurement

Yes ≈

Yes >

Angle probe in direction of arrow on probe screen, or move probe no more than 0.5in (1cm) in direction of arrow; scan again

Table 8. Results Screen Buttons

BUTTON FUNCTION

Press to record a voice annotation (up to 10seconds long).

Press to print exam results



Press to play a previously recorded voice annotation (blue). If no voice annotations are recorded, this button is disabled (gray).

Press to go to the Image Zoom screen.

Press to return to the Home screen.

REVIEW SCREEN

The Review screens (Figure 7 and Figure 8) open when you select a saved exam (blue folder icon) to review.

The displays shows the ultrasound images associated with the selected exam. A green open‑folder icon indicates which exam is being viewed. While reviewing saved exams, the buttons below the display allow you to print, replay, or delete exam data

Figure 7. Review Screen 1

Table 9. Review Screen 1 Buttons

BUTTON FUNCTION

Press to select the next exam in the list.

Press to print the results for the currently selected exam on the onboard printer. While printing is in progress an hourglass icon appears on the display.

Press to view review additional data, including bladder surface area, UEBW, and bladder wall thickness

Press to delete the currently selected exam.

Press to return to the Home screen.

Operations & Maintenance Manual: Introduction

Select the Return button on Review Screen 1 to view Review Screen 2 with bladder wall images (Figure 8).

Figure 8. Review Screen 2

Table 10. Review Screen 2 Buttons

BUTTON FUNCTION

Press to select the next exam in the list.

Press to print the results for the currently selected exam on the onboard printer. While printing is in progress an hourglass icon appears on the display.

Press to view review additional data, including bladder surface area, UEBW, and bladder wall thickness (Figure 8).

Press to delete the currently selected exam.

Press to return to the Home screen.

TUTORIAL SCREEN

To open the Tutorial Screen (Figure 9) press the button from the Home screen. The Tutorial screen presents a menu of training modules. To select a title, press either the  or  button until the desired title is highlighted (red). Press the button to go to the Video Viewing screen.

Note: The scan button (on the probe) is disabled during module playback.

Figure 9. Tutorial Screen

Table 11. Tutorial Screen Buttons

BUTTON FUNCTION

Next: Press to move to next title.

Previous: Press to move back to previous title.

Enter: Press to begin module playback. While the module is playing, press to pause. Press

again to resume play.

No function.

Home: Press to return to the Home screen.

Operations & Maintenance Manual: Introduction

VIDEO VIEWING SCREEN

The Video Viewing screen (Figure 10) is activated by pushing the  button on the Tutorial screen (Figure 9).

Note: The scan button is disabled during video playback.

Figure 10. Video Viewing Screen

SETTINGS SCREEN

To open the Settings screen (Figure 11), push the button on the Home screen.

The display presents a list of user‑conﬁgurable settings:

• Name (see page22)

• Time & Date (see page22)

• General Preferences (see page24)

• Savings Preferences (see page27)

• Self‑Test (see page28)

Use the Up/Down arrows to move through the list of options. To select an option, press the Enter button.

Note: When any Settings screen is open, the scan button (on the probe) is disabled.

Figure 11. Settings Screen Start Menu

Table 12. Settings Screen Buttons

BUTTON FUNCTION

Next: Press to select the next setting in the list.

Previous: Press to select the previous setting in the list.

Enter: Press to select the highlighted setting.

No function.

Home: Press to return to the Home screen.

Operations & Maintenance Manual: Introduction

ALPHA‑NUMERIC SCREEN

This screen allows you to select the appropriate alpha‑numeric characters for entering your health care institution’s name.

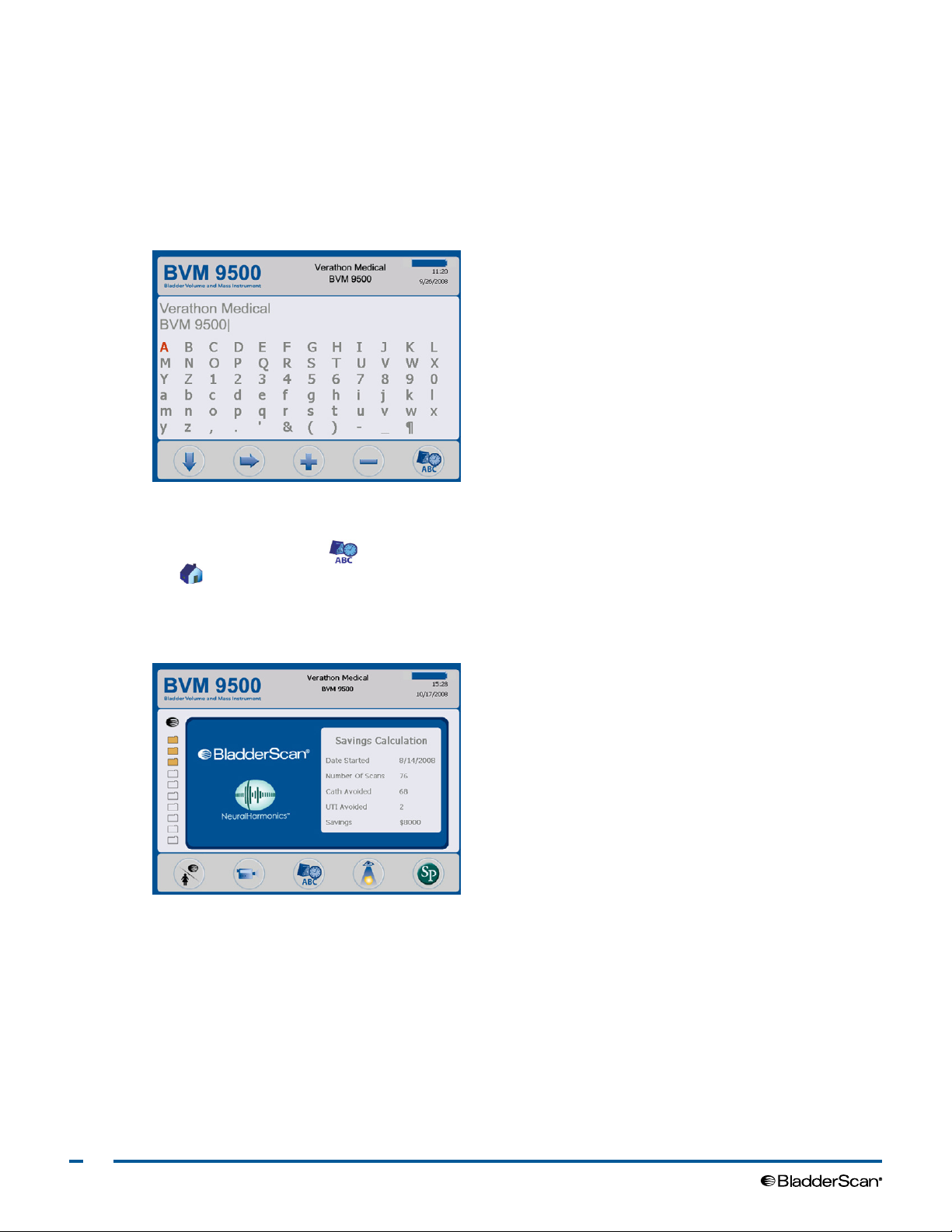

Figure 12. Alpha‑Numeric Screen

Table 13. Alpha‑Numeric Screen Buttons

BUTTON FUNCTION

Press to move down in the grid.

Press to move to the right in the grid.

Press to add the highlighted character to the name.

Press to delete one character from the name.

Press to return to the Settings screen.

DATE & TIME SCREEN

This screen allows you to adjust the date and time. If the time display is set to show a 24‑hour clock, the hour units are 0‑23. If the clock is set to show a 12‑hour clock, the hour units are 1AM‑12AM and 1PM‑12PM.

For example, to change the time from 20:42AM to 23:30 (11:30PM):

1. Press the  button until the 20 is highlighted (red).

2. Press the  button 3times until the time digits display 23:30.

3. Press the  button until the 42 is highlighted.

4. Press the  button repeatedly until the minutes display 30.

The time setting is now 23:30.

5. Press the button to save this entry and return to the Settings screen.

Figure 13. Date & Time Screen

Operations & Maintenance Manual: Introduction

Table 14. Date & Time Screen Buttons

BUTTON FUNCTION

Move forward one changeable unit (e.g. hours, minutes, AM/PM, etc.).

Press to move back one changeable unit.

Press to add and/or toggle digits as appropriate (hours, minutes, AM/PM, months, day, years). Press and hold the button to move through options more quickly.

Press to subtract or toggle digits as appropriate (same as above). Press and hold the button to move through options more quickly.

Press to save the current date/time setting and return to the Settings screen.

GENERAL PREFERENCES SCREEN

This screen displays a list of available settings and their current values.

Available settings:

• Language: English (default), Chinese Traditional, Czech, Danish, Dutch, Finnish, French, German, Greek, Italian, Hungarian, Japanese, Korean, Norwegian, Portuguese (European), Spanish, Swedish, Turkish.

• Date Format: mm/dd/yyyy; dd.mm.yyyy; yyyy‑mm‑dd.

• Time Format: 12‑hour or 24‑hour

• Calibration Warning: On (default), Off. When “On” is selected, a calibration warning will appear in the display header when the device requires calibration.

• Print Report Type: Toggle between C‑Mode images (bladder in crosshairs) and B‑Mode images (image of bladder and abdominal space below probe). Figure 15 shows examples of C‑Mode and B‑Mode print reports, respectively.

• Print UEBW: Toggle between On/Off. When “On” is selected, any printout will include both Bladder Volume and UEBW measurements. When “Off” is selected, only Bladder Volume measurements will be printed. Figure 15 shows an example of the UEBW print report.

• Manual Wall Thickness Mode: Normal (default), Detrusor. When “Normal” is selected, manual wall thickness mode allows measurement of the entire bladder wall. When “Detrusor” is selected, manual mode allows measurement of the thickness of the detrusor muscle only.

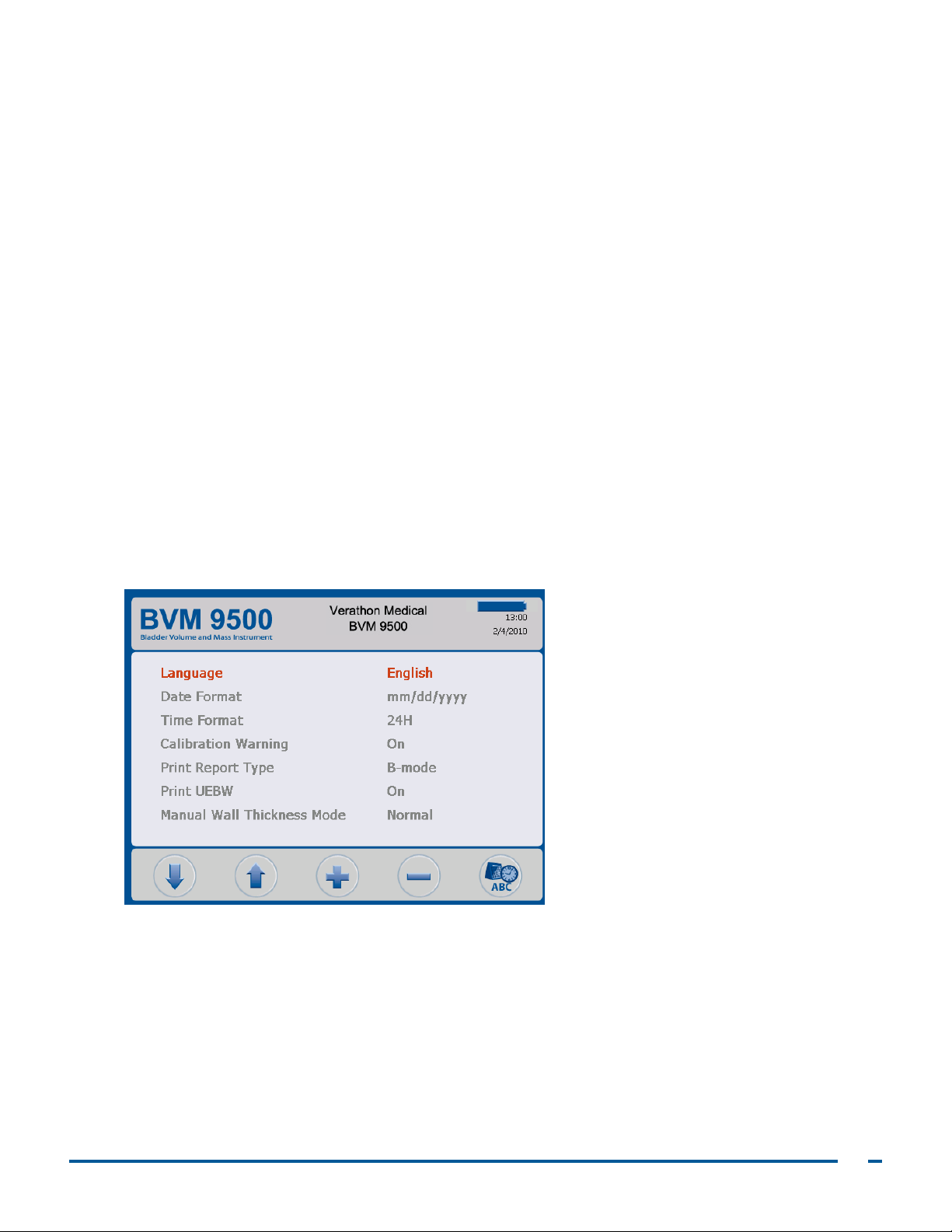

Figure 14. General Preferences Screen

Operations & Maintenance Manual: Introduction

Table 15. General Preferences Screen Buttons

BUTTON FUNCTION

Previous: Press to select the previous setting in the list.

Next: Press to select the next setting in the list.

For settings with a list of options, press to select the next option.

For settings with a list of options, press to select the previous option. Press and hold to move through options more quickly.

Press to return to the Settings screen.

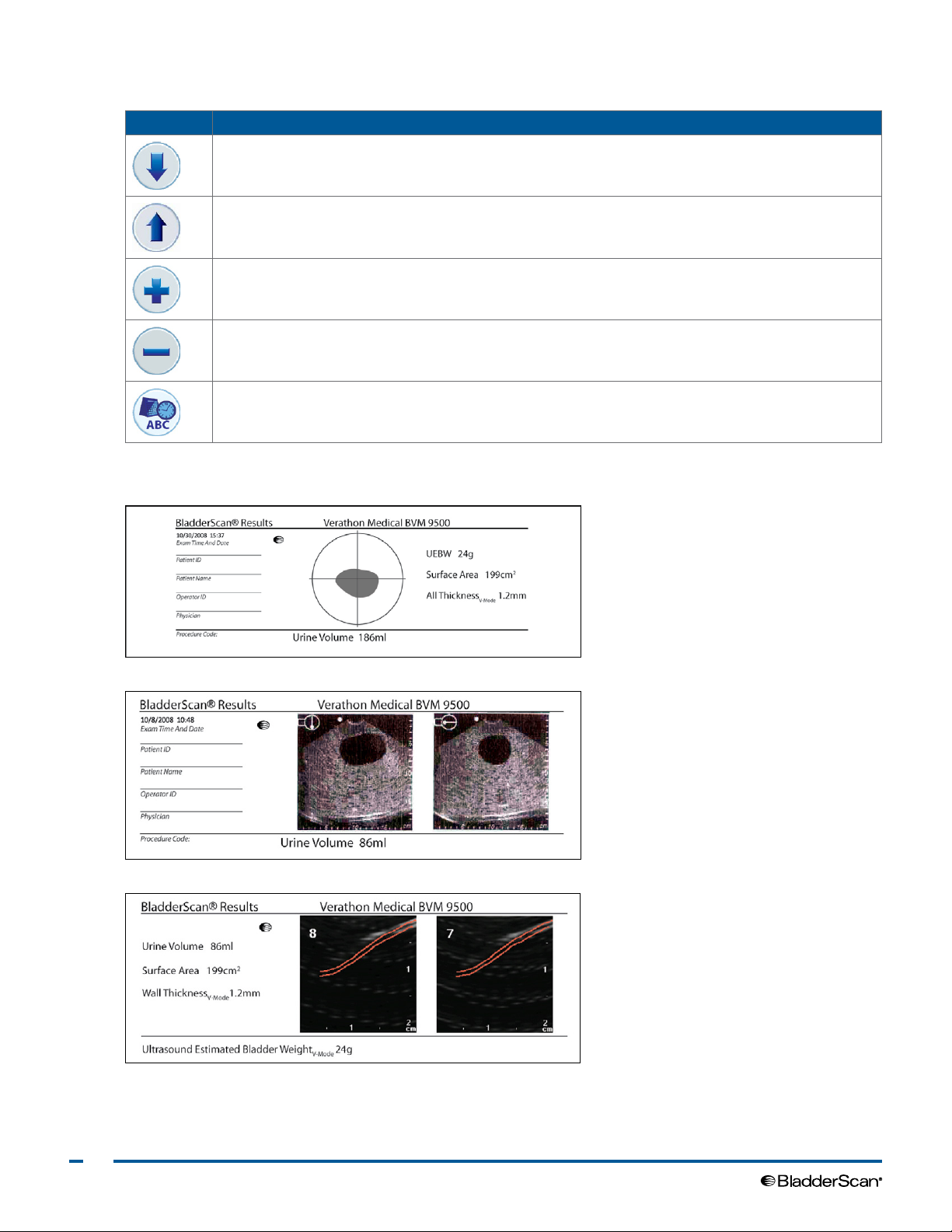

Figure 15. Print Report Samples

C‑Mode Print Report Sample

B‑Mode Print Report Sample

UEBW Print Report Sample

SAVINGS PREFERENCES SCREEN

To open the Savings Preferences screen, select Savings Preferences from the Settings Screen (Figure 11).

Use this screen to enter base values used to calculate the savings to your organization from using the BladderScan BVM9500 rather than catheterization.

Preferences lists and options:

• UTI Rate: 1% to 100% in increments of 1%

• UTI Cost: $10 to $10,000 in increments of $10

• Catheter Cost: $1 to $1000 in increments of $1

• Catheter Volume: 20mL to 1000mL in increments of 20mL

• Currency: $ / € / £ / ¥

• Saving Calculation: Since New, Since 1/1/2006, Reset Now, Print Since New, Print Recent, Hide Savings

○ Select “Reset Now” to clear all savings preferences.

○ Selecting “Print Since New” or “Print Recent” and then prints the Savings Calculation data.

Figure 16. Savings Preferences Screen

Operations & Maintenance Manual: Introduction

Table 16. Savings Preferences Screen Buttons

BUTTON FUNCTION

Previous: Press to select the previous setting in the list.

Next: Press to select the next setting in the list.

For settings with a list of options, press to select the next option. Press and hold to move through options more quickly.

For settings with a list of options, press to select the previous option. Press and hold to move through options more quickly.

Press to save the current date/time setting and return to the Settings screen.

SELF‑TEST SCREEN

To open the Self‑Test screen, select Self‑Test from the Settings menu (Figure 11, page21). The Self‑Test screen will open and testing begins automatically.

Press to return to the Settings menu.

Figure 17. Self‑Test Screen

SCANPOINT SCREEN

Note: Only available if optional ScanPoint® software is installed on a PC.

To open the ScanPoint screen, press from the Home screen. The ScanPoint screens display information about the status of the link between the BladderScan instrument and the ScanPoint host computer (Figure 18).

Press to terminate communication with ScanPoint.

Figure 18. ScanPoint Screen ‑ Searching Figure 19. ScanPoint Screen ‑ Connected

SLEEP MODE

The Sleep Mode helps preserve battery power. After four minutes of idle time, a Sleep Mode alert message displays for 15seconds (Figure 20). While the message is displayed, press any button to keep the console awake and dismiss the message. After 15seconds, the console goes to sleep. To wake the instrument from sleep, simply press the Power button.

Figure 20. Sleep Mode Screen

Operations & Maintenance Manual: Introduction

MEMORY OPTIMIZATION DURING POWER DOWN

When the power is turned off, the BladderScan BVM9500 may begin an internal process of memory optimization. This process takes several minutes. When complete, the device will shut down. An alert appears on the display during the memory optimization process (Figure 21).

Figure 21. Memory Optimization Alert

Note: DO NOT remove the battery until the device shuts down completely. Replacing the battery while memory is being optimized might disable the instrument as program and exam ﬁles might not be rewritten properly.

SETTING UP

The previous section provided basic information about the BladderScan BVM9500 parts and features. This section provides instructions for setting up your BVM9500 prior to ﬁrst use.

To help you get up and running as quickly as possible, the next few pages explain how to:

• Unpack the BladderScan BVM9500 and related accessories

• Charge and install the batteries

• Customize the display (enter your institution’s name, date, time, and other user data)

• Assemble the Medical Cart (optional)

• Install the ScanPoint® with QuickPrint software (optional)

PROCEdURE 1. UNPACK THE BOX & CHECK THE COMPONENTS

Set the shipping container right side up and carefully open the top ﬂaps (do not insert anything sharp through the top of the box). Remove the contents and verify that you have received everything listed below. If anything is missing or damaged, notify your local representative or Verathon® Customer Care.

(1) BladderScan BVM9500 (console and probe)

(1) Medical cart (optional)

(2) Rechargeable Lithium‑ion batteries

(1) Battery charger/wireless hub

Operations & Maintenance Manual: Setting Up

PROCEdURE 2. CHARGE THE BATTERIES

Two Lithium‑ion batteries are included with the BladderScan BVM9500. One battery can be recharged in the battery charger/wireless hub while the other is installed in the BladderScan instrument. This ensures that there is no instrument downtime. The charger will bring the batteries to a full charge within 6hours or less.

Note: Before using the BladderScan BVM9500 for the ﬁrst time, you will need to charge both batteries.:

1. Plug the battery charger/wireless hub unit into a standard wall outlet.

2. Insert the battery into the recess in the battery charger.

Note: Fully charging the battery may take up to 6hours.

Batteries may be stored in the charger. There is no danger of overcharging the batteries.

3. Check the colored indicator lights on the battery charger to determine battery status:

• Solid green: Battery fully charged.

• Amber: Battery charging.

PROCEdURE 3. INSTALL A BATTERY PACK IN THE CONSOLE

WARNING

Risk of serious injury. If the battery pack is leaking or its case is cracked, put on protective gloves

to handle it and discard it immediately. Always dispose of used battery packs in compliance with all applicable laws and regulations. Put insulating tape, such as cellophane tape, on the electrodes during transportation to avoid a possible short circuit, ﬁre, or electrical shock. Failure to do so could result in serious injury.

Insert the charged battery into the battery well in the console, slide it under the ledge and push down gently until the battery clicks into place.

Note: The battery pack is designed to prevent incorrect installation. If the battery pack does not slide into the battery well easily, move the battery and try again. Do not force the battery into position.

Note: Do NOT remove the battery for any reason while the BVM9500 is on. Doing so will damage the instrument. Always turn off the BVM9500 before removing the battery.

BATTERY CARE

The BladderScan BVM9500 draws very little power when it is turned off. However, if you do not plan to use the BladderScan instrument for several weeks, you should remove the battery to prevent it from discharging. When batteries are not in use, they should be stored in the battery charger so they remain fully charged.

PROCEdURE 4. ENTER THE CLINIC NAME

You can customize your BladderScan BVM9500 by entering your facility’s name and current date and time. This information will subsequently be included on BladderScan® displays and all printouts of exam results.

Note: Use of extended‑Latin and/or non‑Latin characters: The following instructions explain how to enter a facility name that uses only standard Latin characters. Extended‑Latin characters (tilde, umlaut, accents, circumﬂex, etc.) and/or non‑Latin characters can be entered only by using ScanPoint® with QuickPrint software. To enter a name that uses extended or non‑Latin characters, please refer to the instructions in the ScanPoint with QuickPrint user documentation.

1. Turn the BladderScan BVM9500 on by pressing the button on top of the console.

2. When the Home screen appears (Figure 22), press the button to open the Settings screen.

Figure 22. Home Screen

3. On the Settings screen (Figure 23), push either the  or  button until Name is highlighted (red). Press

the button to open the Alpha‑Numeric screen.

Figure 23. Settings Screen

Operations & Maintenance Manual: Setting Up

4. On the Alpha‑Numeric screen (Figure 24), use the  and  buttons to move to the desired character.

When the desired character is highlighted (red), press the  button to add it to your text. Use the ‑ button to delete characters.

• To add a space between words, press the blank space below the letter “x”.

• To add a second line of text use the ¶ character.

Figure 24. Alpha‑Numeric Screen

5. Continue to select and add characters as needed.

6. When ﬁnished, press the button to return to the Settings screen. From the Settings screen, press the button to return to the Home screen. The facility name will now appear in the display header (Figure 25).

Figure 25. Facility Name in Display Header

PROCEdURE 5. SET THE dATE & TIME

The clock can hold the current time and date setting for up to ﬁve minutes after the battery is removed. Time and date settings will be lost if the battery is removed from the instrument for longer than ﬁve minutes.

1. If the BladderScan instrument is turned off, turn the power on by pressing the button on the front of the console.

2. From the Home screen (Figure 22), press the button to open the Settings screen.

3. On the Settings screen, push either the  or  button until Date & Time is highlighted (red) (Figure7). Press the button to open the Date & Time screen.

Figure 26. Set Up Screen ‑ Date and Time

4. On the Date & Time screen (Figure8), use the  and  buttons to move to the desired unit (hours, minutes, month, day, year)

Figure 27. Date and Time Screen

5. When the desired unit is highlighted (red),

• Press the  button to increase values.

• Press the ‑ button to decrease values.

6. When the time and date are set correctly, press the button to return to the Settings screen. From the Settings screen, push the button to return to the Home screen.

Operations & Maintenance Manual: Setting Up

SETTING GENERAL PREFERENCES & SAVINGS PREFERENCES

Note: See page24 for information about setting General Preferences, Savings Preferences, and Self‑Test Options.

General Preferences, Savings Preferences, and Self‑Test Options can be accessed from the Settings screen.

General preferences include options for: Language, Date Format, Time Format, Calibration Warning, Print Report Type, Print UEBW and Manual Wall Thickness Mode.

Savings Preferences include: UTI Rate, UTI Cost, Catheterization Cost, Catheterization Volume, Currency, and Savings Calculation.

PROCEdURE 6. LOAd A ROLL OF THERMAL PAPER

To load a new roll of thermal paper:

1. Open the paper compartment door (located on the base of the console, under the display).

2. Slide the door to the right, then lift the printer door up.

3. Insert the end of a new paper roll with the thermal side down, into the paper slot.

To verify which side is the thermal side, scratch the paper with your ﬁnger nail. If a black mark appears, this is the thermal side.

4. Extend the end of the paper past the end of the unit.

5. Rotate the printer door down. Make sure you hear it snap into place.

6. Slide the printer door to the left.

7. Tear the excess paper off.

CAUTION

To avoid paper jams, never fold the end of the paper roll or cut it diagonally or to a point.

Note: If the paper appears to be stuck in the printer, open the printer door on the back of the console and clear the paper jam.

PROCEdURE 7. ASSEMBLE THE MEdICAL CART (OPTIONAL)

The system is completely portable and can be easily moved and positioned for convenient use. Installing the system on the optional mobile cart will allow you to move the BladderScan, along with related accessories, to the patient examining area or bedside. If you’re not using the Medical Cart, please skip to the next section,

Install the ScanPoint with QuickPrint Software (Optional) on page39.

Figure 28. Assembled Medical Cart Figure 29. Medical Cart Assembly

Post

Fluted knob

Cup insert

Wheeled base

Post bracket screw

Medical tray

ASSEMBLE THE MEdICAL CART

1. Insert the post into the square relief on the underside of the medical tray.

2. Insert the four screws through the bracket on the top of the post into the molded inserts in the medical tray and tighten securely.

3. If you want to permanently attach the post to the wheeled base, refer to Step 5 through Step 10.

If you want the ability to disassemble the medical cart at a later date, place the tray assembly with the post into the wheeled medical cart base.

4. Place the console on the cart, aligning the rubber pads on the bottom of the device to the corresponding indentations on the tray.

If you want to secure the instrument to the medical cart, refer to Step 12 through Step 13.

Operations & Maintenance Manual: Setting Up

PERMANENTLY ATTACH THE POST TO THE WHEELEd BASE (OPTIONAL)

5. Place the wheeled cart base on a level ﬂoor.

6. Open the two tubes of Loctite® 680 supplied with the cart by snapping off the tips of the tubes.

7. Apply the Loctite 680 all around the tapered portion of the post. Use all of the contents of both tubes. Complete coverage around the tapered portion is not necessary as the Loctite will spread upon insertion into the base.

8. Slide the post into the hole in the base with a twisting motion and press down ﬁrmly.

9. Wipe off any excess Loctite with a paper towel, and then discard the towel.

10. Allow the post and base to sit undisturbed for 3 hours.

ATTACH THE UNIVERSAL ACCESSORY BASKET (OPTIONAL)

A universal accessory basket is available for the medical cart to provide additional storage capacity.

11. Follow the manufacturer’s instructions for attaching the accessory basket to the pole.

Figure 30. Universal Accessory Basket

ATTACH THE INSTRUMENT TO THE MEdICAL CART (OPTIONAL)

12. On the bottom of the tray, insert the ﬂuted knob through the center mounting hole.

13. Screw the ﬂuted knob into the bottom of the console to secure it on the tray.

Figure 31. Attaching the BVM9500 to the Medical Cart

BVM9500

Tray Assembly (Item 1)

Fluted Knob (Item 5)

Bracket and Post (Item 2)

PROCEdURE 8. INSTALL THE SCANPOINT WITH QUICKPRINT SOFTWARE (OPTIONAL)

Optional ScanPoint® with QuickPrint software is designed to mesh seamlessly with your BladderScan devices. The BVM9500 downloads exam data to the ScanPoint host computer via a wireless connection enabled by the battery charger/wireless hub ‑ allowing further viewing, analysis, archiving, and report generation.

To install ScanPoint with QuickPrint, insert the ScanPoint with QuickPrint Install CD into your computer’s CD drive and follow the on‑screen prompts. Please refer to the separate documentation provided with ScanPoint with QuickPrint for complete installation and operating instructions.

PROCEdURE 9. WATCH THE TRAINING VIdEO

A training video provides an overview of how to perform an ultrasound scan of the bladder using the BladderScan BVM9500. The video is approximately 5minutes long.

The Measuring Bladder Volume and UEBW training video is available for review any time on the BladderScan BVM9500 by pushing the button on the Home screen.

Operations & Maintenance Manual: Setting Up

USING THE INSTRUMENT

PROCEdURE 1. PREPARE FOR THE EXAM

BEFORE YOU BEGIN THE EXAM:

• Make sure you are familiar with the parts of the BladderScan instrument (see the Introduction chapter

on page5).

• If you are a new BladderScan instrument user, Verathon® recommends that you perform your ﬁrst

exam on a patient with a moderately full bladder, rather than initially attempting to locate and scan a nearly empty bladder.

• To measure Ultrasound‑Estimated Bladder Weight (UEBW), verify that the measured bladder volume is

sufﬁcient for a successful exam. The patient’s bladder volume must be between 150mL and 400mL to ensure an accurate reading.

• UEBW will be shown as “‑‑ g” when the bladder volume is above or below the recommended range

of 150–400mL. UEBW will also be shown this way if the bladder is not centered in the ultrasound cone.

• Check the instrument’s battery icon to make sure the battery has sufﬁcient power.

Note: If the battery icon is ¼ or less full, replace the battery with a freshly charged battery before proceeding. Place the discharged battery in the battery charger to recharge.

• Clean the probe by wiping it gently with a soft cloth soaked in isopropyl alcohol.

Note: When measuring bladder volume and/or UEBW and bladder wall thickness with the BladderScan BVM9500, it is VERY IMPORTANT to hold the device steady while scanning.

Be aware of the following conditions the patient may have that could affect ultrasound transmission and the accuracy of your exam:

• A catheter in the patient’s bladder. The presence of a catheter may affect the accuracy of the bladder

volume measurement, but the measurement may still be clinically useful (detecting a blocked catheter, for example).

• Previous suprapubic or pelvic surgery. Scar tissue, surgical incisions, sutures, and staples can affect

ultrasound transmission and reﬂection.

dO NOT USE THE BVM9500 ON:

• Patients with ascites

• Patients with open skin or wounds in the suprapubic region.

• Pregnant patients

PROCEdURE 2. MEASURE BLAddER VOLUME & UEBW

1. Turn on the BladderScan BVM9500. Turn on the instrument by pressing the On/Off button.

On/Off button

2. Select the exam mode.

Scanning mode button

• Press the Mode button repeatedly to toggle between male and female modes.

• Select to measure bladder volume on male patients, or female patients who have had a

hysterectomy.

3. With the patient supine apply gel. Have the patient lie in the supine position with the abdominal muscles relaxed. Palpate the patient’s symphysis pubis (pubic bone).

Place an ample quantity of gel (with as few air bubbles as possible) midline on the patient’s abdomen, approximately 3cm (1in) above the symphysis pubis (pubic bone).

Operations & Maintenance Manual: Using the Instrument

4. Aim toward the bladder. Standing at the patient’s right side, place the probe on the gel and aim it toward the expected location of the bladder.

For most patients, this means angling the probe slightly toward the patient’s coccyx (tail bone) so the scan clears the pubic bone.

5. Press and release the Scan button, located on the underside of the probe. As the scan progresses, sections of the bladder will appear on the console screen. When you hear the end‑scan tone, the scan is complete.

Scan Button

6. Verify the scan. If the scan is “on target” the probe will display eight arrows. On the console display, the bladder cavity will be appear in the center of the crosshairs.

To measure Ultrasound‑Estimated Bladder Weight (UEBW), the patient’s bladder volume must be between 150mL and 400mL to ensure an accurate reading. Bladder volumes above or below this range will return a reading of “‑‑‑ g” for UEBW.

A successful scan of bladder volume and UEBW is shown. Note that the bladder volume falls within the desired range of 150‑400mL. The standard deviation value indicating the UEBW measurement conﬁdence is displayed as a +/‑ range.

Re‑aiming

If the scan is signiﬁcantly “off‑target”, the image on the console screen will show that the bladder is not centered in the crosshairs, and there will be a red arrow pointing in the direction for re‑aiming.

The probe will show an arrow indicating the direction to move the scan head (black tip) of the probe to be “on target.”

• If the arrow on the probe is ﬂashing, then you are signiﬁcantly “off target”.

• If the arrow on the probe is solid, it means you are slightly “off target”.

To adjust your aim:

• Adjust the angle of the probe so the scan head moves in the direction of the arrow, or

• Make small movements of the probe approximately 1cm (0.5in) in the direction of the arrow until

the scan is “on‑target”.

The small dot at the base of the crosshairs on the console screen represents the feet of the patient.

• The top of the crosshairs represents the patient’s head.

• The upper left quadrant represents the patient’s right shoulder.

This orientation should help you in re‑aiming the probe to capture the complete bladder fully in the ultrasound cone.

Operations & Maintenance Manual: Using the Instrument

Table 17. Interpreting Results Screen UEBW Measurement Data

AIMING ARROW

PRESENT?

UEBW

MEASUREMENT

SYMBOL

RECOMMENDED ACTION

No = Accept UEBW measurement

Adjust probe pressure and/or probe angle and scan

No ≈

again. Depending on patient anatomy, it may not be possible to get an = sign.

No > Bladder volume is too large for UEBW measurement

Yes ≈

Yes >

Move probe scan head no more than ½ inch (1 cm) in direction of arrow; scan again

Volume Outside Scan

In cases where an arrow appears and the UEBW is given as an approximate value, the bladder was not captured within the ultrasound cone.

If this occurs, move the scan head (the black tip) of the probe in the direction of the arrow on the probe no more than 0.5cm (1in) and re‑scan. Continue adjusting your aim until an accurate scan is achieved.

Pubic Bone.

You may also see a display indicating that the pubic bone is inside the ultrasound cone. If this occurs, you should re‑aim and re‑scan.

Although the bladder may be shown as centered in the ultrasound cone, and your measurement may be complete, there is a possibility that the pubic bone is obscuring part of the bladder.

By re‑aiming and re‑scanning you can ensure you have captured the bladder fully inside the ultrasound cone.

If the bladder volume is greater than 999mL, the display shows > 999mL.

Manual Measurement

7. Manual Measurement of Bladder Wall Thickness (Optional)

To make a manual measurement of Bladder Wall Thickness, please select the Manual Measurement function on the Results screen and follow the process below.

If a manual measurement is not desired, please skip to "8. Save, review, and print exam results.".

Selecting the Manual Measurement button displays one of two bladder wall images available for manual measurement. The BVM9500 automatically selects the two best bladder wall images from the 24scan planes measured.

The Scan Plane Select Icon: allows the user to select between the two best bladder wall images. The number in the upper left corner of the ultrasound image identiﬁes the scan plane.

Figure 32. Scan Plane 13 ‑ Bladder Wall Image

Figure 33 and Figure 32 are used in this example, but the set of scan plane images will vary with each

scan.

Once the user selects the best scan image for making a manual measurement (Figure 33 is selected in this example), the  and ‑ buttons allow the user to:

• Widen the image of the bladder wall to a maximum size of 8.5 x 11.5 cm (as shown here)

• Narrow the image to obtain a close‑up of the bladder wall with image dimensions of 2.25 x 2.75 cm.

Operations & Maintenance Manual: Using the Instrument

Figure 33. Scan Plane 10 ‑ Bladder Wall Image

Note that Figure 34 has image dimensions of 4.5 x 5.75cm, which allows for more accurate placement of the cursors for taking a manual measurement.

To take a manual measurement of bladder wall thickness, please select the button.

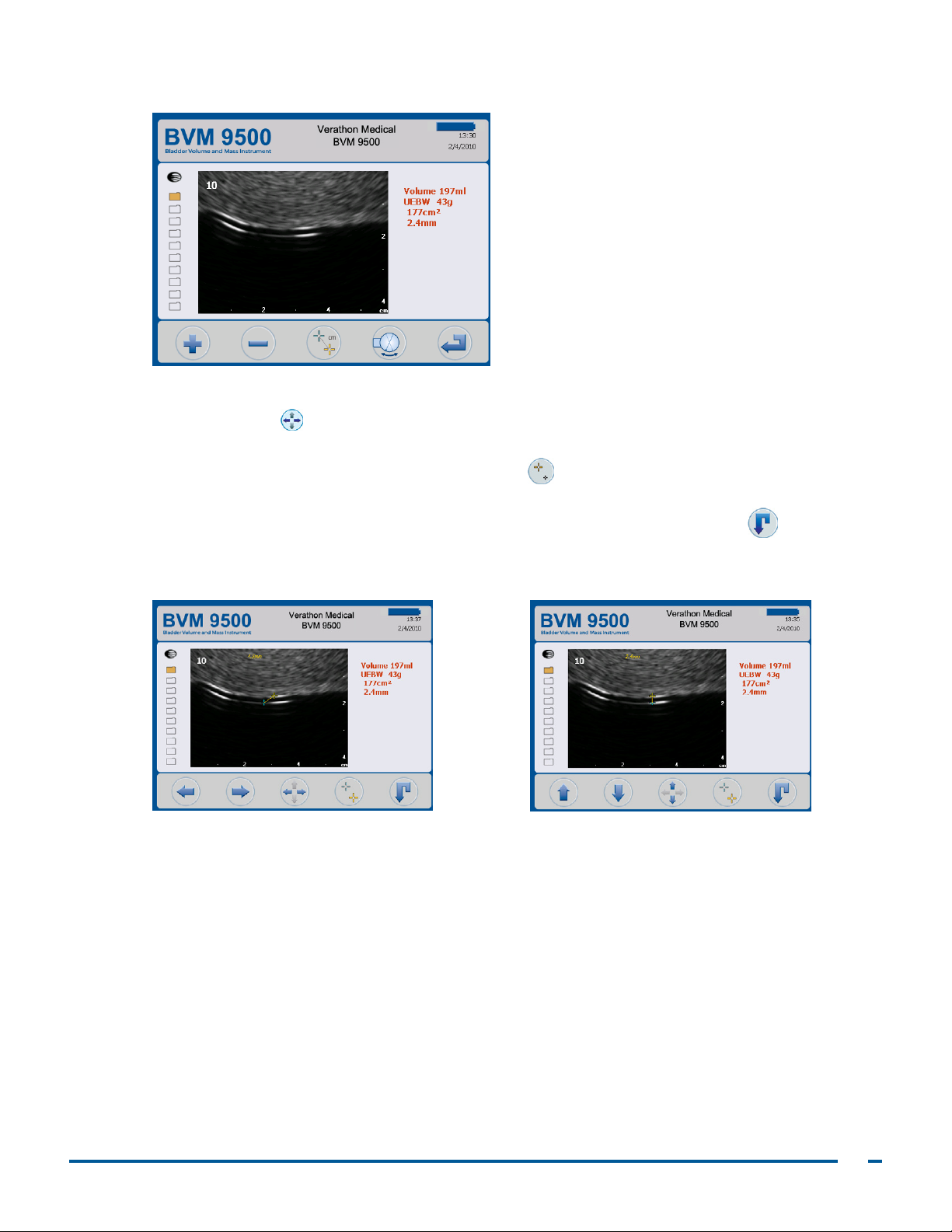

Figure 34. Scan Plane 10 ‑ Magniﬁed Image

Use the Axis Select icon to select either the “Up‑Down” or “Left‑Right” axis of movement for the highlighted cursor.

Move the highlighted cursor to the edge of the bladder wall.

Select the second cursor using the Cursor Select icon.

Move the second cursor on to the opposite edge of the bladder wall.

Press the Return icon to save the measurement and exit Manual Measurement mode.

Press the Return icon again to return to the Results screen.

Figure 35. Scan Plane 10 ‑ Select Second Cursor Figure 36. Scan Plane 10 ‑ Move Second Cursor

Operations & Maintenance Manual: Using the Instrument

8. Save, review, and print exam results.

To save the exam you must voice annotate it.

To annotate, press and release the Record button on the console. When you see the Record button icon change to a Stop button icon, record the patient information by speaking into the probe microphone. When the hourglass icon disappears, press the Listen button to replay the annotation.

To print exam results via the onboard printer, press the Print button.

Record Print Listen

On/Off button

Zoom Home

To review previous scan images, press the Review button. (You must ﬁrst save the exam before you can review it.) On the review screen, the user can review all currently saved exams and can print, replay voice annotations, or delete exams.

The Review Screen consists of two screens:

Figure 37 shows the bladder volume measurements. Pressing the Return button displays Figure 38,

which will display:

• Bladder Surface Area

• Ultrasound Estimated Bladder Weight (V‑Mode)

• Ultrasound Estimated Bladder Wall Thickness (V‑Mode)

If manual measurements were taken, then two additional measurements will be displayed:

• Bladder Weight (Manual)

• Wall Thickness (Manual)

To perform another exam, press the Home button.

Figure 37. Review Screen 1 ‑ Bladder Volume Figure 38. Review Screen 2 ‑ UEBW and Manual

Measurements

9. Finish the exam.

Once you have completed the scan, wipe the ultrasound gel off the patient and the probe. For ScanPoint® subscribers, logging onto ScanPoint automatically transfers and saves your annotated exams to your Windows® computer.

AddITIONAL SCANNING TIPS

Note: When measuring bladder volume and/or UEBW and bladder wall thickness with the BladderScan BVM9500, it is VERY IMPORTANT to hold the device steady while scanning. Avoid changing position, angle or pressure.

Applying too much pressure when scanning may lead to a Greater Than (>) symbol preceding the measurement on the screen. If this happens, apply less pressure and re‑scan.

Volume reading will be affected by:

• The presence of scar tissue

• The presence of a catheter

• Overly obese patients ‑‑ with obese patients, lift as much abdominal adipose tissue out of the way of

the instrument as possible. You can also apply more pressure to the probe to reduce the amount of adipose tissue through which the ultrasound must pass.

To ensure accurate results, make sure that:

• You use sufﬁcient gel and there are no air gaps between the probe and the patient’s skin.

• You are holding the instrument steady while scanning (avoid changing its position, angle, or pressure).

• You are using enough pressure to maintain good skin contact until the scan is complete.

• There is not a catheter in the patient’s bladder. The presence of a catheter may affect the accuracy

of the bladder volume measurement, but the measurement may still be clinically useful (detecting a blocked catheter, for example).

Note: The BVM9500 is able to scan rapidly and repeatedly throughout the day. If however scans are taken quickly, in rapid succession, over a 30‑minute period, some slowing in performance may be noticed. While this may occur rarely, it is normal for the instrument.

PROCEdURE 3. RECORd A VOICE ANNOTATION

After performing an exam, you can record additional information about a patient to be stored with the exam results.

The instrument can store ten scans with voice annotations, so you can perform multiple exams on your rounds. If you are using the optional ScanPoint with QuickPrint software, you can upload saved exams to your PC. (Refer to ScanPoint with QuickPrint user documentation for more information.)

1. Press the Record button. Recording begins and the Record button becomes a button.

Operations & Maintenance Manual: Using the Instrument

2. The microphone is located just above the aiming display on the probe. Hold the microphone approximately 15cm (6in) from your mouth when you are recording the annotation and speak clearly.

Be sure to include all relevant exam information, including the patient’s ID and the name of the person performing the exam.

Record Print Lis ten

On/Of f button

Zoom Home

3. When you have ﬁnished your annotation, press the Stop button. An hourglass icon will be displayed while your annotation and exam are updated and stored. After the annotation has been saved, to listen to your annotation, press the Listen button.

If you are not satisﬁed with the recording, press Record again to record a new annotation.

IMPORTANT

• If you do not record a voice annotation for a particular exam, that exam will be lost and the next exam you perform will overwrite the non‑annotated one.

• If the instrument battery runs low or the instrument goes into sleep mode, any non‑annotated exam data is lost. However, the instrument does not erase any annotated exam results when it goes into sleep mode. To make sure you do not lose any patient data, it is a good idea to add a voice annotation to every patient exam.

• You can make a new recording only if the instrument still displays the bladder volume for that particular exam.

4. When you are satisﬁed with your recording, press the Home button to perform another measurement.

5. If you are using the BVM9500 in conjunction with ScanPoint® software, you can view exam results and annotations on your PC. Please refer to ScanPoint user documentation for more information.

PROCEdURE 4. dELETE A SAVEd EXAM

Saved exams are indicated by yellow folder icons along the left edge of the display. To delete a saved exam:

1. Open the Review Screen. (From the Home Screen press .)

2. Press the È button until the desired exam is highlighted (blue).

3. Press the button to delete the exam.

PROCEdURE 5. PRINT AN EXAM

You can use the BladderScan BVM9500 onboard printer to print the ultrasound images captured during the scan (Figure 39 is an example).

To print exam results, you must ﬁrst record a voice annotation as described previously. When this is complete, press the Print button.

Adding Additional Information

The label provides ﬁelds for Patient ID, Patient Name, Operator, and Physician. This information must be entered manually.

Figure 39. Exam Results Printout Using the Onboard Printer

Note: If the facility name, date, and time have not been set, those lines will be skipped on the printout. The BVM9500 prints on thermal paper, which fades over time. For maximum storage life, Verathon® recommends that you photocopy the printout.

Operations & Maintenance Manual: Using the Instrument

HISTOGRAM OF COST SAVINGS

Each volume measurement from a completed scanning procedure is stored in the memory of the BladderScan BVM9500 in one of eleven volume ranges (each with a 100mL increment). This data is analyzed and can be displayed on the BVM9500 at any time. The cost savings screen lists: Date Started, Number of Scans, Catheterizations Avoided, UTI Avoided, Savings.

COST SAVINGS CRITERIA

Cost savings are based on the following criteria:

• Catheterizations avoided: Urinary catheterization may be unnecessary. Thus, by using the

BVM9500, these catheterizations are avoided. The default setting (for volume below which catheterization is unnecessary) is 200mL.

• UTIs avoided: Studies indicate that a certain percentage of unnecessary catheterizations lead to

urinary tract infections (UTIs).

By avoiding unnecessary catheterizations, the resulting UTIs are thereby avoided. The default setting (for percent of catheterizations leading to UTIs) is 3%.

• Associated UTI costs: Literature suggests that the additional costs associated with treating UTIs

amounts to $1875.00 per patient infection. The default setting is $1870.00.

• Cost of catheter kits: The default setting is $3.00 per kit.

• Total Cost Savings from Using the BVM9500 =

(Catheterizations avoided x catheter costs) + (UTIs avoided x UTI costs)

Note: The default settings can be changed to reﬂect the rates and costs at your facility by selecting from the Home screen: (settings) > savings preferences. See page27, Savings Preferences Screen for more information on customizing Savings Preferences.

CLEANING & MAINTENANCE

PROCEdURE 1. CLEAN THE INSTRUMENT

1. Use a soft cloth dampened with isopropyl alcohol (or an appropriate hospital cleaning agent) to wipe the probe until it is thoroughly cleaned.

2. If you use a detergent solution to clean the instrument, remove all residual detergent. Dry the instrument with a clean, soft cloth.

3. Alternatively, dampen a soft cloth in any glutaraldehyde‑based hospital disinfectant solution such as Cidex® or Cidex 7® from Advanced Sterilization Products, or Sporocidin® from Sporocidin International. Wipe the instrument with the dampened cloth.

4. To remove all traces of disinfectant solution, wipe the instrument with a clean soft cloth dampened in sterile water or cleaning solution. Verathon® recommends wiping the device three separate times to remove all residual disinfectant.

5. Thoroughly dry the instrument with a clean, soft cloth before using.

IMPORTANT

Failure to heed the following warnings may cause device damage not covered by the BladderScan BVM9500 warranty.

• Do not immerse the instrument in disinfectant solution.

• Do not use CidexPlus

• Do not subject any part of the instrument to steam sterilization or ethylene oxide sterilization.

Note: “Ultrasound probes that are non‑critical devices only need to be cleaned and low level disinfected between patient uses.” Guidance for Industry and FDA Staff ‑‑ Information for Manufacturers Seeking Marketing Clearance of Diagnostic Ultrasound Systems and Transducers ‑‑ Appendix D: Cleaning, Disinfection and Sterilization.

to disinfect the instrument. CidexPlus will damage the plastic enclosure.

Operations & Maintenance Manual: Cleaning & Maintenance

PROCEdURE 2. REGULAR INSPECTIONS & MAINTENANCE

Verathon® recommends that the system be certiﬁed by an authorized Service Center once a year. Certiﬁcation service includes comprehensive inspection and testing of the instrument to ensure accurate performance in clinical use. For more information, contact Verathon Customer Care or your local representative.

Note: ScanPoint® customers can maintain device certiﬁcation via the Internet by accessing their ScanPoint account. For more information about using ScanPoint, please refer to ScanPoint user documentation.

Weekly Inspections

Once a week, you should inspect the probe and cable for physical faults or cracks. Cracks that allow the ingress of ﬂuid may affect the performance of the instrument. Any apparent cracks or faults in the console, probe, or the cable that links the console and the probe, must be referred to your authorized BladderScan Service Center, your local BladderScan distributor, your local Verathon Medical representative, or the Verathon Medical Customer Care Department.

IMPORTANT

If you see any physical faults or cracks in the instrument, discontinue use immediately and contact your local representative or Verathon Customer Care

PROCEdURE 3. RUN A SELF‑TEST

The BVM9500 can perform a number of self‑diagnostic tests. To access the Self‑Test utility:

1. From the Home screen, press the button.

2. When the Settings screen opens, press the  or  buttons until self‑test is highlighted (red), then press

to open the Self‑Test screen.

3. When the Self‑Test screen opens, testing begins automatically with the display providing status and results.

4. When test is complete, press the button to return to the Settings screen, then press the button to return to the Home screen.

5. If any test results were failed or abnormal, contact your authorized BladderScan representative, or contact Verathon Customer Care.

PROCEdURE 4. CALIBRATE THE INSTRUMENT

The BladderScan BVM9500 must be periodically calibrated to ensure that the instrument is providing the most accurate results. Calibrating ensures accurate and proper alignment of the instrument’s internal coordinate system. If you do not perform the calibration by the prescribed date, the instrument can still be used to take scans but measurements may be compromised.

When calibration is due, a warning appears in the display header (Figure 40).

Figure 40. Calibration Warning

If you do not have ScanPoint® with QuickPrint, you must send your instrument in to an authorized Verathon® service center for calibration. Contact Verathon Customer Care or your local representative.

Self‑Calibration

Self‑calibration requires the ScanPoint with QuickPrint System and a Calibration Kit. For instructions on software requirements and installation, please refer to ScanPoint user documentation.

The entire calibration process takes approximately 15minutes. ScanPoint plans allow for calibration of the instrument as often as you like. You do not need to wait until the next scheduled calibration date. However, at a minimum, you must calibrate the instrument once every 12months

DEVICE REPAIR

The BladderScan BVM9500 console, probe, and battery charger/wireless hub are completely sealed. There are no user‑serviceable components. Verathon does not make available any type of circuit diagrams, component parts lists, descriptions, or other information that would be required for repairing the device and related accessories.

Premium Warranty customers have access to a loaner unit and free shipping options which vary according to plan.

If you have any questions, contact your local representative or Verathon Customer Care.

UNIT DISPOSAL

The BladderScan BVM9500 and related devices may contain lead, mineral oils, batteries, and other environmentally hazardous materials. When the BladderScan BVM9500 has reached the end of its useful service life, return the device, battery charger/wireless hub, and related accessories to a Verathon Service Center for proper disposal. Alternatively, follow your local protocols for hazardous waste disposal.

Operations & Maintenance Manual: Cleaning & Maintenance

TROUBLESHOOTING

HELP RESOURCES

Verathon® provides an extensive array of customer service resources, described in the table below.

You can obtain the latest version of this manual by visiting verathon.com/product‑documentation or contact Verathon Customer Care or your local representative.

TRAINING MOdULES

Training modules are installed on the instrument. You can refer to these modules by pressing the button at the Home screen.

SCANPOINT

ScanPoint provides customers:

• The ability to calibrate and certify devices online anytime you wish.

• Automatic data backup and archiving (HIPAA compliant).

• Automatic software upgrades.

• Access to real‑time troubleshooting from Verathon.

PHONE SUPPORT

Please refer to the list of Customer Care resources available at verathon.com/support or visit

verathon.com/contact‑us.

ICONS ON THE BLADDERSCAN CONSOLE

Table 18 . BladderScan Icons

SYMBOL MEANING

(Solid arrow) The bladder is contained within the image cone (cone‑shaped area

in which the probe transmits ultrasound waves), but not centered. You may be able to obtain a more accurate measurement by re‑aiming the probe in the direction indicated by the arrow.

Battery power level:

Indicates a fully charged battery.

Indicates a battery 50% to 75% charged.

Indicates a battery 25% to 50% charged.

Indicates a battery that is nearly discharged and can power only a few more scans.

Indicates the battery must be changed.

The patient is a female patient who has not had a hysterectomy.

The patient is male, or a female who has had a hysterectomy.

The bladder is too large to be contained within the scan cone, or the bladder contains more than 999mL of urine.

DIAGNOSING PROBLEMS

INSTRUMENT DOES NOT TURN ON

If the instrument does not turn on, this is usually due to a dead or discharged battery and can be remedied by replacing the dead battery with a charged battery. Check the battery icon in the upper right corner of the LCD display. If the battery icon does not display any power segments, replace the battery.

When the battery charge is too low to allow normal operation (but not too low to permit operation of the internal circuitry) the device displays the following message:

BATTERY CHARGE LEVEL IS TOO LOW FOR INSTRUMENT OPERATION. RECHARGE BEFORE Next USE.

In this case, the battery must be recharged or replaced with a charged one.

UEBW displayed as “‑‑ g”

To measure Ultrasound‑Estimated Bladder Weight (UEBW), the patient’s bladder volume must be between 150‑400mL to ensure an accurate reading. Above or below this range, UEBW is shown as “‑‑ g”.

UEBW may also show as “‑‑ g “ when the bladder is not centered in the ultrasound cone.

Operations & Maintenance Manual: Troubleshooting

PRINTER PROBLEMS

NO PAPER

The BladderScan BVM9500 senses the presence of paper and automatically displays this image when the printer is out of paper (Figure 41).

Figure 41. Printer Out of Paper Screen

For instructions on loading paper, please refer to the section in this manual titled Load a Roll of Thermal Paper beginning on page36.

TOO HOT

The BVM9500 displays the message “Too hot” if the print head overheats. In this case, turn off the BVM9500 immediately. This condition may be the result of a paper jam. To clear the paper jam see the following paragraph.

CLEARING A PAPER JAM

If the paper will not advance through the printer, open the printer door on the back of the console and clear the paper jam.

FACTORY RESET

PROCEdURE 1. RESTORE FACTORY CONFIGURATION

IMPORTANT

Only use this process to restore the factory set conﬁguration. Do not use this reset process for any otherissue.

In very rare instances, your instrument may experience a conﬁguration ﬁle error. If a conﬁguration ﬁle error occurs, the instrument will lose its factory set conﬁguration and return to its default conﬁguration as a BVI9400 instrument, meaning it will display a BVI9400 Home screen. To re‑establish the factory conﬁguration speciﬁc to your instrument, please follow these steps.

Note: Do not press the Power button at any time when the battery is removed.

1. Turn the console off.

2. Turn the console on and wait for the Home screen to appear.

3. Remove the battery from the console. Wait 30seconds. Do NOT press any buttons on the console while the battery is removed.

4. Re‑insert the battery into the console. Wait 30seconds. If the console does not turn on automatically, turn the console on.

5. Conﬁrm that the instrument displays the correct conﬁguration by checking the model number displayed in the upper left corner of the screen.

Operations & Maintenance Manual: Troubleshooting

WARRANTY

Verathon® Inc. warrants the BladderScan BVM9500 against defects in material and workmanship as long as it is covered by the Premium Warranty.

Pursuant to this warranty, a service center authorized by Verathon will repair or replace units that prove to be defective during the warranty period.

This warranty does not apply if the unit was misused or modiﬁed by anyone other than a service center authorized by Verathon.

The unit must be used in accordance with the instructions contained in this manual. Consumable items are not covered in this warranty and should be used in conformance with Verathon product speciﬁcations.

For further details, consult your Premium Warranty. Warranty conditions may differ in some countries outside the United States. Contact your local distributor for warranty terms.

DISCLAIMER OF ADDITIONAL WARRANTIES

There are no understandings, agreements, representations of warranties expressed or implied (including warranties of merchantability or ﬁtness for a particular purpose) other than those set forth in the preceding Warranty section. The contents of this manual do not constitute a warranty.

Some states disallow certain limitations on applied warranties. The purchaser, user, and patient should consult state law if there is a question regarding this disclaimer. This information, descriptions, recommendations, and safety notations in this manual are based upon Verathon experience and judgment with BladderScan instruments as of September 2010. The contents of this manual should not be considered to be all‑inclusive, or to cover all contingencies.

The physician who directs the use of the BladderScan BVM9500 at the institution where it is in use is responsible for keeping current with clinical research in bladder volume measurements.

Please direct any questions or problems concerning bladder volume measurement, using the instrument, or the interpretation of data to the responsible physician.

PRODUCT SPECIFICATIONS

INSTRUMENT SPECIFICATIONS

For technical performance assessment in an acoustic laboratory, the probe cannot be immersed in water.

Table 19. General Speciﬁcations

ITEM SPECIFICATION

Input Lithium‑ion battery pack. Verathon P/N 0400‑0066.

Output No load to full load at rated voltage. Refer to unit label.

Insulation The power supply is Class I with basic insulation to each terminal.

Transient Overvoltage: Category II

Weight 5.2 lb (2.36 kg) (with battery)

Display 13.36cm Wx10.13cm H (5.26”Wx3.99”H) (640x480pixels, 120 dpi)

Integrated Printer Thermal label printer

English (default), Chinese Simpliﬁed, Chinese Traditional, Czech, Danish,

Languages

Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Portuguese, Spanish, Swedish, Turkish

Table 20. Ultrasound Output Parameters ‑ Acoustic Output Limits

ITEM SPECIFICATION

Maximum ultrasound I Spatial Peak Temporal Average derated)

(Intensity Spatial Peak Pulse Average

sppad

derated) Range

Maximum MI (Mechanical Index) 0.95 max

TIS/TIB/TIC Range 0.0 ‑ 4.0

Transducer diameter 13 mm (0.512 inches)

Transducer resonant frequency 1.74 MHz, 3.0 MHz and 7.37 MHz

Transducer bandwidth 80% at 10 dB

Time from 3D scan initiation to result display

(Intensity

sptad

≤ 5.0 mW/cm

≤ 60.0 W/cm

< 10 seconds

Operations & Maintenance Manual: Product Speciﬁcations

ACCURACY SPECIFICATIONS

The accuracy speciﬁcations assume the instrument is being used according to the instructions provided by Verathon®, scanning a tissue‑equivalent phantom.

Table 21. Accuracy Speciﬁcations

SPECIFICATION DESCRIPTION

Bladder volume accuracy ± 15%, ± 15mL (on a Verathon tissue‑equivalent phantom)

Bladder volume range 0 ‑ 999mL

UEBW accuracy

UEBW range 20 ‑ 100 g

± 10%, ± 3 g

(on a Verathon tissue‑equivalent phantom)

Wall thickness accuracy

OPERATING CONDITIONS

The BladderScan BVM9500 is designed to function properly within the following speciﬁcations:

Table 22. Operating Conditions

CONDITION DESCRIPTION

Use Indoor

Ambient temperature range +10 ‑ +40º Celsius (+50 ‑ +104º Fahrenheit)

Atmospheric pressure range 700 hPa ‑ 1060 hPa

Relative humidity 30% ‑ 75% non‑condensing

Water resistance

STORAGE CONDITIONS

The BladderScan BVM9500 is designed for storage under the following conditions:

± 10%, ± 1 mm

(on a Verathon tissue‑equivalent phantom)

Rated at IPX1 (indicates DRIP‑PROOF, a higher than ORDINARY level of protection from drips, leaks, and spills)

Table 23. Storage Conditions

CONDITION DESCRIPTION

Storage Indoor

Ambient temperature range ‑20 ‑ +60º Celsius (‑4 ‑ +140º Fahrenheit)

Atmospheric pressure range 500 hPa ‑ 1060 hPa

Relative humidity 20% ‑ 95% non‑condensing

BATTERY CHARGER/WIRELESS HUB SPECIFICATIONS

The battery charger/wireless hub is powered from a standard wall outlet (adaptable to international power standards). The battery charger/wireless hub can charge two batteries simultaneously.

Operating Conditions

The following are proper operating conditions for the battery charger/wireless hub:

Table 24. Operating Conditions

SPECIFICATION DESCRIPTION

Use Indoor

Ambient temperature range

Atmospheric pressure range

Relative humidity 30 % ‑ 75 % non‑condensing

Water resistance

Computer connection USB 2.0

Charger Powered by a desktop DC power supply.

Input voltage 100 ‑ 240 VAC RMS

Input frequency 50 ‑ 60 Hz

Input current 1 Amp max

Input connection 2 wire IEC 60320 C7

Output 9v at 1 Amp

Insulation Class II with double insulation

Fuses 250 VAC, 2A, quick acting

Testing CSA 60950‑1‑03/UL 60950‑1

+41 ‑ +104º F (+5 ‑ +40º C)

70 kPa ‑ 106 kPa

Rated at IPX 0 (ordinary equipment without protection against ingress of water)

STORAGE CONDITIONS

Table 25. Storage Conditions

CONDITION DESCRIPTION

Use Indoor

Ambient Temperature Range

Atmospheric pressure range

Relative humidity 30% ‑ 75% non‑condensing

Water resistance

Operations & Maintenance Manual: Product Speciﬁcations

+41 ‑ +104º F (+5 ‑ +40º C)

70 kPa ‑ 106 kPa

Rated at IPX 0 (ordinary equipment without protection against ingress of water)

BATTERY SPECIFICATIONS

The BladderScan BVM9500 is provided with two Lithium‑ion batteries. A battery icon on the instrument display is always present indicating how much power remains and when the battery needs to be changed. The user can change the battery whenever necessary. Removing a discharged battery and replacing with a fresh battery will not erase any saved exams or user settings. Use only the battery charger provided with the BVM9500. Any other battery charger may damage the battery pack.

The batteries meet the following speciﬁcations:

Table 26. Battery Speciﬁcations

CONDITION DESCRIPTION

Battery type Lithium‑ion

Battery life

Charging time

Rated capacity 4800 mAh

Normal voltage 11.1 V

Max charging voltage 12.6 V

Max weight 350 g

Width 3.11 in (79 mm)

Length 4.65 in (118 mm)

Thickness 0.91 in (23 mm)

A fully charged battery can provide approximately 30 exams within a 24‑hour period.

Charging time ofﬂine will take no more than six hours from an empty battery to a full charge.

ELECTROMAGNETIC EFFECTS

There are no restrictions on the use of BladderScan BVM9500 due to its electromagnetic characteristics. Both the emissions from the BladderScan BVM9500 and the susceptibility of this instrument to interference from other sources are within prescribed limits of all applicable standards at the date of manufacture. The emissions test procedure that was used is speciﬁed in EN/IEC55011: 1991 for Group 1, Class A equipment (per EN/ IEC60601‑1‑2, 36.201.1.7).

BladderScan BVM9500 is suitable for use in industrial, scientiﬁc, and medical (ISM) environments, and in domestic environments under the jurisdiction of a health care professional. An indication of adverse electromagnetic effects from BladderScan BVM9500 on another electronic device would be a degradation of performance in the other device when the devices are operated simultaneously. If such interference is suspected, separate the two devices as much as possible, or discontinue simultaneous operation, if practical, and contact Verathon®.

BladderScan BVM9500 will operate normally in the proximity of other potential interference sources, and has demonstrated immunity at a ﬁeld strength of 3 V/m (per EN/IEC 60601‑1‑2, 36.202.2.1). You do not need to take any other precautions regarding exposure in reasonably foreseeable environmental conditions to magnetic ﬁelds, pressure, or variations in pressure, acceleration, or thermal ignition sources.

SYMBOL DIRECTORY

The following table explains the industry symbols used to indicate the BladderScan system compliance with international and national standards and regulations.

Table 27. Symbol Directory

SYMBOL MEANING

WEEE—Subject to waste electrical and electronic equipment regulations

Class II equipment

Type BF applied part

CE—Marked in accordance with the Medical Device Directive (MDD)

CSA—Canadian Standards Association mark of certiﬁcation to applicable standards for electromedical equipment

Battery operated

Operations & Maintenance Manual: Symbol Directory

GLOSSARY

TERM MEANING

Aiming display

B‑Mode

Battery charger/ wireless hub

BladderScan

C‑Mode

Calibration

Calibration Kit

Console

Coupling medium

Flashing Aiming Arrows

Ultrasound image showing the bladder on a white ﬁeld with blue crosshairs, the Aiming Display shows the location of the bladder within the ultrasound cone radiating from the probe. Also referred to as C‑Mode

Ultrasound images showing an abdominal cross‑section with the bladder shown as a dark circle. Also referred to as the Results display.

The unit that charges the Lithium‑ion batteries that power the BladderScan BVM9500 and simultaneously receives and sends information from/to a BVM9500 instrument within communication range.

The BladderScan instrument transmits ultrasound energy to produce an image of the patient’s bladder and determine bladder volume and UEBW.

Ultrasound image showing the bladder found within the ultrasound cone. Also referred to as the Aiming display.

Checking the accuracy and function of your BladderScan instrument by comparing it with a known standard.

Tools for calibrating your BladderScan instrument. The calibration container has a spiral‑shaped target which provides a known reference in a spherical coordinate system. The calibration of the instrument to this known reference increases the accuracy of volume measurements.

The main BladderScan device that provides operating controls and communicates with the user via images and text displays on an LCD screen.

A substance, such as ultrasound gel, that enhances the transmission of ultrasound waves.

Indicate the bladder is not inside the scan cone and the probe needs to be redirected. The arrow shows the direction to move or tilt the probe to improve the measurement. Re‑aiming is required.

Health Insurance Portability and Accountability Act, enacted by the US Congress in 199 6.

HIPAA

Image cone

Instrument

Title II of HIPAA, the Administrative Simpliﬁcation provisions (AS), requires the establishment of national standards for electronic health care transactions and national identiﬁers for providers, health insurance plans, and employers. The AS provisions also address the security and privacy of health data. The standards are meant to improve the efﬁciency and effectiveness of the nation’s health care system by encouraging the widespread use of electronic data interchange in the US health care system.

During a measurement, this is the cone‑shaped area in which the probe transmits ultrasound waves.

In this manual, refers to the BladderScan BVM9500. The BladderScan instrument transmits ultrasound energy to produce an image of the patient’s bladder and determine bladder volume and UEBW.

TERM MEANING

The LCD (liquid crystal display) screen on the BladderScan console that displays

LCD screen

measurement information, instrument status, and other exam settings and information.

NeuralHarmonics® Technology

Probe

Results display

Scan button

ScanPoint® image management technology

ScanPoint with QuickPrint

Sleep Mode

A patent‑pending technology that sharpens accuracy and accelerates speed of three‑dimensional ultrasound bladder volume measurements.

The handheld part of the BladderScan instrument that transmits ultrasound energy to the patient.

Ultrasound image showing an abdominal cross‑section with the bladder shown as a dark circle on a ﬁeld of speckled gray. Also referred to as B‑Mode.

Located on the underside of the BladderScan probe, this button is used to initiate the measurement.

The software and online service provided by Verathon® that prints exam results, maintains patient records, displays ultrasound images from exams, downloads software updates, and calibrates the BladderScan instrument.

ScanPoint with QuickPrint is a software program installed on your computer that communicates with ScanPoint Online to help you quickly and easily download and print download and print exam reports.

When the BladderScan instrument powers down to conserve energy. Press the Power button to turn on the instrument.

Indicates the bladder is inside the scan cone but is not completely centered. The

Solid aiming arrow

arrow shows the direction to move or tilt the BladderScan instrument to improve the measurement. Re‑aiming is optional but not required.

Supine position Refers to the patient laying on their back.

Suprapubic The area above the pubic bone.

Symphysis pubis The front of the pelvis where the pubic bones meet.

UEBW

Ultrasonic

Ultrasound estimated bladder weight: a measurement of bladder wall mass to help identify bladder outlet obstruction (BOO).

Involving ultrasound. Ultrasound is sound at frequencies above the range that can be heard by the human ear.

Operations & Maintenance Manual: Glossary

Verathon BLADDERSCAN BVM 9500 Operation & Maintenance Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

IMPORTANT INFORMATION

OVERVIEW

PRODUCT DESCRIPTION

NOTICE TO ALL USERS

STATEMENT OF PRESCRIPTION

STATEMENT OF INTENDED USE

SAFETY INFORMATION

SAFETY & PERFORMANCE SUMMARY

BIOLOGICAL SAFETY

CONTRAINDICATIONS

CAUTIONS & WARNINGS

INTRODUCTION

PARTS & FEATURES

PROBE COMPONENTS

CONSOLE COMPONENTS

BATTERY CHARGER/WIRELESS HUB

COMPONENTS & ACCESSORIES

ICONS & BUTTONS

BATTERY STATUS INDICATOR

INSTRUMENT BUTTONS

DISPLAY SCREENS

SLEEP MODE

MEMORY OPTIMIZATION DURING POWER DOWN

SETTING UP

PROCEdURE 1. UNPACK THE BOX & CHECK THE COMPONENTS

PROCEdURE 2. CHARGE THE BATTERIES

PROCEdURE 3. INSTALL A BATTERY PACK IN THE CONSOLE

PROCEdURE 4. ENTER THE CLINIC NAME

PROCEdURE 5. SET THE dATE & TIME

PROCEdURE 6. LOAd A ROLL OF THERMAL PAPER

PROCEdURE 7. ASSEMBLE THE MEdICAL CART (OPTIONAL)

PROCEdURE 8. INSTALL THE SCANPOINT WITH QUICKPRINT SOFTWARE (OPTIONAL)

PROCEdURE 9. WATCH THE TRAINING VIdEO

USING THE INSTRUMENT

PROCEdURE 1. PREPARE FOR THE EXAM

PROCEdURE 2. MEASURE BLAddER VOLUME & UEBW

PROCEdURE 3. RECORd A VOICE ANNOTATION

PROCEdURE 4. dELETE A SAVEd EXAM

PROCEdURE 5. PRINT AN EXAM

HISTOGRAM OF COST SAVINGS

CLEANING & MAINTENANCE

PROCEdURE 1. CLEAN THE INSTRUMENT

PROCEdURE 2. REGULAR INSPECTIONS & MAINTENANCE

PROCEdURE 3. RUN A SELF‑TEST

PROCEdURE 4. CALIBRATE THE INSTRUMENT

DEVICE REPAIR

UNIT DISPOSAL

TROUBLESHOOTING

HELP RESOURCES

ICONS ON THE BLADDERSCAN CONSOLE

DIAGNOSING PROBLEMS

INSTRUMENT DOES NOT TURN ON

PRINTER PROBLEMS

FACTORY RESET

PROCEdURE 1. RESTORE FACTORY CONFIGURATION

WARRANTY

DISCLAIMER OF ADDITIONAL WARRANTIES

PRODUCT SPECIFICATIONS

INSTRUMENT SPECIFICATIONS

ACCURACY SPECIFICATIONS

OPERATING CONDITIONS

STORAGE CONDITIONS

BATTERY CHARGER/WIRELESS HUB SPECIFICATIONS

STORAGE CONDITIONS

BATTERY SPECIFICATIONS

ELECTROMAGNETIC EFFECTS

SYMBOL DIRECTORY

GLOSSARY
