User manual
1. Introduction
Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into
service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty
and the dealer will not accept responsibility for any ensuing defects or problems.
• Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the
warranty.
• Check the contents prior to assembly. Use proper tools and never use defective or deformed parts
as an improper installation may cause serious injury.
• Any included hardware is for mounting on solid brick, concrete or hard wood battens.
When mounting on wood, do not use any concrete anchors. Do not use any included hardware for
mounting on steel. If uncertain about the nature of the wall or mounting techniques, please
consult an expert.
• Respect the product’s max. load specifications. Protect this device from shocks and abuse and
avoid brute force when operating. Check the installation on a bimonthly basis.
• An adequate mounting is essential and falls outside the responsibility of Velleman nv. Respect all
installation and operating directions of the device to be mounted/installed.
• Only use the device at an indoor location, protected from rain, moisture, splashing and dripping
liquids. Make sure the chosen location spot is able to support the weight of the bracket and
screen.
• Keep fingers away from articulations to avoid injury. Keep the device out of reach of children and
unauthorized users at all times.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
4. Features
• for A/V equipment
• 2 shelves
• easy installation
• comes with all necessary plugs and screws for assembly and mounting
• with cable guides
5. Installation

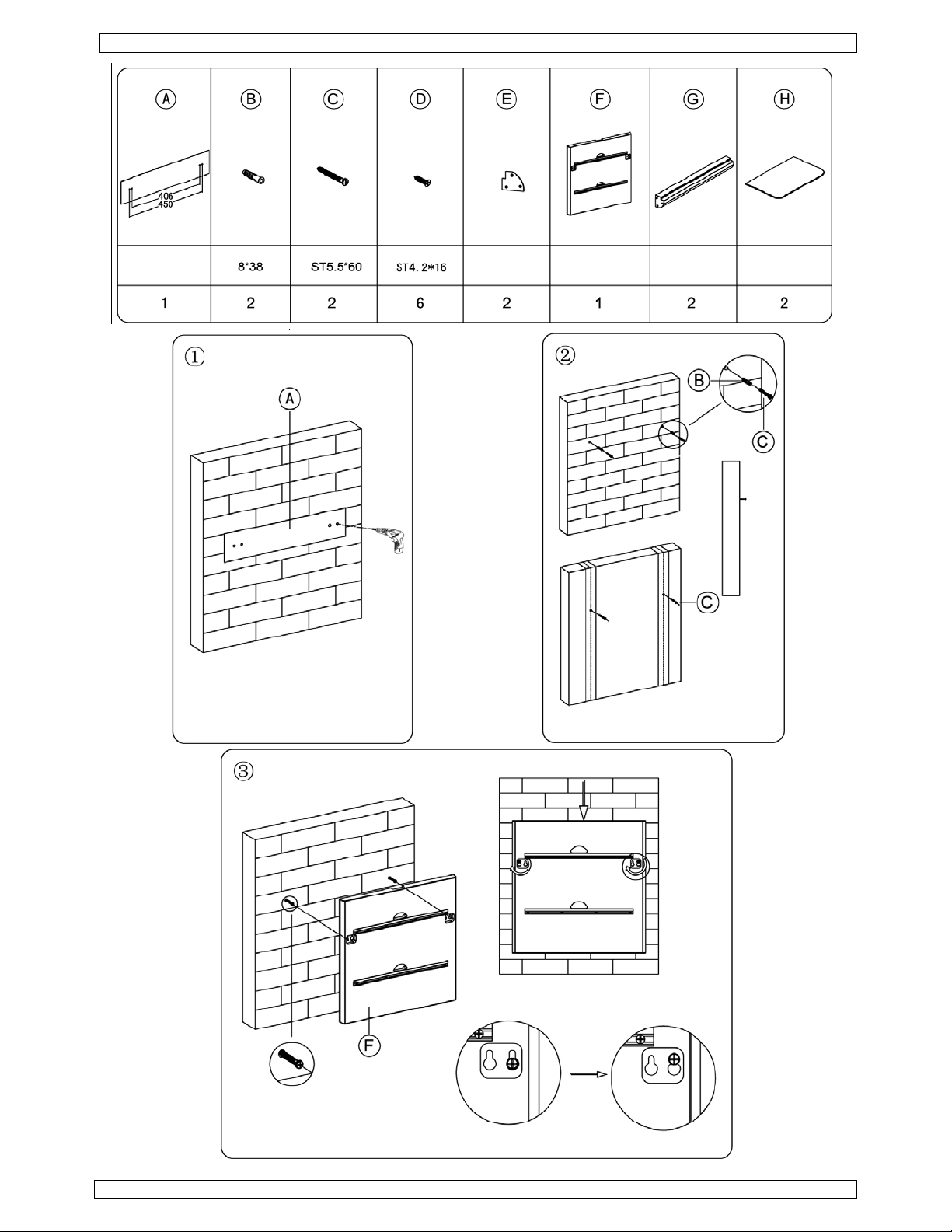

Refer to the illustrations on page 2 and page 3 of this manual.
6. Technical specifications
material
max. load 10kg (22lbs.) per shelf
Dimensions
Use this device with original accessories only. Velleman nv cannot be held responsible in
the event of damage or injury resulted from (incorrect) use of this device. For more info
concerning this product and the latest version of this user manual, please visit our
website www.velleman.eu
prior notice.
© COPYRIGHT NOTICE
This manual is copyrighted. The copyright to this manual is owned by Velleman nv. All
worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced
to any electronic medium or otherwise without the prior written consent of the copyright holder.
wall support MDF + aluminium
shelves hardened glass, thickness 6mm
shelf (2x) 460 x 305mm
wall support 500 x 500 x 30mm
. The information in this manual is subject to change without
26/04/2011 © Velleman nv
