VTLAN3

LAN TESTER FOR RJ45, RJ12, RJ11, RJ10 & BNC LAN-TESTER VOOR RJ45, RJ12, RJ11, RJ10 & BNC TESTEUR LAN POUR RJ45, RJ12, RJ11, RJ10 & BNC COMPROBADOR DE CABLE LAN PARA RJ45, RJ12, RJ11, RJ10 & BNC LAN-KABELTESTER FÜR RJ45, RJ12, RJ11, RJ10 & BNC

GEBRUIKERSHANDLEIDING NOTICE D’EMPLOI MANUAL DEL USUARIO BEDIENUNGSANLEITUNG

VTLAN3 VELLEMAN

VTLAN3 – LAN TESTER FOR RJ45, RJ12, RJ11, RJ10 & BNC

NEVER USE THE TESTER ON LIVE WIRES!

DOING THIS WILL DAMAGE THE TESTER!

1. Introduction & Features

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment.

Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for buying the VTLAN3! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer. Your VTLAN3 should include: main unit, terminator unit, 2 x BNC/RJ45 conversion wires, 1 x auto-test wire (RJ45).

This multi cable tester is an indispensable tool for networking installation and maintenance. This compact unit is specifically designed for on-site use. It can be used in testing network and telephone type cables (RJ45, RJ11 and BNC). It satisfies the majority of the telephone and computer cable testing requirements. With the VTLAN3 you can easily test a variety of network cables and diagnose cable problems.

Features:

• informative status indicators;

• advanced design for easy testing;

• BNC adapter for testing BNC cables;

• ability to test remote or installed locations with the terminator unit;

• automatically runs all tests and checks for continuity, open, shorted and crossed wire pairs.

2. Description

1. RJ45 socket (send)

2. manual test button (advances step by step

during manual test mode)

3. auto / manual test switch

4. RJ45 socket (receive)

5. send indicator graph

6. receive indicator graph

7. power switch

8. battery box (backside of the unit)

9. RJ45 socket (receive)

10. receive indicator LEDs

11. shield earth indicator LED (GND)

3. Operation

VTLAN3 VELLEMAN

a. Testing RJ45 and similar cables

• Insert one end in the SEND RJ45 socket (socket marked with a small triangle) and the other end in the

RECEIVER RJ45 socket.

• Switch on the device.

• Select the manual or the automatic test mode.

• In automatic test mode, the tester will start testing and the LED graph will light from left to right. In manual

mode, push the TEST button to advance a step at a time.

• The upper graph represents the input signal; the lower graph represents the output signal. If they match

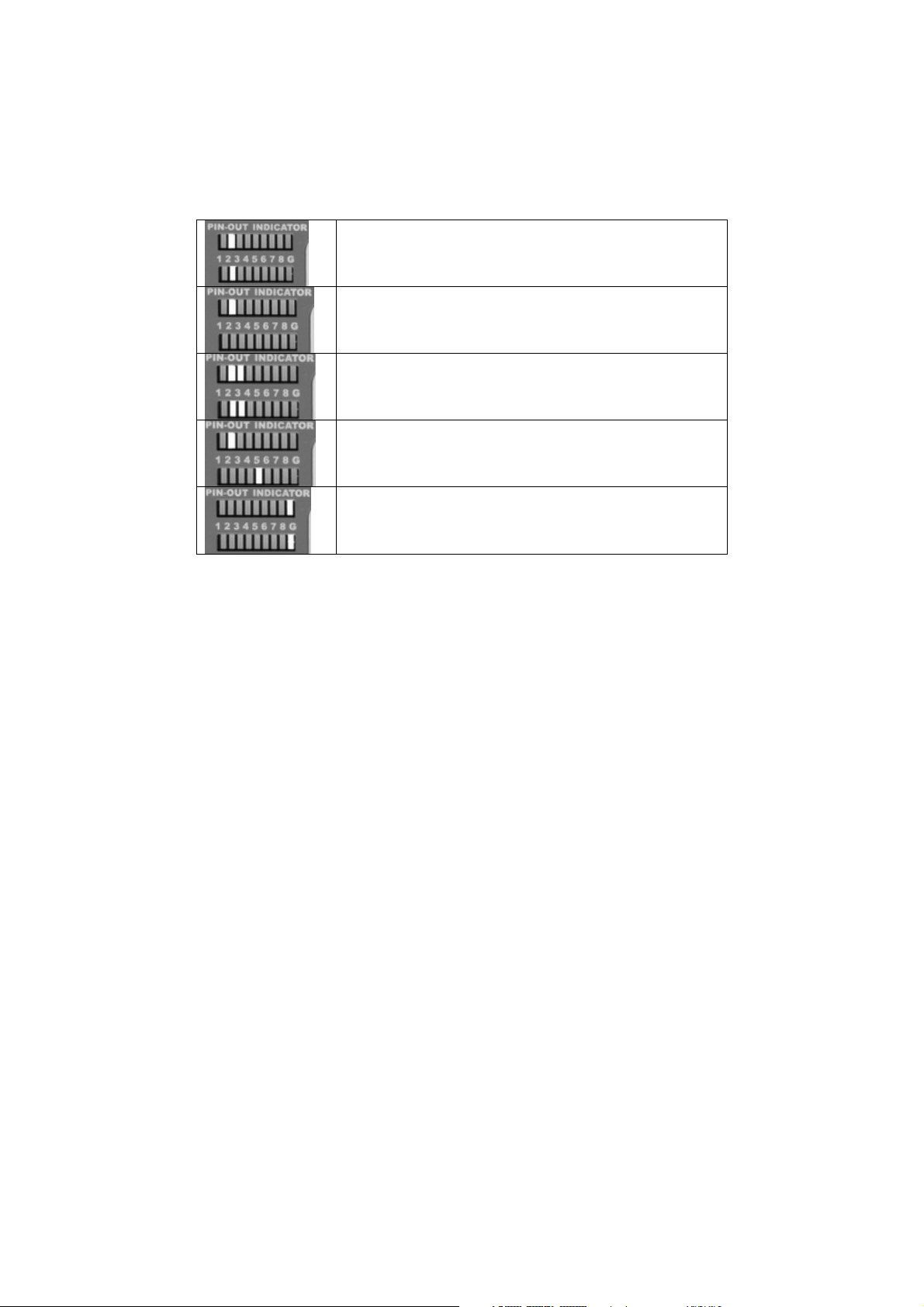

and are lit in sequence, the cable is OK. If not, please refer to the diagram below to pinpoint the error:

Good connection

Open circuit: 2nd wire is broken

Short-circuit between 2nd and 3rd wire

Cross connection between 2nd and 5th wire

Earth: net wire shield is correct

b. Testing coaxial BNC cables

• Use the adapter wires. Insert one end of the BNC cable in the SEND socket of the main device. Insert the

other end in the terminator.

• Switch on the device.

• Select the manual test mode as there are only two indicators to see: the first LED indicates the connectivity

of the inner conductor; the second LED indicates the wire shielding.

c. Remote testing

• Insert one end in the SEND socket and the other end in the RECEIVER socket or a terminator.

• If the cable is fixed onto the wall or underground and only the jack is available, use an adapter wire or the

RJ45 test wire.

• Read the output from the terminator.

4. Technical Specifications

Power Supply 9V battery (order code 6F22, 6LR61, not incl.) Auto Scan Time 4 sec Dimensions

Main Unit 103 x 52 x 27mm

Terminator 103 x 30 x 27mm Weight 250g Tests RJ45, 10 Base-T, Token Ring, RJ11/12 USOC & coaxial BNC cables

For more info concerning this product, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
