Velleman CS4MX-I User Manual
CS4MX
Operating Instructions
19
CS4MX
20
18
21
22
8
13
Identifying the Parts
1) On Off/ Sensitivity control
2) Ground Level control
3) Pinpoint/ Discrimination 1/ Discrimination 2 switch
4) All-Metal/ Discrimination Level control 1
5) Discrimination Level control 2
6) Control box mounting clip
7) Loudspeaker
8) Battery compartment
9) 8 x AA battery holder
10) Battery contacts
11) Search-head socket
12) Headphone socket
13) Control box
14) Hand grip
15) Upper stem
16) Arm support
17) Detector rest
18) Stem lock
19) Lower stem
20) Interchangeable Search-head
21) Search-head xing screw and wing-nut
22) Search-head lead
12
6
14
16
15
17
9
8
11
10
6
3
2
7
1
2
4
5
CS4MX Overview
The CS4MX is a high performance metal detector operating on the ‘MOTION’
principle. This means that the search-head must be kept moving at a steady
sweep speed to achieve optimum performance.
The CS4MX provides the option of interchangeable search-heads to optimise
performance on a variety of site conditions. There are two independent
discrimination controls to aid identication; a pinpoint switch to aid exact target
location; and a manual / auto ground option to handle all ground conditions
CS4MX
The CS4MX is designed to offer extremely high performance whilst being
easy to operate. We wish you good hunting and a great hobby with the
excellent CS4MX!
3
Rapid start
Follow these simple steps to start using the CS4MX within minutes:
1) Insert the lower stem into the upper stem (rst press in the spring clip).
2) Twist the locking device so that the stem is locked at the required length.
3) Coil the search-head lead around the stem.
4) Plug the search-head lead into the socket on the control box.
5) Remove the battery compartment cover by loosening the four retaining screws.
6) Fit 8 x AA batteries to the battery holder being careful to observe polarity
and good contact.
7) Rotate the Discrimination Level control 1 to number 4 on the scale.
8) Set the Ground Control to ‘AUTO’.
9) Switch on and rotate the Sensitivity control to number 6 on the scale.

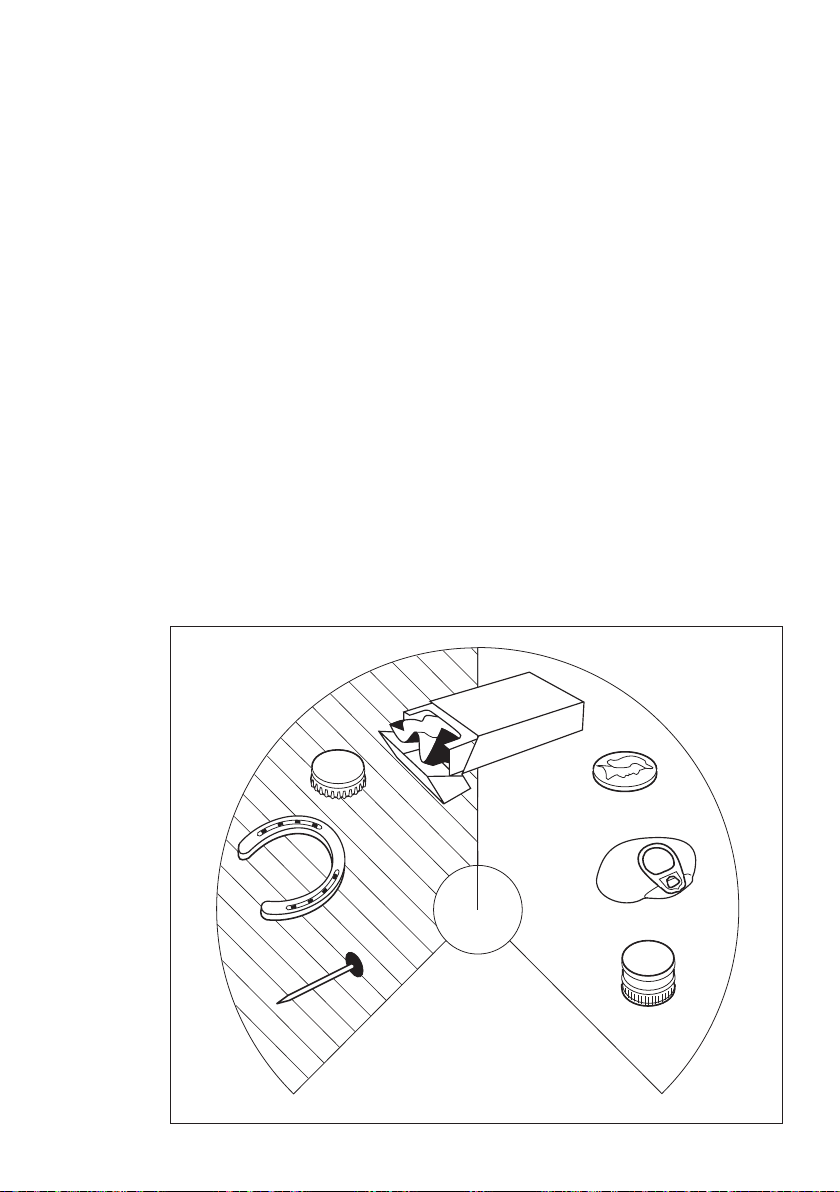

10) START DETECTING... metal targets give a sharp audio signal from the
loudspeaker... signals from small pieces of iron rubbish are ignored... switch to
pinpoint to identify the exact position of the target.
4
