Vega C-1610 User Manual

Model C-1610

Radio Control Console

June 27, 2001 P.N. 803036-1

Remote Control Console i

Table of Contents

1 INTRODUCTION.................................................................................................................................................... 1

2 HARDWARE OVERVIEW.................................................................................................................................... 3

2.1 C-1610 C

2.1.1 Main PCB..................................................................................................................................................... 3

2.1.2 Keypad PCB................................................................................................................................................. 3

2.1.3 Line Card..................................................................................................................................................... 3

2.1.4 Internal Speaker Amplifier............................................................................................... ............................ 3

3 CONTROLS AND INDICATORS......................................................................................................................... 5

RONT PANEL

3.1 F

3.1.1 Common Controls and Indicators ......................................................................................................... 5

EAR PANEL CONNECTIONS

3.2 R

3.2.1 Rear Panel Ports.......................................................................................................................................... 7

4 FUNCTIONAL DESCRIPTION........................................................................................................................... 9

ROUPING OPTIONS

4.1 G

4.1.1 Basic Line/Function Tone Operation........................................................................................................... 9

4.1.2 GRP and TX ALL Buttons............................................................................................................................ 9

4.1.3 UNSEL and RX ALL Buttons ...................................................................................................................... 9

THER CONTROL BUTTONS

4.2 O

4.2.1 Supervisor Button....................................................................................................................................... 10

4.2.2 MUTE Button............................................................................................................................................. 10

4.2.3 AUX Button................................................................................................................................................ 10

4.2.4 Alert Button................................................................................................................................................ 10

4.2.5 Intercom (IC) Button.................................................................................................................................. 10

ONSOLE

................................................................................................................................................ 3

...................................................................................................................................................... 5

................................................................................................................................7

............................................................................................................................................. 9

............................................................................................................................... 10

5 LINE CARD SETUP AND DESCRIPTION........................................................................................................11

5.1 INTRODUCTION/DEFAULTS....................................................................................................................... 11

5.2 INPUT/OUTPUT.............................................................................................................................................. 11

5.3 FEATURE DESCRIPTION.............................................................................................................................. 12

5.3.1 Crossmute .................................................................................................................................................. 12

5.3.2 Relay Contact Closure For Local Control................................................................................................. 12

5.3.3 Two-Wire/Four-Wire Mode........................................................................................................................13

5.3.3.1 RX Side Settings....................................................................................................... .............................................13

5.3.3.2 TX Side Settings....................................................................................................................................................13

5.3.3.3 Transmit Monitor...................................................................................................................................................14

EVEL ADJUSTMENTS

5.4 L

5.4.1 Transmit Side Adjustments......................................................................................................................... 14

5.4.1.1 Transmit Level Setup.............................................................................................................................................14

5.4.1.2 Transmit Monitor Setup.........................................................................................................................................14

5.4.1.3 Receive Level Setup (Rev B Line Card only)........................................................................................................14

5.5. Microphone Level Adjustment...................................................................................................................... 15

5.6. Minimum Speaker Level Adjustment............................................................................................................ 15

6 TECH MODE......................................................................................................................................................... 17

6.0.1 Erasing all settings..................................................................................................................................... 17

6.0.2 Resetting the PIN Number.......................................................................................................................... 17

6.0.3 Opening Display Menu .............................................................................................................................. 18

6.0.4 Button Activated Setup Modes ................................................................................................................... 19

6.1 O

6.2 L

PENING MENU

EVEL MENU SCREEN

6.2.1 Menu 1 - Line Level Settings............................................................................................................... 20

6.2.1.1 RX Input Level Screen........................................................................................................................................... 20

6.2.1.2 LAM Programming Screen....................................................................................................................................20

6.2.2 Main Level Settings.................................................................................................................................... 21

6.2.2.1 Microphones Screen...............................................................................................................................................21

........................................................................................................................................ 14

............................................................................................................................................ 19

.................................................................................................................................. 20

ii Vega’s C1610

6.2.2.2 Receive Path Levels...............................................................................................................................................21

6.2.2.3 Output Level Screens.............................................................................................................................................21

YSTEM SETTINGS SCREEN

6.3 S

6.3.1 Clock Settings Screen................................................................................................................................. 22

6.3.1.1 Clock Edit Screen ..................................................................................................................................................22

6.3.2 Dump Function .......................................................................................................................................... 23

6.3.2.1 Dump Error Screen................................................................................................................................................23

6.3.3 Menu 2 System Setup Screen...................................................................................................................... 23

6.3.3.1 Tone Settings Screen..............................................................................................................................................23

6.3.3.2 Wildcard Programming.......................................................................................................................................... 26

6.3.4 Menu 3 System Setup Screen...................................................................................................................... 27

6.3.4.1 PIN Number Entry.................................................................................................................................................27

6.3.4.2 TX Delay Setup......................................................................................................................................................27

6.3.5 Menu 4 System Setup Screen...................................................................................................................... 27

6.3.5.1 Auxiliary Relay Function.......................................................................................................................................27

6.3.5.2 Duplex Enable........................................................................................................................................................28

6.3.6 Menu 5 System Setup Screen...................................................................................................................... 28

6.3.6.1 MicAGC Function .................................................................................................................................................28

6.3.6.2 Handset installed....................................................................................................................................................28

LPHANUMERIC FUNCTION-LINE SETUP

6.4 A

6.4.1 Line/FTone Selection Screen ..................................................................................................................... 28

6.4.1.1 Line Alphanumeric Selection Screen.....................................................................................................................28

INE TONE/LOCAL SCREEN

6.5 L

6.5.1 Enable/Disable the Line............................................................................................................................. 29

6.5.2 Tone or Local Control................................................................................................................................ 30

6.5.3 Crossmute Setup......................................................................................................................................... 30

6.5.4 Squelch Setup............................................................................................................................................. 30

6.5.5 TX Monitor Enable/Disable....................................................................................................................... 30

6.5.6 Automatic Gain Control (AGC) Enable/Disable........................................................................................ 30

6.5.7 TX Enable/Disable per Line (v4.5)............................................................................................................ 30

6.5.8 Forced Unselect of a Line (v4.5)................................................................................................................ 31

UNCTION TONE PARAMETER SCREEN

6.6 F

6.6.1 Function Tone Enabled/Disable................................................................................................................ 31

6.6.2 Function Tone Setup.................................................................................................................................. 31

6.6.3 Frequency Programming Screen............................................................................................................... 31

6.6.4 Duration Display Screen............................................................................................................................ 31

NSELECT SETUP OPTIONS

6.7 U

6.7.1 Unselect Audio Routing ............................................................................................................................. 31

6.7.2 Unselect Audio Mute (v4.5)........................................................................................................................ 32

ROUP SELECTION SCREEN

6.8 G

UPERVISOR ENABLE

6.9 S

UTE BUTTON SETUP

6.10 M

6.11 AUX A

6.12 A

6.12.1.1 Cadence Level Selection......................................................................................................................................33

6.12.1.2 Cadence Frequency Selection..............................................................................................................................33

6.13 TX ALL P

6.14 M

6.14.1 Monitor Characteristic Selection............................................................................................................. 34

6.14.1.1 Monitor Frequency...............................................................................................................................................34

6.14.1.2 Monitor Duration.................................................................................................................................................34

6.14.1.3 Monitor Level......................................................................................................................................................34

SSIGNMENT

LERT CADENCE PROGRAMMING

ROGRAMMING SCREEN

ONITOR PROGRAMMING SCREEN

................................................................................................................................22

............................................................................................................ 28

................................................................................................................................29

.............................................................................................................. 31

................................................................................................................................31

............................................................................................................................... 32

......................................................................................................................................... 32

...................................................................................................................................... 32

.......................................................................................................................................... 32

.................................................................................................................... 33

.................................................................................................................. 33

7 SAMPLE SETUP PROCEDURE........................................................................................................................ 35

RANSMIT PATH

7.1 T

7.1.1 Microphone adjustments............................................................................................................................ 35

7.1.2 Adjusting handset/headset microphone levels............................................................................................ 35

7.1.3 Adjusting desk microphone/gooseneck microphone levels ........................................................................ 35

LERT TONE ADJUSTMENTS

7.2 A

7.2.1 Alert tone frequency................................................................................................................................... 35

7.2.2 Alert tone level........................................................................................................................................... 35

:............................................................................................................................................... 35

............................................................................................................................... 35

Remote Control Console iii

INE CARD TRANSMIT PATH ADJUSTMENT

7.3 L

7.3.1 Transmit Level Adjustment......................................................................................................................... 35

7.3.2 Transmit Monitor....................................................................................................................................... 36

ECEIVE PATH

7.4 R

7.4.1 Four-Wire or Two-Wire?........................................................................................................................... 36

7.4.2 Receive Level Setup (Rev B Line Card only).............................................................................................. 36

7.4.3 Line Activity Monitor (LAM) / Squelch Control........................................................................................ 36

7.4.4 Recorder Output......................................................................................................................................... 36

7.4.5 Auxiliary Speaker Output........................................................................................................................... 36

7.4.6 Earth Ground............................................................................................................................................. 36

8 THEORY OF OPERATION................................................................................................................................. 37

UDIO INPUT PATHS

8.1 A

UDIO OUTPUT PATHS

8.2 A

INE CARD PATHS

8.3 L

EYPAD/DISPLAY BOARD

8.4 K

9 LINE CARD INSTALLATION............................................................................................................................ 39

10 PROGRAMMING CHART................................................................................................................................ 41

11 SCHEMATICS, PARTS PLACEMENTS, AND BILLS OF MATERIAL..................................................... 47

12 WARRANTY, SERVICE, REPAIR, AND COMMENTS............................................................................... 49

13 SPECIFICATIONS.............................................................................................................................................. 51

................................................................................................................................................... 36

.......................................................................................................................................... 37

....................................................................................................................................... 37

............................................................................................................................................. 37

.................................................................................................................................. 38

........................................................................................................ 35

iv Vega’s C1610

Remote Control Console 1

1 Introduction

The model C-1610 is a unique multi-channel, multi-format, and self-contained desktop radio control console. The C-1610 sports a Vacuum Florescent LCD display, which provides channel alpha/numeric indication, clock and

audio-level meter with a modern membrane keypad. These features allows for a more flexible dispatch environment in which the console may be installed. The dispatcher can easily operate the console while sitting or standing.

The C-1610 is a Digital Signal Processor (DSP) based design, allowing easy field programmability using the DTMF key pad on the front of the console. Unlike other manufacturers’ equipment, no additional software is required to program the C-1610 console. Modifications and enhancements can generally be made via a software change only. If the user determines they require a special feature enhancement, please contact the Vega Sales Department for cost and feasibility.

The C-1610’s modular design offers selection and control of up to six base stations, along with selection of ten frequencies. The base configuration includes one line card, allowing 2 lines of control. Each line card consists of two independent channels that offer crossmute capability and squelch control feature eliminating the unwanted noise that is generally associated when monitoring a selected or unselected line.

The C-1610 will accommodate a desk microphone (or gooseneck microphone) along with a handset (or headset) as indicated on the side of the C-1610 console. When a PTT occurs from either of the two microphones, the other will mute so as not to pick-up unnecessary ambient noise during transmission. When the handset is taken off hook and a line is Selected, the receive audio from that line is transferred to the earpiece.

The console is normally used in conjunction with up to six functionally matching Vega 223C Series (or equivalent) tone-remote panels located at each base station. The console is compatible with Motorola, ComNet Ericsson/GE, and other tone-remote control systems employing the industry-standard sequential tone-control format.

The console is connected to the mating panels by means of voice-grade or better leased or private lines (including microwave circuits). Metallic or DC continuity is not required.

Version 4.5 of the software introduced several new features to the console, including: incoming select call, per line TX disable, per line Unselect audio lock, and the ability to mute unselect audio during PTT. A number of minor issues were fixed as well.

2 Vega’s C1610

Remote Control Console 3

2 Hardware Overview

The C-1610 is a multi-line, multi-mode console designed specifically for medium level system requirements. All functions are house d in a single small modern loo ki ng console.

2.1 C-1610 Console

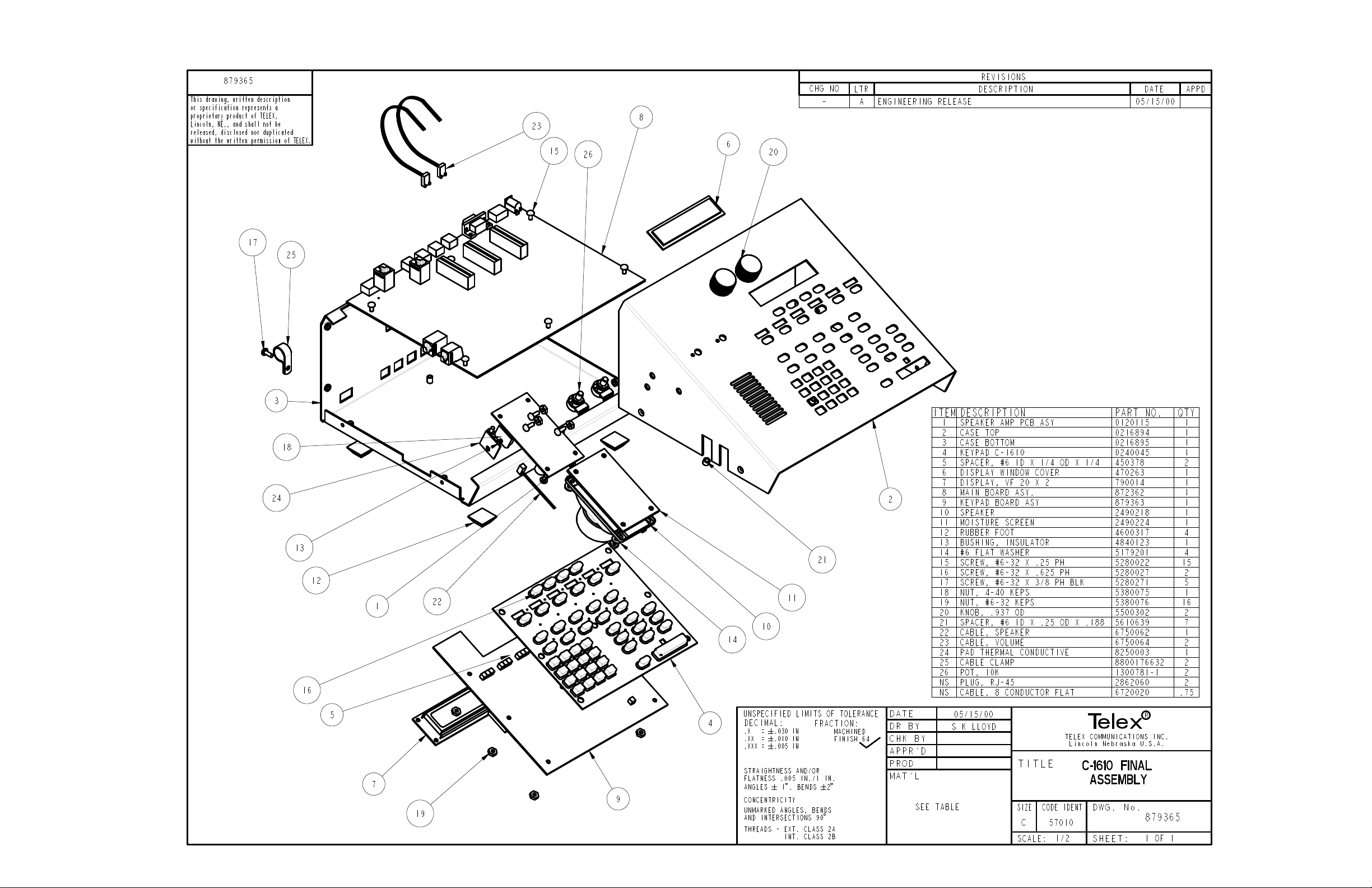

The C-1610 consists of the following sub-assemblies enclosed in the single case: Main Processing Board, Line Interface Cards, Keypad/Display Board, and speaker amplifier.

2.1.1 Main PCB

The Main PCB is mounted to the bottom of the enclosure using 5 #6 screws. It contains the DSP which handles all audio processing and user interface features. Three two channel Digital to Analog Converters (DACs) are utilized to generate audio for transmission, recordings, auxiliary speaker, main speaker, earpiece, and keyboard feedback. One two channel Analog to Digital Converter (ADC) is resident on the main board which digitizes both the microphone inputs and the auxiliary audio inputs. Each line card contains an ADC as well for the two lines of audio supported on the card. Three 30 pin card slots reside on the main board for each optional line card. A 20 pin header is used to interface the keypad to the Main Board. All audio detection, generation, and filtering is performed within the DSP. Two potentiometers are available for adjusting the handset and desk microphone input levels. A three pin header is supplied on the main board which connects to the unselect audio control potentiometer.

2.1.2 Keypad PCB

The Keypad board is interfaced to the main board via a 20 pin ribbon cable. The board contains the circuitry to drive the 39 LEDs, decode the keypad matrix, and interface the DSP to the display. The display itself is mounted to the Keypad PCB by a 14 pin header and three screws with spacers.

2.1.3 Line Card

The Line Card is a radio control card using either the standard tone control format compatible with Motorola and ComNet Ericsson/GE or Local Control relay closure. The line card may be hardware configured for either two-wire or four-wire operation and may be factory modified to accommodate non-industry standard tone control formats if desired. This is usually a software only change. Each card supports two lines. Four potentiometers are mounted on the card supporting tuning of the transmit and transmit monitor levels.

2.1.4 Internal Speaker Amplifier

The internal speaker has a 5 watt amplifier mounted on the backside of the front cover. Which has one volume control input to which the “Select” volume control is connected. A jumper is used for setting a minimum output level, allowing for audio at some level always being present in the internal speaker.

4 Vega’s C1610

Remote Control Console 5

2

3 Controls and Indicators

3.1 Front Panel

Description of the controls and indicators.

Line Audio Monitor

Unselect Audi o LED

Select Audi o LED

SELECT UNSELECT

VOLUME

F1 F3 F5

F2 F4 F6

1

A B

2

C D

0 -5 0

Adam 12

PROG 1

3

E F

A

+ -

Audio Level-

PROG 2 PROG 3

11:08AM

PROG 4

LN4 LN5 LN6LN1 LN2 LN3

F7 F9

F8 F10

UNSEL GRP

Program 1-4

Function Tone

Select Keys

TXALL

4

G H

7

M N

*

S T

DTMF Keypad

5

I J

8

O P

0

U V

6

K L

9

Q R

#

W X

B

.

C

CAP

D

Y Z

SUP MUTE RXALL

ALERT MON

IC

TRANSMIT

Transmit LED

Figure 1

A desk microphone (or gooseneck microphone) may be installed for operation along with a handset (or headset) as indicated on the side of the C-1610. When a PTT occurs from either of the two microphones, the other will mute so as not to pick-up unnecessary ambient noise during transmission. Note that, in dual microphone configurations, the desk microphone is the default microphone. The dedicated PTT button on the handset or headset must be pressed to use the handset/headset.

3.1.1 Common Controls and Indicators

Select Volume Control: Adjusts the summed speaker level of the Selected and Unselect audio’s. A minimum volume level can be set on the speaker card so that the console operator can not turn the volume to zero.

6 Vega’s C1610

Unselect Volume Control: Adjusts the speaker level of the Unselected audio. A minimum volume level is preset on the main PCB so that the console operator can not turn the volume off as long as the master minimum volume is active on the speaker amplifier (JP1). Refer to page 11 for more detailed information.

Optional Handset: When you come off hook the handset receive audio is transferred to the earpiece and the microphone mouthpiece becomes active. Unselect audio that is being routed to the external speaker will not be affected.

VU Meter: Displays Selected receive and Microphone audio bus levels. This meter is shown on the top line of the display and utilizes the first 12 display elements from the upper left.

PTT Pushbutton: When pressed all Selected lines will transmit from the default input device (handset, headset, desk microphone, gooseneck)

DTMF Keypad:

tech mode (section 6), and entering alphanumeric strings for line/function tone combinations.

Function Buttons F1-F10:

No hold tone is associated with the changing of the function tone. When one of the function tones is selected it will light to indicate which function tone is chosen A function tone shall remain selected until the operator changes the setting. The console will power up with the last selected line and function tone pair selected. Function tones may also be placed in wildcard groups (section 6.3.3.2), wildcard groups will not effect any function tones in the frequency selecti on mode.

Line Select Buttons LN1-LN6:

line enters the Select mode and cancels all other Selected lines (either inactive or Unselected). The ‘1 of N’ mode can be changed by pressing the GRP button on, this allows more than one line to be placed in the Select mode. A line or lines can be placed in the Unselect mode by the pressing the UNSEL button on and then pressing the Select line button. You may have any combination of lines placed in the Unselect mode.

Program 1-4:

functions depending on the action required. The bottom line of the display will show their respective functions.

Select Audio LED: Unselect Audio LED:

monitoring.

Line Audio Monitor LED: Transmit LED:

2175 Hz hold tone is detected on the selected TX audio lines. This would indicate to the operator that another console is currently transmitting on one of the selected channels.

The DTMF keypad is used for transmitting DTMF digits, selecting frequencies for tone control in

When a function tone button is presse d, a guard tone and function tone burst i s sent out.

Six line select buttons are available. When one of the line buttons is pressed that

Are used as “soft” programming buttons when in the tech mode. These buttons will have different

The green LED above each LNx Button indicates if the line is selected for transmit audio.

The red LED above each LNx Button indicates if the line is unselected for receive audio

The yellow LED above each LNx Button indicates receive audio activity on a line.

This LED lights when any PTT source is depressed keying up the console. It will also blink if a

Unselect button:

mode. Pressing a line that is already in the Unselect mode will deselect the line. Pressing a line that is already in the Select mode will have no affect.

Group button:

the operator to place more than one line in Select mode. The C-1610 allows four preprogrammed groups. These preprogrammed groups will be applied to the console if the ‘A’, ‘B’, ‘C’, or ‘D’ in the DTMF keypad is pressed while the GRP button is held down. A programming selection allows the technician to apply a preprogrammed function tone or the last used function tone to the group.

TX all button:

allows the technician to apply a preprogrammed function tone or the last used function tone to the group.

RX all button:

Supervisory button:

to the supervised line.

Pressing the line buttons while the UNSEL button is on will place the respective lines in Unselect

The 1of N reset function of the C-1610 will be suspended while the GRP button is on. This allows

The TX button allows the operator to place all lines in the Select mode. A programming selection

The RX button places all cards not in the Select mode in the Unselect mode.

The SUP button allows one console operator to disable any other console which is connected

Remote Control Console 7

Monitor:

When the Monitor button is pressed a Monitor tone burst is sent out. The Monitor tone burst consists of a

guard tone and function tone of 2050Hz. An LED indication lights for the duration of the tone burst.

Intercom (IC):

When the Intercom button is pressed and held down the C-1610 shall transmit audio without

activating the tone generator. Intercom is considered a PTT operation with the tone generator disabled.

3.2 Rear Panel Connections

OUT

1

8

1

8

INRS-232

AUX

+12

Power

AUX

Power

Line 1

Line 2

1

8

Line 3

1

8

Line 4

AUX

RELAY

OUT

1

8

1

8

FOOT

SWITCH

AUX

SPEAK

Line 5

Line 6

RECORD

+ GND E

Figure 2

1 2 3 4 5 6 7 8 1) Cross Mute I /O

+ -

AUD PTT GNDSW GND

2) Supervisor I/O

3) RX +

4) TX +/(RX+2W)

5) TX -/(RX - 2W)

6) RX -

7) Local

8) GND/Local

Connector View

Figure 3

3.2.1 Rear Panel Ports

Line Ports 1-6:

available on the rear of the unit. The connectors are standard eight pin RJ-45 connectors. The pinout of the connector appears in Figure 3. The numbering of the pins are shown in Figure 2 for reference.

Auxiliary Audio Input:

PTT to ground activates the Audio Input line for transmitting. This input is a high impedance capacitance coupled input.

Auxiliary Speaker:

Footswitch:

Battery backup:

also connected to the chassis allowing for positive grounding of the unit.

The C-1610 can accommodate up to six-lines, in multiples of two. The six-line connectors are

The external 3 pin terminal block provides Audio Input, PTT, and GND line. Pulling

Is a capacitance coupled output capable of driving a 600 ohm load at 0dbm.

This input acts as a console PTT when it is shorted to ground

The Auxiliary power input is a diode protected +12V input used for battery backup. Pin (E) is

8 Vega’s C1610

Serial port

Auxiliary Relay Output:

closure that can be used for whatever purpose is required.

Record Output:

voice logging recorder.

: Allows for communications between consoles. Normally used when cloning other consoles.

Depending on the setting of the AUX button in the tech mode, this output is a relay

Has both unselected and selected notched audio 600 Ohm transformer output for connection to a

Remote Control Console 9

4 Functional Description

4.1 Grouping Options

4.1.1 Basic Line/Function Tone Operation

The basic operating scenario would be a single line and function tone selected. Lines can be selected individually by pressing any LN1-LN6 and function tone butt on F1-F10. Upon keying the microphone, a high level guard tone followed the selected function tone is sent out, the low level guard tone is then transmitted along with the microphone audio. Each Line/Function pair is unique and can have its’ own alphanumeric characters assigned to it in the programming mode. The default characters have the LnX FY label in the display with X the line number and Y the function number. Function Buttons can have either single or dual functions and is setup in the t ech mode.

4.1.2 GRP and TX ALL Buttons

The GRP button is a press ON/OFF button which disables the 1of N functionality of the console. When the GRPSEL button is selected it will illuminated and the operator can set up a Simul-group with as many tone lines desired. As long as the button is illuminated the operator may add or delete lines in the group. The Green LED above each line selection button denotes that the line is selected for transmission and reception. When the operator is finished setting up the Simul-group the operator presses the GRP button again to revert back to the 1of N mode.

The group button is also used to select up to four preprogrammed groups. Within the tech mode, it is possible to set up preprogrammed groups. By assigning certain groupings of lines to the Groups ‘A’-‘D’ a simple two button sequence can be setup to select multiple lines.

Lines that are setup as Local Control cannot be mixed with tone control lines in the same group select mode.

Note:

Likewise you cannot TX ALL if you have Local control and tone control lines mixed. You will receive an ERROR MESSAGE. They must all be of the same type of control lines tone or local control.

TX ALL (Transmit All)

transmissions without having to group select one at a time. To initiate Simulcast, momentarily touch the "TX ALL" on the keyboard. The line description will change to

"Group", and all available lines will automatically be Selected. To disengage Simulcast, simply Select a single line in the usual manner, or press TX again to revert to the previous

setup.

You cannot TX ALL if you have Local control and tone control lines mixed. You will receive an ERROR

Note:

MESSAGE. They must all be of the same type of control lines tone or local control.

: This feature gives the user a convenient means of Selecting all lines for Simul-

4.1.3 UNSEL and RX ALL Buttons

The UNSEL Button functions the same way as the GRP button. The UNSEL button is a press ON/OFF button. When the GRPSEL button is illuminated the operator is able to set up any combination of lines as desired for monitoring only. As long as the button is illuminated the operator may add or delete lines to the group. The red LED above each line selection button denotes that the line is Unselected for reception. When the operator is finished setting up the group the operator presses the UNSEL button again to turn off the mode.

RX ALL (Receive All):

mode will automatically become part of the Unselect group when it is taken out of Select mode.

When pressed all lines are put into the unselect receive mode

.

Any line that is in the Select

10 Vega’s C1610

4.2 Other Control Buttons

4.2.1 Supervisor Button

The SUP Button is used to disable all units on a particular line. Its connection is similar to that of the crossmute function. Tech mode is utilized to determine which consoles will have supervisory capability. It is possible to setup only specific consoles with this feature. If a console has the feature enabled, by pressing the SUP Button, the Button will light and disable all connected paralleled consoles. On the consoles that are being supervised, the SUP Button will blink, if they have selected a line that the supervisor has selected. Figure 4 shows the connection scheme required to utilize this function. Pin 2 of all consoles are connected together. In addition, Pin 8 is also connected together on all consoles, serving as a common ground for all consoles. Assuming that console 1 has supervisory capability, when activated, Line 1 on parallel consoles 2 and 3 would then be inhibited.

Console 1: Console 2: Console 3:

Line 1

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Line 1Line 1

Line Line +

4.2.2 MUTE Button

The MUTE Button is used to mute unselect audio. It is programmable in tech mode to be a mute when pressed, or mute for a programmable period of time. As long as MUTE is active, the Button will be lit up.

4.2.3 AUX Button

The AUX Button has up to four functions, selectable in tech mode:

1) DTMF store and transmit DTMF

2) Second Alert tone ALERT

3) Toggle relay control TOGGLE RELAY

4) Momentary relay control MOM RELAY

Option 1, DTMF store and transmit, allows a programmed string of DTMF characters to be entered and transmitted. In addition, the function will remember the last string sent and can be recalled by pressing a Program Button.

Option 2, ALERT, allows the AUX Button to serve as the Alert 2 Button. In this mode it sends out the programmed Alert 2 tone.

Option 3, Toggle Relay, give the AUX button the ability to control the AUX RELAY output on the back panel. When pressed, the Button will light and the relay will close. The next time the AUX button is pressed, the Button’s light will turn off and the relay will open. The relay is rated to handle 500mA at 12VDC or 250mA at 115VAC.

Option 4, Momentary Relay, closes the relay for as long as the AUX button is pressed. The relay is rated to handle 500mA at 12VDC or 250mA at 115VAC.

4.2.4 Alert Button

The Alert Button is used to send the programmed Alert sequence. Tech mode is used to set up the cadence assigned to this Button.

4.2.5 Intercom (IC) Button

When the IC button is pressed and held down the C-1610 transmits audio without activating the tone generator. Intercom is a PTT operation with the tone generator disabled. This is useful for communications between paralleled consoles.

Remote Control Console 11

J5J

R

5 Line Card Setup and Description

J12

J13

4

J9

J6

J11

J8

J10

J7

Figure 5 – Rev A Line Card PCB

57

R56

R58

55

5.1 INTRODUCTION/DEFAULTS

The Line Card for the C-1610 system provides communication with any standard tone remote system. It is shipped from the factory in the following state: 4 Wire mode 600 ohm output impedance Note that there are now two versions of this card. The jumper numbers have remained the same as well as their functions. The level setting POTs have changed. They are labeled on the board and noted within this chapter. Figure 5 shows the older Rev A board, and Figure 7 shows the Rev B board.

5.2 INPUT/OUTPUT

Two Line connectors are available for external access. The connectors are standard eight pin RJ-45 connectors. The upper connector on each card is designated as 1 and the lower as 2. The slot that the card is placed in designates line 1&2 or 3&4 or 5&6.

Two six-foot cables are included with

1 2 3 4 5 6 7 8 1) Cross Mute I/O

2) Supervisor I/O

3) RX +

4) TX +/ (RX + 2W)

5) TX -/ (RX - 2W)

6) RX -

7) Local

8) GND/Local

Connector View

Figure 6

each card. The connector pins are assigned as shown in Figure 6.

12 Vega’s C1610

T

R

Figure 7 – Rev B Line Card PCB

5.3 FEATURE DESCRIPTION

5.3.1 Crossmute

When a parallel console operator keys a microphone in the same room, the crossmute function mutes the receive audio path of the other parallel consoles. This prevents any unwanted audio loops which would occur causing a loud squeal on the paralleled speakers.

Feedback may be avoided by muting the receive audio of the line card which is in parallel with a transmitting line card. This may be accomplished by connecting pins 1 and 8 of each of the consoles to be crossmuted as shown in Figure 7. Pin 8 must be connected to provide a common ground. Figure 7 illustrates the connections between consoles 1 through 3 that are in the same room and when one transmits, the receive audio on line 1 will be muted. Console 4 is off-site with no possibility of feedback, therefore, it is not being muted. function will not work between crossmuted consoles.

Console 1: Console 2: Console 3:

Line 1

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

Figure 8

Offsite Console 4:

Line 1 Line 1 Line 1

Note:

X X X +

X

The intercom

5.3.2 Relay Contact Closure For Local Control

The relay is normally open and provides a dry contact closure during PTT functions between pins 7 and 8 of the line jack. The relay closure can carry 500mA at 12VDC or 250mA at 115VAC. When using the intercom function the

Remote Control Console 13

relay is not activated.. If this relay closure is used for local control (or any other case where tone bursts are not used for signaling) disabling the tone generation is recommended by entering the tech mode.

5.3.3 Two-Wire/Four-Wire Mode

Each Line Card comes standard with a jumper selectable two or four-wire option. Note: The Line Cards are shipped in the four-wire mode. Two-wire mode is accomplished by the following jumper positions:

Line 1, 3, 5: Line 2, 4, 6:

Two-Wire:

JP13 A JP11 A

Four-Wire:

JP12 B JP10 B JP13 B JP11 B

The RX pair is now on pins 3 and 6 on the connector and the TX pair is on pins 4 and 5. Once the transmit and receive paths are separated the impedance of each side must be set.

Jumper

JP12 A JP10 A

5.3.3.1 RX Side Settings

The RX side is jumper selectable for a 600 ohm impedance or 10k ohm impedance. If only one Line Card is on the line (no parallel consoles) then place J9 (Line 1,3,5) or J8 (Line 2,4,6) in the A position for a 600 ohm line impedance. If more than one Line Card is on one line then place J9 (Line 1,3,5) or J8 (Line 2,4,6) on in the A position and all other consoles in the B position. Each console added to the system will result in line loss. The following chart gives an indication as to how much loss can be expected. The first console in the system is set for an impedance of 600 ohms out (approximately). Each console added to the system thereafter is set for an impedance of 10k ohms. As the chart indicates on the following page , the more consoles bridged on the line, the lower the line impedance and the greater the loss in audio level.

Console added 1 A 604 604 0.0 2 B 10k 569 -0.5 3 B 10k 539 -1.0 4 B 10k 511 -1.5 5 B 10k 486 -1.9 6 B 10k 464 -2.3

Level adjustment can be made to the receive audio by entering the tech mode on a per line basis.

Position Impedance Impedance Loss (dB)

Position Jumper Position

Jumper

Position Jumper Position

ONE

console

5.3.3.2 TX Side Settings

Two jumpers on the transmit pair allow a degree of control over the output impedance. The following chart lists the jumper positions for each card depending on how many consoles are placed in parallel. All cards should have the same jumper settings.

Consoles in parallel

Line 1,3, 5:

1 (one console on line) A A A A 600 ohms 2 B A B A 1200 ohms 3 A B A B 1800 ohms 4 B B B B 2400 ohms

The TX levels can be set by potentiometer on a per line basis. Refer to section 5.4 level adjustments for setup procedures.

Individual TLM Output Impedance (per console)

J4

J5

Line 2, 4, 6:

J7

J6

14 Vega’s C1610

5.3.3.3 Transmit Monitor

In a four-wire system the transmit line may be monitored by the receive circuits by changing a setting in tech mode. Refer to section 5.4.1.2. for the monitor level setup adjustment. The transmit monitor is not needed in two-wire mode as the transmit audio is already on the receive circuit.

5.4 Level Adjustments

Figure 5 and Figure 7, in this secion, shows a top view of the Line Card with the adjustment points labeled. The potentiometers are available without taking the card out of the chassis.

5.4.1 Transmit Side Adjustments

The transmit audio consists of multiple audio sources – microphone audio, AUX input, function tones, and DTMF tones. Each audio sources is summed or generated in the DSP with the analog signal being generated on a single DAC. The following is a list of the potentiometers that affect the transmit path.

Rev A PCB: (see Figure 5)

Line1, 3, 5:

Reference R55 Line 1 TX Level Adjustment R57 Line 1 TX Monitor Level Adjustment

Line2. 4, 6:

Reference R56 Line 2 TX Level Adjustment R58 Line 2 TX Monitor Level Adjustment

Description

Rev B PCB: (see Figure 7)

Line1, 3, 5:

Reference R41 Line 1 TX Level Adjustment R40 Line 1 TX Monitor Level Adjustment R21 Line 1 RX Level Adjustment

Line2. 4, 6:

Reference R42 Line 2 TX Level Adjustment R39 Line 2 TX Monitor Level Adjustment R20 Line 2 RX Level Adjustment

Description

5.4.1.1 Transmit Level Setup

The transmit level potentiometers are used to adjust the output levels of the transmit audio so that it is calibrated with the onscreen level sets found in the tech mode. Calibration of the Transmit lines will vary depending on system variables as well as the number of consoles found in parallel on the line. The tech mode should be used to generate a test tone at a given amplitude. R55 (R41-Rev B) and /or R56 (R42-Rev B) should then be adjusted with a level meter used to set the actual output level to match the generated value.

5.4.1.2 Transmit Monitor Setup

The transmit monitor provides a portion of the transmit audio of a four-wire circuit to the receive path. This allows the console operator to listen to the transmissions of parallel console operators. To set this level have a parallel console operator select a line and press the intercom button. Adjust R57 (R40-Rev B) and/or R58 (R39-Rev B) on each four-wire circuit until the level is comfortable in the handset/headset earpiece or the speaker.

5.4.1.3 Receive Level Setup (Rev B Line Card only)

The receive side level potentiometers are used to adjust the input levels into a range that is acceptable to the C-1610. Typically, a +10dBm test tone is injected in to the C-1610 as receive audio. The audio level is then measured at TP2 for Line 1 and TP1 for Line 2 with respect to ground. The measurement should be about 3.4 Vpp or 1.2Vrms. However, if receive audio levels are not in the +10dBm range, these pots can be used to bring the audio level up to

Remote Control Console 15

the desired receive levels. 3.4Vpp is about the maximum value for the loudest receive audio. Above 3.4Vpp will saturate the ADC input stage and distortion will occur.

5.5. Microphone Level Adjustment

Adjusting handset/headset microphone levels. Make a vocal tone into the handset while adjusting R72 on the Main PCB for 3.5Vp-p at TP2. The sidetone can be adjusted from within the tech mode. Speak into the handset and listen to the earpiece. You should hear a portion of your voice being routed back to the earpiece.

Adjusting desk microphone/gooseneck microphone levels. Make a vocal tone into the desk microphone/gooseneck microphone at the distance you expect the operator to be positioned and adjust R71 on the Main PCB for 3.5Vp-p at TP7.

5.6. Minimum Speaker Level Adjustment

A minimum volume level can be set by moving JP1 to “B” position on the speaker Amplifier PCB, preventing the operator completely turning off the volume of the speaker.

16 Vega’s C1610

Remote Control Console 17

6 Tech Mode

The tech mode allows a technician to program the internal settings of the C-1610 console. The tech mode is entered by pressing

See the section 6.3.4.1 on setting up the PIN number. The Opening Menu is displayed when tech mode is entered. In addition to the information on the display you will visual see the MOM, LN1-LN6, ALERT, AUX, F1-F10, GRP and the MUTE buttons also flash indicating you are in the tech mode of operation. These buttons also provide setup options when pressed, refer to section 6.0.4. for further information.

6.0.1 Erasing all settings

All of the settings in the console can be reset to factory defaults by pressing and holding both “IC” and “*” and then applying power. The screen displayed asks if the user wants to restore defaults or not.

PROG1 - Answer, YES and you will clear all settings to the factory defaults. PROG3 - Answer, NO and you will enter the user mode.

6.0.2 Resetting the PIN Number

In the event the PIN number is either forgotten or not known, the test jumper J17 on the main board inside the unit can be used to enter a self test mode and reset the PIN. With the power removed from the unit, move J17 to the “B” position on the board. Power up the board. The PIN number is cleared allowing immediate entry into the tech mode. Power down the board and move the J17 back to the “A” position. Close the case and resume normal operations with the C-1610.

MUTE-F6-*

simultaneously. The technician will be r e q uired to enter a PIN number to allow entry.

Restore Defaults? YES NO

PROG1 PROG2 PROG3 PROG4

18 Vega’s C1610

6.0.3 Opening Display Menu

Remote Control Console 19

|----------Gro up Selection Screen (Blinking GRP Button) |----------Group Alphanumeric Selection sc reen

|---------- Group Alphanumeric Programming Screen

6.0.4 Button Activated Setup Modes

6.1 Opening menu

The following buttons are active during this screen: PROG1 - Pressing this button enters the Level Menu Screen PROG2 - Directs the display to the System Settings Screen PROG3 - Directs the display to the Alpha Settings Screen PROG4 - Exits the Setup Mode LN1-LN6 - Directs the display to the Line Tone/Local Screen F1-F10 - Function Tone Parameter Scr een UNSEL - Controls Unselect Audio routing to internal/external GRP - Enters the group setup mode SUP - Enables supervisor mode MUTE - Set mute functionality AUX - Directs the display to the AUX Assignment Screen ALERT - Directs the display to the Alert Cadence Programming Screen MON - Directs the display to the Monitor Programming Screen TX ALL - Allows the TX ALL button to be enabled and disabled

PROGRAMMING MODE LVLS SYS ALPHA EXIT

PROG1 PROG2 PROG3 PROG4

20 Vega’s C1610

6.2 Level Menu Screen

When this screen is displayed the following buttons are active: PROG1 - Direct display to Main Level Settings Screen PROG4 - Go back to Opening Menu Pressing any Line butt on - Displays the Line Level Setting Screen for that selected line.

Select Line/Main Main back

PROG1 PROG2 PROG3 PROG4

6.2.1 Menu 1 - Line Level Settings

This screen is displayed after a line has been selected from the Level Menu Screen. The selected line number is shown on the display and the select LED for that line continues to blink. In this example Line 1 has been selected.

PROG1 - Go to RX Input Level Screen PROG2 - Go to LAM level setup PROG3 - Go to Line Levels Screen PROG4 - Return to Level Menu Screen

Line 1 level adjust RX LAM back

PROG1 PROG2 PROG3 PROG4

6.2.1.1 RX Input Level Screen

The RX output levels serve as a master level adjustment allowing small adjustments in gain. This is a per line adjustment. Typically these are left at 0 dB.

PROG1 - Resets level setting to default of 0dB PROG2 - Increments the level setting by 1 dBm (max of +30dB) PROG3 - Decrements the level setting by 1 dBm (min of -50dB) PROG4 - Saves the current level setting and returns to the Line Level Setting screen

Line 1 Rx lvl 0dBm 0dBm dwn up back

PROG1 PROG2 PROG3 PROG4

6.2.1.2 LAM Programming Screen

This screen shows the current settings for the Line Activity Monitor for the line number shown. The -U or -S after the channel number denotes whether the settings are for Select or Unselect Audio. Pressing PROG1 or PROG2 will modify the settings for the Select or Unselect characteristics displayed when the button is pressed.

PROG1 - go to LAM Duration After Release screen PROG2 - go to LAM Trigger Level Screen PROG3 - Toggle Select or Unselect LAM control PROG4 - return to Other Line Level Screen

6.2.1.2.1 LAM Duration After Release screen

This parameter determines how long the LAM light will flash after the triggering signal disappears.

PROG1 - Resets duration setting to default of 7 seconds PROG2 - Increments the time setting by 1 second (maximum of 25sec) PROG3 - Decrements the time setting by 1 second (minimum of 0sec) PROG4 - Saves the current duration setting and returns to the LAM Programming Screen

6.2.1.2.2 LAM Trigger Level Screen

This parameters determines the audio level required to trigger the LAM function. PROG1 - Adjusts level at which the LAM triggers

PROG2 - Increments the level setting by 1 dBm (max of 0dBm) PROG3 - Decrements the level setting by 1 dBm (min of -30dBm) PROG4 - Saves the current level setting and returns to the LAM Programming Screen

LAM 1-S 0sec 0dBm dur lvl S/U back

PROG1 PROG2 PROG3 PROG4

LAM 1-S Dur 0sec 7sec dwn up back

PROG1 PROG2 PROG3 PROG4

LAM 1-U Level -20dBm

-20dB dwn up back

PROG1 PROG2 PROG3 PROG4

Remote Control Console 21

6.2.2 Main Level Settings

PROG1 - Go to Microphones Screen PROG2 - Go to Receive Path Level Screen PROG3 - Go to the Transmit Level Screen PROG4 - Retur n t o Opening Menu

6.2.2.1 Microphones Screen

PROG1 - Go to Desk microphone Preamp Gain Screen PROG2 - Go to Handset Preamp Gain Screen PROG3 - Go to the aux input levels screen PROG4 - Return to Main Level Settings screen

6.2.2.1.1 Desk microphone Preamp Gain Screen

The current setting is shown in the upper right hand corner of the screen. This setting is for the pre-amp level of the deskmic.

PROG1 - Resets level setting to default of +0dB PROG2 - Increments the level setting by 1 dB (maximum of +10dB) PROG3 - Decrements the level setting by 1 dB (minimum of -10dB) PROG4 - Saves the current level setting and returns to the Microphones screen

Main level adjust MIC RX TX back

PROG1 PROG2 PROG3 PROG4

Main Mic adjust desk hand aux back

PROG1 PROG2 PROG3 PROG4

Deskmic level 45dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

6.2.2.1.2 Handset Preamp Gain Screen

PROG1 - Resets level setting to default of +0dB PROG2 - Increments the level setting by 1 dB (max of +10dB) PROG3 - Decrements the level setting by 1 dB (min of -10dB) PROG4 - Saves the current level setting and returns to the

6.2.2.1.3 Aux Preamp Gain Screen

PROG1 - Resets level setting to default of +0dB PROG2 - Increments the level setting by 1 dB (max of +10dB) PROG3 - Decrements the level setting by 1 dB (min of -10dB) PROG4 - Saves the current level setting and returns to the

6.2.2.2 Receive Path Levels

PROG1 - Go to Desk microphone Preamp Gain Screen PROG2 - Go to Handset Preamp Gain Screen PROG4 - Return to Main Level Settings screen

6.2.2.2.1 Handset Earpiece Level

PROG1 - Resets level setting to default of +0dB PROG2 - Increments the level setting by 1 dB (maximum of +10dB) PROG3 - Decrements the level setting by 1 dB (minimum of -10dB) PROG4 - Saves the current level setting and returns to the Receive

Handset level 0dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

Aux-in level: 0dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

Main RX adjust hand Aux back

PROG1 PROG2

PROG3

PROG4

Handset RX 0dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

6.2.2.2.2 Aux Speaker Output Level

PROG1 - Resets level setting to default of +0dB PROG2 - Increments the level setting by 1 dB (maximum of +10dB) PROG3 - Decrements the level setting by 1 dB (minimum of -10dB) PROG4 - Saves the current level setting and returns to the Receive

Aux Speaker 14dB 20dB dwn up back

PROG1 PROG2 PROG3 PROG4

6.2.2.3 Output Level Screens

Entering the TX output level screen allows for setting two options for output levels. The first is for the audio TX level, and the second is for the Tape output level.

22 Vega’s C1610

p

6.2.2.3.1 TX Output Level

The TX output level is adjusted as shown on the display. This is an overall output gain control for the line. It can be used to make small adjustments to the line level performance. The typical value is 0 dB.

PROG1 - Resets level setting to default of 0dBm PROG2 - Increments the level setting by 1 dBm (max of +10dBm) PROG3 - Decrements the level setting by 1 dBm (min of -10dBm) PROG4 - Saves the current level setting and returns to the Line Level Setting screen

6.2.2.3.2 Tape Output Level (v4.5)

The Tape output level is adjusted as shown on the display. The level will be dependent on the input level required by your recording equipment.

PROG1 - Resets level setting to default of 0dBm PROG2 - Increments the level setting by 1 dBm (max of +10dBm) PROG3 - Decrements the level setting by 1 dBm (min of -10dBm) PROG4 - Saves the current level setting and returns to the Line Level Setting screen

Line 1 Tx lvl 0dB 0dBm dwn up back

PROG1

Tapeout level 0dB

PROG2

PROG3 PROG4

0dBm dwn up back

PROG1

PROG2

PROG3 PROG4

6.3 System Settings Screen

This menu is entered by selecting PROG2 from the PROGRAMMING MODE menu. Once in this mode there are 7 different menus that can be entered. Each is brought up sequentially by pressing the PROG3 button labele d next on the display.

PROG1 - Clock Set Routines PROG2 - Dump setup memory to another console PROG3 - Next Menu PROG4 - Retur n t o Opening Menu

System Settings Clk Dum

PROG1 PROG2 PROG3 PROG4

next back

6.3.1 Clock Settings Screen

The top line of the Clock Settings Screen holds the current time and whether the clock is set for 12 or 24 hour display.

the clock setup screen shown at the right. This bypasses the PIN number entry (if enabled) and allows a user who would normally have no access to the setup mode to access and update the clock (v4.5).

PROG1 - Allows edi ting the minutes and hours PROG2 - Selects between AM and PM PROG3 - Selects between 12 and 24 hr time. PROG4 - Saves the current settings and returns to the Opening Menu

6.3.1.1 Clock Edit Screen

PROG1 - Go to Hours Settings Screen PROG3 - Go to Minutes Settings Screen PROG4 - Return to System Settings Screen

6.3.1.1.1 Clock Hours Screen

PROG1 - Set Hours to 12 PROG2 - Decrease Hours by 1 PROG3 - Increase Hours by 1 PROG4 - Return to Clock Settings Screen

Note: The clock can also be accessed by pressing MUTE-F6-C on the keypad. This goes directly to

Clock 11:19AM 12hr Edit A/P 12/24 back

PROG1 PROG2 PROG3 PROG4

Clock 11:19AM 12hr Hours Mins back

PROG1 PROG2 PROG3 PROG4

Hours = 11 12 dwn u

PROG1 PROG2 PROG3 PROG4

back

Remote Control Console 23

6.3.1.1.2 Clock Minutes Screen

PROG1 - Set Minutes to 0 PROG2 - Decrease Minutes by 1 PROG3 - Increase Minutes by 1 PROG4 - Return to Clock Settings Screen

6.3.2 Dump Function

When the dump button on the System Settings Screen is pressed the console assumes the role of the master of the serial bus. A DB9 male to male null modem cable (3 pin RS-232cable) should be used to connect the two consoles. Cross pins 2 and 3 on the cable and connect pin 5 straight through. The master attempts to e stablish communication with a slave console and begin downloading the contents of the EEPROM resident on the master console. Upon successful connection to a slave console, the status line will ap pear on the screen. When the download is complete the Master screen returns to the System Settings Screen. If the proper acknowledgments are not received the transmission stops and the Dump Error Screen is displayed.

6.3.2.1 Dump Error Screen

This screen is displayed because an attempt to perform a memory dump was ended unsuccessfully for some reason. This stays up until the memory dump is aborted by pressing the “back” button or is attempted again by pressing the “Dump” button. When the dump is attempted again the display returns to the Dump Screen.

PROG3 - Attempt me mory dump again PROG4 - Return to System Settings Screen

Mins = 19 0 dwn up back

PROG1 PROG2 PROG3 PROG4

Working…

- Please Wait -

PROG1 PROG2 PROG3 PROG4

Target Not Found

Dump back

PROG1 PROG2 PROG3 PROG4

6.3.3 Menu 2 System Setup Screen

Pressing PROG 3 from the system menu yields the following menu.

PROG1 - Enters the Tone Settings Screen PROG2 - Enters the Wildcard Settings Screen PROG3 - Next Menu PROG4 - Returns to the System Setup Menu

System Settings Tone Wild next back

PROG1 PROG2 PROG3 PROG4

6.3.3.1 Tone Settings Screen

PROG1 - Go to DTMF Settings Screen PROG2 - Go to Si ngle Tone Settings Scree n PROG3 - Go to Test Tone Screen PROG4 - Return to System Settings Screen

6.3.3.1.1 DTMF Settings

6.3.3.1.1.1 First DTMF Settings Screen

DTMF programmed characteristics are displayed on the top line in two separate screens. The programmed level is first and the hand timer is second

PROG1 - Go to DTMF Output Level Screen PROG2 - Go to DTMF Hang Time Screen PROG3 - Go to DTMF Spacing Screen PROG4 - Return to Tone Settings Screen

6.3.3.1.1.1.1 DTMF Output Level

PROG1 - Resets level setting to default of 0dB PROG2 - Decrements the level setting by 1 dB (minimum of -20dB) PROG3 - Increments the level setting by 1 dB (maximum of +5dB)

Main tone adjust DTMF Tone Test back

PROG1 PROG2 PROG3 PROG4

DTMF 0dB/500 Lvl Hold next back

PROG1 PROG2 PROG3 PROG4

DTMF Level = 0dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

24 Vega’s C1610

PROG4 - Saves the current level setting and returns to the DTMF Settings screen

6.3.3.1.1.1.2 DTMF Hold Timer

The Hold timer is used to instruct the console in how long to wait for an additional DTMF digit to be pressed before releasing the guard tone. This prevents the console from keying up and down each time a digit is pressed.

PROG1 - Resets level setting to default of 500 ms PROG2 - Decrements the level setting by 10 ms PROG3 - Increments the level setting by 10 ms PROG4 - Saves the current level setting and returns to the DTMF Settings screen

6.3.3.1.1.2 Second DTMF Settings Screen

The 100/100 stands for 100ms DTMF tone and 100ms spacing before the next DTMF tone is transmitted. These settings are used primarily when the console is sending a pre-programmed string of digits.

PROG1 - Go to DTMF On time digit setting screen PROG2 - Go to DTMF Inter digit setting screen PROG3 - Go to DTMF second screen PROG4 - Return to Tone Settings Screen

6.3.3.1.1.2.1 DTMF Tone Duration

This parameter determines how many milliseconds the DTMF tone of a prestored digit will last. The first number in the 100/100 represents the number of “on” milliseconds.

PROG1 - Resets duration setting to default of 100ms PROG2 - Decrements the duration setting by 10ms (min of 10ms) PROG3 - Increments the duration setting by 10ms (max of 500ms) PROG4 - Saves the duration and returns to the DTMF Settings screen

6.3.3.1.1.2.2 DTMF Tone Spacing

This parameter determines how many milliseconds after the last DTMF tone is finished before the next DTMF tone of a prestored string will start. The second number in the 100/100 represents the number of spacing milliseconds.

PROG1 - Resets duration setting to default of 100ms PROG2 - Decrements the duration setting by 10ms (min of 10ms) PROG3 - Increments the duration setting by 10ms (max of 500ms) PROG4 - Saves the current duration setting and returns to the DTMF Settings screen

DTMF Hold = 500msec 500ms dwn up back

PROG1 PROG2 PROG3 PROG4

DTMF 100/100 On Off next back

PROG1 PROG2 PROG3 PROG4

DTMF Dur = 100 msec 100ms dwn up back

PROG1 PROG2 PROG3 PROG4

DTMF Space= 100 msec 100ms dwn up back

PROG1 PROG2 PROG3 PROG4

6.3.3.1.1.3 DTMF Keypad Enable/Disable (v3.7)

This screen allows the DTMF keypad to be disabled completely during operation of the unit. This would only be set to DISABLE for systems that have no requirement for DTMF operation.

PROG1 – Toggle DTMF Enabled or Disabled PROG3 - Go to the forth DTMF screen PROG4 - Return to Tone Settings Screen

DTMF Keypad: ENABLE Tgl next back

PROG1

PROG2 PROG3 PROG4

Remote Control Console 25

6.3.3.1.1.4 Enable/Disable PTT tones with DTMF (v3.7)

This setting gove rns whether PTT functi ons are generated when the DTMF keypad is used without the IC or PTT key. If this option is set to “Send PTT Tones” the unit will check the line(s) that are selected and see if they are set to be tone or local relay control. When the DTMF digit is pressed, depending on the selected lines configuration a PTT tone burst or local relay closure will occur before the DTMF digit starts transmission. If this option is set to “No PTT Tones”, no PTT function will be sent and the DTMF audio will be placed onto the selected lines.

PROG1 – Toggle DTMF PTT function on or off PROG3 - Go to the fifth DTMF screen PROG4 - Return to Tone Settings Screen

DTMF: Send PTT Tones Tgl next back

PROG1

PROG2 PROG3 PROG4

6.3.3.1.1.5 Incoming Select Call DTMF String Setup (v4.5)

The C-1610 has the capability of recognizing a DTMF string incoming on any line, monitored or not. When this programmable string is decoded, the unit will Unselect the line for a programmable period of

DTMF RX: 1234 Edit next back

PROG1

PROG2 PROG3 PROG4

time to allow the remote user the opportunity to make a short transmission which the console operator can monitor. After the programmable period of unselect time has expired, the Unselect LED (Red led) for the line on which the DTMF string was decoded begins to flash and continues to flash until a PTT operation is completed on that line. This blinking light serves as a reminder to the console operator that a call came in and needs to be responded to. Editing the incoming DTMF sequence is completed from the screen pictured above. The digits are entered with the DTMF keypad and the programmable keys.

PROG1 – Enter the Edit Screen PROG3 - Go to the sixth DTMF screen PROG4 - Return to Tone Settings Screen

6.3.3.1.1.6 Select Call Timer Duration Setup (v4.5)

The Unselect duration for incoming select call (see previous section for string and overall function setup information) is set in this screen. The default value is 7 seconds. This is the period of time for which the line will be unselected when the DTMF string is received. After

DTMF RX Hold: 7 sec Edit next back

PROG1

PROG2 PROG3 PROG4

this period of time, the line is no longer unselected, but will blink until the console operator performs a PTT operation on the line. The value for this duration is setup using the Edit key (Prog1). The edit screen allows the value to be increased and decreased in increments on one.

PROG1 – Enter the Edit Screen PROG3 - Go to the first DTMF screen PROG4 - Return to Tone Settings Screen

6.3.3.1.2 Single Tone Settings

PROG1 - Go to Guard/Function/Hold Level Settings PROG2 - Go to Guard/Hold Frequencies PROG3 - Go to Guard/Hold Duration’s PROG4 - Return to Tone Settings Screen

Tone Settings Lvl Freq Dur back

PROG1 PROG2 PROG3 PROG4

6.3.3.1.2.1 Guard/Function/Hold Level Settings

The top line of this screen has a three number list representing the level of each tone components of a tone burst. In the default example, +10/+00/-20, +10 is the guard tone level, +00 is the function tone level, and -20 is the hold tone level.

On this screen the technician is able to use the PROG buttons to select which tone level to modify. If PROG1 is pressed, for example, the display cursor shall jump to the Guard tone setting (in this case, the “+10” text. The technician shall enter a new setting by way of the DTMF keypad. Magnitude limits apply. The acceptable range for the tone levels is -30dB to +10dB in 1 dB increments.

26 Vega’s C1610

PROG1 - Adjust Guard tone level PROG2 - Adjust Function tone level PROG3 - Adjust Hold tone level PROG4 - Return to Si ngle Tone Settings Scree n DTMF keypad (numbers only) - modify the settings

6.3.3.1.2.2 Guard/Hold Frequencies

The top line of this screen shows two numbers representing the frequency of each of the tone components of a tone burst. In the default example, 2175/2175, the first 2175 is the guard tone level, and the second 2175 is the hold tone level.

On this screen the technician is able to use the PROG buttons to select which tone frequency to modify. I f P ROG1 is pressed, for example, the display cursor shall jump to the Guard tone setting (in this case, the first “2175” text. Only two values are available for the Guard and Hold frequencies. When the Guard or Hold tone frequencies are selected to be changed, a toggle option will allow them to be set to either 2175 or 2300 Hz. The notch filter is automatically changed to match the Hold tone.

PROG1 - Adj ust Guard tone frequency PROG3 - Adj ust Hold tone frequency DTMF keypad (numbers only) - modify the settings

6.3.3.1.2.3 Guard/Hold Duration’s

The top line of this screen has two numbers representing the duration of each of the tone components of a tone burst. In the default example, 130/200, 130 is the length in milliseconds that the guard tone is transmitted. 200 is the number of milliseconds that the console shall remain in the PTT condition after the PTT signal has been removed. This provides a debounce function for the tone burst.

On this screen the technician is able to use the PROG buttons to select which tone duration to modify. If PROG1 is pressed, for example, the display cursor shall jump to the Guard tone setting. The technician can then enter a new setting by way of the DTMF keypad. Magnitude limits apply. The acceptable range for the tones is 40 to 500 milliseconds in 10ms increments.

PROG1 - Adjust Guard tone duration PROG3 - Adjust Hold tone duration PROG4 - return to the Single Tone Settings Screen DTMF keypad (numbers only) - modify the settings

Level 10/0/-20 Guard FTn Hold back

PROG1 PROG2 PROG3 PROG4

Freq 2175/2175 Guard Hold back

PROG1 PROG2 PROG3 PROG4

Duration 130/200 Guard Hold back

PROG1 PROG2 PROG3 PROG4

6.3.3.1.3 Test Tone Screen

This screen allows the technician to control the tone generators on the console to facilitate testing. Pressing the PROG1 or PROG2 button activates the associated alert tones. This tone is transmitted out the line immediately upon the key being pressed and will stop of the button is pressed again or change to the other alert tone by pressing the other button. This procedure is different from the normal tone function as there is no tone burst or hold tone associated with the alert tone. The actual alert tones can be programmed by altering the programming of the Alert key.

PROG1 - Pressed on/off alert tone 1 PROG2 - Pressed on/off alert tone 2 PROG4 - return to the Test Tone Screen

Alert

1 2 back

PROG1 PROG2 PROG3 PROG4

6.3.3.2 Wildcard Programming

This screen facilitates the programming of the wildcard groups. There are four available wildcard groups. The screen defaults to group 1. All the function tones that are part of group 1 will light their LED. While the text “group 1” shows on the screen, function tones maybe selected in and out of the group. If the Up or Down or Back buttons are pressed the last configuration of function tones are saved as group 1. Pressing the Up button increases the group number while Down decrea ses the group number. The maximum group number is 4. Function tones 1 and 2 ar e not allowed in a wildcard group and a function tone may not be part of more than one group.

Remote Control Console 27

PROG2 - Decrement group counter (minimum value of 1) PROG3 - Increment group counter (maximum value of 4) PROG4 - return to the System Settings Screen F3 through F10 B uttons - Toggle in and out of the displayed group

6.3.4 Menu 3 System Setup Screen

PROG1 - setup the console PIN number PROG2 - setup the Tx delay time PROG3 - Next Menu PROG4 - Returns to the System Setup Menu

Wildcard group 1

dwn up back

PROG1 PROG2 PROG3 PROG4

System Settings PIN Txdel next back

PROG1 PROG2 PROG3 PROG4

6.3.4.1 PIN Number Entry

Entering a PIN number, will cause the C-1610, when entering tech mode, to prompt for the PIN number. If the correct PIN number is entered tech mode is entered. If it is not, operating mode is resumed. This will keep unauthorized modifications from occurring.

PROG1 - Begin accepting new PIN PROG2 - Clear existing PIN such that none is required PROG4 - Return to Menu 3

Pressing New will change the screen to prompt for a PIN number to be entered. Only the Buttons 0-9 and A-D are valid for this operation. The PIN is a 4 digit code. ‘*’ will be echoed for each keystroke. Entry ends immediately upon the entry of the fourth digit. Once the PIN has been entered the first time, the system will prompt for it to be re-entered to verify proper entry. If the first and second PIN entries match, the user will be returned to the PIN Setup screen. If the entries do not match an error will be put on the screen and the PIN number will be cleared.

6.3.4.2 TX Delay Setup

The C-1610 has the ability to delay transmit audio by up to 1 second. This allows an operator to begin speaking as soon as the microphone is keyed up. The radio system will have certain delays built in that under normal circumstances would not allow speech to be transmitted for a short period of time. By turning on this delay, this limitation is overcome.

PIN Setup [----] New Clear back

PROG1 PROG2 PROG3 PROG4

New PIN:**

PROG1 PROG2 PROG3 PROG4

Enter PIN:***

PROG1 PROG2 PROG3 PROG4

-- Invalid PIN -OK

PROG1 PROG2 PROG3 PROG4

TX Delay: 300msec

0s dwn up back

PROG1 PROG2 PROG3 PROG4

PROG1 - Set the delay to 0 seconds (off) PROG2 - Decrease the delay by 0.1 seconds PROG3 - Increase the delay by 0.1 seconds PROG4 - Returns to Menu 4 and saves the current delay

6.3.5 Menu 4 System Setup Screen

PROG1 - setup the auxiliary relay function PROG2 - setup the Duplex function PROG3 - Next Menu (Menu 1) PROG4 - Returns to the System Setup Menu

6.3.5.1 Auxiliary Relay Function

This allows the closure of the AUX relay C closure when PTT is pressed. PROG2 - Set the relay to not close during PTT

PROG3 - Set the relay to close during PTT PROG4 - Return to Menu 4

System Settings AuxRy Duplx nxt back

PROG1 PROG2 PROG3 PROG4

AuxRelay w/PTT: OFF

prev next back

PROG1 PROG2 PROG3 PROG4

28 Vega’s C1610

6.3.5.2 Duplex Enable

The Duplex mode allows the console operator to hear receive audio while transmitting.

PROG1 - Toggle Duplex Mode Enabled/Disabled PROG4 - Return to Menu 4

6.3.6 Menu 5 System Setup Screen

PROG1 - setup the MicAGC Function PROG3 - Next Menu (Menu 1) PROG4 - Returns to the System Setup Menu

6.3.6.1 MicAGC Function

This enables and disables Automatic Gain Control on the Mic Input. PROG1 - T oggle the MicAGC functi on on and off

PROG4 - Return to Menu 5

6.3.6.2 Handset installed

If a handset or headset is to be used with the unit, it must be programmed as such in this location. It is required for RX audio routing.

PROG1 - Toggle the Handset Yes/No PROG4 - Return to Menu 5

Duplex: Enabled Toggle back

PROG1 PROG2 PROG3 PROG4

System Settings MicAGC Hand nxt back

PROG1 PROG2 PROG3 PROG4

MIC AGC: OFF Tgl back

PROG1 PROG2 PROG3 PROG4

Handset Port:DISABLE Tgl back

PROG1 PROG2 PROG3 PROG4

6.4 Alphanumeric Function-Line Setup

This screen asks for the operator to choose a Line/Function tone combination or a Group to have an alphanumeric assignment or group alphanumeric assignment. While this screen is displayed, the keyboard blinks LN1-LN6, F1F10, and GRP to remind the operator what buttons are used in this mode for programming.

PROG4 - Return to the Opening Menu Line button - Go to Line/FTone Selection Screen Function tone button - Go to Line/FTone Selection Screen GRP button - Go to Group selection screen

6.4.1 Line/FTone Selection Screen

This screen displays the line or function tone number selected from the Alphanumeric Decision Screen. It waits for the other piece of information (line or function tone number) and then proceeds to the Line Alphanumeric Selection Screen. If the function tone has been selected first, as in the example on the right, the screen waits for the line

L1 F? back

PROG1 PROG2 PROG3 PROG4

number to be selected. If the technician selects another function tone number before selecting a line number the screen shall update to accommodate the new function tone number. The same procedure is used if the line number is the first to be selected (left example.)

PROG4 - Return to the Alphanumeric Decision Screen Line button - selects the line number to be programmed with alphanumeric Function tone but ton - selects the function tone number to be programmed

Select Line+FT/G rou p

back

PROG1 PROG2 PROG3 PROG4

L? F1

back

PROG1 PROG2 PROG3 PROG4

6.4.1.1 Line Alphanumeric Selection Screen

Once both the line and function tone have been selected the following screen is displayed. The top line displays the line and function tone number as well as the 8 digit alphanumeric that is displayed whenever the line/function tone number combinatio n is brought up in the operational mode. The example figure below shows the current alphanumeric. Once at this screen the technician is able to enter alphanumeric via the DTMF pad

Remote Control Console 29

PROG2 - Enters the string editing mode PROG4 - Returns to the Alphanumeric Decision Screen

6.4.1.1.1 Line Alphanumeric Programming Screen

Entering the edit mode yields the screen below.

PROG1 - Clears the current string PROG2 - Moves the blinking cursor one position to the left PROG3 - Moves the blinking cursor one position to the right PROG4 - Saves the string and returns to the edit screen

When a button that is part of the DTMF keypad is pressed the characters on that button are placed in the location of the blinking cursor. The technician can cycle through the available characters of each b utto n by pressing the button repeatedly. For example, pressing “1” on the DTMF keypad will place a “1” in the location of the cursor, pressing “1” again displays “A”, and pressing “1” a third time displays a “B”. The “C” button acts as a “caps lock” button. The current status of the caps lock button can be viewed in the middle bottom of the display. When the C button is pressed the display selects the case of the letters.

6.4.1.2.1 Group Alphanumeric Selection Screen

Once the group has been selected the following screen is displayed. The top line displays the group number and the 8 digit alpha numeric that is displayed when the preprogrammed group is brought up in the operational mod e.

PROG2 - Enters the edit mode PROG4 - Returns to the Alphanumeric Decision Screen

6.4.1.2.2 Group Alphanumeric Programming Screen

Editing the name of the group occurs exactly as it did for the Line/Function Tone combinations. See section

6.4.1.1.1 for specific information on this procedure.

L1 F1 Rampart

edit back

PROG1 PROG2 PROG3 PROG4

L1 F1 Rampart Clear <<caps>> back

PROG1 PROG2 PROG3 PROG4

Group A Metro1

edit back

PROG1 PROG2 PROG3 PROG4

6.5 Line Tone/Local Screen

The Line setup menus allows for the parameters unique to each line to be setup on a per line basis. Parameters that can be adjusted by pressing the LN1-LN6 keys from the top level menu include: Enable/Disabling of the line, Tone or Local control, Cross Mute, Squelch, TX Monitor, AGC, TX Enabled, and Unselect Audio Forced. The LN1-LN6 keys are active at all times in the menu; for example, to disable AGC on all lines, AGC could be selected on LN1, setup, then LN2-LN6 could immediately be pressed from within the AGC menu, eliminating going back and then back through the menus for each line.

6.5.1 Enable/Disable the Line

Disabling a line sets the line so that a user cannot either select or unselect its audio. No LED indicators will show if the line is disabled. In addition, it would generally be desired to set a line to be disabled if no card is present for that line. If no card is installed, and the line is selected, an error message will be shown saying that the line is not available and requiring the user to press the PROG1 button to continue. If the line is disabled from this menu, then the console just ignores the key.

PROG1 - Toggles the line from Enabled to Disabled PROG3 - Moves to the next menu PROG4 - returns to the Opening Menu Screen

Line 3: Enabled Tgl next back

PROG1 PROG2 PROG3 PROG4

30 Vega’s C1610

6.5.2 Tone or Local Control

This screen allows the technician to determine if a line is tone control or local control. If a line is tone control then a tone burst is transmitted before voice is allowed to drive the line and a hold tone is sent out with the voice to provide a positive key for the remote adapter. If a line is a local control line then the tone generator is not activated and voice drives the line when the PTT button is pressed. The line number of the selected line appears in the top line of the display. The example shows that line 3 has been selected. The text at the right side of the top line shows which mode the line is programmed with.

PROG1 - Toggles the line from Tone to Local PROG3 - Moves to the next menu PROG4 - returns to the Opening Menu Screen

6.5.3 Crossmute Setup

The crossmute function allows consoles located within the same room to mute the other consoles RX audio while transmitting to prevent feedback. See Section 5 on how to connect this feature on the line cards. This feature can be turned on and off on a per line basis. Disabling crossmute does not disable the input. If the crossmute pin is connected, and the line is pulled low, the console will mute the line. The crossmute enable/disable function only controls the ability of the console to output crossmute. Note: Intercom will not work on lines with crossmute enabled.

PROG1 - Toggle the Cross Mute function ON and OFF PROG3 - Move to the next menu PROG4 - returns to the opening Menu Screen

6.5.4 Squelch Setup

The Squelch function can be turned on a per line basis. It is tied to the level setup by the LAM function. If the LAM LED is blinking, squelch will not be active. If the audio present on the line is below that required to generate a LAM indication and squelch is enabled, no audio will be heard.

Line 3: Tone Tgl next back

PROG1 PROG2 PROG3 PROG4

Line 3: CrMute ON Tgl next back

PROG1

PROG2 PROG3 PROG4

PROG1 - Toggle the Squelch function ON and OFF PROG3 - Move to the next menu PROG4 - returns to the opening Menu Screen

6.5.5 TX Monitor Enable/Disable

The TX monitor allows the operator to listen to what is currently being transmitted. In a 4 wire mode, this allows one console operator to monitor what is being said by another console operator. The other operator could be in the same room or a greater distance away.

Line 3: Squelch ON Tgl next back

PROG1 PROG2 PROG3 PROG4

Line 1: Txmon ON

PROG1 - Toggles TXmon on and off PROG3 - Move to the next menu PROG4 - Saves the setting and returns to the Line Level screen

6.5.6 Automatic Gain Control (AGC) Enable/Disable

The Line Automatic Gain Control helps to equalize receive audio for all incoming levels.

PROG1 - Toggles AGC on and off PROG3 - Move to the next menu PROG4 - Saves the setting and returns to the Line Level screen

6.5.7 TX Enable/Disable per Line (v4.5)

TX can be enabled and disabled on a per line basis. This allows the some lines to be setup that can be used for monitoring purposes only, but cannot be selected for transmission.

PROG1 - Toggles TX between Enabled and Disabled PROG3 - Move to the next menu PROG4 - Saves the setting and returns to the Line Level screen

Tgl next back

PROG1 PROG2 PROG3 PROG4

Line 1: AGC ON Tgl next back

PROG1 PROG2 PROG3 PROG4

Line 1: TX Enabled Tgl next back

PROG1

PROG2

PROG3 PROG4

Remote Control Console 31

6.5.8 Forced Unselect of a Line (v4.5)

This option is used to lock a channel into unselect mode. Once locked, the console operator can select the channel for transmission, but there will be no way to stop monitoring the channel once locked into unselect mode. The Unsel LED (Red) will always be illuminated when the line is not selected.

PROG1 - Toggles Unselect between Normal and Locked PROG3 - Move to the next menu PROG4 - Saves the setting and returns to the Line Level screen

6.6 Function Tone Parameter Screen

6.6.1 Function Tone Enabled/Disable

The function tone parameter screen is entered by pressing F1-F10 from the main setup screen. The examples below appear if F10 is pressed.

PROG1 - Toggle between the Enabled and Disabled PROG2 - Go to the Frequency programming screen PROG4 - return to Opening Menu Scre en

6.6.2 Function Tone Setup

The top line of the display shows the function number, and whether the tone displayed is the A or B tone. Each function button can have up to two tones assigned to it which are sent out sequentially. The next item is the actual frequency of the function tone, followed by the duration of the tone in milliseconds.

PROG1 - Select s t he settings for Function Tone A or B PROG2 - Allows edit ing of the Frequency of the Functi on Tone PROG3 - Allows editing of the Duration of the Function Tone PROG4 - Returns to the previous menu

Line 1: Unsel Locked Tgl next back

PROG1

PROG2

PROG3 PROG4

F10 Enabled Tgl Tone back

PROG1 PROG2 PROG3 PROG4

F10A: F=1050 D=40 A/B Freq Dur back

PROG1 PROG2 PROG3 PROG4

6.6.3 Frequency Programming Screen

The frequency programming screen will allow the user to change the value of the displayed function tone. If A is selected, A will be edited and the same holds true for B.

PROG1 - Sets the value back to the default of 1950 Hz PROG2 - Decreases the frequency by 1 Hz PROG3 - Increases the frequency by 1 Hz PROG4 - returns to the function tone setup menu

F10 Freq = 1950 1950 dwn up back

PROG1 PROG2 PROG3 PROG4

6.6.4 Duration Display Screen

The Duration Display Screen shows the duration of the select function tone and displays it on the top line of the display for editing.

PROG1 - Sets the value back to the default of 40ms PROG2 - Decreases the frequency by 1 ms PROG3 - Increases the frequency by 1 ms PROG4 - returns to the function tone setup menu

F10 Dur = 40 40 dwn up back

PROG1 PROG2 PROG3 PROG4

6.7 Unselect Setup Options

6.7.1 Unselect Audio Routing

The Unselect Audio can be routed to either the main internal speaker where it is mixed with the select audio, or it can be routed to the Auxiliary Speaker connector on the rear of the unit. When routed to the external location, it allows for unselect audio to be separated to an externally amplified speaker. This is useful when the console operator needs to separate audio being monitored from audio on the selected channel.

32 Vega’s C1610

PROG1 - Changes the option between Internal and External routing PROG3 - Move s to the next menu for Unselect audio setup PROG4 - Return to top level menus

Unsel: Internal

Tgl next back

PROG1 PROG2

PROG3 PROG4

6.7.2 Unselect Audio Mute (v4.5)

This option is used to Mute all Unselect audio during a PTT operation.

PROG1 - Changes the option between Enabled and Disabled PROG3 - Moves to the first menu for Unselect audio setup PROG4 - Return to top level menus

Mute on PTT:Disabled

Tgl next back

PROG1 PROG2

PROG3 PROG4

6.8 Group Selection Screen

This screen awaits the selection of A, B, C, or D from the DTMF pad. It is entered by pressing the GRP button when flashing.

PROG4 - return to top level menus DTMF keypad - Only A, B, C, and D are valid buttons for this screen

After the selection of the Group letter (A-D) Ln1-6 can be pressed to toggle those lines to be part of the selected group.

Group A

back

PROG1 PROG2 PROG3 PROG4

6.9 Supervisor Enable

The supervisor function works in a manner similar to crossmute. It allows a single console to take control of all selected lines by disabling transmit on all other attached consoles. See section 5 for information on the wiring required to support this function. This function should only be enabled on consoles on which a supervisory function is appropriate.

PROG2 - Disables Supervisory Capability PROG3 - Enables Supervisory Capability PROG4 - Return to top level menus

Super: Enabled

prev next back

PROG1 PROG2 PROG3 PROG4

6.10 Mute Button Setup

The mute button has two separate modes of operation. One is the momentary mode where all Unselect audio is muted for as long as the button is held down. The second mode is the timed mute function in which the Unselect audio is muted for a preset amount of time. Note that the mute button can be pressed a second time during a timed mute to end the mute function prematurely.

PROG1 - Sets the Mute function to Momentary mo de and eliminates

the options to set the duration. PROG2 - Allows the duration of the mute function to be changed. PROG4 - Return to top level menus

MUTE = 1 seconds Mom edit back

PROG1 PROG2 PROG3 PROG4

6.1 1 AUX Assignment

The AUX button is included to allow easy updates and customization to the console. As a standard unit, the AUX button may be assigned one of the following tasks: Task

Label DTMF store and transmit DTMF Second Alert tone ALERT Toggle relay control TOGGLE RELAY Momentary relay control MOM RELAY

The label is displayed after the “AUX =” text on the top line of the display. Pressing the “scroll” button will change the task assigned to the AUX button. The new mode is displayed on the screen.

Remote Control Console 33

PROG1 - scro l l forward through the assigned tasks PROG2 - scrol l backwards through the assigned tasks PROG4 - save the setting and return to the main menu

Aux = TOGGLE RELAY pref next back

PROG1 PROG2 PROG3 PROG4

6.12 Alert Cadence Programming

The following appears if the ALERT button is pressed while the Opening Menu Screen is showing. This screen allows the technician to change the cadence of the alert tones. PROG1 selects between the two alert options. Alert 1 dictates which tone cadence will go out with the ALERT button. Alert 2 dictates which cadence will go out with the AUX button if it is c onfigured as a second alert tone. The PROG2 butto n scrolls through the ava ilable cadence s. Initially, only two cadences are possib l e , though provisions have been made for four. PROG1 - Selects between Alert 1 and Alert 2 PROG2 - scrolls through the diffe rent cadences PROG3 - Allows editing of the level or the level and frequency for the constant alert tone PROG4 - return to the Opening Menu Screen

Cadence 1 is a steady programmable frequency Cadence 2 is a Hi-Lo Warble sound

Alert 1:1000Hz A1/2 Cad edit back

PROG1 PROG2 PROG3 PROG4

Alert 1:1000Hz Level Freq back

PROG1 PROG2 PROG3 PROG4

6.12.1.1 Cadence Level Selection

PROG1 - resets the level to the default of 0dBm PROG2 - decrements the level by 1 dB m PROG3 - increments the level by 1 dBm PROG4 - return to the Alert setup menu

Alert Lvl = 0dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

6.12.1.2 Cadence Frequency Selection

PROG1 - resets the frequency to the default value of 1000Hz PROG2 - decrements the frequency by 1Hz (min freq of 0Hz) PROG3 - increments the frequency by 1Hz (max freq of 3500Hz) PROG4 - return to Alert Tone setup screen DTMF keypad - may be used to program the frequency

Cad Freq = 2050 1000H dwn up back

PROG1 PROG2 PROG3 PROG4

6.13 TX ALL Programming Screen

The TX ALL function availability can be enabled or disabled based on the preference of the system administrator. Press TX ALL from the main tech mode menu allows this setup.

PROG1 - T oggles the TX ALL function ENABLED/DISABLED PROG4 - Return to Opening Menu Screen

TX ALL: ENABLED Tgl back

PROG1 PROG2 PROG3 PROG4

6.14 Monitor Programming Screen

The Monitor Programming Screen is displayed when the MON button is pressed while the display is on the Opening Menu screen.

This screen allows the tone characteristics and whether a monitor tone burst shall automatically go out at the beginning of every offhook condition to be configured. “Auto” is the default and means that a monitor tone burst will go out every time the handset is taken off-hook. “Manual” means that a monitor tone burst will not go out with every off-hook signal .

PROG1 - Go to Monitor Tone Characteristic Selection PROG2 - Selects between Auto and Manual mode PROG4 - Return to Opening Menu Screen

Monitor Auto Tone A/M back

PROG1 PROG2 PROG3 PROG4

34 Vega’s C1610

6.14.1 Monitor Characteristic Selection

PROG1 - go to Monitor Frequency Screen PROG2 - go to Monitor Duration Screen PROG3 - go to Monitor Level Screen PROG4 - Return to Monitor Programming Screen

6.14.1.1 Monitor Frequency

The Monitor burst normally consists of a 130ms guard tone and is followed by a 40ms monitor tone. In this screen the frequency of the monitor function tone is set. The programmed frequency is displayed as the first of three numbers. The default value is 2050Hz. The Up and Down buttons may be used to increment or decrement the frequency in 1Hz increments. The DT MF keypad may also be used.

PROG1 - resets the frequency to the default value of 2050Hz PROG2 - decrements the frequency by 1Hz (min freq of 0Hz) PROG3 - increments the frequency by 1Hz (max freq of 3500Hz) PROG4 - return to Monitor Characteristic Screen DTMF keypad - may be used to program the frequency

6.14.1.2 Monitor Duration

The Monitor burst normally consists of a 130ms guard tone and is followed by a 40ms monitor tone. In this screen the duration of the monitor function tone is set. The programmed duration is displayed in milliseconds as the second of three numbers. The default value is 40ms. The Up and Down buttons may be used to increment or decrement the duration in 10ms increments.

PROG1 - resets the duration to the default value of 40ms PROG2 - decrements the duration by 10ms (minimum of 40ms) PROG3 - increments the duration by 10ms (maximum of 500ms) PROG4 - return to Monitor Characteristic Screen

6.14.1.3 Monitor Level

The Monitor burst normally consists of a 130ms guard tone at +10dB and is followed by a 40ms monitor tone at 0dB. In this screen the level of the monitor function tone is set. The programmed level is displayed in dB as the third of three numbers. The default value is 0dB. The Up and Down buttons may be used to increment or decrement the level in 1dB increments. The displayed level shall change to reflect the new p rogramming.

PROG1 - resets the level to the default value of 0dB PROG2 - decrements the duration by 1dB (minimum of -20dB) PROG3 - increments the duration by 1dB (maximum of 10dB) PROG4 - return to Monitor Characteristic Screen

Mon 2050/040/0 Freq Dur Lvl back

PROG1 PROG2 PROG3 PROG4

Mon Freq = 2050 2050H dwn up back

PROG1 PROG2 PROG3 PROG4

Mon Dur = 40ms 40ms dwn up back

PROG1 PROG2 PROG3 PROG4

Mon Lvl = 0dB 0dB dwn up back

PROG1 PROG2 PROG3 PROG4

Remote Control Console 35

7 Sample Setup Procedure

The following example sets up the audio levels on both the transmit and receive sides.

7.1 Transmit Path:

The transmit path begins at the microphone of your choice and ends with the transmit line card jack.

7.1.1 Microphone adjustments

There are two microphone inputs to the C-1610. Both inputs are accessible from the side of the unit. One is a fourwire connector and the other is a six-wire co nnector. The four-wire connector will accept either a handset or headset. The six-wire connector will accept either a desk microphone or a gooseneck microphone. Both connectors may be used at the same time. The six-wire connector has priority. Transmit audio from the six-wire connector is blocked only when the PTT of the four-wire connector is active.

Both the handset/ headset and the desk/gooseneck microphone inp ut s go through dedicate d preamplifier stages a nd are then brought i nt o a cmos switch that selects the port to be connected to the ADC of the DSP by the P TT source. In setting the microphone levels the goal is t o adjust the pre amps so that nominal voice levels through both microphones (if two are being used simultaneously) are of equal level at the input of the ADC. The following procedures will guide you through the tuning process:

7.1.2 Adjusting handset/headset microphone levels

Make a vocal tone into the handset while adjusting R72 on the Main PCB for 3.5Vp-p at TP2. The sidetone level can be adjusted from within the tech mode. Speak into the handset and listen to the earpiece. You should hear a portion of your voice being routed back to the earpiece.

7.1.3 Adjusting desk microphone/gooseneck microphone levels

Make a vocal tone into the desk microphone/gooseneck microphone at the distance you expect the operator to be positioned and adjust R71 on the Main PCB for 3.5Vp-p at TP7.

7.2 Alert tone adjustments

The Alert tone button on the keypad produces a 1000Hz tone on the transmit audio. If no cards are in the transmit condition the console will key up the Selected cards and transmit the Alert tone. If the Selected cards are already in the transmit mode when the Alert button is pressed then the C-1610 will just add 1khz to the transmit audio path.

7.2.1 Alert tone frequency

The alert tone frequency is adjusted in the tech mode. See section 6 for more information. The alert tone can be adjusted in 1Hz increments to any desired value.

7.2.2 Alert tone level

The alert tone level is set in the tech mode. See section 6 for more information. The alert tone level can be adjusted in 1dBm increments.

7.3 Line Card Transmit Path Adjustment

Once the microphone audio has been digitized, the DSP will first route it through a 2175Hz notch filter to remove 2175Hz components from the voice. This is done to make sure that no component of the microphone audio will interfere with the 2175Hz hold tone. At the output of the notch filter the microphone audio is summed together with the last of the signaling components. From this point the total transmit audio mix is sent to the DAC and then to the individual output drivers of the Line Cards.

7.3.1 Transmit Level Adjustment

The transmit level setup potentiometers are used to adjust the levels of the transmit audio so that it’s calibrated with the onscreen level sets found in the tech mode. Calibration of the TX lines will vary depending on system variables

36 Vega’s C1610

as well as the number of consoles found in parallel on the line. The tech mode should be used to generate a test tone of given amplitude. R55 and /or R56 should then be adjusted with a level meter used to set the actual output level to match the generate d value.

7.3.2 Transmit Monitor

The four-wire transmit monitor provides a portion of the transmit audio to the receive path. This allows the console operator to listen to the transmissions of parallel consoles. To set this level have a parallel console operator intercom on the line to be set. Adjust R57 and/or R58 until the level is comfortable in the handset/headset earpiece or the speaker.

7.4 Receive Path

The Receive path begins at the input to the line card and ends with a speaker or earpiece. There are very few adjustment that need to be made to the receive path. The DSP will detect and compensate for most variations in audio levels.

7.4.1 Four-Wire or Two-Wire?

If the circuit is a four-wire circuit then J12 and J13 (Line 1,3,5) and/or J10 and J11 (Line 2,4,6) are in the B position. The RX impedance for the four-wire mode is generally 600 ohms. If this card is the only card on the line or if it is a terminating card for a group of cards hooked in parallel then the impedance of the RX side should be 600 ohms. This is accomplished by changing J9 (Line 1,3,5) or J8 (Line 2,4,6) to the A position. If a high impedance (10k) is required then place J9 (Line 1,3,5) or J8 (Line 2,4,6) in the B position.

If the circuit is a two-wire circuit then J12 and J13 (Line 1,3,5) and/or J10 and J11 are in the A position. The 600 ohm line impedance is provided by the TX side so RX impedance should be high. Move J9 (Line 1,3,5) and/or J8 (Line 2,4,6) to the B position for a 10k ohm RX impedance.

7.4.2 Receive Level Setup (Rev B Line Card only)

The receive side level potentiometers are used to adjust the input levels into a range that is acceptable to the C-1610. Typically, a +10dBm test tone is injected in to the C-1610 as receive audio. The audio level is then measured at TP2 for Line 1 and TP1 for Line 2 with respect to ground. The measurement should be about 3.4 Vpp or 1.2Vrms. However, if receive audio levels are not in the +10dBm range, these pots can be used to bring the audio level up to the desired receive levels. 3.4Vpp is about the maximum value for the loudest receive audio. Above 3.4Vpp will saturate the ADC input stage and distortion will occur.

7.4.3 Line Activity Monitor (LAM) / Squelch Control

The yellow LED in the above each Line button (LN1-LN6) is the LAM. It will blink when activity is on the line. The default level for the C-1610 console to trigger the LAM is -10 dBm. The trigger point can be changed within the tech mode. Note that the LAM can be used as a squelch circuit. The Select and Unselect audio paths may be independently controlled by the LAM. Both options can be configured in tech mode.

7.4.4 Recorder Output

A 600 ohm balanced notched audio output provides a summing of the transmit and receive audio’s for the use of an external recorder. The actual audio sent to this output is the select and unselected audio. The output level can be controlled from within the tech mode.

7.4.5 Auxiliary Speaker Output

The auxiliary speaker output can be used to drive the unselect audio to an external amplified sp eaker, thereby eliminating it from the built in speaker. This can be useful if the console operator needs to be able to differentiate between the two audio sources. This outputs amplitude can be controlled from within the tech mode.

7.4.6 Earth Ground

While Telex-Vega recommends that the uni t be tied to earth ground though the AUX p ower connector on t he back of the unit, JP21 exist in the unit to allow the chassis ground to be tied to the signal ground of the unit. It is imperative that chassis ground to tied to some fixed reference for proper operation of the unit. The line filtering is dependent on a solid ground to function correctly.

Remote Control Console 37

8 Theory of Operation

The C-1610 is a Digital Signal Processor (DSP) based product. Because of this, many of the signals that once could be probed on older products, are handled within the DSP itself. This would include DTMF generators and decoders, notch filters, tone generators and decoders, and all of the audio summing. A great deal of the gain controls are also included within the software of the DSP. Because of this, hardware is simplified at the expense of software creation time and user serviceability. The next sections discuss the portions of the C-1610 that can be tested using a common oscilloscope and voltage meter by a qualified service technician.

8.1 Audio Input Paths

Audio can be input from three locations, not counting the line interfaces, including the desk microphone jack (J6, RJ11 modular), handset jack (J5, RJ-12 modular) and the auxiliary connector on the rear of the unit. For each of these inputs, a single inverting Op-Amp gain stage exists to bring the level of the audio up to approximately 3.8Vp-p. This is the optimum level for the analog to digital converters (ADC). The desk microphone and handset share one half of the ADC (U23) with a CMOS switch (U22) being used to connect audio from the appropriate source to the actual input pin of the ADC. The trim potentiometers R71 and R72 set the audio levels from the handset and desk microphone jacks.

The auxiliary input (J4) is used to include an additional audio source into the transmit path. It has an integrated PTT input that when pulled low will select audio from this source for transmission. This input also utilizes a single inverting Op-Amp stage to set the input gain. The factory default setting is a gain of 1. If an external source or audio is to be used, its output level should be on the order of 3.5 Vp-p.

8.2 Audio Output Paths

All output audio is generated in the DSP and sent to the various Digital to Analog Converters (DACs) for export from the C-1610. The three DACs are U13, U14, and U15. Each of these is a dual channel DAC allowing for 6 different audio sources. Each is used for different purposes.

Starting with U13, the left output is used for the handset sideto ne. It is sent through a unit y gain O p-Amp stage and fed directly to the Desk microphone interface. Since the handset level can be controlled within the software of the C1610 techmode, no gain set control is required for this circuit. The right channel of U13 is not used at this time.

U14’s left channel is the TX audio source. This is the source of all the audio that gets transmitted. This includes control tones, DTMF, and voice. All audio for this output is generated in the DSP and generated in the analog domain from this DAC. The signal is fed through a single unity gain Op-Amp stage and then distributed to each of the line cards where it is further amplified and coupled out of the unit. The right channel of U14 is the Select Audio source. It utilizes a unity gain Op-Amp stage for buffering and then is sent to the speaker amp.

U15 is used for the unselect audio source and the tape jack output. The unselect audio is the left channel. It has a single Op-Amp stage in it. In addition, a connection is made to the unselect audio level knob on the front panel. From the output of the Op-Amp, a CMOS switch (U2 2) is used to determine the routing of the audio. A low input on Pin 10 of U22 causes audio to be routed to J3, the external speaker jack. A high input routes the audio to the internal speaker where it is summed with the select audio. The right channel of U15 is the tape jack output. A single OpAmp is used to buffer the output of the DAC to a transformer which is used to set the 600 Ohm output.

8.3 Line Card Paths

The line card has two primary functions. First, the transmit audio is generated on the left channel of U14. From there is sent in parallel to all three card slots. Once the audio is on the card, it is fed to CMOS switches U2 and U3, which are used for mute control for each line. A gain set Op-Amp (U7 and U8) is used next with a trim pot (R55 and R56) to set the l evels to compensate for l ine impedance’s. Finally, the audio is sent through a pair of unity gain OpAmps set to generate differential audio in the TX transformers (T3 and T4). The output of the transformers are then passed through a sequence of parts designed to protect the unit for RFI and ot her externally generated noise. The receive path enters through RFI pr otection circuits into transformers T1 and T2. A single gain stage is used to set the levels of the incoming audio. The outputs of these are sent to the ADC (U9) that is resident on the card. For

38 Vega’s C1610

this reason, the receive audio only exists for a short run on the line cards themselves before being converted to the digital format. Individual receive audio will not be found on the main board in analog form.

The receive path also has a tie in to the transmit path. One of the taps on the TX transformers (T3 and T4) is fed to an Op-Amp stage that is then summed into the receive path Op-Amp. Gain set Potentiometers (R57 and R58) can be adjusted to change the relative TX Monitor levels.

8.4 Keypad/Display Board

The Keypad board is a purely digital board with no user-serviceable parts. It consists of a 7 x 8 keyboard matrix, 39 LED drivers, and a driver for the 20x2 vacuum florescent display. TX and RX audio are not present on this board.

Remote Control Console 39

9 Line Card Installation

Installing and removing line cards can be completed in the field by qualified personnel. The steps for this process are listed below.

1) Remove power from the console.

2) Remove the four flathead screws holding the top of the case one. Two on each side. A phillips screw driver will

be required.

3) The case top should be r emoved in a vertical direction until the finger on the left side of the case clears the tops

of the handset and desk microphone jacks. At this point, move the case somewhat forward as the cable for the speaker amp will be right under the lip of the rear of the case. Once the case top is clear of the bottom, set the top on its sides to the left of the case. Sufficient cable length is available for this without disconnection of cables.

4) Remove the hole cover for the line card position you wish to install. The screw for this is located on the back

panel.

5) Insert the card into the slot making sure that that two RJ-45 jacks are flush with the back of the C-1610.

6) Place the card hold down bracket in position and tighten the screw from the back side of the case. This locks the

card into position.

7) Place the top back on by first making sure that the speaker amp RJ-45 cable is under the lip of the rear of the

case.

8) Replace the four screws removed in the first step.

An exploded view of the case can be found with the schematics and parts placement drawings.

40 Vega’s C1610

Remote Control Console 41

10 Programming Chart

Section Parameter Default Programmed

6.3.4.1 PIN Number

5.3.3 Line 1 2 or 4 Wire mode 4 wire

5.3.3.1 Line 1 RX Impedance 600 ohms

5.3.3.2 Line 1 TX Impedance 600 ohms

6.2.1.1 Line 1 RX Input Level 0dbm

6.2.1.2.1 Line 1 LAM-S Release 7 seconds

6.2.1.2.2 Line 1 LAM-S Trigger Level -10dbm

6.2.1.2.1 Line 1 LAM-U Release 7 seconds

6.2.1.2.2 Line 1 LAM-U Trigger Level -10dbm

5.3.3 Line 2 2 or 4 Wire mode 4 wire

5.3.3.1 Line 2 RX Impedance 600 ohms

5.3.3.2 Line 2 TX Impedance 600 ohms

6.2.1.1 Line 2 RX Input Level 0dbm

6.2.1.2.1 Line 2 LAM-S Release 7 seconds

6.2.1.2.2 Line 2 LAM-S Trigger Level -10dbm

6.2.1.2.1 Line 2 LAM-U Release 7 seconds

6.2.1.2.2 Line 2 LAM-U Trigger Level -10dbm

5.3.3 Line 3 2 or 4 Wire mode 4 wire

5.3.3.1 Line 3 RX Impedance 600 ohms

5.3.3.2 Line 3 TX Impedance 600 ohms

6.2.1.1 Line 3 RX Input Level 0dbm

6.2.1.2.1 Line 3 LAM-S Release 7 seconds

6.2.1.2.2 Line 3 LAM-S Trigger Level -10dbm

6.2.1.2.1 Line 3 LAM-U Release 7 seconds

6.2.1.2.2 Line 3 LAM-U Trigger Level -10dbm

5.3.3 Line 4 2 or 4 Wire mode 4 wire

5.3.3.1 Line 4 RX Impedance 600 ohms

5.3.3.2 Line 4 TX Impedance 600 ohms

6.2.1.1 Line 4 RX Input Level 0dbm

6.2.1.2.1 Line 4 LAM-S Release 7 seconds

6.2.1.2.2 Line 4 LAM-S Trigger Level -10dbm

6.2.1.2.1 Line 4 LAM-U Release 7 seconds

6.2.1.2.2 Line 4 LAM-U Trigger Level -10dbm

5.3.3 Line 5 2 or 4 Wire mode 4 wire

5.3.3.1 Line 5 RX Impedance 600 ohms

5.3.3.2 Line 5 TX Impedance 600 ohms

6.2.1.1 Line 5 RX Input Level 0dbm

6.2.1.2.1 Line 5 LAM-S Release 7 seconds

6.2.1.2.2 Line 5 LAM-S Trigger Level -10dbm

6.2.1.2.1 Line 5 LAM-U Release 7 seconds

6.2.1.2.2 Line 5 LAM-U Trigger Level -10dbm

5.3.3 Line 6 2 or 4 Wire mode 4 wire

5.3.3.1 Line 6 RX Impedance 600 ohms

42 Vega’s C1610

Section Parameter Default Programmed

5.3.3.2 Line 6 TX Impedance 600 ohms

6.2.1.1 Line 6 RX Input Level 0dbm

6.2.1.2.1 Line 6 LAM-S Release 7 seconds

6.2.1.2.2 Line 6 LAM-S Trigger Level -10dbm

6.2.1.2.1 Line 6 LAM-U Release 7 seconds

6.2.1.2.2 Line 6 LAM-U Trigger Level -10dbm

6.2.2.1.1 Desk Mic Gain 0dbm

6.2.2.1.2 Handset Mic Gain 0dbm

6.2.2.1.3 AUX input Gain 0dbm

6.2.2.2.1 Handset earpiece level 0dbm

6.2.2.2.2 AUX SPKR level 0dbm

6.2.2.3.1 TX Audio output level 0dbm

6.2.2.3.2 Tape Output Level 0dbm

6.3.3.1.1.1.1 DTMF output Level 0dbm

6.3.3.1.1.1.2 DTMF Hold timer 500 msec

6.3.3.1.1.2.1 DTMF ON Duration 100 msec

6.3.3.1.1.2.2 DTMF OFF Duration 100 msec

6.3.3.1.1.3 DTMF Keypad Enable Enabled

6.3.3.1.1.4 DTMF Generates PTT Enabled

6.3.3.1.1.5 DTMF Incoming Select Call Empty

6.3.3.1.1.6 DTMF Select Call Timer 7 sec

6.3.3.1.2.1 Guard/Func/Hold Levels 10/0/-20

6.3.3.1.2.2 Guard/Hold Frequency 2175HZ

6.3.3.1.2.3 Guard Duration 130msec

6.3.3.1.2.3 Hold Duration 200msec

6.3.3.2 Wildcard group 1

6.3.3.2 Wildcard group 2

6.3.3.2 Wildcard group 3

6.3.3.2 Wildcard group 4

6.3.4.2 TX Delay 0msec

6.3.5.1 AUX Relay w/PTT OFF

6.3.5.2 Duplex Disabled

6.3.6.1 Mic AGC ON

6.3.6.2 Handset Port Disabled

6.4.1.1.1 Alphanumeric L1-F1

6.4.1.1.1

Alphanumeric L1-F2 Alphanumeric L1-F3 Alphanumeric L1-F4 Alphanumeric L1-F5 Alphanumeric L1-F6 Alphanumeric L1-F7 Alphanumeric L1-F8 Alphanumeric L1-F9 Alphanumeric L1-F10 Alphanumeric L2-F1 Alphanumeric L2-F2

Remote Control Console 43

Section Parameter Default Programmed

6.4.1.1.1

6.4.1.1.1 Alphanumeric L4-F1

6.4.1.1.1

Alphanumeric L2-F3 Alphanumeric L2-F4 Alphanumeric L2-F5 Alphanumeric L2-F6 Alphanumeric L2-F7 Alphanumeric L2-F8 Alphanumeric L2-F9 Alphanumeric L2-F10 Alphanumeric L3-F1 Alphanumeric L3-F2 Alphanumeric L3-F3 Alphanumeric L3-F4 Alphanumeric L3-F5 Alphanumeric L3-F6 Alphanumeric L3-F7 Alphanumeric L3-F8 Alphanumeric L3-F9 Alphanumeric L3-F10

Alphanumeric L4-F2 Alphanumeric L4-F3 Alphanumeric L4-F4 Alphanumeric L4-F5 Alphanumeric L4-F6 Alphanumeric L4-F7 Alphanumeric L4-F8 Alphanumeric L4-F9 Alphanumeric L4-F10 Alphanumeric L5-F1 Alphanumeric L5-F2 Alphanumeric L5-F3 Alphanumeric L5-F4 Alphanumeric L5-F5 Alphanumeric L5-F6 Alphanumeric L5-F7 Alphanumeric L5-F8 Alphanumeric L5-F9 Alphanumeric L5-F10 Alphanumeric L6-F1 Alphanumeric L6-F2 Alphanumeric L6-F3 Alphanumeric L6-F4 Alphanumeric L6-F5 Alphanumeric L6-F6 Alphanumeric L6-F7 Alphanumeric L6-F8

44 Vega’s C1610

Section Parameter Default Programmed

6.4.1.1.1

6.4.1.2.1

6.5.1 Line 1 Enable/Disable Enable

6.5.2 Line 1 Tone/Local Tone

6.5.3 Line 1 Crossmute ON

6.5.4 Line 1 Squelch OFF

6.5.5 Line 1 TX Monitor OFF

6.5.6 Line 1 RX AGC ON

6.5.7 Line 1 TX Enable Enabled

6.5.8 Line 1 Unselect Lock Unlocked

6.5.1 Line 2 Enable/Disable Enable

6.5.2 Line 2 Tone/Local Tone

6.5.3 Line 2 Crossmute ON

6.5.4 Line 2 Squelch OFF

6.5.5 Line 2 TX Monitor OFF

6.5.6 Line 2 RX AGC ON

6.5.7 Line 2 TX Enable Enabled

6.5.8 Line 2 Unselect Lock Unlocked

6.5.1 Line 3 Enable/Disable Enable

6.5.2 Line 3 Tone/Local Tone

6.5.3 Line 3 Crossmute ON

6.5.4 Line 3 Squelch OFF

6.5.5 Line 3 TX Monitor OFF

6.5.6 Line 3 RX AGC ON

6.5.7 Line 3 TX Enable Enabled

6.5.8 Line 3 Unselect Lock Unlocked

6.5.1 Line 4 Enable/Disable Enable

6.5.2 Line 4 Tone/Local Tone

6.5.3 Line 4 Crossmute ON

6.5.4 Line 4 Squelch OFF

6.5.5 Line 4 TX Monitor OFF

6.5.6 Line 4 RX AGC ON

6.5.7 Line 4 TX Enable Enabled

6.5.8 Line 4 Unselect Lock Unlocked

6.5.1 Line 5 Enable/Disable Enable

6.5.2 Line 5 Tone/Local Tone

6.5.3 Line 5 Crossmute ON

6.5.4 Line 5 Squelch OFF

6.5.5 Line 5 TX Monitor OFF

6.5.6 Line 5 RX AGC ON

6.5.7 Line 5 TX Enable Enabled

6.5.8 Line 5 Unselect Lock Unlocked

Alphanumeric L6-F9 Alphanumeric L6-F10 Alphanumeric Group 1 Alphanumeric Group 2 Alphanumeric Group 3 Alphanumeric Group 4

Remote Control Console 45

Section Parameter Default Programmed

6.5.1 Line 6 Enable/Disable Enable

6.5.2 Line 6 Tone/Local Tone

6.5.3 Line 6 Crossmute ON

6.5.4 Line 6 Squelch OFF

6.5.5 Line 6 TX Monitor OFF

6.5.6 Line 6 RX AGC ON

6.5.7 Line 6 TX Enable Enabled

6.5.8 Line 6 Unselect Lock Unlocked

6.6.1 F1 Enable/Disable Enable

6.6.3 F1-A Frequency 1950HZ

6.6.4 F1-A Duration 40 msec

6.6.3 F1-B Frequency 0HZ

6.6.4 F1-B Duration 40 msec

6.6.1 F2 Enable/Disable Enable

6.6.3 F2-A Frequency 1850HZ

6.6.4 F2-A Duration 40 msec

6.6.3 F2-B Frequency 0HZ

6.6.4 F2-B Duration 40 msec

6.6.1 F3 Enable/Disable Enable

6.6.3 F3-A Frequency 1750HZ

6.6.4 F3-A Duration 40 msec

6.6.3 F3-B Frequency 0HZ

6.6.4 F3-B Duration 40 msec

6.6.1 F4 Enable/Disable Enable

6.6.3 F4-A Frequency 1650HZ

6.6.4 F4-A Duration 40 msec

6.6.3 F4-B Frequency 0HZ

6.6.4 F4-B Duration 40 msec

6.6.1 F5 Enable/Disable Enable

6.6.3 F5-A Frequency 1550HZ

6.6.4 F5-A Duration 40 msec

6.6.3 F5-B Frequency 0HZ

6.6.4 F5-B Duration 40 msec

6.6.1 F6 Enable/Disable Enable

6.6.3 F6-A Frequency 1450HZ

6.6.4 F6-A Duration 40 msec

6.6.3 F6-B Frequency 0HZ

6.6.4 F6-B Duration 40 msec

6.6.1 F7 Enable/Disable Enable

6.6.3 F7-A Frequency 1350HZ

6.6.4 F7-A Duration 40 msec

6.6.3 F7-B Frequency 0HZ

6.6.4 F7-B Duration 40 msec

6.6.1 F8 Enable/Disable Enable

6.6.3 F8-A Frequency 1250HZ

6.6.4 F8-A Duration 40 msec

46 Vega’s C1610

Section Parameter Default Programmed

6.6.3 F8-B Frequency 0HZ

6.6.4 F8-B Duration 40 msec

6.6.1 F9 Enable/Disable Enable

6.6.3 F9-A Frequency 1150HZ

6.6.4 F9-A Duration 40 msec

6.6.3 F9-B Frequency 0HZ

6.6.4 F9-B Duration 40 msec

6.6.1 F10 Enable/Disable Enable

6.6.3 F10-A Frequency 1050HZ

6.6.4 F10-A Duration 40 msec

6.6.3 F10-B Frequency 0HZ

6.6.4 F10-B Duration 40 msec

6.7.1 Unselect Audio Route Internal

6.7.2 Unselect Audio Mute on PTT Not Muted

6.8 Group A Lines 1 2 3 4 5 6

6.8 Group B Lines 1 2 3 4 5 6

6.8 Group C Lines 1 2 3 4 5 6

6.8 Group D Lines 1 2 3 4 5 6

6.9 Supervisor Enable Disabled

6.10 Mute Button MON/TIMED Momentary Momentary/Timed____Sec

6.11 AUX Button DTMF

6.12 Alert Tone 1 Frequency 1000HZ

6.12.1 Alert Tone 1 Level 0dbm

6.12 Alert Tone 2 Frequency 1000HZ

6.12.1 Alert Tone 2 Level 0dbm

6.13 TX ALL Button Enabled

6.14 Monitor Tone Auto/Manual Manual

6.14.1.1 Monitor Frequency 2050HZ

6.14.1.2 Monitor Duration 40 msec

6.14.1.3 Monitor Level 0dbm

5.6 Minimum SPKR Level JP1-A

Remote Control Console 47

11 Schematics, Parts Placements, and Bills of Material

48 Vega’s C1610

770627

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

REFERENCE PCB NUMBER :

1

+3.3V

VDD

Leave R1 for 3.3V Parts (L) Remove for 2.5 V Internal Parts (M)

2

TP54

C21

21

.1UF

Y1

1

VDD

2

GNDNCOUT

2MHZ

3

4

A B C D

0.1UF C15

+5V

750524

0.1UF C16

+2.5V

R1

0

+12V

2 1

D1

2 1

D16

2 1

21

F1

3A

4

D18

1

3

FB12

J8

213

1

J16

VDD

4 3

+12V

EGND

Aux Power

MCLK

VDD

C12

220PF(OPT)

ADC3

ADC4

GND

0.1UF

R30 47

LR-OFF

LRCLK

SCLK

C72 C41

C55

1

2

3

21

CS2

CS5

CS4

R20

R19

220PF(OPT)

1

2

1

TP11

R13

R14

R15 TP4

1

DAC3

DAC2

DAC1

47

C65 C68

TP9

1

10 11 35 12 13

47

14 15 16 17

47

TP5

TP6

1

220PF(OPT)

R122 AND R123 NOT INSTALLED WHEN Y1 INSTALLED.

R123

0

TP10

+12V

10UF

+

C123

A3

1

A3

GND2

VCCINT2

23

44

32MCLK

ADC2

ADC3

RESET

41

42

43

GND43

RESET

ADC1

27

26

VDD

C14

0.1UF

220PF(OPT)

40

RESET

28

TP3

7

MCLK

8

CS2

9

CS5 GND10

GND12 GND13 LR-OFF VCCIO1 LRCLK DIV4

R17

C74 C75 C76

A[0:13]

VDD

0.1UF

A5

A4

C13

CS1

R16

47

R18

47

6

A5

CS1

DAC3

181920

47

5

MAINPLD

DAC2

3

2

4

A4

GND3

VCCINT1

U11

ADC4B0B1

DAC1

GND22

22

212425

R7

0

U6

1

NC1 NC3

2

VIN1-1

3

VIN1-2

4

MR1

5

MR2

6

EN

7

SEQ

8

GND

9

VIN2-1

10

VIN2-2

TPS70158

U8

UA7805CKTE

1

IN

0.1UF

C23

2

1

39

FS

38

IOMS

37

SP0-RX

36

SP0-TX

VCCIO2CS4

34

SP1-RX

33

SP1-TX

32

INTR

31

DIV4

30

GND30

29

INTR

47

C105 C106

VDD

+2.5V

10K

1

TP16

RESET

TP15

1

R9

10K

TP1

EED0

1

R120

10K

Mode Select R's

VDD

R31

VDD

C6

0.1UF

10K

1

2

D6

3

R122

0

R10

10K

R11

10K

R12

EECLK

10K

1 2

GNDNCOUT

37-5MHZ

VDD

C1

0.1UF

R4

R6

R2

10K

Y2

VDD

4

VDD

3

+2.5V

C2

0.1UF

R3

R5

10K

A[0:13]

A0A1A2

A3

100

979899

96

A0

BGH

A1/AD0

A2/AD1

A3/AD2

GND4

IRQE+PF4

IRQL0+PF5

IRQL1+PF6

30

26

2729283233

PWDACK

PF0-MODEA

DT0

TFS0

IRQ2+PF7

31

VDD

0.1UF

A4 A5

A6 A7 A8 A9 A10 A11 A12 A13

10K

A4/IAD3

2

A5/IAD4

3

GND1

4

A6/IAD5

5

A7/IAD6

6

A8/IAD7

7

A9/IAD8

8

A10/IAD9

9

A11/IAD10

10

A12/IAD11

11

A13/IAD12

12

GND2

13

CLKIN

14

XTAL

15

VDDEXT1

16

CLKOUT

17

GND3

18

VDDINT1

19

WR

20

RD

21

BMS

22

DMS

23

PMS

24

IOMS

25

CMS

PWD

GND10

PF1-MODEB

ADSP-2189M

TQFP100

U1

DR0

RFS0

SCLK0

88

89909192939495

PF3

VDDEXT4

PF2-MODEC

DT1

TFS1

VDDEXT2

383941

87

86

FL0

FL1

DR1

RFS1

4036373534

D21

D22

D23

D22

D23

FL2

GND5

SCLK1

ERESET

44454342474850

D20

D21

EMS

RESET

GND9

46

D19

ECLKEEELIN

D18

ELOUT

D[0:23]

D16

D17

76

777879808182838485

D16

D17

D15 D14 D13 D12

GND8

D11 D10

VDDEXT3

GND7

D7/IWR

D6/IRD

D5/IAL

D4/IS

GND6

VDDINT2

D3/IACK D2/IAD15 D1/IAD14 D0/IAD13

EBG EBR

EINT

49

D17

Q5

3

2N3904

21

1

2

D15

751

D14

74

D13

73

D12

72 71

D11

70

D10

69

D9

68

D9

67 66

D8

65

D8

D7

64

D6

63

D5

62

D4

61 60 59

D3

58

D2

57

D1

56

D0

55 54

BG

53 52

BR

51

+10V

R121

21

1K

VDD

C7

GND

VOUT1-1 VOUT1-2

VSENSE1

RESET

VSENSE2

VOUT2-1 VOUT2-2

OUT

PG1

NC2

3

20 19 18 17 16 15 14 13 12 11

TP12

1

TP8

C20

+

10UF

R8

10UF

+

C19

+5V

0.1UF

C17

1

VDD

C11

0.1UF

C5

R77

INTR

C18

TP13

1

0.1UF

UA7810CKTE

1

IN

C24

C111

U36

GND

2

R22

47

R21

+12V

10UF

ADC1

ADC2

+

C124

0.1UF

VDD

U10

1 2

X1

3

Y3

6PF

1 2

C119

TP14

1

3

OUT

4

REAL TIME CLOCK

VDD

1 8 2 3

0.1UF

4

+10V

0.1UF

C122

X2 GND

NC2 NC3 GND

DS1302

SO8NB

U33

AT24C16

SO8NB

VCC1VCC2 SCLK

VCC1NC1

TEST

DATA

8 7 6

I/O

5

RST

CLK

+

3V

0

R76

EECLK

B1

10K

EED0

R29

7 6 5

10K

Emulation Header

1

GND

3

EBG

5

EBR

7

KEY

9

ELOUT

11

EE

13

RESET

VDD

EINT ELIN

ECLK

EMS

ERESET

2

BG

4

BR

6 8 10 12 14

J1

R78

10K

CAD GENERATED DRAWING

SHEET

REV.

0.1UF

A[0:13]

D[0:23]

A[0:13]

SHEET

REVISION

STATUS

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 D16 D17 D18 D19 D20

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

30

A17

1

A18

31

WR

24

RD

22

CS

AT29LV020

21

A0

23

A1

24

A2

25

A3

26

A4

1

A5

2

A6

3

A7

4

A8

5

A9

6

A10

7

A11

8

A12

9

A13

10

A14

27

WR

22

RD

20

CS

CY7C1399

21

A0

23

A1

24

A2

25

A3

26

A4

1

A5

2

A6

3

A7

4

A8

5

A9

6

A10

7

A11

8

A12

9

A13

10

A14

27

WR

22

RD

20

CS

CY7C1399

21

A0

23

A1

24

A2

25

A3

26

A4

1

A5

2

A6

3

A7

4

A8

5

A9

6

A10

7

A11

8

A12

9

A13

10

A14

27

WR

22

RD

20

CS

CY7C1399

U2

U3

U4

U5

C-1610

MODEL

REVISIONS

DESCRIPTIONREV.LOC.

RELEASEDA

Q4 FROM NPN TO PNP. R30 & R49 TO 0 OHMS.

B

R56 TO 20K. R62 TO 30.1K

C

R73 TO 2.7K. R71 TO 100K POT. R50 TO 1K.

D

CHANGED REFERENCE DESIGNATOR SIZE TO BE MORE READABLE

E

ADDED TESTPOINTS AND DID VARIOUS CHANGES(PCB TO REV B)

D8

13

D0

D9

14

D1

D10

15

D2

D11

17

D3

D12

18

D4

D13

19

D5

D14

20

D6

21

D7

11

D0

12

D1

13

D2

15

D3

16

D4

17

D5

18

D6

19

D7

11

D0

12

D1

13

D2

15

D3

16

D4

17

D5

18

D6

19

D7

11

D0

12

D1

13

D2

15

D3

16

D4

17

D5

18

D6

19

D7

D15

VDD

D0 D1 D2 D3 D4 D5 D6 D7

VDD

C8

D8 D9 D10 D11 D12 D13 D14 D15

VDD

C9

D16 D17 D18 D19 D20 D21 D22 D23

VDD

C10

879362

NEXT ASS'Y

C4

+2.5V

0.1UF

D[0:23]

0.1UF

C3

0.1UF

D[0:23]

DATE

TELEX COMMUNICATIONS, INC.

CHK TITLE

03/27/2000

LINCOLN, NEBRASKA

ECO NO. DRFT CHKR APP DATE

SBC SBC DEE 5/15/00 SBC SBC DEE 5/15/00

07-03-00

SBC SBC DEE

07-29-00 07/17/00 11-31-00 SBC SBC DEE 11/15/00

SBC

02-02-01 02/22/01

1

2

3

APPDR

DEESBCSBC

C-1610 MAIN BOARD

VEGA

4

SCHEMATIC

R

DWG. NO.

SIZE

770627

D

SHT.

1 5

OF

CBA

D

770627

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

REFERENCE PCB NUMBER :

1

2

3

A B C D

SHEET

REVISION

REV.

STATUS

REVISIONS

DESCRIPTIONREV.LOC.

A RELEASED

750524

C121 U35

R114

10K

VCC

Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7

CLK

VDDVDD

20

KM1O

19 18

KM2O

17

KM3O

16

KM4O

15

KM5O

14

KM60 13 12 11

D2

1 3

D3

D4

D5

R116

10K

APTT

MPTT

HPTT

FSWITCH

R113

VDD

+10V +10V

TXAUDIO TXCON1

LRCLK ADC1 LOCAL1 LOCAL2

KMUTE1 KMUTE2 CARD1 TXMON1 KM1O

+10V

TXAUDIO TXCON3 SCLK LR-OFF ADC2

SUPER3 SUPER4 KMUTE3 CARD2 TXMON3 KM3O

+10V +10V

TXAUDIO TXCON5 TXCON6 SCLK LRCLK ADC3

SUPER5 SUPER6 KMUTE5 KMUTE6 CARD3

KM5O

1

+12V1

3

+12V3

5

TXAUDIO

7

TXCON1

9

SCLK

11

LRCLK

13

RXDAT

15

LOCAL1

17

SUPER1

19

KMUTE1

21

CRDSENSE

23

TXMON1

25

27

GND1

29

GND3

1

+12V1

3

+12V3

5

TXAUDIO

7

TXCON1

9

SCLK

11

LRCLK

13

RXDAT

15

LOCAL1

17

SUPER1

19

KMUTE1

21

CRDSENSE

23

TXMON1

25

27

GND1

29

GND3

1

+12V1

3

+12V3

5

TXAUDIO

7

TXCON1

9

SCLK

11

LRCLK

13

RXDAT

15

LOCAL1

17

SUPER1

19

KMUTE1

21

CRDSENSE

23

TXMON1

25

27

GND1

29

GND3

J10

J11

J12

+12V2 +12V4

TXCON2

MCLK

LOCAL2 SUPER2 KMUTE2

TXMON2

GND2 EGND

+12V2 +12V4

TXCON2

MCLK

LOCAL2 SUPER2 KMUTE2

TXMON2

GND2 EGND

+12V2 +12V4

TXCON2

MCLK

LOCAL2 SUPER2 KMUTE2

TXMON2

GND2 EGND

2 4 6

6

TXCON2

8

MCLKSCLK

10 12

SUP1O

12

SUP2O

14

16

SUPER2SUPER1

18 20 22

22

TXMON2

24 26

KM2O

26

28 30

+10V

2 4 6

6

TXCON4

8

MCLK

10

SUP3O

12

SUP4O

14

LOCAL4LOCAL3

16 18

KMUTE4

20 22

22

TXMON4

24

KM4O

26

28 30

2 4 6

6

8

MCLK

10

SUP5O

12

SUP6O

14

LOCAL6LOCAL5

16 18 20 22

22

TXMON6TXMON5

24 26

KM60

26

28 30

J21

A B

FB11

1 2 3

A[0:13]

CS1 WR

D[0:23]

VDD

0.1UF

0.1UF C28

1

U21

A0

1 A1 A2

A

2

B

3

C

6

G1

4

G2A G2B Y7

74LCX138

WCS1-0 WCS1-1

15

Y0

14

Y1

13

Y2

12

Y3

11

Y4

10

Y5

9

Y6

75

VDD

D[0:23]

D8 D9 D10 D11 D12 D13 D14 D15

WCS1-2

OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

74LCX574

0.1UF C25

U19

VCC

20

LOCAL1

19

Y0

18

LOCAL2

Y1

17

LOCAL3

Y2

16

LOCAL4

Y3

15

LOCAL5

Y4

14

LOCAL6

Y5

13

TXMON3

Y6

TXMON4

12

Y7

11

CLK

D[0:23]

VDD

19 D8 D9 D10 D11 D12 D13 D14 D15

OE2

18

O0

17

O1

16

O2

15

O3

14

O4

13

O5

12

O6

11

O7

1 D8 D9 D10 D11 D12 D13 D14 D15

OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

74LCX574

0.1UF C26

U18

1

OE

D8 D9 D10 D11 D12 D13 D14 D15

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

74LCX574

VCC

CLK

20 19

TXCON1

Y0

18

Y1

TXCON3

17

Y2

TXCON4

16

Y3

15

TXCON5

Y4

14

TXCON6

Y5

TXMON5

13

Y6

TXMON6

12

Y7

11

A[0:13]

CS2 RD

1

A0

2

A1

3

A2

6 4

VDD

C82 U28

20

VCC

19

Y0

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

CLK

WCS1-4

0.1UF C27

U17

1

OE1

2

Y0

3

Y1

4

Y2

5

Y3

6

Y4

7

Y5

8

Y6

9

Y7

74LCX541

U29

A B C

G1 G2A G2B Y7

74LCX138

VDD

0.1UF C81

MIC/DESK

SPK/AUX

AUXR

TXMON1 TXMON2

WCS1-3

VDD

15

Y0

14

Y1

13

Y2

12

Y3

11

Y4

10

Y5

9

Y6

75

J17

KMUTE1 KMUTE2 KMUTE3 KMUTE4 KMUTE5 KMUTE6

RCS1-0 RCS1-1 RCS1-2

A B

1

OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

74LCX574

0.1UF

D[0:23]

0.1UF C120

U34

1 D8 D9 D10 D11 D12 D13 D14 D15

OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

74LCX574

VCC

CLK

20 19

SUP1O

Y0

SUP2O

18

Y1

SUP3O

17

Y2

SUP4O

16

Y3

SUP5O

15

Y4

SUP6O

14

Y5

13

Y6

12

Y7

11

D[0:23]

VDD

D8 D9 D10 D11 D12 D13 D14 D15

0.1UF C104

U27

10K

R75

D8

D8 D9 D10 D11 D12 D13 D14

D[0:23]

D15

HSWITCH

MMON

19

OE2

18

O0

17

O1

16

O2

15

O3

14

O4

13

O5

12

O6

11

O7

10K

74LCX541

R117

10K

1

OE1

2

Y0

3

Y1

4

Y2

5

Y3

6

Y4

7

Y5

8

Y6

9

Y7

R111

10K

R110

VDD

10K

R112

10K

R115

10K

0.1UF C70

U30

19 D8TXCON2 D9 D10 D11 D12 D13 D14

D[0:23]

D15

TSWITCH

1 2 3

OE2

18

O0

17

O1

16

O2

15

O3

14

O4

13

O5

12

O6

11

O7

OE1

74LCX541

10K

1 2

Y0

3

Y1

4

Y2

5

Y3

6

Y4

7

Y5

8

Y6

9

Y7

R80

10K

R79

VDD

SUPER1 SUPER2 SUPER3 SUPER4 SUPER5 SUPER6

ECO NO. DRFT CHKR APP DATE

5/15/00DEESBCSBC

1

2

3

CHK TITLE

SBC SBC DEE

DATE

4

4/27/2000

APPDR

VEGA

C-1610 MAIN BOARD

4

SCHEMATIC

CAD GENERATED DRAWING

CBA

MODEL

NEXT ASS'Y

R

TELEX COMMUNICATIONS, INC.

LINCOLN, NEBRASKA

D

SIZE

D

DWG. NO.

SHT.

770627

OF

52

770627

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

SHEET

REV.

SHEET

REVISION

STATUS

REVISIONS

DESCRIPTIONREV.LOC.

RELEASEDA

ECO NO. DRFT CHKR APP DATE

5/15/00DEESBCSBC

REFERENCE PCB NUMBER :

F2

FIDUCIAL

F3

FIDUCIAL

F4

FIDUCIAL

F5

FIDUCIAL

VDD

D13 D14 D15

CS5

D[0:23]

10 11 12 13 14 15 16 17

MCLK

7

D5

8

D6

9

D7 RCLK SIN NC2 SOUT CS0 CS1 CS2 BAUDOUT

Serial Interface

0.1UF C30

D11

D12

D10

65432

D2

D3

D4

TL16C550C

PLCC44

U12

XIN

XOUT

WR1

20

191821

750524

VDD

D8

D9

44

1

D0

D1

VCC

NC1

VSS

WR2

RD1

NC3

23

24

22

43

25

RI

RD2

26

414240

DCD

DDIS

27

CTS

DSR

INTRPT

RXRDY

ADS

TXRDY

28

MR

OUT1

DTR

RTS

OUT2

NC4

A0 A1 A2

J15

1 2

HSWITCH

Hook Switch

RESET

39 38 37 36 35 34 33 32 31 30 29

INTR

A[0:13]

A0 A1 A2

SW1

1

2

+5V

0.1UF

+5V

C31

VDD

0.1UF

C33

0.1UF

15

GND

U16

LT1181A

16

VCC

C2+

C2-

R1IN R2IN

6

V-

4 5

1411 710

13 8

C114

U20

1

OE1

2

Y0

3

Y1

4

Y2

5

Y3

6

Y4

7

Y5

8

Y6

9

Y7

74LCX541

OE2

O0 O1 O2 O3 O4 O5 O6 O7

2

V+

C32

0.1UF

19 18 17 16 15 14 13 12 11

TXD RTS

RXD CTS

1

C1+

3

C1-

T1IN T1OUT T2IN T2OUT

12

R1OUT

9

R2OUT

X5

MTHOLE6

0.1UF

C35

0.1UF

C115 C116 C117 C118

C34

X3

MTHOLE6

220PF 220PF 220PF 220PF

X4

MTHOLE6

FB7

FB8

FB9

MTHOLE6

X2

FB10

X6

X1

J2

1 2 3 4 5 6 7 8 9

RTDB9

10

11

AUXR

10K

R81

RD

WR

+12V

D7

13

3

1

2N3904

Q1

2

K1

NC

83 6

1 10

+

5

CAD GENERATED DRAWING

Auxillary Output

1

2

CHK TITLE

SBC

DATE

J9

03/27/2000

APPDR

DEESBC

VEGA

C-1610 MAIN BOARD

SCHEMATIC

MODEL

NEXT ASS'Y

R

SIZE

TELEX COMMUNICATIONS, INC. MINNEAPOLIS, MINNESOTA

B

DWG. NO.

SHT.

770627

3

OF

5

770627

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

REFERENCE PCB NUMBER :

1

ADC4

LR-OFF

2

DAC1 SCLK LRCLK MCLK

3

DAC3

LRCLK

4

A B C D

SHEET

REV.

SHEET

REVISION

STATUS

DESCRIPTIONREV.LOC.

RELEASEDA

750524

0.1UF

U23

1

SDATA

2

SCLK

3

LRCK

4

MCLK

1UF

0.1UF

U14

1

SDATA

2

DEM/SCLK

3

LRCK

4

MCLK

1UF

0.1UF

U13

1

SDATA

2

DEM/SCLK

3

LRCK

4

MCLK

C58

C46

C36 C51

C40 C39

10UF

HSWITCH

+5V

+

267K

+

267K

+

267K

R95

C56

C57

C54

2

3

2N3904

Q3

4

10K

R35

R38

R27

U22

9

R53

10K

3

5

Mic Audio Routing

5.6K(OPT)

R36

562

0.018UF

R37

562

0.018UF

C48 C47

TP20

1

TP19

R26

562

0.018UF

C38

FB1 FB2 FB3 FB4 FB5 FB6

3900PF(OPT)

C63 R54

10K

U24

14

TL084

R42

R23

C66

C67

3.3UF

+

267K267K

+

0.1UF

C59

C53

TP53

1

Auxillary Audio

R55

0.1UF

10K

13

-

12

+

VR2.5

C64

3900PF(OPT)

C107

R58

2

-

10K

3

+

VR6

U25

TL084

R56

1

APTT

20K

FB30

FB31

FB29

UnSel Audio Pot

R88

R40

562

R25

C49

C37

3900PF(OPT)

0.1UF

C71

0.018UF 0.018UF

R41

R24

10K

C110

R69

0.1UF

C73

TP41

1

10K

VR6

U26

2

-

3

+

TL084

21

1 2 3

100

R66

R68

1

5.6K(OPT)

J18

0.1UF

C69

10K

1

2

3

J4

AUDIO PTT GND

TXAUDIO

R57

3900PF(OPT)

+

7

VA

AGND

6

+5V

7

VA

AGND

6

Operator Mic/Handset Input

TP23

8

AINL

5

AINR

CS5330A

8

AOUTL

5

AOUTR

CS4335

1

C43

1

C44

TP24

MIC/DESK

TX Audio Source

Speaker Audio

1UF

C52

0.1UF

0.47UF

C42

0.01UF

Aux Audio Input

0.47UF

C45

0.01UF

+5V

R32

150

R33

150

R92

10K

TP21

1

TP22

+10V

1

3.3UF

R34

3.3UF

R39

C50

U15

DAC2

LR-OFF

+5V

7

VA

AGND

6

CS4335

8

AOUTL

Beeps/Feedback

5

AOUTR

Handset

1

SDATA

2

DEM/SCLK

3

LRCK

4

MCLK

TP17

1

R48

+

3.3UF

C113

267K

7

AGND

R46

VA

6

CS4335

10K

562

R43

AOUTL

AOUTR

AUX-Unsel

8

Tape

5

R28

C112

3.3UF

0.1UF(OPT)

TP18

TP42

R87

10K

C109

13

-

12

+

VR6

5.6K(OPT)

1

VR6

SPK/AUX

U25

TL084

R70

TP2

C86

R65

1UF

C85

1

TP7

1

R72

U24

1

TL084

10K

R52

10K

2

-

3

+

VR2.5

100K

R50

R71

3900PF(OPT)

U24

8

TL084

C108

R85

10K

R60

10K

0.1UF

TL084

+

10

8

-

9

U25

R62

30.1K

10K

5.6K(OPT)

14

VR6

R93

6

-

5

+

5.6K(OPT)

R67

U25

TL084

+10V

1

R89

R86

R59

7

10K

R94

2

604

TP44

1

15

10K

3

2N3904

Q2

TP43

1

10K:10K

2 3

R84

332

U26

6

-

7

5

+

TL084

U26

13

-

14

12

+

TL084

Q4

2N3906

1K

9

-

10

+

VR2.5

R61

5.6K(OPT)

U22

10

UnSel Audio Routing

T1

61 5 4

U22

14

3

2

TP45

1

2

11

C79

1

13

12

1

R47

C77

1UF

TP55

1UF

C84

R49

0

47K

1UF

R51

220K

TP47

1

TP46

1

604(OPT)

+10V

R82R83

10K

R63

R64

300

TP51

C87

R90

1UF

C61

10K

+10V

R73

1

+12V

1UF

TP48

1

TP49

1

+5V

R44

R45

2.7K

+10V

R74

10K

30K

681

1

TP52

FB14

FB21

21

FB24

FSWITCH

TP50

1

FB13

21

FB15

FB16

FB18

FB20

FB22

21

FB23

FB25

FB26

21

FB27

FB28

+

10

-

9

+

5

-

6

HPTT

21

FB17

1

21

1

2

3

4

21

4

Handset Interface

Deskmic Interface

21

6

21MMON

5

FB19

5

21MPTT

4

21

3

2

21

1

Main Speaker Jack

J7

1

GND

1

2

+12V

2

3

SPK-

3

4

GND

4

5

+12V

5

6

SPK+

6

7

GND

7

8

+12V

8

Aux Speaker

J3

1

SPK+

1

2

21

GND

2

1

21

SPK+

1

2

GND

2

Foot Switch

1

21

1

SPK+

2

21

2

GND

Tape Jack

TP25

1

TL084

8

U26

TP26

TL084

7

U24

J5

MIC GND PTT EAR

PRE MON PTT GND MIC GND

J6

J14

J13

1

VR6

VR2.5

+10V

R91

10UF

2.2K

+

C88

J22

1 2 3

+12V

SBC

DATE

REVISIONS

Aux Speaker Jack

J20

1

GND

1

2

+12V

2

3

SPK-

3

4

GND

4

5

+12V

5

6

SPK+

6

7

GND

7

8

+12V

8

CHK TITLE

APPDR

DEESBC

03/27/2000

ECO NO. DRFT CHKR APP DATE

5/15/00DEESBCSBC

VEGA

C-1610 MAIN BOARD

1

2

3

4

CAD GENERATED DRAWING

CBA

MODEL

NEXT ASS'Y

TELEX COMMUNICATIONS, INC.

LINCOLN, NEBRASKA

SCHEMATIC

R

DWG. NO.

SIZE

770627

D

SHT.

4 5

OF

770627

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

SHEET

REV.

SHEET

REVISION

STATUS

A RELEASED

REVISIONS

DESCRIPTIONREV.LOC.

ECO NO. DRFT CHKR APP DATE

5/15/00DEESBCSBC

REFERENCE PCB NUMBER :

CS4

RD

D8 D9 D10 D11 D12 D13 D14 D15

D[0:23]

750524

0.1UF C89

U31

1

T/R OE

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

74LCX245

VDD

B0 B1 B2 B3 B4 B5 B6 B7

VDD

0.1UF C90

VDD

U32

OE1

Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7

74LCX541

WR

2 3 4 5 6 7 8 9

A0 A1 A2

RD

A[0:13]

+10V

J19

47

1 1 1 1 1 1 1 1

R104 R103 R102 R101 R100

R99 R98 R97 R96

47 47 47 47 47 47 47 47

56PFC83

C91 56PF

56PFC92

C93 56PF

56PFC94 56PFC95

19 18 17 16 15 14 13 12 11

TP27

TP29 TP31 TP33 TP35 TP37 TP38 TP39

C96 56PF

1 2

D0

+10V

3

D1

5

D2

7

D3

9

D4

11

D5

13

D6

15

D7

17

CS

19

GNDWREGND

RD A0 A1 A2

TP28 TP30

TP32 TP34

TP36 TP40

47

4 6 8 10 12 14 16 18 20

1 1

R109 R108 R107 R106 R105

C99 56PF

C103 56PF

56PFC102

C101 56PF

56PFC100

47 47 47 47

R118

10K

R119

10K

19 1

OE2

18

O0

17

O1

16

O2

15

O3

14

O4

13

O5

12

O6

11

O7

56PFC97

C98 56PF

CAD GENERATED DRAWING

MODEL

NEXT ASS'Y

CHK TITLE

SBC

DATE

TELEX COMMUNICATIONS, INC. MINNEAPOLIS, MINNESOTA

03/27/2000

APPDR

DEESBC

VEGA

C-1610 MAIN BOARD

SCHEMATIC

R

SIZE

B

DWG. NO.

SHT.

770627

5

OF

5

770628

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

REFERENCE PCB NUMBER :

1

2

3

4

A B C D

SHEET

REV.

SHEET

REVISION

STATUS

REVISIONS

DESCRIPTIONREV.LOC.

J2 CHANGED TO THRU HOLE PART 02-19-01 SBC DEE

750525

1

TP17

1

TP18

Display Interface Header

+5V

1

TP16

+3.3V

C18

0.1UF

U14

19

OE2

D0

18

O0

D1

17

O1

D2

16

O2

D3

15

D[0:7]

O3

D4

14

O4

D5

13

O5

D6

12

O6

D7

11

O7

1

R1

R2

R3R4

R5R6

R7R8

PROG1

10K

SW42

1

10K

LN1

SW1

1

10K

F1

SW45

1

10K10K

F6

SW4

1

SW11

1

10K10K

10K

4

SW19

1

7

SW27

1

*

SW33

1

2

PROG2

SW41

1

2

LN2

SW12

1

2

F2

SW46

1

2

F7

SW6

1

2

SW13

1

5

SW18

1

8

SW26

1

0

SW35

1

2

PROG3

SW40

1

2

LN3

SW23

1

2

F3

SW47

1

2

F8

SW5

1

2

3

SW10

1

6

SW20

1

9

SW28

1

#

SW32

1

PROG4

SW39

LN4

SW34

F4

SW2

F9

SW8

SW14

SW17

SW25

SW36

2

1

2

A

2

B

2

C

2

D

1

TRANSMIT

SW50

LN5

SW43

F5

SW3

F10

SW7

UNSEL

SW9

SUP

SW21

AUX

SW29

2

74LCX541

1

TP19

1

TP20

1

TP21

1

TP22

1

OE1

2

Y0

3

Y1

4

Y2

5

Y3

6

Y4

7

Y5

8

Y6

9

Y7

1

2

1

2

1

2

1

2

1

2

TRANSMIT

LN6

GRP

SW15

MUTE

SW24

ALERT

SW31

IC

SW38

SW49

SW44

2

VCC

4

RS

6

RD

8

D1

10

D3

12

D5

14

D7

2

1

2

1

2

1

2

1

2

TRANSMIT

1

2

TRANSMIT

TX

RX

MON

J2

SW16

SW22

SW30

SW37

SW48

1

GND

3

NC

5

WR

7

D0

9

D2

11

D4

13

D6

2

D40

2

D41

D42

D43

D44

2

TP23

1

TP28

1

TP29

1

TP26

1

TP27

1

TP25

1

TP24

1

+3.3V

C3

0.1UF

U12

19

1

OE2

OE1

2

Y0

3

Y1

4

Y2

5

Y3

6

Y4

7

Y5

8

Y6

9

Y7

74LCX541

D45

D46

+3.3V

D0

18

O0

D[0:7]

D1

17

O1

D2

16

O2

D3

15

O3

D4

14

O4

D5

13

O5

D6

12

O6

D7

11

O7

C2

0.1UF

U9

1

20

VCC

OE

2

19

Y0

D0

3

18

Y1

D1

4

17

Y2

D2

5

16

Y3

D3

6

15

Y4

D4

7

14

Y5

D5

8

13

Y6

D6

9

12

Y7

D7

10

11

CLK

GND

74LCX574

+3.3V

C6

0.1UF

U2

1

20

VCC

OE

D0

2

19

Y0

D0

D1

3

18

Y1

D1

D2

4

17

Y2

D2

D3

5

16

Y3

D3

D4

6

15

Y4

D4

7

14

Y5

D5

8

13

Y6

D6

9

12

Y7

D7

10

11

CLK

GND

74LCX574

+3.3V

C7

0.1UF

U3

20

1

VCC

OE

19

2

Y0

D0

18

3

Y1

D1

17

4

Y2

D2

16

5

Y3

D3

15

6

Y4

D4

14

7

Y5

D5

13

8

Y6

D6

12

9

Y7

D7

11

10

CLK

GND

74LCX574

D0 D1 D2 D3 D4

D[0:7] D5 D6 D7

3

MH125NP

WR

D0 D1 D2 D3 D4 D5 D6 D7

TP8

RD

+5V

0.1UF

1

TP33

M15

1

M25

M28

MTHOLE152P

1 2

D0

3

D1

5

D2

7

D3

9

D4

11

D5

13

D6

15

D7

17

CS

19

GND EGND

1

DATE

TP30

1

+10V

LT1086CM-33

10UF

+

C5

J1

C17

MH125NP

MH125NPMH125NP MH125NP MH125NP MH125NP MH125NP

MH125NPMH125NP MH125NP MH125NP

M23

1

M26

MTHOLE147P

M29

MTHOLE147P

M31

1

+10V

+12V

4

WR

6

RD

8

A0

10

A1

12

A2

14 16 18 20

CHK TITLE

SBC

03/28/2000

U11

IN OUT

M4

M7M8 M9 M10 M11 M12

M13M14 M16 M17

TP31

+10V

1

U1

UA7805CKTE

1

IN

0.1UF

D0 D1 D2 D3 D4

D[0:7] D5 D6 D7

F1

FIDUCIAL

F2

FIDUCIAL

F3

FIDUCIAL

F4

FIDUCIAL

+3.3V

C1

0.1UF

U10

15

Y0

CS2 CS3 CS4 CS5 CS6

CS7

14

Y1

13

Y2

12

Y3

11

Y4

10

Y5

9

Y6

7 5

15

Y0

14

Y1

13

Y2

12

Y3

11

Y4

10

Y5

9

Y6

0.1UF

U13

74LCX138

C4

74LCX138

+3.3V

1

A

2

B

3

C

+3.3V

6

G1

4

G2A G2BY7

1

A

2

B

3

C

+3.3V

6

G1

4

G2A

57

G2BY7

OUT

C14

GND

2

M201M21

MTHOLE152P MTHOLE152P MTHOLE152P

MTHOLE147P

D[0:7]

1

TP7

TELEX COMMUNICATIONS, INC.

CAD GENERATED DRAWING

MODEL

NEXT ASS'Y

LINCOLN, NEBRASKA

GND

1

APPDR

23

10UF

MTHOLE147P

1 1 1 1 1 1

DEESBC

ECO NO. DRFT CHKR APP DATE

SBC SBC DEERELEASEDA

5/15/00

SBCB 02/13/01

1

TP32

1

VDD

+3.3V

0.1UF C8

+

C16

M6M5M3M2M1

MH125NPMH125NPMH125NPMH125NPMH125NP

M24

M27

M30

D[0:7]

TP14

1

D0

TP13

1

D1

TP12

1

D2

TP11

1

D3

TP10

1

D4

TP9

1

D5

TP15

1

D6

TP34

1

D7

TP1 TP2 TP3 TP4 TP5 TP6

2

3

VEGA

C-1610 KEYPAD

SCHEMATIC

R

SIZE

D

DWG. NO.

SHT.

1 2

770628

OF

4

CBA

D

770628

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

REFERENCE PCB NUMBER :

1

A B C D

SHEET

REV.

SHEET

REVISION

STATUS

REVISIONS

DESCRIPTIONREV.LOC.

A RELEASED SBC SBC DEE 5/15/00

750525

ECO NO. DRFT CHKR APP DATE

1

+3.3V

C11

0.1UF

U6

1

20

VCC

OE

D0

2

19

Y0

D0

D1

3

18

Y1

D1

D2

4

17

Y2

D2

D3

5

16

Y3

D3

D4

6

15

Y4

D4

D5

7

D[0:7]

D6 D7

CS4

2

8 9

10

D5 D6 D7 GND

74LCX574

14

Y5

13

Y6

12

Y7

11

CLK

+3.3V

R57

1

10K

R63

1

10K

C12

0.1UF

U7

20

1

VCC

OE

D0 D1 D2 D3 D4 D5

D[0:7]

D6 D7

CS5

D0 D1 D2 D3

3

D[0:7]

D4 D5 D6 D7

CS6

2 3 4 5 6 7 8 9

10

1 2 3 4 5 6 7 8 9

10

D0 D1 D2 D3 D4 D5 D6 D7 GND

74LCX574

0.1UF

OE D0 D1 D2 D3 D4 D5 D6 D7 GND

74LCX574

19

Y0

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

CLK

+3.3V

C13

U8

20

VCC

19

Y0

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

CLK

R91

1

10K

2

R86

1

10K

2

R92

1

10K

2

+10V

R58

D13

21

3

1K

2N3904

Q20

2

LAM1 LAM3

D34

21

3

Q21

2

D33

1 2 3

2N3904

Q28

F3

D19

21

3

Q29

D20

1 2 3

2N3904

Q36

UNSEL GROUP

R60

1

10K

+10V

R61

R65 R66

1

10K

+10V

R90

1.5K R88

1

10K

2

+10V

1.5K

R93

1.5K

+10V

1

10K

2

R17

1

10K

2

R20

1

10K 10K

2

D14

1 2 3

2N3904

Q19

2

D35

1 2 3

Q22

2

D32

3

2N3904

Q24

D27

1 2 3

Q30

D21

3

2N3904

Q35

D26

3

Q37

LAM2

F1F2

21

F4

21

SEL GROUP

R89

1.5K

R84R87

1.5K

R16

1.5K

R19

1.5K

+10V

R59

1K

R73

1

10K

+10V

R64

1.5K1.5K R68

1

10K

+10V

R74

1

10K

+10V

R80

1

10K

+10V

R29

1

10K

+10V

R24

1

10K

3

2N3904

Q18

2

1 2 3

2N39042N39042N3904

Q23

2

D31

1 2 3

2N3904

Q25

2

D28

3

Q31

2

D22

1 2 3

2N3904

Q34

2

D25

3

Q38

2

+10V

D15

R72

21

1K

R70

10K

+10V

R69

D18

1K

10K

+10V

R75

1.5K

F5

R79

21

1.5K

R77

10K

+10V

R82R83

10K

+10V

R28

1.5K

AUX

R25

21

R26

10K

+10V

R21

D16

R71

1 2 3

1K

2N3904

1

Q17

2

LAM4

D17

R67

21

1K

3

2N3904

1

Q27

2

LAM5LAM6

D30

R76

21

1.5K

3

2N3904

1

Q26

2

F6

D29

R81

1 2 3

1.5K

2N39042N39042N39042N3904

1

Q32

2

F7F8F0F10

D23

R27

21

1.5K

3

2N3904

1

Q33

2

MUTE

D24

R22

1 2

1.5K1.5K

3

2N39042N39042N3904

1

Q39

2

MONITORINTERCOMTRANSMIT

+10V

1

OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7

10

GND

74LCX574

1

OE

2

D0

3

D1

4

D2

5

D3

6

D4

7

D5

8

D6

9

D7 GND

74LCX574

0.1UF

U4

C10

0.1UF

U5

+3.3V

C9

R54

1

20

VCC

19

Y0

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

CLK

+3.3V

20

VCC

19

Y0

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

CLK

10K

R18

1

10K

R40

1

10K

2

R45

1

10K

2

+10V

D0 D1 D2 D3 D4 D5

D[0:7]

D6

+10V

D7

CS2

D0 D1 D2 D3 D4 D5

D[0:7]

D6 D7

10

CS3

+10V

R62

D6

1

1K

3

2N3904

Q4

2

D38

1 2 3

Q5

2

Alert

D12 D10

3

2N3904

Q12

Unselect1

D36

1 2 3

Q13

R78

1

10K

+10V

R23

1.5K 1.5K

+10V

R41 1K

+10V

R44

1

10K

R43

1

10K

2

R47 R48

1

10K

2

+10V

D5

R85 1K

3

2N3904

Q3

2

Select2 Select4

D39

21

3

Q6

2

SUP

R42

D11

1K

3

2N3904

Q11

UnSelect2

D37

R46

21

1.5K1.5K

3

Q14

TX ALLRX ALL

R32

1

10K

+10V

R31

R37

1

10K

+10V

R56

1

10K

+10V

R50

1

10K

2

3

D4

3

2N3904

Q2

D1

3

Q7

2N3904

Q10

D7

Q15

Select3Select1

UnSelect3

+10V

R33 1K

R36 1K

R55 1K

R51 1K

R35

1

10K

+10V

R39R30

1

10K

+10V

R52

1

10K

2

+10V

1

10K

2

3

2

3

2

3

2N3904

Q9

3

2N39042N39042N39042N3904

Q16

D3

2N3904

Q1

D2

2N39042N39042N39042N3904

Q8

D9

D8

Select5Select6

Unselect4

Unselect5Unselect6

+10V

R34 1K

+10V

R38 1K

+10V

R53 1K

+10V

R49 1K

2

3

CHK TITLE

SBC

DATE

4

03/28/2000

APPDR

DEESBC

VEGA

C-1610 KEYPAD

4

SCHEMATIC

CAD GENERATED DRAWING

CBA

MODEL

NEXT ASS'Y

R

TELEX COMMUNICATIONS, INC.

LINCOLN, NEBRASKA

D

SIZE

D

DWG. NO.

SHT.

770628

2

OF

770629

This drawing, written description or specification is a proprietary product of Telex, Lincoln, NE and shall not be released, disclosed, nor duplicated without the written permission of TELEX.

NOTES:

REFERENCE PCB NUMBER :

1

2

3

A B C D

SHEET

REV.

SHEET

REVISION

STATUS

DESCRIPTIONREV.LOC.

A RELEASED

R13,R16,R51 WERE 10K. R13,R16=18.2K;

B

R51=39.2K

C R33 AND R34 TO 1.21K

ADDED FERRITES,POLYSWITCHES,THYRISTORS.

D

AND REARRANGED POTS.

770629

+10V

0.1UF C61

15

UA7805CKTE

IN

1

U1

R1

10K

U3

2

R2

FIDUCIAL

J1

10

OUT

GND

1

F1 F2 F3 F4

+12V1 +12V2 +12V3 +12V4

TXAUDIO

TXCON1 TXCON2

MCLK

LRCLK

SUPER1O

RXDAT

SUPER2O

LOCAL1 LOCAL2 SUPER1 SUPER2 KMUTE1 KMUTE2

CRDSENSE

TXMON1

TXMON2 KUMTE1O KMUTE2O

GND1 GND2 GDN3 EGND

1

2

3

220P(OPT)C1

220P(OPT)

6 5

VR6

R27

150

R29

33K

VR6

3900P(OPT)

3 1

7

TL084

5.6K(OPT) U7

R48

10K

100KR20

2

-

1

3

+

TL084

VR2.5

U7

C9

R23

100K

-

7

+

NE5532

U4

C51

220P(OPT)

100KR40

3 1

14

TL084

U7

220P(OPT)

C12 R28 33K

2

-

3

+

NE5532

TP3

C3

100KR21

2 6

-

5

+

VR2.5

R13

18.2K

1

2

-

+

13 12

U5

33K

18.2K

R25

VR6

R5

18.2K

VR2.5

3 1

1

TL084

U8

R16

+5V +5V

10K

R11

C31

0.1UF

VR6

R42

VR6

TP1

0.47UF

0.01UF

1

100KR41

3 1

2

6

-

7

5

+

TL084

C7 220P(OPT)

100K

3 1

2

9

-

8

10

+

TL084

U7

220P(OPT)

R31

100K

VR6

0.47UF C35

C24

0.01UF

R19

C8

150

3

2N3904

Q8

2

R14

U8

C11 R30

100K

6

-

7

5

+

NE5532

U5

R47

10K

R36

150

5.6K(OPT)

R22

100K

TP4

R17

3900P(OPT)

C55

3 1

+10V

3

2N3904

10K

R3

Q3

2

+10V

3

2N3904

Q4

10K

2

+10V

1 2 3 4 5 6

6

7 8 9

SCLK

10 11 12 13 14 15 16 17 18 19 20 21 22

22

23 24 25 26 27 28 29 30

U3

13

14

12

11

+10V

1UF

C56

+5V

0.1UF C50

R4

10K

R49R50

C57

R46

VR6

1UF

R45

10K

U2

13

14

12

11

U3

3

4

5

9

3

2N3904

1

Q5

2

+10V

10K

+10V

0.1UF

R43 R44

10K

3

2N3904

1

Q6

0.1UF

C6

15

4

R18

C5

18.2K

R15

18.2K

U2

1 2

VR2.5

10

U2

3 5

VR2.5

9

2

+5V

C60

10UF

+

SDATA SCLK LRCLK MCLK

C30

0.1UF 7

1

SDATA

2

SCLK

3

LRCK

AGND

4

MCLK

TP2

U9

VA

8

AINL

5

AINR

6

CS5330A

C4

R60

3

R59

10K

+5V

R52

10K

R51

39.2K

2N3904

1

Q7

2

TL084

+

12

-

14

U8

13

TL084

+

-

8

U8109

10K

VR6

VR2.5

TX Impedance-Line 1

600 Ohm: J4=A J5=A 1200 Ohm:J4=B J5=A 10K Ohm: J4=A J5=B

R26

150

C10

220P(OPT)

R24

33K

2

-

1

3

+

NE5532

U4

C52

0.1UF

TX Impedance-Line 2 600 Ohm: J6=A J7=A

1200 Ohm:J6=B J7=A 10K Ohm: J6=A J7=B

220P(OPT)C53

100KR39

0.1UF C41

VR2.5

2

-

3

+

+5V

10K

C54

R12

18.2K

0.1UF

RX Impedance-Line 1 600 Ohm: J9=A 10K Ohm: J9=B

VR2.5

10K:10K

3

4

2

5

16

T2

+5V

10K

R9

R8

D1

D2

10K

R10

D4

VR2.5

D3

10K:10K

4 5 6 1

T1

RX Impedance-Line 2 600 Ohm: J8=A 10K Ohm: J8=B

10K

3 2

4 5

R61

600:600

4 5 6 1

T3

600:600

3 2 16

T4

J9

123

604

1

J8

604

3 2

A

0.1UF

A

B

R38

3

2

B

321

R37

Q9

R32

604

R33

1.21K

R35

604

R34

1.21K

0.1UF

L6

820UH

C42

0.1UF

820UH

C46

820UH C40

0.1UF

1

A

2

B

3

1

A

2

B

3

1

A

2

B

3

1

A

2

B

3

L5

0.01UF

0.01UF C43

R62

10K

L7

0.01UF

L8

820UH C36

J4

J5

J6

J7

C47

0.001UF

1

C39

0.01UF C34

0.1UF C13

0.1UF

0.001UF 0.001UF C49

FB7

120P

C45

3

2N39042N3904

Q10

2

C37

0.001UF

C20

FB8

C44

FB6

C32

820UH

C25

820UH

C26

120P

FB5

R6

10K

L1

L2

L3

L4

C48

C38

120P

R7

10K

0.01UF

C33

1

E6 E2 E3E4

C14

C19

C23

C27

3

2

2N3904

Q1

3

2

FB1

0.001UF C15

FB2

0.001UF C17

FB3

0.001UF C21

FB4

0.001UF C29

J12

1

A

2

B

3

J13

1

A

2

B

3

2N3904

Q2

120P

J11

1

A

2

B

3

J10

1

A

2

B

3

8 3 6

NC

1

10

6

NC

1

10

120P

C28

D5

K1

D6

C16

C18

C22

K2

E1E5

E7

E8

J12,J13=A for 2W On Channel1 J12,J13=B for 4W On Channel1

F12

0

R53

F5

F7

+10V

0

+

R54

5

+10V

38

+

5

FB9

21

1

TP7

21

1

J2

1

KMUTE

1

2

SUPER

2

3

RX+

3

4

TX+

4

5

TX-

5

6

RX-

6

7

LOCAL

7

8

GND

8

21

1

21

TP13

J3

1

KMUTE

1

2

SUPER

2

3

RX+

3

4

TX+

4

5

TX-

5

6

RX-

6

7

LOCAL

7

8

GND

8

F6

F9

F11

FB10

F10

FB13

FB11

FB14

FB12

F8

FB16

21

FB15

J10,J11=A for 2W On Channel2 J10,J11=B for 4W On Channel2

TP6

1

TP14

1

TP8

1

TP9

Channel 1

1

TP15

Channel 2

TP16

1

TP17

1

TP5

TP10

1

TP18

1

REVISIONS

TP11

1

TP19

1

TP12

TP20

ECO NO. DRFT CHKR APP DATE

SBC 05/31/00 08-78-00 03-09-01 DEESBCSBC

SBC DEE SBC05-86-00 SBC

DEE DEE

5/15/00SBC

08/29/00SBC 03/05/01

1

2

3

CHK TITLE

SBC SBC DEE

DATE

4

03/28/2000

APPDR

VEGA

C-1610 LINE CARD

4

SCHEMATIC

CAD GENERATED DRAWING

CBA

MODEL

NEXT ASS'Y

R

TELEX COMMUNICATIONS, INC.

LINCOLN, NEBRASKA

D

SIZE

D

DWG. NO.

SHT.

770629

1

OF

1

REV

DESCRIPTION

ECO NO

DATE

APPD

PA

Pre-Release

DEE

PB

SEE BOLD ITEMS

SBC

PC

SW1 CHANGED PART NUMBER FROM 700172 TO 700174

SBC

PD

ADDED PARTS SEE

BOLD ITEMS

SBC

PH

ADD/CHANGED PARTS

SEE BOLD ITEMS

SBC

A

RELEASED

SBC

B

SBC

C

SBC

D

R73 TO 2.7K 2010. R71 TO 100K POT. R50 TO 1K

SBC

E

SBC

F

CHANGE FB1,FB2,FB3,FB4,FB5 AND FB6 TO 0 OHMS

SBC

G

PCB TO REV B - AND SOME COMPONENT CHANGES

SBC

This drawing, written description or specification Is

without the written permission of TELEX.

a proprietary product of TELEX, Lincoln, NE, and shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:5/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:5/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879362

G

TITLE:

PCB ASSY, C-1610 MAIN BOARD-BE

REVISIONS

ADD Q4, R120, R121. REMOVE C105, C106. R89 FROM 0 OHM TO 604 OHM. ADDED ORIENTATION TO D1, D16 AND D18.

ADD JUMPER CAP FOR J17. ADD LED FOR D17. REMOVE D9,D10,D11,D12,D13,D14,D15. CHANGE Q4 TO 2N3906. R30 AND R49 TO 0 OHMS. R56 TO 20K. R62 TO 30.1K

REMOVE C98,C100,C101,C102 FROM BILL

02/10/00

3/08/00 3/22/00 3/28/00 5/15/00 5/19/00

05-84-00 5/30/00

07-03-00 7/10/00

07-29-00 7/17/00 07-54-00 7/27/00 01-78-01 1/16/01 02-02-01 2/02/01

PAGE 1 OF 5

50

C21

C90,C104,C114,C119,C120,C121,

C122

6

CAP

10UF ST B

102877065T

C19,C20,C58,C88,C123,C124

9

C77,C79,C87

24

FB11,FB13,FB14,FB15,FB16,

FB17,FB18,FB19,FB20,FB21,FB22,FB23,FB24,

FB25,FB26,FB27,FB28,FB29,FB30,FB31

2

J20

2

J21272

J22

Q1,Q2,Q3

,Q5

54

25

R30,

R7

This drawing, written description or specification Is

a proprietary product of TELEX, Lincoln, NE, and

without the written permission of TELEX.

shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:5/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:5/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879362

G

TITLE:

ITEM

NEW

QTY

TYPE DESCRIPTION PART NO. DESIGNATOR

PCB ASSY, C-1610 MAIN BOARD-BE

1 1 BATT 3V COIN LEADED 724023 B1 2

CAP 0.1UF 0805 102881186T C1,C2,C3,C4,C5,C6,C7,C11,C12,C13,C14,C15,

C16,C17,C18,

,C23,C24,C25,C26,C27,C28,C30, C31,C32,C33,C34,C35,C39,C46,C50,C51,C64, C66,C67,C69,C70,C71,C73,C81,C82,C86,C89,

3 5 CAP 0.018UF 0805 102881126T C37,C38,C47,C48,C49 4 5 4 CAP 220PF 0805 102881103T C115,C116,C117,C118 6 10 CAP 56PF 0805 72341122T C83,C91,C92,C93,C94,C95,C96,C97,C99,C103 7

CAP 1UF 0805 102881875T C36,C40,C52,C61,C84,C85, 8 2 CAP 0.47UF 1210 102881445T C42,C45 9 2 CAP 0.01UF 0805 102881150T C43,C44

10 6 CAP 3.3UF ST B 102877021T C53,C54,C56,C57,C59,C113 11 12 1 CAP 6PF 0603 102879805T C111 13 3 DIODE SMD4004 16016481SMT D1,D16,D18 14 6 DIODE MMBD914 58711000T D2,D3,D4,D5,D7,D8 15 1 DIODE MMBZ5V6ALT1 508046000T D6 16 1 FUSE 3A SMT FUSE 710105T F1 17

FERRITE FERRITE 0805 723511T FB7,FB8,FB9,FB10,

18 1 CONN DB9 RT ANG LEADED 59926016 J2 19 4 CONN 2 PIN RT ANG LEADED 2862049 J3,J9,J13,J14 20 2 CONN 3 PIN RT ANG LEADED 2862050 J4,J16 21 1 CONN RJ-4 PIN CONN LEADED 640123 J5 22 1 CONN RJ-6 PIN CONN LEADED 59946000 J6 23

CONN RJ-8 PIN CONN LEADED 539059030 J7,

24 1 CONN 2.5MM LEADED 59697000 J8 25 3 CONN 30 PIN EDGE LEADED 640127 J10,J11,J12 26

HEADER 3 PIN SMT 640124T J17,

HEADER MOLEX 3PIN KEYED 2861870 J18,

28 1 HEADER 20 PIN SMT 640126T J19 29 1 RELAY SPDT SMT 730142T K1 30 4 TRAN 2N3904 54671200T 31

32

RES 10K 0805 102515300T R2,R3,R4,R5,R6,R10,R11,R12,R24,R27,R31,R35,R38,R41,R44,

R46,R52,R54,R55,R58,R59,R60,R63,R66,R68, R69,R75,R76,R77,R78,R79,R80,R81,R82,R83,R85,R87,R92, R93,R94,R95,R110,R111,R112,R113,R114,R115,R116,R117, R118,R119,R120,R8,R9

RES 47 0805 102515065T R13,R14,R15,R16,R17,R18,R19,R20,R21,R22,

R96,R97,R98,R99,R100,R101,R102,R103,R104,

R105,R106,R107,R108,R109 33 6 RES 267K 0805 102515441T R23,R28,R34,R39,R42,R48 34 6 RES 562 085 102515172T R25,R26,R36,R37,R40,R43 35 2 RES 150 0805 102515117T R32,R33 36 8 RES 0 OHMS 0805 102506000T R49,FB1,FB2,FB3,FB4,FB5,FB6, 37

Page 2 of 5

This drawing, written description or specification Is

a proprietary product of TELEX, Lincoln, NE, and

without the written permission of TELEX.

THRU HOLE

57148406

3180259

THRU HOLE

723097

shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:5/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:5/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879362

G

TITLE:

ITEM

NEW

QTY

TYPE DESCRIPTION PART NO. DESIGNATOR

PCB ASSY, C-1610 MAIN BOARD-BE

38 1 RES 47K 0805 102515365T R47 39 1 RES 300 0805 102515146T R64 40 1 RES 221K 0805 102515433T R51 41 2 RES 30.1K 0805 102515346T R45,R62 42 1 RES 100 0805 102515100T R88 43 1 POT 10K

R72 44 1 RES 680 2010 102405681T R74 45 1 RES 2.7K 2010 102405272T R73 46 1 RES 332 0805 102515150T R84 47 1 RES 604 OHM 0805 102515175T R89 48 1 RES 2.21K 0805 102515233T R91 49 1 SWITCH MICRO SWITCH 700174T SW1 50 1 TRANSFRM 600-600 THRU-HOLE

T1 51 1 IC ADDS-2189 TQFP100 760252T U1 52 1 SOCKET PLCC 32 PIN PLCC SOCKET 539030032T U2 (SOCKET FOR 760253) 53 1 IC AT27LV020 32PLCC 760253-1PS U2 54 55 56 1 IC UA7805CKTE SMT 760260T U8 57 58 1 IC DS1302 SO8 760266T U10 59 1 IC EPM7032AE PLCC44 760267S U11 60 1 SOCKET PLCC 44 PIN PLCC SOCKET 539030044 U11 (SOCKET FOR 760267S) 61 1 IC TL16C550C PLCC44 760262T U12 62 3 IC CS4335 SO8 760263T U13,U14,U15 63 1 IC LT1181A SOIC16 760261T U16 64 5 IC 74LCX541 SO20 760256T U17,U27,U30,U32,U20 65 5 IC 74LCX574 SO20 760257T U18,U19,U28,U34,U35 66 2 IC 74LCX138 SO16 760258T U21,U29 67 1 IC CD4053B SO16 53266123T U22 68 1 IC CS5330A SO8WB 760264T U23 69 3 IC TL084 SO14 4300047 U24,U25,U26 70 1 IC 74LCX245 SO20 760255T U31 71 1 IC AT24C16N SO8 511336000T U33 72 1 IC UA7810CKTE SMT 760275T U36 73 1 OSC 2.0480 MHZ SMT 780178T Y1 74 1 OSC 32.0000 MHZ SMT 780179T Y2 75 1 MC405-32768K MC405-32768K SMT 780181T Y3 76 A/R SOLDER PASTE BE738 77 1 PRINTED CIRCUIT BOARD 750524 78 2 FEMALE SCREWLOCK 58421000 FOR J2 79 2 SCREW 51845038 FOR J2 80 2 NUT 50033022 FOR J2 81 2 RES 1K 0805 102515200T R50,R121 82 1 RES 20K 0805 102515329T R56 83 1 LED RED 58680000 D17 84 1 JMPR JUMPER CAP 2861766 FOR J17 85 1 TRANSISTOR 2N3906 SOT-23 54716200 Q4 86 1 POT 100K

R71

Page 3 of 5

This drawing, written description or specification Is

a proprietary product of TELEX, Lincoln, NE, and

without the written permission of TELEX.

X1FERRITE

COMMON MODE

724039

FB12

0.056

HEADER

2 PIN

2861772

J15891ICTPS70158

760306

U6902

TERMINAL

TEST POINT

2017001400

TP8,TP41

1

RES

40.2K

102515358T

R65

shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:5/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:5/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879362

G

TITLE:

ITEM

87 88

91

NEW

QTY

PCB ASSY, C-1610 MAIN BOARD-BE

TYPE DESCRIPTION PART NO. DESIGNATOR

Page 4 of 5

REV

DESCRIPTION

ECO NO

DATE

APPD

PA

Pre-Release

DEE

PB

SEE BOLD TEXT

SBC

A

RELEASED

SBC

B

J1 FROM VERTICAL TO HORIZONTAL CONNECTOR

SBC

C

ITEM 6 FROM 760269T TO NEW PART 760317

SBC

D

J2 CHANGED TO THRU HOLE PART 640141

SBC

This drawing, written description or specification Is

without the written permission of TELEX.

a proprietary product of TELEX, Lincoln, NE, and shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:05/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:05/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879363

D

TITLE:

VEGA PCB ASSY, C-1610 KEYPAD BOARD - BE

REVISIONS

02/10/00 03/01/00 05/17/00

06/27/00 01-96-01 01/22/01 02-19-01 02/13/01

LN,BE PAGE 1 OF 4

THRU HOLE

640141

This drawing, written description or specification Is

a proprietary product of TELEX, Lincoln, NE, and

without the written permission of TELEX.

shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:05/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:05/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879363

D

TITLE:

VEGA PCB ASSY, C-1610 KEYPAD BOARD - BE

TYPE DESCRIPTION PART NO. DESIGNATOR

NEW

QTY

ITEM

1 15 CAP 0.1UF 0805 102881186T C1,C2,C3,C4,C5,C6,C7,C8,C9,C10,

C11,C12,C13,C14,C18 2 2 CAP 10UF ST D 102877054T C16,C17 3 6 LED GRN 5MM LEADED 760270-1 D1,D2,D3,D4,D5,D6 4 7 LED RED 5MM LEADED 760270-2 D7,D8,D9,D10,D11,D12,D26 5 6 LED YEL 5MM LEADED 760270-3 D13,D14,D15,D16,D17,D18 6 20 LED RED 1206 760317 D19,D20,D21,D22,D23,D24,D25,D27,

D28,D29,D30,D31,D32,D33,D34,D35,

D36,D37,D38,D39 7 7 DIODE MMBD914 58711000T D40,D41,D42,D43,D44,D45,D46 8 1 HEADER 20 PIN SMT 640131T J1 9 X 1 HEADER 14 PIN

J2

10 39 TRAN 2N3904 54671200T Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9,Q10,

Q11,Q12,Q13,Q14,Q15,Q16,Q17,Q18,

Q19,Q20,Q21,Q22,Q23,Q24,Q25,Q26,

Q27,Q28,Q29,Q30,Q31,Q32,Q33,Q34,

Q35,Q36,Q37,Q38,Q39

11 47 RES 10K 0805 102515300T R1,R2,R3,R4,R5,R6,R7,R8,R17,R18,

R20,R21,R24,R26,R29,R30,R32,R35,

R37,R39,R40,R43,R45,R47,R48,R50,

R52,R54,R56,R57,R60,R63,R65,R66,

R68,R70,R73,R74,R77,R78,R80,R82,

R83,R86,R88,R91,R92

12 19 RES 1K 0805 102515200T R28,R33,R34,R36,R38,R41,R42

R49,R51,R53,R55,R58,R59,R62,

R67,R69,R71,R72,R85

13 20 RES 1.5K 0805 102515217T R16,R19,R22,R23,R25,R27,R31,R44,

R46,R61,R64,R75,R76,R79,R81,R84

R87,R89,R90,R93

14 1 IC UA7805CKTE 760260T U1 15 8 IC 74LCX574 SO20 760257T U2,U3,U4,U5,U6,U7,U8,U9 16 2 IC 74LCX138 SO16 760258T U10,U13 17 1 IC LT1086CM-3.3V REG SMT 511155000S U11 18 2 IC 74LCX541 SO20 760256T U12,U14 19 A/R SOLDER PASTE BE738 20 1 PRINTED CIRCUIT BOARD 750525

LN,BE

Page 2 of 4

REV

DESCRIPTION

ECO NO

DATE

APPD

PA

Pre-Release

DEE

PB

SEE BOLD ITEMS

SBC

PC

SEE BOLD ITEMS

SBC

PD

SEE BOLD ITEMS

DEE

PE

REMOVE C1, C7. R5 AND R21 NOW 432K(WERE 100K)

SBC

ADD JUMPER CAPS; R55,R56,R57,R58 TO THRU HOLE PARTS

A

RELEASED

SBC

B

SBC

C

R33, R34 TO 1.21K

SBC

This drawing, written description or specification Is

without the written permission of TELEX.

a proprietary product of TELEX, Lincoln, NE, and shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:05/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:05/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879364

C

TITLE:

VEGA PCB ASSY, C-1610 LINE CARD - BE

REVISIONS

R13,R16,R51 WERE 10K. R13,R16 TO BE 18.2K. R51 TO BE 39.2K

02/10/00 02/28/00 04/07/00

05/08/00

05/18/00 05-86-00 05/31/00 08-78-00 08/29/00

BE,LN PAGE 1 OF 3

This drawing, written description or specification Is

without the written permission of TELEX.

a proprietary product of TELEX, Lincoln, NE, and shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:05/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:05/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879364

C

TITLE:

VEGA PCB ASSY, C-1610 LINE CARD - BE

TYPE DESCRIPTION PART NO. DESIGNATOR

NEW

QTY

ITEM

1 6 CAP 220PF 0805 102881103T C9,C10,C11,C12,C51,C53 2 2 CAP 3900PF 0805 102881118T C3,C55 3 10 CAP 0.01UF 0805 102881150T C4,C14,C19,C23,C24,C27,C34,C39,

C43,C47

4 17 CAP 0.1UF 0805 102881186T C5,C6,C13,C20,C25,C26,C30,C31,C36,

C40,C41,C42,C46,C50,C52,C54,C61 5 2 CAP 0.47UF 0805 102881445T C8,C35 6 8 CAP 0.001UF 0805 102881138T C15,C17,C21,C29,C32,C37,C45,C49 7 8 CAP 120PF 0805 102881100T C16,C18,C22,C28,C33,C38,C44,C48 8 2 CAP 1UF 0805 102881875T C56,C57 9 1 CAP 10UF ST D 102877054T C60

10 6 DIODE MMBD914 SOT23 58711000T D1,D2,D3,D4,D5,D6 11 8 FERRITE BEAD 0805 723511T FB1,FB2,FB3,FB4,FB5,FB6,FB7,FB8 13 2 CONN RJ-8 PIN CONN LEADED 2862013 J2,J3 14 10 CONN 3 PIN JUMPER 640124T J4,J5,J6,J7,J8,J9,J10,J11,J12,J13 15 2 RELAY SPDT 730142T K1,K2 16 8 IND 820UH 1812 723510T L1,L2,L3,L4,L5,L6,L7,L8 17 10 TRAN MMBT3904 SOT23 54671200T Q1,Q2,Q3,Q4,Q5,Q6, Q7,Q8,Q9,Q10 18 25 RES 10K 0805 102515300T R1,R2,R3,R4,R6,R7,R8,R9,R10,R11,R15,

R18,R43,R44,R45,R46,R47,R48,

R49,R50,R52,R59,R60,R61,R62

19 10 RES 100K 0805 102515400T R12,R20,R22,R23,R30,R31,R39,R40,R41,R42 20 2 RES 5.62K 0805 102515272T R14,R17 21 4 RES 150 0805 102515117T R19,R26,R27,R36 22 4 RES 33.2K 0805 102515350T R24,R25,R28,R29 23 4 RES 604 0805 102515175T R32,R35,R37,R38 24 2 RES 0 OHM 0805 102506000T R53,R54 25 4 POT 10K THRU HOLE 723097-5 R55,R56,R57,R58 26 2 TRANSFRM 10K-10K THRU-HOLE 3180246 T1,T2 27 2 TRANSFRM 600-600 THRU-HOLE 3180259 T3,T4 28 1 REG UA7805CKTE SMT 760260T U1 29 2 IC CD4053B SO16 53266123T U2,U3 30 2 IC NE5532 SO8 760268T U4,U5 31 2 IC TL084 SO14 4300047 U7,U8 32 1 IC CS5330A SO8WB 760264T U9 33 10 JUMPER JUMPER CAP 2861766 FOR J4-J13 34 A/R SOLDER PASTE BE738 35 1 PRINTED CIRCUIT BOARD 750526 36 2 RES 432K 102515461T R5, R21 37 2 RES 18.2K 0805 102515325T R13,R16 38 1 RES 39.2K 0805 102515357T R51 39 2 RES 1.21K 0805 102515208T R33,R34

BE,LN

Page 2 of 3

REV

DESCRIPTION

ECO NO

DATE

APPD

PA

Pre-Release

DEE

PB

SEE BOLD ITEMS

SBC

PC

SEE BOLD ITEMS

SBC

PD

SEE BOLD ITEMS

DEE

PE

REMOVE C1, C7. R5 AND R21 NOW 432K(WERE 100K)

SBC

ADD JUMPER CAPS; R55,R56,R57,R58 TO THRU HOLE PARTS

A

RELEASED

SBC

B

SBC

C

R33, R34 TO 1.21K

SBC

D

ADDED FERRITES,POLYSWITCHES,THYRISTORS,CHANGED

SBC

TO THRU HOLE HEADERS, POTS TO 100K

This drawing, written description or specification Is

without the written permission of TELEX.

a proprietary product of TELEX, Lincoln, NE, and shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:05/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:05/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879364

D

TITLE:

VEGA PCB ASSY, C-1610 LINE CARD - BE

REVISIONS

R13,R16,R51 WERE 10K. R13,R16 TO BE 18.2K. R51 TO BE 39.2K

02/10/00 02/28/00 04/07/00

05/08/00

05/18/00 05-86-00 05/31/00 08-78-00 08/29/00 03-09-01 03/06/01

BE,LN PAGE 1 OF 3

C40,C41,C42,C46,C50,C52,C54,

C61

16

,FB9,FB10,

FB11,FB12,FB13,FB14,FB15,FB16

0.83

CONN

3 PIN HEADER THRU/H

2861772

J4,J5,J6,J7,J8,J9,J10,J11,J12,J13

Q1,Q2,Q3,Q4,Q5,Q6,

Q7,Q8,Q9,Q10

23

R49,R50,R52,

R59,R60,R61,R62

4

6

100K

723097-3

R20,R21,R39,R40,R41,R42

6

R5,R12,R15,R18

This drawing, written description or specification Is

a proprietary product of TELEX, Lincoln, NE, and

without the written permission of TELEX.

shall not be released, disclosed, nor duplicated

APPROVALS: DR BY: DEE

DATE: 02/10/00

CHKD BY:SBC

DATE:05/19/00

Telex Communications INC.

Lincoln, Nebraska USA

APPD BY:DEE

DATE:05/19/00

PROD:___

DATE:___

PART NO:

REV LEVEL:

879364

D

TITLE:

VEGA PCB ASSY, C-1610 LINE CARD - BE

TYPE DESCRIPTION PART NO. DESIGNATOR

NEW

QTY

ITEM

1 6 CAP 220PF 0805 102881103T C9,C10,C11,C12,C51,C53 2 2 CAP 3900PF 0805 102881118T C3,C55 3 10 CAP 0.01UF 0805 102881150T C4,C14,C19,C23,C24,C27,C34,C39,

C43,C47

4 17 CAP 0.1UF 0805 102881186T C5,C6,C13,C20,C25,C26,C30,C31,C36,

5 2 CAP 0.47UF 0805 102881445T C8,C35 6 8 CAP 0.001UF 0805 102881138T C15,C17,C21,C29,C32,C37,C45,C49 7 8 CAP 120PF 0805 102881100T C16,C18,C22,C28,C33,C38,C44,C48 8 2 CAP 1UF 0805 102881875T C56,C57

9 1 CAP 10UF ST D 102877054T C60 10 6 DIODE MMBD914 SOT23 58711000T D1,D2,D3,D4,D5,D6 11

FERRITE BEAD 0805 723511T FB1,FB2,FB3,FB4,FB5,FB6,FB7,FB8

13 2 CONN RJ-8 PIN CONN LEADED 2862013 J2,J3 14 15 2 RELAY SPDT 730142T K1,K2 16 8 IND 820UH 1812 723510T L1,L2,L3,L4,L5,L6,L7,L8 17 10 TRAN MMBT3904 SOT23 54671200T 18

RES 10K 0805 102515300T R1,R2,R3,R4,R6,R7,R8,R9,R10,R11,

R43,R44,R45,R46,R47,R48,

19

RES 100K 0805 102515400T R22,R23,R30,R31 20 2 RES 5.62K 0805 102515272T R14,R17 21 4 RES 150 0805 102515117T R19,R26,R27,R36 22 4 RES 33.2K 0805 102515350T R24,R25,R28,R29 23 4 RES 604 0805 102515175T R32,R35,R37,R38 24 2 RES 0 OHM 0805 102506000T R53,R54 25

POT

THRU HOLE 26 2 TRANSFRM 10K-10K THRU-HOLE 3180246 T1,T2 27 2 TRANSFRM 600-600 THRU-HOLE 3180259 T3,T4 28 1 REG UA7805CKTE SMT 760260T U1 29 2 IC CD4053B SO16 53266123T U2,U3 30 2 IC NE5532 SO8 760268T U4,U5 31 2 IC TL084 SO14 4300047 U7,U8 32 1 IC CS5330A SO8WB 760264T U9 33 10 JUMPER JUMPER CAP 2861766 FOR J4-J13 34 A/R SOLDER PASTE BE738 35 1 PRINTED CIRCUIT BOARD 750526 36 37

RES 18.2K 0805 102515325T R13,R16, 38 1 RES 39.2K 0805 102515357T R51 39 2 RES 1.21K 0805 102515208T R33,R34

BE,LN

Page 2 of 3

Remote Control Console 49

12 Warranty, Service, Repair, and Comments

Important! Be sure the exact return address and a description of the problem or work to be done are enclosed with your equipment.

Warranty (Limited)

All Vega signaling products are guaranteed against malfunction due to defects in materials and workmanship for three years, beginning at the date of original purcha se. If such a malfunction occurs, the product w ill be repaired or replaced (at our option) without charge during the three-year period, if delivered to the Telex factory. Warranty does not extend to damage due to improper repairs, finish or appearance items, or malfunction due to abuse or operation under other than the specified conditions, nor does it extend to incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives the customer specific legal rights, and there may be other rights which vary from state to state.

Factory Service Center

TELEX Communications, Inc

Vega Signaling Products

8601 East Cornhusker Highway, Lincoln, Nebraska, 68507 Phone: (402) 465-7026 / (800) 752-7560 Fax: (402) 467-3279 E-mail: vega@telex.com, Web: www.vega-signaling.com

Claims

No liability will be accepted for damages directly or indirectly arising from the use of our materials or from any other causes. Our liability shall be expressly limited to replacement or repair of defective materials.

Suggestions or Comments

We’d appreciate your input. Please send us your suggestions or comments concerning this manual, by fax (402-467-

3279) or e-mail them to Visit our web site at

:

vega@telex.com

www.vega-signaling.com

.

50 Vega’s C1610

Remote Control Console 51

13 Specifications

Front panel controls

• Select and Unselect status for each line

• Ten Function tone button sele ction

• TX and RX ALL buttons

• Mute button

• Alert button

• AUX Relay Button

• MONITOR

• INTERCOM

• PTT button

• 16 digit DTMF keypad

• Select and Unselect volume controls

• Supervisory control

• Line Activity Monitor LED for each line

Two Simultaneous Microphones

• Handset/Headset and Desk microphone/gooseneck

Features

!"2 or 4 wire per line (field Programmable) !"Simplex/full duplex per line (field Programmable) !"Programmable squelch control per line !"Four Alert tone cadence (keypad Programmable) !"Crossmute per line (hardwire) !"TX notch filter !"Wildcard group groupings (function tones)

1-4 5-10

Wildcard Group

PTT

1-10 none 1-8 9/10 1-6 7/8 9/10

Special features

♦♦♦♦ Automatic initial level settings ♦♦♦♦ Self Tuning receive circuit ♦♦♦♦ Internal tuning via keypad ♦♦♦♦ Clock and VU meter ♦♦♦♦ Summed audio recorder output ♦♦♦♦ Incoming Select Call DTMF detection

Specifications

Sequential tone line input and output impedance:

Two-Wire: 600, 1200, 1800, and 2400 ohm, jumper selectable, transformer isolated,

Four-Wire TX Line: 600 ohm, 1200, 1800, and 2400 ohm, jumper selectable, transformer isolated,

Four-Wire RX Line: 600 or 10K ohm jumper selectable, transformer isolated,

Local Control keying,

Each Line Input Level: Each Line Output Level:

adjustable (high-level guard tone only).

Audio Compression (selected and Unselected receive and transmit):

Less than 3-dB change in output level for a 25 dB change in input above threshold.

Distortion: Hum and Noise: Speaker (one): Amplifier Power:

equivalent

Optional Handset Earpiece Level:

speaker volume controls.

Audio Frequency Response:

transmit tone notc h frequency.

Tone Frequencies:

Select All (simulcast): Time mute: Group select: Operating Temperature Range: Power Requirements:

maximum

Microphone Connection:

Gooseneck use 6-wire

Note: Specifications are subject to change with out notice.

3% maximum at f ull compression.

4 in, 8 ohm, heavy-duty.

3300 Hz. Accuracy +

temporarily mutes “Unselected” audio.

for easy selection of TX/RX line combinations.

-40 dBm to +10 dBm.

-20 dBm to +10 dBm into a 600-ohm line,

50 dB below operating levels.

5 W maximum at 3% THD into an 8 ohm load or

Adjustable level independent of

+ 1/-3 dB, 300 to 3000 Hz, except at the

All Function frequencies are selectable from 600 to

1 Hz.

Selection of all sequential tone lines.

0 to +50 degree C.

.117 Vac, 60Hz, 25W, or 12.0 Vdc at 2 A

Handset and Headset 4-wire; Desk and

8601 East Cornhusker Highway, Lincoln, Nebraska, 68507

Phone: (402) 467-5321 / (800) 752-7560 Fax: (402) 467-3279

APRIL 2001 Printed in U.S.A.

E-mail: vega @telex.com, Web: www.vega-signaling.com

Vega C-1610 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
