Page 1
MG 3000
Communication Terminal
for Colour and Monochrome Navigation
Universal Handsfree Car Kit
Make, Accept Call
Call Register Handling
Presentation of Calling Number
Receive, Send Messages
Direct Call from Address Book (only Colour Systems)
Direct Call from Navigation POI-List
Data Connector (RS-232)
VDO Dayton. The Car Brand.
Car Multimedia Systems.
Page 2
Features
• Duplex Handsfree Mode
• Radio Mute
• Integrated Loudspeaker
Relay
• Connection for External
GSM Antenna (not included
in the delivery package)
• Data Connector (RS-232)
• Battery Charging Function
• Selectable Operation
Languages: English, French,
German, Italian, Spanish,
Dutch, Danish and Swedish.
• Dimensions Control Unit:
128 x 142 x 32 mm
Software Features
•
Presentation of Calling
Number
•
Make, Accept Call
•
Use, Edit Telephone Book
•
Call Register Handling
•
Receive, Send, Write
Messages (SMS)
•
SMS Templates
(only colour systems)
•
Direct Call from POI
•
Direct Call from
Navigation Address Book
Emergency Screen
(only Colour Systems)
Optional
•
AC 1000 Datalink Cable for
connecting a Notebook or
the MC 5400
•
ML 5000 External Loudspeaker
The complete MG 3000
System consists of
•
Universal Control Unit
MGE 3000
•
Specific Applicationkit
MGA 3000 C or M
•
Specific Mobile Holder
MGC 3000 xx
Package Content MG 3000
Components
•
Universal
MGE 3000:
- Control Unit
- Power Cable
- Microphone
- Mounting Material
•
Application Kit Colour
MGA 3000 C:
- Navigation Link Cable for
PC 5000/5100
- User Manual
- Operating Software
• Application Kit Monochrome MGA 3000 M:
- Navigation Link Cable
for PC 4000
- Y-cable for Monitor and
Remote Control
- User Manual
- Operating Software
• Mobile Holder:
- MGC 3000/S1
Siemens C/M/S 35
or
- MGC 3000/S2
Siemens C/ME/S 45, S 45i
or
- MGC 3000/S3
Siemens SL 42, 42i, 45, 45i
or
- MGC 3000/N3
Nokia 7110, 6210, 6310,
6310i
- Mounting Material
02/03, MG 3000,
subject to modification
MG 3000
Communication Terminal
for Colour and Monochrome Navigation
Communication Terminal for Colour and
Monochrome Navigation
The combination of a duplex handsfree equipment with a colour or
monochrome display and illuminated infrared remote control of the navigation system permits the comfortable and safe operation of your mobile
phone inside your vehicle.
The MG 3000 allows a subsequent connection of the VDO Dayton Navigation computers PC 5000/5100/5500 *) and PC 4000.
In connection with
the navigation computer, the
MG 3000
perfectly combines all
telephone
and navigation operations.
Direct Call from POI-List
The phone numbers of thousands of special destinations are stored in
the navigation system, ranging from hotels and restaurants to cinemas
and multi-storey car parks. So while the navigation system guides you
to the nearest restaurant, you can also call there and book a table at
the push of a button.
*) connection for PC 5500 in preparation
Data Connector (RS-232)
The data connector allows the connection of a notebook or the MC
5400 Multimedia Center.
Loudspeaker Relay / Radio Mute
An especially stylish installation alternative can be achieved by utilizing
the vehicle's radio loudspeaker system. If desired, this can automatically
be activated. If the mute line is connected concurrently, the car radio is
muted as well.
Connection of an External GSM Antenna
The connection of an external antenna guarantees a reliable reception
and avoids electro-magnetic interferences in the car's interior.
Integrated Battery Charging
Your mobile phone is automatically charged at all times when placed in
the holding unit to ensure 100 % operational efficiency when exiting the
vehicle.

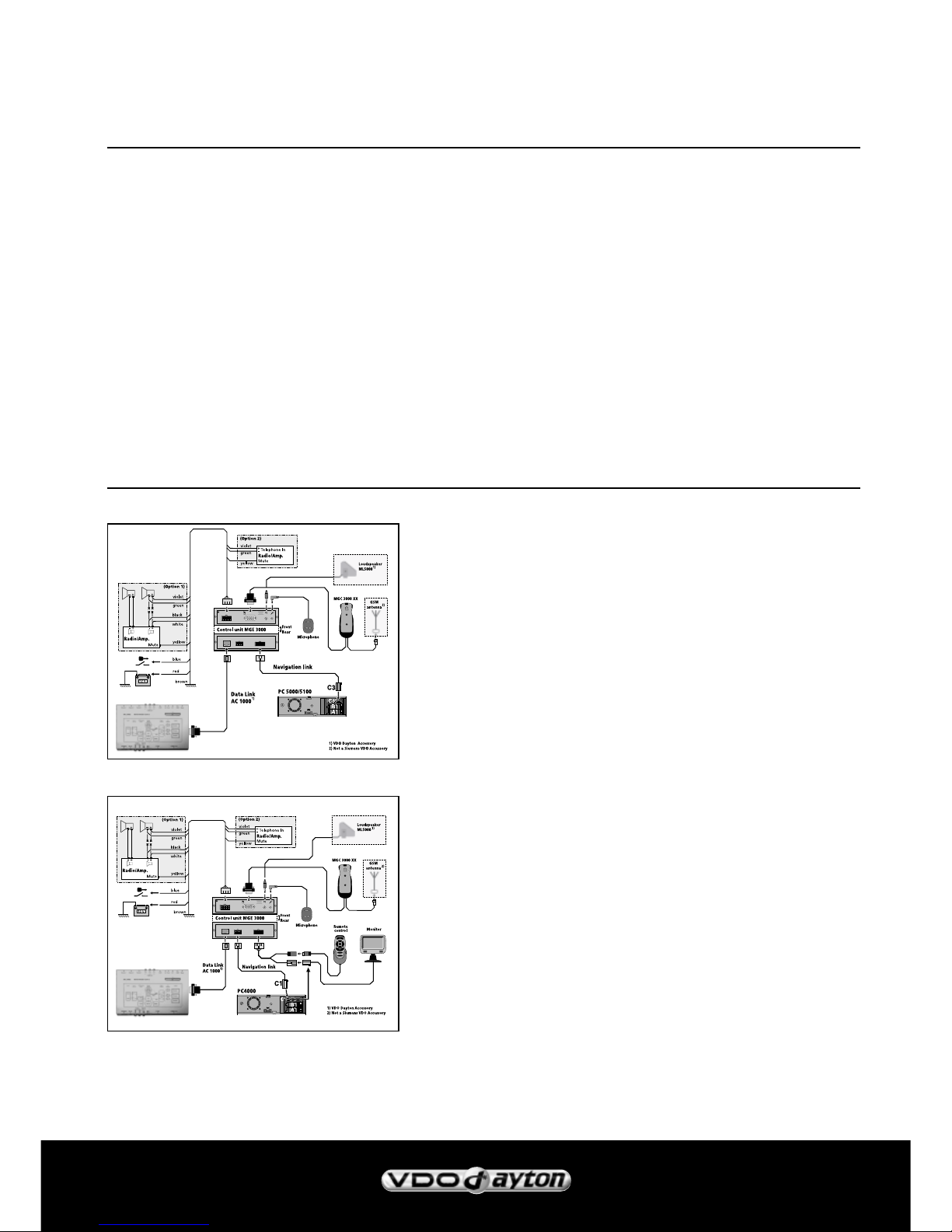

Connections Colour
Connections Monochrome
MC 5400 or Notebook
MC 5400
or Notebook
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
