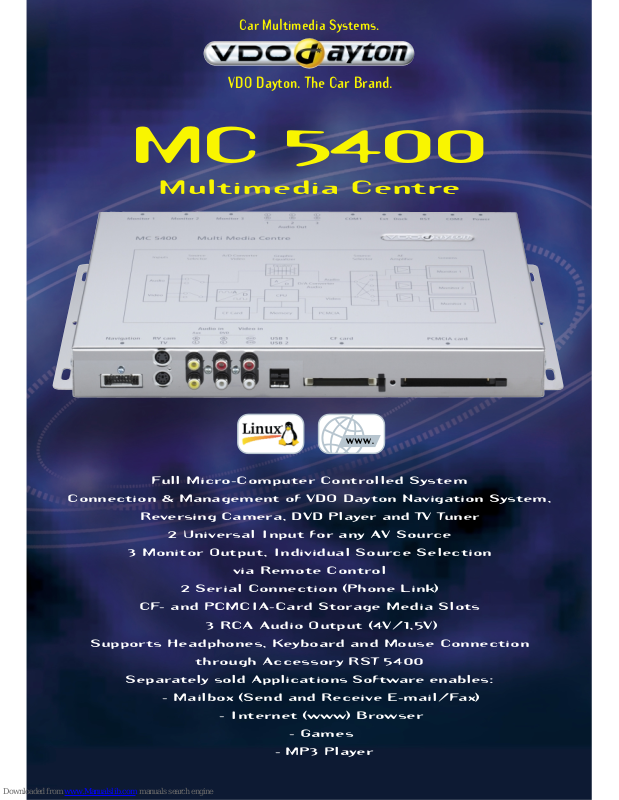

Page 1

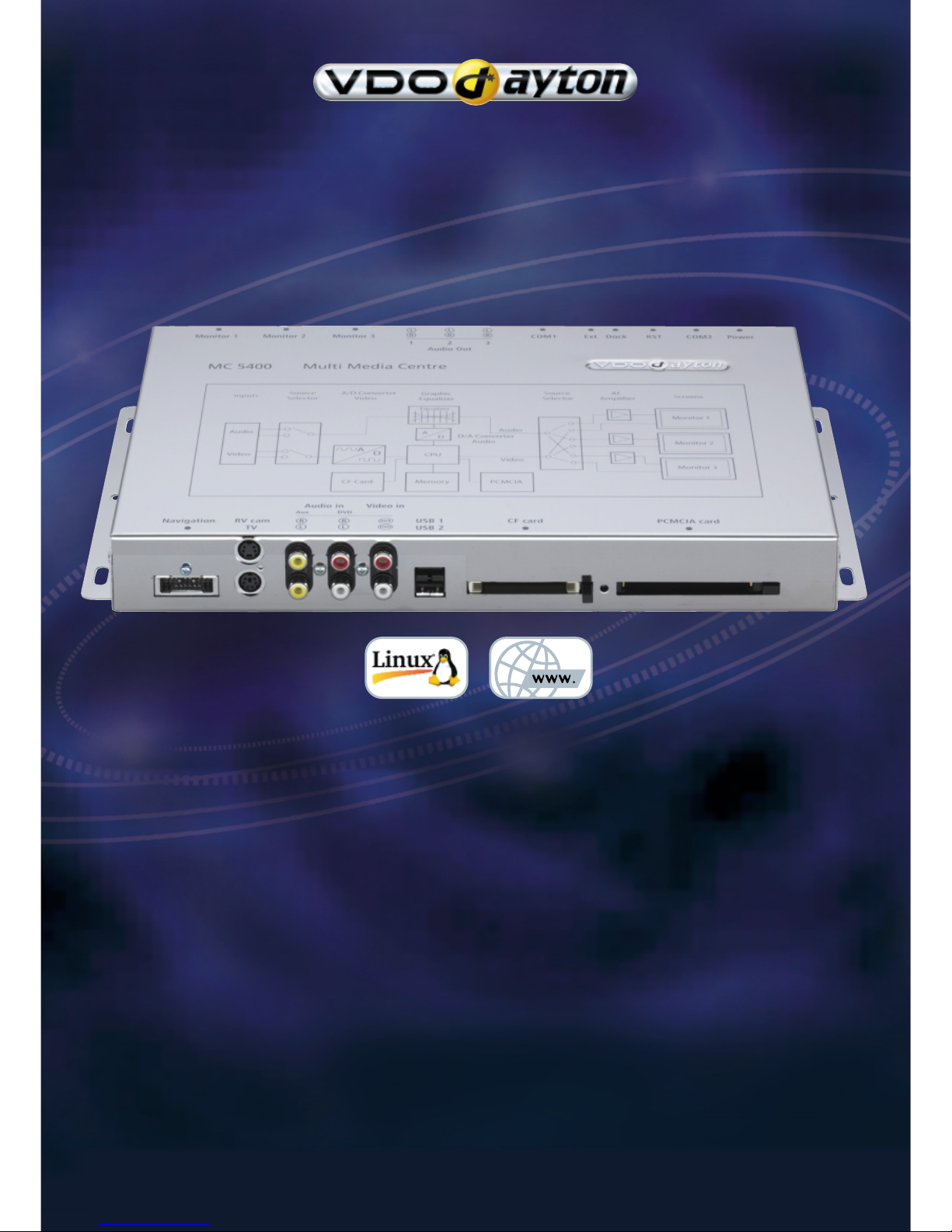

MC 5400
Multimedia Centre
Full Micro-Computer Controlled System
Connection & Management of VDO Dayton Navigation System,
Reversing Camera, DVD Player and TV Tuner
2 Universal Input for any AV Source
3 Monitor Output, Individual Source Selection
via Remote Control
2 Serial Connection (Phone Link)
CF- and PCMCIA-Card Storage Media Slots
3 RCA Audio Output (4V/1,5V)
Supports Headphones, Keyboard and Mouse Connection
through Accessory RST 5400
Separately sold Applications Software enables:
- Mailbox (Send and Receive E-mail/Fax)
- Internet (www) Browser
- Games
- MP3 Player
VDO Dayton. The Car Brand.
Car Multimedia Systems.
Page 2
02/03, MC 5400,
subject to modification
MC 5400
Multimedia Centre

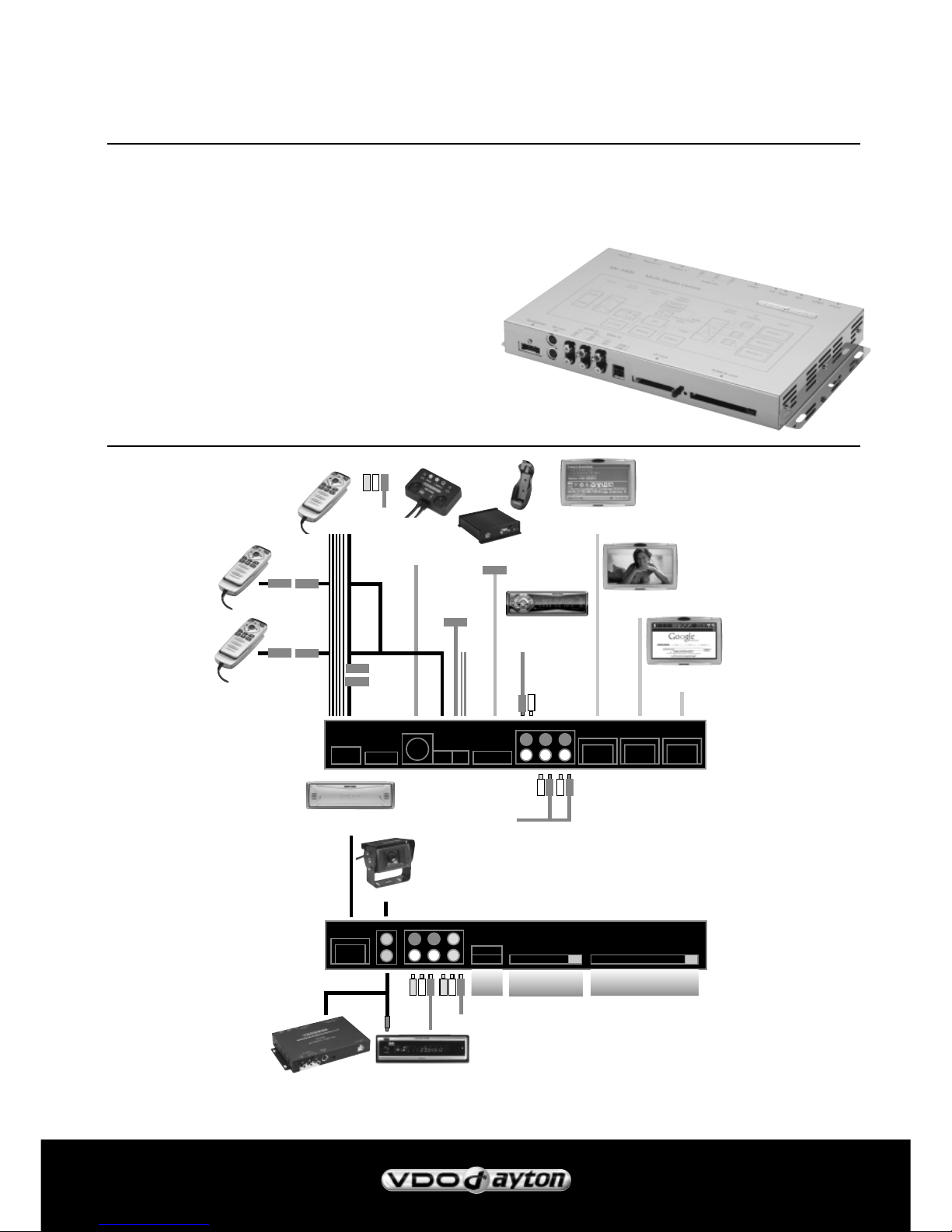

Configuration
Molex
Mini 10pin
Power
Molex
Mini 10pin
SERIAL2
Hosiden 13pin
Rear
Term.
Molex
Mini
6pin
Dock
Molex
Mini
4pin
Mic
D Sub 9pin
SERIAL1
3x Stereo RCA audio out
Mitsumi
3rd Monitor
Mitsumi
2nd Monitor
Mitsumi
1st Monitor
Power Cable
RC
RST 5400
Rear Seat Terminal
for headphones,
AV in PS/2 keyboard,
mouse
Mic
CA 5420
Mute Out
i. e. CD 4802
Car Stereo
with AUX in
MM 5500
MM 5000
MM 5500
MM 5000
1 AUX AV extention out
RC
CA 5410
Rear RC 2
RC
RC
CA 5410
Rear RC 1
RC
AC 1000
MC 5400 rear
3x Stereo RCA audio out
Mitsumi
Navi
RV
TV
USB 1
USB 2
CFC PC Card
DV 6100
TV 5100
RV 5100
4pin SVHS
3,5 Stereo
for control
1 AUX AV in
CA 5440
2 USB
ports for
future use
MCF 5401 MCF 5402
Compact Flash
(OS & Application)
PC Card
(PCMCIA) Card Slot
MC 5400 front
PC 5500
PC 5100
RC
MG 3000
or data link cable
MM 5500
MM 5000
RC 5400
MC 5400 Included Parts
• MC 5400 Main Unit
• Power Cable
• Installation Documents
Features MC 5400
• Full Micro-Computer Controlled Entertainment System
• Connection and Management of VDO Dayton Navigation System, Reversing
Camera, DVD Player and TV Tuner
• 2 Universal (RCA) AV Input (CVBS/Stereo Audio)
• 3 Monitor Output – 3 Universal (RCA) Stereo Audio Out (Front 4V, others 1,5V)
• Individual Source Selection via Remote Control (wireless or cradle use)
• 2 USB Connection for Future Use
• 2 Serial Connection (UART) for Phone Connection and Future Use
• CF Card Slot for Operating Software & Applications
• PCMCIA (PC Card) Slot for Memory Card (to be used for MP3 Data)
• PS/2 compatible Keyboard and Mouse can be connected via Accessory
RST 5400
• Ignition Key Switch Logic (avoids disconnects, game breaks etc.)
• Automotive Temperature Behaviour through Special Parts, Heat Sink Concept
and Fan
• Exclusive Polished High Grade Steel Housing, Dimensions: 310 x 250 x 38 mm
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
