Vantage Point SSB30 User Manual

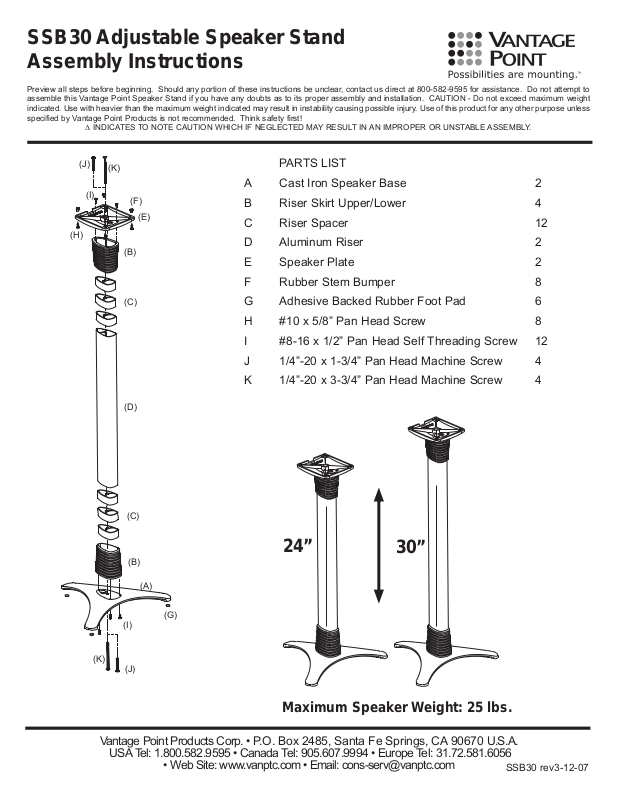

SSB30 Adjustable Speaker Stand
Assembly Instructions

Preview all steps before beginning. Should any portion of these instructions be unclear, contact us direct at 800-582-9595 for assistance. Do not attempt to
assemble this Vantage Point Speaker Stand if you have any doubts as to its proper assembly and installation. CAUTION - Do not exceed maximum weight
indicated. Use with heavier than the maximum weight indicated may result in instability causing possible injury. Use of this product for any other purpose unless
specified by Vantage Point Products is not recommended. Think safety first!

∆ INDICATES TO NOTE CAUTION WHICH IF NEGLECTED MAY RESULT IN AN IMPROPER OR UNSTABLE ASSEMBLY.

(H)

(J)

(I)

(K)

(B)

(C)

(D)

(F)

(E)

PARTS LIST

A Cast Iron Speaker Base 2

B Riser Skirt Upper/Lower 4

C Riser Spacer 12

D Aluminum Riser 2

E Speaker Plate 2

F Rubber Stem Bumper 8

G Adhesive Backed Rubber Foot Pad 6

H #10 x 5/8” Pan Head Screw 8

I #8-16 x 1/2” Pan Head Self Threading Screw 12

J 1/4”-20 x 1-3/4” Pan Head Machine Screw 4

K 1/4”-20 x 3-3/4” Pan Head Machine Screw 4

(C)

24”

(B)

(A)

(G)

(I)

(K)

(J)

30”

Maximum Speaker Weight: 25 lbs.

Vantage Point Products Corp. • P.O. Box 2485, Santa Fe Springs, CA 90670 U.S.A.

USA Tel: [phone] • Canada Tel: [phone] • Europe Tel: [phone]

• Web Site: www.vanptc.com • Email: [e-mail]

SSB30 rev3-12-07

1/4”-20 x 1-3/4”

Fillable

1/4”-20 x 1-3/4”

1/4”-20 x 3-3/4”

1/4”-20 x 3-3/4”

WARRANTY INFORMATION
All Vantage Point Products Corp. products are manufactured to ensure superior quality, performance and durability for a lifetime of use. Warranty covers the
product to be free from defects in materials and workmanship under normal and reasonable use. Vantage Point Products Corp. will repair or replace, at our
option, any product which proves to be defective upon our inspection. This warranty will not apply to products that have been lost or damaged by misuse,
abuse or accident, altered or repaired in any way or by any person or firm other than specified by us, used in violation of instructions or incorrect
assembly nor used in a manner other than specified by us. The warranty is nontransferable to a new owner and may require proof of purchase. All claims
must be directly handled with Vantage Point Products Corp.
