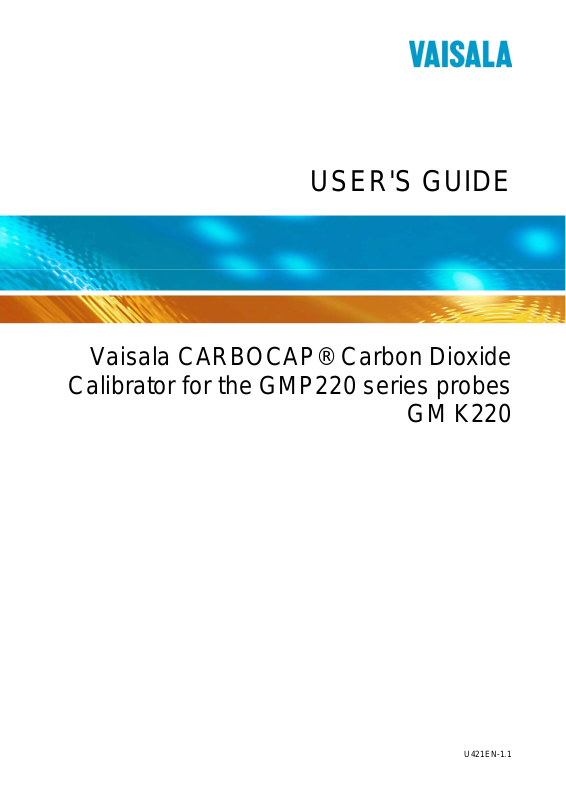

USER'S GUIDE
Vaisala CARBOCAP® Carbon Dioxide
Calibrator for the GMP220 series probes
GM K220
U421EN-1.1
Page 2
PUBLISHED BY Vaisala Oyj Phone (int.): +358 9 8949 1
P.O. Box 26 Fax: +358 9 8949 2227 FIN-00421 Helsinki Finland
Visit our Internet pages at http://www.vaisala.com/
© Vaisala 2006 No part of this manual may be reproduced in any form or by any means, electronic or
mechanical (including photocopying), nor may its contents be communicated to a third party without prior written permission of the copyright holder.
The contents are subject to change without prior notice.
Please observe that this manual does not create any legally binding obligations for Vaisala towards the customer or end user. All legally binding commitments and agreements are included exclusively in the applicable supply contract or Conditions of Sale.
Page 3
______________________________________________________________________________________
Table of Contents
CHAPTER 1
GENERAL INFORMATION...................................................................... 2
Safety.................................................................................. 2
Warranty............................................................................. 2
CHAPTER 2
PRODUCT DESCRIPTION...................................................................... 3
Introduction ........................................................................ 3
GMK220 Calibrator for the GMP220 Series Probes ............. 4
Additional equipment ......................................................... 5
CHAPTER 3
OPERATION........................................................................................... 6
Spot checking..................................................................... 6
Two-point calibration .......................................................... 9
CHAPTER 4
TECHNICAL DATA ................................................................................13
VAISALA _____________________________________________________________________________1
Page 4
User's Guide __________________________________________________________________________
CHAPTER 1
GENERAL INFORMATION
Safety
Throughout the manual, important safety considerations are highlighted as follows:
WARNING
CAUTION
NOTE
Warranty
Warning alerts you to a serious hazard. If you do not read and follow instructions very carefully at this point, there is a risk of injury or even death.
Caution warns you of a potential hazard. If you do not read and follow instructions carefully at this point, the product could be damaged or important data could be lost.
Note highlights important information on using the product.
Vaisala issues a guarantee for the material and workmanship of this product under normal operating conditions for one year from the date of delivery. Exceptional operating conditions, damage due to careless handling or misapplication will void the guarantee.
2 __________________________________________________________________________ U421EN-1.1
Page 5
Chapter 2______________________________________________________________Product description
CHAPTER 2
PRODUCT DESCRIPTION
Introduction
Although Vaisala's CO2 instruments are inherently stable, periodical checkings should be performed according to the recommendations given in the relevant user's guide. The GMK220 calibrator (Figure 1) is intended for spot checking and two-point calibration of the carbon dioxide probes GMP221 and GMP222, which currently are used in Vaisala's GMT220 and GMM220 series CO2 transmitters.
NOTE
GMK220 can be used for
spot checking with one reference gas
two-point calibration with two reference gases
Spot checking can be carried out when there is a need to check if the probe is operating correctly. If adjustement is needed, two-point calibration shall be carried out.
GMK220 needs only the probes
For checking and calibration, the GMK220 needs only the probes, not the whole transmitter. The GMK220 calibrator calibrates and stores the calibration parameters to the non-volatile memory in the probes. This enables true interchangeability of the probes and forms a good basis for the continuous measurements with good traceability.
The GMK220 can be used to calibrate the probes marked with a little star (*) in the probe label. A little star indicates that the probe has the program version compatible with the calibrator.
VAISALA _____________________________________________________________________________3
Page 6
User's Guide __________________________________________________________________________
1. Probe to be checked (not
GMK220 Calibrator for the GMP220 Series Probes
included)
2. Probe connector and the cable
3. Rotameter
4. Flow adjustment screw
5. Chamber (including 0-ring
18.3x2.4 NBR 70 ShA,)
6. Gas inlet
7. Gas outlet
8. Serial cable (connects calibrator and PC)
9. 24 V Supply voltage in (+)
10. Ground (-)
CAUTION
4 __________________________________________________________________________ U421EN-1.1
Figure 1 GMK220 Calibrator.
When handling the GMK220 calibrator, please be careful not to damage the board on the backside of the plate.
Page 7
Chapter 2______________________________________________________________Product description
Additional equipment
The following additional equipment is needed for checking and calibration operations:
Traceable reference gas/es as follows:
spot checking: one gas with CO2 concentration within the measuring range of the probe. Accuracy shall be 1% (or better).
two-point calibration: two gases with CO2 concentrations representing the low and high end of the probe's measuring range. See the requirements below.
Pressure regulator (giving about 1 bar pressure)
PC and a terminal software (e.g. Windows® Hyper Terminal)
Power supply, 24 VDC/1A
In addition, values on the ambient temperature (with accuracy of ± 0,5 ºC) and barometric pressure (with accuracy of ± 1 hPa) are needed as input data during the checking or calibration procedure.
Requirements for the calibration gases
Low end calibration gas
High end calibration gas
N2 gas with a purity of N50 (or better). Traceable to appropriate standards (for example NIST).
Mixture of CO2 and N2 gases CO2 concentration shall be 95...105 % of the measuring range of the probe. Accuracy shall be 1 % (or better). Traceable to appropriate standards (for example NIST).
.
VAISALA _____________________________________________________________________________5
Page 8
User's Guide __________________________________________________________________________
CHAPTER 3
OPERATION
Spot checking
Spot checking is carried out when there is a need to check if the probe (GMP221 or GMP222) is operating correctly. The reference gas concentration must be within the measuring range of the probe to be checked. Please read requirements concerning the reference gases from Chapter2 Additional equipment before starting the operation.
Perform the spot checking according to the following instructions:
1. Connect the cable (item 2, Figure 1) to the probe to be tested.
2. Insert the probe into the chamber (item 5, Figure 1) so that the perforated filter cover is completely inside the chamber
3. Connect the PC to the calibrator with the serial cable (item 8, Figure 1). Check the connection set-up, the serial line settings for data transfer shall be
9600 baud
parity: 8/None
1 stop bits
4. Connect the 24 VDC supply power to the connectors (items 9 and 10, Figure 1).
5. The following (or similar) text appears in the terminal window on the PC screen (program version number can be updated):
GMT220A - Version: STD 4.08 Copyright: Vaisala Oyj,1997-2000 > >
6 __________________________________________________________________________ U421EN-1.1
Page 9
Chapter 3_____________________________________________________________________ Operation
6. Let the calibrator settle for 10 minutes.
7. Connect the reference gas and adjust the flow rate to 0.6 l/min with a screwdriver (item 4, Figure 1). Flush the chamber with the gas for 5 minutes.
8. Input the ambient barometric pressure.
MF_PRESSURE XXXX<CR>
where xxxx= pressure in hPa. Example:
>MF_PRESSURE 1013<cr> MF_PRESSURE=1013 >
9. Input the ambient temperature.
MF_TEMP XXX<CR>
where xxx = temperature is given in tenths of °C (25 °C = 250). Example:
>MF_TEMP 250 <cr> MF_TEMP=250 >
10. List the carbon dioxide concentration.
MF_MODE 2<CR>
Example:
>MF_MODE 2<cr> MF_MODE=2
1620.1
1618.3
1619.8
1619.8 ...
The carbon dioxide concentration (in ppm) is measured every 0.5 seconds.
VAISALA _____________________________________________________________________________7
Page 10
User's Guide __________________________________________________________________________
11. Stop the output with the ESC-button (or by typing MF_MODE 0).
12. The difference between the average reading and the actual concentration of the reference gas shall be within the long term stability specifications of the probe. If there is need for calibration, please refer to the chapter Two- point calibration.
13. Disconnect the gas flow and remove the probe from the chamber.
NOTE
If the error of the output reading for some reason is more than 20%, please send the probe to Vaisala for service.
8 __________________________________________________________________________ U421EN-1.1
Page 11
Chapter 3_____________________________________________________________________ Operation
Two-point calibration
The reference gases used for the two-point calibration shall represent the low and high end of the probe's measuring range. Please, read recommendations concerning the reference gases in Chapter 2 Additional equipment before starting the operation.
Perform the two-point calibration according to the following instructions:
1. Connect the cable (item 2, Figure 1) to the probe to be tested.
2. Insert the probe into the chamber (item 5, Figure 1) so that the perforated filter cover is completely inside the chamber.
3. Connect the PC to the calibrator with the serial cable (item 8, Figure 1). Check the connection set-up, the serial line settings for data transfer shall be
9600 baud
parity: 8/None
1 stop bits
4. Connect the 24 VDC supply power to the connectors located on the right-hand side of the plate (items 9 and 10, Figure 1).
5. The following (or similar) text appears in the terminal window on the PC screen (number of the program version can be updated):
GMT220A - Version: STD 4.08 Copyright: Vaisala Oyj, Matti Kokki, 1997-2000
>
6. Let the calibrator settle for 10 minutes.
7. Connect the low-end gas and adjust the flow rate of 0.6 l/min with a screwdriver (item 4, Figure 1). Flush the chamber with the gas for 5 minutes.
8. Give the password by typing
PASSWORD 5120<CR>
VAISALA _____________________________________________________________________________9
Page 12
User's Guide __________________________________________________________________________
9. Give the input data for the calibration.
CALICALI L <sample quantity><CO2 concentration >
<P
ambient
><T
ambient
><cr>
NOTE
where CO2 concentration is given in ppm, P hPa and T
is temperature given in °C.
ambient
is pressure given in
ambient
The sample quantity determines the number of measurements of which averages are calculated. The sample quantity is recommended to be at least 200.
The character after the CALICALI command is case-sensitive i.e. it has to be given as capital letter (CALICALI L).
Example:
>CALICALI L 200 0 1013 23<cr> Calibration start - Length is 200 samples (it takes about 107 seconds) You can interrupt operation by CTRL-C
1297.5 550.4 382.7 445.5 32.5
1295.2 554.5 482.0 445.9 32.5 ...
1298.1 561.7 603.5 449.6 32.5
1296.9 557.3 523.4 454.2 32.5
Noise measurement ready
Res Avg = 470.491219 Res Std = 82.244873 FR Avg = 447.789145 FR Std = 2.355181 Rx Avg = 1296.441917 Rx Std = 1.870829 Tx Avg = 554.371452 Tx Std = 3.844639
Low gas ( 0 ppm) measurement done. Start high gas.
>
10. As the calibration at low end is completed, the software asks to change to the high gas.
11. Adjust the flow rate of the high end gas to 0.6 l/min with a screwdriver (item 4, Figure 1). Flush the chamber with the gas for 5 minutes.
10 _________________________________________________________________________ U421EN-1.1
Page 13
Chapter 3_____________________________________________________________________ Operation
12. Give the input data for the calibration.
CALICALI H <sample quantity><CO2 concentration >
<P
ambient
><T
ambient
><cr>
NOTE
where CO2 concentration is given in ppm, P T
is given in °C.
ambient
is given in hPa and
ambient
The sample quantity determines the number of measurements of which averages are calculated. The sample quantity is recommended to be at least 200.
The character after the CALICALI command is case-sensitive i.e. it has to be given as capital letter (CALICALI H).
Example:
>CALICALI H 200 30000 1013 25<cr> Calibration start - Length is 200 samples (it takes about 107 seconds) You can interrupt operation by CTRL-C
1139.3 1219.3 1.0 1.4 32.5
1137.6 1217.3 1.0 1.3 32.5 ...
1137.7 1219.7 1.0 1.1 32.5
1137.0 1216.8 1.0 1.1 32.5
Noise measurement ready
Res Avg = 0.999947 Res Std = 0.001777 FR Avg = 1.165917 FR Std = 0.101676 Rx Avg = 1138.306737 Rx Std = 1.732051 Tx Avg = 1218.396783 Tx Std = 1.837117 PC_METHOD=3 PC_R0=1138.306737 PC_T0=485.501432 PC_RS=1138.306737 PC_TS=1958.435059
High gas ( 30000.0 ppm) ready. Two point calibration completed.
>
13. As the calibration is completed, save the calibration parameters to
the non-volatile memory in the probe.
VAISALA ____________________________________________________________________________11
Page 14
User's Guide __________________________________________________________________________
PROBE_SAVE<CR>
>PROBE_SAVE<cr>
New calibration parameters are now saved in the probe.
14. Disconnect the gas flow and remove the probe from the chamber.
After two-point calibration it is recommended to ensure the correct operation of the probe by carrying out a spot checking procedure using both low and high end gases. The readings should be within the accuracy specifications of the transmitter.
12 _________________________________________________________________________ U421EN-1.1
Page 15
Chapter 4_________________________________________________________________ Technical data
CHAPTER 4
TECHNICAL DATA
Operating temperature range +15...30ºC
Dimensions 20 x 18 x 16 (height) cm
Materials Metal frame Probe chamber Transmitter body Weight about 2,5 kg Supply voltage 24 VDC
Anodised aluminium POM plastic ABS plastic
