VACUUBRAND MV 2 NT User Manual

Part I

page 1 of 106

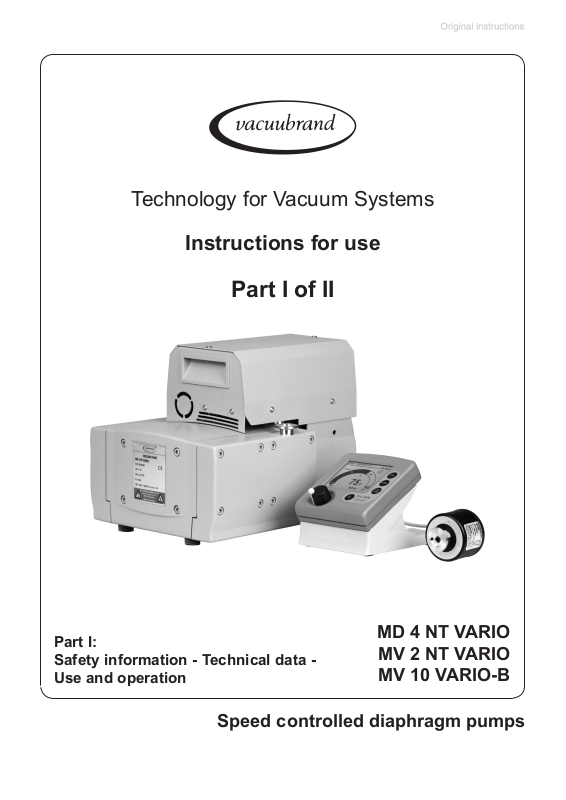

Technology for Vacuum Systems

Instructions for use

Part I of II

Part I:
Safety information - Technical data ­Use and operation

Speed controlled diaphragm pumps

MD 4 NT VARIO

MV 2 NT VARIO
MV 10 VARIO-B

page 2 of 106

Dear customer,

Your VACUUBRAND diaphragm pumps are designed to provide you with
many years of trouble-free service with optimal performance. Our many
years of practical experience allow us to provide a wealth of application
and safety information. Please read these instructions for use before the
initial operation of your pump.
VACUUBRAND diaphragm pumps combine our many years of experi­ence in design, construction and practical operation, with the latest de­velopments in material and manufacturing technology.

Our quality maxim is the ”zero defect” principle:
Every diaphragm pump, before leaving our factory, is tested intensively,
including an endurance run of 14 hours. Any faults, even those which oc-

cur rarely, are identied and can be eliminated immediately.

After completion of the endurance run, every pump is tested, and must

achieve specications before shipment.

We are committed to providing our customers only pumps that meet this
high quality standard.
While our pumps cannot eliminate all of your work, we design, manufac­ture and test them to ensure that they will be an effective and trouble-free
tool to assist you in that work.

Yours,
VACUUBRAND GMBH + CO KG

After sales service:
Contact your local dealer or call [phone].

Trademark index:

VACUU•LAN® (US-Reg.No 3,704,401), VACUU•BUS®, VACUU•CONTROLTM,

chemistry-HYBRIDTM, Peltronic®, TURBO•MODETM, VARIO® (US-Reg.No
3,833,788), VARIO-SPTM, VACUUBRAND® (US-Reg.No 3,733,388) and also
the shown company logos are trademarks of VACUUBRAND GMBH +
CO KG in Germany and/or other countries.

page 3 of 106

DE
Achtung: Die vorliegende Betriebsanleitung ist nicht in allen EU-Sprachen verfügbar.
Der Anwender darf die beschriebenen Geräte nur dann in Betrieb nehmen, wenn er
die vorliegende Anleitung versteht oder eine fachlich korrekte Übersetzung der voll­ständigen Anleitung vorliegen hat. Die Betriebsanleitung muss vor Inbetriebnahme
der Geräte vollständig gelesen und verstanden werden, und alle geforderten Maß­nahmen müssen eingehalten werden. ”Sicherheitshinweise für Vakuumgeräte”

EN
Attention: This manual is not available in all languages of the EU. The user must not
operate the device if he does not understand this manual. In this case a technically
correct translation of the complete manual has to be available. The manual must
be completely read and understood before operation of the device and all required
measures must be applied. ”Safety instructions for vacuum equipment”

FR
Attention: Le mode d’emploi présent n’est pas disponible dans toutes les langues
d’Union Européenne. L’utilisateur ne doit mettre le dispositif en marche que s’il
comprend le mode d’emploi présent ou si une traduction complète et correcte du
mode d’emploi est sous ses yeux. Le dispositif ne doit pas être mis en marche
avant que le mode d’emploi ait été lu et compris complètement et seulement si le
mode d’emploi est observé et tous les mesures demandées sont prises.
«Avis de sécurité pour des dispositifs à vide»

BG

Внимание: Тези инструкции не са преведени на всички езици от ЕО. Потреби­телят не бива да работи с уреда, ако не разбира инструкциите за ползване. В
този случай е необходимо да бъде предоставен пълен технически превод на
инструкциите за ползване. Преди работа с уреда е задължително потребите­лят да прочете изцяло инструкциите за работа.

”Указания за безопасност за вакуумни уреди”

CN

注意：该操作手册不提供所有的语言版本。操作者在没有理解手册之前，不能操作
该设备。在这种情况下，需要有一个整个操作手册技术上正确的翻译。在操作该设
备前，必须完全阅读并理解该操作手册，必须实施所有需要的测量。
真空设备的安全信息

CZ

Upozornění :Tento návod k použití není k dispozici ve všech jazycích Evropské
unie. Uživatel není oprávněn požít přístroj pokud nerozumí tomuto návodu. V tako­vém případě je nutno zajistit technicky korektní překlad manuálu do češtiny. Návod
musí být uživatelem prostudován a uživatel mu musí plně porozumět před tím než
začne přístroj používat. Uživatel musí dodržet všechna příslušná a požadovaná
opatření. ”Bezpečnostní upozornění pro vakuové přístroje”.

page 4 of 106

DA
Bemærk: Denne manual foreligger ikke på alle EU sprog. Brugeren må ikke be-

tjene apparatet hvis manualen ikke er forstået. I det tilfælde skal en teknisk korrekt

oversættelse af hele manual stilles til rådighed. Manual skal være gennemlæst og

forstået før apparatet betjenes og alle nødvendige forholdsregler skal tages.

»Sikkerhedsregler for vakuumudstyr«

EE

Tähelepanu! Käesolev kasutusjuhend ei ole kõigis EL keeltes saadaval. Kasutaja
ei tohi seadet käsitseda, kui ta ei saa kasutusjuhendist aru. Sel juhul peab saadaval
olema kogu kasutusjuhendi tehniliselt korrektne tõlge. Enne seadme kasutamist tu­leb kogu juhend läbi lugeda, see peab olema arusaadav ning kõik nõutud meetmed
peavad olema rakendatud. ”Ohutusnõuded vaakumseadmetele”

ES

Atención: Este manual no está disponible en todos los idiomas de UE. El usuario
no debe manejar el instrumento si no entiende este manual. En este caso se debe

disponer de una traducción técnicamente correcta del manual completo. El manual

debe ser leído y entendido completamente y deben aplicarse todas las medidas
de seguridad antes de manejar el instrumento. ”Notas sobre la seguridad para
equipos de vacío”

FI

Huomio: Tämä käyttöohje ei ole saatavilla kaikilla EU: n kielillä. Käyttäjä ei saa käyt­tää laitetta, jos hän ei ymmärrä tätä ohjekirjaa. Tässä tapauksessa on saatavilla ol­tava teknisesti oikein tehty ja täydellinen ohjekirjan käännös. Ennen laitteen käyttöä
on ohjekirja luettava ja ymmärrettävä kokonaan sekä suoritettava kaikki tarvittavat
valmistelut ja muut toimenpiteet. ”Vakuumilaitteen turvallisuustiedot”

GR

Προσοχή! : Οι οδηγίες αυτές δεν είναι διαθέσιµες σε όλες τις γλώσσες της Ευρω­παϊκής Ένωσης. Ο χρήστης δεν πρέπει να θέσει σε λειτουργία την συσκευή αν δεν
κατανοήσει πλήρως τις οδηγίες αυτές. Σε τέτοια περίπτωση ο χρήστης πρέπει να
προµηθευτεί ακριßή µετάφραση του ßιßλίου οδηγιών. Ο χρήστης πρέπει να διαßά­σει και να κατανοήσει πλήρως τις οδηγίες χρήσης και να λάßει όλα τα απαραίτητα
µέτρα πριν θέσει σε λειτουργία την συσκευή. ”Υποδείξεις ασφάλειας για αντλίες
κενού”

HR

Pažnja:ove upute ne postoje na svim jezicima Europske Unije. Korisnik nemora ra­diti sa aparatom ako ne razumije ove upute.U tom slucaju tehnicki ispravni prijevod
cijelih uputstava mora biti na raspolaganju. Uputstva moraju biti cijela procitana i
razumljiva prije rada sa aparatom i sve zahtijevane mjere moraju biti primjenjene.
”Sigurnosne napomene za vakuumske uređaje”

page 5 of 106

HU

Figyelem! Ez a kezelési utasítás nem áll rendelkezésre az EU összes nyelvén.
Ha a felhasználó nem érti jelen használati utasítás szövegét, nem üzemeltetheti a
készüléket. Ez esetben a teljes gépkönyv fordításáról gondoskodni kell. Üzembe
helyezés előtt a kezelőnek végig kell olvasnia, meg kell értenie azt, továbbá az
üzemeltetéshez szükséges összes mérést el kell végeznie. ”A vákuum�készü� ”A vákuum�készü�”A vákuum�készü­lékekkel kapcsolatos biztonsági tudnivalók”

IT
Attenzione: Questo manuale non è disponibile in tutte le lingue della Comunità Eu­ropea (CE). L‘utilizzatore non deve operare con lo strumento se non comprende
questo manuale. In questo caso deve essere resa disponibile una traduzione tec­nicamente corretta del manuale completo. Il manuale deve essere completamente
letto e compreso prima di operare con lo strumento e devono essere applicati tutti
gli accorgimenti richiesti. ”Istruzioni di sicurezza per apparecchi a vuoto”

JP

注意：この取扱説明書はすべての言語で利用可能ではありません。 もしこの取扱
説明書を理解できないならば、ユーザーは装置を操作してはなりません。 この場
合、技術的に正しい翻訳がなされた完全なマニュアルを用意しなければなりませ
ん。 装置を作動する前にマニュアルを完全に読み、そして理解されなくてはなり
ません。そして、すべての要求される対策を講じなければなりません。
真空装置を安全に取り扱うために

KR

주의 : 이 매뉴얼은 모든 언어로 번역되지는 않습니다. 만약 이 매뉴얼의 내용을 충분
히 인지하지 못했다면 기기를 작동하지 마십시오. 매뉴얼의 내용을 기술적으로 정확
하게 번역한 경우에 이용하십시오. 기기를 사용하기 전에 이 매뉴얼을 충분히 읽고
이해하고 모든 요구되는 사항들을 적용해야 합니다.
진공 장비에 대한 안전 정보

LT

Dėmesio: šis vadovas nėra pateikiamas visomis ES kalbomis. Naudotojui drau­džiama eksploatuoti įtaisą, jeigu jis nesupranta šio vadovo. Tokiu atveju reikia turėti
viso vadovo techniškai taisyklingą vertimą. Vadovą būtina visą perskaityti ir suprasti
pateikiamas instrukcijas prieš pradedant eksploatuoti įtaisą, bei imtis visų reikiamų
priemonių. ”Vakuuminės įrangos saugos informacija”

LV

Uzmanību: Lietotāja instrukcija nav pieejama visās ES valodās. Lietotājs nedrīkst
lietot iekārtu, ja viņš nesaprot lietotāja instrukcijā rakstīto. Šādā gadījumā, ir ne­pieciešams nodrošināt tehniski pareizu visas lietotāja instrukcijas tulkojumu. Pirms
sākt lietot iekārtu, un, lai izpildītu visas nepieciešamās prasības, iekārtas lietotāja
instrukcija ir pilnībā jāizlasa un jāsaprot. ”Vakuuma iekārtu drošības noteikumi”

page 6 of 106

NL

Attentie: Deze gebruiksaanwijzing is niet in alle talen van de EU verkrijgbaar. De

gebruiker moet niet met dit apparaat gaan werken als voor hem/haar de gebruiks-

aanwijzing niet voldoende duidelijk is. Bij gebruik van deze apparatuur is het nood­zakelijk een technisch correcte vertaling van de complete gebruiksaanwijzing te
hebben. Voor het in gebruik nemen van het apparaat moet de gebruiksaanwijzing
volledig gelezen en duidelijk zijn en dienen alle benodigde maatregelen te zijn ge-

nomen. ”Veiligheidsvoorschriften voor vacuümapparaten”

PL

Uwaga!! Ta instrukcja nie jest dostępna we wszystkich językach Unii Europejskiej.
Użytkownik nie może rozpocząć pracy z urządzeniem dopóki nie przeczytał instruk­cji i nie jest pewien wszystkich informacji w niej zawartych. Instrukcja musi byc w
całości przeczytana i zrozumiana przed podjęciem pracy z urządzeniem oraz nale­ży podjąć wszystkie niezbędne kroki związane z prawidłowym uzytkowaniem.
”Wskazówki bezpieczeństwa do urządzeń próżniowych”

PT

Atenção: Este manual não está disponível em todas as línguas da UE. O usuário

não deve utilizar o dispositivo, se não entender este manual. Neste caso, uma tra­dução tecnicamente correta do manual completo tem de estar disponível. O manu­al deve ser lido e entendido completamente antes da utilização do equipamento e

todas as medidas necessárias devem ser aplicadas. ”Informação de Segurança
para Equipamento que funciona a Vácuo”

RO
Atentie: Acest manual nu este disponibil in toate limbile EU. Utilizatorul nu trebuie

sa lucreze cu aparatul daca daca nu intelege manualul. Astfel, va 󰘰 disponibile o

traducere corecta si completa a manualului. Manualul trebuie citit si inteles in intre­gime inainte de a lucra cu aparatul si a luat toate masurile care se impun.

”Instrucţiuni de siguranţă pentru aparatele de vidare”

RU

Внимание: Эта инструкция по эксплуатации не имеется на всех языках. Потре­бителю не дозволенно эксплуатировать данный прибор, если он не понимает
эту инструкцию. В этом случае нужен технически правильный перевод полной
инструкции. Прежде чем использовать этот прибор,
необходимо полностью прочитать и понять эту инструкцию и принять все не­обходимые меры. ”Указания по технике безопасности при работе с ваку­умными устройствами”

page 7 of 106

SE
Varning: Denna instruktion är inte tillgänglig på alla språk inom EU. Användaren får
inte starta utrustningen om hon/han inte förstår denna instruktion. Om så är fallet
måste en tekniskt korrekt instruktion göras tillgänglig. Instruktionen måste läsas och
förstås helt före utrustningen tas i drift och nödvändiga åtgärder göres.
”Säkerhetsinformation för vakuumutrustning”

SI

Pozor: Ta navodila niso na voljo v vseh jezikih EU. Uporabnik ne sme upravljati
z napravo, če ne razume teh navodil. V primeru nerazumljivosti mora biti na voljo
tehnično pravilen prevod. Navodila se morajo prebrati in razumeti pred uporaba
naprave, opravljene pa moraja biti tudi vse potrebne meritve.

”Varnostni nasveti za vakuumske naprave”

SK

Upozornenie: Tento manuál nie je k dispozícii vo všetkých jazykoch EÚ. Užívateľ
nesmie obsluhovať zariadenie, pokiaľ nerozumie tomuto manuálu. V takomto prípa­de musí byť k dispozícii technicky správny preklad celého manuálu. Pred obsluhou
zariadenia je potrebné si prečítať celý manuál a porozumieť mu, a musia byť prijaté
všetky opatrenia. ”Bezpečnostné pokyny pre vákuové zariadenia”

TR

Dikkat : Bu kullanım kitabı, tüm dillerde mevcut değildir. Kullanıcı, bu kullanım kita­bını anlayamadıysa cihazı çalıştırmamalıdır. Bu durumda, komple kullanım kitabı­nın, teknik olarak düzgün çevirisinin bulunması gerekir. Cihazın çalıştırılmasından
önce kullanım kitabının komple okunması ve anlaşılması ve tüm gerekli ölçümlerin
uygulanması gerekir. ”Vakumlu cihazlar için güvenlik uyarıları”

page 8 of 106

Reset / Language selection

1 switch off

3 turn

2 press both

CVC 3000 V2.0

Deutsch

English
Français
Italiano
Español
Türkçe

한국어

中文

Portuguê

Ρyccкий

Polski
Nederl.

日本語

Suomi

4 press

CVC 3000 V2.0

Deutsch
English
Français
Italiano

Español

Türkçe

한국어

中文

Portuguê

Ρyccкий

Polski
Nederl.

日本語

Suomi

page 9 of 106

Contents

Part I................................................................. 1

Reset / Language selection ............................................. 8

Safety information! ........................................................... 11

Important information! ........................................................................11

General information ........................................................................... 13

Intended use...................................................................................... 13

Setting up and installing the equipment ............................................ 14

Ambient conditions ............................................................................ 17

Operating conditions ......................................................................... 17

Safety during operation ..................................................................... 19

Maintenance and repair..................................................................... 21

Important information: Equipment marking (ATEX) ..................... 23

`

Technical data ................................................................... 25

General technical data valid for all pumps ........................................ 25

Gas inlet temperatures ..................................................................... 25

Wetted parts ..................................................................................... 28

Abbreviations .................................................................................... 29

Pump parts ....................................................................................... 29

Use and operation ............................................................ 32

Installing a pump in a vacuum system .............................................. 32

During operation ................................................................................ 35

Shutdown & storage .......................................................................... 37

Vacuum controller CVC 3000 ............................................................ 38

Menu guide ........................................................................ 43

Pump down function ........................................................ 45

Vac Control function ........................................................ 47

Auto mode ......................................................................... 50

Program function .............................................................. 52

Application example ......................................................................... 54

VACUULAN function ........................................................ 55

Application examples....................................................... 57

Vacuum for ltration and suction ...................................................... 57

Vacuum for gel dryer,

drying chambers and vacuum concentrators ................................... 58

Vacuum for distillation and evaporation (e.g., rotary evaporator) 58

Fore-vacuum for high vacuum pumps .............................................. 60

page 10 of 106

Conguration .................................................................... 61

Readjustment of VSK 3000 .............................................. 63

Calibration in the factory ................................................. 65

Cleaning the pressure transducer .................................. 66

Part II.............................................................. 67

Interface parameters ........................................................ 70

Setting of the interface ..................................................................... 71

Read commands ”CVC 2000” .......................................................... 72

Write commands ”CVC 2000” .......................................................... 73

Read commands ”CVC 3000” .......................................................... 75

Write commands ”CVC 3000” .......................................................... 77

Accessories ...................................................................... 80

Troubleshooting ............................................................... 81

Replacing diaphragms and valves.................................. 85

Cleaning and inspecting the pump heads

(MD 4 NT VARIO / MV 2 NT VARIO) ................................................ 86

Replacing the diaphragm ................................................................. 88

Assembling the pump heads ............................................................ 90

Cleaning and inspecting the pump heads (MV 10 VARIO-B) .......... 92

Replacing the diaphragm ................................................................. 94

Assembling the pump heads ............................................................ 95

Replacing the valve at the distributor (outlet side) ........................... 97

Assembling the connecting hoses .................................................... 97

Replacing the device fuse ................................................................ 99

Notes on return to the factory ....................................... 100

Warranty .......................................................................... 103

Health and safety clearance form ................................. 104

EC Declaration of Conformity of the Machinery ............. 105

page 11 of 106

Safety information!

Important information!

+ Keep this manual complete and accessible to per-

sonnel at all times!

+ Read this manual carefully before installing or op-

erating the equipment. Observe the instructions
contained in this manual.

+ Do not modify the equipment without authoriza-

tion.

NOTICE

This manual is an integral part of the equipment de­scribed therein. It describes the safe and proper use of
the vacuum pump. The manual consists of two parts.
Make operating personnel aware of dangers arising
from the pump and the pumped substances.
VACUUBRAND disclaims any liability for inappropri­ate use of these pumps and for damage from failure
to follow instructions contained in this manual.

This manual is only to be used and distributed in its com­plete and original form. It is strictly the users’ responsibility
to check carefully the validity of this manual with respect
to his product.
Manual-no.: 999163 / 02/24/2014

The following signal word panels and safety
symbols are used throughout this manual:

This is the safety alert symbol. It is used to alert you to po­tential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury and death.

page 12 of 106

➨ DANGER indicates a hazardous situation which, if not

avoided, will result in death or serious injury.

+ WARNING indicates a hazardous situation which, if

not avoided, could result in death or serious injury.

• CAUTION indicates a hazardous situation which, if not

avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to

personal injury.

Caution! Hot surface!

Disconnect equipment from AC power.

Dispose off electronic equipment according to regula-

tions.

Formatting used in this manual:
Note: The signal word panels in all sections of this manual always refer

to all paragraphs of the same format (➨ / + / • / plain text) following each
signal word panel.

page 13 of 106

General information

NOTICE

Remove all packing material from the packing box. Re­move the product from its packing-box and retain all pack­aging until the equipment is inspected and tested. Re­move the protective caps from the inlet and outlet ports
and retain for future use. Inspect the equipment promptly
and carefully.
If the equipment is damaged, notify the supplier and the
carrier in writing within three days. Retain all packing ma­terial for inspection. State the item number of the product
together with the order number and the supplier’s invoice
number. Failure to check and give notice of damage will

void any and all warranty claims for those deciencies.

Replace the protective caps, if the equipment is not used
immediately. Store the equipment in dry and non-corrosive
conditions (see also “Technical data”, pg. 25).

+ Do not use any damaged equipment.

• Use the mounted handle or the recessed grips when

moving the pump.

Intended use

+ Do not use the pump or any system parts on humans

or animals.

+ Ensure that the individual components are only con-

nected, combined and operated according to their de­sign and as indicated in the instructions for use. Use
only original manufacturer’s spare parts and ac-
cessories. Otherwise the safety and performance of
the equipment, as well as the electromagnetic compat­ibility of the equipment might be reduced.

The CE mark or the cTÜVus mark may be voided if not

using original manufacturer’s spare parts.

page 14 of 106

+ Comply with all notes on correct vacuum and electri-

cal connections; see section “Use and operation”, pg.

32.

+ Do not use the pump to generate pressure.

+ The pumps are designed for ambient temperatures

during operation between +50°F and +104°F (+10°C
and +40°C). Periodically check maximum tempera­tures if installing the pump in a cabinet or a housing.
Make sure ventilation is adequate to maintain recom­mended operating temperature. Install an external au­tomatic ventilation system if necessary. If pumping hot
process gases, make sure that the maximum permitted

NOTICE

gas inlet temperature is not exceeded. The maximum
permitted gas inlet temperature depends on several
parameters like inlet pressure and ambient tempera­ture (see “Technical data”, pg. 25).

+ Particles and dust must not enter the pump.
+ Do not pump liquids.

• Ensure that the pump is chemically resistant to the

pumped substances prior to operation.

Use the equipment only as intended, that is, for genera­tion, measurement, and control of vacuum in vessels de­signed for that purpose. Any other use will automatically
invalidate all warranty and liability claims.
Remain aware of safety and risks.

Setting up and installing the equipment

➨ Equipment must be connected only to a suitable elec-

trical supply and a suitable ground point. As such,

the plug must be plugged into an outlet that is properly
grounded. Failure to connect the motor to ground may
result in deadly electrical shock.

page 15 of 106

The supply cable may be tted with a molded Europe-

an IEC plug or a plug suitable for your local electrical
supply. The cable contains wires color coded as fol­lows: green or green and yellow: ground; blue or white:
neutral; brown or black: hot.

+ Due to the high compression ratio, the pump may gen-

erate overpressure at the outlet. Check pressure com­patibility with system components (e.g., exhaust pipe­line or exhaust valve) at the outlet.

+ Do not permit any uncontrolled pressurizing. Make

sure that the exhaust pipeline cannot become blocked.
If there is an exhaust isolation valve, make sure that you
cannot operate the equipment with the valve closed to
avoid a risk of bursting!

+ Maximum permissible pressure at the pressure trans-

ducer: 21.8 psi (1.5 bar) absolute.

+ Keep the electrical power cord away from heated sur-

faces.

• Provide a rm, level platform for the equipment. Check

that the system which you are going to evacuate is

mechanically stable. Check that all ttings are secure.

Ensure a stable position of the pump without any me­chanical contact other than the pump feet.

• Comply with maximum permissible pressures at in-
let and outlet and with maximum permissible pres-
sure differences between inlet and outlet. See section
“Technical data”, pg. 25. Do not operate the pump
with overpressure at the inlet.

• Comply with maximum permissible pressures at the
pressure transducer. See section “Technical data”, pg.

25.

• Avoid overpressure of more than 17.5 psi absolute (1.2

bar absolute) in the event that inert gas is connected to
the pump, or to a venting valve.

page 16 of 106

• Note: Flexible elements will shrink when evacuated.

• Connect hoses gas tight at inlet and outlet of the pump.

• Connect hoses gas tight at the pressure transducer.

• Ensure that no foreign objects can be drawn into the

pump.

• Check the power source and the pump’s rating plate

to be sure that the power source and the equipment
match in voltage, phase, and frequency.

NOTICE

Make sure ventilation is adequate to maintain recommend­ed operating temperature. Keep a minimum distance of
2 in (5 cm) between the cooling fan and surrounding items
(e.g., housing, walls, etc.), or else install an external auto­matic ventilation system. Check fan regularly for dust/dirt.
Clean fan guard grill if necessary to avoid a reduction of
ventilation.

MV 10 VARIO-B: Do not place the pump on soft surfaces
(e.g., rubber foam) during operation. This may reduce or
block the fans’ air supply.

Position the pressure transducer and its vacuum line in
such a way that condensate cannot ow towards the pres­sure transducer.

Use only hoses at the inlet and outlet of the pump with
an inner diameter at least as large as the diameter of the
pump’s tubing (to avoid overpressure at the outlet, and
reduction of pumping speed at the inlet).

Allow the equipment to equilibrate to ambient temperature
if you bring it from cold environment into a room prior to
operation. Notice if there is water condensation on cold
surfaces.

Comply with all applicable and relevant safety require-

ments (regulations and guidelines). Implement the re­quired actions and adopt suitable safety measures.

page 17 of 106

Ambient conditions

➨ Do not reach for this product if it has fallen into liquid.

There is a risk of deadly electrical shock. Unplug the
system immediately.

+ Do not use this product in an area where it can fall or

be pulled into water or other liquids.

• Adopt suitable measures in case of differences from

recommended conditions, e.g., using the equipment
outdoors, installation in higher altitudes, conductive
pollution or external condensation on the pump.

• Do not operate this product near ames.

NOTICE

To the best of our knowledge the equipment is in com­pliance with the requirements of the applicable EC-direc­tives and harmonized standards (see ”Declaration of Con­formity”) with regard to design, type and model. Directive
EN 61010-1 gives in detail the conditions under which the
equipment can be operated safely (see also IP degree of
protection, “Technical data”, pg. 25).

Operating conditions

➨ These pumps are not approved for operation in po-

tentially explosive atmospheres. Do not operate the
pumps in potentially explosive atmospheres.

➨ Pumps without the ” ” mark on the rating plate are

not approved for the pumping of potentially explo­sive atmospheres. Do not pump potentially explo­sive atmospheres with those pumps

➨ Pumps bearing the ” ” mark on their rating plates

are approved for the pumping of potentially ex-
plosive atmospheres according to their classica-
tion II 3G IIC T3 X according to ATEX, but they are

not approved for operation in potentially explosive
atmospheres(see section “

Equipment marking (ATEX)”, pg. 23).

Important information:

`

page 18 of 106

➨ The pumps are not suitable to pump any of the sub-

stances listed below.

Do not pump:

- unstable substances

- substances which react explosively under impact
(mechanical stress) without air

- substances which react explosively when being ex­posed to elevated temperatures without air,

- substances subject to auto-ignition,

- substances which are inammable without air

- explosive substances.

➨ The pumps are not approved for operation below

ground. Do not operate the pump below ground.

• Do not pump substances which may form depos-
its inside the pump. The pumps are not suitable for

pumping substances which may form deposits inside
the pump. Deposits and condensate in the pump may
lead to increased temperatures even to the point of
exceeding the maximum permitted temperatures.

• Check the inlet and outlet of the pump, if there is a

danger of forming deposits inside the pump, e.g., in
the pump chambers (the pump chamber is the part
between diaphragm and head cover. See section “Re­placing diaphragms and valves”, pg. 85). Inspect the
pump chambers regularly and clean if necessary.

• Consider interactions and chemical reactions of
the pumped media. Ensure that the materials of the

pump’s wetted parts are compatible with the pumped
substances, see section “Technical data”, pg. 25.

When changing the substances pumped, we recom-

mend purging the pump with air or inert gas prior to
changing the pumped media. Purging the pump will
pump out residues and it will reduce the possibility of
reactions of the pumped substances with each other
and with the pump’s materials.

page 19 of 106

Safety during operation

➨ Adopt suitable measures to prevent the release of dan-

gerous, toxic, explosive, corrosive, noxious or pollut-

ing uids, vapors and gases. To prevent any emission

of such substances from the pump outlet, install an
appropriate collecting and disposal system and take
protective action for pump and environment.

➨ You must take suitable precautions to prevent any for-

mation of explosive mixtures in the pump chamber or
at the outlet of the pump. In case, e.g., of a diaphragm
failure, mechanically generated sparks, hot surfaces
or static electricity may ignite these mixtures. Use inert
gas for venting, if necessary.

➨ Drain appropriately or otherwise remove any poten-

tially explosive mixtures at the outlet of the pump, or
dilute them to non-explosive concentrations.

➨ Never operate this pump if it has a damaged cord or

plug.

+ If the pump is not working properly, has been dropped

or has fallen into water, contact your pump service pro­vider.

+ Prevent any part of the human body from coming into

contact with vacuum.

+ Make sure that the exhaust pipeline cannot become

blocked.

+ Attention: At pressures above approximately 795 Torr

(1060 mbar) the pressure reading becomes incorrect
due to saturation of the pressure transducer. The dis-

play ashes. Release pressure immediately! Risk of

bursting!

+ Comply with applicable regulations when disposing of

chemicals. Take into consideration that chemicals may

page 20 of 106

be contaminated. Take adequate precautions to pro­tect people from the effects of dangerous substances
(chemicals, thermal decomposition products of uoro­elastomers). Use appropriate protective clothing and
safety goggles.

+ Interruption of the pump (e.g., due to power failure),

failure of connected components or of parts of the sup­ply, or change in parameters must not be allowed to
lead to dangerous conditions. In case of a diaphragm
failure or in case of a leak in the manifold, pumped
substances might be released into the environment or
into the pump housing or motor.

Comply with all notes regarding proper use of the

pumps, as well as operation and maintenance guid­ance.

+ The residual leak rate of the equipment might render

possible an exchange of gas, albeit extremely slight,
between the environment and the vacuum system.

Adopt suitable measures to prevent contamination of

the pumped substances or the environment.

• Ensure that no parts of your clothing, hair or ngers

can be caught or drawn in at the inlet of the pump.

Never insert ngers or drop any other object into the

inlet or outlet.

• You must take suitable precautions to prevent any

dangerous situation from arising if the controller starts
a NT VARIO or VARIO-B pump, switches a coolant
valve or opens a venting valve.

• Attention: If the controller is set to Autostart, the pro-
cess will start immediately after a power failure with­out pressing any further key. It is your responsibility to
ensure that automatic start-up of the system will not
lead to any dangerous condition. Provide appropriate
safety measures. Check prior to starting the process
whether the option ”Autostart” (menu: conguration) is
enabled.

page 21 of 106

• Pay attention to the safety symbol ”hot surfaces” on
the equipment. Hot parts may cause burns if touched.
Adopt suitable measures to prevent any danger aris­ing from hot surfaces or electric sparks. Ensure that
hot surfaces of the pump do not cause burns. Provide
a suitable contact guard if necessary.

NOTICE

Prevent the backpressure of gases and the backow of

condensates at the outlet.

Provide appropriate protective measures to allow for the
possibility of failure and malfunction. The protective mea­sures must also allow for the requirements of the respec­tive application.

In case of overload, the motor is shut down by a self-hold

thermal cutout in the winding.
Note: Only manual reset is possible. Press the START/

STOP key at the controller to conrm the error message.

Switch off the pump and disconnect from the power source.
Identify and eliminate the cause of failure. Wait approx.

ve minutes before restarting the pump.

NOTICE

Maintenance and repair

In order to comply with laws (occupational, health and
safety regulations, safety at work law and regulations for
environmental protection) vacuum pumps, components
and measuring instruments can only be returned when
certain procedures (see section “Notes on return to the
factory”, pg. 100) are followed.

Take advantage of our service seminars, which put special
focus on the maintenance and repair of vacuum pumps.
For details and for the online ”Instructions for repair” man­ual see www.vacuubrand.com.

page 22 of 106

In normal use, the lifetime of the diaphragms and valves is
typically 15,000 operating hours. Bearings have a typical
durability of 40000 h.

➨ Ensure that the pump cannot be operated acciden-

tally. Never operate the pump if covers or other
parts of the pump are disassembled.

➨ Switch off the pump. Disconnect the electrical

power cord and wait two minutes before starting

maintenance to allow the capacitors to discharge.

➨ Note: The pump may be contaminated with process

chemicals, which have been pumped during operation.
Ensure that the pump is completely decontaminated

NOTICE

before maintenance commences.

+ Take adequate precautions to protect people from the

effects of dangerous substances if contamination has
occurred. Use appropriate protective clothing, safety
goggles and protective gloves.

+ Wear parts have to be replaced regularly.
+ Never operate a defective or damaged pump.
+ Vent the pump before starting maintenance. Isolate the

pump and other components from the vacuum system.

Allow sufcient cooling of the pump. Drain condensate,

if applicable.

Ensure that maintenance is done only by suitably trained
and supervised technicians. Ensure that the maintenance
technician is familiar with the safety procedures which re­late to the products processed by the pumping system.
Only dismantle the pump as far as necessary.

page 23 of 106

Important information: Equipment marking (ATEX)

`

VACUUBRAND equipment bearing mark (see rating plate)

II 3G IIC T3 X

`

Internal Atm. only

Tech. File Ref.: VAC-EX01

and

VACUUBRAND equipment bearing mark (see rating plate)

X see manual

`

For equipment labelled with „
tion according to Directive 94/9/EC (ATEX) is valid:
Internal Atm. only, Tech. File Ref.: VAC-EX01.

The classication II 3G IIC T3 X according to ATEX is only valid for the in­ner part (wetted part, pumped gas or vapor) of the equipment. The equip­ment is not suitable for use in external, potentially explosive atmospheres
(environment).

The overall category of the equipment depends on the connected com-

ponents. If the connected components do not comply with the classi­cation of the VACUUBRAND equipment, the specied category of the

VACUUBRAND equipment is no longer valid.

X see manual“ the following classica-

`

II 3G IIC T3 X,

`

Vacuum pumps and vacuum gauges in category 3 are intended for con­nection to equipment in which during normal operation explosive atmo­spheres caused by gases, vapors or mists normally don’t occur; or, if they
do occur, are likely to do so only infrequently and for a short period only.
Equipment in this category ensures the requisite level of protection dur­ing normal operation.
The use of gas ballast or the operation of venting valves is only permit­ted if thereby explosive atmospheres normally don’t occur in the interior
of the equipment or, if they do occur, are likely to do so only infrequently
and for a short period.

page 24 of 106

The pumps are marked with ”X” (according to EN 13463-1), i.e., restric­tions of the operation conditions:

• The equipment is designated for a low degree of mechanical stress

and has to be installed in a way so that it cannot be damaged from
outside.

Pumping units have to be installed so that they are protected against

shocks from the outside and against glass splinters in the event of
breakage (implosion).

• The equipment is designated for an ambient and gas inlet temperature

during operation of +10 to +40°C. Never exceed these ambient and
gas inlet temperatures. If pumping / measuring gases which are not
potentially explosive, extended gas inlet temperatures are permissible.
See instructions for use, section “Gas inlet temperatures” or “Techni­cal data”.

After any intervention at the equipment (e.g., repair / maintenance) the ul­timate vacuum of the pump has to be checked. Only if the pump achieves
its specied ultimate vacuum is the pump’s leak rate low enough to en­sure that no explosive atmospheres will occur in the interior of the equip­ment.
After any intervention at the vacuum sensor, the leak rate of the equip­ment has to be checked.

Attention: This manual is not available in all
languages of the EU. The user must not op­erate the device if he does not understand
this manual. In this case a technically cor­rect translation of the complete manual has
to be available. The manual must be com­pletely read and understood before opera-

tion of the device. All specied measures

must be applied, or else must be replaced
by equivalent measures at the user’s own
risk.

page 25 of 106

Technical data

General technical data valid for all pumps

Maximum permissible inlet pressure
(absolute)

Maximum permissible outlet pressure
(absolute)

Maximum pressure difference between
inlet and outlet

Permissible ambient temperature
storage / operation

Permissible relative atmospheric mois­ture during operation (no condensation)

Maximum permissible installation altitude
above mean sea level

Rated motor power

No-load speed 50/60 Hz rpm 30 - 2400

Device fuse

psi

(bar)

psi

(bar)

psi

(bar)

°F

(°C)

% 30 to 85

ft

(m)

hp

(kW)

14 to 140 / 50 to 104

(-10 to +60 / +10 to +40)

(2000)

(0.575)

100-120V: slow blow fuse 8A
200-230V: slow blow fuse 4A

16

(1.1)

16

(1.1)

16

(1.1)

6500

0.77

Motor protection thermal cutout, manual reset
Degree of protection IEC 529 IP 20

Gas inlet temperatures

Operating condition Inlet pressure

Continuous operation

Continuous operation

Short-time
(< 5 minutes)

> 75 Torr (100 mbar)
(high gas load)

< 75 Torr (100 mbar)
(low gas load)

< 75 Torr (100 mbar)
(low gas load)

Permitted range of gas
temperatures at inlet

➨ 50 °F to 104 °F
(+10°C to +40°C)

➨ 32 °F to 140 °F*
(0°C to +60°C*)

➨ 14 °F to 176 °F*
(-10°C to +80°C*)

* if pumping potentially explosive atmospheres: 50 °F to 104 °F (+10°C to +40°C)

page 26 of 106

MD 4 NT

MV 2 NT

Type

VARIO

Maximum pumping speed
50/60 Hz (ISO 21360)

Ultimate vacuum
(absolute) *

Maximum permissible range of sup­ply voltage ( ±10% )

Attention: Observe specications of

rating plate!
Maximum rated current at:

100-120 V~ 50/60 Hz
200-230 V~ 50/60 Hz

Inlet small ange DN 16

Outlet silencer
A-weighted emission

sound pressure level**
(uncertainty KpA : 3 dB(A))

cfm

(m3/h)

Torr

(mbar)

A
A

dB(A) 45 45 52

3.4

(5.7)

0.75

(1.0)

100-120 V~ 50/60 Hz -

200-230 V~ 50/60 Hz

VARIO

1.9

(3.3)

0.2

(0.3)

6.3

2.5

MV 10

VARIO-B

6.1

(10.4)

0.2

(0.3)

-

3.5

small ange

DN 25

Dimensions L x W x H

approx.

Weight approx. lbs. (kg) 41.0 (18.6) 41.7 (18.9) 55.1 (25.0)

* Ultimate vacuum at setting ”Pump down” at speed ”HI”
** Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 at 1500rpm and ulti-

mate vacuum with standard silencer at outlet.

in

(mm)

12.8 x 9.3 x 9.6

(325 x 235 x 245)

19.1 x 8.7 x

11.9

(486 x 222 x

303)

Controller CVC 3000

external gauge head VSK 3000,

Pressure transducer

Display LCD graphic display, illuminated
Pressure units / scale (selectable) Torr, mbar or hPa

ceramic diaphragm (alumina),
capacitive, absolute pressure,

gas type independent

Measuring range (absolute) 795 - 0.1 Torr (1060 - 0.1 mbar)
Maximum control range (absolute)* 795 - 0.1 Torr (1060 - 0.1 mbar)
Resolution (display) 0.1 Torr (mbar)

* The actual vacuum control range in your application might be reduced due to ultimate vacuum

of the pump, volume of gas present, etc.

page 27 of 106

Controller CVC 3000

Maximum permissible pressure at
pressure transducer (absolute)

1125 Torr (1.5 bar)

Measurement uncertainty (absolute)
after careful adjustment and at constant

<± 0.75 Torr (1 mbar)

temperature
Temperature coefcient <± 0.05 Torr/K (0.07 mbar/K)

Maximum permissible temperature of
gaseous media**

continuous operation: 104°F (40°C),

for short periods (less than 5 minutes)

up to 176°F (80°C)
Ambient temperature range (operation) 50°F to 104°F (10°C to +40°C)
Ambient temperature range (storage) 14°F to 158°F (-10°C to +70°C)
Permissible relative atmospheric mois-

ture during operation (no condensation)
Maximum permitted current of connect-

ed valves (connected components)
Degree of protection IEC 529

(front side)

30% to 85%

4A

IP 42

Degree of protection IEC 529
(gauge head VSK 3000)

Measurement connection of pressure
transducer

small ange DN 16 or

hose nozzle for tubing

I.D. 1/4” / 3/8” (6 / 10 mm)

IP 54

Cable length of pressure transducer approx. 5’6” (2m)
Supply voltage VSK 3000

6-30 V= / 5 mA

(via VACUU • BUS)

Communication VSK 3000 VACUU • BUS
Interface RS-232 C

Dimensions CVC 3000 L x W x H

(with foot)
Dimensions VSK 3000

(138 mm x 124 mm x 115 mm)

5.4” x 4.9” x 4.5”

2.4” (60 mm)

housing diameter
length with measurement connection

Weight CVC 3000

VSK 3000 (with small ange)

2.4” (60 mm) with small ange

0.97 lb (440 g)

0.41 lb (185 g)

** if pumping potentially explosive atmospheres: 50 °F to 104 °F (+10°C to +40°C)

We reserve the right for technical modication without prior notice!

page 28 of 106

Wetted parts

Components Wetted materials

Pump

Housing cover

Head cover Aluminum alloy (AlSi12)
Diaphragm clamping disc Aluminum alloy (AlSi12)
Diaphragm FPM
Valves FPM
O-rings FPM
Connection tube Aluminum alloy (AlMgSi0.5)
Fittings (MV 10 VARIO-B) Aluminum anodized
Tubing (MV 10 VARIO-B) PE
Seal ring (MV 10 VARIO-B) FPM
Small ange Stainless steel

Silencer

Aluminum alloy
(AlMgSi0.5 or AlSi12)

PA / PE / aluminum or
aluminum alloy / silicone

Overpressure safety relief device
(outlet MV 10 VARIO-B)

VSK 3000

Sensor Aluminum oxide ceramic
Seal at sensor Chemically resistant uoroelastomer
Sensor housing PPS glass ber reinforced
Small ange Stainless steel
Hose nozzle PP

Stainless steel / silicone rubber

We reserve the right for technical modication without prior notice!

Abbreviations

FPM: Fluoroelastomer
PA: Polyamide
PE: Polyethylene
PP: Polypropylene
PPS: Polyphenylene sulde

Pump parts

page 29 of 106

Position Component

1 Diaphragm pump NT VARIO
2 Controller CVC 3000
3 Pressure transducer VSK 3000
4 Mains connection
5 ON/OFF switch
6 Pump rating plate
7 Fan
8 Inlet

9 Outlet (silencer)
10 Recessed grip / handle
11 VACUU•BUS cable to controller
12 Fuse holder
13 Overpressure safety relief device

page 30 of 106

MD 4 NT VARIO / MV 2 NT VARIO

(shown: MV 2 NT VARIO)

5

10

7

1

6

8

4

10

7

11

2

3

12

9

MV 10 VARIO-B

10

11

12

10

5

4

13

9

3

8

2
