OWNER’S MANUAL

Made from 70% Bagasse

(Environmentally Friendly Sugar

Cane Pulp By-product)

Outdoor Charcoal Barbecue Grill

Model No. CBC1000T

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.

2. Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.

3. Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury or death.

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Exploded View & Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

First Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Flare-Ups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Save these instructions for future reference. If you are assembling this unit for
someone else, give this manual to him or her to read and save for future reference.

Manufactured in China for:
Blue Rhino Global Sourcing, Inc
Winston-Salem, NC USA

1.800.762.1142, www.bluerhino.com

© 2010 Blue Rhino Global Sourcing, Inc. All Rights Reserved
Blue Rhino® is a Registered Trademark of Ferrellgas, L.P. All Rights Reserved. CBC1000T-OM-103 ES

Outdoor Charcoal Barbecue Grill Model No. CBC1000T

DANGER: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion

causing damage to property.

WARNING:
This grill is for outdoor use only, and shall not be used in a building,

garage or any other enclosed area.

This grill is safety certified for use in the United States and Canada only.

Do not modify for use in any other location. Modification will result in a
safety hazard and will void the warranty.

Do NOT operate, light or use this appliance within 8 feet of walls,

structures or buildings.

Keep all combustible items and surfaces at least 36 inches (91 cm) away

from the grill at all times. DO NOT use this grill under any overhead or

near any unprotected combustible constructions.
This grill is NOT for commercial use.
Do not use grill for indoor cooking or heating. Toxic carbon monoxide

fumes can accumulate and cause asphyxiation.
Do not use gasoline, kerosene or alcohol for lighting.
Do not use in an explosive atmosphere. Keep grill area clear and free

from combustible materials, gasoline and other flammable vapors and

liquids.
Do not store or use gasoline or other flammable liquids or vapors within

25 feet (7.62 m) of this appliance.
Never use charcoal that has been pre-treated with lighter fluid. Use only

a high grade plain charcoal, charcoal/wood mixture, lump charcoal or

cooking wood.
Do not alter grill in any manner, this will void the warranty.
Do not use the grill unless it is completely assembled and all parts are

securely fastened and tightened.
This grill should be thoroughly cleaned and inspected on a regular basis.
Use only Blue Rhino Global Sourcing, Inc. factory authorized parts. The

use of any part that is not factory authorized can be dangerous and will

void your warranty.
Do not use this appliance without reading “Operating Instructions” in

this manual.
Do not touch metal parts of grill until it has completely cooled (about

45 min.) to avoid burns, unless you are wearing protective gear (pot

holders, gloves, BBQ mittens, etc.).
Never touch grates (charcoal or cooking), ashes or coals to see if they

are hot.
Do not use on wooden decks, wooden furniture or other combustible

surfaces.
Do not use in or on boats or recreational vehicles.
Position grill so wind can not carry ashes to combustible surfaces.
Do not use in high winds.
Never lean over the grill when lighting.
Do not leave a lit grill unattended. Keep children and pets away from grill

at all times.

Do not attempt to move grill when in use. Allow the grill to cool (about

45 min.) before moving or storing.

When cooking, fire extinguishing materials shall be readily accessible.

In the event of an oil/grease fire, do not attempt to extinguish with water.
Use type BC dry chemical fire extinguisher or smother with dirt, sand or
baking soda.

Always open grill lid carefully and slowly as heat and steam trapped

within grill can severely burn you.

Never add lighting fluid to hot or even warm coals as flashback may

occur causing serious injury or damage to property.

Always place your grill on a hard, non combustible level surface. An

asphalt or blacktop surface may not be acceptable for this purpose.

Do not remove the ashes until they are completely and fully

extinguished.
Live hot briquettes and coals can create a fire hazard.
Always empty the ash catcher and grill after each use.
Do not place fuel (charcoal briquets, wood or lump charcoal) directly into

bottom of grill. Place fuel only on the charcoal pan/grid.
Do not allow charcoal to rest on the walls of grill. Doing so will greatly

reduce the life of the metal and finish of your grill.
Check to make sure the air vents are free of debris and ash before using

the grill.
Make sure ash catcher is securely and completely in place before using

the grill.
Extinguished coals and ashes should be placed a safe distance from all

structures and combustible materials.
With a garden hose, completely wet the surface beneath and around grill

to extinguish any ashes, coals or embers which may have fallen during

the cooking or cleaning process.
Always wear protective gloves when adding fuel (charcoal briquets,

wood or lump charcoal) to retain desired heat level.
Keep all electrical cords away from a hot grill.
Always use a meat thermometer to ensure food is cooked to a safe

temperature.
Never cover entire cooking area with aluminum foil.
Use protective gloves when assembling this product.
Do not force parts together as this can result in personal injury or

damage to the product.
Death, serious injury or damage to property may occur if the above is not

followed exactly.

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

For great recipes and tips, visit recipes.uniflame.com.

page no.

3

Parts List

1

Handle

2

Lid Air Vent

3

Lid

4

Warming Rack

5

Cooking Grid

6

Bottom Bowl

7

Charcoal Grid

8

Bottom Air Vent

9

Lock Support

10

Lock

11

Rear Top Leg

12

Front Top Leg

13

Rear Bottom Legs

14

Front Bottom Legs

55-08-219

55-08-222

55-10-390

55-08-231

55-08-215

55-10-412

55-08-042

55-08-040

55-10-413

55-10-414

55-08-226

55-08-217

55-08-225

55-08-216

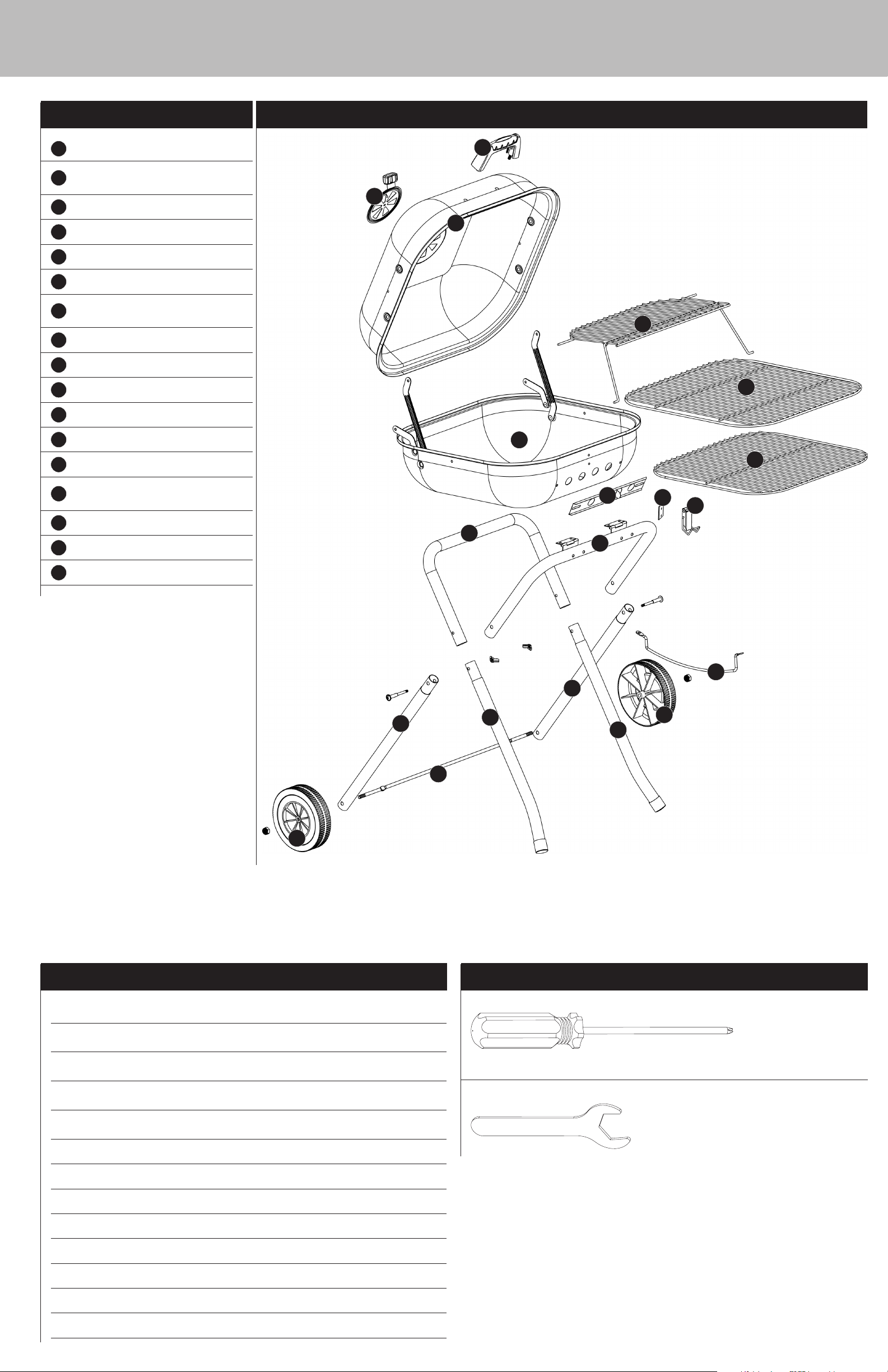

Exploded View

1

2

3

4

5

6

7

15

16

17

Grill Slide

Wheel (2)

Axle

55-08-218

55-08-233

55-08-039

13

17

11

14

13

12

8

9

10

15

16

14

Hardware

A
B
C
D
E
F

Screw

Screw

Screw

Screw

Screw

Nut

16

M4x12 Zinc Plated Phillips Truss Head

M5x12 Zinc Plated Phillips Truss Head

M5x12 Zinc Plated Phillips Truss Head

M5x12 Zinc Plated Phillips Truss Head

M5 x 62 mm Zinc Plated Phillips Truss Head

M8 Zinc Plated

2 pcs

6 pcs

3 pcs

4 pcs

2 pcs

2 pcs

Tools Required for Assembly (Included)

#2 Phillips Head Screwdriver 1 pc

M8 Wrench 2 pcs

G
H

I
J
K
L

M

Wing Nut

Wing Nut

Wing Nut

Washer

Washer

Washer

Lock Washer

M4 Steel

M5 Steel

M6 Steel

ø4 Aluminum

ø5 Aluminum

ø6 Heat Resistant Washer

ø4 Zinc Plated

2 pcs

15 pcs

2 pcs

2 pcs

6 pcs

2 pcs

2 pcs

Assembly Instructions

Outdoor Charcoal Barbecue Grill Model No. CBC1000T

1

DO NOT RETURN PRODUCT TO STORE.

For assistance call 1.800.762.1142 toll free. Please have
your owner’s manual and model number available for
reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble
your product on a hard level surface that does not have cracks
or openings.

• Clear an area large enough to layout all components and
hardware.

• When applicable, tighten all hardware connections by hand
first. Once the step is completed go back and fully tighten all
hardware.

• Follow all steps in order to properly assemble your product.

Typical assembly: approximately 45 minutes.

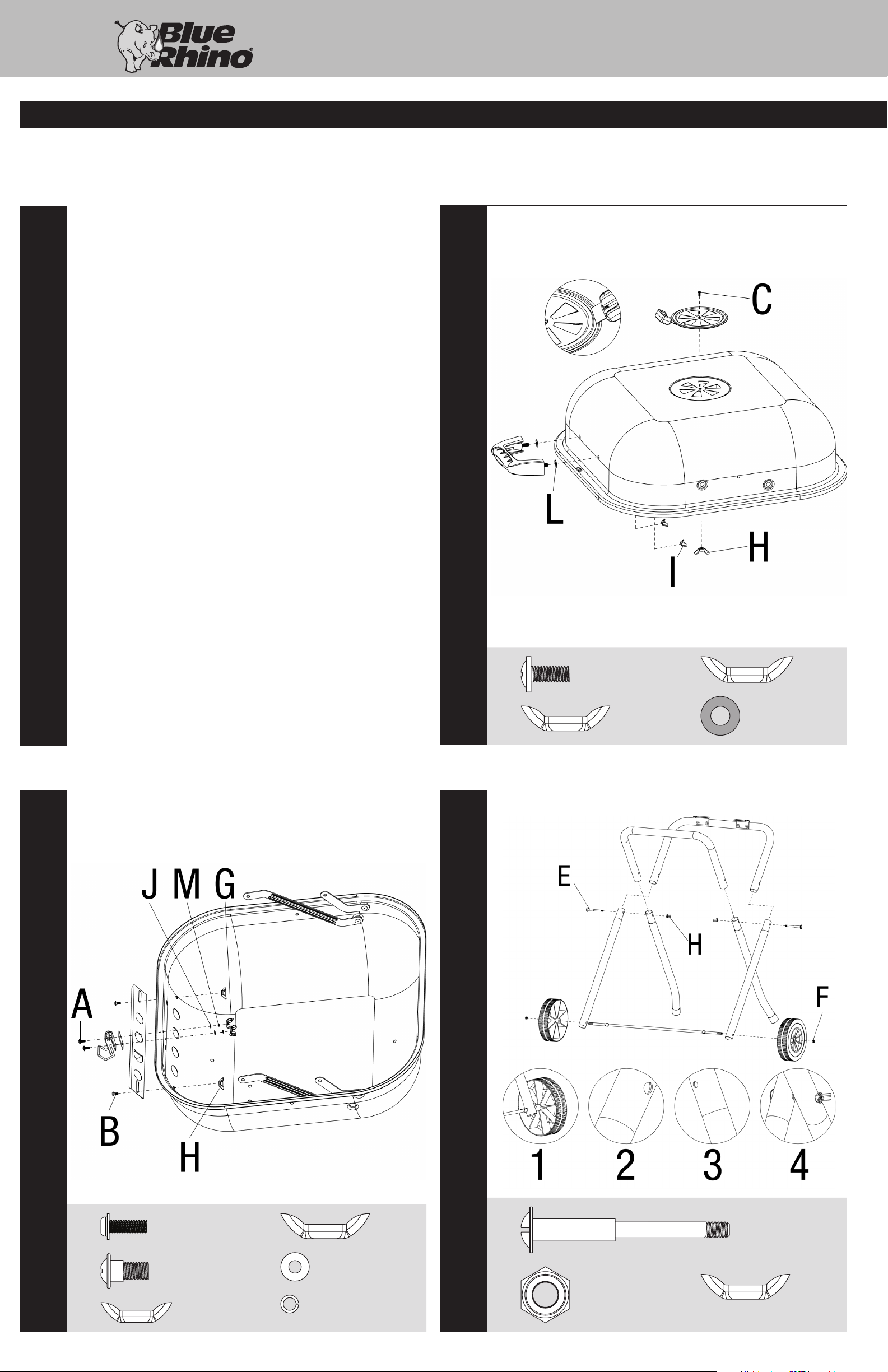

Attach Air Vent and Handle

2

3

Attach Air Vent, Lock Support and Lock

4

C

H

Attach Legs, Axle, and Wheels

x 1

x 1

L

I

x 2

x 2

A

B

G

x 2

x 2

x 2

H

J

M

x 2

x 2

x 2

E

F

x 2

H

x 2

x 2

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

For great recipes and tips, visit recipes.uniflame.com.

page no.

5

5

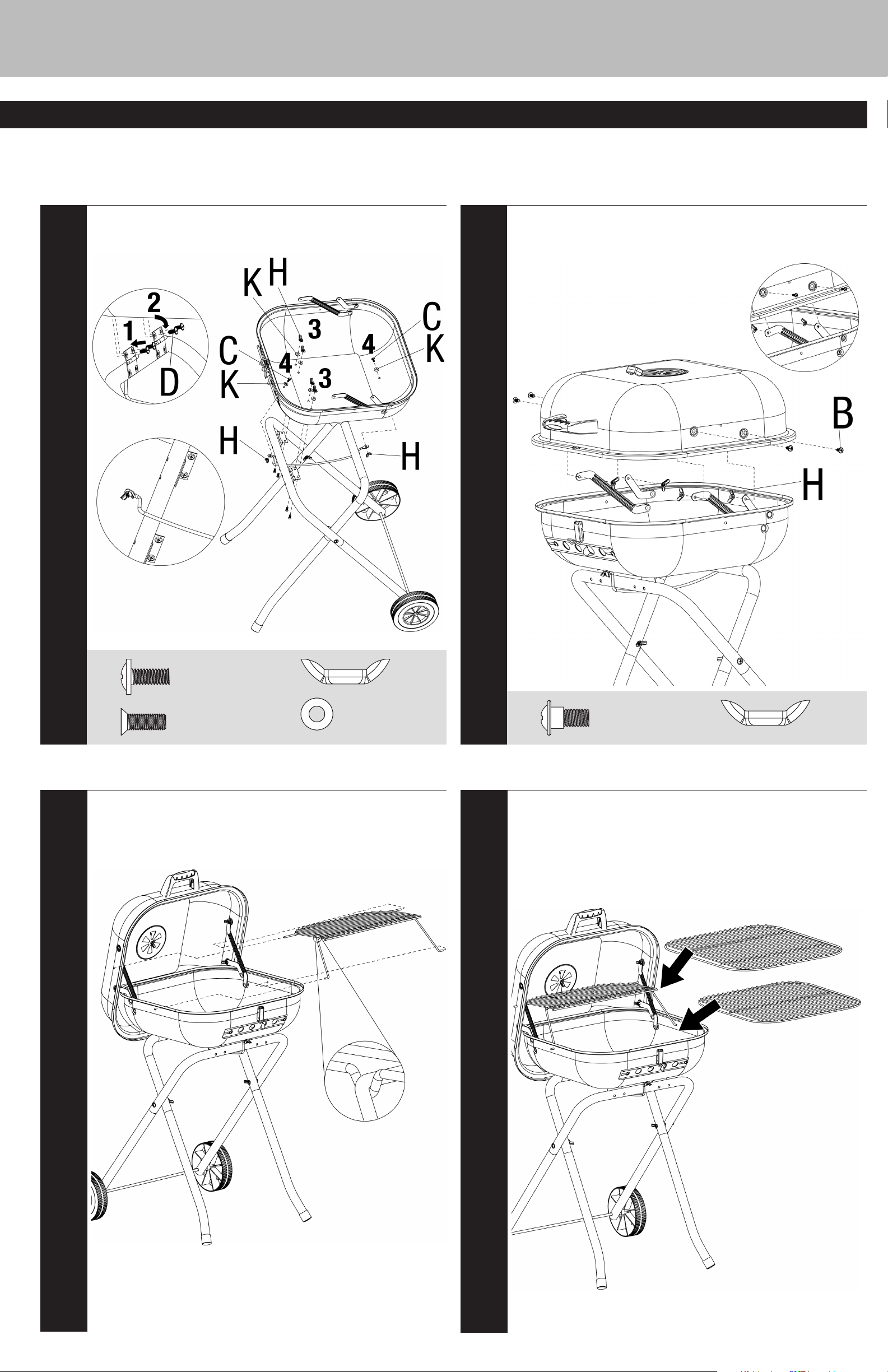

Attach Bottom Bowl

Attach Lid

6

7

C

D

Insert Warming Rack

x 2

x 4

H

K

x 6

x 6

8

B

Insert Charcoal Grid and Cooking Grid

x 4

H

x 4
