Ubiquiti UVCG3M User Manual
micro
1080p Wireless IP Security
Camera with Infrared
Model: UVC-G3-MICRO
Introduction
micro
Thank you for purchasing the Ubiquiti Networks® UniFi® Video
Camera G3 Micro. This Quick Start Guide is designed to guide
you through installation and also includes warranty terms.
Package Contents
UVC-G3-MICRO Camera Power Adapter
802.3af Instant
PoE Adapter
Wall Mounts
(Qty. 2)
Screws and Anchors
(Qty. 4)
Instant PoE Cover Table Stand
Instant PoE
Mount
Angle Mount Adhesives
Cable Clips
(Qty. 8)
(Qty. 2)
1080p Day/Night
IP Security Camera
with Infrared
Model: UVC-G3-MICRO
Quick Start Guide
Before You Begin
The UVC G3 Micro is designed to work with the UniFi® Video
(v3.8 or above) controller software. The software may be
hosted on either of the following:
• The Ubiquiti Networks® UniFiNVR appliance
• A Linux/Windows computer
Note: The latest UniFi Video software is available for free
download at: www.ubnt.com/download/unifivideo
The UVC G3 Micro can be powered by either of the following
methods:

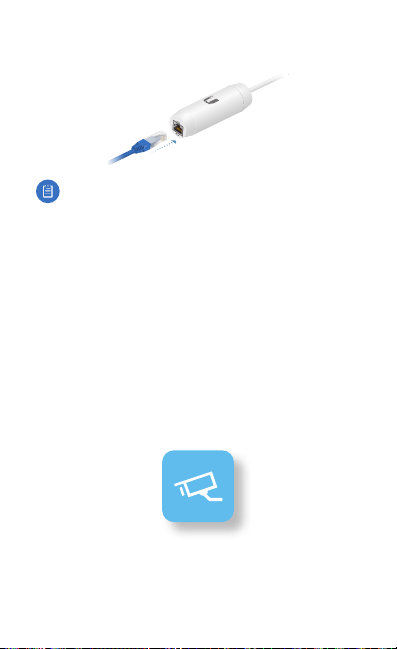

• Using the included Instant PoE Adapter connected to an
802.3af PoE-compliant switch
• Using the included Power Adapter
Hardware Overview
LED
LED The LED will flash blue during bootup. When the camera
is ready to connect to the Wi-Fi network, the LED pattern
will flash two times accompanied by two beep tones. Once
connected to the network, the LED will glow a breathing
pattern.
Reset
Magnetic
Base
State Status
Flashing Blue Device is Booting Up
Steady Blue Connected to NVR
Flashing White Connecting to Wi-Fi
Steady White Ready for Configuration
Flashing Red Cannot Connect to NVR
Steady Red No Wi-Fi Connection
Reset To reset network settings to factory defaults, press and
hold the Reset button until the camera emits two fast tones.
Installation
The UVC G3 Micro can be mounted in four ways:
• Magnetic For temporary installation
• Adhesive For fast, permanent installation
• Screws For secure installation
• Table For installing on a flat surface such as a table or shelf

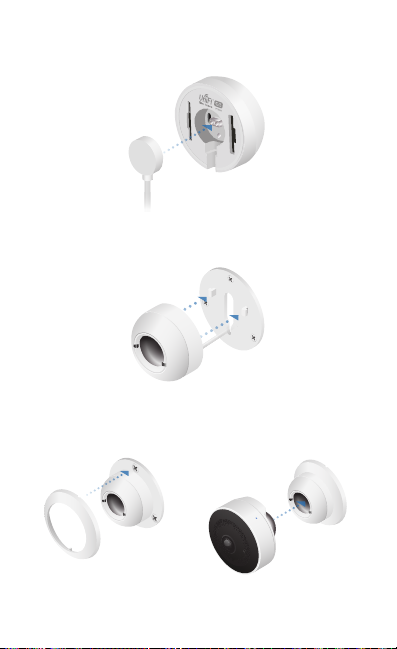

Magnetic Mount

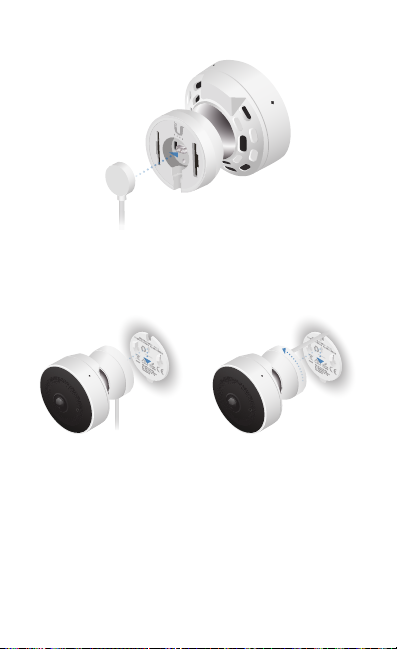

1. Remove the Wall Mount from the Magnetic Base.
Wall Mount
2. Attach the Power Adapter or Instant PoE Adapter to the
MagneticBase.
3. Attach
the camera and
fixture. Go to
Magnetic Base directly to a metal
Connecting the Power
.
Adhesive Mount
1. If the Power Adapter cord or PoE Adapter Cord feeds through
the wall, drill or cut a hole and feed the cord through it.
2. Remove the tab from the notch and attach the Wall Mount
using the adhesive side.
*640-00321-01*
640-00321-01
3. Attach the Power Adapter or Instant PoE Adapter to the
MagneticBase.
4. Attach the camera and Magnetic Base to the mount. If
the power cord feeds through the Wall Mount, rotate the
Magnetic Base to align the cord with the notch on the Wall
Mount. Go to Connecting the Power.
Cord on Wall
Cord Through Wall Mount

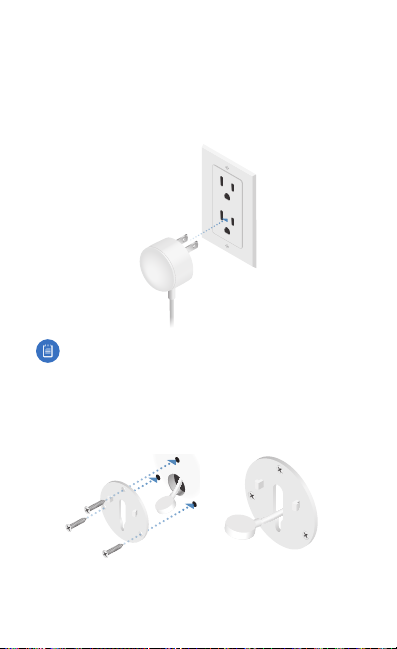

Screw Mount
1. If the circular connector on the Power Adapter or Instant PoE
Adapter needs to connect through the wall, drill or cut a
hole out and feed the power connector through it.
Wall Mount Angle Mount
2. Use the Screws and Screw Anchors to fasten the Wall Mount
or the Angle Mount.
Wall Mount
Angle Mount
