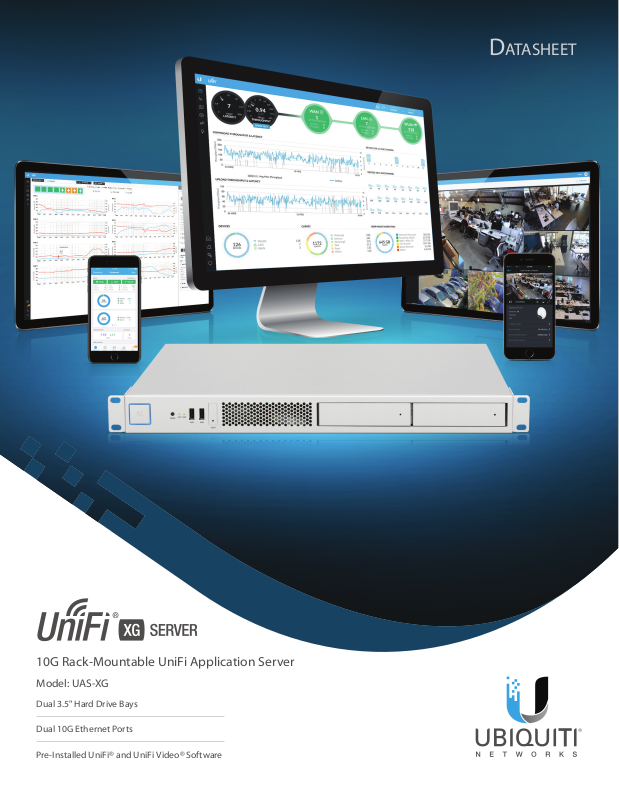

Ubiquiti UAS-XG Technical data

Datasheet

10G Rack-Mountable UniFi Application Server

Model: UAS-XG

Dual 3.5" Hard Drive Bays

Dual 10G Ethernet Ports

Pre-Installed UniFi® and UniFi Video® Software

Overview

Datasheet

The UniFi Application Server, model UAS-XG, is an
Ubuntu-based server capable of securely running all of
your business applications. It integrates UniFi and UniFi
Video software for centralized management of your

UniFidevices.

The UniFi Application Server features a fast 120 GB SSD
for the OS and applications, as well as a pair of 2 TB
mechanical drives for bulk storage of video recordings
and other data. A power-optimized Intel Xeon-D
processor with 32GB DDR4 memory provides reliable
performance.

Dual 10G Ethernet ports ensure high-bandwidth
connectivity for your most demanding server
applications.

LAN

Pre-Installed Software The UniFi and UniFi Video
Controller software applications are both pre-installed on
the UniFi Server for immediate deployment.

Initial Setup via Bluetooth Use the UniFi Mobile app to

congure the UniFi Application Server. The username and
password you congure in the UniFi Mobile app will be

used for the UniFi and UniFi Video software.

UAS-XG

US-16-XG

USG-PRO-4

UVC-G3-PRO

UVC-G3-DOME

UVC-G3-AF

US-48-750W

WAN

Internet

UAP-AC-HD UAP-AC-HD

2

UniFi is a scalable networking system ideal for low-latency
deployments requiring high uptime performance.

• Seamless integration of UniFi devices

• Centralized management and monitoring of multiple

sites across remote locations

• Mobile app (iOS/Android) for quick and easy access

Dashboard

UniFi provides a visual representation of your network’s
status and delivers basic information about each segment.

UniFi Video is a exible, integrated IP video management

and surveillance system using UniFi Video Cameras.

• Live feeds in a single or multi-camera format

• Motion detection and security alerts

• Detailed statistical reporting and advanced analytics

• Mobile app (iOS/Android) for control and live streaming

Event Recordings

UniFi Video software provides a variety of options and
settings to customize what your cameras record.

Datasheet

Topology

The topology tree shows UniFi wired/wireless network
devices and client devices.

Statistics

UniFi offers statistics and graphs to describe the clients

and network trafc of your managed UniFi network.

Maps

Upload a map of your location(s) or use Google Maps to
represent the areas where your cameras are located.

Analytic Capabilities

Customize your own motion detection zones. You can
place several zones and set their alarm sensitivity levels.

3

Hardware Overview

Featuring dual 10G Ethernet for
high throughput and a powerful
Intel Xeon-D processor, the UniFi

Application Server efciently scales

Datasheet

to serve large UniFi and UniFi Video
installations.

The compact 1U form factor and
pre-installed UniFi and UniFi Video
software applications enable rapid
deployment and plug-and-play
integration.

Storage and Memory

• (2) 3.5" Hard Drive Bays

• (2) 2 TB Pre-Installed Hard Drives

• 120 GB Internal SSD

• UniFi and UniFi Video Software

(Pre-Installed)

• 32 GB DDR4

UAS-XG Front Panel

Connectivity

• (2) 10G Ethernet Ports

• (2) USB 3.0 Ports (Rear)

• (2) USB 2.0 Ports (Front)

• Bluetooth for Initial Setup

• (1) 1G IPMI Ethernet Port

• (1) VGA Port

UAS-XG Back Panel

Attaching Rack-Mount Brackets to the UAS-XG

4

Specications

UAS-XG

Dimensions 442.4 x 43.7 x 305.5 mm

(17.42 x 1.72 x 12.03")

Weight

With Mount Brackets

Power Consumption 150W Maximum (60W Typical)

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply 100-240VAC, 2 to 4A, 50 to 60 Hz

Supported Voltage Range 100-240VAC

LEDs

System
Data Ports
HDD Bays

Processor Intel Xeon D-1521

System Memory 32 GB DDR4

On-Board Flash Storage M.2 SSD 120 GB

Hard Drive Capacity (2) 2 TB HDDs (Pre-Installed)

Operating Temperature 0 to 40° C (32 to 104° F)

Operating Humidity 5 to 90% Noncondensing

Rack Mount 1U High, 12" Depth

(Rack-Mount Hardware Included)

Interfaces

Networking Interfaces
IPMI Interface
VGA Interface
USB

Bluetooth Low Energy

Certications CE, FCC, IC

(2) 1/10Gbps RJ45 Ethernet Ports

(1) 1 Gbps RJ45 Ethernet Port

(2) USB 3.0 Ports (Back Panel)

(2) USB 2.0 Ports (Front Panel)

6.5 kg (14.33 lb)

6.6 kg (14.55 lb)

Bootup/Reset/Locate

Link/Activity

Activity/Error

(1) VGA Port

Bluetooth 4.0

Datasheet
