Ubiquiti UAP-Pro Quick Install Guide

802.11n PRO Access Point

Model: UAP-PRO

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®AP PRO. This Quick Start Guide is designed to guide you through installation and also includes warranty terms.

Package Contents

UniFi AP-PRO Mounting Bracket Ceiling Backing Plate

Flat Head Screws

(M3x50, Qty. 3)

Gigabit PoE (48V, 0.5A)

with Mounting Bracket

Keps Nuts

(M3, Qty. 3)

Screws

(M2.9x20, Qty. 3)

Power Cord Quick Start Guide

Screw Anchors (M3x20, Qty. 3)

802.11n PRO Access Point

Model: UAP-PRO

Installation Requirements

• CAT5/6 cable

• Phillips screwdriver

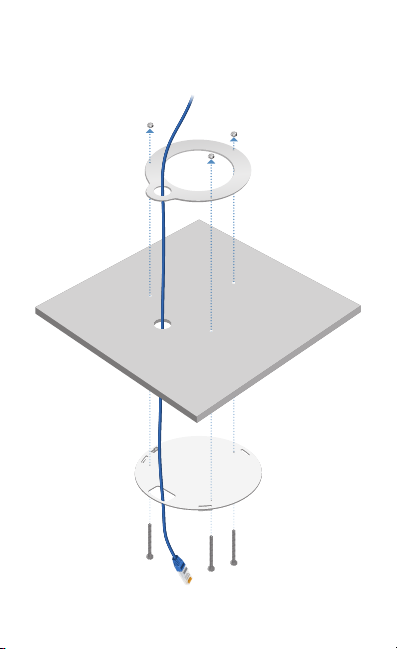

• Drill and drill bit (6 mm for wall-mounting or 3 mm for

ceiling-mounting)

• Optional: Drywall or keyhole saw (to cut 25 mm hole for Ethernet cable feed)

responsibility to follow local country regulations, including operation within legal frequency

channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.

System Requirements

Management

Internet

• Linux, MacOSX, or Microsoft Windows 7/8

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft

Internet Explorer 8 (or above)

• UniFi Controller software (available at:

downloads.ubnt.com/unifi)

Network Topology Requirements

• A DHCP-enabled network (for the AP to obtain an IP address as well as for the wireless clients after deployment)

• A management station computer running the UniFi Controller software, located either onsite and connected to the same Layer-2 network, or off-site in a cloud or NOC

UAP-AC Outdoor

CURRENT SITE

REFRESH RATE

Default

2 minutes

DASHBOARD

Network Health

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

WLAN

www

WAN LAN

VOIP

WAN LAN WLAN VOIP

www

PHONES

APS

GATEWAY

SWITCHES

XXX.XXX.XXX.XXX

EXTENSION

USERS

XXX.XXX.XXX.XXX

DNS

ACTIVE CLIENTS

USERS

192

162

CALLS IN

GUESTS

DOWN

GUESTS

CALLS OUT

DOWN

SETTINGS

LAN

WAN

Security

Gateway

On-Site

Station

CURRENT SITE

Default

DASHBOARD

Network Health

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

www

WAN LAN

WAN LAN WLAN VOIP

www

APS

GATEWAY

SWITCHES

XXX.XXX.XXX.XXX

USERS

XXX.XXX.XXX.XXX

DNS

ACTIVE CLIENTS

USERS

192

162

GUESTS

DOWN

GUESTS

DOWN

SETTINGS

O-Site

Cloud/NOC

REFRESH RATE

2 minutes

WLAN

VOIP

PHONES

EXTENSION

CALLS IN

CALLS OUT

Sample Network Diagram

All UniFi APs support off-site management controllers. For setup details, see the User Guide on the website:

documentation.ubnt.com/unifi

UAP-Pro

UniFi Switch

UniFi

Hardware Overview

LED

LED Color Status

White

Flashing White

Alternating White/Blue

Blue

Quickly

Flashing Blue

Steady Blue

with occasional flashing

Factory default, waiting to be integrated.

Initializing.

Device is busy; do not touch or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place. Indicates the device has been successfully

integrated into a network and is working

properly. This is used to locate an AP.

When you click Locate in the UniFi Controller software, the LED on the AP will flash. It will also flash the location of the AP on the map three times and then stop.

Indicates the device is in an isolated state (all WLANs are brought down until an uplink is found).

Ports

Reset Button

Main/48V

Ethernet Port

Cable Feed Plug

Main/48V This Gigabit Ethernet port is used to connect the

power and should be connected to the LAN and DHCP server. Power can be provided by any of the following:

Secondary

Ethernet Port

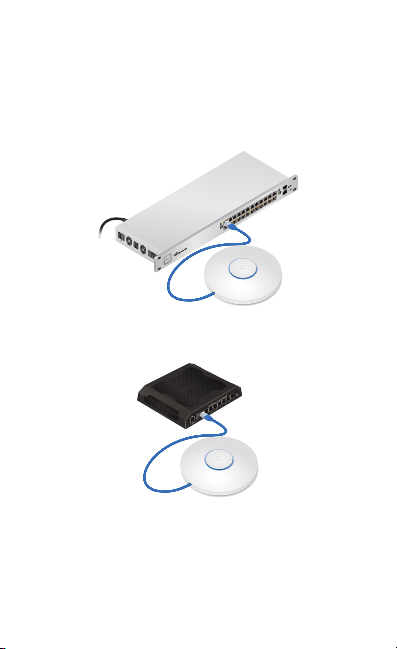

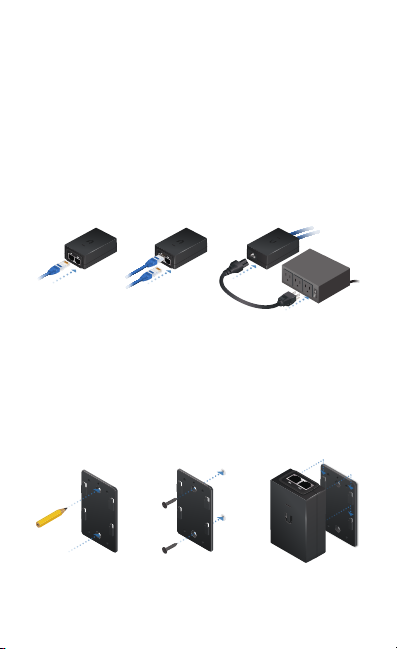

• Included Gigabit PoE adapter

• 48V, 802.3af compliant switch

• Ubiquiti Networks UniFi Switch

• Ubiquiti Networks TOUGHSwitch

™

PRO, model TS-8-PRO

Secondary This Gigabit Ethernet port is used for bridging.

Reset This button serves two functions for the UniFi AP-PRO:

• Restart Press and release the Reset button quickly.

• Restore to Factory Default Settings Press and hold the

Reset button for more then five seconds.

Cable Feed Plug If your Ethernet cable feeds along the

mounting surface, remove theCable Feed Plug.

Mounting

Bracket

Locking

Clip

Locking Clip During installation, the Locking Clip on

the Mounting Bracket locks into the Locking Notch on the

UniFiAP-PRO to help prevent theft.

Hardware Installation

The UniFi AP-PRO can be mounted to the wall or ceiling. Perform the steps for the appropriate installation:

Wall Mount

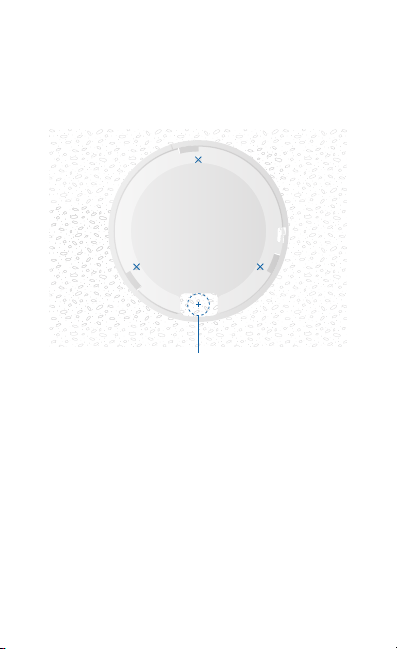

1. Position the Mounting Bracket at the desired location on

the wall with the cable feed slot pointed towards the floor.

2. Use a pencil to mark the three holes on the wall. Use a

6mm drill bit to drill the holes.

Optional 25 mm Hole

for Ethernet Cable Feed through Wall

3. Follow the instruction for your Ethernet cable feed:

- Feeds Through the Wall Cut or drill a circle

approximately 25 mm in diameter, just below the bottom center of the Mounting Bracket (as shown

above). Then feed the CAT5/6 cable through the hole.

- Feeds Along the Mounting Surface Remove the Cable Feed Plug on the side of the UniFi AP-PRO.

*640-00207-01*

640-00207-01

4. Insert the Screw Anchors into the 6 mm holes. Secure the

Mounting Bracket to the wall by inserting the Screws into

the anchors.

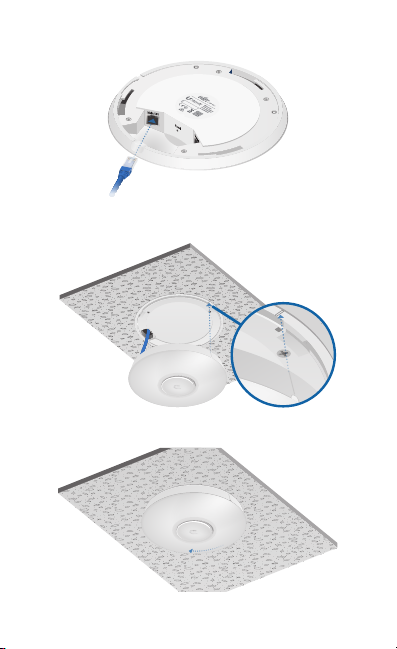

5. Connect the Ethernet cable to the Main/48V Ethernet port.

6. Align the notch on the UniFi AP-PRO with the notch on the Mounting Bracket.

7. Turn the UniFi AP-PRO clockwise until it locks into place.
