Ubiquiti TS-5-POE operation manual

5-Port Power over Ethernet
Managed Switch

Model: TS-5-POE

Introduction

Thank you for purchasing the Ubiquiti Networks®
TOUGHSwitch™ PoE. This Quick Start Guide is designed to
guide you through installation and includes warranty terms.

Package Contents

TOUGHSwitch PoE Screws

Power Adapter

(24V, 2.5A)

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). Shielded Ethernet cable
and earth grounding must be used for outdoor installations as conditions of product warranty.
TOUGHCable™ is designed for outdoor installations. It is the customer’s responsibility to follow
local country regulations, including operation within legal frequency channels, output power,
and Dynamic Frequency Selection (DFS) requirements.

(M2.9x20, Qty. 2)

Power Cord Quick Start Guide

Anchors

(M2.9, Qty. 2)

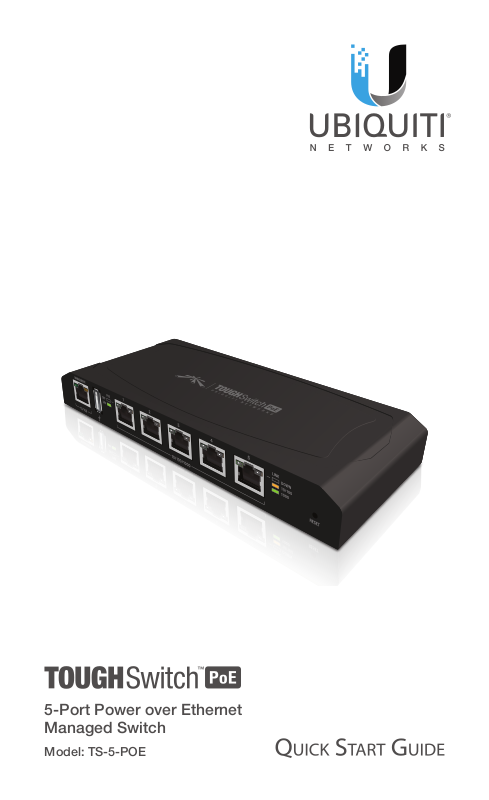

5-Port Power over Ethernet
Managed Switch

Model: TS-5-POE

Hardware Overview

Back Panel

Grounding

Slot

Note: There are additional ventilation holes on the top

and sides of the TOUGHSwitch.

Front Panel Ports

Management

USB

Ventilation Holes

1-5

Power

Grounding

Slot

Reset

Interface Description

Management

10/100 Mbps port used to access the

TOUGHSwitch Configuration Interface.
USB Reserved for future use.
Ports 1-5 10/100/1000 Mbps ports for switching and

Reset

PoE (also available for management by

default).

To reset to factory defaults, press and hold

the Reset button for more than 10 seconds

while the unit is already powered on.

Front Panel LEDs

Power/Link

LED State Status

Off No Power/No Link

Power/
Link

Amber

Management

Off No Power over Ethernet

PoE

Green 24V Power over Ethernet
Off No link
Amber Link established at 10/100 Mbps

Speed/

Ports 1-5

Amber

Link/

Flashing

Act

Green Link established at 1000 Mbps
Green

Flashing

Speed/Link/Act

PoE

After bootup, the LED indicates
power. After an initial link is
established, the LED indicates a
10/100 Mbps connection. If the link
terminates, the LED turns off until
a link is re-established. If the unit
reboots, the LED will again indicate
power until a link is established.

Link activity at 10/100 Mbps

Link activity at 1000 Mbps

Hardware Installation

Place the TOUGHSwitch on a bench top or other flat surface.

WARNING: FAILURE TO PROVIDE PROPER VENTILATION

MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.

Installation Requirements

• Drill, 6 mm drill bit, and Phillips screwdriver (wall-mounting)

• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the

powersupply.

We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable

Important: Although the cabling can be located

outdoors, the TOUGHSwitch itself should be housed
inside a protective enclosure.

WARNING: To reduce the risk of fire or electric shock,

do not expose this TOUGHSwitch to rain or moisture.

Wall-Mounting

To mount the TOUGHSwitch on a wall:

1. Use a 6 mm drill bit to drill two holes 60 mm apart.

2. Insert the Anchors into the holes.

3. Use a Phillips screwdriver to secure a Screw to each anchor.

Leave a clearance of approximately 3 mm between each
screw head and its anchor.

60 mm

3 mm

Note: You can also mount the TOUGHSwitch in a

horizontal orientation.

4. Position the wall-mount slots of the TOUGHSwitch over the

screw heads on the wall. Then slide the TOUGHSwitch to
the left to lock it into place.
