Ubiquiti TS-16-CARRIER, TS-5-POE, TS-8-PRO User Manual

Power over Ethernet Managed Switches

Models: TS-5-POE, TS-8-PRO, TS-16-CARRIER

Table of Contents

Chapter 1: Overview ................................................1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents ................................................................1

Configuration Interface System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Hardware Overview ..............................................................1

Chapter 2: Installation ..............................................6

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Configuration ....................................................................6

Installation of the TOUGHSwitch PoE ..............................................6

Installation of the TOUGHSwitchPoEPRO .........................................8

Installation of the TOUGHSwitchPoECARRIER .....................................9

Chapter 3: Navigation .............................................11

Accessing the Configuration Interface ...........................................11

Configuring the TOUGHSwitch PoE CARRIER .....................................12

Product Verification .............................................................12

Interface Tabs ...................................................................12

Table of ContentsTOUGHSwitch™ PoE User Guide

Chapter 4: Status Tab ..............................................13

Status ...........................................................................14

Port Status ......................................................................14

Port Statistics ....................................................................14

Total Throughput ................................................................15

Data Distribution ................................................................15

Details for Port ..................................................................15

Chapter 5: Device Tab .............................................17

Firmware Update ................................................................18

Management Network Settings ..................................................18

Basic Settings ...................................................................19

Management Connection Settings ...............................................19

Services .........................................................................20

Spanning Tree Protocol ..........................................................21

Jumbo Frames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Device Discovery ................................................................22

System Accounts ................................................................22

Device Maintenance .............................................................22

Configuration Management .....................................................22

Ubiquiti Networks, Inc.

Chapter 6: Ports Tab ..............................................23

Basic Settings for Port ...........................................................24

Ping Watchdog for Port ..........................................................24

Spanning Tree Settings for Port ..................................................25

Configure Alerts for Port .........................................................25

Chapter 7: VLANs Tab .............................................26

VLANs ...........................................................................26

Trunk ...........................................................................27

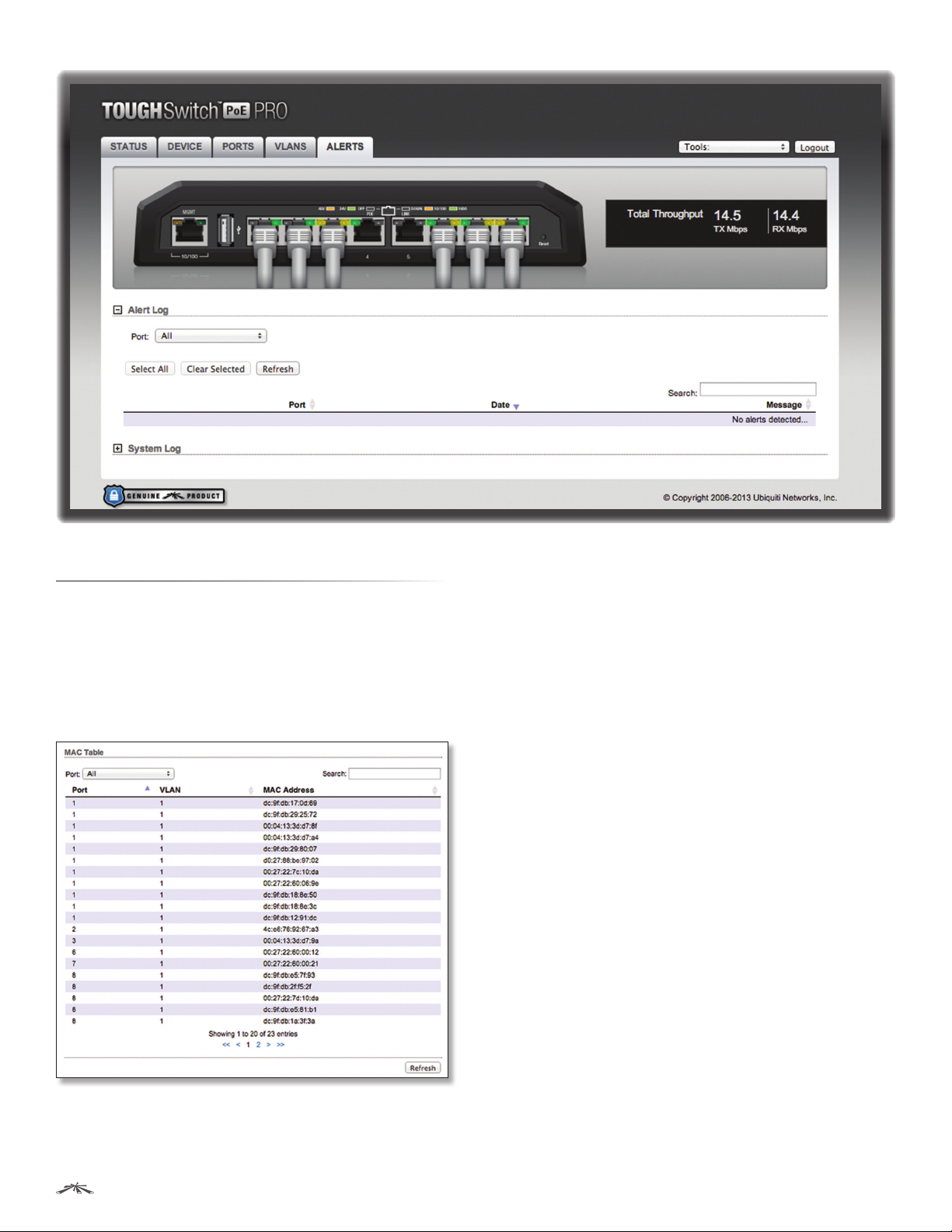

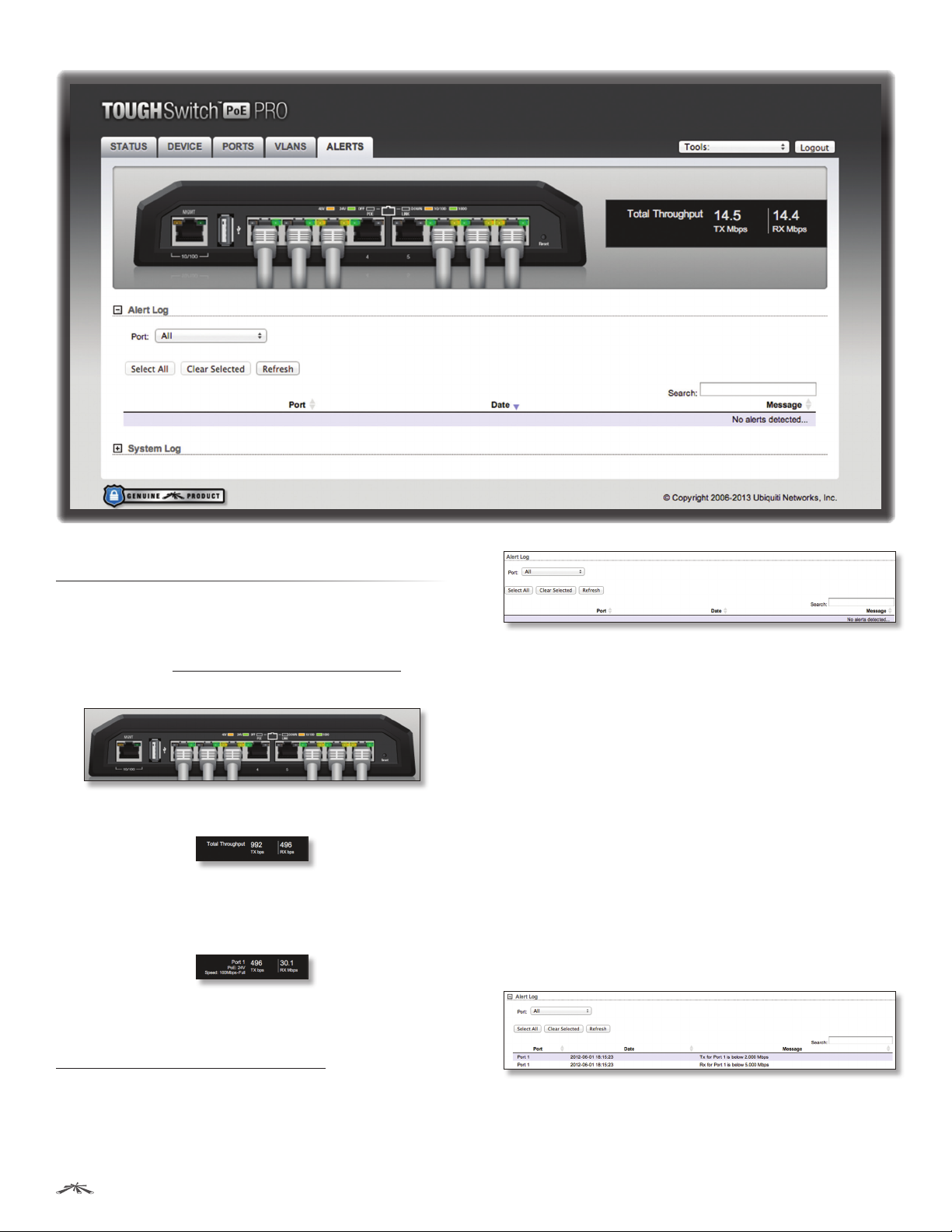

Chapter 8: Alerts Tab ..............................................28

Alert Log ........................................................................28

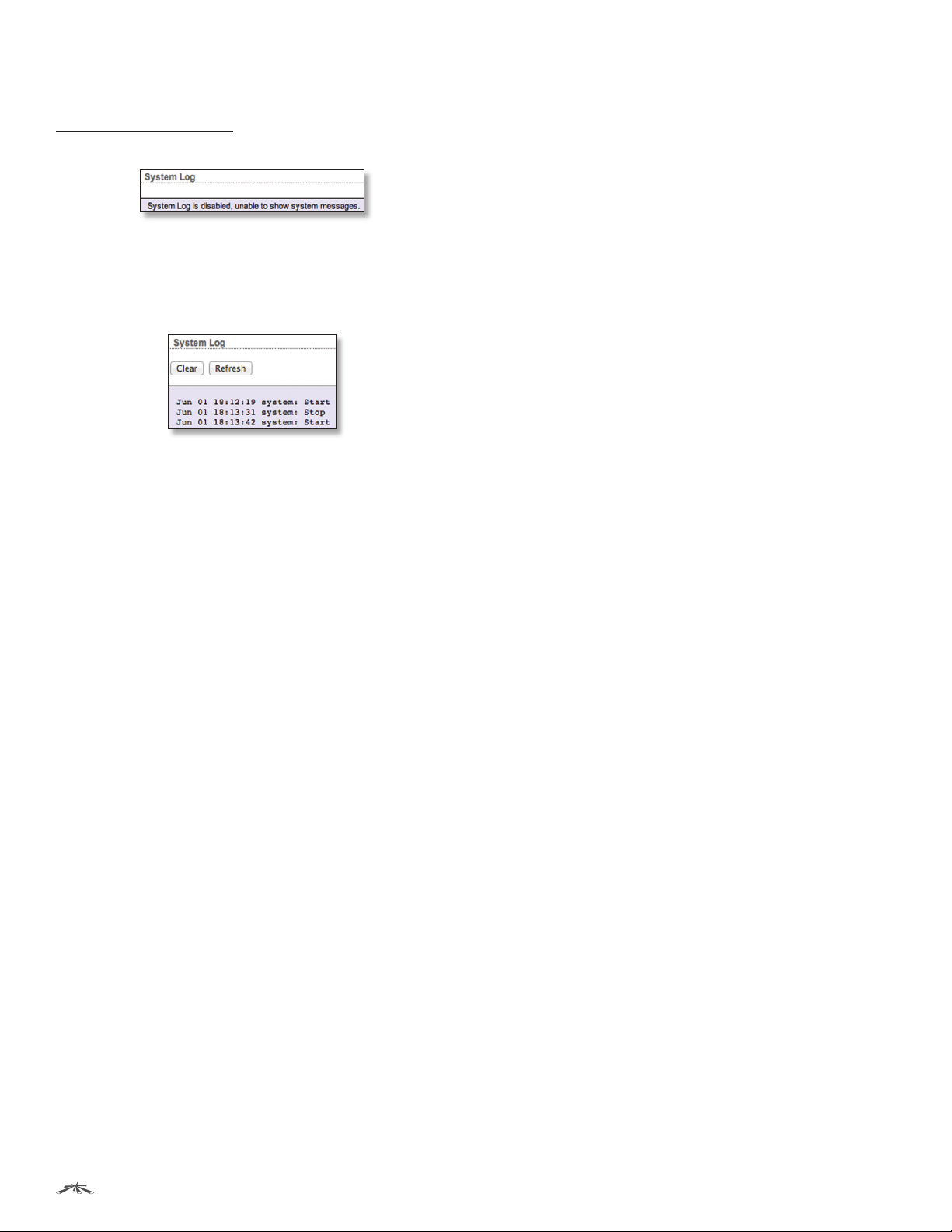

System Log ......................................................................29

Chapter 9: Tools ...................................................30

MAC Forwarding Table ..........................................................30

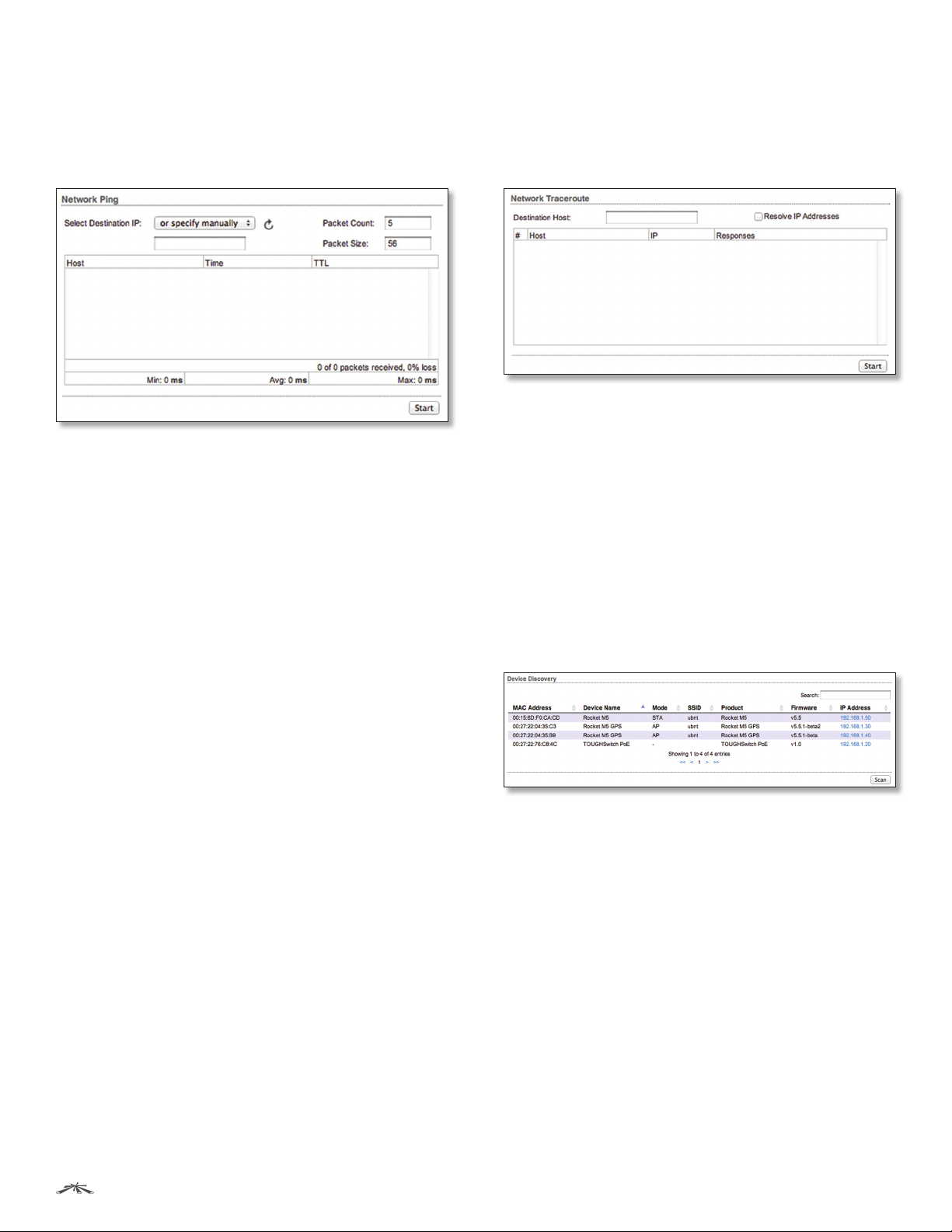

Ping .............................................................................31

Traceroute ......................................................................31

Discovery .......................................................................31

Table of ContentsTOUGHSwitch™ PoE User Guide

Appendix A: Specifications ........................................32

Appendix B: Safety Notices ........................................34

Electrical Safety Information .....................................................34

Appendix C: Warranty .............................................35

Limited Warranty ................................................................35

Appendix D: Compliance Information .............................37

FCC .............................................................................37

Industry Canada .................................................................37

Australia and New Zealand ......................................................37

CE Marking ......................................................................37

RoHS/WEEE Compliance Statement ..............................................37

Appendix E: Declaration of Conformity ............................39

Appendix F: Contact Information ..................................40

Ubiquiti Networks Support ......................................................40

Ubiquiti Networks, Inc.

Chapter 1: OverviewTOUGHSwitch™ PoE User Guide

Chapter 1: Overview

Introduction

Thank you for purchasing the Ubiquiti TOUGHSwitch™ PoE, which is part of the TOUGHSwitch series:

Name Model Description

TOUGHSwitch PoE TS-5-POE 5-port managed

switch featuring

24VPoE

TOUGHSwitch PoE PRO TS-8-PRO 8-port managed

switch featuring 24V/48V PoE

TOUGHSwitch PoE CARRIER TS-16-CARRIER Two TOUGHSwitch

PoE PROs mounted in a rack

The TOUGHSwitch is a managed switch designed to deliver Power over Ethernet (PoE) on the

10/100/1000ports you have configured for PoE. It also

features a variety of features, including port monitoring, system connection and management services, Virtual Local Area Network (VLAN) configuration, Spanning Tree Protocol (STP), Ping Watchdog, and alerts setup.

This User Guide is designed to provide instructions about installation of the TOUGHSwitch and to provide details about how to set up and use the Configuration Interface. This intuitive interface allows you to conveniently manage your TOUGHSwitch using your web browser.

Package Contents

TOUGHSwitch PoE

TOUGHSwitch PoE PRO

8-Port Power over Ethernet Managed Switch PRO

Model: TS-8-PRO

TOUGHSwitch PoE PRO Power Cord Quick Start Guide

TOUGHSwitch PoE CARRIER

TOUGHSwitch PoE CARRIER Power Cords (Qty. 2)

Rackmount Power over Ethernet Managed Switches

Model: TS-16-CARRIER

#10-32 x 5/8" Phillips

Screws (Qty. 4)

M3x8 Flathead Screws (Qty. 2)

#10-32 x 5/8"

Cage Nuts (Qty. 4)

Quick Start Guide

Configuration Interface System Requirements

• Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Linux, or Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Apple Safari, Google Chrome, or Microsoft Internet Explorer 8 (or above)

TOUGHSwitch PoE M2.9x20 Screws

Power Adapter

(24V, 2.5A)

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.

Power Cord Quick Start Guide

(Qty. 2)

M2.9 Anchors

(Qty. 2)

5-Port Power over Ethernet Managed Switch

Model: TS-5-POE

Hardware Overview

Proceed to the description for your TOUGHSwitch model:

• “TOUGHSwitch PoE” on page 2

• “TOUGHSwitch PoE PRO” on page 3

• “TOUGHSwitch PoE CARRIER” on page 4

Ubiquiti Networks, Inc.

Chapter 1: OverviewTOUGHSwitch™ PoE User Guide

TOUGHSwitch PoE

Back Panel

Grounding

Slot

Front Panel Ports

Management

USB

Interface Description

Management

USB Reserved for future use.

1-5

Reset

Ventilation Holes

10/100 Mbps port for management. Traffic between the Management port and numbered ports will be limited to 10/100 Mbps and, under heavy load, may cause performance degradation of the TOUGHSwitch.

10/100/1000 Mbps ports for switching and PoE (also available for management by default).

To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is already powered on.

1-5

Power

Grounding

Slot

Reset

Front Panel LEDs

Power/Link

LED State Status

Off No Power/No Link

Power/

Link

Amber

Management

Off No Power over Ethernet

PoE

Green 24V Power over Ethernet

Off No Link

1-5

Speed/

Link/Act

Amber Link Established at 10/100 Mbps

Amber Flashing Link Activity at 10/100 Mbps

Green Link Established at 1000 Mbps

Speed/Link/Act

PoE

After bootup, the LED indicates power. After an initial link is established, the LED indicates a 10/100 Mbps connection. If the link terminates, the LED turns off until a link is re-established. If the unit reboots, the LED will again indicate power until a link is established.

Green Flashing Link Activity at 1000 Mbps

Ubiquiti Networks, Inc.

Chapter 1: OverviewTOUGHSwitch™ PoE User Guide

TOUGHSwitch PoE PRO

Back Panel

Ventilation Holes

Note: There are additional ventilation holes on the

top and sides of the TOUGHSwitch.

Front Panel Ports

Management

USB

Interface Description

10/100 Mbps port for management. Traffic between

Management

USB Reserved for future use.

1-8

Reset

the Management port and numbered ports will be limited to 10/100 Mbps and, under heavy load, may cause performance degradation of the TOUGHSwitch.

10/100/1000 Mbps ports for switching and PoE (also available for management by default).

To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is already powered on.

1-8

Power

Reset

Front Panel LEDs

Power/Link

LED State Status

Off No Power/No Link

Power/

Link

Amber

Management

Off No Power over Ethernet

PoE

Green 24V Power over Ethernet

Amber 48V Power over Ethernet

Off No link

1-8

Speed/

Link/Act

Amber Link established at 10/100 Mbps

Amber Flashing Link activity at 10/100 Mbps

Green Link established at 1000 Mbps

Green Flashing Link activity at 1000 Mbps

Speed/Link/Act

PoE

Ubiquiti Networks, Inc.

Chapter 1: OverviewTOUGHSwitch™ PoE User Guide

TOUGHSwitch PoE CARRIER

A and B designate the two 8-Port TOUGHSwitch PoE PROs housed in the rack. This may be useful for the Location setting on the Device tab in the Configuration Interface.

Back Panel

TOUGHSwitch B TOUGHSwitch A

Mounting

Screws

Ventilation Holes

Power

Ventilation Holes

Power

Mounting

Screws

Note: There are additional ventilation holes on the top and sides of the TOUGHSwitch.

Front Panel Ports

TOUGHSwitch A TOUGHSwitch B

Management

Ports 1-8

ResetUSB

Management

Ports 1-8

ResetUSB

Interface Description

Management

USB Reserved for future use.

1-8 10/100/1000 Mbps ports for switching and PoE (also available for management by default).

Reset To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the unit is already powered on.

10/100 Mbps port for management. Traffic between the Management port and numbered ports will be limited to 10/100 Mbps and, under heavy load, may cause performance degradation of the TOUGHSwitch.

Ubiquiti Networks, Inc.

Front Panel LEDs

Chapter 1: OverviewTOUGHSwitch™ PoE User Guide

Power/Link/Act

LED State Status

Off No Power/No Link

Power/

Link

Amber

Management

Off No Power over Ethernet

PoE

Green 24V Power over Ethernet

Amber 48V Power over Ethernet

Speed/Link/Act

PoE

1-8

Speed/

Link/Act

Off No link

Amber Link established at 10/100 Mbps

Amber Flashing Link activity at 10/100 Mbps

Green Link established at 1000 Mbps

Green Flashing Link activity at 1000 Mbps

Ubiquiti Networks, Inc.

Chapter 2: InstallationTOUGHSwitch™ PoE User Guide

Chapter 2: Installation

Introduction

Proceed to the instructions for your TOUGHSwitch model:

• TOUGHSwitch PoE The instructions are below.

• TOUGHSwitch PoE PRO Go to “Installation of the TOUGHSwitchPoEPRO” on page 8 for instructions.

• TOUGHSwitch PoE CARRIER Go to “Installation of the TOUGHSwitchPoECARRIER” on page 9 for instructions.

Configuration

After you install the TOUGHSwitch, refer to the instructions in “Navigation” on page 11, which explain how to access the Configuration Interface.

Installation of the TOUGHSwitch PoE

Mount the TOUGHSwitch on a wall, or place it on a

benchtop.

Note: Keep 20 mm of clearance next to the

ventilation holes for adequate airflow.

Wall-Mounting (Optional)

To mount the TOUGHSwitch on a wall:

1. Use a 6 mm drill bit to drill two holes 60 mm apart.

2. Insert the M2.9 Anchors into the holes.

3. Use a Phillips screwdriver to secure a M2.9x20 Screw to each anchor. Leave a clearance of approximately 3 mm between each screw head and its anchor.

60 mm

3 mm

Note: You can also mount the TOUGHSwitch in a

horizontal orientation.

4. Position the Wall-Mount Slots of the TOUGHSwitch over the screw heads on the wall. Then slide the TOUGHSwitch to the left to lock it into place.

Installation Requirements

• Drill, 6 mm drill bit, and Phillips screwdriver (wall‑mounting)

• For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.

• We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit

www.ubnt.com/toughcable

Note: Although the cabling can be located

outdoors, the TOUGHSwitch itself should be housed inside a protective enclosure.

Grounding the TOUGHSwitch (Optional)

The TOUGHSwitch is grounded through the Power Adapter; however, you can add optional ESD grounding for

enhanced ESD protection.

1. Insert a ground wire (not included) through a cornerslot.

Ubiquiti Networks, Inc.

2. Twist tie to secure the ground wire to the TOUGHSwitch.

3. Secure the other end of the ground wire to a

groundingblock.

Chapter 2: InstallationTOUGHSwitch™ PoE User Guide

Connecting Power

1. Connect the power connector of the Power Adapter to

the Power port of the TOUGHSwitch.

2. Connect the Power Cord to the power port on the

Power Adapter. Connect the other end of the Power Cord to a poweroutlet.

2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the TOUGHSwitch.

Note: PoE is disabled by default on all numbered

ports and is not available on the Management port. To enable PoE on the appropriate ports, use the Ports tab in the Configuration Interface (see “PoE” on

page 24).

Connecting Ethernet

1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch.

Ubiquiti Networks, Inc.

Chapter 2: InstallationTOUGHSwitch™ PoE User Guide

Installation of the

TOUGHSwitchPoEPRO

Place the TOUGHSwitch on a bench top or other flat surface.

Note: Keep 20 mm of clearance next to the

ventilation holes for adequate airflow.

Installation Requirements

For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.

We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit

www.ubnt.com/toughcable

Note: Although the cabling can be located outdoors,

the TOUGHSwitch itself should be housed inside a protective enclosure.

Connecting Power

1. Connect the Power Cord to the Power port of the TOUGHSwitch.

Connecting Ethernet

1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the TOUGHSwitch.

2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the TOUGHSwitch.

2. Connect the other end of the Power Cord to a power outlet.

Note: PoE is disabled by default on all numbered

ports and is not available on the Management port. To enable PoE on the appropriate ports, use the Ports tab in the Configuration Interface (see “PoE” on page 24).

Ubiquiti Networks, Inc.

Chapter 2: InstallationTOUGHSwitch™ PoE User Guide

Installation of the

TOUGHSwitchPoECARRIER

Installation Requirements

• Phillips and flathead screwdrivers

• Standard‑sized, 19" wide rack with a minimum of 1U

height available

• For outdoor applications, shielded Category 5 (or

above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.

• We recommend that you protect your outdoor networks

from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit

www.ubnt.com/toughcable

Note: Although the cabling can be located

outdoors, the TOUGHSwitch PoE CARRIER itself should be housed inside a protective enclosure.

Hardware Installation

1. Connect the Power Cord to the Power port of each TOUGHSwitch.

2. Attach the TOUGHSwitch PoE CARRIER to the rack using the four 10-32 x 5/8 Phillips Screws. (If the rack has square slots, then use the 10-32 x 5/8 Cage Nuts with the Phillips Screws.)

Note: Keep 20 mm of clearance next to the

ventilation holes for adequate airflow.

3. Attach the top portion of the faceplate at a slight angle, and then snap on the bottom portion. Secure the faceplate to the TOUGHSwitch PoE CARRIER using the two M3x8 FlatheadScrews.

Ubiquiti Networks, Inc.

4. Connect the other end of each Power Cord to a power outlet.

Chapter 2: InstallationTOUGHSwitch™ PoE User Guide

Connecting Ethernet

1. Connect an Ethernet cable from your computer or host system to the Management port of TOUGHSwitch A.

Note: By default, you can configure the

TOUGHSwitch via any port; however, we recommend the Management port. (Access to the Configuration Interface can be limited to the Management port only. You can configure this setting on the Device tab.)

2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of each TOUGHSwitch.

Uplink Options

The TOUGHSwitch PoE CARRIER functions as two separate switches. All data ports are available as uplink ports, so you have the following two options:

Daisy-Chain Option

If you want to daisy‑chain TOUGHSwitch A and B, we recommend that you connect an Ethernet cable from port

8 of TOUGHSwitch A to port1 of TOUGHSwitch B. (For

clarity, the other cables are not shown in the illustration.)

Uplink to Core Switch Option

If you want to uplink TOUGHSwitch A and B to an independent core switch, follow these instructions:

1. Connect an Ethernet cable from any numbered port of TOUGHSwitch A to a port on the core switch.

2. Connect another Ethernet cable from any numbered port of TOUGHSwitch B to a port on the core switch.

Note: PoE is disabled by default on all numbered

ports and is not available on the Management port. To enable PoE on the appropriate ports, use the Ports tab in the Configuration Interface (see “PoE” on page 24).

3. Uplink options are described in the following section. After you have finished the installation, proceed to

“Configuring the TOUGHSwitch PoE CARRIER” on page 12.

Note: For clarity, the other cables connected to the

switches are not shown, except for a cable from the EdgeRouter to the core switch.

TOUGHSwitch CARRIER

Core Switch

EdgeRouter

Ubiquiti Networks, Inc.

Chapter 3: NavigationTOUGHSwitch™ PoE User Guide

Chapter 3: Navigation

The Configuration Interface is an advanced operating system accessed through a simple and intuitive user interface. The TOUGHSwitch uses the Configuration Interface for convenient configuration and management via a web browser.

If your TOUGHSwitch model is the TOUGHSwitch PoE or TOUGHSwitch PoE PRO, proceed to the next section, Accessing the Configuration Interface.

If your TOUGHSwitch model is the TOUGHSwitch PoE CARRIER, proceed to “Configuring the TOUGHSwitch

PoE CARRIER” on page 12.

Accessing the Configuration Interface

Connect to the Configuration Interface by performing the following steps:

1. Ensure that your computer (or other host machine) is connected to the Management port on the TOUGHSwitch.

Note: By default, you can configure the

2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (for example, 192.168.1.100).

3. Launch your web browser. Type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username and Password fields. Click Login.

5. The Configuration Interface will appear, allowing you to customize your settings as needed. You can enable PoE on the Ports tab; see “PoE” on page 24.

Ubiquiti Networks, Inc.

Chapter 3: NavigationTOUGHSwitch™ PoE User Guide

Configuring the TOUGHSwitch PoE CARRIER

ToughSwitch A and B have the same default IP address,

192.168.1.20, so you will need to change the IP address of at least one TOUGHSwitch. Follow the instructions in this section to configure one TOUGHSwitch at a time, starting

with TOUGHSwitchA.

1. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (e.g.,

192.168.1.100).

2. Launch your web browser. Type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac).

3. The login screen will appear. Enter ubnt in the Username and Password fields. Click Login.

6. Disconnect the Ethernet cable from the Management port of TOUGHSwitch A and connect it to the Management port of TOUGHSwitch B. Then repeat steps 1-5 on TOUGHSwitch B.

Product Verification

The Configuration Interface will verify whether a product is genuine or counterfeit.

For a genuine TOUGHSwitch, the Configuration Interface will display a Genuine Product logo in the lower left corner of the screen.

For any product that is not an official Ubiquiti product, the Configuration Interface will display a counterfeit warning. Please contact Ubiquiti at support@ubnt.com regarding this product.

4. Change the Static Management IP Address to a unique IP address on the Device tab. Click Save Changes.

Interface Tabs

The Configuration Interface contains five main tabs, each of which provides a web-based management page to configure a specific aspect of the TOUGHSwitch. This User Guide covers each tab with a chapter. For details on a specific tab, refer to the appropriate chapter.

• Status The “Status Tab” on page 13 displays status information and statistics for each port.

• Device The “Device Tab” on page 17 configures system settings and services for the TOUGHSwitch.

• Ports The “Ports Tab” on page 23 configures settings and services for each port.

• VLANs The “VLANs Tab” on page 26 configures Virtual Local Area Networks (VLANs) for the various ports.

• Alerts The “Alerts Tab” on page 28 displays alerts if alert logging is configured and system log messages if system logging is enabled.

Each page also contains network administration and monitoring tools:

• “MAC Forwarding Table” on page 30

• “Ping” on page 31

• “Traceroute” on page 31

• “Discovery” on page 31

5. You can enable PoE on the Ports tab and customize additional settings as needed.

Ubiquiti Networks, Inc.

Chapter 4: Status TabTOUGHSwitch™ PoE User Guide

Chapter 4: Status Tab

The Main tab displays a summary of the link status information, current values of the basic configuration settings, network settings and information, and traffic statistics.

The TOUGHSwitch image displays the active LEDs and connections. See “Hardware Overview” on page 1 for more information.

Ubiquiti Networks, Inc.

Total Throughput for TX and RX are also displayed.

Chapter 4: Status TabTOUGHSwitch™ PoE User Guide

Place your mouse over a port to view its PoE status, Speed setting, duplex mode, and statistics for TX and RX throughput.

Status

Device Name Displays the customizable name or

identifier of the device. The Device Name (also known as host name) is displayed in registration screens and discovery tools.

Device Location Displays the description of the device’s

location.

Firmware Displays the firmware version of the

Configuration Interface.

Date Displays the current system date and time. The

date and time are displayed in YEAR-MONTH-DAY HOURS:MINUTES:SECONDS format. The system date and time is retrieved from the Internet using NTP (Network Time Protocol). The NTP Client is disabled by default on the Device tab. The device doesn’t have an internal clock, and the date and time may be inaccurate if the NTP Client is disabled or the device isn’t connected to the Internet.

Uptime This is the total time the device has been running

since the latest reboot (when the device was powered up) or software upgrade. The time is displayed in days, hours, minutes, and seconds.

Device MAC Displays the Media Access Control (MAC)

address of the device.

Port Status

STP State Displays the Spanning Tree Protocol (STP)

state if STP is enabled on the Device tab. Displayed STP states include Blocking, Learning, and Forwarding. (See “Spanning Tree Protocol” on page 21 for more information.)

MTU Displays the Maximum Transmission Unit (MTU),

which is the maximum packet size (in bytes) that a network can transmit.

Alerts Displays whether alerts are set on this port.

Port Statistics

Raw/Formatted The statistics are available in two

formats. Click the format you prefer.

• Raw Displays data in bytes. The Raw format is more detailed because some bytes are not displayed when formatted.

- RX/TX Packets For the 5-Port TOUGHSwitch PoE only, you can hold your mouse over the statistic to display a popup with packet size details.

- RX/TX Errors If there are errors, you can hold your mouse over the statistic to display a popup with error details.

Port Displays the number of the port. Name Displays the name of the port. Port Status Displays the activity status of the link

connection.

Link Status Displays the speed and duplex mode of the

port. If the port is inactive, “Down” is displayed.

PoE Displays the status and voltage of the PoE feature.

24V is displayed in green. 48V* is displayed in orange

(*available only on the TOUGHSwitch PoE PRO).

Ubiquiti Networks, Inc.

• Formatted Displays data in megabytes (MB), kilobytes (kB), gigabytes (GB), or terabytes (TB) – up to three decimal places. For example, if data is displayed in GB,

bytes are not counted until they reach a total of 1MB. If 1GB is displayed, the next number that will be displayed

is 1.001 GB (1 GB + 1 MB = 1.001 GB).

Port Displays the number of the port. Name Displays the name of the port.

Chapter 4: Status TabTOUGHSwitch™ PoE User Guide

RX Bytes/Data Displays the amount of data received.

RX Bytes displays the amount in the Raw format (actual number of bytes). RX Data displays the amount in the Formatted format – up to three decimal places in one of these units of measurement: megabytes (MB), kilobytes (kB), gigabytes (GB), or terabytes (TB).

RX Packets Displays the number of packets received

without errors.

RX Errors Displays the number of packets received with

errors.

TX Bytes/Data Displays the amount of data transmitted.

TX Bytes displays the amount in the Raw format (actual number of bytes). TX Data displays the amount in the Formatted format – up to three decimal places in one of these units of measurement: megabytes (MB),

kilobytes(kB), gigabytes (GB), or terabytes (TB).

TX Packets Displays the number of packets transmitted

without errors.

TX Errors Displays the number of packets transmitted

with errors.

Reset Statistics Click this button to clear the displayed

statistics and reset them to zero.

All/Last 20 sec By default, the pie charts are displayed in

All format, which is cumulative over time. To display data distribution for the last 20 seconds, click Last 20 sec.

Details for Port

To display Packet Distribution, Packet Rate, and Throughput for a specific port, click the port on the image. The selected port is highlighted in blue.

To return to the default view displaying Total Throughput and Data Distribution, click Show Device Details.

Total Throughput

By default, Total Throughput and Data Distribution are displayed.

Total Throughput displays the current data traffic on the TOUGHSwitch in both graphical and numerical form. The chart scale and throughput dimension (bps, kbps, Mbps) change dynamically depending on the mean throughput value. The statistics are updated automatically.

Data Distribution

Packet Distribution

A pie chart, Packet Distribution, displays the current packet sizes going through the port. The pie chart is updated automatically.

Note: The TOUGHSwitch PoE PRO does not display

Packet Distribution.

All/Last 20 sec By default, the pie chart is displayed in All

format, which is cumulative over time. To display packet distribution for the last 20 seconds, click Last 20sec.

Two pie charts, RX and TX, display the data traffic allocated among the ports of the TOUGHSwitch. The pie charts are updated automatically.

Ubiquiti Networks, Inc.

Packet Rate

Packet Rate displays the current packets per second rate on the port in both graphical and numerical form. The chart scale and packet rate dimension change dynamically depending on the mean packet rate value. The statistics are updated automatically.

Throughput

Chapter 4: Status TabTOUGHSwitch™ PoE User Guide

Throughput displays the current data traffic on the port in both graphical and numerical form. The chart scale and throughput dimension (bps, kbps, Mbps) change dynamically depending on the mean throughput value. The statistics are updated automatically.

Ubiquiti Networks, Inc.

Chapter 5: Device Tab TOUGHSwitch™ PoE User Guide

Chapter 5: Device Tab

The Device tab allows you to configure and use the Firmware Update, Management Network Settings, Basic Settings, Management Connection Settings, Services, Spanning Tree Protocol, Jumbo Frames, Device Discovery, System Account, Device Maintenance, and Configuration Management options for the TOUGHSwitch.

Ubiquiti Networks, Inc.

The TOUGHSwitch image displays the active LEDs and connections. See “Hardware Overview” on page 1 for more information.

Chapter 5: Device Tab TOUGHSwitch™ PoE User Guide

Total Throughput for TX and RX are also displayed.

Place your mouse over a port to view its PoE status, Speed setting, duplex mode, and statistics for TX and RX throughput.

Revert Changes To cancel your changes, click Revert

Changes.

Test Changes To try the changes without saving them,

click Test Changes. To keep the changes, click Apply. If you do not click Apply within 180 seconds (the countdown is displayed), the device times out and resumes its earlier configuration.

Save Changes To immediately save your changes, click

Save Changes.

Firmware Update

This section manages the firmware maintenance.

WARNING: Do not power off, do not reboot, and do

not disconnect the TOUGHSwitch from the power supply during the firmware update process as these actions will damage the TOUGHSwitch!

Management Network Settings

The Management Network Settings configure the IP settings and management access of the TOUGHSwitch.

Because the TOUGHSwitch is a Layer 2 device, the IP Address and Netmask are not mandatory; however, if you want to manage the TOUGHSwitch, then you will need to configure the IP Address and Netmask unless you select DHCP.

Management IP Address The TOUGHSwitch can use a

static IP address or obtain an IP address from its DHCP server.

• Static Assign static IP settings to the TOUGHSwitch.

Note: IP settings should be consistent with the

address space of the TOUGHSwitch’s network segment.

Firmware Version Displays the current firmware version. Build Number Displays the build number of the firmware

version.

Check for Updates By default, the firmware automatically

checks for updates. To manually check for an update, click

Check Now.

Update Firmware The TOUGHSwitch firmware update

is compatible with all configuration settings. The system configuration is preserved while the TOUGHSwitch is updated with a new firmware version. However, we recommend that you click Download in the Configuration Management section to back up your current system configuration before updating the firmware.

Updating the firmware is a three-step procedure:

1. Click Choose File to locate the new firmware file. Select the file and click Open.

2. Click Upload to upload the new firmware to the TOUGHSwitch.

3. The Uploaded Firmware Version is displayed. Click Update to confirm.

If the firmware update is in process, you can close the firmware update window, but this does not cancel the firmware update. Please be patient, as the firmware update routine can take three to seven minutes. You cannot access the TOUGHSwitch until the firmware update routine is completed.

- IP Address Specify the IP address of the TOUGHSwitch. This IP will be used for device management purposes. The default is 192.168.1.20.

- Netmask When the netmask is expanded into its binary form, it provides a mapping to define which portions of the IP address range are used for the network devices and which portions are used for host devices. The netmask defines the address space of the TOUGHSwitch’s network segment. The default

255.255.255.0 (or “/24”) netmask is commonly used on many Class C IP networks.

- Management Port Only By default, this option is disabled and you can manage the TOUGHSwitch through any port. To restrict management access to only the Management port, check this box.

Note: The Management Port Only option must be

disabled if you want traffic to flow between the Management port and numbered ports. Traffic will be limited to 10/100 Mbps and, under heavy load, may cause performance degradation of the TOUGHSwitch.

- Gateway IP Typically, this is the IP address of the host router, which provides the point of connection to the Internet. This can be a DSL modem, cable modem, or WISP gateway router. The TOUGHSwitch directs packets to the gateway if the destination host is not within the local network. The default is 192.168.1.1.

- Primary DNS IP Specify the IP address of the primary DNS (Domain Name System) server.

Ubiquiti Networks, Inc.

Chapter 5: Device Tab TOUGHSwitch™ PoE User Guide

- Secondary DNS IP Specify the IP address of the secondary DNS server. This entry is optional and used only if the primary DNS server is not responding.

• DHCP The local DHCP server assigns a dynamic IP address, netmask, gateway IP address, and DNS address to the TOUGHSwitch.

Note: We do not recommend the DHCP option.

The IP address may change, and you will need to use the Discovery tool from another Ubiquiti device or computer to discover the IP address of the TOUGHSwitch. You can also reset the TOUGHSwitch to its factory default settings. (Press and hold the Reset button for more than 10 seconds.) Its default IP Address is reset to

192.168.1.20.

- DHCP Fallback IP Specify the IP address the TOUGHSwitch should use if a DHCP server is not found. The default is 192.168.1.20.

- DHCP Fallback Netmask Specify the netmask the TOUGHSwitch should use if a DHCP server is not found. The default is 255.255.255.0.

- Management Port Only By default, this option is disabled and you can manage the TOUGHSwitch through any port. To restrict management access to only the Management port, check this box.

Note: The Management Port Only option must be

Latitude Enter the latitude of the device’s location in

decimal format, if available. Use a minus sign (-) to indicate a latitude south of the equator.

Longitude Enter the latitude of the device’s location in

decimal format, if available. Use a minus sign (-) to indicate a longitude west of the Prime Meridian.

Management Connection Settings

The Management Connection Settings section configures system connection services: Web Server, Telnet Server, and SSH Server.

Web Server

The following Web Server parameters can be set:

Secure Connection (HTTPS) By default, the web server

uses secure HTTPS mode.

• Secure Server Port If secure HTTPS mode is used, specify the TCP/IP port of the web server. The default is

443.

Server Port If HTTP mode is used, specify the TCP/IP port

of the web server. The default is 80.

Session Timeout Specify the maximum timeout before

the session expires. Once a session expires, you must log in again using the username and password. The default is 15 minutes.

SSH Server

Basic Settings

The Basic Settings configure the device, date, and location settings of the TOUGHSwitch.

Device Name Specify the Device Name (host name),

which is the system-wide device identifier. The SNMP agent reports it to authorized management stations. The Device Name will be used in popular router operating systems, registration screens, and discovery tools.

Time Zone Specify the time zone in relation to Greenwich

Mean Time (GMT). The default is (GMT) Western Europe.

Location Enter a description of the device’s location.

Ubiquiti Networks, Inc.

The following SSH Server parameters can be set:

SSH Server SSH access to the device is enabled by

default.

• Server Port Specify the TCP/IP port of the SSH server. The default is 22.

• Password Authentication By default, this option is enabled and you must authenticate using administrator credentials to grant SSH access to the device. If you disable this option, then an authorized key is required.

• Authorized Keys Click Edit to import a public key file for SSH access to the device instead of using an admin password.

- Choose File Click Choose File to locate the new key file. Select the file and click Open.

- Import Imports the file for SSH access.

- Enabled Enables the specific key. All the added keys are saved in the system configuration file; however, only the enabled keys are active on the device.

- Type Displays the type of key.

- Key Displays the key.

- Comment You can enter a brief description of the key.

- Action You have the following options:

• Add Adds a public key file.

• Edit Makes changes to a public key file. Click Save

to save your changes.

• Del Deletes a public key file.

- Save Saves your changes.

- Close Discards your changes.

Telnet Server

Chapter 5: Device Tab TOUGHSwitch™ PoE User Guide

The device contains an SNMP agent, which does the following:

• Provides an interface for device monitoring using SNMP

• Communicates with SNMP management applications for network provisioning

• Allows network administrators to monitor network performance and troubleshoot network problems

For the purpose of equipment identification, configure the SNMP agent with contact and location information:

SNMP Agent Enables the SNMP agent.

• SNMP Community Specify the SNMP community string. It is required to authenticate access to Management Information Base (MIB) objects and functions as an embedded password. The device supports a read-only community string; authorized management stations have read access to all the objects in the MIB except the community strings, but do not have write access. The device supports SNMP v1. The default SNMP Community is public.

• Contact Specify the contact who should be notified in case of emergency.

• Location Specify the physical location of the device.

The following Telnet Server parameters can be set:

Telnet Server This option activates Telnet access to the

device.

• Server Port Specify the TCP/IP port of the Telnet server. The default is 23.

Services

The Services section configures system management services: SNMP Agent, System Log, Dynamic DNS, and NTPClient.

SNMP Agent

Simple Network Monitor Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. Network administrators use SNMP to monitor network-attached devices for issues that warrant attention.

Dynamic DNS

Domain Name System (DNS) translates domain names to IP addresses; Each DNS server on the Internet holds these mappings in its respective DNS database. Dynamic Domain Name System (DDNS) is a network service that notifies the DNS server in real time of any changes in the device’s IP settings. Even if the device’s IP address changes, you can still access the device through its domain name.

Dynamic DNS If enabled, the device allows

communications with the DDNS server.

• Host Name Enter the host name of the DDNS server.

• Username Enter the username of the DDNS account.

• Password Enter the password of the DDNS account.

• Show Check the box to display the password characters.

Ubiquiti Networks, Inc.

Chapter 5: Device Tab TOUGHSwitch™ PoE User Guide

System Log

If you enable the System Log, the messages display on the Alerts tab; see “System Log” on page 29.

System Log This option enables the registration routine

of system log (syslog) messages. By default it is disabled.

• Remote Log Enables the syslog remote sending function. System log messages are sent to a remote server, which is specified in the following fields:

- Remote Log IP Address The host IP address that receives syslog messages. Properly configure the remote host to receive syslog protocol messages.

- Remote Log Port The TCP/IP port that receives syslog messages. 514 is the default port for the commonly used system message logging utilities.

Every logged message contains at least a system time and host name. Usually a specific service name that generates the system event is also specified within the message. Messages from different services have different contexts and different levels of detail. Usually error, warning, or informational system service messages are reported; however, more detailed debug level messages can also be reported. The more detailed the system messages reported, the greater the volume of log messages generated.

NTP Client

Network Time Protocol (NTP) is a protocol for synchronizing the clocks of computer systems over packet-switched, variable-latency data networks. You can use it to set the system time on the device. If the System Log option is enabled, then the system time is reported next to every log entry that registers a system event.

Spanning Tree Protocol

For optimal performance, there should be a single active path between two networking devices in an Ethernet network. Spanning Tree Protocol (STP) provides redundant paths and prevents network loops that can create excessive traffic and slow down performance. STP calculates the best path for network traffic; if the best path fails, STP recalculates and finds the next best path.

Status Enabled by default, STP provides redundancy

without network loops.

Version Select the version of STP to use. STP and Rapid

STP (RSTP) display the following states: Blocking, Learning, and Forwarding. RSTP is recommended because ports can more quickly progress to the forwarding state. When STP is selected, the TOUGHSwitch sends STP packets. The default is RSTP.

Max Age Specify how long the TOUGHSwitch saves

a configuration message received on a port. If the TOUGHSwitch does not hear any new configuration messages after the Max Age time interval, then the TOUGHSwitch adapts and starts to reconfigure. The default is 20 seconds.

Hello Time Specify the time interval between

configuration messages transmitted by the TOUGHSwitch to other switches. The default is 2 seconds.

Forward Delay Specify how long the listening and

learning states last before the TOUGHSwitch forwards traffic. The default is 15 seconds.

Priority STP uses priority values to select a switch as the

root switch of the spanning tree. Specify the Priority value of the TOUGHSwitch. The default is 32768.

Jumbo Frames

The Maximum Transmission Unit (MTU) is the maximum packet size (in bytes) that a network interface can transmit. A jumbo frame is a frame that is larger than the standard Ethernet frame with an MTU of 1500. Jumbo frames are typically used for Gigabit Ethernet connections.

NTP Client If enabled, the device obtains the system time

from a time server on the Internet.

• NTP Server Specify the IP address or domain name of the NTP server. The default is 0.ubnt.pool.ntp.org.

Ubiquiti Networks, Inc.

Jumbo Frames By default, this option is disabled; the

TOUGHSwitch does not handle jumbo frames and drops them. If you enable this option, the TOUGHSwitch handles jumbo frames and forwards them. The maximum MTU of the TOUGHSwitch PoE is 9216, and the maximum MTU of the TOUGHSwitch PoE PRO is 9720.

Chapter 5: Device Tab TOUGHSwitch™ PoE User Guide

Device Discovery

Discovery This option is enabled by default, so the device

can be discovered by other Ubiquiti devices through the Device Discovery tool. See “Discovery” on page 31 for more information.

System Accounts

You can change the administrator password to protect your device from unauthorized changes. We recommend that you change the default administrator password during the very first system setup:

Administrator Username Specify the name of the

administrator.

Key button Click this button to change the password.

• Current Password Enter the current password for the administrator account. It is required to change the Password or Administrator Username.

• New Password Enter the new password for the administrator account.

• Verify New Password Re-enter the new password for the administrator account.

Support Info This generates a support information

file that the Ubiquiti support engineers can use when providing customer support. This file only needs to be generated at their request.

Configuration Management

This section manages device configuration routines and the option to reset the device to factory default settings.

The device configuration is stored in a plain text file (.cfg). You can back up, restore, or update the system

configurationfile:

Back Up Configuration Click Download to download the

current system configuration file.

Note: We strongly recommend that you save

the configuration file in a secure location. The configuration file includes confidential information, such as hashed passwords.

Upload Configuration Click Choose File to locate the

new configuration file. Select the file and click Open. We recommend that you back up your current system configuration before uploading the new configuration.

Use only configuration files for the same type of the device. Behavior may be unpredictable if you mix configuration files from different types of devices. For example, upload a TS-8-PRO configuration file to a TS-8-PRO; do NOT upload a TS-5-POE configuration file to a TS-8-PRO.

Note: The password length is 8 characters

maximum; passwords exceeding 8 characters will be truncated.

Device Maintenance

This section manages device reboot and support information reports.

Reboot Device Initiates a full reboot cycle of the device.

Reboot is the same as the hardware reboot, which is similar to the power-off and power-on cycle. The system configuration stays the same after the reboot cycle completes. Any changes that have not been applied

arelost.

Ubiquiti Networks, Inc.

Note: The TS-16-CARRIER is comprised of two

TS-8-PRO devices, so you can upload a TS-8-PRO configuration file to either of the devices that make up the TS-16-CARRIER.

• Upload Click this button to upload the new configuration file to the TOUGHSwitch. Click Apply to confirm.

After the TOUGHSwitch reboots, the settings of the new configuration are displayed in the Configuration Interface.

Reset to Factory Defaults Resets the TOUGHSwitch to

the factory default settings. This option will reboot the TOUGHSwitch, and all factory default settings will be restored. We recommend that you back up your current system configuration before resetting the TOUGHSwitch to its defaults.

Chapter 6: Ports Tab TOUGHSwitch™ PoE User Guide

Chapter 6: Ports Tab

The Ports tab allows you to configure the Basic Settings, Ping Watchdog settings, Spanning Tree Settings, and alerts

for each port of the TOUGHSwitch. The TOUGHSwitch image displays the active LEDs and

connections. See “Hardware Overview” on page 1 for more information. To change a port’s settings, click the port on the image. Then the port is highlighted in blue.

Total Throughput for TX and RX are also displayed.

Ubiquiti Networks, Inc.

Place your mouse over a port to view its PoE status, Speed setting, duplex mode, and statistics for TX and RX throughput.

For each port, the Ports tab displays its Port number,

Name, Port Status, PoE status, Link Speed, Ping Watchdog, STP status (if enabled on the Device tab), and Alerts status.

To sort the ports in a specific order, click the appropriate column head.

PWR Cycle To power off the connected PoE device for

fiveseconds and then power it back on, click PWR Cycle.

Chapter 6: Ports Tab TOUGHSwitch™ PoE User Guide

Revert Changes To cancel your changes, click Revert

Changes.

Test Changes To try the changes without saving them,

click Test Changes. To keep the changes, click Apply. If you do not click Apply within 180 seconds (the countdown is displayed), the device times out and resumes its earlier configuration.

Save Changes To immediately save your changes, click

Save Changes.

Clone Settings for All Ports After you have made

changes for the selected port, click this button to apply the same changes to all ports. Then click Save Changes.

WARNING: The PoE setting is also cloned. Ensure that

the same PoE setting suits all ports before you clone the settings of the selected port.

Basic Settings for Port

Name Enter a name for the port. Port Status To use this port, check the box.

Note: If you disable a port, its PoE functionality

remains.

PoE PoE is disabled by default on all ports. To output PoE

to the connected device, select 24V or 48V (48V available only on the TOUGHSwitch PoE PRO). To disable PoE, selectOff.

Note: Before enabling PoE, check the specifications

of your airMAX, UniFi, legacy, or third-party devices to ensure they support passive PoE and require the available amount of voltage. The TOUGHSwitch PoE offers 24V passive PoE, and the TOUGHSwitch PoE PRO offers 24V or 48V passive PoE.

Link Speed, Mbps By default, Auto is enabled. The

TOUGHSwitch automatically negotiates transmission parameters, such as speed and duplex, with its counterpart. In this process, the networked devices first share their capabilities and then choose the fastest transmission mode they both support.

Flow Control Enabled by default. Flow Control allows

the port to manage data rates in case the sending and receiving devices use different data transmission rates.

Ping Watchdog for Port

Ping Watchdog is only for PoE-enabled ports. It configures the device to continuously ping a user-defined IP address (it can be the Internet gateway, for example). If it is unable to ping under the user-defined constraints, then the device will automatically turn off PoE on the port, and then turn it back on. This option creates a kind of “fail-proof” mechanism.

Ping Watchdog is dedicated to continuous monitoring of the specific connection to the remote host using the Ping tool. The Ping tool works by sending ICMP echo request packets to the target host and listening for ICMP echo response replies. If the specified number of replies is not received, the tool reboots the device.

Port Ping Watchdog Enables use of Ping Watchdog.

• IP Address To Ping Specify the IP address of the target host to be monitored by Ping Watchdog.

• Ping Interval Specify the time interval (in seconds) between the ICMP echo requests that are sent by Ping Watchdog. The default value is 15 seconds.

• Startup Delay Specify the initial time delay (in seconds) until the first ICMP echo requests are sent by Ping Watchdog. The default value is 300 seconds.

The Startup Delay value should be at least 60 seconds as the network interface and wireless connection initialization takes a considerable amount of time if the device is rebooted.

• Failure Count Specify the number of ICMP echo response replies. If the specified number of ICMP echo response packets is not received continuously, Ping Watchdog will reboot the device. The default value is 3.

• Cut Power for Specify the number of seconds this port should pause PoE (if applicable). The default value is 5seconds.

Note: Auto applies only to speed and duplex, not

POE.

To manually specify the maximum transmission link speed and duplex mode, select 100Mbps-Full, 100Mbps-Half, 10Mbps-Full, or 10Mbps-Half. Full-duplex mode allows communication in both directions simultaneously. Half-duplex mode allows communication in one direction at a time, alternating between transmission and reception.

To achieve full performance with extra-long Ethernet cables, ensure that you use CAT6-qualified cables and interconnects.

Ubiquiti Networks, Inc.

WARNING: Cutting power during a firmware

upgrade can damage your device. Ensure that you specify a safe Ping Interval.

Chapter 6: Ports Tab TOUGHSwitch™ PoE User Guide

Spanning Tree Settings for Port

STP settings are available per port if STP is enabled on the

Device tab (see “Spanning Tree Protocol” on page 21).

Edge Port If enabled, designates this port as a port that

connects to only a host device. The host device must not be connected to another switch or router. The Edge Port is always in the forwarding state and never undergoes the learning or blocking state.

Note: Ensure that the Edge Port is connected to

only a host device. If the Edge Port is connected to a switch or router (even indirectly through a host device), then this may cause a network loop.

Path Cost The lower the value, the better. STP uses the

Path Cost to determine the best path between devices. In most cases, specify lower values for ports with higher bandwidths, such as gigabit speeds, and specify higher values for ports with lower bandwidth. You can also specify lower values for ports you prefer to use. (Path Cost supersedes Priority.) The default is 0.

Priority The lower the value, the better. STP uses the

Priority as a tiebreaker. If the Path Cost of multiple ports are the same, then STP chooses the port with the highest Priority (lowest value) as the active port (the others are blocked). If STP detects a network loop, then a port with higher Priority is less likely to be blocked. If multiple ports share the highest Priority, then STP enables the port with the lowest port ID. The Priority range is 0 (highest priority) to 255 (lowest priority).The default is 128.

Configure Alerts for Port

If you configure alerts, the alerts display on the Alerts tab; see “Alert Log” on page 28.

For each port, you can configure the following alerts:

Link Goes Up/Down Generates an alert when the link

goes up or down.

RX Bandwidth Goes Above Generates an alert when the

RX bandwidth exceeds the specified maximum. Enter the maximum in Mbps.

RX Bandwidth Goes Below Generates an alert when the

RX bandwidth drops below the specified minimum. Enter the minimum in Mbps.

TX Bandwidth Goes Above Generates an alert when the

TX bandwidth exceeds the specified maximum. Enter the maximum in Mbps.

TX Bandwidth Goes Below Generates an alert when the

RX bandwidth drops below the specified minimum. Enter the minimum in Mbps.

Ubiquiti Networks, Inc.

Chapter 7: VLANs Tab TOUGHSwitch™ PoE User Guide

Chapter 7: VLANs Tab

The VLANs tab configures Virtual Local Area Networks (VLANs) and trunk ports.

The TOUGHSwitch image displays the active LEDs and connections. See “Hardware Overview” on page 1 for more information.

Total Throughput for TX and RX are also displayed.

Place your mouse over a port to view its PoE status, Speed setting, duplex mode, and statistics for TX and RX throughput.

Revert Changes To cancel your changes, click Revert

Changes.

Test Changes To try the changes without saving them,

click Test Changes. To keep the changes, click Apply. If you do not click Apply within 180 seconds (the countdown is displayed), the device times out and resumes its earlier configuration.

Save Changes To immediately save your changes, click

Save Changes.

VLANs

All ports belong to VLAN1, which is enabled as a management VLAN by default. A port can belong to more than one VLAN.

Trunk Ports Trunk mode is enabled by default. Trunk

ports carry both untagged and tagged traffic from multiple VLANs.

Ubiquiti Networks, Inc.

Add Create a new Virtual Local Area Network (VLAN).

• Enabled Check the box to enable the VLAN.

• Management Create the VLAN before you select this option. Ensure that you have access via the new VLAN before you choose to manage through this VLAN.

Note: If you configure a new VLAN as Management,

then VLAN 1 is no longer the management VLAN. If you cannot access the new management VLAN, then you are locked out of the Configuration Interface. (If you are locked out, you can reset the TOUGHSwitch to its factory defaults.)

• VLAN ID Enter a unique VLAN ID from 2 to 4095.

• Comment Enter a description of this VLAN.

• Port _ For each port, assign its membership status as a tagged or untagged member of this VLAN. You can also exclude a port from this VLAN.

- T (tag) The port belongs to this VLAN, and VLAN tags are included on outgoing frames. Click the letter until it becomes a “T”.

- U (untag) The port belongs to this VLAN, and VLAN tags are excluded from outgoing frames. Click the letter until it becomes a “U”.

- E (exclude) The port does not belong to this VLAN. Click the letter until it becomes a “E”.

• Delete Permanently removes the VLAN. If you want to temporarily disable the VLAN, remove the check from the Enabled box.

Chapter 7: VLANs Tab TOUGHSwitch™ PoE User Guide

Trunk

You can specify an existing VLAN to be the native VLAN for all trunk ports. Untagged frames received on trunk ports become members of the native VLAN.

Native VLAN By default, the Native VLAN is 1. To specify a

different Native VLAN, select it from the drop-down list.

Note: Both ends of the trunk must use the same

Native VLAN.

Ubiquiti Networks, Inc.

Chapter 8: Alerts Tab TOUGHSwitch™ PoE User Guide

Chapter 8: Alerts Tab

The Alerts tab displays logs registering alerts or system events.

The TOUGHSwitch image displays the active LEDs and connections. See “Hardware Overview” on page 1 for more information.

Total Throughput for TX and RX are also displayed.

Place your mouse over a port to view its PoE status, Speed setting, duplex mode, and statistics for TX and RX throughput.

Port To display entries for all ports, select All. To display

entries for a specific port, select the port number from the drop-down list.

When alerts logging is enabled, the Select All and Clear Selected buttons are available:

Select All To select all entries in the Alert Log, click Select

All.

Clear Selected To delete specific entries in the Alert Log,

select those entries and then click Clear.

Refresh To update the log content, click Refresh. Search Allows you to search for specific text. Begin

typing; there is no need to press enter. The results are filtered in real time as soon as you type two or more characters.

Entries in the Alert Log include the Port number, Date, and Message.

Alert Log

When alerts logging is configured on the Ports tab (see “Configure Alerts for Port” on page 25), the Alert Log lists all alerts. By default, alert logging is disabled.

Ubiquiti Networks, Inc.

System Log

When system logging is enabled on the Device tab (see “System Log” on page 21), the System Log lists all system events. By default, system logging is disabled.

When system logging is enabled, there are two buttons available:

Clear To delete all entries in the System Log, click Clear. Refresh To update the log content, click Refresh.

Chapter 8: Alerts Tab TOUGHSwitch™ PoE User Guide

Ubiquiti Networks, Inc.

Chapter 9: ToolsTOUGHSwitch™ PoE User Guide

Chapter 9: Tools

Each tab of the Configuration Interface contains network administration and monitoring tools. Click the Tools drop‑down list at the top right corner of the page.

MAC Forwarding Table

The MAC Forwarding Table displays the MAC addresses of the hardware devices using the TOUGHSwitch.

MAC Table

Port All is the default. To view the MAC addresses of the

hardware devices using a specific port, select the port from the drop‑down list.

Search The Search field automatically filters port

numbers, VLAN IDs, and MAC addresses containing specified numbers or letters as you enter them.

The MAC Forwarding Table reports the Port number, VLAN ID, and MAC Address for each hardware device. To refresh the window, click Refresh.

Ubiquiti Networks, Inc.

Chapter 9: ToolsTOUGHSwitch™ PoE User Guide

Ping

You can ping other devices on the network directly from the TOUGHSwitch. The Ping tool uses ICMP packets to check the preliminary link quality and packet latency estimation between two network devices.

Network Ping

Select Destination IP You have two options:

• Select a remote system IP from the drop‑down list, which is generated automatically.

• Select or specify manually and enter the IP address in the field displayed below.

Packet Count Specify the number of packets to send for

the ping test. The default is 5.

Packet Size Specify the size of the packet in bytes. The

default is56.

Start Click this button to start the test.

Packet loss statistics and latency time evaluation are displayed after the test is completed.

Traceroute

The Traceroute tool traces the hops from the TOUGHSwitch to a specified outgoing IP address. Use this tool to find the route taken by ICMP packets across the network to the destination host.

Destination Host Enter the IP address of the destination

host.

Resolve IP Addresses Select this option to resolve the IP

addresses symbolically rather than numerically.

Start Click this button to start the test.

Responses are displayed after the test is completed.

Discovery

The Device Discovery tool searches for all Ubiquiti devices on your network, specifically the subnet that the TOUGHSwitch belongs to. The Search field automatically filters devices containing specified names or numbers as you enter them.

Ubiquiti Networks, Inc.

Search The Search field automatically filters devices

containing specified names or numbers as you enter them.

The Device Discovery tool reports the MAC Address, Device Name, wireless Mode (if applicable), SSID, Product type, Firmware version, and IP Address for each Ubiquiti device. To access a device configuration through its web management interface, click the device’s IP address.

To refresh the window, click Scan.

Appendix A: SpecificationsTOUGHSwitch™ PoE User Guide

Appendix A: Specifications

5-Port TOUGHSwitch PoE

Dimensions 197 x 87.5 x 27.3 mm

Weight 250 g

Power Input 24VDC, 2.5A Power Adapter (Included)

Max. Power Consumption 60 W

PoE Out Voltage Range 22-24VDC

Max. PoE Wattage Per Data Port 11.5 W

ESD Rating 24 kV Air / 24 kV Contact

PoE Method Passive

Button Reset

USB Port 2.0 Type A (Reserved for Future Use)

Processor MIPS 24K, 400 MHz

System Memory 64 MB

Code Storage 8 MB

Certications CE, FCC, IC

Wall-Mount Yes

Operating Temperature -25 to 55° C

Operating Humidity 90% Non-Condensing

PoE Congurable Per Port

Management N/A

Data Ports Off/24V

LEDs Per Port

Management Power/Link

Data Ports PoE, Speed/Link/Activity

Networking Interfaces

Management Port (1) 10/100 Ethernet Port

Data Ports (5) 10/100/1000 Ethernet Ports

Ubiquiti Networks, Inc.

Appendix A: SpecificationsTOUGHSwitch™ PoE User Guide

8-Port TOUGHSwitch PoE PRO*

Dimensions 210 x 185 x 41 mm

Weight 1.24 kg

Power Input 110-120VAC / 210-230VAC

Max. Power Consumption 150 W

PoE Out Voltage Range 45-48VDC / 22-24VDC

Max. PoE Wattage Per Data Port 11.5 W (24 V), 23 W (48V)

ESD Rating 24 kV Air / 24 kV Contact

PoE Method Passive

Button Reset

USB Port 2.0 Type A (Reserved for Future Use)

Processor MIPS 24K, 400 MHz

System Memory 64 MB

Code Storage 8 MB

Certications CE, FCC, IC

Operating Temperature -25 to 55° C

Operating Humidity 90% Non-Condensing

PoE Congurable Per Port

Management N/A

Data Ports Off/24V/48V

LEDs Per Port

Management Power/Link

Data Ports PoE, Speed/Link/Activity

Networking Interfaces

Management Port (1) 10/100 Ethernet Port

Data Ports (8) 10/100/1000 Ethernet Ports

TOUGHSwitch PoE CARRIER

Dimensions 480 x 44.5 x 186 mm

Weight 3.95 kg

Hardware Conguration (2) 8-Port TOUGHSwitch PoE PROs

Mounting Integrated 1U Rack-Mount

* Specifications apply to each 8-Port TOUGHSwitch PoE PRO unit of the TOUGHSwitch PoE CARRIER.

Ubiquiti Networks, Inc.

Appendix B: Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the

manufacturer.

WARNING: Do not use this product in location that

can be submerged by water.

WARNING: Avoid using this product during an

electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage,

frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

2. There are no operator serviceable parts inside this

equipment. Service should be provided only by a qualified service technician.

3. This equipment is provided with a detachable power

cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

a. Do not substitute the power cord with one that

is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.

b. The equipment requires the use of the ground wire

as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.

c. Contact a qualified electrician or the manufacturer

if there are questions about the installation prior to connecting the equipment.

d. Protective earthing is provided by Listed AC

adapter. Building installation shall provide appropriate short-circuit backup protection.

e. Protective bonding must be installed in accordance

with local national wiring rules and regulations.

Appendix B: Safety NoticesTOUGHSwitch™ PoE User Guide

Ubiquiti Networks, Inc.

Appendix C: WarrantyTOUGHSwitch™ PoE User Guide

Appendix C: Warranty

Limited Warranty

UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s) furnished hereunder (the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of any Product is not included in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product: (I) has been modified and/or altered, or an addition

made thereto, except by Ubiquiti Networks, or Ubiquiti Networks’ authorized representatives, or as approved by Ubiquiti Networks in writing;

(II) has been painted, rebranded or physically modified in

any way; (III) has been damaged due to errors or defects in cabling; (IV) has been subjected to misuse, abuse, negligence,

abnormal physical, electromagnetic or electrical

stress, including lightning strikes, or accident; (V) has been damaged or impaired as a result of using

third party firmware; or (VI) has no original Ubiquiti MAC label, or is missing any

other original Ubiquiti label(s). (VII) has not been received by Ubiquiti within 30 days of

issuance of the RMA. In addition, the above warranty shall apply only if: the

product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for indoor installations, indoor cabling requirements are followed.

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at: www.ubnt.com/support/warranty.

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be errorfree or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products (including the Products) for buyer’s application and/or failure of products (including the Products) to meet government or regulatory requirements.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Ubiquiti Networks, Inc.

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products.

Appendix C: WarrantyTOUGHSwitch™ PoE User Guide

Ubiquiti Networks, Inc.

Appendix D: Compliance InformationTOUGHSwitch™ PoE User Guide

Appendix D: Compliance Information

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est confrome à la norme NMB-003 Canada.

Australia and New Zealand

Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

RoHS/WEEE Compliance Statement

English

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/ or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist , nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle negative Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Ubiquiti Networks, Inc.

Español

La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación. Es responsabilidad suya desechar este y cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos de recogida que ponen a su disposición el gobierno y las autoridades locales. Al desechar y reciclar correctamente estos aparatos estará contribuyendo a evitar posibles consecuencias negativas para el medio ambiente y la salud de las personas. Si desea obtener información más detallada sobre la eliminación segura de su aparato usado, consulte a las autoridades locales, al servicio de recogida y eliminación de residuos de su zona o pregunte en la tienda donde adquirió el producto.

Français

La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout autre matériel électrique ou électronique par les moyens de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités territoriales. L’élimination et le recyclage en bonne et due forme ont pour but de lutter contre l’impact néfaste potentiel de ce type de produits sur l’environnement et la santé publique. Pour plus d’informations sur le mode d’élimination de votre ancien équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service de traitement des déchets, ou l’endroit où vous avez acheté le produit.

Appendix D: Compliance InformationTOUGHSwitch™ PoE User Guide

Italiano

La direttiva europea 2002/96/EC richiede che le apparecchiature contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica che questo prodotto non deve essere smaltito insieme ai normali rifiuti domestici. È responsabilità del proprietario smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche mediante le specifiche strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze potenzialmente negative per l’ambiente e per la salute dell’essere umano. Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto.

Ubiquiti Networks, Inc.

Appendix E: Declaration of ConformityTOUGHSwitch™ PoE User Guide

Appendix E: Declaration of Conformity

Česky [Czech]

Dansk [Danish]

Nederlands [Dutch]

English

Eesti [Estonian]

Suomi [Finnish]

Français [French]

Deutsch [German]

Ελληνική [Greek]

Magyar [Hungarian]

UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI NETWORKS device, je ve shod se základními po adavky a dal ími p íslu n mi ustanoveními sm rnice 1999/5/ES.

Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI NETWORKS device, in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI NETWORKS device, voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI NETWORKS device, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ EC.

Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS device, tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS, device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Par la présente, UBIQUITI NETWORKS déclare que ce UBIQUITI NETWORKS device, est conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont applicables.

Hiermit erklärt UBIQUITI NETWORKS, dass sich diese UBIQUITI NETWORKS device, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet”. (BMWi)

Hiermit erklärt UBIQUITI NETWORKS die Übereinstimmung des Gerätes UBIQUITI NETWORKS device, mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1995/5/ΕΚ.

Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Malti [Maltese]

Norsk [Norwegian]

Slovensky [Slovak]

Svenska [Swedish]

Español [Spanish]

Polski [Polish]

Português [Portuguese]

Română [Romanian]

Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI NETWORKS device, er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS device, sp a základné po iadavky a v etky príslu né ustanovenia Smernice 1999/5/ES.

Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI NETWORKS device, står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Por medio de la presente UBIQUITI NETWORKS declara que el UBIQUITI NETWORKS device, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne istotne postanowienia Dyrektywy 1999/5/EC.

UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS device, está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivei 1999/5/CE.

Íslenska [Icelandic]

Italiano [Italian]

Latviski [Latvian]

Lietuviškai [Lithuanian]

Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í tilskipun 1999/5/EC.

Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI NETWORKS device, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/ CE.

Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist tajiem noteikumiem.

UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Ubiquiti Networks, Inc.

Appendix F: Contact Information

Ubiquiti Networks Support

Ubiquiti Support Engineers are located around the world and are dedicated to helping customers resolve software, hardware compatibility, or field issues as quickly as possible. We strive to respond to support inquiries within a 24-hour period.

Online Resources

Support: support.ubnt.com Community: community.ubnt.com Downloads: downloads.ubnt.com

2580 Orchard Parkway San Jose, CA 95131

www.ubnt.com

Appendix F: Contact InformationTOUGHSwitch™ PoE User Guide

© 2012-2013 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti Networks® and TOUGHSwitch™ are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.

Ubiquiti Networks, Inc.

JL082613

Ubiquiti TS-16-CARRIER, TS-5-POE, TS-8-PRO User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1: Overview

Introduction

Package Contents

Configuration Interface System Requirements

Hardware Overview

Chapter 2: Installation

Introduction

Configuration

Installation of the TOUGHSwitch PoE

Chapter 3: Navigation

Accessing the Configuration Interface

Configuring the TOUGHSwitch PoE CARRIER

Product Verification

Interface Tabs

Chapter 4: Status Tab

Status

Port Status

Port Statistics

Details for Port

Total Throughput

Data Distribution

Chapter 5: Device Tab

Firmware Update

Management Network Settings

Management Connection Settings

Basic Settings

Services

Spanning Tree Protocol

Jumbo Frames

Device Discovery

System Accounts

Configuration Management

Device Maintenance

Chapter 6: Ports Tab

Basic Settings for Port

Ping Watchdog for Port

Spanning Tree Settings for Port

Configure Alerts for Port

Chapter 7: VLANs Tab

VLANs

Trunk

Chapter 8: Alerts Tab

Alert Log

System Log

Chapter 9: Tools

MAC Forwarding Table

Ping

Traceroute

Discovery

Appendix A: Specifications

Appendix B: Safety Notices

Electrical Safety Information

Appendix C: Warranty

Limited Warranty

Appendix D: Compliance Information

Industry Canada

Australia and New Zealand

RoHS/WEEE Compliance Statement

CE Marking

Appendix E: Declaration of Conformity

Appendix F: Contact Information

Ubiquiti Networks Support
