Ubiquiti Horn-5-60 Quick Start Guide
5 GHz, 60° Beamwidth
Horn Antenna
Model: Horn-5-60
Introduction
Thank you for purchasing the Ubiquiti Networks® 5 GHz,
60° Beamwidth Horn™ Antenna. This Quick Start Guide is
designed to guide you through installation and also includes
warrantyterms.
The horn antenna is compatible with the following models:
• IsoStation™ IS-M5
• IsoStation IS-5AC
• PrismStation™ PS-5AC
• airFiber® AF-LTU
Package Contents
5 GHz, 60° Beamwidth
Horn Antenna
Model: Horn-5-60
Horn-5-60 Quick Start Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is
designed for outdoor installations. It is the professional installer’s responsibility to follow local
country regulations, including operation within legal frequency channels, output power, and
Dynamic Frequency Selection (DFS) requirements.
Hardware Installation
These instructions show the IsoStation; however, they also
apply to the PrismStation and airFiber AF-LTU.

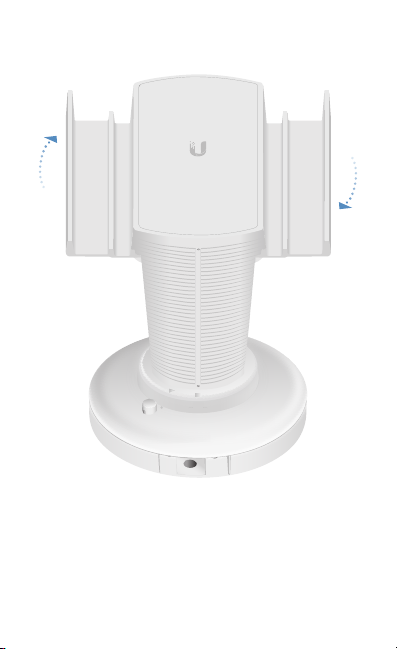

1. If removing the horn antenna to change it out for
a different model, first rotate the horn antenna
counterclockwise while depressing the Release Button.
Release
Button
2. To insert the horn antenna, align the arrow on the horn
antenna with the Release Button.
