Ubiquiti EP-S16-US Quick Start Guide

Intelligent WISP Control with FiberProtect

Model: EP-S16

™

Introduction

Thank you for purchasing the Ubiquiti Networks® EdgePoint™ Switch. This Quick Start Guide is designed to guide you through installation and includes the warranty terms.

Package Contents

EdgePoint

Switch

S2 Hex Wrench Wall-Mount Screws

Gigabit PoE (54V, 1.5A)

with Mounting Bracket

Wall-Mount

Bracket

(Qty. 4)

Metal Straps

Power Cord PoE Screws

(Qty. 2)

Cable Sleeve Cable Ties

Wall-Mount Anchors

(Qty. 4)

(Qty. 2)

PoE Anchors

(Qty. 2)

(Qty. 20)

Phillips Bolts

(Qty. 2)

Intelligent WISP Control

™

with FiberProtect

Model: EP-S16

Quick Start

Guide

Installation Requirements

• 7 mm socket wrench

• S2 hex wrench

• Ground wire – min. 10 AWG (5 mm2) and max. length: 1m. Asa safety precaution, ground the EdgePoint to a grounded mast, pole, tower, or grounding bar.

• Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.

• We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable

TERMS OF USE: Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

™

is designed for outdoor installations. It is the customer’s responsibility to

EdgePoint

™

EP-S16 Quick Start Guide

Hardware Overview

Bottom Panel Button

Reset

Button

Description

There are two methods to reset the EP-S16 to factory defaults:

Runtime Reset (Recommended)

The EP-S16 should be running after bootup is complete, and the power LED is white. Press and hold the Reset button. The EP-S16 will

reboot, and the power LED becomesblue

after three seconds. Continue to hold the

Reset button for about 15seconds until the

Reset

power LED flashes blue for two seconds. This indicates that the EP-S16 has reset to its

factorydefaults.

Power-on Reset

1. Disconnect power from the EP-S16.

2. While connecting power to the EP-S16, hold the Reset button for about

15seconds until the power LED flashes

blue for two seconds. This indicates that the EP-S16 has reset to its factory defaults.

Bottom Panel Console Port

Console

Interface Description

RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. (If your computer does not have a DB9 port, then you will also need a DB9 adapter.) Then configure the following

Console

settings as needed:

• Baud rate 115200

• Data bits 8

• Parity NONE

• Stop bits 1

• Flow control NONE

Hardware Overview

Note: Remove the protective plug from the Console port

before use.

EdgePoint

™

EP-S16 Quick Start Guide

Power Options

Either the VDC or PoE input type is used at any one time. If both are connected, only the input type with the highest voltage will be used; the other can be used as a backup.

Both PoE inputs can be used at the same time. If there is a voltage difference, the higher-voltage source will be used first. The voltage from the initial source will drop as the load increases. When the voltage drops to the same level as the lower-voltage source, then the lower-voltage source will also start providing power.

Power Input Options

• 54VDC, 6A

• 54V, 1.5A on PoE In/1

• 54V, 1.5A on PoE In/2

Power Output Options

• EdgePoint (required)

• Passive 54/24V, 4-Pair PoE on 1-4

• PoE+ or Passive 24V, 2-Pair PoE on 5-16

The number of devices that can be powered depends on the power consumption of the specific devices. Example: If you use 54VDC, 1.5A, then you have 81W. If the EdgePoint uses 40W, then you have 41W for PoE output. Check product specifications for the power consumption values to use in your calculations.

Bottom Panel DC Input

VDC

Interface Description

VDC In

Terminal block connector uses auto-polarity detection and accepts +42 to +56VDC, 6A input (including the Ubiquiti EdgePower™, model EP-54V-150W) to power the EdgePoint and passive PoE output. -48V is NOT supported.

Bottom Panel RJ45 Ports

PoE In/1

Hardware Overview

PoE In/2

Interface

PoE In / 1-2

(54/24V

PoE Out)

3-4

(54/24V

PoE Out)

5-16

(PoE+ or 24V

PoE Out)

5-16

Description

RJ45 ports support 10/100/1000 Ethernet connections and have PoE input or output functionality:

• PoE Input Accepts 54V, 1.5A PoE input to power the EdgePoint and PoE output.

• PoE Output You can configure the ports for 54/24V 4-pair PoE output.

Do NOT configure port PoE In / 1 or 2 in PoE output mode if you are using it as a PoE input power source.

RJ45 ports support 10/100/1000 Ethernet connections and passive 54/24V, 4-pair PoE output for airFiber® devices.

RJ45 ports support 10/100/1000 Ethernet connections and PoE+ (IEEE 802.3af/802.3at) or passive 24V, 2-pair PoE output for airMAX® or other devices.

EdgePoint

™

EP-S16 Quick Start Guide

Bottom Panel SFP Ports

SFP+ 1-2

Interface

SFP+ 1-2

Description

SFP+ ports are hot-swappable and support 1/10 Gbps fiber SFP/SFP+ modules.

Note: For extreme temperatures, please use industrial-grade

fiber SFP/SFP+ modules.

Front Panel LEDs

LED State Status

White Ready for Use

Bootup in Progress

power

Blue

Flashing Indicates Reset to Factory Defaults

LED State Status

Off No PoE

Hardware Overview

PoE Input

Speed/

Link/Act

1-4

Output

Speed/

Link/Act

5-16

Output

Green 54V Passive

Off No Link

Amber

Green

10/100Mbps Link Flashing Indicates Activity

1000Mbps (1 Gbps) Link Flashing Indicates Activity

Off No PoE

PoE

Amber 54V Passive, 4-Pair

Green 24V Passive, 4-Pair

Off No Link

Amber

Green

10/100Mbps Link Flashing Indicates Activity

1000Mbps (1 Gbps) Link Flashing Indicates Activity

Off No PoE

PoE

Amber PoE+ Auto (IEEE 802.3af/802.3at)

Green 24V Passive, 2-Pair

Speed/

Link/Act

SFP+ 1-2

Off No Link

Green

White

1000Mbps (1 Gbps) Link Flashing Indicates Activity

10 Gbps Link Flashing Indicates Activity

EdgePoint

™

EP-S16 Quick Start Guide

Back Panel

Lanyard Loop

PicoStation Slot

Pole-Mount

Bracket

Ground

Bonding Point

Lanyard Loop Used for temporary support during installation. PicoStation®M2HP Slot Used for mounting an optional

PicoStationM2HP (not included) to the back of the EdgePoint. (You can use the PicoStationM2HP for wireless management of the EdgePoint.)

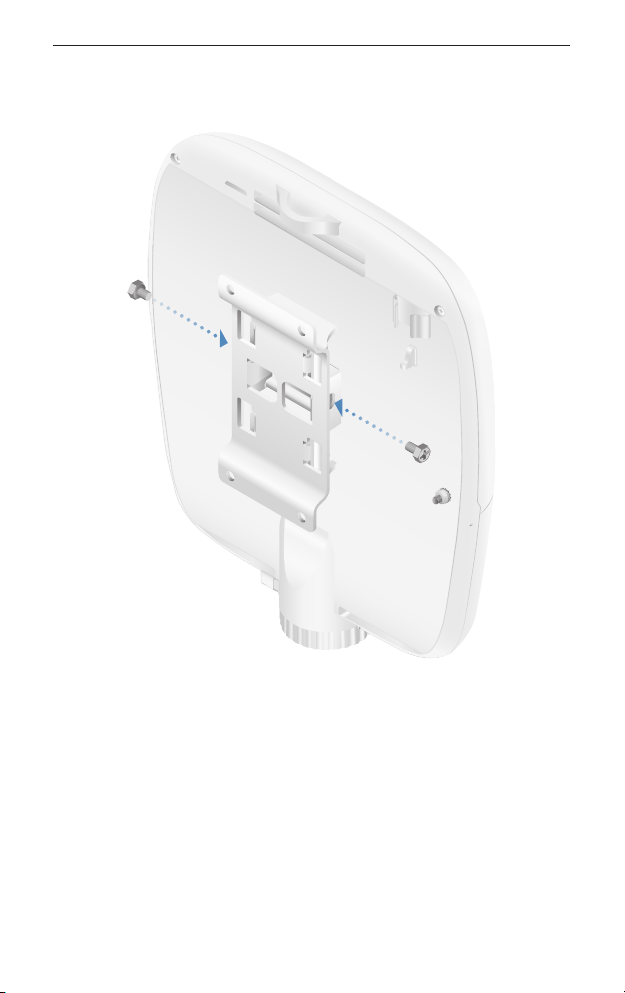

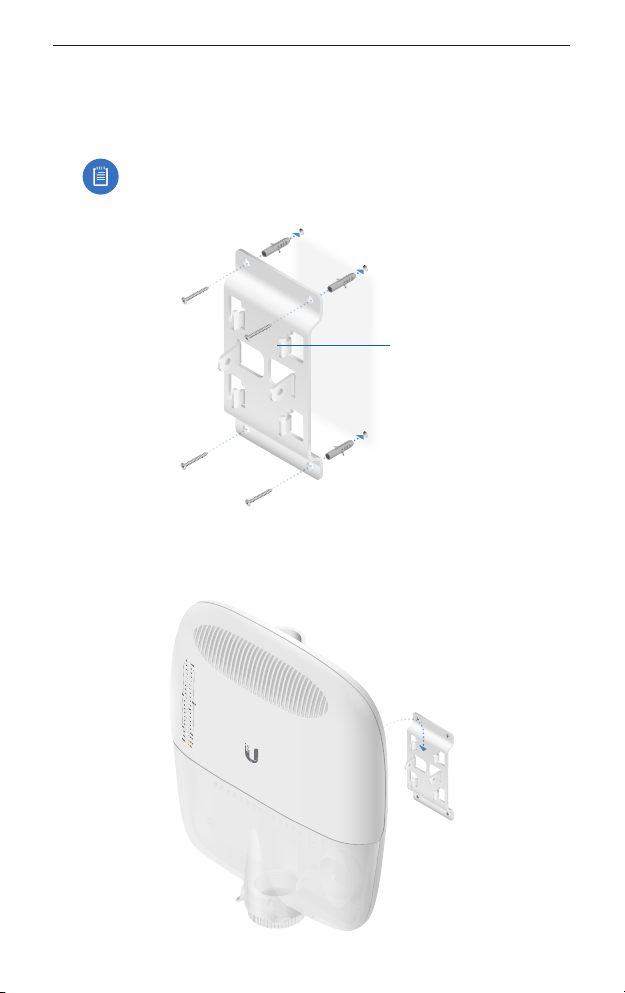

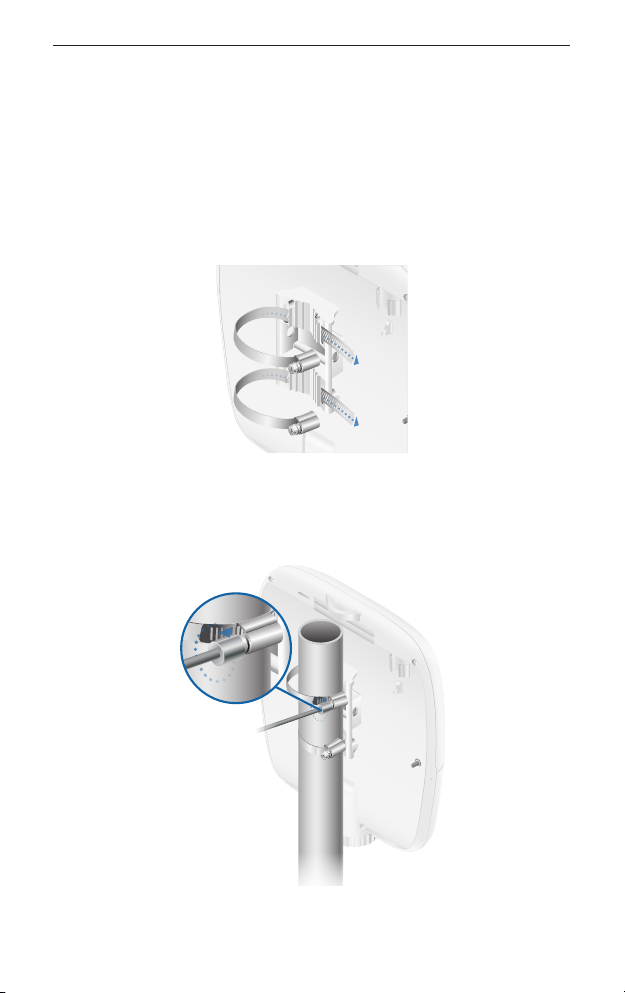

Pole-Mount Bracket Used for pole-mounting or in combination

with the included Wall-Mount Bracket for wall-mounting.

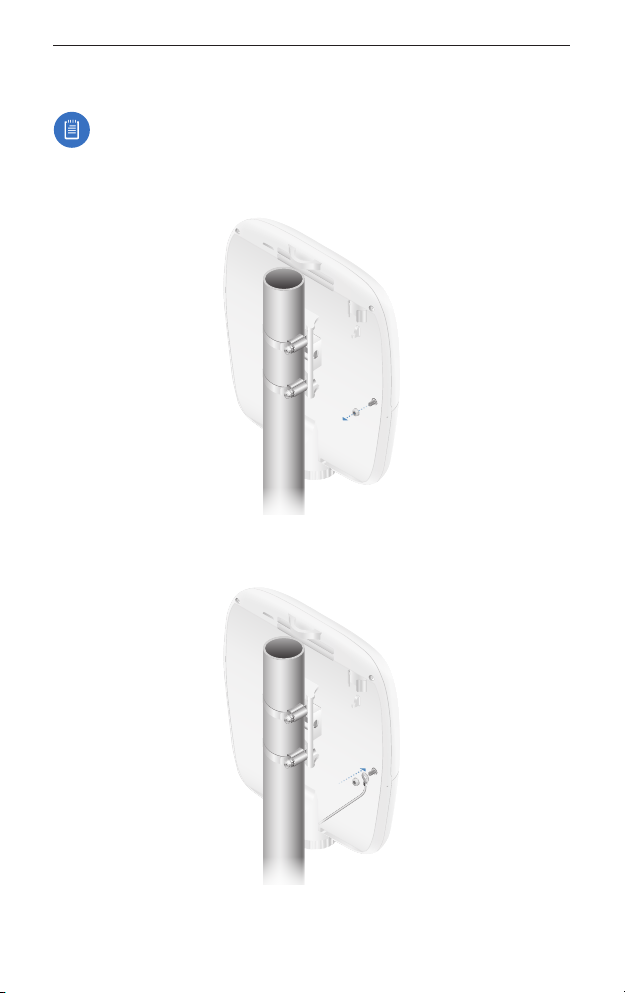

Ground Bonding Point Used to secure a ground wire (not

included).

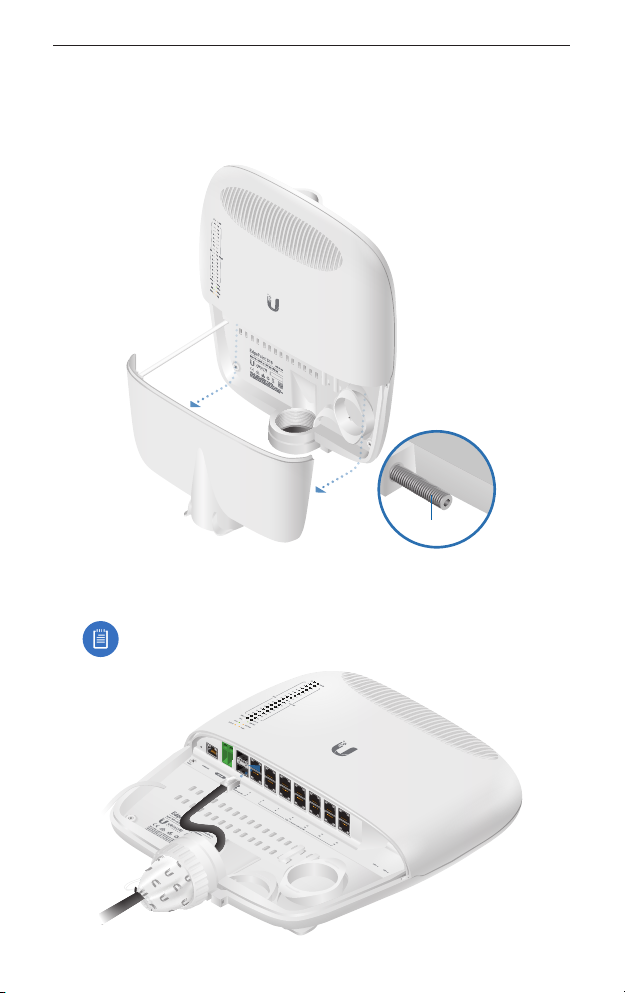

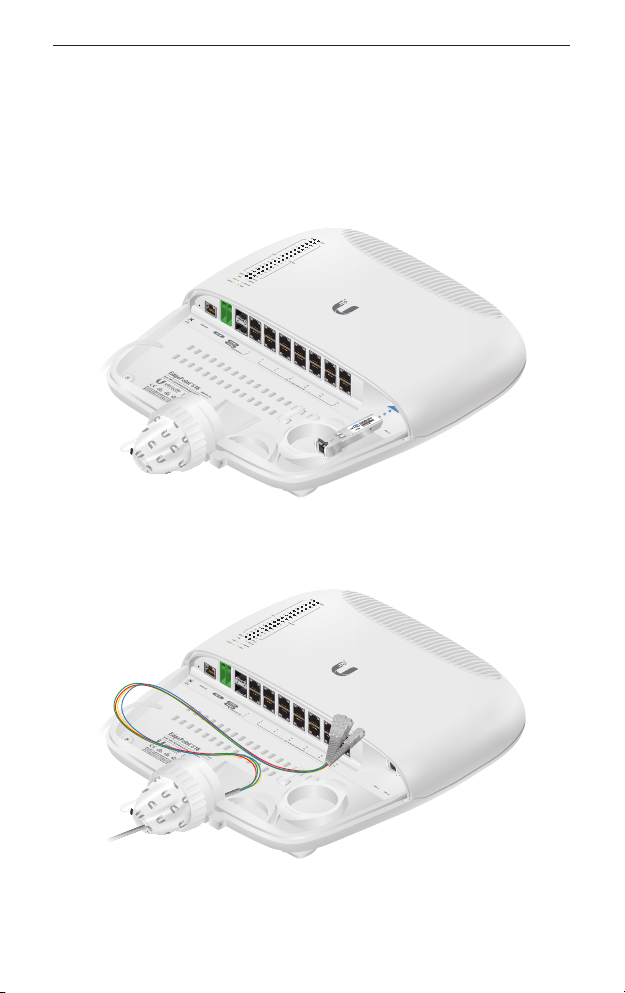

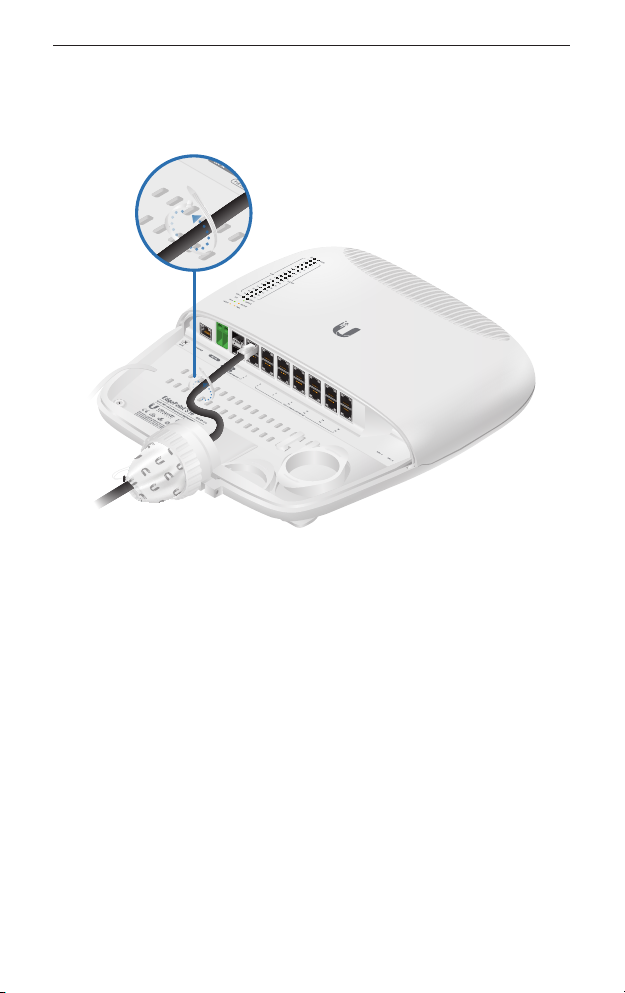

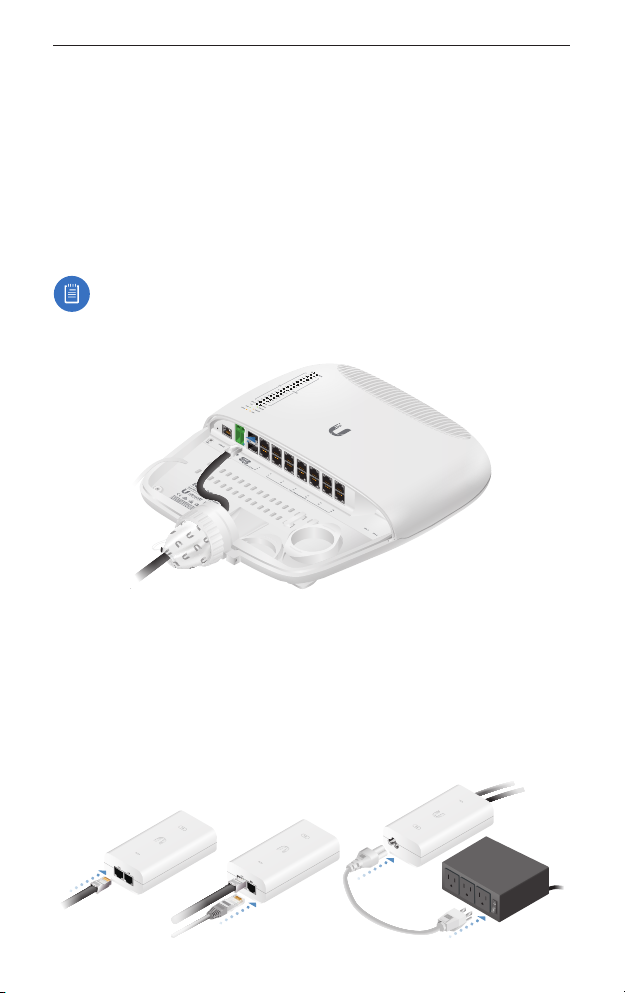

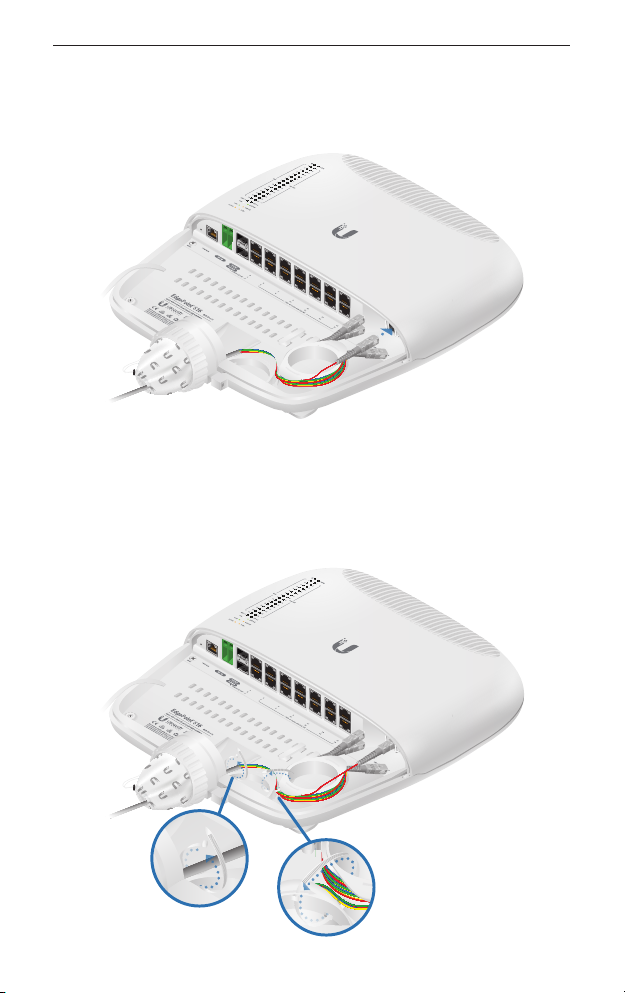

Attaching the Cable Sleeve

1. Insert and rotate the coupling to attach the Cable Sleeve to the EdgePoint.

Note: You have two options for using a 2.0-inch NPT

(National Pipe Thread) male conduit (not included):

• Use the conduit instead of the CableSleeve.

• Use the conduit to extend the CableSleeve.
