Ubiquiti AF-3G26-S45 operation manual
3 GHz, 26 dBi Slant 45
Antenna for airFiber
Model: AF-3G26-S45
®
Introduction
Thank you for purchasing the Ubiquiti Networks® 3GHz,
26dBi Slant 45 Antenna for airFiber®. This Quick Start Guide is
designed to guide you through installation and also includes
warranty terms.
Package Contents
Dish Reflector Antenna Feed Mounting Bracket
Protective
Shroud
Elevation Rod Assembly M10x150 Carriage Bolts
M10x25 Carriage Bolts
Products may be different from pictures and are subject to change without notice.
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable is
designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
(Qty. 3)
Pole Clamps
(Qty. 2)
Stabilizer Brackets
(Qty. 4)
M4 Bolts
(Qty. 4)
(Qty. 2)
M10x100 Carriage Bolts
RF Cables
(Qty. 2)
(Qty. 2)
3 GHz, 26 dBi Slant 45
®
Antenna for airFiber
Model: AF-3G26-S45
Quick Start
Guide
Installation Requirements
• airFiber AF-3X radio (sold separately)
• Phillips screwdriver
• 16 mm wrench
• 24 mm wrench
• Mounting point:
• At least 1 m below the highest point on the structure
• For tower installations, at least 3 m below the top of
the tower

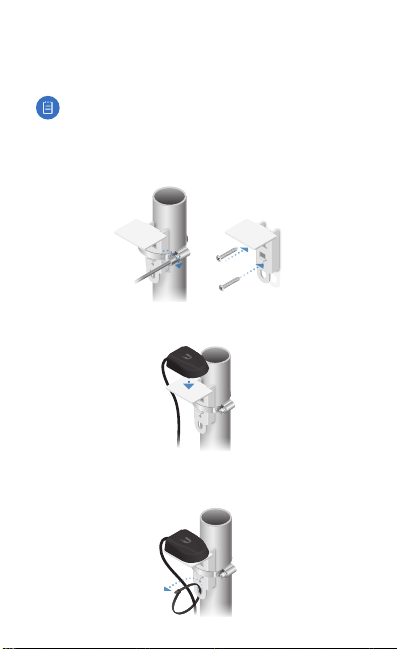

• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.

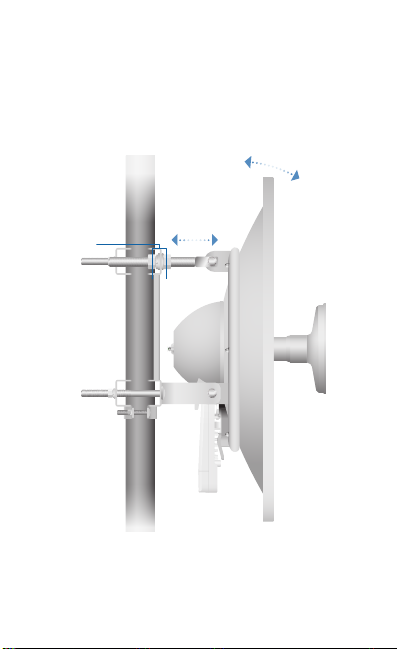

Hardware Overview
Elevation Rod

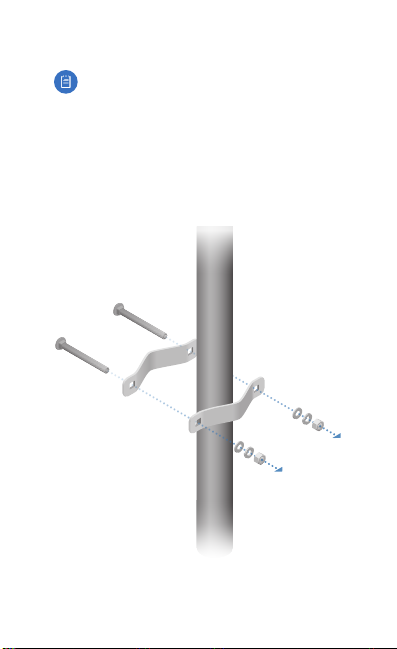

Pole Clamp
Protective Shroud

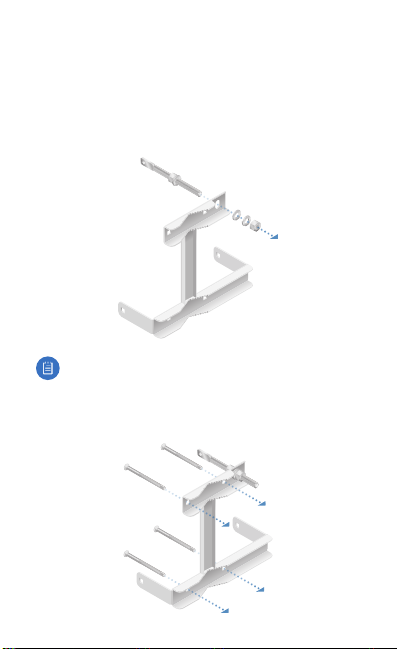

Main Mounting Bracket
Pole Clamp

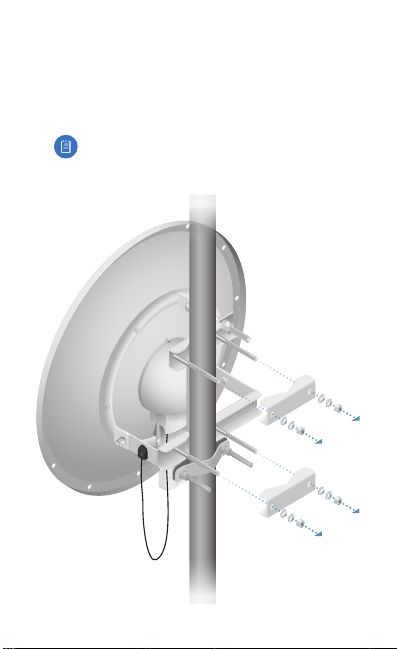

Stabilizer Brackets

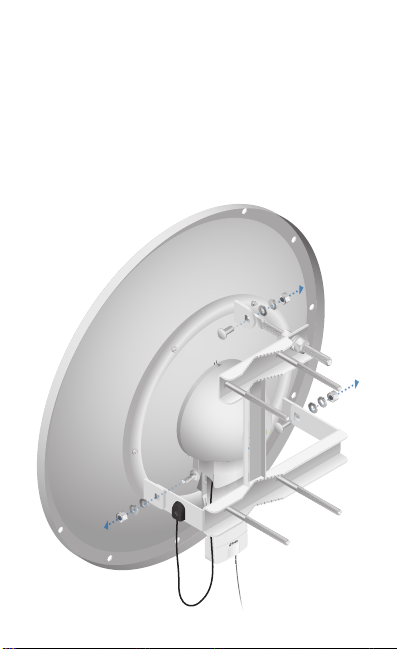

Fully Assembled Back View
Hardware Installation
Important: Handle the Dish Reflector with care.
Deformations to its shape may degrade performance.
1. The Dish Reflector and Antenna Feed are keyed so the
Antenna Feed can only be installed in a single orientation.
Attach the Antenna Feed to the Dish Reflector in the
following steps:
a. Line up the alignment pin on the Dish Reflector with the
hole on the Antenna Feed.
b. Fasten the Antenna Feed to the Dish Reflector using the
four M4 Bolts.
c. Tighten the four M4 Bolts.
M4 Bolts
Important: Do not handle the antenna by the Antenna
Feed once the feed is connected.
2. Remove the nut from the ground bonding point located on
the back of the airFiber radio.
Ground
Bonding Point
3. Attach a ground wire (min. 10 AWG or 5 mm2) to the lug
and replace the nut to secure the wire.
4. At the installation site, secure the other end of the ground
wire to a grounded mast, pole, tower, or grounding bar.
WARNING: Failure to properly ground your
airFiber radio will void your warranty.
Note: The ground wire should be as short as
possible and no longer than one meter in length.
5. Attach the RF Cables to the connectors labeled Chain 0 and
Chain 1 on the airFiber radio.
*640-00202-02*
640-00202-02
6. Attach the airFiber radio to the Dish Reflector.
a. Align the mounting tabs on the back of the airFiber
radio with the airFiber radio mount located below the
Antenna Feed.
b. Slide the airFiber radio down to lock it into place.
7. Attach the other ends of the RF Cables to the RF connectors
on the Antenna Feed.
8. Attach the GPS antenna (included with the airFiber radio) to
the GPS connector.
9. Attach the Protective Shroud.
a. Align the arrow on the top of the shroud with the short
hash mark on the Dish Reflector.
b. Rotate the shroud clockwise until it aligns with the long
hash mark to lock into place.
