Ubiquiti AIRCAM-DOME Specsheet

Datasheet

IP Camera/NVR Management System

Camera Models: airCam, airCam Dome, airCam Mini

NVR Model: airVision-C

Camera/NVR Management Solution

Versatile Camera Settings

Detailed Statistical Reporting

Advanced Analytics

Datasheet

System Example

Ingress/Egress Points Production

Warehouse Loading Dock Parking Lot Alley

Lobby Showroom Laboratory Break Room

airVision™ NVR

Server with airVision

Reception Desk

or

Cashier

Conference Room Nursery Playroom

Mobile Device

UniFi™

TOUGHSwitch™

Laptop

EdgeRouter™

Mobile Device

IP Camera Management System

airCam
Indoor/Outdoor
H.264 Video

Internet

airCam Dome
Indoor
Audio/H.264 Video

airCam Mini
Indoor
Audio/H.264 Video

2

Cameras

DOME

MINI

Breakthrough Price/
Performance IP Camera
Product Line

The airCam line of H.264 megapixel
cameras combines advanced
industrial design and powerful
performance with market-leading
cost-effectiveness. There are a variety
of cameras available for optimizing

application-specic deployments.

• Wall Mount/Ceiling Mount

• 30 FPS

• 1MP/HDTV 720p

• 4.0 mm / F1.5

• Powered through Ethernet

Available in single-pack and 3-pack.

Datasheet

• Built-in Microphone

• Ceiling Mount

• 30 FPS

• 1MP/HDTV 720p

• 1.96 mm / F2.0

• Powered through Ethernet

Available in single-pack and 3-pack.

• Wall Mount/Desktop Stand

• Built-in Microphone

• Desktop Mount

• 30 FPS

• 1MP/HDTV 720p

• 3.6 mm / F2.8

• Powered through Ethernet

Available in single-pack.

All models include:

• Power over Ethernet Adapter

• airVision Software Installation CD

www.ubnt.com/airvision

3

Datasheet

V2.0 Software

Improved Reliability and
Performance

airVision 2.0 has been rebuilt from the ground
up to improve reliability and performance.
Recordings now use H.264 video instead of

Motion JPEG for sharper video with smaller le

sizes. airVision 2.0 supports audio recording on
cameras with audio capability.

Features

Feature Packed User Interface Accessible

from any web browser, airVision’s user interface
was designed to be easy to use yet packed with
advanced features. airVision’s user interface is
incredibly intuitive and loaded with powerful
features such as detailed statistical reporting,
multiple views, versatile camera settings,
advanced analytics, and customizable event
recordings.

Event Recordings

airVision gives you a variety of options and settings to
customize what your cameras record.

Mobile Support

accessible on iOS and Android tablets and phones.

Easy Deployment Automatic camera detection
and a single setup package for the Controller
and NVR make airVision 2.0 easier to install and
deploy. airCam settings are now integrated into
the airVision software, making it unnecessary

to go to the airCam UI to congure camera

settings, reboot the camera, or upgrade the

rmware.

Camera-Based Motion Detection The camera
now handles motion detection instead of the
server, relieving the workload on the server and
ensuring that compression and noise won’t
affect motion detection.

Additional Live Views Playlists can be created

with a congurable live camera feed rotation.
Dene the cameras you want included in the

playlist and how long you want them to appear
on the screen before moving on to the next live
feed.

Disk Management Features airVision 2.0
has automatic recording management to free

up disk space. User-denable disk space and

date-based auto purge allow users to keep a
set amount of free disk space or automatically
delete recordings after a certain number of
days. Another storage feature is the ability to
map external USB or network storage drives.

Cost-Effective Solution Shattering
conventional industry thinking, Ubiquiti offers
airVision’s powerful IP surveillance software
completely free of charge. No huge upfront
costs, no monthly subscription fees.

www.ubnt.com/airvision

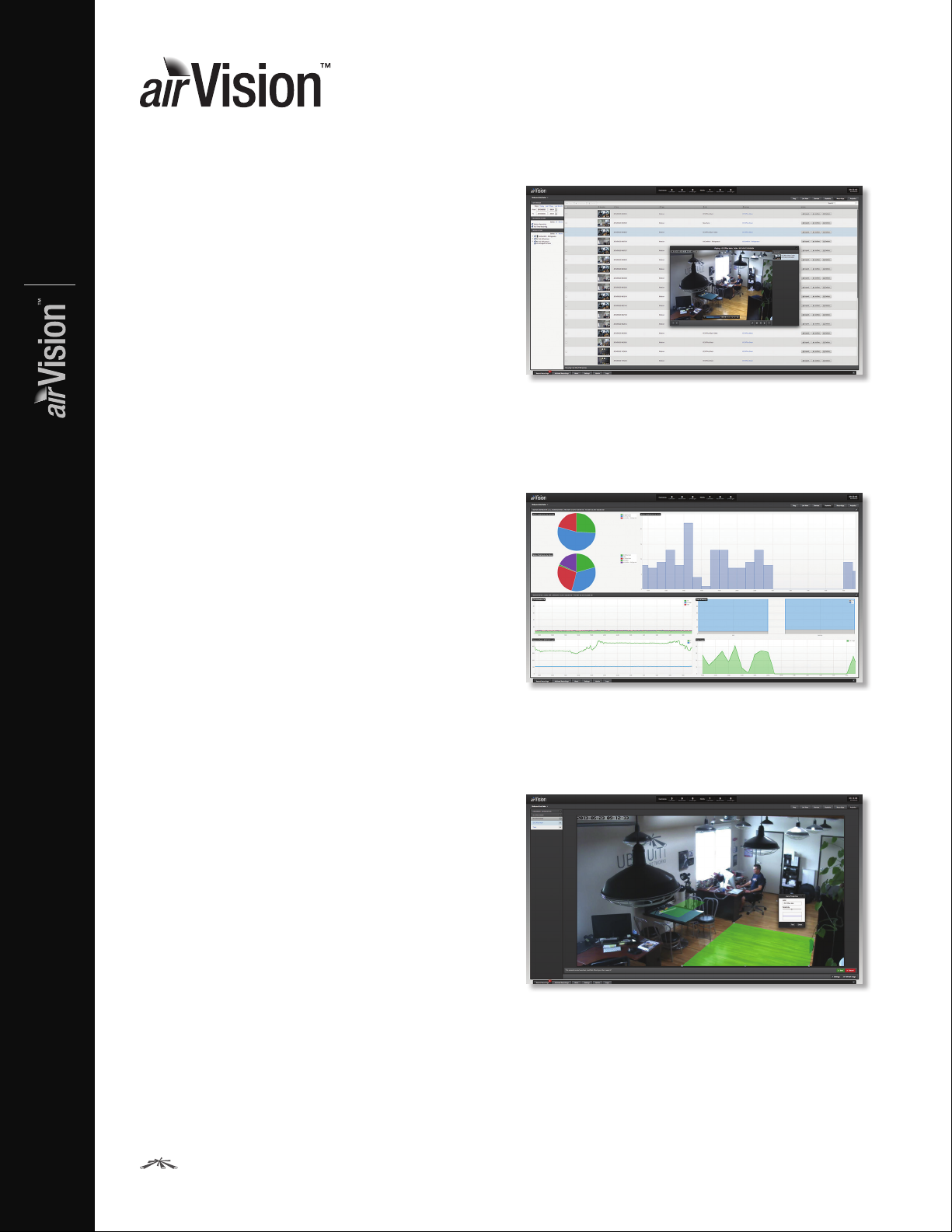

The airVision web interface is

Detailed Statistical Reporting

Quickly assess important camera activity and NVR
performance with easy-to-read graphs.

Advanced Analytics

Customize your own motion detection zones. You can
place several zones and set their alarm sensitivities as
high or low as the situation demands.

4

Hardware

Dedicated Hardware NVR with
airVision pre-installed

The airVision NVR is a plug-and-play NVR
appliance with low power consumption. The
airVision software is pre-installed for quick
and easy installation. No additional software is
required. Plug it into the network, go through

the conguration wizard, and it is set up and

ready to go.

The airVision NVR has a built-in 500 GB
hard drive. This equates to approximately

1200recording hours @ 480p resolution or
400recording hours at 720p resolution (these

can vary depending on the frame rate).

Specications

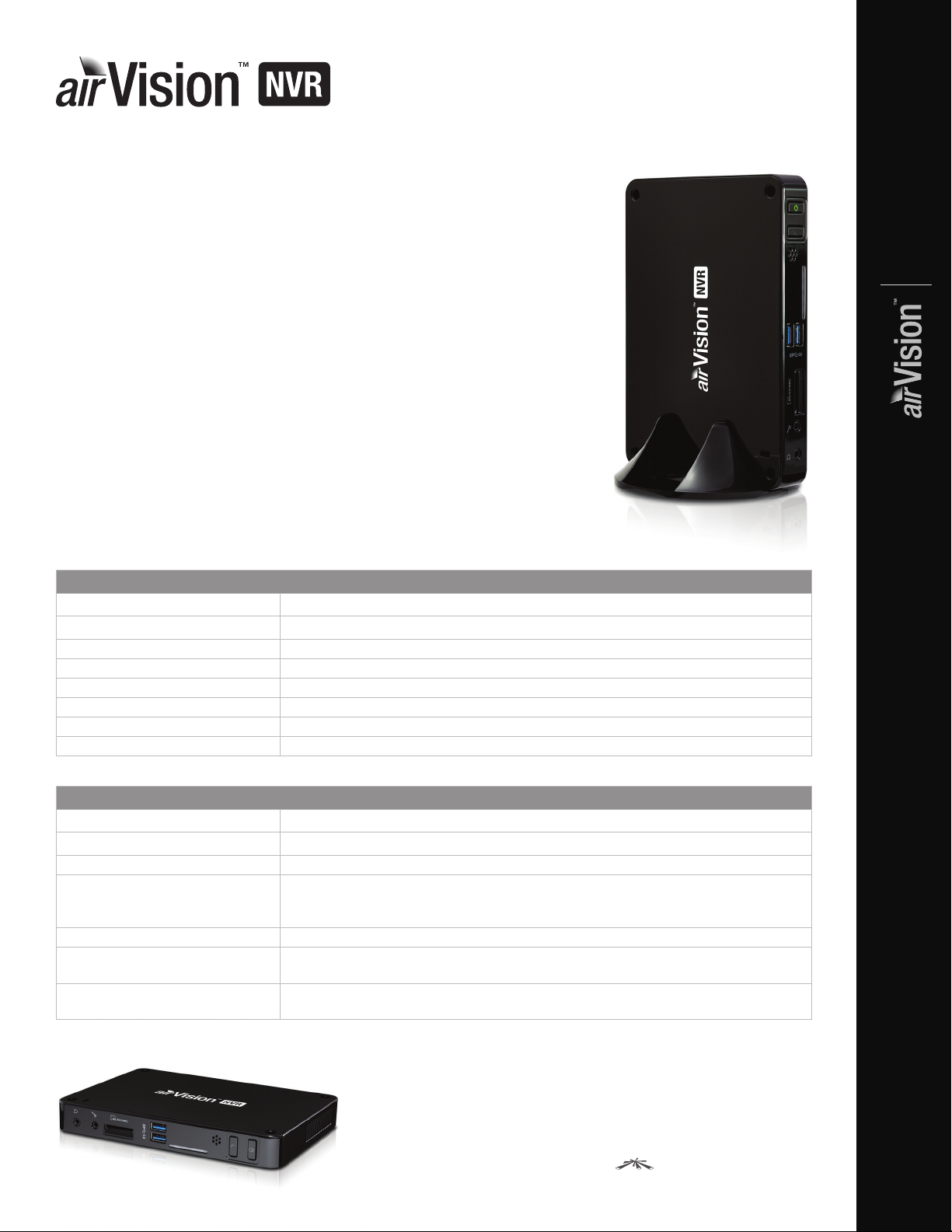

NVR Specications

Dimensions 135 x 190 x 25 mm

Weight 483 g

Processor Intel D2550
Memory 4 GB
Hard Drive Capacity 500 GB
Ports (1) 10/100/1000 Ethernet
Power Supply 65 W, 19V, 3.42A
Certications CE, IC

Datasheet

airVision Specications

Software Browser-Based Interface, Tablets and Smartphones Supported

System Setup Plug-and-Play Installation, Automatic Camera Detection

Camera Support Recommended for up to 20 Ubiquiti airCams. Supports up to 50.
Supported Devices Operating Systems: Windows, Apple, and Linux

Browsers: Chrome, Internet Explorer 10, Firefox, and Safari

Smartphones: iPhone and Android
Media Format MP4 (H.264/AAC)
Scheduling Day/Time/Camera

Scheduled Video Recording/Motion Detection/Email Alerts

Views Custom Views of Multiple Cameras

Full Screen Capability

www.ubnt.com/airvision

5

Specications

Datasheet

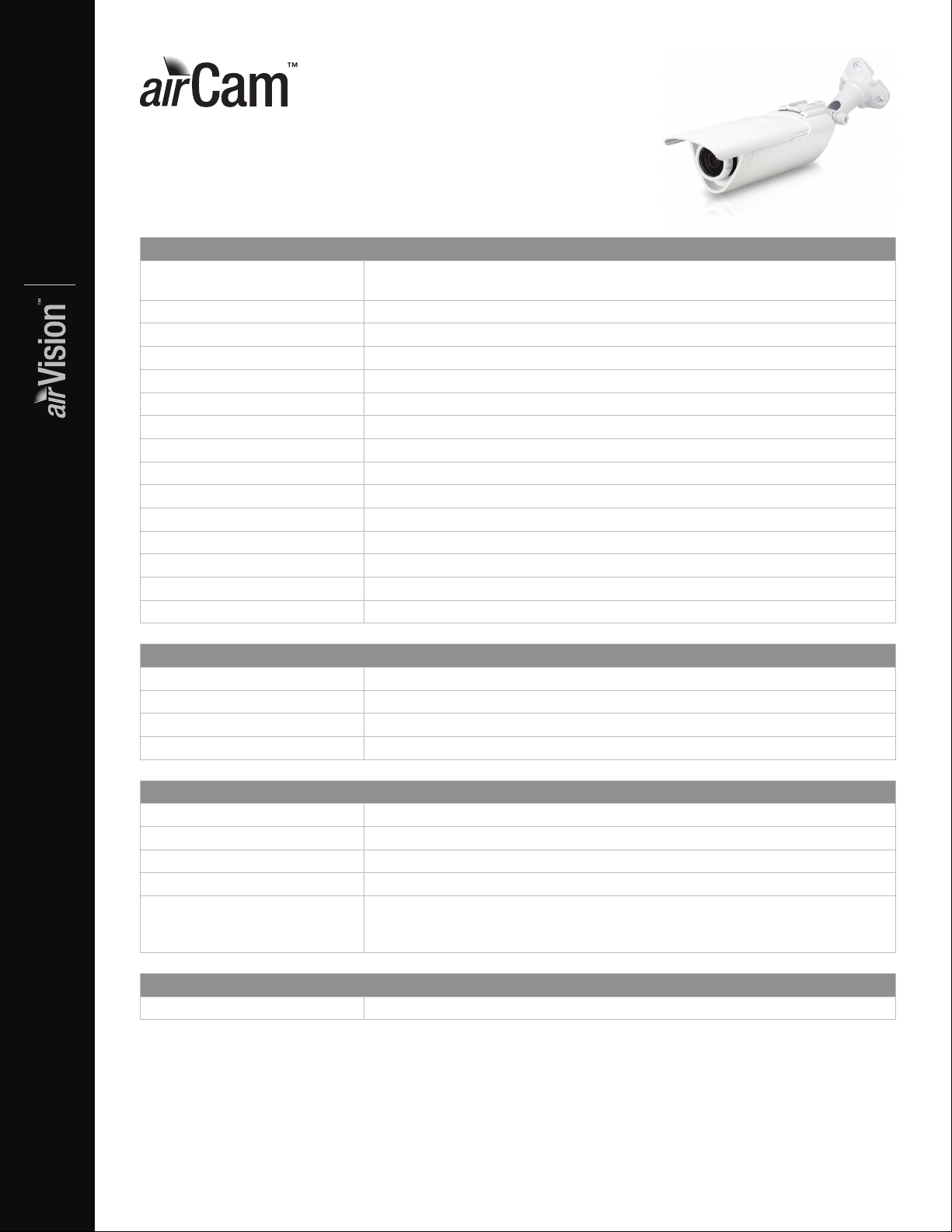

airCam Specications

Dimensions 158 x 61.5 x 58.5 mm (without mounting arm)

264 x 61.5 x 58.5 mm (with mounting arm)

Weight 240 g (196 g without mounting arm)

Ports (1) 10/100 Ethernet

Sensor Progressive Scan RGB CMOS ¼"

Lens 4.0 mm/ F1.5

Power LED Orange

Link/Activity LED Green

Buttons Factory Reset Button

Power Method Passive Power over Ethernet (12-24V)

Power Supply 24V, 0.5A PoE Adapter included

Maximum Power Consumption 2.4 W

Certications CE, FCC, IC

Mounting Wall/Ceiling Adapter Kit Included

Operating Temperature –40 to 70° C

Operating Humidity 20 - 80% Noncondensing

Video

Video Compression H.264

Resolution 1MP/HDTV 720p

Maximum Frame Rate 30 FPS

Image Setting Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50 Hz/60 Hz

General

Processor ARM-Based 32-Bit RISC

Memory 128 MB DDR2 SDRAM, 8 MB Flash

Connector RJ-45 10BASE-T/100BASE-TX PoE

Maximum Active Array Size 1280 x 800

View Angle 47° (H)

31° (V)
54° (D)

Network

Security Multiple User Access Levels with Password Protection, User Access Log

6

Specications

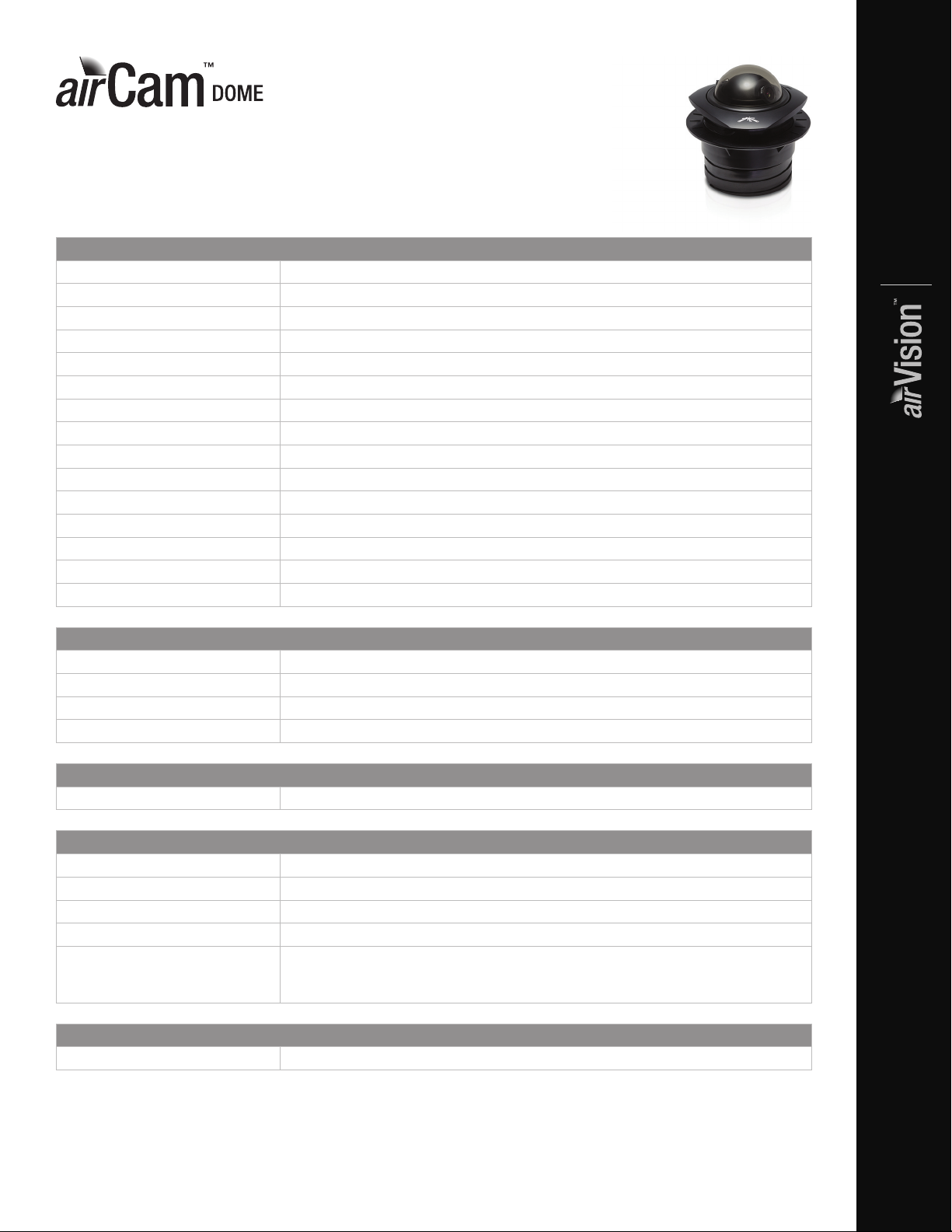

airCam Dome Specications

Dimensions 100 x 94 mm (length x diameter)

Weight 184 g

Ports (1) 10/100 Ethernet, MicroSD Card Slot

Sensor Progressive Scan RGB CMOS ¼"

Lens 1.96 mm/F2.0

Power LED Orange

Link/Activity LED Green

Buttons Factory Reset Button

Power Method Passive Power over Ethernet (12-24V)

Power Supply 24V, 0.5A PoE Adapter Included

Maximum Power Consumption 3.5 W

Certications CE, FCC, IC

Mounting Ceiling Mount

Operating Temperature 0 to 40° C

Operating Humidity 20 - 80% Noncondensing

Video

Video Compression H.264

Resolution 1MP/HDTV 720p

Maximum Frame Rate 30 FPS

Image Setting Brightness, Contrast, Sharpness, Saturation, Mirror, Flip, Noise Reduction, 50 Hz/60 Hz

Datasheet

Audio

Built-In Microphone ECM (Omni.); Sensitivity = -42 ± 3 dB; S/N = 60 dBA

General

Processor ARM-Based 32-bit RISC

Memory 128 MB DDR2 SDRAM, 8 MB Flash

Local Storage MicroSD Card Slot (card not included)

Maximum Active Array Size 1280 x 800

View Angle 90° (H)

62° (V)
101° (D)

Network

Security Multiple User Access Levels with Password Protection, User Access Log

7

Specications

Datasheet

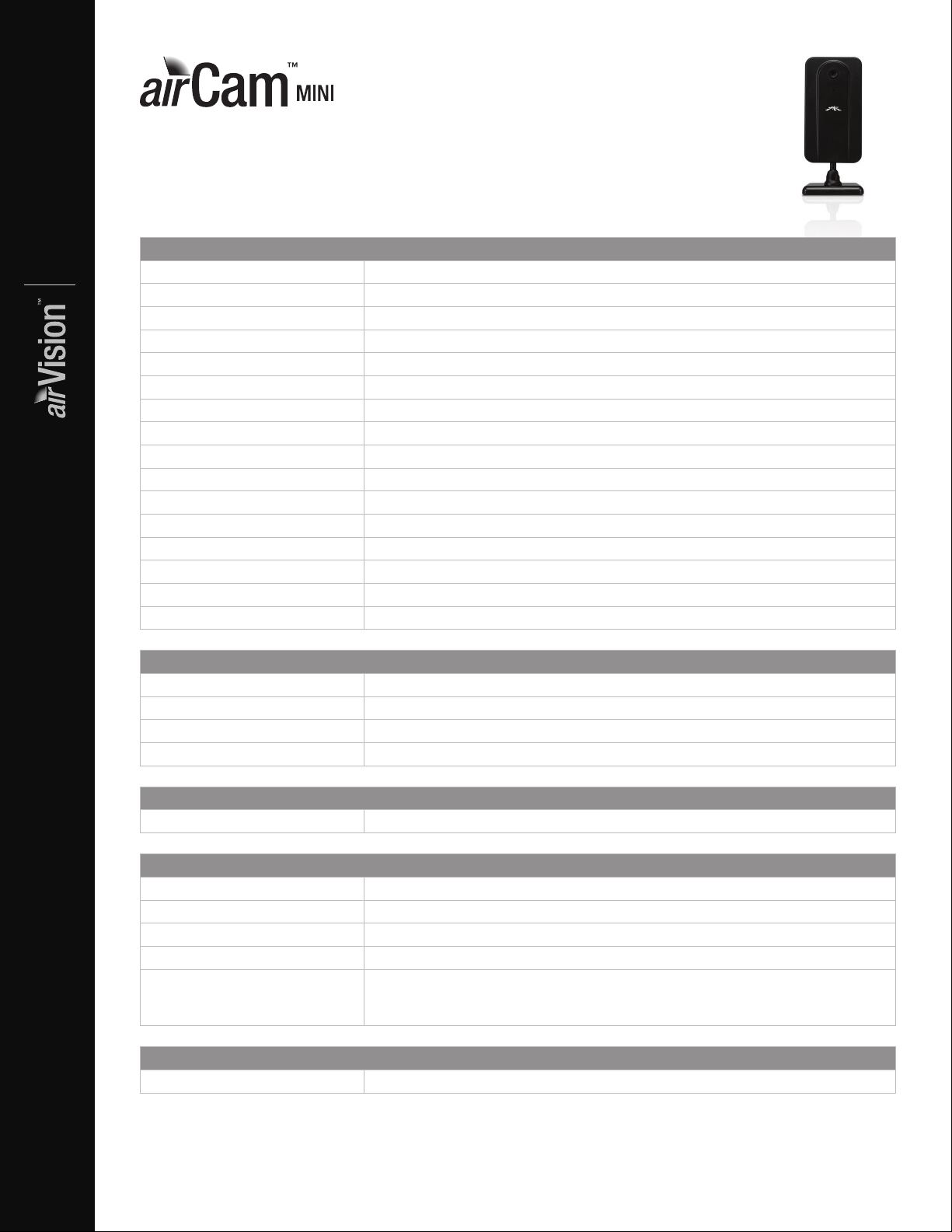

airCam Mini Specications

Dimensions 55 x 55 x 125 mm

Weight 166 g

Ports (1) 10/100 Ethernet, MicroSD card slot

Sensor Progressive Scan RGB CMOS ¼"

Lens 3.6 mm/ F2.8

Networking Interface (1) 10/100 Ethernet Port

Power LED Orange

Link/Activity LED Green

Buttons Factory Reset Button

Power Method Passive Power over Ethernet (12-24V)

Power Supply 24V, 0.5A PoE Adapter Included

Maximum Power Consumption 3 W

Certications CE, FCC, IC

Mounting Wall Mount/Desk Mount

Operating Temperature 0 to 40° C

Operating Humidity 20 - 80% Noncondensing

Video

Video Compression H.264

Resolution 1MP/HDTV 720p

Maximum Frame Rate 30 FPS

Image Setting Brightness, Contrast, Sharpness, Saturation, Mirror, Flip, Noise Reduction, 50 Hz/60 Hz

Audio

Microphone ECM (Omni.); Sensitivity = -42 ± 3 dB; S/N = 60 dBA

General

Processor ARM-Based 32-bit RISC

Memory 128 MB DDR2 SDRAM, 8 MB Flash

Local Storage MicroSD Card Slot (Card not included)

Maximum Active Array Size 1280 x 800

View Angle 52° (H)

34° (V)
59° (D)

Network

Security Multiple User Access Levels with Password Protection, User Access Log

8

Protect your networks from the most
brutal environments with Ubiquiti
Networks’ industrial-grade, shielded
Ethernet cable, TOUGHCable.

Increase Performance
Dramatically improve your
Ethernet link states, speeds, and
overall performance with Ubiquiti
TOUGHCable.

Extreme Weatherproof
Designed for outdoor use,
TOUGHCable has been built to
perform even in the harshest weather
and environments.

Datasheet

ESD Damage Protection
Protect your networks from
devastating electrostatic discharge
(ESD) attacks.

Extended Cable Support
TOUGHCable has been developed to
increase power handling performance
for extended cable run lengths.

Advanced Gigabit PoE
Managed Switch

Introducing the Advanced
Power over Ethernet Controllers,
TOUGHSwitch
Networks. TOUGHSwitch PoE
delivers reliable passive PoE and fast
10/100/1000 Mbps connectivity to
attached Ubiquiti devices and other
devices that support passive PoE.

To connect your PoE devices, simply
enable PoE in the easy-to-use

TOUGHSwitch Conguration Interface.

Each port can be individually

congured to provide PoE, so both

PoE and non-PoE devices can be
connected.

™

PoE from Ubiquiti

TOUGHCable Connectors

Specically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors

protect against ESD attacks and Ethernet hardware damage, while allowing rapid

eld deployment without soldering. The standard TOUGHCable Connectors are

available in a box of 100, while the TC-GND versions include ground wires and are
available in a box of 20.

All specications in this document are subject to change without notice.
