Tweco 400TS User Manual

Download

400 TS

ARCMASTER

INVERTER ARC WELDER

Operating Manual

ersion No:ersion No:

ersion No: 1

ersion No:ersion No:

Operating FeaturesOperating Features

Operating Features:

Operating FeaturesOperating Features

Issue Date:Issue Date:

Issue Date: February 27, 2006

Issue Date:Issue Date:

Art # A-07263

Manual NoManual No

Manual No: 0-4860

Manual NoManual No

WE APPRECIATE YOUR BUSINESS!

Congratulations on your new Thermal Arc product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty and world-wide service network. To locate your nearest distributor or service agency call 1-800-752-7621, or visit us on the web at www.thermalarc.com.

This Operating Manual has been designed to instruct you on the correct use and operation of your Thermal Arc product. Your satisfaction with this product and its safe operation is our ultimate concern. Therefore please take the time to read the entire manual, especially the Safety Precautions. They will help you to avoid potential hazards that may exist when working with this product.

YOU ARE IN GOOD COMPANY!

The Brand of Choice for Contractors and Fabricators Worldwide.

Thermal Arc is a Global Brand of Arc Welding Products for Thermadyne Industries Inc. We manufacture and supply to major welding industry sectors worldwide including; Manufacturing, Construction, Mining, Automotive, Aerospace, Engineering, Rural and DIY/Hobbyist.

We distinguish ourselves from our competition through marketleading, dependable products that have stood the test of time. We pride ourselves on technical innovation, competitive prices, excellent delivery, superior customer service and technical support, together with excellence in sales and marketing expertise.

Above all, we are committed to develop technologically advanced products to achieve a safer working environment within the welding industry.

WARNINGS

Read and understand this entire Manual and your employer’s safety practices before installing, operating, or servicing the equipment.

While the information contained in this Manual represents the Manufacturer's best judgement, the Manufacturer assumes no liability for its use.

ArcMaster 400 TS Inverter Arc Welder Instruction Manual Number 0-4860 for: Part Number 10-3071

Published by: Thermadyne Inc. 82 Benning Street West Lebanon, New Hampshire, USA 03784 (603) 298-5711

www.thermalarc.com

Reproduction of this work, in whole or in part, without written permission of the publisher is prohibited.

The publisher does not assume and hereby disclaims any liability to any party for any loss or damage caused by any error or omission in this Manual, whether such error results from negligence, accident, or any other cause.

Publication Date: February 27, 2006

Record the following information for Warranty purposes:

Where Purchased: ___________________________________

Purchase Date: ___________________________________

Equipment Serial #: ___________________________________

TABLE OF CONTENTS

SAFETY INSTRUCTIONS AND WARNINGS........................................................................... 1

SYMBOL LEGEND ....................................................................................................... 9

2.0 INTRODUCTION AND DESCRIPTION......................................................................... 10

2.01 Description ................................................................................................................................10

2.02 Functional Block Diagram ..........................................................................................................11

2.03 Transporting Methods................................................................................................................11

3.0 INSTALLATION RECOMMENDATIONS....................................................................... 12

3.01 Environment ..............................................................................................................................12

3.02 Location.....................................................................................................................................12

3.03 Electrical Input Connections.......................................................................................................13

3.03.01 Electrical Input Requirements........................................................................................13

3.03.03 High Frequency Introduction..........................................................................................16

3.03.04 High Frequency Interference ..........................................................................................16

3.04 Specifications ............................................................................................................................17

3.05 Duty Cycle..................................................................................................................................18

4.0 OPERATOR CONTROLS ....................................................................................... 19

4.01 ARCMASTER 400 TS Controls....................................................................................................19

4.02 Weld Process selection for ArcMaster 400 TS ............................................................................21

4.03 Weld Parameter Description ......................................................................................................22

4.04 Weld Parameters for ArcMaster 400 TS......................................................................................24

4.05 Power Source Features..............................................................................................................25

5.0 SET-UP FOR SMAW (STICK) AND GTAW (TIG)............................................................ 27

6.0 SEQUENCE OF OPERATION................................................................................... 28

6.01 Stick Welding.............................................................................................................................29

6.02 HF TIG & Lift TIG Welding..........................................................................................................29

6.02.01 Slope Mode Sequence ...................................................................................................30

6.02.02 Slope Mode with Repeat Sequence................................................................................30

6.02.03 Pulse Controls ...............................................................................................................31

6.03 Save-Load Operation.................................................................................................................32

7.0 BASIC TIG WELDING GUIDE .................................................................................. 33

7.01 Electrode Polarity.......................................................................................................................33

7.02 Tungsten Electrode Current Ranges...........................................................................................33

7.03 Tungsten Electrode Types..........................................................................................................33

7.04 Guide for Selecting Filler Wire Diameter.....................................................................................34

7.05 Shielding Gas Selection .............................................................................................................34

7.06 TIG Welding Parameters for Low Carbon & Low Alloy Steel Pipe ..............................................34

7.07 Welding Parameters for Steel.....................................................................................................36

8.0 BASIC ARC WELDING GUIDE ................................................................................. 37

8.01 Electrode Polarity.......................................................................................................................37

8.02 Effects of Stick Welding Various Materials.................................................................................37

TABLE OF CONTENTS

9.0 ROUTINE MAINTENANCE......................................................................................39

10.0 BASIC TROUBLESHOOTING...................................................................................40

10.01 TIG Welding Problems............................................................................................................. 40

10.02 Stick Welding Problems...........................................................................................................42

10.03 Power Source Problems.......................................................................................................... 44

11.0 VOLTAGE REDUCTION DEVICE (VRD) .......................................................................46

11.01 VRD Specification....................................................................................................................46

11.02 VRD Maintenance.................................................................................................................... 46

11.03 Switching VRD On/Off .............................................................................................................47

12.0 POWER SOURCE ERROR CODES.............................................................................49

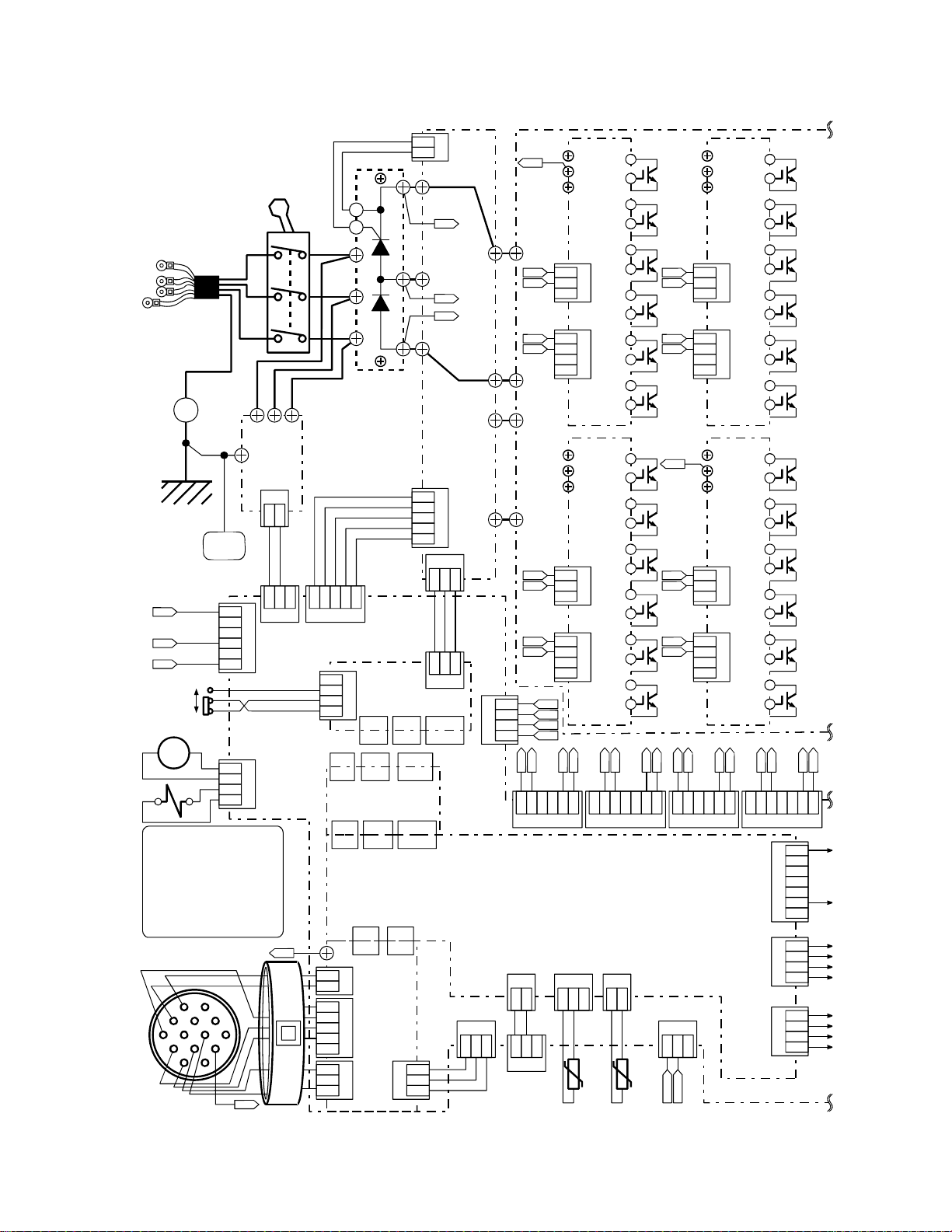

APPENDIX A - INTERCONNECT DIAGRAM ..........................................................................52

APPENDIX B – ARCMASTER 400

TS ACCESSORIES................................................................54

LIMITED WARRANTY

WARRANTY SCHEDULE

GLOBAL CUSTOMER SERVICE CONTACT INFORMATION...................................... Inside Rear Cover

ARCMASTER 400 TS

1.0 SAFETY INSTRUCTIONS AND WARNINGS

WARNING

PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS KEEP AWAY UNTIL CONSULTING YOUR DOCTOR. DO NOT LOSE THESE INSTRUCTIONS. READ OPERATING/INSTRUCTION MANUAL BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT.

Welding products and welding processes can cause serious injury or death, or damage to other equipment or property, if the operator does not strictly observe all safety rules and take precautionary actions.

Safe practices have developed from past experience in the use of welding and cutting. These practices must be learned through study and training before using this equipment. Some of these practices apply to equipment connected to power lines; other practices apply to engine driven equipment. Anyone not having extensive training in welding and cutting practices should not attempt to weld.

Safe practices are outlined in the American National Standard Z49.1 entitled: guides to what you should learn before operating this equipment are listed at the end of these safety precautions. HAVE ALL INSTALLATION,

OPERATION, MAINTENANCE, AND REPAIR WORK PERFORMED ONLY BY QUALIFIED PEOPLE.

1.01 Arc Welding Hazards

WARNING

ELECTRIC SHOCK can kill.

Touching live electrical parts can cause fatal shocks or severe burns. The electrode and work circuit is electrically live whenever the output is on. The input power circuit and machine internal circuits are also live when power is on. In semiautomatic or automatic wire welding, the wire, wire reel, drive roll housing, and all metal parts touching the welding wire are electrically live. Incorrectly installed or improperly grounded equipment is a hazard.

SAFETY IN WELDING AND CUTTING. This publication and other

7. Use fully insulated electrode holders. Never dip holder in water to cool it or lay it down on the ground or the work surface. Do not touch holders connected to two welding machines at the same time or touch other people with the holder or electrode.

8. Do not use worn, damaged, undersized, or poorly spliced cables.

9. Do not wrap cables around your body.

10. Ground the workpiece to a good electrical (earth) ground.

11. Do not touch electrode while in contact with the work (ground) circuit.

12. Use only well-maintained equipment. Repair or replace damaged parts at once.

13. In confined spaces or damp locations, do not use a welder with AC output unless it is equipped with a voltage reducer. Use equipment with DC output.

14. Wear a safety harness to prevent falling if working above floor level.

1. Do not touch live electrical parts.

2. Wear dry, hole-free insulating gloves and body protection.

3. Insulate yourself from work and ground using dry insulating mats or covers.

4. Disconnect input power or stop engine before installing or servicing this equipment. Lock input power disconnect switch open, or remove line fuses so power cannot be turned on accidentally.

5. Properly install and ground this equipment according to its Owner’s Manual and national, state, and local codes.

6. Turn off all equipment when not in use. Disconnect power to equipment if it will be left unattended or out of service.

15. Keep all panels and covers securely in place.

WARNING

ARC RAYS can burn eyes and skin; NOISE can damage hearing. Arc rays from the welding process produce intense heat and strong ultraviolet rays that can burn eyes and skin. Noise from some processes can damage hearing.

1. Wear a welding helmet fitted with a proper shade of filter (see ANSI Z49.1 listed in Safety Standards) to protect your face and eyes when welding or watching.

2. Wear approved safety glasses. Side shields recommended.

ARCMASTER 400 TS

3. Use protective screens or barriers to protect others from flash and glare; warn others not to watch the arc.

4. Wear protective clothing made from durable, flame-resistant material (wool and leather) and foot protection.

5. Use approved ear plugs or ear muffs if noise level is high.

WARNING

WELDING can cause fire or explosion.

Sparks and spatter fly off from the welding arc. The flying sparks and hot metal, weld spatter, hot workpiece, and hot equipment can cause fires and burns. Accidental contact of electrode or welding wire to metal objects can cause sparks, overheating, or fire.

FUMES AND GASES can be hazardous to your health.

Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health.

1. Keep your head out of the fumes. Do not breath the fumes.

2. If inside, ventilate the area and/or use exhaust at the arc to remove welding fumes and gases.

3. If ventilation is poor, use an approved air-supplied respirator.

4. Read the Material Safety Data Sheets (MSDSs) and the manufacturer’s instruction for metals, consumables, coatings, and cleaners.

5. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Shielding gases used for welding can displace air causing injury or death. Be sure the breathing air is safe.

6. Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can react with vapors to form highly toxic and irritating gases.

7. Do not weld on coated metals, such as galvanized, lead, or cadmium plated steel, unless the coating is removed from the weld area, the area is well ventilated, and if necessary, while wearing an air-supplied respirator. The coatings and any metals containing these elements can give off toxic fumes if welded.

1. Protect yourself and others from flying sparks and hot metal.

2. Do not weld where flying sparks can strike flammable material.

3. Remove all flammables within 35 ft (10.7 m) of the welding arc. If this is not possible, tightly cover them with approved covers.

4. Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas.

5. Watch for fire, and keep a fire extinguisher nearby.

6. Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on the hidden side.

7. Do not weld on closed containers such as tanks or drums.

8. Connect work cable to the work as close to the welding area as practical to prevent welding current from traveling long, possibly unknown paths and causing electric shock and fire hazards.

9. Do not use welder to thaw frozen pipes.

10. Remove stick electrode from holder or cut off welding wire at contact tip when not in use.

Eye protection filter shade selector for welding or cutting

(goggles or helmet), from AWS A6.2-73.

Welding or cutting Electrode Size Filter Welding or cutting Electrode Size Filter

Torch soldering 2 Gas metal-arc

Torch brazing 3 or 4 Non-ferrous base metal All 11

Oxygen C utting Ferrous base metal All 12

Light Under 1 in., 25 mm 3 or 4 Gas tungsten arc welding All 12

Medium 1 to 6 in., 25-150 mm 4 or 5 (TIG) All 12

Heavy Over 6 in., 150 mm 5 or 6 Atomic hydrogen welding All 12

Gas welding Carbon arc welding All 12

Light Under 1/8 in., 3 mm 4 or 5 Plasma arc welding

Medium 1/8 to 1/2 in., 3-12 mm 5 or 6 Carbon arc air gouging

Heavy Over 1/2 in., 12 mm 6 or 8 Light 12

Shielded metal-arc Under 5/32 in., 4 mm 10 Heavy 14

5/32 to 1/4 in., 12 Plasma arc cutting

Over 1/4 in., 6.4 mm 14 Light Under 300 Amp 9

Medium 300 to 400 Amp 12

Heavy Over 400 Amp 14

WARNING

ARCMASTER 400 TS

2. If used in a closed area, vent engine exhaust outside and away from any building air intakes.

FLYING SPARKS AND HOT METAL can cause injury.

Chipping and grinding cause flying metal. As welds cool, they can throw off slag.

1. Wear approved face shield or safety goggles. Side shields recommended.

2. Wear proper body protection to protect skin.

WARNING

CYLINDERS can explode if damaged.

Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully.

1. Protect compressed gas cylinders from excessive heat, mechanical shocks, and arcs.

2. Install and secure cylinders in an upright position by chaining them to a stationary support or equipment cylinder rack to prevent falling or tipping.

3. Keep cylinders away from any welding or other electrical circuits.

4. Never allow a welding electrode to touch any cylinder.

5. Use only correct shielding gas cylinders, regulators, hoses, and fittings designed for the specific application; maintain them and associated parts in good condition.

6. Turn face away from valve outlet when opening cylinder valve.

7. Keep protective cap in place over valve except when cylinder is in use or connected for use.

8. Read and follow instructions on compressed gas cylinders, associated equipment, and CGA publication P-1 listed in Safety Standards.

WARNING

ENGINE FUEL can cause fire or explosion.

Engine fuel is highly flammable.

1. Stop engine before checking or adding fuel.

2. Do not add fuel while smoking or if unit is near any sparks or open flames.

3. Allow engine to cool before fueling. If possible, check and add fuel to cold engine before beginning job.

4. Do not overfill tank — allow room for fuel to expand.

5. Do not spill fuel. If fuel is spilled, clean up before starting engine.

WARNING

MOVING PARTS can cause injury.

Moving parts, such as fans, rotors, and belts can cut fingers and hands and catch loose clothing.

1. Keep all doors, panels, covers, and guards closed and securely in place.

2. Stop engine before installing or connecting unit.

3. Have only qualified people remove guards or covers for maintenance and troubleshooting as necessary.

4. To prevent accidental starting during servicing, disconnect negative (-) battery cable from battery.

5. Keep hands, hair, loose clothing, and tools away from moving parts.

6. Reinstall panels or guards and close doors when servicing is finished and before starting engine.

WARNING

Engines can be dangerous.

WARNING

ENGINE EXHAUST GASES can kill.

Engines produce harmful exhaust gases.

1. Use equipment outside in open, well-ventilated areas.

WARNING

SPARKS can cause BATTERY GASES TO EXPLODE; BATTERY ACID can burn eyes and skin.

Batteries contain acid and generate explosive gases.

1. Always wear a face shield when working on a battery.

2. Stop engine before disconnecting or connecting battery cables.

3. Do not allow tools to cause sparks when working on a battery.

4. Do not use welder to charge batteries or jump start vehicles.

5. Observe correct polarity (+ and –) on batteries.

ARCMASTER 400 TS

1.02 Principal Safety Standards

WARNING

STEAM AND PRESSURIZED HOT COOLANT can burn face, eyes, and skin.

The coolant in the radiator can be very hot and under pressure.

1. Do not remove radiator cap when engine is hot. Allow engine to cool.

2. Wear gloves and put a rag over cap area when removing cap.

3. Allow pressure to escape before completely removing cap.

WARNING

This product, when used for welding or cutting, produces fumes or gases which contain chemicals know to the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety code Sec.

25249.5 et seq.)

NOTE

Considerations About Welding And The Effects of Low Frequency Electric and Magnetic Fields

Safety in Welding and Cutting, ANSI Standard Z49.1, from American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126.

Safety and Health Standards, OSHA 29 CFR 1910, from Superintendent of Documents, U.S. Government Printing Office, Washington, D.C.

20402.

Recommended Safe Practices for the Preparation for Welding and Cutting of Containers That Have Held Hazardous Substances, American Welding Society Standard AWS F4.1, from American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126.

National Electrical Code, NFPA Standard 70, from National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P1, from Compressed Gas Association, 1235 Jefferson Davis Highway, Suite 501, Arlington, VA 22202.

Code for Safety in Welding and Cutting, CSA Standard W117.2, from Canadian Standards Association, Standards Sales, 178 Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3.

Safe Practices for Occupation and Educational Eye and Face Protection, ANSI Standard Z87.1, from American National Standards Institute, 1430 Broadway, New York, NY 10018.

Cutting and Welding Processes, NFPA Standard 51B, from National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

The following is a quotation from the General Conclusions Section of the U.S. Congress, Office of Technology Assessment, Biological Effects of Power Frequency Electric & Magnetic Fields - Background Paper, OTA-BP-E-63 (Washington, DC: U.S. Government Printing Office, May

1989): “...there is now a very large volume of scientific findings based on experiments at the cellular level and from studies with animals and people which clearly establish that low frequency magnetic fields interact with, and produce changes in, biological systems. While most of this work is of very high quality, the results are complex. Current scientific understanding does not yet allow us to interpret the evidence in a single coherent framework. Even more frustrating, it does not yet allow us to draw definite conclusions about questions of possible risk or to offer clear science-based advice on strategies to minimize or avoid potential risks.”

To reduce magnetic fields in the workplace, use the following procedures:

1. Keep cables close together by twisting or taping them.

2. Arrange cables to one side and away from the operator.

3. Do not coil or drape cable around the body.

4. Keep welding power source and cables as far away from body as practical.

ABOUT PACEMAKERS:

The above procedures are among those also normally recommended for pacemaker wearers. Consult your doctor for complete information.

ARCMASTER 400 TS

1.03 Precautions de Securite en Soudage à l’Arc

MISE EN GARDE

LE SOUDAGE A L’ARC EST DANGEREUX

PROTEGEZ-VOUS, AINSI QUE LES AUTRES, CONTRE LES BLESSURES GRAVES POSSIBLES OU LA MORT. NE LAISSEZ PAS LES ENFANTS S’APPROCHER, NI LES PORTEURS DE STIMULATEUR CARDIAQUE (A MOINS QU’ILS N’AIENT CONSULTE UN MEDECIN). CONSERVEZ CES INSTRUCTIONS. LISEZ LE MANUEL D’OPERATION OU LES INSTRUCTIONS AVANT D’INSTALLER, UTILISER OU ENTRETENIR CET EQUIPEMENT.

Les produits et procédés de soudage peuvent sauser des blessures graves ou la mort, de même que des dommages au reste du matériel et à la propriété, si l’utilisateur n’adhère pas strictement à toutes les règles de sécurité et ne prend pas les précautions nécessaires.

En soudage et coupage, des pratiques sécuritaires se sont développées suite à l’expérience passée. Ces pratiques doivent être apprises par étude ou entraînement avant d’utiliser l’equipement. Toute personne n’ayant pas suivi un entraînement intensif en soudage et coupage ne devrait pas tenter de souder. Certaines pratiques concernent les équipements raccordés aux lignes d’alimentation alors que d’autres s’adressent aux groupes électrogènes.

La norme Z49.1 de l’American National Standard, intitulée “SAFETY IN WELDING AND CUTTING” présente les pratiques sécuritaires à suivre. Ce document ainsi que d’autres guides que vous devriez connaître avant d’utiliser cet équipement sont présentés à la fin de ces instructions de sécurité.

SEULES DES PERSONNES QUALIFIEES DOIVENT FAIRE DES TRAVAUX D’INSTALLATION, DE REPARATION, D’ENTRETIEN ET D’ESSAI.

1.04 Dangers Relatifs au Soudage à l’Arc

AVERTISSEMENT

L’ELECTROCUTION PEUT ETRE MORTELLE.

Une décharge électrique peut tuer ou brûler gravement. L’électrode et le circuit de soudage sont sous tension dès la mise en circuit. Le circuit d’alimentation et les circuits internes de l’équipement sont aussi sous tension dès la mise en marche. En soudage automatique ou semi-automatique avec fil, ce dernier, le rouleau ou la bobine de fil, le logement des galets d’entrainement et toutes les pièces métalliques en contact avec le fil de soudage sont sous tension. Un équipement inadéquatement installé ou inadéquatement mis à la terre est dangereux.

1. Ne touchez pas à des pièces sous tension.

2. Portez des gants et des vêtements isolants, secs et non troués.

6. Arrêtez tout équipement après usage. Coupez l’alimentation de l’équipement s’il est hors d’usage ou inutilisé.

7. N’utilisez que des porte-électrodes bien isolés. Ne jamais plonger les porte-électrodes dans l’eau pour les refroidir. Ne jamais les laisser traîner par terre ou sur les pièces à souder. Ne touchez pas aux porte-électrodes raccordés à deux sources de courant en même temps. Ne jamais toucher quelqu’un d’autre avec l’électrode ou le porte-électrode.

8. N’utilisez pas de câbles électriques usés, endommagés, mal épissés ou de section trop petite.

9. N’enroulez pas de câbles électriques autour de votre corps.

10. N’utilisez qu’une bonne prise de masse pour la mise à la terre de la pièce à souder.

11. Ne touchez pas à l’électrode lorsqu’en contact avec le circuit de soudage (terre).

12. N’utilisez que des équipements en bon état. Réparez ou remplacez aussitôt les pièces endommagées.

13. Dans des espaces confinés ou mouillés, n’utilisez pas de source de courant alternatif, à moins qu’il soit muni d’un réducteur de tension. Utilisez plutôt une source de courant continu.

14. Portez un harnais de sécurité si vous travaillez en hauteur.

15. Fermez solidement tous les panneaux et les capots.

3 Isolez-vous de la pièce à souder et de la mise à la terre au moyen

de tapis isolants ou autres.

4. Déconnectez la prise d’alimentation de l’équipement ou arrêtez le moteur avant de l’installer ou d’en faire l’entretien. Bloquez le commutateur en circuit ouvert ou enlevez les fusibles de l’alimentation afin d’éviter une mise en marche accidentelle.

5. Veuillez à installer cet équipement et à le mettre à la terre selon le manuel d’utilisation et les codes nationaux, provinciaux et locaux applicables.

ARCMASTER 400 TS

AVERTISSEMENT

LE RAYONNEMENT DE L’ARC PEUT BRÛLER LES YEUX ET LA PEAU; LE BRUIT PEUT ENDOMMAGER L’OUIE.

L’arc de soudage produit une chaleur et des rayons ultraviolets intenses, susceptibles de brûler les yeux et la peau. Le bruit causé par certains procédés peut endommager l’ouïe.

1. Portez une casque de soudeur avec filtre oculaire de nuance appropriée (consultez la norme ANSI Z49 indiquée ci-après) pour vous protéger le visage et les yeux lorsque vous soudez ou que vous observez l’exécution d’une soudure.

2. Portez des lunettes de sécurité approuvées. Des écrans latéraux sont recommandés.

3. Entourez l’aire de soudage de rideaux ou de cloisons pour protéger les autres des coups d’arc ou de l’éblouissement; avertissez les observateurs de ne pas regarder l’arc.

4. Portez des vêtements en matériaux ignifuges et durables (laine et cuir) et des chaussures de sécurité.

5. Portez un casque antibruit ou des bouchons d’oreille approuvés lorsque le niveau de bruit est élevé.

AVERTISSEMENT

LES VAPEURS ET LES FUMEES SONT DANGEREUSES POUR LA SANTE.

Le soudage dégage des vapeurs et des fumées dangereuses à respirer.

1. Eloignez la tête des fumées pour éviter de les respirer.

2. A l’intérieur, assurez-vous que l’aire de soudage est bien ventilée ou que les fumées et les vapeurs sont aspirées à l’arc.

3. Si la ventilation est inadequate, portez un respirateur à adduction d’air approuvé.

4. Lisez les fiches signalétiques et les consignes du fabricant relatives aux métaux, aux produits consummables, aux revêtements et aux produits nettoyants.

5. Ne travaillez dans un espace confiné que s’il est bien ventilé; sinon, portez un respirateur à adduction d’air. Les gaz protecteurs de soudage peuvent déplacer l’oxygène de l’air et ainsi causer des malaises ou la mort. Assurez-vous que l’air est propre à la respiration.

6. Ne soudez pas à proximité d’opérations de dégraissage, de nettoyage ou de pulvérisation. La chaleur et les rayons de l’arc peuvent réagir avec des vapeurs et former des gaz hautement toxiques et irritants.

SELECTION DES NUANCES DE FILTRES OCULAIRS POUR LA PROTECTION

DES YEUX EN COUPAGE ET SOUDAGE (selon AWS á 8.2-73)

Opération de coupage

ou soudage

Brassage tendre au chalumeau

Brassage fort au chalumeau

Oxycoupage métaux ferreux toutes conditions 12

mince moins de 1 po. (25 mm) 2 ou 3

moyen de 1 á 6 po. (25 á 150 mm) 4 ou 5

Soudage aux gaz Soudage á l'arc Plasma (PAW) toutes dimensions 12

mince moins de 1/8 po. (3 mm) 4 ou 5

moyen de 1/8 á 1/2 po. (3 á 12 mm) 5 ou 6 mince 12

Soudage á l'arc avec électrode enrobees (SMAW)

Dimension d'électrode ou

Epiasseur de métal ou

Intensité de courant

toutes conditions 2

toutes conditions 3 ou 4 métaux non-ferreux toutes conditions 11

épais plus de 6 po. (150 mm) 5 ou 6

épais plus de 1/2 po. (12 mm) 6 ou 8 épais 14

moins de 5/32 po. (4 mm) 10 Coupage á l'arc Plasma (PAC)

5/32 á 1/4 po. (4 á 6.4 mm) 12 mince moins de 300 amperès 9

plus de 1/4 po. (6.4 mm) 14 moyen de 300 á 400 amperès 12

Nuance de

filtre oculaire

Opération de coupage

ou soudage

Soudage á l'arc sous gaz avec fil plein (GMAW)

Soudage á l'arc sous gaz avec électrode de tungstène (GTAW)

Soudage á l'hydrogène atomique (AHW) Soudage á l'arc avec électrode de carbone (CAW)

Gougeage Air-Arc avec électrode de carbone

Dimension d'électrode ou

Epiasseur de métal ou

Intensité de courant

toutes conditions 12

épais plus de 400 amperès 14

Nuance de

filtre oculaire

7. Ne soudez des tôles galvanisées ou plaquées au plomb ou au cadmium que si les zones à souder ont été grattées à fond, que si l’espace est bien ventilé; si nécessaire portez un respirateur à adduction d’air. Car ces revêtements et tout métal qui contient ces éléments peuvent dégager des fumées toxiques au moment du soudage.

AVERTISSEMENT

ARCMASTER 400 TS

AVERTISSEMENT

LES ETINCELLES ET LES PROJECTIONS BRULANTES PEUVENT CAUSER DES BLESSURES.

Le piquage et le meulage produisent des particules métalliques volantes. En refroidissant, la soudure peut projeter du éclats de laitier.

LE SOUDAGE PEUT CAUSER UN INCENDIE OU UNE EXPLOSION

L’arc produit des étincellies et des projections. Les particules volantes, le métal chaud, les projections de soudure et l’équipement surchauffé peuvent causer un incendie et des brûlures. Le contact accidentel de l’électrode ou du fil-électrode avec un objet métallique peut provoquer des étincelles, un échauffement ou un incendie.

1. Protégez-vous, ainsi que les autres, contre les étincelles et du métal chaud.

2. Ne soudez pas dans un endroit où des particules volantes ou des projections peuvent atteindre des matériaux inflammables.

3. Enlevez toutes matières inflammables dans un rayon de 10, 7 mètres autour de l’arc, ou couvrez-les soigneusement avec des bâches approuvées.

4. Méfiez-vous des projections brulantes de soudage susceptibles de pénétrer dans des aires adjacentes par de petites ouvertures ou fissures.

5. Méfiez-vous des incendies et gardez un extincteur à portée de la main.

6. N’oubliez pas qu’une soudure réalisée sur un plafond, un plancher, une cloison ou une paroi peut enflammer l’autre côté.

7. Ne soudez pas un récipient fermé, tel un réservoir ou un baril.

8. Connectez le câble de soudage le plus près possible de la zone de soudage pour empêcher le courant de suivre un long parcours inconnu, et prévenir ainsi les risques d’électrocution et d’incendie.

9. Ne dégelez pas les tuyaux avec un source de courant.

10. Otez l’électrode du porte-électrode ou coupez le fil au tube-contact lorsqu’inutilisé après le soudage.

11. Portez des vêtements protecteurs non huileux, tels des gants en cuir, une chemise épaisse, un pantalon revers, des bottines de sécurité et un casque.

1. Portez un écran facial ou des lunettes protectrices approuvées. Des écrans latéraux sont recommandés.

2. Portez des vêtements appropriés pour protéger la peau.

AVERTISSEMENT

LES BOUTEILLES ENDOMMAGEES PEUVENT EXPLOSER

Les bouteilles contiennent des gaz protecteurs sous haute pression. Des bouteilles endommagées peuvent exploser. Comme les bouteilles font normalement partie du procédé de soudage, traitez-les avec soin.

1. Protégez les bouteilles de gaz comprimé contre les sources de chaleur intense, les chocs et les arcs de soudage.

2. Enchainez verticalement les bouteilles à un support ou à un cadre fixe pour les empêcher de tomber ou d’être renversées.

3. Eloignez les bouteilles de tout circuit électrique ou de tout soudage.

4. Empêchez tout contact entre une bouteille et une électrode de soudage.

5. N’utilisez que des bouteilles de gaz protecteur, des détendeurs, des boyauxs et des raccords conçus pour chaque application spécifique; ces équipements et les pièces connexes doivent être maintenus en bon état.

6. Ne placez pas le visage face à l’ouverture du robinet de la bouteille lors de son ouverture.

7. Laissez en place le chapeau de bouteille sauf si en utilisation ou lorsque raccordé pour utilisation.

8. Lisez et respectez les consignes relatives aux bouteilles de gaz comprimé et aux équipements connexes, ainsi que la publication P-1 de la CGA, identifiée dans la liste de documents ci-dessous.

AVERTISSEMENT

LES MOTEURS PEUVENT ETRE DANGEREUX

LES GAZ D’ECHAPPEMENT DES MOTEURS PEUVENT ETRE MORTELS.

Les moteurs produisent des gaz d’échappement nocifs.

ARCMASTER 400 TS

1. Utilisez l’équipement à l’extérieur dans des aires ouvertes et bien ventilées.

Les accumulateurs contiennent de l’électrolyte acide et dégagent des vapeurs explosives.

2. Si vous utilisez ces équipements dans un endroit confiné, les fumées d’échappement doivent être envoyées à l’extérieur, loin des prises d’air du bâtiment.

AVERTISSEMENT

LE CARBURANT PEUR CAUSER UN INCENDIE OU UNE EXPLOSION.

Le carburant est hautement inflammable.

1. Arrêtez le moteur avant de vérifier le niveau e carburant ou de faire le plein.

2. Ne faites pas le plein en fumant ou proche d’une source d’étincelles ou d’une flamme nue.

3. Si c’est possible, laissez le moteur refroidir avant de faire le plein de carburant ou d’en vérifier le niveau au début du soudage.

4. Ne faites pas le plein de carburant à ras bord: prévoyez de l’espace pour son expansion.

5. Faites attention de ne pas renverser de carburant. Nettoyez tout carburant renversé avant de faire démarrer le moteur.

AVERTISSEMENT

1. Portez toujours un écran facial en travaillant sur un accumu-lateur.

2. Arrêtez le moteur avant de connecter ou de déconnecter des câbles d’accumulateur.

3. N’utilisez que des outils anti-étincelles pour travailler sur un accumulateur.

4. N’utilisez pas une source de courant de soudage pour charger un accumulateur ou survolter momentanément un véhicule.

5. Utilisez la polarité correcte (+ et –) de l’accumulateur.

AVERTISSEMENT

LA VAPEUR ET LE LIQUIDE DE REFROIDISSEMENT BRULANT SOUS PRESSION PEUVENT BRULER LA PEAU ET LES YEUX.

Le liquide de refroidissement d’un radiateur peut être brûlant et sous pression.

1. N’ôtez pas le bouchon de radiateur tant que le moteur n’est pas refroidi.

2. Mettez des gants et posez un torchon sur le bouchon pour l’ôter.

DES PIECES EN MOUVEMENT PEUVENT CAUSER DES BLESSURES.

Des pièces en mouvement, tels des ventilateurs, des rotors et des courroies peuvent couper doigts et mains, ou accrocher des vêtements amples.

1. Assurez-vous que les portes, les panneaux, les capots et les protecteurs soient bien fermés.

2. Avant d’installer ou de connecter un système, arrêtez le moteur.

3. Seules des personnes qualifiées doivent démonter des protecteurs ou des capots pour faire l’entretien ou le dépannage nécessaire.

4. Pour empêcher un démarrage accidentel pendant l’entretien, débranchez le câble d’accumulateur à la borne négative.

5. N’approchez pas les mains ou les cheveux de pièces en mouvement; elles peuvent aussi accrocher des vêtements amples et des outils.

6. Réinstallez les capots ou les protecteurs et fermez les portes après des travaux d’entretien et avant de faire démarrer le moteur.

AVERTISSEMENT

3. Laissez la pression s’échapper avant d’ôter complètement le bouchon.

1.05 Principales Normes de Securite

Safety in Welding and Cutting, norme ANSI Z49.1, American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33128.

Safety and Health Standards, OSHA 29 CFR 1910, Superintendent of Documents, U.S. Government Printing Office, Washington, D.C.

20402.

Recommended Safe Practices for the Preparation for Welding and Cutting of Containers That Have Held Hazardous Substances, norme AWS F4.1, American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33128.

National Electrical Code, norme 70 NFPA, National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

Safe Handling of Compressed Gases in Cylinders, document P-1, Compressed Gas Association, 1235 Jefferson Davis Highway, Suite 501, Arlington, VA 22202.

Code for Safety in Welding and Cutting, norme CSA W117.2 Association canadienne de normalisation, Standards Sales, 276 Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3.

Safe Practices for Occupation and Educational Eye and Face Protection, norme ANSI Z87.1, American National Standards Institute, 1430 Broadway, New York, NY 10018.

DES ETINCELLES PEUVENT FAIRE EXPLOSER UN ACCUMULATEUR; L’ELECTROLYTE D’UN ACCUMULATEUR PEUT BRULER LA PEAU ET LES YEUX.

Cutting and Welding Processes, norme 51B NFPA, National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.

SYMBOL LEGEND

Amperage

STICK (Shielded Metal Arc SMAW)

SEC

Voltage

Hertz (frequency)

Seconds

Percent

DC (Direct Current)

AC (Alternating Current

Standard Function

Pulse Current Function

Spot Time (GTAW)

Remote Control (Panel/Remote)

Remote Function

Arc Control (SMAW)

Gas Post-Flow

Gas Pre-Flow

Slope Function

Voltage Reduction Device Circuit

VRD

Slope W/Repeat Function

Spot Function

Impulse Starting (High Frequency GTAW)

Touch Start (Lift Start TIG circuit GTAW)

Negative

Positive

Gas Input

Gas Output

2.0 INTRODUCTION AND DESCRIPTION

2.01 Description

The Thermal Arc™ ArcMaster 400 TS is a single/three-phase DC arc welding power source with Constant Current (CC) output characteristics. This unit is equipped with a Digital Volt/Amperage Meter, gas control valve, built-in Sloper and Pulser, lift arc starter, and high-frequency arc starter for use with Gas Tungsten Arc Welding (GTAW), Gas Tungsten Arc Welding-Pulse (GTAW-P), Gas Tungsten Arc Welding-Sloped (GTAW-S), and Shielded Metal Arc Welding (SMAW) processes. The power source is totally enclosed in an impact resistant, flame resistant and non-conductive plastic case.

(V)

OCV

(V)

OCV

10V

(V)

OCV

400A5A (A)

STICK Process LIFT TIG Process

400A (A)

HF TIG Process

Figure 1. Model 400 TS Volt-Ampere Curve

Note 1

400A25A (A)

Volt-Ampere curves show the maximum Voltage and Amperage output capabilities of the welding power source. Curves of other settings will fall between the curves shown.

2.02 Functional Block Diagram

Figure 2 illustrates the functional block diagram of the 400 TS power supply.

Main

Input

Power

Circuit

Switch

Filter

Input

Diode

Capacitor DC Power

Primary

Voltage

Sensor

To each control circuit

+/-15VDC +18VDC

Thermal Detector

+24VDC +5VDC

Torch Control

Connection

(CON1)

IGBT

Inverter

Troublel Sensing

Circuit

Drive

Circuit

Transformer

Themal

Sensor

Circuit

Current

Adjus tment

circuit

Panel Circuit Board

Main

(PCB14)

Primary Current

Sensor

Sequence

Control

Mode select Switches

Figure 2. 400 TS Model Functional Block Diagram

2.03 Transporting Methods

This unit is equipped with a handle for carrying purposes.

Thermal Detector

Reference

Adjustment &

Output

Diodes

HF-UNIT

Stick Mode

Control

Circuit

VRD

Sensing

Circuit

Output

Inductor

Fan Control

Circuit

Gas Control

Circuit

Lift Tig Mode Out put Short

Sensing

Circuit

Coupling

Frequency

Fan

Solenoid

Hall Current Transformer

Coil

High

Unit

(HCT1)

WARNING 1

ELECTRIC SHOCK can kill. DO NOT TOUCH live electrical parts. Disconnect input power conductors from de-energized supply line before moving the welding power source.

WARNING 2

FALLING EQUIPMENT can cause serious personal injury and equipment damage.

Lift unit with handle on top of case. Use handcart or similar device of adequate capacity. If using a fork lift vehicle, place and secure unit on a proper skid before transporting.

3.0 INSTALLATION RECOMMENDATIONS

3.01 Environment

The ArcMaster 400 TS is designed for use in hazardous environments.

Examples of environments with increased hazardous environments are:

a. In locations in which freedom of movement is restricted, so that the operator is forced to

perform the work in a cramped (kneeling, sitting or lying) position with physical contact with conductive parts.

b. In locations which are fully or partially limited by conductive elements, and in which there is a

high risk of unavoidable or accidental contact by the operator.

c. In wet or damp hot locations where humidity or perspiration considerably reduces the skin

resistance of the human body and the insulation properties of accessories.

Environments with hazardous environments do not include places where electrically conductive parts in the near vicinity of the operator, which can cause increased hazard, have been insulated.

3.02 Location

Be sure to locate the welder according to the following guidelines:

In areas, free from moisture and dust.

•

Ambient temperature between 0 degrees C to 40 degrees C.

•

In areas, free from oil, steam and corrosive gases.

•

In areas, not exposed to direct sunlight or rain.

•

In areas, not subjected to abnormal vibration or shock.

•

Place at a distance of 12” (304.79mm) or more from walls or similar that could restrict natural airflow for cooling.

WARNING 3

Thermal Arc advises that this equipment be electrically connected by a qualified electrician.

3.03 Electrical Input Connections

WARNING 4

ELECTRIC SHOCK can kill; SIGNIFICANT DC VOLTAGE is present after removal of input power.

SHUT DOWN welding power source, disconnect input power employing lockout/tagging procedures. Lockout/tagging procedures consist of padlocking line disconnect switch in open position, removing fuses from fuse box, or shutting off and red-tagging circuit breaker or other disconnecting device.

3.03.01 Electrical Input Requirements

Operate the welding power source from a single/three-phase 50/60 Hz, AC power supply. The input voltage must match one of the electrical input voltages shown on the input data label on the unit nameplate. Contact the local electric utility for information about the type of electrical service available, how proper connections should be made, and inspection required.

The line disconnect switch provides a safe and convenient means to completely remove all electrical power from the welding power supply whenever necessary to inspect or service the unit.

Note 2

This unit is equipped with a three-conductor with earth power cable that is connected at the welding power source end for single and three phase electrical input power.

Do not connect an input (WHITE or BLACK or RED) conductor to the ground terminal. Do not connect the ground (GREEN) conductor to an input line terminal.

Refer to Figure 3 and:

1. Connect end of ground (GREEN) conductor to a suitable ground. Use a grounding method that complies with all applicable electrical codes.

2. Connect ends of line 1 (BLACK) and line 2 (WHITE) and line 3 (RED) input conductors to a de-energized line disconnect switch.

3. Use Table 1 and Table 2 as a guide to select line fuses for the disconnect switch.

Note 3

For Single-Phase operation connect the GREEN, BLACK and WHITE input conductors. Insolate the RED Conductor, it is not used for Single-phase operation.

Input Voltage Fuse Size

208 VAC 100 Amps 230 VAC 75 Amps 460 VAC 50 Amps

Table 1. Electrical Input Connections

NOTE: Fuse size is based on not more than 200 percent of the rated input amperage of the welding

power source (Based on Article 630, National Electrical Code).

Figure 3. Electrical Input Connections

3.03.02 Input Powe

Each unit incorporates an INRUSH circuit and input voltage sensing circuit. When the MAIN INPUT SWITCH is turned on, the inrush circuit provides a pre-charging of the input capacitors. SCR’s in the Power Control Assembly (PCA) will turn on after the input capacitors have charged to full operating voltage (after approximately 5 seconds).

Note 4

Note the available input power. Damage to the PCA could occur if 575VAC or higher is applied.

The following Primary Current recommendations are required to obtain the maximum welding current and duty cycle from this welding equipment:

ARCMASTER

Model

400 TS

Primary Supply

Lead Size

(Factory Fitted)

Minimum Primary

Current Circuit Size

(Vin/Amps)

Current & Duty Cycle

TIG STICK

- 208/49

400A @ 25%

300A @ 25%

8/4 AWG minimum

Phase

230/44 460/22 208/67 230/61 460/31 -

208/67 230/60 208/97 230/87 -

Table 2 – 208-230/460V Primary Current Circuit sizes to achieve maximum current

3.03.03 High Frequency Introduction

The importance of correct installation of high frequency welding equipment cannot be over-emphasized. Interference due to high frequency initiated or stabilized arc is almost invariably traced to improper installation. The following information is intended as a guide for personnel installing high frequency welding machines.

Warning

Explosives

The high frequency section of this machine has an output similar to a radio transmitter. The machine should NOT be used in the vicinity of blasting operations due to the danger of premature firing.

Computers

It is also possible that operation close to computer installations may cause computer malfunction.

3.03.04 High Frequency Interference

Interference may be transmitted by a high frequency initiated or stabilized arc welding machine in the following ways:

Direct Radiation

Radiation from the machine can occur if the case is metal and is not properly grounded. It can occur through apertures such as open access panels. The shielding of the high frequency unit in the Power Source will prevent direct radiation if the equipment is properly grounded.

Transmission via the Supply Lead

Without adequate shielding and filtering, high frequency energy may be fed to the wiring within the installation (mains) by direct coupling. The energy is then transmitted by both radiation and conduction. Adequate shielding and filtering is provided in the Power Source.

Radiation from Welding Leads

Radiated interference from welding leads, although pronounced in the vicinity of the leads, diminishes rapidly with distance. Keeping leads as short as possible will minimize this type of interference. Looping and suspending of leads should be avoided where possible.

Re-radiation from Unearthed Metallic Objects

A major factor contributing to interference is re-radiation from unearthed metallic objects close to the welding leads. Effective grounding of such objects will prevent re-radiation in most cases.

3.04 Specifications

Parameter 400 TS Rated Output

Amperes Volts Duty Cycle Duty Cycle 400A / 36V @ 25% (3ph)

Output Current Range 5 – 400 Amps Open Circuit Voltage 65V

Dimensions

Width Height Length Weight 52.9 lb. 24 kg

Output @ Rated Load

Rated Input Voltage Output Amperes Output Volts Duty Cycle KVA KW

Output @ No Load

KVA KW

Input Volts Three Phase

Input Volts Single Phase

208V 230V 460V

208V 230V

208-230/460VAC 400 36 25%

300A / 32V @ 60% (3ph) 300A / 32V @ 25% (1ph)

8.3” (210mm)

16.5” (420mm)

17.7” (450mm)

Three-phase 208-230/460V 400A 36V 25%

24.0

18.0

Single-phase 208-230V 300A 32V 25%

20.0

12.0

0.5

0.13 Amperage Draw

@ Rated Load

67 61 31

97 87

No Load

1.4

1.3

0.7

2.5

2.2

Thermal Arc continuously strives to produce the best product possible and therefore reserves the right to change, improve or revise the specifications or design of this or any product without prior notice. Such updates or changes do not entitle the buyer of equipment previously sold or shipped to the corresponding changes, updates, improvements or replacement of such items.

3.05 Duty Cycle

The duty cycle of a welding power source is the percentage of a ten (10) minute period that it can be operated at a given output without causing overheating and damage to the unit. If the welding amperes decrease, the duty cycle increases. If the welding amperes are increased beyond the rated output, the duty cycle will decrease.

WARNING 5

Exceeding the duty cycle ratings will cause the thermal overload protection circuit to become energized and shut down the output until the unit has cooled to normal operating temperature.

CAUTION 1

Continually exceeding the duty cycle ratings can cause damage to the welding power source and will void the manufactures warranty.

NOTE 5

Due to variations that can occur in manufactured products, claimed performance, voltages, ratings, all capacities, measurements, dimensions and weights quoted are approximate only. Achievable capacities and ratings in use and operation will depend upon correct installation, use, applications, maintenance and service.

4.0 OPERATOR CONTROLS

4.01 ARCMASTER 400 TS Controls

Figure 4. ARCMASTER 400 TS Power Source

Control Knob

This control sets the selected weld parameter, rotating it clockwise increases the parameter that is indicated on the digital meter. Pushing the knob inward displays the actual welding voltage.

Remote Control Socket

The 14 pin Remote Control Socket is used to connect remote current control devices to the welding Power Source. To make connections, align keyway, insert plug, and rotate threaded collar fully clockwise.

ＡＢＣＤＥＦＧＨＩＪＫＬＭＮ

5k ohms

BKI

CLNH

DMG

Front view of 14

Socket Receptacle

Socket Pin Function

B Torch Switch Input (0V) to energize weld current

C 5k ohm (maximum) connection to 5k ohm remote control potentiometer D

E Wiper arm connection to 5k ohm remote control potentiometer

G Mains Earth

F,H,I,J,K,L Not Used

M OK to move current detect signal for robotics applications N OK to move current detect signal for robotics applications

Positive Terminal

Torch Switch Input (24V) to energize weld current (connect pins A & B to turn on welding current)

(connect pins A & B to turn on welding current)

Zero ohm (minimum) connection to 5k ohm remote control potentiometer

Welding current flows from the Power Source via heavy duty Dinse type terminal. It is essential, however, that the male plug is inserted and turned securely to achieve a sound electrical connection.

Negative Terminal

Welding current flows from the Power Source via heavy duty Dinse type terminal. It is essential, however, that the male plug is inserted and turned securely to achieve a sound electrical connection.

CAUTION 2

Loose welding terminal connections can cause overheating and result in the male plug being fused in the bayonet terminal.

Gas

The Gas Outlet is a 5/8 – UNF female gas fitting.

ON/OFF Switch

This switch connects the Primary supply voltage to the inverter when in the ON position. This enables the Power Supply.

WARNING 6

When the welder is connected to the Primary supply voltage, the internal electrical components may be at primary potential with respect to earth.

Input Cable

The input cable connects the Primary supply voltage to the equipment.

SMART Logic Switch

Manual slide switch mounted on the back panel selects for proper input voltage. If this slide is not set to the position that matches the input voltage from the electrical source the Smart Logic circuit will inhibit welding power source output. The digital meter will show primary input error code.

Gas Inlet

The Gas Inlet is a 5/8 – UNF female gas fitting.

4.02 Weld Process Selection for ArcMaster 400 TS

Weld Mode

Weld Process

Selection

SLOPE

REPEAT

PULSE

STD

SPOT

ON/OFF

STICK

Yes Yes Yes

TIG

LIFT

TIG

Description

2T operation in TIG Modes using remote devices to control contactor & current.

4T operation in TIG Modes with crater fill

No Yes Yes

using a remote contactor device to control sequence.

4T operation in TIG Modes with repeat

No Yes Yes

No Yes No

operation and crater fill using a remote contactor device.

2T operation spot welding in HF TIG using a remote contactor device.

No Yes Yes Pulse operation in TIG Modes.

Contactor ON/OFF

Operation

PANEL/REMOTE

Yes No Yes

Yes Yes Yes Selects in operation Panel board or Remote.

Contactor operation in Stick and Lift TIG Mode.

Table 3 – Weld Process Selection verses Weld Mode for ArcMaster 400 TS

4.03 Weld Parameter Description

Figure 5. ArcMaster 400 TS Front Panel with Parameter Description

Parameter Description

This parameter operates in TIG modes only and is used to get gas to the weld zone prior to striking the arc, once the torch trigger switch has been pressed. This control is used to dramatically reduce weld porosity at the start of a weld.

PRE-FLOW

HOT START

INITIAL CUR.

UP SLOPE

PEAK CUR.

WELD

BASE

This parameter operates in all weld modes except Lift TIG mode and is used to heat up the weld zone in TIG modes or improve the start characteristics for stick electrodes. e.g. low hydrogen electrodes. It sets the peak start current on top of the

PEAK (WELD)

e.g.

HOT START

This parameter operates in set the start current for TIG. The Start Current remains on until the torch trigger switch is released after it has been depressed.

This parameter operates in TIG modes only and is used to set the time for the weld current to ramp up, after the torch trigger switch has been pressed then released, from INITIAL CUR to PEAK or BASE current.

This parameter sets the PEAK weld current when in This parameter sets the TIG WELD current in

modes when This parameter sets the Background current when in Pulse TIG mode.

current.

current = 130 amps when

= 30 amps

SLOPE

PEAK (WELD)

REPEAT

= 100 amps &

(4T) TIG modes only and is used to

PULSE

mode.

STD, SLOPE, REPEAT

PULSE

is off. This parameter also sets the STICK weld current.

and

SPOT

Parameter Description

(Background

Current)

SPOT TIME

PULSE WIDTH

PULSE FREQ.

DOWN SLOPE

CRATER CUR.

POST-FLOW

This parameter sets the duration of the This parameter sets the percentage on time of the

weld current when the This parameter sets the This parameter operates in TIG modes only and is used to set the time for the weld

current to ramp down, after the torch trigger switch has been pressed, to

CUR.

This control is used to eliminate the crater that can form at the completion of

a weld. This parameter operates in

set the finish current for TIG. The CRATER Current remains ON until the torch trigger switch is released after it has been depressed.

This parameter operates in TIG modes only and is used to adjust the post gas flow time once the arc has extinguished. This control is used to dramatically reduce oxidation of the tungsten electrode.

PULSE

is ON.

PULSE FREQUENCY

SLOPE

SPOT TIME

REPEAT

HF TIG

mode only.

PULSE FREQUENCY

when the

PULSE

is ON.

for PEAK

CRATER

(4T) TIG modes only and is used to

The SAVE/LOAD buttons are used to save and retrieve a total number of 5 programs into the 400 TS memory.

Table 4 – Weld Parameter Descriptions for ArcMaster 400 TS

4.04 Weld Parameters for ArcMaster 400 TS

Weld Mode

INITIAL CUR.

PULSE WIDTH

PULSE FREQ.

DOWN SLOPE CRATER CUR.

POST-FLOW

Weld

Parameter

PRE-FLOW

HOT START

UP SLOPE PEAK CUR. WELD CUR

(TIG)

WELD CUR

(STICK)

SPOT TIME

Parameter Range

0.0 to 1.0 sec 0 sec 0.1 sec No Yes Yes 0 to 70A 20A 1A Yes Yes No

5 to 400A 30A 1A No Yes Yes

0 to 15 sec 1 sec 0.1 sec No Yes Yes

5 to 400A 120A 1A No Yes Yes 5 to 400A 80A

5 to 400A 80A

0.5 to 5.0 sec 2 sec 0.1 sec No Yes Yes

15 to 80% 50% 1% No Yes Yes

0.5 to 500Hz 100.0Hz

0 to 25 sec 3 sec 0.1 sec No Yes Yes

5 to 40A 30A 1A No Yes Yes

0.0 to 60 sec 10 sec 0.1 sec No Yes Yes

Table 5 – Weld Parameters for ArcMaster 400 TS

Factory Setting

Incremental

Unit

See

Table 6

STICK

Yes

No Yes Yes

TIG

Yes

LIFT TIG

Yes

PULSE FREQ.

0.5 to 20Hz 0.1Hz

20 to 100Hz 1Hz

100 to 500Hz 5Hz

Table 6 –

Range Incremental Unit

PULSE FREQ.

Range and Incremental Units

4.05 Power Source Features

Feature Description

New Digital Control Touch Panel Switches Front Control Cover Digital Meter

Intelligent Fan Control

ON/OFF Switch

Save/Load Function

• Almost all welding parameters are adjustable.

• Touch switches eliminate mechanical damage.

• Protects front panel controls.

• Displays selected weld parameter value.

• Displays weld current when welding.

• Displays weld current for 20 seconds after weld has been

completed.

• A selected weld parameter value can be adjusted at any

time even while welding.

• The intelligent cooling system is designed to reduce dust

and foreign material build-up, whilst providing optimum cooling.

• Fan speed reduces approximately 30 seconds after

machine is turned on.

• Fan speed increases when internal components reaches

operating temperature.

• Primary voltage Supply ON/OFF switch located on

rear panel.

• A total number of 5 programs can be saved into the

400 TS memory.

SAVE

the Current Weld Parameters into Memory

• Press and HOLD the

Digital Meter display will show a number 1.

• Select a memory location by rotating the control knob,

1 to 5 is displayed on the meter.

• After selecting the desired memory location (i.e. 1 to 5),

press the right scroll button and the machine will give a beep to confirm the weld parameters from the control panel are saved.

LOAD

(retrieve) a Program to Control Panel

• Press and HOLD the

Digital Meter display will show a number 1.

• Select a memory location by rotating the control knob,

1 to 5 is displayed on the meter.

After selecting the desired memory location (i.e. 1 to 5), press the right scroll button and the machine will give a beep to confirm the weld parameters are loaded.

SAVE

button. Beep will sound and

LOAD

button. Beep will sound and

Feature Description

Voltage Reduction Device (VRD)

(shipped de-activated, field capable)

See Section 11 for activation instructions

Control Knob

Self Diagnosis Using Error Codes

Reduces the OCV when the power supply is not in use. Eliminates the need for add on voltage reducers and has no effect on arc starting.

• VRD fully complies to IEC 60974-1.

• When Stick mode is selected the green VRD light is ON

when not welding and red when welding.

• When in TIG modes VRD is off.

• For the selected weld parameter, rotating the knob

clockwise increases the parameter.

• Rotating the knob counterclockwise decreases the

parameter.

• A selected weld parameter value can be adjusted at any

time even while welding.

• Pushing the knob in displays actual arc voltage.

• An error code is displayed on the

problem occurs with Primary supply voltage or internal component problems. Refer to Troubleshooting Guide.

Digital Meter

when a

5.0 SET-UP FOR SMAW (STICK) AND GTAW (TIG)

Conventional operating procedures apply when using the Welding Power Source, i.e. connect work lead directly to work piece and electrode lead is used to hold electrode. Wide safety margins provided by the coil design ensure that the Welding Power Source will withstand short-term overload without adverse effects. The welding current range values should be used as a guide only. Current delivered to the arc is dependent on the welding arc voltage, and as welding arc voltage varies between different classes of electrodes, welding current at any one setting would vary according to the type of electrode in use. The operator should use the welding current range values as a guide, then finally adjust the current setting to suit the application.

WARNING 7

Before connecting the work clamp to the work and inserting the electrode in the electrode holder make sure the Primary power supply is switched off.

CAUTION 3

Remove any packaging material prior to use. Do not block the air vents at the front or rear or sides of the Welding Power Source.

CAUTION 4

DO NOT change the Weld Mode or Weld Process Mode Until after POST-FLOW time has finished.

Figure 6. 400 TS Set-up

6.0 SEQUENCE OF OPERATION

NOTE: Scroll Buttons are used to select the parameters to be set. The LED’s show

which function is being adjusted on the weld sequence graph. Refer to Symbols Table located in the front of the manual for Symbol descriptions.

1. Pulse Function: Pressing this button enables the TIG current pulse functions.

2. Remote Current Function: Pressing this buttons enables remote current functions.

3. TIG Mode Functions: Pressing this button scrolls through the output TIG function modes (Standard,

Slope, Slope w/repeat, Spot).

4. Digital LED Display: Welding amperage and parameter values are displayed in this window. Internal

warnings such as over temperature, low or high input voltage applied are signaled to the operator by a warning sound and error message on the screen.

5. Save/Load Buttons: By using the Save & Load buttons the operator can easily save up to 5 welding

parameter programs.

6. Control Knob: Allows the operator to adjust the output amperage within the entire range of the power

source and sets each parameter value.

7. Process Button: This button selects between STICK, HF TIG and Lift TIG mode.

8. Scroll Buttons: Used to select the parameters to be set. The LED’s show which function is being

adjusted on the Sequence Graph.

9. Contactor Function: Pressing this buttons enables Contactor functions.

4 6

Figure 7. 400 TS Front Panel

6.01 Stick Welding

• Connect work lead to negative terminal

• Connect electrode lead to positive terminal

• Switch machine on

• Set Contactor

• Connect remote control device if required

Use the Scroll Buttons to move to the parameter to be set. The LED will show which function is being adjusted on the weld sequence graph. Use the control knob to adjust each parameter.

• Set

Commence welding

HOT START WELD

current

6.02 HF TIG & Lift TIG Welding

• Connect work lead to positive terminal

• Connect TIG torch to negative terminal

• Switch machine on

• Set weld current

• Connect remote control device. A remote control device is required for use during LIFT TIG and

HF TIG operation. See section 4.01, section 2 “ the remote device.

Use the Scroll Buttons to move to the parameter to be set. The LED will show which function is being adjusted on the weld sequence graph. Use the control knob to adjust each parameter.

• Set

Slope Mode Parameters if required

• Set

• Set (WELD)

• Set

Pulse Mode parameters if required

• Set

Commence welding

PRE-FLOW HOT START POST-FLOW WELD POST-FLOW

INTIAL CUR UP SLOPE

time

current

time

current

time

current

time

PEAK CUR

BASE

current

DOWN SLOPE CRATER CUR

time

current

PULSE WIDTH

PEAK CURRENT

PULSE FREQ

current

% for

PEAK CURRENT

Remote Control Socket

”, for complete details of

6.02.01 Slope Mode Sequence

Switch Closed

Preflow

Initial

Current

Slope

Switch Open

Weld Current

Down

Slope

Switch Close

Current

Switch Open

Final

Postflow

Note 6

Slope function operates with a Remote ON/OFF device only.

1) To start Slope sequence Close remote switch contacts. Once the welding arc is established the Power

Source will maintain initial current setting as long as the remote switch contacts are closed. a) In the HF TIG mode, after Preflow time High Frequency is present at the torch. When the torch is

positioned close to the work the welding current will transfer to the work and establish the arc at the initial current setting.

b) In the Lift TIG mode, after preflow time Lift Start current is present at the torch. When the electrode

is touched to the work and lifted off, the welding arc is established at the initial current setting.

2) Open Remote Switch – current increases to weld current. Once welding arc has reached weld

current the power source will maintain weld current as long as the remote switch contacts are open.

3) Close Remote Switch – Welding current decreases to final current setting. Once final welding current

is reached the power source will maintain final current setting as long as the remote switch contacts are closed.

4) Open Remote Switch – Welding arc stops and post flow begins.

6.02.02 Slope Mode with Repeat Sequence

The repeat function is operated during the down slope cycle of the Slope Sequence and is active through the down slope period only. During the down slope period by opening the Remote Switch contacts the current will increase back to weld current. Within the Down Slope period the repeat function can be operated as many times as desired. To continue slope cycle and end slope sequence close remote switch contacts and allow weld current to reach final current setting. Once final current setting is reached opening the Remote Switch again will turn off the welding arc and post flow begins.

6.02.03 Pulse Controls

The Pulse controls are used primarily to control heat input. Pulse offers a number of advantages as follows:

1) Control puddle – size and fluidity (especially out of position).

2) Increase penetration

3) Travel speed control

4) Better consistent quality

5) Distortion on lighter or thinner materials.

Pulse-current provides a system in which the welding current continuously changes between two levels. During the periods of Peak current, heating and fusion takes place, and during the background (base) current periods, cooling and solidification take place. Pulse Width is the time in one cycle the current stays at the peak current setting. Pulse Frequency measured in Hertz is the number of cycles per second the current travels between peak and background current settings. It is as if the foot rheostat were moved up and down to increase and decrease the welding current on a regular basis. The faster you moved the foot rheostat up and down the faster the frequency.

(Pulse Width) (Pulse Frequency)

(Peak Current)

(Base)

Background

Current

6.03 Save-Load Operation

A total number of 5 programs can be saved into the 400 TS memory.

SAVE

the Current Weld Parameters into Memory

• Press the

• Select a memory location by rotating the control knob, 1 to 5 is displayed on the meter

• After selecting the desired memory location (ie 1 to 5), press the right scroll button and the machine will give

a beep to confirm the weld parameters from the control panel are saved.

LOAD

(retrieve) a Program to Control Panel

• Press the

• Select a memory location by rotating the control knob, 1 to 5 is displayed on the meter. After selecting the

desired memory location (i.e. 1 to 5), press the right scroll button and the machine give a beep to confirm the weld parameters are loaded onto the control panel

SAVE

button until the buzzer rings.

LOAD

button until the buzzer rings.

7.0 BASIC TIG WELDING GUIDE

7.01 Electrode Polarity

Connect the TIG torch to the - / current straight polarity. Direct current straight polarity is the most widely used polarity for DC TIG welding. It allows limited wear of the electrode since 70% of the heat is concentrated at the work piece.

TORCH

terminal and the work lead to the

+ / WORK

terminal for direct

7.02 Tungsten Electrode Current Ranges

Electrode Diameter DC Current (Amps)

0.040” (1.0mm) 30 – 60 1/16” (1.6mm) 60 – 115 3/32” (2.4mm) 100 – 165

1/8” (3.2mm) 135 – 200 5/32” (4.0mm) 190 – 280 3/16” (4.8mm) 250 – 340

Table 7 – Current Ranges for Varies Fungsten Electrode Sizes

7.03 Tungsten Electrode Types

Electrode Type

(Ground Finish)

Thoriated 2%

Ceriated 2%

DC welding of mild steel, stainless steel and copper.

DC welding of mild steel, stainless steel, copper, aluminium, magnesium and their alloys

Welding Application Features

Excellent arc starting, Long life, High current carrying capacity.

Longer life, More stable arc, Easier starting, Wider current range, Narrower more concentrated arc.

Table 8 – Tungsten Electrode Types

Color Code

Red

Grey

7.04 Guide for Selecting Filler Wire Diameter

Filler Wire Diameter

1/16” (1.6 mm) 20 - 90 3/32” (2.4 mm) 65 - 115

1/8” (3.2 mm) 100 - 165

3/16” (4.8 mm) 200-350

Table 9 – Filler Wire Selection Guide

DC Current Range

(Amps)

NOTE 7

The filler wire diameter specified in Table 9 is a guide only. Other diameter wires may be used according to the welding application.

7.05 Shielding Gas Selection

Alloy

Shielding Gas

Aluminium & alloys Argon Carbon Steel Argon Stainless Steel Argon Nickel Alloy Argon Copper Argon Titanium Argon

Table 10 – Shielding Gas Selection

7.06 TIG Welding Parameters for Low Carbon & Low Alloy Steel Pipe

Electrode Type &

Diameter

Thoriated 2%

3/32” (2.4 mm)

Thoriated 2%

3/32” (2.4 mm)

Thoriated 2%

3/32” (2.4 mm)

Current Range DC

Amperes

120 - 170 Yes

100 - 160 Yes

90 - 130 No

Filler Rod for

Root Pass

Joint Preparation

Table 11 – TIG Welding Parameters for Low Carbon & Low Alloy Steel Pipe

7.07 Welding Parameters for Steel

Base Metal

Thickness

0.040”

1.0mm

0.045”

1.2mm 1/16”

1.6mm

1/8”

3.2mm 3/16”

4.8mm

¼”

6.4mm

DC Current for

Mild Steel

35-45 20-30 Butt/Corner 40-50 25-35

45-55 30-45 Butt/Corner 50-60 35-50

60-70 40-60 Butt/Corner 70-90 50-70

80-100 65-85 Butt/Corner 90-115 90-110

115-135 100-125 Butt/Corner 140-165 125-150

160-175 135-160 Butt/Corner 170-200 160-180

DC Current for

Stainless

Steel

Tungsten

Electrode

Diameter

0.040”

1.0mm

0.040”

1.0mm 1/16”

1.6mm 1/16”

1.6mm 3/32”

2.4mm

1/8”

3.2mm

Filler Rod

Diameter

(if required)

1/16”

1.6mm 1/16”

1.6mm 3/32”

2.4mm

1/8”

3.2mm 5/32”

4.0mm

Argon Gas Flow Rate Liters/min

5-7

Joint Type

Lap/ Fillet

Table 12 – DC TIG Welding Parameters

8.0 BASIC ARC WELDING GUIDE

8.01 Electrode Polarity

Stick electrodes are generally connected to the ‘+’ terminal and the work lead to the ‘−’ terminal but if in doubt consult the electrode manufacturers literature.

8.02 Effects of Stick Welding Various Materials High tensile and alloy steels

The two most prominent effects of welding these steels are the formation of a hardened zone in the weld area, and, if suitable precautions are not taken, the occurrence in this zone of under-bead cracks. Hardened zone and under-bead cracks in the weld area may be reduced by using the correct electrodes, preheating, using higher current settings, using larger electrodes sizes, short runs for larger electrode deposits or tempering in a furnace.

Manganese steels

The effect on manganese steel of slow cooling from high temperatures is to embrittle it. For this reason it is absolutely essential to keep manganese steel cool during welding by quenching after each weld or skip welding to distribute the heat.

Cast Iron

Most types of cast iron, except white iron, are weldable. White iron, because of its extreme brittleness, generally cracks when attempts are made to weld it. Trouble may also be experienced when welding whiteheart malleable, due to the porosity caused by gas held in this type of iron.

Copper and alloys

The most important factor is the high rate of heat conductivity of copper, making preheating of heavy sections necessary to give proper fusion of weld and base metal.

Types of Electrodes

Arc Welding electrodes are classified into a number of groups depending on their applications. There are a great number of electrodes used for specialized industrial purposes which are not of particular interest for everyday general work. These include some low hydrogen types for high tensile steel, cellulose types for welding large diameter pipes, etc. The range of electrodes dealt with in this publication will cover the vast majority of applications likely to be encountered; are all easy to use and all will work on even the most basic of welding machines.

Metals being joined Electrode Comments

Mild steel 6013 Ideal electrodes for all general purpose

work. Features include out standing operator appeal, easy arc starting and low spatter.

Mild steel 7014 All positional electrode for use on mild and

galvanized steel furniture, plates, fences, gates, pipes and tanks etc. Especially suitable for vertical-down welding.

Cast iron 99% Nickel Suitable for joining all cast irons except

white cast iron.

Stainless steel 318L-16 High corrosion resistance. Ideal for dairy

work, etc. on stainless steels.

Copper, Bronze, Brass, etc. Bronze

5.7 ERCUSI-A

High Alloy Steels, Dissimilar Metals, Crack Resistance. All Hard-To-Weld Jobs.

312-16 It will weld most problematical jobs such

Easy to use electrode for marine fittings, water taps and valves, water trough float arms, etc. Also for joining copper to steel and for bronze overlays on steel shafts.

as springs, shafts, broken joins mild steel to stainless and alloy steels. Not suitable for Aluminium.

Table 13 – Types of Electrodes

9.0 ROUTINE MAINTENANCE

The only routine maintenance required for the power supply is a thorough cleaning and inspection, with the frequency depending on the usage and the operating environment.

The unit should be wiped clean as necessary with solvents that are recommended for cleaning electrical apparatus. Turn Power Switch to OFF before proceeding. Internal cleaning of the unit should be done every 6 months by an authorized Thermal Arc Service Center to remove any accumulated dirt and dust. This may need to be done more frequently under exceptionally dirty conditions.

CAUTION 5

Do not blow air into the power supply during cleaning. Blowing air into the unit can cause metal particles to interfere with sensitive electrical components and cause damage to the unit.

10.0 BASIC TROUBLESHOOTING

WARNING 8

There are extremely dangerous voltages and power levels present inside this product. Do not attempt to open or repair unless you are an Accredited Thermal Arc Service Agent and you have had training in power measurements and troubleshooting techniques.

If major complex subassemblies are faulty, then the Welding Power Source must be returned to an Accredited Thermal Arc Service Agent for repair.

The basic level of troubleshooting is that which can be performed without special equipment or knowledge.

10.01 TIG Welding Problems

Weld quality is dependent on the selection of the correct consumables, maintenance of equipment and proper welding technique.

Description Possible Cause Remedy

1 Excessive bead

build-up or poor penetration or poor fusion at edges of weld.

2 Weld bead too wide

and flat or undercut at edges of weld or excessive burn through.

3 Weld bead too small or

insufficient penetration or ripples in bead are widely spaced apart.

4 Weld bead too wide or

excessive bead build up or excessive penetration in butt joint.

5 Uneven leg length in

fillet joint.

6 Electrode melts when

arc is struck.

Welding current is too low. Increase weld current and/or

faulty joint preparation.

Welding current is too high. Decrease weld current.

Travel speed too fast. Reduce travel speed.

Travel speed too slow. Increase travel speed.

Wrong placement of filler rod. Re-position filler rod.

Electrode is connected to the ‘+’

terminal.

Connect the electrode to the ‘−’ terminal.

7 Dirty weld pool. A Electrode contaminated through

contact with work piece or filler rod material.

B Gas contaminated with air. B Check gas lines for cuts

A Clean the electrode by grinding

off the contaminates.

and loose fitting or change gas cylinder.

Description Possible Cause Remedy

8 Electrode melts or

oxidizes when an arc is struck.

A No gas flowing to welding

region.

A Check the gas lines for

kinks or breaks and gas

cylinder contents. B Torch is clogged with dust. B Clean torch. C Gas hose is cut. C Replace gas hose. D Gas passage contains

impurities.

D Disconnect gas hose from

torch then raise gas pressure

and blow out impurities. E Gas regulator turned off. E Turn on. F Torch valve is turned off. F Turn on. G The electrode is too small for

the welding current.

G Increase electrode diameter or

reduce the welding current.

9 Poor weld finish. Inadequate shielding gas. Increase gas flow or check gas

line for gas flow problems.

10 Arc flutters during TIG

welding.

A Tungsten electrode is too large

for the welding current.

A Select the right size electrode.

Refer to Basic TIG Welding

Guide. B Absence of oxides in the

weld pool.

B Refer Basic TIG Welding Guide

for ways to reduce arc flutter.

11 Welding arc can not be

established.

A Work clamp is not connected

to the work piece or the work/torch leads are not connected to the right

A Connect the work clamp to the

work piece or connect the

work/torch leads to the right

welding terminals.

welding terminals. B Torch lead is disconnected. B C Gas flow incorrectly set,

cylinder empty or the torch

valve is off.

12 Arc start is not smooth. A Tungsten electrode is too large

for the welding current. B The wrong electrode is being

used for the welding job.

Connect it to the ‘−‘ terminal.

C Select the right flow rate,

change cylinders or turn torch valve on.

A Select the right size electrode.

Refer to Basic TIG Welding Guide.

B Select the right electrode type.

Refer to Basic TIG Welding Guide.

C Gas flow rate is too high. C Select the correct rate for the

welding job. Refer to Basic TIG Welding Guide.

D Incorrect shielding gas is

being used.

D Select the right shielding gas.

Refer to Basic TIG Welding Guide.

E Poor work clamp connection

to work piece.

E Improve connection to

work piece.

10.02 Stick Welding Problems

Description Possible Cause Remedy

1 Gas pockets or

voids in weld metal (Porosity).

Crack occurring in weld metal soon after solidification commences.

A gap is left by failure of the weld metal to fill the root of the weld.

D Incorrect sequence. D Use correct build-up sequence.

Portions of the weld

run do not fuse to the surface of the metal or edge of the joint.

C Wrong electrode angle. C Adjust angle so the welding arc is

D Travel speed of electrode is

E Scale or dirt on joint surface. E Clean surface before welding.

Electrodes are damp.

Welding current is too high.

Surface impurities such as oil, grease, paint, etc.

Rigidity of joint.

Insufficient throat thickness.

Cooling rate is too high.

C A

Welding current is too low.

Electrode too large for joint.

Insufficient gap.

Figure 8. Example of Insufficient Gap or Incorrect Sequence

Small electrodes used on heavy

cold plate. Welding current is too low.

too high.

Dry electrodes before use.

Reduce welding current.

Clean joint before welding.

Redesign to relieve weld joint of

severe stresses or use crack resistance electrodes.

Travel slightly slower to allow

greater build up in throat. Preheat plate and cool slowly.

Increase welding current Use smaller diameter electrode.

B C

Allow wider gap.

Use larger electrodes and

pre-heat the plate. Increase welding current.

directed more into the base metal.

D Reduce travel speed of electrode.

Figure 9. Example of Lack of Fusion

Non-metallic particles

are trapped in the weld metal (slag

A Non-metallic particles may be

trapped in undercut from previous run.

A If bad undercut is present, clean

slag out and cover with a run from a smaller diameter electrode.

inclusion). B Joint preparation too restricted. B Allow for adequate penetration

and room for cleaning out the slag.

C Irregular deposits allow slag to

be trapped.

D Lack of penetration with slag

trapped beneath weld bead.

C If very bad, chip or grind out

irregularities.

D Use smaller electrode with

sufficient current to give adequate penetration. Use suitable tools to remove all slag from corners.

E Rust or mill scale is preventing

E Clean joint before welding.

full fusion.

F Wrong electrode for position in

which welding is done.

F Use electrodes designed for

position in which welding is done, otherwise proper control of slag is difficult.

Figure 10. Examples of Slag Inclusion

10.03 Power Source Problems

Description Possible Cause Remedy

1 The welding arc

cannot be established.

The Primary supply voltage has not been switched on.

The Welding Power Source switch is switched off.

Switch on the Primary supply voltage.

Switch on the Welding Power Source.

C Loose connections internally. C Have an accredited Thermal Arc

Service Agent repair the connection.

2 Maximum output

welding current cannot be achieved

Defective control circuit. Have an accredited Thermal Arc

Service Agent repair the

connection. with nominal Mains supply voltage.

3 Welding current

reduces when welding.

Loose welding cable

connections. Incorrect welding cable size.

Improper input connections.

Poor electrode condition. Wrong welding polarity.

Tighten all welding cable

connections.

Use proper size and type

of cable.

Refer to Section 3.03.01 -

Electrical Input Requirements.

Replace electrode.

Verify output torch connections.

4 No gas flow when

the torch trigger

Gas hose is cut.

Gas passage contains impurities.

switch is depressed.

C Gas regulator turned off. D Torch trigger switch lead is

disconnected or switch/cable is faulty.

ABReplace gas hose.

Disconnect gas hose from the rear

of Power Source then raise gas

pressure and blow out impurities.

C Turn gas regulator on.

D Reconnect lead or repair faulty

switch/cable.

Description Possible Cause Remedy

5 Gas flow won’t

shut off.

B Gas valve is faulty. B Have an accredited Thermal Arc

C Gas valve jammed open. C Have an accredited Thermal Arc

6 The TIG electrode has

been contaminated due to the gas flow shutting off before the programmed

POST-FLOW

has elapsed.

time

A Weld Mode (

REPEAT

before had finished.

POST-FLOW

to 60 sec.

The Weld Process Mode

(STICK, HF TIG or LIFT TIG) was changed before

POST-FLOW

had finished.

STD, SLOPE

SPOT

) was changed

POST-FLOW

control is set

gas time

A Strike an arc to complete

the weld cycle. OR Switch machine off then on to reset solenoid valve sequence.

Service Agent repair or replace the gas valve.

D Reduce

Do not change Weld Process

Mode before the gas time had finished.

POST-FLOW

time.

11.0 VOLTAGE REDUCTION DEVICE (VRD)

11.01 VRD Specification

Description

VRD Open Circuit Voltage 15.3 to 19.8V Open circuit voltage between welding terminals. VRD Resistance 148 to 193 ohms The required resistance between welding

VRD Turn OFF Time 0.2 to 0.3 seconds The time taken to turn OFF the welding power

ARC MASTER

400 TS

Notes

terminals to turn ON the welding power.

once the welding current has stopped.

11.02 VRD Maintenance

Routine inspection and testing (power source) An inspection of the power source, an insulation resistance test and an earth resistance test

shall be carried out in accordance with clause 4.1 of AS 1647.2

a) For transportable equipment, at least once every 3 months. b) For fixed equipment, at least once every 12 months.

The owners of the equipment shall keep a suitable record of the periodic tests.

Note 8

A transportable power source is any equipment that is not permanently connected and fixed in the position in which it is operated.

In addition to the above tests and specifically in relation to the VRD fitted to this machine, the following periodic tests should also be conducted by an accredited Thermal Arc service agent.

Description AS3195 & IEC 60974-1 Requirements

VRD Open Circuit Voltage Less than 20V; at Vin=230V or 460V VRD Turn ON Resistance Less than 200 ohms VRD Turn OFF Time Less than 0.3 seconds

If this equipment is used in a hazardous location or environments with a high risk of electrocution then the above tests should be carried out prior to entering this location.

11.03 Switching VRD ON/OFF

Switch the machine OFF.

a) Remove the clear plastic cover from the control panel. (see Figure 11)

Lift up the cover so it rests on the top of the unit. Place a small flat bladed screw driver between the cover hinge on the front panel. Gently lift the cover hinge out of the front cover mounting hole. Remove the control’s clear plastic cover.

Figure 11. VRD ON/OFF Step A

b) Remove four mounting screws from the control panel. (see Figure 12) c) Access the VRD control by gently prying back the front panel controls to reveal the VRD

ON/OFF potentiometer. (see Figure 12)

CAUTION 6

Do not pull back the front panel with excessive force as this will unplug control PCB. Plugging the control PCB back into the front panel controls can only be achieved by removing the side covers.

Figure 12.

VRD ON/OFF Step B,C

d) Turning the VRD ON/OFF. (see Figure 13)

To turn VRD ON: rotate the trim potentiometer (VR1) on the display PCB fully clockwise. When VRD is turned ON check that it operates as per VRD Specifications on page 45. To turn VRD OFF: rotate the trim potentiometer (VR1) on the display PCB fully counter-clockwise.

WARNING 9

The VRD ON/OFF trim potentiometer MUST ONLY be positioned fully clockwise OR fully counter-clockwise as the VRD function will be unknown for every other position.

Figure 13.

VRD ON/OFF Step D

12.0 POWER SOURCE ERROR CODES

Description Possible Cause Remedy Remarks

1 E01 error code displayed

Temperature sensor TH1 (protects IGBTs) is greater than 80ºC for about 1 second.

2 E02 error code displayed

Temperature sensor TH2 (protects secondary diodes) is greater than 80ºC for about 1 second.

3 E03 error code displayed

Primary (input) current too high.

4 E04 error code displayed

Output voltage exceeds the secondary voltage specification.

The Welding Power Source’s duty cycle has been exceeded.

Fan ceases to operate.

Air flow is restricted by vents being blocked.

The Welding Power Source’s duty cycle has been exceeded.

Fan ceases to operate.

Air flow is restricted by vents being blocked.

Primary current is too high because welding arc is too long.

Mains supply voltage is more than 10% below nominal voltage.

TIG torch cable and/or work

lead are too long or leads are coiled.

Let Power Source cool down then keep within its duty cycle.

Have an Accredited Thermal Arc Service Agent investigate.

Unblock vents then let Power Source cool down.

Let Power Source cool down then keep within its duty cycle.

Have an Accredited Thermal Arc Service Agent investigate.

Unblock vents then let Power Source cool down.

Reduce length of welding arc.

Have an Accredited Thermal Arc Service Agent or a qualified electrician check for low Mains voltage.

Reduce the length of the TIG

torch cable and/or work lead or un-coiled leads.

Weld current ceases. Buzzer sounds constantly. Fan operates at max speed. E01 resets when TH1 decreases to 70ºC for about 30 seconds.

Weld current ceases. Buzzer sounds constantly. Fan operates at max speed. E02 resets when TH1 decreases to 70ºC for about 30 seconds.

Weld current ceases. Buzzer sounds constantly. Switch machine OFF then ON to reset E03 error.

Weld current ceases. Buzzer sounds constantly. Switch machine OFF then ON to reset E04 error.

5 E11 error code displayed

Over Primary supply (input) voltage at primary capacitors is exceeded for one second.

Primary supply voltage is

greater than the nominal voltage plus 10%

Have an Accredited Thermal

Arc Service Agent or a qualified electrician check the Primary voltage.

Weld current ceases. Buzzer sounds constantly. Error code E11 automatically will reset when the voltage reduces.

Description Possible Cause Remedy Remarks

6 E14 error code displayed

Under mains supply (input) voltage warning primary capacitors is reduced for one second.

7 E12 error code displayed

Under mains supply (input) voltage primary capacitors is reduced for one second.

8 E81 error code displayed

Wrong Primary supply (input) voltage connected.

9 E82 error code displayed

Link switch plug not connected.

10 E83 error code displayed

CPU checks mains supply (input) voltage when the ON/OFF switch on rear panel of machine is turned ON.

Mains supply voltage is less

than the nominal operating voltage less 10%.

Have an Accredited Thermal

Arc Service Agent or a qualified electrician check the Mains voltage.

Mains supply voltage is down

to a dangerously low level.

Have an Accredited Thermal

Arc Service Agent or a qualified electrician check the Mains voltage.

When 3 phase machine is

first turned ON with the wrong Primary supply (input) voltage connected.

Have an Accredited Thermal

Arc Service Agent or a qualified electrician check the Mains voltage.

Link switch plug not connected. Have an Accredited Thermal

Arc Service Agent check connector plug on input PCB.

The Primary supply (input)

voltage fluctuates and is not stable.

Have an Accredited Thermal

Arc Service Agent check connector plug on input PCB and the Mains voltage.

Weld current available. Buzzer sounds intermittently. Error code E14 automatically will reset when the voltage increases.

Weld current ceases. Buzzer sounds constantly. Error code E12 automatically will reset when the voltage reduces.

No weld current is available. Buzzer sounds constantly. Switch machine OFF.

No weld current is available. Buzzer sounds constantly. Switch machine OFF then ON to reset E83 error.

11 E93 error code displayed

Memory chip (EEPROM) on control PCB can not read/write weld parameters.

Memory chip (EEPROM) error. Have an Accredited Thermal

Arc Service Agent check the control PCB.

Weld current ceases. Buzzer sounds constantly. Switch machine OFF.

Description Possible Cause Remedy Remarks

12 E94 error code displayed

Temperature sensor TH1 for IGBTs or sensor TH2 for secondary diodes are open circuit.

13 E99 error code displayed

Mains supply (input) voltage has been turned OFF but control circuit has power from the primary capacitors.

The Welding Power Source’s

temperature sensors have malfunctioned.

Main ON/OFF switch on machine has been turned OFF.

Mains supply (input) voltage has been turned OFF.

Have an Accredited Thermal Arc

Service Agent check or replace the temperature sensors.

Turn ON/OFF switch on.

Have an Accredited Thermal Arc Service Agent or a qualified electrician check the Mains voltage and fuses.

Weld current ceases. Buzzer sounds constantly. Switch machine OFF.

Weld current ceases. Buzzer sounds constantly. Must switch machine OFF then ON to reset E99 error.

APPENDIX A - INTERCONNECT DIAGRAM

1 2

CN3

Circuit Bord [WK-5597 ]

1 2 3

CN2

4 5

CN1

2 3

CN7

CN1CN6CN5

CN30CN31

CN130CN131

1 2

CN20

Line1

Line2

Line3

Ground

Circuit Bord [WK-4917 ]

SIDE CHASSIS 1

REAR

PANEL

460V

1 2 3 4

CN1 5 6

230V

FAN1

SOL1

A : Contactor Control /+24VDC B : Contactor Control /Contactor Clouser To"A" C : 0 To +10Vdc Output To Remote Control D : Remote Control Circ uit Comm on E : 0 T o +10Vdc I nt put From Re mot e C o nt r ol F : Not Used G : Chassis Ground H : Not Used I : Not Used J : Not Used K : Not Used L : Not Used M : OK to Move (C ur re n t De t ec t Signal ) N : OK to Move ( C urr e nt Dete ct Sign a l )

2 3

CN11 4

L105

CON1

BKI

CLNH

DMG

PCB21

Filter

CN1 1

CN2

2 3

2 3 4 5

CN3

1 2 3 4

CN31 CN30

CN131 CN130

1 2

CN27

3 4

CN27 5

1 2 3

K(7) G(6)

R(3)

S(4)

T(5)

PCB4

Detect

Circuit Bord

CN4

[WK-4819 ]

CN5 CN6 CN4

CN32 CN32

PCB5

Conect Circuit Bord

[WK-5551 ]

CN132 CN132

CN17 CN17

TB0

CN14CN13

PCB7

Filter

Circuit Bord

CN15

[WK- 5550 ]

(1)

(0)

(2)

CN18 CN18

TB1

TB2

TB3

PCB2

Link

TB4

PCB3

Control Souce

Circuit Bord [WK- 5548 ]

CN18

1 2 3

CN7

1 2 3 4

CN20

1 2

1 2 3

CN33

TB1 3

UB3

TB1 4 TB1 5

PCB1

Main

Circuit Bord

[WK-5493 ]

TB1

G1 E1

G2 E2

TB2

TB3

TB1 8 TB1 9 TB2 0

TB4

G3 E3

G4 E4

CT1 CT2 CT3 CT4

2 3 4 5 6

CN20

C CE E

PCB8

IGBT Gate

Circuit Bord

[WK-5479 ]

1 2

CN1

1 2 3

CN2

C CE E

PCB9

IGBT Gate

Circuit Bord

[WK-5479 ]

1 2

CN1

1 2 3

CN2

CN9

1 2 3

TH2 TH1

C G

E C

G E

C G

E C

G E

C G

E C

G E

C G

E C

G E

C G

E C

G E

C G

E C

G E

2 3 4 5 6 7

CN21

PCB6

Control

Circuit Bord

[WK-5549]

CN8

1 2

Q10

Q11

Q12

Q13

TB1 0

TB1 1 TB1 2

Circuit Bord

3 4

TB5

UB1

TB6 TB7

Circuit Bord

3 4

2 3 4 5 6

CN22

CN19

1 2 3

PGND

P+21V

PCB10

IGBT Gate

[WK- 5479 ]

CN1

CN2

C CE E

PCB11

IGBT Gate

[WK- 5479 ]

CN1

CN2

G E

Q14

C G

Q15

C G

Q16

C G

Q17

C G

Q18

C G

Q19

C G

Q20

C G

Q21

C G

Q22

C G

Q23

C G

Q24

C G

2 3 4 5 6 7

CN23

CN17

CN21

CN1

1 2

2 3

3 4

4 5

5 6

6 7

1 2

2 3

3 4

1 2

2 3

3 4

PCB15

DIODE S n ubber

Circuit Bord

UB2

TB7

TB2 1

TB8

CT1

PCB14

TRANS Bord

[WK-5594]

CT2

TB3 5

TB3 3

TB3 4

AC2 AC1

[WK- 5606 ]

+15

HCT1

-15

GND

SH.DET+

TO1

+Output

Terminal

UB4

TB1 7

2 3 4 5

CN8

TB1 6

TB2 2

CT3

CT4

CT3

AC4

AC3

2 3 4 5 6 789

CN9

TB3 0

TB3 2

TB3 1

AC2

/RY_ON

2 3 4 5

CN1

PCB20

Filter Circuit Bord

CN3

[WK- 5499 ]

CC1

FCH1

RY+15V

/RY_ON

1 2 3

AC4

CC2

CC1

SH.DET-

HF.UNIT1

AC1 AC3

Gro und

SIDE CHASSIS 3

TO2

-Output

Terminal

AC3 AC1

SH.DET-

SH.DET+

FRONT

PANEL

Ground

RY+15V

+15

-15

GND

PCB12

Panel

Circuit Board

[WK-5 527 ]

1 2 3 4

CN2

5 6

CN1

1 2 3 4

PCB13

Encorder Board

[WK- 5528 ]

CN1

1 2 3 4

SIDE CHASSIS 2

UB2UB1

UB4UB3

APPENDIX B – ARCMASTER 400 TS ACCESSORIES

ACCESSORIES PART NO. DESCRIPTION

Stick Kit 10-4082A Work clamp with 25’ cable, and stick electrode with 25’ #1 cable TIG Kit 10-4081 Includes regulator/flowgauge, 12.5ft 200 Amp TIG torch, accessory

kit includes 1 ea of 0040”x7”, 1/16”x7”, 3/32”x7” 2% Tungsten

with collet & collet bodies, 1 ea 1/4”, 5/16”, 3/8” alumina cup Dinse Connector 10-2020 T50mm Dinse style male plug Hand Held Pendant 10-2005 Includes contactor On/Off switch and current control

with 25ft cable and 14-pin male plug Foot Control 10-2008 Contactor On/Off and current control with 15ft cable

and 14-pin male plug

10-2007 Contactor On/Off and current control with 25ft cable

and 14-pin male plug Extension Cable 10-2030 3ft with 14-pin male plug and 14-pin female cable receptacle

10-2031 15ft with 14-pin male plug and 14-pin female cable receptacle 10-2032 25ft with 14-pin male plug and 14-pin female cable receptacle 10-2033 50ft with 14-pin male plug and 14-pin female cable receptacle 10-2034 75ft with 14-pin male plug and 14-pin female cable receptacle

Torch Switch On/Off 10-2001 25ft torch mounted with 14-pin male plug Torch Switch On/Off w/current control

10-2003 25ft torch mounted with 14-pin male plug

10-2004 25ft torch mounted with 14-pin male plug

Rack Systems 10-4029 4 pack w/electrical

10-4031 6 pack w/electrical 10-4033 8 pack w/electrical

10-2002 25ft torch mounted with 14-pin male plug

- adapts to 5/8”-7/8” torch

- adapts to 7/8”-1-1/8” torch handle

- adapts to 1-1/8”-1-3/8” torch handle

LIMITED WARRANTY

This information applies to Thermal Arc products that were purchased in the USA and Canada.

April 2006

LIMITED WARRANTY: Thermal Arc

, Inc., A Thermadyne Company ("Thermal Arc"), warrants to customers of authorized distributors ("Purchaser") that its products will be free of defects in workmanship or material. Should any failure to conform to this warrant appear within the warranty period stated below, Thermal Arc shall, upon notification thereof and substantiation that the product has been stored, installed, operated, and maintained in accordance with Thermal Arc's specifications, instructions, recommendat ions and recognized stan dard industry practic e, and not subject to misu se, repair, neglect, alteration, or damage, correct such defects by suitable repair o replacement, at Thermal Arc's sole option, of any components or parts of the produc determined by Thermal Arc to be defective.

This warranty is exclusive and in lieu of any warranty o merchantability, fitness for any particular purpose, or other warranty o quality, whether express, implied, or statutory.

Limitation of liability: Therma l Arc shall not under an y circumstances be lia ble for special, indirect, incidental, or consequential damages, including but not limited to lost profits and business interruption. The remedies of the purchaser set forth herein are exclusive, and the liability of Thermal A rc with respect to any contract, or anything done in connection therewith such as the performance or breach thereof, or from the manufacture, sale, delivery, resale, or use of any goods covered by or furnished by Thermal Arc, whethe arising out of contract, tort, in cluding negligence or strict liability, or under any warranty, or otherwise, shall not exceed the price of the goods upon which such liability is based.

No employee, agent, or representative of Thermal Arc is authorized to change this warranty in any way or grant any other warranty, and Thermal Arc shall not be bound b any such attempt. Correction of non-conformities, in the manner and time provided herein, constitutes fulfillment of thermal’s obligations to purchaser with respect to the product.

This warranty is void, and seller bears no liability hereunder, if purchaser used replacement parts or accessories which, in Thermal Arc's sole judgment, impaired the safety or performance o f any Thermal Arc product. Purchaser’s rights under this warrant are void if the product is sold to p urchaser by unauthorized persons .

The warranty is effective for the time stated below beginning on the date that the authorized distributor delivers the products to the Purchaser. Notwithstanding the foregoing, in no event shall the warranty period extend more than the time stated plus one year from the date Thermal Arc delivered the product to the authorized distributor.

Warranty repairs or replacement claims under this limited warranty must be submitted to Thermal Arc via an authorized Thermal Arc repair facility within thirty (30) days of purchaser's discovery of any defect. Thermal Arc shall pay no transportation costs of any kind under this warranty. Transportation charges to send products to an authorized warranty repair facility shall be the responsibility of the Purchaser. All returned goods shall be at the Purchaser's risk and expense. This warranty dated April 1

supersedes all previous Thermal Arc warranties. Thermal Arc

is a Registered

2006

Trademark of Thermal Arc, Inc.

WARRANTY SCHEDULE

This information applies to Thermal Arc products that were purchased in the USA and Canada.

April 2006

ENGINE DRIVEN WELDERS WARRANTY PERIOD LABOR Scout, Raider, Explorer

Original Main Power Stators and Inductors .................................................................................. 3 years

Original Main Power Rectifiers, Control P.C. Boards ................................................................... 3 years

All other original circuits and components including, but not limited to, relays,

switches, contactors, solenoids, fans, power switch semi-conductors..........................................1 year

Engines and associated components are NOT warranted by Thermal Arc, although

most are warranted by the engine manufacturer............................................................. See the Engine’s Warranty for Details

GMAW/FCAW (MIG) WELDING EQUIPMENT WARRANTY PERIOD LABOR Fabricator 131, 181; 190, 210, 251, 281; Fabstar 4030; PowerMaster 350, 350P, 500, 500P; Excelarc 6045. Wire Feeders; Ultrafeed, Portafeed

Original Main Power Transformer and Inductor............................................................................5 years 3 years

Original Main Power Rectifiers, Control P.C. Boards, power switch semi-conductors.................3 years 3 years

All other original circuits and components including, but not limited to, relays,

switches, contactors, solenoids, fans, electric motors...................................................................1 year

GTAW (TIG) & MULTI-PROCESS INVERTER WELDING EQUIPMENT WARRANTY PERIOD LABOR 160TS, 300TS, 400TS, 185AC/DC, 200AC/DC, 300A C/ DC, 400GT S W, 400MST, 300MST, 400MSTP

Original Main Power Magnetics....................................................................................................5 years 3 years

Original Main Power Rectifiers, Control P.C. Boards, power switch semi-conductors.................3 years 3 years

All other original circuits and components including, but not limited to, relays,

switches, contactors, solenoids, fans, electric motors...................................................................1 year

PLASMA WELDING EQUIPMENT WARRANTY PERIOD LABOR Ultima 150

Original Main Power Magnetics.................................................................................................... 5 years 3 years

Original Main Power Rectifiers, Control P.C. Boards, power switch semi-conductors................. 3 years 3 years

Welding Console, Weld Controller, Weld Timer........................................................................... 3 years 3 years

All other original circuits and components including, but not limited to, relays,

switches, contactors, solenoids, fans, electric motors, Coolant Recirculator................................1 year

SMAW (Stick) WELDING EQUIPMENT WARRANTY PERIOD LABOR Dragster 85

Original Main Power Magnetics.....................................................................................................1 year 1 year

Original Main Power Rectifiers, Control P.C. Boards ....................................................................1 year 1 year

All other original circuits and components including, but not limited to, relays,

switches, contactors, solenoids, fans, power switch semi-conductors..........................................1 year

160S, 300S, 400S

Original Main Power Magnetics....................................................................................................5 years 3 years

Original Main Po w e r Rect ifiers, Control P.C . Boards......................... .......................................... 3 years 3 years

All other original circuits and components including, but not limited to, relays,

switches, contactors, solenoids, fans, power switch semi-conductors..........................................1 year

GENERAL ARC EQUIPMENT WARRANTY PERIOD LABOR

Water Recirculators....................................................................................................................... 1 year 1 year

Plasma Welding Torches.............................................................................................................180 days 180 days

Gas Regulators (Supplied with power sources)..........................................................................180 days Nil

MIG and TIG Torches (Supplied with power sources)..................................................................90 days Nil

Replacement repair parts.............................................................................................................90 days Nil

MIG, TIG and Plasma welding torch consumable items...................................................................Nil Nil

3 years 3 years

1 year

GLOBAL CUSTOMER SERVICE CONTACT INFORMATION

Thermadyne USA

2800 Airport Road Denton, Tx 76207 USA Telephone: (940) 566-2000 800-426-1888 Fax: 800-535-0557 Email: sales@thermalarc.com

Thermadyne Canada

2070 Wyecroft Road Oakville, Ontario Canada, L6L5V6 Telephone: (905)-827-1111 Fax: 905-827-3648

Thermadyne Europe

Europe Building Chorley North Industrial Park Chorley, Lancashire England, PR6 7Bx Telephone: 44-1257-261755 Fax: 44-1257-224800

Thermadyne Asia Sdn Bhd

Lot 151, Jalan Industri 3/5A Rawang Integrated Industrial Park - Jln Batu Arang 48000 Rawang Selangor Darul Ehsan West Malaysia Telephone: 603+ 6092 2988 Fax : 603+ 6092 1085

Cigweld, Australia

71 Gower Street Preston, Victoria Australia, 3072 Telephone: 61-3-9474-7400 Fax: 61-3-9474-7510

Thermadyne Italy

OCIM, S.r.L. Via Benaco, 3 20098 S. Giuliano Milan, Italy Tel: (39) 02-98 80320 Fax: (39) 02-98 281773

Thermadyne, China

RM 102A 685 Ding Xi Rd Chang Ning District Shanghai, PR, 200052 Telephone: 86-21-69171135 Fax: 86-21-69171139

Thermadyne International

2070 Wyecroft Road Oakville, Ontario Canada, L6L5V6 Telephone: (905)-827-9777 Fax: 905-827-9797

World Headquarters

Thermadyne Holdings Corporation Suite 300, 16052 Swingley Ridge Road St. Louis, MO 63017

Telephone: (636) 728-3000 Fascimile: (636) 728-3010 Email: sales@thermalarc.com

www.thermalarc.com

Tweco 400TS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
