OWNER’S MANUAL

ENGLISH

CONTENTS

ASSEMBLY 2 ADJUSTMENTS 4 EXERCISING 4 CONSOLE 5 OPERATING THE CONSOLE 6 MAINTENANCE 11 MALFUNCTIONS 11 TRANSPORT AND STORAGE 11 TECHNICAL SPECIFICATIONS 12

WELCOME TO THE WORLD OF TUNTURI EXERCISING!

Your choice shows that you really want to invest in your well being and condition; it also shows you really value high quality and style. With Tunturi Fitness Equipment, you’ve chosen a high quality, safe and motivating product as your training partner. Whatever your goal in training, we are certain this is the training equipment to get you there. You’ll ﬁ nd information about using your exercise equipment and what makes for efﬁ cient training at Tunturi’s website at WWW.TUNTURI.COM.

IMPORTANT SAFETY INSTRUCTIONS

Read this guide through carefully before assembling, using or servicing your ﬁ tness equipment. Please keep the guide somewhere safe; it will provide you now and in the future with the information you need to use and maintain your equipment. Always follow these instructions with care.

NOTE ABOUT YOUR HEALTH

• Before you start any training, consult a physician to check your state of health.

• If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.

• To avoid muscular pain and strain, begin each workout by warming up and end it by cooling down (slow pedaling at low resistance). Don’t forget to stretch at the end of the workout.

NOTE ABOUT THE EXERCISE ENVIRONMENT

• The equipment is not to be used outdoors.

• Place the equipment on a ﬁ rm, level surface. Place the equipment on a protective base to avoid any damages to the ﬂ oor beneath the equipment.

• Make sure that the exercising environment has adequate ventilation. To avoid catching cold, do not exercise in a draughty place.

• In training, the equipment tolerates an environment measuring +10°C to +35°C. The equipment can be stored in temperatures ranging between -15°C and +40°C. Air humidity in the training or storage environment must never exceed 90%.

NOTE ABOUT USING THE EQUIPMENT

• If children are allowed to use the equipment, they should be supervised and taught to use the equipment properly, keeping in mind the child’s physical and mental development and their personality.

• Before you start using the equipment, make sure that it functions correctly in every way. Do not use faulty equipment.

• Press the keys with the tip of the ﬁ nger; your nails may damage the key membrane.

• Never lean on the interface.

• Never remove the side covers. Do not step on the frame casing.

• Only one person may use the equipment at a time.

• Hold the handlebar for support when getting on or off the equipment.

• Wear appropriate clothing and shoes when exercising.

•

Protect the meter from sunlight and always dry the surface of the meter if there are any drops of sweat on it.

• Further information on warranty terms can be found in the warranty booklet included with the product.

• Please note that the warranty does not cover damage due to shipping or negligence of adjustment or maintenance instructions described in this manual.

• The equipment must not be used by persons weighing over 150 kg.

• Make sure the equipment is unplugged before carrying out any assembly or maintenance procedures.

• Do not attempt any servicing or adjustments other than those described in this guide. Everything else must be left to someone familiar with the maintenance of electromechanical equipment and authorized under the laws of the country in question to carry out maintenance and repair work.

SAVE THIS INSTRUCTION MANUAL

ASSEMBLY

Start by unpacking the equipment and check that you have the following parts:

1. Frame

2. Rear and front support

3. Pedals (2 pcs)

4. Handlebar

5. Console

6. Transformer

7. Assembly kit (contents marked with in the spare part list)

keep the assembly tools, as you may need them e.g. for adjusting the equipment.

If necessary, please contact your dealer with the model, equipment serial no. and spare part no. of the missing part. You’ll ﬁ nd a spare part list at the back of this guide. The packaging includes a silicate bag for absorbing moisture during storage and transportation. Please dispose of the bag once you have unpacked the equipment. The directions left, right, front and back are deﬁ ned as seen from the exercising position. We recommend that the equipment is installed by two adults.

REAR AND FRONT SUPPORT

HANDLEBAR

By holding on to the seat, incline the equipment backwards so that it rests on its transportation wheels. Attach the rear support from below with four hexagonal socket head screws and washers. Attach the front support to the frame with four screws and washers. Restore the equipment to its upward position so that it rests on the support feet.

PEDALS

Attach the cable coming from the frame tube to the connector at the bottom of the handlebar. Ensure that the joint is securely locked by gently pulling the wire. Thread the wire carefully inside the frame tube. Open the handlebar locking knob by turning it anticlockwise a few times and then pulling it outwards. Insert the handlebar into the front frame tube. Release the locking knob once the handlebar has reached the required level. Ensure that the handlebar is locked. Secure and tighten the locking knob by turning it clockwise.

CONSOLE

The pedals are distinguished by the markings R (= right) and L (= left) on their shafts. Fasten the right pedal to the right pedal crank turning clockwise and the left pedal to the left pedal crank turning counterclockwise. Fasten the pedal bands ﬁ rst into the retainerat the device. Thread the band through the pedal loop and push the band opening into the projection in the pedal. Fasten the pedal bands to the pedal outside. Push the band through the locking buckle and the band locks automatically. The length of the band can be adjusted with the locking buckle.

Connect the cables from the handlebar to the corresponding connectors of the console. Insert the connected cables into the console, but make sure they are not damaged when the console is attached. Place the meter in position at the end of the handlebar support tube and attach the console using 4 mounting screws.

E80 - OWNER’S MANUAL ENGLISH

SEAT

ADJUSTMENTS

Set the right height for you; the basic rule is that the arch of the foot reaches reaches the the pedal at its lowest point with the leg almost straight. Adjust the seat height by loosening the seat locking knob. Hold on to the seat with one hand and, using your other hand, pull the locking knob outwards in order to enable free seat tube movement upwards and downwards. Once the height is right, let go of the knob and the seat locks into place. Turn the locking knob clockwise to tighten.

NOTE! Always make sure that the locking knob is

properly fastened before starting to exercise!

To adjust the horizontal seat position forward and back, loosen the locking screws under the seat. You can also adjust inclination from here. Release the seat lock by turning the locking lever located under the seat anticlockwise. Adjust the seat to the desired position and tighten the locking lever by turning it clockwise.

HANDLEBAR SETUP

Loosen the locking screw on the front of the handlebar support and ﬁ nd the right angle at which to position the handlebar. Tighten the locking screw. The design of the handlebar allows you to exercise either in an upright position or with the upper body leaning forward. Remember, however, always to keep your back straight.

Loosen the seatholder locking screw and turn the upper locking lever so that it is aligned with the equipment. Place the seat into position on the grooves of the lower locking lever. Turn the upper locking lever towards the top of the seat rails and lock the seat by tightening the locking screw.

Adjust the handlebar height by loosening the locking knob on the handlebar support tube. Pull the locking knob outwards so that the handlebar can be moved freely up and down. Release the knob once the handlebar is at the required height. The handlebar support tube will click into place. Tighten the locking knob by turning it clockwise.

CONSOLE INCLINATION ADJUSTMENT

Set the inclination of the meter so that it corresponds to your height and exercise position.

ADJUSTMENT OF SUPPORT FEET

If the equipment is not stable, adjust the adjustment screws below the support feet as necessary.

EXERCISING

Working out with this device is excellent aerobic exercise, the principle being that the exercise should be suitably light, but of long duration. Aerobic exercise is based on improving the body’s maximum oxygen upteke, which in turn improves endurance and ﬁ tness. The ability of the body to burn fat as a fuel is directly dependent on its oxygen-uptake capacity. Aerobic exercise should be above all pleasant. You should work up a light sweat but you should not get out of breath during the workout.

POWER CORD

Plug the socket end of the transformer cord into the connector, just above the rear support in the centre of the frame, and the other end into the wall socket. To prevent damage to the connector, we recommend you tie the cord to the transportation wheel support next to the connector.

You should exercise at least three times a week, 30 minutes at a time, to reach a basic ﬁ tness level. Maintaining this level requires a few exercise sessions each week. Once the basic condition has been reached, it is easily improved, simply by increasing the number of exercise sessions. You should start slowly at a low pedalling speed and low resistance, because for an overweight person strenuous exercise may subject the heart and circulatory system to excessive strain. As ﬁ tness improves, resistance and pedalling speed can be increased gradually.

HEART RATE

No matter what your goal, you’ll get the best results by training at the right level of effort, and the best measure is your own heart rate.

HEART RATE MEASUREMENT WITH HANDGRIP SENSORS

Heart rate is measured using the sensors located on the handlebars. The sensors measure electric impulses, which are formed when the person’s heart is beating. Measurement is started by touching both handlebar sensors simultaneously. To ensure reliable pulse measurement, skin must be slightly moist and skin contact with sensors must be continuous. If skin is too dry or too wet, the hand pulse measurement operation is less reliable. Try to keep your upper body and palms relaxed and still.

These are average values and the maximum varies from person to person. The maximum heart-rate diminishes on average by one point per year. If you belong to a risk group, ask a doctor to measure your maximum heart rate for you.

We have deﬁ ned three different heart-rate zones to help you with targeted training.

BEGINNER: 50-60 % of maximum heart-rate

Also suitable for weight-watchers, convalescents and those who haven’t exercised for a long time. Three sessions a week of at least a half-hour each is recommended. Regular exercise considerably improves beginners’ respiratory and circulatory performance and you will quickly feel your improvement.

TELEMETRIC HEART RATE MEASUREMENT

The most reliable heart rate measurement is achieved with a telemetric device, in which the electrodes of the transmitter fastened to the chest transmit the pulses from the heart to the console by means of an electromagnetic ﬁ eld.

NOTE! If you are ﬁ tted with a pacemaker, please consult a physician before using a wireless heart rate monitor.

If you want to measure your heart rate this way during your workout, moisten the grooved electrodes on the transmitter belt with saliva or water. Fasten the transmitter just below the chest with the elastic belt, ﬁ rmly enough so that the electrodes remain in contact with the skin while exercising, but not so tight that normal breathing is prevented. If you wear the transmitter and belt over a light shirt, moisten the shirt slightly at the points where the electrodes touch the shirt. The transmitter automatically transmits the heart rate reading to the console up to a distance of about 1m.

If the electrode surfaces are not moist, the heart-rate reading will not appear on the display. If the electrodes are dry, they must be moistened again. Allow the electrodes warm up properly to ensure accurate heart rate measurement. If there are several telemetric heart rate measurement devices next to each other, the distance between them should be at least 1.5 m. Similarly, if there is only one receiver and several transmitters in use, only one person with a transmitter should be within transmission range. The transmitter is switched to an active state only when it is being used for measurement. Sweat and other moisture can, however, keep the transmitter in an active state and waste battery energy. Therefore it is important to dry the electrodes carefully after use.

TRAINER: 60-70 % of maximum heart-rate

Perfect for improving and maintaining ﬁ tness. Even reasonable effort develops the heart and lungs effectively, training for a minimum of 30 minutes at least three times a week. To improve your condition still further, increase either frequency or effort, but not both at the same time!

ACTIVE TRAINER: 70-80 % of maximum heart-rate

Exercise at this level suits only the ﬁ ttest and presupposes long-endurance workouts.

CONSOLE

When selecting training attire, please note that some ﬁ bers used in clothes (e.g. polyester, polyamide) create static electricity, which may prevent reliable heart rate measurement. Please note that a mobile phone, television and other electrical appliances form an electromagnetic ﬁ eld around them, which will cause problems in heart rate measurement. First ﬁ nd your maximum heart rate i.e. where the rate doesn’t increase with added effort. If you don’t know your maximum heart rate, please use the following formula as a guide:

220 - AGE

KEYS

1. BACK/STOP

Use the BACK/STOP button to navigate back towards the main menu. During training, you can stop or pause your training session by pressing the BACK/STOP button.

2. ZOOM

Focusing the graphical proﬁ le display during training. Press ZOOM to increase the size of the displayed proﬁ le image (two-, four-, eight- or sixteenfold). Pressing the key ﬁ ve times restores the proﬁ le image to its original size.

E80 - OWNER’S MANUAL ENGLISH

3. TRAINING

Use the TRAINING button to open the TRAINING menu. The TRAINING menu includes the following training programs: QUICK START, MANUAL, TARGET HR, TARGET EFFORT, PROGRAMS, T-RIDE, T-ROAD, T-MUSIC, OWN TRAINING and FITNESS TEST.

4. USER

Press the USER button to open the USER menu. The USER menu includes the following functions: CREATE USER, SELECT/CHANGE USER, EDIT USER, DELETE USER, SETTINGS and USER LOG.

5. SELECTION DIAL

The selection dial functions in two ways: A) Rotating the dial. By rotating the dial clockwise, you can scroll the menus downwards or to the right, and increase values or resistance. By rotating the dial anticlockwise, you can scroll the menus upwards or to the left, and decrease values or resistance. B) Pressing the dial. By pressing the dial, you can accept the selection you made when rotating the dial. During training, you can accept the function displayed at the bottom centre of the display.

6. MP3 PLAYER BUTTONS

Increase the volume using the + button. Skip forward in the play list using the >>I button. Start and stop playing the music using the > II button. Skip backward in the play list using the I<< button. Decrease the volume using the - button.

DISPLAY

During training, you can see the following training values on the left side of the display: time, distance, energy consumption, effort, RPM, heart rate and speed.

OPERATING THE CONSOLE

To activate the meter, connect the device to a power source, and then press any key or start pedaling. The meter will now display the TRAINING menu. If you do not press a key, or pedal for more than 5 minutes, the meter automatically switches off.

The values in a workout that has been interrupted are saved in the memory of the user interface for 5 minutes, after which they are reset. You can restart the interrupted exercise by pedaling within 5 minutes.

On the display, you can see advice messages. They are preceded by the letter i on a white background. You can remove the messages from the display by pressing the selection dial.

USER MENU

You can access the USER menu by pressing the USER button. We recommend that you choose a user code and save your personal details: these details are needed e.g. for a more accurate estimation of your energy consumption. At the same time, you can set the units to be displayed and check the total training values. If you select a username, you can save your training session and display your personal heart rate levels in different colors when training according to your heart rate. Once you have created a username or started to use an existing username, you can see it at the top right corner of the

display. You can also exercise without a username. If you do this, a username will not be shown on the top right of the display, and the default settings (45 years, 70 kg, male) will be used for your training session. You can save user data for up to 20 different users.

IMPORTANT! If you wish to view your personal training sessions saved on the USER LOG, always remember to select your own username. You can also start using a username in the middle of your training session by pressing the USER button and then selecting your own username. Your training session will not be interrupted. After selecting your username, you can return to the training data by pressing the BACK/STOP button.

IMPORTANT! If you want to save your training session, you must select a username.

CREATE USER

To create a user:

1. Press the USER button. The USER menu appears.

2. Select CREATE USER by rotating the selection dial. Conﬁ rm your selection by pressing the selection dial.

3. Select a language by rotating the selection dial and conﬁ rm your selection by pressing the dial.

4. Enter your name. Move from one letter to another by rotating the selection dial. Conﬁ rm the selected letter by pressing the selection dial. Once you have entered your name, select OK and press the selection dial.

5. Select the units you wish to use. (Metric 1 (kg, km, kcal), Metric 2 (kg, km, kJ), or the corresponding imperial units Imperial 1 (lb, mi, kcal), Imperial 2 (lb, mi, kJ)). Make your selection by rotating the selection dial, and conﬁ rm by pressing the dial. You will automatically be taken to the next setting.

6. Select the target display for the set values. COUNT DOWN shows the values as they decrease from your target toward zero. COUNT UP shows the values as they increase toward your target. Conﬁ rm your selection by pressing the selection dial. You will be taken to the next setting.

7. Set your gender by rotating the selection dial. Conﬁ rm your selection.

8. Set your age. Conﬁ rm your selection.

9. Set your height. Conﬁ rm your selection.

10. Set your weight. Conﬁ rm your selection.

11. Set your maximum heart rate. The meter calculates your estimated maximum heart rate using the formula 220 - age. If you know your exact maximum heart rate, you can adjust the estimated maximum heart rate given by the meter.

12. Set your anaerobic threshold. The equipment uses your maximum heart rate to calculate an estimate of your threshold heart rate (80% of your maximum heart rate). If you know your exact anaerobic threshold heart rate, you can adjust the estimate given by the meter.

13. Set the aerobic threshold. The equipment uses your maximum heart rate to calculate an estimate of your threshold heart rate (60% of your maximum heart rate). If you know your exact aerobic threshold heart rate, you can adjust the estimate given by the meter.

IMPORTANT! The meter can store up to 20 usernames at a time.

SELECT/CHANGE USER

Once you have created a username for yourself, select it at the beginning of your training session by choosing SELECT/CHANGE USER and conﬁ rm it using the selection dial.

EDIT USER

By selecting EDIT USER you can edit your user data.

DELETE USER

By selecting DELETE USER you can delete users. Activate the username you want to delete and then select DELETE USER. Conﬁ rm the selection by pressing the selection dial.

SETTINGS

By selecting SETTINGS you can update the meter ﬁ rmware version, adjust the display contrast, see the cycle’s total values and turn the button sounds on or off.

USER LOG

By selecting the USER LOG you can view the training data of the selected user. You can view either the last training session data or a summary of all the user’s sessions. Exit the training data by pressing BACK/ STOP.

TRAINING MENU

You can access the TRAINING menu by pressing the TRAINING button. From the TRAINING menu, you can select one of the following training sessions by pressing the selection dial:

QUICK START

This program allows you to start the MANUAL program without using user settings.

1. Select QUICK START. Conﬁ rm the selection by pressing the selection dial and start your training session by pedalling.

2. You can increase or decrease the resistance (1-58 Nm) using the selection dial.

3. To stop the training session, press the BACK/STOP button. You can then stop the session by selecting EXIT, save the session to the memory by selecting SAVE AND EXIT or continue your training session by selecting CONTINUE.

MANUAL

Allows you to set your effort level with the selection dial during the workout.

1. Select MANUAL.

2. Using the selection dial, choose your target value for the session: time, distance or energy consumption. Conﬁ rm your selection by pressing the selection dial.

3. Set the target value for the session using the selection dial: set time (10-180 minutes), distance (3-100 km) or energy consumption (50-2000 kcal). Conﬁ rm your selection by pressing the selection dial.

4. Start your training session by pedalling. You can increase or decrease the resistance (1-58 Nm) using the selection dial. During training, you can display resistance or heart rate using the selection dial.

5. Once the target value has been achieved, the meter gives an audio signal. You can continue with your exercise if you wish.

6. To stop the training session, press the BACK/STOP button. You can then stop the session by selecting EXIT, save the session to the memory by selecting SAVE AND EXIT or continue your training session by selecting CONTINUE.

the requested level. If the pulse tends to rise, resistance is reduced automatically and vice versa. The set value can be changed also during the workout. The program requires measurement of heart rate.

1. Select your TARGET HR.

2. Set the heart rate level (80-220) for the training session using the selection dial. Conﬁ rm your selection by pressing the selection dial.

3. Using the selection dial, choose your target duration for the session measured in time, distance or energy consumption. Conﬁ rm your selection by pressing the selection dial.

4. Set the target value for the session using the selection dial: set time (10-180 minutes), distance (3-100 km) or energy consumption (200-8000 kcal). Conﬁ rm your selection by pressing the selection dial.

5. Start your training session by pedalling. Using the selection dial, you can change the heart rate level (80-

220). During training, you can display resistance or heart rate using the selection dial.

6. Once the target value has been achieved, the meter gives an audio signal. You can continue with your exercise if you wish.

7. To stop the training session, press the BACK/STOP button. You can then stop the session by selecting EXIT, save the session to the memory by selecting SAVE AND EXIT or continue your training session by selecting CONTINUE.

TARGET EFFORT

By selecting the TARGET EFFORT program, you can set the desired effort value in watts, i.e. pedalling effort will be independent of pedal rotations. The set effort value can also be changed during the workout.

1. Select TARGET EFFORT.

2. Set the effort level (20-600 W) of your training session using the selection dial. Conﬁ rm your selection by pressing the selection dial.

3. Using the selection dial, choose your target duration for the session measured in time, distance or energy consumption. Conﬁ rm your selection by pressing the selection dial.

5. Start your training session by pedalling. You can increase or decrease the resistance (20-600 W) using the selection dial. During training, you can display effort or heart rate using the selection dial.

6. Once the target value has been achieved, the meter gives an audio signal. You can continue with your exercise if you wish.

PROGRAMS

This program contains ready-made training proﬁ les. The program changes automatically the intensity level during your workout. The display shows the proﬁ le and the changes, and the intensity can be manually adjusted.

TARGET HR

This program allows you to preset your pulse level, i.e. the resistance is regulated so that your pulse remains at

1. Select PROGRAMS.

2. Select a program (1-10) using the selection dial. Proﬁ les P1-P5 are watt control programs and P6-P10

E80 - OWNER’S MANUAL ENGLISH

are target heart rate programs requiring heart rate

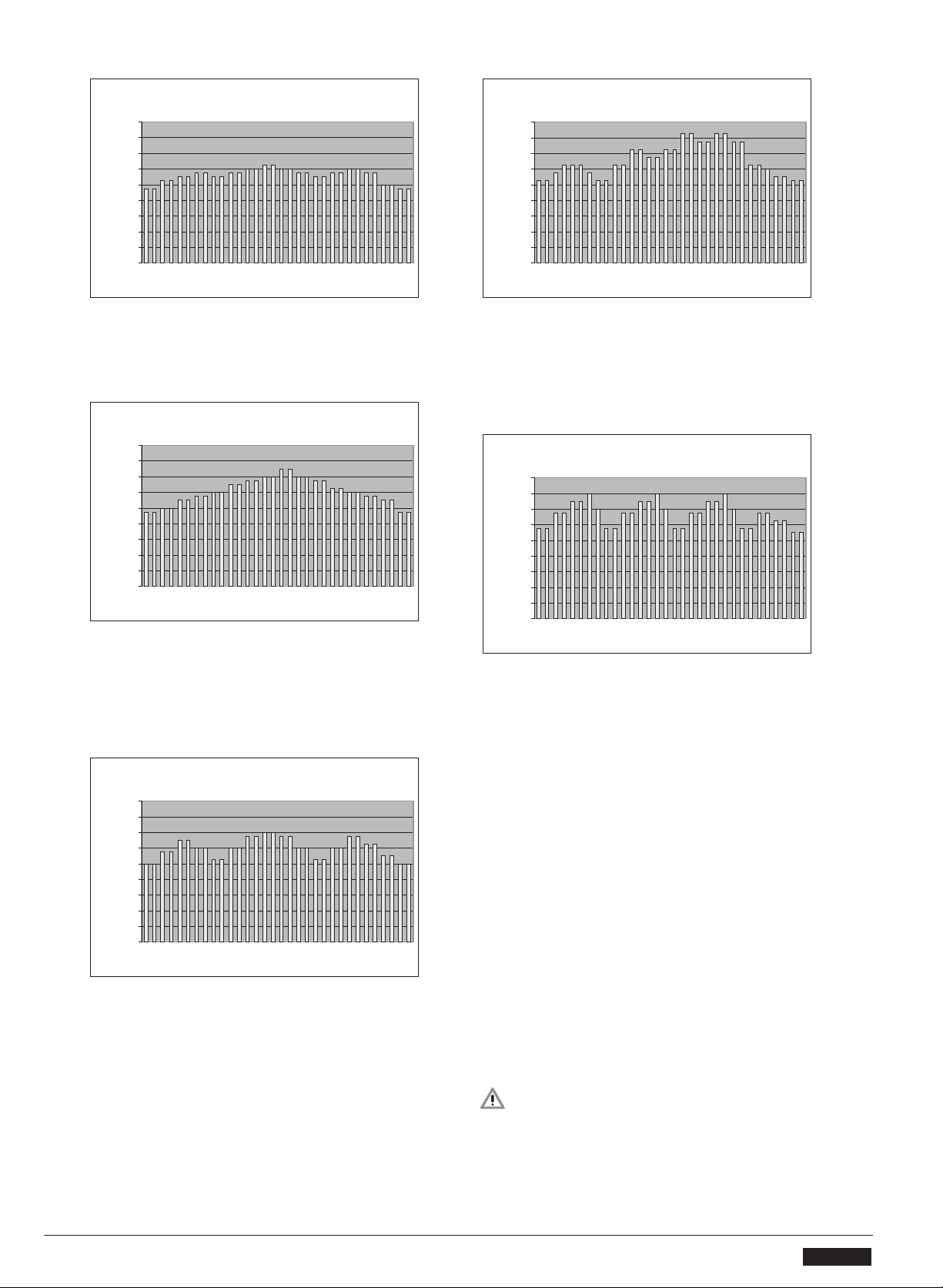

P1 Rolling Hills

100

125

150

175

200

225

Duration

Watt

P2 Hill Climb

100

125

150

175

200

225

Duration

Watt

P3 Cross Country

100

125

150

175

200

225

Duration

Watt

P4 Stamina

100

125

150

175

200

225

Duration

Watt

P5 Power Inter va l

100

125

150

175

200

225

Duration

Watt

measurement. Conﬁ rm your selection by pressing the selection dial.

3. Using the selection dial, choose your target duration for the session measured in time or distance. Conﬁ rm your selection by pressing the selection dial.

4. Set the target value for the session using the selection dial: time (10-180 minutes) or distance (3-100 km). Conﬁ rm your selection by pressing the selection dial.

5. Start the program by pedaling. You can increase or decrease the resistance using the selection dial. During training, you can display effort or heart rate using the selection dial. The heart rate display requires heart rate measurement.

6. Once the target value has been achieved, the meter gives an audio signal. You can continue with your exercise if you wish.

PROFILE P1. 3-peak effort proﬁ le for the improvement of oxygen uptake capacity. With relatively low yet long lasting peaks, this proﬁ le is suitable for beginners. With default setting, max. watt value is 125, average watt value is 98.

With default setting, max. watt value is 150, average watt value is 117.

PROFILE P4. Uphill effort proﬁ le for the improvement of endurance ﬁ tness. Peaks are relatively longlasting, increasing in intensity until the closing phase of the proﬁ le. This proﬁ le is speciﬁ cally suitable for the physically ﬁ t. With default setting, max. watt value is 210, average watt value is 133.

PROFILE P2. 3-peak effort proﬁ le for the improvement of oxygen uptake capacity. With peaks relatively short in duration, this proﬁ le is suitable for beginners. With default setting, max. watt value is 150, average watt value is 102.

PROFILE P3. Multi-peak effort proﬁ le for the improvement of explosive strength. Peaks are relatively short in duration, and the level of effort varies irregularly. This proﬁ le is suitable for all ﬁ tness levels.

PROFILE P5. Interval effort proﬁ le with regular changes and a clear difference between peaks and the basic level of effort. The default values are preset to an average effort of 138 W and a maximum effort of 200 W. Please note that this proﬁ le allows you to separately adjust the peaks and the basic level of effort.

PROFILE P6. 3-peak heart rate proﬁ le for the improvement of oxygen uptake capacity. With relatively longlasting peaks, this proﬁ le is suitable for beginners. With default setting, max. HR value is 125, average HR is 112.

P6 Fatburner 1

100

120

140

160

180

Duration

BPM

PROFILE P7. Uphill heart rate proﬁ le where the heart

P7 Fatburner 2

100

120

140

160

180

Duration

BPM

P8 Cardio Str en gt h

100

120

140

160

180

Duration

BPM

P9 Car dio Climb

100

120

140

160

180

Duration

BPM

P10 Cardio Int e rval

100

120

140

160

180

Duration

BPM

rate increases steadily until the midpoint of the proﬁ le, steadily decreasing thereafter. This proﬁ le is suitable for beginners. With default setting, max. HR value is 150, average HR is 121.

PROFILE P8. 3-peak heart rate proﬁ le for the improvement of endurance ﬁ tness. Peaks are relatively longlasting, but the heart rate level remains fairly constant throughout. This proﬁ le is suitable for all ﬁ tness levels. With default setting, max. HR value is 140, average HR is 120.

PROFILE P10. 3-peak heart rate proﬁ le for the improvement of oxygen uptake capacity. Peaks are relatively longlasting, with each followed by a steady recovery period. This proﬁ le is speciﬁ cally suitable for the physically ﬁ t. With default setting, max. HR value is 160, average HR is 133.

T-RIDE

T-RIDE TRAINING simulates riding a bike on a natural terrain. During training, you can change gears using the selection dial and watch the altitude proﬁ le.

PROFILE P9. Uphill heart rate proﬁ le for the improvement of endurance ﬁ tness. Peaks are relatively longlasting, increasing in intensity until the closing phase of the proﬁ le. This proﬁ le is speciﬁ cally suitable for the physically ﬁ t. With default setting, max. HR value is 170, average HR is 131.

1. Select T-RIDE.

2. Select the terrain and conﬁ rm your selection.

3. Set the starting point for the session using the selection dial.

4. Set the ending point for the session using the selection dial.

5. Start your training session by pedalling. You can change gears (1–8) using the selection dial. During training, you can display altitude proﬁ le or heart rate using the selection dial. The heart rate display requires heart rate measurement.

6. Once you have completed the route, the meter beeps and the training session ends.

T-ROAD

IMPORTANT: You can only carry out a T-ROAD training session when the memory stick is inserted in the meter. T-ROAD is similar to T-RIDE, but during a T-ROAD training session, you can also see your progress on a video. During training, you can display the altitude proﬁ le or video using the selection dial.

E80 - OWNER’S MANUAL ENGLISH

T-MUSIC

IMPORTANT: You can only carry out a T-MUSIC training session when the memory stick is inserted in the meter. T-MUSIC programs are controlled by heart rate. During training, the music tempo changes according to the effort level of the training session. The duration of the T-MUSIC program is 40 minutes. You cannot change the selected heart rate level during training. The program requires measurement of heart rate.

1. Select T-MUSIC.

2. Select a program (1–3) using the selection dial. Conﬁ rm your selection by pressing the selection dial.

3. Start the program by pedalling. During training, you can display effort or heart rate using the selection dial.

4. After 40 minutes, the meter beeps and the training session ends.

5. To stop the training session, press the BACK/STOP button. You can then stop the session by selecting EXIT, save the session to the memory by selecting SAVE AND EXIT or continue your training session by selecting CONTINUE.

OWN TRAINING

You can create and save up to 100 training programs on the meter.

SAVING A PROGRAM

1. End your training session by pressing BACK/STOP.

2. Select SAVE AND EXIT and conﬁ rm your selection.

3. Enter a name for the training session and conﬁ rm it using the selection dial.

IMPORTANT! You can only save programs that are longer than 10 minutes.

IMPORTANT! To save a training session you will need to select a username.

USING SAVED PROGRAMS

1. Select OWN TRAINING.

2. Select a training session from the list.

3. Select the desired execution method: A) Replay = repeat a previously saved exercise. B) Edit = edit the duration of a previously saved exercise before you start. C) Race = compete against a previously saved workout. NOTE! You can only use programme proﬁ les created in the Manual function. These proﬁ les show effort as a constant torque (Nm).

4. Conﬁ rm your selection by pressing the selection dial. A) Replay = start pedaling to begin the exercise. You can adjust the effort level with the selection dial. B) Edit = select the duration of the exercise with the selection dial (set the time to 10-180 minutes). Start pedaling to begin the exercise. You can adjust the effort level with the selection dial. C) Race = Using the selection dial, select the race mode (time: the distance you can pedal in a given time; or distance: how fast you can cover a given distance) and conﬁ rm your selection using the selection dial. The display shows a previously saved program. Start pedalling to begin the race. The dash line on the display shows whether you are ahead or behind the benchmark training session, which is the most recently saved training session using this

program. The distance to the previously saved session is also displayed: the previously saved training session is shown with a light blue vertical dash line, and your race effort is shown with a black vertical dash line.

FITNESS TEST

The meter uses a multi-step ﬁ tness test. The test begins at a low level of effort, which increases steadily in accordance with the selected test type. A multi-step test is a safe and reliable, submaximal means of measuring a person’s physical ﬁ tness level. The test continues until the test subject has achieved his or her individual target heart rate (85% of maximum heart rate). The test requires the use of a heart rate belt: the meter monitors changes in the heart rate throughout the test, using the data to calculate an estimate of the tested person’s maximum oxygen uptake capacity. The maximum oxygen uptake capacity is the best measure of a person’s physical ﬁ tness level. After the test, the meter gives versatile information on your ﬁ tness level: a description and a numerical value (ml/kg/min).

PREPARING FOR THE TEST

1. Make sure that the data associated with your username is updated – the meter uses the user data as a basis for the ﬁ tness test.

2. Select FITNESS TEST.

3. Using the selection dial, select the most suitable ﬁ tness category for you: A) Inactive = no regular exercise, poor physical condition B) Active = regular exercise, average or good physical condition C) Athletic = active training, good or excellent physical condition

4. The display shows the appropriate test type for each ﬁ tness category: A) Step time = duration of different effort levels in the test B) First step = initial effort level C) Step power = effort level of steps (in watts), the test features several steps

5. Conﬁ rm your selection by pressing the selection dial.

6. If necessary, you can adjust your target heart rate value using the selection dial. Conﬁ rm your settings using the selection dial.

7. The display informs you that you can stop the test once you reach the target heart rate for the test. Start the test by pressing the selection dial.

PERFORMING THE TEST

1. The display shows the selected test step type. Start pedaling to begin the test. A red diagram that updates as you progress in the test represents your heart rate. A discontinuous line in red indicates your target heart rate.

2. Once the target heart rate level has been achieved, the meter gives an audio signal and displays a message. We recommend that you end the test here, unless you are relatively ﬁ t. If you have set your target heart rate correctly (that is, if you have calculated your maximum heart rate accurately enough), continuing the test beyond this point will not increase the accuracy of the result. If you overestimate your maximum heart rate, your ﬁ tness level will be overestimated. Similarly, if you

underestimate your maximum heart rate, your ﬁ tness level will be underestimated.

3. To stop the test once you reach the target heart rate level, press the BACK/STOP button or stop pedaling. The meter will now switch to the test result display:

MP3 PLAYER

The MP3 player control buttons are located at the bottom of the user interface. The MP3 music is stored on the memory stick.

A) Aerobic ﬁ tness = an estimate of your ﬁ tness level in your regular effort zone, which gives the best indication of the state of your health-related ﬁ tness. B) MET value = a reading that shows the multiple of your maximum oxygen uptake at complete rest. C) ml/kg/min = a reading that tells how many millilitres of oxygen per kilogram of body weight per minute your body consumes. D) l/min = a reading that tells your oxygen uptake in litres per minute. Unlike the above values, l/min does not take account of the user’s body weight. E) Wmax = an estimate of your maximal exercise power, measured in watts. F) W/kg = the ratio of your maximal exercise power to your weight.

MEN / MAXIMAL OXYGEN UPTAKE (VO2MAX) 1 = VERY POOR - 7 = EXCELLENT

AGE 1 2 3 4 5 6 7

18-19 <33 33-38 39-44 45-51 52-57 58-63 >63 20-24 <32 32-37 38-43 44-50 51-56 57-62 >62 25-29 <31 31-35 36-42 43-48 49-53 54-59 >59 30-34 <29 29-34 35-40 41-45 46-51 52-56 >56 35-39 <28 28-32 33-38 39-43 44-48 49-54 >54 40-44 <26 26-31 32-35 36-41 42-46 47-51 >51 45-49 <25 25-29 30-34 35-39 40-43 44-48 >48 50-54 <24 24-27 28-32 33-36 37-41 42-46 >46 55-59 <22 22-26 27-30 31-34 35-39 40-43 >43 60-65 <21 21-24 25-28 29-32 33-36 37-40 >40

WOMEN / MAXIMAL OXYGEN UPTAKE (VO2MAX) 1 = VERY POOR - 7 = EXCELLENT

AGE1234567

18-19 <28 28-32 33-37 38-42 43-47 48-52 >52 20-24 <27 27-31 32-36 37-41 42-46 47-51 >51 25-29 <26 26-30 31-35 36-40 41-44 45-49 >49 30-34 <25 25-29 30-33 34-37 38-42 43-46 >46 35-39 <24 24-27 28-31 32-35 36-40 41-44 >44 40-44 <22 22-25 26-29 30-33 34-37 38-41 >41 45-49 <21 21-23 24-27 28-31 32-35 36-38 >38 50-54 <19 19-22 23-25 26-29 30-32 33-36 >36 55-59 <18 18-20 21-23 24-27 28-30 31-33 >33 60-65 <16 16-18 19-21 22-24 25-27 28-30 >30

MAINTENANCE

The equipment requires very little maintenance. Check, however, from time-to-time that all screws and nuts are tight.

• After exercising, clean the equipment with a soft, absorbent cloth. Do not use solvents.

• Never remove the equipment’s protective casing.

The electromagnetic brake forms a magnetic ﬁ eld that may damage the mechanism of a watch, or the magnetic identiﬁ cation strip on a credit or cash card, should they come into immediate contact with the magnets. Never attempt to detach or remove the electromagnetic brake!

The electromagnetic brake is based on electromagnetic resistance; resistance level is electronically measured and shown as watt reading on the display. Due to the measurement system, your Tunturi ergometer need not be re-calibrated when assembled, serviced and used according to this Owner’s Manual.

MALFUNCTIONS

Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it’s unnecessary to take the whole device in for repair, as it’s usually sufﬁ cient to replace the defective part. If the equipment does not function properly during use, contact your Tunturi dealer immediately. Always give the model and serial number of your equipment. Please state also the nature of the problem, conditions of use and purchase date.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

TRANSPORT AND STORAGE

Please follow these instructions when carrying and moving the cycle about, because lifting it incorrectly may strain your back or risk other accidents:

MEMORY STICK

The memory stick includes all T-ROAD and T-MUSIC programs and some of the T-RIDE programs. IMPORTANT: The programs on the memory stick can only be executed when the memory stick is inserted in the meter’s connector.

NOTE! Always switch the power off and unplug the power cord before you start moving the equipment around!

Stand behind the equipment. Grip the seat with one hand and the handlebar with the other, and set your foot on the rear support. Tilt the equipment so that

E80 - OWNER’S MANUAL ENGLISH

it rests on its transport wheels. Wheel the equipment to move it, on these transport wheels. Lower the equipment while holding on to the handlebar and remain behind the equipment all the time.

NOTE! Transport the equipment with caution over uneven surfaces, for example over a step. The equipment should never be transported upstairs using the wheels over the steps, instead it must be carried. We recommend that you use a protective base when transporting the equipment.

To prevent the equipment malfunctioning, store in a dry place with as little temperature

TECHNICAL SPECIFICATIONS

Length 99 cm Width 70 cm Height 116 cm Weight 45 kg

This product meets the requirements of the EU’s EMC Directives on electromagnetic compatibility (89/336/EEC) and electrical equipment designed for use within certain voltage limits (73/23/EEC). This product therefore carries the CE label.

This product meets EN precision and safety standards (Class SA, EN-957, parts 1 and 5).

Due to our continuous policy of product development, Tunturi reserves the right to change speciﬁ cations without notice.

NOTE! The instructions must be followed carefully in the assembly, use and maintenance of your equipment. The warranty does not cover damage due to negligence of the assembly, adjustment and maintenance instructions described herein. Changes or modiﬁ cations not expressly approved by Tunturi Oy Ltd will void the user’s authority to operate the equipment!

WE WISH YOU MANY ENJOYABLE TRAININGS WITH YOUR NEW TUNTURI TRAINING PARTNER!

E80 - KÄYTTÖOHJE FINNISH

E80 EXPLODED VIEW

08TUE80X00

25a

14a

12a

12b

14d

14c

14e

44 45

14b

42 40

PARTS LIST

1 User interface (incl. 2 ) 1 2 Knob 1 4 Meter bracket 1

- KB40x12 WN 1411 PT-Screw 4 5 Base for meter bracket 1

- M5x14 DIN 7985 Screw 4 6 Sleeve 2

- M6 DIN 917 Locking nut 1

- M6x46 DIN 912 Screw 1 7 Tightener 1 8 Handle bar, (incl. Part 7-13) 1 9 Handle grip 2 10 Connecting part pair 1

- KB 35x19 WN1411 PT-Screw 3 11 Handle pulse unit (incl.12-13) 1

- KB 35x8 WN 1411 PT-screw 2

- Pulse transmitter belt 1 14 Cable, set (incl.14a-14c,14e) 1 14c Sensor 1

- M3,5x13 DIN 7504-N Screw 2 14d Magnet 1 15 Adjuster . knob 1

- M8x75 DIN 603 Screw 1 16 Sleeve 1 17 Handle bar post 1 18 Handle bar inner sleeve 1 19 Slide piece 1 20 Locking knob 1 21 Release switch 1

- M5x8 DIN 7500 C Screw 1 22 Seat 1 23 Seat lower cover 1 24 Seat clamp 1

- M8x65 DIN 913 Locking screw 1 25 Seat Lock System (incl. part 25a) 1 25a Washer 1 26 Seat tube cover 1 27 Seat tube 1 28 Slide piece 2 29 Front cover 1

- M5x14 DIN 7500 C Screw 2 30 Front plate 1 31 Side cover, RH 1 Side cover, LH 1

- KB40x40 WN 1412 PT-Screw 3

- M5x14 DIN 7500 C Screw 6 32 Side cover end plug 2

- M5x14 DIN 7985 Screw 4 33 Crank, right 1

- Crank, left 1 34 Screw-plug 1 35 Pedal, pair (incl. part 36) 1 36 Pedal strap pair 1 37 Front support cover 1 38 Front support 1

- M5 DIN 125 Washer 6

- KB 40x14 WN1412 PT-Screw 6 *- M8 DIN 9021 Washer 4 *- M8x16 DIN 7984 Screw 4 39 Adjuster foot 4 40 Washer 4 41 Rear support cover 1 42 Rear support 1

- M5 DIN 125 Washer 6

- KB 40x14 WN1412 PT-Screw 6 *- M8 DIN 9021 Washer 4 *- M8x16 DIN 7984 Screw 4 43 Sleeve 2 44 Wheel 2 45 Snap locking 2 46 Flywheel holder 1

- M10x25 DIN 912 Screw 4 47 Flywheel complete (incl. part 14d) 1 48 Bearing house 2

- M6x16 DIN 7985 Screw 10

- 17 DIN 471 Retaining 2 50 Transmission belt 1 51 Pulley 1 52 Axle 1

- M8x12 DIN 931 Screw 3 53 6203 2Z Bearing 2

- 40 DIN 472 Retaining 2

- 17 DIN 471 Retaining 1 55 Lockin knob 1 56 Belt tightener frame 1

- M8x20 DIN 931 Screw 1

- M8 DIN 934 Nut 2 57 6300 2Z Bearing 2 58 Spring 1 59 Control card 1

- M6x12 DIN 931 Screw 2 60 El. magnet 1

- M6 DIN 985 Locking nut 3

- M6x50 DIN 931 Screw 3 61 Fixing piece 2 62 Transformer, EUR 1

- Transformer, USA 1

- Transformer, GB 1

- Transformer, AUS 1 * Hardware kit (incl. * ) 1

- Owner´s manual 1

- Warranty booklet 1

- Label, set 1

Benelux

Accell Fitness Benelux

Koningsbeltweg 51

1329 AE ALMERE

The Netherlands

Tel: +31 36 5460050

Fax: + 31 36 5460055

Scandinavia

Accell Fitness Scandinavia

Varusmestarintie 26

20361 TURKU

Finland

Tel: +358 10 2733 200

Fax: +358 2513 313

Accell Fitness Deutschland

Accell Fitness United Kingdom

Nottingham South Industrial Estate

Accell Fitness North America Inc.

130 Hayward Ave, Suite 2

Germany

P/a Koningsbeltweg 51

1329 AE ALMERE

The Netherlands

Tel: +31 36 5460050

Fax: + 31 36 5460055

United Kingdom

Boland House

Ruddington Lane

Wilford

Nottingham NG11 7EP

United Kingdom

Tel: +44 115 9822844

Fax: +44 115 9817784

North America

N2C 2E4

Kitchener, ON Canada

Tel. 1-888-388-6887

Fax: 1-519-576-2521

www.accellﬁ tness.com

www.tunturi.com

OWNER’S MANUAL

Tunturi Endurance E80 User manual

Specifications and Main Features

Frequently Asked Questions

User Manual
