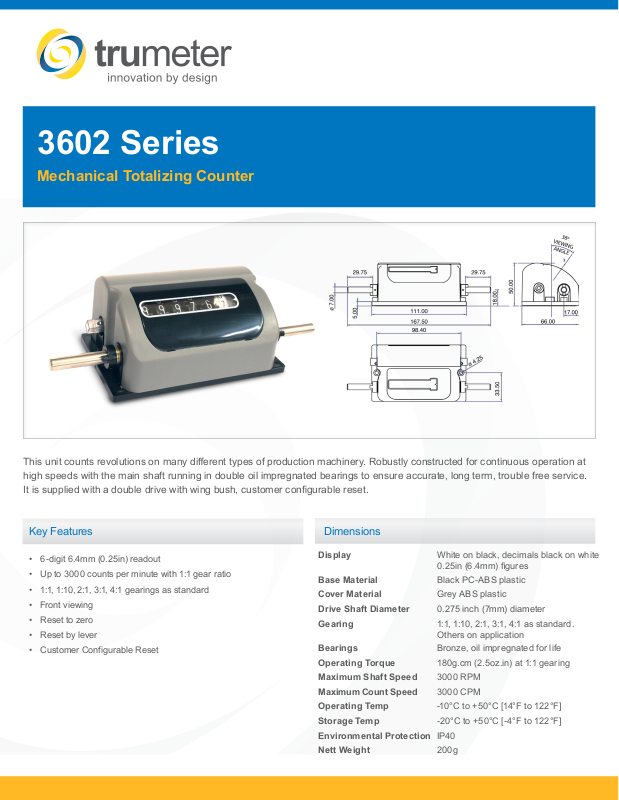

3602 Series
Mechanical Totalizing Counter
This unit counts revolutions on many dierent types of production machinery. Robustly constructed for continuous operation at
high speeds with the main shaft running in double oil impregnated bearings to ensure accurate, long term, trouble free service.
It is supplied with a double drive with wing bush, customer congurable reset.
Key Features Dimensions
• 6-digit 6.4mm (0.25in) readout
• Up to 3000 counts per minute with 1:1 gear ratio
• 1:1, 1:10, 2:1, 3:1, 4:1 gearings as standard
• Front viewing
• Reset to zero
• Reset by lever
• Customer Configurable Reset
Display White on black, decimals black on white
0.25in (6.4mm) gures
Base Material Black PC-ABS plastic
Cover Material Grey ABS plastic
Drive Shaft Diameter 0.275 inch (7mm) diameter
Gearing 1:1, 1:10, 2:1, 3:1, 4:1 as standard.
Others on application
Bearings Bronze, oil impregnated for life
Operating Torque 180g.cm (2.5oz.in) at 1:1 gearing
Maximum Shaft Speed 3000 RPM
Maximum Count Speed 3000 CPM
Operating Temp -10°C to +50°C [14°F to 122°F]
Storage Temp -20°C to +50°C [-4°F to 122°F]
Environmental Protection IP40
Nett Weight 200g
Measuring Wheel Ordering Information
Material Width
Rubber Covered Plastic
Knurled Aluminum
Part Number Ordering Chart
3602-
FRONT VIEWING
0
NO DECIMAL PLACES
1
ONE DECIMAL PLACE
5/8”
(16mm)
5/8”
(16mm)
12”
circumference
18”
circumference
1/3m
circumference
circumference
007571 007573 007905 007574
001558 001622
FIG WHEEL READINGNUMBER OF DECIMAL PLACESCOUNTER TYPE GEAR RATIO DRIVE DIRECTION
FULL FIGURES
0
1
0 - 11” FIG WHEEL
(FEET & INCHES)
0 - 9” FIG WHEEL
2
(FEET & TENTHS)
(PLAIN)
0
1:10
1
1:1
2
2:1
TC
TOP COMING
Material Direction
(Top Coming)
52 9 8 9 0
1/2m
ALL COUNTERS ARE 6 DIGIT
RESET POSITION IS CUSTOMER SELECTIVE
DOUBLE DRIVE SHAFT WITH WING BUSHES
FITTED AS STANDARD
EXAMPLE OF CODING: 3602 - 117TG
3602 = FRONT VIEWING
1 = ONE DECIMAL PLACE
1 = 0-11” FIG WHEEL (FEET & INCHES)
7 = 2:3
TG = TOP GOING
3602-117TG = 99999 - 11 / 2:3 / TOP GOING
0 - 9” FIG WHEEL
3
(YARDS & TENTHS)
FULL FIGURES
4
5
6
7
9
(FEET)
FULL FIGURES
(YARDS)
FULL FIGURES
(METRES)
0 - 7/8” FIG WHEEL
(YARDS & EIGTHS)
0 - 9cm FIG WHEEL WITH
100 LINES(M/cm)
3
3:1
4
4:1
5
1:25
6
10:1
7
2:3
8
128:105
9
64:105
TG
TOP GOING
52 9 8 9 0
Material Direction
(Top Going)
