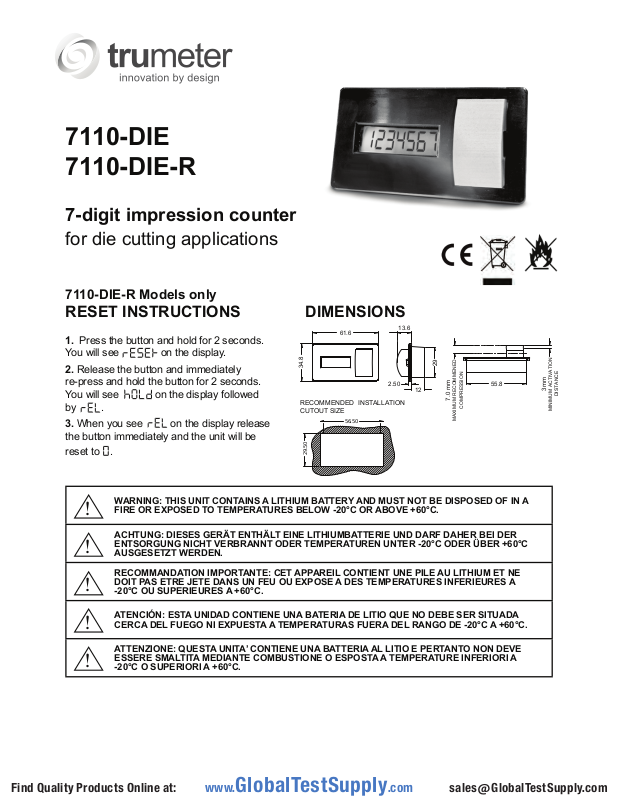

7110-DIE
7110-DIE-R
7-digit impression counter
for die cutting applications
7110-DIE-R Models only
RESET INSTRUCTIONS
1. Press the button and hold for 2 seconds.
You will see on the display.
2. Release the button and immediately
re-press and hold the button for 2 seconds.
You will see on the display followed
by .
3. When you see on the display release
the button immediately and the unit will be
reset to .
WARNING: THIS UNIT CONTAINS A LITHIUM BATTERY AND MUST NOT BE DISPOSED OF IN A
FIRE OR EXPOSED TO TEMPERATURES BELOW -20°C OR ABOVE +60°C.
!
ACHTUNG: DIESES GERÄT ENTHÄLT EINE LITHIUMBATTERIE UND DARF DAHER BEI DER
ENTSORGUNG NICHT VERBRANNT ODER TEMPERATUREN UNTER -20°C ODER ÜBER +60°C
!
AUSGESETZT WERDEN.
RECOMMANDATION IMPORTANTE: CET APPAREIL CONTIENT UNE PILE AU LITHIUM ET NE
DOIT PAS ETRE JETE DANS UN FEU OU EXPOSE A DES TEMPERATURES INFERIEURES A
!
-20°C OU SUPERIEURES A +60°C.
DIMENSIONS
61.6
34.8
RECOMMENDED INSTALLATION
CUTOUT SIZE
29.50
56.50
2.50
13.6
12
29
7.0 mm
55.8
COMPRESSION
MAXIMUM RECOMMENED
3mm
DISTANCE
MINIMUM ACTIVATION
ATENCIÓN: ESTA UNIDAD CONTIENE UNA BATERIA DE LITIO QUE NO DEBE SER SITUADA
CERCA DEL FUEGO NI EXPUESTA A TEMPERATURAS FUERA DEL RANGO DE -20°C A +60°C.
!
ATTENZIONE: QUESTA UNITA’ CONTIENE UNA BATTERIA AL LITIO E PERTANTO NON DEVE
ESSERE SMALTITA MEDIANTE COMBUSTIONE O ESPOSTA A TEMPERATURE INFERIORI A
!
-20°C O SUPERIORI A +60°C.
