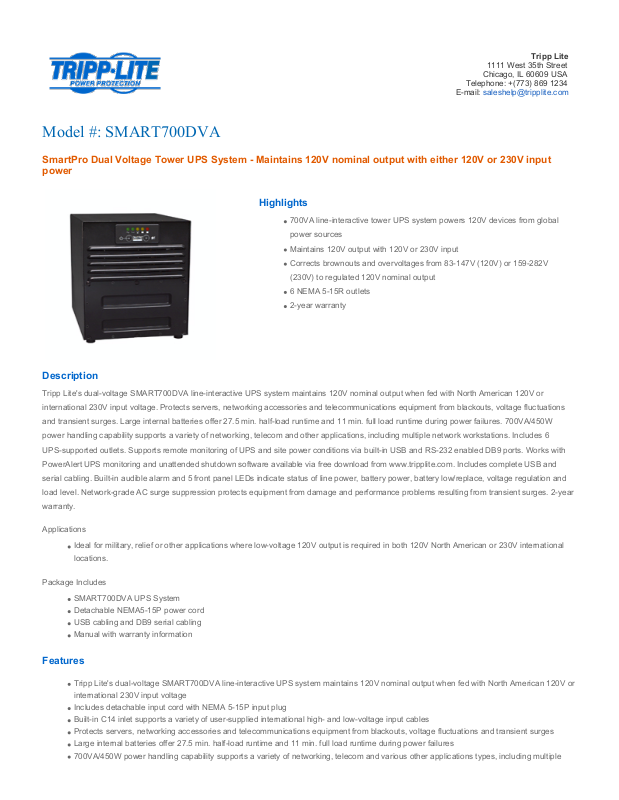

Model #: SMART700DVA

SmartPro Dual Voltage Tower UPS System - Maintains 120V nominal output with either 120V or 230V input
power

Highlights

700VA line-interactive tower UPS system powers 120V devices from global

power sources

Maintains 120V output with 120V or 230V input

Corrects brownouts and overvoltages from 83-147V (120V) or 159-282V

(230V) to regulated 120V nominal output

6 NEMA 5-15R outlets

2-year warranty

Description

Tripp Lite's dual-voltage SMART700DVA line-interactive UPS system maintains 120V nominal output when fed with North American 120V or

international 230V input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations

and transient surges. Large internal batteries offer 27.5 min. half-load runtime and 11 min. full load runtime during power failures. 700VA/450W

power handling capability supports a variety of networking, telecom and other applications, including multiple network workstations. Includes 6

UPS-supported outlets. Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with

PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com. Includes complete USB and

serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and

load level. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. 2-year

warranty.

Applications

Ideal for military, relief or other applications where low-voltage 120V output is required in both 120V North American or 230V international
locations.

Package Includes

SMART700DVA UPS System
Detachable NEMA5-15P power cord
USB cabling and DB9 serial cabling
Manual with warranty information

Features

Tripp Lite's dual-voltage SMART700DVA line-interactive UPS system maintains 120V nominal output when fed with North American 120V or
international 230V input voltage
Includes detachable input cord with NEMA 5-15P input plug
Built-in C14 inlet supports a variety of user-supplied international high- and low-voltage input cables
Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges
Large internal batteries offer 27.5 min. half-load runtime and 11 min. full load runtime during power failures
700VA/450W power handling capability supports a variety of networking, telecom and various other applications types, including multiple

network workstations
Includes 6 UPS-supported outlets
Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports
Works with PowerAlert UPS monitoring and unattended shutdown software, available via free download from www.tripplite.com
Includes complete USB and serial cabling
Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load
level
Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
2-year warranty
3 and 5 year extended warranty options available

Specifications

SYSTEM OVERVIEW

Voltage compatibility 120 or 230V AC

Frequency
compatibility

50/60 Hz (UPS does not convert frequency)

OUTPUT

Output VA 700

Output watts 450

Output nominal
voltage

120V AC

Output voltage
regulation

120V (+8% / - 21%)

Output frequency
regulation

Passes line frequency of 50 or 60Hz +/-10%

Outlet quantity / type 6 NEMA 5-15R

Overload protection Input circuit breaker

INPUT

Maximum input amps 4.8A @ 120V (2.6A @ 230V)

Input connection type C14 inlet

Input cord length Includes NEMA 5-15P to C13 inlet

BATTERY

Full load runtime 11 min.

Half load runtime 27.5 min.

DC system voltage 24VDC

Typical battery
lifespan

4-6 years

Battery recharge rate 2-4 hours (to 90%)

Replacement Battery
Cartridge

Qty 4 - RBC51

VOLTAGE REGULATION

Voltage regulation
description

Automatic voltage regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without
using battery power, during brownouts to 83V and overvoltages to 147V (120V) / 159V to 282V (230V)

Overvoltage
correction

Overvoltages from 125V to 147 V (120V) and from 240V to 282V (230V) are reduced by 12%

Brownout correction Undervoltages from 83V to 104V (120V) and from 159V to 199V (230V) are boosted by 14%

LEDS ALARMS & SWITCHES

Front panel LEDs Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE

REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
