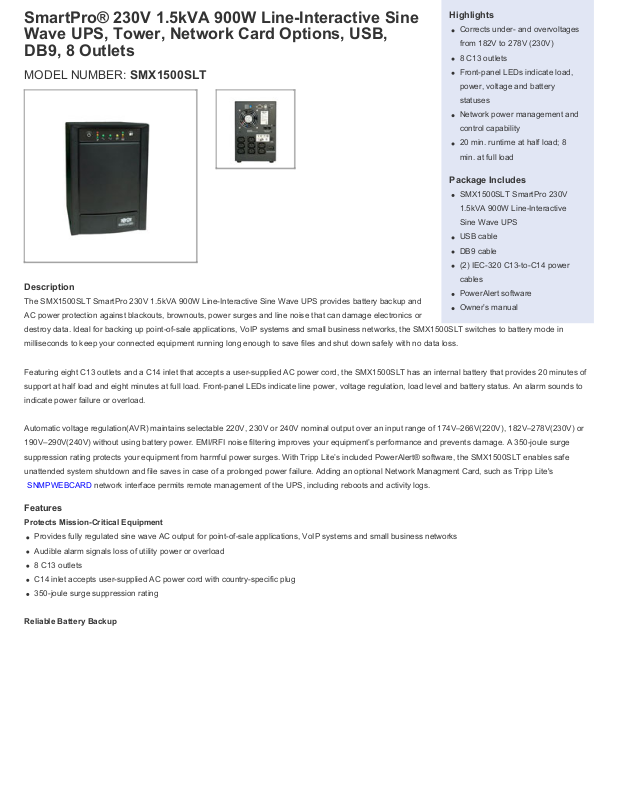

SmartPro® 230V 1.5kVA 900W Line-Interactive Sine
Highlights
Corrects under- and overvoltages
from 182V to 278V (230V)
8 C13 outlets
Front-panel LEDs indicate load,
power, voltage and battery
statuses
Network power management and
control capability
20 min. runtime at half load; 8
min. at full load
Package Includes
SMX1500SLT SmartPro 230V
1.5kVA 900W Line-Interactive
Sine Wave UPS
USB cable
DB9 cable
(2) IEC-320 C13-to-C14 power
cables
PowerAlert software
Owner’s manual
Wave UPS, Tower, Network Card Options, USB,
DB9, 8 Outlets
MODEL NUMBER: SMX1500SLT
Description
The SMX1500SLT SmartPro 230V 1.5kVA 900W Line-Interactive Sine Wave UPS provides battery backup and
AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or
destroy data. Ideal for backing up point-of-sale applications, VoIP systems and small business networks, the SMX1500SLT switches to battery mode in
milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Featuring eight C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500SLT has an internal battery that provides 20 minutes of
support at half load and eight minutes at full load. Front-panel LEDs indicate line power, voltage regulation, load level and battery status. An alarm sounds to
indicate power failure or overload.
Automatic voltage regulation(AVR) maintains selectable 220V, 230V or 240V nominal output over an input range of 174V–266V(220V), 182V–278V(230V) or
190V–290V(240V) without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 350-joule surge
suppression rating protects your equipment from harmful power surges. With Tripp Lite’s included PowerAlert® software, the SMX1500SLT enables safe
unattended system shutdown and file saves in case of a prolonged power failure. Adding an optional Network Managment Card, such as Tripp Lite's
SNMPWEBCARD network interface permits remote management of the UPS, including reboots and activity logs.
Features
Protects Mission-Critical Equipment
Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
Audible alarm signals loss of utility power or overload
8 C13 outlets
C14 inlet accepts user-supplied AC power cord with country-specific plug
350-joule surge suppression rating
Reliable Battery Backup
Page 2
Supports half load up to 20 min. and full load up to 8 min.
Internal batteries designed for hot-swap field replacement
Cold-start capability enables turn-on in battery mode during blackouts
Automatic Voltage Regulation(AVR)
Maintains selectable nominal output without using battery power
Corrects brownouts and overvoltages from 174V–266V(220V), 182V–278V(230V) or 190V–290V(240V)
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
LED Indicators
Front-panel LEDs indicate line power, voltage regulation, load level and battery status
SNMP/Web Capability
Optional Tripp Lite network management card options, such as SNMPWEBCARD accessory permits remote management of UPS, including reboots,
configuration, updates and activity logs
Communication Ports
USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system
shutdown and file saves in case of a prolonged power failure
Telephone/Network Jacks
Protect against power surges over telephone/DSL or network Ethernet lines
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 1500
Output kVA Capacity (kVA) 1.5
Output Watt Capacity (Watts) 900
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 230V default (voltage selection via back panel switches)
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles (8) C13
220V; 230V; 240V
-9% / + 5%
+/- 5%
Page 3
Included Output Power Cables Includes 2 C13 to C14 output power cables
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 4.1A (220V),3.9A (230V), 3.8 (240V)
Nominal Input Voltage(s) Supported 220V AC; 230V AC; 240V AC
UPS Input Connection Type C14 inlet
UPS Input Connection Description
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 8 min. (900w)
Half Load Runtime (min.) 20 min. (450w)
DC System Voltage (VDC) 36
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access Battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description
IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall
receptacles
Less than 8 hours from 10% to 90% (typical, full load discharge)
RBC36-SLT
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 182 to 278 (230v),
190 to 290 (240v), 174 to 266 (220v)
Overvoltage Correction Voltage reduction of 12% applies when input is 244 to 278 (230v), 254 to 290 (240v), 232 to 266 (220v)
Undervoltage Correction Voltage boost of 14% applies when input is 182 to 206 (230v), 190 to 216 (240v), 174 to 198 (220)
USER INTERFACE, ALERTS & CONTROLS
Switches
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm Audible alarm indicates power failure and overload conditions
LED Indicators
SURGE / NOISE SUPPRESSION
2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support
nominal voltage selection
9 LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for
load and battery charge level
Page 4
UPS AC Suppression Joule Rating 350
UPS AC Suppression Response
Time
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Primary Form Factor Tower
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Weight (lbs.) 45
UPS Power Module Weight (kg) 20.4
UPS Shipping Dimensions (hwd / in.) 14 x 9.8 x 18.5
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.) 48.6
Shipping Weight (kg) 22.1
Cooling Method Fan
Instantaneous
10.2 x 6.8 x 13.2
26 x 17.1 x 33.7
35.6 x 24.8 x 47
UPS Housing Material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 195.3
Battery Mode BTU / Hr. (Full Load) 582.9
AC Mode Efficiency Rating (100%
Load)
Audible Noise Audible Noise < 50 dBA at Front Side 1 Meter
COMMUNICATIONS
Communications Interface USB; DB9 Serial; Slot for SNMP/Web interface
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software Included
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
94%
Page 5
LINE / BATTERY TRANSFER
Transfer Time 4-8 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Hot swappable batteries
CERTIFICATIONS
UPS Certifications CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category A (EMI)
UPS Certification Details CE / IEC 62040
WARRANTY
Product Warranty Period
(International)
Product Warranty Period (Mexico) 2-year limited warranty
Product Warranty Period (Puerto
Rico)
174V (220V), 182V (230V) or 190V (240V)
266V (220V), 278V (230V) or 290V (240V)
Cold-start operation supported
2-year limited warranty
2-year limited warranty
