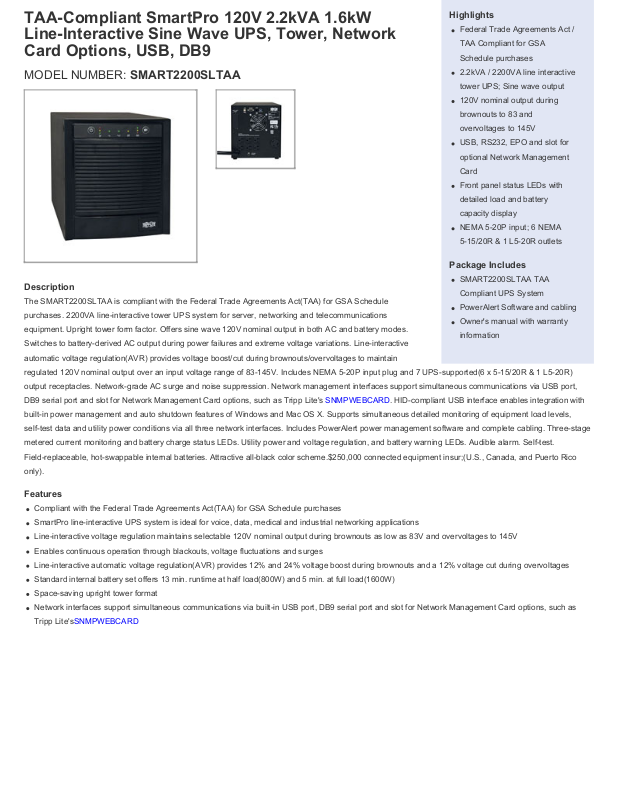

TAA-Compliant SmartPro 120V 2.2kVA 1.6kW
Highlights
Federal Trade Agreements Act /
TAA Compliant for GSA
Schedule purchases
2.2kVA / 2200VA line interactive
tower UPS; Sine wave output
120V nominal output during
brownouts to 83 and
overvoltages to 145V
USB, RS232, EPO and slot for
optional Network Management
Card
Front panel status LEDs with
detailed load and battery
capacity display
NEMA 5-20P input; 6 NEMA
5-15/20R & 1 L5-20R outlets
Package Includes
SMART2200SLTAA TAA
Compliant UPS System
PowerAlert Software and cabling
Owner's manual with warranty
information
Line-Interactive Sine Wave UPS, Tower, Network
Card Options, USB, DB9
MODEL NUMBER: SMART2200SLTAA
Description
The SMART2200SLTAA is compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule
purchases. 2200VA line-interactive tower UPS system for server, networking and telecommunications
equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes.
Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive
automatic voltage regulation(AVR) provides voltage boost/cut during brownouts/overvoltages to maintain
regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported(6 x 5-15/20R & 1 L5-20R)
output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port,
DB9 serial port and slot for Network Management Card options, such as Tripp Lite's SNMPWEBCARD. HID-compliant USB interface enables integration with
built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels,
self-test data and utility power conditions via all three network interfaces. Includes PowerAlert power management software and complete cabling. Three-stage
metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test.
Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme.$250,000 connected equipment insur;(U.S., Canada, and Puerto Rico
only).
Features
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
Line-interactive voltage regulation maintains selectable 120V nominal output during brownouts as low as 83V and overvoltages to 145V
Enables continuous operation through blackouts, voltage fluctuations and surges
Line-interactive automatic voltage regulation(AVR) provides 12% and 24% voltage boost during brownouts and a 12% voltage cut during overvoltages
Standard internal battery set offers 13 min. runtime at half load(800W) and 5 min. at full load(1600W)
Space-saving upright tower format
Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and slot for Network Management Card options, such as
Tripp Lite's SNMPWEBCARD
Page 2
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert power management software supports safe unattended shutdown, monitoring and control via local connected servers, plus any
number of additional servers over IP
UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery
capacity, timed inverter shutoff, activate self-test and output power control
NEMA 5-20P input plug/6 x NEMA 5-15R and 1 x NEMA L5-20R output receptacles
Front panel LEDs provide current monitoring, voltage regulation, battery charge level, and battery warning information
UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required
$250,000 Ultimate Lifetime Insurance(U.S., Canada, and Puerto Rico only)
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 2200
Output kVA Capacity (kVA) 2.2
Output Watt Capacity (Watts) 1600
Output kW Capacity (kW) 1.6
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 60 Hz
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles (6) 5-15/20R; (1) L5-20R
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 14.8A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-20P
Input Circuit Breakers 20A
UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3
110V; 115V; 120V
-18% / +8%
+/- 5%
Recommended Electrical Service 20A 120V
Input Phase Single-Phase
Page 3
BATTERY
Full Load Runtime (min.) 5 min. (1600w)
Half Load Runtime (min.) 13 min. (800w)
DC System Voltage (VDC) 48
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access Battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction Input voltages between 127 and 145 are reduced by 12%
Undervoltage Correction Input voltages between 96 and 108V are boosted by 12%
Severe Undervoltage Correction Input voltages between 83 and 95V are boosted by 24%
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm Audible alarm indicates power failure and overload conditions
Less than 4.5 hours from 10% to 90%
RBC54
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83V to
overvoltages to 145V
LED Indicators
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 570
UPS AC Suppression Response
Time
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Primary Form Factor Tower
UPS Power Module Dimensions
(hwd, in.)
9 LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for
load and battery charge level
Instantaneous
Tower
10.5 x 8.9 x 12.5
Page 4
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Weight (lbs.) 57
UPS Power Module Weight (kg) 25.9
UPS Shipping Dimensions (hwd / in.) 14.5 x 13.8 x 18
26.7 x 22.5 x 31.8
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (kg) 0
Cooling Method Fan
UPS Housing Material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 286.3
Battery Mode BTU / Hr. (Full Load) 885.6
AC Mode Efficiency Rating (100%
Load)
Audible Noise Audible Noise < 50 dBA at Front Side 1 Meter
COMMUNICATIONS
Communications Interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
36.8 x 34.9 x 45.7
95%
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software Included
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time 2-4 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
83
145
Cold-start operation supported
UPS Certifications
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A
(EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant
$250,000
Ultimate Lifetime Insurance
