Trendnet TV-H510 DATASHEET
Quick Installation Guide
TV-H510
H/W: V1
Table of Contents
English ......................................................................................................
1. Before You Start
2. Hardware Installation .........................................................................
Troubleshooting .........................................................................................
................................................................................
1
1
2
9
Version 04.13.2009
1. Before you start
Package Contents
TV-H510
?
Quick Installation Guide
?
?Power Adapter (12V DC, 0.6A)
?1 x Wall Mount Bracket
? 4 x Hex Screws
? 4 x Mounting Screws
? 4 x Mounting Screw Anchors
? 4 x Mounting Washers
? 1 x Allen Wrench
? 1 x Cable Strain Relief Plug *
Installation Requirements
The following items below are not included. Users must provide the items
themselves. Make sure to have each item on hand before installation.
IP camera (TV-IP100-N, TV-IP100W-N, TV-IP201, TV-IP201P,
?
TV-IP201W, TV-IP301, TV-IP301W, TV-IP501P, TV-IP501W, TV-IP512P,
TV-IP512WN**)
? Dry wall or wood surface
?Phillips screwdriver
?Ethernet cable (For wired IP cameras)
? Surge arrester (TEW-ASAK) (For wireless IP cameras)**
? Antenna cable (TEW-L406 or TEW-L412) (For wireless IP cameras)**
?External antenna (e.g. TEW-AO14D, TEW-A019D)
(For wireless IP cameras)**
* You do not need to use the Cable Strain Relief Plug. If you decide to use
this, you will need to cut your IP camera's power adapter and the Ethernet
cable.
** The TV-IP512WN requires two surge arresters, two antenna cables and two
external antennas. The TV-IP100W-N, TV-IP201W, TV-IP301W and
TV-IP501W only require one surge arrester, one antenna cable and one
external antenna.
1
English
2. Hardware Installation
Note: Configure your IP Camera to match your network before installing the
device.
Hardware Installation
1. Lift up the latch and pull the roof
upward.
2. Remove the screws from the metal
grounding bar.
3. Move the metal grounding bar
towards the back of the TV-H510
and secure it with the screws.
2
English

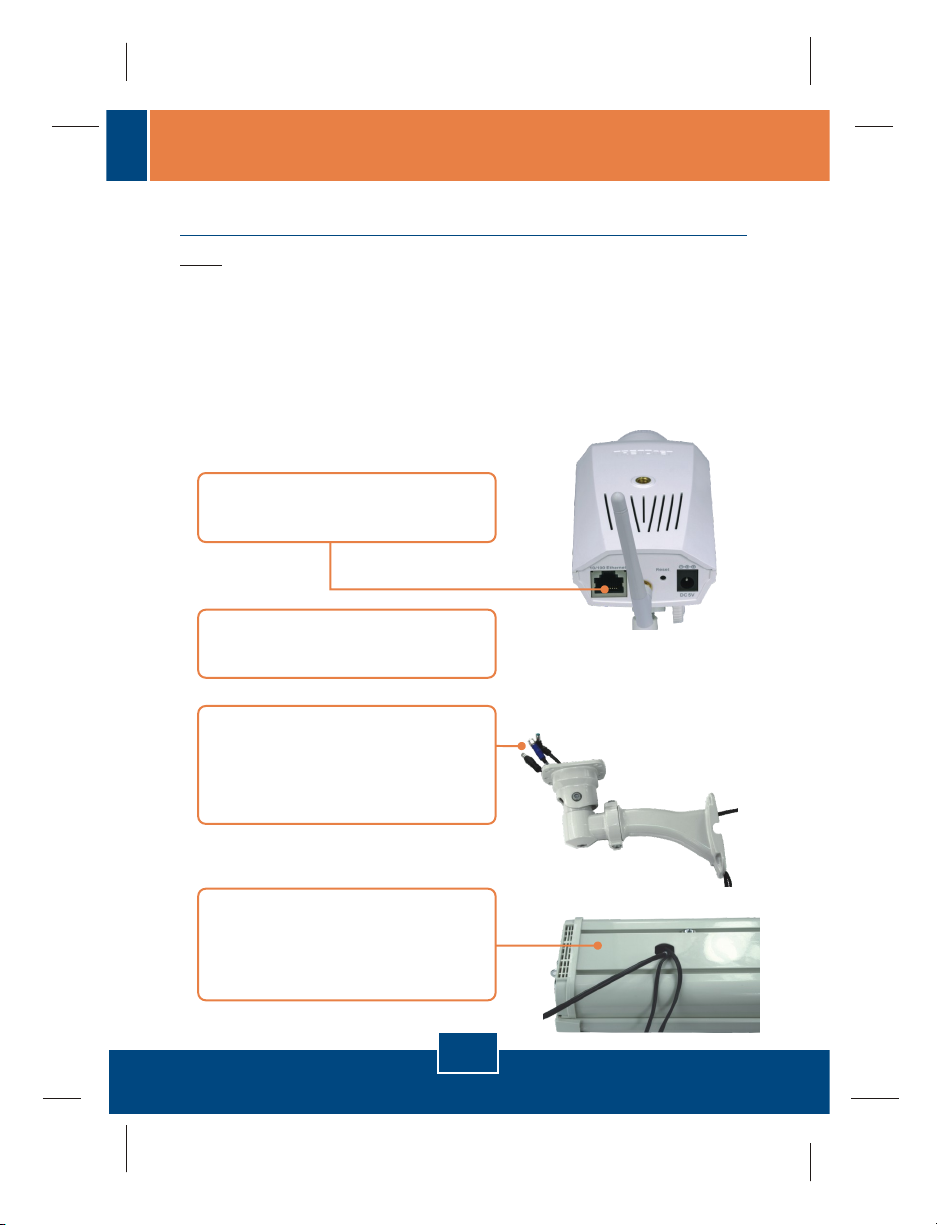

4. Remove the black bracket from the
camera enclosure.
5. Use a screw to mount the base of
the IP camera to the black bracket.
6. Connect the black bracket back
inside the enclosure. Move the
camera as close to the glass as
possible. This example shows a
TRENDnet TV-IP100W-N.

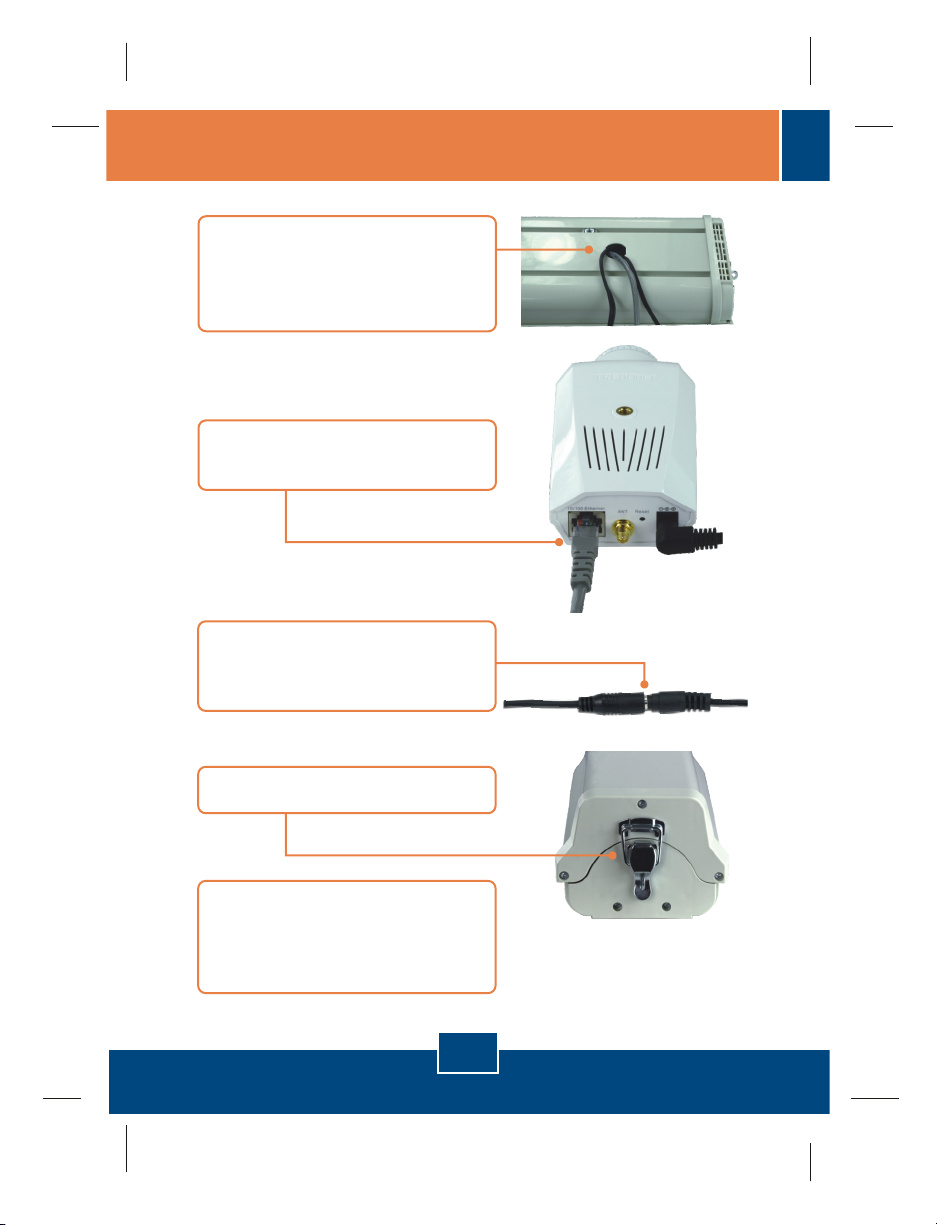

7. Insert the TV-H510 power adapter,
the IP Camera's power adapter
and Ethernet cable through the
mounting bracket.
3
English
