TRENDnet TPL-410APK User Manual

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Contents

Access Point Maintenance & Monitoring ....................................... 24

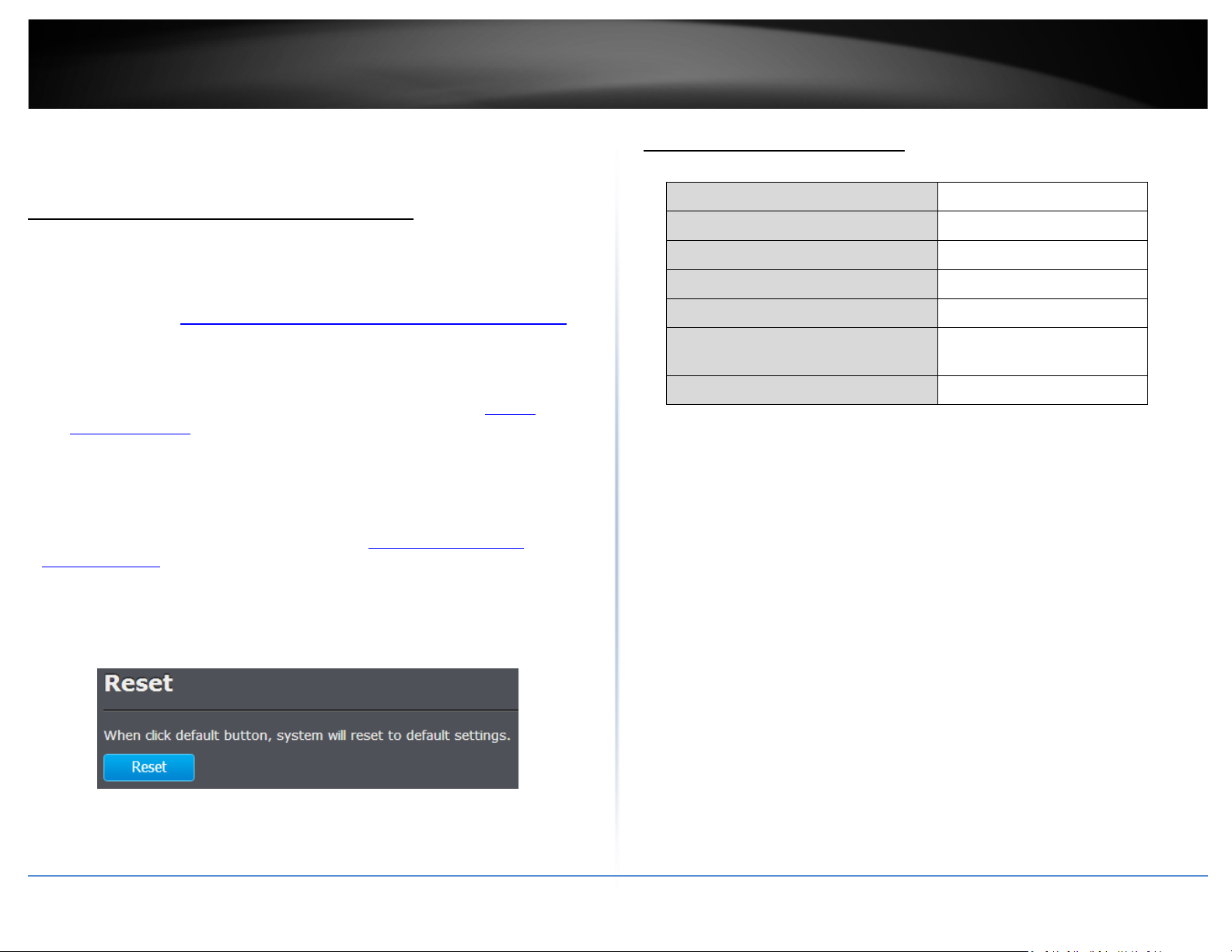

Reset your Access Point to factory defaults ................................................................ 24

Table of Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

TPL-410AP ............................................................................................................ 2

TPL-406E .............................................................................................................. 4

Application Diagram ...................................................................................................... 5

Expanding a Home Network ............................................................ 6

Basic Installation ............................................................................................................ 7

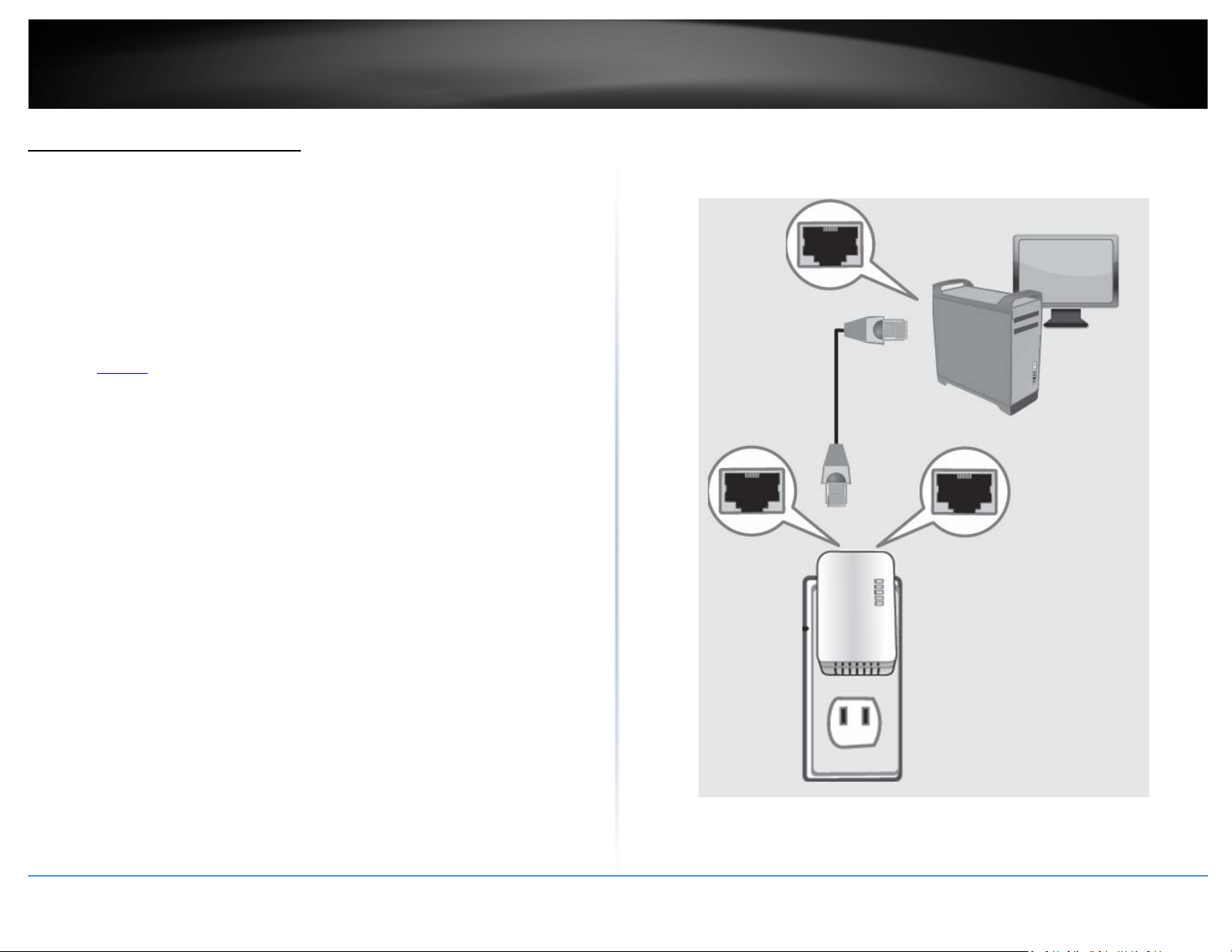

Connect additional wired devices to your network ....................................................... 8

Configure your Wireless Access Point .............................................. 9

Access your access point management page ................................................................ 9

Setup Wizard ............................................................................................................... 10

Wireless Networking and Security ............................................................................... 11

How to choose the type of security for your wireless network ........................ 11

Secure your wireless network ........................................................................... 12

Connect wireless devices to your access point ............................................................ 14

Connect wireless devices using WPS ........................................................................... 14

Basic Wireless Settings ................................................................................................ 16

Steps to improve wireless connectivity ....................................................................... 18

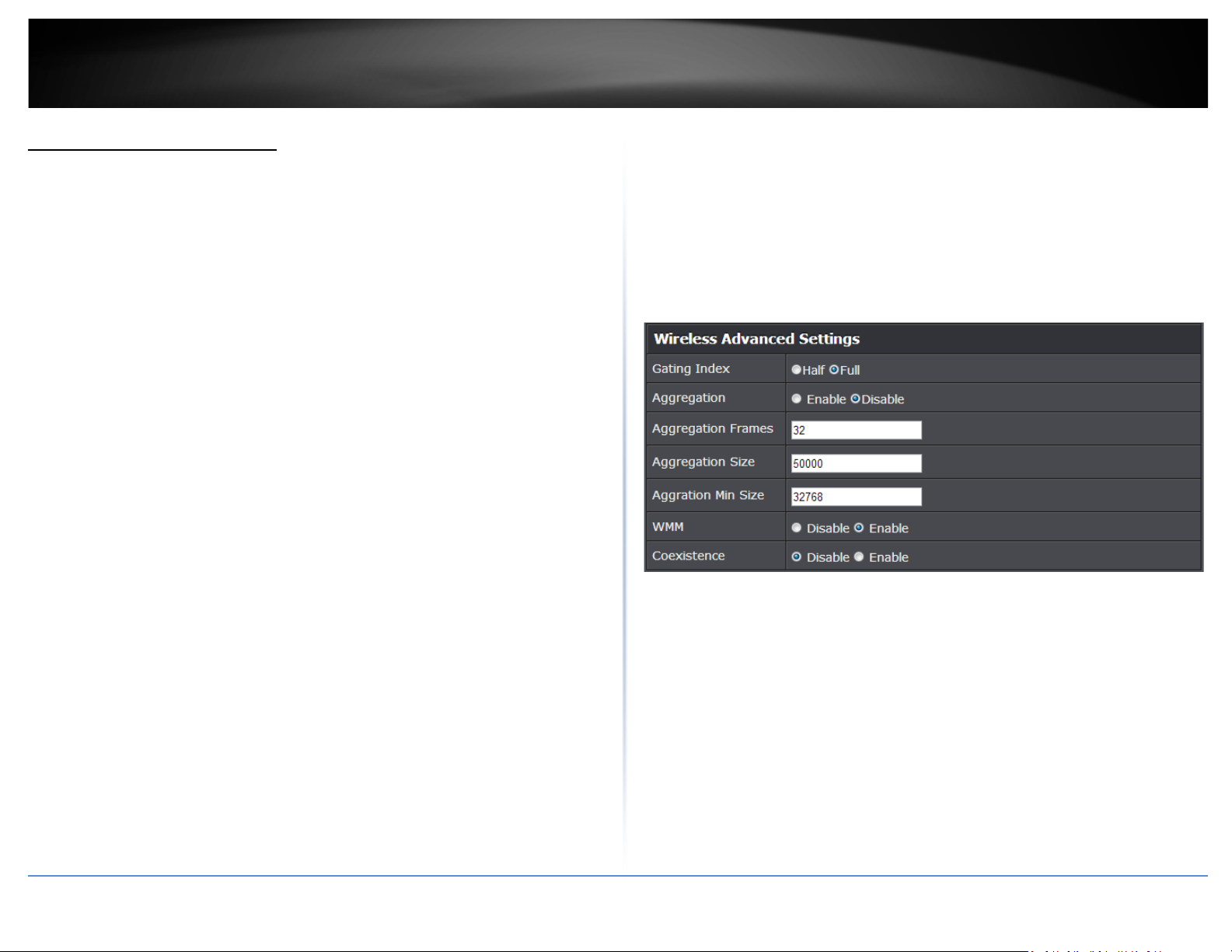

Advanced Wireless Settings ......................................................................................... 19

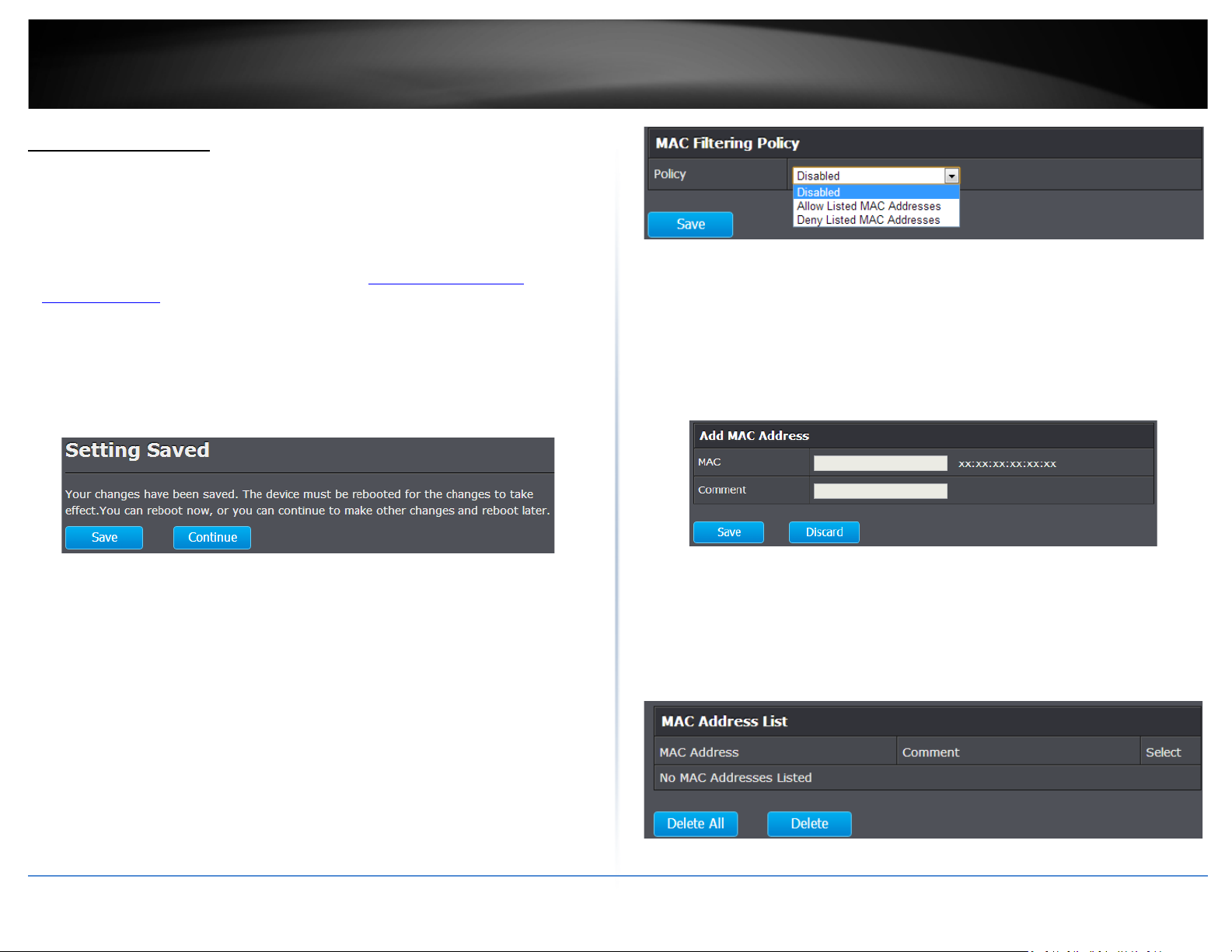

MAC Address Filters ..................................................................................................... 20

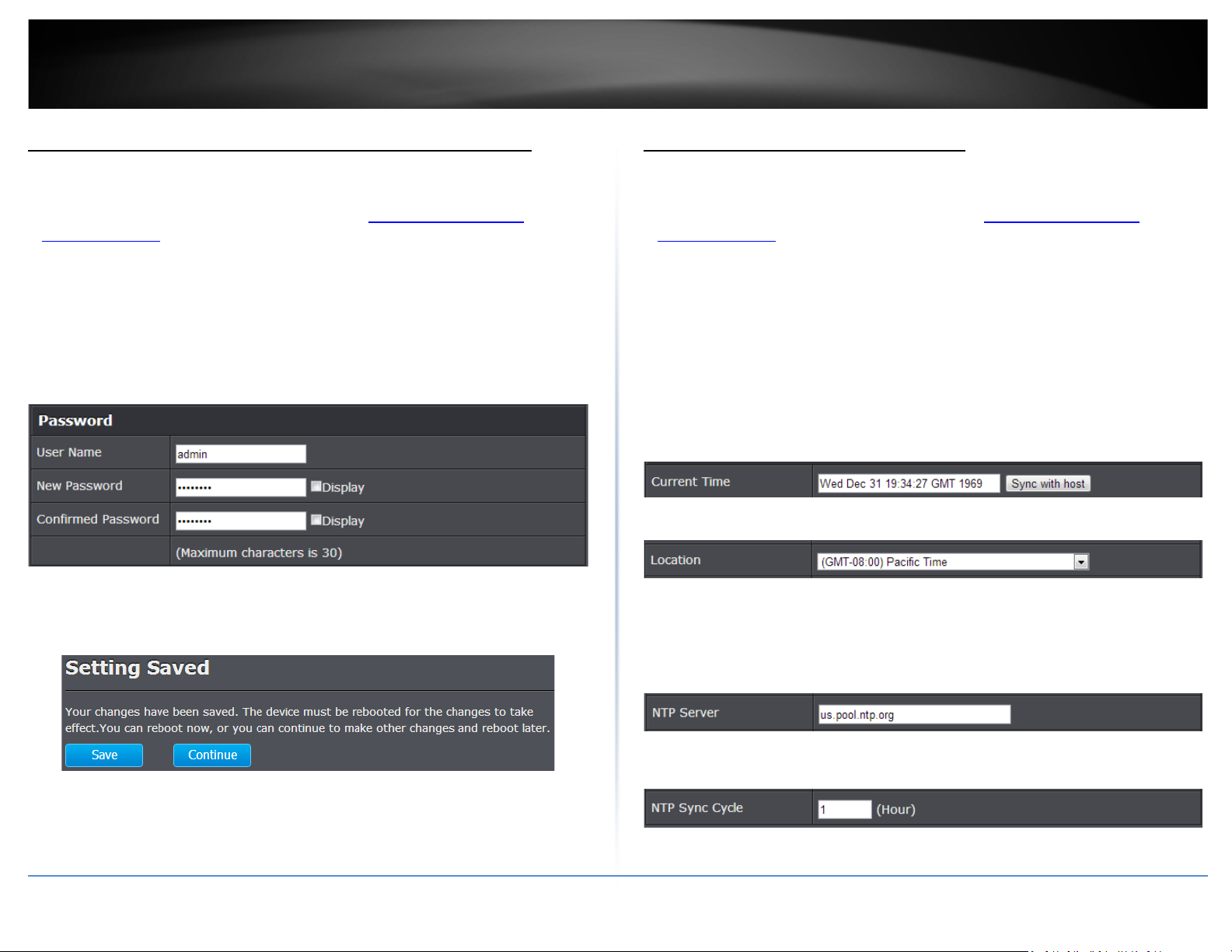

Change your access point login username and password ........................................... 21

Set your access point date and time............................................................................ 21

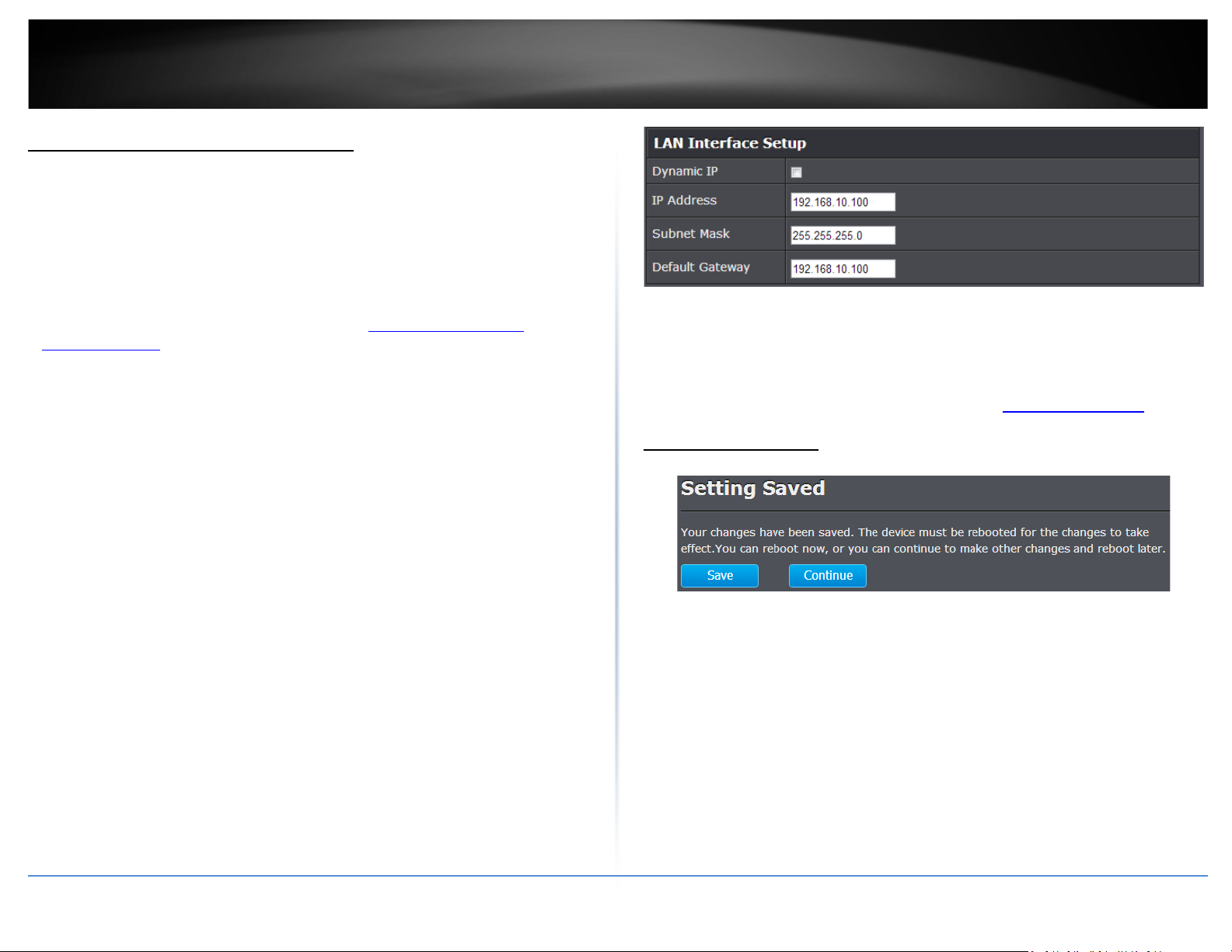

Change your access point IP address ........................................................................... 22

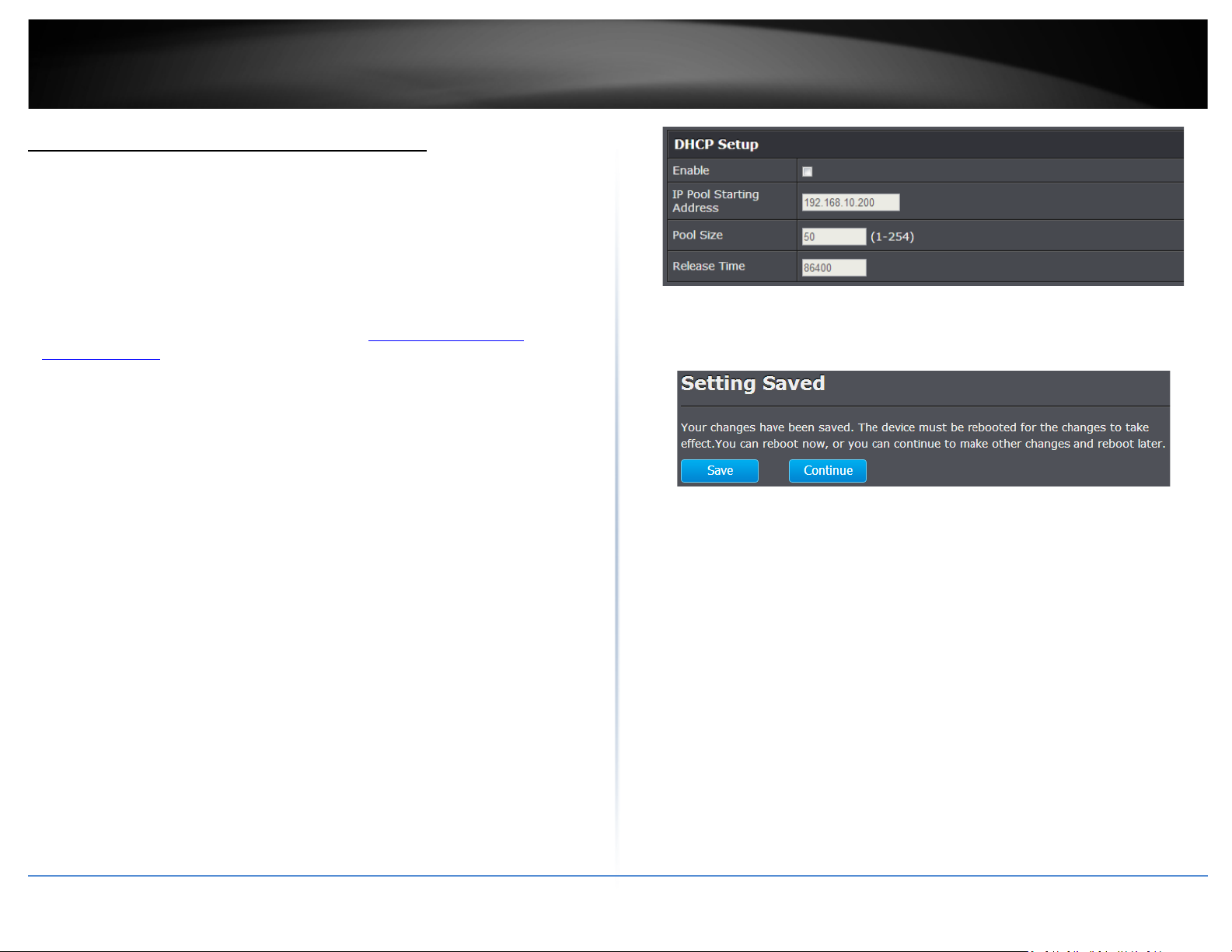

Set up the DHCP server on your access point .............................................................. 23

Access Point Default Settings ...................................................................................... 24

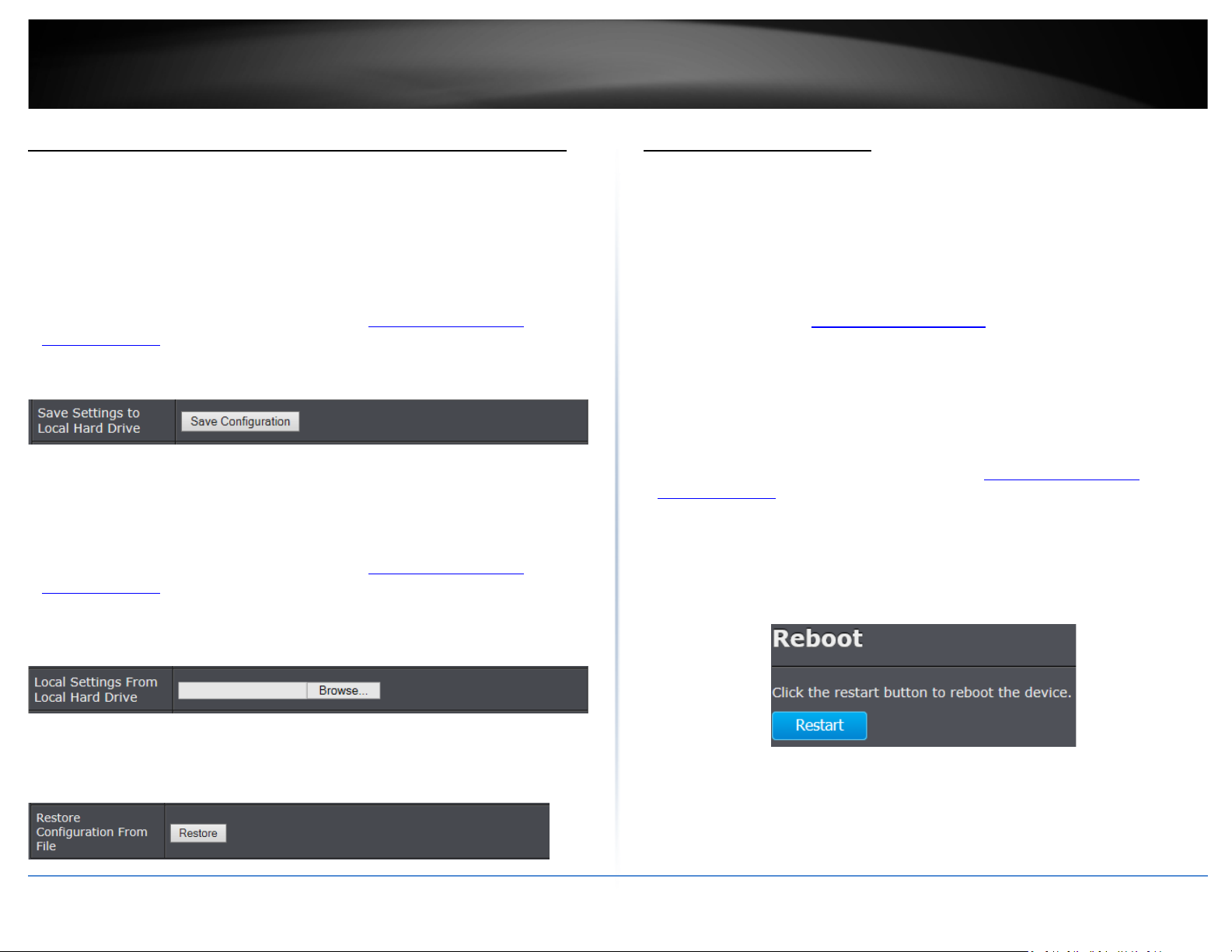

Backup and restore your access point configuration settings ..................................... 25

Reboot your access point ............................................................................................ 25

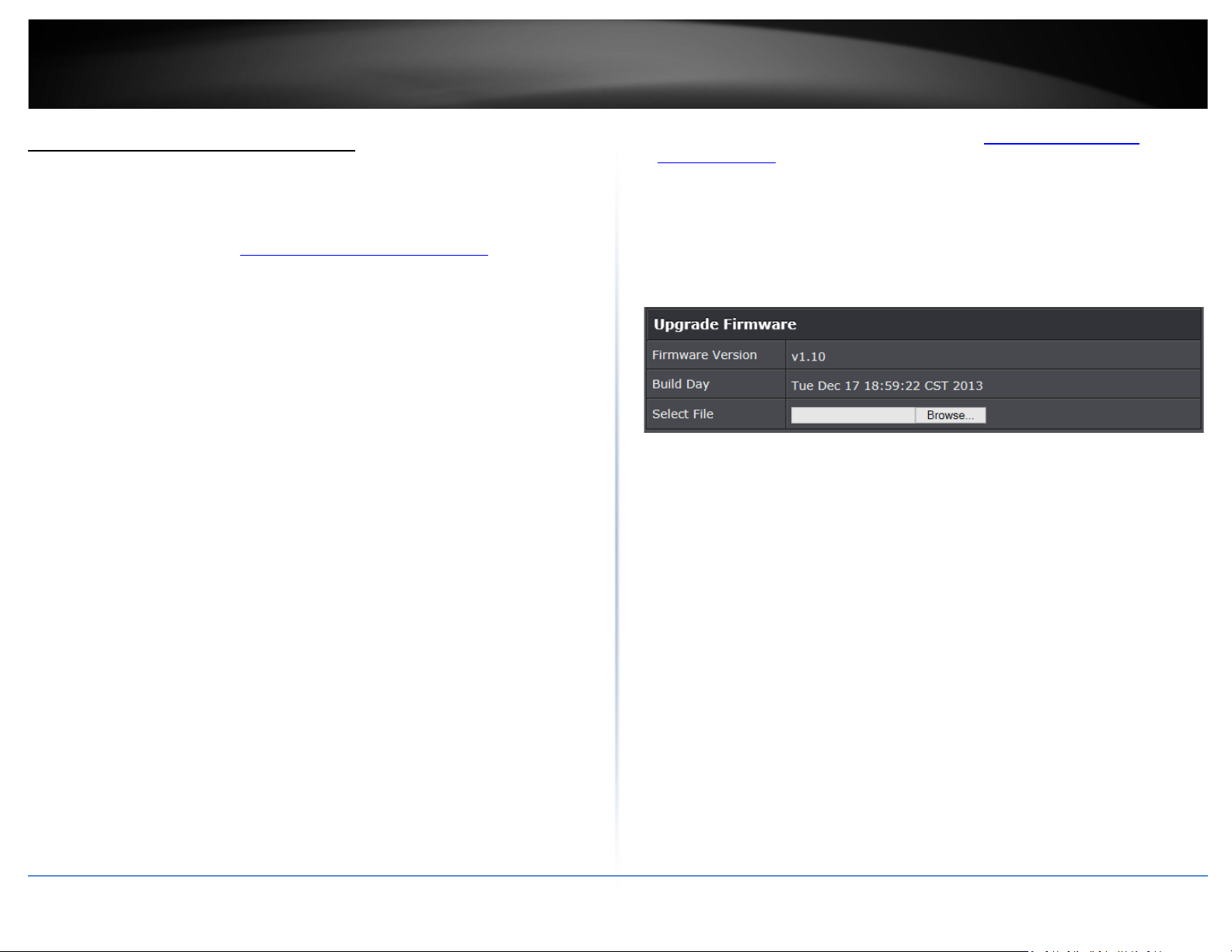

Upgrade your access point firmware .......................................................................... 26

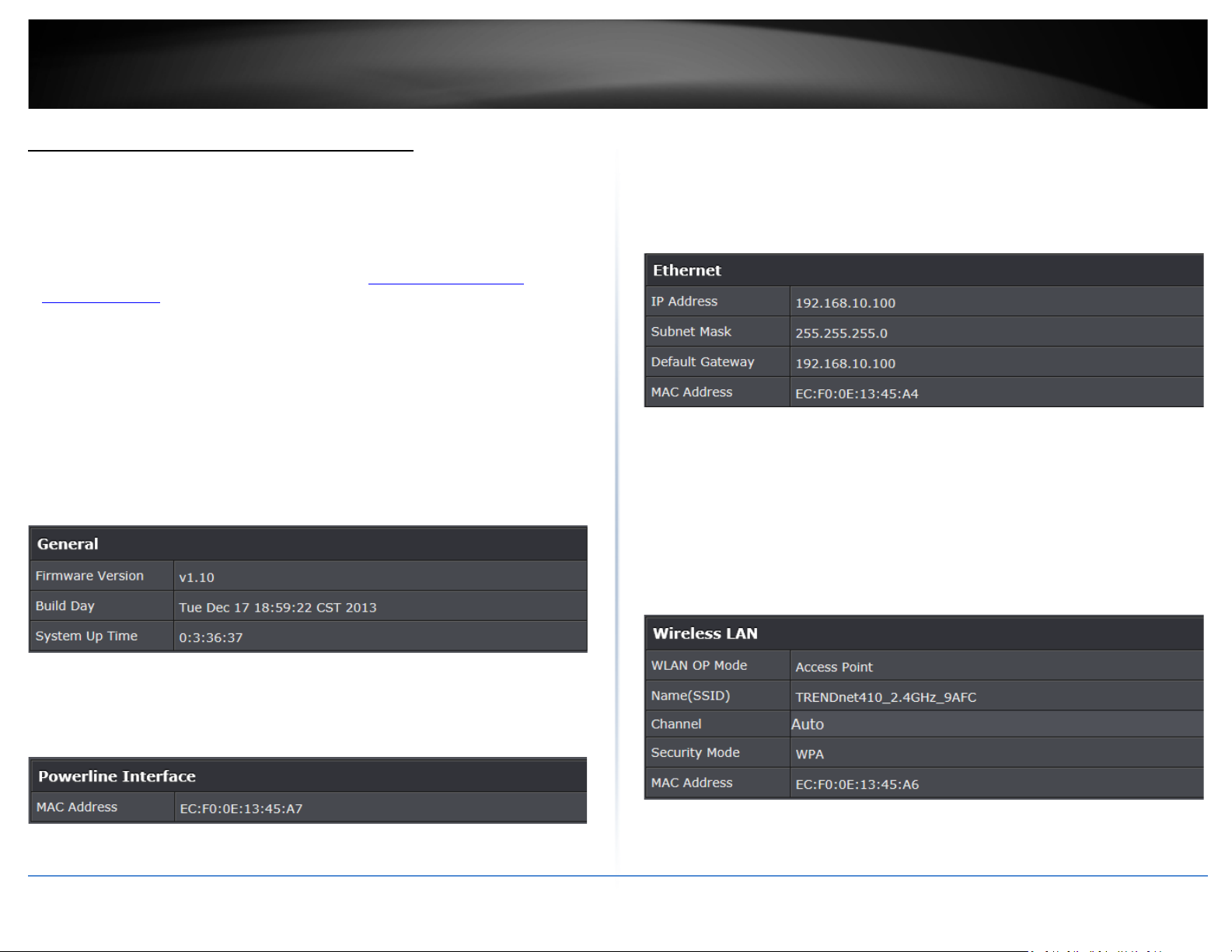

Check the access point system information ................................................................ 27

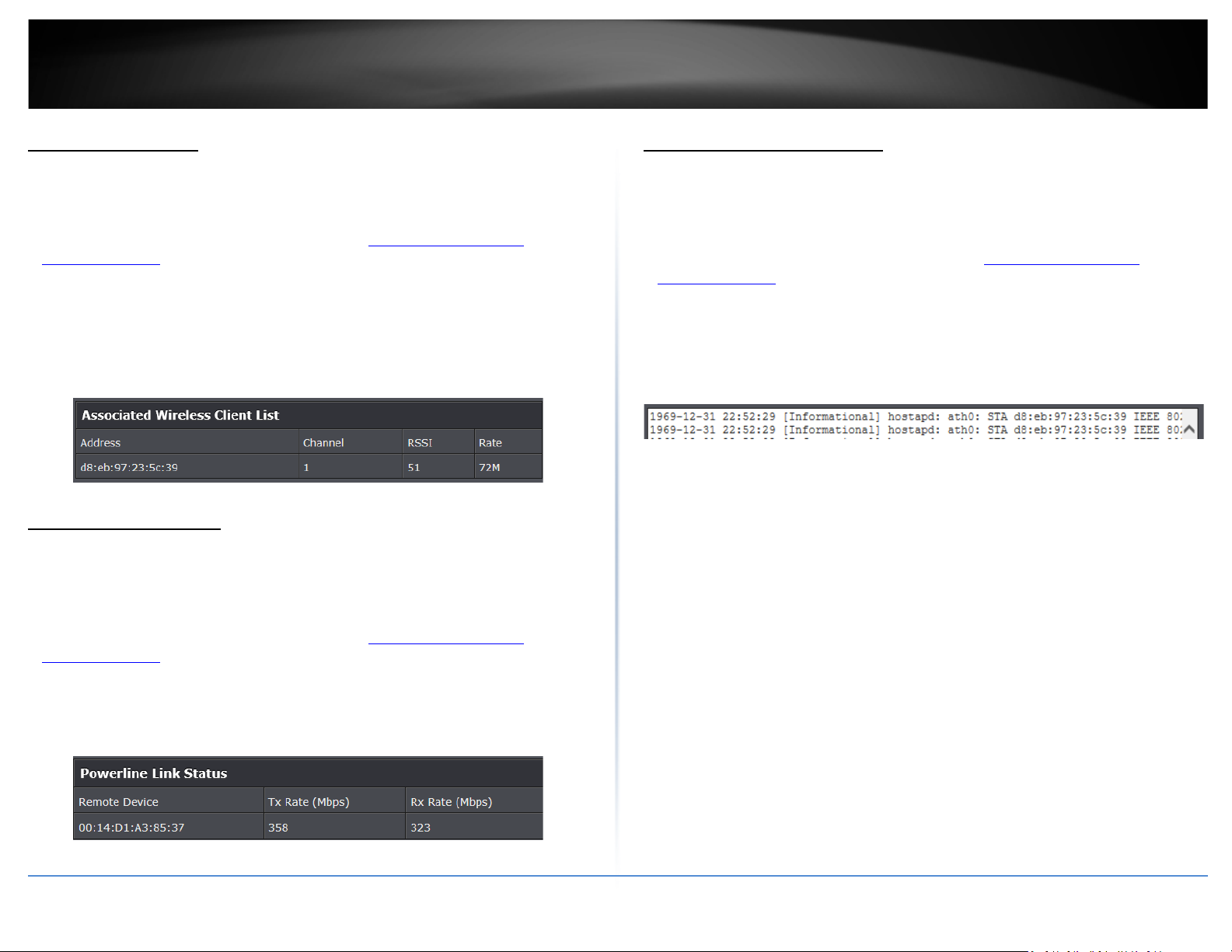

Wireless Client List ...................................................................................................... 28

Powerline Device List ................................................................................................... 28

View your access point log .......................................................................................... 28

Installing your Powerline Adapters ................................................ 29

Before you Install ......................................................................................................... 29

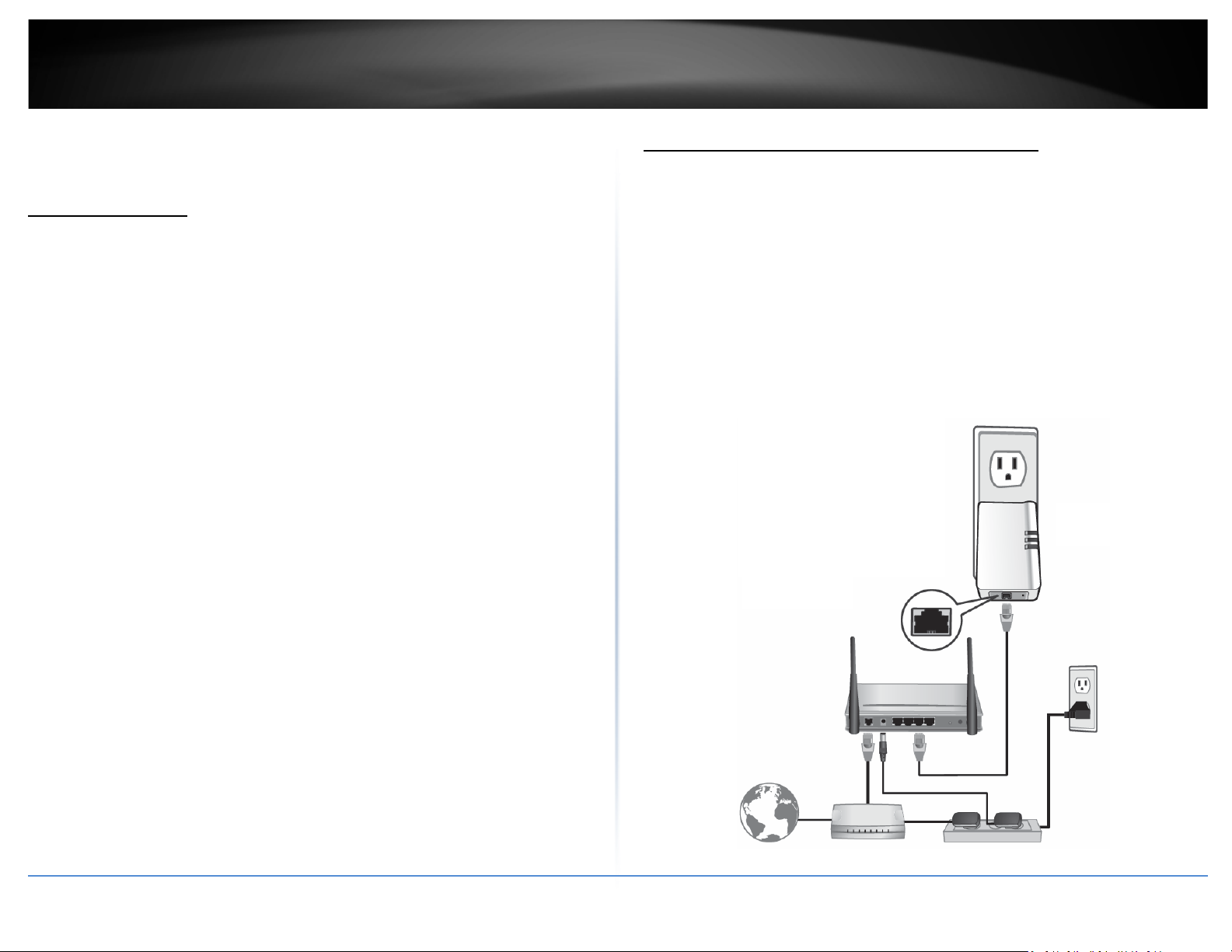

Connect a Powerline adapter to your router .............................................................. 29

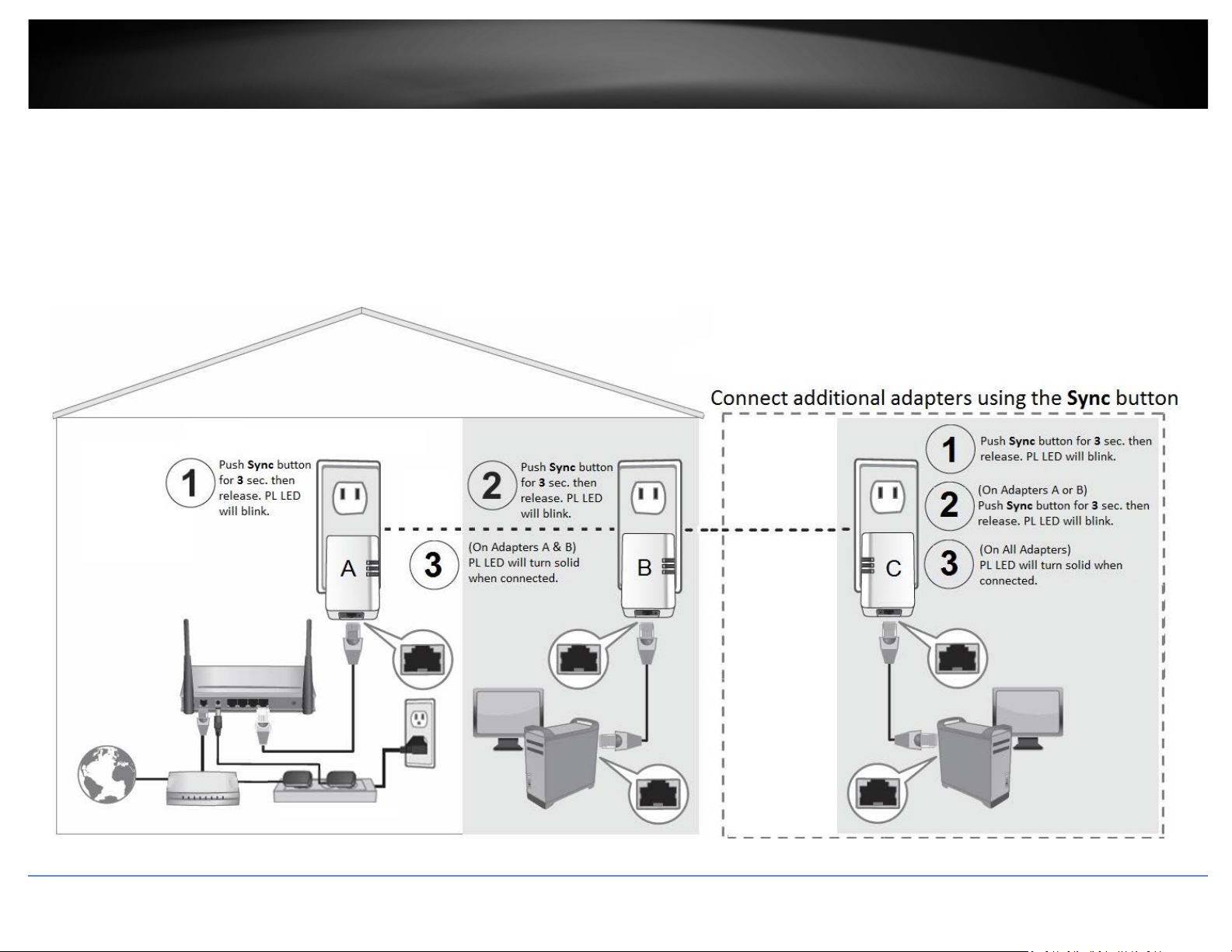

Add adapters to your network .................................................................................... 30

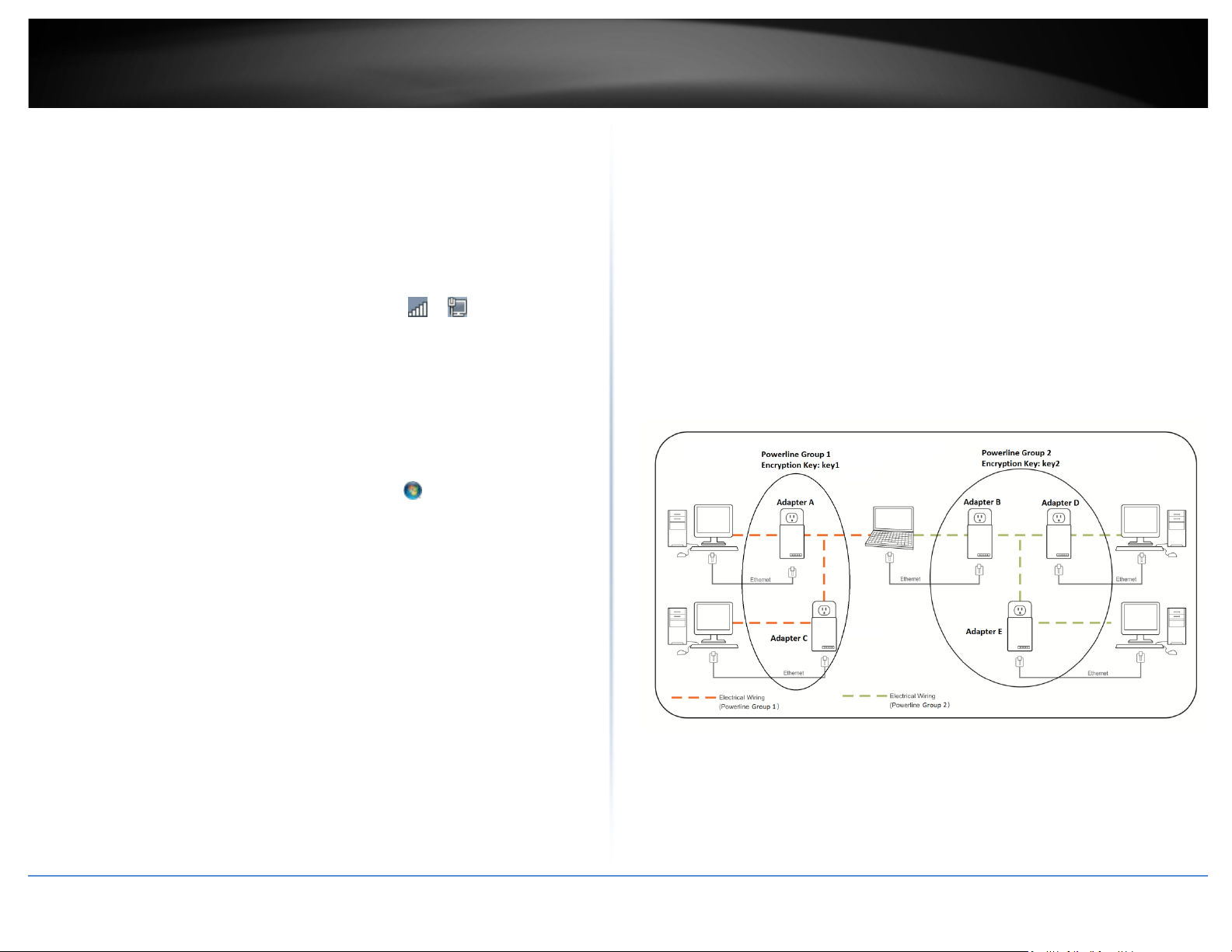

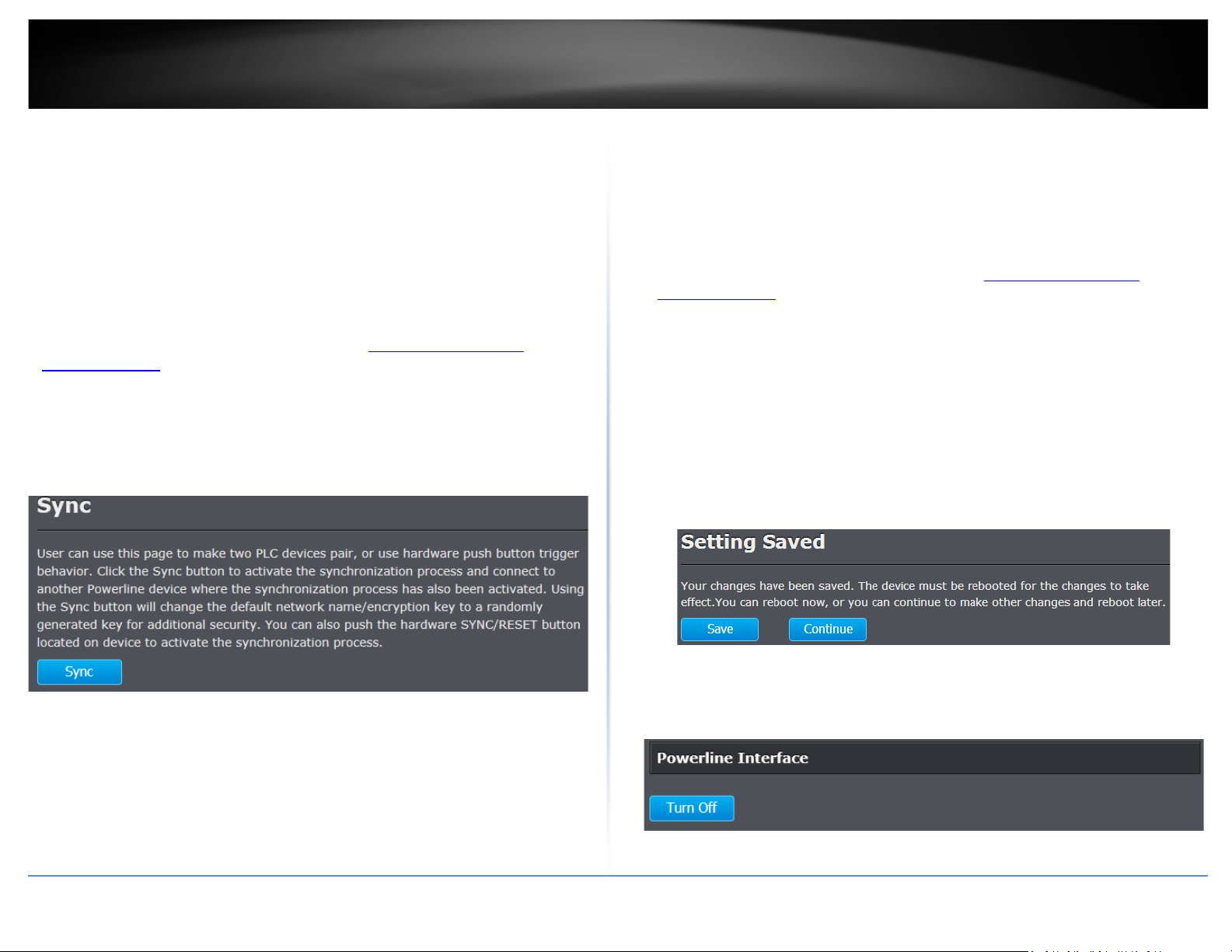

Securing your Powerline Network ................................................. 31

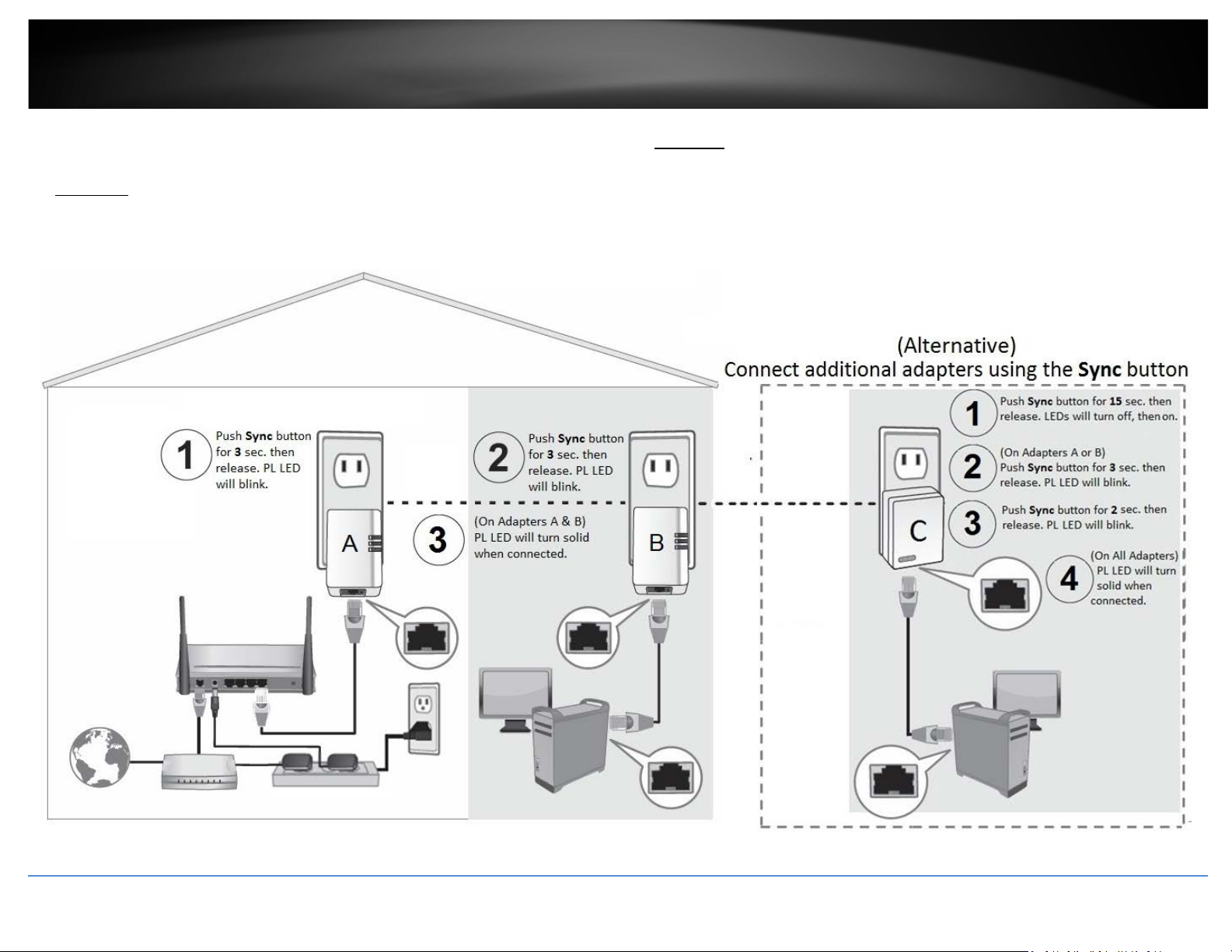

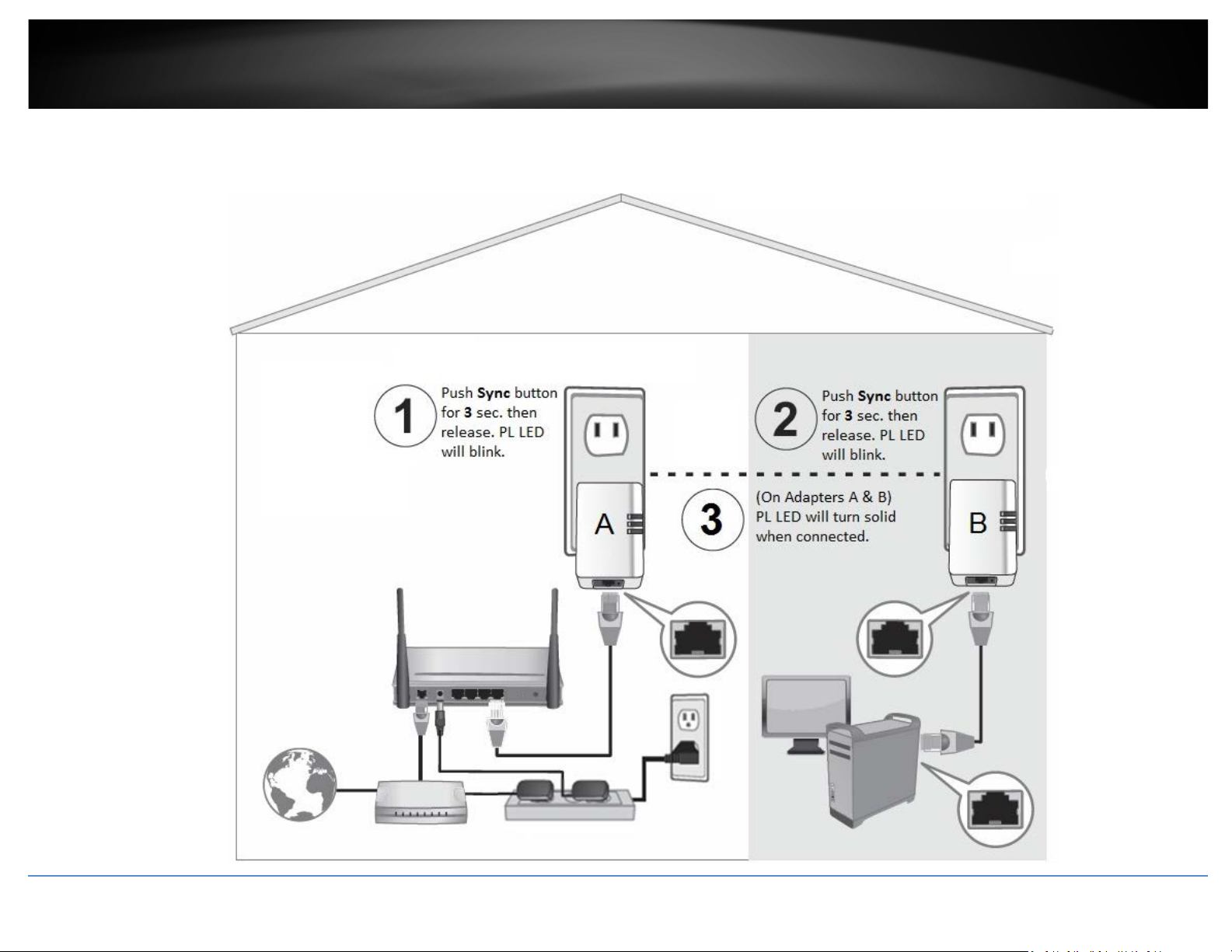

Using the Sync button ................................................................................................. 31

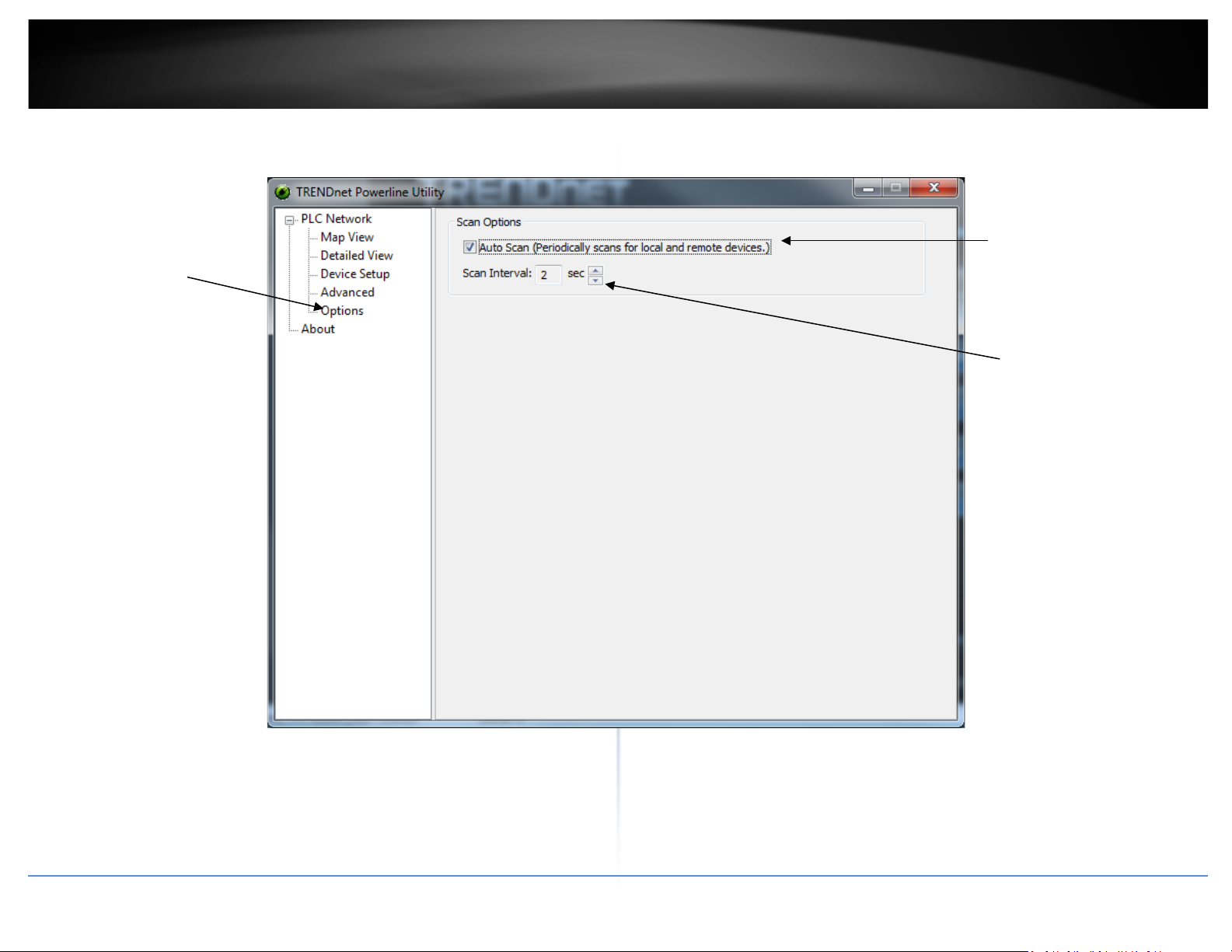

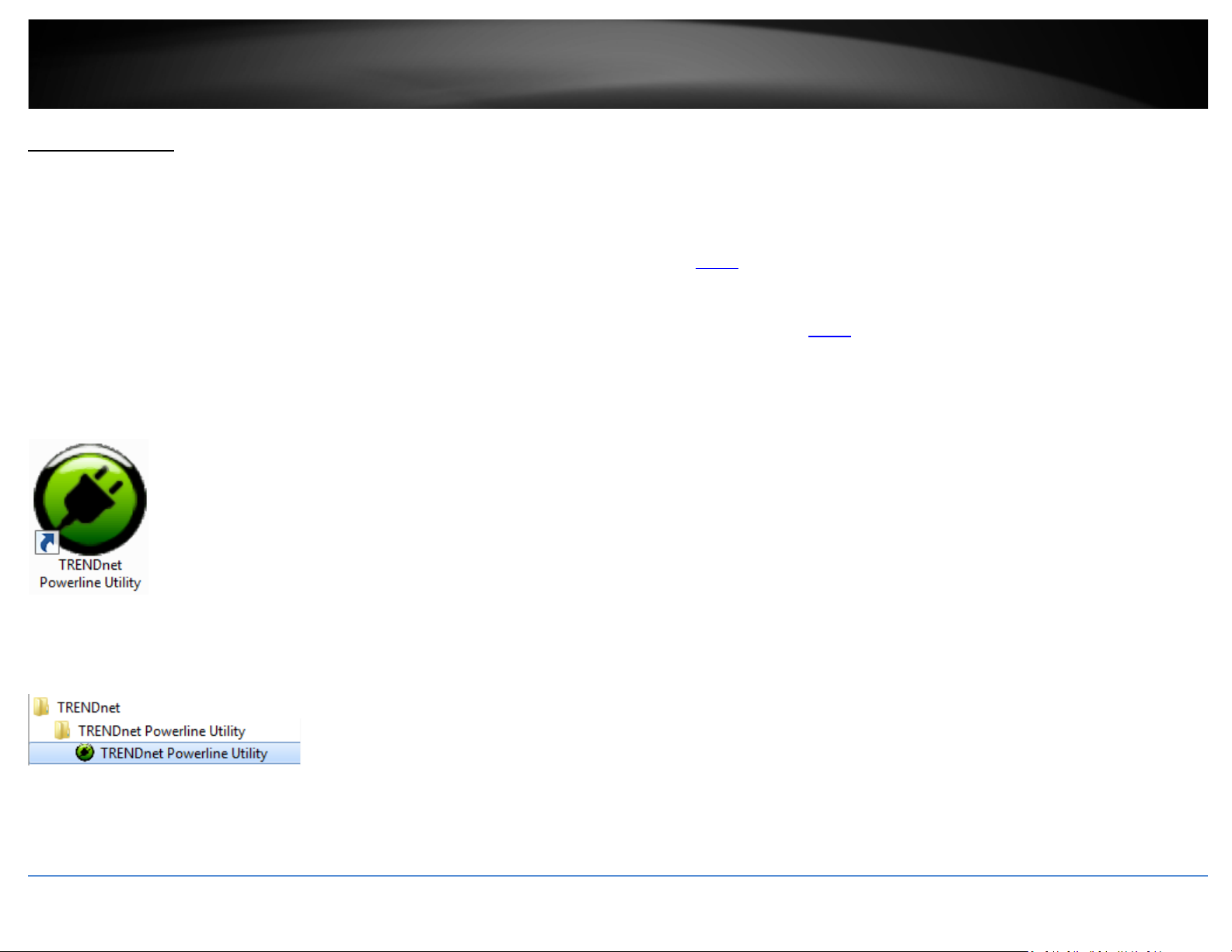

Using the Powerline Utility ........................................................... 36

Powerline Utility System Requirements ...................................................................... 36

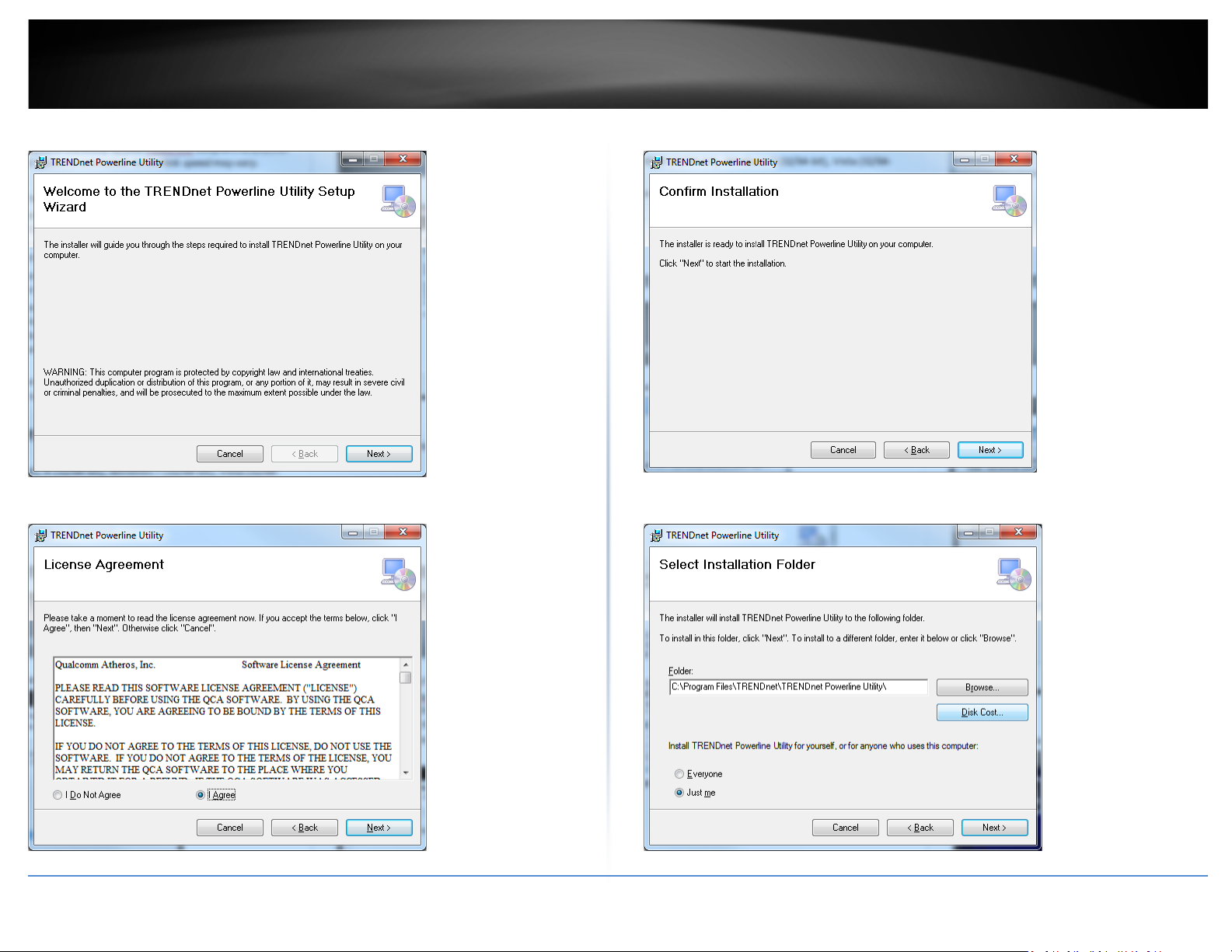

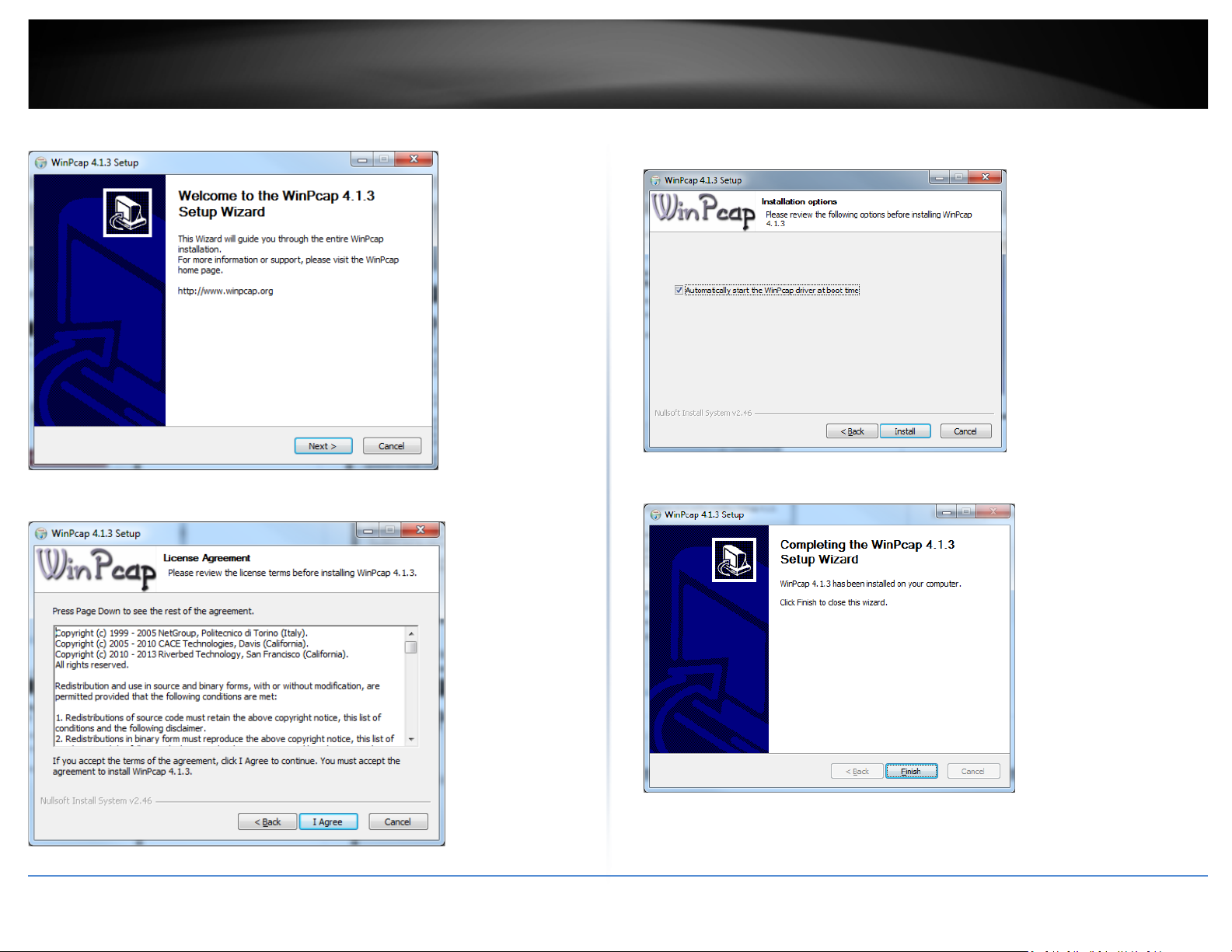

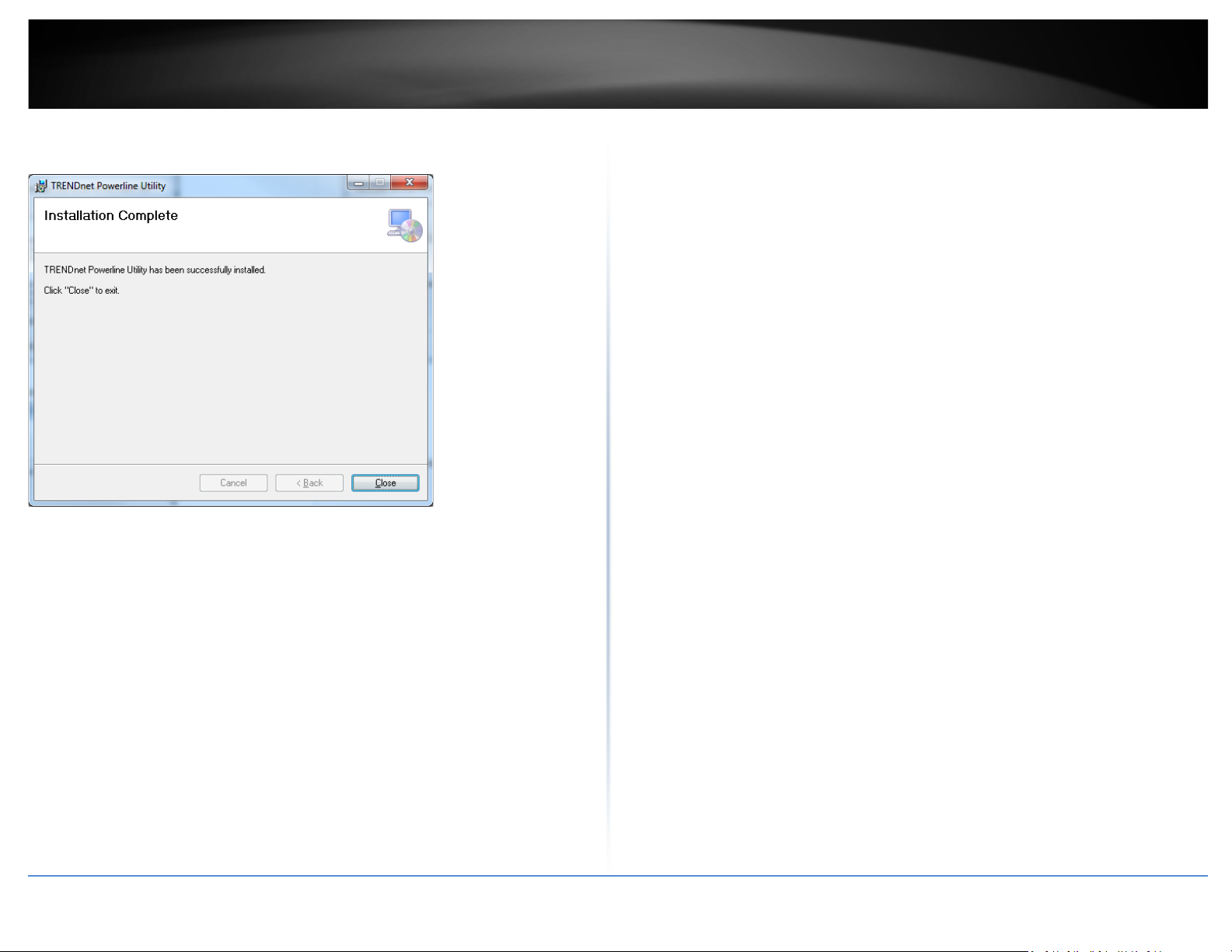

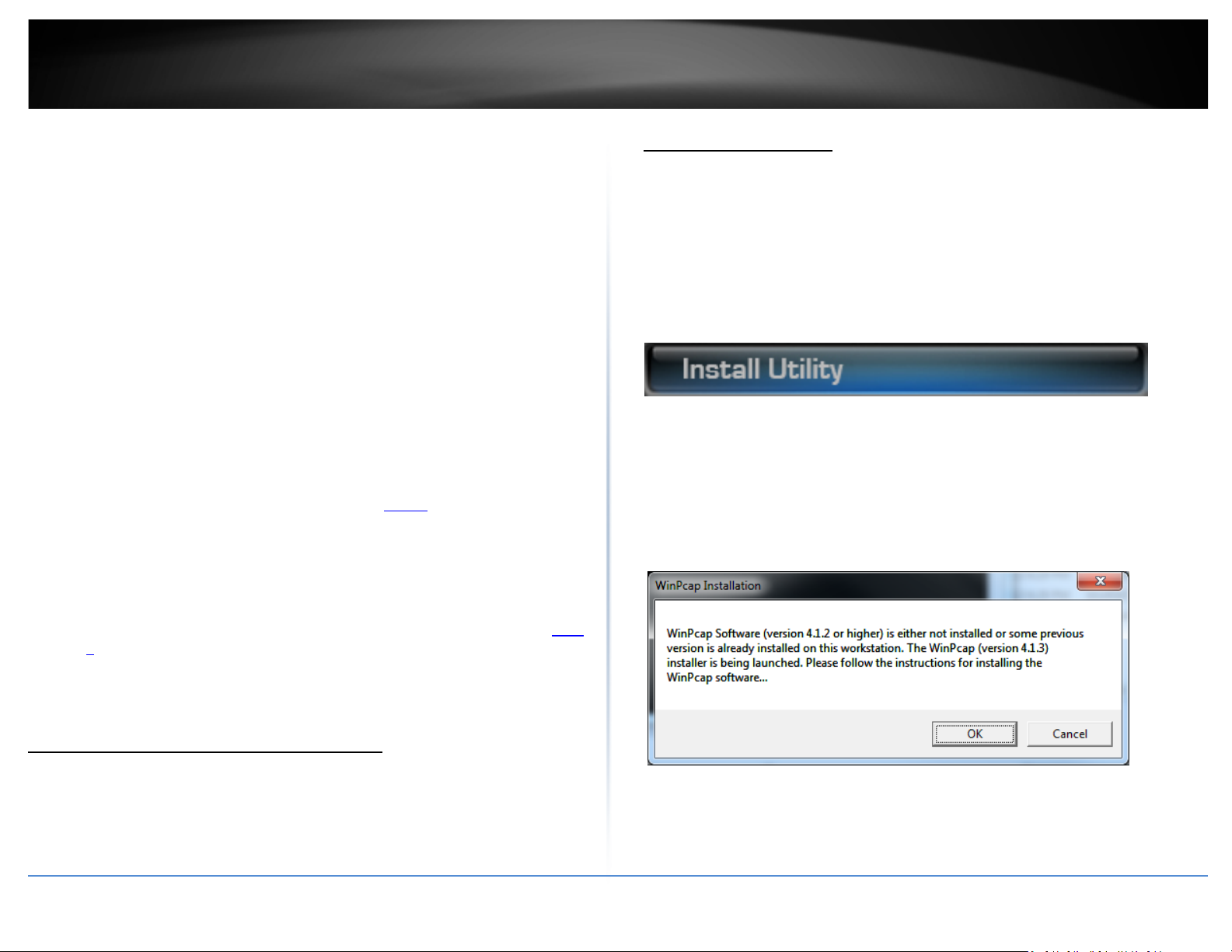

Software Installation ................................................................................................... 36

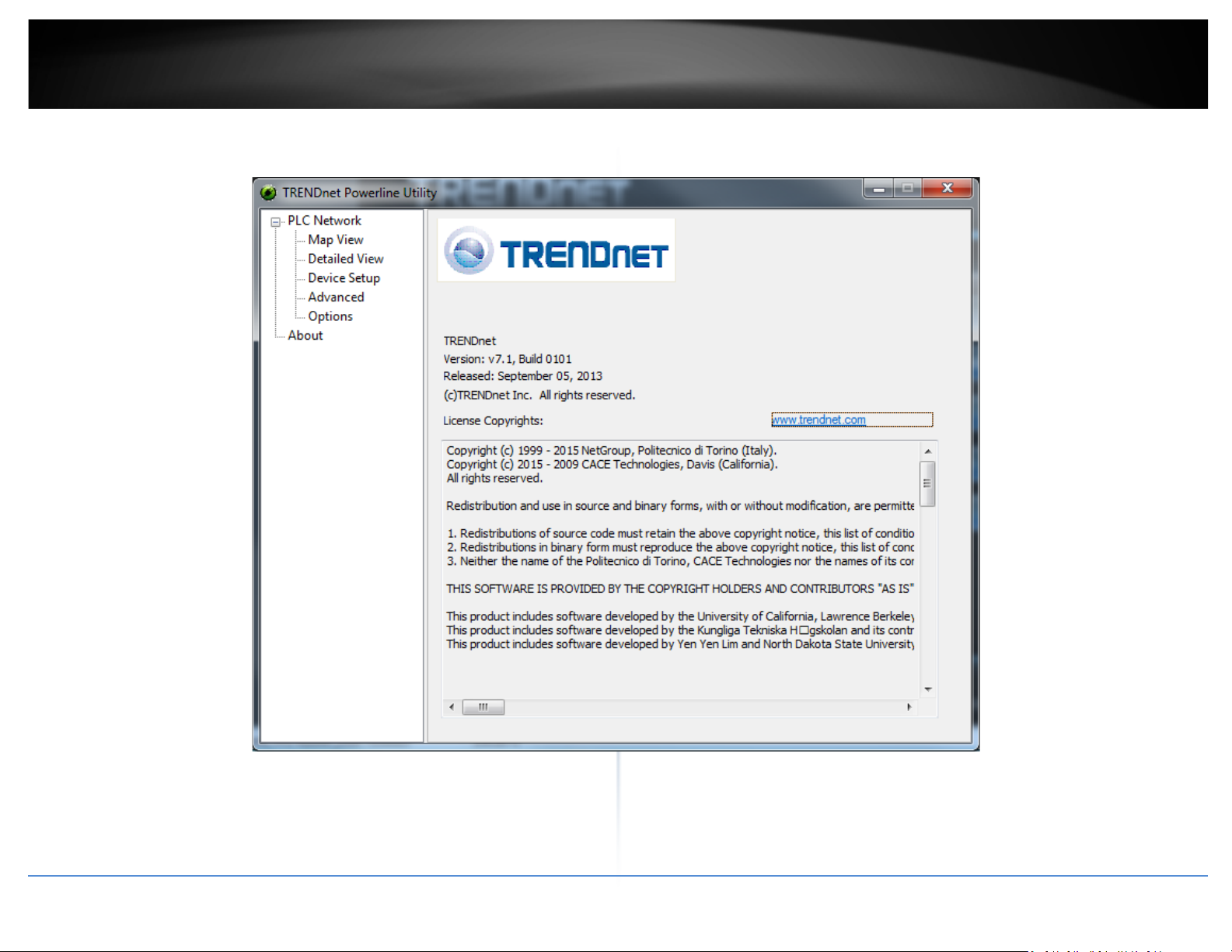

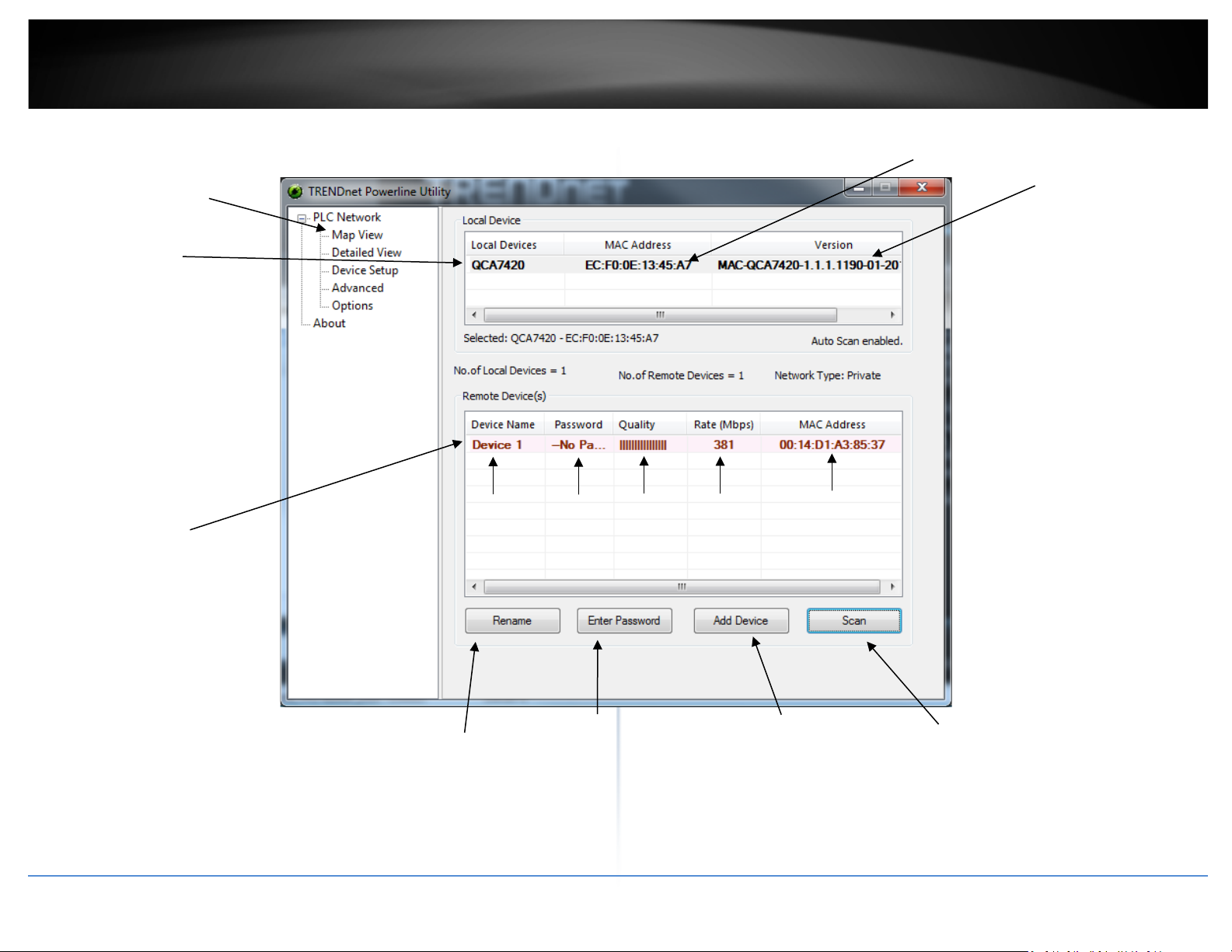

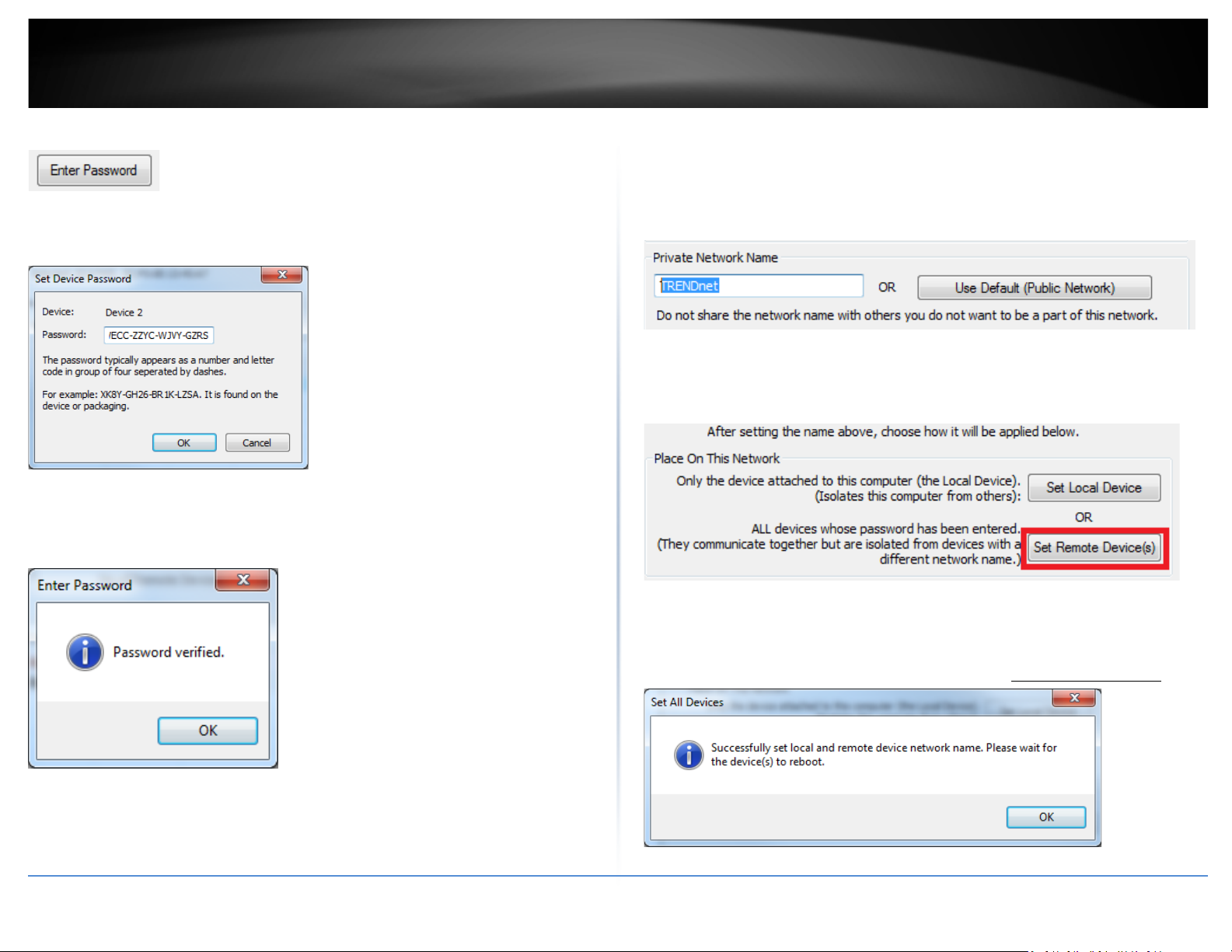

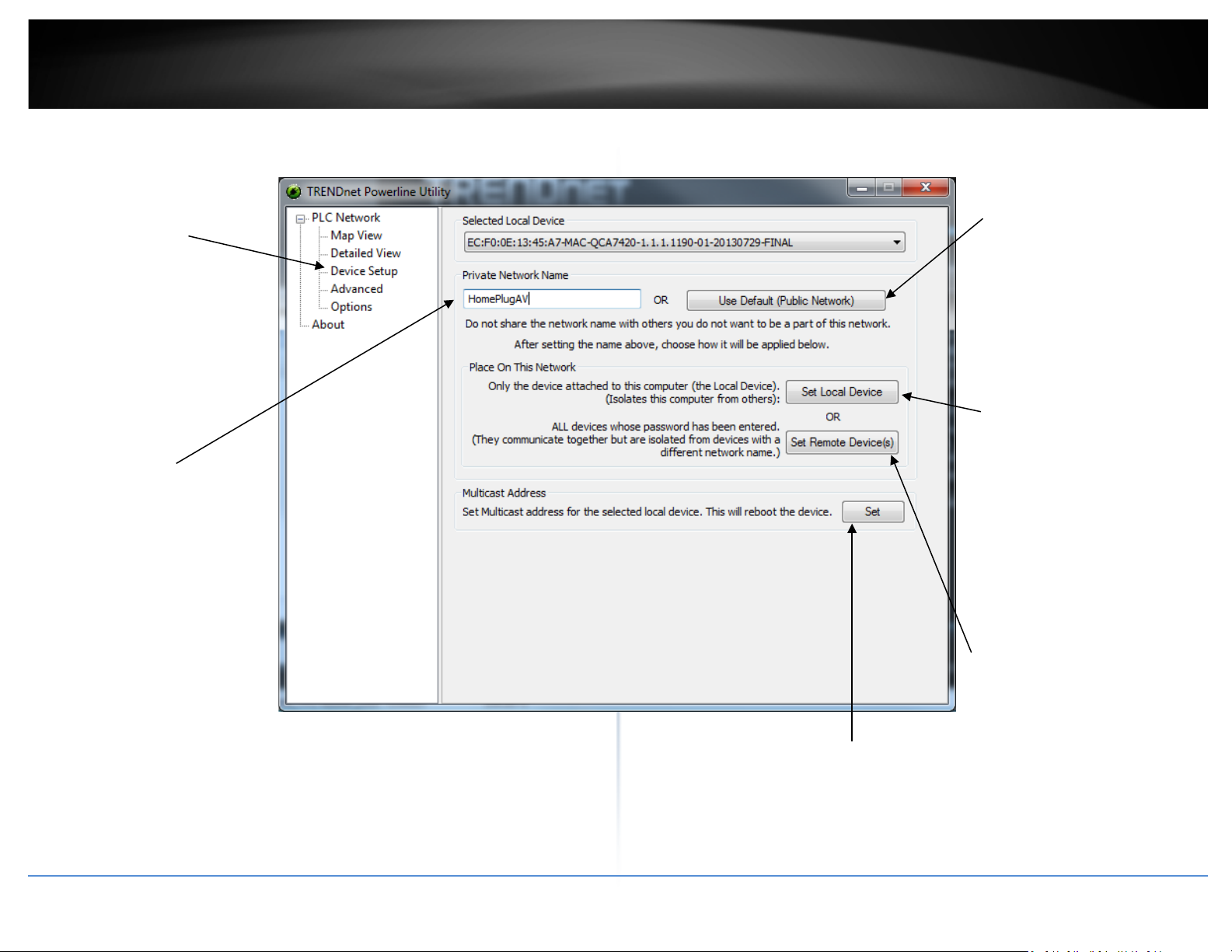

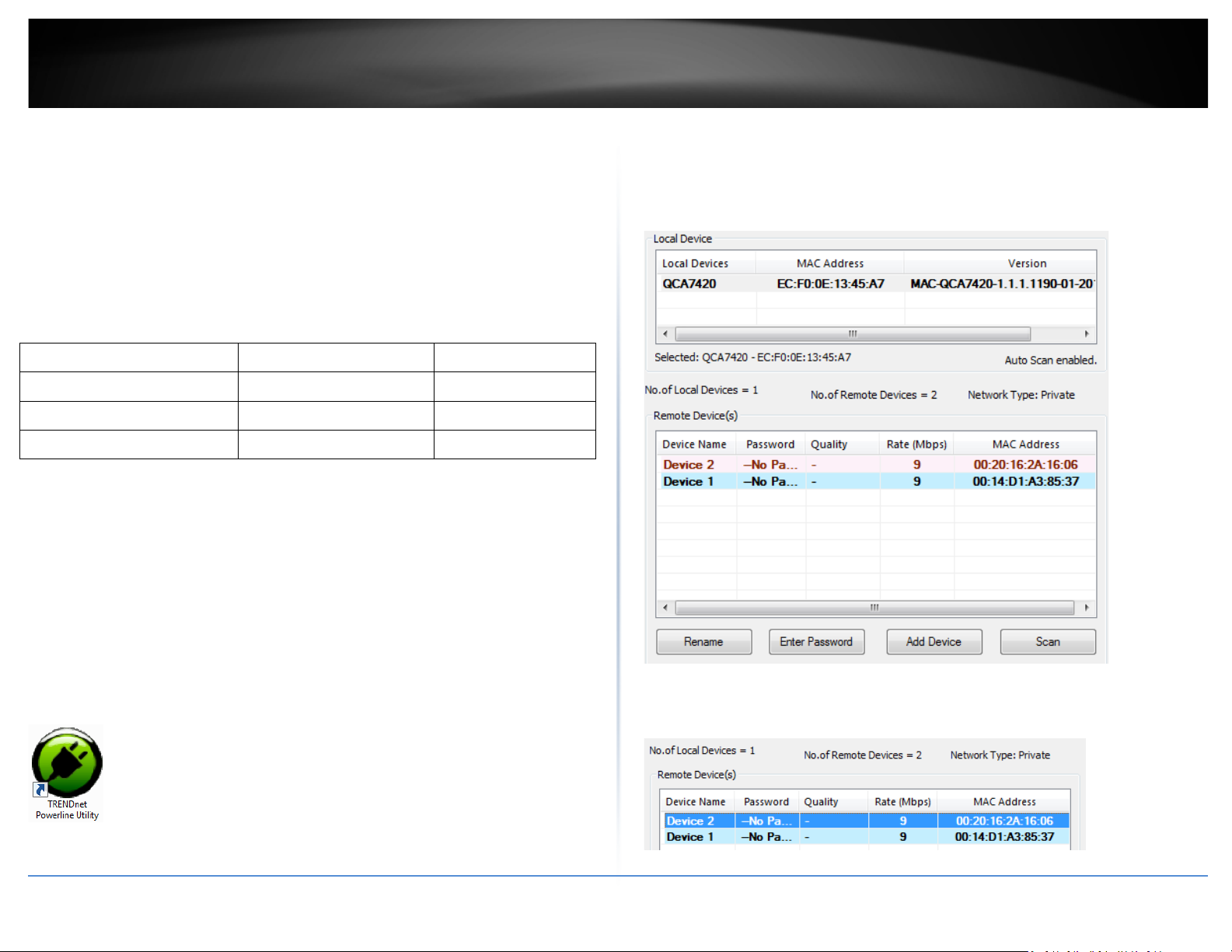

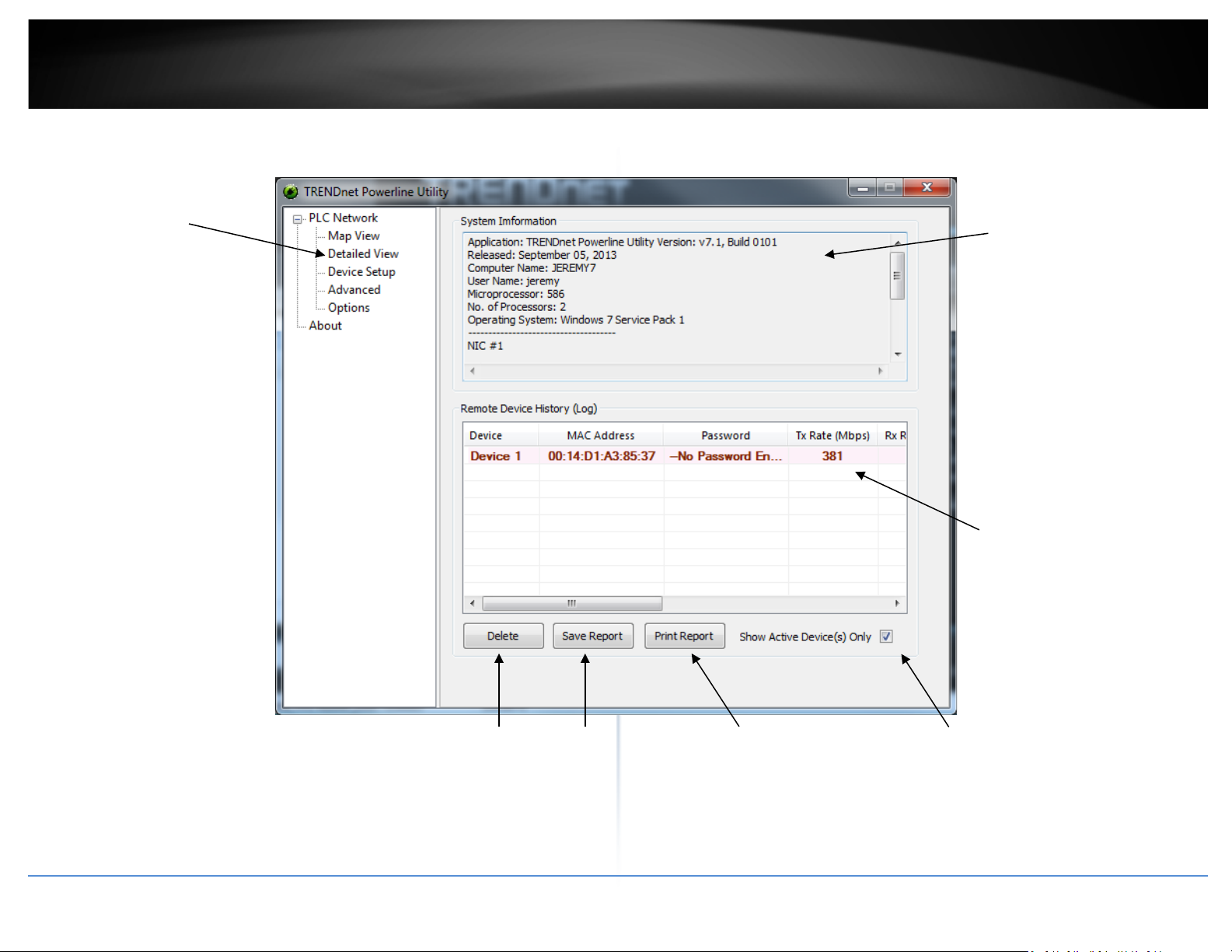

Using the Utility ........................................................................................................... 40

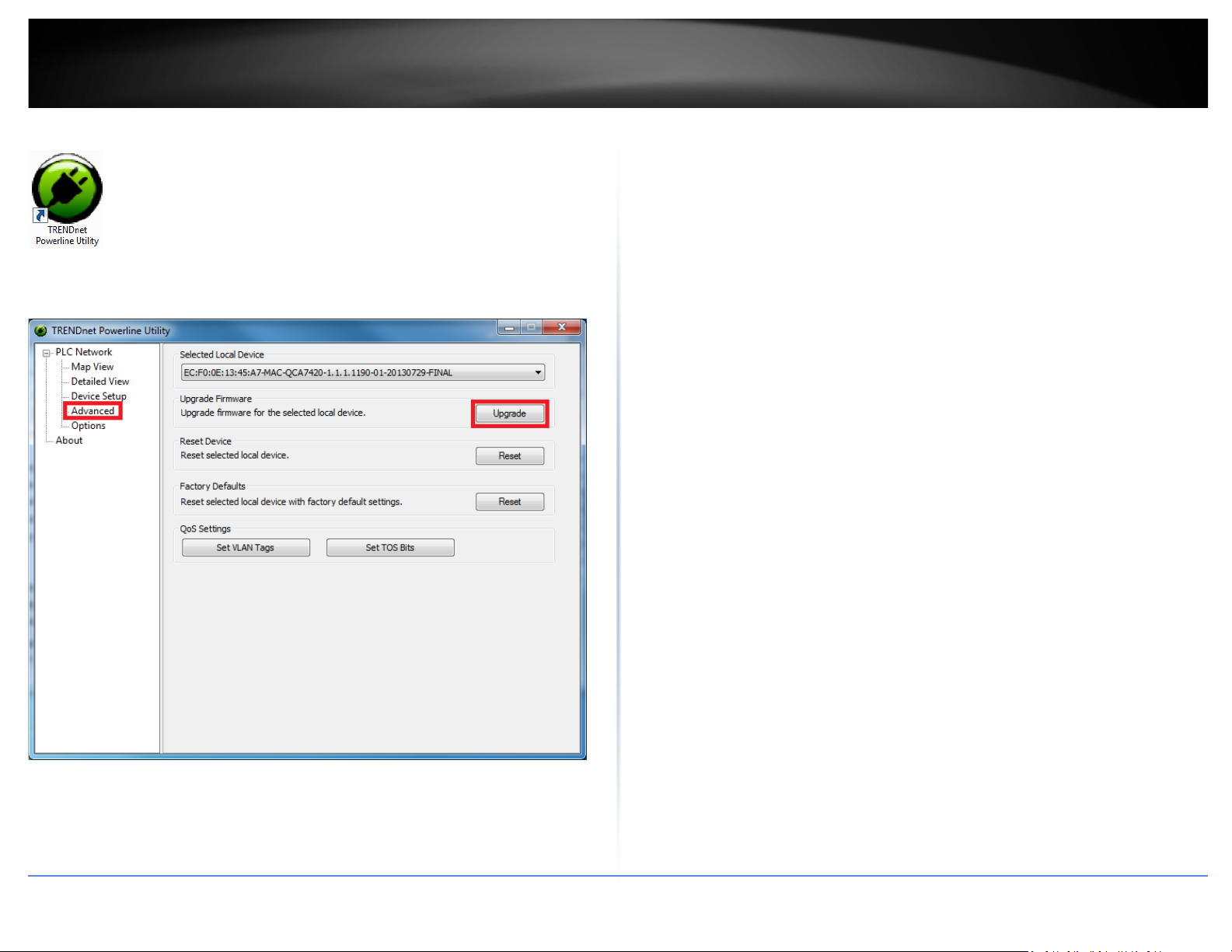

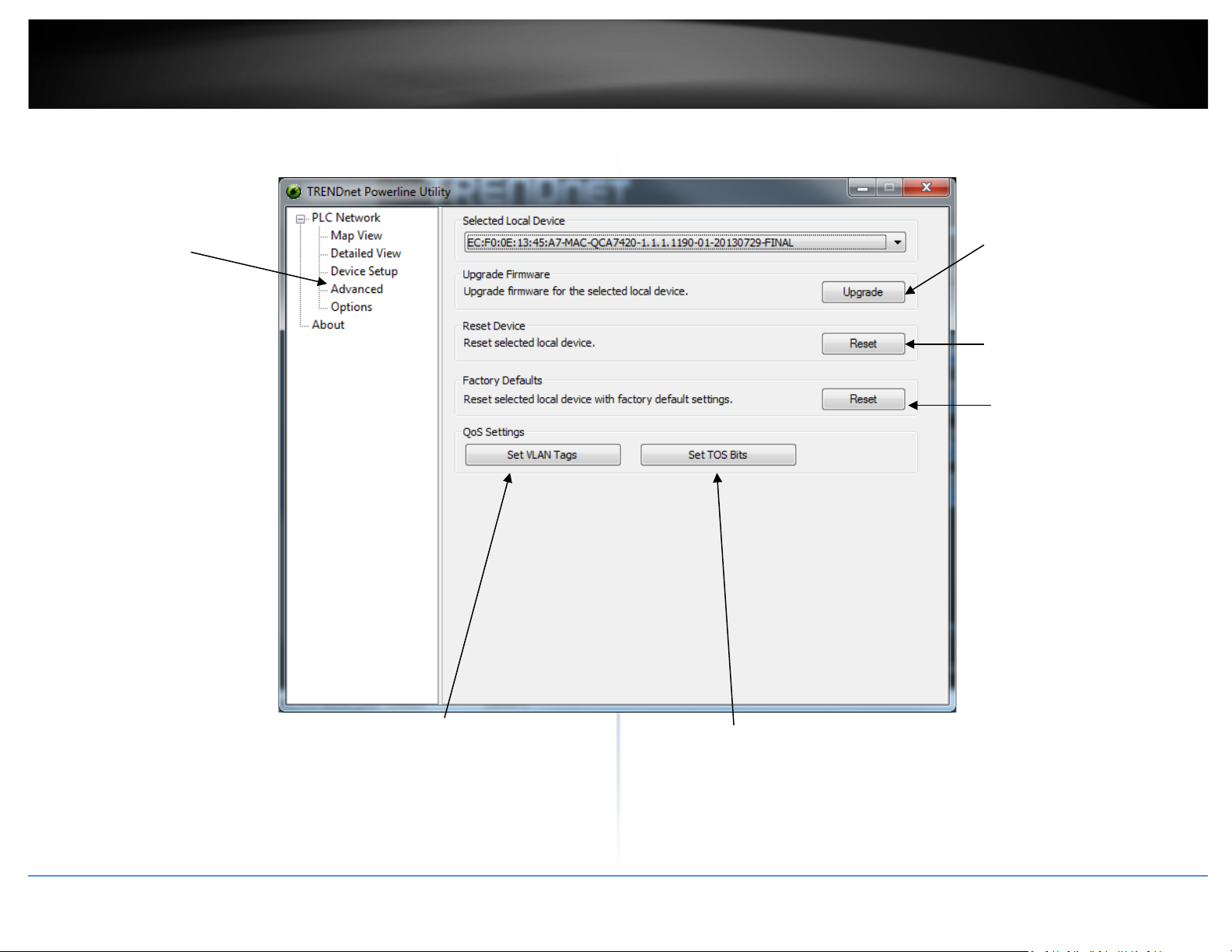

Upgrade Powerline Firmware ...................................................................................... 49

Access Point Management Page Structure ..................................... 51

Technical Specifications ................................................................ 52

Troubleshooting ........................................................................... 54

Appendix ...................................................................................... 56

TRENDnet User’s Guide

Product Overview

TPL-410AP TPL-410APK

Package Contents

TPL-410AP package includes:

• 1 x TPL-410AP Powerline 500 AV Wireless Access Point

• Quick Installation Guide

• CD-ROM (Utility & User’s Guide)

• Network cable (1.5 m / 5 ft.)

TPL-410APK package includes:

• 1 x TPL-410AP Powerline 500 AV Wireless Access Point

• 1 x TPL-406E Powerline 500 AV Nano Adapter

• Quick Installation Guide

• CD-ROM (Utility & User’s Guide)

• 2 x network cables (1.5 m / 5 ft.)

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

Features

Powerline 500 AV Wireless Access Point (TPL-410AP)

TRENDnet’s Powerline 500 AV Wireless Access Point, model TPL-410AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one adapter to a router and plug in the TPL-410AP on your electrical system to create or expand a high performance wireless network.

Powerline 500 Wireless Kit (TPL-410APK)

TRENDnet’s Powerline 500 Wireless Kit, model TPL-410APK, uses electrical outlets to create a hybrid Powerline-Wireless network. The included TRENDnet Powerline adapters (TPL-406E + TPL-410AP) auto-connect out of the box. Network the TPL-406E to a router and plug the TPL-410AP into an outlet on the electrical system to extend a high performance wireless network. Hardwire a smart TV, gaming console, or media player to the two Ethernet ports on the TPL-410AP.

Powerline

Auto-Connect Powerline

Simply plug in the Powerline adapters—all TRENDnet adapters autoconnect out of the box

Sync Button Press the Sync button to change existing Powerline encryption keys

Pre-Encrypted

For your security the Powerline signal is pre-encrypted

Powerline 500

High speed Powerline networking over existing electrical lines

Ethernet Ports

Two convenient Ethernet ports to hardwire computers, smart TVs, and other network enabled devices

TPL-410AP / TPL-410APK

Cross Compatible

TRENDnet Powerline 500 and 200 adapters work together

Product Model

LAN Ports 1-2 LEDs

LAN Ports 1-2

TRENDnet User’s Guide

Whole Home Coverage

Connects over electrical lines for houses up to 5000 square foot home (300 m/984 ft. linear distance over electrical lines)

Product Hardware Features

TPL-410AP

Device Label

TPL-410AP / TPL-410APK

Wireless

Quick Setup

Get up and running in minutes with the intuitive guided setup

N300 Wireless

Proven 300 Mbps Wireless N

Wireless Coverage Expanded wireless coverage with MIMO antenna technology Pre-Encrypted

For your security the wireless is pre-encrypted with a unique password

One Touch Connection

Securely connect wireless devices at the touch of the Wi-Fi Protected Setup (WPS) button

Serial Number

MAC Address

Hardware Version

Wi-Fi Network Name (SSID)

Wi-Fi Security Key

Device Management URL

Default User Name

Default Password

Powerline Device Password

Front View

10/100Mbps Ethernet

Compatibility

Compatible with legacy 2.4 GHz Wireless devices

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions

** 500 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition overheads. Maximum of 8 adapters (nodes) recommended for streaming video across your network.

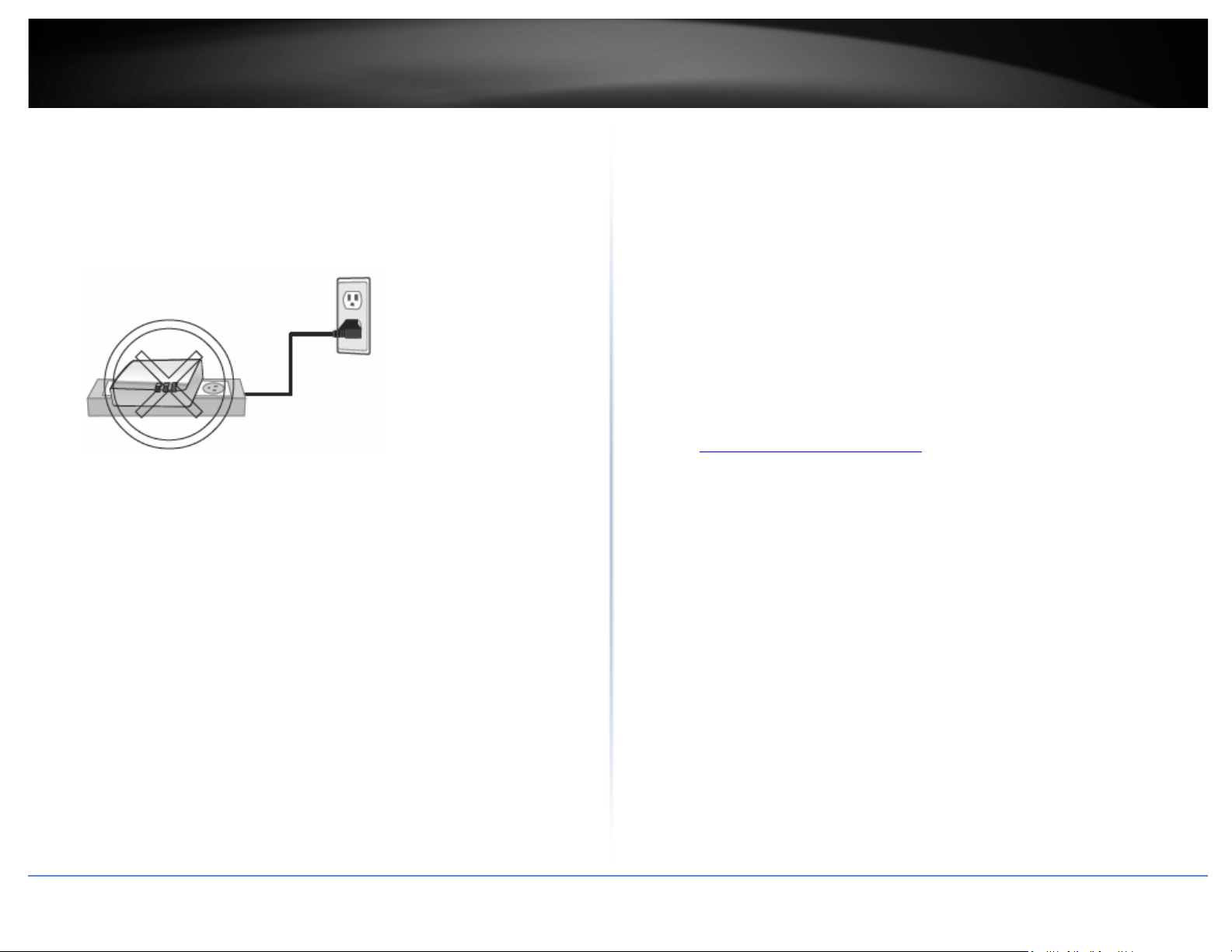

*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

Power (PWR) LED Wireless (WIFI) LED Powerline (PL) LED

TRENDnet User’s Guide

TPL-410AP / TPL-410APK

Side View

LED Color Sequence Definition

Green Solid Device powered on

WPS Button

Sync/Reset

Button

On/Off Power Switch (Powers

device on or off.)

Power Prong

PWR (Power)

WIFI (Wireless)

PL (Powerline)

Green Blinking WPS is activated

N/A Off Device powered off

Green Blinking Wireless enabled, data transmitting/receiving

N/A Off Wireless disabled

Solid Powerline connected (Connection quality is Best)

Green

Blinking

Solid Powerline connected (Connection quality is Better)

Amber

Blinking

Solid Powerline connected (Connection quality is Good)

Red

Blinking

Syncing or Powerline data transmitting/receiving (Connection quality is Best)

Powerline data transmitting/receiving (Connection quality is Better)

Powerline data transmitting/receiving (Connection quality is Good)

Button Action Function

Initiate Sync/Connection and generate random network name/key (PL LED will start blinking).

Note: The secondary or additional Powerline adapter’s Sync button must also be pushed within 2 minutes (120 sec) of pushing the Sync button on the first adapter in order to establish connectivity.

Reset device to factory defaults (PWR, PL, and WIFI LEDs will turn off and turn back on to indicate reset).

Note: Will reset to the factory default private network name “HomePlug AV”.

Activates WPS (Wi-Fi Protected Setup). The PWR (Power) LED will blink to indicate WPS has been successfully activated.

Sync / Reset

(see the section Using the Sync Button for instructions)

WPS

Sync

Push/hold for 3 seconds,

then release

Reset

Push/Hold for 10 seconds,

then release

WPS

Push/Hold for 3 seconds, then release

LAN Ports 1-2

(Ethernet Connection)

Note: Powerline (PL) LED color indicates the strength and quality of the Powerline connection through the electrical system. Note: The following factors may affect the Powerline network’s connection quality:

• Noise – Generated by appliances which use your electrical system (e.g.

Microwaves, ovens, blow dryer, iron, dishwasher, etc.). The quality of your household electrical wiring may also cause additional noise on your electrical system.

Distance – Long lengths of electrical wiring through your electrical system between connected Powerline adapters.

N/A Off Powerline is not synced or connected

10/20 Mbps , 100/200Mbps (Half/Full Duplex) connected

10/20 Mbps , 100/200Mbps (Half/Full Duplex) data transmitting/receiving

Green

N/A

Solid

Blinking

Off Port disconnected/no Ethernet link

Ethernet Connection (ETH) LED

Product Model

TRENDnet User’s Guide

TPL-410AP / TPL-410APK

TPL-406E

Side View

Important Note: Please note that the TPL-406E powerline adapter will only be

included when purchasing the Powerline 500 Wireless Kit, model TPL-410APK.

Device Label

Power Prong

Serial Number

Powerline Device Password

Hardware & Firmware Version

MAC Address

Front View

Button Action Function

Initiate Sync/Connection and generate random

Power (PWR) LED

Powerline (PL) LED

Sync / Reset

(see the section Using the Sync Button for instructions)

Sync

Push/hold for 3 seconds,

then release

Reset

Push/Hold for 20 seconds,

then release

network name/key (PWR LED will start blinking).

Note: The secondary or additional Powerline adapter’s Sync button must also be pushed within 2 minutes (120 sec) of pushing the Sync button on the first adapter in order to establish connectivity.

Reset device to factory defaults (All LEDs will turn off and turn back on).

Note: Will reset to the factory default private network name “HomePlug AV”.

Sync/Reset Button

Ethernet Port

The first Powerline unit is

TRENDnet User’s Guide

LED Color Sequence Definition

PWR

(Power)

(Powerline)

ETH

(Ethernet Connection)

• Noise – Generated by appliances which use your electrical system (e.g.

• Distance – Long lengths of electrical wiring through your electrical system

Green Solid Device powered on

N/A Off Device powered off

Solid

Green

Blinking

Solid

Amber

Blinking

Solid

Red

Blinking

N/A Off Powerline is not synced or connected

Solid

Green

Blinking

N/A

Microwaves, ovens, blow dryer, iron, dishwasher, etc.). The quality of your household electrical wiring may also cause additional noise on your electrical system.

between connected Powerline adapters.

Off Port disconnected/no Ethernet link

Powerline connected (Connection quality is Best)

Syncing or Powerline data transmitting/receiving (Connection quality is Best)

Powerline connected (Connection quality is Better)

Powerline data transmitting/receiving (Connection quality is Better)

Powerline connected (Connection quality is Good)

Powerline data transmitting/receiving (Connection quality is Good)

10/20 Mbps , 100/200Mbps (Half/Full Duplex) connected

10/20 Mbps , 100/200Mbps (Half/Full Duplex) data transmitting/receiving

Power Saving (TPL-406E): The device will automatically reduce power usage when the

connected device via Ethernet is powered off, unplugged or inactive for more than 5

minutes. The device will return to active mode when the connected device via Ethernet

is powered on and the link is active.

Note (TPL-406E): This device offers EU compliant Standby mode functionality. To turn

off the device, unplug it from the power outlet.

Note (TPL-410AP): This device offers EU compliant Off mode functionality. To turn off the device, push the power switch into the off position.

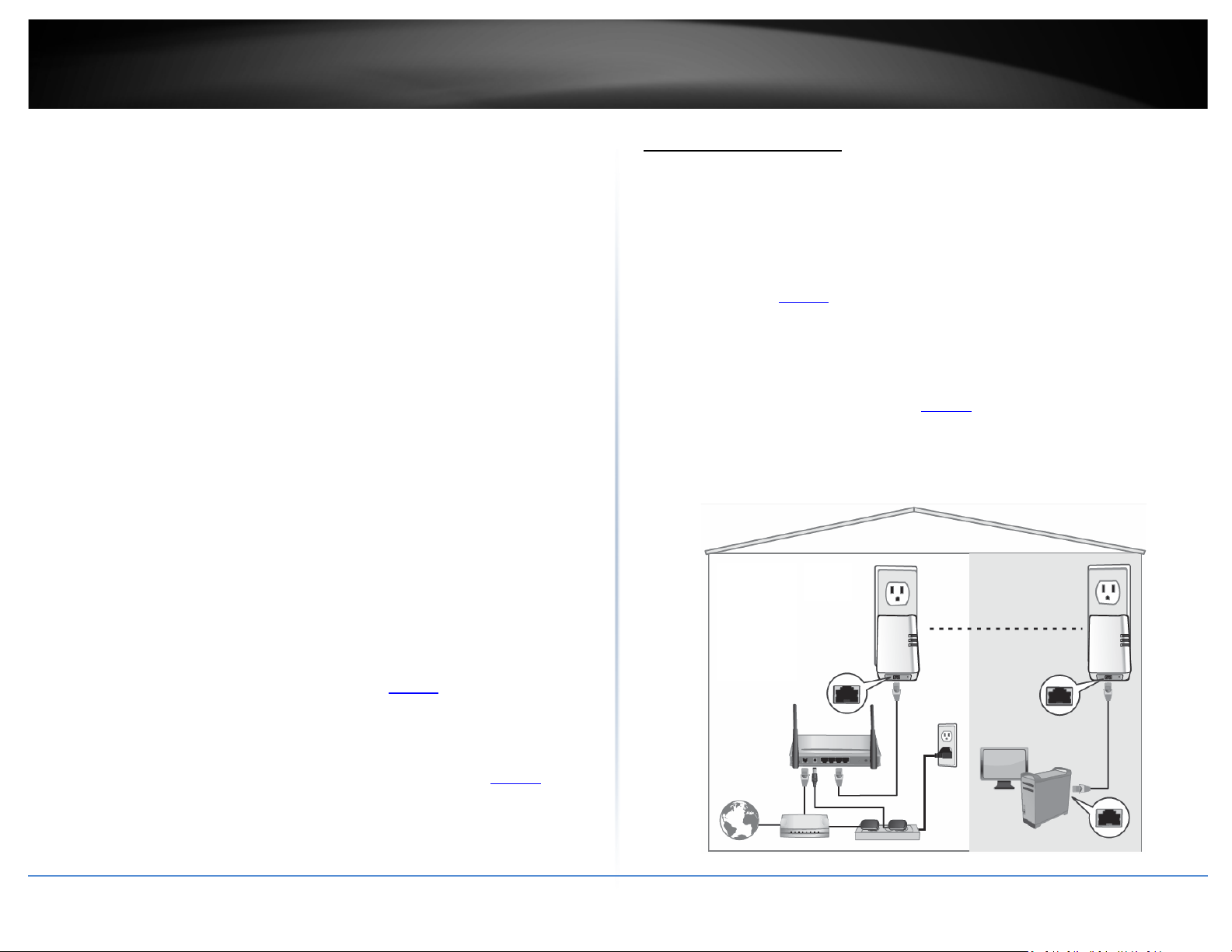

Application Diagram

TPL-410AP / TPL-410APK

networked to a router which is in turn connected to a modem (typically from your Internet Service Provider (ISP)) which provides Internet connectivity (ex. TPL-406E). The Powerline Access Point is plugged into a wall power outlet near a media center and can allow a network game console and another network enabled media device such as a network enabled media player to connect to the Ethernet ports and provide Internet connectivity and WiFi connectivity.

TRENDnet User’s Guide

Expanding a Home Network

What is a network?

A network is a group of computers or devices that can communicate with each other. A home network of more than one computer or device also typically includes Internet access, which requires a router.

A typical home network may include multiple computers, a media player/server, a printer, a modem, and a router. A large home network may also have a switch, additional routers, access points, and many Internet-capable media devices such as TVs, game consoles, and Internet cameras.

• Modem – Connects a computer or router to the Internet or ISP (Internet Service

Provider).

• Router – Connects multiple devices to the Internet.

• Switch –Connect several wired network devices to your home network. Your

router has a built-in network switch (the LAN port 1-4). If you have more wired network devices than available Ethernet ports on your router, you will need an additional switch to add more wired connections.

How to expand a home network

Wireless Access Points add or extend wireless connectivity to an existing network. Integrated Powerline technology allows you to further extend your network using your

existing electrical system in your home using multiple powerline adapters.

Where to find more help

In addition to this User’s Guide, you can find help below:

• http://www.trendnet.com/support

available from this Web page)

(documents, downloads, and FAQs are

TPL-410AP / TPL-410APK

TRENDnet User’s Guide

Basic Installation

Note: It is recommended to plug the adapters into nearby outlets before installing the devices to the desired locations.

Note: If you are connecting the adapters to a third party powerline device other than TRENDnet and encounter issues, please refer to the manufacturer’s documentation for the appropriate sync button procedure.

Note: The sync button procedure steps below demonstrate using TRENDnet powerline model TPL-406E (included with the Powerline 500 Wireless Kit only) but the same procedure applies to TRENDnet powerline models TPL-303E/304E/308E/4052E 407E/408E/420E.

Connecting the adapters using Powerline

5. Once you have successfully connected the powerline adapters through the electrical system, you can move the TPL-410AP to the desired location to create or extend wireless connectivity to your existing network.

6. For added security the TPL-410AP has been pre-configured with a unique wireless network name (SSID) and wireless key which can be found on the Preset Wireless Settings sticker or device label. Use these settings to connect your wireless laptops, mobile devices, and other wireless network devices to your network.

Move TPL-410AP to the desired location and connect your wireless network devices

TPL-410AP / TPL-410APK

TRENDnet User’s Guide

TPL-410AP / TPL-410APK

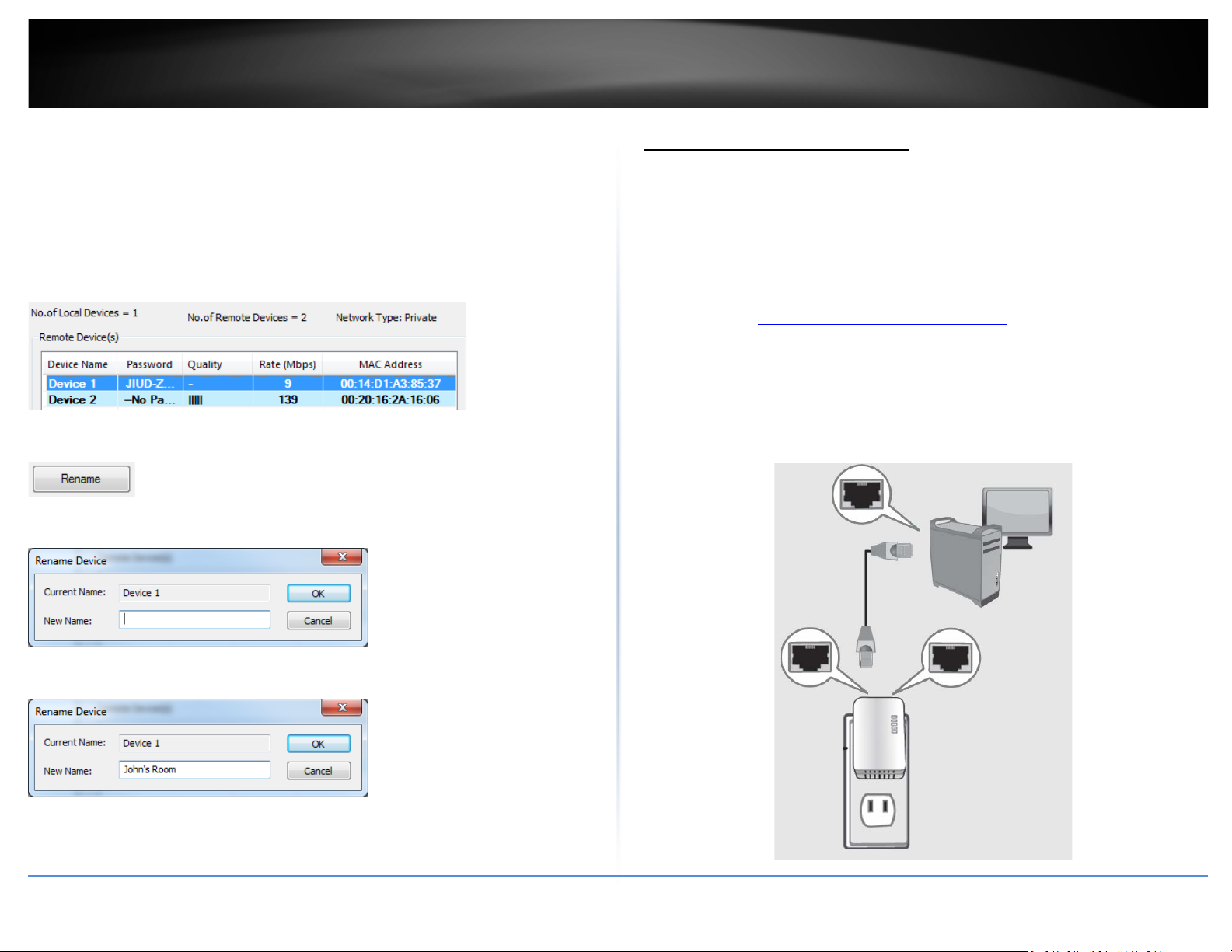

Connect additional wired devices to your network

Connect one of the available LAN ports labeled 1 & 2, on the access point to your router using an Ethernet cable. You can connect additional computers or other network enabled devices to your network by using Ethernet cables to connect them to your access point. Check the status of the LED indicators (1, 2) on the front panel of your access point to ensure the physical cable connection from your router and your computers or devices.

Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured to obtain IP address settings automatically (also called dynamic IP address or DHCP) and to Obtain DNS Server address settings automatically.

TRENDnet User’s Guide

Configure your Wireless Access Point

Access your access point management page

Note: Your access point management page default IP address http://192.168.10.100 is accessed through the use of your Internet web browser (e.g. Internet Explorer®, Firefox®, Chrome™, Safari®, Opera™) and will be referenced frequently in this User’s Guide.

If you have changed the default IP address, you will need to ensure that your computer is configured with IP address settings in the same subnet as the as the access point in order to access the access point management page. (Ex. Access Point IP address changed to

192.168.0.100 / 255.255.255.0, example computer address 192.168.0.25 /

255.255.255.0).

1. Plug the wireless access point into an available wall power outlet within reach of your computer’s network cable.

2. Connect a network cable from your wireless access point network port into your computer’s network port.

3. Assign a static IP address to your computer’s network adapter in the subnet of

192.168.10.x (ex. 192.168.10.25) and a subnet mask of 255.255.255.0. (Please refer to the Appendix

4. Open your web browser and go to IP address http://192.168.10.100 point will prompt you for a user name and password.

5. By default, the user name is admin and password is admin. You can also find the

Password on a sticker on the side of the access point and on the label on the back of the access point. Enter your Username and Password, select your preferred language, then click Login.

Note: If you have changed the password already such as in the Setup Wizard, you will need to login using the new password.

Default User Name: admin Default Password: admin

Note: User Name and Password are case sensitive.

on page 55 on how to assign static IP address to your computer)

TPL-410AP / TPL-410APK

. Your access

TRENDnet User’s Guide

Setup Wizard

1. Log into your access point management page (see “

management page” on page 9).

click Wizard. For security purposes, you are required to change the admin password during the initial setup.

Access your access point

3. For added security, the Wi-Fi Name (SSID) and WiFi Key or encryption key have been preconfigured with unique settings. The wizard will list your preconfigured Wi-Fi settings in the confirmation window. You can also find these preconfigured settings on the “Preset Wireless Settings” sticker or on the device label on the back on the device. You will need to use this information to connect your wireless devices to your access point. To change the Wi-Fi key, please refer to the section Secure your Wireless Network on page 11. If the access point is reset to factory defaults, the Wi-Fi Key and Wi-Fi Name will reset to the preconfigured default settings.

TPL-410AP / TPL-410APK

2. Enter a new password and verify the password by entering a second in in the

“Confirmed Password” field. Click Next.

Note: If this is the first time accessing the access point configuration, the wizard should automatically appear. If the wizard does not appear automatically, click Main and then

Security Standard

WEP

WPA

WPA2

Standards

using this standard)

IEEE 802.11b/g

standard)

IEEE 802.11b/g/n

Highest

Setting

Up to 54Mbps

Up to 300Mbps

Encryption Strength

Low

Medium

High

Open System or

Different key sizes

TKIP

8-63 characters

AES

8-63 characters

300Mbps)

TRENDnet User’s Guide

Wireless Networking and Security

How to choose the type of security for your wireless network

Setting up wireless security is very important. Leaving your wireless network open and unsecure could expose your entire network and personal files to outsiders. TRENDnet recommends reading through this entire section and setting up wireless security on your new access point. There are a few different wireless security types supported in wireless networking each having its own characteristics which may be more suitable for your wireless network taking into consideration compatibility, performance, as well as the security strength along with using older wireless networking hardware (also called legacy hardware). It is strongly recommended to enable wireless security to prevent unwanted users from accessing your network and network resources (personal documents, media, etc.). In general, it is recommended that you choose the security type with the highest strength and performance supported by the wireless computers and devices in your network. Please review the security types to determine which one you should use for your network.

Wireless Encryption Types

• WEP: Legacy encryption method supported by older 802.11b/g hardware. This is

the oldest and least secure type of wireless encryption. It is generally not recommended to use this encryption standard, however if you have old 802.11 b or

802.11g wireless adapters or computers with old embedded wireless cards(wireless clients), you may have to set your access point to WEP to allow the old adapters to connect to the access point.

Note: This encryption standard will limit connection speeds to 54Mbps.

• WPA: This encryption is significantly more robust than the WEP technology. Much

of the older 802.11g hardware was been upgraded (with firmware/driver upgrades) to support this encryption standard. Total wireless speeds under this encryption type however are limited to 54Mbps.

• WPA-Auto: This setting provides the access point with the ability to detect

wireless devices using either WPA or WPA2 encryption. Your wireless network will automatically change the encryption setting based on the first wireless device connected. For example, if the first wireless client that connects to your wireless network uses WPA encryption your wireless network will use WPA encryption. Only when all wireless clients disconnect to the network and a wireless client with WPA2 encryption connects your wireless network will then change to WPA2 encryption.

Note: WPA2 encryption supports 802.11n speeds and WPA encryption will limit your connection speeds to 54Mbps

• WPA2: This is the most secure wireless encryption available today, similar to WPA

encryption but more robust. This encryption standard also supports the highest connection speeds. TRENDnet recommends setting your access point to this encryption standard. If you find that one of your wireless network devices does not support WPA2 encryption, then set your access point to either WPA or WPA-Auto encryption.

Note: Check the specifications of your wireless network adapters and wireless appliances to verify the highest level of encryption supported. Below is brief

comparison chart of the wireless security types and the recommended configuration depending on which type you choose for your wireless network.

IEEE 802.11b/g (802.11n devices

Compatible Wireless

Performance Under This

Additional Options

Recommended Configuration

*Dependent on the maximum 802.11n data rate supported by the device (150Mbps,

will operate at

802.11g to connect

Shared Key, HEX or ASCII,

Open System ASCII 13 characters

TPL-410AP / TPL-410APK

(802.11n devices will operate at

802.11g to connect using this

TKIP or AES, Preshared Key or RADIUS

Preshared Key

TKIP or AES, Preshared Key or RADIUS

Preshared Key

TRENDnet User’s Guide

Secure your wireless network

Wireless > Security

After you have determined which security type to use for your wireless network (see “How to choose the security type for your wireless network wireless security.

Note: By default, your access point is configured with a predefined wireless network name (SSID) and security key using WPA2-Personal. The predefined wireless network name and security can be found on the sticker on the side of the access point or on the device label at the bottom of the access point.

1. Log into your access point management page (see “

management page” on page 9).

2. Click on Wireless, and click on Security.

3. Click on the Security Mode drop-down list to select your wireless security type.

Selecting WEP:

If selecting WEP (Wired Equivalent Privacy), please review the WEP settings to configure and click Save to save the changes, then click Save again to commit the changes.

” on page 11), you can set up

Access your access point

Note: Please note that you may receive an error message regarding WPS when attempting to set to WEP encryption. WPS will not work when using WEP security and must be disabled first under Wireless > Wi-Fi Protected Setup, before using WEP security. WPS will only work when using WPA2 encryption.

• Mode: Choose Open, Shared, or Both.

Note: It is recommended to use Auto which includes both Open and Shared. Open is known to be more secure than Shared Key.

• Primary Key: Select the key index 1-4 to use.

Note: Please note that the key index number also must match the setting on the wireless client devices you are connecting.

• Key 1-4: Next to the Key number you select for the Primary Key, enter the WEP

key. This is the password or key that is used to connect your computer to this access point wirelessly. You can enter a 64-bit or 128-bit key.

Note: It is recommended to use 128-bit because it is more secure to use a key that consists of more characters.

TPL-410AP / TPL-410APK

Review the wireless security settings, click Save when finished. When prompted to Save or Continue, you can click Save to apply the changes or click Continue to additional changes in the access point management page before saving.

WEP Key Format HEX ASCII

Character set 0-9 & A-F, a-f only Alphanumeric (a,b,C,?,*, /,1,2, etc.)

64-bit key length 10 characters 5 characters

128-bit key length 26 characters 13 characters

TRENDnet User’s Guide

Selecting WPA/WPA2/Auto-Personal Shared Key (WPA2 AES recommended):

Note: Please note that WPS will only work when using WPA2 encryption. If using WPA encryption, you must disable WPS feature first under Wireless > Wi-Fi Protected Setup.

First, in the Security Mode drop-down list, select WPA.

In the Type drop-down list, select either Personal Shared Key or Enterprise/RADIUS support.

• Personal Shared Key – Create your own personal security key. (Recommended)

• Enterprise – Also called RADIUS (Remote Dial-In User Service). Requires an

external RADIUS server to authenticate clients.

The following section outlines options when selecting Personal Shared Key

(WPA/WPA2/Auto)

Then, in the Mode section, select WPA, WPA2, or Auto (WPA2 Recommended) Finally, in the Encryption section, select TKIP, AES, or Auto.

o When selecting WPA mode, it is recommended to use TKIP encryption. o When selecting WPA2 mode, it is recommended to use AES encryption. o When selecting Auto mode, it is recommended to use AES encryption.

Create your WiFi Security Key (PSK)

• PSK Key – Enter the key or passphrase

• Note: This is the key that is used to connect your computer and other wireless

client devices to your router Note: 8-63 alphanumeric characters (a,b,C,?,*,/,1,2, etc.)

Selecting WPA /WPA2/Auto-Enterprise/RADIUS Support:

The following section outlines options when selecting WPA-Enterprise (EAP or RADIUS). This security type is also known as EAP (Extensible Authentication Protocol) or Remote Authentication Dial-In User Service or RADIUS.

Note: This security type requires an external RADIUS server, Pre-Shared Key only requires you to create a passphrase.

• RSN Preauth – Enable this feature only if your external RADIUS server and wireless

client support RSN (Robust Security Network) Pre-authentication used more commonly for wireless client roaming between multiple access points.

• EAP Reauth Period – Set the time in seconds when the wireless access point will

request for re-authentication from the wireless client.

• Server: Enter the IP address of the RADIUS server. (e.g. 192.168.10.250)

• Port: Enter the port your RADIUS server is configured to use for RADIUS

authentication.

Note: It is recommended to use port 1812 which is typical default RADIUS port.

• Secret: Enter the shared secret used to authorize your access point with your

RADIUS server.

TPL-410AP / TPL-410APK

TRENDnet User’s Guide

Connect wireless devices to your access point

A variety of wireless network devices can connect to your wireless network such as:

• Gaming Consoles

• Internet enabled TVs

• Network media players

• Smart Phones

• Wireless Laptop computers

• Wireless IP cameras

Each device may have its own software utility for searching and connecting to available wireless networks, therefore, you must refer to the User’s Manual/Guide of your wireless client device to determine how to search and connect to this access point’s wireless network.

See the “Appendix network.

” on page 55 for general information on connecting to a wireless

Connect wireless devices using WPS

WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your wireless network. If your wireless devices support WPS, you can use this feature to easily add wireless devices to your network.

Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled or if you are using WEP or WPA security. Please note that WPS functionality will only be available when using WPA2 security.

There are two methods the WPS feature can easily connect your wireless devices to your network.

• Push Button Configuration (PBC) method

• (RECOMMENDED) Hardware Push Button method–with an external button

located physically on your access point and on your client device

• WPS Software/Virtual Push Button - located in access point management page

• PIN (Personal Identification Number) Method - located in access point management

page

Note: Refer to your wireless device documentation for details on the operation of WPS.

Recommended Hardware Push Button (PBC) Method

• Note: It is recommended that a wireless key (passphrase or password) is created

before connecting clients using the PBC method. By default your access point is preconfigured with a wireless encryption key. If no wireless key is defined when connecting via PBC, the access point will automatically create an encryption key that is 64 characters long. This 64 character key will then have to be used if one has to connect computers to the access point using the traditional connection method.

To add a wireless device to your network, simply push the WPS button on the wireless device you are connecting (consult client device User’s Guide for length of time), then push and hold the WPS button located on your access point for 3 seconds and release it. The PWR LED will blink to indicate WPS has been activated on your access point. (See “Product Hardware Features

For connecting additional WPS supported devices, repeat this process for each additional device.

” on page 2)

TPL-410AP / TPL-410APK

TRENDnet User’s Guide

PBC (Software/Virtual Push Button)

Wireless > Wi-Fi Protected Setup

In addition to the hardware push button located physically on your access point, the access point management page also has push button which is a software or virtual push button you can click to activate WPS on your access point.

1. Log into your access point management page (see “

management page” on page 9).

2. Click on Wireless, and click on Wi-Fi Protected Setup.

3. To add a wireless device to your network, under the section Add Wireless Device, next to Virtual Push Button, click Start PBC in the access point management page.

PIN (Personal Identification Number)

Wireless > Wi-Fi Protected Setup

If your wireless device has WPS PIN (typically an 8-digit code printed on the wireless device product label or located in the wireless device wireless software utility), you can use this method.

Access your access point

1. Log into your access point management page (see “

management page” on page 9).

2. Click on Wireless, and click on Wi-Fi Protected Setup.

3. To add a wireless device to your network, under the section Add Wireless Device, next to Client PIN, enter the wireless device’s 8-digit numeric PIN in the field and click Start PIN in the access point management page.

Note: You may need to initiate the WPS PIN on your wireless device first when using this method. Refer to your wireless device documentation for details on the operation of WPS.

TPL-410AP / TPL-410APK

Access your access point

5. Within 2 minutes, push the WPS button on the wireless device (consult wireless device’s User’s Guide for length of time) you are connecting. The wireless connection between the wireless client device and you r access point will automatically be established.

5. Within 2 minutes, initiate the WPS PIN method on the wireless device (consult

wireless device’s User’s Guide for how to initiate the WPS method) you are connecting. he wireless connection between the wireless client device and you r access point will automatically be established.

TRENDnet User’s Guide

Basic Wireless Settings

Wireless > Basic

This section outlines available management options under basic wireless sub tab.

1. Log into your access point management page (see “

management page” on page 9).

2. Click on Wireless and click on Basic.

3. Review the basic wireless settings and click Save when finished. When prompted to

Save or Continue, you can click Save to apply the changes or click Continue to additional changes in the access point management page before saving.

• Enable Wireless LAN Interface – Check the option to enable the wireless

network/band or uncheck to disable. Note: It is recommended to leave this setting

checked.

• Channel – Selecting the Auto option will set your access point to scan for which

wireless channel(s) to use automatically. Otherwise, you to manually set the channel on which the access point will broadcast. Click the drop-down list and select the desired Channel for wireless communication. The goal is to select the Channel that is least used by neighboring wireless networks.

Access your access point

When applying the Mode setting, please keep in mind the following:

• Wireless devices that support 802.11n are backwards compatible and can connect

wirelessly at 802.11g or 802.11b.

• Connecting at 802.11b or 802.11g will limit the capability of your 802.11n

supported wireless devices from obtaining higher performance and data rates.

• Allowing 802.11b or 802.11g devices to connect to an 802.11n capable wireless

network may degrade the wireless network performance below the higher performance and data rates of 802.11n.

• Wireless devices that only support 802.11b or 802.11g will not be able to connect

to a wireless network that is set to 802.11n only mode.

• Wireless devices that only support 802.11b will not be able to connect to a wireless

network that is set to 802.11g only mode.

TPL-410AP / TPL-410APK

• Wireless Network Name (SSID): Enter the wireless name (SSID) for your wireless

network. This acronym stands for Service Set Identifier and is the name of your wireless network. It differentiates your wireless network from others around you. By default, the access point’s wireless name is unique to the device. If you choose to change the SSID, change it to a name that you can easily remember.

• Channel Width: Select the appropriate channel width for your wireless network.

This setting only applies to 802.11n. For greater 802.11n performance, select 20/40MHz (Auto) (Options: 20MHz or 20/40MHz (Auto)). It is recommended to use the default channel bandwidth settings.

Note: Please note that this setting may provide more stability than the higher channel bandwidth settings such as 20/40MHz (Auto) for connectivity in busy wireless environments where there are several wireless networks in the area.

• HT20 MHz – This mode operates using a single 20MHz channel for

wireless devices connecting at 802.11n on both 2.4GHz and 5GHz. This setting may provide more stability than 20/40MHz (Auto) for

TRENDnet User’s Guide

connectivity in busy wireless environments where there are several neighboring wireless networks in the area.

• HT20/40MHz (Auto) –When 20/40MHz (Auto) is active, this mode is

capable of providing higher performance only if the wireless devices

support the channel bandwidth settings. Enabling 20/40MHz (Auto)

typically results in substantial performance increases when connecting

an 802.11n client.

• Broadcast SSID

• Enable - Allows wireless devices to search and discover your wireless

network name (also called SSID) broadcasted by your access point.

• Invisible - Turns off the ability for wireless devices to find your

network. It is still possible for wireless devices to be configured to

connect to your wireless network. Disabling this setting will disable

TPL-410AP / TPL-410APK

WPS functionality.

TRENDnet User’s Guide

Steps to improve wireless connectivity

There are a number of factors that can impact the range of wireless devices. Follow these tips to help improve your wireless connectivity:

1. Keep the number of obstructions to a minimum. Each obstruction can reduce

the range of a wireless device. Position the wireless devices in a manner that will minimize the amount of obstructions between them.

a. For the widest coverage area, install your access point near the center

of your home, and near the ceiling, if possible.

b. Avoid placing the access point on or near metal objects (such as file

cabinets and metal furniture), reflective surfaces (such as glass or mirrors), and masonry walls.

c. Any obstruction can weaken the wireless signal (even non-metallic

objects), so the fewer obstructions between the access point and the wireless device, the better.

d. Place the access point in a location away from other electronics,

motors, and fluorescent lighting.

e. Many environmental variables can affect the access point’s

performance, so if your wireless signal is weak, place the access point in several locations and test the signal strength to determine the ideal position.

2. Building materials can have a large impact on your wireless signal. In an indoor

environment, try to position the wireless devices so that the signal passes through less dense material such as dry wall. Dense materials like metal, solid wood, glass or even furniture may block or degrade the signal.

3. Antenna orientation can also have a large impact on your wireless signal. Use

the wireless adapter’s site survey tool to determine the best antenna orientation for your wireless devices.

4. Interference from devices that produce RF (radio frequency) noise can also

impact your signal. Position your wireless devices away from anything that generates RF noise, such as microwaves, radios and baby monitors.

If possible, upgrade wireless network interfaces (such as wireless cards in computers) from older wireless standards to 802.11n or 802.11ac. If a wirelessly networked device uses an older standard, the performance of the entire wireless network may be slower. If you are still experiencing low or no signal consider repositioning the wireless devices, installing additional access points or wireless extenders.

TPL-410AP / TPL-410APK

+ 45 hidden pages

TRENDnet TPL-410APK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Overview

Package Contents

Features

Product Hardware Features

TPL-410AP

TPL-406E

Application Diagram

Expanding a Home Network

Basic Installation

Connect additional wired devices to your network

Configure your Wireless Access Point

Access your access point management page

Setup Wizard

Wireless Networking and Security

How to choose the type of security for your wireless network

Secure your wireless network

Connect wireless devices to your access point

Connect wireless devices using WPS

Basic Wireless Settings

Steps to improve wireless connectivity
