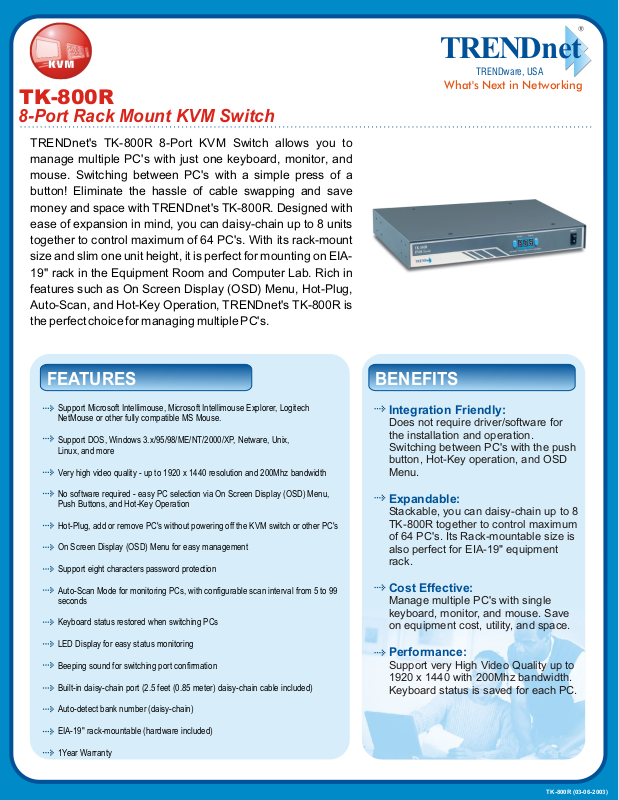

TK-800R

8-Port Rack Mount KVM Switch

TRENDnet's TK-800R 8-Port KVM Switch allows you to manage multiple PC's with just one keyboard, monitor, and mouse. Switching between PC's with a simple press of a button! Eliminate the hassle of cable swapping and save money and space with TRENDnet's TK-800R. Designed with ease of expansion in mind, you can daisy-chain up to 8 units together to control maximum of 64 PC's. With its rack-mount size and slim one unit height, it is perfect for mounting on EIA19" rack in the Equipment Room and Computer Lab. Rich in features such as On Screen Display (OSD) Menu, Hot-Plug, Auto-Scan, and Hot-Key Operation, TRENDnet's TK-800R is the perfect choice for managing multiple PC's.

TRENDnet

TRENDware, USA

What's Next in Networking

Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech NetMouse or other fully compatible MS Mouse.

Support DOS, Windows 3.x/95/98/ME/NT/2000/XP, Netware, Unix, Linux, and more

Very high video quality - up to 1920 x 1440 resolution and 200Mhz bandwidth

No software required - easy PC selection via On Screen Display (OSD) Menu, Push Buttons, and Hot-Key Operation

Hot-Plug, add or remove PC's without powering off the KVM switch or other PC's

On Screen Display (OSD) Menu for easy management

Support eight characters password protection

Auto-Scan Mode for monitoring PCs, with configurable scan interval from 5 to 99 seconds

Keyboard status restored when switching PCs

LED Display for easy status monitoring

Beeping sound for switching port confirmation

Built-in daisy-chain port (2.5 feet (0.85 meter) daisy-chain cable included)

BENEFITSFEATURES

Integration Friendly:

Does not require driver/software for the installation and operation. Switching between PC's with the push button, Hot-Key operation, and OSD Menu.

Expandable:

Stackable, you can daisy-chain up to 8 TK-800R together to control maximum of 64 PC's. Its Rack-mountable size is also perfect for EIA-19" equipment rack.

Cost Effective:

Manage multiple PC's with single keyboard, monitor, and mouse. Save on equipment cost, utility, and space.

Performance:

Support very High Video Quality up to 1920 x 1440 with 200Mhz bandwidth. Keyboard status is saved for each PC.

Auto-detect bank number (daisy-chain)

EIA-19" rack-mountable (hardware included)

1Year Warranty

TK-800R (03-06-2003)

TK-800R

8-Port Rack Mount KVM Switch

SPECIFICATIONS

Computer Port:

•

8 ports.

•

Keyboard and Mouse: PS/2 type mini Din 6-pin,

•

VGA: HDDB 15-pin

Daisy-Chain Port:

• 1 port.

• Keyboard and Mouse: PS/2 type mini

Din 6-pin

• VGA HDDB 15-pin

Console Port:

• 1 port.

• Keyboard and Mouse: PS/2 type mini

Din 6-pin,

• VGA: HDDB 15-pin

KVM Cable:

• 1 x 2.5 feet (0.85 m) high-grade KVM

cable (UL2919 for VGA monitor).

PC Selection:

• On Screen Display Menu, Hot-Keys,

and push button

LED Segment:

• One Bank LED, Two PC Port LEDs

Auto-Scan Intervals:

• 5 ~ 99 seconds

Keyboard State:

• Saved and restored

Video Bandwidth:

• 200MHz

Power Adapter:

• External AC Power adapter, 12VDC,

1A (or 9VDC, 1A)

Dimensions:

• 410 x 165 x 47 mm

(16.1 x 6.5 x 1.85 inches)

Weight:

• Appro. 2.2 Kg. (4.85 lbs)

Temperature:

• Operating: 0° ~ 40° C (32° ~104° F)

• Storage: -20° ~ 60° C (-4 ~ 140° F)

Humidity:

• 0 ~ 80%, Non-Condensing

Certifications:

• FCC, CE

NETWORKING SOLUTIONS

To Order Please Call:

1-888-326-6061

PRODUCT INFORMATION

TK-801R: 8-Port Rack Mount KVM Switch

TK-200: 2-Port KVM Switch Kit

TK-400: 4-Port KVM Switch

TK-800R: 8-Port Rack Mount KVM Switch

TK-C06: 6 feet KVM Cable

TK-C10: 10 feet KVM Cable

ORDERING INFORMATION

TRENDware International, Inc.

3135 Kashiwa Street Torrance, CA. 90505. USA Tel: 310-891-1100 Fax: 310-891-1111
