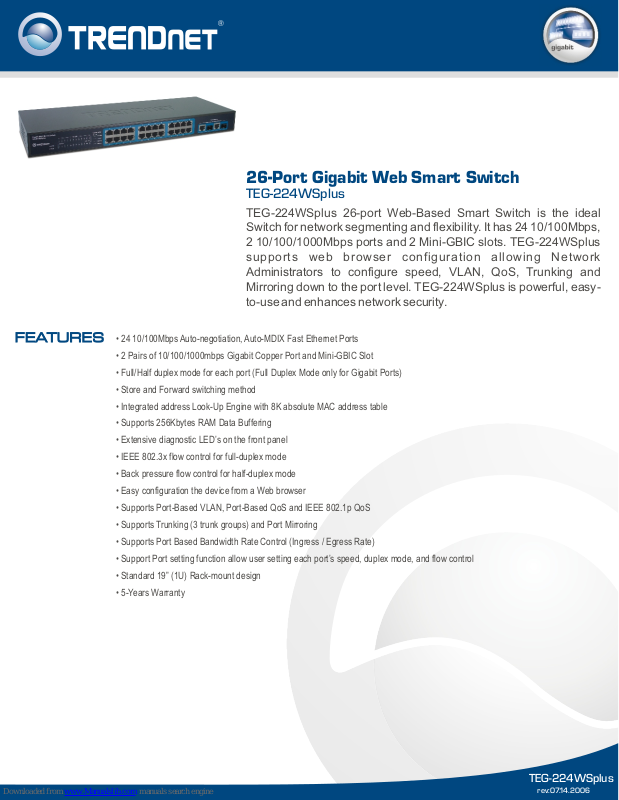

TRENDnet TEG-224WSPLUS - DATA SHEETS Datasheet
26-Port Gigabit Web Smart Switch
TEG-224WSplus
TEG-224WSplus 26-port Web-Based Smart Switch is the ideal
Switch for network segmenting and flexibility. It has 24 10/100Mbps,
2 10/100/1000Mbps ports and 2 Mini-GBIC slots. TEG-224WSplus
supports web browser configuration allowing Network
Administrators to configure speed, VLAN, QoS, Trunking and
Mirroring down to the port level. TEG-224WSplus is powerful, easyto-use and enhances network security.
FEATURES
• 24 10/100Mbps Auto-negotiation, Auto-MDIX Fast Ethernet Ports
•
2 Pairs of 10/100/1000mbps Gigabit Copper Port and Mini-GBIC Slot
•
Full/Half duplex mode for each port (Full Duplex Mode only for Gigabit Ports)
•
Store and Forward switching method
•
Integrated address Look-Up Engine with 8K absolute MAC address table
•
Supports 256Kbytes RAM Data Buffering
•
Extensive diagnostic LED’s on the front panel
•
IEEE 802.3x flow control for full-duplex mode
•
Back pressure flow control for half-duplex mode
•
Easy configuration the device from a Web browser
•
Supports Port-Based VLAN, Port-Based QoS and IEEE 802.1p QoS
•
Supports Trunking (3 trunk groups) and Port Mirroring
•
Supports Port Based Bandwidth Rate Control (Ingress / Egress Rate)
•
Support Port setting function allow user setting each port’s speed, duplex mode, and flow control
•
Standard 19” (1U) Rack-mount design
•
5-Years Warranty
TEG-224WSplus
rev:07.14.2006
26-Port Gigabit Web Smart Switch
TEG-224WSplus
SPECIFICATIONS
Hardware
Standards
Network Media
Protocol /Topology
Interface
Data Transfer Rate
Address Table
Data RAM Buffer
Diagnostic LEDs
Power Consumption
Dimensions (W x H x D)
Weights
Temperature
Humidity
Safety Emissions
• IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T • •
• IEEE 802.3z 1000Base-SX/LX (Mini-GBIC) • IEEE 802.3x Full Duplex Flow Control
• Ethernet: UTP/STP Cat. 3, 4, 5 Fast Ethernet: UTP/STP Cat. 5 •
• Gigabit: UTP/STP Cat. 5, 5E, 6 • Mini-GBIC: LC Type Fiber Optic
• CSMA/CD, Star
• 24 x 10/100Mbps Auto-MDIX Fast Ethernet ports
• 2 pairs x 1000-Based RJ45 Port and Mini-GBIC Slot*
* One RJ45 Port or Mini-GBIC Slot of each pair can be used at a time.
• Ethernet: 10Mbps/20Mbps (Half-Duplex/Full-Duplex)
• Fast Ethernet: 100Mbps/200Mbps (Half-Duplex/Full-Duplex)
• Gigabit Ethernet: 2000Mbps (Full-Duplex)
• 8K Entries
• 256KBytes
• Per Unit: Power, System • Per Gigabit Ethernet: Link/ACT, Speed
• Per Cooper Gigabit Port: Link/ACT, Speed 100M, Speed 1000M, Mini-GBIC
• 100-240V AC, 50/60Hz Internal Power Supply / 11 Watts (max)
• 440 x 140 x 44 mm (17.32 x 5.5 x 1.73 inches)
• 2.1kg (4.7 lbs)
• Operating : 0 C ~ 40 C (32 F ~ 104 F); Storage: -10 C ~ 70 C (14 F ~ 158 F)° ° ° ° ° ° ° °
• Operating: 10% ~ 90% RH; Storage: 5% ~ 90% RH
• FCC, CE
NETWORKING SOLUTIONS
PACKAGE CONTENTS
• TEG-224WSplus
• Quick Installation Guide
• Utility CD-ROM
• Power Cord
• Rack-Mount Kit
RELATED PRODUCTS
TEG-160WS
TEG-240WS
TEG-2248WS
16-Port Gigabit Web-Based Smart Switch
24-port 10/100/1000Mbps Gigabit Web-Based Smart Switch
52-Port Gigabit Web-Based Smart Switch
ORDERING INFORMATION
