Page 1

MODEL 67076-4

owner’s manual

Page 2

INTRODUCTION

CONTENTS

3 BEFORE YOU

PROCEED

SAFETY

PRECAUTIONS

TOOLS, SUPPLIES, AND

REQUIRED EQUIPMENT

8 ANATOMY OF THE

RUSTLER 4X4 VXL

9 QUICK START:

GETTING UP TO SPEED

TQi RADIO AND

VELINEON BRUSHLESS

POWER SYSTEM

ADJUSTING THE

ELECTRONIC SPEED

CONTROL

DRIVING YOUR MODEL

24 BASIC TUNING

ADJUSTMENTS

26 MAINTAINING

YOUR MODEL

Thank you for purchasing the Rustler 4X4 VXL Stadium Race Truck equipped with the Velineon

Brushless Power System. Rustler 4X4 VXL is engineered like no other to turn extreme power into extreme race truck fun! The efﬁcient, low-mass drivetrain is totally optimized for the brutal torque of Velineon brushless power. It’s even waterproof for fun in all kinds of wet conditions! The Velineon Power System lets you experience the best that brushless motor technology has to offer. Incredible speed, efﬁcient operation, long run times, and low-maintenance operation are just some of the beneﬁts. We are conﬁdent your Rustler 4X4 VXL will reward you with high-speed performance in a durable, long-lasting product.

This manual contains the instructions you will need to operate and maintain your model so that you can enjoy it for years to come. We want you to feel conﬁdent that you own one of the best-performing models in the market and that it is backed by a team of professionals who aim to provide the highest level of factory support possible. Traxxas models are about experiencing total performance and satisfaction, not just with your model, but also with the company that stands behind it.

We know you’re excited about getting your new model on the road, but it’s very important that you take some time to read through the Owner’s Manual. This manual contains all the necessary setup and operating procedures that will allow you to unlock the performance potential that Traxxas engineers designed into your model. Also be sure to read and follow the precautions and warnings in this manual and on any labels or tags attached to your model. They are there to educate you on how to operate your model safely and also get maximum life and performance from your model.

Even if you are an experienced RC enthusiast, it’s important to read and follow the procedures in this manual.

Traxxas Support

Traxxas support is with you every step of the way. Refer to the next page to ﬁnd out how to contact us and what your support options are.

Quick Start

This manual is designed with a Quick Start path that outlines the necessary procedures to get your model up and running in the shortest time possible. If you are an experienced R/C enthusiast, you will ﬁnd it helpful and fast. Be sure and read through the rest of the manual to learn about important safety, maintenance, and adjustment procedures. Turn to page 9 to begin.

Thank you again for going with Traxxas. We work hard every day to assure you receive the highest level of customer satisfaction possible. We truly want you to enjoy your new model!

REGISTERING YOUR MODEL

In order to serve you better as our customer, please register your product within 10 days of your purchase online at Traxxas.com/register.

Traxxas.com/register

ADVANCED TUNING

ADJUSTMENTS

31 TQi ADVANCED

TUNING GUIDE

2 • RUSTLER 4X4 VXL

FCC Compliance

This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The limits for a Class B digital device are designed to provide reasonable protection against harmful interference in residential settings. This product generates, uses and can radiate radio frequency energy, and, if not operated in accordance with the instructions, may cause harmful interference to radio communications. The user is cautioned that changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada, Industry Canada (IC)

This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency (RF) Exposure Statement

This equipment complies with radio frequency exposure limits set forth by FCC and Industry Canada for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body or bystanders and must not be co-located or operating in conjunction with any other antenna or transmitter.

Page 3

BEFORE YOU PROCEED

Carefully read and follow all instructions in this and any accompanying materials to prevent serious damage to your model. Failure to follow these instructions will be considered abuse and/or neglect.

Before running your model, look over this entire manual and examine the model carefully. If for some reason you decide it is not what you wanted, then do not continue any further. Your hobby

dealer absolutely cannot accept a model for return or exchange after it has been run.

Warnings, Helpful Hints, & Cross-References

Throughout this manual, you’ll notice warnings and helpful hints identiﬁed by the icons below. Be sure to read them!

An important warning about personal safety or avoiding damage to your model and related components.

Special advice from Traxxas to make things easier and more fun.

Refers you to a page with a related topic.

SUPPORT

If you have any questions about your model or its operation, call the Traxxas Technical Support line toll-free at:

1-888-TRAXXAS (1-888-872-9927)*

Technical support is available Monday through Friday from 8:30am to 9:00pm central time. Technical assistance is also available at Traxxas.com/support. You may also e-mail customer support with your question at support@Traxxas.com. Join thousands of registered members in our online community at Traxxas.com.

Traxxas offers a full-service, on-site repair facility to handle any of your Traxxas service needs. Maintenance and replacement parts may be purchased directly from Traxxas by phone or online at Traxxas.com. You can save time, along with shipping and handling costs, by purchasing replacement parts from your local dealer.

Do not hesitate to contact us with any of your product support needs. We want you to be thoroughly satisﬁed with your new model!

Traxxas 6250 Traxxas Way McKinney, TX 75070 Phone: 972-549-3000 Toll-free 1-888-TRAXXAS

Internet Traxxas.com E-mail: support@Traxxas.com

Entire contents ©2019 Traxxas. All rights reserved. Traxxas, Ready-To-Race, Ready-To-Win, Rustler, Rustler 4x4 VXL, Velineon, and ProGraphix are trademarks or registered trademarks of Traxxas. Other brand names and marks are the property of their respective holders and are used only for purposes of identiﬁcation. No part of this manual may be reproduced or distributed in print or electronic media without the express written permission of Traxxas. Speciﬁcations are subject to change without notice.

*Toll-free support is available to U.S. residents only.

RUSTLER 4X4 VXL • 3

Page 4

SAFETY PRECAUTIONS

All instructions and precautions outlined in this manual should be strictly followed to ensure safe operation of your model.

This model is not intended for use by children under 14 years of age without the supervision of a responsible and knowledgeable adult. Gearing and battery choice (see LiPo Batteries, right) affect the skill level of the model. See chart below.

Gearing: Stock Pinion Battery: 7-Cell NiMH

Voltage

: 8.4V

mAh: 3000+mAh

Gearing: Opt./Stock Pinion Battery: 2S/3S 25C LiPo

Voltage

: 7.4V/11.1V

mAh: 4000/5000+ mAh

Gearing: Opt. Gearing Battery: 3S 25C LiPo

Voltage

: 11.1V

*Nominal

mAh: 5000/6000+ mAh

See the gearing chart on page 27 for more information.

All of us at Traxxas want you to safely enjoy your new model. Operate your model sensibly and with care, and it will be exciting, safe, and fun for you and those around you. Failure to operate your model in a safe and responsible manner may result in property damage and serious injury. The precautions outlined in this manual should be strictly followed to help ensure safe operation. You alone must see that the instructions are followed and the precautions are adhered to.

Important Points to Remember

• Your model is not intended for use on public roads or congested

areas where its operation can conﬂict with or disrupt pedestrian or vehicular trafﬁc.

• Never, under any circumstances, operate the model in crowds of

people. Your model is very fast and could cause injury if allowed to collide with anyone.

• Because your model is controlled by radio, it is subject to radio

interference from many sources that are beyond your control. Since radio interference can cause momentary losses of radio control, always allow a safety margin in all directions around the model in order to prevent collisions.

• The motor, battery, and speed control can become hot during use.

Be careful to avoid getting burned.

• Don’t operate your model at night, or anytime your line of sight to

the model may be obstructed or impaired in any way.

• Most importantly, use good common sense at all times.

Speed Control

Your model’s electronic speed control (ESC) is an extremely powerful electronic device capable of delivering high current. Please closely follow these precautions to prevent damage to the speed control or other components.

• Disconnect the Battery: Always disconnect the battery or

batteries from the speed control when not in use.

• Insulate the Wires: Always insulate exposed wiring with heat

shrink tubing to prevent short circuits.

• Transmitter on First: Switch on your transmitter ﬁrst before switching on the speed control to prevent runaways and erratic performance.

• Don’t Get Burned: The ESC and motor can become extremely hot during use, so be careful not to touch them until they cool. Supply adequate airﬂow for cooling.

• Use the Factory-Installed Connectors: Do not change the battery and motor connectors. Improper wiring can cause ﬁre or damage to the ESC. Please note that modiﬁed speed controls can be subject to a rewiring fee when returned for service.

• No Reverse Voltage: The ESC is not protected against reverse polarity voltage.

• No Schottky Diodes: External Schottky diodes are not compatible with reversing speed controls. Using a Schottky diode with your Traxxas speed control will damage the ESC and void the 30-day warranty.

• Always adhere to the minimum and maximum limitations of the speed control as stated in the speciﬁcations table in the Owner’s Manual. If your ESC operates on two batteries, do not mix battery types and capacities. Use the same voltage and capacity for both batteries. Using mismatched battery packs could damage the batteries and electronic speed control.

Recycling Traxxas Power Cell NiMH Batteries

Traxxas strongly encourages you to recycle Power Cell NiMH batteries when they reach the end of their useful life. Do not throw batteries in the trash. All Power Cell NiMH battery packs display the RBRC (Rechargeable Battery Recycling Corporation) icon, indicating they are recyclable. To ﬁnd a recycling center near you, ask your local hobby dealer or visit www.call2recycle.org.

4 • RUSTLER 4X4 VXL

Page 5

WARNING! CAUTION! DANGER!

batteries. Charging and discharging batteries has the potential for ﬁre, explosion, serious injury, and property damage if not performed per the instructions. Before use, read and follow all manufacturer’s instructions, warnings, and precautions. In addition, Lithium Polymer (LiPo) batteries pose a SEVERE risk of ﬁre if not properly handled per the instructions and require special care and handling procedures for long life and safe operation. LiPo batteries are intended only for advanced users that are educated on the risks associated with LiPo battery use. Traxxas does not recommend that anyone under the age of 14 use or handle LiPo battery packs without the supervision of a knowledgeable and responsible adult. Dispose of used batteries according to the instructions.

Important Warnings for users of Lithium Polymer (LiPo) batteries:

• LiPo batteries have a minimum safe discharge voltage threshold that should not be exceeded. The electronic speed control is equipped with built-in Low-Voltage Detection that alerts the driver when LiPo batteries have reached their minimum voltage (discharge) threshold. It is the driver’s responsibility to stop immediately to prevent the battery pack from being discharged below its safe minimum threshold.

• Low-Voltage Detection is just one part of a comprehensive plan for safe LiPo battery use. It is critical to follow all instructions for safe and proper charging, use, and storage of LiPo batteries. Make sure you understand how to use your LiPo batteries. If you have questions about LiPo battery usage, please consult with your local hobby dealer or contact the battery manufacturer. As a reminder, all batteries should be recycled at the end of their useful life.

• ONLY use a Lithium Polymer (LiPo) balance charger with a balance adapter port to charge LiPo batteries. Never use NiMH or NiCadtype chargers or charge modes to charge LiPo batteries. DO NOT charge with a NiMH-only charger. The use of a NiMH or NiCad charger or charge mode will damage the batteries and may cause ﬁre and personal injury.

• NEVER charge LiPo battery packs in series or parallel. Charging packs in series or parallel may result in improper charger cell recognition and an improper charging rate that may lead to overcharging, cell imbalance, cell damage, and ﬁre.

FIRE HAZARD!

Your model is able to use LiPo

SAFETY PRECAUTIONS

• ALWAYS inspect your LiPo batteries carefully before charging. Look for any loose leads or connectors, damaged wire insulation, damaged cell packaging, impact damage, ﬂuid leaks, swelling (a sign of internal damage), cell deformity, missing labels, or any other damage or irregularity. If any of these conditions are observed, do not charge or use the battery pack. Follow the disposal instructions included with your battery to properly and safely dispose of the battery.

• DO NOT store or charge LiPo batteries with or around other batteries or battery packs of any type, including other LiPos.

• Store and transport your battery pack(s) in a cool dry place. DO NOT store in direct sunlight. DO NOT allow the storage temperature to exceed 140°F or 60°C, such as in the trunk of a car, or the cells may be damaged and create a ﬁre risk.

• DO NOT disassemble LiPo batteries or cells.

• DO NOT attempt to build your own LiPo battery pack from loose cells.

Charging and handling precautions for all battery types:

• BEFORE you charge, ALWAYS conﬁrm that the charger settings exactly match the type (chemistry), speciﬁcation, and conﬁguration of the battery to be charged.

• DO NOT attempt to charge non-rechargeable batteries (explosion hazard), batteries that have an internal charge circuit or a protection circuit, batteries that have been altered from original manufacturer conﬁguration, or batteries that have missing or unreadable labels, preventing you from properly identifying the battery type and speciﬁcations.

• DO NOT exceed the maximum manufacturer recommended charge rate.

• DO NOT let any exposed battery contacts or wires touch each other. This will cause the battery to short circuit and create the risk of ﬁre.

• While charging or discharging, ALWAYS place the battery (all types of batteries) in a ﬁre retardant/ﬁre proof container and on a non-ﬂammable surface such as concrete.

• DO NOT charge batteries inside of an automobile. DO NOT charge batteries while driving in an automobile.

• NEVER charge batteries on wood, cloth, carpet, or on any other ﬂammable material.

• ALWAYS charge batteries in a well-ventilated area.

(continued on next page)

RUSTLER 4X4 VXL • 5

Page 6

SAFETY PRECAUTIONS

(continued from previous page)

• REMOVE ﬂammable items and combustible materials from the charging area.

• DO NOT leave the charger and battery unattended while charging, discharging, or anytime the charger is ON with a battery connected. If there are any signs of a malfunction or in the event of an emergency, unplug the charger from the power source and disconnect the battery from the charger.

• DO NOT operate the charger in a cluttered space, or place objects on top of the charger or battery.

• If any battery or battery cell is damaged in any way, DO NOT charge, discharge, or use the battery.

• Keep a Class D ﬁre extinguisher nearby in case of ﬁre.

• DO NOT disassemble, crush, short circuit, or expose the batteries to ﬂame or other source of ignition. Toxic materials could be released. If eye or skin contact occurs, ﬂush with water.

• If a battery gets hot to the touch during the charging process (temperature greater than 110°F / 43°C), immediately disconnect the battery from the charger and discontinue charging.

• Allow the battery pack to cool off between runs (before charging).

• ALWAYS unplug the charger and disconnect the battery when not in use.

• ALWAYS unplug the battery from the electronic speed control when the model is not in use and when it is being stored or transported.

• DO NOT disassemble the charger.

• REMOVE the battery from your model or device before charging.

• DO NOT expose the charger to water or moisture.

• ALWAYS store battery packs safely out of the reach of children or pets. Children should always have adult supervision when charging and handling batteries.

• Nickel-Metal Hydride (NiMH) batteries must be recycled or disposed of properly.

• Always proceed with caution and use good common sense at all times.

6 • RUSTLER 4X4 VXL

Page 7

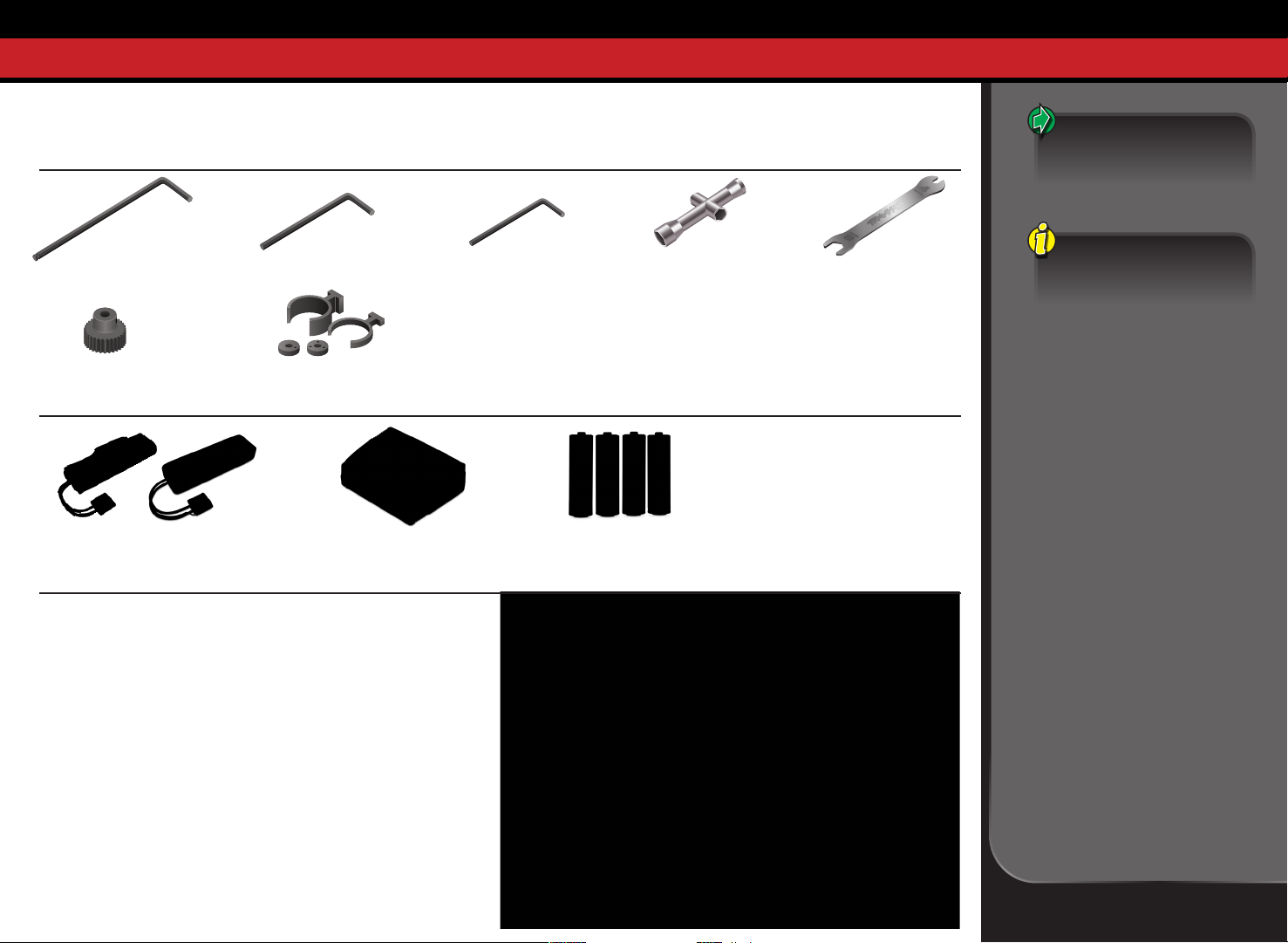

TOOLS, SUPPLIES, AND REQUIRED EQUIPMENT

Your model comes with a set of specialty metric tools. You’ll need to purchase other items, available from your hobby dealer, to operate and maintain your model.

Supplied Tools and Equipment

For more information on batteries, see Use the Right Batteries on page 13.

2.5mm “L” wrench

Required Equipment

6 or 7-cell NiMH battery pack,

or 2s or 3s LiPo battery pack,

with Traxxas High-Current connector

(not included)

2.0mm “L” wrench

Preload spacers and shock pistonsOptional pinion gear

EZ-Peak™ Dual

(part #2972)

REMOVING AND INSTALLING THE BODY

Your Rustler 4X4 VXL includes an innovative latching system for securing the body to the chassis. To remove the body for chassis access:

1. Turn the handle 90 degrees counterclockwise to unlock the body latch.

2. Open the latch to release the truck body from the rear shock tower.

3. Slide the body backward away from the front shock tower to release the front body tab. Note: The body latch must clear the rear shock tower.

4. Gently lift the body straight up from the chassis. Lift the front and rear of the body evenly or it may become difficult to remove. (Installation of the body is the reverse of removal.)

5. Practice this a few times until you become familiar with the latching mechanism. The more you do it, the faster you will be.

1.5mm “L” wrench

4 AA alkaline batteriesBattery charger

4-way wrench

*Battery and charger style are subject to change and may vary from images.

8mm/4mm wrench

Recommended Equipment

These items are not required for the operation of your model, but are a good idea to include in any R/C toolbox:

• Safety glasses

• Traxxas Ultra Premium Tire Glue, Part #6468 (CA glue)

• Hobby knife

• Side cutters and/or needle nose pliers

• Phillips screwdriver

• Soldering iron

RUSTLER 4X4 VXL • 7

Page 8

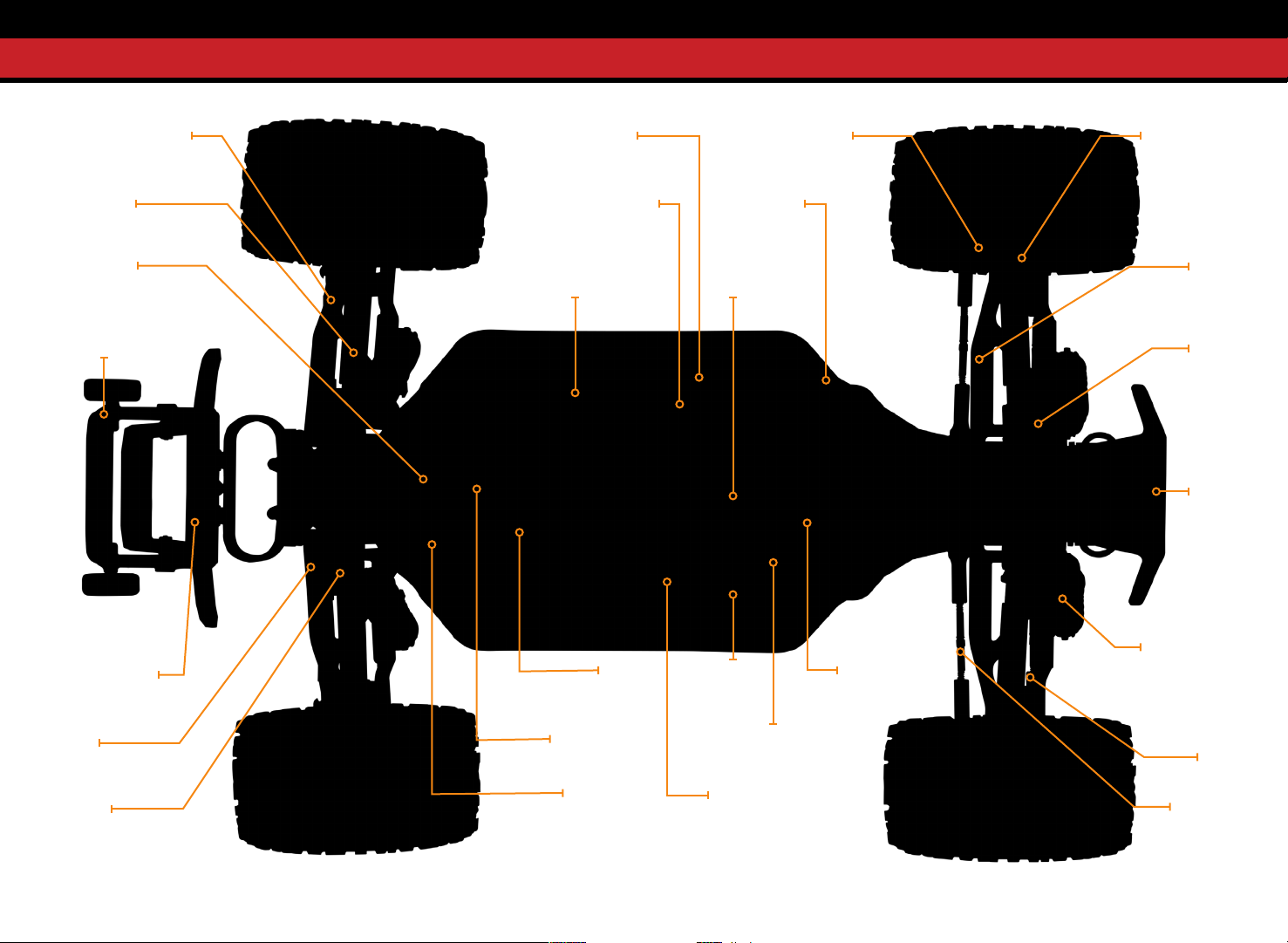

ANATOMY OF THE RUSTLER 4X4 VXL

Rear Camber Link

Half Shaft

Spur Gear

Wheelie Bar

Rear Bumper

Battery Hold-Down

Battery Compartment

Traxxas High-Current

Connector

Motor

(Velineon 3500)

Steering Block

Chassis

Drive Shaft

Antenna

Mount

Caster Block

Front

Suspension Arm

Front

Shock Tower

Front

Bumper

Shock

(Oil Damper)

Receiver Box

Rear Suspension Arm

Rear Shock Tower

8 • RUSTLER 4X4 VXL

Slipper Clutch

Pinion Gear

LED Light Pipe

Electronic Speed

Control (VXL-3s)

Front Camber

Link

Toe Link

Page 9

QUICK START: GETTING UP TO SPEED

The following guide is an overview of the procedures for getting your model running. Look for the Quick Start logo on the bottom corners of Quick Start pages.

1. Read the safety precautions on pages 4-6 6. Check servo operation • See page 15

For your own safety, understand where carelessness and misuse could lead to personal injury and product damage.

2. Charge the battery pack • See page 13 7. Range test the radio system • See page 16

Your model requires a battery pack and a compatible battery charger (not included). Never use a NiMH or NiCad charger to charge LiPo batteries.

3. Install batteries in the transmitter • See page 13 8. Detail your model • See sidebar, page 10

The transmitter requires 4 AA alkaline batteries (sold separately). Apply other decals if desired.

4. Install the battery pack in the model • See page 14 9. Drive your model • See page 21

Your model requires a fully charged battery pack (not included). Driving tips and adjustments for your model.

5. Turn on the radio system • See page 14 10. Maintaining your model • See page 26

Make a habit of turning the transmitter on ﬁrst and off last. Follow these critical steps to maintain the performance

Make sure the steering servo is working correctly.

Follow this procedure to make sure your radio system works properly at a distance, and that there is no interference from outside sources.

of your model and keep it in excellent running condition.

The Quick Start Guide is not intended to replace the full operating instructions available in this manual. Please read this entire manual for complete instructions on the proper use and maintenance of your model.

Look for the Quick Start logo at the bottom of Quick Start pages.

RUSTLER 4X4 VXL • 9

Page 10

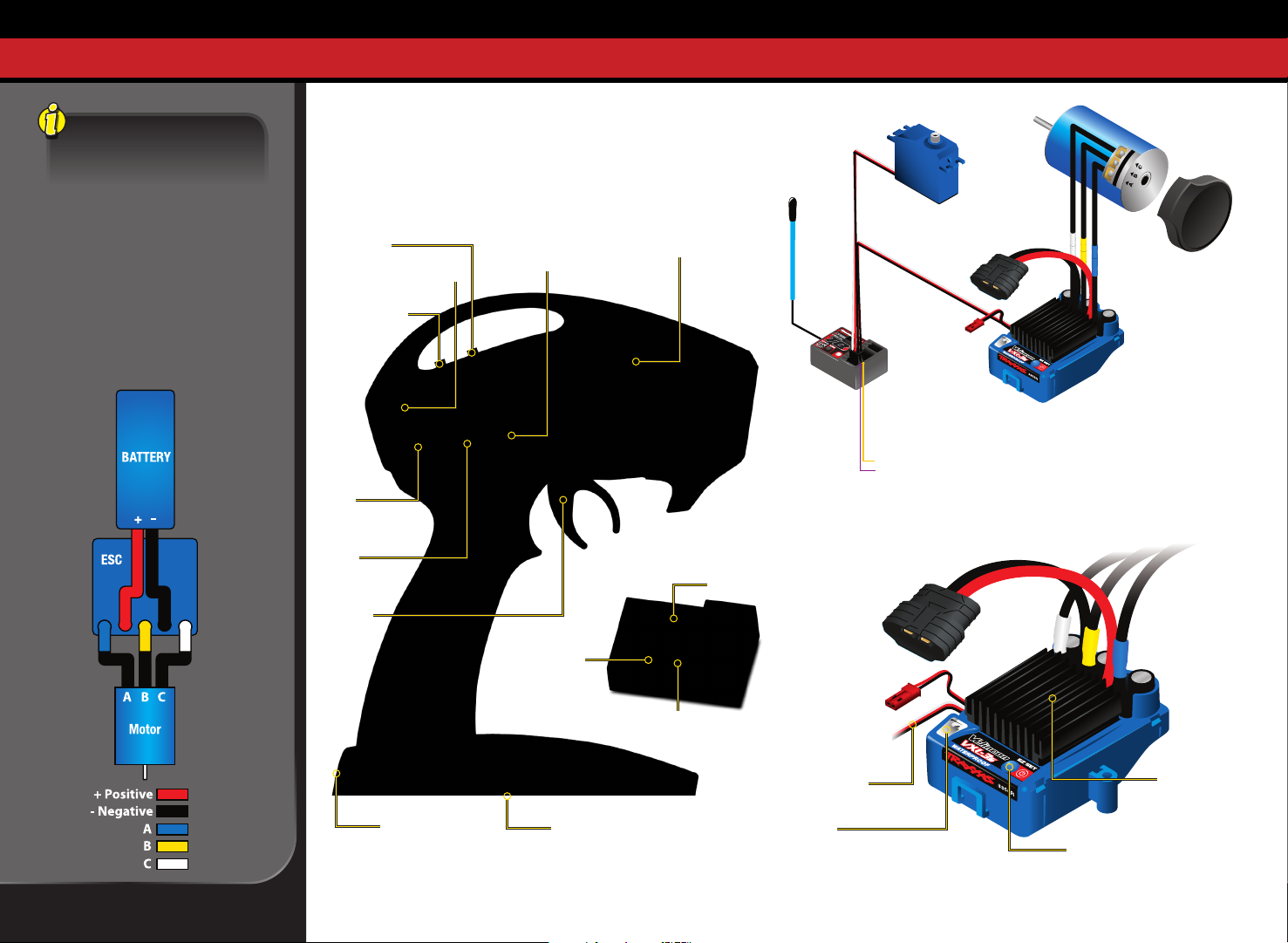

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

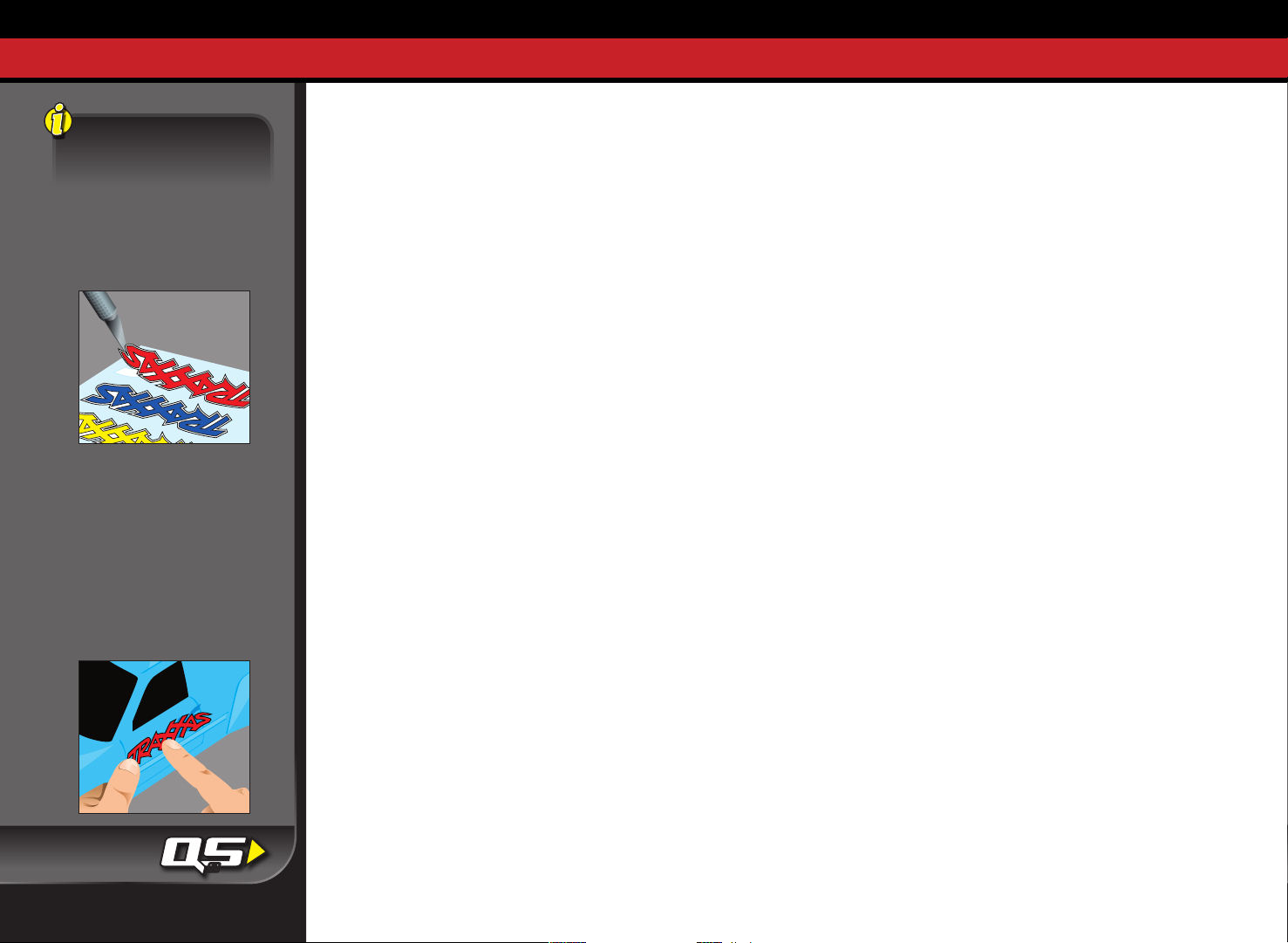

Applying the Decals

The main decals for your model have been applied at the factory. Additional decals are printed on self-adhesive clear mylar and are die-cut for easy removal. Use a hobby knife to lift the corner of a decal and lift it from the backing.

To apply the decals, place one end down, hold the other end up, and gradually smooth the decal down with your ﬁnger as you go. This will prevent air bubbles. Placing both ends of the decal down and then trying to smooth it out will result in air pockets. Look at the photos on the box for typical decal placement.

10 • RUSTLER 4X4 VXL

INTRODUCTION

Your model includes the latest Traxxas TQi 2.4GHz transmitter with Traxxas Link™ Model Memory. The transmitter’s easy-to-use design provides instant driving fun for new R/C enthusiasts, and also offers a full complement of pro-level tuning features for advanced users – or anyone interested in experimenting with the performance of their model. The steering and throttle channels feature adjustable Exponential, End Points, and Sub-Trims. Steering and braking DualRate are also available. Many of the next-level features are controlled by the Multi-Function knob, which can be programmed to control a variety of functions. The detailed instructions (page 31) and Menu Tree (page 34) included in this manual will help you understand and operate the advanced functions of the new TQi radio system. For additional information and how-to videos, visit Traxxas.com.

RADIO AND POWER SYSTEM TERMINOLOGY

Please take a moment to familiarize yourself with these radio and power system terms. They will be used throughout this manual. A detailed explanation of the advanced terminology and features of your new radio system begins on page 31.

2.4GHz Spread Spectrum – This model is equipped with the latest R/C technology. Unlike AM and FM systems that require frequency crystals and are prone to frequency conflicts, the TQi system automatically selects and locks onto an open frequency and offers superior resistance to interference and “glitching.”

BEC (Battery Eliminator Circuit) - The BEC can either be in the

receiver or in the ESC. This circuit allows the receiver and servos to be powered by the main battery pack in an electric model. This eliminates the need to carry a separate pack of 4 AA batteries to power the radio equipment.

Brushless Motor - A D/C brushless motor replaces the brushed

motor’s traditional commutator and brush arrangement with intelligent electronics that energize the electromagnetic windings in sequence to provide rotation. Opposite of a brushed motor, the brushless motor has its windings (coils) on the perimeter of the motor can and the magnets are mounted to the spinning rotor shaft.

Cogging - Cogging is a condition sometimes associated with

brushless motors. Typically, it is a slight stutter noticed when accelerating from a stop. It happens for a very short period as the signals from the electronic speed control and the motor

synch with each other. The VXL-3s electronic speed control is optimized to virtually eliminate cogging.

Current - Current is a measure of power ﬂow through the

electronics, usually measured in amps. If you think of a wire as a garden hose, current is a measure of how much water is ﬂowing through the hose.

ESC (Electronic Speed Control) - An electronic speed control is the

electronic motor control inside the model. The VXL-3s electronic speed control uses advanced circuitry to provide precise, digital proportional throttle control. Electronic speed controls use power more efﬁciently than mechanical speed controls so that the batteries run longer. An electronic speed control also has circuitry that prevents loss of steering and throttle control as the batteries lose their charge.

Frequency band - The radio frequency used by the transmitter to

send signals to your model.

This model operates on the 2.4GHz

direct-sequence spread spectrum.

kV Rating - Brushless motors are often rated by their kV number.

The kV rating equals no-load motor rpm with 1 volt applied. The kV increases as the number of wire turns in the motor decreases. As the kV increases, the current draw through the electronics also increases. The Velineon 3500 motor is a 3500 kV motor optimized for the best speed and efﬁciency in lightweight 1/10 scale models.

LiPo - Abbreviation for Lithium Polymer. Rechargeable LiPo

battery packs are known for their special chemistry, which allows extremely high energy density and current handling in a compact size. These are high performance batteries that require special care and handling. LiPo battery packs are for advanced users only.

mAh – Abbreviation for milliamp hour, a measure of the capacity

of the battery pack. The higher the number, the longer the battery will last between recharges.

Neutral position - The standing position that the servos seek

when the transmitter controls are at the neutral setting.

NiCad - Abbreviation for nickel-cadmium. The original

rechargeable hobby pack, NiCad batteries have very high

current handling, high capacity, and can last up to 1000 charging cycles. Good charging procedures are required to reduce the possibility of developing a “memory” effect and shortened run times.

Page 11

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

NiMH - Abbreviation for nickel-metal hydride. Rechargeable NiMH

batteries offer high current handling and much greater resistance to the “memory” effect. NiMH batteries generally allow higher capacity than NiCad batteries. They can last up to 500 charge cycles. A peak charger designed for NiMH batteries is required for optimal performance.

Receiver - The radio unit inside your model that receives signals

from the transmitter and relays them to the servos.

Resistance - In an electrical sense, resistance is a measure of how

an object resists or obstructs the ﬂow of current through it. When ﬂow is constricted, energy is converted to heat and is lost. The Velineon power system is optimized to reduce electrical resistance and the resulting power-robbing heat.

Rotor - The rotor is the main shaft of the brushless motor. In a

brushless motor, the magnets are mounted to the rotor, and the electromagnetic windings are built into the motor housing.

Sensored - Sensored refers to a type of brushless motor that

uses an internal sensor in the motor to communicate rotor position information back to the electronic speed control. The VXL-3s electronic speed control is able to use sensored motors when applications beneﬁt from them (such as some sanctioned racing classes).

Sensorless - Sensorless refers to a brushless motor that uses

advanced instructions from an electronic speed control to provide smooth operation. Additional motor sensors and wiring are not required. The VXL-3s electronic speed control is optimized for smooth sensorless control.

Servo - Small motor unit in your model that operates the steering

mechanism.

Solder Tabs - Accessible, external contacts on the motor that

allows for easy wire replacement. The Velineon 3500 is equipped with solder tabs.

Transmitter - The hand-held radio unit that sends throttle and

steering instructions to your model.

Trim - The ﬁne-tuning adjustment of the neutral position of the

servos, made by adjusting the throttle and steering trim knobs on the face of the transmitter. Note: The Multi-Function knob must be programmed to serve as a throttle trim adjustment.

Thermal Shutdown Protection - Temperature sensing electronics

used in the VXL-3s electronic speed control detect overloading and overheating of the transistor circuitry. If excessive temperature is detected, the unit automatically shuts down to prevent damage to the electronics.

2-channel radio system - The TQi radio system, consisting of

the receiver, the transmitter, and the servos. The system uses two channels: one to operate the throttle and one to operate the steering.

Voltage - Voltage is a measure of the electrical potential difference

between two points, such as between the positive battery terminal and ground. Using the analogy of the garden hose, while current is the quantity of water ﬂow in the hose, voltage corresponds to the pressure that is forcing the water through the hose.

IMPORTANT RADIO SYSTEM PRECAUTIONS

• Do not kink the receiver’s antenna wire. Kinks in the antenna wire will reduce range.

• DO NOT CUT any part of the receiver’s antenna wire. Cutting the antenna will reduce range.

• Extend the antenna wire in the model as far as possible for maximum range. It is not necessary to extend the antenna wire out of the body, but wrapping or coiling the antenna wire should be avoided.

• Do not allow the antenna wire to extend outside the body without the protection of an antenna tube, or the antenna wire may get cut or damaged, reducing range. It is recommended to keep the wire inside the body (in the antenna tube) to prevent the chance of damage.

To prevent loss of radio range do not kink or cut the black wire, do not bend or cut the metal tip, and do not bend or cut the white wire at the end of the metal tip.

Correct

NoNo No

RUSTLER 4X4 VXL • 11

Page 12

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

Velineon 3500 Specs

Type: Sensorless brushless RPM/volt: 3500 Magnet type: Ultra High-

Temperature Sintered Neodymium

Connection type : 3.5mm bullet Wire size: 12 Gauge Max RPM: 50,000 Diameter: 36mm (1.42") (540 size) Length: 55mm (2.165") Weight: 262g (9.24oz)

ESC/Motor Wiring Diagram

Your model is equipped with the newest TQi 2.4GHz transmitter with Traxxas Link™ Model Memory. The transmitter has two channels for controlling your throttle and steering. The receiver inside the model has 5 output channels. Your model is equipped with one servo and an electronic speed control.

TRANSMITTER AND RECEIVER

Set Button

Red/Green Status LED

see page 32 for more info

Menu Button

Steering Trim

Multi-Function Knob

Throttle Trigger

Throttle Neutral

Adjust

Steering Wheel

Sensor Expansion

Port

MODEL WIRING DIAGRAM

Channel 1

Steering Servo

Traxxas High-Current

Connector (Male)

Antenna

V/T - Voltage/Temp Sensor Port RPM - RPM Sensor Port BATT/ CH5 - Battery/Channel 5* CH4 - Channel 4* CH3 - Channel 3* CH2 - Speed Control CH1 - Steering Servo CH1 - Channel 1*

*Not used †Accessory sensor ports for use with standard voltage/temperature and RPM telemetry sensors (see Traxxas.com and included materials for more information)

to Battery

Cooling Fan

Connector

(for optional use)

†

Channel 2

Electronic Speed Control

VXL-3s ELECTRONIC SPEED CONTROL

Traxxas High-Current

Connector (Male)

to Battery

Brushless Motor

(see sidebar for proper

motor wiring)

Motor Cap

to Motor

12 • RUSTLER 4X4 VXL

Link Button

LED

Power Switch Battery Compartment

** Accessory sensor expansion port for use with the Telemetry Expander Module (see Traxxas.com and included materials for more information)

Cooling Fan Connector

(for optional use)

Receiver cable (RX wire)

LED

Heat Sink

EZ-Set Button (On/Off Button)

Page 13

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

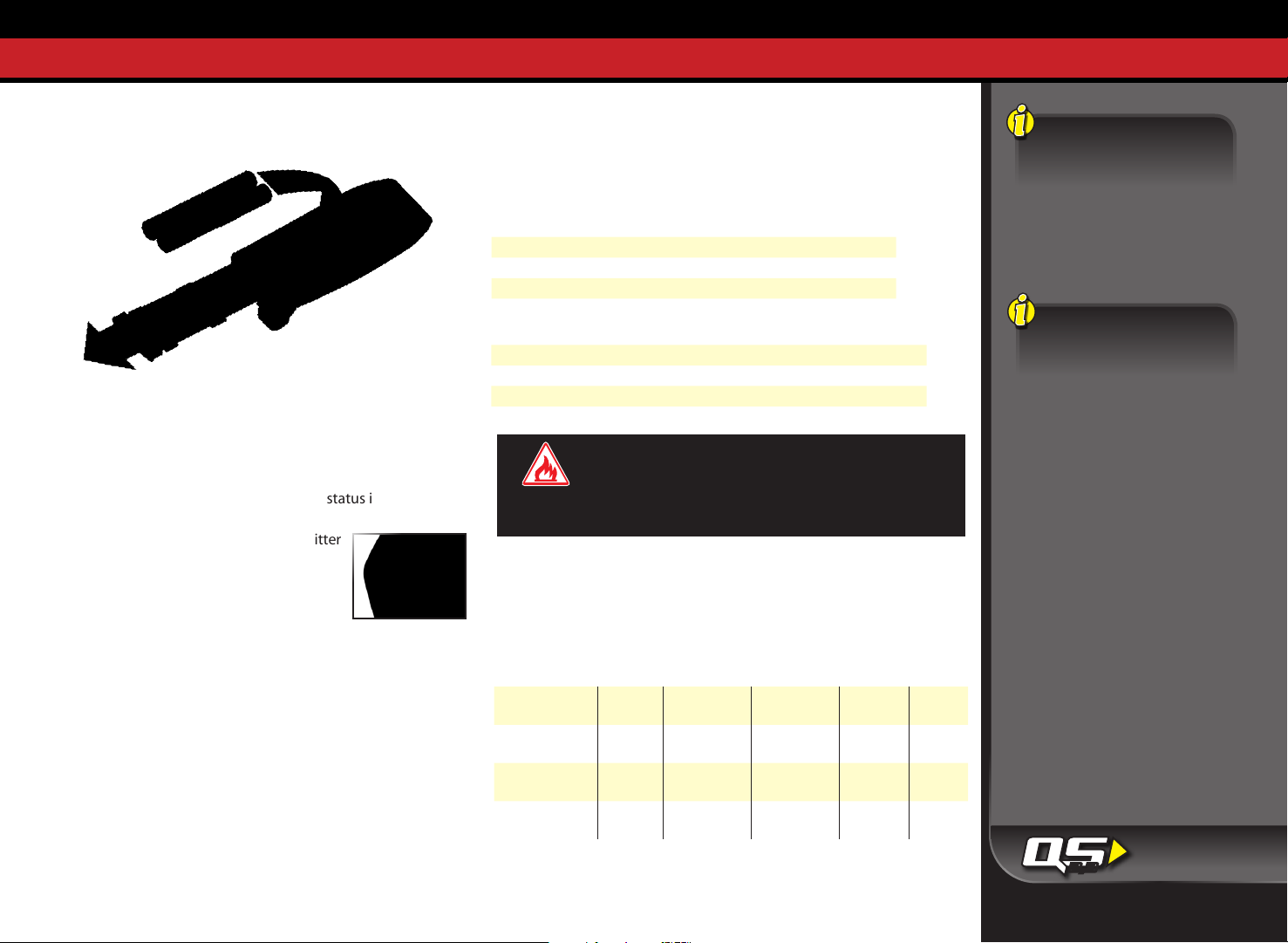

INSTALLING TRANSMITTER BATTERIES

Your TQi transmitter uses 4 AA batteries. The battery compartment is located in the base of the transmitter.

1. Remove the battery compartment door by pressing the tab and sliding the door open.

2. Install the batteries in the correct orientation as indicated in the battery compartment.

3. Reinstall the battery door and snap it closed.

4. Turn on the transmitter and check the status indicator for a solid green light.

If the status LED ﬂashes red, the transmitter batteries may be weak, discharged or possibly installed incorrectly. Replace with new batteries. The power indicator light does not indicate the charge level of the battery pack installed in the model. Refer to the Troubleshooting section on page 32 for more information on the transmitter Status LED codes.

SELECTING BATTERIES FOR YOUR MODEL

Your model does not include a battery or charger. One NiMH or LiPo battery equipped with a Traxxas High-Current Connector is required. Traxxas Power Cell iD batteries are strongly recommended for maximum performance and safer charging. The following chart lists all the available Power Cell iD batteries for your model:

LiPo Batteries with iD

2849X 4000mAh 11.1V 3-Cell 25C LiPo Battery

2843X 5800mAh 7.4V 2-Cell 25C LiPo Battery

2857X 6400mAh 11.1V 3-Cell 25C LiPo Battery

2854X 10000mAh 7.4V 2-Cell 25C LiPo Battery

NiMH Batteries with iD

2926X Battery, Power Cell, 3000mAh (NiMH, 7-C hump, 8.4V)

2941X Battery, Series 3 Power Cell, 3300mAh (NiMH, 7-C hump, 8.4V)

2951X Battery, Series 4 Power Cell, 4200mAh (NiMH, 7-C hump, 8.4V)

2961X Battery, Series 5 Power Cell, 5000mAh (NiMH, 7-C hump, 8.4V)

WARNING: FIRE HAZARD!

Users of Lithium Polymer (LiPo) batteries must read the

Warnings and Precautions beginning on page 4. You MUST use a LiPo charger for LiPo batteries or battery damage with the potential for fire will result.

SELECTING A CHARGER FOR YOUR MODEL

Make certain you choose the correct type of charger for the batteries you select. Traxxas recommends you choose a genuine Traxxas EZ-Peak iD charger for safer charging and maximum battery life and performance.

Charger Part No.

EZ-Peak Plus, 4 am ps

EZ-Peak Live, 12 a mp s

EZ-Peak Dual, 8 a mps

EZ-Peak Live D u a l , 2 6 + a m p s

2 97 0 Y ES YES YES 3s

2 97 1 Y ES YES YES 4s

2 97 2 Y ES YES YES 3s

2 97 3 Y ES YES YES 4s

NiMH

Compatible

LiPo

Compatible

Battery iDMax.

Cells

If the status LED doesn’t light green, check the polarity of the batteries. Check rechargeable batteries for a full charge. If you see any other ﬂashing signal from the LED, refer to the chart on page 32 to identify the code.

Use the Right Batteries

Your transmitter uses AA batteries. Use new alkaline batteries. Do not use rechargeable AA cells to power the TQi transmitter, as they will not provide sufﬁcient voltage for optimum transmitter performance.

Caution: Discontinue running your model at the ﬁrst sign of weak batteries (ﬂashing red light) to avoid losing control.

2, 3

RUSTLER 4X4 VXL • 13

Page 14

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

Battery iD

Traxxas recommended battery packs are equipped with Traxxas Battery iD. This exclusive feature allows Traxxas battery chargers (sold separately) to automatically recognize connected battery packs and optimize the charge settings for the battery. This eliminates the need to worry over charger settings and menus for the easiest and safest charging solution possible. Visit Traxxas.com to learn more about this feature and available Traxxas iD chargers and batteries.

Battery Compartment Specs:

• 143.45mm (5.65") long x 50.37mm (1.98") wide

• Height with stock strap: 25mm (.94")

• Height with accessory strap: 41mm (1.61")

INSTALLING THE BATTERY PACK

Install the battery pack with the battery wires facing the front of the model. Swing the battery hold-down towards the chassis and snap (lock) the end into the front hold-down retainer. Do not connect the battery pack yet.

RADIO SYSTEM CONTROLS

Neutral

Brake/Reverse

RADIO SYSTEM RULES

• Always turn your TQi transmitter on first and off last. This procedure will help to prevent your model from receiving stray signals from another transmitter, or other source, and running out of control. Your model has electronic fail-safes to prevent this type of malfunction, but the first, best defense against a runaway model is to always turn the transmitter on first and off last.

Forward

4, 5

14 • RUSTLER 4X4 VXL

Always turn your

transmitter on ﬁrst.

Plug in the battery.

Turn on the model.

Page 15

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

• Always use new batteries for the radio system. Weak batteries will

limit the radio signal between the receiver and the transmitter.

Loss of the radio signal can cause you to lose control of your model.

• In order for the transmitter and receiver to bind to one another, the receiver in the model must be turned on within 20 seconds of turning on the transmitter. The transmitter LED will flash fast red, indicating a failure to link. If you miss it, simply turn off the transmitter and start over.

• Always turn on the transmitter before plugging in the battery.

RADIO SYSTEM BASIC ADJUSTMENTS

Throttle Neutral Adjustment

The throttle neutral adjustment is located on the transmitter face and controls the forward/reverse travel of the throttle trigger. Change the adjustment by pressing the button and sliding it to the desired position. There are two settings available:

50/50: Allows equal travel for both acceleration and reverse. 70/30: Allows more throttle travel (70%) and less reverse

travel (30%).

Note: We strongly recommend to leave this control in its factory location until you become familiar with all the adjustments and capabilities of your model. To change the throttle neutral

adjust position, turn the transmitter off before adjusting the neutral position. You will need to reprogram your electronic

speed control to recognize the 70/30 setting. Turn to ESC Setup Programming on page 18 for instructions.

Steering Trim

The electronic steering trim located on the face of the transmitter adjusts the neutral (center) point of the steering channel. Note: Traxxas Stability Management (TSM) must be completely turned off while adjusting steering trim. See page 17 for TSM adjustments.

Multi-Function Knob

The Multi-Function knob can be programmed to control a variety of functions. From the factory, the Multi- Function knob controls Traxxas Stability Management (TSM). For more detail on TSM, refer to page 17.

USING THE RADIO SYSTEM

The TQi Radio System has been pre-adjusted at the factory. The adjustment should be checked before running the model in case of movement during shipping. Here’s how:

1. Turn the transmitter switch on. The status LED on the transmitter should be solid green (not flashing).

2. Elevate the model on a block or a stand so that all the tires are off the ground. Make sure your hands are clear of the moving parts of the model.

3. Plug the battery pack in the model into the speed control.

4. The on/off switch is integrated into the speed control. With the transmitter on, press and release the EZ-Set button (.25 seconds). The LED will shine RED (see note below). This turns the model on. To turn the VXL-3s off, press and hold the EZ-Set button until the LED turns off (.5 seconds). Note: If the LED shines green, Low-Voltage Detection is activated. This will cause erratic performance from NiMH battery packs. The default factory setting is for Low-Voltage Detection to be disabled (LED shines red). Make sure to turn the low voltage detection on when using LiPo batteries. Never use LiPo batteries while Low-Voltage Detection is turned off. See page 18 for more information.

5. Turn the steering wheel on the transmitter back and forth and check for rapid operation of the steering servo. Also, check that the steering mechanism is not loose or binding. If the steering operates slowly, check for weak batteries.

6. When looking down at the model, the front wheels should be pointing straight ahead. If the wheels are turned slightly to the left or right, turn off TSM (see page 17) and slowly adjust the steering trim control on the transmitter until they are pointing straight ahead; then, return the multi-function knob to the desired TSM setting.

Remember, always turn the TQi transmitter on ﬁrst and off last to avoid damage to your model.

Automatic Fail-Safe

The TQi transmitter and receiver are equipped with an automatic fail-safe system that does not require user programming. In the event of signal loss or interference, the throttle will return to neutral and the steering will hold its last commanded position. If the fail-safe system activates while you are operating your model, determine the reason for signal loss and resolve the problem before operating your model again.

Stop immediately at the ﬁrst sign of weak batteries. Never turn the transmitter off when the battery pack is plugged in. The model could run out of control.

RUSTLER 4X4 VXL • 15

Page 16

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

Using Reverse: While driving, push the throttle trigger forward to apply brakes. Once stopped, return the throttle trigger to neutral. Push the throttle trigger forward again to engage proportional reverse.

7. Gently operate the throttle trigger to ensure that you have forward and reverse operation, and that the motor stops when the throttle trigger is at neutral. Warning: Do not apply full

throttle in forward or reverse while the model is elevated.

8. Once adjustments are made, turn off the receiver on your model, followed by the hand-held transmitter.

Range-Testing the Radio System

Before each running session with your model, you should rangetest your radio system to ensure that it operates properly.

1. Turn on the radio system and check its operation as described in the previous section.

2. Have a friend hold the model. Make sure hands and clothing are clear of the wheels and other moving parts on the model.

3. Walk away from the model with the transmitter until you reach the farthest distance you plan to operate the model.

4. Operate the controls on the transmitter once again to be sure that the model responds correctly.

5. Do not attempt to operate the model if there is any problem with the radio system or any external interference with your radio signal at your location.

Higher Speeds Require Greater Distance

The faster you drive your model, the more quickly it will near the limit of radio range. At 60mph, a model can cover 88 feet every second! It’s a thrill, but use caution to keep your model in range. If you want to see your model achieve its maximum speed, it is best to position yourself in the middle of the truck’s running area, not the far end, so you drive the truck towards and past your position. In addition to maximizing the radio’s range, this technique will keep your model closer to you, making it easier to see and control.

No matter how fast or far you drive your model, always leave adequate space between you, the model, and others. Never drive directly toward yourself or others.

TQi Binding Instructions

For proper operation, the transmitter and receiver must be electronically “bound.” This has been done for you at the factory.

Should you ever need to re-bind the system or bind to another transmitter or receiver, follow these instructions. Note: The receiver must be connected to a 4.8-6.0v (nominal) power source for binding, and the transmitter and receiver must be within 5 feet of each other.

1. Press and hold the transmitter’s SET button as you switch the transmitter on. The transmitter’s LED will flash red slowly. Release the SET button.

2. Press and hold the receiver’s LINK button as you switch on the speed control (by pressing the EZ-Set button). Release the LINK button.

3. When the transmitter and receiver’s LEDs turn solid green, the system is bound and ready for use. Confirm that the steering and throttle operate properly before driving your model.

16 • RUSTLER 4X4 VXL

Page 17

TRAXXAS TQi RADIO & VELINEON POWER SYSTEM

TRAXXAS STABILITY MANAGEMENT (TSM)

Traxxas Stability Management or TSM allows you to experience all the speed and acceleration that was engineered into your Traxxas

model by helping you to maintain control of the vehicle in low-traction situations. TSM helps provide straight ahead full-throttle acceleration on slippery surfaces, without fishtailing, spinouts, or loss of control. TSM also dramatically improves braking control. High speed cornering and control is also made possible as TSM makes corrections for you, without intruding on your fun, or creating unexpected side effects.

The Multi-Function knob on the TQi transmitter has been programmed to control TSM. The recommended (default) setting for TSM is to rotate the knob to the 12:00 position (the zero mark on the dial).

Turn the knob clockwise to increase assistance; turn the knob counterclockwise to decrease assistance. Turn the knob counterclockwise to its stop to turn TSM completely off. Note: TSM is deactivated automatically when driving or braking in reverse.

When driving on surfaces with some traction, decrease the TSM setting to allow the vehicle to feel more “loose” for power sliding, drifting, and so on. On surfaces with very little traction (loose dirt, smooth concrete, ice/snow), increase TSM to maximize acceleration and control.

Drive with TSM on and off to test how it is making your control of the vehicle easier and more precise. For more information, visit Traxxas.com/tsm.

Note: TSM must be completely turned off while adjusting steering trim.

Recommended setting

Decrease

assistance

TSM off

Increase

assistance

SETTING UP THE ANTENNA

The receiver antenna has been set up and installed from the factory. The antenna is secured by a 3x4mm set screw. To remove the antenna tube,

Antenna

Tip

simply remove the set screw with the included 1.5mm wrench.

When reinstalling the antenna, ﬁrst slide the antenna wire into the

Antenna

Tube

bottom of the antenna tube until the white tip of the antenna is at the top of the tube under the black cap. Next insert the antenna tube into the mount while making sure that antenna wire is in the slot in the antenna mount, then install the set screw next to the antenna tube.

Antenna

Mount

Use the supplied 1.5mm wrench to tighten the screw just until the antenna tube is securely in place. Do not over tighten. Do not bend or kink the antenna wire! See the

sidebar for more information. Do not shorten the antenna tube.

SELF RIGHTING

Your model is equipped with Traxxas Self Righting that will allow you to automatically return it to an upright position after a rollover.* Make sure

there is adequate space around your Rustler 4X4 VXL and no people or animals are nearby before self righting. The model moves quickly and the tires are spinning at high speed. If a person or animal approaches the model during self righting, cancel immediately by moving the steering wheel or the throttle trigger. Press and hold the SET button on the transmitter for four (4)

seconds to activate the self-righting feature. Once activated, the SET button can be released. Note: Certain driving surfaces or conditions may prevent the model from uprighting itself. After several attempts, self righting will cancel. Press the SET button to try again, or go and retrieve your model.

*3s LiPo battery pack required for the self-righting feature to operate properly.

To prevent loss of radio range do not kink or cut the black wire, do not bend or cut the metal tip, and do not bend or cut the white wire at the end of the metal tip.

Correct

NoNo No

RUSTLER 4X4 VXL • 17

Page 18

ADJUSTING THE ELECTRONIC SPEED CONTROL

VXL-3s Speciﬁcations

Input voltage:

4.8-11.1V (4 to 9 cells NiMH or 2S to 3S LiPo)

Supported Motors:

Brushless

Motor limit:

None

BEC voltage:

6.0V DC

Transistor type: MOSFET

Battery connector: Traxxas High-Current Connector

Motor connectors:

TRX 3.5mm bullet connectors

Motor/Battery Wiring:

12-gauge Maxx

Thermal Protection:

2-stage thermal shutdown

Cable

VXL-3s Battery Settings (Low-Voltage Detection Setting)

The Velineon VXL-3s electronic speed control is equipped with built-in Low-Voltage Detection. The Low-Voltage Detection circuitry constantly monitors the battery voltage. When the battery voltage begins to reach the minimum recommended discharge voltage threshold for LiPo battery packs, the VXL-3s will limit the power output to 50% throttle. When the battery voltage attempts to fall below the minimum threshold, the VXL-3s will shut down all motor output. The LED on the speed control will slowly blink red, indicating a low-voltage shutdown. The VXL-3s will stay in this mode until a fully charged battery is connected.

The VXL-3s speed control’s Low-Voltage Detection has been disabled for best performance with NiMH batteries. The speed control’s LED will glow red when it is turned on, indicating Low-Voltage Detection is disabled. Be certain to activate Low-Voltage Detection if you install a LiPo battery in your model. Never use LiPo batteries while Low-

Voltage Detection is disabled.

To verify the Low-Voltage Detection setting:

1. Turn on the transmitter (with the throttle at neutral).

2. Connect a fully charged battery pack to the VXL-3s.

3. Press and release the EZ-Set button to turn the VXL-3s on. If the LED is solid red, then the Low-Voltage Detection is DISABLED (not safe to use LiPo batteries). If the LED is solid green, then Low- Voltage Detection is ACTIVATED.

To activate Low-Voltage Detection (LiPo setting):

1. Make sure the LED on the VXL-3s is on and red.

Press and hold the EZ-Set button for ten seconds. The LED will turn off and then light green. Also, a “rising” musical tone will be emitted from the motor.

3. Low-Voltage Detection is now ACTIVATED.

To disable Low-Voltage Detection (NiMH setting):

1. Make sure the LED on the VXL-3s is on and green.

Press and hold the EZ-Set button for ten seconds. The LED will turn off and then light red. Also, a “falling” musical tone will be emitted from the motor.

3. Low-Voltage Detection is now DISABLED.

Transmitter Adjustments for the VXL-3s ESC

Before attempting to program your VXL-3s ESC, it is important to make sure that your transmitter is properly adjusted (set back to the factory defaults). Otherwise, you may not get the best performance from your speed control.

The transmitter should be adjusted as follows:

If the transmitter settings have been adjusted, reset them to the factory defaults.

1. Turn the transmitter off.

2. Hold both MENU and SET.

3. Turn the transmitter on.

4. Release MENU and SET. The transmitter LED will blink red.

5. Press SET to clear settings. The LED will turn solid green and the transmitter is restored to default.

VXL-3s Setup Programming (Calibrating your ESC and transmitter)

Read through all of the programming steps before you begin. If you get lost during programming or receive unexpected results, simply unplug the battery, wait a few seconds, plug the battery back in, and start over.

1. Connect a fully charged battery pack to the VXL-3s.

2. Turn on the transmitter (with the throttle at neutral).

3. Press and hold the EZ-Set button (A). The LED

will ﬁrst turn green and then red. Release the EZ-Set button.

4. When the LED blinks RED ONCE, pull the throttle trigger to the full throttle position

Green then Red

and hold it there (B).

5. When the LED blinks RED TWICE, push the throttle trigger to the full reverse and hold

Once Red

it there (C).

6. When the LED blinks GREEN ONCE, programming is complete. The LED will then shine green or red (depending on Low-Voltage

Twice Red

Detection setting), indicating the VXL-3s is on and at neutral (D).

Once Green

18 • RUSTLER 4X4 VXL

Page 19

ADJUSTING THE ELECTRONIC SPEED CONTROL

VXL-3s Operation

To operate the speed control and test programming, place the vehicle on a stable block or stand so that all of the drive wheels are off the ground. Disconnect motor wires “A” and “C” (see page 12), this will ensure the motor does not drive the wheels during testing. Do not test programming without disconnecting the motor wires.

Note that in steps 1-7 below, Low-Voltage Detection is DISABLED (factory default) and the LED shines red. If Low-Voltage Detection is ACTIVATED, the LED will shine green instead of red in steps 1-7 below.

Never use LiPo batteries while Low-Voltage Detection is disabled.

1. With the transmitter on, press and release the EZ-Set button. The LED will shine red. This turns the VXL-3s on.

2. Apply forward throttle. The LED will turn off until full throttle power is reached. At full throttle, the LED will illuminate red.

3. Move the trigger forward to apply the brakes. Note that braking control is fully proportional. The LED will turn off until full braking power is reached. At full brakes, the LED will illuminate red.

4. Return the throttle trigger to neutral. The LED will shine red.

5. Move the throttle trigger forward again to engage reverse (Proﬁle #1). The LED will turn off. Once full reverse power is reached, the LED will illuminate red.

6. To stop, return the throttle trigger to neutral. Note that there is a programmed delay when changing from reverse to forward. This prevents damage to the transmission on high-traction surfaces.

7. To turn the VXL-3s off, press the EZ-Set button until the LED turns off (.5 seconds).

VXL-3s Proﬁle Selection

The speed control is factory set to Proﬁle #1 (100% forward, brakes, and reverse). To disable reverse (Proﬁle #2) or to allow 50% forward and 50% reverse (Proﬁle #3), follow the steps below. The speed control should be connected to the receiver and battery, and the transmitter should be adjusted as described previously. The proﬁles are selected by entering the programming mode.

Proﬁle Description

Proﬁle #1 (Sport Mode): 100% Forward, 100% Brakes, 100% Reverse Proﬁle #2 (Race Mode): 100% Forward, 100% Brakes, No Reverse Proﬁle #3 (Training Mode): 50% Forward, 100% Brakes, 50% Reverse

Selecting Sport Mode

(Proﬁle #1: 100% Forward, 100% Brakes, 100% Reverse)

1. Connect a fully charged battery pack to the VXL-3s and turn on your transmitter.

2. With the VXL-3s off, press and hold the EZ-Set button until the LED turns solid green, then solid red and then begins blinking red (indicating the

Green to Red to Off

One blink Red

Proﬁle numbers).

3. When the LED blinks red once, release the EZ-Set button.

Release

Solid

4. The LED will blink and then turn solid green (Low-Voltage Detection ACTIVE) or red (Low-Voltage Detection DISABLED). The model is ready to drive.

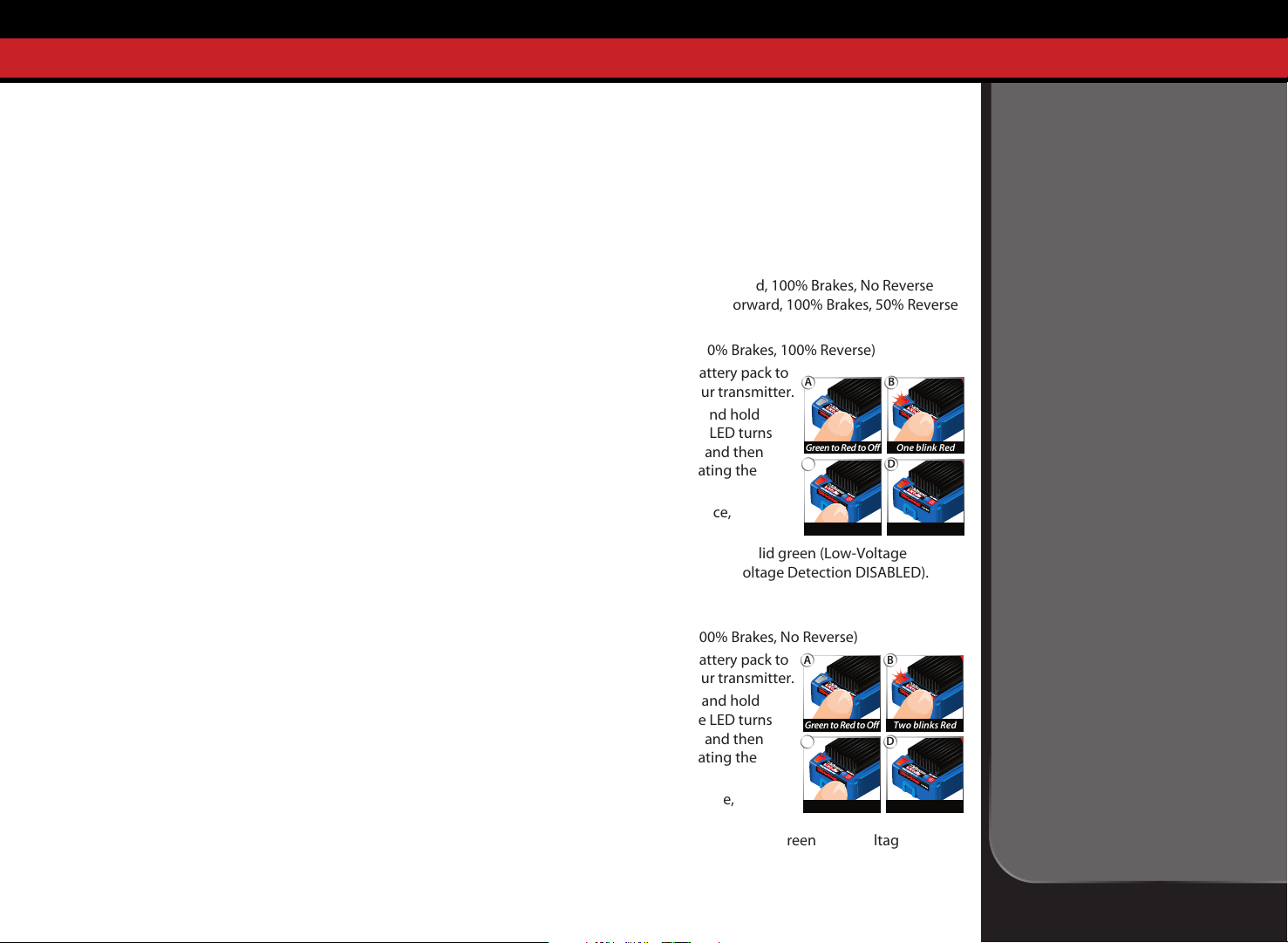

Selecting Race Mode (Proﬁle #2: 100% Forward, 100% Brakes, No Reverse)

1. Connect a fully charged battery pack to

the VXL-3s and turn on your transmitter.

2. With the VXL-3s off, press and hold the EZ-Set button until the LED turns solid green, then solid red and then

Green to Red to Off

Two blinks Red

begins blinking red (indicating the Proﬁle numbers).

3. When the LED blinks red twice, release the EZ-Set button.

Release

Solid

4. The LED will blink and then turn solid green (Low-Voltage Detection ACTIVE) or red (Low-Voltage Detection DISABLED). The model is ready to drive.

RUSTLER 4X4 VXL • 19

Page 20

ADJUSTING THE ELECTRONIC SPEED CONTROL

Patented Training Mode (Proﬁle #3) reduces forward and reverse throttle by 50%. Training Mode is provided to reduce the power output, allowing beginning drivers to better control the model. As driving skills improve, simply change to Sport or Race Mode for full-power operation.

Tip For Fast Mode Changes

The VXL-3s is set to Proﬁle 1 (Sport Mode) as the default. To quickly change to Proﬁle 3 (Training Mode), with the transmitter on, press and hold the SET button until the light blinks red three times and then release. For full power, quickly change back to Proﬁle 1 (Sport Mode) by pressing and holding the SET button until the light blinks red one time and then releasing.

The VXL-3s has built-in programming that prevents accidental activation of reverse while in forward motion and vice-versa. You must come to a complete stop, release the throttle trigger, then apply opposite throttle to engage the motor in the desired direction.

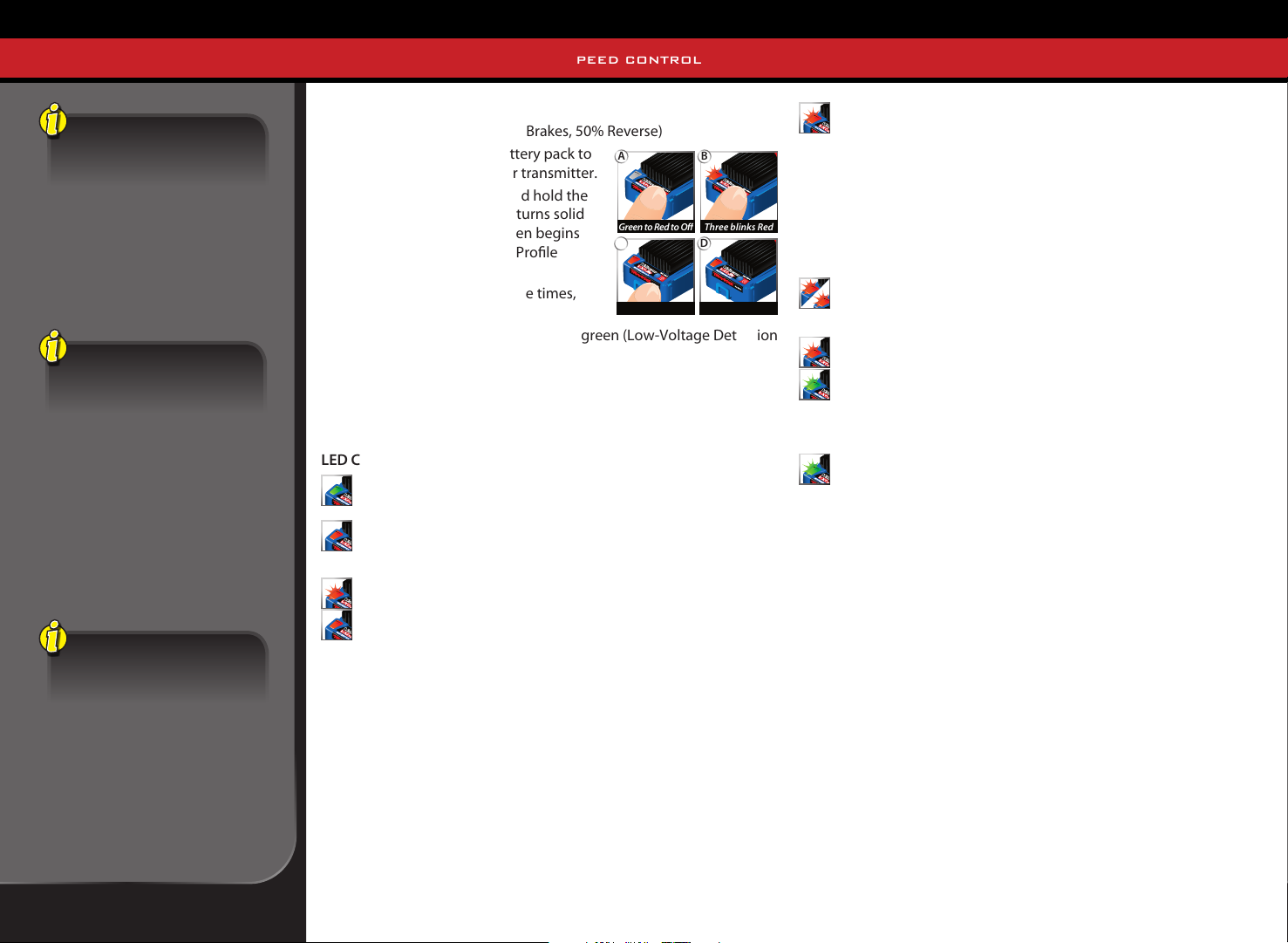

Selecting Training Mode

(Proﬁle #3: 50% Forward, 100% Brakes, 50% Reverse)

1. Connect a fully charged battery pack to

the VXL-3s and turn on your transmitter.

2. With the VXL-3s off, press and hold the EZ-Set button until the LED turns solid green, then solid red and then begins blinking red (indicating the Proﬁle

Green to Red to Off

Three blinks Red

numbers).

3. When the LED blinks red three times, release the EZ-Set button.

Release

Solid

4. The LED will blink and then turn solid green (Low-Voltage Detection ACTIVE) or red (Low-Voltage Detection DISABLED). The model is ready to drive.

Note: If you missed the mode you wanted, keep the EZ-Set button pressed down and the blink cycle will repeat until the button is released and a Mode is selected.

LED Codes and Protection Modes

• Solid Green: VXL-3s power-on light. Low-Voltage Detection is

ACTIVATED (LiPo setting).

• Solid Red: VXL-3s power-on light. Low-Voltage Detection is DISABLED (NiCad/NiMH setting). Never use LiPo batteries

while Low-Voltage Detection is disabled.

• Slow Blinking Red (with Low-Voltage Detection on): The

VXL-3s has entered Low-Voltage Protection. When the battery voltage begins to reach the minimum recommended discharge voltage threshold for LiPo battery packs, the VXL-3s will limit the power output to 50% throttle. When the battery voltage attempts to fall below the minimum threshold, the VXL-3s will shut down all motor output. The LED on the speed control will slowly blink red, indicating a low-voltage shutdown. The VXL-3s will stay in this mode until a fully charged battery is connected.

• Fast Blinking Red: Thermal Shutdown Protection Stage 1. If the motor has lower than normal power and the VXL-3s is hot, the VXL-3s has entered Stage 1 Thermal Shutdown Protection to guard against overheating caused by excessive current ﬂow. If the motor has no power and the VXL-3s is very hot, the VXL-3s has entered Stage 2 Thermal Shutdown Protection and has automatically shut down. Let the VXL3s cool. Make sure your model is properly geared for the conditions (see page 27).

• Very Fast Blinking Red: Thermal Shutdown Protection and Low Voltage Protection (see above) have occurred at the same time.

• Alternating; Blinks Red then Green: If the motor has no power, the VXL-3s has entered Over Voltage Protection. If

a battery with too high voltage is used, the VXL-3s will go into a fail-safe mode. WARNING: If input voltage exceeds approximately 20-volts, the ESC may be damaged. Do not exceed 12.6 maximum peak input voltage.

• Blinking Green: The VXL-3s is indicating the transmitter Throttle Trim (see page 31) is incorrectly set. If the MultiFunction knob is set to throttle trim, then adjust the Throttle Trim to the middle “0” setting.

20 • RUSTLER 4X4 VXL

Page 21

DRIVING YOUR MODEL

Now it’s time to have some fun! This section contains instructions on driving and making adjustments to your model. Before you go on, here are some important precautions to keep in mind.

• Allow the model to cool for a few minutes between runs. This is particularly important when using high-capacity battery packs that allow extended periods of running. Monitoring temperatures will extend the lives of the batteries and motors. See page 28 for advanced user information on monitoring temperatures.

• Do not continue to operate the model with low batteries or you could lose control of it. Indications of low battery power include slow operation, sluggish servos (slow to return to center), or ESC shutdown due to the Low-Voltage Detection circuitry. Stop immediately at the ﬁrst sign of weak batteries. When the batteries in the transmitter become weak, the power light will begin to ﬂash red. Stop immediately and install new batteries.

• Do not drive the model at night, on public streets, or in large crowds of people.

• If the model becomes stuck against an object, do not continue to run the motor. Remove the obstruction before continuing. Do not push or pull objects with the model.

• Because the model is controlled by radio, it is subject to radio interference from many sources beyond your control. Since radio interference can cause momentary losses of control, allow a safety margin of space in all directions around the model in order to prevent collisions.

• Use good, common sense whenever you are driving your model. Intentionally driving in an abusive and rough manner will only result in poor performance and broken parts. Take care of your model so that you can enjoy it for a long time to come.

• When using the supplied optional pinion for top-speed running, limit your driving to paved surfaces only. Running in grass and off-road could cause excessive loads on the electrical system in the model.

• High-performance vehicles produce small vibrations that may loosen hardware over time. Frequently check wheel nuts and other screws on your vehicle to ensure that all hardware remains properly tightened.

About Run Time

A large factor affecting run time is the type and condition of your batteries. The milliamp hour (mAh) rating of the batteries determines how large their “fuel tank” is. A 3000mAh battery pack will theoretically run twice as long as a 1500mAh sport pack. Because of the wide variation in the types of batteries that are available and the methods with which they can be charged, it’s impossible to give exact run times for the model.

Another major factor that affects run time is how the model is driven. Run times may decrease when the model is driven repetitively from a stop to top speed and with repetitive hard acceleration.

Tips for Increasing Run Time

• Use batteries with the highest mAh rating you can purchase.

• Use a high-quality peak-detecting charger.

• Read and follow all maintenance and care instructions provided by the manufacturer of your batteries and charger.

• Keep the VXL-3s cool. Get plenty of airﬂow across the ESC heat sinks.

• Use the correct Low-Voltage Detection setting for your battery (see page 18). Low-Voltage Detection can be off for maximum NiMH battery runtime. Never use LiPo batteries while Low-Voltage Detection is turned off.

• Lower your gear ratio. Installing a smaller pinion or larger spur gear will lower your gear ratio, causing less power draw from the motor and battery, and reducing overall operating temperatures.

• Maintain your model. Do not allow dirt or damaged parts to cause binding in the drivetrain. Keep the motor clean.

mAh Ratings and Power Output

The mAh rating of the battery can affect your top-speed performance. The higher capacity battery packs experience less voltage drop under heavy load than low mAh rated packs. The higher voltage potential allows increased speed until the battery begins to become discharged.

RUNNING IN WET CONDITIONS

Your new Traxxas model is designed with water-resistant features to protect the electronics in the model (receiver, servos, electronic speed control). This gives you the freedom to have fun driving your model through puddles, wet grass, snow, and through other wet conditions. Though highly water resistant, the model should not be treated as though it is submersible or totally 100% waterproof. Water resistance applies only to the installed electronic components. Running in wet conditions requires additional care and maintenance for the mechanical and electrical components to prevent corrosion of metal parts and maintain their proper function.

Precautions

• Without proper care, some parts of your model can be seriously damaged due to contact with water. Know that additional maintenance procedures will be required after running in wet conditions in order to maintain the performance of your model. Do not run your model in wet conditions if you are not willing to accept the additional care and maintenance responsibilities.

RUSTLER 4X4 VXL • 21

Page 22

DRIVING YOUR MODEL

• Not all batteries can be used in wet environments. Consult your battery manufacturer to see if their batteries can be used in wet conditions. Do not use LiPo batteries in wet conditions.

• The Traxxas TQi transmitter is not water resistant. Do not subject it to wet conditions such as rain.

• Do not operate your model during a rain storm or other inclement weather where lightning may be present.

• Do not allow your model to come in contact with salt water (ocean water), brackish water (between fresh water and ocean water), or other contaminated water. Salt water is highly conductive and highly corrosive. Use caution if you plan to run your model on or near a beach.

Before Running Your Vehicle in Wet Conditions

1. Consult the section “After Running Your Vehicle in Wet Conditions”

before proceeding. Make sure you understand the additional maintenance required with wet running.

2. The wheels have small holes molded in to allow air to enter and exit

the tire during normal running. Water will enter these holes and get trapped inside the tires if holes are not cut in the tires. Cut two small holes (3mm or 1/8” diameter) in each tire. Each hole should be near the tire center-line, 180 degrees apart.

3. Conﬁrm that the receiver box O-ring and cover are installed correctly

and secure. Make sure the screws are tight and the blue O-ring is not visibly protruding from the edge of the cover.

4. Conﬁrm that your batteries can be used in wet conditions.

5. Use lower gearing (smaller pinion gears, as low as 9T or spur gear as

large as 54T) when running in mud, deep puddles, snow, or other similar situations that will restrict the tires and put much higher loads on the motor.

Motor Precautions

• Velineon motor life can be greatly reduced in mud and water. If the motor gets excessively wet or submerged, use very light throttle (run the motor slowly) until the excess water can run out. Applying full throttle to a motor full of water can cause rapid motor failure. Your driving habits will determine motor life with a wet motor. Do not submerge the motor under water.

• Do not gear the motor by temperature when running in wet conditions. The motor will be cooled by water contact and will not give an accurate indication of appropriate gearing.

• Use special care when operating your model in muddy conditions. Stop operating your model if it appears to be straining due to the tackiness of the mud or build-up of mud on the chassis. Do not allow mud to collect on the motor or pack around the motor.

After Running Your Vehicle in Wet Conditions

1. Drain the tires by spinning the tires at high speed to “sling” the water

out. One way to do this is to make several high-speed passes on a ﬂat, dry surface (if possible).

2. Remove the batteries.

3. Rinse excess dirt and mud off the truck with low-pressure water, such

as from a garden hose. Do not use a pressure washer or other highpressure water. Avoid directing water into the bearings, differentials, etc.

4. Blow off the truck with compressed air (optional, but recommended).

Wear safety glasses when using compressed air.

5. Remove the wheels from the truck.

6. Spray all the bearings, drivetrain, and fasteners with WD-40® or similar

water-displacing light oil.

7. Let the truck stand or you may blow it off with compressed air. Placing

the truck in a warm, sunny spot will aid drying. Trapped water and oil will continue to drip from the truck for a few hours. Place it on a towel or piece of cardboard to protect the surface underneath.

8. As a precautionary step, remove the sealed receiver box cover. While

unlikely, humidity or tiny amounts of moisture or condensation may enter the receiver box during wet running. This can cause long-term problems with the sensitive electronics in the receiver. Removing the receiver box cover during storage allows the air inside to dry. This step can improve the long-term reliability of the receiver. It is not necessary to remove the receiver or unplug any of the wires.

9. Additional Maintenance: Increase your frequency of disassembly,

inspection, and lubrication of the following items. This is necessary after extended wet use or if the vehicle will not be used for an extended period of time (such as a week or longer). This additional maintenance is needed to prevent any trapped moisture from corroding internal steel components.

• Stub axle housing bearings: Remove, clean, and re-oil the bearings.

• Differentials: Remove, disassemble, clean, and re-grease the differential components. Use a light coating of wheel bearing grease (from an auto parts store) on the metal gear teeth. Refer to your exploded view diagrams for help with disassembly and reassembly.

22 • RUSTLER 4X4 VXL

Page 23

DRIVING YOUR MODEL

• Velineon motor: After operating your model in wet or muddy conditions, remove the motor and clean any mud or dirt from the bearings. To access the rear bearing, remove the plastic cap with thumb pressure, or gently pry the cap off with a flat-blade screwdriver. To prevent corrosion and assure maximum bearing life, lubricate the bearings with a light oil (available at your local hobby store). Following these steps will extend motor life and maintain peak performance. Be sure to wear eye protection when using spray aerosol cleaners.

3. Plug ESC and servo wires into the receiver. Refer

4. Make sure the O-ring is properly seated into the

5. Place receiver box top onto receiver box bottom

6. Inspect the cover to make sure that the O-ring

RECEIVER BOX: MAINTAINING A WATERTIGHT SEAL

Removing and Installing Radio Gear

The unique design of the receiver box allows the removal and installation of the receiver without losing the ability to maintain a watertight seal in the box. The patent-pending wire clamp feature gives you the ability to also install aftermarket radio systems and maintain the watertight features of the receiver box.

Removing the Receiver

1. Remove the wire clamp by removing the two 2.5x8mm cap screws.

2. Remove the cover by removing the two 3x10mm cap screws.

3. To remove the receiver from the box, simply lift it out and set to the side. The antenna wire is still inside the clamp area and cannot be removed yet.

4. Unplug the servo cables from the receiver and remove the receiver.

Receiver Installation

1. Install the electronic speed control (ESC), servo, and antenna wiring through the receiver box top (A).

2. Using double-sided adhesive foam tape, install the receiver into the box. Make sure the box light pipe is aligned with the receiver LED.

Note: For best performance, it is recommended that the receiver be installed in the original orientation as shown.

7. Arrange the wires neatly using the wire guides

8. Apply a small bead of silicone grease (Traxxas part #1647) to the foam

9. Install the wire clamp and tighten the two 2.5x8mm cap screws

to page 12 for the wiring diagram.

groove in the receiver box bottom so that the cover will not pinch it or damage it in any way.

and install and tighten the two 3x10mm cap screws securely.

seal is not visible.

on the receiver box top (B). Excess ESC and servo wiring should be bundled inside the receiver box. Pull out all available antenna wiring from the receiver box.

on the wire clamp (C).

securely (D).

RUSTLER 4X4 VXL • 23

Page 24

BASIC TUNING ADJUSTMENTS

All of the toe links are installed on the truck so the left-hand thread indicators point to the same direction. This makes it easier to remember which way to turn the wrench to increase or decrease toe link length (the direction is the same at all four corners). Note that the groove in the hex indicates the side of the toe link with the left-hand threads.

Rear toe-in can be adjusted using accessory rear axle carriers, Traxxas Part #1952X. These can add or remove 1.5° toe per side, for a total of 1 to 4 degrees per side.

24 • RUSTLER 4X4 VXL

Once you become familiar with driving your model, you might need to make adjustments for better driving performance

Adjusting Gear Mesh

Incorrect gear mesh is the most common cause of stripped spur gears. Rustler 4X4 VXL makes improper gear mesh virtually impossible. A factory installed ﬁxed gear adapter helps set the motor in the proper place according to the pinion and spur gear that are selected. Access the gears by removing the single screw on the top gear cover.

Strip of

Paper

Fixed Gear

Adapter

Motor Screw Position in

Fixed Gear Adapter for

Setting Gear Mesh

Spur Gear

50 52 54

11 - - A

13 - A -

15 A - -

17 - - B

Pinion Gear

19 - B -

If you choose to do so, you can also set the gear mesh manually without using the ﬁxed gear adapter. With the adapter removed, loosen the motor screw. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into

Motor

Screw

the spur gear. Retighten the motor screw, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

Adjusting the Toe-in

Geometry and alignment specs play an important role in your model’s handling. Take the time to set them correctly. Turn off TSM (see page 17); then, set the steering trim on your transmitter to neutral. Now, adjust your servo and tie rods so that both wheels are pointing straight ahead and are parallel to each other (0° toe-in). This will ensure the same amount of steering in both directions.

For increased stability add 1° to 2° of toe in to each front wheel. Use the turnbuckles to adjust the alignment.

1°-2° 1°-2°

Toe-in

Toe Base Factory Settings Front: 0-degrees Rear: 2.5-degree toe-in each side

Adjusting the Camber

The camber angle of both the front and rear wheels can be adjusted with the camber links (upper turnbuckles). Use a square or rightangle triangle to set the camber accurately. Adjust the front wheels to 1° to 2° of negative camber. In the rear, adjust the wheels to 1° to 2° of negative camber. These adjustments should be set with the truck positioned at its normal ride height.

1°-2° 1°-2°

Camber

Static Camber Base Factory Settings Front: 1-degree negative camber each side Rear: 1-degree negative camber each side

Shock Mounting Positions

Big bumps and rough terrain require a softer suspension with the maximum possible suspension travel and ride height. Racing on a prepared track or on-road use requires a lower ride height and ﬁrmer, more progressive suspension settings. The more progressive suspension settings help reduce body roll (increased roll stiffness), dive during braking, and squat during acceleration.

Page 25

BASIC TUNING ADJUSTMENTS

The suspension of your model has been set up for off-road performance (position 2 on the front suspension arms and position 3 on the rear suspension arms). If you plan on driving on hard surfaces, the following changes should be made:

1. Move the front shocks to position 3 on the suspension arms.

2. Move the rear shocks to position 4 on the suspension arms.

3. Add additional preload spacers.

4. Position 1 is not recommended for front or rear.

Fine Tuning the Shocks

The four shocks on the model greatly inﬂuence its handling. Whenever you rebuild your shocks, or make any changes to the pistons, springs, or oil, always make changes to them in pairs (front or rear). Piston selection depends on the range of oil viscosities that you have available. For example, using a two-hole piston with a lightweight oil will, at one point, give you the same damping as a three-hole piston

Preload

Spacer

with heavier oil.

We recommend using the two-hole pistons with a range of oil viscosities from 10W to 50W (available from your hobby shop). The thinner viscosity oils (30W or less) ﬂow more smoothly and are more consistent, while thicker oils provide more damping. Use only 100% pure silicone shock oil to prolong seal life. From the factory, shock oil is set to 50W in the front shocks and 30W in the rear shocks.

The model’s ride height can be adjusted by adding or removing the clip-on, spring preload spacers. Adjust the ride height so that the suspension arms are slightly above being parallel to the ground. Observe how the model handles in turns. Proper setup will add stability and help prevent spin outs.

Experiment with different springs and shock oils to ﬁnd what works best for your current track conditions.

Centering Your Servo

If you have removed the servo horn from your model’s steering servo, or the servo has been removed for service or cleaning, the servo must be re-centered prior to installation of the servo horn or installation of the servo in the model.

1. Remove the servo horn from the steering servo.

2. Connect the steering servo to channel 1 on the receiver. Connect the electronic speed control (ESC) to channel 2. The white wire on the servo lead is positioned toward the receiver’s LED.

3. Turn the transmitter power switch on. Make certain the transmitter’s batteries are not depleted.

4. Turn off TSM (see page 17).

5. Turn the transmitter’s steering trim knob to the center “0” position.

6. Disconnect motor wires “A” and “C” (see page 12) to prevent the motor from turning during the next steps. Connect a fresh battery pack to the speed control and turn on the ESC (see page 18). The servo’s output shaft will automatically jump to its center position.

7. Install the servo horn onto the servo output shaft. The servo horn should face toward the center of the chassis and be perpendicular to the servo body.

8. Check servo operation by turning the steering wheel back and forth to ensure that the mechanism has been centered properly and you have equal throw in both directions. Use the transmitter’s steering trim knob to ﬁne-tune the position of the servo horn so the model tracks straight when the steering wheel is at neutral.

Adjusting the Slipper Clutch

The model is equipped with an adjustable slipper clutch which is built into the large spur gear. The purpose of the slipper clutch is to regulate the amount of power sent to the wheels to prevent tire spin. When it slips, the slipper clutch makes a high-pitch, whining noise. To adjust the slipper, use the included wrench to hold the adjusting nut and roll the model forward to tighten and reverse to loosen.

Place the model on a high-traction surface, such as carpet . Adjust the slipper so that you can hear it slip for approximately two feet from a standing, full throttle start. (Learn more about adjusting the slipper clutch in the sidebar.)

To achieve a good starting point for the slipper clutch in this model, remove the slipper gear assembly from your model (see page 26 for instructions) and tighten the slipper clutch adjusting nut clockwise until the slipper clutch adjusting spring fully collapses (do not over tighten), and then turn the slipper clutch nut counterclockwise one full turn.

Do not run your model with the slipper clutch adjusting spring fully compressed. The minimum recommended slipper clutch setting is 1/2 turn counterclockwise from fully compressed.

RUSTLER 4X4 VXL • 25

Page 26

MAINTAINING YOUR MODEL

Always wear eye protection when using compressed air or spray cleaners and lubricants.

High performance vehicles generate small vibrations while driving. These vibrations may loosen hardware over time and require attention. Always check your wheel nuts and other hardware and tighten or replace when necessary.

26 • RUSTLER 4X4 VXL

Your model requires timely maintenance in order to stay in top running condition. The following procedures should be taken very seriously.

Frequently inspect the vehicle for obvious damage or wear. Look for:

1. Cracked, bent, or damaged parts

2. Check the wheels and steering for binding.

3. Check the operation of the shock absorbers.

4. Check the wiring for any frayed wires or loose connections.

5. Check the mounting of the receiver and servo(s) and speed control.

6. Check the tightness of the wheel nuts with a wrench.

7. Check the operation of the radio system, especially the condition of the batteries.

8. Check for any loose screws in the chassis structure or suspension.

9. Check the operation of the steering servo and ensure that it is not binding.

10. Inspect the gears for wear, broken teeth, or debris lodged between the teeth.

11. Check the tightness of the slipper clutch.

Other periodic maintenance:

• Slipper clutch pads (friction material):

Under normal use, the friction material in the slipper clutch should wear very slowly. If the thickness of any one of the slipper clutch pads is

1.8mm or less, the friction disc should be replaced. Measure the pad thickness using calipers or measuring against the diameter of the 1.5 and 2.0mm hex wrenches provided with the model.

• Chassis: Keep the chassis clean of accumulated dirt and grime. Periodically

inspect the chassis for damage.

• Suspension: Periodically inspect the model for signs of damage such as bent or

dirty suspension pins, bent turnbuckles, loose screws, and any signs of stress or bending. Replace components as needed.

• Steering: Over time, you may notice increased looseness in the steering

system. The tie rod ends may wear out from use (Traxxas Parts #2742 and #5525). Replace these components as needed to restore factory tolerances.

• Shocks: Keep the oil level in the shocks full. Use only 100% pure

silicone shock oil to prolong the life of the seals. If you are experiencing leakage around the top of the shock, inspect the bladder in the top cap for signs of damage or distortion from overtightening. If the bottom of the shock is leaking, then it is time for a rebuild. The Traxxas rebuild kit for two shocks is part #2362.

• Driveline: Inspect the driveline for signs of wear such

as worn drive yokes, dirty axle half shafts, and any unusual noise or binding. If a U-joint pops apart, then

Front Suspension

Assembly

it is time to replace the part. Remove the gear cover. Inspect the spur gear for wear and check the tightness of the set screws in the pinion gears. Tighten, clean, or replace components as needed.

Storage

When you are through running the model for the day, blow it off with compressed air or use a soft bristled paint brush to dust off the vehicle.

Always disconnect and remove the battery from the model whenever the model is stored. If the model will be stored for a long time, also remove the batteries from the transmitter.

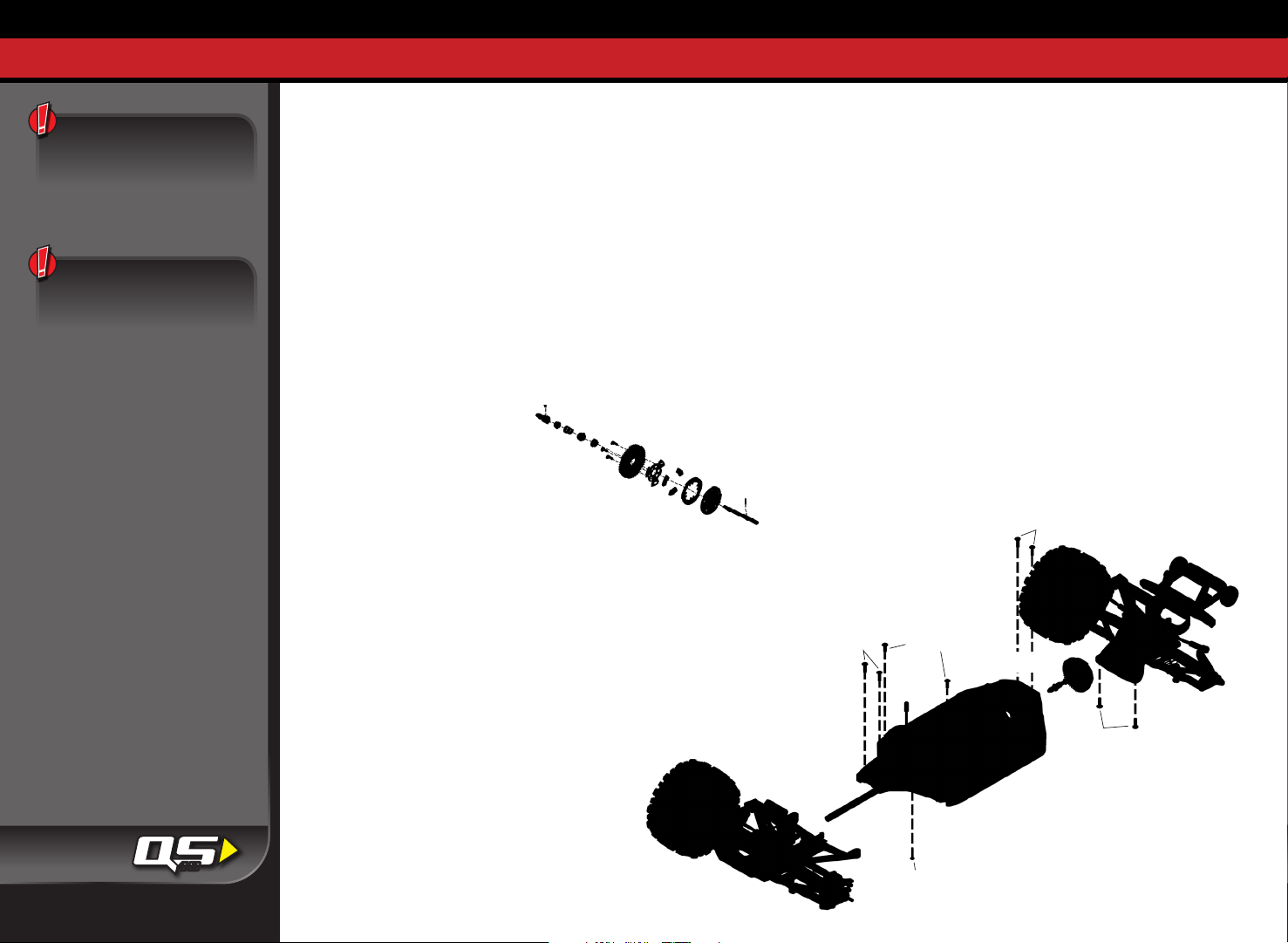

Suspension and slipper clutch assembly removal

The your model was designed with ease of disassembly in mind. The entire front and rear suspension assemblies can be removed from the chassis fully intact with the removal of only a few screws. Refer to the exploded views included in the your model’s Service Support Guide for complete assembly diagrams.

• Removing the front suspension module

1. Remove the two 4x12 button-head cap screws from the front of the chassis.

2. Remove the two 4x10 button-head cap screws from the top of the chassis.

3. Remove the 3x15 button-head cap screw from the steering link under the chassis.

4. Pull the front suspension assembly away from the chassis.

• Removing the rear suspension module (slipper clutch assembly removal)

1. Remove the two 4x12 button-head cap screws from the top of the chassis.

2. Remove the two 4x14 button-head cap screws from the bottom of the chassis.

3. Pull the rear suspension assembly away from the chassis.

4. The slipper clutch assembly can

now be removed.

4x12 BCS

4x10 BCS

3x15 BCS

4x12 BCS

Slipper Clutch

Assembly

Rear Suspension

Assembly

4x14 BCS

Page 27

ADVANCED TUNING ADJUSTMENTS

CAMBER GAIN

Your model has provisions for adjusting the camber gain geometry of the front and rear suspension. “Camber gain” refers to an increase in camber angle as the suspension is compressed. The camber gain of the vehicle can be changed by moving the camber link attachment to a different horizontal mounting position. Adjusting the camber gain will alter the tire contact patch as the suspension is compressed. Making the camber link shorter will increase the camber gain. This makes the vehicle more stable over bumps, but reduces traction on smooth surfaces. Lengthening the camber links has the opposite effect.

• Front Camber Gain

To increase the camber gain on the front suspension, move the inner camber link ends out to Position 3. Position 4 is the stock setting.

• Rear Camber Gain

To increase the camber gain on the rear suspension, move the inner camber link ends out to a different attachment hole (Position 4 in the image. Position 5 is the stock setting).

Once you make adjustments to the camber gain, you may need to re-adjust the static camber to suit your tuning needs.

ROLL CENTER

Your model has provisions for adjusting the roll center geometry of the front and rear suspension. Roll center refers to the virtual axis around which the chassis will roll when subjected to cornering forces. The roll center of the vehicle can be raised by mounting the inner ends of the camber links in a lower position. Raising the roll center will effectively increase the roll stiffness of the vehicle (similar to installing swaybars). Adding roll resistance to one end of the vehicle will tend to add traction to the opposite end. For example, increasing roll resistance in the rear will provide more traction for the front wheels and potentially more steering. Raising the roll center on the front and rear equally will increase overall roll resistance without changing the handling balance. The default factory locations are designed to make the truck easier and more forgiving to drive and less likely to traction roll in turns.

Front

Rear

• Front Roll Center

Front

C-hub

To lower the roll center on the front suspension, move the inner camber link ends up to a different attachment hole (Position 1 or 2. Position 4 is the stock setting). To lower the roll center further, move the outer camber link ends to the lower position on the C-hub.

Bump steer correction - “Bump steer” refers to

unwanted steering inputs caused by suspension

movement. Your model’s suspension geometry is designed to minimize bump steer. If you are using the upper hole on the C-hub (image A) and either of the two lower holes on the shock tower (positions 3 or 4 in “Front” image), the tie rod ball should be oriented with the large flat end on top (stock position

- image B). When using any other combination of camber link attachment

B C

Rear

points, the tie rod ball should be oriented with the large flat end on the bottom (C).

• Rear Roll Center To lower the roll center on the rear suspension, relocate the inner camber links to one of the three holes (position 1, 2 or 3 in image) in the upper row of the rear camber link attachment, located near the base of the rear shock tower.

Once you make adjustments to the roll center, you may need to re-adjust the static camber to suit your tuning needs.

GEARING

One of the more signiﬁcant advantages to your model’s transmission is the extremely wide range of available gear ratios. Changing the gearing allows you to ﬁne tune the speed of the model and control the temperatures of the battery pack and motor. Use a lower gear ratio (numerically larger) to reduce current draw and temperatures. Use a higher gear (numerically lower) to increase top speed. Use the following formula to calculate the overall ratio for combinations not listed on the gear chart:

# Spur Gear Teeth

# Pinion Gear Teeth

x 2.85 = Final Gear Ratio

Gearing Compatibility Chart:

The chart below shows recommended gear combination ranges for your model.

Pinion Gear

Thick black border indicates stock settings.

Spur Gear

50 52 54

- 16.44 17.08

- 14.80 15.37

12.94 13.45 13.97

11.86 12.33 12.81

10.95 11.38 11.82

10.16 10.57 10.98

9.49 9.87 10.25

8.89 9.25 9.61

8.37 8.71 9.04

7.91 8.22 8.54

7.49 7.79 8.09

7.12 7.40 7.68

6.78 7.05 7.32

6.47 6.73 -

6.19 6.43 -

5.93 - -

5.69 - -

- - -

Out of box setup, recommended for most running, 6 or 7-cell NiMH, 2s LiPo

Included optional gearing, for high-speed running only

High speed running (7-cell NiMH or 2s LiPo) on smooth hard surfaces

High speed running only (2s or 3s LiPo) on smooth hard surfaces

For aftermarket 540 motors; center shaft cover removed or modiﬁed

Preferred gearing for off-road and extreme terrain driving, 3s LiPo

Fits, not recommended

Does not ﬁt

RUSTLER 4X4 VXL • 27

Page 28

ADVANCED TUNING ADJUSTMENTS

**Optional, included gearing

Always use the proper length motor bolts. The standard motor mounting bolts are 3x8mm. Using motor bolts that are too long can interfere with the motor’s rotation and damage the motor’s internal parts!

The VXL-3s features Locked Rotor Protection. The VXL-3s checks to make sure the motor is turning. If the motor is locked or damaged, the ESC will enter fail-safe until the motor is free to rotate.

When using higher gear ratios, it is important to monitor the temperatures of the battery and motor. If the battery is extremely hot (150°F) and/or the motor is too hot to touch (200°F), your model is probably over-geared and drawing too much current. This temperature test assumes that the model is close to factory stock weight and operates freely with no excessive friction, dragging, or binding, and the battery is fully charged and in good condition. Note: Check and adjust gear mesh if a spur and/or pinion gear is changed.

This model is equipped with a Velineon 3500 motor. The gear combination that comes stock on each model provides good overall acceleration and top speed. If you want more top speed, install the included optional large pinion gear (more teeth). The included

optional large pinion gear is intended for high-speed running on hard surfaces, and this gearing is not recommended for off-road or repetitive starting and stopping.

LIPO BATTERIES

LiPo batteries are intended only for the most advanced users that are educated on the risks associated with LiPo battery use. It is critical to follow all instructions supplied by the battery manufacturer and the charger manufacturer for proper charging, use, and storage of LiPo batteries. Make sure you understand how to use your LiPo batteries. See safety precautions and warnings on page 4 for more information.

TEMPERATURES AND COOLING

Monitoring temperatures will extend the lives of the batteries and motors.

There are many options available that will help you monitor

temperatures and cool your components .

Temperature sensor

To accurately monitor motor temperature and prevent overheating, a telemetry temperature sensor (part #6523) can be installed on the motor to continually monitor temperature as you drive. Generally, try to keep your motor below 200° F. If necessary, increase airﬂow to the motor by cutting out the rear of the body or windshield.

Heat sink cooling fan

The VXL-3s is equipped with an additional connector to supply power to an optional heat sink cooling fan (part #3340). The optional heat sink cooling fan can assist in cooling the VXL-3s in high current motor applications.

28 • RUSTLER 4X4 VXL

Rustler 4X4 VXL

Pinion/Spur

Battery

Nominal Voltage

mAh

Skill Level

*Stock Gearing

*Stock gearing **Optional, included gearing †Optional gearing, sold separately

30+mph

7-Cell NiMH 3S LiPo

Your Battery Selection and Pinion/Spur

Selection Determines Your Speed.

How Fast Do You Want To Go?

FUN ZONE TOP SPEED ZONE

11/54*

8.4V

40+mph

17/54**

2S LiPo

7.4V

5000+ mAh3000+ mAh

40+mph

11/54*

11.1V

4000+ mAh

60+mph

17/54**

3S LiPo

11.1V

5000+ mAh

65+mph

†

20/54

3S LiPo

11.1V

6000+ mAh

Page 29

ADVANCED TUNING ADJUSTMENTS

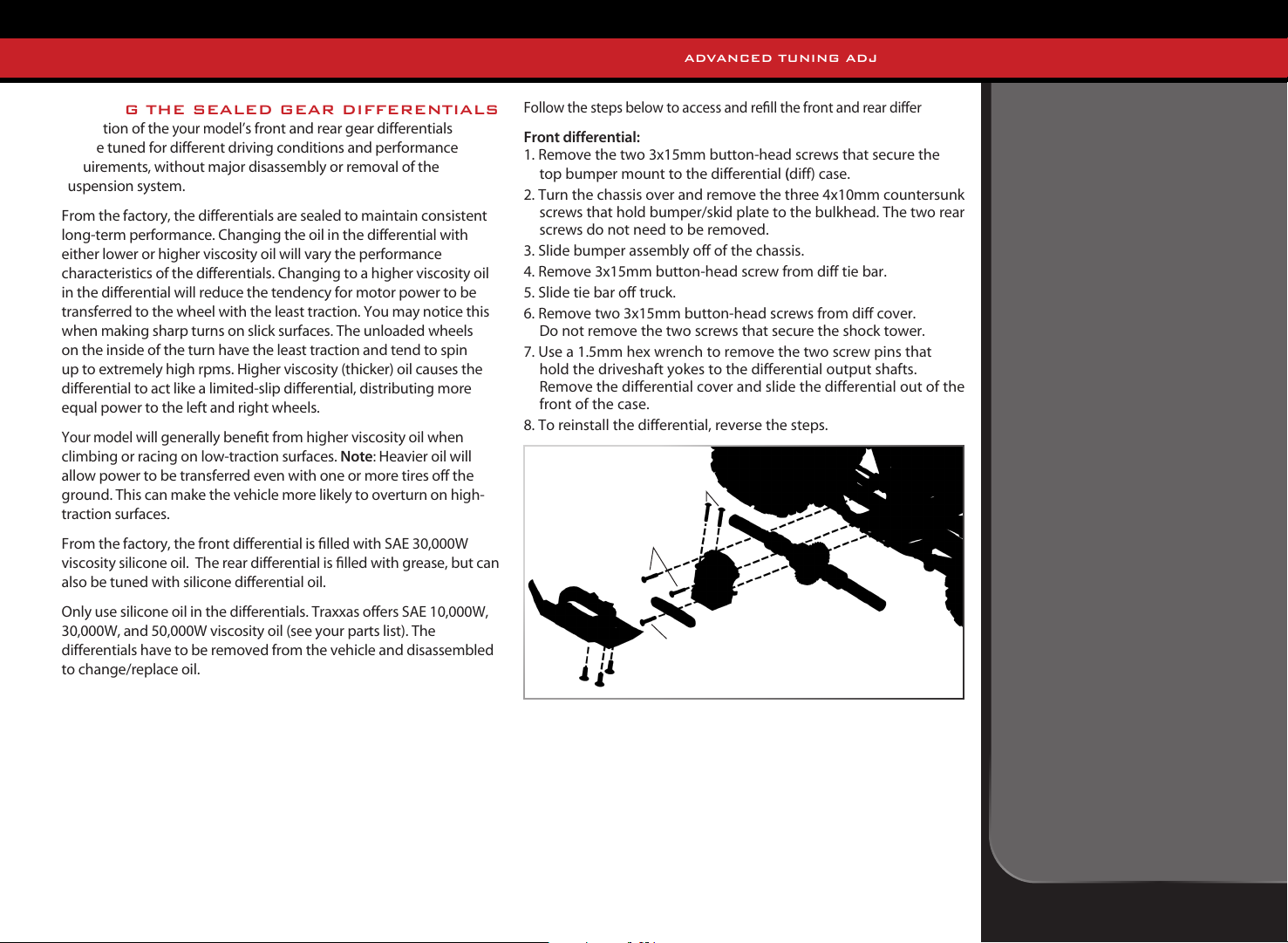

TUNING THE SEALED GEAR DIFFERENTIALS

The action of the can be tuned for different driving conditions and performance requirements, without major disassembly or removal of the suspension system.

From the factory, the differentials are sealed to maintain consistent long-term performance. Changing the oil in the differential with either lower or higher viscosity oil will vary the performance characteristics of the differentials. Changing to a higher viscosity oil in the differential will reduce the tendency for motor power to be transferred to the wheel with the least traction. You may notice this when making sharp turns on slick surfaces. The unloaded wheels on the inside of the turn have the least traction and tend to spin up to extremely high rpms. Higher viscosity (thicker) oil causes the differential to act like a limited-slip differential, distributing more equal power to the left and right wheels.

Your model climbing or racing on low-traction surfaces. Note: Heavier oil will allow power to be transferred even with one or more tires off the ground. This can make the vehicle more likely to overturn on high- traction surfaces.

From the factory, the front differential is ﬁlled with SAE 30,000W viscosity silicone oil. The rear differential is ﬁlled with grease, but can also be tuned with silicone differential oil.

Only use silicone oil in the differentials. Traxxas offers SAE 10,000W, 30,000W, and 50,000W viscosity oil (see your parts list). The differentials have to be removed from the vehicle and disassembled to change/replace oil.

your model

’s front and rear gear differentials

will generally beneﬁt from higher viscosity oil when

Follow the steps below to access and reﬁll the front and rear differentials:

Front differential:

1. Remove the two 3x15mm button-head screws that secure the top bumper mount to the differential (diff) case.

2. Turn the chassis over and remove the three 4x10mm countersunk screws that hold bumper/skid plate to the bulkhead. The two rear screws do not need to be removed.

3. Slide bumper assembly off of the chassis.

4. Remove 3x15mm button-head screw from diff tie bar.

5. Slide tie bar off truck.

6. Remove two 3x15mm button-head screws from diff cover. Do not remove the two screws that secure the shock tower.

7. Use a 1.5mm hex wrench to remove the two screw pins that hold the driveshaft yokes to the differential output shafts. Remove the differential cover and slide the differential out of the front of the case.

8. To reinstall the differential, reverse the steps.

Front Differential Removal

1. 3x15 BCS

6. 3x15 BCS

4. 3x15 BCS

2. 4x10 BCS

RUSTLER 4X4 VXL • 29

Page 30

ADVANCED TUNING ADJUSTMENTS

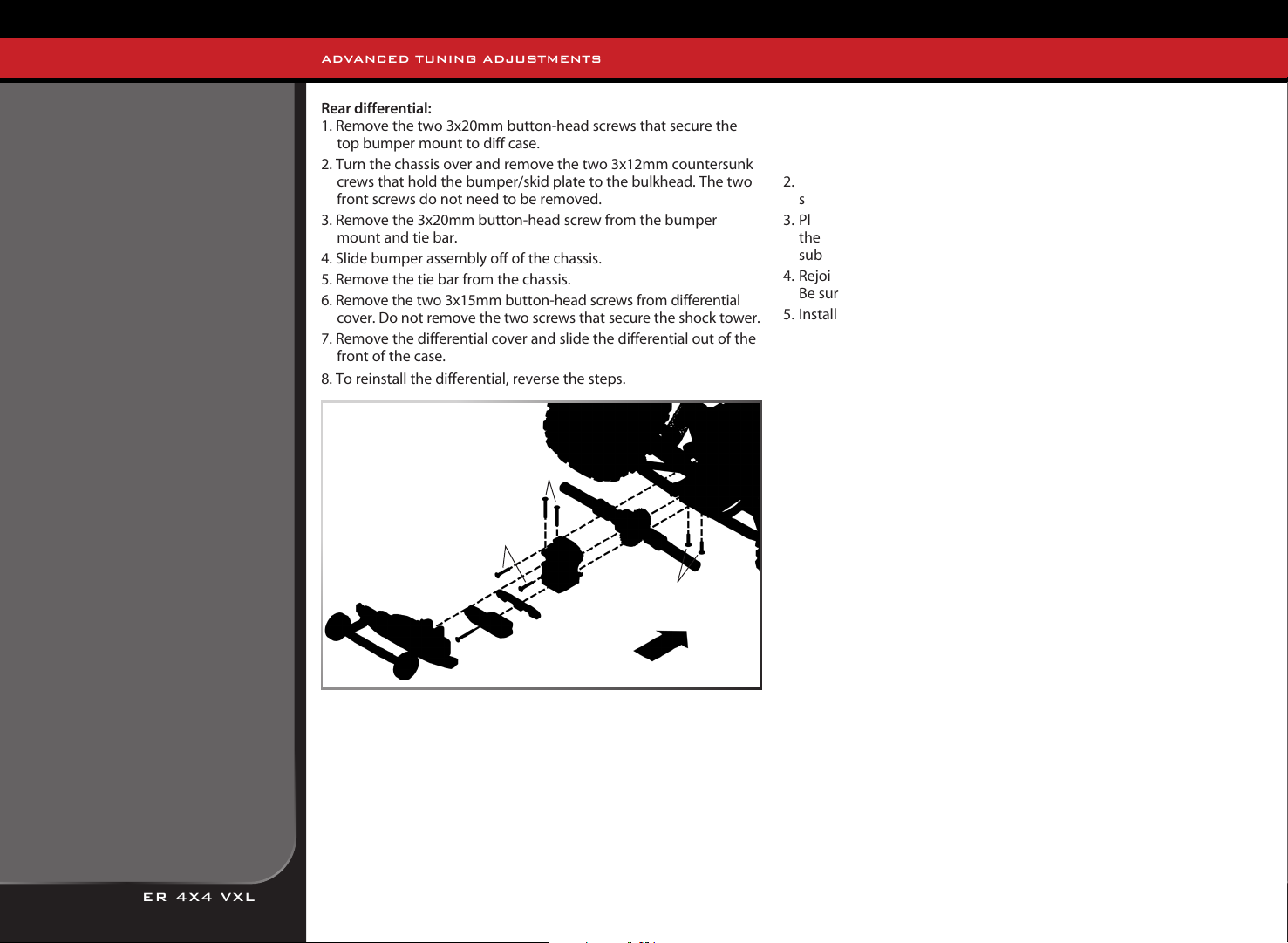

Rear differential:

1. Remove the two 3x20mm button-head screws that secure the top bumper mount to diff case.

2. Turn the chassis over and remove the two 3x12mm countersunk crews that hold the bumper/skid plate to the bulkhead. The two front screws do not need to be removed.

3. Remove the 3x20mm button-head screw from the bumper mount and tie bar.

4. Slide bumper assembly off of the chassis.

5. Remove the tie bar from the chassis.

6. Remove the two 3x15mm button-head screws from differential cover. Do not remove the two screws that secure the shock tower.

7. Remove the differential cover and slide the differential out of the front of the case.

8. To reinstall the differential, reverse the steps.

Rear Differential Removal

1. 3x20 BCS

6. 3x15 BCS

2. 3x12 BCS

Refilling the differential:

1. Remove the four 2.5x10mm screws from the differential case and carefully pull the diff case halves apart. Work over a towel to collect any ﬂuid that drips from the differential.

2. Drain the ﬂuid from the differential. You may wish to remove the spider gears from the differential to make this easier.

3. Place the spider gears back into the diff case, if you removed them. Fill the diff case with ﬂuid until the spider gears are submerged half way.

4. Rejoin the diff case halves, using care to align the screw holes. Be sure the rubber gasket is in place, or the differential may leak.

5. Install the 2.5x10mm screws and tighten securely.

30 • RUSTLER 4X4 VXL

3. 3x20 BCS

Front of Truck

Page 31

TQi ADVANCED TUNING GUIDE

Your Traxxas transmitter has a programmable

Multi-Function knob that can be set to control various advanced transmitter functions (set to Traxxas Stability Management (TSM) by default, see page 17). Accessing the programming menu is done by using the menu and set buttons on the transmitter and observing signals from the LED. An explanation of the menu structure follows on page 34. Experiment with the settings and features to see if they can improve your driving experience.

Steering Sensitivity (Exponential)

The Multi-Function knob on the TQi transmitter can be set to control Steering Sensitivity (also known as exponential). The standard setting for Steering Sensitivity is “normal (zero exponential),” with the dial full left in its range of travel. This setting provides linear servo response: the steering servo’s movement will correspond exactly with the input from the transmitter’s steering wheel. Turning the knob clockwise from center will result in “negative exponential” and decrease steering sensitivity by making the servo less responsive near neutral, with increasing sensitivity as the servo nears the limits of its travel range. The farther you turn the knob, the more pronounced the change in steering servo movement will be. The term “exponential” comes from this effect; the servo’s travel changes exponentially relative to the input from the steering wheel. The exponential effect is indicated as a percentage—the greater the percentage, the greater the effect. The illustrations below show how this works.

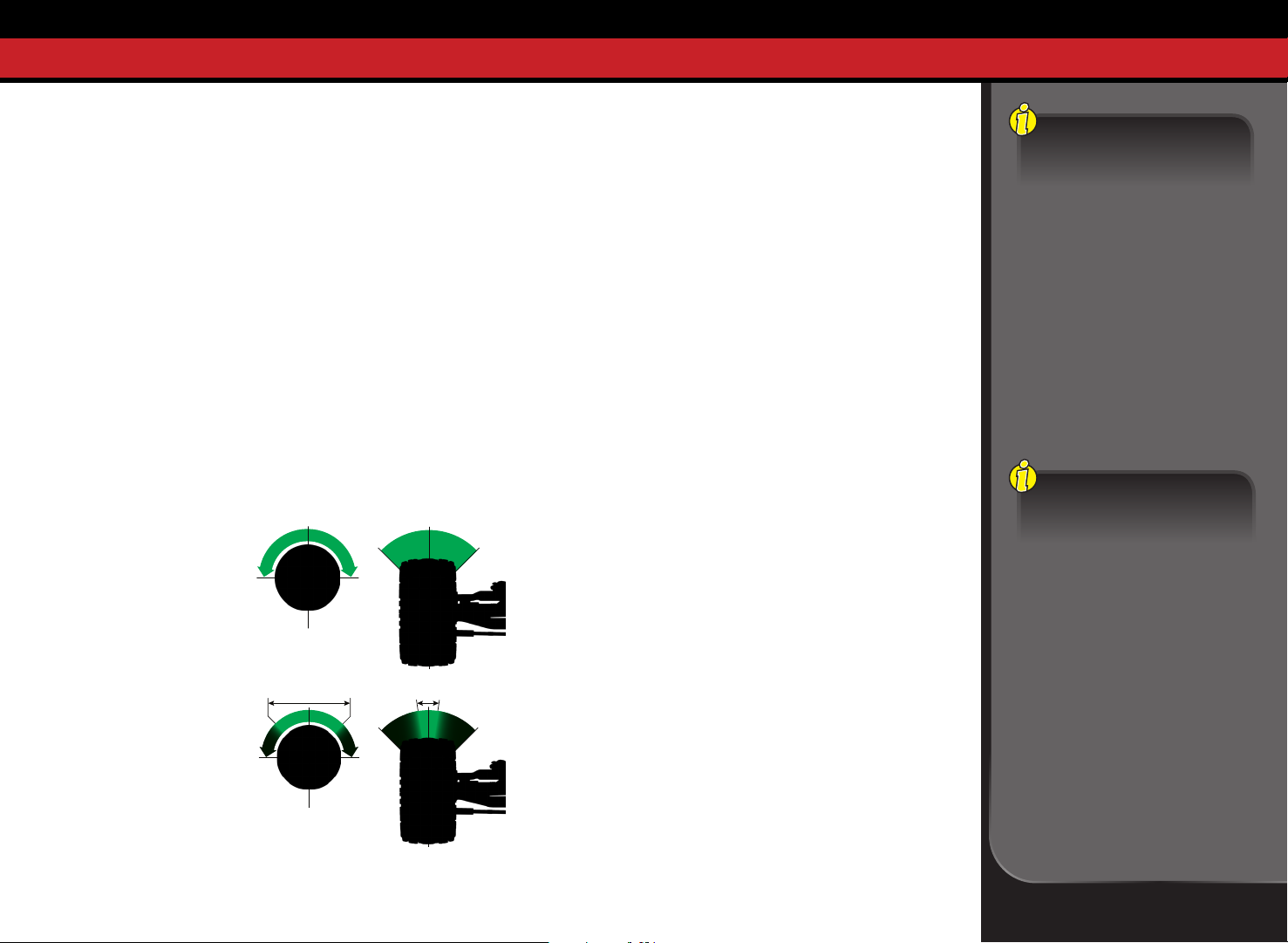

Normal Steering Sensitivity (0% exponential):

In this illustration, the steering servo’s travel (and with it, the steering motion of the model’s front wheels) corresponds precisely with the steering wheel. The ranges are exaggerated for illustrative purposes.

Decreased Steering Sensitivity (Negative Exponential):

By turning the Multi-Function knob clockwise, the steering sensitivity of the model will be decreased. Note that a relatively large amount of steering wheel travel results in a smaller amount of servo travel. The farther you turn the knob, the more pronounced the effect becomes. Decreased steering sensitivity may be helpful when driving on low-traction surfaces, when driving at high speed, or on tracks that favor sweeping turns where gentle steering inputs are required. The ranges are exaggerated for illustrative purposes.

Turning Range

at Transmitter

Effective Turning

Range on Model

Throttle Sensitivity (Throttle Exponential)

The Multi-Function knob can be set to control Throttle Sensitivity. Throttle Sensitivity works the same way as Steering Sensitivity, but applies the effect to the throttle channel. Only forward throttle is affected; brake/reverse travel remains linear regardless of the Throttle Sensitivity setting.

Steering Percentage (Dual-Rate)

The Multi-Function knob can be set to control the amount (percentage) of servo travel applied to steering. Turning the Multi-Function knob fully clockwise will deliver maximum steering throw; turning the knob counterclockwise reduces steering throw (note: turning the dial counterclockwise to its stop will eliminate all servo travel). Be aware that the steering End Point settings deﬁne the servo’s maximum steering throw. If you set Steering Percentage to 100% (by turning the Multi-Function knob fully clockwise), the servo will travel all the way to its selected end point, but not past it. Many racers set Dual-Rate so they have only as much steering throw as they need for the track’s tightest turn, thus making the model easier to drive throughout the rest of the course. Reducing steering throw can also be useful in making a model easier to control on high-traction surfaces, and limiting steering output for oval racing where large amounts of steering travel are not required.

Braking Percentage

The Multi-Function knob may also be set to control the amount of brake travel applied by the servo in a nitro-powered model. Electric models do not have a servo-operated brake, but the Braking Percentage function still operates the same way in electric models. Turning the Multi-Function knob full clockwise will deliver maximum brake throw; turning the knob counterclockwise reduces brake throw (Note: Turning the dial counterclockwise to its stop will eliminate all brake action).

Throttle Trim

Setting the Multi-Function knob to serve as throttle trim will allow you to adjust the throttle’s neutral position to prevent unwanted brake drag or throttle application when the transmitter trigger is at neutral. Note: Your transmitter is equipped with a Throttle Trim Seek mode to prevent accidental runaways. See the sidebar for more information.

Starting Over:

Restoring Factory Defaults

When programming your TQi transmitter, you may feel the need to start over with a clean slate. Follow these simple steps to restore the factory settings:

1. Turn the transmitter off.

2. Hold both MENU and SET.

3. Turn the transmitter on.

4. Release MENU and SET. The transmitter LED will blink red.

5. Press SET to clear settings. The LED will turn solid green and the transmitter is restored to default.

Throttle Trim Seek Mode

When the Multi-Function knob is set to throttle trim, the transmitter remembers the throttle trim setting. If the throttle trim knob is moved from the original setting while the transmitter is off, or while the transmitter was used to control another model, the transmitter ignores the actual position of the trim knob. This prevents the model from accidentally running away. The LED on the face of the transmitter will rapidly blink green and the throttle trim knob (MultiFunction knob) will not adjust the trim until it is moved back to its original position saved in memory. To restore throttle trim control, simply turn the Multi-Function knob either direction until the LED stops blinking.

RUSTLER 4X4 VXL • 31

Page 32

TQi ADVANCED TUNING GUIDE

Failsafe

Your Traxxas radio system is equipped with a built-in failsafe function that returns the throttle to its last saved neutral position in the event of a signal loss. The LED on the transmitter and the receiver will rapidly ﬂash red.

32 • RUSTLER 4X4 VXL

Steering and Throttle End Points

The TQi transmitter allows you to choose the limit of the servo’s travel range (or its “end point”) independently for left and right travel (on the steering channel) and throttle/brake travel (on the throttle channel). This allows you to ﬁne-tune the servo settings to prevent binding caused by the servo moving steering or throttle linkages (in the case of a nitro model) farther than their mechanical limits. The end point adjustment settings you select will represent what you wish to be the servo’s maximum travel; the Steering Percentage or Braking Percentage functions will not override the End Point settings.

Steering and Throttle Sub-Trim

The Sub-Trim function is used to precisely set the neutral point of the steering or throttle servo in the event that simply setting the trim knob to “zero” does not completely center the servo. When selected, Sub-Trim allows ﬁner adjustment to the servo output shaft’s position for precise

Setting Lock

Once you’ve adjusted all of these settings the way you like them, you may want to disable the Multi-Function knob so none of your settings can be changed. This is especially handy if you operate multiple vehicles with a single transmitter via Traxxas Link

Multiple Settings and the Multi-Function Knob

It is important to note that settings made with the Multi-Function knob are “overlaid” on top of each other. For example, if you assign the Multi-Function to adjust Steering Percentage and set it for 50%, then reassign the knob to control Steering Sensitivity, the transmitter will “remember” the Steering Percentage setting. Adjustments you make to Steering Sensitivity will be applied to the 50% steering throw setting you selected previously. Likewise, setting the Multi-Function knob to “disabled” will prevent the knob from making further adjustments, but

the last setting of the Multi-Function knob will still apply. setting of the neutral point. Always set the Steering Trim knob to zero before making ﬁnal adjustment (if required) using Sub-Trim. If Throttle Trim has been previously adjusted, the Throttle Trim will need to be reprogrammed to “zero” before making ﬁnal adjustment using Sub-Trim.

TRANSMITTER LED CODES

LED Color / Pattern Name Notes

Solid green Normal Driving Mode See page 14 for information on how to use your transmitter controls.

Slow red (0.5 sec on / 0.5 sec off) Binding See page 16 for more information on binding.

Flashing fast green (0.1 sec on / 0.15 sec off) Throttle Trim Seek Mode

Flashing medium red (0.25 sec on / 0.25 sec off) Low Battery Alarm Put new batteries in the transmitter. See page 13 for more information.

Flashing fast red (0.125 sec on / 0.125 sec off) Link Failure / Error

Programming Patterns

Counts out number (green or red), then pauses Current menu position See Menu Tree for more information.

Fast green 8 times Menu setting accepted (on SET)

Fast red 8 times Menu SET invalid User error, such as trying to delete a locked model.

Turn the Multi-Function knob right or left until the LED stops ﬂashing. See page 31 for more information.

Transmitter and receiver are no longer bound. Turn the system off and then back on to resume normal operation. Find source of the link failure (i.e., out of range, low batteries, damaged antenna).

RECEIVER LED CODES

LED Color / Pattern Name Notes

Solid green Normal Driving Mode See page 14 for information on how to use your transmitter controls.

Slow red (0.5 sec on / 0.5 sec off) Binding See page 16 for more information on binding.

Flashing fast red (0.125 sec on / 0.125 sec off) Fail-Safe / Low-Voltage Detect

Consistent low voltage in the receiver triggers Fail-Safe so there is enough power to center the throttle servo before it completely loses power.

™

Model Memory.

Page 33

TQi ADVANCED TUNING GUIDE

TRAXXAS LINK MODEL MEMORY

Traxxas Link Model Memory is an exclusive, patent-pending feature of the TQi transmitter. Each time the transmitter is bound to a new receiver, it saves that receiver in its memory, along with all the settings assigned to that receiver. When the transmitter and any bound receiver are switched on, the transmitter automatically recalls the settings for that receiver. There is no need to manually select your vehicle from a list of model memory entries.

Model Lock

The Traxxas Link Model Memory feature can store up to thirty models (receivers) in its memory. If you bind a thirty-ﬁrst receiver, Traxxas Link Model Memory will delete the “oldest” receiver from its memory (in other words, the model you used the longest time ago will be deleted). Activating Model Lock will lock the receiver in memory so it cannot be deleted.

You may also bind multiple TQi transmitters to the same model, making it possible to pick up any transmitter and any previously bound model in your collection and simply turn them on and drive. With Traxxas Link Model Memory, there is no need to remember which transmitter goes with which model, and there is never a need to have to select any model from a list of model memory entries. The transmitter and receiver do it all for you automatically.

To activate Model Lock:

1. Switch on the transmitter and receiver you wish to lock.

2. Press and hold MENU. Release when the status LED blinks green.

3. Press MENU three times. The status LED will blink green four times repeatedly.

4. Press SET. The status LED will blink green in single-ﬂash intervals.

5. Press SET once. The status LED will blink red once repeatedly.

6. Press MENU once. The status LED will blink red twice repeatedly.

7. Press SET. The LED will blink rapidly green. The memory is now locked. Press and hold MENU to return to driving mode.

Note: To unlock a memory, press SET twice at step 5. The LED will

blink rapidly green to indicate the model is unlocked. To unlock all models, press MENU twice at step 6 and then press SET.

To delete a model:

At some point, you may wish to delete a model you no-longer drive from the memory.

1. Switch on the transmitter and receiver you wish to delete.

2. Press and hold MENU. Release when the status LED blinks green.

3. Press MENU three times. The status LED will blink green four times repeatedly.

4. Press SET once. The status LED will blink green once repeatedly.

5. Press MENU once. The status LED will blink green twice repeatedly.

6. Press SET. The memory is now selected to be deleted. Press SET to delete the model. Press and hold MENU to return to driving mode.

RUSTLER 4X4 VXL • 33

Page 34

TQi ADVANCED TUNING GUIDE

MENU TREE

The Menu Tree below shows how to navigate through the TQi transmitter’s various settings and functions. Press and hold MENU to enter the Menu Tree, and use the following commands to navigate through the menu and select options.

MENU:

When you enter a menu, you always start at the

top. Press MENU to move down the Menu Tree. When you reach the bottom of the tree, pressing MENU again will return you to the top.

SET:

Press SET to move across the Menu Tree and select

options. When an option is committed to the transmitter’s memory, the status LED will rapidly blink green.

BACK:

Press both MENU and SET to go back one level in

the Menu Tree.

EXIT: Press and hold MENU to exit programming.

Your selected options will be saved.

ECHO:

Press and hold SET to activate the “echo” function.

Echo will “play back” your current position on the Menu Tree should you lose your place. For example: If your current position is Steering Channel End Points, holding SET will cause the LED to blink green twice, green once, and then red three times. Echo will not alter your adjustments or change your position in the programming sequence.

Below is an example of how to access a function in the Menu Tree. In the example, the user is setting the Multi-Function knob to be a Steering % (Dual-Rate) control.

To set the Multi-Function knob to control STEERING % (DUAL-RATE):

1. Switch the transmitter on.

2. Press and hold MENU until the green LED lights. It will blink in single intervals.

3. Press SET. The red LED will blink in single intervals to indicate Steering Sensitivity (Expo) has been selected.

4. Press MENU twice. The red LED will blink three times repeatedly to indicate Steering % (Dual-Rate) has been selected.

5. Press SET to select. The green LED will blink 8 times fast to indicate successful selection.

6. Press and hold MENU to return to driving mode.

Restoring Factory Defaults:

Transmitter

OFF

*Torque Control is a feature designed only for use with the power system in the Traxxas Funny Car Race Replica (Model #6907).

Hold both

MENU and SET

Transmitter ONRelease MENU and SET

red LED blinks

Enter Programming

Press and hold MENU for 3 seconds

Multi-Function Knob

One Blink Green

Press

Channel Setup

Two Blinks Green

Press

Mode Selection

Three Blinks Green

Press

Traxxas-Link

Four Blinks Green

Press SET to clear settings. LED will turn

solid green. Transmitter is restored to default

Press

SET

Press

SET

Press

SET

Press

SET

Press MENU to move through options. Press SET to select an option.

Steering Sensitivity (Expo)

One Blink Red

Throttle Sensitivity (Expo)

Two Blinks Red

Steering % (Dual-Rate)

Three Blinks Red

Braking %

Four Blinks Red

Throttle Trim

Five Blinks Red

Knob Disabled

Six Blinks Red

Torque Control*

Seven Blinks Red

TSM

Eight Blinks Red

Steering (Channel 1)

One Blink Green

Press MENU

Throttle (Channel 2)

Two Blinks Green

Press SET to select an option.

Electric

One Blink Red

Press MENU

Nitro

Two Blinks Red

Model Locking

One Blink Green

Press

Delete Model

Two Blinks Green

Press

SET

Press

SET

Press

SET

Press

SET

Note: The transmitter is “live” during programming so you can test the settings real time without having to exit the Menu Tree.

Press MENU to move through options. Press SET to select an option.

Servo Reversing

One Blink Red

Sub-Trim

Two Blinks Red

End Points

Three Blinks Red

Turn left to desired end point and press set to save. To reset max throw: Let go of controls and press SET.

Reset End Points

Four Blinks Red

Servo Reversing

One Blink Red

Sub-Trim

Two Blinks Red

End Points

Three Blinks Red

forward to desired end point and press set to save. To reset max throw: Let go of controls and press SET.

Reset End Points

Four Blinks Red

Unlock

One Blink Red

Lock

Two Blinks Red

Unlock All

Three Blinks Red

Conﬁrm Deletion

One Blink Red

Press SET to reverse servo direction.

Use knob to adjust sub-trim. Press SET to save.

Use steering wheel to adjust. Turn right to desired end point, press set to save.

Press SET to restore factory default end points.

Press SET to reverse servo direction.

Use knob to adjust subtrim. Press SET to save.

Use trigger to adjust. Pull back to desired end point, press set to save. Push

Press SET to restore factory default end points.

Page 35

TQi ADVANCED TUNING GUIDE

Set Multi-Function knob for STEERING SENSITIVITY (Expo)

Set Multi-Function knob for THROTTLE SENSITIVITY (Expo)

Set Multi-Function knob for STEERING DUAL-RATE (%)

Set Multi-Function knob for BRAKING PERCENTAGE (%)

Set Multi-Function knob for THROTTLE TRIM

To LOCK the Multi-Function knob

To REVERSE the direction of STEERING servo

To set the SUB TRIM of the STEERING servo

To set the END POINTS of the STEERING servo

To reset the END POINTS of STEERING servo to defaults

To REVERSE the direction of THROTTLE servo

To set the SUB TRIM of the THROTTLE servo

To set the END POINTS of the THROTTLE servo

To reset the END POINTS of THROTTLE servo to defaults

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press/hold MENU

green LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press MENU

green LED blinks (x2)

Press SET to conﬁrm

green LED blinks (x8)

Press MENU to conﬁrm

red LED blinks (x2)

Press MENU twice

red LED blinks (x3)

Press MENU 3 times

red LED blinks (x4)

Press MENU 4 times

red LED blinks (x5)

Press MENU 5 times

red LED blinks (x6)

green LED blinks

Press SET

returns to driving mode

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press MENU

Press/hold MENU

Press SET to select

green LED blinks (x8)

Press SET to select

green LED blinks (x8)

Press SET to select

green LED blinks (x8)

Press SET to select

green LED blinks (x8)

Press SET to lock

green LED blinks (x8)

green LED blinks (x2)

returns to driving mode

Press/hold MENU

Press SET to reverse

servo direction

Press MENU

red LED blinks (x2)

Press MENU twice

red LED blinks (x3)

Press MENU 3 times

red LED blinks (x4)

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Press SET

red LED blinks

Function knob until the

LED turns solid green.

Press/hold MENU

returns to driving mode

Use Multi-Function

knob to set neutral

wheel to desired max

left and right travel

to reset end points

Press SET to reverse

red LED blinks (x2)

Press MENU twice

red LED blinks (x3)

Press MENU 3 times

red LED blinks (x4)

Adjust the Multi-

Turn steering

Press SET

servo direction

Press MENU

MENU TREE FORMULAS

To select functions and make adjustments to the TQi transmitter without referencing the Menu Tree, turn your transmitter on, ﬁnd the function in the left column you wish to adjust, and simply follow the corresponding steps

Always turn your

transmitter on ﬁrst.

Press SET

to save position

Press SET

to save each position

Press/hold MENU

returns to driving mode

Press/hold MENU

returns to driving mode

Use Multi-Function

knob to set neutral

Use throttle

trigger to set desired

max throttle or brake

Press SET

green LED blinks (x8)

Press/hold MENU

returns to driving mode

Turn steering wheel

to test settings

Press SET

to save position

Press SET to save

Use trigger to test

Press/hold MENU

returns to driving mode

IF END POINTS

ARE OK:

Press/hold MENU

returns to driving mode

Press/hold MENU

returns to driving mode

IF END POINTS

ARE OK:

Press/hold MENU

returns to driving mode

RUSTLER 4X4 VXL • 35

IF END POINTS

NEED TO BE

CHANGED:

Press SET

and repeat steps 6-8

IF END POINTS

NEED TO BE

CHANGED:

Press SET

and repeat steps 7-9

Page 36

TQi ADVANCED TUNING GUIDE

The Traxxas Link Wireless Module is sold separately (part #6511). The Traxxas Link application is available from the Apple App store for iPhone, iPad, or iPod touch and on Google Play for Android devices. iPhone, iPad, iPod touch, or the Android device are not included with the Traxxas Link Wireless Module.

For more information about the Traxxas Link Wireless Module and the Traxxas Link application, visit Traxxas.com.

36 • TRAXXAS

PROGRAMMING YOUR TQi TRANSMITTER WITH YOUR APPLE iPHONE, iPAD, iPOD TOUCH, OR ANDROID MOBILE DEVICE

The Traxxas Link™ Wireless Module (part #6511, sold separately) for the TQi transmitter installs in minutes to transform your Apple® iPhone®, iPad®, iPod touch®, or Android™ device into a powerful tuning tool that allows you to replace the transmitter’s button/LED programming system with an intuitive, high-deﬁnition, full-color graphical user interface.

Traxxas Link

The powerful Traxxas Link app (available in the Apple App Store℠ Google Play™) gives you complete control over the operation and tuning of your Traxxas model with stunning visuals and absolute precision. Install Traxxas Link telemetry sensors on the model, and Traxxas Link displays real-time data such as speed, RPM, temperature, and battery voltage.

Compatible with: iPod touch (5th generation and later) iPad (3rd generation and later) iPad mini Android 4.4 (and later)

iPhone 4S iPhone 5 iPhone 5C iPhone 5S

or on

Apple, the Apple logo, iPhone, iPad, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Android and Google Play are trademarks of Google Inc.

Intuitive iPhone, iPad, iPod touch, and Android interface

Traxxas Link makes it easy to learn, understand, and access powerful tuning options. Control Drive Effects settings, such as TSM assistance percentage; steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the screen.

Tap and slide to adjust TSM, Steering Sensitivity,

Throttle Trim, Braking Percent, and more!

Real-Time Telemetry

When you equip your model with sensors, the Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and

The customizable Traxxas Link dashboard delivers

real-time RPM, speed, temperature, and voltage data.

not miss a single apex.

Manage up to 30 Models with Traxxas Link

The TQi radio system automatically keeps track of what vehicles it has bound to and what settings were used for each--up to 30 models total! Traxxas Link provides a visual interface to name the models, customize their settings, attach proﬁles, and lock them into memory. Simply choose a model and any previously bound

Traxxas Link Model Memory simplifies organizing

transmitter, power them up, and start having fun.

your collection of vehicles.

Page 37

owner’s manual

6250 TRAXXAS WAY, McKINNEY, TEXAS 75070

1-888-TRAXXAS

190115 67076-4-OM-EN-R03

TRAXXAS 67076-4 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
