Trane TSC060-120 User Manual

Packaged Cooling with Electric Heat Rooftop Units

Precedent TSC060-120 50 Hz

™

February 2004

RT-PRC016-EN

Introduction

Precedent with added flexibility. Precedent is a

flexible line of packaged units that covers a wide variety of applications.

ReliaTel™ microprocessor controls provide superior flexibility for the simplest to the most sophisticated applications. In addition to controls, Precedent offers many other outstanding features and option choices.

™

. . . The same Trane quality...

With its sleek compact cabinet, rounded corners and beveled top, it may just be the most aesthetically pleasing packaged unit on the planet. And, of course, Precedent carries the Trane reputation for excellence, quality and reliability.

hard to stop a Trane

From simple applications, to the most complex, Precedent has the solution.

.

It’s

RT-PRC016-EN

Contents

Introduction

Features and Benefits

Application Considerations

Selection Procedure

Model Number Description

General Data

Performance Data

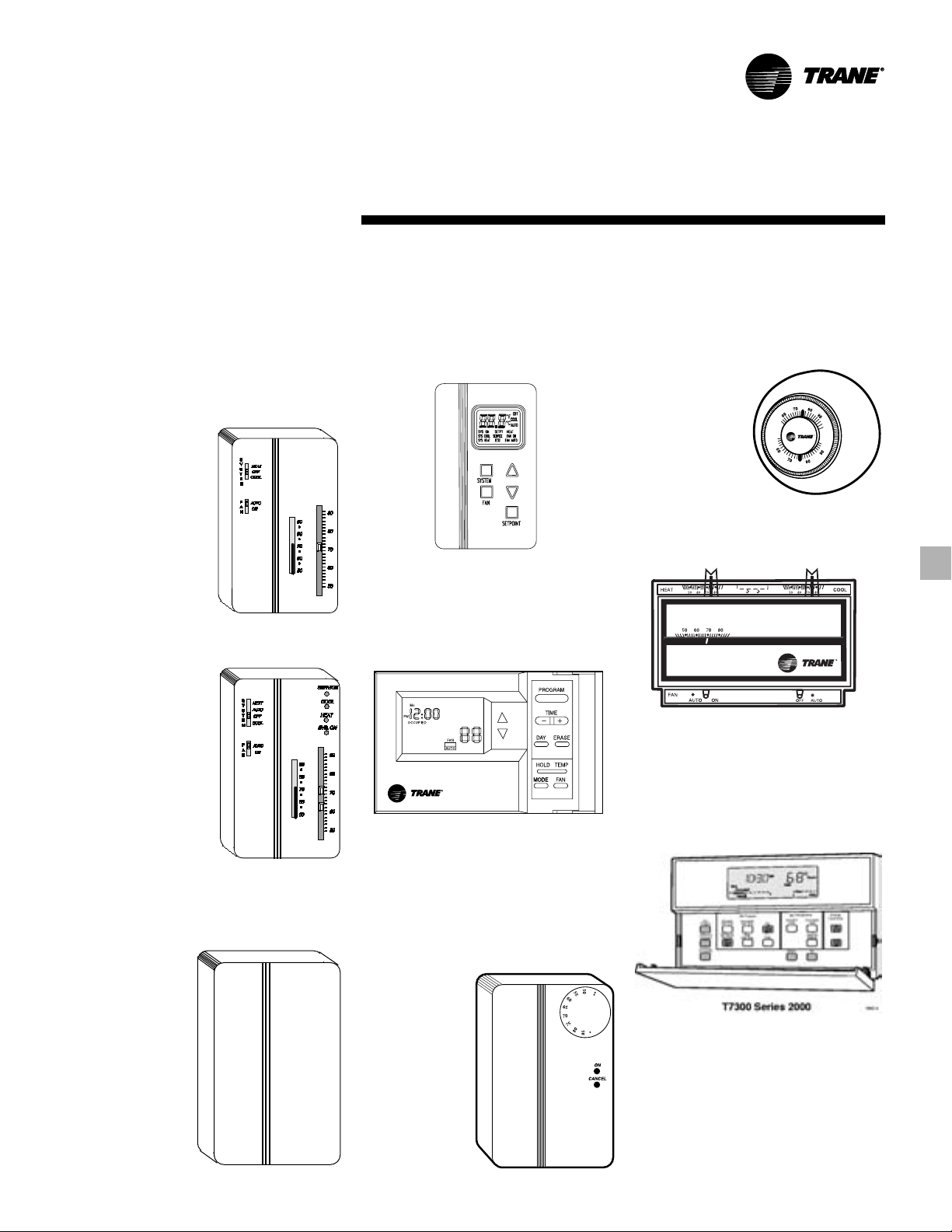

Zone Controls

Electrical Data

Jobsite Connections

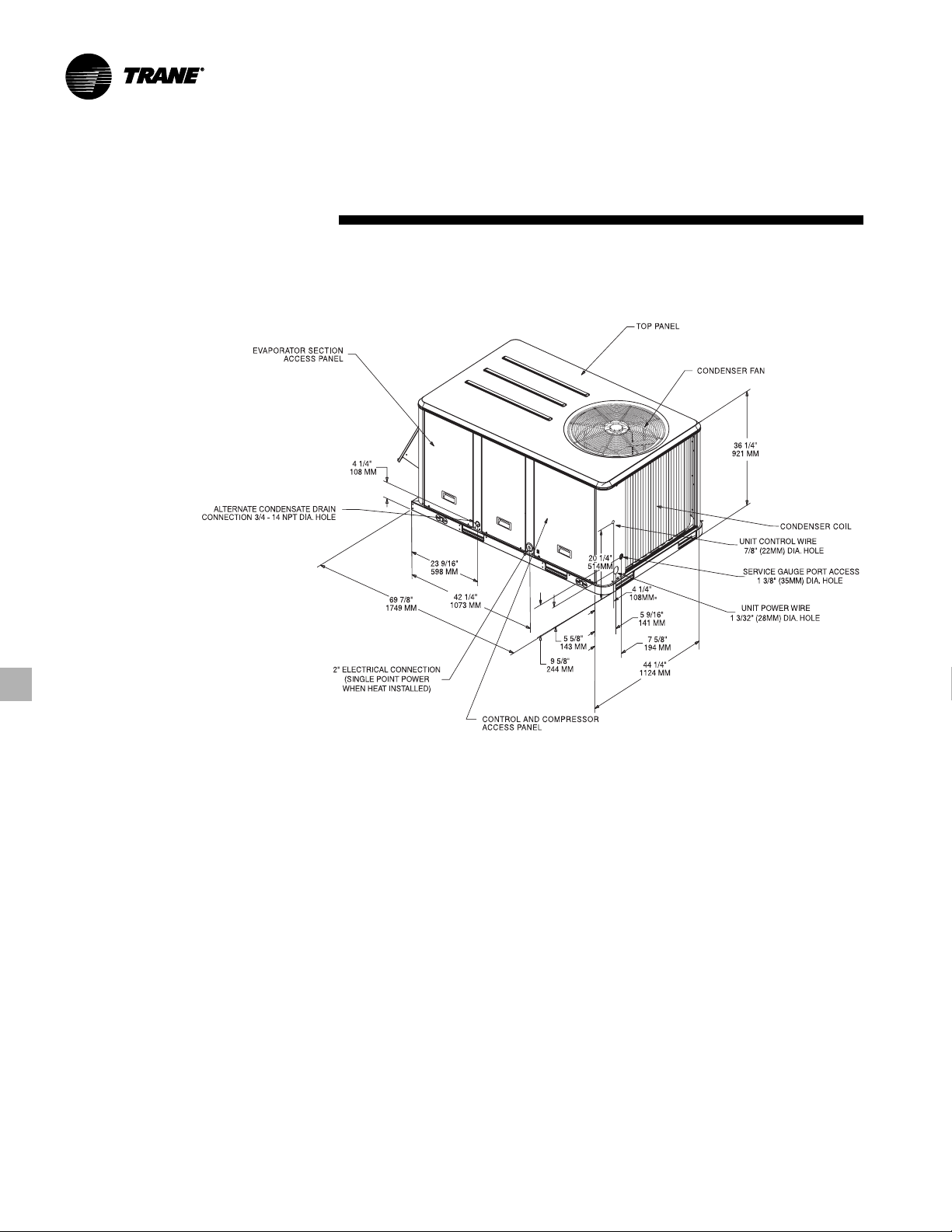

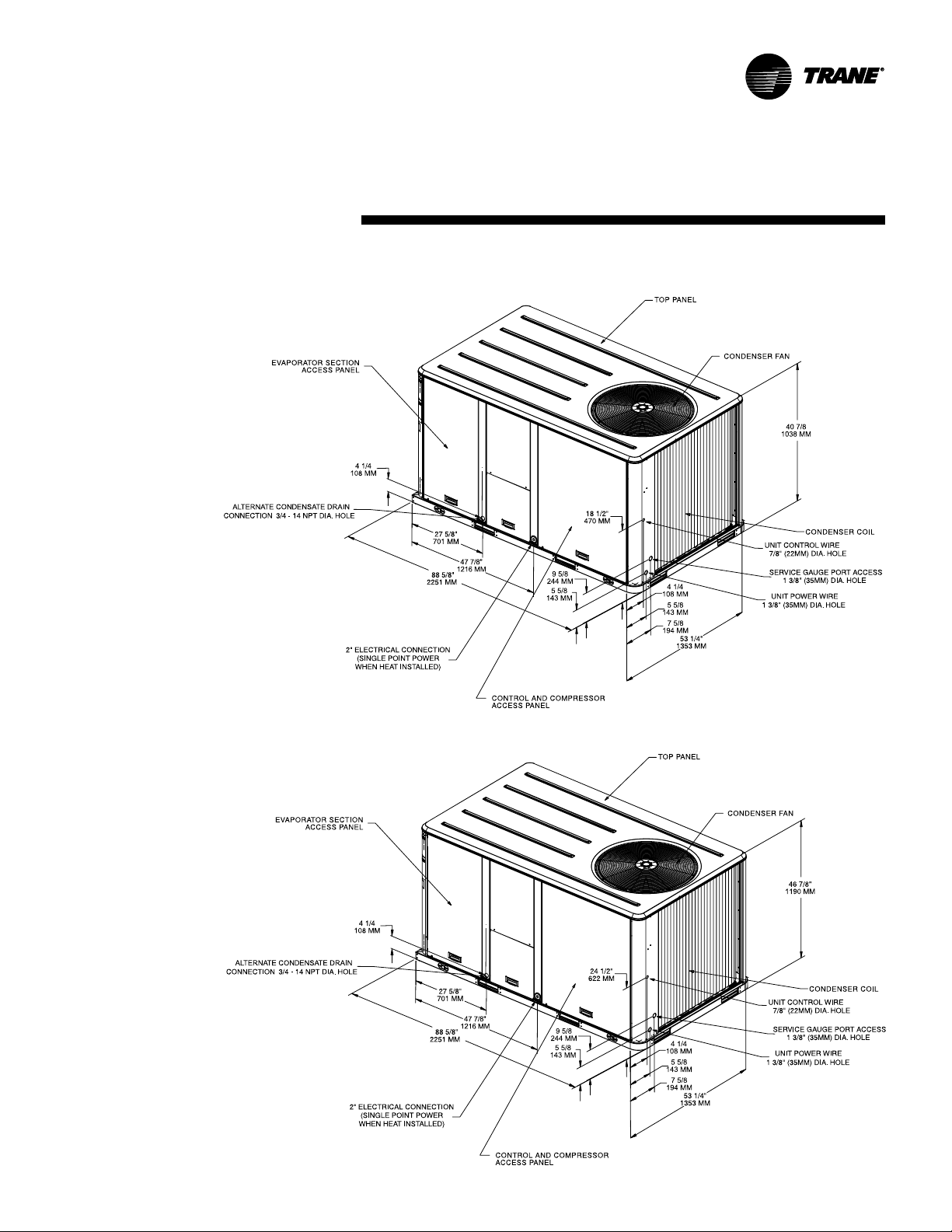

Dimensional Data

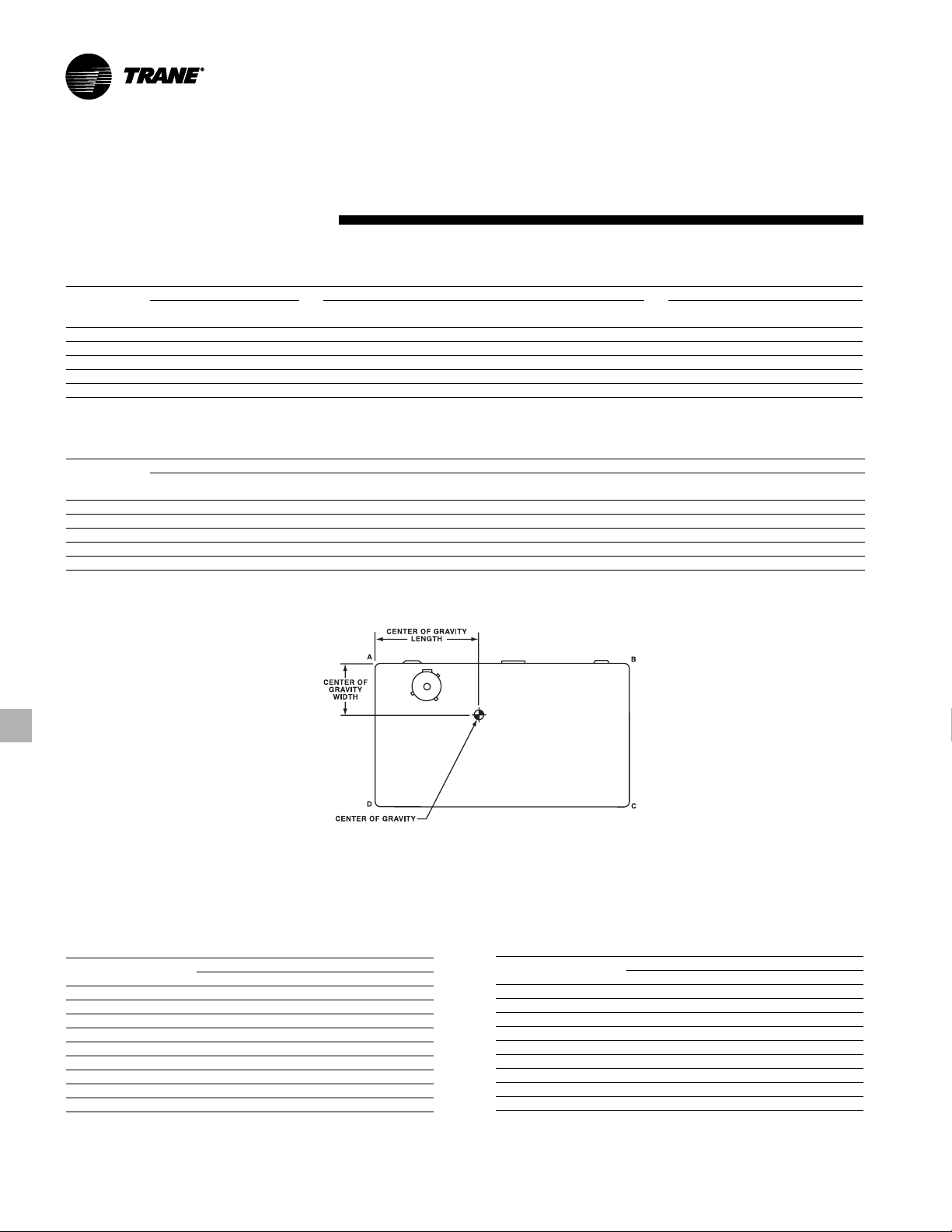

Weights

2

4

9

10

12

13

14

33

34

35

36

44

RT-PRC016-EN

Mechanical Specifications

45

3

Unit Cabinet

The compact cabinet with rounded corners takes up less room and is less costly to ship. The beveled and ribbed top is not only aesthetically pleasing, it is designed to prevent water from pooling.

Single Point Power

A single electrical connection powers the unit.

Features and Benefits

Easy Access Panels

Remove two screws for access to the standardized internal components and wiring.

Easy-Adjust Idler Arm

With the Easy-Adjust Idler Arm, the belt and sheaves can be quickly adjusted without moving the mounted fan motor. The result is a major savings in time and money.

Colored And Numbered Wiring

You save time and money tracing wires and diagnosing the unit.

Patented Condenser Coil

Precedent boasts a patented 1+1+1 Hybrid coil, permanently gapped for easy of cleaning.

Compressors

Precedent compressor technology available to achieve the highest possible performance. Our compressor line includes Trane built reciprocating and scrolls.

Easy Access Panels

Easy access panels reduce the number of possible water entry points.

Low Ambient Cooling

All Precedent units have cooling capabilities down to 0°F as standard.

™

contains the best

Convertible Units

• The units ship in a downflow

configuration. They can be easily converted to horizontal by simply moving two panels.

• Units come complete with horizontal

duct flanges so the contractor doesn’t have to field fabricate them. These duct flanges are a time and cost saver.

Unit Base

For added water integrity, Precedent has a raised 29 mm (1 unit’s downflow supply and return to prevent water from blowing into the ductwork.

1

/8") lip around the

Sloped Drain Pans

Every Precedent unit has a noncorrosive, removable, double-sloped drain pan that’s easy to clean and reversible to allow installation of drain trap on either side of the unit.

Through the Base Condensate

Every unit includes provisions for through the base condensate drain connections. This allows the drain to be connected through the roof curb instead of a roof penetration.

Foil-Faced Insulation

All panels in the Evaporator section of the unit have cleanable foil-faced insulation. All edges are either captured or sealed to ensure no fibers get into the airstream.

4

RT-PRC016-EN

Features and Benefits

Standardized Components

• Components are placed in the same

location on all Precedent™ units. Familiarize yourself with one Precedent and you are familiar with every Precedent.

Easy Access Low Voltage Terminal Board

Precedent’s Low Voltage Terminal Board is external to the electrical control cabinet. It is extremely easy to locate and attach the thermostat wire. This is another cost and time saving installation feature.

Flexible Applications

• Only two roof curbs for the 5-10 ton Precedent line. . .simplifies curb selection.

• ReliaTel microprocessor controls to

meet either the simple or the more complex application.

• Airflow is outstanding. The Precedent can replace an older machine with old ductwork and, in many cases, improve comfort through better air distribution.

• Belt drive — standard or oversized supply fan motors meet a wide airflow range.

• Precedent offers ultimate flexibility. Options and components are not prepackaged at the factory. Units are built to order in our standard “shortest in the industry” ship cycle time.

RT-PRC016-EN

Low Voltage Connections

The wiring of the low voltage connections to the unit and the zone sensors is as simple as 1-1, 2-2, and 3-3. This simplified system makes it easy for the installer to wire

Single-Side Service

Single-side service is standard on all Precedent units.

5

Features and Benefits

Micro Controls

Several years ago, Trane was the first to introduce microprocessor controls into the Light Commercial Market. That design, along with immeasurable experience, has provided the technology for Trane’s secondgeneration ReliaTel controls.

™

ReliaTel

• Provides unit control for heating,

• Improves quality and reliability

• Prevents the unit from short cycling,

• Ensures that the compressor will run

• Reduces the number of components

Micro:

cooling, and ventilating by utilizing input from sensors that measure outdoor and indoor temperature.

through the use of time-tested microprocessor controls and logic.

considerably improving compressor life.

for a specific amount of time, which allows oil to return for better lubrication, enhancing the reliability of the compressor.

required to operate the unit, thereby reducing possibilities for component failure.

™

microprocessor

• Eliminates the need for field-installed components with its built-in antishort-cycle timer, time delay relay and minimum ‘’on’’ time controls. These controls are factory tested to assure proper operation.

• Requires no special tools to run the Precedent unit through its paces during testing. Simply place a jumper between Test 1 and Test 2 terminals on the Low Voltage Terminal Board and the unit will walk through its operational steps. The unit automatically returns control to the zone sensor after stepping through the test mode a single time, even if the jumper is left on the unit.

• As long as the unit has power and the LED is lit, the Micro is operational. The light indicates that the Micro is functioning properly.

• Features expanded diagnostic capabilities when used with Trane’s Integrated Comfort

• As an energy benefit, softens electrical ‘’spikes’’ by staging on fans, compressors and heaters.

• The Intelligent Fallback or Adaptive Control is a benefit to the building occupant. If a component goes astray, the unit will continue to operate at predetermined temperature set points.

• Intelligent Anticipation is a standard feature of the Micro. Functioning constantly, the Micro and zone sensors work together in harmony, to provide tight comfort control.

™

Systems.

6

RT-PRC016-EN

Features and Benefits

Factory-installed Options

Hinged Access Doors

These doors permit easy access to the filter, fan/heat, and compressor/control sections. They reduce the potential roof damage from screws or sharp access door corners.

Economizer

Equipped with either dry bulb, reference or comparative enthalpy sensing, this feature provides free cooling as the outdoor temperature and/or humidity decreases. Economizers, correctly installed, offer a valuable energy savings. Factory-installed economizers save time and ensure proper installation.

Phase Monitor

Phase monitor shall provide 100% protection for motors and compressors against problems caused by phase loss, phase imbalance, and phase reversal. Phase monitor is equipped with an LED that provides an ON or FAULT indicator.

Clogged Filter/Fan Fail Switches

These sensors allow a zone sensor service light or Integrated Comfort System to indicate a dirty filter or a fan that’s not working. The field installation charges for these valuable feedback devices often eliminate them from consideration. Factory installation can make such features a good investment.

Comm-3/4 Trane Communication Interface

Available factory or field-installed. This module when applied with ReliaTel easily interfaces with Trane’s Integrated Comfort™ System.

™

The following options round-out the complete line of Precedent

— 0 - 50% Manual or Motorized

Outside Air

— Hail Protection Quality Coil Guards

— Electric Heaters (available as field

installed accessories)

— Discharge Air Sensor

— Wide array of Zone Sensors and

Thermostats

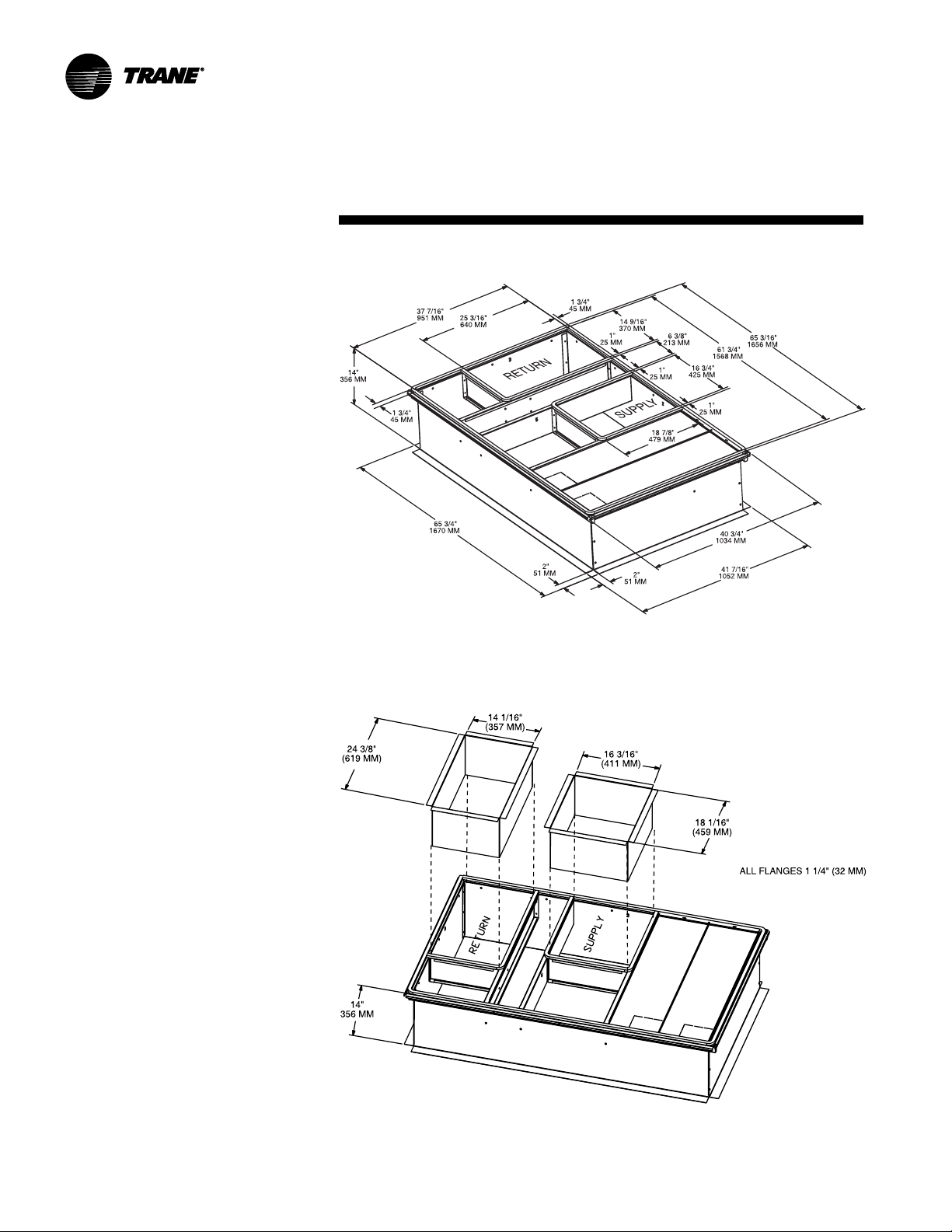

— Factory built Roof Curb

One of Our Finest Assets:

Trane Sales Representatives are a Support group that can assist you with: — Product — Application — Service — Training — Special Applications — Specifications — Computer Programs and much more

Precedent has the features and benefits that make it first class in the light commercial rooftop market. Designed with input from field contractors and engineers, its airflow performance is outstanding.

Precedent…The same Trane quality…with added flexibility.

™

options:

RT-PRC016-EN

7

Features and Benefits

Quality And Reliability Testing

• All Precedent

rain tested at the factory to ensure water integrity.

• Actual shipping tests were performed to determine packaging requirements. Units were test shipped around the country to determine the best packaging.

• Factory shake and drop tests were used as part of the package design process to help assure that the unit arrives at the job site in top condition.

• Rigging tests include lifting a unit into the air and letting it drop one foot, assuring that the lifting lugs and rails hold up under stress.

Var iTra c

™

designs were rigorously

™

• We perform a 100% coil leak test at the factory. The evaporator and condenser coils are leak tested at 1375 kPa (200 psig) and pressure tested to 3100 kPa (450 psig).

• All parts are inspected at the point of final assembly. Sub-standard parts are identified and rejected immediately.

• Every unit receives a 100% unit run test before leaving the production line to make sure it lives up to rigorous Trane requirements.

We test designs at our factory not on our customers!

Va riTra c

When Trane’s changeover VAV System for light commercial applications is coupled with Precedent, it provides the latest in technological advances for comfort management systems and can allow thermostat control in every zone served by VariTrac.

8

RT-PRC016-EN

Application Considerations

Application of this product should be within the cataloged airflow and cooling considerations.

Low Ambient Cooling

The Precedent™ line features, with ReliaTel™ microprocessor controls, low ambient cooling down to 18°C (0°F). Contact your local Trane Representative for more assistance with low ambient cooling applications.

Barometric Relief

This product line offers an optional barometric relief damper. for use in conjunction with economizer option. This accessory consists of gravity dampers which open with increased pressure. As the building air pressure increases, the pressure in the unit return air section also increases, opening the dampers and relieving the conditioned space.

NOTE: THE EFFECTIVENESS OF BAROMETRIC RELIEF DAMPER DURING ECONOMIZING OPERATION IS SYSTEM RELATED.

PRESSURE DROP OF THE RETURN AIR SYSTEM SHOULD BE CONSIDERED TO CONTROL BUILDING PRESSURIZATION.

Condensate Trap

The evaporator is a draw-thru configuration. A trap must be field provided prior to start-up on the cooling cycle.

Clearance Requirements

The recommended clearances identified with unit dimensions should be maintained to assure adequate service maximum capacity and peak operating efficiency. Actual clearances which appear inadequate should be reviewed with the local Trane sales personnel.

Unit Pitch

These units have reversible sloped condensate drain pans. Units must be installed level, any unit slope must be toward the side of unit where condensate drain is connected.

RT-PRC016-EN

9

Selection Procedure - SI Units

Cooling Capacity

Step 1

Calculate the building’s total and sensible cooling loads at design conditions. Use the Trane calculation methods or any other standard accepted method.

Factors used in unit selection:

A

Total Cooling Load: 16.7 kW

B

Sensible Cooling Load: 11.7 kW

C

Airflow: 3400 m

D

Electrical Characteristics: 380-415/50/3

E

Summer Design Conditions: Entering Evaporator Coil: 27 DB, 19 WB Outdoor Ambient: 35

F

External Static Pressure: 110 Pa

Step 2

Table PD-1 shows that a TSC060AD has a gross cooling capacity of 17.8 kW and

14.4 kW sensible capacity at 3400 m and 35 DB outdoor ambient with 27 DB, 19 WB air entering the evaporator.

To Find Capacity at Intermediate Conditions Not in the Table

When the design conditions are between two numbers that are in the capacity table, interpolation is required to approximate the capacity. Note: Extrapolation outside of the table conditions is not recommended.

3

/h

3

/h

Step 3

In order to select the correct unit which meets the building’s requirements, the fan motor heat must be deducted from the gross cooling capacity. The amount of heat that the fan motor generates is dependent on the effort by the motor cfm and static pressure. To determine the total unit static pressure:

External Static (duct system)

Standard Filter 1 in. 37 Pa from Table PD-21

Economizer 5 Pa

(100% Return Air) from Table PD-21

Electric Heater Size 7.5 kW 17 Pa from Table PD-21

Total Static Pressure 169 Pa

Note: The Evaporator Fan Performance Table PD-6 has deducted the pressure drop for a 25 mm filter already in the unit (see note below Table PD-6). Therefore, the actual total static pressure is 169-17 (from Table PD-21) = 152 Pa.

With 3400 m Table PD-6 shows .67 kW for this unit. Note below the table gives a formula to calculate Fan Motor Heat, Fan Motor Heat (kw) =

1.144 x (Fan kW) + 0.132 = 1.144 x 0.67 + 0.132 = 0.90 kW

Now subtract the fan motor heat from the gross cooling capacity of the unit: Net Total Cooling Capacity = 17.8 kW - 0.9 = 16.9 kW.

Net Sensible Cooling Capacity = 14.4 kW - 0.9 = 13.5 kW.

Step 4

If the performance will not meet the required load of the building’s total or sensible cooling load, try a selection at the next higher size unit.

3

/h and 152 Pa

110 Pa

Heating Capacity

Step 1

Calculate the building heating load using the Trane calculation form or other standard accepted method.

Step 2

Size the system heating capacity to match the calculated building heating load. The following are building heating requirements:

A

Total heating load of 5 kW

B

2000 cfm

C

380 volt/3 phase Power Supply

The electric heat accessory capacities are listed in Table PD-23. From the table, the smallest heater will deliver 7.5 kW at 380 V. Referring to Table ED-2, the electric heater selection is BAYHTRR412A.

Air Delivery Selection

External static pressure drop through the air distribution system has been calculated to be 110 Pa. From Table PD21 static pressure drop through the economizer is 5 Pa and the 7.5 kW heater is 17 Pa (110 + 5 + 17). Enter Table PD-6 for a TSC060AD at 3400 m3/h and 132 Pa static pressure. The standard motor will give the desired airflow at a rated kW of

0.64.

Accessory Selection

Select accessories needed to accommodate the application.

10

RT-PRC016-EN

Selection Procedure - IP Units

Cooling Capacity

Step 1

Calculate the building’s total and sensible cooling loads at design conditions. Use the Trane calculation methods or any other standard accepted method.

Factors used in unit selection:

A

Total Cooling Load: 59 MBh

B

Sensible Cooling Load: 40 MBh

C

Airflow: 2000 cfm

D

Electrical Characteristics: 380-415/50/3

E

Summer Design Conditions: Entering Evaporator Coil: 80 DB, 67 WB Outdoor Ambient: 95

F

External Static Pressure: 0.45 in. wg

Step 2

Table PD-1a shows that a TSC060AD has a gross cooling capacity of 62.0 MBh and

46.4 MBh sensible capacity at 2000 cfm and 95 DB outdoor ambient with 80 DB, 67 WB air entering the evaporator.

To Find Capacity at Intermediate Conditions Not in the Table

When the design conditions are between two numbers that are in the capacity table, interpolation is required to approximate the capacity. Note: Extrapolation outside of the table conditions is not recommended.

Step 3

In order to select the correct unit which meets the building’s requirements, the fan motor heat must be deducted from the gross cooling capacity. The amount of heat that the fan motor generates is dependent on the effort by the motor cfm and static pressure. To determine the total unit static pressure:

External Static (duct system)

0.45 wg

Standard Filter 1 in. 0.15 wg from Table PD-21a

Economizer 0.02 wg

(100% Return Air) from Table PD-21a

Electric Heater Size 26 MBh 0.07 wg from Table PD-21a

Total Static Pressure 0.69 wg

Note: The Evaporator Fan Performance Table PD-6a has deducted the pressure drop for a 1 in. filter already in the unit (see note below Table PD-6a). Therefore, the actual total static pressure is 0.69 -

0.15 (from Table PD-21a) = 0.50 wg.

With 2000 cfm and 0.50 wg. Table PD-6a shows .83 bhp for this unit. Note below the table gives a formula to calculate Fan Motor Heat, Fan Motor Heat (MBh) =

2.915 x (Fan BHP) + 0.451 = 2.915 x 0.83 + 0.451 = 2.87 MBh

Now subtract the fan motor heat from the gross cooling capacity of the unit: Net Total Cooling Capacity = 62 MBh - 2.87 = 59.1 MBh.

Net Sensible Cooling Capacity = 46.4 MBh - 2.87 = 43.5 MBh.

Step 5

If the performance will not meet the required load of the building’s total or sensible cooling load, try a selection at the next higher size unit.

Heating Capacity

Step 1

Calculate the building heating load using the Trane calculation form or other standard accepted method.

Step 2

Size the system heating capacity to match the calculated building heating load. The following are building heating requirements:

A

Total heating load of 15 MBH

B

2000 cfm

C

380 volt/3 phase Power Supply

The electric heat accessory capacities are listed in Table PD-23a. From the table, the smallest heater will deliver 26 MBh at 380 volts. Referring to Table ED-2, the electric heater accessory selection is BAYHTRR412A.

Air Delivery Selection

External static pressure drop through the air distribution system has been calculated to be 0.45 inches of water. From Table PD-21a static pressure drop through the economizer is 0.02 and the 26 kW heater is 0.07 inches of water (0.45 + 0.02 + 0.07). Enter Table PD-6a for a TSC060AD at 2000 cfm and 0.54 static pressure. The standard motor will give the desired airflow at a rated bhp of about 1.01.

Accessory Selection

Select accessories needed to accommodate the application.

RT-PRC016-EN

11

Model Number Description

T S C 060 A D R O A ** C 0 0 0 0 0 0 0 0 0 0 1

1 2 3 4,5,6 7 8 9 10 11 12,13 14 15 16 17 18 19 20 21 22 23 24 25

Digit 1 - Unit Function

T = DX Cooling

Digit 2 - Efficiency

S = Standard Efficiency

Digit 3 - Airflow

C = Convertible

Digits 4,5,6 - Nominal Gross Cooling Capacity (MBh)

kW Tons 060 = 17.6 5 072 = 21.1 6 090 = 26.4 7.5 102 = 29.9 8.5 120 = 35.1 10

Digit 7 - Major Design Sequence

A = First

Digit 8 - Unit Voltage

D = 380-415/50/3

Digit 9 - Unit Controls

R = ReliaTel™ Microprocessor

Digit 10 - Heating Capacity

0 = No Electric Heat

Digit 11 - Minor Design Sequence

A = First Sequence

Digits 12, 13 - Service Sequence

** = Factory Assigned

Digit 14 - Fresh Air Selection

0 = No Fresh Air A = Manual Outside Air Damper 0-50% B = Motorized Outside Air Damper 0-50% C = Economizer, Dry Bulb 0-100%

without Barometric Relief

D = Economizer, Dry Bulb 0-100%

with Barometric Relief

E = Economizer, Reference Enthalpy

0-100% without Barometric Relief

F = Economizer, Reference Enthalpy

0-100% with Barometric Relief

G = Economizer, Comparative Enthalpy

0-100% without Barometric Relief

H = Economizer, Comparative Enthalpy

0-100% with Barometric Relief

Digit 15 - Supply Fan/Drive Type/Motor

0 = Standard Drive 1 = Oversized Motor

Digit 16 - Hinged Service Access/Filters

0 = Standard Panels/Standard Filters A = Hinged Access Panels/Standard Filters B = Standard Panels/

50 mm (2”) Pleated Filters

C = Hinged Access Panels/

50 mm (2”) Pleated Filters

Digit 17 - Condenser Coil Protection

0 = Standard Coil 1 = Standard Coil with Hail Guard 2 = Epoxy Coated Condenser Coil 3 = Epoxy Coated Condenser Coil with

Hail Guard

Digit 18 - Through the Base Provisions

0 = No Through the Base Provisions

Digit 19 - Disconnect/Circuit Breaker/Phase Monitor (3 phase only)

0 = No Disconnect or Circuit Breaker 3 = Phase Monitor Only (No Disconnect,

No Circuit Breaker)

Digit 20 - Convenience Outlet

0 = No Convenience Outlet

Digit 21 - Communications Options

0 = No Communications Interface 1 = Comm-3/4 Communications Interface 2 = Comm-5 Communications Interface

Digit 22 - Refrigeration System Option

0 = Standard Refrigeration System

Digit 23 - Refrigeration Controls

0 = No Refrigeration Control

Digit 24 - Smoke Detector

0 = No Smoke Detector

Digit 25 - Monitoring Controls

0 = No Monitoring Control 1 = Clogged Filter Switch 2 = Fan Failure Switch 3 = Discharge Air Sensing Tube 4 = Clogged Filter Switch and Fan Fail

Switch

5 = Clogged Filter Switch and Discharge

Air Sensing Tube

6 = Fan Fail Switch and Discharge Air

Sensing Tube

7 = Clogged Filter and Fan Fail Switches

and Discharge Air Sensing Tube

12

RT-PRC016-EN

General Data

Table GD - 1 — General Data

Convertible Units Convertible Units Convertible Units Convertible Units Convertible Units

Cooling Performance

Gross Capacity - kW (MBh) 18.2 (62.0) 23.2 (79.0) 26.7 (91.0) 31.1 (106.0) 34.9 (119.0) COP (EER) Nominal Airflow - m Rated Airflow - m

1

2

3

/h (cfm) 3400 (2000) 4080 (2400) 5100 (3000) 5780 (3400) 6800 (4000)

3

/h (cfm) 3400 (2000) 3570 (2100) 4460 (2625) 5100 (3000) 5950 (3500) Net Capacity - kW (MBh) 17.3 (59.0) 22.0 (75.0) 25.2 (86.0) 29.9 (102.0) 33.1 (113.0) System Power - kW 5.78 7.14 8.35 9.90 11.08

Compressor

Number - Type 1-Climatuff Scroll 1-Trane 3-D Scroll 1-Trane 3-D Scroll 2-Climatuff Scroll 2-Climatuff Scroll

Outdoor Sound Rating - dB

3

Outdoor Coil - Type Lanced Lanced Lanced Lanced Lanced

Tube Size - in. OD 0.3125 0.3125 0.3125 0.3125 0.3125 Face Area - m

2

(sq ft) 1.02 (10.96) 1.29 (13.88) 1.29 (13.88) 1.75 (18.89) 2.41 (25.92)

Rows / FPI 3 / 17 2 / 17 2 / 17 2 / 17 2 / 17

Indoor Coil - Type Lanced Lanced Lanced Lanced Lanced

Tube Size OD - in. 0.3125 0.3125 0.3125 0.3125 0.3125 Face Area - m

2

(sq ft) 0.62 (6.68) 0.92 (9.89) 0.92 (9.89) 1.15 (12.36) 1.15 (12.36) Rows / FPI 3 / 16 2 / 16 3 / 16 3 / 16 4 / 16 Refrigerant Control Short Orifice Short Orifice Short Orifice Short Orifice Short Orifice Drain Connection No. / Size - in. 1 / 0.75 NPT 1 / 0.75 NPT 1 / 0.75 NPT 1 / 0.75 NPT 1 / 0.75 NPT

Outdoor Fan - Type Propeller Propeller Propeller Propeller Propeller

No. Used / Diameter - in. 1 / 22 1 / 26 1 / 26 1 / 26 1 / 26 Drive Type / No. Speeds Direct / 1 Direct / 1 Direct / 1 Direct / 1 Direct / 1 CFM 2900 5100 5200 5500 5800 No. Motors / kW (HP) 1 / 0.30 (0.40) 1 / .56 (0.75) 1 / .56 (0.75) 1 / .56 (0.75) 1 / .56 (0.75) Motor RPM 950 950 950 950 950

Belt Drive Indoor Fan - Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal

No. Used 1 1 1 1 1 Fan Diameter x Width - mm (in.) 280 X 280 (11 x 11) 305 X 305 (12 x 12) 305 X 305 (12 x 12) 381 X 381 (15 x 15) 381 X 381 (15 x 15) Drvie Type / No. Speeds Belt / Variable Speed Belt / Variable Speed Belt / Variable Speed Belt / Variable Speed Belt / Variable Speed No. Motors 1 1 1 1 1 Standard Motor Power - kW (HP) 1.1 (1.5) 1.1 (1.5) 1.5 (2.0) 1.5 (2.0) 2.2 (3.0) Oversized Motor Power - kW (HP) - 1.5 (2.0) 2.2 (3.0) 2.2 (3.0) Motor RPM - Standard / Oversized 1450 / - 1450 / 1450 1450 / 2850 1450 / 2850 2850 / Motor Frame Size 56 56 56 56 56

Filters - Type Furnished Throwaway Throwaway Throwaway Throwaway Throwaway

(No.) Size Reccommended - mm (2) 508 X 762 X 25 (4) 406 X 635 X 50 (4) 406 X 635 X 50 (4) 508 X 635 X 50 (4) 508 X 635 X 50 (No.) Size Reccommended - in. (2) 20 X 30 X 1 (4) 16 X 25 X 2 (4) 16 X 25 X 2 (4) 20 X 25 X 2 (4) 20 X 25 X 2

Refrigerant Charge - kg (lbs) of R-22

Notes:

1. Cooling Performance is rated at 35.0 C (95 F) ambient, 26.7 C (80 F) entering dry bulb, 19.4 C (67 F) entering wet bulb. Gross capacity does not include the effect of fan motor heat. Net capacity includes the effect of fan motor heat. Units are suitable for operation to ± 20 % of nominal airflow.

2. EER are rated at ARI conditions.

3. Outdoor Sound rating shown is tested in accordance with ARI Standard 270. For more information refer to Performance Data Table "Sound Power Level".

4. Refrigerant charge is an approcimate value. For a more precise value, see unit nameplate and service literature.

4

TSC060AD TSC072AD TSC090AD TSC102AD TSC120AD

2.99 (10.2) 3.08 (10.5) 3.02 (10.3) 3.02 (10.3) 2.99 (10.2)

80 85 85 83 79

3.7 (8.2) 3.7 (8.2) 4.5 (10.0) Circuit 1 - 3.8 (8.3) Circuit 1 - 3.4 (7.5) Circuit 2 - 2.0 (4.4) Circuit 2 - 3.3 (7.3)

RT-PRC016-EN

13

Performance Data

Table PD-1 — Gross Cooling Capacities (kW) - TSC060AD - (SI)

Enter. 30 35 40 45 Dry

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22 Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

3060

3400

3740

4080

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

24 16.2 13.9 18.5 11.3 19.9 8.3 15.0 13.3 17.4 11.3 19.3 8.0 13.9 12.7 16.1 10.7 18.4 7.5 12.7 12.1 14.7 9.5 17.3 7.0 27 16.7 16.7 18.6 14.1 20.0 11.1 15.8 15.8 17.4 13.6 19.4 10.8 14.8 14.8 16.1 13.0 18.5 10.3 13.8 13.8 14.7 12.3 17.3 9.8 30 18.1 18.1 18.7 16.9 20.2 13.6 17.2 17.2 17.7 16.5 19.5 13.5 16.2 16.2 16.5 15.9 18.5 13.1 15.1 15.1 15.1 15.1 17.3 12.6 33 19.3 19.3 19.2 19.2 20.3 16.2 18.5 18.5 18.5 18.5 19.6 16.1 17.6 17.6 17.6 17.6 18.7 15.9 16.6 16.6 16.6 16.6 17.5 15.4 24 16.7 14.8 18.8 11.8 20.1 8.6 15.5 14.2 17.8 11.3 19.5 8.3 14.2 13.5 16.5 11.4 18.7 7.7 13.1 12.9 15.0 10.8 17.6 7.2 27 17.5 17.5 18.9 14.9 20.2 11.4 16.5 16.5 17.8 14.4 19.6 11.2 15.4 15.4 16.5 13.8 18.8 10.8 14.4 14.4 15.1 13.1 17.6 10.3 30 18.8 18.8 19.1 17.9 20.4 14.1 17.9 17.9 18.2 17.6 19.7 14.1 16.9 16.9 17.0 17.0 18.8 13.8 15.8 15.8 15.8 15.8 17.7 13.4 33 19.8 19.8 19.8 19.8 20.6 16.8 19.2 19.2 19.2 19.2 19.9 16.9 18.3 18.3 18.3 18.3 19.0 16.8 17.4 17.4 17.4 17.4 17.9 16.4 24 17.1 15.6 19.1 12.3 20.2 8.8 15.9 15.0 18.1 11.8 19.7 8.5 14.6 14.3 16.8 11.2 18.9 7.9 13.4 13.4 15.3 11.4 17.8 7.5 27 18.1 18.1 19.2 15.5 20.4 11.6 17.1 17.1 18.2 15.1 19.8 11.5 16.0 16.0 16.9 14.6 19.0 11.3 14.9 14.9 15.4 13.9 17.9 10.8 30 19.3 19.3 19.5 18.7 20.6 14.5 18.5 18.5 18.6 18.6 20.0 14.6 17.6 17.6 17.6 17.6 19.1 14.4 16.5 16.5 16.5 16.5 17.9 14.1 33 20.2 20.2 20.2 20.2 20.8 17.4 19.6 19.6 19.6 19.6 20.2 17.6 18.9 18.9 18.9 18.9 19.3 17.6 18.0 18.0 18.0 18.0 18.3 17.4 24 17.4 16.4 19.3 12.6 20.3 9.1 16.2 15.8 18.4 12.2 19.8 8.8 14.9 14.9 17.1 11.7 19.0 8.1 13.9 13.9 15.5 12.1 18.0 7.7 27 18.6 18.6 19.4 16.1 20.5 12.3 17.7 17.7 18.4 15.8 19.9 11.8 16.6 16.6 17.2 15.3 19.1 11.6 15.4 15.4 15.8 14.6 18.1 11.2 30 19.7 19.7 19.7 19.4 20.7 14.9 19.0 19.0 19.0 19.0 20.1 15.0 18.1 18.1 18.1 18.1 19.3 15.0 17.1 17.1 17.1 17.1 18.2 14.7 33 20.5 20.5 20.5 20.5 20.9 17.9 20.0 20.0 20.0 20.0 20.4 18.2 19.3 19.3 19.3 19.3 19.5 18.3 18.4 18.4 18.4 18.4 18.6 18.2

Ambient Temperature (C)

Entering Wet Bulb Temperature (C)

Table PD-1a — Gross Cooling Capacities (MBH) _ TSC060AD _ (IP)

Enter. 85 95 105 115 Dry

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73 Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

1800

2000

2200

2400

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

75 56.1 47.1 64.4 37.0 68.8 25.1 51.6 44.7 60.6 36.7 66.9 23.9 47.0 42.4 55.6 34.5 64.0 22.6 42.4 40.1 50.2 30.3 60.0 20.8 80 57.3 56.5 64.6 45.8 69.3 34.2 53.3 53.3 60.7 43.9 67.3 32.9 49.5 49.5 55.7 41.6 64.2 31.4 45.7 45.7 50.4 39.2 60.1 29.6 85 61.3 61.3 64.9 54.5 69.7 42.0 57.7 57.7 61.0 52.9 67.6 41.4 53.9 53.9 56.3 50.7 64.4 40.3 50.0 50.0 51.2 48.3 60.2 38.4 90 65.0 65.0 65.8 63.3 70.4 49.7 62.1 62.1 62.4 62.2 68.0 49.7 58.5 58.5 58.5 58.5 64.6 48.8 54.4 54.4 54.4 54.4 60.3 47.2 75 57.5 49.8 65.4 38.5 69.3 25.5 53.0 47.5 61.8 38.7 67.5 24.4 48.3 45.1 56.9 36.6 64.7 23.0 43.7 42.8 51.3 34.2 60.9 21.4 80 59.3 59.3 65.6 47.9 69.8 35.4 55.7 55.7 62.0 46.4 68.0 34.2 51.6 51.6 57.1 44.1 65.0 32.7 47.7 47.7 51.5 41.6 61.0 30.9 85 63.6 63.6 66.0 57.3 70.5 43.1 60.3 60.3 62.5 56.2 68.3 43.0 56.4 56.4 58.0 54.1 65.2 42.1 52.2 52.2 52.8 51.7 61.2 40.6 90 66.9 66.9 67.2 66.5 71.1 51.4 64.4 64.4 64.4 64.4 68.9 51.8 61.0 61.0 61.0 61.0 65.6 51.3 57.1 57.1 57.1 57.1 61.5 50.1 75 58.8 52.5 66.1 39.8 69.6 25.9 54.3 50.2 62.8 38.1 67.9 24.9 49.4 47.8 58.0 38.6 65.3 23.4 44.8 44.8 52.2 36.2 61.6 21.7 80 61.5 61.5 66.4 49.8 70.3 36.8 57.8 57.8 63.0 48.6 68.3 35.0 53.6 53.6 58.2 46.5 65.6 33.9 49.4 49.4 52.6 44.0 61.8 32.2 85 65.4 65.4 67.0 59.8 71.0 44.6 62.4 62.4 63.7 59.2 69.0 44.3 58.7 58.7 59.4 57.4 66.0 43.8 54.3 54.3 54.3 54.3 62.0 42.5 90 68.4 68.4 68.4 68.4 71.7 52.8 66.1 66.1 66.1 66.1 69.6 53.6 63.1 63.1 63.0 63.0 66.4 53.6 59.3 59.3 59.3 59.3 62.4 52.7 75 60.0 55.1 66.6 40.8 70.0 26.4 55.5 52.8 63.6 39.6 68.3 25.3 50.6 50.4 59.0 37.4 65.7 24.0 46.2 46.2 53.1 38.2 62.2 22.1 80 63.2 63.2 67.1 51.4 70.7 37.7 59.6 59.6 63.8 50.7 68.8 35.8 55.4 55.4 59.2 48.8 66.2 35.0 51.1 51.1 53.5 46.3 62.4 33.4 85 66.7 66.7 67.8 62.0 71.5 45.3 64.1 64.1 64.8 61.9 69.5 45.5 60.5 60.5 60.8 60.6 66.6 45.2 56.3 56.3 56.2 56.2 62.7 44.3 90 69.5 69.5 69.5 69.5 72.1 54.1 67.4 67.4 67.4 67.4 70.2 55.3 64.6 64.6 64.5 64.5 67.1 55.7 61.1 61.1 61.0 61.0 63.2 55.1

Ambient Temperature (F)

Entering Wet Bulb Temperature (F)

14

RT-PRC016-EN

Performance Data

Table PD-2 — Gross Cooling Capacities (kW) - TSC072AD - (SI)

Enter. 30 35 40 45 Dry

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22 Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

3670

4080

4490

4900

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

24 20.9 17.5 23.3 14.6 24.6 10.3 19.7 16.8 22.4 13.6 24.0 9.9 18.4 16.1 21.2 12.9 23.2 9.4 17.1 15.4 19.7 12.9 22.0 9.0 27 21.6 21.2 23.4 17.4 24.8 13.5 20.4 20.4 22.5 17.0 24.1 13.3 19.4 19.4 21.2 16.4 23.3 12.8 18.2 18.2 19.8 15.7 22.1 12.3 30 22.9 22.9 23.6 20.6 25.0 16.5 22.1 22.1 22.7 20.4 24.3 16.3 21.0 21.0 21.5 19.9 23.5 16.1 19.9 19.9 20.2 19.2 22.2 15.6 33 24.0 24.0 24.1 23.8 25.2 19.4 23.4 23.4 23.3 23.3 24.5 19.3 22.5 22.5 22.4 22.4 23.6 19.3 21.4 21.4 21.4 21.4 22.3 18.8 24 21.5 18.5 23.6 15.2 24.8 10.6 20.3 17.9 22.8 14.2 24.2 10.1 19.0 17.2 21.6 13.6 23.4 9.8 17.6 16.4 20.1 12.9 22.3 9.3 27 22.3 22.3 23.8 18.1 25.1 14.5 21.3 21.3 22.9 17.9 24.3 13.6 20.2 20.2 21.6 17.3 23.6 13.4 19.0 19.0 20.2 16.6 22.4 12.8 30 23.6 23.6 24.0 21.6 25.3 17.6 22.9 22.9 23.2 21.5 24.6 16.8 21.8 21.8 22.0 21.1 23.7 16.7 20.7 20.7 20.8 20.5 22.5 16.3 33 24.6 24.6 24.6 24.6 25.5 20.0 23.9 23.9 23.9 23.9 24.8 20.1 23.1 23.1 23.1 23.1 23.9 20.1 22.1 22.1 22.1 22.1 22.7 19.8 24 22.0 19.5 23.9 15.8 25.0 10.7 20.8 18.9 23.1 14.7 24.4 10.4 19.5 18.2 21.9 14.2 23.5 10.1 18.1 17.4 20.5 13.5 22.5 9.6 27 22.9 22.9 24.0 18.7 25.3 13.9 22.1 22.1 23.2 18.6 24.5 13.9 20.9 20.9 22.0 18.2 23.7 13.6 19.7 19.7 20.6 17.6 22.6 13.3 30 24.1 24.1 24.3 22.4 25.5 17.4 23.4 23.4 23.5 22.4 24.8 17.3 22.5 22.5 22.5 22.2 23.9 17.2 21.3 21.3 21.3 21.3 22.8 17.0 33 25.0 25.0 25.0 25.0 25.7 20.7 24.4 24.4 24.4 24.4 25.1 20.8 23.7 23.7 23.7 23.7 24.2 20.8 22.6 22.6 22.6 22.6 23.1 20.7 24 22.4 20.3 24.1 16.3 25.2 10.9 21.2 19.8 23.2 15.1 24.5 10.7 19.9 19.1 22.2 14.7 23.6 10.3 18.5 18.4 20.8 14.0 22.7 9.9 27 23.4 23.4 24.3 19.3 25.5 14.5 22.6 22.6 23.4 19.2 24.7 14.7 21.5 21.5 22.3 19.0 23.8 14.0 20.3 20.3 20.9 18.4 22.8 13.7 30 24.5 24.5 24.6 23.2 25.6 17.8 23.8 23.8 23.9 23.2 25.0 17.8 23.0 23.0 23.0 23.0 24.1 17.7 21.8 21.8 21.8 21.8 23.0 17.7 33 25.4 25.4 25.4 25.4 25.9 21.2 24.8 24.8 24.8 24.8 25.3 21.4 24.1 24.1 24.1 24.1 24.4 21.4 23.1 23.1 23.1 23.1 23.4 21.6

Ambient Temperature (C)

Entering Wet Bulb Temperature (C)

Table PD-2a — Gross Cooling Capacities (MBH) - TSC072AD - (IP)

Enter. 85 95 105 115 Dry

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73 Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

2160

2400

2640

2880

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

75 72.2 59.1 80.6 47.1 85.1 31.0 67.5 56.5 77.7 44.1 82.7 29.6 62.6 53.9 73.0 41.8 79.9 28.0 57.4 51.2 67.5 39.2 75.5 26.0 80 73.8 70.7 81.0 56.1 85.8 42.2 69.4 68.2 77.9 55.0 83.4 40.7 65.0 65.0 73.1 52.6 80.4 39.0 60.6 60.6 67.6 50.0 75.8 36.8 85 77.7 77.7 81.4 66.3 86.3 51.7 74.3 74.3 78.2 65.6 83.8 50.1 70.3 70.3 73.6 63.5 80.7 49.2 66.0 66.0 68.3 61.0 76.1 47.4 90 81.3 81.3 82.4 76.3 87.1 59.8 78.8 78.8 79.4 76.0 84.6 59.4 75.1 75.1 75.3 74.6 81.3 59.0 70.8 70.8 70.7 70.7 76.6 57.4 75 74.2 62.5 81.6 49.2 85.7 31.5 69.3 59.9 78.7 46.0 83.4 30.1 64.4 57.3 74.2 43.7 80.2 28.5 59.1 54.6 68.9 41.1 76.3 26.6 80 76.1 75.0 82.1 58.2 86.5 43.7 72.1 72.1 79.0 57.4 84.2 42.1 67.9 67.9 74.4 55.4 80.9 40.4 63.3 63.3 69.0 53.0 76.8 38.4 85 80.0 80.0 82.6 69.1 86.8 52.8 77.1 77.1 79.5 68.7 84.7 51.6 73.1 73.1 75.3 67.3 81.4 50.7 68.7 68.7 70.1 65.0 77.2 49.4 90 83.3 83.3 83.8 79.7 87.1 61.5 80.7 80.7 80.9 79.4 85.5 61.5 77.5 77.5 77.5 77.5 82.1 61.1 73.3 73.3 73.3 73.3 77.8 60.2 75 75.8 65.6 82.3 50.7 86.2 32.0 71.0 63.2 79.4 49.8 84.0 30.7 66.0 60.6 75.4 45.6 80.7 29.0 60.6 57.8 70.0 42.9 77.0 27.2 80 78.1 78.1 82.9 60.1 87.2 44.1 74.6 74.6 79.8 59.4 84.7 44.3 70.3 70.3 75.6 58.1 81.2 41.3 65.7 65.7 70.1 55.7 77.6 39.8 85 81.7 81.7 83.6 71.6 88.2 54.0 79.1 79.1 80.5 71.3 85.4 53.6 75.4 75.4 76.6 70.7 82.0 52.1 70.9 70.9 71.6 68.7 78.1 51.3 90 84.8 84.8 85.0 82.5 89.1 62.3 82.3 82.3 82.3 82.3 86.1 61.2 79.4 79.4 79.4 79.4 82.8 63.0 75.2 75.2 75.2 75.2 78.7 62.8 75 77.0 68.3 82.9 52.2 86.6 32.5 72.5 66.4 80.0 51.4 84.5 31.2 67.5 63.7 76.2 47.1 81.2 29.5 62.1 61.0 70.8 44.7 77.6 27.8 80 79.6 79.6 83.7 61.8 87.6 44.7 76.6 76.6 80.6 61.3 85.4 44.0 72.4 72.4 76.5 60.5 81.8 42.1 67.7 67.7 71.1 58.2 78.1 40.9 85 83.0 83.0 84.4 73.9 88.7 54.9 80.4 80.4 81.5 73.9 86.2 54.1 77.1 77.1 77.8 73.8 82.7 53.5 72.7 72.7 72.9 71.9 78.8 53.0 90 85.9 85.9 86.0 85.0 89.6 65.2 83.6 83.6 83.6 83.6 87.0 63.2 81.0 81.0 81.0 81.0 83.5 65.0 76.8 76.8 76.8 76.8 79.5 65.3

Ambient Temperature (F)

Entering Wet Bulb Temperature (F)

RT-PRC016-EN

15

Performance Data

Table PD-3 — Gross Cooling Capacities (kW) - TSC090AD - (SI)

Enter. 30 35 40 45 Dry

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22 Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

4590

5100

5610

6120

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

24 24.5 21.6 26.9 17.1 28.1 12.0 22.7 20.6 25.8 16.3 27.7 11.5 20.8 19.6 24.1 15.4 26.8 11.0 19.0 18.7 22.0 14.8 25.6 10.3 27 25.4 25.4 27.1 21.1 28.5 15.9 24.1 24.1 25.9 20.8 27.8 15.9 22.5 22.5 24.3 20.0 27.0 15.5 20.9 20.9 22.2 19.0 25.7 14.8 30 27.0 27.0 27.4 25.3 28.7 19.5 26.0 26.0 26.4 25.3 28.1 19.7 24.8 24.8 25.0 24.8 27.1 19.6 23.2 23.2 23.1 23.1 25.8 19.2 33 28.1 28.1 28.1 28.1 29.0 23.3 27.5 27.5 27.5 27.5 28.4 23.6 26.5 26.5 26.5 26.5 27.4 23.9 25.3 25.3 25.3 25.3 26.1 23.6 24 25.1 23.0 27.2 18.1 28.4 12.4 23.4 22.1 26.2 17.1 27.8 11.9 21.4 21.1 24.6 16.8 27.1 11.3 19.7 19.7 22.5 15.3 25.9 10.7 27 26.3 26.3 27.4 22.0 28.6 16.3 25.1 25.1 26.4 22.0 28.0 16.2 23.6 23.6 24.9 21.4 27.2 16.0 21.9 21.9 22.8 20.4 26.0 15.6 30 27.6 27.6 27.8 26.4 29.0 20.2 26.8 26.8 27.0 26.8 28.3 20.4 25.7 25.7 25.7 25.7 27.4 20.6 24.3 24.3 24.3 24.3 26.2 20.4 33 28.6 28.6 28.6 28.6 29.3 24.1 28.1 28.1 28.1 28.1 28.7 24.6 27.3 27.3 27.3 27.3 27.8 25.0 26.2 26.2 26.2 26.2 26.6 25.1 24 25.6 24.2 27.4 18.4 28.4 12.5 24.0 23.5 26.5 18.3 28.0 12.2 22.0 22.0 25.1 17.1 27.3 11.7 20.4 20.4 22.9 16.2 26.2 11.1 27 26.9 26.9 27.7 22.8 28.8 16.5 25.9 25.9 26.8 23.0 28.3 16.7 24.5 24.5 25.4 22.7 27.4 16.5 22.8 22.8 23.5 21.8 26.3 16.3 30 28.0 28.0 28.1 27.3 29.1 20.6 27.4 27.4 27.4 27.4 28.7 21.2 26.5 26.5 26.4 26.4 27.7 21.4 25.2 25.2 25.2 25.2 26.5 21.4 33 28.9 28.9 28.9 28.9 29.5 24.7 28.5 28.5 28.5 28.5 29.1 25.6 27.8 27.8 27.8 27.8 28.1 26.0 26.8 26.8 26.8 26.8 27.0 26.3 24 26.1 25.4 27.6 18.5 28.5 12.7 24.5 24.5 26.7 19.1 28.1 12.5 22.8 22.8 25.4 18.0 27.4 12.0 21.1 21.1 23.4 17.0 26.3 11.4 27 27.3 27.3 27.9 23.4 28.9 16.8 26.5 26.5 27.1 23.9 28.5 17.1 25.3 25.3 25.8 23.8 27.7 17.0 23.6 23.6 24.1 23.1 26.5 16.9 30 28.3 28.3 28.4 28.1 29.2 21.0 27.8 27.8 27.8 27.8 28.8 21.8 27.0 27.0 27.0 27.0 27.9 22.1 25.8 25.8 25.8 25.8 26.8 22.3 33 29.1 29.1 29.1 29.1 29.6 25.2 28.8 28.8 28.8 28.8 29.3 26.4 28.2 28.2 28.2 28.2 28.4 26.9 27.3 27.3 27.3 27.3 27.4 27.4

Ambient Temperature (C)

Entering Wet Bulb Temperature (C)

Table PD-3a — Gross Cooling Capacities (MBH) - TSC090AD - (IP)

Enter. 85 95 105 115 Dry

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73 Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

2700

3000

3300

3600

NOTES:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

75 84.4 72.7 92.7 55.2 96.6 35.6 77.7 69.1 89.4 52.6 95.2 34.0 70.4 65.4 83.4 50.6 92.5 32.0 63.7 61.9 75.3 46.9 88.2 29.8 80 86.5 86.5 93.3 67.5 97.8 48.9 81.2 81.2 89.6 66.8 96.2 48.4 75.1 75.1 83.8 64.0 93.1 46.6 69.4 69.4 75.8 60.3 88.5 44.1 85 91.5 91.5 94.2 80.6 98.9 59.9 87.7 87.7 90.6 80.8 97.2 60.5 82.5 82.5 85.1 78.8 93.5 59.5 76.4 76.4 77.7 75.2 88.8 58.1 90 95.1 95.1 95.7 93.2 100.0 71.0 92.6 92.6 92.5 92.5 97.5 71.8 88.7 88.7 88.7 88.7 94.3 72.6 83.7 83.7 83.6 83.6 89.5 71.8 75 86.5 77.3 93.5 56.9 97.1 36.1 80.0 73.9 90.6 56.4 95.8 34.6 72.6 70.1 85.2 52.3 93.2 32.7 65.6 65.6 76.9 49.9 89.1 30.5 80 89.4 89.4 94.3 70.0 98.3 52.8 84.9 84.9 91.0 70.2 96.9 49.4 78.8 78.8 85.6 68.2 93.9 48.9 72.7 72.7 77.8 64.5 89.6 46.3 85 93.6 93.6 95.4 83.8 99.4 61.1 90.6 90.6 92.2 85.2 98.0 62.3 86.1 86.1 87.3 84.2 94.5 61.9 80.1 80.1 80.1 80.1 90.0 61.2 90 96.8 96.8 97.0 96.7 100.5 72.8 94.8 94.8 94.8 94.8 99.0 75.4 91.5 91.5 91.4 91.4 95.4 75.8 87.0 87.0 87.0 87.0 90.9 75.9 75 88.1 81.3 94.3 59.1 97.5 36.7 82.1 78.5 91.4 58.6 96.2 35.2 74.1 74.1 86.4 54.8 93.7 33.4 68.1 68.1 78.5 51.2 89.8 31.2 80 91.4 91.4 95.1 72.1 98.7 50.2 87.6 87.6 92.1 73.3 97.4 50.3 82.2 82.2 87.1 72.0 94.5 49.7 75.6 75.6 79.7 68.7 90.4 48.3 85 95.1 95.1 96.2 86.6 99.8 62.1 92.7 92.7 93.6 89.0 98.5 63.8 88.8 88.8 89.2 89.1 95.2 64.0 83.5 83.5 83.5 83.5 90.9 63.9 90 97.9 97.9 97.9 97.9 101.0 74.3 96.4 96.4 96.3 96.3 99.7 77.5 93.5 93.5 93.5 93.5 96.3 78.6 89.4 89.4 89.4 89.4 92.1 79.5 75 89.5 85.0 95.1 60.6 97.8 37.2 84.0 83.1 92.2 60.7 96.6 35.7 76.7 76.7 87.5 57.3 94.1 34.0 70.4 70.4 80.0 53.8 90.4 31.9 80 92.9 92.9 95.6 74.0 99.0 50.8 89.7 89.7 93.0 76.0 97.8 51.0 84.8 84.8 88.3 75.6 95.2 50.9 78.1 78.1 81.6 72.8 90.9 49.5 85 96.2 96.2 96.9 88.9 100.2 63.1 94.2 94.2 94.7 92.3 99.0 65.1 90.7 90.7 90.7 90.7 95.8 65.8 86.0 86.0 86.0 86.0 91.7 66.3 90 98.7 98.7 98.7 98.7 101.3 75.7 97.5 97.5 97.5 97.5 100.1 79.4 94.9 94.9 94.9 94.9 97.0 81.1 91.2 91.2 91.2 91.2 93.0 82.7

Ambient Temperature (F)

Entering Wet Bulb Temperature (F)

16

RT-PRC016-EN

Performance Data

Table PD-4 — Gross Cooling Capacities (kW) - TSC102AD - (SI)

Enter. 30 35 40 45 Dry

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22 Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

5200

5780

6360

6940

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

24 28.0 24.3 31.5 19.5 33.4 14.1 26.0 23.3 30.0 18.7 32.5 13.5 23.9 22.2 27.8 17.7 31.3 12.9 21.6 21.6 25.4 17.3 29.7 12.2 27 29.0 28.4 31.6 24.3 33.6 18.7 27.4 27.1 30.1 23.6 32.7 18.5 25.6 25.6 28.0 22.7 31.4 17.8 23.9 23.9 25.6 21.6 29.8 17.1 30 31.0 31.0 31.9 29.0 33.9 23.0 29.7 29.7 30.5 28.6 32.9 22.8 28.1 28.1 28.1 28.1 31.5 22.5 26.3 26.3 26.5 25.7 29.9 22.0 33 32.6 32.6 32.7 32.1 34.1 27.3 31.6 31.6 31.6 31.4 33.2 27.3 30.4 30.4 30.3 30.3 31.8 27.2 28.9 28.9 28.8 28.8 30.2 26.8 24 28.8 25.8 31.9 20.4 33.6 14.4 26.8 24.8 30.5 19.6 32.8 13.9 24.2 24.2 28.5 18.7 31.6 13.4 22.5 22.5 26.0 17.6 30.1 12.6 27 30.1 29.8 32.1 25.4 34.0 19.2 28.6 28.6 30.7 25.0 32.9 19.1 26.8 26.8 28.8 24.2 31.7 18.6 25.0 25.0 26.3 23.1 30.2 17.9 30 32.0 32.0 32.5 30.5 34.2 23.7 30.9 30.9 30.9 30.9 33.2 23.7 29.4 29.4 29.4 29.4 31.9 23.6 27.6 27.6 27.7 27.2 30.3 23.2 33 33.4 33.4 33.4 33.2 34.5 28.1 32.6 32.6 32.5 32.5 33.6 28.5 31.4 31.4 31.4 31.4 32.3 28.5 30.0 30.0 30.0 30.0 30.8 28.3 24 29.5 27.3 32.2 21.1 33.8 14.7 27.6 26.3 31.0 20.5 33.0 14.4 25.1 25.1 29.1 19.6 31.8 13.8 23.5 22.9 26.5 18.5 30.4 12.9 27 31.0 31.0 32.5 26.5 34.2 19.7 29.7 29.7 31.2 26.3 33.3 19.5 27.9 27.9 29.4 25.6 32.0 19.2 26.0 26.0 27.0 24.5 30.5 18.7 30 32.7 32.7 33.0 31.7 34.6 24.5 31.7 31.7 31.7 31.7 33.6 24.6 30.4 30.4 30.5 29.9 32.3 24.5 28.8 28.8 28.8 28.6 30.7 24.3 33 34.0 34.0 34.0 34.0 34.8 28.9 33.2 33.2 33.2 33.2 33.9 29.5 32.1 32.1 32.1 32.1 32.7 29.7 30.9 30.9 30.9 30.9 31.3 29.7 24 30.1 28.7 32.5 21.7 33.9 15.1 27.9 27.9 31.3 21.4 33.1 14.7 26.0 26.0 29.3 20.4 32.2 14.2 24.2 23.9 27.0 19.4 30.6 13.3 27 31.7 31.7 32.8 27.4 34.4 20.0 30.5 30.5 31.6 27.4 33.4 20.0 28.8 28.8 29.8 26.9 32.3 19.7 26.9 26.9 27.6 25.9 30.7 19.4 30 33.2 33.2 33.2 33.2 34.8 25.0 32.3 32.3 32.4 31.7 33.7 25.2 31.2 31.2 31.2 30.9 32.6 25.4 29.7 29.7 29.7 29.7 31.0 25.3 33 34.4 34.4 34.4 34.4 35.2 30.0 33.7 33.7 33.7 33.7 34.2 30.4 32.9 32.9 32.9 32.9 33.1 30.8 31.5 31.5 31.5 31.5 31.4 31.4

Ambient Temperature (C)

Entering Wet Bulb Temperature (C)

Table PD-4a — Gross Cooling Capacities (MBH) - TSC102AD - (IP)

Enter. 85 95 105 115 Dry

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73 Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

3060

3400

3740

4080

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

75 96.7 81.9 109.1 63.4 115.0 42.2 89.1 78.1 104.0 60.7 112.1 40.4 81.2 74.1 96.3 59.2 107.9 38.3 73.7 70.3 87.0 55.2 102.4 35.8 80 98.2 98.2 109.4 78.3 116.1 58.1 92.7 90.8 104.2 76.3 113.0 56.2 85.7 85.2 96.6 72.9 108.5 53.9 79.3 79.3 87.4 68.8 102.7 51.3 85 105.0 105.0 110.2 93.1 117.3 70.8 100.0 100.0 105.0 91.8 113.6 70.4 93.6 93.6 98.0 88.8 108.9 68.7 86.8 86.8 89.2 84.7 103.1 66.7 90 110.4 110.4 111.6 107.4 118.0 84.0 106.5 106.5 106.4 106.4 114.4 83.5 101.4 101.4 101.7 99.6 109.6 83.1 94.8 94.8 94.9 94.6 103.5 81.6 75 99.3 87.0 110.2 65.9 115.6 42.9 91.8 83.2 105.8 63.7 112.9 41.1 83.6 79.1 98.7 60.6 108.8 39.0 75.2 75.2 89.0 58.6 103.4 36.5 80 102.5 100.4 110.9 81.6 116.9 59.2 96.7 95.9 106.0 80.4 113.8 58.8 89.7 89.7 99.0 77.4 109.6 56.1 82.9 82.9 89.7 73.3 103.9 53.5 85 108.4 108.4 111.9 97.4 118.2 72.7 104.1 104.1 107.2 97.0 114.6 72.7 98.2 98.2 100.8 94.9 110.1 71.5 91.0 91.0 91.0 91.0 104.2 70.0 90 113.2 113.2 113.1 113.1 119.5 86.5 109.7 109.7 109.9 107.6 115.6 86.6 105.1 105.1 105.1 104.4 111.0 86.9 99.4 99.4 99.2 99.2 105.1 86.0 75 101.6 91.8 111.3 67.8 116.2 43.6 94.3 88.2 107.1 66.5 113.5 41.8 84.7 84.7 100.4 63.0 109.5 39.6 78.4 76.4 90.9 59.0 104.2 37.1 80 105.4 104.4 112.1 84.5 117.6 60.0 100.3 100.3 107.4 84.0 114.7 59.4 93.4 93.4 100.9 81.6 110.0 57.9 86.1 86.1 91.7 77.7 104.8 55.6 85 111.0 111.0 113.3 101.2 118.9 74.2 107.0 107.0 108.9 101.7 116.0 74.8 101.8 101.8 101.8 101.8 111.2 73.8 94.9 94.9 94.9 94.9 105.3 72.9 90 115.2 115.2 115.2 115.2 120.3 88.6 112.1 112.1 112.1 111.1 116.5 89.3 107.8 107.8 107.7 107.7 112.1 90.2 102.6 102.6 102.6 102.6 106.4 90.0 75 103.5 96.3 112.1 69.5 116.6 43.8 94.9 94.9 107.9 68.7 114.0 42.5 87.5 87.5 101.8 65.6 110.0 40.3 80.7 79.5 92.4 61.7 104.8 37.8 80 107.9 107.9 113.0 87.1 118.1 60.8 103.1 103.1 108.6 87.3 115.3 60.3 96.8 96.8 102.5 85.6 110.7 59.5 89.1 89.1 93.7 82.0 105.4 57.5 85 112.9 112.9 114.4 104.5 119.5 75.5 109.3 109.3 110.4 105.7 116.7 76.5 104.5 104.5 104.5 104.5 111.9 76.7 98.2 98.2 98.6 96.7 106.2 75.5 90 116.7 116.7 116.7 116.7 120.9 90.6 113.9 113.9 113.8 113.8 117.9 92.9 109.9 109.9 109.8 109.8 113.0 93.2 104.9 104.9 104.9 104.9 107.5 93.5

Ambient Temperature (F)

Entering Wet Bulb Temperature (F)

RT-PRC016-EN

17

Performance Data

Table PD-5 — Gross Cooling Capacities (kW) - TSC120AD - (SI)

Enter. 30 35 40 45 Dry

m3/h Temp 16 19 22 16 19 22 16 19 22 16 19 22 Airflow (C) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

6120

6800

7480

8160

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

24 31.9 28.6 35.3 22.8 37.2 15.9 29.6 27.4 33.6 21.7 36.5 15.4 27.1 26.2 31.0 20.5 35.2 14.8 24.6 24.6 28.4 19.9 33.2 14.0 27 33.4 33.4 35.5 28.2 37.7 21.4 31.6 31.6 33.9 27.8 36.7 21.4 29.5 29.5 31.3 26.6 35.3 20.7 27.5 27.5 28.9 25.5 33.3 19.9 30 35.5 35.5 36.0 33.8 38.1 26.5 34.2 34.2 34.5 33.8 37.0 26.7 32.3 32.3 32.2 32.2 35.5 26.6 30.4 30.4 30.4 30.4 33.4 25.9 33 37.1 37.1 37.1 37.1 38.5 31.6 36.2 36.2 36.2 36.2 37.3 31.9 34.8 34.8 34.8 34.8 35.9 32.3 33.2 33.2 33.2 33.2 34.0 31.8 24 32.7 30.4 35.7 23.8 37.5 16.3 30.5 29.3 34.2 22.8 36.8 15.9 27.8 27.8 31.9 21.8 35.5 15.3 25.7 25.7 29.0 21.2 33.7 14.5 27 34.5 34.5 36.0 29.5 38.0 21.9 32.9 32.9 34.5 29.4 37.0 22.0 30.9 30.9 32.3 28.5 35.7 21.7 28.7 28.7 29.7 27.4 33.8 21.0 30 36.3 36.3 36.6 35.4 38.4 27.4 35.3 35.3 35.3 35.3 37.3 27.6 33.7 33.7 33.7 33.7 35.9 27.8 31.8 31.8 31.7 31.7 34.0 27.5 33 37.9 37.9 37.8 37.8 38.9 32.8 37.0 37.0 37.0 37.0 37.8 33.3 35.9 35.9 35.9 35.9 36.5 33.9 34.4 34.4 34.4 34.4 34.7 33.8 24 33.5 32.2 36.0 24.7 37.8 16.9 31.1 31.1 34.7 23.9 37.0 16.3 28.9 28.9 32.4 22.9 35.8 15.7 26.6 26.6 29.6 22.5 34.1 14.9 27 35.3 35.3 36.4 30.6 38.2 22.4 34.0 34.0 35.0 30.8 37.4 22.7 32.0 32.0 33.0 30.2 36.0 22.5 29.9 29.9 30.5 29.1 34.2 22.0 30 37.0 37.0 37.0 37.0 38.7 28.1 36.1 36.1 36.1 36.1 37.9 28.9 34.7 34.7 34.7 34.7 36.4 29.1 32.9 32.9 32.9 32.9 34.5 29.0 33 38.4 38.4 38.3 38.3 39.2 33.7 37.7 37.7 37.7 37.7 38.4 34.9 36.7 36.7 36.7 36.7 37.0 35.4 35.3 35.3 35.3 35.3 35.3 35.3 24 33.9 33.9 36.3 24.9 37.9 17.3 32.0 32.0 35.0 25.6 37.5 16.1 29.8 29.8 32.8 23.9 36.1 16.2 27.5 27.5 29.8 23.6 34.4 15.3 27 35.9 35.9 36.7 31.7 38.5 22.8 34.8 34.8 35.5 32.2 37.7 23.2 32.9 32.9 33.6 31.9 36.3 23.2 30.6 30.6 30.6 30.6 34.5 23.0 30 37.5 37.5 37.5 37.5 38.9 28.8 36.7 36.7 36.7 36.7 38.1 29.8 35.5 35.5 35.5 35.5 36.7 30.2 33.7 33.7 33.7 33.7 34.9 30.5 33 38.8 38.8 38.7 38.7 39.5 34.6 38.4 38.4 38.2 38.2 38.7 36.1 37.3 37.3 37.3 37.3 37.4 36.7 36.0 36.0 36.0 36.0 36.0 36.0

Ambient Temperature (C)

Entering Wet Bulb Temperature (C)

Table PD-5a — Gross Cooling Capacities (MBH) - TSC120AD - (IP)

Enter. 85 95 105 115 Dry

CFM Temp 61 67 73 61 67 73 61 67 73 61 67 73 Airflow (F) TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC TGC SHC

3600

4000

4400

4800

Notes:

1. All capacities shown are gross and have not considered indoor fan heat. To obtain net cooling, subtract indoor fan heat.

2. TGC = Total Gross Capacity

3. SHC = Sensible Heat Capacity

Bulb

75 109.9 96.4 122.1 73.8 128.5 47.6 101.2 92.1 116.7 70.3 125.9 45.7 91.8 87.5 107.7 67.7 121.6 43.4 82.1 82.1 97.2 63.2 115.0 40.9 80 113.5 113.5 122.6 90.4 129.9 65.7 106.6 106.6 117.1 89.2 127.2 65.0 99.0 99.0 108.4 85.4 122.2 62.4 91.0 91.0 98.2 81.0 115.2 59.7 85 120.2 120.2 123.8 108.0 131.3 80.9 115.2 115.2 118.5 107.9 127.8 81.5 108.1 108.1 110.5 104.9 122.6 80.6 100.3 100.3 100.3 100.3 115.4 78.4 90 125.4 125.4 125.4 125.4 132.7 96.3 121.8 121.8 121.8 121.8 128.7 97.3 116.4 116.4 116.4 116.4 123.6 98.2 109.2 109.2 109.2 109.2 116.4 97.0 75 112.7 102.4 123.1 75.6 129.3 48.4 104.2 98.3 118.5 73.6 126.9 46.6 93.7 93.7 109.9 70.9 122.7 44.3 85.6 85.6 99.3 67.2 116.5 41.9 80 117.3 117.3 124.1 94.1 130.8 66.9 111.1 111.1 119.0 94.0 128.2 66.8 103.5 103.5 110.8 90.8 123.5 65.3 95.2 95.2 100.8 86.6 116.8 62.5 85 123.2 123.2 125.6 112.8 132.3 82.9 119.0 119.0 120.8 114.1 129.5 84.5 112.5 112.5 112.5 112.5 124.1 84.2 104.9 104.9 104.8 104.8 117.1 83.0 90 127.9 127.9 127.9 127.9 133.8 99.2 124.9 124.9 124.9 124.9 130.8 102.4 120.2 120.2 120.2 120.2 125.3 103.1 113.9 113.9 113.8 113.8 118.4 102.9 75 115.1 108.2 124.5 77.5 130.0 49.2 107.0 104.4 119.8 77.6 127.6 47.4 97.3 97.3 111.7 73.2 123.6 45.2 88.7 88.7 101.1 71.1 117.6 42.7 80 120.1 120.1 125.3 97.3 131.6 67.9 114.9 114.9 120.6 98.4 129.0 68.2 107.3 107.3 112.9 96.1 124.5 68.1 98.9 98.9 103.1 92.0 118.0 65.1 85 125.5 125.5 127.0 116.9 133.1 84.7 121.9 121.9 122.8 119.6 130.5 87.0 116.4 116.4 116.3 116.3 125.3 88.0 108.7 108.7 108.7 108.7 118.4 87.0 90 130.0 130.0 129.7 129.7 134.7 101.8 127.3 127.3 127.2 127.2 131.9 105.9 123.0 123.0 123.0 123.0 126.7 107.5 117.2 117.2 117.2 117.2 120.2 108.4 75 117.1 113.2 125.5 81.7 130.6 50.0 108.8 108.8 120.8 80.6 128.3 48.2 100.5 100.5 113.2 76.3 124.3 46.1 91.6 91.6 102.7 72.1 118.5 43.6 80 122.3 122.3 126.5 100.7 132.2 68.9 117.8 117.8 122.0 102.4 129.8 69.5 110.5 110.5 114.9 101.3 125.7 69.3 102.2 102.2 105.2 97.3 119.0 67.7 85 127.2 127.2 128.4 121.1 133.8 86.3 124.1 124.1 124.1 124.1 131.2 89.2 119.0 119.0 119.0 119.0 126.5 90.9 112.0 112.0 112.0 112.0 119.7 90.9 90 131.3 131.3 131.5 131.5 135.4 104.2 129.3 129.3 129.0 129.0 132.8 108.9 125.2 125.2 125.2 125.2 127.8 111.4 119.8 119.8 119.8 119.8 121.7 113.3

Ambient Temperature (F)

Entering Wet Bulb Temperature (F)

18

RT-PRC016-EN

Performance Data

Table PD-6 — Belt Drive Evaporator Fan Performance - TSC060AD - Downflow Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

25 50 75 100 125 150 175 200 225 250

1.12 Nom kW Standard Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

2720 - - 703 0.27 757 0.31 806 0.35 854 0.39 899 0.43 944 0.49 985 0.54 1023 0.59 1060 0.64 3060 706 0.32 760 0.35 815 0.40 861 0.45 904 0.49 947 0.54 988 0.58 1028 0.64 1067 0.70 1104 0.76 3400 773 0.43 821 0.46 873 0.51 918 0.57 958 0.62 998 0.67 1036 0.71 1073 0.76 1111 0.82 1147 0.89 3740 840 0.56 885 0.60 930 0.65 977 0.71 1016 0.77 1053 0.82 1089 0.88 1124 0.93 1158 0.98 1191 1.03 4080 909 0.71 950 0.76 990 0.80 1034 0.87 1074 0.93 1110 1.00 1143 1.06 1177 1.12 1209 1.17 1241 1.23

External Static Pressure (Pascals)

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

2720 1093 0.69 1126 0.74 1160 0.79 1190 0.84 1222 0.90 3060 1138 0.82 1171 0.87 1203 0.93 1232 0.98 1262 1.04 3400 1182 0.96 1215 1.02 1246 1.09 1276 1.15 1306 1.21 3740 1226 1.10 1258 1.17 1290 1.25 - - - 4080 1272 1.29 - - - - - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

275 300 325 350 375

1.12 Nom kW Standard Motor & Drive

External Static Pressure (Pascals)

1.12 Nom kW Standard Motor &

←←

←

←←

Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-6a — Belt Drive Evaporator Fan Performance -TSC060AD - Downflow Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1600 - - 703 0.36 757 0.41 806 0.47 854 0.52 899 0.58 944 0.65 985 0.73 1023 0.79 1060 0.86 1800 706 0.42 760 0.47 815 0.54 861 0.60 904 0.66 947 0.72 988 0.78 1028 0.86 1067 0.94 1104 1.02 2000 773 0.57 821 0.62 873 0.69 918 0.76 958 0.83 998 0.90 1036 0.96 1073 1.02 1111 1.10 1147 1.19 2200 840 0.75 885 0.80 930 0.87 977 0.95 1016 1.03 1053 1.10 1089 1.17 1124 1.24 1158 1.31 1191 1.39 2400 909 0.96 950 1.02 990 1.08 1034 1.16 1074 1.25 1110 1.34 1143 1.419 1177 1.50 1209 1.57 1241 1.65

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1600 1093 0.92 1126 0.99 1160 1.06 1190 1.13 1222 1.20 1800 1138 1.10 1171 1.17 1203 1.25 1232 1.32 1262 1.39 2000 1182 1.28 1215 1.37 1246 1.46 1276 1.54 1306 1.62 2200 1226 1.48 1258 1.57 1290 1.67 - - - 2400 1272 1.73 - - - - - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor & Drive

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

1-1/2 HP Standard Motor & Drive

External Static Pressure (Inches of Water)

1-1/2 HP Standard Motor &

←←

←

←←

Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

RT-PRC016-EN

19

Performance Data

Table PD-7 - Belt Drive Evaporator Fan Performance- TSC060AD - Horizontal Configuration - (SI)

3

m

/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

2720 707 0.26 774 0.31 837 0.37 898 0.43 953 0.48 1001 0.54 1045 0.59 1087 0.65 1129 0.71 1168 0.77 3060 778 0.36 840 0.41 897 0.48 953 0.54 1008 0.60 1058 0.67 1102 0.73 1143 0.79 1181 0.85 1219 0.92 3400 850 0.48 908 0.54 961 0.60 1012 0.67 1062 0.74 1111 0.81 1157 0.88 1198 0.95 1237 1.02 1274 1.09 3740 923 0.63 978 0.69 1028 0.76 1075 0.83 1120 0.91 1166 0.99 1211 1.06 1254 1.14 1294 1.22 1330 1.29 4080 997 0.80 1049 0.87 1096 0.94 1140 1.02 1183 1.10 1223 1.18 1266 1.27 - - - - - -

25 50 75 100 125 150 175 200 225 250

1.12 Nom kW Std Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

External Static Pressure (Pascals)

←

←←

1.12 Nom kW Standard Motor & Hi Static Drive

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

1.12 Nom kW Standard Motor & Drive

2720 1206 0.83 1241 0.89 1275 0.96 1306 1.02 1338 1.09 3060 1256 0.99 1291 1.05 1326 1.12 1359 1.19 1390 1.26 3400 1309 1.16 1343 1.24 1376 1.31 - - - 3740 - - - - - - - - - 4080 - - - - - - - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

275 300 325 350 375

External Static Pressure (Pascals)

1.12 Nom kW Standard Motor &

←←

←

←←

Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-7a - Belt Drive Evaporator Fan Performance- TSC060AD - Horizontal Configuration - (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1600 707 0.35 774 0.42 837 0.50 898 0.57 953 0.65 1001 0.72 1045 0.80 1087 0.87 1129 0.95 1168 1.03 1800 778 0.48 840 0.56 897 0.64 953 0.72 1008 0.81 1058 0.89 1102 0.98 1143 1.06 1181 1.15 1219 1.23 2000 850 0.65 908 0.73 961 0.81 1012 0.90 1062 1.00 1111 1.09 1157 1.19 1198 1.28 1237 1.37 1274 1.47 2200 923 0.84 978 0.93 1028 1.02 1075 1.12 1120 1.22 1166 1.32 1211 1.43 1254 1.53 1294 1.63 1330 1.74 2400 997 1.07 1049 1.17 1096 1.27 1140 1.37 1183 1.48 1223 1.59 1266 1.70 - - - - - -

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1600 1206 1.12 1241 1.20 1275 1.28 1306 1.37 1338 1.46 1800 1256 1.32 1291 1.41 1326 1.50 1359 1.60 1390 1.69 2000 1309 1.56 1343 1.66 1376 1.76 - - - 2200 - - - - - - - - - 2400 - - - - - - - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451

0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00

1-1/2 HP Standard Motor &

Low Static Drive 1-1/2 HP Standard Motor & Drive

1.10 1.20 1.30 1.40 1.50

1/2 HP Standard Motor & Drive 1-1/2 HP Standard Motor & Hi Static Drive

External Static Pressure (Inches of Water)

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

←

←←

1-1/2 HP Standard Motor & Hi Static Drive

20

RT-PRC016-EN

Performance Data

Table PD-8 — Belt Drive Evaporator Fan Performance -TSC072AD - Downflow Configuration (SI)

External Static Pressure (Pascals)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

3260 - - - - 573 0.25 630 0.30 680 0.36 726 0.41 769 0.47 811 0.52 851 0.58 889 0.65 3670 - - 548 0.26 602 0.31 656 0.37 706 0.43 751 0.49 792 0.55 832 0.61 871 0.67 908 0.74 4080 - - 584 0.33 635 0.38 682 0.45 732 0.51 777 0.58 818 0.64 856 0.71 893 0.77 930 0.84 4490 569 0.35 621 0.42 670 0.47 715 0.54 758 0.60 802 0.68 845 0.75 883 0.82 919 0.89 953 0.96 4890 612 0.45 660 0.51 706 0.58 749 0.64 789 0.71 830 0.79 870 0.87 909 0.95 945 1.02 979 1.10

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

3260 925 0.71 960 0.77 994 0.83 1026 0.89 1057 0.95 3670 944 0.81 978 0.87 1010 0.94 1043 1.01 1073 1.08 4080 964 0.91 998 0.99 1030 1.06 1063 1.14 1092 1.21 4490 986 1.04 1019 1.11 1051 1.19 1082 1.27 1112 1.35 4890 1011 1.18 1043 1.26 1073 1.34 1103 1.42 1133 1.51

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

25 50 75 100 125 150 175 200 225 250

1.12 Nom kW Standard Motor & Low Static Drive 1.12 Nom kW Standard Motor & Drive

1.12 Nom kW Standard Motor

275 300 325 350 375

External Static Pressure (Pascals)

1.12 Nom kW Std Motor 1.12 Nom kW Standard Motor & Drive & Hi Static Drive

1.50 Nom kW Over-Sized Motor & Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

& Hi Static Drive

←

←←

Table PD-8a — Belt Drive Evaporator Fan Performance -TSC072AD - Downflow Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1920 - - - - 573 0.34 630 0.41 680 0.48 726 0.55 769 0.62 811 0.70 851 0.78 889 0.87 2160 - - 548 0.35 602 0.42 656 0.50 706 0.58 751 0.65 792 0.73 832 0.81 871 0.90 908 0.99 2400 - - 584 0.45 635 0.52 682 0.60 732 0.69 777 0.77 818 0.86 856 0.95 893 1.04 930 1.13 2640 569 0.47 621 0.56 670 0.64 715 0.72 758 0.81 802 0.91 845 1.01 883 1.10 919 1.20 953 1.29 2880 612 0.60 660 0.69 706 0.78 749 0.86 789 0.96 830 1.06 870 1.16 909 1.27 945 1.37 979 1.48

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1920 925 0.95 960 1.03 994 1.11 1026 1.19 1057 1.27 2160 944 1.08 978 1.17 1010 1.26 1043 1.36 1073 1.44 2400 964 1.22 998 1.32 1030 1.42 1063 1.53 1092 1.63 2640 986 1.39 1019 1.49 1051 1.60 1082 1.71 1112 1.81 2880 1011 1.58 1043 1.69 1073 1.79 1103 1.90 1133 2.02

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451 2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

&

1-1/2 HP Standard Motor

External Static Pressure (Inches of Water)

1.10 1.20 1.30 1.40 1.50

1-1/2 HP Standard Mtr

& Drive

Low Static Drive 1-1/2 HP Standard Motor & Drive

2 HP Over-Sized Mtr & Hi Static Drive

External Static Pressure (Inches of Water)

1-1/2 HP Standard Motor

←←

←

←←

Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

1-1/2 HP Standard Motor & Hi Static Drive

&

←

←←

RT-PRC016-EN

21

Performance Data

Table PD-9 — Belt Drive Evaporator Fan Performance -TSC072AD - Horizontal Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

3260 - - 565 0.23 627 0.29 679 0.34 726 0.39 771 0.45 814 0.51 857 0.57 899 0.63 939 0.70 3670 566 0.26 609 0.31 663 0.36 716 0.42 762 0.48 804 0.54 843 0.60 883 0.67 922 0.74 960 0.81 4080 619 0.35 660 0.40 701 0.45 751 0.51 798 0.59 839 0.65 877 0.71 914 0.78 950 0.85 984 0.93 4490 672 0.45 710 0.51 745 0.56 788 0.62 833 0.69 875 0.77 914 0.85 949 0.91 984 0.98 1016 1.06 4890 726 0.58 762 0.64 795 0.70 828 0.76 869 0.82 911 0.91 950 0.99 986 1.07 1019 1.14 1051 1.22

25 50 75 100 125 150 175 200 225 250

&

1.12 Nom kW Standard Motor

Low Static Drive 1.12 Nom kW Standard Motor & Drive

&

Drive 1.12 Nom kW Standard Motor

External Static Pressure (Pascals)

& Hi Static Drive

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

3260 978 0.76 1015 0.83 1051 0.90 1086 0.97 1118 1.04 3670 996 0.87 1034 0.95 1069 1.02 1103 1.09 1136 1.17 4080 1020 1.00 1055 1.08 1089 1.16 1122 1.23 1154 1.31 4490 1049 1.14 1081 1.23 1113 1.31 1144 1.40 1176 1.48 4890 1081 1.30 1112 1.38 1141 1.47 1170 1.57 1199 1.66

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.12 kW - Fan Motor Heat (kW) = 1.144 x Fan kW + 0.132

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

275 300 325 350 375

External Static Pressure (Pascals)

1.12 Nom kW Standard Motor & Hi Static Drive

1.50 Nom kW Over-Sized Motor & Hi Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

Table PD-9a — Belt Drive Evaporator Fan Performance -TSC072AD - Horizontal Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1920 - - 565 0.31 627 0.39 679 0.45 726 0.52 771 0.60 814 0.69 857 0.77 899 0.85 939 0.93 2160 566 0.35 609 0.41 663 0.48 716 0.57 762 0.64 804 0.72 843 0.80 883 0.90 922 0.99 960 1.08 2400 619 0.47 660 0.54 701 0.60 751 0.69 798 0.78 839 0.87 877 0.95 914 1.04 950 1.14 984 1.24 2640 672 0.61 710 0.68 745 0.76 788 0.83 833 0.93 875 1.04 914 1.13 949 1.22 984 1.31 1016 1.42 2880 726 0.77 762 0.86 795 0.94 828 1.02 869 1.11 911 1.21 950 1.33 986 1.44 1019 1.53 1051 1.63

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1920 978 1.02 1015 1.11 1051 1.20 1086 1.30 1118 1.39 2160 996 1.17 1034 1.27 1069 1.36 1103 1.46 1136 1.56 2400 1020 1.35 1055 1.45 1089 1.55 1122 1.66 1154 1.76 2640 1049 1.53 1081 1.65 1113 1.76 1144 1.87 1176 1.98 2880 1081 1.74 1112 1.86 1141 1.97 1170 2.10 1199 2.22

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 1 1/2 HP - Fan Motor Heat (MBH) = 2.915 x Fan BHP + 0.451 2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

1-1/2 HP Standard Motor & Low Static Drive 1-1/2 HP Standard Motor

1-1/2 HP Standard Motor & Drive 1-1/2 HP Std Motor & Hi Static Drive

1.10 1.20 1.30 1.40 1.50

External Static Pressure (Inches of Water)

&

1-1/2 HP Standard Motor

2 HP Over-Sized Motor & High Static Drive

Hi Static Drive

External Static Pressure (Inches of Water)

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

&

Drive

22

RT-PRC016-EN

Performance Data

Table PD-10 — Belt Drive Evaporator Fan Performance -TSC090AD - Downflow Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

4080 - - - - - - 701 0.47 750 0.54 794 0.60 834 0.67 873 0.73 909 0.80 945 0.87 4590 - - - - 699 0.53 743 0.59 787 0.66 830 0.74 871 0.82 908 0.89 943 0.96 977 1.04 5100 - - 703 0.61 747 0.68 789 0.74 827 0.82 867 0.90 906 0.98 944 1.06 980 1.15 1013 1.23 5610 713 0.69 755 0.77 797 0.85 836 0.92 873 1.00 908 1.08 944 1.17 980 1.26 1016 1.35 1050 1.45 6120 771 0.88 809 0.96 848 1.06 885 1.14 921 1.22 954 1.30 986 1.39 1019 1.49 1052 1.58 1085 1.69

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

4080 980 0.95 1013 1.02 1046 1.10 1076 1.17 1106 1.25 4590 1010 1.11 1043 1.19 1074 1.27 1105 1.36 1134 1.44 5100 1045 1.31 1076 1.39 1105 1.47 1134 1.56 1163 1.65 5610 1081 1.54 1111 1.63 1141 1.72 1168 1.80 1197 1.90 6120 1116 1.79 1148 1.89 1177 1.99 1204 2.08 1232 2.18

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

25 50 75 100 125 150 175 200 225 250

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor

275 300 325 350 375

1.50 Nom kW Std Motor 1.50 Nom kW Standard Motor & Drive & Hi Static Drive

External Static Pressure (Pascals)

2.24 Nom kW Over-Sized Motor & Hi Static Drive

External Static Pressure (Pascals)

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

&

Drive

1.50 Nom kW Standard Motor & Hi Static Drive

←

←←

Table PD-10a — Belt Drive Evaporator Fan Performance -TSC090AD - Downflow Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 - - - - - - 701 0.63 750 0.72 794 0.81 834 0.90 873 0.98 909 1.08 945 1.17 2700 - - - - 699 0.70 743 0.79 787 0.89 830 0.99 871 1.09 908 1.19 943 1.29 977 1.39 3000 - - 703 0.81 747 0.91 789 0.99 827 1.10 867 1.20 906 1.31 944 1.43 980 1.54 1013 1.65 3300 713 0.93 755 1.03 797 1.15 836 1.24 873 1.34 908 1.45 944 1.57 980 1.69 1016 1.82 1050 1.94 3600 771 1.19 809 1.29 848 1.42 885 1.53 921 1.63 954 1.74 986 1.87 1019 1.99 1052 2.13 1085 2.26

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 980 1.27 1013 1.37 1046 1.47 1076 1.57 1106 1.68 2700 1010 1.49 1043 1.60 1074 1.71 1105 1.82 1134 1.93 3000 1045 1.76 1076 1.87 1105 1.98 1134 2.09 1163 2.21 3300 1081 2.06 1111 2.18 1141 2.30 1168 2.42 1197 2.55 3600 1116 2.39 1148 2.53 1177 2.66 1204 2.79 1232 2.93

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500 3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

&

2 HP Standard Motor

1.10 1.20 1.30 1.40 1.50

2 HP Standard Mtr 2 HP Standard Motor &

& Drive Hi Static Drive

Low Static Drive 2 HP Standard Motor & Drive

External Static Pressure (Inches of Water)

3 HP Over-Sized Mtr & Hi Static Drive

External Static Pressure (Inches of Water)

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

2 HP Standard Motor & Hi Static Drive

←

←←

RT-PRC016-EN

23

Performance Data

Table PD-11 — Belt Drive Evaporator Fan Performance -TSC090AD - Horizontal Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

1.50 Nom kW Std Motor & Low Static Drive 1.50 Nom kW Standard Motor

4080 - - 673 0.42 718 0.47 769 0.54 814 0.61 855 0.67 893 0.73 929 0.81 965 0.88 999 0.96 4590 702 0.51 738 0.56 773 0.62 817 0.68 862 0.76 904 0.85 941 0.92 975 0.98 1009 1.06 1041 1.14 5100 771 0.68 805 0.74 837 0.81 870 0.87 912 0.94 951 1.03 989 1.12 1025 1.21 1056 1.28 1088 1.36 5610 842 0.89 873 0.96 903 1.03 930 1.10 963 1.17 1000 1.25 1037 1.34 1073 1.45 1106 1.55 1136 1.63 6120 913 1.14 942 1.22 970 1.30 996 1.37 1021 1.45 1052 1.52 1086 1.61 1121 1.71 1153 1.82 1184 1.93

CFM RPM kW RPM kW RPM kW RPM kW RPM kW

4080 1035 1.04 1070 1.12 1104 1.19 1137 1.27 1168 1.35 4590 1073 1.22 1104 1.31 1136 1.40 1167 1.48 1198 1.57 5100 1117 1.44 1146 1.53 1176 1.62 1205 1.72 1233 1.82 5610 1165 1.72 1194 1.80 1220 1.88 1248 1.98 1275 2.08 6120 1215 2.04 1242 2.13 1269 2.22 1295 2.31 1319 2.40

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

25 50 75 100 125 150 175 200 225 250

&

1.50 Nom kW Standard Motor

External Static Pressure (Pascals)

275 300 325 350 375

1.50 Nom kW Standard Motor & Hi Static Drive

2.24 Nom kW Over-Sized Motor & Hi Static Drive

Drive 1.50 Nom kW Standard Motor & 2.24 Nom kW OS

External Static Pressure (Pascals)

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

&

Drive

Hi Static Drive Motor & Hi Static Drive

Table PD-11a — Belt Drive Evaporator Fan Performance -TSC090AD - Horizontal Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 - - 673 0.56 718 0.63 769 0.72 814 0.82 855 0.90 893 0.98 929 1.08 965 1.18 999 1.29 2700 702 0.68 738 0.76 773 0.83 817 0.92 862 1.02 904 1.13 941 1.23 975 1.32 1009 1.42 1041 1.52 3000 771 0.91 805 1.00 837 1.08 870 1.17 912 1.26 951 1.38 989 1.51 1025 1.62 1056 1.72 1088 1.82 3300 842 1.19 873 1.29 903 1.38 930 1.47 963 1.57 1000 1.68 1037 1.80 1073 1.94 1106 2.08 1136 2.19 3600 913 1.53 942 1.63 970 1.74 996 1.84 1021 1.94 1052 2.04 1086 2.16 1121 2.29 1153 2.44 1184 2.59

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 1035 1.39 1070 1.50 1104 1.60 1137 1.70 1168 1.81 2700 1073 1.64 1104 1.76 1136 1.87 1167 1.99 1198 2.11 3000 1117 1.93 1146 2.05 1176 2.17 1205 2.31 1233 2.44 3300 1165 2.30 1194 2.41 1220 2.52 1248 2.66 1275 2.79 3600 1215 2.73 1242 2.86 1269 2.98 1295 3.10 1319 3.22

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500 3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

2 HP Std Motor & Low Static Drive 2 HP Standard Motor

2 HP Standard Motor & Drive 2 HP Std Motor & Hi Static Drive

1.10 1.20 1.30 1.40 1.50

External Static Pressure (Inches of Water)

&

2 HP Standard Motor

3 HP Over-Sized Motor & High Static Drive

Hi Static Drive

External Static Pressure (Inches of Water)

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

&

Drive

3 HP Over-Sized Motor & Hi Static Drive

←

←←

24

RT-PRC016-EN

Performance Data

Table PD-12 — Belt Drive Evaporator Fan Performance -TSC102AD - Downflow Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

4620 - - - - - - 613 0.45 655 0.54 695 0.62 733 0.71 769 0.81 802 0.90 833 1.00 5200 - - - - 611 0.48 650 0.55 688 0.64 725 0.73 761 0.83 796 0.93 828 1.03 861 1.13 5780 - - 612 0.51 651 0.59 689 0.68 724 0.76 759 0.86 792 0.96 825 1.07 856 1.18 887 1.28 6350 622 0.56 659 0.64 693 0.72 729 0.82 764 0.92 795 1.01 826 1.11 857 1.22 887 1.34 916 1.46 6930 671 0.71 706 0.80 738 0.89 770 0.98 804 1.09 834 1.19 864 1.30 892 1.40 920 1.52 948 1.64

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

4620 863 1.11 892 1.21 920 1.33 946 1.44 973 1.55 999 1.67 1025 1.79 1050 1.90 1073 2.02 1098 2.14 5200 891 1.24 919 1.35 946 1.46 973 1.58 999 1.71 1024 1.83 1048 1.96 1072 2.09 1096 2.22 1119 2.34 5780 917 1.40 946 1.51 974 1.63 1001 1.75 1026 1.88 1051 2.01 1074 2.14 1099 2.27 1121 2.41 1143 2.55 6350 945 1.58 974 1.70 1001 1.82 1028 1.95 1054 2.08 1079 2.20 1103 2.34 1126 2.48 1148 2.62 1170 2.76 6930 976 1.78 1002 1.91 1029 2.04 1055 2.17 1081 2.30 1105 2.43 1130 2.58 1154 2.72 1176 2.85 1199 3.01

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

25 50 75 100 125 150 175 200 225 250

1.50 Nom kW Standard Motor & Low Static Drive 1.50 Nom kW Standard Motor

275 300 325 350 375 400 425 450 475 500

1.50 Nom kW Std Mtr & Drive 1.50 Nom kW Std Mtr & Hi Static Dr

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Pascals)

2.24 Nom kW Over-Sized Motor & High Static Drive

&

Drive

1.50 Nom kW Standard Motor & Hi Static Drive

←

←←

Table PD-12a — Belt Drive Evaporator Fan Performance -TSC102AD - Downflow Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2720 - - - - - - 613 0.60 655 0.72 695 0.84 733 0.95 769 1.08 802 1.21 833 1.34 3060 - - - - 611 0.64 650 0.74 688 0.85 725 0.98 761 1.11 796 1.25 828 1.38 861 1.52 3400 - - 612 0.68 651 0.79 689 0.91 724 1.02 759 1.15 792 1.29 825 1.43 856 1.58 887 1.72 3740 622 0.76 659 0.86 693 0.97 729 1.10 764 1.23 795 1.35 826 1.49 857 1.64 887 1.79 916 1.96 4080 671 0.96 706 1.08 738 1.19 770 1.32 804 1.46 834 1.60 864 1.74 892 1.88 920 2.04 948 2.20

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2720 863 1.48 892 1.63 920 1.78 946 1.93 973 2.08 999 2.24 1025 2.39 1050 2.55 1073 2.71 1098 2.88 3060 891 1.66 919 1.81 946 1.96 973 2.12 999 2.29 1024 2.46 1048 2.63 1072 2.80 1096 2.98 1119 3.14 3400 917 1.87 946 2.03 974 2.18 1001 2.34 1026 2.52 1051 2.69 1074 2.86 1099 3.05 1121 3.23 1143 3.41 3740 945 2.11 974 2.28 1001 2.44 1028 2.61 1054 2.78 1079 2.96 1103 3.14 1126 3.32 1148 3.51 1170 3.71 4080 976 2.38 1002 2.56 1029 2.73 1055 2.91 1081 3.09 1105 3.26 1130 3.45 1154 3.65 1176 3.83 1199 4.03

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500 3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

&

2 HP Standard Motor

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

2 HP Standard Mtr & Drive 2 HP Std Motor & Hi Static Drive

Low Static Drive 2 HP Standard Motor & Drive

External Static Pressure (Inches of Water)

←

←←

2 HP Standard Motor & Hi Static Drive

External Static Pressure (Inches of Water)

3 HP Over-Sized Motor & Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

RT-PRC016-EN

25

Performance Data

Table PD-13 — Belt Drive Evaporator Fan Performance -TSC102AD - Horizontal Configuration (SI)

External Static Pressure (Pascals)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

4620 - - - - 646 0.50 689 0.58 734 0.67 781 0.77 826 0.88 865 0.98 898 1.07 928 1.16 5200 616 0.51 654 0.57 693 0.64 735 0.73 773 0.82 812 0.92 855 1.03 897 1.15 934 1.27 969 1.38 5780 675 0.68 711 0.75 743 0.82 781 0.91 819 1.01 853 1.11 886 1.21 925 1.34 964 1.47 1000 1.60 6350 735 0.89 770 0.97 799 1.04 830 1.12 865 1.23 899 1.34 930 1.45 960 1.56 994 1.68 1028 1.82 6930 796 1.14 828 1.23 857 1.31 883 1.39 913 1.48 945 1.60 977 1.72 1006 1.84 1034 1.96 1061 2.08

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

4620 956 1.25 982 1.33 1008 1.42 1033 1.51 1056 1.60 1079 1.69 1102 1.78 1125 1.87 1146 1.95 1168 2.04 5200 999 1.49 1026 1.58 1052 1.68 1078 1.78 1101 1.88 1124 1.98 1146 2.08 1168 2.18 1188 2.27 1209 2.37 5780 1034 1.73 1067 1.86 1094 1.97 1120 2.08 1145 2.20 1168 2.31 1191 2.42 1213 2.53 1234 2.63 1254 2.74 6350 1063 1.96 1098 2.11 1129 2.26 1158 2.40 1185 2.53 1210 2.66 1234 2.78 1256 2.90 1278 3.03 1299 3.15 6930 1093 2.23 1125 2.38 1157 2.53 1188 2.70 1218 2.86 1245 3.01 1273 3.16 1297 3.31 - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

1.50 kW - Fan Motor Heat (kW) = 1.178 x Fan kW + 0.464

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

25 50 75 100 125 150 175 200 225 250

&

1.50 Nom kW Std Mtr & Low Static Drive 1.50 Nom kW Standard Motor

←←

←

←←

1.50 Nom kW Std Mtr 2.24 Nom kW Over-Sized & High Static Drive Motor & High Static Drive

275 300 325 350 375 400 425 450 475 500

1.50 Nom kW Standard Motor & High Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Pascals)

2.24 Nom kW Over-Sized Motor & High Static Drive

Drive

Table PD-13a — Belt Drive Evaporator Fan Performance -TSC102AD - Horizontal Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2720 - - - - 646 0.67 689 0.78 734 0.90 781 1.04 826 1.18 865 1.31 898 1.44 928 1.56 3060 616 0.69 654 0.77 693 0.86 735 0.98 773 1.10 812 1.23 855 1.39 897 1.55 934 1.70 969 1.85 3400 675 0.92 711 1.01 743 1.10 781 1.22 819 1.36 853 1.49 886 1.62 925 1.79 964 1.97 1000 2.14 3740 735 1.20 770 1.30 799 1.40 830 1.51 865 1.65 899 1.79 930 1.94 960 2.09 994 2.26 1028 2.44 4080 796 1.53 828 1.65 857 1.76 883 1.86 913 1.99 945 2.15 977 2.30 1006 2.47 1034 2.63 1061 2.79

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2720 956 1.67 982 1.79 1008 1.91 1033 2.03 1056 2.14 1079 2.26 1102 2.38 1125 2.5 1146 2.62 1168 2.74 3060 999 1.99 1026 2.12 1052 2.26 1078 2.39 1101 2.52 1124 2.66 1146 2.79 1168 2.92 1188 3.05 1209 3.18 3400 1034 2.32 1067 2.49 1094 2.64 1120 2.79 1145 2.94 1168 3.09 1191 3.24 1213 3.39 1234 3.53 1254 3.68 3740 1063 2.63 1098 2.84 1129 3.03 1158 3.21 1185 3.39 1210 3.56 1234 3.73 1256 3.89 1278 4.06 1299 4.23 4080 1093 2.99 1125 3.19 1157 3.40 1188 3.62 1218 3.83 1245 4.03 1273 4.24 1297 4.44 - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 2 HP - Fan Motor Heat (MBH) = 3.000 x Fan BHP + 0.500 3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

2 HP Std Mtr & Low Static Drive 2 HP Standard Motor

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

&

2 HP Standard Motor

High Static Drive 3 HP Over-Sized Motor & Drive

External Static Pressure (Inches of Water)

&

Drive

←

←←

←

←←

2 HP Std Motor & Hi Static Drive

External Static Pressure (Inches of Water)

3 HP Over-Sized Motor & Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

3 HP Over-Sized Mtr & Drive

26

RT-PRC016-EN

Performance Data

Table PD-14 — Belt Drive Evaporator Fan Performance -TSC120AD - Downflow Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

5440 - - - - - - - - 718 0.72 754 0.82 789 0.93 822 1.03 856 1.14 887 1.25 6120 - - - - - - 731 0.81 764 0.90 797 0.99 829 1.10 860 1.22 892 1.34 922 1.46 6800 - - 715 0.81 747 0.90 782 1.01 814 1.11 844 1.21 874 1.32 903 1.44 932 1.56 960 1.69 7480 741 0.95 773 1.04 803 1.14 834 1.24 864 1.36 894 1.48 922 1.59 948 1.70 975 1.82 1001 1.95 8160 803 1.21 833 1.31 861 1.42 887 1.52 916 1.64 945 1.77 972 1.90 997 2.02 1022 2.14 1046 2.27

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

5440 917 1.36 945 1.47 973 1.60 999 1.72 1024 1.84 1048 1.97 1072 2.10 1095 2.23 1117 2.37 1140 3.36 6120 951 1.57 979 1.69 1007 1.82 1033 1.94 1059 2.07 1082 2.20 1107 2.34 1130 2.49 1152 2.63 1173 3.71 6800 988 1.82 1015 1.95 1042 2.08 1068 2.21 1093 2.35 1117 2.48 1142 2.63 1164 2.76 1187 2.91 1209 4.11 7480 1028 2.09 1053 2.23 1078 2.38 1103 2.52 1128 2.66 1152 2.81 1176 2.95 1198 3.10 1221 3.25 - 8160 1071 2.41 1095 2.55 1119 2.70 1142 2.86 1166 3.02 1189 3.17 1212 3.33 - - - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

25 50 75 100 125 150 175 200 225 250

2.24 Nom kW Standard Motor & Low Static Drive 2.24 Nom kW Standard Motor

275 300 325 350 375 400 425 450 475 500

2.24 Nom kW Standard Motor & Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Pascals)

2.24 Nom kW Standard Motor & High Static Drive

&

Drive

Table PD-14a — Belt Drive Evaporator Fan Performance -TSC120AD - Downflow Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 - - - - - - - - 718 0.97 754 1.10 789 1.25 822 1.38 856 1.53 887 1.67 3600 - - - - - - 731 1.08 764 1.20 797 1.33 829 1.48 860 1.63 892 1.79 922 1.95 4000 - - 715 1.09 747 1.21 782 1.35 814 1.49 844 1.63 874 1.77 903 1.93 932 2.09 960 2.27 4400 741 1.27 773 1.40 803 1.53 834 1.67 864 1.82 894 1.98 922 2.13 948 2.28 975 2.44 1001 2.62 4800 803 1.62 833 1.76 861 1.90 887 2.04 916 2.20 945 2.38 972 2.55 997 2.71 1022 2.87 1046 3.04

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

&

3 HP Standard Motor

Low Static Drive 3 HP Standard Motor & Drive

External Static Pressure (Inches of Water)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 917 1.82 945 1.97 973 2.14 999 2.30 1024 2.47 1048 2.65 1072 2.82 1095 3.00 1117 3.17 1140 3.36 3600 951 2.11 979 2.27 1007 2.43 1033 2.60 1059 2.78 1082 2.95 1107 3.14 1130 3.33 1152 3.52 1173 3.71 4000 988 2.44 1015 2.62 1042 2.79 1068 2.97 1093 3.15 1117 3.33 1142 3.52 1164 3.70 1187 3.91 1209 4.11 4400 1028 2.81 1053 3.00 1078 3.19 1103 3.38 1128 3.57 1152 3.77 1176 3.96 1198 4.15 1221 4.36 - 4800 1071 3.23 1095 3.42 1119 3.62 1142 3.83 1166 4.04 1189 4.25 1212 4.46 - - - - - -

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

RT-PRC016-EN

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

3 HP Standard Motor & Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Inches of Water)

3 HP Standard Motor & High Static Drive

27

Performance Data

Table PD-15 — Belt Drive Evaporator Fan Performance -TSC120AD - Horizontal Configuration (SI)

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

5440 - - 691 0.67 730 0.75 771 0.84 807 0.94 844 1.04 886 1.16 926 1.28 965 1.41 1000 1.53 6120 729 0.84 761 0.91 792 0.99 829 1.08 865 1.19 898 1.30 930 1.41 965 1.53 1002 1.67 1038 1.81 6800 802 1.13 833 1.22 860 1.29 890 1.38 923 1.50 956 1.62 986 1.73 1015 1.85 1044 1.98 1077 2.12 7480 876 1.49 905 1.58 931 1.67 955 1.75 983 1.86 1014 1.99 1045 2.12 1072 2.25 1098 2.37 1125 2.51 8160 950 1.91 977 2.02 1002 2.11 1025 2.20 1048 2.30 1074 2.42 1102 2.56 1131 2.71 1156 2.84 1181 2.98

m3/h RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW RPM kW

5440 1029 1.64 1057 1.75 1084 1.86 1108 1.96 1132 2.06 1155 2.17 1177 2.27 1198 2.37 1219 2.48 1239 3.46 6120 1072 1.95 1106 2.10 1134 2.22 1160 2.35 1185 2.47 1209 2.59 1231 2.70 1252 2.82 1274 2.94 1295 4.10 6800 1111 2.28 1143 2.43 1174 2.58 1204 2.74 1232 2.90 1260 3.05 1283 3.18 1306 3.32 - - - 7480 1152 2.65 1182 2.81 1211 2.97 1241 3.14 1270 3.31 - - -------8160 1205 3.12 1229 3.27 - - - - - - - - --------

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters.

2.24 kW - Fan Motor Heat (kW) = 1.138 x Fan kW + 0.139

25 50 75 100 125 150 175 200 225 250

2.24 Nom kW Standard Motor & Low Static Drive 2.24 Nom kW Standard Motor

275 300 325 350 375 400 425 450 475 500

2.24 Nom kW Std Mtr & Drive

2.24 Nom kW Standard Motor & High Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

External Static Pressure (Pascals)

2.24 Nom kW Standard Motor & High Static Drive

External Static Pressure (Pascals)

&

Drive

Table PD-15a — Belt Drive Evaporator Fan Performance -TSC120AD - Horizontal Configuration (IP)

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 - - 691 0.89 730 1.00 771 1.13 807 1.26 844 1.39 886 1.55 926 1.72 965 1.89 1000 2.06 3600 729 1.13 761 1.22 792 1.32 829 1.45 865 1.60 898 1.74 930 1.89 965 2.06 1002 2.24 1038 2.43 4000 802 1.52 833 1.63 860 1.73 890 1.86 923 2.01 956 2.17 986 2.32 1015 2.48 1044 2.65 1077 2.85 4400 876 1.99 905 2.12 931 2.24 955 2.35 983 2.49 1014 2.66 1045 2.84 1072 3.01 1098 3.18 1125 3.36 4800 950 2.56 977 2.70 1002 2.84 1025 2.96 1048 3.08 1074 3.24 1102 3.43 1131 3.63 1156 3.81 1181 4.00

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00

3 HP Standard Motor & Low Static Drive 3 HP Standard Motor

External Static Pressure (Inches of Water)

&

Drive

3 HP Standard Motor & High Static Drive

CFM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3200 1029 2.20 1057 2.35 1084 2.49 1108 2.63 1132 2.77 1155 2.91 1177 3.05 1198 3.18 1219 3.32 1239 3.46 3600 1072 2.62 1106 2.81 1134 2.98 1160 3.15 1185 3.31 1209 3.47 1231 3.63 1252 3.78 1274 3.94 1295 4.10 4000 1111 3.05 1143 3.26 1174 3.47 1204 3.68 1232 3.88 1260 4.09 1283 4.27 1306 4.46 - - - 4400 1152 3.55 1182 3.76 1211 3.99 1241 4.21 1270 4.44 - - -------4800 1205 4.19 1229 4.39 - - - - - - - - --------

Notes: Data Includes Pressure Drop Due To Wet Coils And Filters. 3 HP - Fan Motor Heat (MBH) = 2.900 x Fan BHP + 0.475

1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00

3 HP Std Mtr & Drive

28

External Static Pressure (Inches of Water)

3 HP Standard Motor & High Static Drive

Factory Supplied Motors, In Commercial Equipment, Are Definite Purpose Motors, Specifically Designed And Tested To Operate Reliably And Continuously At All Cataloged Conditions. Using The Full Horsepower Range Of Our Fan Motors As Shown In Our Tabular Data Will Not Result In Nuisance Tripping Or Premature Motor Failure. Our Product’s Warranty Will Not Be Affected.

RT-PRC016-EN

Performance Data

Table PD-16 — Standard Motor & Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns Model No. Open Open Open Open Open Open Closed TSC060AD N/A 898 967 1036 1105 1174 1243 TSC072AD N/A 698 751 806 859 913 967 TSC090AD N/A 752 806 860 914 968 1020 TSC102AD N/A 688 737 786 835 885 934 TSC120AD N/A 782 838 894 950 1006 1062 Factory set at 3 turns open

Table PD-17 — Standard Motor & Low Static Drive Accessory Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns Model No. Open Open Open Open Open Open Closed TSC060AD N/A 691 760 829 898 967 1036 TSC072AD N/A 537 590 644 698 752 806 TSC090AD N/A 671 714 757 800 843 886 TSC102AD N/A 629 664 701 737 773 811 TSC120AD N/A 717 754 799 844 885 922 Factory set at 3 turns open

Table PD-18 — Standard Motor & High Static Drive Accessory Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns Model No. Open Open Open Open Open Open Closed TSC060AD N/A 1243 1311 1379 1450 1515 1588 TSC072AD N/A 967 1021 1075 1128 1183 1235 TSC090AD 1020 1073 1127 1181 1235 1289 N/A TSC102AD 936 981 1032 1083 1134 1182 N/A TSC120AD 1062 1118 1174 1229 1285 1341 N/A Factory set at 3 turns open

Table PD-19 — Oversized Motor & Drive Sheave/Fan Speed (RPM)

Unit 6 Turns 5 Turns 4 Turns 3 Turns 2 Turns 1 Turns Model No. Open Open Open Open Open Open Closed TSC072AD N/A 967 1021 1075 1128 1183 1235 TSC090AD 1112 1182 1252 1322 1392 1460 N/A TSC102AD N/A 971 1041 1111 1181 1251 1321 TSC120AD N/A N/A N/A N/A N/A N/A N/A Factory set at 3 turns open

Table PD-20 — Sound Power Level - dB (ref. 10

Unit Octave Center Frequency Overall Model No. 63 125 250 500 1000 2000 4000 8000 dBA TSC060AD 84 91 79 77 74 71 68 63 80 TSC072AD 83 90 86 82 79 75 70 63 85 TSC090AD 83 90 86 83 80 75 71 64 85 TSC102AD 83 89 84 81 77 72 69 62 83 TSC120AD 83 86 80 77 73 69 66 60 79 Note: Tests follow ARI 270-95

-12

Watts)

RT-PRC016-EN

29

Performance Data

Table PD-21 — Static Pressure Drops Through Accessories - (Pascals)

Economizer Electric Heater

Unit Airflow Standard Pleated Filters 100% OA 100% RA 100% OA 100% RA Model No. (m TSC060AD 2720 25 37 30 11 30 4 11 13 -

TSC072AD 3260 10 17 25 2 15 5 - 5 -

TSC090AD 4080 15 22 27 5 20 5 - 8 -

TSC102AD 4620 12 20 31 7 22 10 - 6 -

TSC120AD 5440 17 25 42 12 35 12 - 9 10

Notes:

1. Tested with standard filters. The TSC060AD has 25 mm (1 inch) standard fiters. The TSC072AD - 120AD has 50 mm (2 inch) standard filters. The difference in pressure drop should be considered when utilizing optional 50 mm (2 inch) pleated filters.

2. OA = Outside Air and RA = Return Air

3. Nominal kW ratings at 415 V

3

/h) Filters

3400 37 55 46 17 46 6 17 21 4080 55 72 64 26 64 9 25 30 -

4080 15 22 27 5 20 5 - 8 4890 22 30 33 10 25 10 - 13 -

5100 25 32 35 12 30 12 - 16 6120 35 45 52 17 62 20 - 25 -

5780 20 27 47 15 45 15 - 10 6930 30 40 75 17 77 22 - 15 -

6800 27 37 65 17 75 20 - 14 17 8160 40 50 85 22 87 25 - 20 26

1

(50 mm) Downflow Horizontal 9 13-27 40

OA/RA Dampers

2

Accessory (kW)

3

Table PD-21a — Static Pressure Drops Through Accessories - (Inches of Water Column)

Economizer Electric Heater

Unit Airflow Standard Pleated Filters 100% OA 100% RA 100% OA 100% RA Model No. (CFM) Filters TSC060AD 1600 0.10 0.15 0.12 0.04 0.12 0.01 0.045 0.053 -

TSC072AD 1920 0.04 0.07 0.10 0.01 0.06 0.02 - 0.021 -

TSC090AD 2400 0.06 0.09 0.11 0.02 0.08 0.02 - 0.034 -

TSC102AD 2720 0.05 0.08 0.12 0.03 0.09 0.04 - 0.026 -

TSC120AD 3200 0.07 0.10 0.17 0.05 0.14 0.05 - 0.036 0.042

Notes:

1. Tested with standard filters. The TSC060AD has 25 mm (1 inch) standard fiters. The TSC072AD - 120AD has 50 mm (2 inch) standard filters. The difference in pressure drop should be considered when utilizing optional 50 mm (2 inch) pleated filters.

2. OA = Outside Air and RA = Return Air

3. Nominal kW ratings at 415 V

2000 0.15 0.22 0.18 0.07 0.18 0.02 0.070 0.083 2400 0.22 0.29 0.26 0.10 0.26 0.04 0.100 0.120 -

2400 0.06 0.09 0.11 0.02 0.08 0.02 - 0.034 2880 0.09 0.12 0.13 0.04 0.10 0.04 - 0.052 -

3000 0.10 0.13 0.14 0.05 0.12 0.05 - 0.063 3600 0.14 0.18 0.21 0.07 0.25 0.08 - 0.102 -

3400 0.08 0.11 0.19 0.06 0.18 0.06 - 0.041 4080 0.12 0.16 0.30 0.07 0.31 0.09 - 0.059 -

4000 0.11 0.15 0.26 0.07 0.30 0.08 - 0.056 0.070 4800 0.16 0.20 0.34 0.09 0.35 0.10 - 0.081 0.106

1

(2 inch) Downflow Horizontal 9 13-27 40

OA/RA Dampers

2

Accessory (kW)

3

Table PD-22 - Electric Heater Voltage Correction Factors (Apply to Auxiliary Electric Heat Capacity)

Nominal Distribution Capacity

Voltage Voltage Multipiler

380 0.84

415 400 0.93

415 1.00

30

RT-PRC016-EN

Performance Data

Table PD-23 — Auxiliary Electric Heat Capacity (SI)

Unit Unit

Model No. Voltage KW No. Stages KW KW

TSC060AD 380-415/50/3 10.9 / 13.0 2 5.45 / 6.5 5.45 / 6.5

TSC072AD 380-415/50/3 16.9 / 20.2 2 11.3 / 13.5 5.6 / 6.7

TSC090AD 380-415/50/3 16.9 / 20.2 2 11.3 / 13.5 5.6 / 6.7

TSC102AD 380-415/50/3 16.9 / 20.2 2 11.3 / 13.6 5.6 / 6.7

TSC120AD 380-415/50/3 22.6 / 26.9 2 11.3 / 13.9 11.3 / 13.5

Notes:

1. Does not include indoor fan power or heat

2. Heaters are rated at 380V / 415V. For other than rated voltage, CAP=(Voltage/Rated Voltage)2 x Rated Cap.

Table PD-23A — Auxiliary Electric Heat Capacity (IP)

Unit Unit

Model No. Voltage MBH No. Stages MBH MBH

TSC060AD 380-415/50/3 38 / 45 2 19 / 23 19 / 23

TSC072AD 380-415/50/3 58 / 69 2 39 / 47 20 / 23

TSC090AD 380-415/50/3 58 / 69 2 39 / 47 20 / 23

TSC102AD 380-415/50/3 58 / 69 2 39 / 47 20 / 23

TSC120AD 380-415/50/3 78 / 92 2 39 / 47 39 / 47

Notes:

1. Does not include indoor fan power or heat

2. Heaters are rated at 380 / 415V. For other than rated voltage, CAP=(Voltage/Rated Voltage)2 x Rated Cap.

2

Total

7.5 / 9.0 2 3.75 / 4.5 3.75 / 4.5

14.4 / 17.2 2 8.95 / 10.7 5.45 / 6.5

11.3 / 13.5 1 11.3 / 13.5 —-

22.6 / 26.9 2 11.3 / 13.5 11.3 / 13.5

11.3 / 13.5 1 11.3 / 13.5 —-

22.6 / 26.9 2 11.3 / 13.5 11.3 / 13.5

22.6 / 26.9 2 11.3 / 13.7 11.3 / 13.5

16.9 / 20.2 2 11.3 / 13.8 5.6 / 6.7

33.9 / 40.4 2 11.3 / 13.10 22.5 / 26.9

2

Total

26 / 31 2 13 / 16 13 / 16

50 / 59 2 31 / 37 19 / 23 39 / 47 1 39 / 47 —-

78 / 92 2 39 / 47 39 / 47 39 / 47 1 39 / 47 —-

78 / 92 2 39 / 47 39 / 47

78 / 92 2 39 / 47 39 / 47 58 / 69 2 39 / 47 20 / 23

116 / 138 2 39 / 47 77 / 92

Stage 1 Stage 2

RT-PRC016-EN

31

Performance Data

Table PD-24 — Air Temperature Rise Across Electric Heaters (Degrees C)

kW 3400 m3/h 4100 m3/h 5100 m3/h 5800 m3/h 6800 m3/h

380V / 415V Voltage Stages TSC060AD TSC072AD TSC090AD TSC102AD TSC120AD

07.5 / 09.0 380-415/50/3 2 6.6 / 7.9 —- —- —- —-

10.9 / 13.0 380-415/50/3 2 9.6 / 11.4 —- —- —- —-

11.3 / 13.5 380-415/50/3 1 —- 8.3 / 9.9 6.6 / 7.9 —- —-

14.4 / 17.2 380-415/50/3 2 12.6 / 15.1 —- —- —- —-

16.9 / 20.2 380-415/50/3 2 —- 12.4 / 14.8 9.9 / 11.8 8.7 / 10.4 7.4 / 8.9

22.6 / 26.9 380-415/50/3 2 —- 16.5 / 19.7 13.2 / 15.7 11.7 / 13.9 9.9 / 11.8

33.8 / 40.4 380-415/50/3 2 —- —- —- —- 14.8 / 17.7

Note: For minimum design airflow, see performance table for each unit. To calculate temp rise at differrent airflow, use following formula: Temp. Rise (C0) across Elect Htr = (kW x 2985)/( m3/h)

Table PD-24A — Air Temperature Rise Across Electric Heaters (Degrees F)

kW 2000 CFM 2400 CFM 3000 CFM 3400 CFM 4000 CFM

380V / 415V Voltage Stages TSC060AD TSC072AD TSC090AD TSC102AD TSC120AD

07.5 / 09.0 380-415/50/3 2 11.9 / 14.2 —- —- —- —-

10.9 / 13.0 380-415/50/3 2 17.2 / 20.5 —- —- —- —-

11.3 / 13.5 380-415/50/3 1 —- 14.9 / 17.8 11.9 / 14.2 —- —-

14.4 / 17.2 380-415/50/3 2 22.8 / 27.2 —- —- —- —-

16.9 / 20.2 380-415/50/3 2 —- 22.3 / 26.6 17.8 / 21.3 15.7 / 18.8 13.4 / 16.0

22.6 / 26.9 380-415/50/3 2 —- 29.8 / 35.4 23.8 / 28.3 21.0 / 25.0 17.9 / 21.3

33.8 / 40.4 380-415/50/3 2 —- —- —- —- 26.7 / 31.9

Note: For minimum design airflow, see performance table for each unit. To calculate temp rise at differrent airflow, use following formula: Temp. Rise (F0) across Elect Htr = (kW x 3414)/(1.08 x CFM)

32

RT-PRC016-EN

Zone Controls

Zone Sensors

Zone Sensors are the building

occupant’s comfort control devices for Precedent

™

units with the ReliaTel control. The zone sensor offering operates with the Reliatel microprocessor

Manual Changeover — Heat, Cool or Off System Switch. Fan Auto or Off Switch. One temperature setpoint lever.

Manual/Automatic Changeover —Auto, Heat, Cool or Off System Switch. Fan Auto or Off Switch. Two temperature setpoint levers. Optional Status Indication LED lights, System On, Heat, Cool, or Service.

Remote Sensor — Sensor(s) available for all zone sensors to provide remote sensing capabilities.

Non-programmable manual auto changeover with digital LCD Display —

Auto, heat, cool or off mode selection button. Auto or off fan bottom. Status indication LCD indicators — System on, heat, cool, or service.

Programmable Night Setback — Auto or manual changeover with seven-day programming. Keyboard selection of Heat, Cool, Fan, Auto, or On. All programmable sensors have

System On, Heat, Cool, Service LED/ indicators as standard. Night Setback Sensors have one (1) Occupied, one (1) Unoccuped, and two (2) Override programs per day.

Integrated Comfort

™

System —

Sensor(s) available with optional temperature adjustment and override buttons to provide central control through a Trane Integrated Comfort

™

system.

Conventional Thermostats

Conventional Thermostats are the

building occupant’s comfort control devises when a generic thermostat is desired.

Manual Changeover —

One Heat, One Cool Thermostat. Heat, Cool or Off System Switch. Fan Auto or On Switch. Set Point Dial. Adjustable Heat Anticipator.

Automatic Changeover — One Heat, Two Cool Thermostat. Off, Auto System Switch. Auto/On Fan Switch.

Programmable Electronic Night Setback Thermostat — Heating setback and

cooling setup with 7-day, programming capability. Available in two-stage heating/cooling or one-stage heating/ cooling versions with automatic changeover.

RT-PRC016-EN

33

Electrical Data

Table ED-1 — Unit Wiring

Unit Operating Circuit Size Or Maximum Circuit Size Or Maximum

Model No. Voltage Range Ampacitiy Circuit Breaker

TSC060AD 342-456 17.7 25 17.7 25 TSC072AD 342-456 23.2 35 24.2 35 TSC090AD 342-456 24.8 35 26.5 35 TSC102AD 342-456 26.8 35 28.5 35 TSC120AD 342-456 31.2 40 31.2 40

Notes:

1. All units to be installed under local codes

Unit Minimum Maximum Fuse Minimum Maximum Fuse

Standard Indoor Fan Motor Oversized Indoor Fan Motor

1

Ampacitiy Circuit Breaker

Table ED-2 — Unit Wiring With Electric Heat Single Point Connection — 380-415 Volts

Standard Indoor Fan Motor Oversized Indoor Fan Motor

Unit Heater Heater Model No. Model No. kW Rating MBH Stages Ampacitiy Circuit Breaker TSC060AD BAYHTRR412A 7.5 / 9.0 26 / 31 2 19.8 / 21.0 25 / 25 19.8 / 21.0 25 / 25

TSC072AD BAYHTRS418A 11.3 / 13.5 39 / 47 1 26.9 / 28.9 35 / 35 28.1 / 30.1 35 / 35

TSC090AD BAYHTRS418A 11.3 / 13.5 39 / 47 1 28.1 / 30.1 35 / 35 30.3 / 32.3 35 / 35

TSC102AD BAYHTRT427A 16.9 / 20.2 58 / 69 2 38.8 / 41.8 40 / 45 40.9 / 43.9 45 / 45

TSC120AD BAYHTRT427A 16.9 / 20.2 58 / 69 2 40.9 / 43.9 45 / 45 40.9 / 43.9 45 / 45

Notes:

1. All units to be installed under local codes

2. kW and MBH shown for 380V / 415V

BAYHTRR418A 10.9 / 13.0 38 / 45 2 26.1 / 28.0 30 / 30 26.1 / 28.0 30 / 30 BAYHTRR423A 14.4 / 17.2 50 / 59 2 32.8 / 35.3 35 / 40 32.8 / 35.3 35 / 40

BAYHTRS427A 16.9 / 20.2 58 / 69 2 37.5 / 40.5 40 / 45 38.8 / 41.8 40 / 45 BAYHTRS436A 22.6 / 26.9 78 / 92 2 48.3 / 52.1 50 / 60 49.5 / 53.4 50 / 60

BAYHTRS427A 16.9 / 20.2 58 / 69 2 38.8 / 41.8 40 / 45 40.9 / 43.9 45 / 45 BAYHTRS436A 22.6 / 26.9 78 / 92 2 49.5 / 53.4 50 / 60 51.6 / 55.5 60 / 60

BAYHTRT436A 22.6 / 26.9 78 / 92 2 49.5 / 53.4 50 / 60 51.6 / 55.5 60 / 60

BAYHTRT436A 22.6 / 26.9 78 / 92 2 51.6 / 55.5 60 / 60 51.6 / 55.5 60 / 60 BAYHTRT454A 33.8 / 40.4 116 / 138 2 73.1 / 79.0 80 / 80 73.1 / 79.0 80 / 80

2

Control Circuit Size Or Maximum Circuit Size Or Maximum

Minimum Maximum Fuse Minimum Maximum Fuse

1

Ampacitiy Circuit Breaker

1

Table ED-3 — Electrical Characteristics - Evaporator Fan Motor - 50 Hz

Unit Amps Amps Model No. No. Volts Phase HP FLA LRA No. Volts Phase HP FLA LRA TSC060AD 1 380-415 3 1.5 4.3 25.3 - - - - - TSC072AD 1 380-415 3 1.5 4.3 25.3 1 380-415 3 2.0 5.3 36.4 TSC090AD 1 380-415 3 2.0 5.3 36.4 1 380-415 3 3.0 7.0 57.0 TSC102AD 1 380-415 3 2.0 5.3 36.4 1 380-415 3 3.0 7.0 57.0 TSC120AD 1 380-415 3 3.0 7.0 57.0 - - - - - -

Standard Evaporator Fan Motor Oversized Evaporator Fan Motor

Table ED-4 — Electrical Characteristics - Compressor Motor and Condenser Motor - 50 Hz

Unit Amps Amps

Model No. No. Volts Phase HP TSC060AD 1 380-415 3 5.7 2875 9.5 74.00 1 1 0.40 1.9 2.8 TSC072AD 1 380-415 3 7.5 2875 12.7 95.00 1 1 0.75 2.8 7.1 TSC090AD 1 380-415 3 8.3 2875 13.20 100.00 1 1 0.75 2.8 7.1 TSC102AD 2 380-415 3 6.0/3.8 2875 9.3/6.9 74.0/48.0 1 1 0.75 2.8 7.1 TSC120AD 2 380-415 3 6.0/4.8 2875 9.9/8.5 74.0/61.8 1 1 0.75 2.8 7.1

Note:

1. Comp1/Comp2

34

Compressor Motor Condenser Fan Motor

1

RPM R LA

1

LRA

1

No. Phase HP FLA LRA

RT-PRC016-EN

Jobsite Connections

DISCONNECT

SWITCH

(BY OTHERS)

Zone Sensors — Typical Number Of Wires

A — Manual Changeover . . . . . . . . . . . . . . . . . 4

Manual/Auto Changeover . . . . . . . . . . . . . 5

Manual/Auto Changeover with

ZONE SENSOR

OR THERMOSTAT

ROOFTOP

UNIT

Status Indication LED’s . . . . . . . . . . . . . 10

Programmable Night Setback with

Status Indication LED’s . . . . . . . . . . . . . . 7

Thermostats — Typical Number of Wires A — 3 wires, 24-volts, Cooling Only

4 wires, 24-volts, with Electric Heat

B — 3 Power Wires + 1 Ground Wire (three phase)

2 Power Wires + 1 Ground Wire (single phase)

For specific wiring information, see the installation instructions. All wiring except power wires is low voltage. All customer supplied wiring to be copper and must conform to NEC or CEC and local electrical codes. Wiring shown dotted is to be furnished and installed by the customer.

RT-PRC016-EN

35

Dimensional

All dimensions are in inches/millimeters.

TSC060

Data

TSC060

36

RT-PRC016-EN

Dimensional

All dimensions are in inches/millimeters.

TSC060 — Downflow Airflow Supply/Return

Data

TSC060

TSC060 — Horizontal Airflow Supply/Return

TSC060 — Unit Clearance and Roof Opening

RT-PRC016-EN

37

Dimensional

All dimensions are in inches/millimeters.

TSC060 — Roof Curb

Data

TSC060

TSC060 — Downflow Duct Connections — Field Fabricated

38

RT-PRC016-EN

Dimensional

All dimensions are in inches/millimeters.

TSC072-090

Data

TSC072-120

TSC102-120

RT-PRC016-EN

39

Dimensional

All dimensions are in inches/millimeters.

TSC072-120 — Downflow Airflow Supply and Return

Data

TSC072-120

TSC072-120 — Horizontal Airflow Supply and Return

TSC072-120 — Unit Clearance and Roof Opening

40

RT-PRC016-EN

Dimensional

All dimensions are in inches/millimeters.

TSC072-120 — Roof Curb

Data

TSC072-120

TSC072-120 — Downflow Duct Connections —

Field Fabricated

RT-PRC016-EN

ALL FLANGES 1 1/4” (31 MM)

41

Dimensional

TSC060

All dimensions are in inches/millimeters.

Data

Options/Accessories

TSC060 — Economizer , Manual or Motorized Fresh Air Damper

TSC060 — Swing Diameter for Hinged Doors Option

TSC060 — Barometric Relief Damper Hood

42

RT-PRC016-EN

Dimensional

TSC072-120

All dimensions are in inches/millimeters.

Data

TSC072-120 — Economizer and Barometric Relief Damper Hoods

Options/Accessories

RT-PRC016-EN

TSC072-120 — Swing Diameter for Hinged Door(s) Option

43

Weights

Table W-1 - Maximum Unit and Corner Weights and Center of Gravity Dimensions (SI)

Maximum Weights

Unit

Model No. Shipping

(2)

(kg) Corner Weights

(2)

Net

(2)

A B C D Length Width

(1)

(kg) Center of Gravity (mm)

TSC060AD 270 235 75 56 4 8 56 790 480 TSC072AD 373 326 107 83 58 78 970 560 TSC090AD 436 389 131 101 67 89 970 530 TSC102AD 453 405 133 106 72 94 990 560 TSC120AD 493 445 147 115 81 104 990 560

Notes: (1) Corner weights are given for information only. All models must be supported continuously by a curb or equivalent frame support. (2) Weights are approximate.

Table W-1a - Maximum Unit and Corner Weights and Center of Gravity Dimensions (IP)

Unit

Model No. Shipping

Maximum Weights (lbs) Corner Weights

(2)

Net A B C D Length Width

(1)

(lbs) Center of Gravity (in)

TSC060AD 595 518 165 124 105 124 31 19 TSC072AD 823 718 235 182 128 173 38 22 TSC090AD 962 857 289 222 148 197 3 8 21 TSC102AD 998 893 294 233 159 207 39 22 TSC120AD 1087 982 323 253 178 229 39 22

Notes: (1) Corner weights are given for information only. All models must be supported continuously by a curb or equivalent frame support. (2) Weights are approximate.

Table W-2 - Accessory Net Weights

Accessory

(3)

(1) (2)

(kg)

Net Weights

(2)

TSC060 TSC072-120 Economizer 12 16 Barometric Relief 3 5 Motorized Outside Air Damper 9 14 Manual Outside Air Damper 7 12 Roof Curb 32 52 Oversized Motor 2 4 Coil Guards 5 9 Hinged Doors 5 5 Electric Heaters 7 14

Notes: (1) Weights for options not listed are < 3 kg. (2) Net weight should be added to unit weight when ordering factory-installed

accessories.

(3) Some accessories not available on all units.

44

Table W-2a - Accessory Net Weights

Accessory

(3)

(1) (2)

(lbs)

Net Weights

(2)

TSC060 TSC072-120 Economizer 26 36 Barometric Relief 7 10 Motorized Outside Air Damper 20 30 Manual Outside Air Damper 16 26 Roof Curb 70 115 Oversized Motor 5 8 Coil Guards 12 20 Hinged Doors 10 12 Electric Heaters 15 30

Notes: (1) Weights for options not listed are < 5 lbs.

2) Net weight should be added to unit weight when ordering factory-installed

accessories.

(3) Some accessories not available on all units.

RT-PRC016-EN

Mechanical Specifications

General

The units shall be convertible airflow. The operating range shall be between 46°C and -18°C (115°F and 0°F) in cooling as standard from the factory for all units. All units shall be factory assembled, internally wired, fully charged with R-22, and 100 percent run tested to check cooling operation, fan and blower rotation, and control sequence before leaving the factory. Wiring internal to the unit shall be colored and numbered for simplified identification.

Casing

Unit casing shall be constructed of zinc coated, heavy gauge, galvanized steel. Exterior surfaces shall be cleaned, phosphatized, and finished with a weather-resistant baked enamel finish. Cabinet construction shall allow for all maintenance on one side of the unit. Service panels shall have lifting handles and be removed and reinstalled by removing only a single fastener while providing a water and air tight seal. All exposed vertical panels and top covers in the indoor air section shall be insulated with a cleanable foil-faced, fire-retardent permanent, odorless glass fiber material. The base of the unit shall be insulated with 13 mm, 16 kg (1/2 inch, 1 pound) density foil-faced, closed-cell material. All insulation edges shall be either captured or sealed.The unit’s base pan shall have no penetrations within the perimeter of the curb other than the raised 29 mm (1 inch high downflow supply/return openings to provide an added water integrity precaution, if the condensate drain backs up. The base of the unit shall have provisions for forklift and crane lifting, with forklift capabilities on three sides of the unit.

Unit Top

The top cover shall be one piece construction or where seams exist, it shall be double-hemmed and gasketsealed. The ribbed top adds extra strength and prevents water from pooling on unit top.

Filters

One inch, throwaway filters shall be standard on all 5 ton units. The filter rack can be converted to two inch capability. 50 mm (2 inch) filters shall be factory supplied on all 6-10 ton units. Optional 50 mm (2 inch) pleated filters shall be available.

Compressors

All units shall have direct-drive, hermetic, scroll type compressors with centrifugal type oil pumps. Motor shall be suction gas-cooled and shall have a voltage utilization range of plus or minus 10 percent of unit nameplate voltage. Internal overloads shall be provided with the scroll compressors. Low and high pressure switches shall be standard.

Refrigerant Circuits

Service pressure ports, and refrigerant line filter driers are factory-installed as standard. An area shall be provided for replacement suction line driers.

Evaporator and Condenser Coils

Internally finned, 8 mm ( tubes mechanically bonded to a configured aluminum plate fin shall be

1

/8

standard. Coils shall be leak tested at the factory to ensure the pressure integrity. The evaporator coil and condenser coil shall be leak tested to 1375 kPa (200 psig) and pressure tested to 3100 kPa (450 psig). The condenser coil shall have a patent pending 1 + 1 + 1 hybrid coil designed with slight gaps for ease of cleaning. A removeable, reversible, double-sloped condensate drain pan with provision for through the base condensate drain is standard.

5

/16”) copper

Outdoor Fans

The outdoor fan shall be direct-drive, statically and dynamically balanced, draw-through in the vertical discharge position. The fan motor shall be permanently lubricated and shall have built-in thermal overload protection.

Indoor Fan

All units shall have belt drive motors. Units with belt drive motors shall have an adjustable idler-arm assembly for quick-adjustment to fan belts and motor sheaves. All motors shall be thermally protected. Oversized motors shall be available for high static operations.

Controls

Unit shall be completely factory-wired with necessary controls and contactor pressure lugs or terminal block for power wiring. Units shall have single point power connection as standard. Unit shall provide an external location for mounting a fused disconnect device.

Microprocessor controls provide for all 24 volt control functions. The resident control algorithms shall make all heating, cooling, and/or ventilating decisions in response to electronic signals from sensors measuring indoor and outdoor temperatures. The control algorithm maintains accurate temperature control, minimizes drift from set point, and provides better building comfort. A centralized Microprocessor shall provide anti-short cycle timing and time delay between compressors to provide a higher level of machine protection.

RT-PRC016-EN

45

Mechanical Specifications

Accessories/Options

Electric Heaters

Field-installed electric heat modules shall be available for installation within basic unit. Electric heater elements shall be constructed of heavy-duty nickel chromium elements internally delta connected for 200 volt, wye connected for 380-415 volt. Staging shall be achieved through the unitary control processor (UCP). Each heater package shall have automatically reset high limit control operating through heating element contactors. All heaters shall be individually fused from the factory, where required. Power assemblies shall provide single-point connection.

Roof Curb

The roof curb shall be designed to mate with the unit’s downflow supply and return and provide support and a water tight installation when installed properly. The roof curb design shall allow fieldfabricated rectangular supply/return ductwork to be connected directly to the curb. Curb shall be shipped knocked down for field assembly and shall include wood nailer strips.

Economizer

This accessory shall be either field or factory-installed and shall be available with or without barometric relief. The assembly includes fully modulating 0-100 percent motor and dampers, minimum position setting, preset linkage, wiring harness with plug, spring return actuator and fixed dry bulb control. The barometric relief shall provide a pressure operated damper that shall be gravity closing and shall prohibit entrance of outside air during the equipment “off” cycle. Optional solid state or differential enthalpy control shall be available for either factory or field installation. The factory-installed economizer arrives in the shipping position and shall be moved to the operating position by the installing contractor.

Phase Monitor

Phase monitor shall provide 100% protection for motors and compressors against problems caused by phase loss, phase imbalance, and phase reversal. Phase monitor is equipped with an LED that provides an ON or FAULT indicator.

Remote Potentiometer

The minimum position setting of the economizer shall be adjusted with this accessory.

Manual Outside Air Damper

Factory or field-installed rain hood and screen shall provide up to 50 percent outside air.

Motorized Outside Air Dampers

Factory or field-installed manually set outdoor air dampers shall provide up to 50 percent outside air. Once set, outdoor air dampers shall open to set position when indoor fan starts. The damper shall close to the full closed position when indoor fan shuts down.

Discharge Air Sensing

This factory of field-installed option provides true discharge air sensing in heating models. This sensor is a status indicator readable through Tracer Tracker™.

Oversized Motors

Factory or field-installed oversized motors shall be available for high static applications.

Clogged Filter/Fan Failure Switch

A dedicated differential pressure switch is available, factory-installed, to achieve active fan failure indication and/or clogged filter indication. These indications will be registered with either a zone sensor with status indication lights or an Integrated Comfort

High Pressure Cutout

Standard on all units.

Hinged Access Doors

Sheet metal hinges are available factoryinstalled on the Filter/Evaporator, Supply Fan/Heat, and the Compressor/Control Access Doors.

Black Epoxy Coated Condenser Coil

The coil provides corrosion protection to condenser coils for seacoast application. The protection is a factory-applied thermoset vinyl coating, bonded to normal aluminum fin stock. The uniform thickness of the bonded vinyl layer exhibits excellent corrosion protection.

™

System.

™

or

46

RT-PRC016-EN

Mechanical Specifications

Control Options

Comm-3/4 Trane Communication Interface

This factory or field-installed option shall be provided to interface microprocessor controlled units with the Trane Integrated Comfort

Comm-5 LonTalk Communication Interface

This factory or field-installed option shall be provided to allow the unit to communicate as a Trane Comm-5 device or directly with generic LonTalk Network Building Automation System Controls.

Zone Sensor

This field-installed control shall be provided to interface with the Micro equipped units and shall be available in either manual, automatic programmable with night setback, with system malfunction lights, or remote sensor options.

Thermostats

Two stage heating and cooling operation or one stage heating and cooling shall be available, for field installation, in either manual or automatic changeover. Automatic programmable electronic with night set back shall also be available.

™

systems.

Differential Pressure Switches

These factory or field-installed sensors allow individual fan failure and dirty filter indication for microprocessor controlled units. The fan failure switch will disable all unit functions and “flash” the Service LED on the zone sensor. The dirty filter switch will light the Service LED on the zone sensor and will allow continued unit operation.

Reference Enthalpy Control

Replaces the dry bulb control with a wet bulb changeover controller which has a fully adjustable set point. Enthalpy control offers a higher level of comfort control, along with energy savings potential, than the standard dry bulb control. This is due to the additional wet bulb sensing capability. This option shall be available for microprocessor controlled units. It can be field-installed, or factory-installed with the factory-installed economizer.

Differential Enthalpy Control

Replaces the standard dry bulb control with two enthalpy sensors that compare total heat content of the indoor air and outdoor air to determine the most efficient air source. This control option offers the highest level of comfort control, plus energy efficiency, available. This option shall be available for microprocessor controlled units. It can be field-installed, or factory-installed with the factory-installed economizer.

Low Ambient Cooling

All microprocessor units shall have cooling capabilities down to 18°C (0°F) as standard.

RT-PRC016-EN

47

Trane A business of American Standard Companies www.trane.com

Literature Order Number

File Number

Supersedes

Stocking Location

RT-PRC016-EN

PL-UN-0 00-RT-PRC016-EN-02-04

PL-UN-0 00-RT-PRC016-EN-12-03

03-03 Webb/Mason 02-04 Electronic Only

For more information, contact your local district office or e-mail us at comfort@trane.com

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice

Trane TSC060-120 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Features and Benefits

Application Considerations

Model Number Description

General Data

Performance Data

Zone Controls

Electrical Data

Jobsite Connections

Weights

Mechanical Specifications
