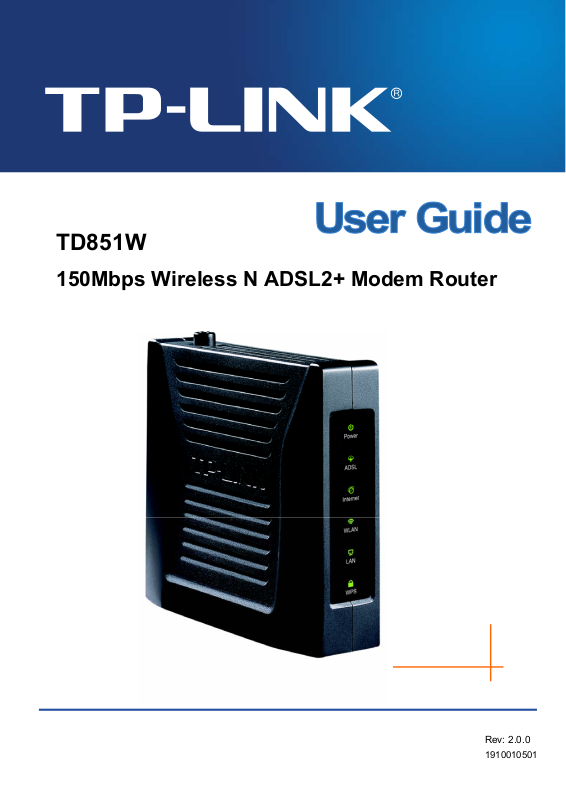

TP Link TD851WT User Guide
TD851W
150Mbps Wireless N ADSL2+ Modem Router
Rev: 2.0.0
1910010501
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None
Outdoor use limited to 10
France
Italy None
Luxembourg None
Norway Implemented
Russian Federation None
Note: Please don’t use the product outdoors in France.
mW e.i.r.p. within the band
2454-2483.5 MHz
General authorization required for outdoor use and
public service
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
If used outside of own premises, general authorization is
required
General authorization required for network and service
supply(not for spectrum)
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Only for indoor applications
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 150Mbps Wireless N ADSL2+ Modem Router
Model No.: TD851W
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008& ETSI EN 301 489-17 V2.1.1:2009
EN60950-1:2006
Recommendation 1999/519/EC
EN62311:2008
Directives 2004/108/EC
The above product is in conformity with the following standards or other normative documents
EN 55022:2006 +A1:2007
EN 55024:1998+A1:2001+A2:2003
EN 61000-3-2:2006
EN 61000-3-3:1995+A1:2001+A2:2005
Directives 2006/95/EC
The above product is in conformity with the following standards or other normative documents
EN60950-1:2006
Directive（ErP） 2009/125/EC
Audio/Video, information and communication technology equipment- Environmentally conscious
design
EN62075:2008
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
TP-LINK TECHNOLOGIES CO., LTD.
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,
Shenzhen, P. R. China
CONTENTS
Package Contents .................................................................................................... 1
Chapter 1 Introduction ......................................................................................... 2
1.1 Product Overview ..................................................................................2
1.2 Main Features .......................................................................................2
1.3 Conventions ..........................................................................................3
Chapter 2 Hardware Installation .......................................................................... 4
2.1 The Front Panel.....................................................................................4
2.2 The Back Panel .....................................................................................5
2.3 Installation Environment ........................................................................6
2.4 Connecting the Router...........................................................................6
Chapter 3 Quick Installation Guide ..................................................................... 8
3.1 Configure PC.........................................................................................8
3.2 Login....................................................................................................11
Chapter 4 Software Configuration..................................................................... 15
4.1 Status ..................................................................................................15
4.2 Quick Start...........................................................................................16
4.3 Interface Setup ....................................................................................16
4.3.1 Internet..................................................................................................... 17
4.3.2 LAN..........................................................................................................21
4.3.3 Wireless ................................................................................................... 24
4.4 Advanced Setup ..................................................................................35
4.4.1 Firewall ....................................................................................................35
4.4.2 Routing ....................................................................................................36
4.4.3 NAT.......................................................................................................... 37
4.4.4 QoS.......................................................................................................... 40
4.4.5 VLAN .......................................................................................................42
4.4.6 ADSL .......................................................................................................44
4.5 Access Management...........................................................................45
4.5.1 ACL..........................................................................................................45
4.5.2 Filter.........................................................................................................46
4.5.3 SNMP ......................................................................................................54
4.5.4 UPnP .......................................................................................................54
4.5.5 DDNS....................................................................................................... 54
4.5.6 CWMP .....................................................................................................55
4.6 Maintenance........................................................................................56
4.6.1 Administration ..........................................................................................56
4.6.2 Time Zone................................................................................................ 57

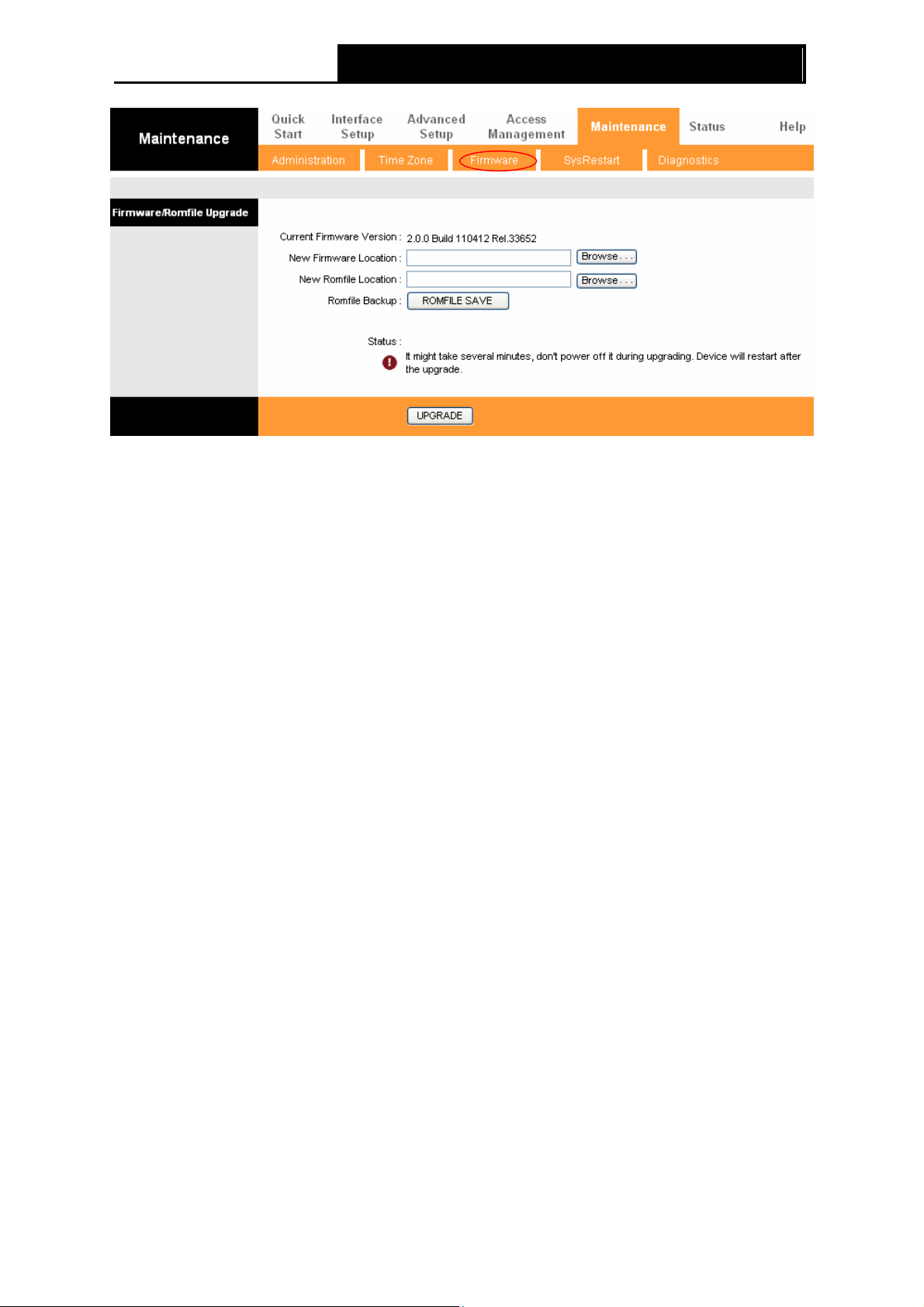

4.6.3 Firmware.................................................................................................. 58
4.6.4 SysRestart ...............................................................................................60
4.6.5 Diagnostics ..............................................................................................61
4.7 Help..................................................................................................... 62
Appendix A: Specifications ................................................................................... 64
Appendix B: Troubleshooting ............................................................................... 65
Appendix C: Technical Support ............................................................................ 75
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Package Contents
The following contents should be found in your package:
¾ One TD851W 150Mbps Wireless N ADSL2+ Modem Router
¾ One Power Adapter for TD851W ADSL2+ Router
¾ Quick Installation Guide
¾ One RJ45 cable
¾ Two RJ11 cables
¾ One ADSL splitter
¾ One Resource CD , including:
z This User Guide
z Other Helpful Information
Note:
)
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
1
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 1 Introduction
1.1 Product Overview
Thank you for choosing the TD851W 150Mbps Wireless N ADSL2+ Modem Router. The device
is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet
or IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network.
The TD851W connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL
connection is made using ordinary telephone line with standard connectors. Multiple workstations
can be networked and connected to the Internet using a single Wide Area Network (WAN)
interface and single global IP address. The advanced security enhancements, IP/MAC Filter,
Application Filter and URL Filter can help to protect your network from potentially devastating
intrusions by malicious agents from the outside of your network.
Quick Start of the Web-based Utility is supplied and friendly help messages are provided for the
configuration. Network and Router management is done through the Web-based Utility which can
be accessed through local Ethernet using any web browser.
ADSL
The TD851W supports full-rate ADSL2+ connectivity conforming to the ITU and ANSI
specifications. In addition to the basic DMT physical layer functions, the ADSL2+ PHY supports
dual latency ADSL2+ framing (fast and interleaved) and the I.432 ATM Physical Layer.
Wireless
In the most attentive wireless security, the Router provides multiple protection measures. It can be
set to turn off the wireless network name (SSID) broadcast so that only stations that have the
SSID can be connected. The Router provides wireless LAN 64/128-bit WEP encryption security,
WPA-PSK/WPA2-PSK authentication, as well as TKIP/AES encryption security.
1.2 Main Features
¾ One 10/100Mbps Auto-Negotiation RJ45 LAN port (Auto MDI/MDIX), one RJ11 port.
¾ Provides external splitter.
¾ Adopts Advanced DMT modulation and demodulation technology.
¾ Supports bridge mode and Router function.
¾ Multi-user sharing a high-speed Internet connection.
¾ Downstream data rates up to 24Mbps, upstream data rates up to 3.5Mbps（With Annex M
enabled）.
¾ Supports long transfers, the max line length can reach to 6.5Km.
¾ Supports remote configuration and management through SNMP
¾ Supports PPPoE, it allows connecting the internet on demand and disconnecting from the
Internet when idle.
¾ Provides reliable ESD and surge-protect function with quick response semi-conductive surge
protection circuit.
¾ High speed and asymmetrical data transmit mode, provides safe and exclusive bandwidth.
2
and CWMP.
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
¾ Supports All ADSL industrial standards.
¾ Compatible with all mainstream DSLAM (CO).
¾ Provides integrated access of internet and route function which face to SOHO user.
¾ Real-time Configuration and device monitoring.
¾ Supports Multiple PVC (Permanent Virtual Circuit).
¾ Built-in DHCP server.
¾ Built-in firewall, supporting IP/MAC filter, Application filter and URL filter.
¾ Supports Virtual Server, DMZ host and IP Address Mapping.
¾ Supports Dynamic DNS, UPnP and Static Routing.
¾ Supports system log and flow Statistics.
¾ Supports firmware upgrade and Web management.
¾ Provides WPA-PSK/WPA2-PSK data security, TKIP/AES encryption security.
¾ Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List).
1.3 Conventions
The Router or device mentioned in this User Guide stands for TD851W 150Mbps Wireless N
ADSL2+ Modem Router without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may differ
from the actual situation.
3
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 2 Hardware Installation
2.1 The Front Panel
Figure 2-1
The LEDs, locating on the front panel, indicates the device’s working status. For details, please
refer to LED Explanation.
LED Explanation:
Name Status Indication
On The modem router is powered on.
Power
ADSL
Internet
Off
On ADSL line is synchronized and ready to use.
Flash The ADSL negotiation is in progress.
Off
On The network is available with a successful Internet connection.
Flash
Off
The modem router is off. Please ensure that the power adapter is
connected correctly.
ADSL synchronization fails. Please refer to Note 1
There is data being transmitted or received via the Internet.
There is no successful Internet connection or the modem router is
operating in Bridge mode. Please refer to Note 2
for troubleshooting.
for troubleshooting.
WLAN
LAN
On Wireless is enabled but no data is being transmitted.
Flash The modem router is sending or receiving data over the wireless network.
Off Wireless function is disabled.
On There is a device connected to this LAN port.
Flash The modem router is sending or receiving data over this LAN port.
Off There is no device connected to this LAN port.
4
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Name Status Indication
Flash
WPS
Note:
)
1. If the ADSL LED is off, please check your Internet connection first. Refer to 2.4 Connecting
the Router for more information about how to make Internet connection correctly. If you have
already made a right connection, please contact your ISP to make sure if your Internet service
is available now.
2. If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off,
please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet
configuration. You may need to check this part of information with your ISP and make sure
everything have been input correctly. Refer to 4.1 Status
information.
On
Off
A wireless device has been successfully added to the network by WPS
function.
WPS handshaking is in process and will continue for about 2 minutes.
Please press the WPS button on other wireless devices that you want to
add to the network while the LED is flashing.
The WPS function is disabled or the wireless device fails to be added to
the network in 2 minutes after WPS function is enabled. Please refer to
4.3.3.1 WPS Settings
for more information.
and 4.3.1 Internet for more
2.2 The Back Panel
Figure 2-2
¾ ON/OFF: The power switch for the Router.
¾ POWER: The Power plug is where you will connect the power adapter.
5
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
¾ WPS: The switch for the WPS function. For details, please refer to 4.3.3.1 WPS Settings.
¾ LAN: Through the port, you can connect the Router to your PC or the other Ethernet network
devices.
¾ RESET: There are two ways to reset the Router's factory defaults.
Method one: With the Router powered on, use a pin to press and hold the Reset button for at
least 5 seconds. And the Router will reboot to its factory default settings.
Method two: Restore the default setting from “Maintenance-SysRestart” of the Router's
Web-based Utility.
¾ ADSL: Through the port, you can connect the Router with the telephone. Or you can connect
them by an external separate splitter. For details, please refer to 2.4 Connecting the Router.
2.3 Installation Environment
¾ The Product should not be located where it will be exposed to moisture or excessive heat.
¾ Place the Router in a location where it can be connected to the various devices as well as to a
power source.
¾ Make sure the cables and power cord are placed safely out of the way so they do not create a
tripping hazard.
¾ The Router can be placed on a shelf or desktop.
¾ Keep away from the strong electromagnetic radiation and the device of electromagnetic
sensitive.
2.4 Connecting the Router
Back to LED Explanation
Before installing the device, please make sure your broadband service provided by your ISP is
available. If there is any problem, please contact your ISP. Before cable connection, cut off the
power supply and keep your hands dry. You can follow the steps below to install it.
Step 1: Connect the ADSL Line.
Method one: Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear
panel of TD851W, and insert the other end into the wall socket.
Method two：You can use a separate splitter. External splitter can divide the data and
voice, and then you can access the Internet and make calls at the same time. The
external splitter has three ports:
• LINE: Connect to the wall jack
• PHONE: Connect to the phone sets
• MODEM: Connect to the ADSL port of TD851W
Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of
TD851W. Connect the other end to the MODEM port of the external splitter.
Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s
Ethernet port or a regular hub/switch port, and the other end to the LAN port on the
TD851W.
Step 3: Power on the computers and LAN devices.
6
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Step 4: Attach the power adapter. Connect the power adapter to the power connector on the rear
of the device and plug in the adapter to a wall outlet or power extension, and then power
on the device. The electrical outlet shall be installed near the device and shall be easily
accessible.
Figure 2-3
7
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 3 Quick Installation Guide
3.1 Configure PC
After you directly connect your PC to the TD851W or connect your adapter to a Hub/Switch which
has connected to the Router, you need to configure your PC’s IP address. Follow the steps below
to configure it.
Step 1: Click the Start menu on your desktop, right click My Network Places, and then select
Properties (shown in Figure 3-1).
Figure 3-1
Step 2: Right click Local Area Connection (LAN), and then select Properties.
8
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 3-2
Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties
button.
Figure 3-3
9
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK.
Figure 3-4
Note:
)
You can configure the PC to get an IP address automatically, select “Obtain an IP address
automatically” and “Obtain DNS server address automatically” in the screen above.
Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select run tab, type cmd or command in the field
and press Enter. Type ping 192.168.1.1 on the next screen, and then press Enter.
If the result displayed is similar to the screen below, the connection between your PC and the
Router has been established.
Figure 3-5
If the result displayed is similar to the screen shown below, it means that your PC has not
connected to the Router.
10
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 3-6
You can check it following the steps below:
1) Is the connection between your PC and the Router correct?
The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should
be lit.
2) Is the TCP/IP configuration for your PC correct?
If the Router's IP address is 192.168.1.1, your PC's IP address must be within the range of
192.168.1.2 ~ 192.168.1.254.
3.2 Login
Once your host PC is properly configured, please proceed as follows to use the Web-based Utility:
Start your web browser and type the private IP address of the Router in the address field:
192.168.1.1.
After that, you will see the screen shown below. Enter the default User name admin and the
default Password admin, and then click OK to access to the Quick Start screen. You can follow
the steps below to complete the Quick Start.
Figure 3-7
11
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen.
Click the NEXT button.
Figure 3-8
Step 2: Configure the time for the Router, and NEXT button. then click the
Figure 3-9
Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for
example here), and then click the NEXT button.
Figure 3-10
12
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI
and Connection Type. Then click NEXT.
Figure 3-11
Step 5: Configure the rules for the WLAN, and click NEXT.
Figure 3-12
Note:
)
fer to section 4.3.3 WirelessTo adopt the wireless security protection measures, please re
.
Step 6: Click NEXT to save the current settings.
13
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Step 7: Click CLOSE to complete.
Figure 3-13
Figure 3-14
14
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Chapter 4 Software Configuration
This User Guide recommends using the “Quick Installation Guide” for first-time installation. For
advanced users, if you want to know more about this device and make use of its functions
adequately, maybe you will get help from this chapter to configure the advanced settings through
the Web-based Utility.
After your successful login, you can configure and manage the device. There are main menus on
the top of the Web-based Utility; submenus will be available after you click one of the main menus.
On the center of the Web-based Utility, there are the detailed configurations or status information.
To apply any settings you have altered on the page, please click the SAVE button.
4.1 Status
Choose “Status”, you can see the next submenus: Device Info, System Log and Statistics.
Click any of them, and you will be able to configure the corresponding function.
Figure 4-1
Back to LED Explanation
Choose “Status→Device Info” menu, and you will be able to view the device information,
including LAN, WAN and ADSL. The information will vary depending on the settings of the Router
configured on the Interface Setup screen.
15
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-2
Note:
)
Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the
system log and traffic statistics about the Router.
4.2 Quick Start
Please refer to 3.2 Login.
4.3 Interface Setup
Choose “Interface Setup”, you can see the next submenus: Internet and LAN and Wireless.
Figure 4-3
16
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
Click any of them, and you will be able to configure the corresponding function.
4.3.1 Internet
Back to LED Explanation
Choose “Interface Setup→Internet” menu, you can configure the parameters for WAN ports in
the next screen (shown in Figure 4-4).
Figure 4-4
¾ ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path
Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally set up
8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You
need to activate the VC to take effect. For PVCs management, you can use ATM QoS to set
up each PVC traffic line's priority.
• Virtual Circuit: Select the VC number you want to set up, PVC0~PVC7.
• Status: If you want to use a designed VC, you should activate it.
• VPI: Identifies the virtual path between endpoints in an ATM network. The valid range is
from 0 to 255. Please input the value provided by your ISP.
• VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from
32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value
provided by your ISP.
• PVCs Summary: Click the button, and you can view the summary information about the
PVCs.
• ATM QoS: Select the Quality of Service types for this Virtual Circuit, including CBR
(Constant Bit Rate), UBR (Unspecified Bit Rate) and VBR (Variable Bit Rate). These QoS
17
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
types are all controlled by the parameters specified below, including PCR (Peak Cell
Rate), SCR (Sustained Cell Rate) and MBS (Maximum Burst Size), please configure
them according your needs.
¾ Encapsulation: There are four connection types: Dynamic IP Address, Static IP Address,
PPPoA/PPPoE and Bridge Mode. Please choose the designed type that you want to use.
After that, you should follow the configuration below to proceed.
1) Dynamic IP Address
Select this option if your ISP provides you an IP address automatically. This option is typically
used for Cable services. Please enter the Dynamic IP information accordingly.
Figure 4-5
¾ Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it
default.
¾ NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for
this VC. The NAT function can be activated or deactivated per PVC basis.
¾ Default Route: If enable this function, the current PVC will be considered as the default
gateway to internet from this device.
¾ TCP MTU Option: Enter the TCP MTU as your desire.
¾ Dynamic Route: Select this option to specify the RIP (Routing Information protocol) version
for WAN interface, including RIP1, RIP2-B and RIP2-M. RIP2-B and RIP2-M are both sent in
RIP2 format, the difference is that RIP2-M using Multicast, while RIP2-B using Broadcast
format.
• Direction: Select this option to specify the RIP direction. None is for disabling the RIP
function. Both means the ADSL Router will periodically send routing information and
accept routing information, and then incorporate them into routing table. IN Only means
the ADLS Router will only accept but will not send RIP packet. OUT Only means the
ADLS Router will only send but will not accept RIP packet.
¾ Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast
Protocol) is a session-layer protocol used to establish membership in a multicast group. The
ADSL ATU-R supports both IGMP version 1 (IGMP v1) and IGMP v2. Select “Disabled” to
18
Loading...
