TP Link T2UH User Manual
Archer T2UH
AC600 High Gain Wireless Dual Band USB Adapter
Rev: 1.0.0
1910010976
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Manual, Body-worn SAR testing was performed at 1 cm separation, Manual shall provide the information for user. If the
Manual, Body-worn SAR ttesting was perfformed att 1 cm separation,, Manuall shall proviide tthe iinfform-
Manual, Body-atioworn forSARusert sting.If thewasintendedperformeduse isatnot1cmspecifiedseparatinon,theManualuser instructions,shall providethethedeviceinformationshall befortestusedr. wiIftheallintendedits surfacesuse ation for user. If the intended use is not specified in the user instructions, the device shall be tested
with all its surfaces directly against the flat phantom.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country |
Restriction |
Reason/remark |
|
|
|
|
|
Bulgaria |
None |
General authorization required for outdoor use and |
|
public service |
|||
|
|
Outdoor use limited to
10 mW e.i.r.p. within
France
the band 2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy |
None |
If used outside of own premises, general authorization is |
|
required |
|||
|
|
||
|
|
|
|
Luxembourg |
None |
General authorization required for network and service |
|
supply(not for spectrum) |
|||
|
|
||
|
|
|
|
Norway |
Implemented |
This subsection does not apply for the geographical area |
|
within a radius of 20 km from the centre of Ny-Ålesund |
|||
|
|
||
|
|
|
|
Russian Federation |
None |
Only for indoor applications |
Note: Please don’t use the product outdoors in France.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes:
(1)cet appareil ne doit pas provoquer d’interférences et
(2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil.
This device has been designed to operate with the antennas listed below, and having a
maximum gain of 3 dBi.(DipoleAntennantennasnot includedwith 1dBiin thgains listforor2hav4GHz,Dipoleng. a gain grantennaater thanwith31dBii afore
strictly prohibited for use with this
5GHz)Hz)Antennas.Antennasnot includednotinincludedthn for 2.4GHzin this list or having a gain greater than 3 dBi are strictly prohibited
ffor use with tthiis deviice..The required anttenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
impedance is 50 ohms.
subject to the following two conditions:
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
ng two conditions:(1)This device may not cause harmful interference,and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio ex-
empts de licence. Son fonctionnement est sujet aux deux conditions suivantes:(1)le dispositif ne doit
empts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et.(2)ce dispositif doit accepter tout brouillage reçu,y compexempts-
pas produire de brouillage préjudiciable, et(2)cecedispositiftifdoitdoitaccceptertoutbrouillage ,y compris ris un brouillage susceptible de provoquer un fonctionnement indésirable.
Cautious :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii)the maximum antenna gain permitted for devices in the bands 5250-5350MHz and 5470-5725MHz
shall comply with the e.i.r.p. limit;
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with
the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate; ce
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority
users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
(i)(v)lesSARdispositifsmeasurementsfonctionnantare baseddans laonbande5mm spacing150-5 250fromMHzthesontbodyréandservéthats uniquementcompliance ispourachievedune uti at that distance
Avertissement :
Le guide d’ utilisation des dispositifs pour ré seaux locaux doit inclure des instructions pré cises sur (ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et
les restrictions susmentionné es, notamment :
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont ré servé s uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
RF peut ê tre augmenté e si l'appareil peut ê tre conservé aussi loin que possible du corps de l'utilisateur ou que
(iii) le gain maximal d’antenne permis(pourlesdispositifsutilisantlalabande55725--55825MHz)doitdoitseseco-
conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas. nformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas.
visés que les utilisateurs de radars de haute puissance
(iv)De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance spour les ban se
sont5 650désignés-5 850 MHzutilisateurset que cesprincipauxradars pourraient(c.-à-d., qu’ilscauserontdula pbriorité)ou llagepouret/oulesbandesommages5 250-5aux350dispositifsMHz et 5
650 - 5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs
LAN-EL.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible from the user body or set the device to lower output
power if such function is available.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le
Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que dé crit dans ce manuel. La ré duction aux expositions
RF peut ê tre augmenté e si l'appareil peut ê tre conservé aussi loin que possible du corps de l'utilisate-
ur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. ur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est
Korea Warning Statements
.
NCC Notice & BSMI Notice
率、加大功率或變更原設計之特性或功能。
率射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
:
Frequency
2.4 2.4835GHz 5.15 5.25GHz
5.25 5.35GHz 5.475 5.725GHz 5.745 5.825GHz
DETACHABLE ANTENNA USAGE
This device has been designed to operate with a dipole antenna have a maximum gain of 3 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (IC: 8853A-T2UH / Model: T2UH) has been approved by Industry Canada to operate with the antenna type, maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this user’s manual, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Ce dispositif a été conçu pour fonctionner avec uneantenne ayant un gain maximal de dipole antenne avec dB 3. Une antenne à gain plus élevé est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne requise est de 50 ohms.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d'un type et d'ungain maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada. Dansle but de réduire les risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissemnt d'une communication satisfaisante.
Le présent émetteur radio(IC: 8853A-T2UH / Model: T2UH) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
5.25GHz 5.35GHz5.250~5.350GHz
● ● ● ● ● ●
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Safety Information
zWhen product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.
zDon’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.
zAvoid water and wet locations.
zThis product can be used in the following countries:
AT |
BG |
BY |
CA |
CZ |
DE |
DK |
EE |
|
|
|
|
|
|
|
|
ES |
FI |
FR |
GB |
GR |
HU |
IE |
IT |
|
|
|
|
|
|
|
|
LT |
LV |
MT |
NL |
NO |
PL |
PT |
RO |
|
|
|
|
|
|
|
|
RU |
SE |
SK |
TR |
UA |
|
|
|
|
|
|
|
|
|
|
|
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Archer T2UH
AC600 HighGainWirelelessDualDualBandBandUSBUSBAdapterAdapter
Product Description: AC600 High Gain Wireless Dual Band USB Adapter
Model No.: Archer T2UH
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents:
EN 300 328 V1.8.1: 2012-06
EN 301 489-1 V1.9.2:2011 & ETSI EN 301 489-17 V2.2.1:2012
EN 60950-1:2006+A11
2009+A1:2010+A12:2011+A2:2013
EN55024:2010
EN 301 893V1.7.1:2012-06
EN 50566:2013/IEC 62209-2:2010/EN62209-2:2010
The product carries the CE Mark:
Person responsible for making this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2014
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
|
|
CONTENTS |
|
Package Contents .................................................................................................... |
1 |
||
Chapter 1 |
Product Overview ................................................................................. |
2 |
|
1.1 |
Introduction ............................................................................................................. |
2 |
|
1.2 |
Features.................................................................................................................. |
2 |
|
1.3 |
Hardware Overview................................................................................................. |
3 |
|
Chapter 2 |
Installation............................................................................................. |
4 |
|
2.1 |
Hardware Installation .............................................................................................. |
4 |
|
2.2 |

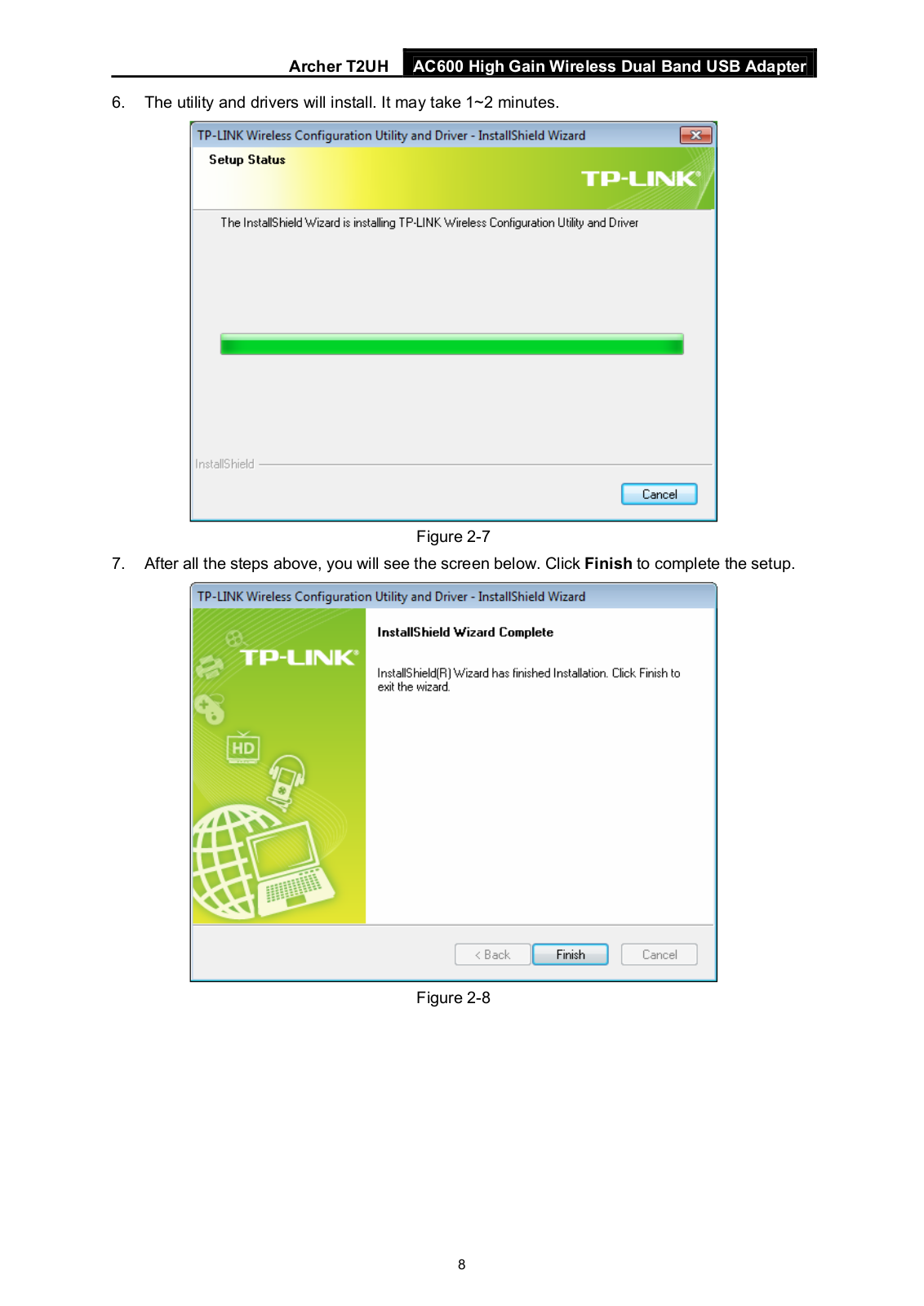

Software Installation................................................................................................ |
5 |
|
Chapter 3 Connect to a Wireless Network ......................................................... |
10 |
||
3.1 |

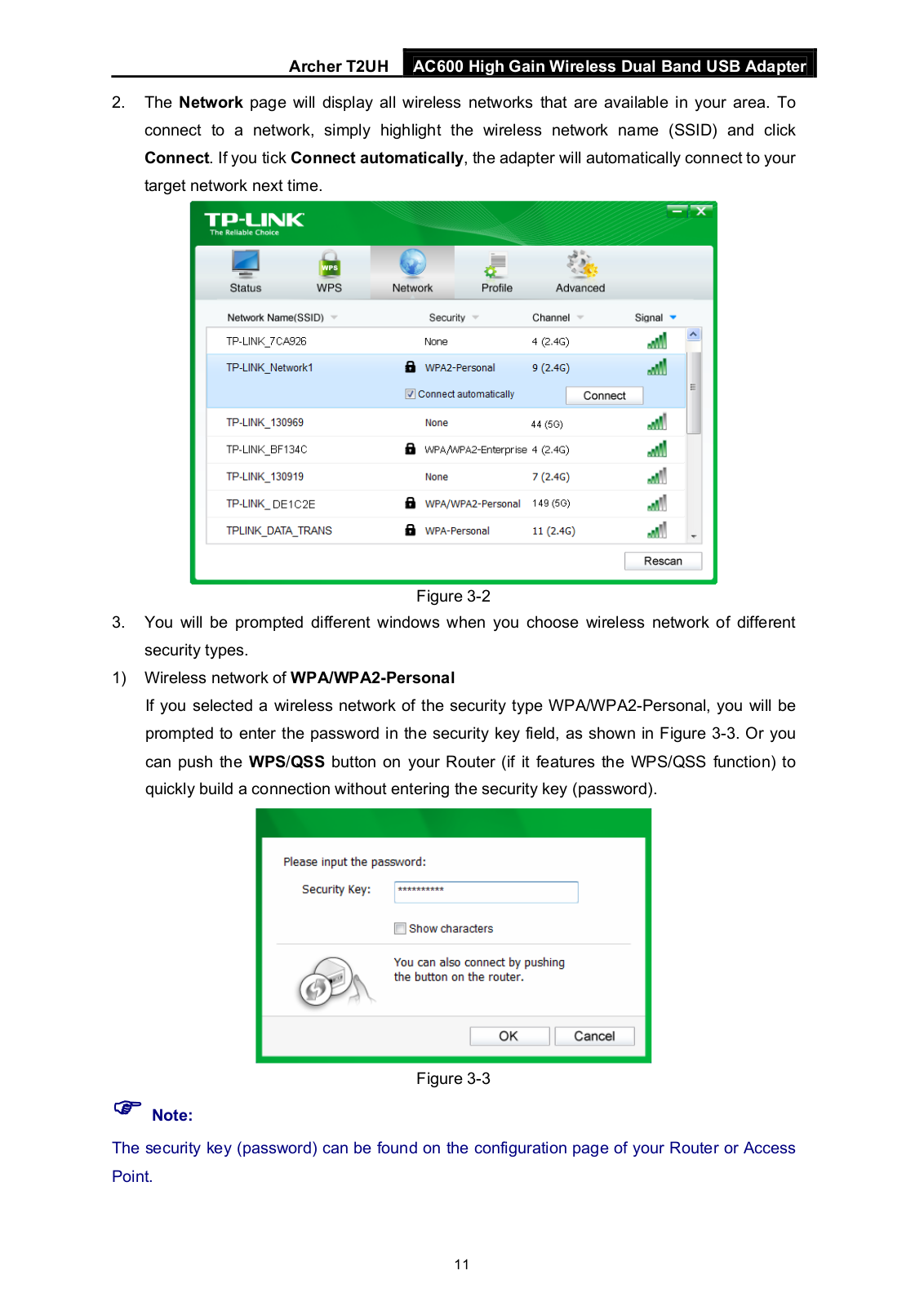

To connect using TWCU ....................................................................................... |
10 |
|
3.2 |
To connect using WPS.......................................................................................... |
14 |
|
|
3.2.1 PBC (Push Button Configuration) method................................................ |
14 |
|
|
3.2.2 |

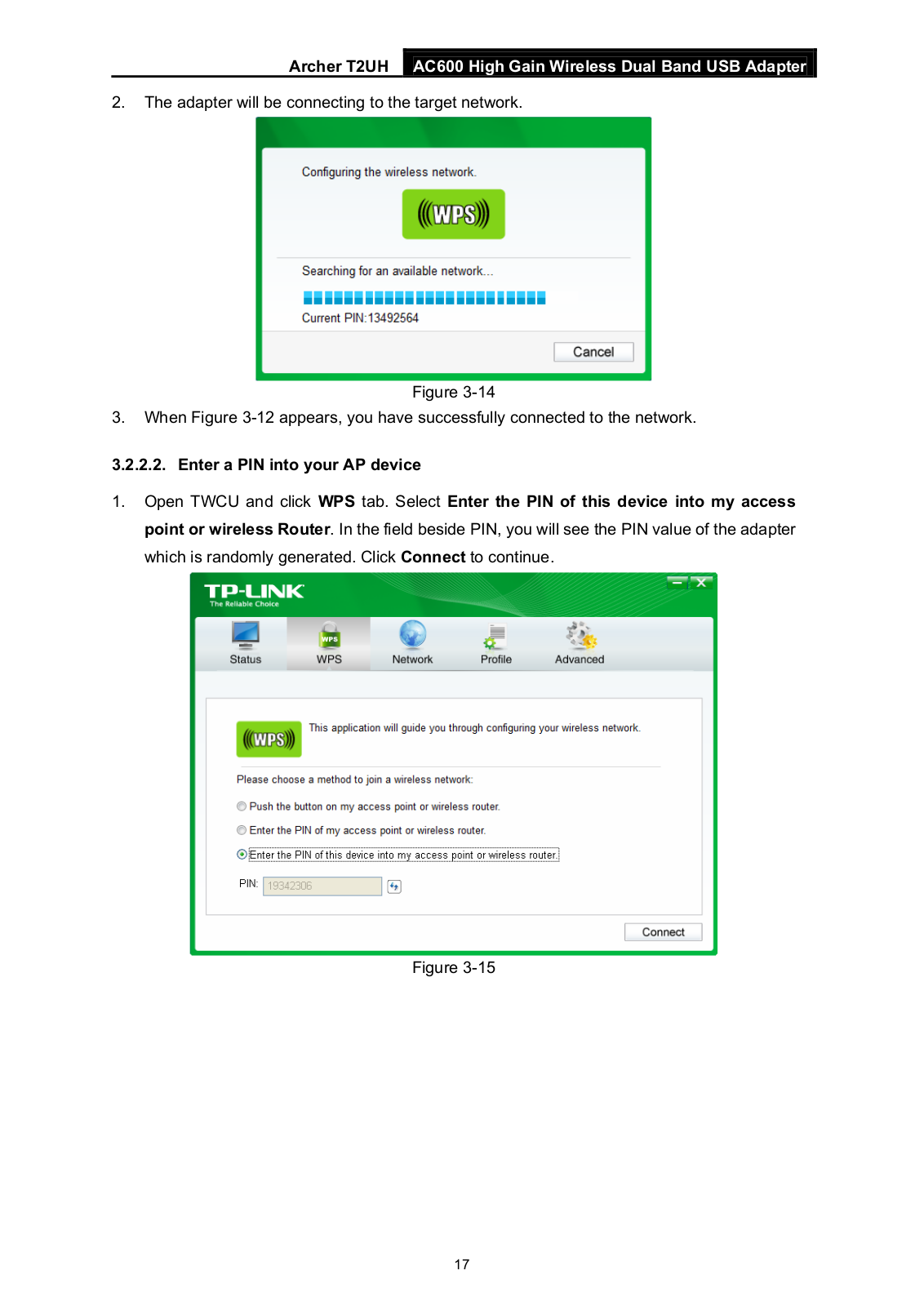

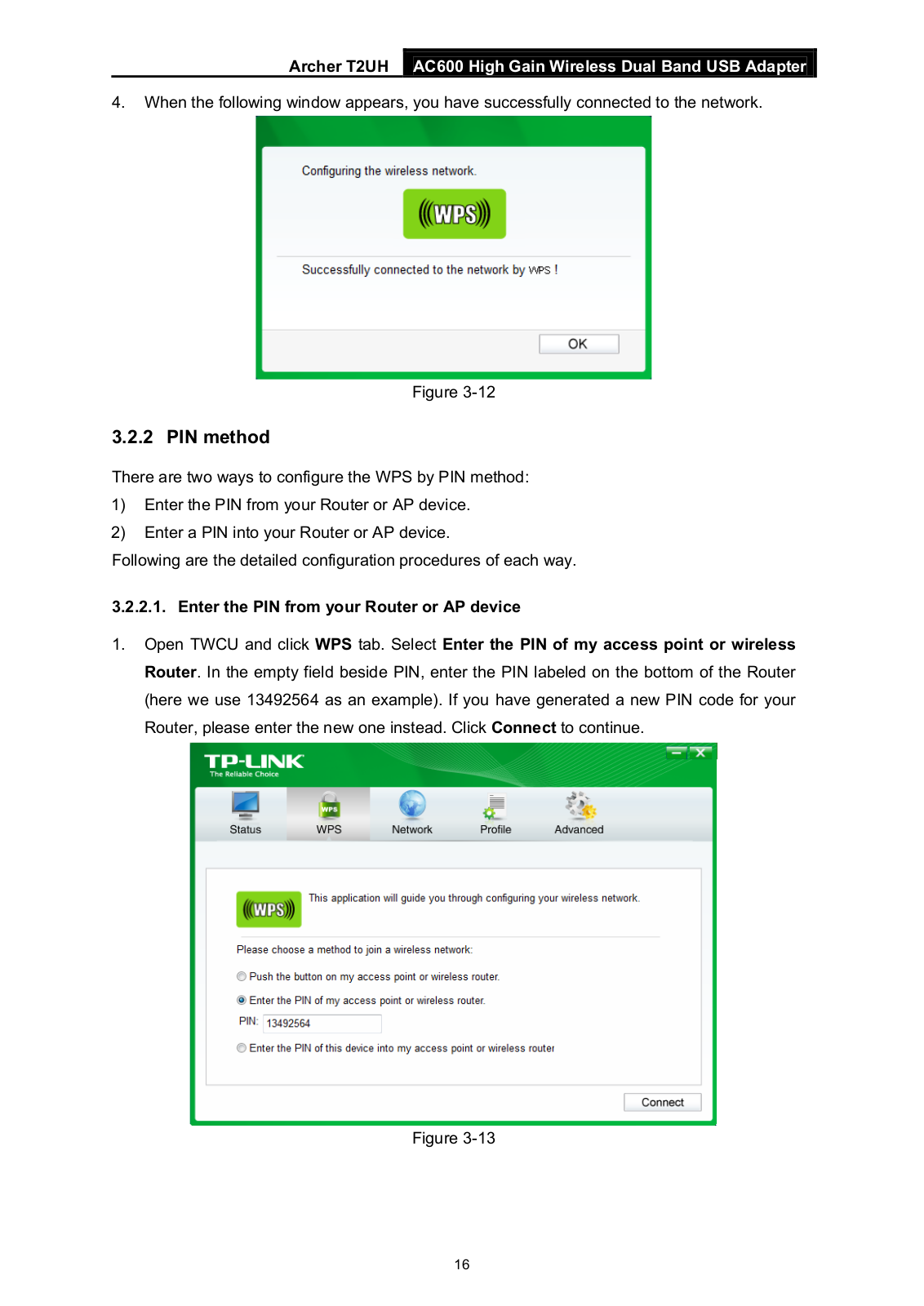

PIN method .............................................................................................. |
16 |
3.3 |
To connect using Windows built-in wireless utility................................................. |
18 |
|
|
3.3.1 |

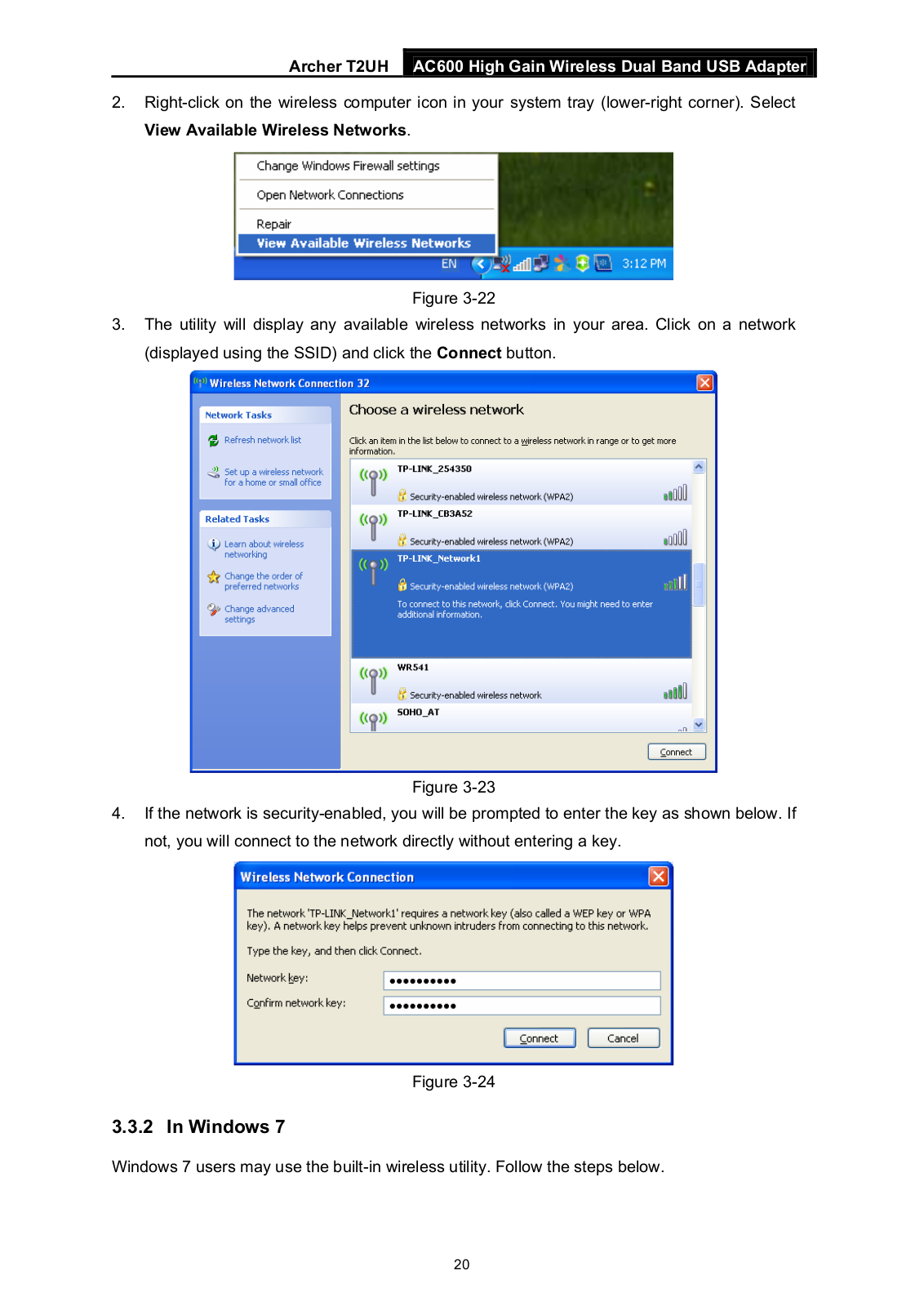

In Windows XP ......................................................................................... |
18 |
|
3.3.2 |
In Windows 7 ............................................................................................ |
20 |
|
3.3.3 |
In Windows 8 ............................................................................................ |
22 |
Chapter 4 |
Management........................................................................................ |
25 |
|
4.1 |
Profile |
.................................................................................................................... |
25 |
|
4.1.1 ............................................................................................. |

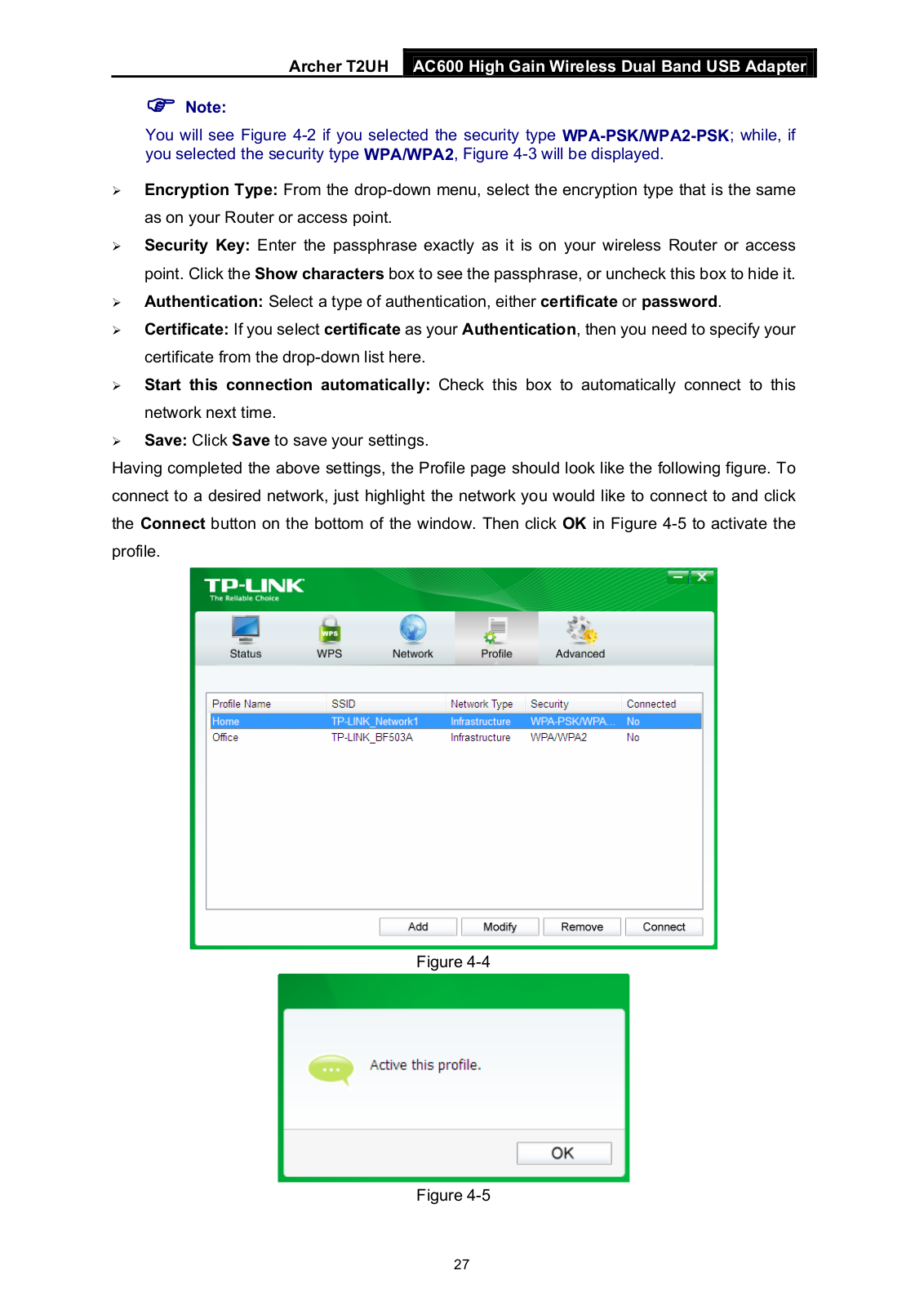

Add a profile |
25 |
|
4.1.2 ......................................................................................... |

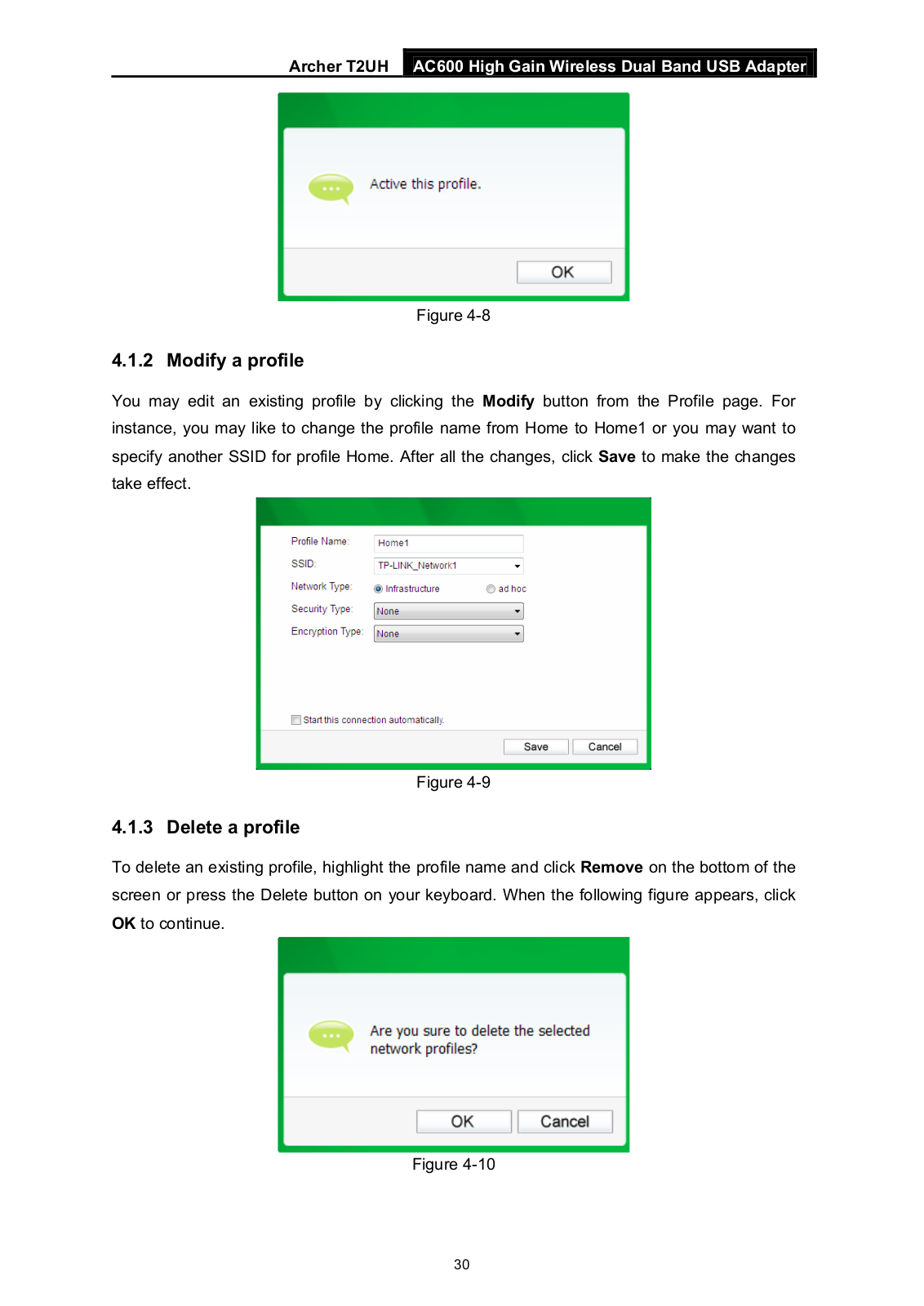

Modify a profile |
30 |
|
4.1.3 ......................................................................................... |
Delete a profile |
30 |
4.2 |
Advanced .............................................................................................................. |
31 |
|
4.3 |

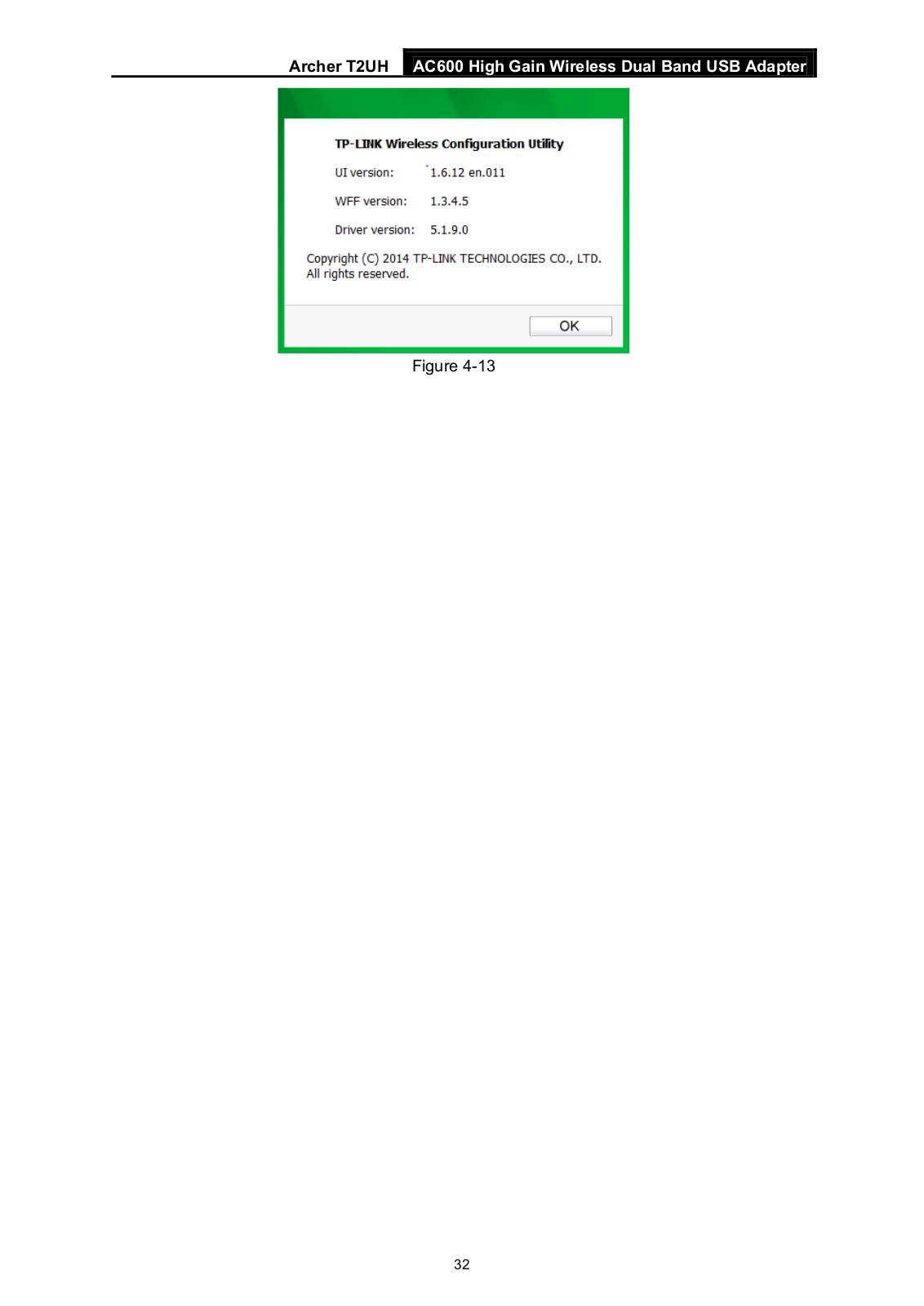

About..................................................................................................................... |
|
31 |
Chapter 5 |

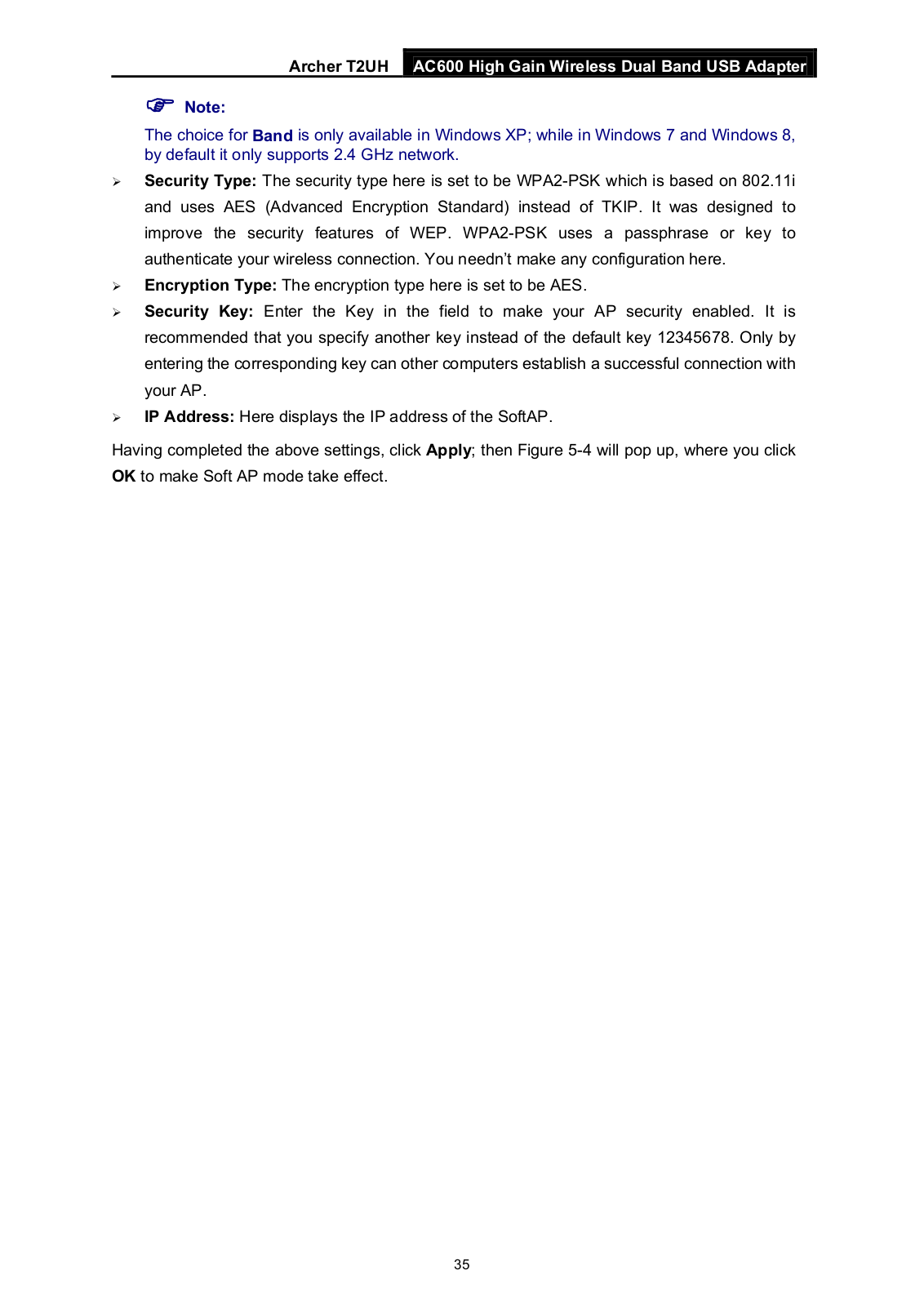

AP Mode .............................................................................................. |
33 |
|
Chapter 6 |
Uninstall ...............................................................................Software |
36 |
|
6.1 |
In Windows ...................................................................................................XP/7 |
36 |
|
|
6.1.1 ................................................Uninstall the utility software from your PC |
36 |
|
|

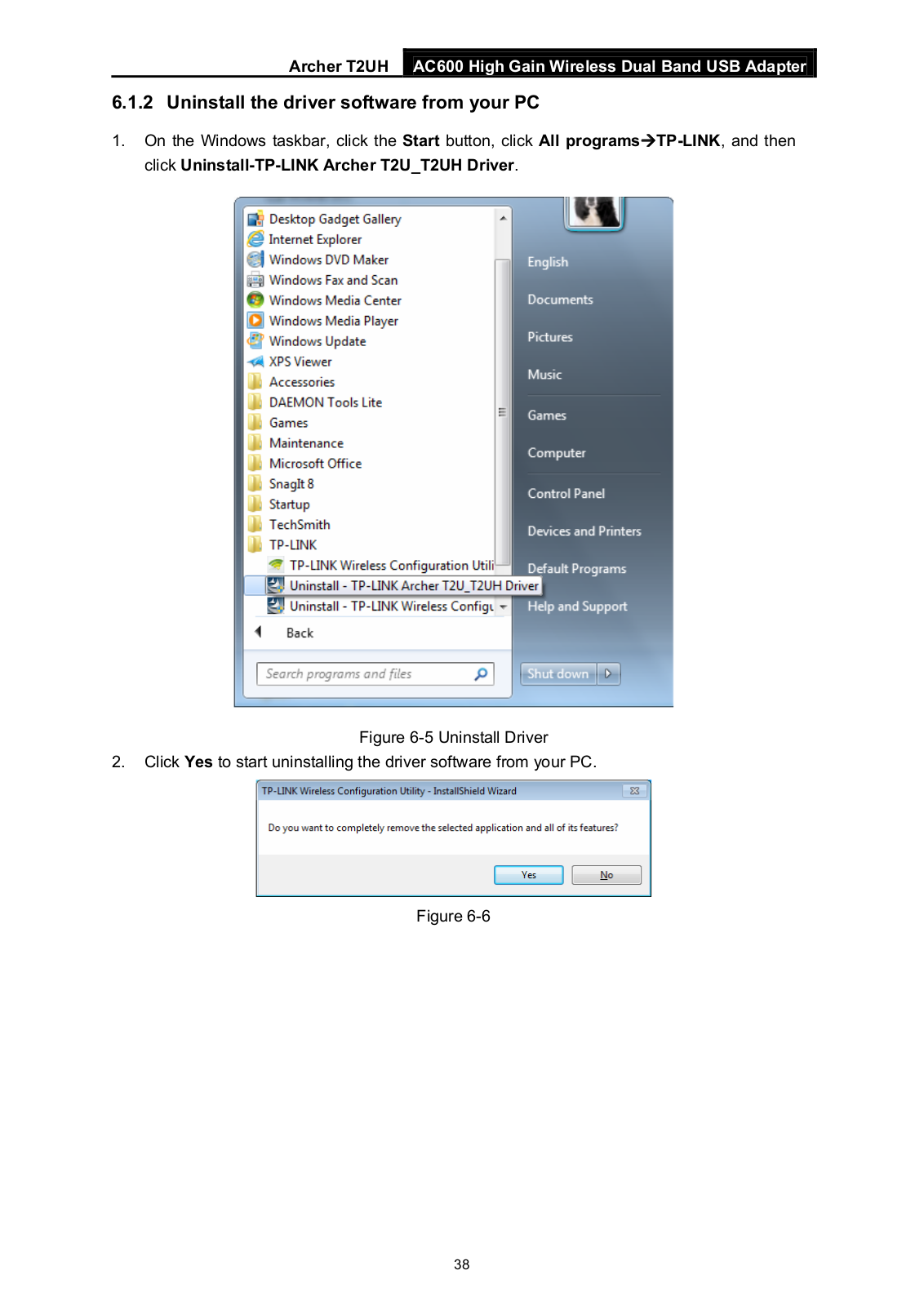

6.1.2 ...............................................Uninstall the driver software from your PC |
38 |
|
6.2 |
In Windows .........................................................................................................8 |
40 |
|
|
6.2.1 ................................................Uninstall the utility software from your PC |
40 |
|
|

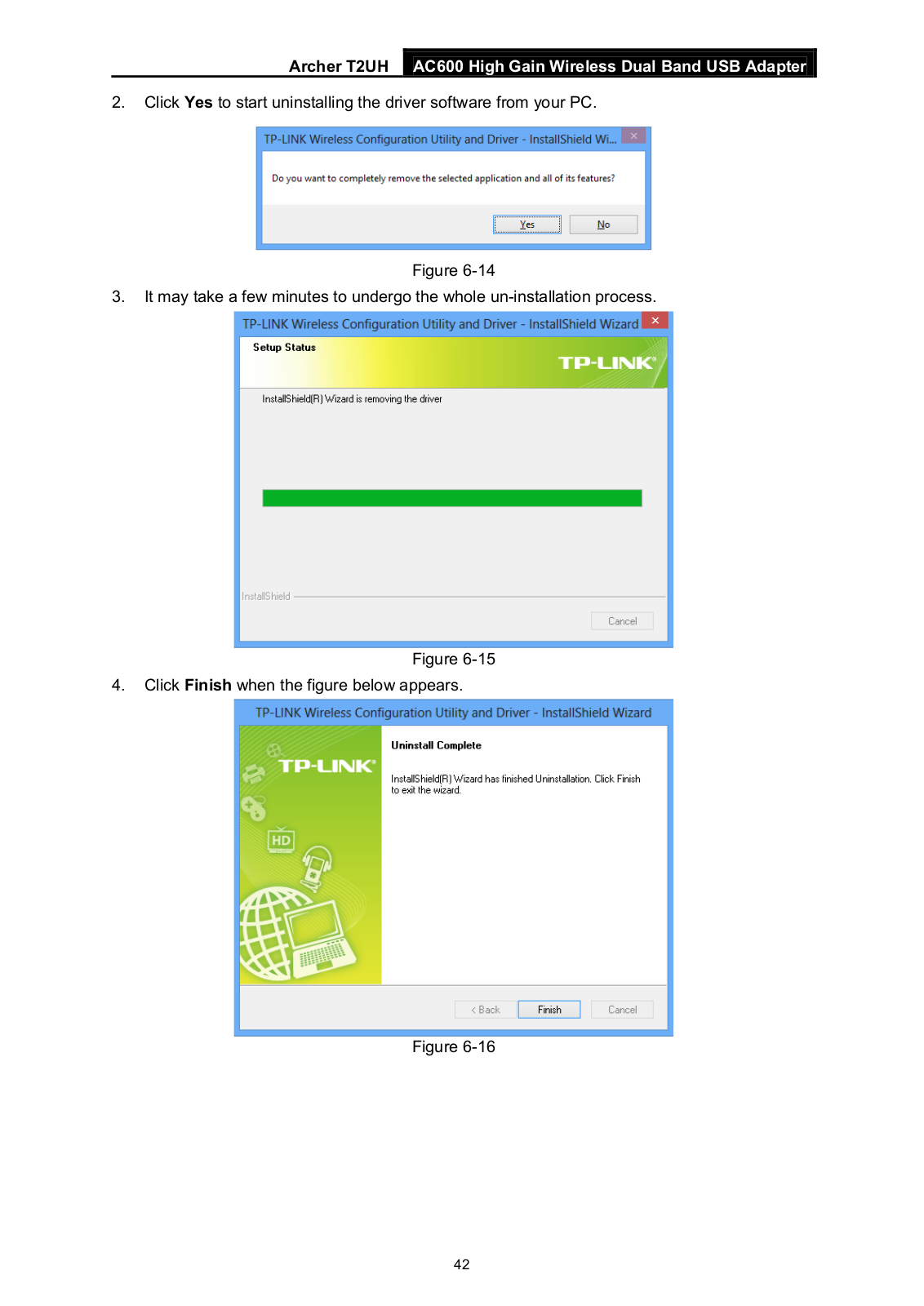

6.2.2 ...............................................Uninstall the driver software from your PC |
41 |
|
Appendix A: Specifications................................................................................... |
37 |
||
Appendix B: Glossary............................................................................................ |
38 |
||
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
Package Contents
Please verify that all the package contents below are available.
¾One Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
¾Quick Installation Guide
¾USB Cable
¾One Resource CD for Archer T2UH, including:
•TP-LINK Wireless Configuration Utility (TWCU) and Drivers
•User Guide
•Other helpful information
Make sure that the above items are contained in the package. If any of the above items is damaged or missing, please contact your distributor.
) Note:
The ‘adapter’ mentioned in this User Guide stands for Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter without any explanation.
1
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
Chapter 1 Product Overview
1.1Introduction
The adapter is a dual band 802.11ac client device designed to deliver a high-speed wireless performance for your desktop. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, and video streaming.
With the 802.11ac technology, higher throughput improvements using 1T1R, the Archer T2UH’s auto-sensing capability allows high packet transfer rate of up to 433Mbps for maximum throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless (802.11a/b/g/n/ac) products. The adapter supports WEP, WPA-PSK/WPA2-PSK and WPA/WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.
The adapter is easy to install and manage. The Quick Setup Wizard will guide you step-by-step through the installation process and the TP-LINK Wireless Configuration Utility (TWCU) will instruct you to quickly set up a wireless connection.
With unmatched wireless performance, reception, and security protection, the Archer T2UH is the best choice for easily adding or upgrading wireless connectivity to your desktop.
1.2Features
¾Complies with IEEE 802.11ac.
¾Provides USB 2.0 interface
¾Supports dual-band, 2.4GHz or 5GHz
¾Seamlessly compatible with 802.11a/b/g/n/ac products
¾Experience smoother video streaming and online gaming by choosing the clearer 5GHz band for wireless connections
¾Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1x
¾Supports Windows XP 32/64bit, Windows 7 32/64bit, Windows 8 32/64bit
¾Supports ad-hoc and infrastructure mode
¾Bundled utility provides quick & hassle-free installation
2
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
1.3Hardware Overview
LED status:
|
Status |
|
Working Status |
|
|
|
|
|
Off |
|
The driver has not been installed; |
|
|
The adapter's radio has been disabled. |
|
|
|
|
|
|
|
|
|
|
Flashing Slowly |
|
The driver has been installed but no data is being transmitted or received. |
|
|
|
|
|
Flashing Quickly |
|
Data is being transmitted or received. |
|
|
|
|
3
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
Chapter 2 Installation
Please install the adapter into your computer before installing the driver and utility software from the Resource CD.
2.1Hardware Installation
There are two methods:
Method One:
Plug the adapter into an available USB interface on your computer directly.
Method Two:
Connect the adapter and your computer with the provided USB cable.
)Note:
When the hardware has been successfully installed on your computer, you may be prompted 'Found New Hardware Wizard' (as shown in Figure 2-1); please click Cancel, and then follow the Software Installation steps to install driver and utility for your adapter.
4
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
Figure 2-1 Found New Hardware Wizard in Windows XP
2.2Software Installation
The adapter’s Setup Wizard will guide you through the installation procedures for Windows XP, Windows 7 and Windows 8. The procedures in different systems are quite similar, therefore here we use the procedures in Windows 7 as an example.
1.Insert the Resource CD into your CD-ROM drive and then select model Archer T2UH on the window that pops up (as shown in the below Figure 2-2). There will be a menu including:
Install Driver&Utility and User Guide. Click Install Driver&Utility to begin.
Figure 2-2
5
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
2.The InstallShield Wizard window will appear. Click Next to continue.
Figure 2-3
3.Choose a setup type. It is recommended to select Install TP-LINK Wireless Configuration Utility and Driver. Selecting Install Driver Only can only install driver. Click Next to continue.
Figure 2-4
6
Archer T2UH AC600 High Gain Wireless Dual Band USB Adapter
4.Click Change to specify the destination location for the software or you can leave it default. Click Next in the screen below to continue.
Figure 2-5
5.Click Install to continue the setup.
Figure 2-6
7
Loading...
