Tp-Link T2600G-52TS User Manual

User Guide
T2600G Series Switches
T2600G-28TS (TL-SG3424) / T2600G-52TS (TL-SG3452)
T2600G-28MPS (TL-SG3424P) / T2600G-28SQ / T2600G-18TS
1910012455 REV3.1.1
July 2018
CONTENTS
Intended Readers ................................................................................................................................................................1
Conventions ...........................................................................................................................................................................1
More Information .................................................................................................................................................................2
Accessing the Switch
Overview ................................................................................................................................................................................4
Web Interface Access ........................................................................................................................................................5
Login .................................................................................................................................................................................................................5
Save the Configuration File ..................................................................................................................................................................6
Disable the Web Server .........................................................................................................................................................................7
Configure the Switch's IP Address and Default Gateway ...................................................................................................7
Command Line Interface Access ............................................................................................................................... 10
Console Login (only for switch with console port) ...............................................................................................................10
Telnet Login ...............................................................................................................................................................................................12

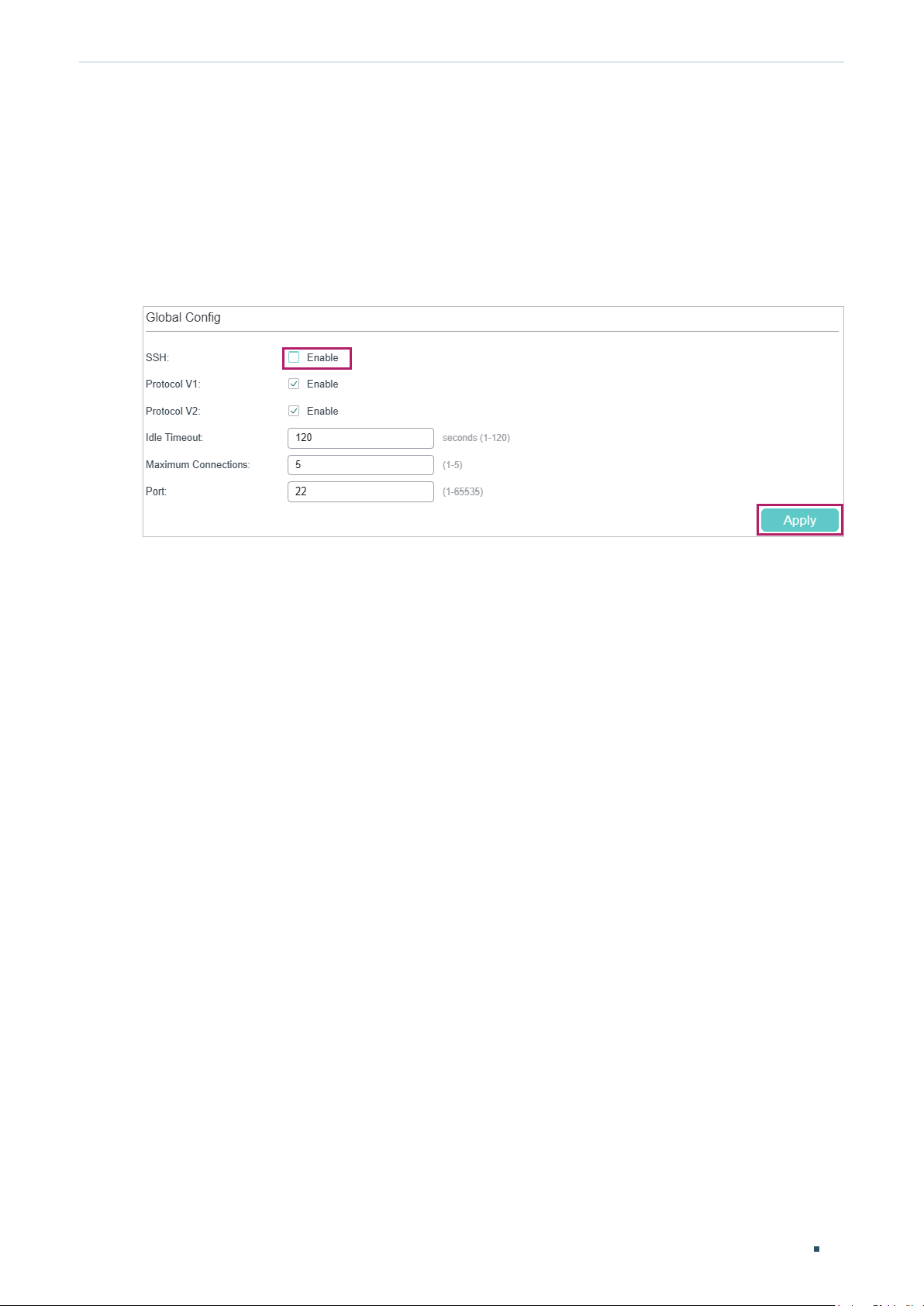

SSH Login ...................................................................................................................................................................................................13
Disable Telnet login ...............................................................................................................................................................................17
Disable SSH login ...................................................................................................................................................................................18
Copy running-config startup-config ............................................................................................................................................18
Change the Switch's IP Address and Default Gateway .....................................................................................................18
Managing System
System .................................................................................................................................................................................. 21
Overview ......................................................................................................................................................................................................21
Supported Features ..............................................................................................................................................................................21
System Info Configurations .......................................................................................................................................... 23
Using the GUI ............................................................................................................................................................................................23
Viewing the System Summary ...........................................................................................................................................23
Configuring the Device Description ...............................................................................................................................27
Configuring the System Time ............................................................................................................................................27
Configuring the Daylight Saving Time ...........................................................................................................................28
Using the CLI .............................................................................................................................................................................................29
Viewing the System Summary ...........................................................................................................................................29
Configuring the Device Description ...............................................................................................................................30
Configuring the System Time ............................................................................................................................................32
Configuring the Daylight Saving Time ...........................................................................................................................34
User Management Configurations ............................................................................................................................. 37
Using the GUI ............................................................................................................................................................................................37
Creating Accounts ...................................................................................................................................................................37
Configuring Enable Password ............................................................................................................................................38
Using the CLI .............................................................................................................................................................................................39
Creating Accounts ...................................................................................................................................................................39
Configuring Enable Password ............................................................................................................................................41
System Tools Configurations ...................................................................................................................................... 44
Using the GUI ............................................................................................................................................................................................44
Configuring the Boot File ......................................................................................................................................................44
Restoring the Configuration of the Switch .................................................................................................................46
Backing up the Configuration File ....................................................................................................................................46
Upgrading the Firmware ........................................................................................................................................................47
Configuring DHCP Auto Install...........................................................................................................................................47
Rebooting the switch ..............................................................................................................................................................49
Reseting the Switch .................................................................................................................................................................50
Using the CLI .............................................................................................................................................................................................50
Configuring the Boot File ......................................................................................................................................................50
Restoring the Configuration of the Switch .................................................................................................................52
Backing up the Configuration File ....................................................................................................................................52
Upgrading the Firmware ........................................................................................................................................................53
Configuring DHCP Auto Install...........................................................................................................................................53
Rebooting the Switch .............................................................................................................................................................55
Reseting the Switch .................................................................................................................................................................56

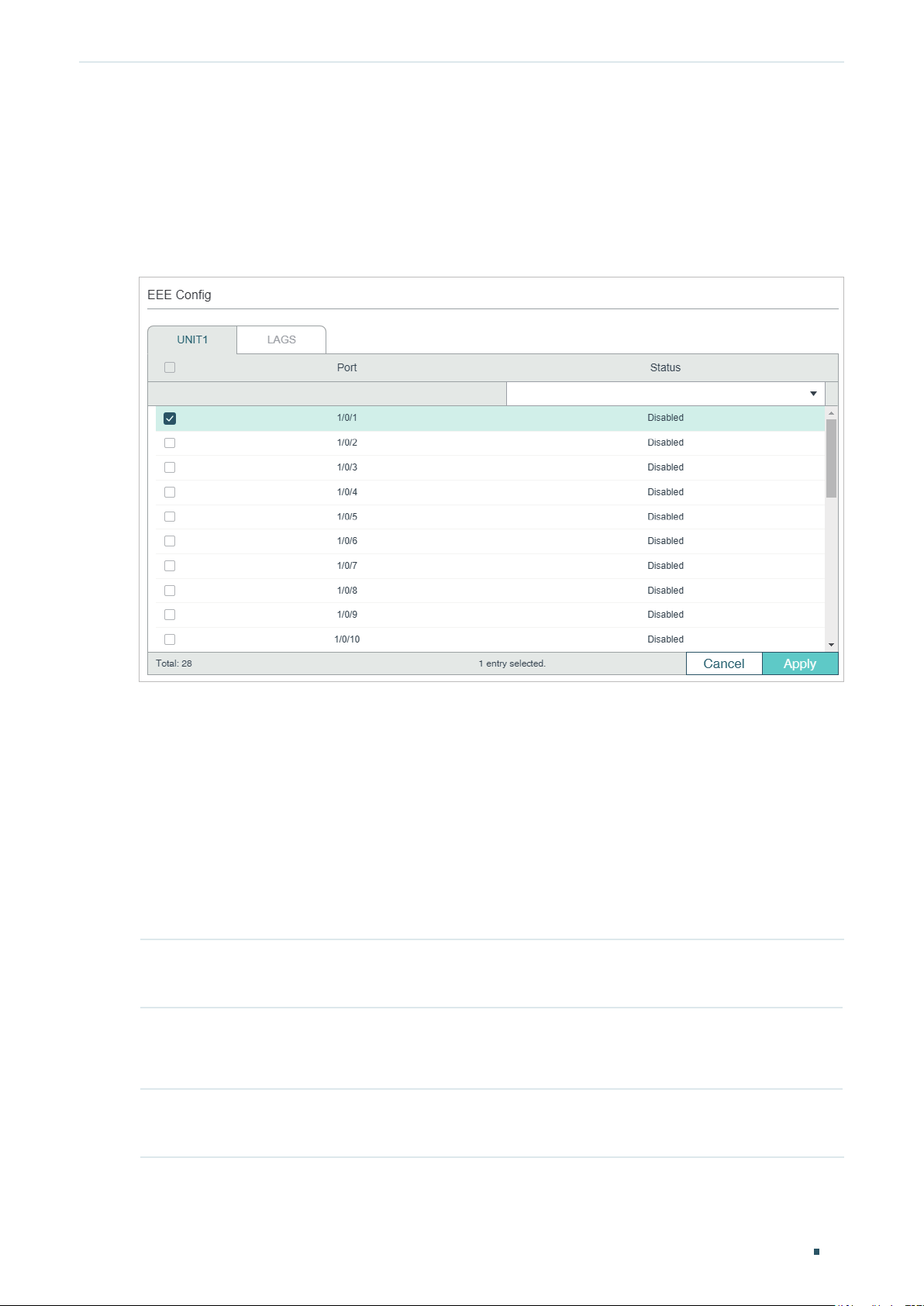

EEE Configuration ............................................................................................................................................................. 57
Using the CLI .............................................................................................................................................................................................57

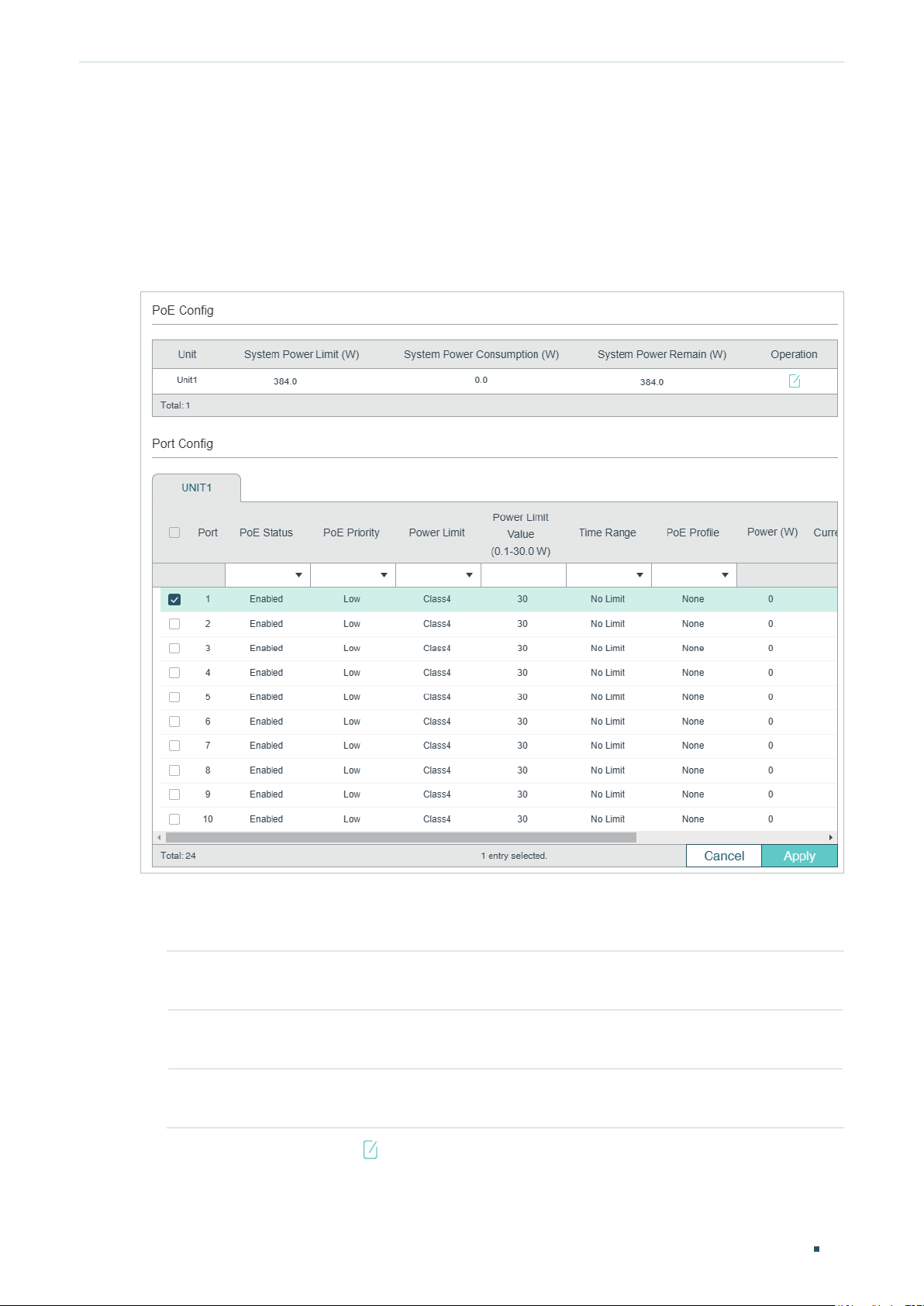

PoE Configurations .......................................................................................................................................................... 59
Using the GUI ............................................................................................................................................................................................60
Configuring the PoE Parameters Manually .................................................................................................................60
Configuring the PoE Parameters Using the Profile ................................................................................................63
Using the CLI .............................................................................................................................................................................................66
Configuring the PoE Parameters Manually .................................................................................................................66
Configuring the PoE Parameters Using the Profile ................................................................................................68
SDM Template Configuration ....................................................................................................................................... 71
Using the GUI ............................................................................................................................................................................................71
Using the CLI .............................................................................................................................................................................................72
Time Range Configuration ............................................................................................................................................. 75
Using the GUI ............................................................................................................................................................................................75
Adding Time Range Entries .................................................................................................................................................75
Configuring Holiday .................................................................................................................................................................77
Using the CLI .............................................................................................................................................................................................78
Adding Time Range Entries .................................................................................................................................................78
Configuring Holiday .................................................................................................................................................................79
Example for PoE Configurations ................................................................................................................................. 81
Network Requirements ........................................................................................................................................................................81
Configuring Scheme .............................................................................................................................................................................81
Using the GUI ............................................................................................................................................................................................81
Using the CLI .............................................................................................................................................................................................84
Appendix: Default Parameters ..................................................................................................................................... 86
Managing Physical Interfaces
Physical Interface ............................................................................................................................................................. 90
Overview ......................................................................................................................................................................................................90
Supported Features ..............................................................................................................................................................................90
Basic Parameters Configurations ............................................................................................................................... 91
Using the GUI ............................................................................................................................................................................................91
Using the CLI .............................................................................................................................................................................................92
Port Isolation Configurations ....................................................................................................................................... 95
Using the GUI ............................................................................................................................................................................................95
Using the CLI .............................................................................................................................................................................................96
Loopback Detection Configuration ........................................................................................................................... 98
Using the GUI ............................................................................................................................................................................................98
Using the CLI ..........................................................................................................................................................................................100
Configuration Examples ...............................................................................................................................................102
Example for Port Isolation ...............................................................................................................................................................102
Network Requirements .......................................................................................................................................................102
Configuration Scheme ........................................................................................................................................................102
Using the GUI ............................................................................................................................................................................102
Using the CLI ............................................................................................................................................................................104
Example for Loopback Detection...............................................................................................................................................105
Network Requirements .......................................................................................................................................................105
Configuration Scheme ........................................................................................................................................................105
Using the GUI ............................................................................................................................................................................106
Using the CLI ............................................................................................................................................................................107
Appendix: Default Parameters ...................................................................................................................................108
Configuring LAG
LAG .......................................................................................................................................................................................110
Overview ...................................................................................................................................................................................................110
Supported Features ...........................................................................................................................................................................110
LAG Configuration ..........................................................................................................................................................111
Using the GUI .........................................................................................................................................................................................112
Configuring Load-balancing Algorithm .....................................................................................................................112
Configuring Static LAG or LACP....................................................................................................................................113
Using the CLI ..........................................................................................................................................................................................115
Configuring Load-balancing Algorithm .....................................................................................................................115
Configuring Static LAG or LACP....................................................................................................................................116
Configuration Examples ...............................................................................................................................................120
Example for Static LAG ....................................................................................................................................................................120
Network Requirements .......................................................................................................................................................120
Configuration Scheme ........................................................................................................................................................120
Using the GUI ............................................................................................................................................................................120
Using the CLI ............................................................................................................................................................................121
Example for LACP ...............................................................................................................................................................................122
Network Requirements .......................................................................................................................................................122
Configuration Scheme ........................................................................................................................................................122
Using the GUI ............................................................................................................................................................................123
Using the CLI ............................................................................................................................................................................123
Appendix: Default Parameters ...................................................................................................................................126
Configuring DDM
Overview ............................................................................................................................................................................128
DDM Configuration.........................................................................................................................................................129
Using the GUI .........................................................................................................................................................................................129
Configuring DDM Globally .................................................................................................................................................129
Configuring the Threshold ................................................................................................................................................130
Viewing DDM Status .............................................................................................................................................................135
Using the CLI ..........................................................................................................................................................................................135
Configuring DDM Globally .................................................................................................................................................135
Configuring DDM Shutdown ............................................................................................................................................136
Configuring the Threshold ................................................................................................................................................137
Viewing DDM Configuration .............................................................................................................................................143
Viewing DDM Status .............................................................................................................................................................144
Appendix: Default Parameters ...................................................................................................................................145
Managing MAC Address Table
MAC Address Table .......................................................................................................................................................147
Overview ...................................................................................................................................................................................................147
Supported Features ...........................................................................................................................................................................147
Address Configurations ...............................................................................................................................................149
Using the GUI .........................................................................................................................................................................................149
Adding Static MAC Address Entries ..........................................................................................................................149
Modifying the Aging Time of Dynamic Address Entries...................................................................................151
Adding MAC Filtering Address Entries.......................................................................................................................152
Viewing Address Table Entries .......................................................................................................................................152
Using the CLI ..........................................................................................................................................................................................153
Adding Static MAC Address Entries ..........................................................................................................................153
Modifying the Aging Time of Dynamic Address Entries...................................................................................154
Adding MAC Filtering Address Entries.......................................................................................................................155
Security Configurations ...............................................................................................................................................157
Using the GUI .........................................................................................................................................................................................157
Configuring MAC Notification Traps ...........................................................................................................................157
Limiting the Number of MAC Addresses Learned in VLANs .........................................................................158
Using the CLI ..........................................................................................................................................................................................160
Configuring MAC Notification Traps ...........................................................................................................................160
Limiting the Number of MAC Addresses in VLANs ............................................................................................162
Example for Security Configurations ......................................................................................................................164
Network Requirements .....................................................................................................................................................................164
Configuration Scheme .....................................................................................................................................................................164
Using the GUI .........................................................................................................................................................................................165
Using the CLI ..........................................................................................................................................................................................166
Appendix: Default Parameters ...................................................................................................................................167
Configuring 802.1Q VLAN
Overview ...........................................................................................................................................................................169
802.1Q VLAN Configuration .......................................................................................................................................170
Using the GUI .........................................................................................................................................................................................170
Configuring the PVID of the Port ...................................................................................................................................170
Configuring the VLAN ..........................................................................................................................................................172
Using the CLI ..........................................................................................................................................................................................173
Creating a VLAN .....................................................................................................................................................................173
Configuring the Port .............................................................................................................................................................174
Adding the Port to the Specified VLAN .....................................................................................................................175
Configuration Example .................................................................................................................................................177
Network Requirements .....................................................................................................................................................................177
Configuration Scheme .....................................................................................................................................................................177
Network Topology ...............................................................................................................................................................................178
Using the GUI .........................................................................................................................................................................................178
Using the CLI ..........................................................................................................................................................................................181
Appendix: Default Parameters ..................................................................................................................................184
Configuring MAC VLAN
Overview ............................................................................................................................................................................186
MAC VLAN Configuration ............................................................................................................................................187
Using the GUI .........................................................................................................................................................................................187
Configuring 802.1Q VLAN ................................................................................................................................................187
Binding the MAC Address to the VLAN .....................................................................................................................187
Enabling MAC VLAN for the Port ...................................................................................................................................188
Using the CLI ..........................................................................................................................................................................................189
Configuring 802.1Q VLAN ................................................................................................................................................189
Enabling MAC VLAN for the Port ...................................................................................................................................190
Configuration Example ................................................................................................................................................191
Network Requirements .....................................................................................................................................................................191
Configuration Scheme .....................................................................................................................................................................191
Using the GUI .........................................................................................................................................................................................192
Using the CLI ..........................................................................................................................................................................................197
Appendix: Default Parameters ...................................................................................................................................201
Configuring Protocol VLAN
Overview ............................................................................................................................................................................203
Protocol VLAN Configuration.....................................................................................................................................204
Using the GUI .........................................................................................................................................................................................204
Configuring 802.1Q VLAN ................................................................................................................................................204
Creating Protocol Template ............................................................................................................................................205
Configuring Protocol VLAN .............................................................................................................................................206
Using the CLI ..........................................................................................................................................................................................207
Configuring 802.1Q VLAN ................................................................................................................................................207
Creating a Protocol Template .........................................................................................................................................207
Configuring Protocol VLAN ..............................................................................................................................................208
Configuration Example ................................................................................................................................................211
Network Requirements .....................................................................................................................................................................211
Configuration Scheme .....................................................................................................................................................................211
Using the GUI .........................................................................................................................................................................................213
Using the CLI ..........................................................................................................................................................................................219
Appendix: Default Parameters ...................................................................................................................................223
Configuring VLAN-VPN
VLAN-VPN .........................................................................................................................................................................225
Overview ...................................................................................................................................................................................................225
Supported Features ...........................................................................................................................................................................226
Basic VLAN-VPN Configuration ................................................................................................................................227
Using the GUI .........................................................................................................................................................................................227
Configuring 802.1Q VLAN ................................................................................................................................................227
Configuring Basic VLAN-VPN .........................................................................................................................................228
Using the CLI ..........................................................................................................................................................................................229
Configuring 802.1Q VLAN ................................................................................................................................................229
Configuring Basic VLAN-VPN .........................................................................................................................................229
Flexible VLAN-VPN Configuration ............................................................................................................................232
Using the GUI .........................................................................................................................................................................................232
Using the CLI ..........................................................................................................................................................................................233
Configuration Examples ...............................................................................................................................................235
Example for Basic VLAN VPN .......................................................................................................................................................235
Network Requirements .......................................................................................................................................................235
Configuration Scheme ........................................................................................................................................................235
Using the GUI ............................................................................................................................................................................236
Using the CLI ............................................................................................................................................................................242
Example for Flexible VLAN VPN ..................................................................................................................................................246
Network Requirements .......................................................................................................................................................246
Configuration Scheme ........................................................................................................................................................246
Using the GUI ............................................................................................................................................................................247
Using the CLI ............................................................................................................................................................................255
Appendix: Default Parameters ...................................................................................................................................258
Configuring GVRP
Overview ............................................................................................................................................................................260
GVRP Configuration .......................................................................................................................................................261
Using the GUI .........................................................................................................................................................................................262
Using the CLI ..........................................................................................................................................................................................263
Configuration Example .................................................................................................................................................266
Network Requirements .....................................................................................................................................................................266
Configuration Scheme .....................................................................................................................................................................266
Using the GUI .........................................................................................................................................................................................267
Using the CLI ..........................................................................................................................................................................................271
Appendix: Default Parameters ...................................................................................................................................275
Configuring Private VLAN
Overview ............................................................................................................................................................................277
Private VLAN Configurations .....................................................................................................................................279
Using the GUI .........................................................................................................................................................................................279
Using the CLI ..........................................................................................................................................................................................280
Creating Private VLAN.........................................................................................................................................................280
Configuring the Up-link Port ............................................................................................................................................282
Configuring the Down-link Port ......................................................................................................................................284
Configuration Example .................................................................................................................................................286
Network Requirements .....................................................................................................................................................................286
Configuration Scheme .....................................................................................................................................................................286
Network Topology ...............................................................................................................................................................................286
Using the GUI .........................................................................................................................................................................................287
Using the CLI ..........................................................................................................................................................................................291
Appendix: Default Parameters ...................................................................................................................................295
Configuring Layer 2 Multicast
Layer 2 Multicast .............................................................................................................................................................297
Overview ...................................................................................................................................................................................................297
Supported Features ...........................................................................................................................................................................299
IGMP Snooping Configuration ...................................................................................................................................300
Using the GUI .........................................................................................................................................................................................300
Configuring IGMP Snooping Globally .........................................................................................................................300
Configuring IGMP Snooping for VLANs ....................................................................................................................301
Configuring IGMP Snooping for Ports ........................................................................................................................305
Configuring Hosts to Statically Join a Group .........................................................................................................305
Configuring IGMP Accounting and Authentication Features ........................................................................306
Using the CLI ..........................................................................................................................................................................................308
Configuring IGMP Snooping Globally .........................................................................................................................308
Configuring IGMP Snooping for VLANs ....................................................................................................................309
Configuring IGMP Snooping for Ports ........................................................................................................................314
Configuring Hosts to Statically Join a Group .........................................................................................................315
Configuring IGMP Accounting and Authentication Features ........................................................................316
MLD Snooping Configuration .....................................................................................................................................319
Using the GUI .........................................................................................................................................................................................319
Configuring MLD Snooping Globally ...........................................................................................................................319
Configuring MLD Snooping for VLANs ......................................................................................................................320
Configuring MLD Snooping for Ports .........................................................................................................................323
Configuring Hosts to Statically Join a Group .........................................................................................................323
Using the CLI ..........................................................................................................................................................................................324
Configuring MLD Snooping Globally ...........................................................................................................................324
Configuring MLD Snooping for VLANs ......................................................................................................................325
Configuring MLD Snooping for Ports .........................................................................................................................330
Configuring Hosts to Statically Join a Group .........................................................................................................331
MVR Configuration .........................................................................................................................................................333
Using the GUI .........................................................................................................................................................................................333
Configuring 802.1Q VLANs ..............................................................................................................................................333
Configuring MVR Globally ..................................................................................................................................................334
Adding Multicast Groups to MVR ..................................................................................................................................335
Configuring MVR for the Port ..........................................................................................................................................336
(Optional) Adding Ports to MVR Groups Statically .............................................................................................337
Using the CLI ..........................................................................................................................................................................................338
Configuring 802.1Q VLANs ..............................................................................................................................................338
Configuring MVR Globally ..................................................................................................................................................338
Configuring MVR for the Ports .......................................................................................................................................340
Multicast Filtering Configuration ...............................................................................................................................343
Using the GUI .........................................................................................................................................................................................343
Creating the Multicast Profile ..........................................................................................................................................343
Configure Multicast Filtering for Ports .......................................................................................................................345
Using the CLI ..........................................................................................................................................................................................346
Creating the Multicast Profile ..........................................................................................................................................346
Binding the Profile to Ports ...............................................................................................................................................349
Viewing Multicast Snooping Information ...............................................................................................................353
Using the GUI .........................................................................................................................................................................................353
Viewing IPv4 Multicast Table ...........................................................................................................................................353
Viewing IPv4 Multicast Statistics on Each Port .....................................................................................................354
Viewing IPv6 Multicast Table ...........................................................................................................................................355
Viewing IPv6 Multicast Statistics on Each Port .....................................................................................................356
Using the CLI ..........................................................................................................................................................................................357
Viewing IPv4 Multicast Snooping Information .......................................................................................................357
Viewing IPv6 Multicast Snooping Configurations ................................................................................................357
Configuration Examples ...............................................................................................................................................358
Example for Configuring Basic IGMP Snooping .................................................................................................................358
Network Requirements .......................................................................................................................................................358
Configuration Scheme ........................................................................................................................................................358
Using the GUI ............................................................................................................................................................................359
Using the CLI ............................................................................................................................................................................361
Example for Configuring MVR ......................................................................................................................................................363
Network Requirements .......................................................................................................................................................363
Network Topology .................................................................................................................................................................363
Configuration Scheme ........................................................................................................................................................364
Using the GUI ............................................................................................................................................................................364
Using the CLI ............................................................................................................................................................................367
Example for Configuring Unknown Multicast and Fast Leave ....................................................................................370
Network Requirement ..........................................................................................................................................................370
Configuration Scheme ........................................................................................................................................................371
Using the GUI ............................................................................................................................................................................371
Using the CLI ............................................................................................................................................................................373
Example for Configuring Multicast Filtering ..........................................................................................................................374
Network Requirements .......................................................................................................................................................374
Configuration Scheme ........................................................................................................................................................374
Network Topology .................................................................................................................................................................375
Using the GUI ............................................................................................................................................................................375
Using the CLI ............................................................................................................................................................................379
Appendix: Default Parameters ..................................................................................................................................382
Default Parameters for IGMP Snooping .................................................................................................................................382
Default Parameters for MLD Snooping ...................................................................................................................................383
Default Parameters for MVR ..........................................................................................................................................................384
Default Parameters for Multicast Filtering .............................................................................................................................384
Configuring Spanning Tree
Spanning Tree ..................................................................................................................................................................386
Overview ...................................................................................................................................................................................................386
Basic Concepts ....................................................................................................................................................................................386
STP/RSTP Concepts ............................................................................................................................................................386
MSTP Concepts .....................................................................................................................................................................390
STP Security ...........................................................................................................................................................................................391
STP/RSTP Configurations ...........................................................................................................................................394
Using the GUI .........................................................................................................................................................................................394
Configuring STP/RSTP Parameters on Ports .........................................................................................................394
Configuring STP/RSTP Globally .....................................................................................................................................396
Verifying the STP/RSTP Configurations ....................................................................................................................398
Using the CLI ..........................................................................................................................................................................................400
Configuring STP/RSTP Parameters on Ports .........................................................................................................400
Configuring Global STP/RSTP Parameters .............................................................................................................402
Enabling STP/RSTP Globally ............................................................................................................................................404
MSTP Configurations ....................................................................................................................................................406
Using the GUI .........................................................................................................................................................................................406
Configuring Parameters on Ports in CIST ................................................................................................................406
Configuring the MSTP Region ........................................................................................................................................409
Configuring MSTP Globally ...............................................................................................................................................413
Verifying the MSTP Configurations .............................................................................................................................415
Using the CLI ..........................................................................................................................................................................................416
Configuring Parameters on Ports in CIST ................................................................................................................416
Configuring the MSTP Region .......................................................................................................................................418
Configuring Global MSTP Parameters .......................................................................................................................421
Enabling Spanning Tree Globally...................................................................................................................................423
STP Security Configurations ......................................................................................................................................426
Using the GUI .........................................................................................................................................................................................426
Using the CLI ..........................................................................................................................................................................................427
Configuring the STP Security ..........................................................................................................................................427
Configuration Example for MSTP .............................................................................................................................430
Network Requirements .....................................................................................................................................................................430
Configuration Scheme .....................................................................................................................................................................430
Using the GUI .........................................................................................................................................................................................431
Using the CLI ..........................................................................................................................................................................................437
Appendix: Default Parameters ...................................................................................................................................444
Configuring LLDP
LLDP .....................................................................................................................................................................................447
Overview ...................................................................................................................................................................................................447
Supported Features ...........................................................................................................................................................................447
LLDP Configurations .....................................................................................................................................................448
Using the GUI .........................................................................................................................................................................................448
Configuring LLDP Globally ................................................................................................................................................448
Configuring LLDP For the Port .......................................................................................................................................450
Using the CLI ..........................................................................................................................................................................................451
Global Config ............................................................................................................................................................................451
Port Config .................................................................................................................................................................................453
LLDP-MED Configurations ..........................................................................................................................................456
Using the GUI .........................................................................................................................................................................................456
Configuring LLDP Globally ...............................................................................................................................................456
Configuring LLDP-MED Globally ...................................................................................................................................456
Configuring LLDP-MED for Ports ..................................................................................................................................457
Using the CLI ..........................................................................................................................................................................................459
Global Config ............................................................................................................................................................................459
Port Config .................................................................................................................................................................................460
Viewing LLDP Settings..................................................................................................................................................463
Using GUI ..................................................................................................................................................................................................463
Viewing LLDP Device Info .................................................................................................................................................463
Viewing LLDP Statistics .....................................................................................................................................................466
Using CLI ..................................................................................................................................................................................................467
Viewing LLDP-MED Settings ......................................................................................................................................468
Using GUI ..................................................................................................................................................................................................468
Using CLI ..................................................................................................................................................................................................470
Configuration Examples ...............................................................................................................................................471
Example for LLDP ................................................................................................................................................................................471
Network Requirements .......................................................................................................................................................471
Configuration Scheme ........................................................................................................................................................471
Using the GUI ............................................................................................................................................................................471
Using CLI .....................................................................................................................................................................................472
Example for LLDP-MED ...................................................................................................................................................................478
Network Requirements .......................................................................................................................................................478
Configuration Scheme ........................................................................................................................................................478
Using the GUI ............................................................................................................................................................................478
Using CLI .....................................................................................................................................................................................481
Appendix: Default Parameters ...................................................................................................................................484
Configuring L2PT
Overview ............................................................................................................................................................................486
L2PT Configuration ........................................................................................................................................................488
Using the GUI .........................................................................................................................................................................................488
Using the CLI ..........................................................................................................................................................................................489
Configuration Example .................................................................................................................................................493
Network Requirements .....................................................................................................................................................................493
Configuration Scheme .....................................................................................................................................................................493
Using the GUI .........................................................................................................................................................................................493
Using the CLI ..........................................................................................................................................................................................494
Appendix: Default Parameters ...................................................................................................................................496
Configuring PPPoE ID Insertion
Overview ............................................................................................................................................................................498
PPPoE ID Insertion Configuration .............................................................................................................................499
Using the GUI .........................................................................................................................................................................................499
Using the CLI ..........................................................................................................................................................................................500
Appendix: Default Parameters ...................................................................................................................................503
Configuring Layer 3 Interfaces
Overview ............................................................................................................................................................................505
Layer 3 Interface Configurations ..............................................................................................................................506
Using the GUI .........................................................................................................................................................................................506
Creating a Layer 3 Interface .............................................................................................................................................506
Configuring IPv4 Parameters of the Interface .......................................................................................................508
Configuring IPv6 Parameters of the Interface .......................................................................................................509
Viewing Detail Information of the Interface .............................................................................................................512
Using the CLI ..........................................................................................................................................................................................513
Creating a Layer 3 Interface .............................................................................................................................................513
Configuring IPv4 Parameters of the Interface .......................................................................................................515
Configuring IPv6 Parameters of the Interface .......................................................................................................516
Configuration Example ..................................................................................................................................519
Network Requirement ................................................................................................................................... 519
Configuration Scheme .................................................................................................................................. 519
Using the GUI .................................................................................................................................................... 519
Using the CLI ............................................................................................................................................................................520
Appendix: Default Parameters ...................................................................................................................................522
Configuring Routing
Overview ............................................................................................................................................................................524
IPv4 Static Routing Configuration ............................................................................................................................525
Using the GUI .........................................................................................................................................................................................525
Using the CLI ..........................................................................................................................................................................................526
IPv6 Static Routing Configuration ............................................................................................................................527
Using the GUI .........................................................................................................................................................................................527
Using the CLI ..........................................................................................................................................................................................527
Viewing Routing Table ..................................................................................................................................................529
Using the GUI .........................................................................................................................................................................................529
Viewing IPv4 Routing Table ..............................................................................................................................................529
Viewing IPv6 Routing Table ..............................................................................................................................................530
Using the CLI ..........................................................................................................................................................................................530
Viewing IPv4 Routing Table ..............................................................................................................................................530
Viewing IPv6 Routing Table ..............................................................................................................................................531
Example for Static Routing ..........................................................................................................................................532
Network Requirements .....................................................................................................................................................................532
Configuration Scheme .....................................................................................................................................................................532
Using the GUI .........................................................................................................................................................................................532
Using the CLI ..........................................................................................................................................................................................534
Configuring DHCP Service
DHCP ...................................................................................................................................................................................538
Overview ...................................................................................................................................................................................................538
Supported Features ...........................................................................................................................................................................538
DHCP Server Configuration ........................................................................................................................................541
Using the GUI .........................................................................................................................................................................................541
Enabling DHCP Server ........................................................................................................................................................541
Configuring DHCP Server Pool ......................................................................................................................................543
Configuring Manual Binding .............................................................................................................................................544
Using the CLI ..........................................................................................................................................................................................545
Enabling DHCP Server ........................................................................................................................................................545
Configuring DHCP Server Pool ......................................................................................................................................548
Configuring Manual Binding .............................................................................................................................................551
DHCP Relay Configuration ..........................................................................................................................................553
Using the GUI .........................................................................................................................................................................................553
Enabling DHCP Relay and Configuring Option 82 ...............................................................................................553
Configuring DHCP Interface Relay ...............................................................................................................................555
Configuring DHCP VLAN Relay ......................................................................................................................................555
Using the CLI ..........................................................................................................................................................................................557
Enabling DHCP Relay ...........................................................................................................................................................557
(Optional) Configuring Option 82 ..................................................................................................................................558
Configuring DHCP Interface Relay ...............................................................................................................................560
Configuring DHCP VLAN Relay ......................................................................................................................................561
DHCP L2 Relay Configuration ....................................................................................................................................563
Using the GUI .........................................................................................................................................................................................563
Enabling DHCP L2 Relay ....................................................................................................................................................563
Configuring Option 82 for Ports ....................................................................................................................................564
Using the CLI ..........................................................................................................................................................................................565
Enabling DHCP L2 Relay ....................................................................................................................................................565
Configuring Option 82 for Ports ....................................................................................................................................566
Configuration Examples ...............................................................................................................................................568
Example for DHCP Server ...............................................................................................................................................................568
Network Requirements .......................................................................................................................................................568
Configuration Scheme ........................................................................................................................................................568
Using the GUI ............................................................................................................................................................................568
Using the CLI ............................................................................................................................................................................569
Example for DHCP Interface Relay ............................................................................................................................................570
Network Requirements .......................................................................................................................................................570
Configuration Scheme ........................................................................................................................................................571
Using the GUI ............................................................................................................................................................................571
Using the CLI ............................................................................................................................................................................579
Example for DHCP VLAN Relay ...................................................................................................................................................581
Network Requirements .......................................................................................................................................................581
Configuration Scheme ........................................................................................................................................................582
Using the GUI ............................................................................................................................................................................582
Using the CLI ............................................................................................................................................................................586
Example for DHCP L2 Relay ..........................................................................................................................................................588
Network Requirements .......................................................................................................................................................588
Configuration Scheme ........................................................................................................................................................589
Using the GUI ............................................................................................................................................................................589
Using CLI .....................................................................................................................................................................................591
Appendix: Default Parameters ...................................................................................................................................593
Configuring ARP
Overview ............................................................................................................................................................................597
Supported Features ...........................................................................................................................................................................597
ARP Configurations ........................................................................................................................................................599
Using the GUI .........................................................................................................................................................................................599
Viewing the ARP Entries .....................................................................................................................................................599
Adding Static ARP Entries Manually ............................................................................................................................600
Configuring Gratuitous ARP .............................................................................................................................................600
Configuring Proxy ARP ........................................................................................................................................................601
Configuring Local Proxy ARP ..........................................................................................................................................602
Using the CLI ..........................................................................................................................................................................................603
Configuring the ARP Entry ................................................................................................................................................603
Configuring the Gratuitous ARP ...................................................................................................................................605
Configuring Proxy ARP ......................................................................................................................................................608
Appendix: Default Parameters ...................................................................................................................................610
Configuring QoS
QoS .......................................................................................................................................................................................612
Overview ...................................................................................................................................................................................................612
Supported Features ...........................................................................................................................................................................612
Class of Service Configuration ..................................................................................................................................614
Using the GUI .........................................................................................................................................................................................615
Configuring Port Priority .....................................................................................................................................................615
Configuring 802.1p Priority ..............................................................................................................................................617
Configuring DSCP Priority .................................................................................................................................................620
Specifying the Scheduler Settings ..............................................................................................................................624
Using CLI ..................................................................................................................................................................................................626
Configuring Port Priority .....................................................................................................................................................626
Configuring 802.1p Priority ..............................................................................................................................................628
Configuring DSCP Priority .................................................................................................................................................631
Specifying the Scheduler Settings ..............................................................................................................................637
Bandwidth Control Configuration .............................................................................................................................639
Using the GUI .........................................................................................................................................................................................639
Configuring Rate Limit .........................................................................................................................................................639
Configuring Storm Control ...............................................................................................................................................640
Using the CLI ..........................................................................................................................................................................................641
Configuring Rate Limit .........................................................................................................................................................641
Configuring Storm Control ...............................................................................................................................................642
Voice VLAN Configuration ..........................................................................................................................................645
Using the GUI .........................................................................................................................................................................................645
Configuring OUI Addresses .............................................................................................................................................645
Configuring Voice VLAN Globally .................................................................................................................................646
Adding Ports to Voice VLAN ...........................................................................................................................................647
Using the CLI ..........................................................................................................................................................................................648
Auto VoIP Configuration ..............................................................................................................................................651
Using the GUI .........................................................................................................................................................................................651
Using the CLI ..........................................................................................................................................................................................652
Configuration Examples ...............................................................................................................................................656
Example for Class of Service ........................................................................................................................................................656
Network Requirements .......................................................................................................................................................656
Configuration Scheme ........................................................................................................................................................656
Using the GUI ............................................................................................................................................................................657
Using the CLI ............................................................................................................................................................................659
Example for Voice VLAN .................................................................................................................................................................661
Network Requirements .......................................................................................................................................................661
Configuration Scheme ........................................................................................................................................................662
Using the GUI ............................................................................................................................................................................662
Using the CLI ............................................................................................................................................................................666
Example for Auto VoIP ......................................................................................................................................................................669
Network Requirements .......................................................................................................................................................669
Configuration Scheme ........................................................................................................................................................670
Using the GUI ............................................................................................................................................................................670
Using the CLI ............................................................................................................................................................................677
Appendix: Default Parameters ...................................................................................................................................682
Configuring Access Security
Access Security ..............................................................................................................................................................687
Overview ...................................................................................................................................................................................................687
Supported Features ...........................................................................................................................................................................687
Access Security Configurations ...............................................................................................................................688
Using the GUI .........................................................................................................................................................................................688
Configuring the Access Control Feature ..................................................................................................................688
Configuring the HTTP Function .....................................................................................................................................691
Configuring the HTTPS Function ..................................................................................................................................693
Configuring the SSH Feature ..........................................................................................................................................696
Configuring the Telnet Function ....................................................................................................................................697
Configuring the Serial Port Parameters.....................................................................................................................698
Using the CLI ..........................................................................................................................................................................................698
Configuring the Access Control ....................................................................................................................................698
Configuring the HTTP Function .....................................................................................................................................700
Configuring the HTTPS Function ..................................................................................................................................702
Configuring the SSH Feature ..........................................................................................................................................704
Configuring the Telnet Function ....................................................................................................................................707
Configuring the Serial Port Parameters.....................................................................................................................707
Appendix: Default Parameters ...................................................................................................................................708
Configuring AAA
Overview ............................................................................................................................................................................711
AAA Configuration ..........................................................................................................................................................712
Using the GUI .........................................................................................................................................................................................713
Adding Servers ........................................................................................................................................................................713
Configuring Server Groups ...............................................................................................................................................715
Configuring the Method List ............................................................................................................................................715
Configuring the AAA Application List .........................................................................................................................717
Configuring Login Account and Enable Password .............................................................................................718
Using the CLI ..........................................................................................................................................................................................719
Adding Servers ........................................................................................................................................................................719
Configuring Server Groups ...............................................................................................................................................721
Configuring the Method List ............................................................................................................................................722
Configuring the AAA Application List .........................................................................................................................724
Configuring Login Account and Enable Password .............................................................................................728
Configuration Examples ...............................................................................................................................................730
Network Requirements .....................................................................................................................................................................730
Configuration Scheme .....................................................................................................................................................................730
Using the GUI .........................................................................................................................................................................................731
Using the CLI ..........................................................................................................................................................................................734
Appendix: Default Parameters ...................................................................................................................................736
Configuring 802.1x
Overview ............................................................................................................................................................................739
802.1x Configuration .....................................................................................................................................................740
Using the GUI .........................................................................................................................................................................................740
Configuring the RADIUS Server .....................................................................................................................................740
Configuring 802.1x Globally .............................................................................................................................................743
Configuring 802.1x on Ports ............................................................................................................................................744
View the Authenticator State ..........................................................................................................................................746
Using the CLI ..........................................................................................................................................................................................747
Configuring the RADIUS Server .....................................................................................................................................747
Configuring 802.1x Globally .............................................................................................................................................749
Configuring 802.1x on Ports ............................................................................................................................................751
Viewing Authenticator State ............................................................................................................................................753
Configuration Example .................................................................................................................................................755
Network Requirements .....................................................................................................................................................................755
Configuration Scheme .....................................................................................................................................................................755
Network Topology ...............................................................................................................................................................................755
Using the GUI .........................................................................................................................................................................................756
Using the CLI ..........................................................................................................................................................................................758
Appendix: Default Parameters ...................................................................................................................................761
Configuring Port Security
Overview ............................................................................................................................................................................763
Port Security Configuration ........................................................................................................................................764
Using the GUI .........................................................................................................................................................................................764
Using the CLI ..........................................................................................................................................................................................765
Appendix: Default Parameters ...................................................................................................................................768
Configuring ACL
Overview ............................................................................................................................................................................770
ACL Configuration ..........................................................................................................................................................771
Using the GUI .........................................................................................................................................................................................771
Configuring Time Range ..................................................................................................................................................771
Creating an ACL ......................................................................................................................................................................771
Configuring ACL Rules ........................................................................................................................................................772
Configuring MAC ACL Rule ..............................................................................................................................772
Configuring IP ACL Rule .....................................................................................................................................776
Configuring Combined ACL Rule ..................................................................................................................780
Configuring the IPv6 ACL Rule .......................................................................................................................785
Configuring the Packet Content ACL Rule ..............................................................................................789
Configuring ACL Binding ....................................................................................................................................................793
Using the CLI ..........................................................................................................................................................................................795
Configuring Time Range ..................................................................................................................................................795
Configuring ACL .....................................................................................................................................................................795
Configuring Policy ..................................................................................................................................................................804
Configuring ACL Binding ....................................................................................................................................................806
Viewing ACL Counting ........................................................................................................................................................807
Configuration Example for ACL .................................................................................................................................808
Configuration Example for MAC ACL .......................................................................................................................................808
Network Requirements .......................................................................................................................................................808
Configuration Scheme ........................................................................................................................................................808
Using the GUI ............................................................................................................................................................................809
Using the CLI ............................................................................................................................................................................815
Configuration Example for IP ACL ..............................................................................................................................................816
Network Requirements .......................................................................................................................................................816
Configuration Scheme ........................................................................................................................................................817
Using the GUI ............................................................................................................................................................................817
Using the CLI ............................................................................................................................................................................824
Configuration Example for Combined ACL ...........................................................................................................................826
Network Requirements .......................................................................................................................................................826
Configuration Scheme ........................................................................................................................................................826
Using the GUI ............................................................................................................................................................................827
Using the CLI ............................................................................................................................................................................832
Appendix: Default Parameters ...................................................................................................................................834
Configuring IPv4 IMPB
IPv4 IMPB ...........................................................................................................................................................................837
Overview ...................................................................................................................................................................................................837
Supported Features ...........................................................................................................................................................................837
IP-MAC Binding Configuration ...................................................................................................................................838
Using the GUI .........................................................................................................................................................................................838
Binding Entries Manually ....................................................................................................................................................838
Binding Entries via ARP Scanning .................................................................................................................................840
Binding Entries via DHCP Snooping ............................................................................................................................841
Viewing the Binding Entries ..............................................................................................................................................843
Using the CLI ..........................................................................................................................................................................................844
Binding Entries Manually ....................................................................................................................................................844
Binding Entries via DHCP Snooping ............................................................................................................................846
Viewing Binding Entries ......................................................................................................................................................847
ARP Detection Configuration .....................................................................................................................................848
Using the GUI .........................................................................................................................................................................................848
Adding IP-MAC Binding Entries .....................................................................................................................................848
Enabling ARP Detection .....................................................................................................................................................848
Configuring ARP Detection on Ports ..........................................................................................................................849
Viewing ARP Statistics ........................................................................................................................................................850
Using the CLI ..........................................................................................................................................................................................851
Adding IP-MAC Binding Entries .....................................................................................................................................851
Enabling ARP Detection .....................................................................................................................................................851
Configuring ARP Detection on Ports ..........................................................................................................................853
Viewing ARP Statistics ........................................................................................................................................................854
IPv4 Source Guard Configuration .............................................................................................................................855
Using the GUI .........................................................................................................................................................................................855
Adding IP-MAC Binding Entries .....................................................................................................................................855
Configuring IPv4 Source Guard .....................................................................................................................................855
Using the CLI ..........................................................................................................................................................................................856
Adding IP-MAC Binding Entries .....................................................................................................................................856
Configuring IPv4 Source Guard .....................................................................................................................................856
Configuration Examples ...............................................................................................................................................858
Example for ARP Detection ...........................................................................................................................................................858
Network Requirements .......................................................................................................................................................858
Configuration Scheme ........................................................................................................................................................858
Using the GUI ............................................................................................................................................................................859
Using the CLI ............................................................................................................................................................................861
Example for IP Source Guard ........................................................................................................................................................863
Network Requirements .......................................................................................................................................................863
Configuration Scheme ........................................................................................................................................................863
Using the GUI ............................................................................................................................................................................863
Using the CLI ............................................................................................................................................................................865
Appendix: Default Parameters ...................................................................................................................................867
Configuring IPv6 IMPB
IPv6 IMPB ...........................................................................................................................................................................870
Overview ...................................................................................................................................................................................................870
Supported Features ...........................................................................................................................................................................870
IPv6-MAC Binding Configuration ..............................................................................................................................872
Using the GUI .........................................................................................................................................................................................872
Binding Entries Manually ....................................................................................................................................................872
Binding Entries via ND Snooping ...................................................................................................................................874
Binding Entries via DHCPv6 Snooping.......................................................................................................................875
Viewing the Binding Entries ..............................................................................................................................................877
Using the CLI ..........................................................................................................................................................................................878
Binding Entries Manually ....................................................................................................................................................878
Binding Entries via ND Snooping ...................................................................................................................................880
Binding Entries via DHCPv6 Snooping.......................................................................................................................881
Viewing Binding Entries ......................................................................................................................................................882
ND Detection Configuration .......................................................................................................................................883
Using the GUI .........................................................................................................................................................................................883
Adding IPv6-MAC Binding Entries ................................................................................................................................883
Enabling ND Detection ........................................................................................................................................................883
Configuring ND Detection on Ports .............................................................................................................................884
Viewing ND Statistics ...........................................................................................................................................................884
Using the CLI ..........................................................................................................................................................................................885
Adding IPv6-MAC Binding Entries ................................................................................................................................885
Enabling ND Detection ........................................................................................................................................................885
Configuring ND Detection on Ports .............................................................................................................................886
Viewing ND Statistics ...........................................................................................................................................................887
IPv6 Source Guard Configuration .............................................................................................................................888
Using the GUI .........................................................................................................................................................................................888
Adding IPv6-MAC Binding Entries ................................................................................................................................888
Configuring IPv6 Source Guard .....................................................................................................................................888
Using the CLI ..........................................................................................................................................................................................889
Adding IPv6-MAC Binding Entries ................................................................................................................................889
Configuring IPv6 Source Guard .....................................................................................................................................889
Configuration Examples ...............................................................................................................................................891
Example for ND Detection ..............................................................................................................................................................891
Network Requirements .......................................................................................................................................................891
Configuration Scheme ........................................................................................................................................................891
Using the GUI ............................................................................................................................................................................892
Using the CLI ............................................................................................................................................................................894
Example for IPv6 Source Guard ..................................................................................................................................................895
Network Requirements .......................................................................................................................................................895
Configuration Scheme ........................................................................................................................................................896
Using the GUI ............................................................................................................................................................................896
Using the CLI ............................................................................................................................................................................898
Appendix: Default Parameters ...................................................................................................................................899
Configuring DHCP Filter
DHCP Filter ........................................................................................................................................................................902
Overview ...................................................................................................................................................................................................902
Supported Features ...........................................................................................................................................................................902
DHCPv4 Filter Configuration ......................................................................................................................................904
Using the GUI .........................................................................................................................................................................................904
Configuring the Basic DHCPv4 Filter Parameters ...............................................................................................904
Configuring Legal DHCPv4 Servers ............................................................................................................................906
Using the CLI ..........................................................................................................................................................................................906
Configuring the Basic DHCPv4 Filter Parameters ...............................................................................................906
Configuring Legal DHCPv4 Servers ............................................................................................................................908
DHCPv6 Filter Configuration ......................................................................................................................................910
Using the GUI .........................................................................................................................................................................................910
Configuring the Basic DHCPv6 Filter Parameters ...............................................................................................910
Configuring Legal DHCPv6 Servers ............................................................................................................................911
Using the CLI ..........................................................................................................................................................................................912
Configuring the Basic DHCPv6 Filter Parameters ...............................................................................................912
Configuring Legal DHCPv6 Servers ............................................................................................................................913
Configuration Examples ...............................................................................................................................................915
Example for DHCPv4 Filter .............................................................................................................................................................915
Network Requirements .......................................................................................................................................................915
Configuration Scheme ........................................................................................................................................................915
Using the GUI ............................................................................................................................................................................916
Using the CLI ............................................................................................................................................................................917
Example for DHCPv6 Filter .............................................................................................................................................................918
Network Requirements .......................................................................................................................................................918
Configuration Scheme ........................................................................................................................................................919
Using the GUI ............................................................................................................................................................................919
Using the CLI ............................................................................................................................................................................921
Appendix: Default Parameters ...................................................................................................................................922
Configuring DoS Defend
Overview ............................................................................................................................................................................924
DoS Defend Configuration ..........................................................................................................................................925
Using the GUI .........................................................................................................................................................................................925
Using the CLI ..........................................................................................................................................................................................926
Appendix: Default Parameters ...................................................................................................................................929
Monitoring the System
Overview ...........................................................................................................................................................................931
Monitoring the CPU .......................................................................................................................................................932
Using the GUI .........................................................................................................................................................................................932
Using the CLI ..........................................................................................................................................................................................932
Monitoring the Memory ................................................................................................................................................934
Using the GUI .........................................................................................................................................................................................934
Using the CLI ..........................................................................................................................................................................................934
Monitoring Traffic
Traffic Monitor .................................................................................................................................................................937
Using the GUI .........................................................................................................................................................................................937
Using the CLI ..........................................................................................................................................................................................941
Appendix: Default Parameters ...................................................................................................................................942
Mirroring Traffic
Mirroring .............................................................................................................................................................................944
Using the GUI .........................................................................................................................................................................................944
Using the CLI ..........................................................................................................................................................................................946
Configuration Examples ...............................................................................................................................................948
Network Requirements .....................................................................................................................................................................948
Configuration Scheme .....................................................................................................................................................................948
Using the GUI .........................................................................................................................................................................................948
Using the CLI ..........................................................................................................................................................................................949
Appendix: Default Parameters ...................................................................................................................................951
Configuring sFlow
Overview ...........................................................................................................................................................................953
sFlow Configuration .......................................................................................................................................................954
Using the GUI .........................................................................................................................................................................................954
Configuring the sFlow Agent ...........................................................................................................................................954
Configuring the sFlow Collector ....................................................................................................................................955
Configuring the sFlow Sampler .....................................................................................................................................955
Using the CLI ..........................................................................................................................................................................................957
Configuration Example .................................................................................................................................................960
Network Requirements .....................................................................................................................................................................960
Configuration Scheme .....................................................................................................................................................................960
Using the GUI .........................................................................................................................................................................................960
Using the CLI ..........................................................................................................................................................................................961
Appendix: Default Parameters ...................................................................................................................................963
Configuring OAM
Ethernet OAM ...................................................................................................................................................................965
Overview ...................................................................................................................................................................................................965
Supported Features ...........................................................................................................................................................................966
Ethernet OAM Configurations ....................................................................................................................................969
Using the GUI .........................................................................................................................................................................................969
Enabling OAM and Configuring OAM Mode ...........................................................................................................969
Configuring Link Monitoring .............................................................................................................................................970
Configuring RFI ........................................................................................................................................................................972
Configuring Remote Loopback ......................................................................................................................................973
Viewing OAM Status .............................................................................................................................................................974
Using the CLI ..........................................................................................................................................................................................976
Enabling OAM and Configuring OAM Mode ...........................................................................................................976
Configuring Link Monitoring .............................................................................................................................................977
Configuring Remote Failure Indication .......................................................................................................................983
Configuring Remote Loopback ......................................................................................................................................984
Verifying OAM Connection ...............................................................................................................................................985
Viewing OAM Statistics ................................................................................................................................................988
Using the GUI .........................................................................................................................................................................................988
Viewing OAMPDUs ................................................................................................................................................................988
Viewing Event Logs...............................................................................................................................................................990
Using the CLI ..........................................................................................................................................................................................991
Viewing OAMPDUs ................................................................................................................................................................991
Viewing Event Logs...............................................................................................................................................................993
Configuration Example .................................................................................................................................................995
Network Requirements .....................................................................................................................................................................995
Configuration Scheme ........................................................................................................................................................995
Using the GUI ............................................................................................................................................................................995
Using the CLI ............................................................................................................................................................................999
Appendix: Default Parameters ................................................................................................................................ 1003
Configuring DLDP
Overview ........................................................................................................................................................................ 1005
DLDP Configuration .................................................................................................................................................... 1006
Using the GUI ......................................................................................................................................................................................1006
Using the CLI .......................................................................................................................................................................................1008
Appendix: Default Parameters ................................................................................................................................ 1010
Configuring SNMP & RMON
SNMP ............................................................................................................................................................................... 1012
Overview ................................................................................................................................................................................................1012
Basic Concepts .................................................................................................................................................................................1012
SNMP Configurations ................................................................................................................................................. 1016
Using the GUI ......................................................................................................................................................................................1016
Enabling SNMP .....................................................................................................................................................................1016
Creating an SNMP View...................................................................................................................................................1017
Creating SNMP Communities (For SNMP v1/v2c) ...........................................................................................1018
Creating an SNMP Group (For SNMP v3)...............................................................................................................1019
Creating SNMP Users (For SNMP v3) ......................................................................................................................1020
Using the CLI .......................................................................................................................................................................................1021
Enabling SNMP .....................................................................................................................................................................1021
Creating an SNMP View...................................................................................................................................................1023
Creating SNMP Communities (For SNMP v1/v2c) ...........................................................................................1024
Creating an SNMP Group (For SNMPv3) ................................................................................................................1025
Creating SNMP Users (For SNMPv3) .......................................................................................................................1027
Notification Configurations ...................................................................................................................................... 1029
Using the GUI ......................................................................................................................................................................................1029
Configuring the Information of NMS Hosts ..........................................................................................................1029
Enabling SNMP Traps .......................................................................................................................................................1031
Using the CLI .......................................................................................................................................................................................1033
Configuring the NMS Host .............................................................................................................................................1033
Enabling SNMP Traps .......................................................................................................................................................1035
RMON ............................................................................................................................................................................... 1043
RMON Configurations ................................................................................................................................................ 1044
Using the GUI ......................................................................................................................................................................................1044
Configuring Statistics Group ........................................................................................................................................1044
Configuring History Group .............................................................................................................................................1045
Configuring Event Group ................................................................................................................................................1046
Configuring Alarm Group ................................................................................................................................................1047
Using the CLI .......................................................................................................................................................................................1049
Configuring Statistics .......................................................................................................................................................1049
Configuring History ............................................................................................................................................................1051
Configuring Event ...............................................................................................................................................................1052
Configuring Alarm ...............................................................................................................................................................1053
Configuration Example .............................................................................................................................................. 1056
Network Requirements ..................................................................................................................................................................1056
Configuration Scheme ..................................................................................................................................................................1057
Using the GUI ......................................................................................................................................................................................1057
Using the CLI .......................................................................................................................................................................................1062
Appendix: Default Parameters ................................................................................................................................ 1068
Diagnosing the Device & Network
Diagnosing the Device ............................................................................................................................................... 1073
Using the GUI ......................................................................................................................................................................................1073
Using the CLI .......................................................................................................................................................................................1074
Diagnosing the Network ............................................................................................................................................ 1075
Using the GUI ......................................................................................................................................................................................1075
Troubleshooting with Ping Testing ...........................................................................................................................1075
Troubleshooting with Tracert Testing .....................................................................................................................1076
Using the CLI .......................................................................................................................................................................................1077
Configuring the Ping Test ...............................................................................................................................................1077
Configuring the Tracert Test ........................................................................................................................................1078
Appendix: Default Parameters ................................................................................................................................ 1079
Configuring System Logs
Overview ......................................................................................................................................................................... 1081
System Logs Configurations ................................................................................................................................... 1082
Using the GUI ......................................................................................................................................................................................1083
Configuring the Local Logs ...........................................................................................................................................1083
Configuring the Remote Logs......................................................................................................................................1083
Backing up the Logs .........................................................................................................................................................1084
Viewing the Log Table ......................................................................................................................................................1085
Using the CLI .......................................................................................................................................................................................1086
Configuring the Local Logs ...........................................................................................................................................1086
Configuring the Remote Logs......................................................................................................................................1087
Configuration Example .............................................................................................................................................. 1089
Network Requirements ..................................................................................................................................................................1089
Configuration Scheme ..................................................................................................................................................................1089
Using the GUI .....................................................................................................................................................................................1089
Using the CLI ......................................................................................................................................................................................1090
Appendix: Default Parameters ................................................................................................................................ 1091
About This Guide Intended Readers

About This Guide

This Configuration Guide provides information for managing T2600G Series Switches. Please read this guide carefully before operation.

Intended Readers

This Guide is intended for network managers familiar with IT concepts and network terminologies.

Conventions

Some models featured in this guide may be unavailable in your country or region. For local sales information, visit https://www.tp-link.com.
When using this guide, please notice that features of the switch may vary slightly depending on the model and software version you have. All screenshots, images, parameters and descriptions documented in this guide are used for demonstration only.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Users must take full responsibility for their application of any products.
In this Guide, the following conventions are used:
The symbol make better use of your device.

For GUI:
Menu Name > Submenu Name > Tab page indicates the menu structure. SYSTEM > System Info > System Summary means the System Summary page under the System Info
menu option that is located under the SYSTEM menu.
stands for
. Notes contains suggestions or references that helps you
Note
Bold font indicates a button, a toolbar icon, menu or menu item.

For CLI:
Bold Font An unalterable keyword.
For example: show logging
Configuration Guide 1
About This Guide More Information
Normal Font A constant (several options are enumerated and only one can be
selected).
For example: no bandwidth {all | ingress | egress}
{} Items in braces { } are required.
[] Items in square brackets [ ] are optional.
| Alternative items are grouped in braces and separated by vertical bars |.
For example: speed {10 | 100 | 1000}
Italic Font
Common combination:
{[ ][ ][ ]} A least one item in the square brackets must be selected.
A variable (an actual value must be assigned).
For example: bridge aging-time
For example: bandwidth {[ingress
]}
rate
This command can be used on three occasions:
bandwidth ingress
bandwidth.
bandwidth egress
bandwidth.
bandwidth ingress
restrict ingress and egress bandwidth.
i
ngress-rate
egress-rate
ingress-rate
aging-time
ingress-rate
is used to restrict ingress
is used to restrict egress
egress
egress-rate
] [egress
is used to

More Information

egress-

The latest software and documentations can be found at Download Center at
https://www.tp-link.com/support.

The Installation Guide (IG) can be found where you find this guide or inside the package of the switch.

Specifications can be found on the product page at https://www.tp-link.com.

A Technical Support Forum is provided for you to discuss our products at
https://forum.tp-link.com.

Our Technical Support contact information can be found at the Contact Technical Support page at https://www.tp-link.com/support.
Configuration Guide 2
Part 1

Accessing the Switch

CHAPTERS
1. Overview
2. Web Interface Access
3. Command Line Interface Access
Accessing the Switch Overview
1

Overview

You can access and manage the switch using the GUI (Graphical User Interface, also called web interface in this text) or using the CLI (Command Line Interface). There are equivalent functions in the web interface and the command line interface, while web configuration is easier and more visual than the CLI configuration. You can choose the method according to their available applications and preference.
Configuration Guide 4
Accessing the Switch Web Interface Access
2

Web Interface Access

You can access the switch’s web interface through the web-based authentication. The switch uses two built-in web servers, HTTP server and HTTPS server, for user authentication.
The following example shows how to login via the HTTP server.

2.1 Login

To manage your switch through a web browser in the host PC:
1) Make sure that the route between the host PC and the switch is available.
2) Launch a web browser. The supported web browsers include, but are not limited to, the following types:

IE 8.0, 9.0, 10.0, 11.0

Firefox 26.0, 27.0

Chrome 32.0, 33.0
3) Enter the switch’s IP address in the web browser’s address bar. The switch’s default IP address is 192.168.0.1.
Figure 2-1 Enter the Switch's IP Addresss in the Browser
4) Enter the username and password in the pop-up login window. Use admin for both username and password in lower case letters.
Figure 2-2 Login Authentication
5) The typical web interface displays below. You can view the switch’s running status and configure the switch on this interface.
Configuration Guide
5
Accessing the Switch Web Interface Access
Figure 2-3 Web Interface

2.2 Save the Configuration File

The switch’s configuration files fall into two types: the running configuration file and the start-up configuration file.
After you perform configurations on the sub-interfaces and click Apply, the modifications will be saved in the running configuration file. The configurations will be lost when the switch reboots.
If you need to keep the configurations after the switch reboots, please click main interface to save the configurations in the start-up configuration file.
Figure 2-4 Save the Configuration
on the
Configuration Guide 6
Accessing the Switch Web Interface Access

2.3 Disable the Web Server

You can shut down the HTTP server or HTTPS server to block any access to the web interface.
SECURITY > Access Security > HTTP Config, disable the HTTP server and click Apply.
Go to
Figure 2-5 Shut Down HTTP Server
Go to
SECURITY
> Access Security > HTTPS Config
, disable the HTTPS server and click
Apply.
Figure 2-6 Disbale the HTTPS Server

2.4 Configure the Switch's IP Address and Default Gateway

If you want to access the switch via a specified port (hereafter referred to as the access port), you can configure the port as a routed port and specify its IP address, or configure the IP address of the VLAN which the access port belongs to.

Change the IP Address
By default, all the ports belong to VLAN 1 with the VLAN interface IP 192.168.0.1. The following example shows how to change the switch’s default access IP address
192.168.0.1.
1) Go to
L3 FEATURES > Interface
. The default access IP address in VLAN 1 in the Interface
List. Click Edit IPv4 to modify VLAN1’s IP address.
Configuration Guide
7
Accessing the Switch Web Interface Access
Figure 2-7 Change VLAN1's IP Address
2) Choose the IP Address Mode as Static. Enter the new access address in the IP Address field and click Apply. Make sure that the route between the host PC and the
switch’s new IP address is available.
Figure 2-8 Specify the IP Address
3) Enter the new IP address in the web browser to access the switch.
4) Click

Configure the Default Gateway
to save the settings.
The following example shows how to configure the switch’s gateway. By default, the switch has no default gateway.
1) Go to page
L3 FEATURES > Static Routing > IPv4 Static Routing Config
. Click to
load the following page and configure the parameters related to the switch’s gateway. Then click Create.
Configuration Guide 8
Accessing the Switch Web Interface Access
Figure 2-9 Configure the Default Gateway
Destination Specify the destination as 0.0.0.0.
Subnet Mask Specify the subnet mask as 255.255.255.0.
Next Hop Configure your desired default gateway as the next hop’s IP address.
Distance Specify the distance as 1.
2) Click to save the settings.
3) Check the routing table to verify the default gateway you configured. The entry marked in red box displays the valid default gateway.
Figure 2-10 View the Default Gateway
Configuration Guide
9
Accessing the Switch Command Line Interface Access
3

Command Line Interface Access

Users can access the switch's command line interface through the console (only for switch with console port), Telnet or SSH connection, and manage the switch with the command
lines.
Console connection requires the host PC connecting to the switch’s console port directly, while Telnet and SSH connection support both local and remote access.
The following table shows the typical applications used in the CLI access.
Table 3-1 Method list
Method Using Port Typical Applications
Console Console port (connected
directly)
Telnet RJ-45 port CMD
SSH RJ-45 port Putty
Hyper Terminal

3.1 Console Login (only for switch with console port)

Follow these steps to log in to the switch via the Console port:
1) Connect the PC or terminal to the Console port on the switch with the serial cable.
2) Start the terminal emulation program (such as the Hyper Terminal) on the PC and configure the terminal emulation program as follows:

Baud Rate: 38400bps

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None
3) Press Enter in the main window and Switch> will appear, indicating that you have successfully logged in to the switch and you can use the CLI now.
Configuration Guide 10
Accessing the Switch Command Line Interface Access
Figure 3-1 CLI Main Window
4) Enter enable to enter the User EXEC Mode to further configure the switch.
Figure 3-2 User EXEC Mode
Note:
In Windows XP, go to Start > All Programs > Accessories > Communications > Hyper Terminal to open the Hyper Terminal and configure the above settings to log in to the switch.
Configuration Guide
11
Accessing the Switch Command Line Interface Access

3.2 Telnet Login

The switch supports Login Local Mode for authentication by default.
Login Local Mode: Username and password are required, which are both admin by default.
The following steps show how to manage the switch via the Login Local Mode:
1) Make sure the switch and the PC are in the same LAN (Local Area Network). Click Start and type in cmd in the Search bar and press Enter.
Figure 3-3 Open the CMD Window
2) Type in telnet 192.168.0.1 in the CMD window and press Enter.
Figure 3-4  Log In to the Switch
3) Type in the login username and password (both admin by default). Press Enter and you will enter User EXEC Mode.
Figure 3-5 Enter User EXEC Mode
4) Type in enable command and you will enter Privileged EXEC Mode. By default no password is needed. Later you can set a password for users who want to access the Privileged EXEC Mode.
Configuration Guide 12
Accessing the Switch Command Line Interface Access
Figure 3-6 Enter Privileged EXEC Mode
Now you can manage your switch with CLI commands through Telnet connection.

3.3 SSH Login

SSH login supports the following two modes: Password Authentication Mode and Key Authentication Mode. You can choose one according to your needs:

Password Authentication Mode: Username and password are required, which are both admin by default.

Key Authentication Mode (Recommended): A public key for the switch and a private key for the client software (PuTTY) are required. You can generate the public key and the private key through the PuTTY Key Generator.
Before logging in via SSH, follow the steps below to enable SSH on the terminal emulation program:
Figure 3-7 Enable SSH
Password Authentication Mode
1) Open PuTTY and go to the Session page. Enter the IP address of the switch in the Host Name field and keep the default value 22 in the Port field; select SSH as the Connection
type. Click Open.
Configuration Guide
13
Accessing the Switch Command Line Interface Access
Figure 3-8 Configurations in PuTTY
2) Enter the login username and password to log in to the switch, and you can continue to configure the switch.
Figure 3-9  Log In to the Switch
Key Authentication Mode
1) Open the PuTTY Key Generator. In the Parameters section, select the key type and enter the key length. In the Actions section, click Generate to generate a public/private key pair. In the following figure, an SSH-2 RSA key pair is generated, and the length of each key is 1024 bits.
Configuration Guide 14
Accessing the Switch Command Line Interface Access
Figure 3-10 Generate a Public/Private Key Pair
Note:
The key length should be between 512 and 3072 bits.
You can accelerate the key generation process by moving the mouse quickly and randomly in
the Key section.
2) After the keys are successfully generated, click Save public key to save the public key to a TFTP server; click Save private key to save the private key to the host PC.
Figure 3-11 Save the Generated Keys
Configuration Guide
15
Accessing the Switch Command Line Interface Access
3) On Hyper Terminal, download the public key file from the TFTP server to the switch as shown in the following figure:
Figure 3-12 Download the Public Key to the Switch
Note:
The key type should accord with the type of the key file. In the above CLI, v1 corresponds to
SSH-1 (RSA), and v2 corresponds to SSH-2 RSA and SSH-2 DSA.
The key downloading process cannot be interrupted.
4) After the public key is downloaded, open PuTTY and go to the Session page. Enter the IP address of the switch and select SSH as the Connection type (keep the default value in the Port field).
Figure 3-13  Configure the Host Name and Connection Type
5) Go to Connection > SSH > Auth. Click Browse to download the private key file to PuTTY. Click Open to start the connection and negotiation.
Configuration Guide 16
Accessing the Switch Command Line Interface Access
Figure 3-14 Download the Private Key to PuTTY
6) After negotiation is completed, enter the username to log in. If you can log in without entering the password, the key authentication completed successfully.
Figure 3-15  Log In to the Switch
3.4 Disable Telnet login
You can shut down the Telnet function to block any Telnet access to the CLI interface.

Using the GUI:
SECURITY > Access Security > Telnet Config, disable the Telnet function and click Apply.
Go to

Figure 3-16 Disable Telnet login


Using the CLI:
Switch#configure
Switch(config)#telnet disable
Configuration Guide
17
Accessing the Switch Command Line Interface Access

3.5 Disable SSH login

You can shut down the SSH server to block any SSH access to the CLI interface.

Using the GUI:
SECURITY > Access Security > SSH Config, disable the SSH server and click Apply.
Go to
Figure 3-17 Shut down SSH server

Using the CLI:
Switch#configure
Switch(config)#no ip ssh server

3.6 Copy running-config startup-config

The switch’s configuration files fall into two types: the running configuration file and the start-up configuration file.
After you enter each command line, the modifications will be saved in the running configuration file. The configurations will be lost when the switch reboots.
If you need to keep he configurations after the switch reboots, please user the command copy running-config startup-config to save the configurations in the start-up configuration file.
Switch(config)#end
Switch#copy running-config startup-config

3.7 Change the Switch's IP Address and Default Gateway

If you want to access the switch via a specified port (hereafter referred to as the access port), you can configure the port as a routed port and specify its IP address, or configure the IP address of the VLAN which the access port belongs to.

Change the IP Address
Configuration Guide 18
Accessing the Switch Command Line Interface Access
By default, all the ports belong to VLAN 1 with the VLAN interface IP 192.168.0.1/24. In the following example, we will show how to replace the switch’s default access IP address
192.168.0.1/24 with 192.168.0.10/24.
Switch#configure
Switch(config)#interface vlan 1
Switch(config-if)#ip address 192.168.0.10 255.255.255.0
The connection will be interrupted and you should telnet to the switch's new IP address
192.168.0.10.
C:\Users\Administrator>telnet 192.168.0.10
User:admin
Password:admin
Switch>enable
Switch#copy running-config startup-config

Configure the Default Gateway
In the following example, we will show how to configure the switch’s gateway as
192.168.0.100. By default, the switch has no default gateway.
Switch#configure
Switch(config)#ip route 0.0.0.0 255.255.255.0 192.168.0.100 1
Switch(config)#end
Switch#copy running-config startup-config
Configuration Guide
19
Part 2

Managing System

CHAPTERS
1. System
2. System Info Configurations
3. User Management Configurations
4. System Tools Configurations
5. EEE Conguration
6. PoE Congurations
7. SDM Template Configuration
8. Time Range Conguration
9. Example for PoE Congurations
10. Appendix: Default Parameters
Managing System System
1

System

1.1 Overview

In System module, you can view the system information and configure the system parameters and features of the switch.

1.2 Supported Features

System Info
You can view the switch’s port status and system information, and configure the device description, system time, and daylight saving time.
User Management
You can manage the user accounts for login to the switch. There are multiple user types which have different access levels, and you can create different user accounts according to your need.
System Tools
You can configure the boot file of the switch, backup and restore the configurations, update the firmware, reset the switch, and reboot the switch.
EEE
EEE (Energy Efficient Ethernet) is used to save power consumption of the switch during periods of low data activity. You can simply enable this feature on ports to allow power reduction.
PoE
Note
Only T2600G-28MPS supports PoE feature.
Power over Ethernet (PoE) is a remote power supply function. With this function, the switch can supply power to the connected devices over twisted-pair cable.
Some devices such as IP phones, access points (APs) and cameras may be located far away from the AC power source in actual use. PoE can provide power for these devices without requiring to deploy power cables. This allows a single cable to provide both data connection and electric power to devices.
Configuration Guide
21
Managing System System
IEEE 802.3af and 802.3at are both PoE standards. The standard process of PoE power supply contains powered-device discovery, power administration, disconnect detection and optional power-device power classification.

PSE
Power sourcing equipment (PSE) is a device that provides power for PDs on the Ethernet, for example, the PoE switch. PSE can detect the PDs and determine the device power requirements.

PD
Powered device (PD) is a device receiving power from the PSE, for example, IP phones and access points. According to whether PDs comply with IEEE standard, they can be classified into standard PDs and non-standard PDs. Only standard PDs can be powered via TP-Link PoE switches.
SDM Template
SDM (Switch Database Management) Template is used to prioritize hardware resources for certain features. The switch provides three templates which allocate different hardware resources for different usage, and you can choose one according to your need.
Time Range
With this feature, you can configure a time range and bind it to a PoE port or an ACL rule.
Configuration Guide 22
Managing System System Info Configurations
2

System Info Configurations

With system information configurations, you can:

View the System Summary

Configure the Device Description

Configure the System Time

Configure the Daylight Saving Time

2.1 Using the GUI

2.1.1 Viewing the System Summary
Choose the menu SYSTEM > System Info > System Summary to load the System Summary page. You can view the port status and system information of the switch.
Viewing the Port Status
In the Port Status section, you can view the status and bandwidth utilization of each port.
Figure 2-1 Viewing the System Summary
The following table introduces the meaning of each port status:
Port Status Indication
Indicates that the corresponding 1000Mbps port is not connected to a device.
Indicates that the corresponding 1000Mbps port is at the speed of 1000Mbps.
Indicates that the corresponding 1000Mbps port is at the speed of 10Mbps or 100Mbps.
Indicates that the corresponding SFP port is not connected to a device.
Indicates the SFP port is at the speed of 1000Mbps.
Indicates the SFP port is at the speed of 100Mbps.
Configuration Guide
23
Managing System System Info Configurations
You can move your cursor to a port to view the detailed information of the port.
Figure 2-2 Port Information
Port Information Indication
Port Displays the port number.
Type Displays the type of the port.
Speed Displays the maximum transmission rate and duplex mode of the port.
Status Displays the connection status of the port.
You can click a port to view the bandwidth utilization on this port.
Figure 2-3 Bnadwidth Utilization
RX Displays the bandwidth utilization of receiving packets on this port.
Configuration Guide 24
Managing System System Info Configurations
TX Displays the bandwidth utilization of sending packets on this port.
Viewing the System Information
In the System Info section, you can view the system information of the switch.
Figure 2-4 System Information
System Description
Device Name Displays the name of the switch. You can edit it on the Device Description page.
Device Location Displays the location of the switch. You can edit it on the Device Description page.
Contact Information
Hardware Version
Firmware Version
Displays the system description of the switch.
Displays the contact information of the switch. You can edit it on the Device Description page.
Displays the hardware version of the switch.
Displays the firmware version of the switch.
Configuration Guide
25
Managing System System Info Configurations
Boot Loader Version
MAC Address Displays the MAC address of the switch.
System Time Displays the system time of the switch.
Running Time Displays the running time of the switch.
Serial Number Displays the serial number of the switch.
Jumbo Frame Displays whether Jumbo Frame is enabled. You can click Settings to jump to the
SNTP Displays whether the switch gets system time from NTP Server. You can click Settings
IGMP Snooping Displays whether IGMP Snooping is enabled. You can click Settings to jump to the
SNMP Displays whether SNMP is enabled. You can click Settings to jump to the SNMP
Displays the boot loader version of the switch.
Jumbo Frame configuration page.
to jump to the System Time configuration page.
IGMP Snooping configuration page.
configuration page.
Spanning Tree Displays whether Spanning Tree is enabled. You can click Settings to jump to the
Spanning Tree configuration page.
DHCP Relay Displays whether DHCP Relay is enabled. You can click Settings to jump to the DHCP
Relay configuration page.
802.1x Displays whether 802.1x is enabled. You can click Settings to jump to the 802.1x
configuration page.
HTTP Server Displays whether HTTP server is enabled. You can click Settings to jump to the HTTP
configuration page.
Telnet Displays whether Telnet is enabled. You can click Settings to jump to the Telnet
configuration page.
SSH Displays whether SSH is enabled. You can click Settings to jump to the SSH
configuration page.
Configuration Guide 26
Managing System System Info Configurations
2.1.2 Configuring the Device Description
Choose the menu SYSTEM > System Info > Device Description to load the following page.
Figure 2-5 Configuring the Device Description
1) In the Device Description section, configure the following parameters.
Device Name Specify a name for the switch.
Device Location Enter the location of the switch.
System Contact Enter the contact information.
2) Click Apply.
2.1.3 Configuring the System Time
Choose the menu SYSTEM > System Info > System Time to load the following page.
Figure 2-6 Configuring the System Time
In the Time Info section, you can view the current time information of the switch.
Configuration Guide
27
Managing System System Info Configurations
Current System Time
Current Time Source
Displays the current date and time of the switch.
Displays how the switch gets the current time.
In the Time Config section, follow these steps to configure the system time:
1) Choose one method to set the system time and specify the related parameters.
Manual Set the system time manually.
Date: Specify the date of the system.
Time: Specify the time of the system.
Get Time from NTP Server
Get the system time from an NTP server. Make sure the NTP server is accessible on your network. If the NTP server is on the internet, connect the switch to the internet first.
Time Zone: Select your local time zone.
Primary Server: Enter the IP Address of the primary NTP server.
Secondary Server: Enter the IP Address of the secondary NTP server. Once the
primary NTP server is down, the EAP can get the system time from the secondary NTP server.
Update Rate: Specify the interval the switch fetching time from NTP server, which ranges from 1 to 24 hours.
Synchronize with PC’s Clock
Synchronize the system time with the clock of your currently logged-in host
2) Click Apply.
2.1.4 Configuring the Daylight Saving Time
Choose the menu SYSTEM > System Info > Daylight Saving Time to load the following page.
Figure 2-7 Configuring the Daylight Saving Time
.
Follow these steps to configure Daylight Saving Time:
1) In the DST Config section, enable the Daylight Saving Time function.
Configuration Guide 28
Managing System System Info Configurations
2) Choose one method to set the Daylight Saving Time and specify the related parameters.
Predefined Mode
Recurring Mode If you select Recurring Mode, specify a cycle time range for the Daylight Saving
If you select Predefined Mode, choose a predefined DST schedule for the switch.
USA: Select the Daylight Saving Time of the USA. It is from 2: 00 a.m. on the Second Sunday in March to 2:00 a.m. on the First Sunday in November.
Australia: Select the Daylight Saving Time of Australia. It is from 2:00 a.m. on the First Sunday in October to 3:00 a.m. on the First Sunday in April.
Europe: Select the Daylight Saving Time of Europe. It is from 1: 00 a.m. on the Last Sunday in March to 1:00 a.m. on the Last Sunday in October.
New Zealand: Select the Daylight Saving Time of New Zealand. It is from 2: 00 a.m. on the Last Sunday in September to 3:00 a.m. on the First Sunday in April.
Time of the switch. This configuration will be used every year.
Offset: Specify the time to set the clock forward by.
Start Time: Specify the start time of Daylight Saving Time. The interval between
start time and end time should be more than 1 day and less than 1 year(365 days).
End Time: Specify the end time of Daylight Saving Time. The interval between start time and end time should be more than 1 day and less than 1 year (365 days).
Date Mode If you select Date Mode, specify an absolute time range for the Daylight Saving
Time of the switch. This configuration will be used only one time.
Offset: Specify the time to set the clock forward by.
Start Time: Specify the start time of Daylight Saving Time. The interval between
start time and end time should be more than 1 day and less than 1 year(365 days).
End Time: Specify the end time of Daylight Saving Time. The interval between start time and end time should be more than 1 day and less than 1 year (365 days).
3) Click Apply.

2.2 Using the CLI

2.2.1 Viewing the System Summary
On privileged EXEC mode or any other configuration mode, you can use the following commands to view the system information of the switch:
show interface status [ fastEthernet
| gigabitEthernet
port
| ten-gigabitEthernet
port
port
]
View status of the interface.
: Enter the number of the Ethernet port.
port
Configuration Guide
29
Managing System System Info Configurations
show system-info
View the system information including System Description, Device Name, Device Location, System Contact, Hardware Version, Firmware Version, System Time, Run Time and so on.
The following example shows how to view the interface status and the system information of the switch.
Switch#show interface status
Port Status Speed Duplex FlowCtrl Jumbo Active-Medium
------- ----------- ----- ------ -------- --------- -------------
Gi1/0/1 LinkDown N/A N/A N/A Disable Copper
Gi1/0/2 LinkDown N/A N/A N/A Disable Copper
Gi1/0/3 LinkUp 1000M Full Disable Disable Copper
...
Switch#show system-info
System Description - JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
System Name - T2600G-28TS
System Location - SHENZHEN
Contact Information - www.tp-link.com
Hardware Version - T2600G-28TS 3.0
Software Version - 3.0.0 Build 20170820 Rel.65183(s)
Bootloader Version - TP-LINK BOOTUTIL(v1.0.0)
Mac Address - 00-0A-EB-13-A2-3D
Serial Number - 211100100001C
System Time - 2006-01-03 10:10:37
Running Time - 2 day - 2 hour - 11 min - 30 sec
2.2.2 Configuring the Device Description
Follow these steps to configure the device description:
Step 1 configure
Enter global configuration mode.
Configuration Guide 30
Managing System System Info Configurations
Step 2 hostname [
Specify the system name of the switch.
hostname
default, it is the model name of the switch.
Step 3 location [
Specify the system location of the switch.
location
it is “SHENZHEN”.
Step 4 contact-info [
Specify the system contact Information.
contact-info
default, it is “www.tp-link.com”.
Step 5 show system-info
Verify the system information including system Description, Device Name, Device Location, System Contact, Hardware Version, Firmware Version, System Time, Run Time and so on.
Step 6 end
Return to privileged EXEC mode.
hostname
: Enter the device name. The length of the name ranges from 1 to 32 characters. By
location
: Enter the device location. It should consist of no more than 32 characters. By default,
contact-info
: Enter the contact information. It should consist of no more than 32 characters. By
]
]
]
Step 7 copy running-config startup-config
Save the settings in the configuration file.
The following example shows how to set the device name as Switch_A, set the location as BEIJING and set the contact information as https://www.tp-link.com.
Switch#configure
Switch(config)#hostname Switch_A
Switch(config)#location BEIJING
Switch(config)#contact-info https://www.tp-link.com
Switch(config)#show system-info
System Description - JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
System Name - Switch_A
System Location - BEIJING
Contact Information - https://www.tp-link.com
...
Switch(config)#end
Switch#copy running-config startup-config
Configuration Guide
31
Managing System System Info Configurations
2.2.3 Configuring the System Time
Follow these steps to configure the system time:
Note:
The mode of Synchronize with PC’s Clock does not support CLI command.
Step 1 configure
Enter global configuration mode.
Step 2 Use the following command to set the system time manually:
system-time manual
Configure the system time manually.
: Specify the date and time manually in the format of MM/DD/YYYY-HH:MM:SS. The valid
time
value of the year ranges from 2000 to 2037.
Use the following command to set the system time by getting time from the NTP server.
Ensure the NTP server is accessible. If the NTP server is on the internet, connect the switch to the internet first.
system-time ntp {
timezone
The detailed information of each time-zone are displayed as follows:
UTC-12:00 —— TimeZone for International Date Line West.
UTC-11:00 —— TimeZone for Coordinated Universal Time-11.
UTC-10:00 —— TimeZone for Hawaii.
UTC-09:00 —— TimeZone for Alaska.
UTC-08:00 —— TimeZone for Pacific Time (US Canada).
UTC-07:00 —— TimeZone for Mountain Time (US Canada).
UTC-06:00 —— TimeZone for Central Time (US Canada).
: Enter your local time-zone, which ranges from UTC-12:00 to UTC+13:00.
time
timezone
} {
ntp-server
} {
backup-ntp-server
} {
fetching-rate
}
UTC-05:00 —— TimeZone for Eastern Time (US Canada).
UTC-04:30 —— TimeZone for Caracas.
UTC-04:00 —— TimeZone for Atlantic Time (Canada).
UTC-03:30 —— TimeZone for Newfoundland.
UTC-03:00 —— TimeZone for Buenos Aires, Salvador, Brasilia.
UTC-02:00 —— TimeZone for Mid-Atlantic.
UTC-01:00 —— TimeZone for Azores, Cape Verde Is.
UTC —— TimeZone for Dublin, Edinburgh, Lisbon, London.
Configuration Guide 32
Managing System System Info Configurations
UTC+01:00 —— TimeZone for Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna.
UTC+02:00 —— TimeZone for Cairo, Athens, Bucharest, Amman, Beirut, Jerusalem.
UTC+03:00 —— TimeZone for Kuwait, Riyadh, Baghdad.
UTC+03:30 —— TimeZone for Tehran.
UTC+04:00 —— TimeZone for Moscow, St.Petersburg, Volgograd, Tbilisi, Port Louis.
UTC+04:30 —— TimeZone for Kabul.
UTC+05:00 —— TimeZone for Islamabad, Karachi, Tashkent.
UTC+05:30 —— TimeZone for Chennai, Kolkata, Mumbai, New Delhi.
UTC+05:45 —— TimeZone for Kathmandu.
UTC+06:00 —— TimeZone for Dhaka,Astana, Ekaterinburg.
UTC+06:30 —— TimeZone for Yangon (Rangoon).
UTC+07:00 —— TimeZone for Novosibrisk, Bangkok, Hanoi, Jakarta.
UTC+08:00 —— TimeZone for Beijing, Chongqing, Hong Kong, Urumqi, Singapore.
UTC+09:00 —— TimeZone for Seoul, Irkutsk, Osaka, Sapporo, Tokyo.
UTC+09:30 —— TimeZone for Darwin, Adelaide.
UTC+10:00 —— TimeZone for Canberra, Melbourne, Sydney, Brisbane.
UTC+11:00 —— TimeZone for Solomon Is., New Caledonia, Vladivostok.
UTC+12:00 —— TimeZone for Fiji, Magadan, Auckland, Welington.
UTC+13:00 —— TimeZone for Nuku’alofa, Samoa.
ntp-server
backup-ntp-server
fetching-rate
Step 3 Use the following command to verify the system time information.
show system-time
Verify the system time information.
Use the following command to verify the NTP mode configuration information.
show system-time ntp
Verify the system time information of NTP mode.
Step 4 end
Return to privileged EXEC mode.
: Specify the IP address of the primary NTP server.
: Specify the IP address of the backup NTP server.
: Specify the interval fetching time from the NTP server.
Step 5 copy running-config startup-config
Save the settings in the configuration file.
The following example shows how to set the system time by Get Time from NTP Server and set the time zone as UTC+08:00, set the NTP server as 133.100.9.2, set the backup NTP server as 139.78.100.163 and set the update rate as 11.
Switch#configure
Switch(config)#system-time ntp UTC+08:00 133.100.9.2 139.78.100.163 11
Configuration Guide
33
Managing System System Info Configurations
Switch(config)#show system-time ntp
Time zone : UTC+08:00
Prefered NTP server: 133.100.9.2
Backup NTP server: 139.78.100.163
Last successful NTP server: 133.100.9.2
Update Rate: 11 hour(s)
Switch(config)#end
Switch#copy running-config startup-config
2.2.4 Configuring the Daylight Saving Time
Follow these steps to configure the Daylight Saving Time:
Step 1 configure
Enter global configuration mode.
Step 2 Use the following command to select a predefined Daylight Saving Time configuration:
system-time dst predefined [ USA | Australia | Europe | New-Zealand ]
Specify the Daylight Saving Time using a predefined schedule.
USA | Australia | Europe | New-Zealand: Select one mode of Daylight Saving Time.
USA: 02:00 a.m. on the Second Sunday in March ~ 02:00 a.m. on the First Sunday in November.
Australia: 02:00 a.m. on the First Sunday in October ~ 03:00 a.m. on the First Sunday in April.
Europe: 01:00 a.m. on the Last Sunday in March ~ 01:00 a.m. on the Last Sunday in October.
New Zealand: 02:00 a.m. on the Last Sunday in September ~ 03:00 a.m. on the First Sunday in
April.
Configuration Guide 34
Managing System System Info Configurations
Use the following command to set the Daylight Saving Time in recurring mode:
system-time dst recurring {
} [
etime
Specify the Daylight Saving Time in Recuring mode.
: Enter the start week of Daylight Saving Time. There are 5 values showing as follows:
sweek
first, second, third, fourth, last.
: Enter the start day of Daylight Saving Time. There are 7 values showing as follows: Sun,
sday
Mon, Tue, Wed, Thu, Fri, Sat.
smonth
Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec.
: Enter the start time of Daylight Saving Time,in the format of HH:MM.
stime
: Enter the end week of Daylight Saving Time. There are 5 values showing as follows:
eweek
first, second, third, fourth, last.
: Enter the end day of Daylight Saving Time. There are 7 values showing as follows: Sun,
eday
Mon, Tue, Wed, Thu, Fri, Sat.
emonth
Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec.
: Enter the end time of Daylight Saving Time,in the format of HH:MM.
etime
: Enter the offset of Daylight Saving Time. The default value is 60.
offset
]
offset
: Enter the start month of Daylight Saving Time. There are 12 values showing as follows:
: Enter the end month of Daylight Saving Time. There are 12 values showing as follows:
sweek
} {
sday
} {
smonth
} {
stime
} {
eweek
} {
eday
} {
emonth
} {
Use the following command to set the Daylight Saving Time in date mode:
system-time dst date {
]
offset
Specify the Daylight Saving Time in Date mode.
: Enter the start month of Daylight Saving Time. There are 12 values showing as follows:
smonth
Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec.
: Enter the start day of Daylight Saving Time, which ranges from 1 to 31.
sday
: Enter the start time of Daylight Saving Time,in the format of HH:MM.
stime
: Enter the start year of Daylight Saving Time.
syear
: Enter the end month of Daylight Saving Time. There are 12 values showing as follows:
emonth
Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec.
: Enter the end day of Daylight Saving Time, which ranges from 1 to 31.
eday
: Enter the end time of Daylight Saving Time,in the format of HH:MM.
etime
: Enter the end year of Daylight Saving Time.
eyear
: Enter the offset of Daylight Saving Time. The default value is 60.
offset
Step 3 show system-time dst
Verify the DST information of the switch.
smonth
} {
sday
} {
stime
} {
syear
} {
emonth
} {
eday
} {
etime
} {
eyear
} [
Step 4 end
Return to privileged EXEC mode.
Step 5 copy running-config startup-config
Save the settings in the configuration file.
Configuration Guide
35
Managing System System Info Configurations
The following example shows how to set the Daylight Saving Time by Date Mode. Set the start time as 01:00 August 1st, 2017, set the end time as 01:00 September 1st,2017 and set the offset as 50.
Switch#configure
Switch(config)#system-time dst date Aug 1 01:00 2017 Sep 1 01:00 2017 50
Switch(config)#show system-time dst
DST starts at 01:00:00 on Aug 1 2017
DST ends at 01:00:00 on Sep 1 2017
DST offset is 50 minutes
DST configuration is one-off
Switch(config)#end
Switch#copy running-config startup-config
Configuration Guide 36
Managing System User Management Configurations
3

User Management Configurations

With User Management, you can create and manage the user accounts for login to the switch.

3.1 Using the GUI

There are four types of user accounts with different access levels: Admin, Operator, Power User and User.

There is a default Admin account which cannot be deleted. The default username and password of this account are both admin. You can also create more Admin accounts.

If you create Operator, Power User or User accounts, you need go to the AAA section to create an Enable Password. If needed, these types of users can use the Enable Password to change their access level to Admin.
3.1.1 Creating Accounts
Choose the menu SYSTEM > User Management > User Config to load the following page.
Figure 3-1 User Config Page
By default, there is a default Admin account in the table. You can click to edit this Admin account but you cannot delete it.
You can create new user accounts. Click
and the following window will pop up.
Configuration Guide
37
Managing System User Management Configurations
Figure 3-2 Adding Account
Follow these steps to create a new user account.
1) Configure the following parameters:
Username Specify a username for the account. It contains 16 characters at most,
composed of digits, English letters and underscore only.
Access Level Select the access level. There are four options provided:
Admin: Admin can edit, modify and view all the settings of different functions.
Operator: Operator can edit, modify and view most of the settings of different functions.
Power User: Power User can edit, modify and view some of the settings of different functions.
User: User can only view the settings without the right to edit or modify.
Password Specify a password for the account. It contains 1-31 alphanumeric
characters or symbols, composed of digits, English letters (case sensitive), underscore and sixteen special characters only.
Confirm Password
Retype the password.
2) Click Create.
3.1.2 Configuring Enable Password
Choose the menu SECURITY > AAA > Global Config to load the following page.
Figure 3-3 Configure Enable Password
Configuration Guide 38
Managing System User Management Configurations
Follow these steps to configure Enable Password:
1) Select Set Password and specify the Enable Password in the Password field.
2) Click Apply.
Tips:
The logged-in users can enter the Enable Password on this page to get the administrative privileges.

3.2 Using the CLI

There are four types of user accounts with different access levels: Admin, Operator, Power User and User.

There is a default Admin account which cannot be deleted. The default username and password of this account are both admin. You can also create more Admin accounts.

If you create Operator, Power User or User accounts, you need go to the AAA section to create an Enable Password. If needed, these types of users can use the Enable Password to change their access level to Admin.
3.2.1 Creating Accounts
Follow these steps to create an account:
Step 1 configure
Enter global configuration mode.
Configuration Guide
39
Managing System User Management Configurations
Step 2 Use the following command to create an account unencrypted or symmetric encrypted.
user name
encrypted-password
: Enter a user name for users’ login. It contains 16 characters at most, composed of
name
digits, English letters and underscore only.
admin | operator | power_user | user: Specify the access level for the user. Admin can edit,
modify and view all the settings of different functions. Operator can edit, modify and view mostly the settings of different functions. Power User can edit, modify and view some the settings of different functions. User only can view the settings without the right to edit and modify.: Select the access level for the user. Admin can edit, modify and view all the settings of different functions.
0: Specify the encryption type. 0 indicates that the password you entered is unencrypted, and
the password is saved to the configuration file unencrypted. By default, the encryption type is 0.
password
or symbols. The password is case sensitive, allows digits, English letters (case sensitive), underlines and sixteen special characters.
7: Specify the encryption type. 7 indicates that the password you entered is symmetric
encrypted, and the password is saved to the configuration file symmetric encrypted.
: Enter a password for users’ login. It is a string from 1 to 32 alphanumeric characters
encrypted-password
copy from another switch’s configuration file. After the encrypted password is configured, you should use the corresponding unencrypted password to reenter this mode.
{ privilege admin | operator | power_user | user } password { [ 0 ]
name
}
: Enter a symmetric encrypted password with fixed length, which you can
password
| 7
Use the following command to create an account MD5 encrypted.
user name
encrypted-password
Create an account whose access level is Admin.
: Enter a user name for users’ login. It contains 16 characters at most, composed of
name
digits, English letters and underscore only.
admin | operator | power_user | user: Specify the access level for the user. Admin can edit,
modify and view all the settings of different functions. Operator can edit, modify and view mostly the settings of different functions. Power User can edit, modify and view some the settings of different functions. User only can view the settings without the right to edit and modify.: Select the access level for the user. Admin can edit, modify and view all the settings of different functions.
0: Specify the encryption type. 0 indicates that the password you entered is unencrypted, but
the password is saved to the configuration file MD5 encrypted. By default, the encryption type is 0.
password
or symbols. The password is case sensitive, allows digits, English letters (case sensitive), underlines and sixteen special characters.
5: Specify the encryption type. 5 indicates that the password you entered is MD5 encrypted,
and the password is saved to the configuration file MD5 encrypted.
: Enter a password for users’ login. It is a string from 1 to 32 alphanumeric characters
{ privilege admin | operator | power_user | user } secret { [ 0 ]
name
}
password
| 5
encrypted-password
from another switch’s configuration file.
Step 3 show user account-list
Verify the information of the current users.
: Enter a MD5 encrypted password with fixed length, which you can copy
Configuration Guide 40
Managing System User Management Configurations
Step 4 end
Return to privileged EXEC mode.
Step 5 copy running-config startup-config
Save the settings in the configuration file.
3.2.2 Configuring Enable Password
Follow these steps to create an account of other type:
Step 1 configure
Enter global configuration mode.
Step 2 aaa enable
Globally enable the AAA function.
Configuration Guide
41
Managing System User Management Configurations
Step 3 Use the following command to create an enable password unencrypted or symmetric
encrypted.
enable admin password { [ 0 ]
Create an Enable Password. It can change the users’ access level to Admin. By default, it is empty.
0: Specify the encryption type. 0 indicates that the password you entered is unencrypted, and
the password is saved to the configuration file unencrypted. By default, the encryption type is 0.
password
or symbols. The password is case sensitive, allows digits, English letters (case sensitive), underlines and sixteen special characters.
7: Specify the encryption type. 7 indicates that the password you entered is symmetric
encrypted, and the password is saved to the configuration file symmetric encrypted.
encrypted-password
copy from another switch’s configuration file. After the encrypted password is configured, you should use the corresponding unencrypted password to reenter this mode.
Use the following command to create an enable password unencrypted or MD5 encrypted.
enable admin secret { [ 0 ]
Create an Enable Password. It can change the users’ access level to Admin. By default, it is empty.
0: Specify the encryption type. 0 indicates that the password you entered is unencrypted, but
the password is saved to the configuration file MD5 encrypted. By default, the encryption type is 0.
: Enter an enable password. It is a string from 1 to 32 alphanumeric characters
: Enter a symmetric encrypted password with fixed length, which you can
password
password
| 7
encrypted-password
| 5
encrypted-password
}
}
password
or symbols. The password is case sensitive, allows digits, English letters (case sensitive), underlines and sixteen special characters.
5: Specify the encryption type. 5 indicates that the password you entered is MD5 encrypted,
and the password is saved to the configuration file MD5 encrypted.
encrypted-password
from another switch’s configuration file. After the encrypted password is configured, you should use the corresponding unencrypted password to reenter this mode.
Step 4 show user account-list
Verify the information of the current users.
Step 5 end
Return to privileged EXEC mode.
Step 6 copy running-config startup-config
Save the settings in the configuration file.
: Enter an enable password. It is a string from 1 to 32 alphanumeric characters
: Enter a MD5 encrypted password with fixed length, which you can copy
Tips:
The logged-in users can enter the Enable Password on this page to get the administrative privileges.
Configuration Guide 42
Managing System User Management Configurations
The following example shows how to create a uesr with the access level of Operator, set the username as user1 and password as 123, enable AAA function and set the enable password as abc123.
Switch#configure
Switch(config)#user name user1 privilege operator password 123
Switch(config)#aaa enable
Switch(config)#enable admin password abc123
Switch(config)#show user account-list
Index User-Name User-Type
----- --------- ---------
1 user1 Operator
2 admin Admin
Switch(config)#end
Switch#copy running-config startup-config
Configuration Guide
43
Managing System System Tools Configurations
4

System Tools Configurations

With System Tools, you can:

Configure the boot file

Restore the configuration of the switch

Back up the configuration file

Upgrade the firmware

Configure DHCP Auto Install

Reboot the switch

Reset the switch

4.1 Using the GUI

4.1.1 Configuring the Boot File
Choose the menu SYSTEM > System Tools > Boot Config to load the following page.
Figure 4-1 Configuring the Boot File
Configuration Guide 44
Managing System System Tools Configurations
Follow these steps to configure the boot file:
1) In the Boot Table section, select one or more units and configure the relevant parameters.
Unit Displays the number of the unit.
Current Startup Image
Next Startup Image
Backup Image Select the backup image. When the switch fails to start up with the next startup
Current Startup Config
Next Startup Config
Backup Config Specify the backup configuration. When the switch fails to start up with the next
Displays the current startup image.
Select the next startup image. When the switch is powered on, it will try to start up with the next startup image. The next startup image and backup image should not be the same.
image, it will try to start up with the backup image. The next startup and backup image should not be the same.
Displays the current startup configuration.
Specify the next startup configuration. When the switch is powered on, it will try to start up with the next startup configuration. The next startup configuration and backup configuration should not be the same.
startup configuration, it will try to start up with the backup configuration. The next startup and backup configuration should not be the same.
2) Click Apply.
In the Image Table, you can view the information of the current startup image, next startup image and backup image. The displayed information is as follows:
Image Name Displays the name of the image.
Software Version
Flash Version Displays the flash version of the image.
Displays the software version of the image.
Configuration Guide
45
Managing System System Tools Configurations
4.1.2 Restoring the Configuration of the Switch
Choose the menu SYSTEM > System Tools > Restore Config to load the following page.
Figure 4-2 Restoring the Configuration of the Switch
Follow these steps to restore the current configuration of the switch:
1) In the Restore Config section, select the unit to be restored.
2) Click Browse and select the desired configuration file to be imported.
3) Choose whether to reboot the switch after restoring is completed. Only after the switch is rebooted will the imported image take effect.
4) Click Import to import the configuration file.
Note:
It will take some time to restore the configuration. Please wait without any operation.
4.1.3 Backing up the Configuration File
Choose the menu SYSTEM > System Tools > Backup Config to load the following page.
Figure 4-3 Backing up the Configuration File
In the Config Backup section, select one unit and click Export to export the configuration file.
Note:
It will take some time to export the configuration. Please wait without any operation.
Configuration Guide 46
Managing System System Tools Configurations
4.1.4 Upgrading the Firmware
Choose the menu SYSTEM > System Tools > Firmware Upgrade to load the following page.
Figure 4-4 Upgrading the Firmware
You can view the current firmware information on this page:
Firmware Version Displays the current firmware version of the system.
Hardware Version
Image Name Displays the image to upgrade. The operation will only affect the image displayed
Displays the current hardware version of the system.
here.
Follow these steps to upgrade the firmware of the switch:
1) Click Browse and select the proper firmware upgrade file.
2) Choose whether to reboot the switch after upgrading is completed. Only after the switch is rebooted will the new firmware take effect.
3) Click Upgrade to upgrade the system.
Note:
It will take some time to upgrade the switch. Please wait without any operation.
It is recommended to backup your configuration before upgrading.
4.1.5 Configuring DHCP Auto Install
This feature is used to download configuration files and images from the TFTP server automatically. It requires a TFTP server and a DHCP server that supports option 67, 125 and 150 on your network. When Auto Install function starts, the switch tries to get
Configuration Guide
47
Managing System System Tools Configurations
configuration file name, image file path and TFTP server IP address from the DHCP server, and then downloads the new image and configuration file form the TFTP server.
Choose the menu SYSTEM > System Tools > DHCP Auto Install to load the following page.
Figure 4-5 Configuring DHCP Auto Install
Configure the following parameters and click Apply:
DHCP Auto Install Enable or disable DHCP Auto Install.
Auto Install Persistent Mode
Auto Save Mode Enable or disable Save Mode. With this mode enabled, the downloaded
Auto Reboot Mode Enable or disable Auto Reboot Mode. With this mode enabled, the switch will
Auto Install Retry Count
Auto Install State Displays the status of Auto Install process.
Enable or disable Auto Install Persistent Mode. With this mode enabled, the switch will start Auto Install progress once the switch is rebooted.
configuration file will be saved as the startup configuration file, which means that the downloaded configuration will take effect after the next reboot.
reboot automatically once the auto install process is completed.
Specify how many times the switch can try to get the configuration file or image file from the TFTP server in one cycle. If the number of tries has reached this limit, the switch will wait for 10 minutes and start to try to get the files again. This process will be repeated until the switch succeeds in getting any of the image file or configuration file, or unless you stop Auto Install manually.
Note:
The switch will obtain a new IP address from the DHCP server during the process of Auto In-
stall. If you want to access to the switch, you should check the new IP address on the DHCP server.
If the Auto Install process fails, the switch will restart the process every 10 minutes. You can
stop the process manually.
Configuration Guide 48
Managing System System Tools Configurations
4.1.6 Rebooting the switch
There are two methods to reboot the switch: manually reboot the switch and configure reboot schedule to automatically reboot the switch.
Manually Rebooting the Switch
Choose the menu SYSTEM > System Tools > System Reboot > System Reboot to load the following page.
Figure 4-6 Manually Rebooting the Switch
Follow these steps to reboot the switch:
1) In the System Reboot section, select the desired unit.
2) Choose whether to save the current configuration before reboot.
3) Click Reboot.
Configuring Reboot Schedule
Choose the menu SYSTEM > System Tools > System Reboot > Reboot Schedule to load the following page.
Figure 4-7 Configuring the Reboot Schedule
Follow these steps to configure the reboot schedule:
1) In the Reboot Schedule Config section, select one method and specify the related parameters.
Time Interval Specify a period of time. The switch will reboot after this period. Valid values are
from 1 to 43200 minutes.
To make this schedule recur, you need to click or enable the option Save the current configuration before reboot.
to save current configuration
Configuration Guide
49
Managing System System Tools Configurations
Special Time Specify the date and time for the switch to reboot.
Month/Day/Year: Specify the date for the switch to reboot.
Time (HH:MM): Specify the time for the switch to reboot, in the format of HH:MM.
2) Choose whether to save the current configuration before the reboot.
3) Click Apply.
Tips:
To delete the reboot schedule configurations, you can click Delete and the configurations will be empty.
4.1.7 Reseting the Switch
Choose the menu SYSTEM > System Tools > System Reset to load the following page.
Figure 4-8 Reseting the Switch
In the System Reset section, select the desired unit and click Reset. After reset, all configurations of the switch will be reset to the factory defaults.

4.2 Using the CLI

4.2.1 Configuring the Boot File
Follow these steps to configure the boot file:
Step 1 configure
Enter global configuration mode.
Step 2 boot application filename { image1 | image2 } { startup | backup }
Specify the configuration of the boot file. By default, image1.bin is the startup image and image2.bin is the backup image.
image1 | image2: Select the image file to be configured.
startup | backup: Select the property of the image file.
Configuration Guide 50
Managing System System Tools Configurations
Step 3 boot config filename { config1 | config2 } { startup | backup }
Specify the configuration of the boot file. By default, config1.cfg is the startup configuration file and config2.cfg is the backup configuration file.
config1 | config2: Select the configuration file to be configured.
startup | backup: Specify the property of the configuration file.
Step 4 show boot
Verify the boot configuration of the system.
Step 5 end
Return to privileged EXEC mode.
Step 6 copy running-config startup-config
Save the settings in the configuration file.
The following example shows how to set the next startup image as image1, the backup image as image2, the next startup configuration file as config1 and the backup configuration file as config2.
Switch#configure
Switch(config)#boot application filename image1 startup
Switch(config)#boot application filename image2 backup
Switch(config)#boot config filename config1 startup
Switch(config)#boot config filename config2 backup
Switch(config)#show boot
Boot config:
Current Startup Image - image2.bin
Next Startup Image - image1.bin
Backup Image - image2.bin
Current Startup Config - config2.cfg
Next Startup Config - config1.cfg
Backup Config - config2.cfg
Switch(config)#end
Switch#copy running-config startup-config
Configuration Guide
51
Managing System System Tools Configurations
4.2.2 Restoring the Configuration of the Switch
Follow these steps to restore the configuration of the switch:
Step 1 enable
Enter privileged mode.
Step 2 copy tftp startup-config ip-address
Download the configuration file to the switch from TFTP server.
: Specify the IP address of the TFTP server. Both IPv4 and IPv6 addresses are
ip-addr
supported.
: Specify the name of the configuration file to be downloaded.
name
ip-addr
filename
name
Note:
It will take some time to restore the configuration. Please wait without any operation.
The following example shows how to restore the configuration file named file1 from the TFTP server with IP address 192.168.0.100.
Switch>enable
Switch#copy tftp startup-config ip-address 192.168.0.100 filename file1
Start to load user config file......
Operation OK! Now rebooting system......
4.2.3 Backing up the Configuration File
Follow these steps to back up the current configuration of the switch in a file:
Step 1 enable
Enter privileged mode.
Step 2 copy startup-config tftp ip-address
Back up the configuration file to TFTP server.
: Specify the IP address of the TFTP server. Both IPv4 and IPv6 addresses are
ip-addr
supported.
: Specify the name of the configuration file to be saved.
name
The following example shows how to backup the configuration file named file2 to TFTP server with IP address 192.168.0.100.
Switch>enable
Switch#copy startup-config tftp ip-address 192.168.0.100 filename file2
Start to backup user config file......
ip-addr
filename
name
Configuration Guide 52
Managing System System Tools Configurations
Backup user config file OK.
4.2.4 Upgrading the Firmware
Follow these steps to upgrade the firmware:
Step 1 enable
Enter privileged mode.
Step 2 firmware upgrade ip-address
Upgrade the switch’s backup image via TFTP server. To boot up with the new firmware, you need to choose to reboot the switch with the backup image.
: Specify the IP address of the TFTP server. Both IPv4 and IPv6 addresses are
ip-addr
supported.
: Specify the name of the desired firmware file.
name
Step 3 Enter Y to continue and then enter Y to reboot the switch with the backup image.
ip-addr
filename
name
The following example shows how to upgrade the firmware using the configuration file named file3.bin. The TFTP server is 190.168.0.100.
Switch>enable
Switch#firmware upgrade ip-address 192.168.0.100 filename file3.bin
It will only upgrade the backup image. Continue? (Y/N):Y
Operation OK!
Reboot with the backup image? (Y/N): Y
4.2.5 Configuring DHCP Auto Install
This feature is used to download configuration files and images from the TFTP server automatically. It requires a TFTP server and a DHCP server that supports option 67, 125 and 150 on your network. When Auto Install function starts, the switch tries to get configuration file name, image file path and TFTP server IP address from the DHCP server, and then downloads the new image and configuration file form the TFTP server.
Follow these steps to configure the DHCP Auto Install.
Step 1 configure
Enter global configuration mode.
Step 2 boot autoinstall persistent-mode
Enable the auto install persistent mode. After saving configuration, the switch will start the Auto Install function automatically during next reboot process.
Configuration Guide
53
Managing System System Tools Configurations
Step 3 boot autoinstall auto-save
Enable the auto save mode and the switch will save the configuration file downloaded as startup configuration file automatically.
Step 4 boot autoinstall auto-reboot
Enable the auto reboot mode and the switch will reboot automatically after the auto install process is completed successfully.
Step 5 boot autoinstall retry-count
Specify the auto install retry count which ranges from 1 to 3. The default value is 1.
Step 6 boot autoinstall start
Start the Auto Install process and the switch will download the configuration file and the backup image automatically.
Step 7 end
Return to privileged EXEC mode.
Step 8 copy running-config startup-config
Save the settings in the configuration file.
count
Note:
The switch will obtain a new IP address from the DHCP server during the process of Auto In-
stall. If you want to access to the switch, you should check the new IP address on the DHCP server.
If the Auto Install process fails, the switch will restart the process every 10 minutes. You can
stop the process manually.
The following example shows how to congure the Auto Install function.
Switch#congure
Switch(cong)#boot autoinstall persistent-mode
Switch(cong)#boot autoinstall auto-save
Switch(cong)#boot autoinstall auto-reboot
Switch(cong)#boot autoinstall retry-count 2
Switch(cong)#show boot autoinstall
Auto Insatll Mode.................................Stop
Auto Insatll Persistent Mode...........Enabled
Auto Save Mode...................................Enabled
Auto Reboot Mode..............................Enabled
Auto Insatll Retry Count....................2
Configuration Guide 54
Managing System System Tools Configurations
Auto Insatll sate....................................Stopped
4.2.6 Rebooting the Switch
Manually Rebooting the Switch
Follow these steps to reboot the switch:
Step 1 enable
Enter privileged mode.
Step 2 reboot
Reboot the switch.
Configuring Reboot Schedule
Follow these steps to configure the reboot schedule:
Step 1 configure
Enter global configuration mode.
Step 2 Use the following command to set the interval of reboot:
reboot-schedule in
(Optional) Specify the reboot schedule.
: Specify a period of time. The switch will reboot after this period. The valid values are
interval
from 1 to 43200 minutes.
save_before_reboot: Save the configuration file before the switch reboots. To make this
schedule recur, you can add this part to the command.
Use the following command to set the special time of reboot:
reboot-schedule at
(Optional) Specify the reboot schedule.
: Specify the time for the switch to reboot, in the format of HH:MM.
time
: Specify the date for the switch to reboot, in the format of DD/MM/YYYY. The date should
date
be within 30 days.
[ save_before_reboot ]
interval
[
time
] [ save_before_reboot ]
date
save_before_reboot: Save the configuration file before the switch reboots.
If no date is specified, the switch will reboot according to the time you have set. If the time you set is later than the time that this command is executed, the switch will reboot later the same day; otherwise the switch will reboot the next day.
Step 3 end
Return to privileged EXEC mode.
Step 4 copy running-config startup-config
Save the settings in the configuration file.
Configuration Guide
55
Managing System System Tools Configurations
The following example shows how to set the switch to reboot at 12:00 on 15/08/2017.
Switch#configure
Switch(config)#reboot-schedule at 12:00 15/08/2017 save_before_reboot
Reboot system at 15/08/2017 12:00. Continue? (Y/N): Y
Reboot Schedule Settings
---------------------------
Reboot schedule at 2017-08-15 12:00 (in 25582 minutes)
Save before reboot: Yes
Switch(config)#end
Switch#copy running-config startup-config
4.2.7 Reseting the Switch
Follow these steps to reset the switch:
Step 1 enable
Enter privileged mode.
Step 2 reset
Reset the switch, and all configurations of the switch will be reset to the factory defaults.
Configuration Guide 56
Managing System EEE Configuration
5

EEE Configuration

Choose the menu SYSTEM > EEE to load the following page.
Figure 5-1 Configuring EEE
Follow these steps to configure EEE:
1) In the EEE Config section, select one or more ports to be configured.
2) Enable or disable EEE on the selected port(s).
3) Click Apply.

5.1 Using the CLI

Follow these steps to configure EEE:
Step 1 configure
Enter global configuration mode.
Step 2 interface { fastEthernet
gigabitEthernet
Enter interface configuration mode.
Step 3 eee
Enable EEE on the port.
port-list
| range fastEthernet
port
| ten-gigabitEthernet
| gigabitEthernet
port-list
| range ten-gigabitEthernet
port
port
| range
port-list
}
Configuration Guide
57
Managing System EEE Configuration
Step 4 end
Return to privileged EXEC mode.
Step 5 copy running-config startup-config
Save the settings in the configuration file.
The following example shows how to enable the EEE feature on port 1/0/1.
Switch#config
Switch(config)#interface gigabitEthernet 1/0/1
Switch(config-if)#eee
Switch(config-if)#show interface eee
Port EEE status
Gi1/0/1 Enable
Gi1/0/2 Disable
...
Switch(config-if)#end
Switch#copy running-config startup-config
Configuration Guide 58
Managing System PoE Configurations
6

PoE Configurations

Note
Only T2600G-28MPS supports PoE feature.
With the PoE feature, you can:

Configure the PoE parameters manually

Configure the PoE parameters using the profile
You can configure the PoE parameters one by one via configuring the PoE parameters manually. You can also set a profile with the desired parameters and bind the profile to the corresponding ports to quickly configure the PoE parameters.
Configuration Guide
59
Managing System PoE Configurations

6.1 Using the GUI

6.1.1 Configuring the PoE Parameters Manually
Choose the menu SYSTEM > PoE > PoE Config to load the following page.
Figure 6-1 Configuring PoE Parameters Manually
Follow these steps to configure the basic PoE parameters:
1) In the PoE Config section, you can view the current PoE parameters.
System Power Limit (w)
System Power Consumption (w)
System Power Remain (w)
Displays the maximum power the PoE switch can supply.
Displays the real-time system power consumption of the PoE switch.
Displays the real-time system remaining power of the PoE switch.
In addition, you can click and configure the System Power Limit. Click Apply.
Configuration Guide 60
Managing System PoE Configurations
Figure 6-2 Configuring System Power Limit
Unit Displays the unit number.
System Power Limit
Specify the maximum power the PoE switch can supply.
2) In the Port Config section, select the port you want to configure and specify the parameters. Click Apply.
PoE Status Enable or disable the PoE function for on corresponding port. The port can supply
power to the PD when its status is enable.
PoE Priority Select the priority level for the corresponding port. When the supply power
exceeds the system power limit, the switch will power off PDs on low-priority ports to ensure stable running of other PDs.
Power Limit Specify the maximum power the corresponding port can supply. The following
options are provided:
Auto: The switch will allocate a value as the maximum power that the port can supply automatically.
Class1: The maximum power that the port can supply is 4W.
Class2: The maximum power that the port can supply is 7W.
Class3: The maximum power that the port can supply is 15.4W.
Class4: The maximum power that the port can supply is 30W.
Manual: You can enter a value manually.
Power Limit Value (0.1w-30w)
Time Range Select a time range, then the port will supply power only during the time range. For
If you select Manual as Power Limit mode, specify a maximum power supply value in this field.
If you select Class1 to Class4 as Power Limit mode, you can view the maximum power supply value in this field.
how to create a time range, refer to
Time Range Configuration
.
Configuration Guide
61
Managing System PoE Configurations
PoE Profile A quick configuration method for the corresponding ports. If one profile is
selected, you will not be able to modify PoE status, PoE priority or power limit manually. For how to create a profile, refer to
Using the Profile
Power (w) Displays the port’s real-time power supply.
Current (mA) Displays the port’s real-time current.
Voltage (v) Displays the port’s real-time voltage.
PD Class Displays the class the linked PD belongs to.
Power Status Displays the port’s real-time power status.
.
Configuring the PoE Parameters
Configuration Guide 62
Managing System PoE Configurations
6.1.2 Configuring the PoE Parameters Using the Profile

Creating a PoE Profile
Choose the menu SYSTEM > PoE > PoE Profile and click
to load the following
page.
Figure 6-3 Creating a PoE Profile
Follow these steps to create a PoE profile:
1) In the Create PoE Profile section, specify the desired configurations of the profile.
Profile Name Specify a name for the PoE profile.
PoE Status Specify the PoE status for the PoE profile.
PoE Priority Specify the priority level for the PoE profile. The following options are provided:
High, Middle and Low. When the supply power exceeds the system power limit, the switch will power off PDs on low-priority ports to ensure stable running of other PDs.
Power Limit Specify the maximum power the port can supply for the PoE profile. The following
options are provided:
Auto: The switch will allocate a value as the maximum power that the port can supply automatically.
Class1 (4w): The maximum power that the port can supply is 4W.
Class2 (7w): The maximum power that the port can supply is 7W.
Class3 (15.4w): The maximum power that the port can supply is 15.4W.
Class4 (30w): The maximum power that the port can supply is 30W.
Manual: Enter a value manually.
2) Click Create.
Configuration Guide
63
Managing System PoE Configurations

Binding the Profile to the Corresponding Ports
Choose the menu SYSTEM > PoE > PoE Config to load the following page.
Figure 6-4 Binding the Profile to the Corresponding Ports
Follow these steps to bind the profile to the corresponding ports:
1) In the PoE Config section, you can view the current PoE parameters.
System Power Limit (w)
System Power Consumption (w)
System Power Remain (w)
Displays the maximum power the PoE switch can supply.
Displays the real-time system power consumption of the PoE switch.
Displays the real-time system remaining power of the PoE switch.
In addition, you can click and configure the System Power Limit. Click Apply.
Configuration Guide 64
Managing System PoE Configurations
Figure 6-5 Configuring System Power Limit
Unit Displays the unit number.
System Power Limit
Specify the maximum power the PoE switch can supply.
2) In the Port Config section, select one or more ports and configure the following two parameters: Time Range and PoE Profile. Click Apply and the PoE parameters of the selected PoE Profile, such as PoE Status and PoE Priority, will be displayed in the table.
PoE Status Displays the PoE function for on corresponding port. The port can supply power
to the PD when its status is enable.
PoE Priority Displays the priority level for the corresponding port. When the supply power
exceeds the system power limit, the switch will power off PDs on low-priority ports to ensure stable running of other PDs.
Power Limit Displays the maximum power the corresponding port can supply.
Power Limit Value (0.1W-30.0W)
Time Range Select a time range, then the port will supply power only during the time range. For
Displays the power limit value.
how to create a time range, refer to
Time Range Configuration
.
PoE Profile Select the PoE profile for the desired port. If one profile is selected, you will not be
able to modify PoE status, PoE priority or power limit manually.
Power (W) Displays the port’s real-time power supply.
Current (mA) Displays the port’s real-time current.
Voltage (V) Displays the port’s real-time voltage.
PD Class Displays the class the linked PD belongs to.
Power Status Displays the port’s real-time power status.
Configuration Guide
65
Managing System PoE Configurations

6.2 Using the CLI

6.2.1 Configuring the PoE Parameters Manually
Follow these steps to configure the basic PoE parameters:
Step 1 configure
Enter global configuration mode.
Step 2 power inline consumption
Specify the maximum power the PoE switch can supply globally.
power-limit
384.0W, and the default value is 384.0W.
Step 3 interface {
gigabitEthernet
Enter Interface Configuration mode.
port
port-list:
Step 4 power inline supply { enable | disable }
Specify the PoE status for the corresponding port.
enable | disable: Enable or disable the PoE function. By default, it is enable.
Step 5 power inline priority { low | middle | high }
Specify the PoE priority for the corresponding port.
low | middle | high: Select the priority level for the corresponding port. When the supply power
exceeds the system power limit, the switch will power off PDs on low-priority ports to ensure stable running of other PDs. The default setting is low.
: Specify the maximum power the PoE switch can supply. It ranges from 1.0 to
fastEthernet
port-list
: Specify the Ethernet port number, for example 1/0/1.
Specify the list of Ethernet ports, for example 1/0/1-3, 1/0/5.
power-limit
| range fastEthernet
port
| ten-gigabitEthernet
port-list
port
| gigabitEthernet
| range ten-gigabitEthernet
port
| range
port-list
}
Step 6 power inline consumption {
Specify the maximum power the corresponding port can supply.
power-limit
corresponding port can supply. The following options are provided: Auto represents that the switch will allocate the maximum power that the port can supply automatically. Class1 represents 4W, Class2 represents 7W, Class3 represents 15.4W and Class4 represents 30W, or you can enter a value manually. The value ranges from 1 to 300. It is in the unit of 0.1 watt. For instance, if you want to configure the maximum power as 5W, you should enter 50. By default, it is Class4.
Step 7 power inline time-range
Specify a time range for the port. Then the port will supply power only during the time range. For how to create a time range, refer to
name:
Step 8 show power inline
Verify the global PoE information of the system.
| auto | class1 | class2 | class3 | class4: Select or enter the maximum power the
name
Specify the name of the time range.
power-limit
| auto | class1 | class2 | class3 | class4 }
Time Range Configuration
.
Configuration Guide 66
Managing System PoE Configurations
Step 9 show power inline configuration interface [ fastEthernet {
|
port
port-list
Verify the PoE configuration of the corresponding port.
: Specify the Ethernet port number, for example 1/0/1.
port
port-list
Step 10 show power inline information interface [ fastEthernet {
|
port
port-list
Verify the real-time PoE status of the corresponding port.
: Specify the Ethernet port number, for example 1/0/1.
port
port-list
Step 11 end
Return to privileged EXEC mode.
Step 12 copy running-config startup-config
Save the settings in the configuration file.
} | ten-gigabitEthernet {
: Specify the list of Ethernet ports, in the format of 1/0/1-3, 1/0/5.
} | ten-gigabitEthernet {
: Specify the list of Ethernet ports, in the format of 1/0/1-3, 1/0/5.
port
port
|
port-list
|
port-list
}]
} ]
port
port
|
|
port-list
port-list
} | gigabitEthernet {
} | gigabitEthernet {
The following example shows how to set the system power limit as 160W. Set the priority as middle and set the power limit as class3 for the port 1/0/5.
Switch#configure
Switch(config)#power inline consumption 160
Switch(config)#interface gigabitEthernet 1/0/5
Switch(config-if)#power inline supply enable
Switch(config-if)#power inline priority middle
Switch(config-if)#power inline consumption class3
Switch(config-if)#show power inline
System Power Limit: 160.0w
System Power Consumption: 0.0w
System Power Remain: 160.0w
Switch(config-if)#show power inline configuration interface gigabitEthernet 1/0/5
Interface PoE-Status PoE-Prio Power-Limit(w) Time-Range PoE-Profile
---------- ---------- ---------- ------------ ------------- ----------------
Gi1/0/5 Enable Middle Class3 No Limit None
Switch(config-if)#show power inline information interface gigabitEthernet 1/0/5
Configuration Guide
67
Managing System PoE Configurations
Interface Power(w) Current(mA) Voltage(v) PD-Class Power-Status
---------- -------- ----------- ---------- ----------- ----------------
Gi1/0/5 1.3 26 53.5 Class 2 ON
Switch(config-if)#end
Switch#copy running-config startup-config
6.2.2 Configuring the PoE Parameters Using the Profile
Follow these steps to configure the PoE profile:
Step 1 configure
Enter global configuration mode.
Step 2 power inline consumption
Specify the maximum power the PoE switch can supply globally.
power-limit
384.0W, and the default value is 384.0W.
Step 3 power profile
power-limit
Create a PoE profile for the switch. In a profile, the PoE status, PoE priority and power limit are configured. You can bind a profile to the corresponding port to quickly configure the PoE function.
name
contains spaces, enclose the name in double quotes.
enable | disable: Specify the PoE status for the profile. By default, it is enable.
low | middle | high: Select the priority level for the profile. When the supply power exceeds the
system power limit, the switch will power off PDs on low-priority ports to ensure stable running of other PDs.
power-limit | auto | class1 | class2 | class3 | class4: Select or enter the maximum power the
corresponding port can supply. The following options are provided: Auto represents that the switch will assign a value of maximum power automatically. Class1 represents 4W, Class2 represents 7W, Class3 represents 15.4W and Class4 represents 30W or you can enter a value manually. The value ranges from 1 to 300. It is in the unit of 0.1 watt. For instance, if you want to configure the maximum power as 5W, you should enter 50.
: Specify the maximum power the PoE switch can supply. It ranges from 1.0 to
[ supply { enable | disable } [ priority { low | middle | high } [ consumption {
name
| auto | class1 | class2 | class3 | class4 } ] ] ]
: Specify a name for the PoE profile. It ranges from 1 to 16 characters. If the name
power-limit
Step 4 interface {
gigabitEthernet
Enter Interface Configuration mode.
: Specify the Ethernet port number, for example 1/0/1.
port
port-list:
Specify the list of Ethernet ports, for example 1/0/1-3, 1/0/5.
fastEthernet
port-list
| range fastEthernet
port
| ten-gigabitEthernet
port-list
port
| gigabitEthernet
| range ten-gigabitEthernet
| range
port
port-list
Configuration Guide 68
}
Managing System PoE Configurations
Step 5 power inline profile
Bind a PoE profile to the desired port. If one profile is selected, you will not be able to modify PoE status, PoE priority or power limit manually.
: Specify the name of the PoE profile. If the name contains spaces, enclose the name in
name
double quotes.
Step 6 power inline time-range
Specify a time range for the port. Then the port will supply power only during the time range. For how to create a time range, refer to
Specify the name of the time range.
name:
Step 7 show power profile
Verify the defined PoE profile.
Step 8 show power inline configuration interface [ fastEthernet {
|
port
port-list
Verify the PoE configuration of the corresponding port.
: Specify the Ethernet port number, for example 1/0/1.
port
port-list
} | ten-gigabitEthernet {
: Specify the list of Ethernet ports, in the format of 1/0/1-3, 1/0/5.
name
name
Time Range Configuration
port
|
port-list
}]
port
.
|
port-list
} | gigabitEthernet {
Step 9 show power inline information interface [ fastEthernet {
|
port
port-list
Verify the real-time PoE status of the corresponding port.
: Specify the Ethernet port number, for example 1/0/1.
port
port-list
Step 10 end
Return to privileged EXEC mode.
Step 11 copy running-config startup-config
Save the settings in the configuration file.
} | ten-gigabitEthernet {
: Specify the list of Ethernet ports, in the format of 1/0/1-3, 1/0/5.
port
|
port-list
} ]
port
|
port-list
} | gigabitEthernet {
The following example shows how to create a profile named profile1and bind the profile to the port 1/0/6.
Switch#configure
Switch(config)#power profile profile1 supply enable priority middle consumption class2
Switch(config)#show power profile
Index Name Status Priority Power-Limit(w)
----- ------------ ---------- --------- --------------
1 profile1 Enable Middle Class2
Switch(config)#interface gigabitEthernet 1/0/6
Configuration Guide
69
Managing System PoE Configurations
Switch(config-if)#power inline profile profile1
Switch(config-if)#show power inline configuration interface gigabitEthernet 1/0/6
Interface PoE-Status PoE-Prio Power-Limit(w) Time-Range PoE-Profile
---------- ---------- ---------- ------------ ------------- ----------------
Gi1/0/6 Enable Middle Class2 No Limit profile1
Switch(config-if)#end
Switch#copy running-config startup-config
Configuration Guide 70
Managing System SDM Template Configuration
7

SDM Template Configuration

7.1 Using the GUI

Choose the menu SYSTEM > SDM Template to load the following page.
Figure 7-1 Configuring SDM Template (For T2600G-28TS/T2600G-28MPS/T2600G-28SQ/T2600G-52TS)
Figure 7-2 Configuring SDM Template (For T2600G-18TS)
In SDM Template Config section, select one template and click Apply. The setting will be effective after the switch is rebooted.
Current Template Displays the template currently in effect.
Configuration Guide
71
Loading...
