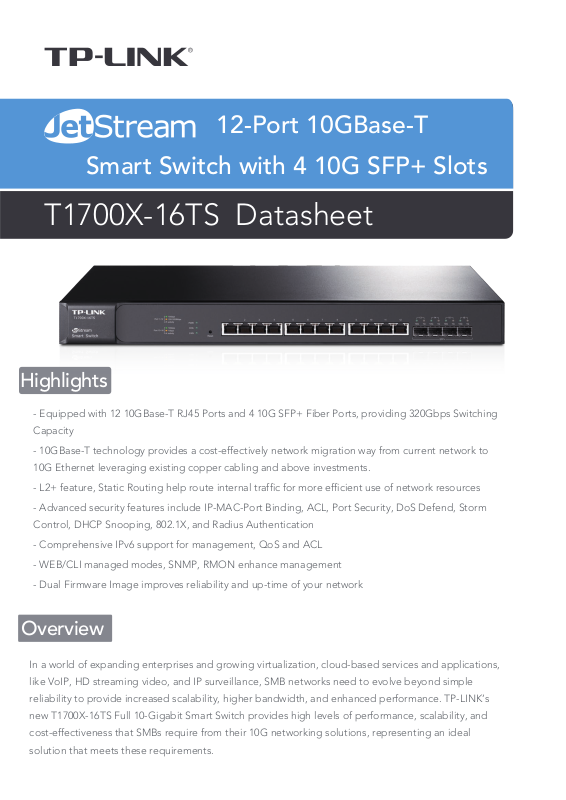

12-Port 10GBase-T
Smart Switch with 4 10G SFP+ Slots
T1700X-16TS Datasheet
Highlights
- Equipped with 12 10GBase-T RJ45 Ports and 4 10G SFP+ Fiber Ports, providing 320Gbps Switching
Capacity
- 10GBase-T technology provides a cost-effectively network migration way from current network to
10G Ethernet leveraging existing copper cabling and above investments.
- L2+ feature, Static Routing help route internal trafc for more efcient use of network resources
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm
Control, DHCP Snooping, 802.1X, and Radius Authentication
- Comprehensive IPv6 support for management, QoS and ACL
- WEB/CLI managed modes, SNMP, RMON enhance management
- Dual Firmware Image improves reliability and up-time of your network
Overview
In a world of expanding enterprises and growing virtualization, cloud-based services and applications,
like VoIP, HD streaming video, and IP surveillance, SMB networks need to evolve beyond simple
reliability to provide increased scalability, higher bandwidth, and enhanced performance. TP-LINK’s
new T1700X-16TS Full 10-Gigabit Smart Switch provides high levels of performance, scalability, and
cost-effectiveness that SMBs require from their 10G networking solutions, representing an ideal
solution that meets these requirements.
Future Proof 10GBase-T Technology
Until recently, 10-Gigabit connectivity was available only in the expensive ber based technology that
supports high-speed access to the network backbone or data center environment.
Today, 10GBase-T Technology is becoming more common and affordable. Low-Latency, Line-Rate 10G
Copper Base-T is backward compatible with Fast Ethernet and Gigabit Ethernet and can automatically
negotiate between higher and lower speed connections. Most importantly, 10GBase-T provides a
cost-effective method for migrating from your current network to 10G Ethernet by utilizing your
existing CAT5e/CAT6 RJ-45 short connections (up to 55m) and CAT6A/CAT7 connections (up to 100m).
This reduces cabling complexity and ultimately results in signicant savings for customers.
Abundant L2 and L2+ Features
The T1700X-16TS supports rich L2 features, including 802.1Q VLAN, Port Isolation, Port Mirroring,
STP/RSTP/MSTP, Link Aggregation Groups, and 802.3x Flow Control function. Additionally, the switch
provides advanced features for network maintenance, such as Loop Back Detection, Cable Diagnostics,
and IGMP Snooping. IGMP snooping ensures that the switch can intelligently forward the multicast
stream only to the appropriate subscribers, while IGMP throttling and ltering restrict each subscriber on
a port level to prevent unauthorized multicast access. Besides, T1700X-16TS supports L2+ feature static
routing, which provides simple network segmentation by routing internal transmissions to make the ow
of network trafc more efcient.
Secure Networking
The T1700X-16TS supports IP-MAC-Port Binding, Port Security, Storm control, and DHCP Snooping,
which help to protect the network from broadcast storms, ARP attacks, and more. The Access Control
List (ACL, L2 to L4) feature restricts access to sensitive network resources by rejecting certain packets
based on the MAC address, IP address, TCP/UDP ports, and VLAN ID of both the source and
destination. And the switch supports 802.1X, which allows network clients to be authenticated through
external Radius servers and the guest VLAN function allows non-802.1X clients to access specic
network resources.
Advanced QoS features
To support voice, data, and video services on one network, the switch utilizes rich QoS policies.
Administrators can prioritize trafc based on a variety of factors, including Port Priority, 802.1P Priority,
and DSCP Priority, to ensure that voice and video streams are always clear and smooth.
Enterprise Level Management Features
The T1700X-16TS is easy to use and manage. It supports various user-friendly standard management
features, such as intuitive web-based Graphical User Interface (GUI), industry-standard Command Line
Interface (CLI), SNMP (v1/2/3), and RMON. This allows the switch to provide valuable status
information and send reports on abnormal events. Comprehensive IPv6 support management ensures
a smooth migration to an IPv6-based network. It also supports Dual Image to provide improved
reliability and network uptime.
Specications
Hardware Features & Performance
Product Picture
Model T1700X-16TS
Hardware Features
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3 an, IEEE
General
Performance
Physical &
Environment
Standards and Protocols
Interfaces
Network Media
Switching Capacity Up to 320Gbps
Packet Forwarding Rate Up to 238.1Mpps for a standalone switch
MAC Address Table 16K
Packet Buffer Memory 2MB
Number of IP Interfaces 16
Number of Static Routes 32 IPv4
Jumbo Frame 9KB
Power Supply 100-240V AC, 50/60Hz
Maximum Power Consumption 76.58W
Dimensions (W*D*H) 17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm)
Weight 4kg
FAN Quantity 2 Smart Fans
Operating Temperature 0℃~40℃（32℉~104
Storage Temperature -40℃~70℃（-40℉~158
Operating Humidity 10%~90% RH non-condensing
Storage Humidity 5%~90% RH non-condensing
802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w,
IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
12 100/1000/10GBase-T RJ45 Ports
4 10G SFP+ Slots
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum
100m)
10GBase-T: UTP CAT 5e, 6 (Maximum 55m) or above cable (Maximum
100m)
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
CE, FCC
℉）
℉）
Software Features
L2+ Features
•
16 IP Interfaces
- Support IPv4 interface
- Support IPv6 interface*
•
Static Routing
- 32 IPv4 static routes
- 32 IPv6 static routes*
•
DHCP Relay*
L2 Features
•
Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 14 aggregation groups, containing 8
ports per group
•
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: Loop back detection, TC Protect,
BPDU Filter/Protect, Root Protect
•
Loopback Detection
•
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
•
Port Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Tx/Rx/Both
L2 Multicast
•
1000 IPv4, IPv6 shared IGMP groups
•
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- IGMP Fast Leave
- Multicast VLAN
- IGMP Snooping Querier
- Limited IP Multicast (256 proles and 16 entries
per prole)
- Static Multicast Forwarding
•
MLD Snooping
- MLD v1/v2 Snooping
- MLD Snooping Querier
- Fast Leave
- Limited IP Multicast (256 proles and 16 entries
per prole)
- Static Multicast Forwarding
VLAN
•
VLAN Group
- Max. 4K VLAN Groups
•
802.1Q tag VLAN
•
MAC VLAN
•
Protocol VLAN
•
Private VLAN
Qos
•
802.1p CoS/DSCP priority
•
8 priority queues
•
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
•
Bandwidth Control
- Port/Flow based Rating Limiting
•
Smoother Performance
•
Actions for ows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
•
Voice VLAN
•
Support IPv6 QoS*
ACL
•
Supports up to 300 entries
•
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- EtherType
•
Standard IP ACL
- Source IP
- Destination IP
•
Extended IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
Software Features
•
Combined ACL
- Source MAC
ACL
Security
Mangement
IPv6 Support
MIBs
- Destination MAC
- VLAN ID
- EtherType
•
AAA*
•
DHCP Snooping
•
IP-MAC-Port Binding
•
Dynamic ARP Inspection
•
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
•
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
•
802.1X
- Port based authentication
- MAC (Host) based authentication
•
Web-based GUI
•
Command Line Interface (CLI) through console
port, telnet
•
SNMPv1/v2c/v3
•
SNMP Trap/Inform
•
RMON (1, 2, 3, 9 groups)
•
DHCP Option82
•
IPv6 Static Routing, ACL, QoS*
•
IPv6 Dual IPv4/IPv6
•
Multicast Listener Discovery (MLD) Snooping
•
IPv6 neighbor discovery (ND)
•
Path maximum transmission unit (MTU) discovery
•
Internet Control Message Protocol (ICMP)
version 6
•
TCPv6/UDPv6
•
MIB II (RFC1213)
•
Interface MIB (RFC2233)
•
Ethernet Interface MIB (RFC1643)
•
Bridge MIB (RFC1493)
•
P/Q-Bridge MIB (RFC2674)
•
RMON MIB (RFC2819)
- User Priority
- Source IP
- Destination IP
•
ACL apply to Port/VLAN
•
Support IPv6 ACL*
- Guest VLAN
- Support Radius authentication and
accountability
•
Port Isolation
•
Secure web management through HTTPS with
SSLv3/TLS1.0
•
Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
•
IP/Port/MAC based access control
•
DoS Defend
•
CPU Monitoring
•
Cable Diagnostics
•
Access Control
•
SNTP
•
System Log
•
Dual Image
•
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
•
RMON2 MIB (RFC2021)
•
Radius Accounting Client MIB (RFC2620)
•
Radius Authentication Client MIB (RFC2618)
•
Remote Ping, Traceroute MIB (RFC2925)
•
Support TP-LINK private MIBs
*These features will be released on the latest rmware.
Ordering Information
Host Switch
Product Model Description
T1700X-16TS JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots
Auxiliary Products
Product Model Description
TXM431-SR 10GBase-SR SFP+ LC Transceiver
TXM431-LR 10GBase-LR SFP+ LC Transceiver
TXC432-CU1M 1M Direct Attach SFP+ Cable
TXC432-CU3M 3M Direct Attach SFP+ Cable
Router
Product Model Description
TL-ER6120 SafeStream Gigabit Dual-WAN VPN Router
TL-ER5120 Gigabit Load Balance Broadband Router
