QUICK REFERENCE

GUIDE

RAV4

2010

2010
RAV4

!

A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4.

This Quick Reference Guide is not a full description of RAV4
operations. Every RAV4 owner should review the Owner’s
Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.

All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

25

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Spare tire (if equipped) & tools

Tool location

Removing the spare tire

(1) To remove the spare tire cover,* open the back door. Unhook the latch

on the bottom of the cover. Close the back door. Remove the spare tire
cover by holding the bottom and lifting it up and away from the
vehicle.

(2) To remove the spare tire, turn the wheel nuts counterclockwise with

the wheel nut wrench and remove.

Refer to the Owner’s Manual for tire changing and jack positioning
procedures.

* If equipped

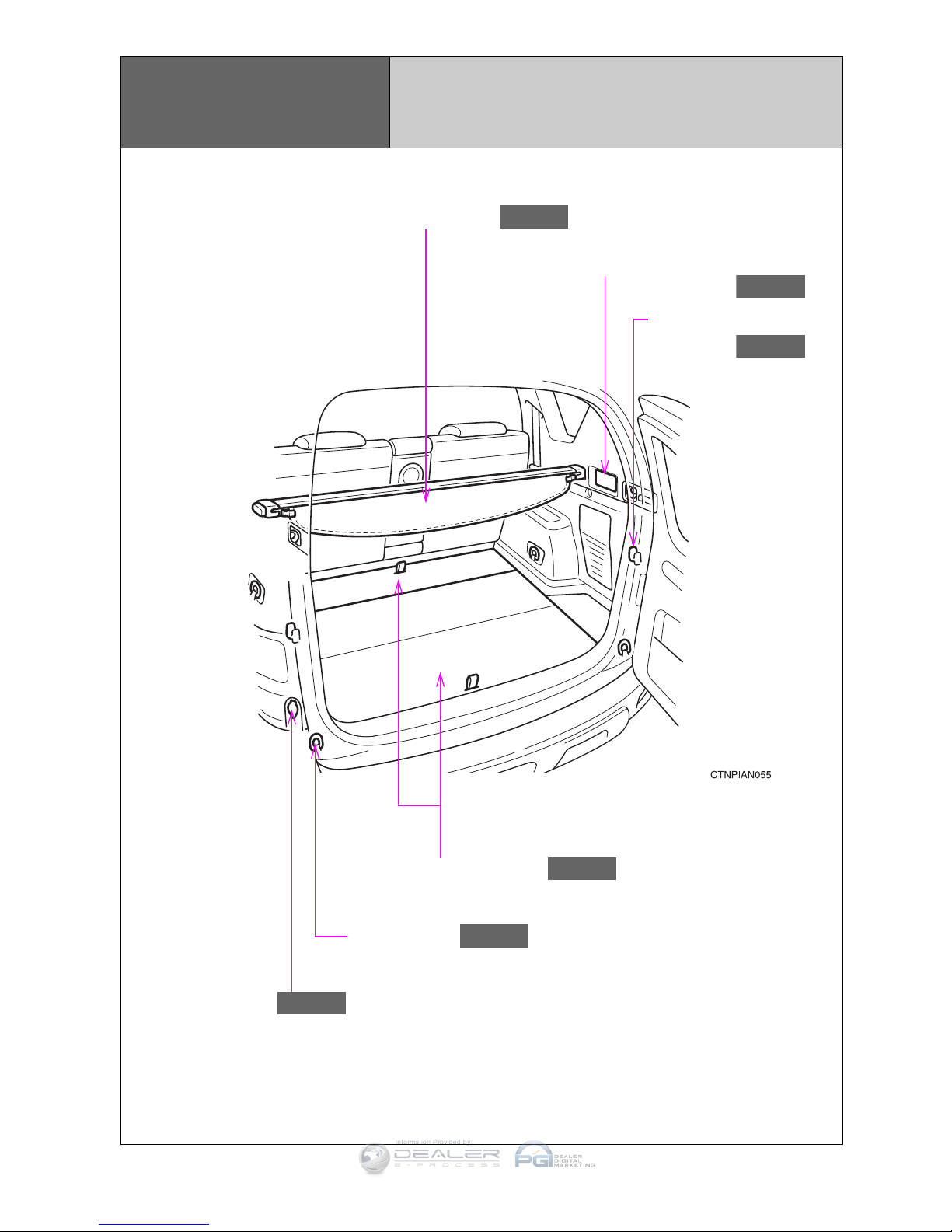

Luggage compartment
Inside left side box

Luggage compartment
Inside right side box

Jack

Tool bag

(1)

(2)

1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance

9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3

Keyless entry* 6
Smart Key system* 7

Active torque control 4WD (4WD models) 11
Air Conditioning/Heating 18-19
Audio 20-21
Automatic Transmission 10
Clock 19
Cruise control 23
Door locks

16
Downhill Assist Control system (DAC) 22
Hill-start Assist Control (HAC) 23
Light control-Instrument panel

19
Lights & turn signals 14
Moonroof 16
Parking brake 10
Power outlets-12V DC 22
Power outlets-120V AC 22
Seat adjustments-Front 12
Seat adjustments-Second row seats 12
Seat heaters

18
Seats-Head restraints 11
Seats-Folding down second row seats 13
Seats-Stowing third row seats 13
Telephone controls (Bluetooth®)17
Tilt and telescopic steering wheel 17
VSC OFF button 16
Windows 15
Windshield wipers & washers

15

Doors-Child safety locks 24

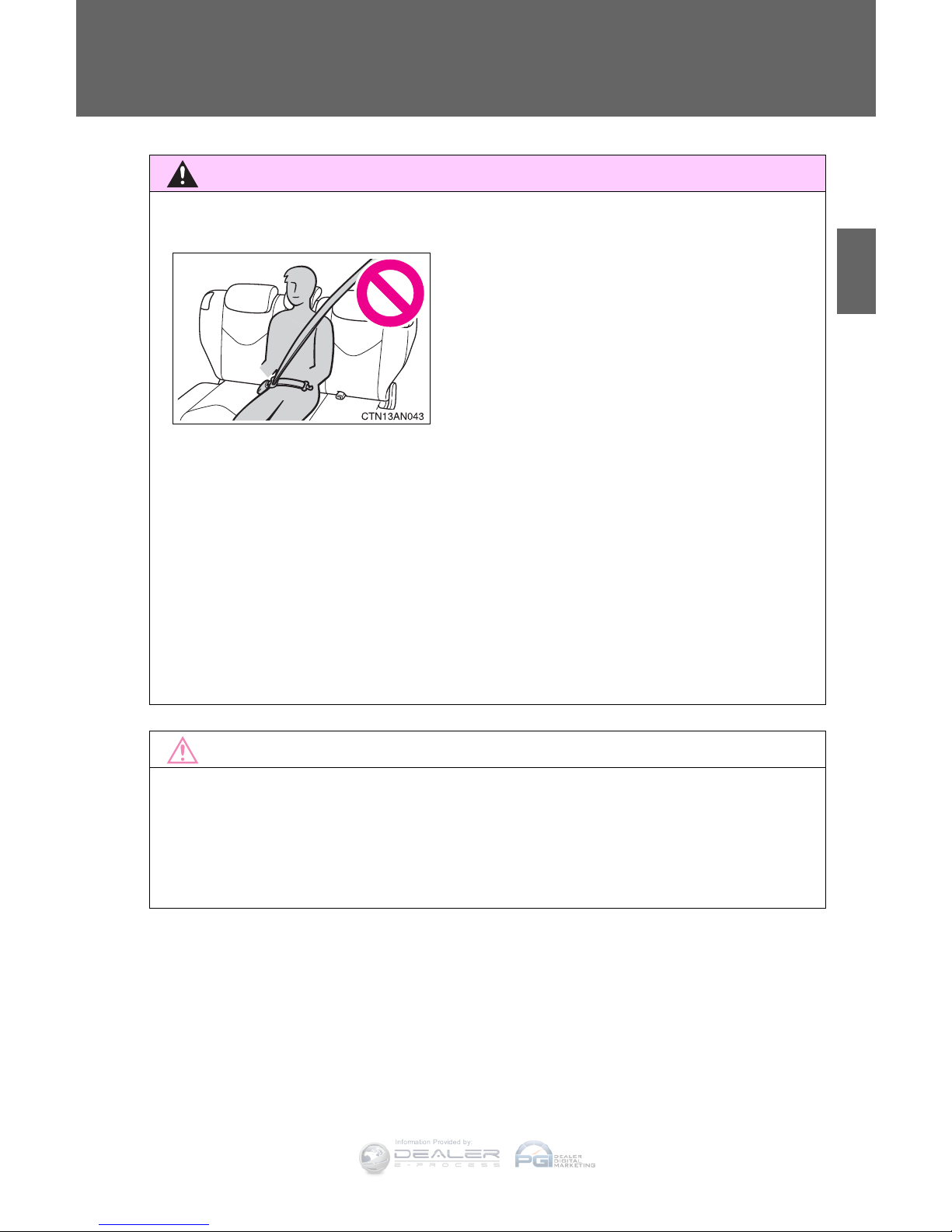

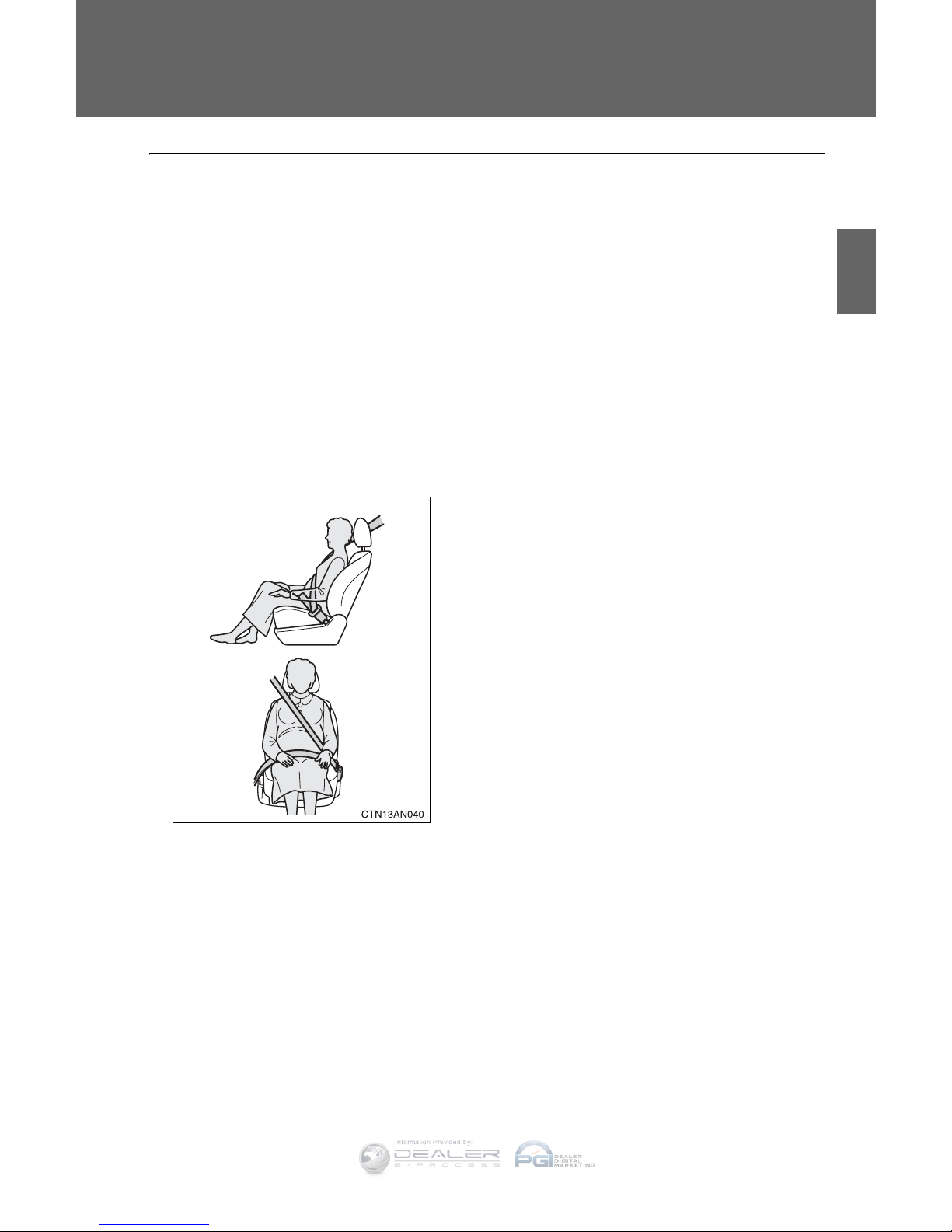

Seatbelts 24
Seatbelts-Shoulder belt anchor 24
Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

* Visit your Toyota dealer for information on customizing this feature.

2

OVERVIEW

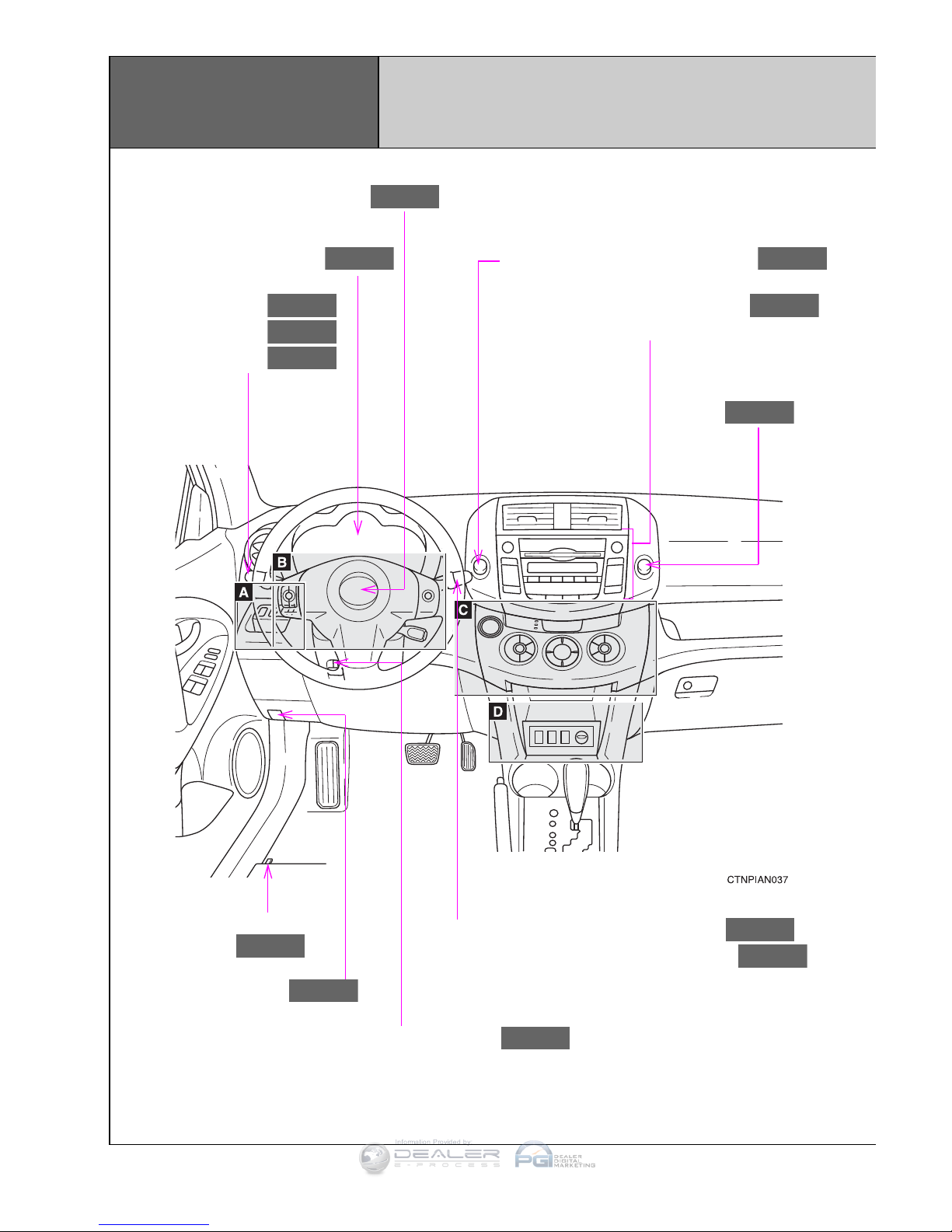

Instrument panel

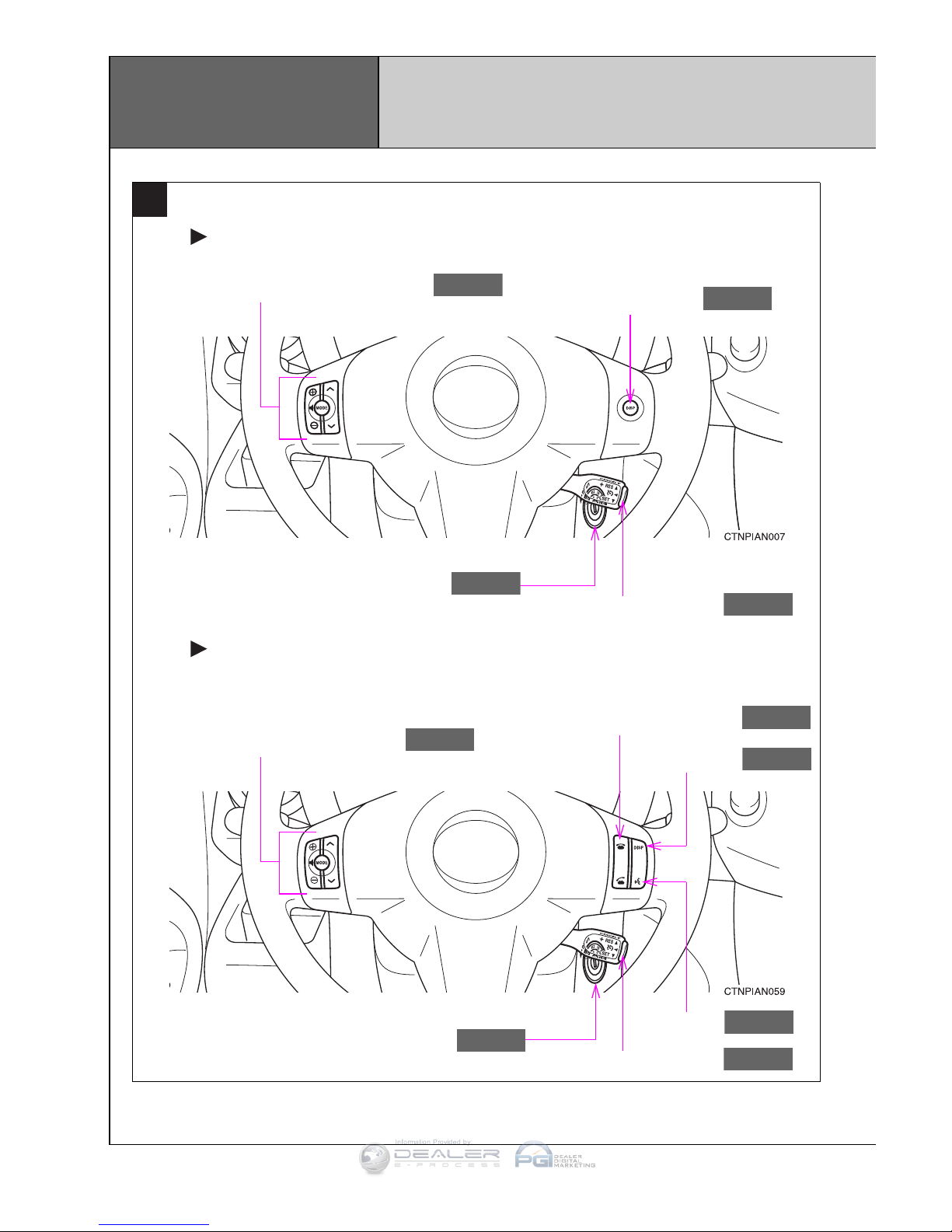

Steering wheel controls

Steering wheel audio controls

1

Telephone controls

1

Multi-information display switch
Speech command button

1

Cruise control
Headlight, turn signal and front fog light

1

control
Wiper and washer controls
Four-wheel drive lock switch (4WD models)
Audio system/Navigation system

1,2

Emergency flasher switch
Air Conditioning controls
“ENGINE START STOP” button (Smart Key)

1

Engine immobilizer indicator
Front passenger seatbelt reminder light
Clock and Air Conditioning display

Without telephone controls

With telephone controls

3

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

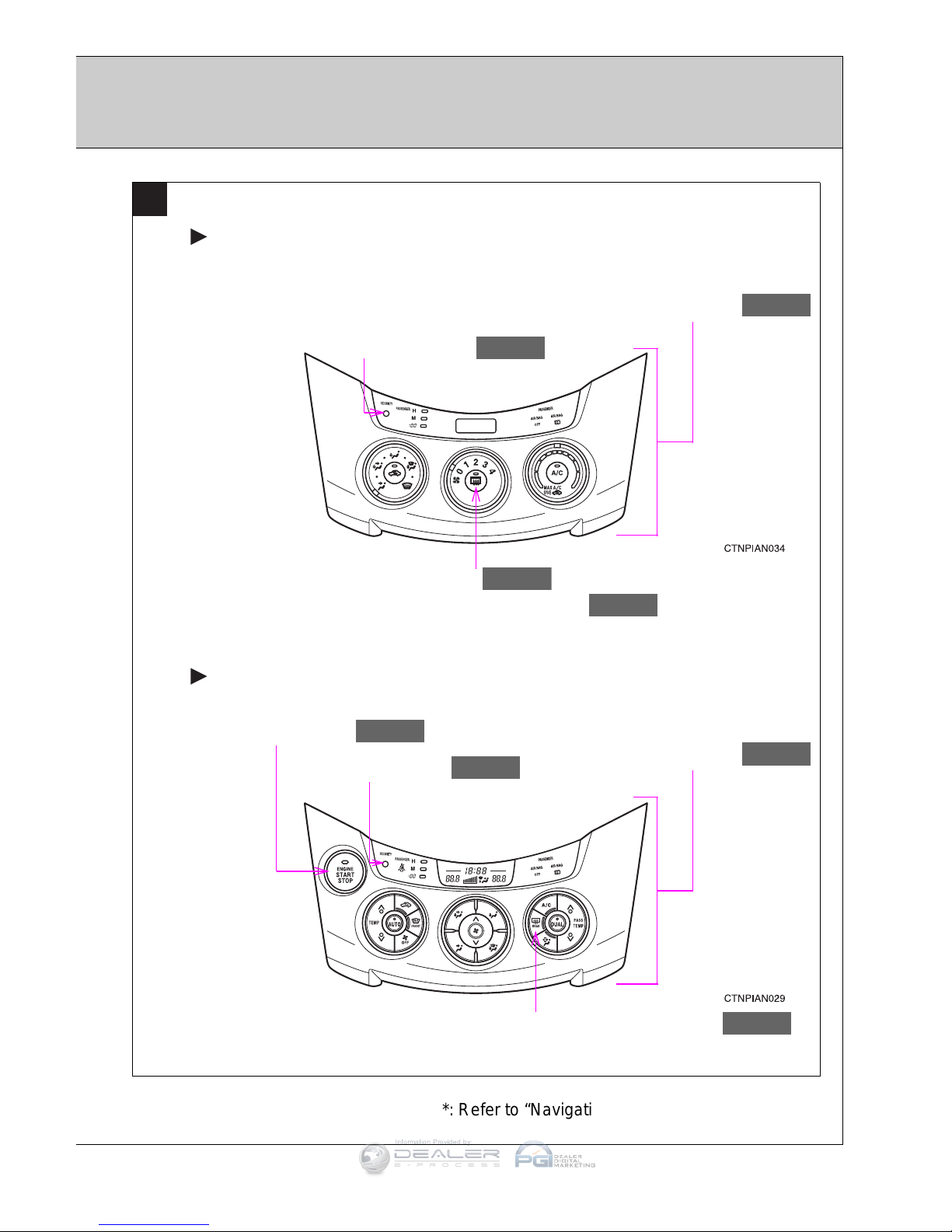

With manual
Air Conditioning system

With automatic
Air Conditioning system

Front passenger occupant classification indicator
Rear window and outside rearview mirror defogger switch

1

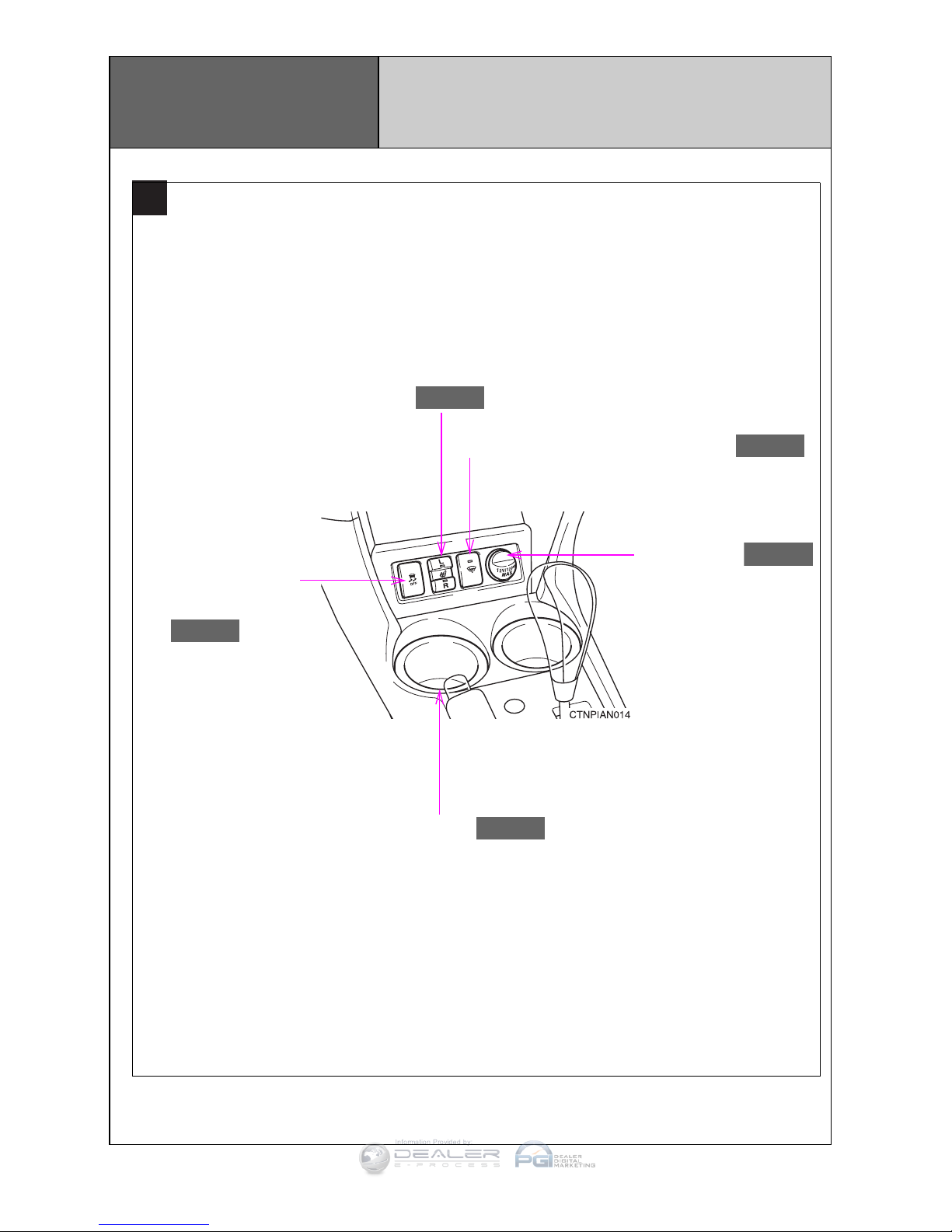

12V DC Power outlet
Seat heater switch

1

VSC OFF switch
Ignition switch (standard key)
Tilt and telescopic steering release

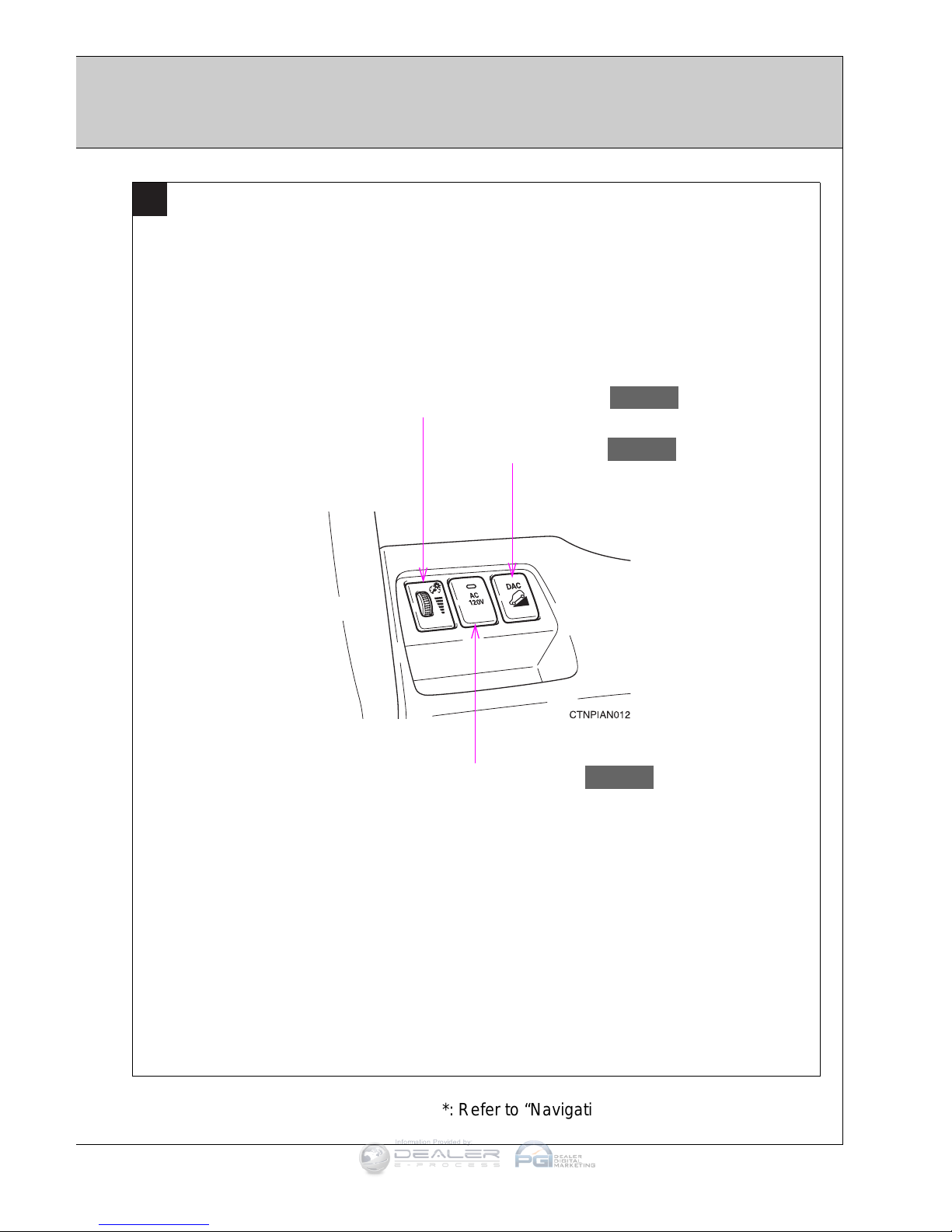

Downhill Assist Control switch

1

120V AC Power outlet ON/OFF switch

1

Instrument panel light control

1

If equipped

2

Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”

4

OVERVIEW

Open door warning

Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Odometer, two trip meters and trip information display
Odometer/trip meter switch and trip meter reset button

Instrument cluster

Charging system warning

1

Low engine oil pressure warning

1

Brake system warning

1

Malfunction/Check Engine indicator

1

Engine oil replacement reminder

1

Indicator symbols

Driver/Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)

Low fuel level w a r n i n g

1

If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.

2

For details, refer to “Four-wheel drive lock switch,” Section 2-4, 2010 Owner’s Manual.

5

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Automatic Transmission indicator (4-speed)

Turn signal indicator

Front fog light indicator

Low windshield washer fluid level warning

Airbag SRS warning

1

Headlight low/high beam indicator

Automatic Transmission fluid temperature warning

1

Low Tire Pressure Warning

1

4WD warning

1

Electric power steering system warning

1

Four-wheel drive lock indicator

1,2

Slip indicator/Hill-start Assist Control indicator/Downhill Assist
Control indicator

1

Downhill Assist Control indicator

1

AUTO Limited Slip Differential indicator

1

Cruise control indicator

3

Anti-lock Brake System warning

1

Automatic Transmission indicator (5-speed)

3

If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.

Vehicle Stability Control OFF indicator

1

Smart Key system warning

Traction Control OFF indicator

1

F

ront passenger occupant classification indicator

1

6

OVERVIEW

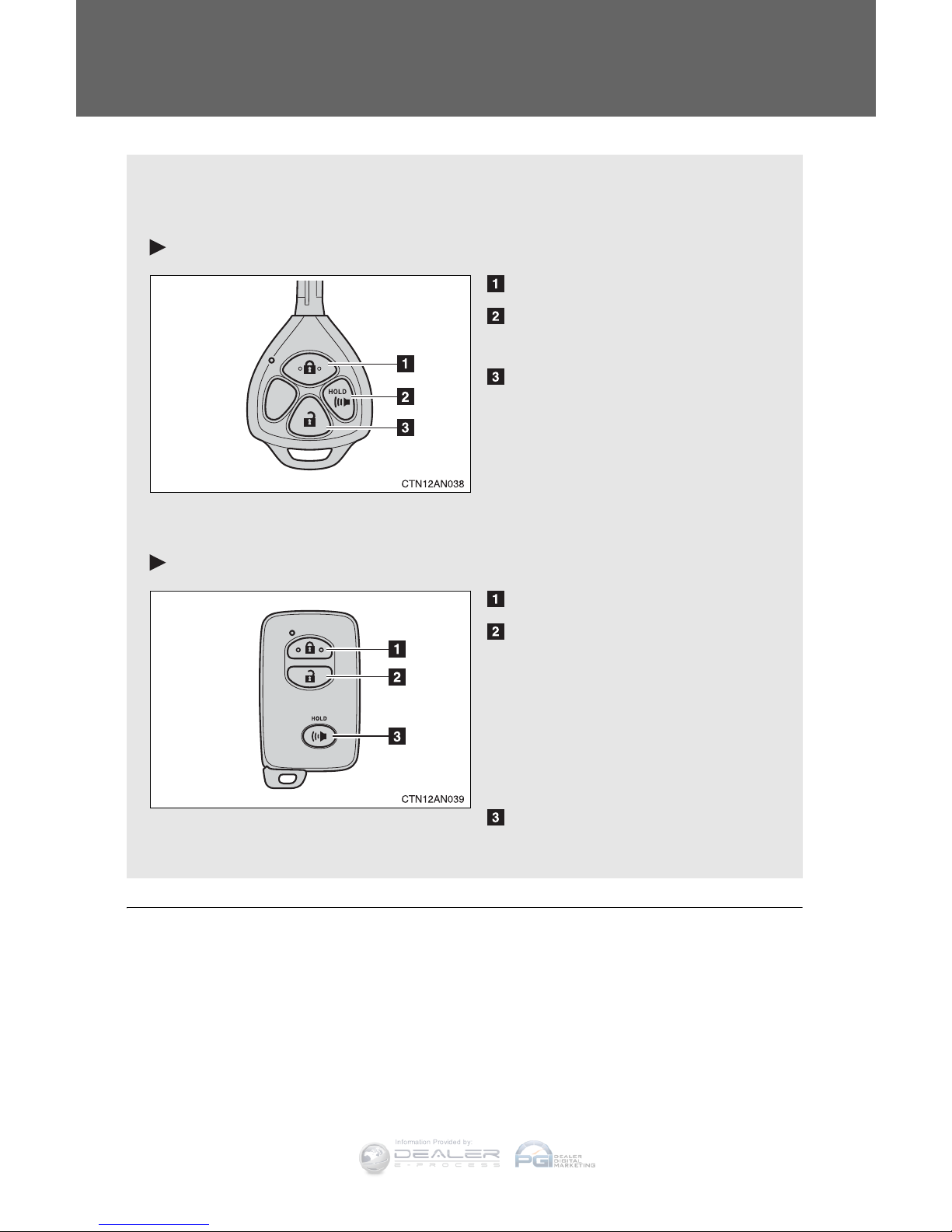

Keyless entry

Locking operation

Unlocking operation

Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for
more details.

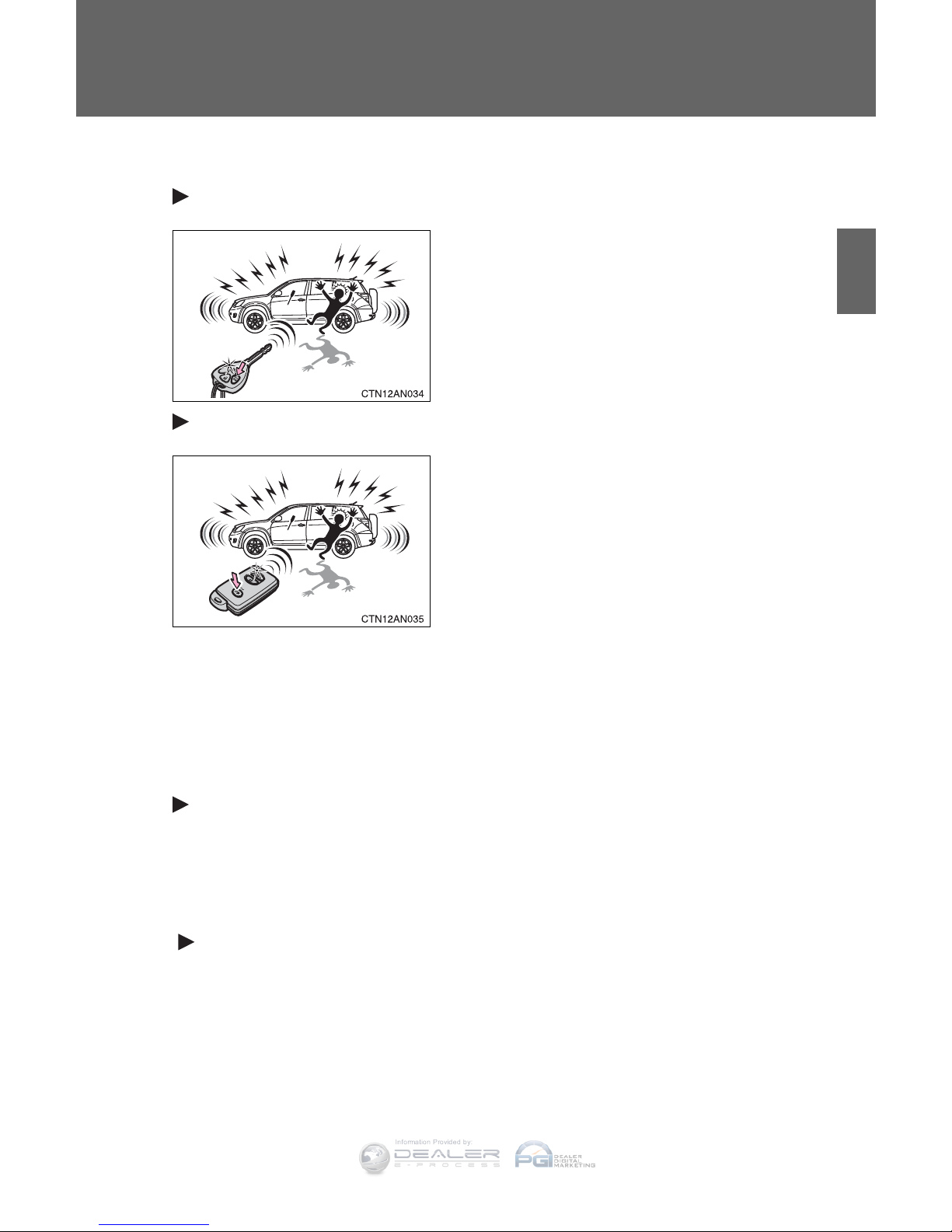

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Push ONCE: Driver door

TWICE: All doors

Push

Without Smart Key system

With Smart Key system

Without Smart Key system

With Smart Key system

7

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

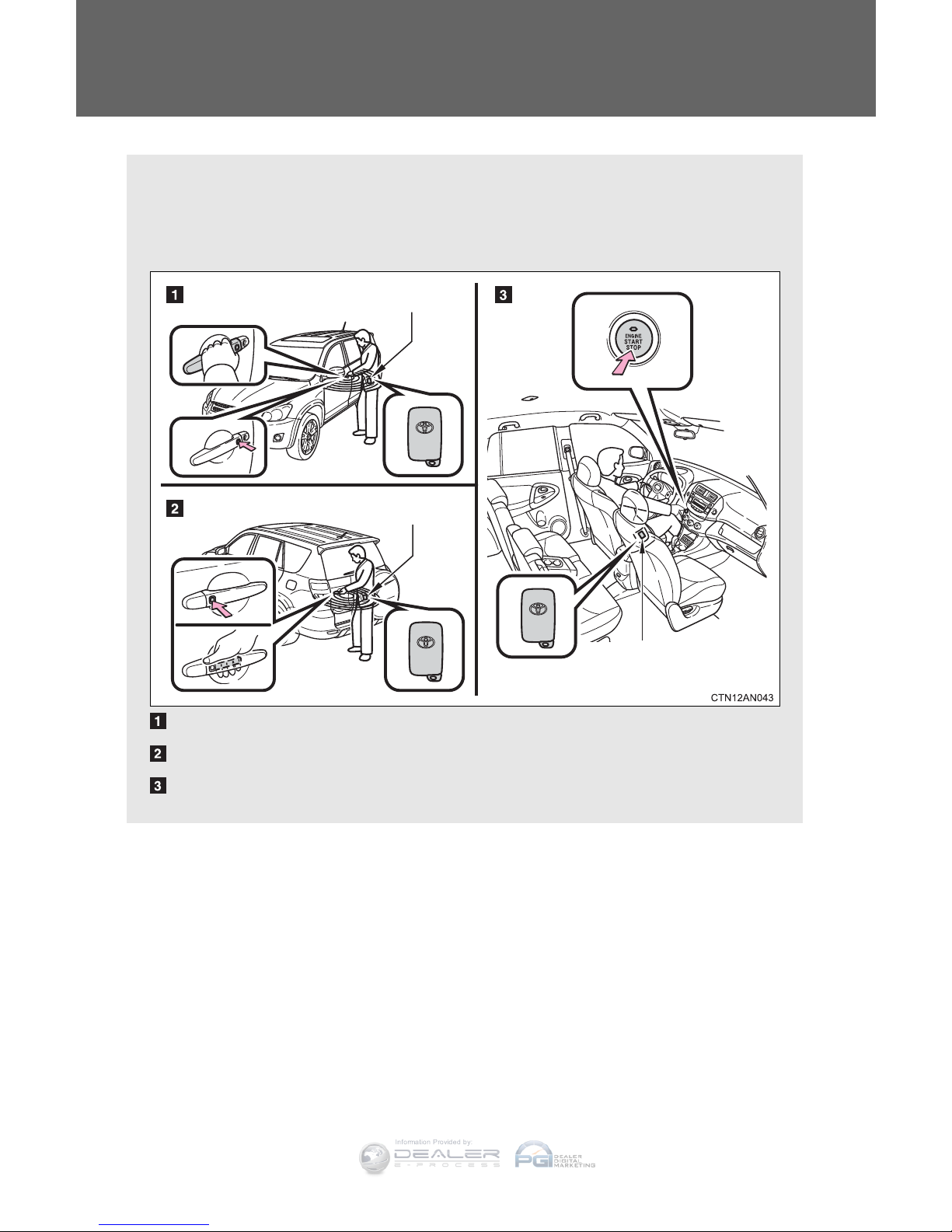

Smart Key system* (if equipped)

Start function

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress
brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACCESSORY

ON

OFF

Back door lock/unlock

Locking operation

Unlocking operation

Carry remote to lock/unlock Carry remote to lock/unlock

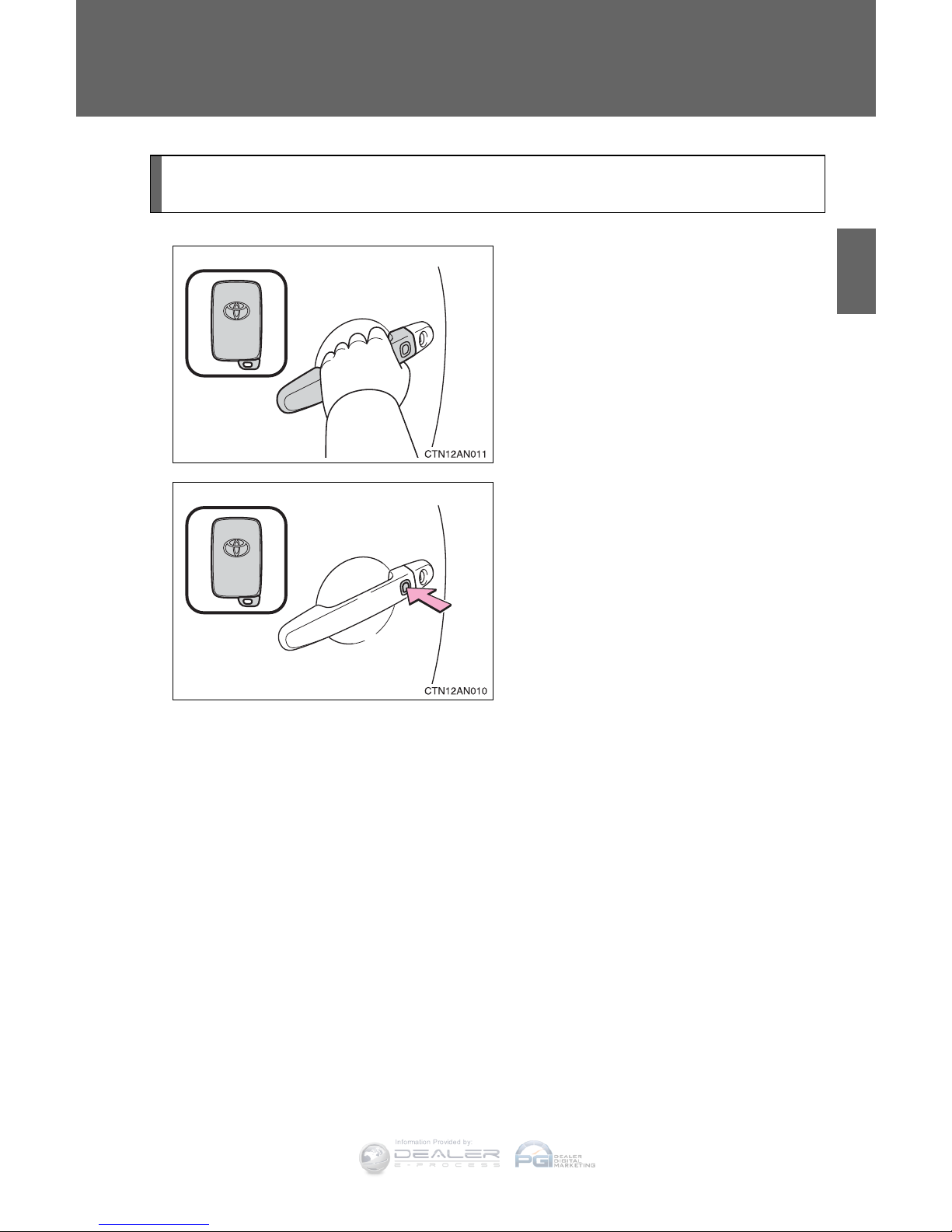

Front door lock

Front door unlock*

Push

Grasp

Push

Grasp

Carry remote
to lock/unlock

8

OVERVIEW

NOTE: Tighten until one click is heard. If the cap is not tightened enough,

Check Engine “ ” indicator may illuminate.

Fuel tank door release and cap

Pull up

Tu r n

Store

Driver seat

Hood release

Pull

Pull up latc h
and raise hood

Engage support rod

9

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield and back window washer fluid tank

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”

6 cylinder (2GR-FE) engine

Engine maintenance

4 cyl ind e r (2AR-FE) engine

10

Automatic Transmission

* The engine/“ENGINE START STOP” switch must be “ON” and the brake

pedal depressed to shift from Park.

Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

4-speed models

5-speed models

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear

Parking brake

Pull

(2) Push

(1) Pull slightly

(3) Lower

Set Release

FEATURES/OPERATIONS

11

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Auto lock functions

Four-wheel drive lock switch

Push the switch to ensure that the engine torque is applied to the four
wheels.

NOTE: Should ONLY be used when wheel spinning occurs on loose or
unpaved surfaces.

Refer to the Owner’s Manual for more details.

Active torque control 4WD
(4WD models)

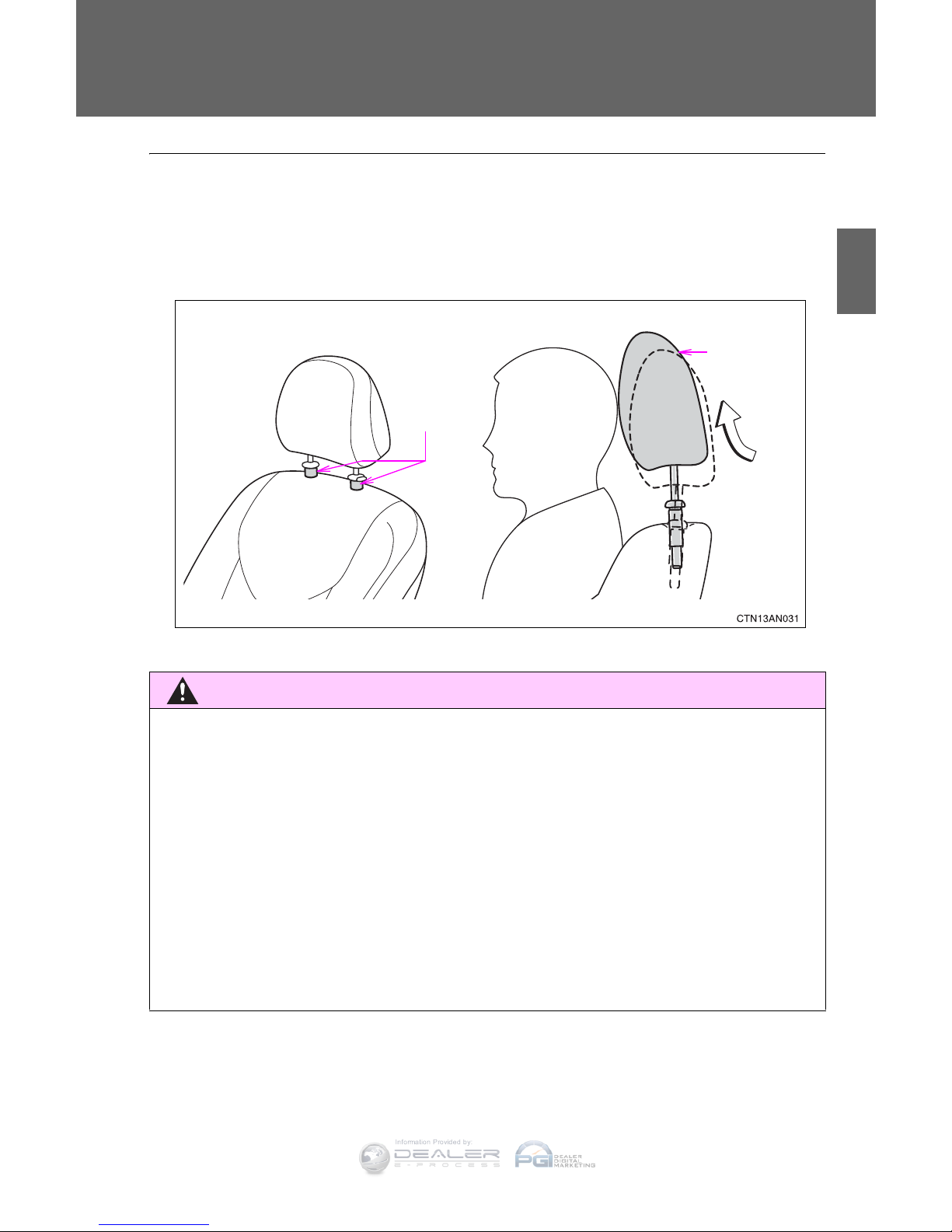

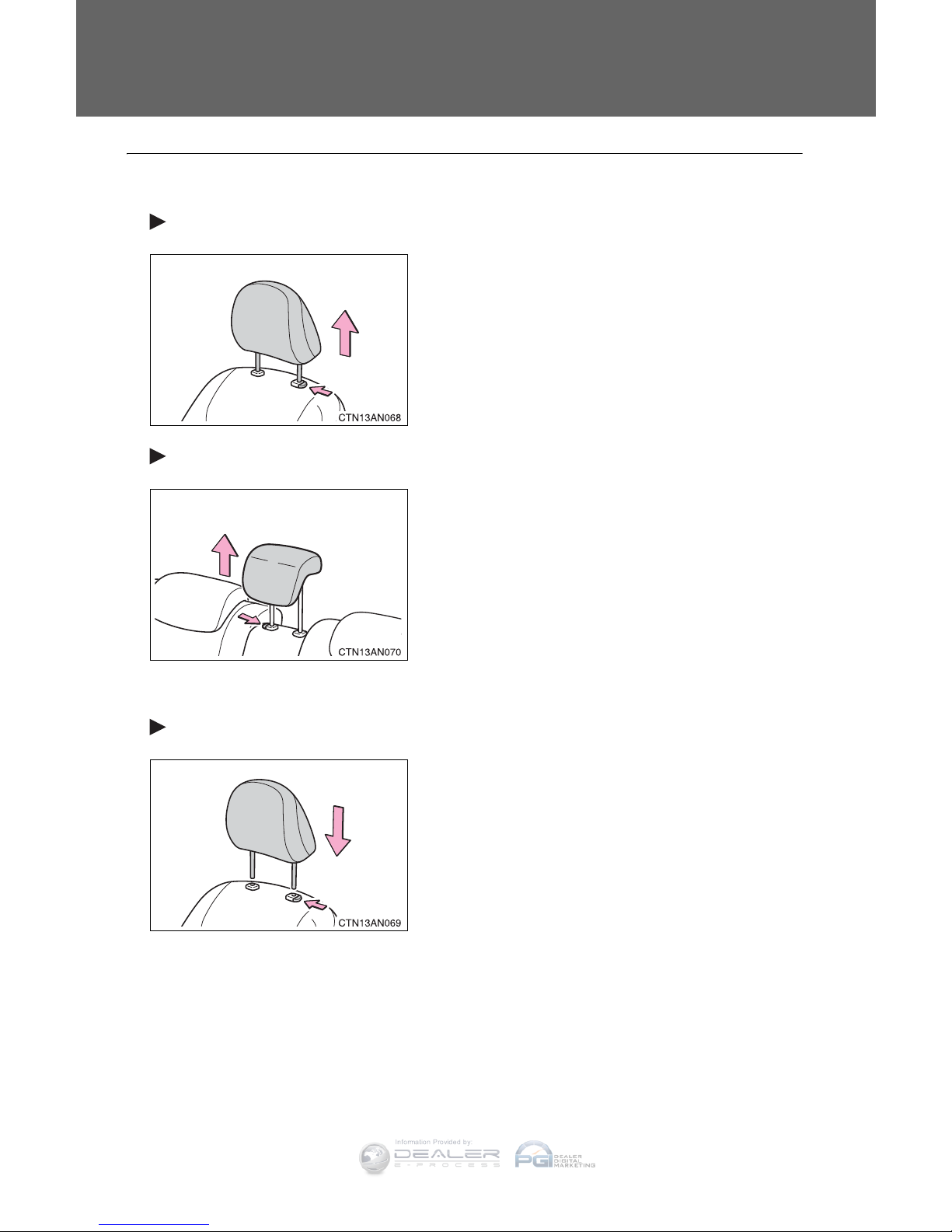

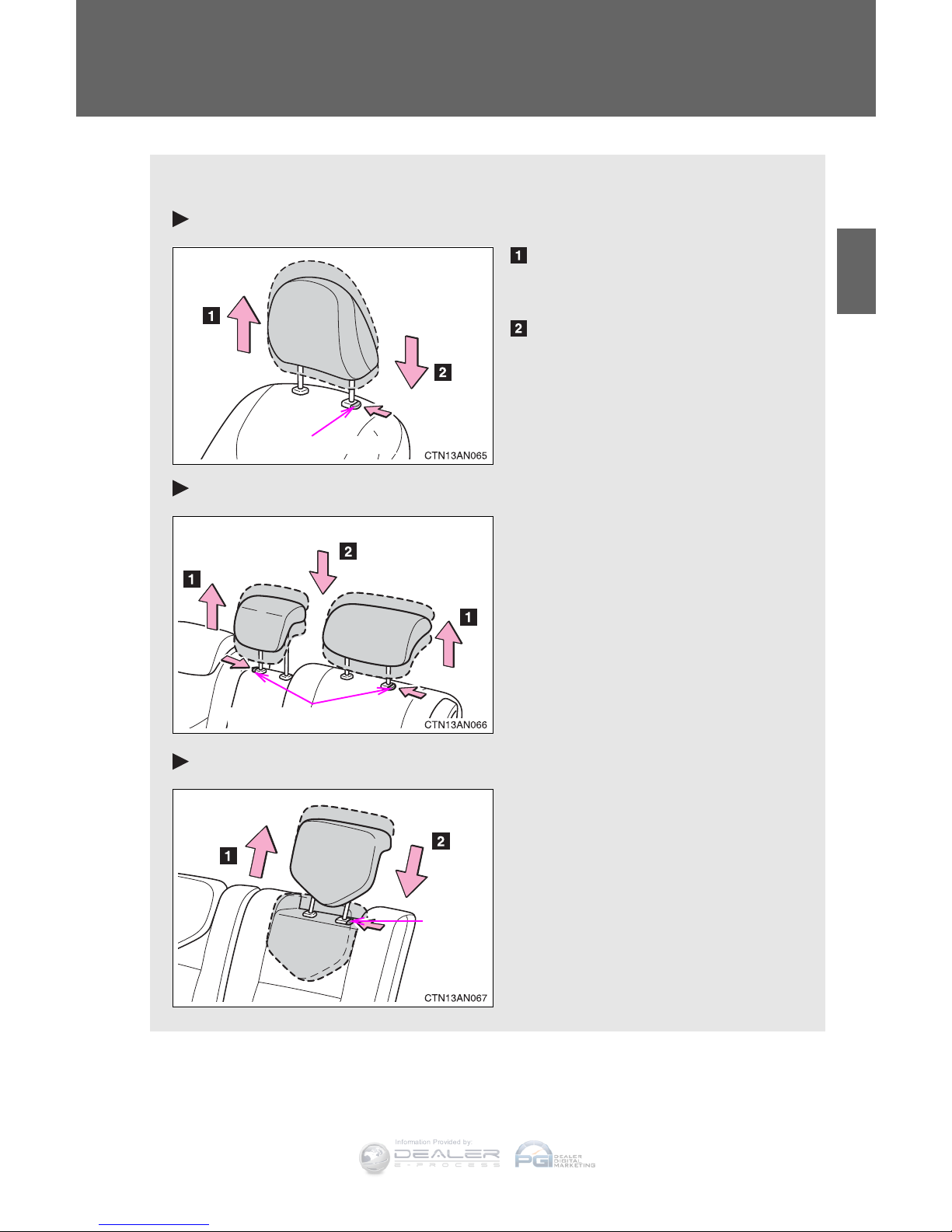

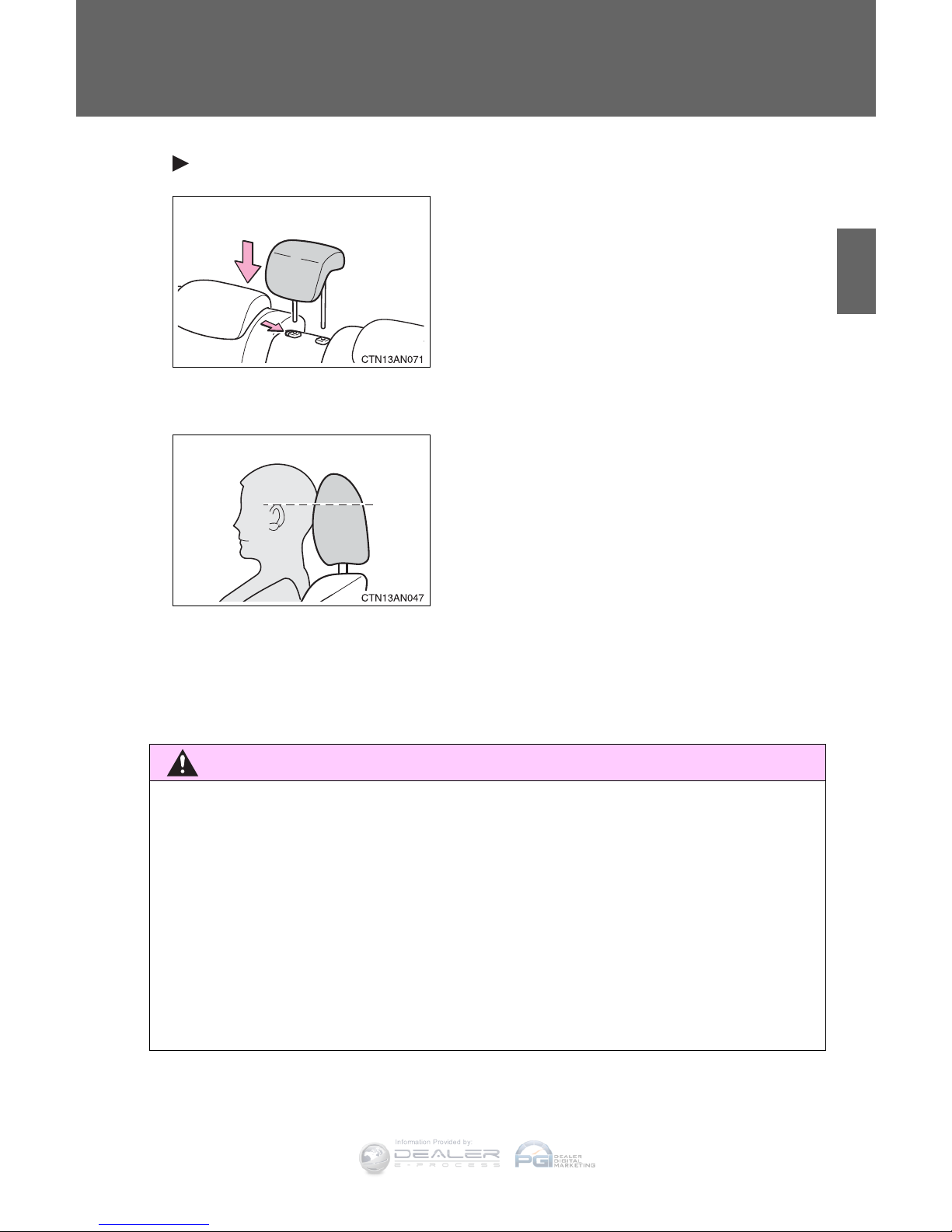

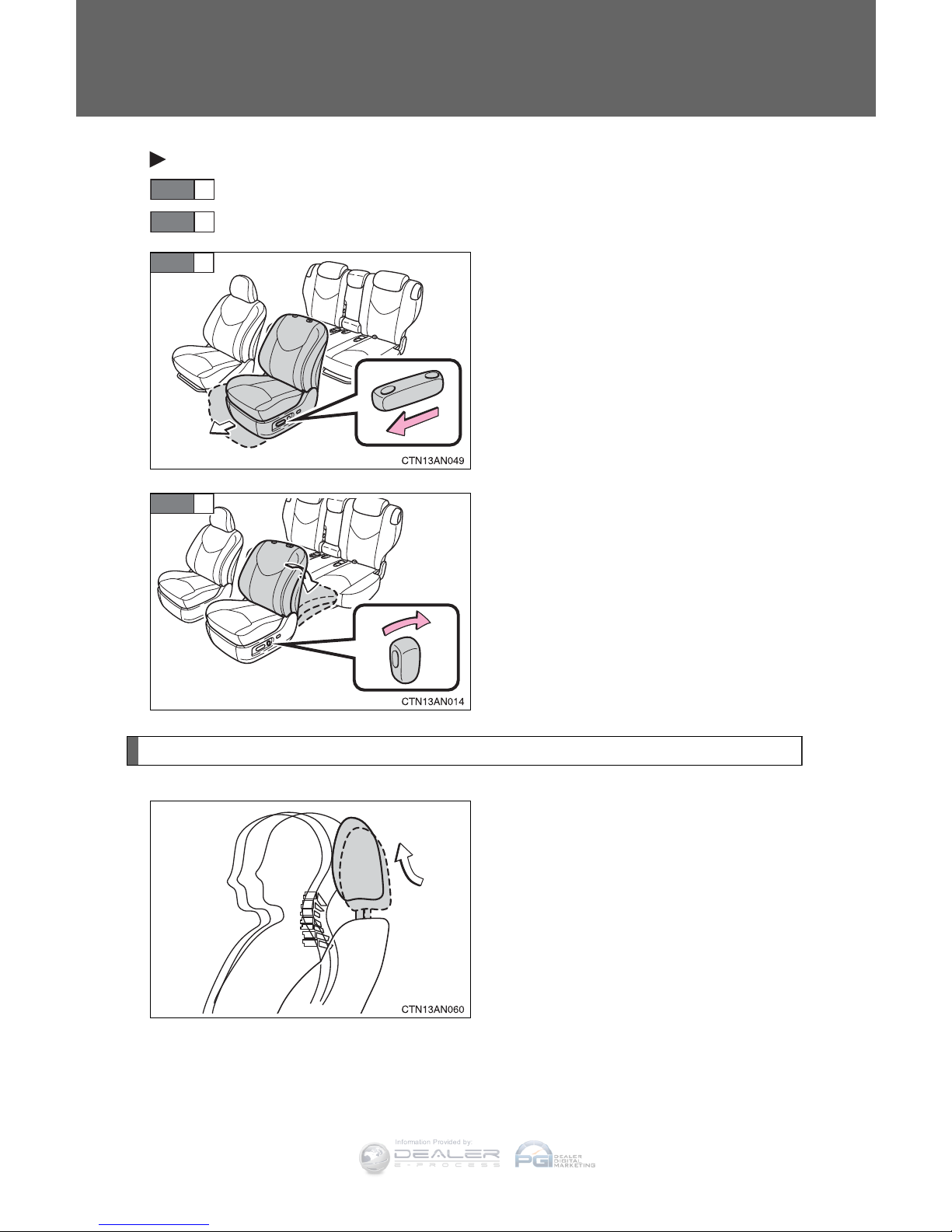

Seats-Head restraints

Front seats

Second row seats

Third row seats
(if equipped)

Lock release button

Lock release button

Lock release button

12

FEATURES/OPERATIONS

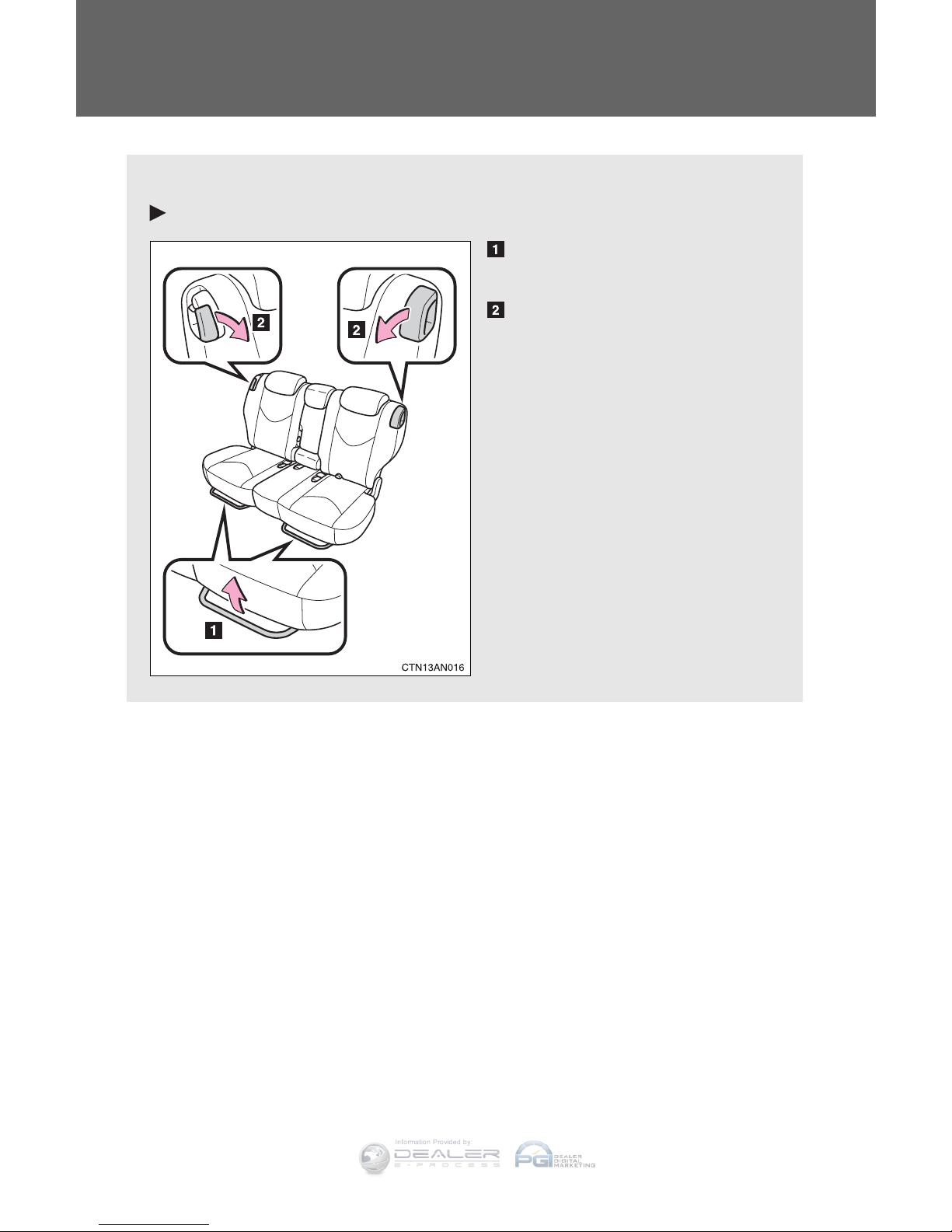

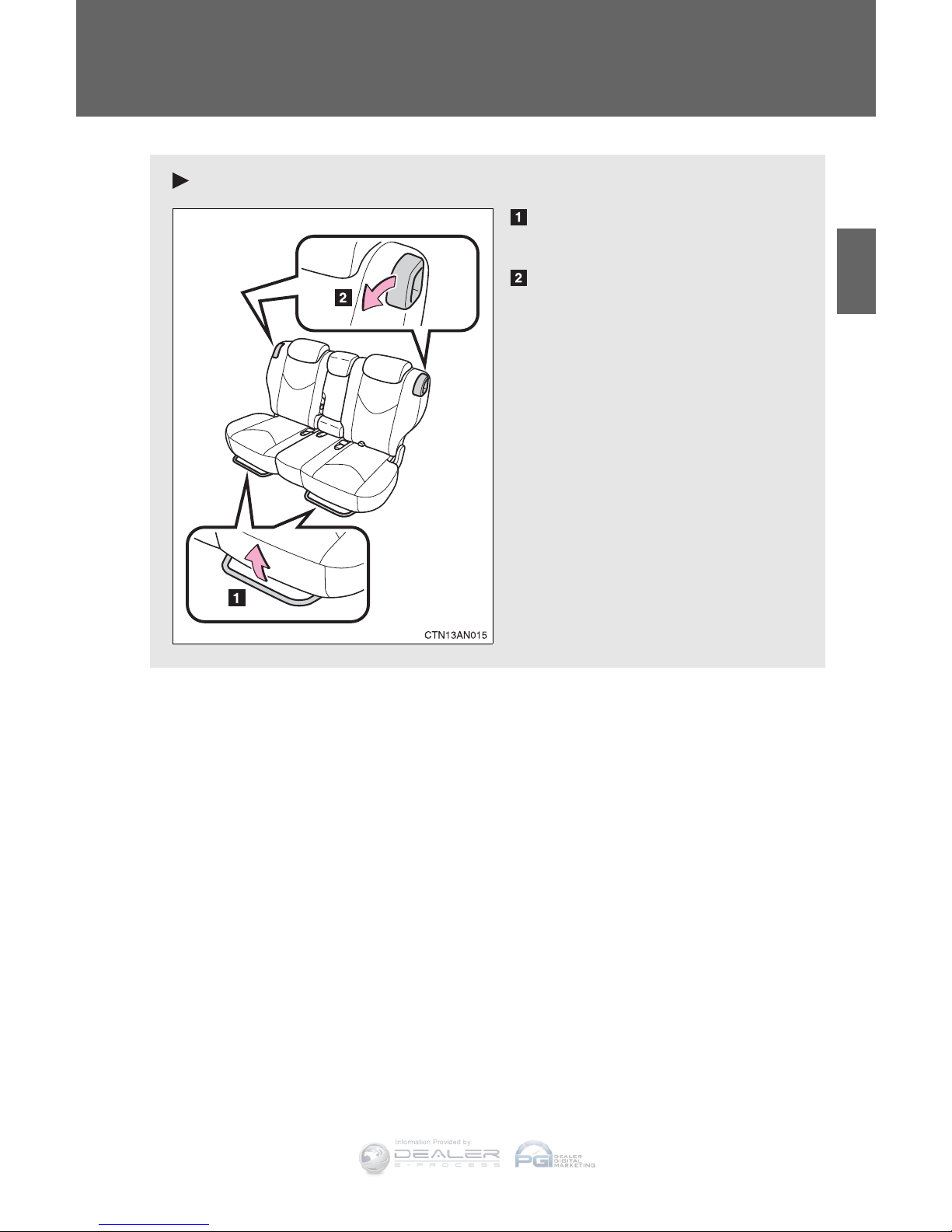

Seat adjustments-Second row seats

Seat position (forward/backward)
Seatback angle
Seatback lock release

Vehicles with third row seats

Vehicles without third row seats

Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Driver seat: seat position, cushion angle and height
Passenger seat: seat position only
Seatback angle
Lumbar support

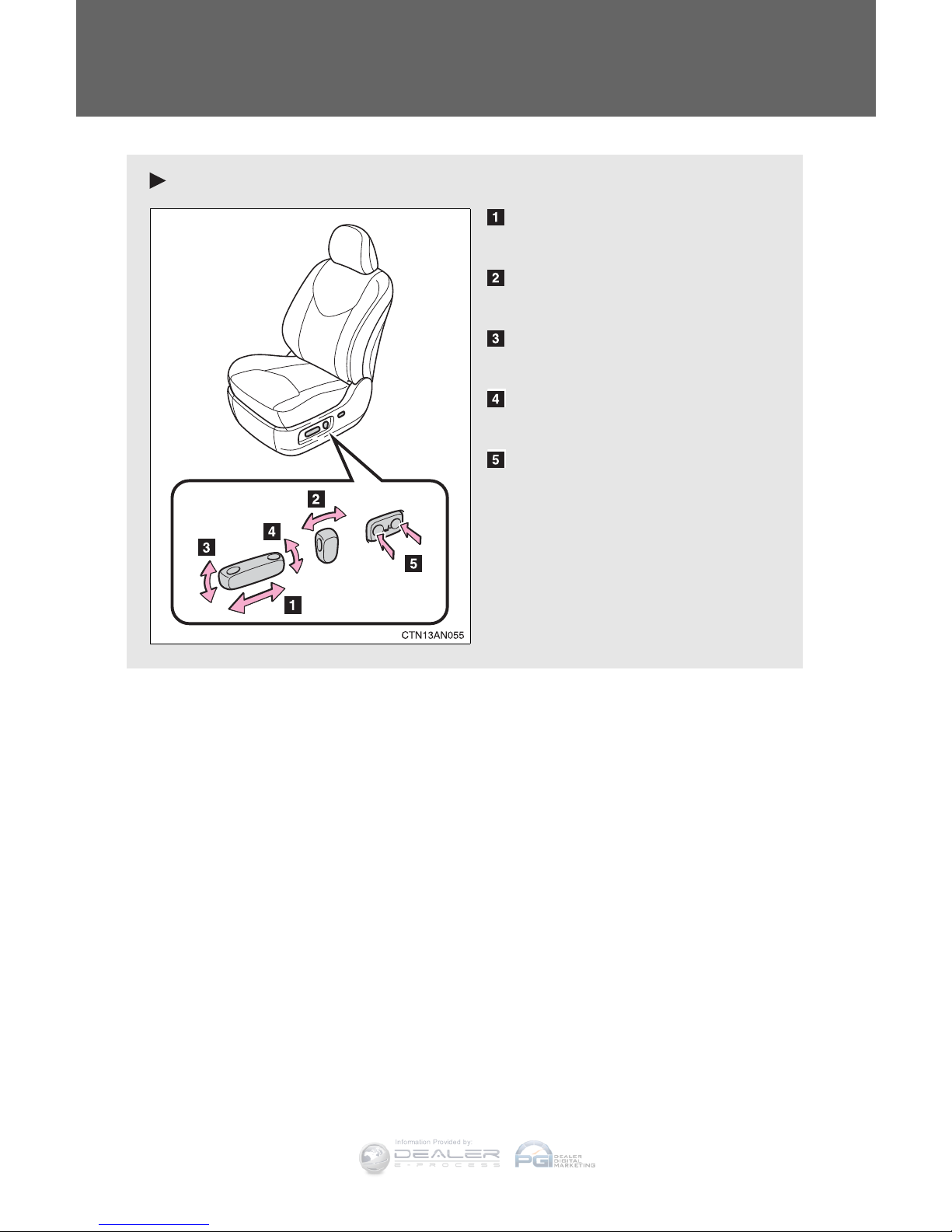

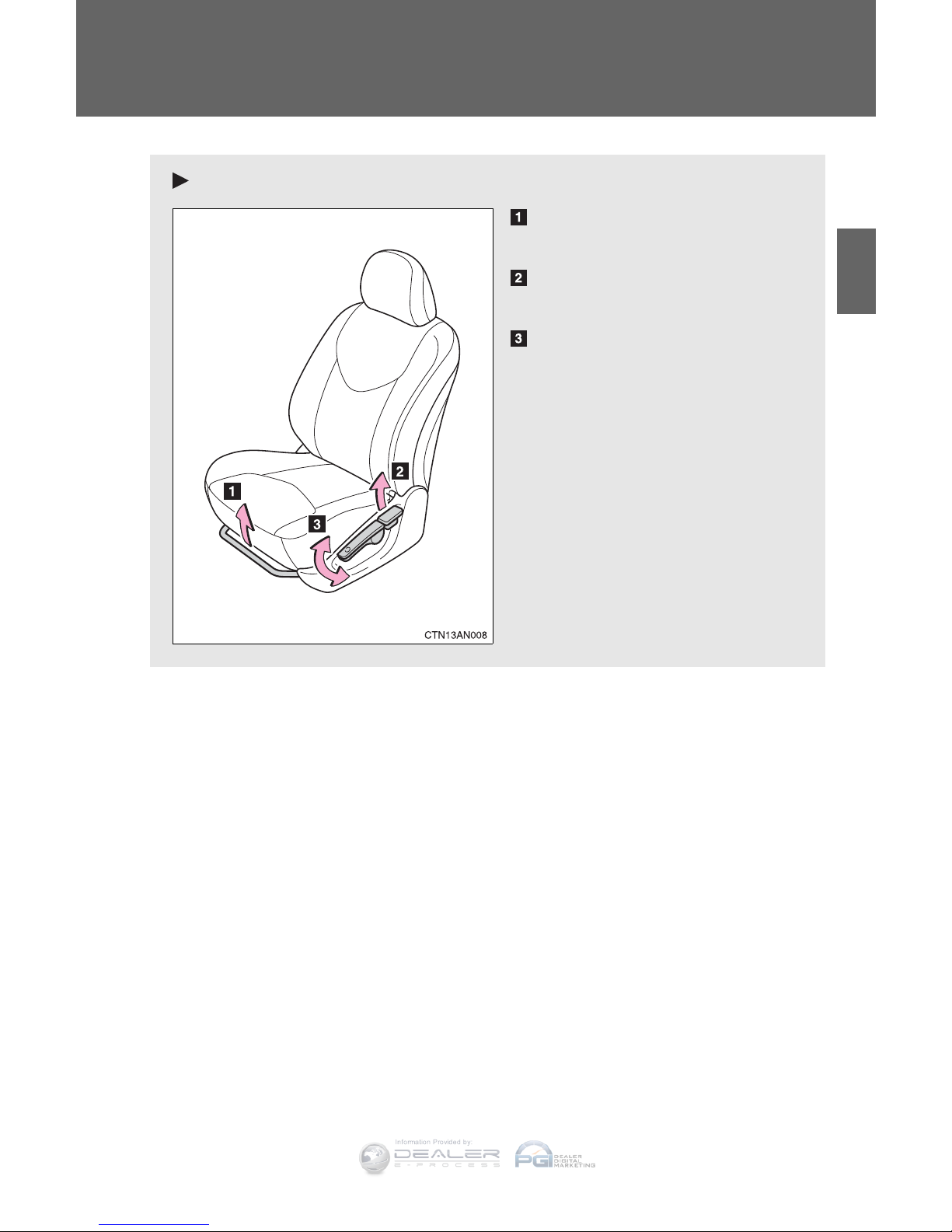

Seat adjustments-Front

Manual seat

Power seat

13

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

(2) Lower

(3) Pull down

From inside

From outside (vehicles without third row seats)

(1) Push

(2) Lower

(1) Push

(5) Pull u p

(7) Push down

(8) Push to lock in

(4) Fold down

(3) Pull

(9) Push to lock in

(6) Lift up

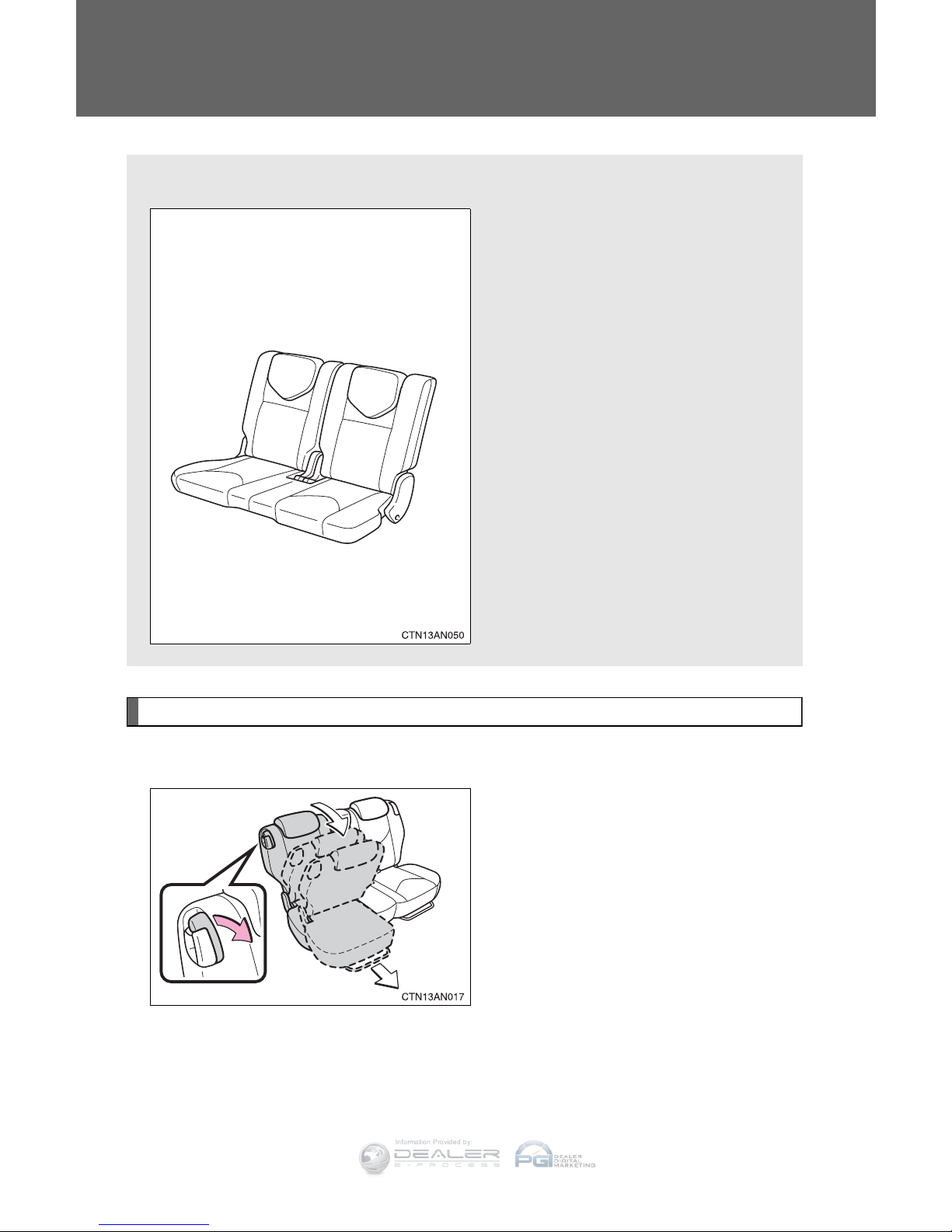

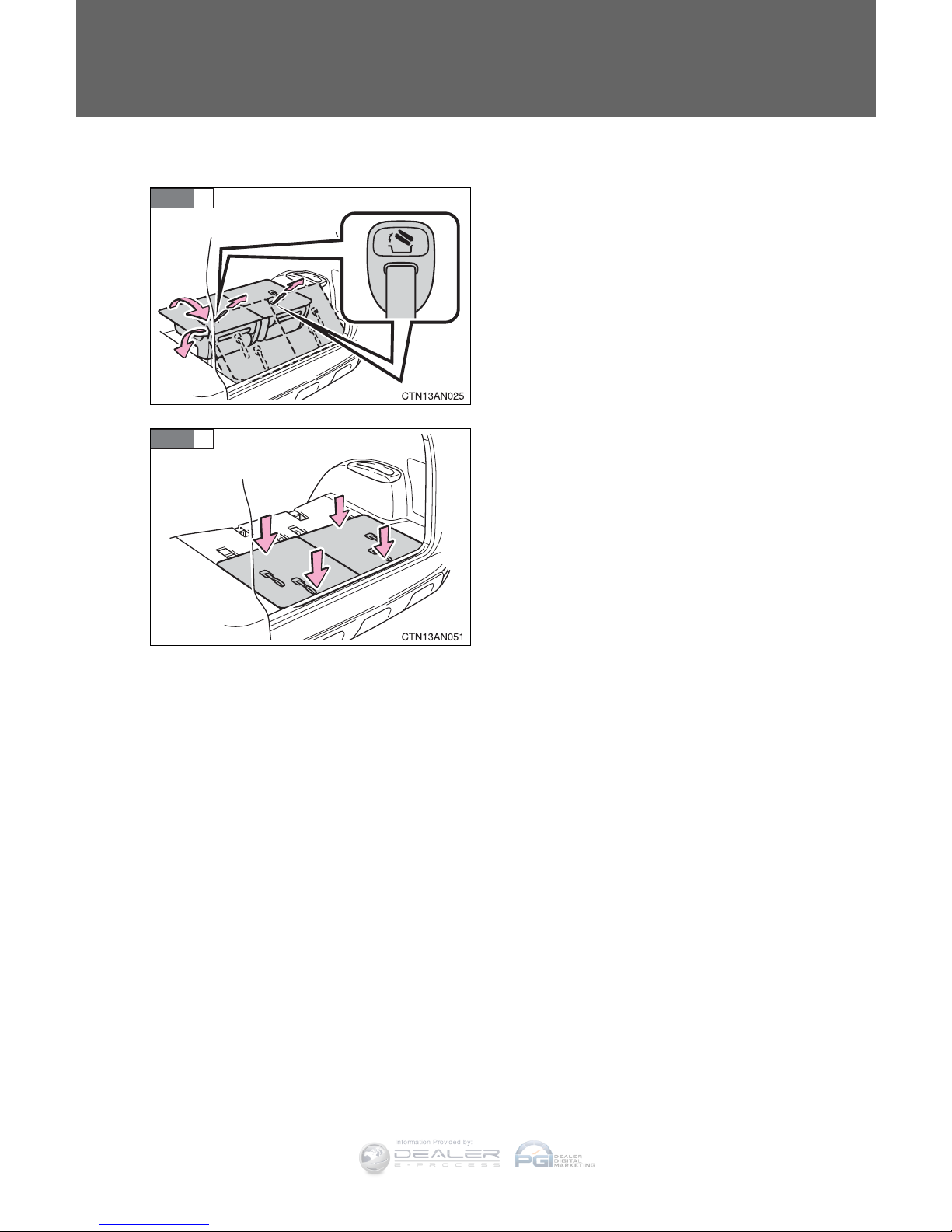

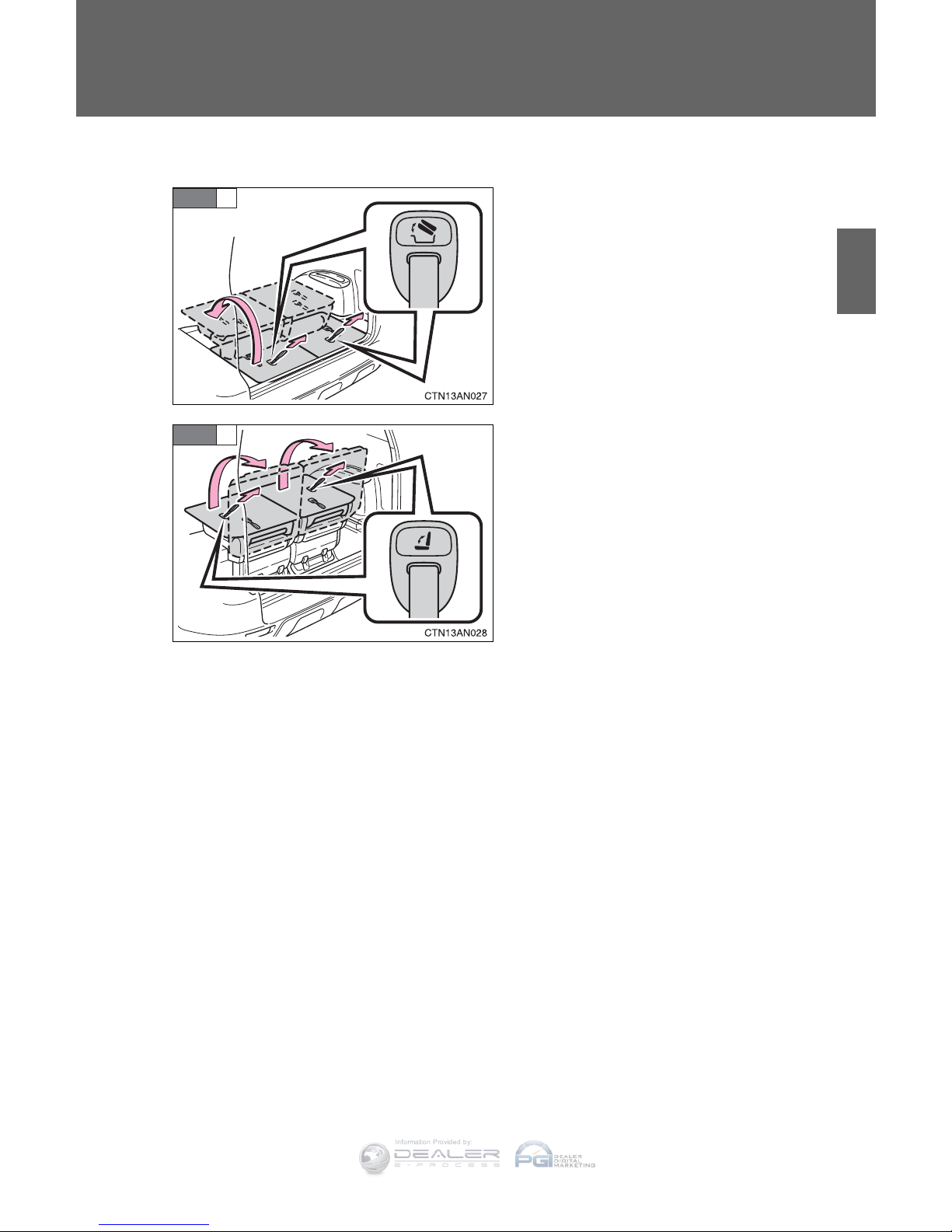

Seats-Stowing third row seats
(if equipped)

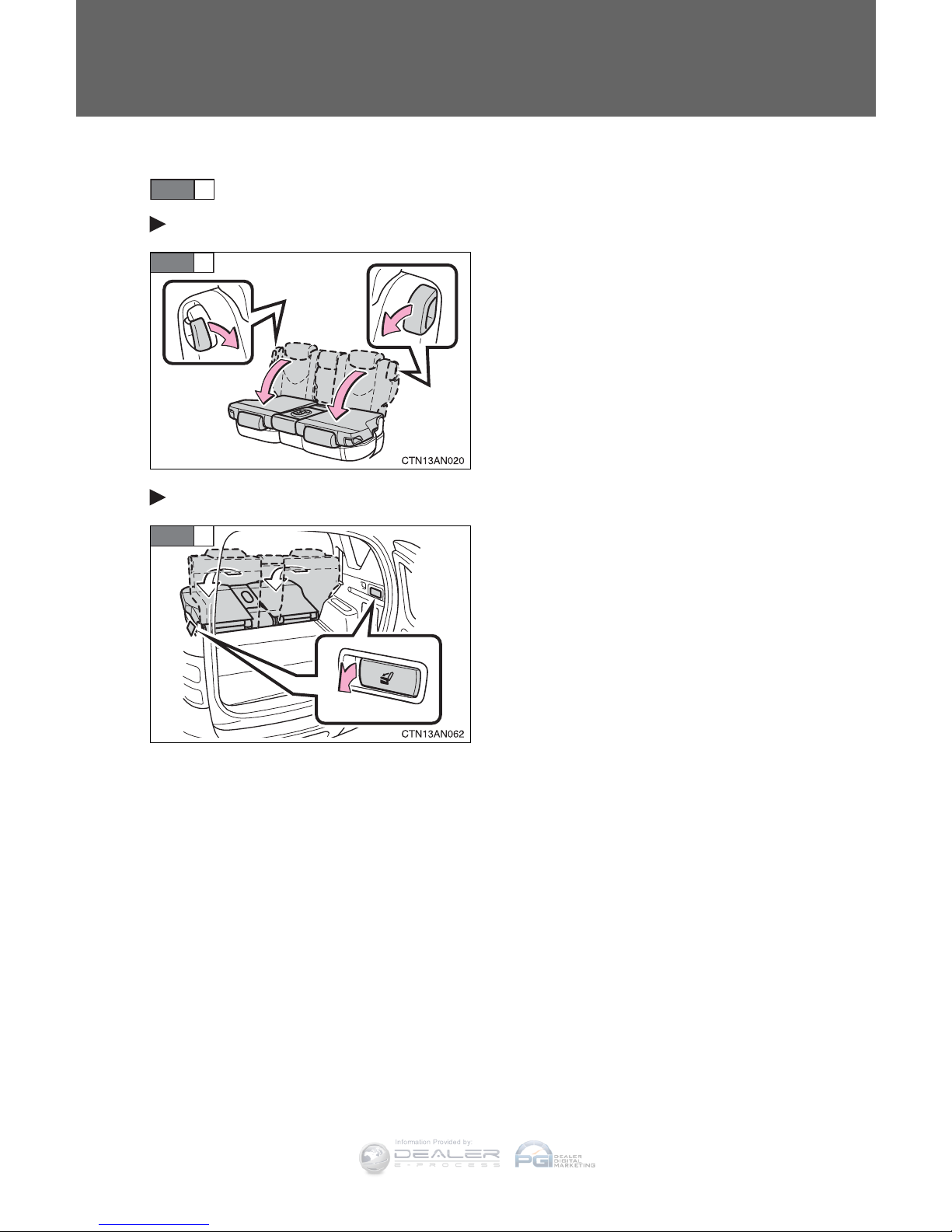

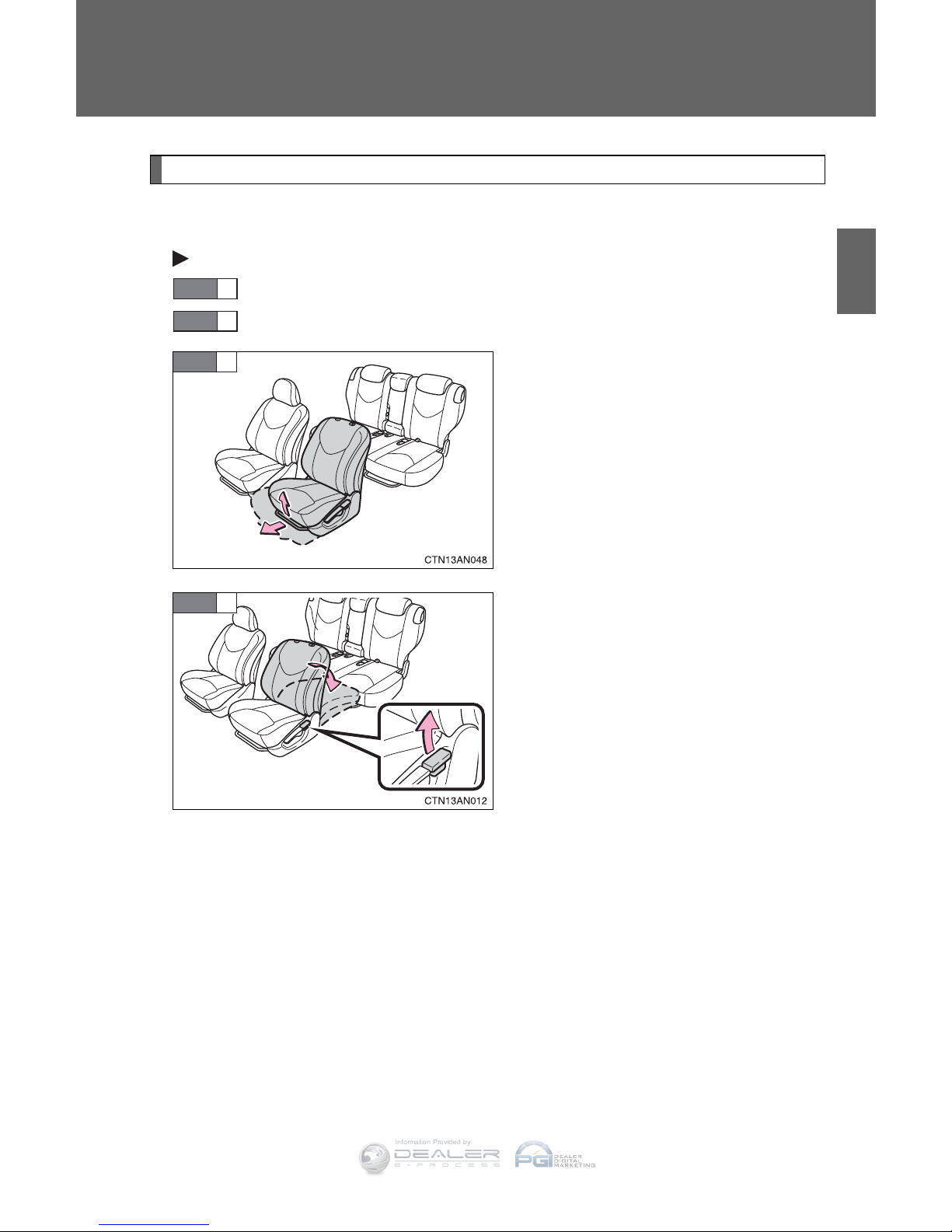

Seats-Folding down second row seats

14

FEATURES/OPERATIONS

Lights & turn signals

Turn signals

Headlights

High beam flasher

Low beam

Front fog lights (if equipped)

Headlights

-Daytime Running Light system (DRL) (if equipped)

Automatically turns on the headlights at a reduced intensi t y.

-Automatic light cut off system Will automatically turn lights off after a

delay of 30 seconds.

Front fog lights come on only when the headlights are on low beam.

Parking lights

Right turn

Tu r n

Lane change

Lane change

Left turn

High beam

Auto (if equipped)

15

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

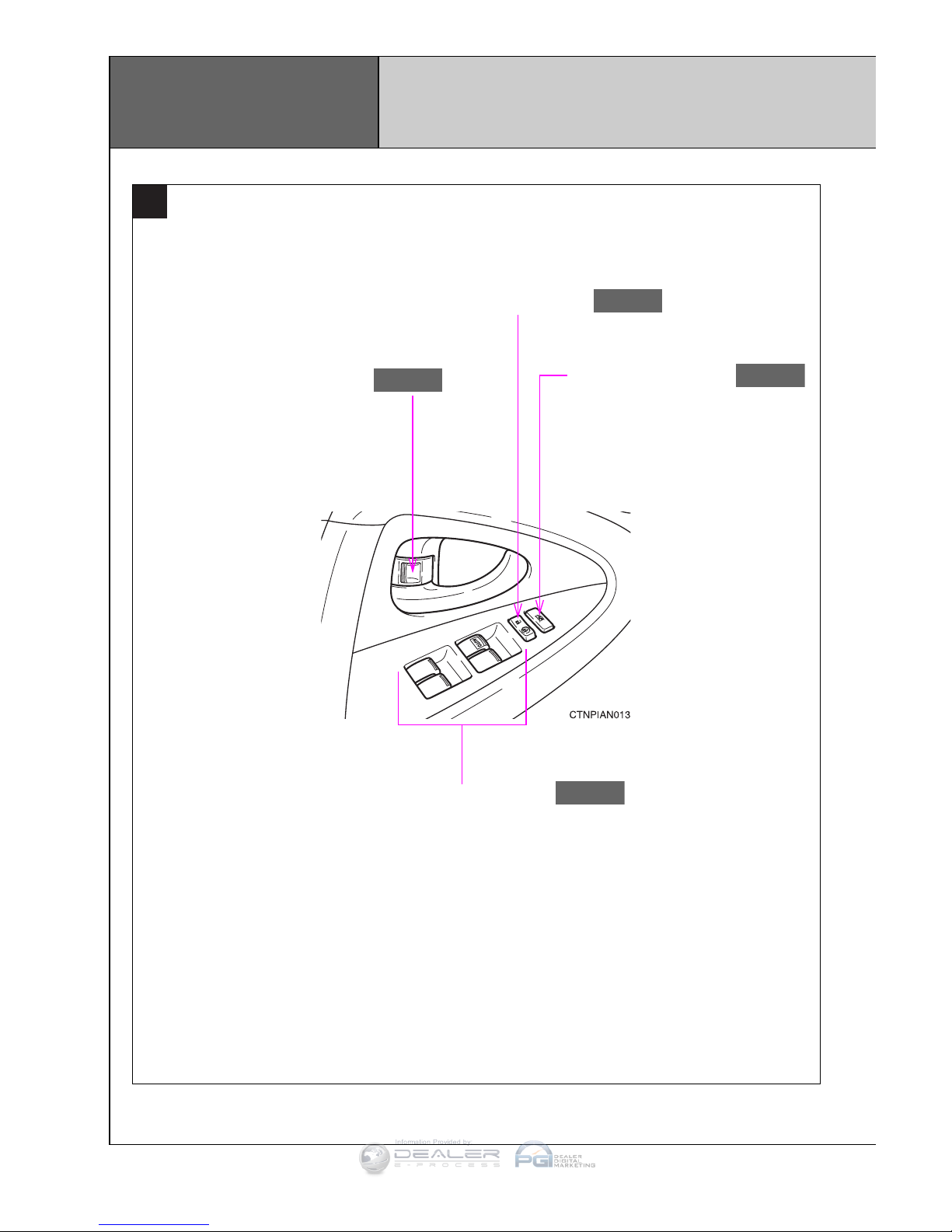

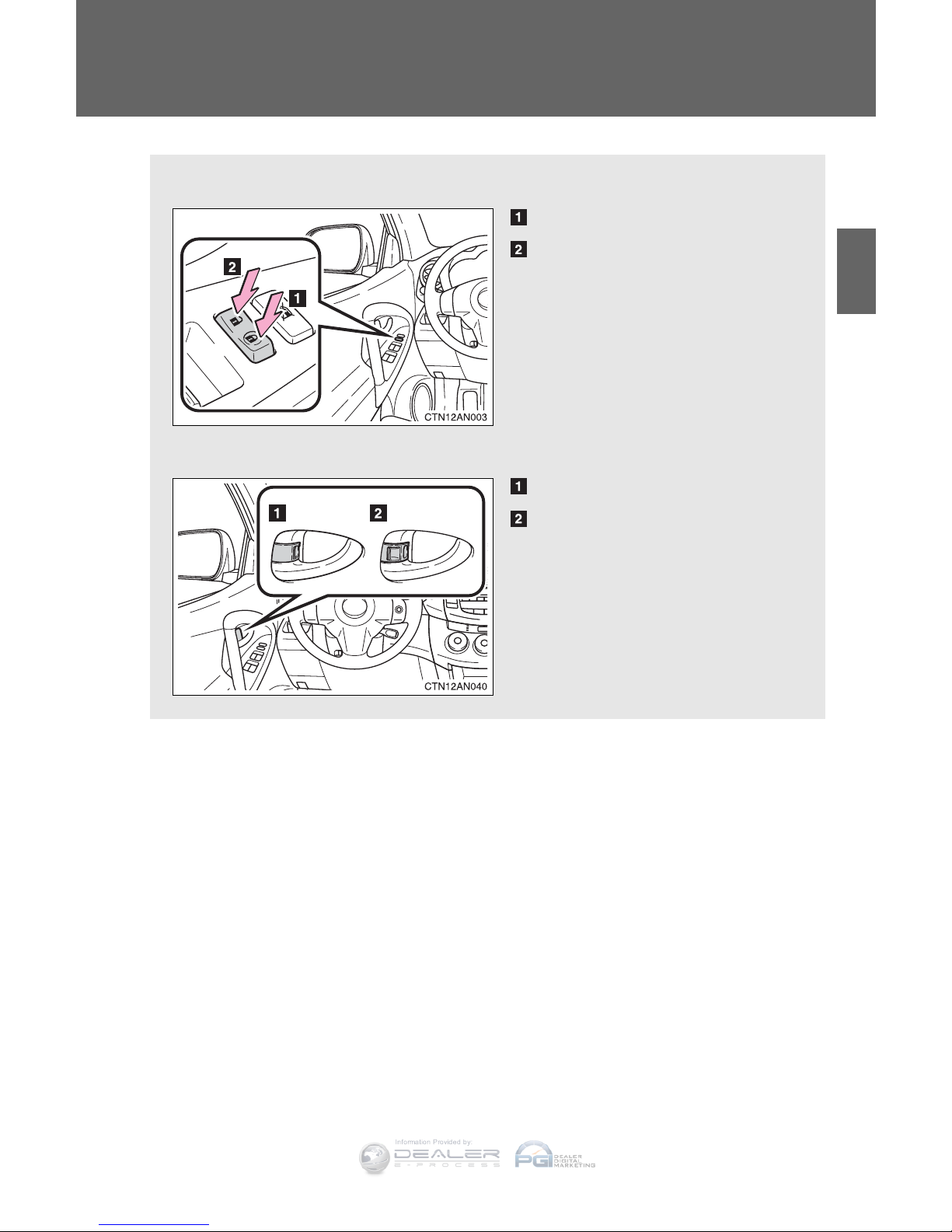

Windows

Driver side

Automatic operation (driver side only) Push the switch completely down

or pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.

NOTE: If the battery is disconnected, the window needs to be
reinitialized. Refer to the Owner’s Manual for more details.

Up

Down

Windows lock switch

Windshield wipers & washers

Rear

Front

Pull to wash and wipe

Adjust frequency*

Interval wipe

Slow

Fast

Wash and wipe

Wipe
Interval wipe

Wash and wipe

Single wipe

* Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

16

Moonroof (if equipped)

Tilting operation

Sliding operation

NOTE: If battery is disconnected, the moonroof needs to be reinitialized.

Refer to the Owner’s Manual for more details.

Open

Close

Close

Tilt

Recommended driving
position to minimize
wind noise

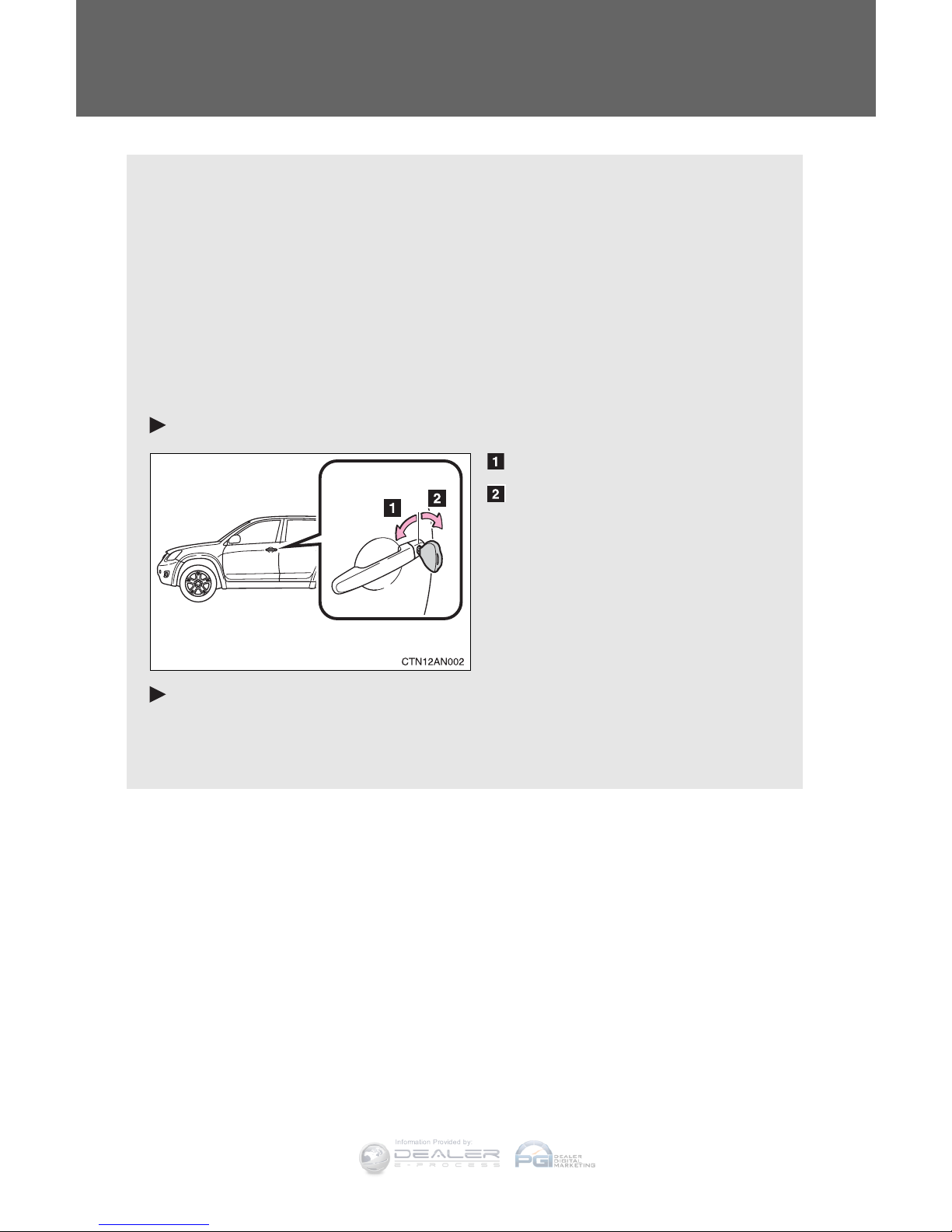

Door locks

Unlock

Lock

FEATURES/OPERATIONS

The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions (2WD models.)

Refer to Section 2-4 of the Owner’s Manual for more information.

VSC OFF button

VSC OFF button

Push once to open
partway; again to
open completely.

17

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Telephone controls (Bluetooth®)
(if equipped)

Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.

Refer to “Using the hands-free phone system (for cellular phone),” Section
3-3 in the Owner’s Manual for more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.

Microphone

Audio unit

Steering wheel telephone switches

Volume

End call

Start call

Voice command
button

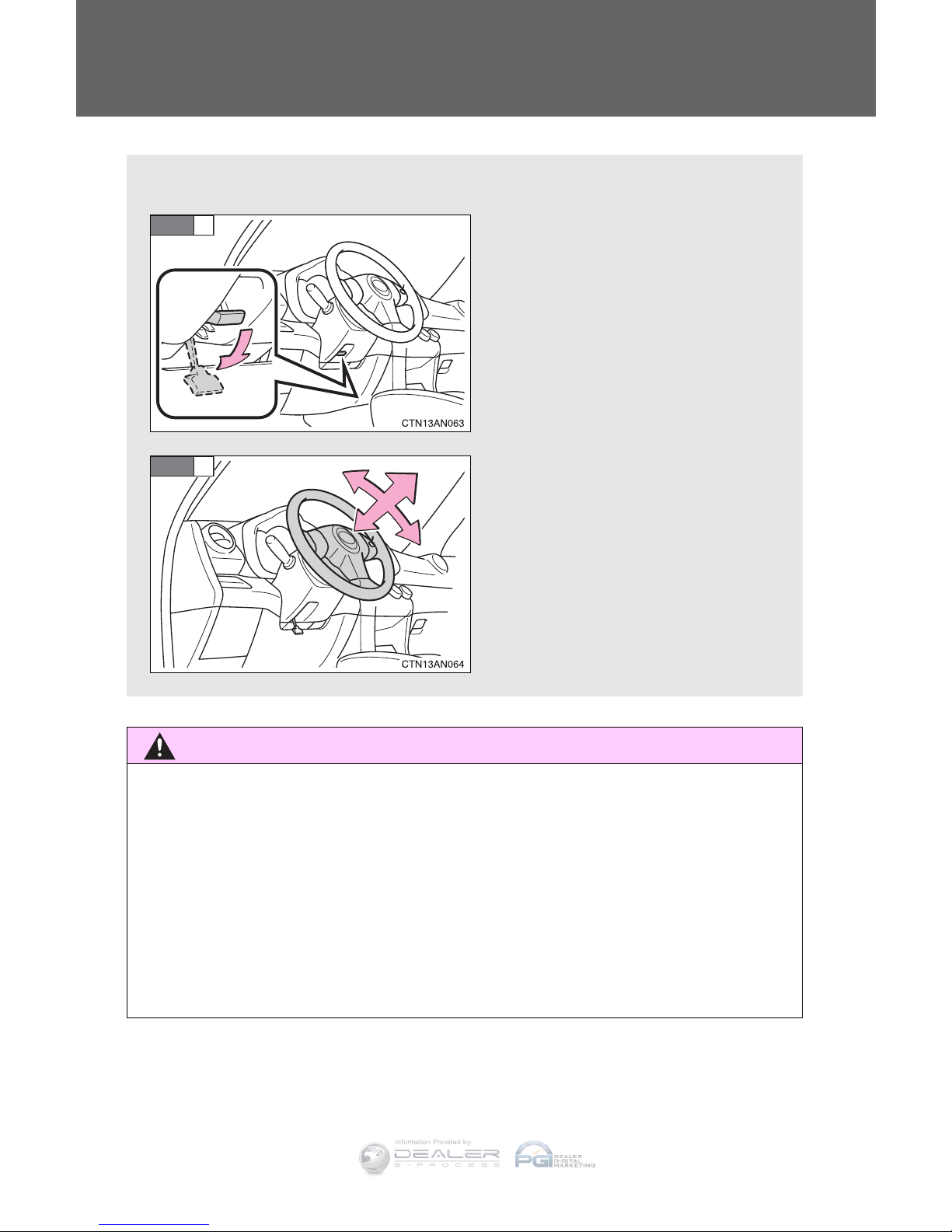

Tilt and telescopic steering wheel

Hold wheel, push lever down, set angle and length, and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

Lock release lever

Length

Angle

18

FEATURES/OPERATIONS

Seat heaters (if equipped)

Left front seat

Right front seat

Air Conditioning/Heating

Temperature selector (driver side)
Fresh or recirculated cabin air
Airflow vent
In “”mode, use fresh air (“”indicator OFF) to reduce window
fogging. “”mode uses fresh air only.
Air Conditioning ON/OFF
“DUAL” button
Indicator ON: Separate temperature settings for driver and
passenger.
Indicator OFF: Synchronize temperature settings for driver and
passenger.
Temperature selector (front passenger side)
Micro dust and pollen filter ON/OFF
Rear defogger
Fan speed
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.

Automatic Air Conditioning

19

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Clock

Manual
Air Conditioning system

H- Hour set
M- Minute set
:00- Round off m i n u t e s

Automatic
Air Conditioning system

Manual Air Conditioning

Airflow vent
“ ” or “ ” mode uses fresh air only (“ ” indicator “OFF”) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Rear defogger
Fresh or recirculated cabin air

Light control-Instrument panel

Brightness
control

+

-

With the dial turned fully up, instrument panel lights will not dim when
the headlights are turned ON.

20

CD PLAYER

To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Type 2)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Wait until the green indicator illuminates and shutter
opens to insert next disc.

To select a file (MP3/WMA only) Turn “TUNE.FILE.”
To select a folder (MP3/WMA only) Push either side of “TYPE/FOLDER.”

Audio

View CD text

Eject CD

Push to turn
ON/OFF

Push to adjust
tone & bala n c e

Push to skip
up/down folder

Seek station/
CD track select

Station/CD
track scan

Mode

Load CD(s)

Preset buttons - functions in other
modes indicated above number.

Type 1

Type 2 additional functions

Type 2 (with JBL speakers)

AM/Satellite radio

View genre/Push to
skip up/down folder

FEATURES/OPERATIONS

21

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

“MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn
the audio OFF.

“”

Use to search within the selected audio medium (radio, CD, iPod, etc.).

By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.

>

>

Steering wheel controls (if equipped)

AUX audio jack

RADIO

To preset stations Tune in the desired station and hold down a preset

button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.

Volume control

22

ON/OFF switch

Rear console

Push

NOTE: Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.

Power outlets-12V DC

Instrument panel

Inside center console

NOTE: Designed for car accessories. Engine switch/“ENGINE START STOP”

switch must be in the “ACC” or “ON” position to be used.

FEATURES/OPERATIONS

Luggage compartment

Downhill Assist Control system (DAC)

Power outlets-120V AC (if equipped)

DAC helps the vehicle to descend steep hills while maintaining a low speed
without brake pedal operation. Press the “DAC” button (indicator will
blink). Shift into L or R to activate (indicator will be solid). Pressing the
button again will turn system off.

Refer to the Owner’s Manual for more details.

23

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Cruise control

Turning system ON/OFF

Functions

System ON/OFF

Resume2/Increase speed

Set/Decrease speed

Cancel

1

1

The set speed may also be cancelled by depressing the brake pedal.

2

The set speed may be resumed once vehicle speed exceeds 25 mph.

Refer to the Owner’s Manual for more details.

HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds
and slip indicator illuminates. HAC holds for approximately 2 seconds after
releasing brake pedal.

Refer to the Owner’s Manual for more details.

Brake
pedal

Hill-start Assist Control (HAC)
(if equipped)

24

SAFETY AND EMERGENCY FEATURES

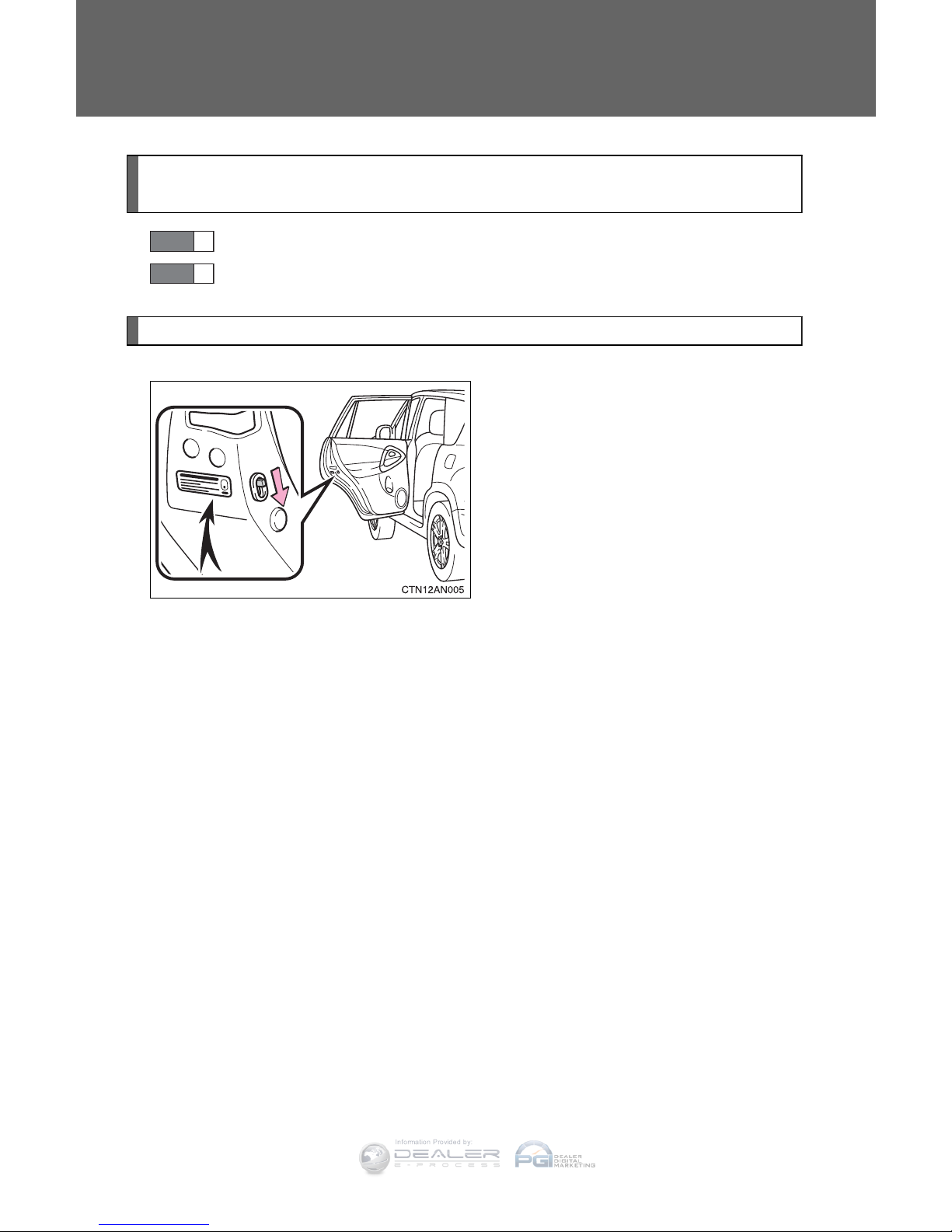

Moving the lever to “LOCK” will allow the door to be opened only from
the outside.

Doors-Child safety locks

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.

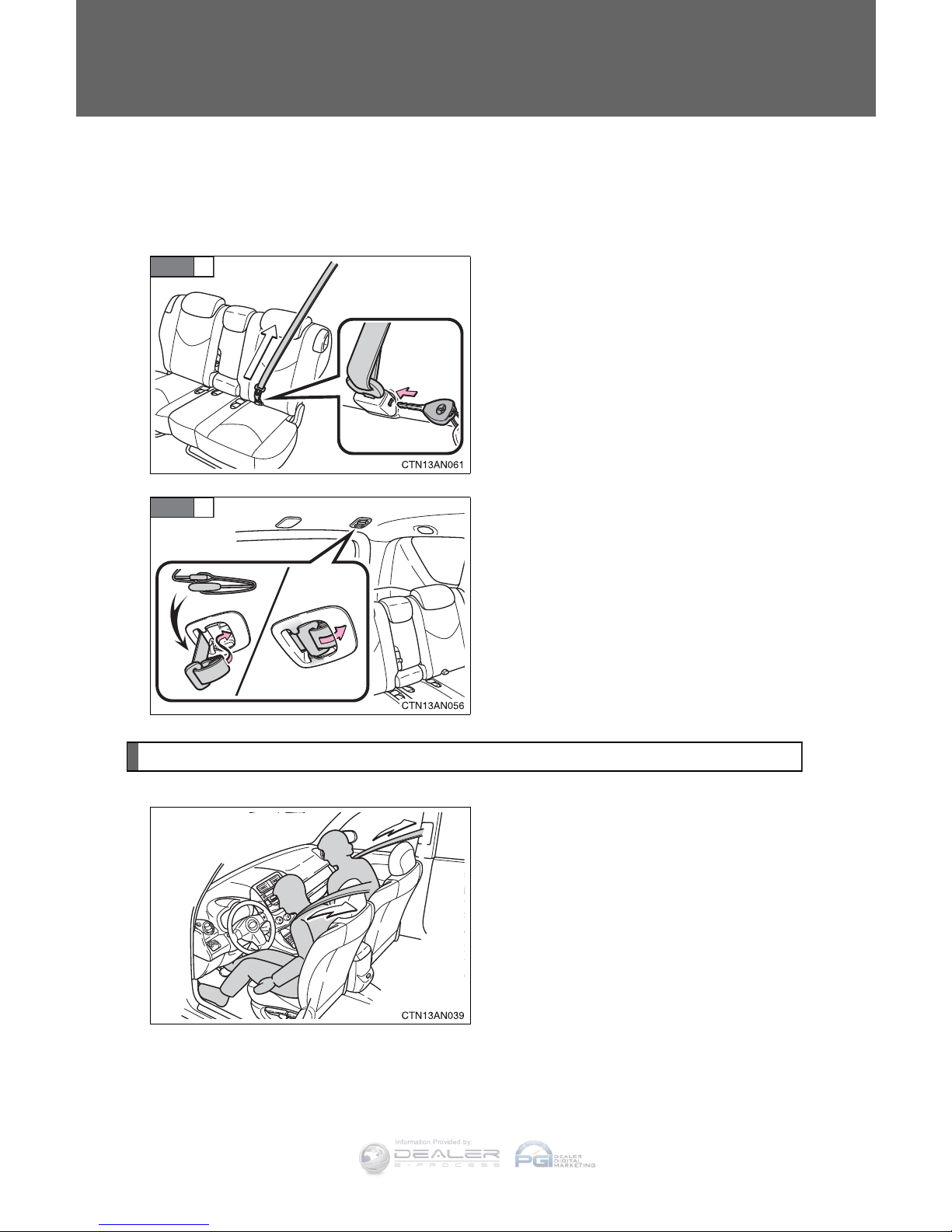

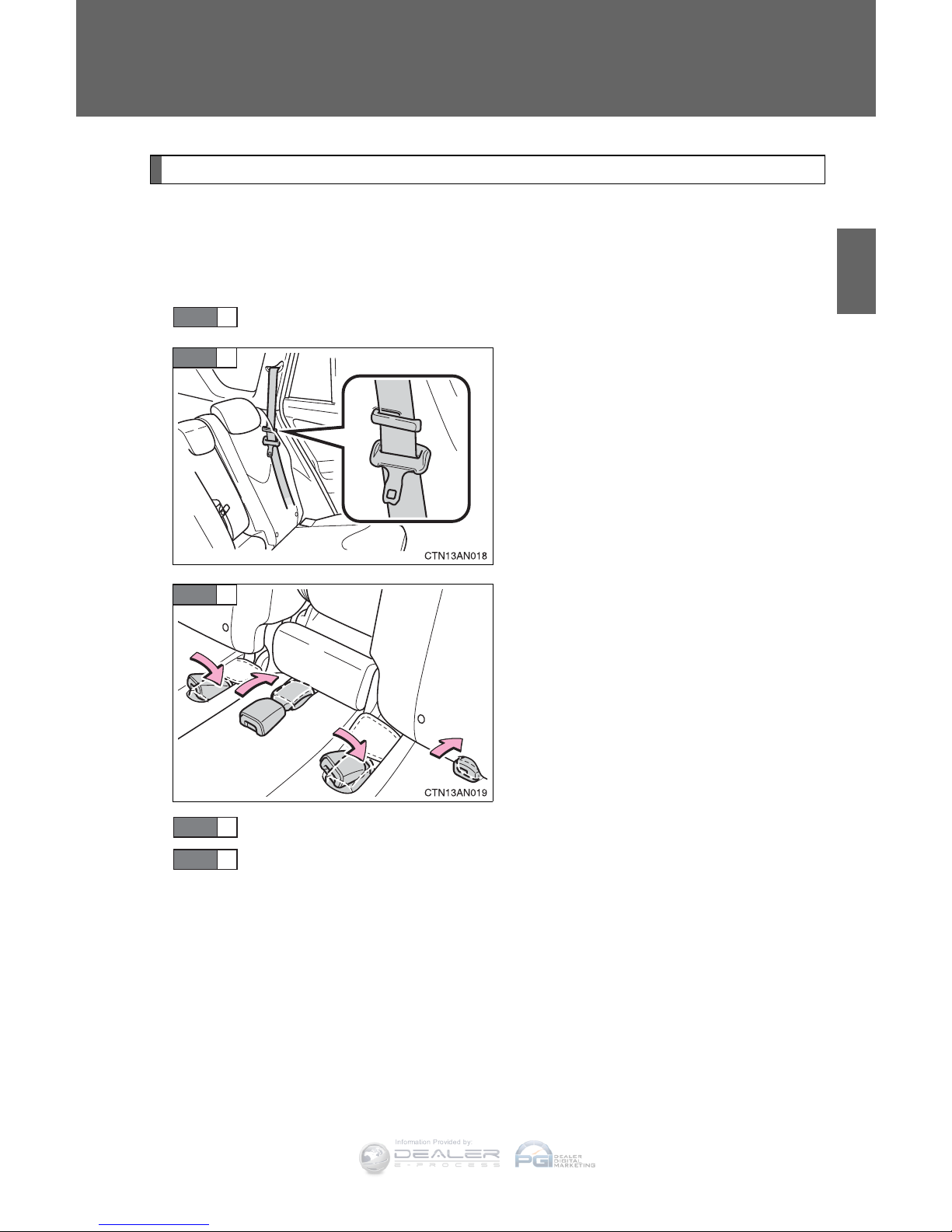

To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner’s Manual.

Keep as low on
hips as possible

Take up slack

Too high

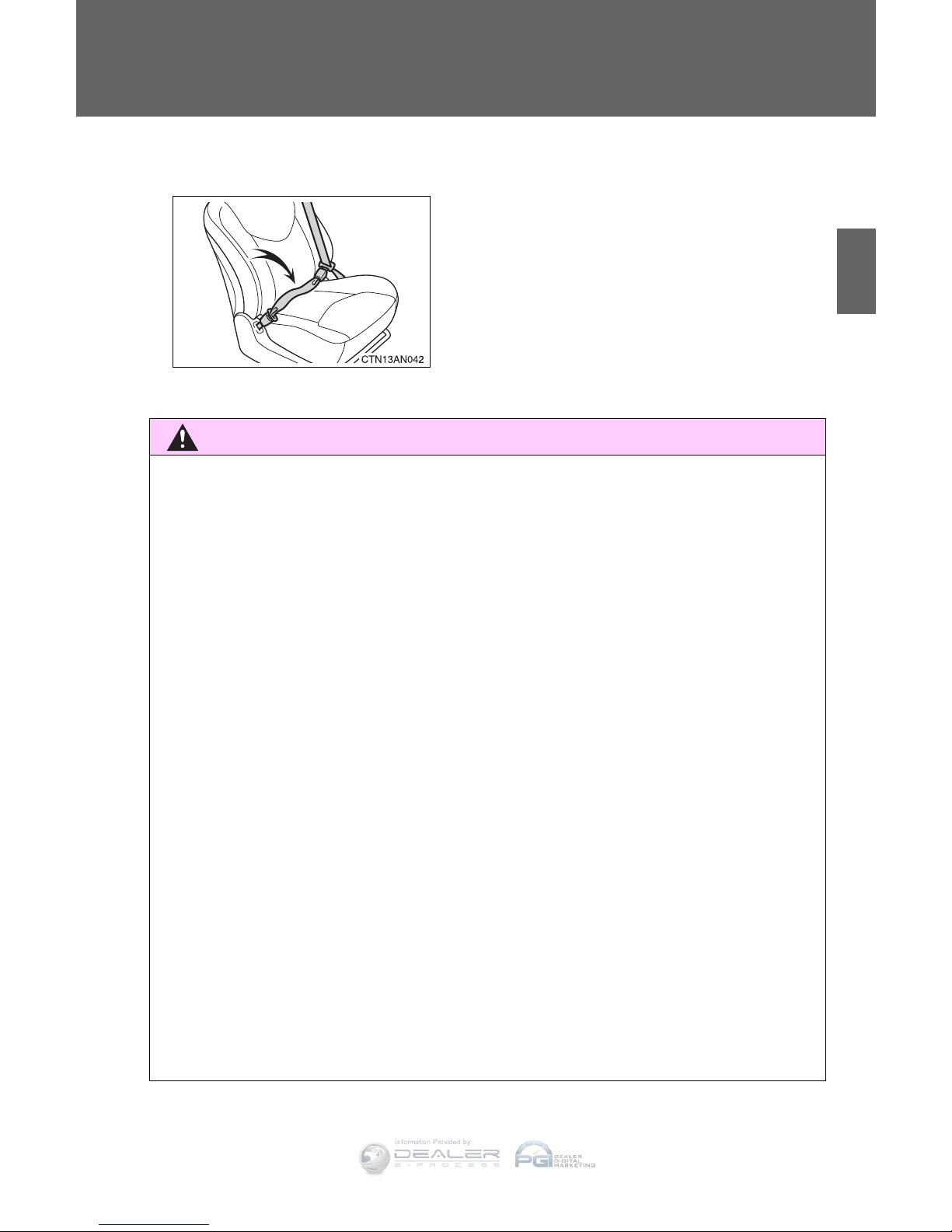

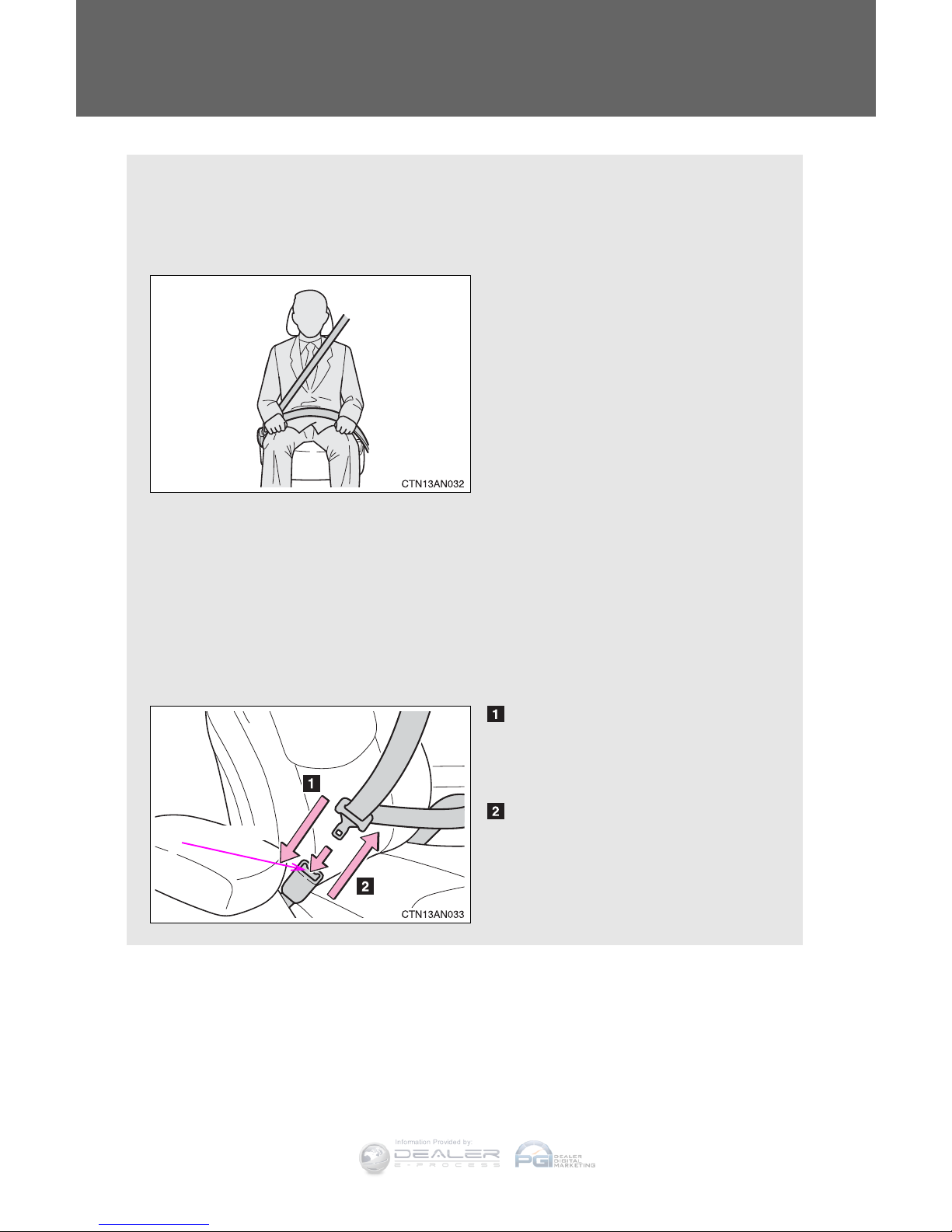

Seatbelts

If tire pressure becomes critically low on any of the tires (including the
spare), “ ” indicator will come on. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, have
the system checked by your Toyota dealer.

Refer to the Owner’s Manual for more details.

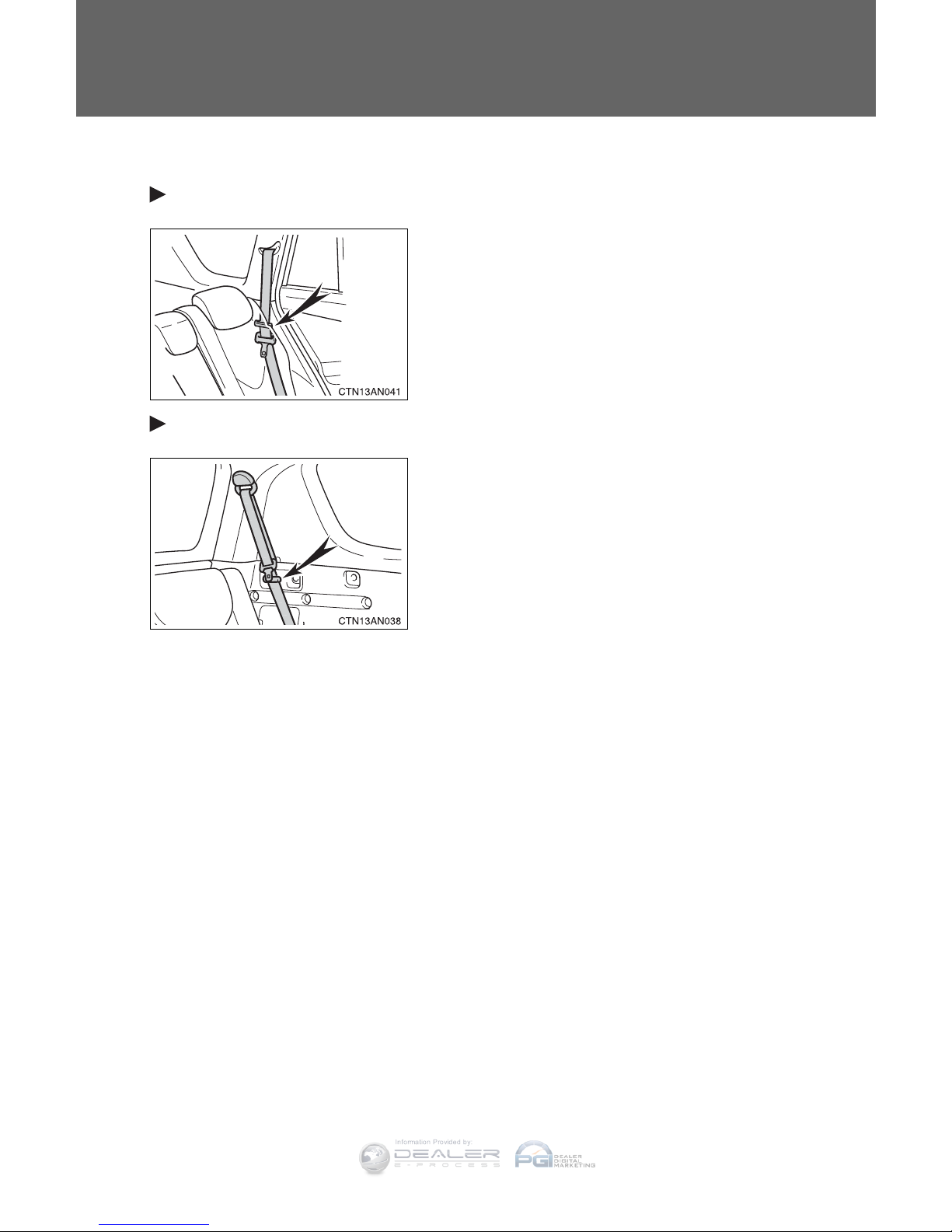

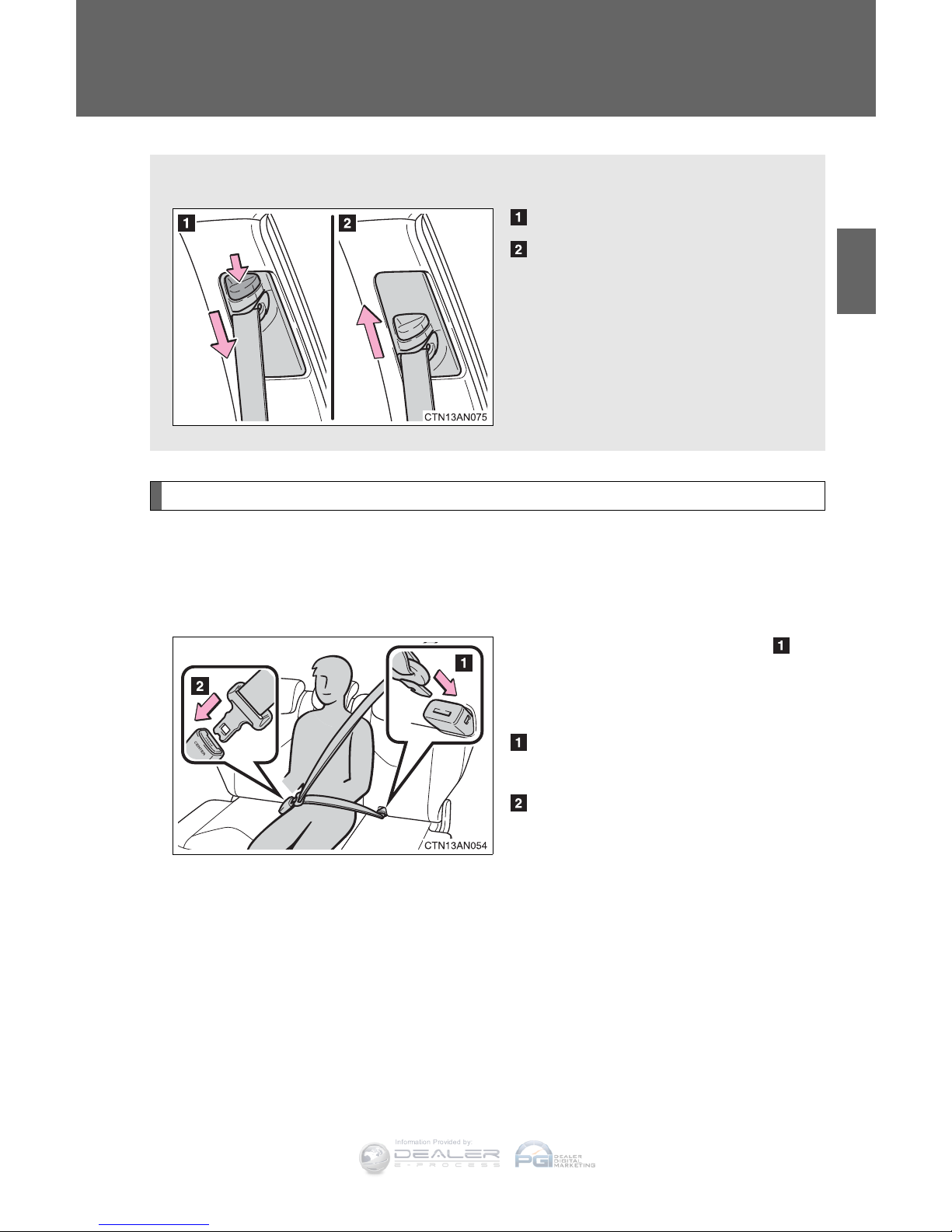

Seatbelts-Shoulder belt anchor

Push up or squeeze lock
release to lower

Rear door

Down Up

Tire Pressure Monitoring (warning)
System

498

Abbreviation list

Abbreviation/Acronym list

ABBREVIATIONS MEANING

2WD 2 Wheel Drive
4WD 4 Wheel Drive

A/C Air Conditioning
ABS Anti-lock Brake System
ACC Accessory

ALR Automatic Locking Retractor

AUTO LSD Automatic Limited Slip Differential

AVG Average
CRS Child Restraint System
DAC Downhill Assist Control

DISP Display

ECU Electronic Control Unit
EDR Event Data Recorder

ELR Emergency Locking Retractor

EPS Electric Power Steering

GAWR Gross Axle Weight Rating

GVWR Gross Vehicle Weight Rating

I/M Emission Inspection and Maintenance

LATCH Lower Anchors and Tethers for Children

LED Light Emitting Diode

MMT Methylcyclopentadienyl Manganese Tricarbonyl

M+S Mud and Snow

MTBE Methyl Tertiary Butyl Ether

OBD On Board Diagnostics

RFT Run-Flat Tire

SRS Supplemental Restraint System

TIN Tire Identification Number

499

Abbreviation list

TPMS Tire Pressure Warning System
TRAC Traction control

VIN Vehicle Identification Number

VSC Vehicle Stability Control

ABBREVIATIONS MEANING

18

For your information

Main Owner’s Manual

Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.

All specifications provided in this manual are current at the time of printing.
However

, because of the Toyot

a policy of continual product improvement, we

reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ

from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available on the market. You should know that these
parts are not covered by Toyota warranty and that Toyota is not responsible
for their performance, repair, or replacement, or for any damage they may
cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine T

oyota product

s may affect performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.

19

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle may
affect electronic systems such as the multi-port fuel injection system/sequen­tial multi-port fuel injection system, cruise control system, anti-lock brake
system, SRS ai

rbag system or seat belt pretensioner system, be sure to

check with your T

oyota dealer for precautionary measures or special instruc-

tions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.

Perchlorate Material

Special h andling may apply, See www.dtsc .ca.gov/haza rdouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-

nents may include airbag, seat belt pretensioners, and wireless remote con­trol batteries.

20

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ­ence of alcohol or drugs that have impaired your ability to operate your vehi­cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that dis­tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to
have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.

21

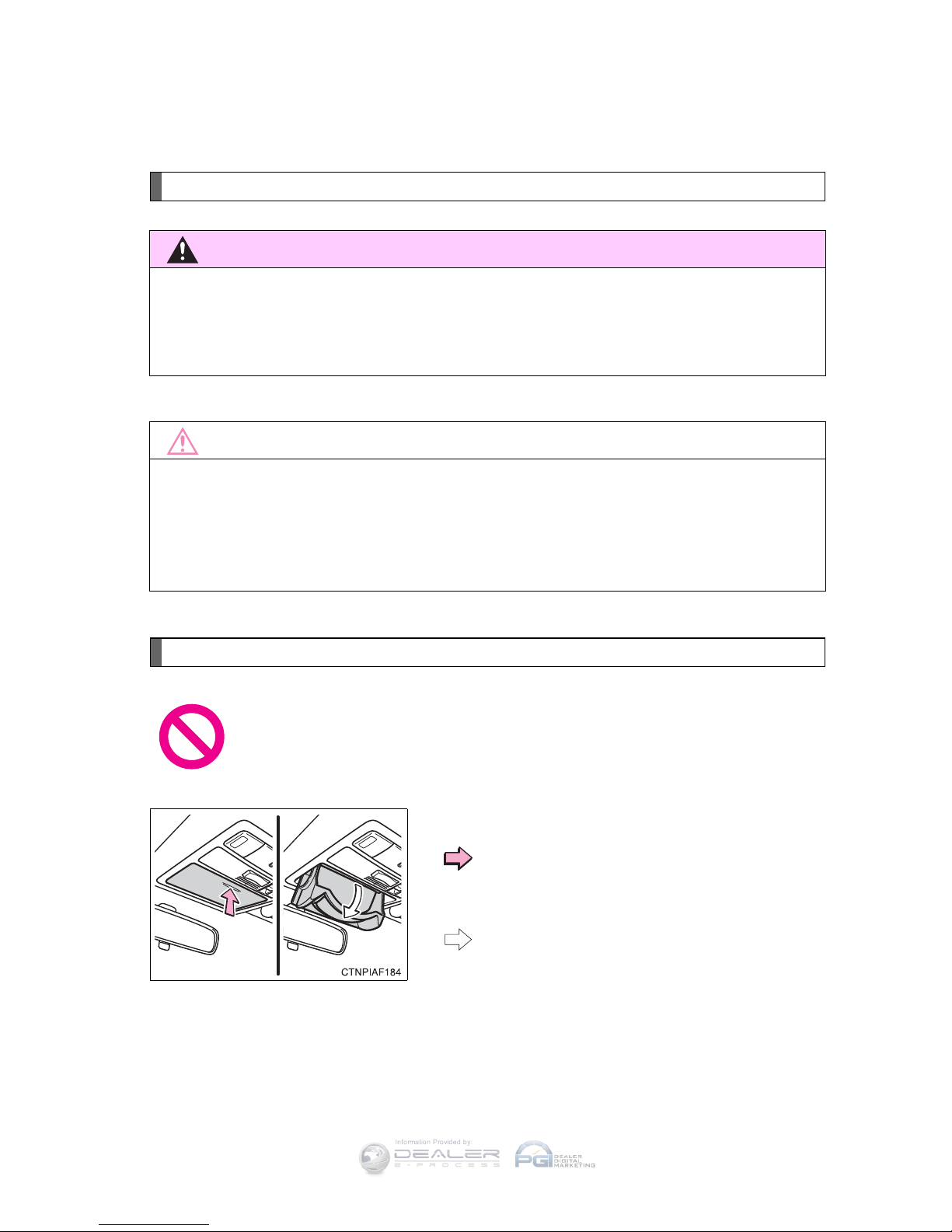

Symbols used throughout this manual

Cautions & Notices

Symbols used in illustrations

CAUTION

This is a warning against anything which may cause death or injury to people if
the warning is ignored. You are informed about what you must or must not do
in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.

Indicates the outcome of an operation
(e.g. a lid opens).

22

TABLE OF CONTENTS

1

1

Before driving

Adjusting and operating features such as door locks,
mirrors, and steering column.

2

When driving

Driving, stopping and safe-driving information.

3

Interior
features

Air conditioning and audio systems, as well as other
interior features for a comfortable driving experience.

4

Maintenance
and care

Cleaning and protecting your vehicle, performing do-it­yourself maintenance, and maintenance information.

5

When trouble
arises

What to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident.

6

Vehicle
specifications

Detailed vehicle information.

7

For owners

Reporting safety defects for U.S. owners and seat belt
instructions for Canadian owners

Index

Alphabetical listing of information contained in this
manual.

6

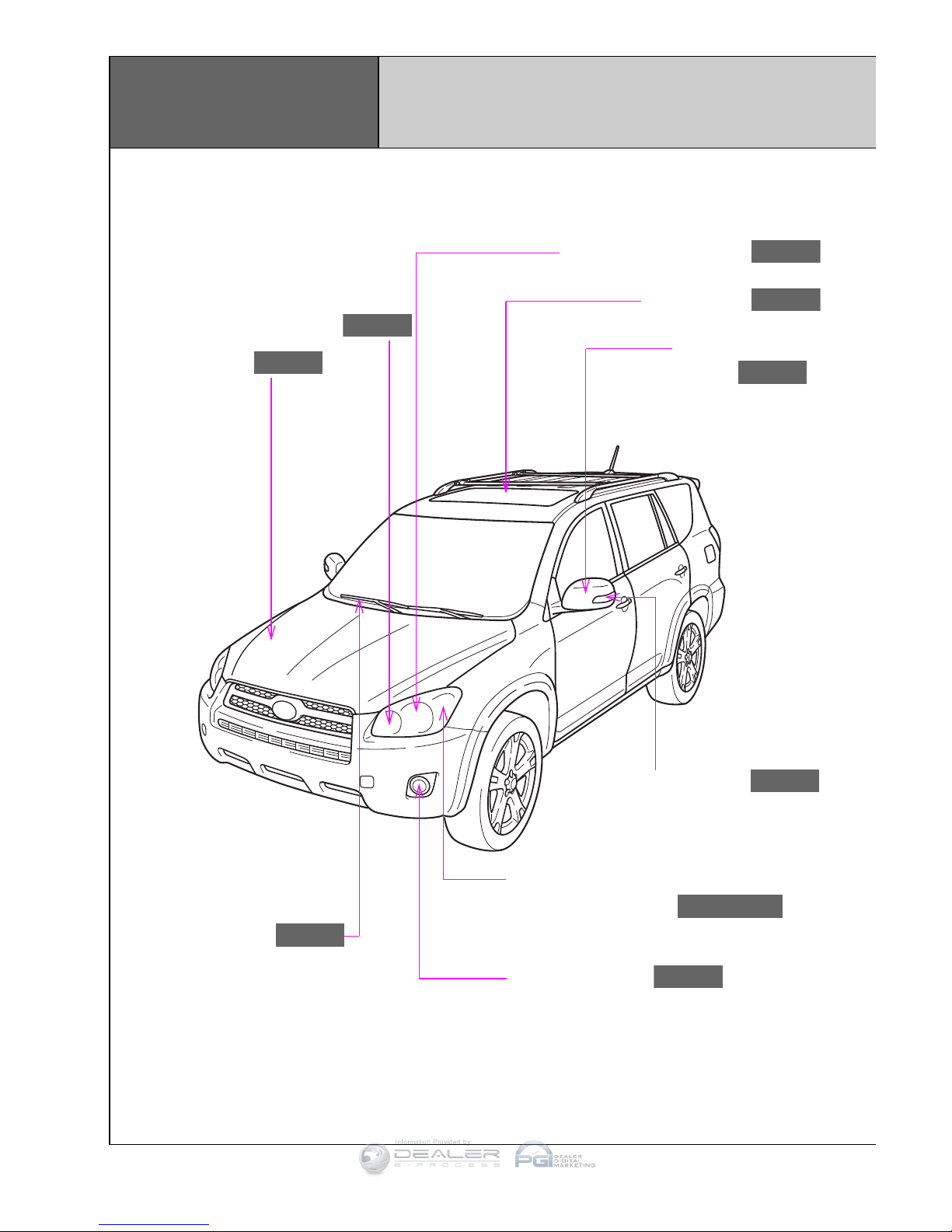

Headlights (low beam)

P. 165

Pictorial index

Exterior

Front fog lights ∗

P. 168

Hood

P. 346

Outside rear view
mirrors

P. 79

Front turn signal/parking and front

side marker lights

P. 153, 165

Headlights (high beam)

P. 165

Moon roof ∗

P. 84

Windshield wipers

P. 169

Turn signal lights ∗

P. 153

7

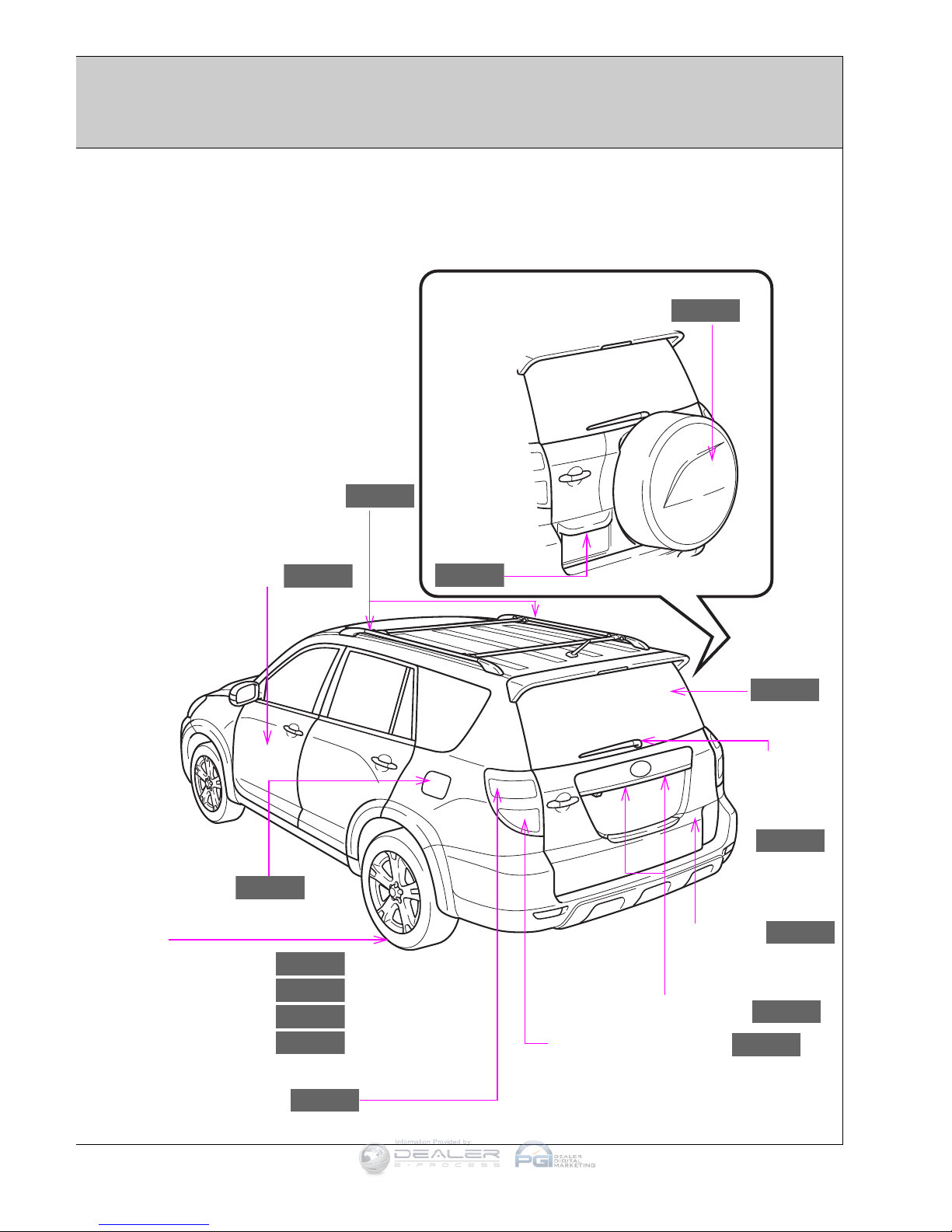

Tires

●Rotation

●Replacement

●Inflation pressure

●Information

P. 365

P. 430

P. 472

P. 477

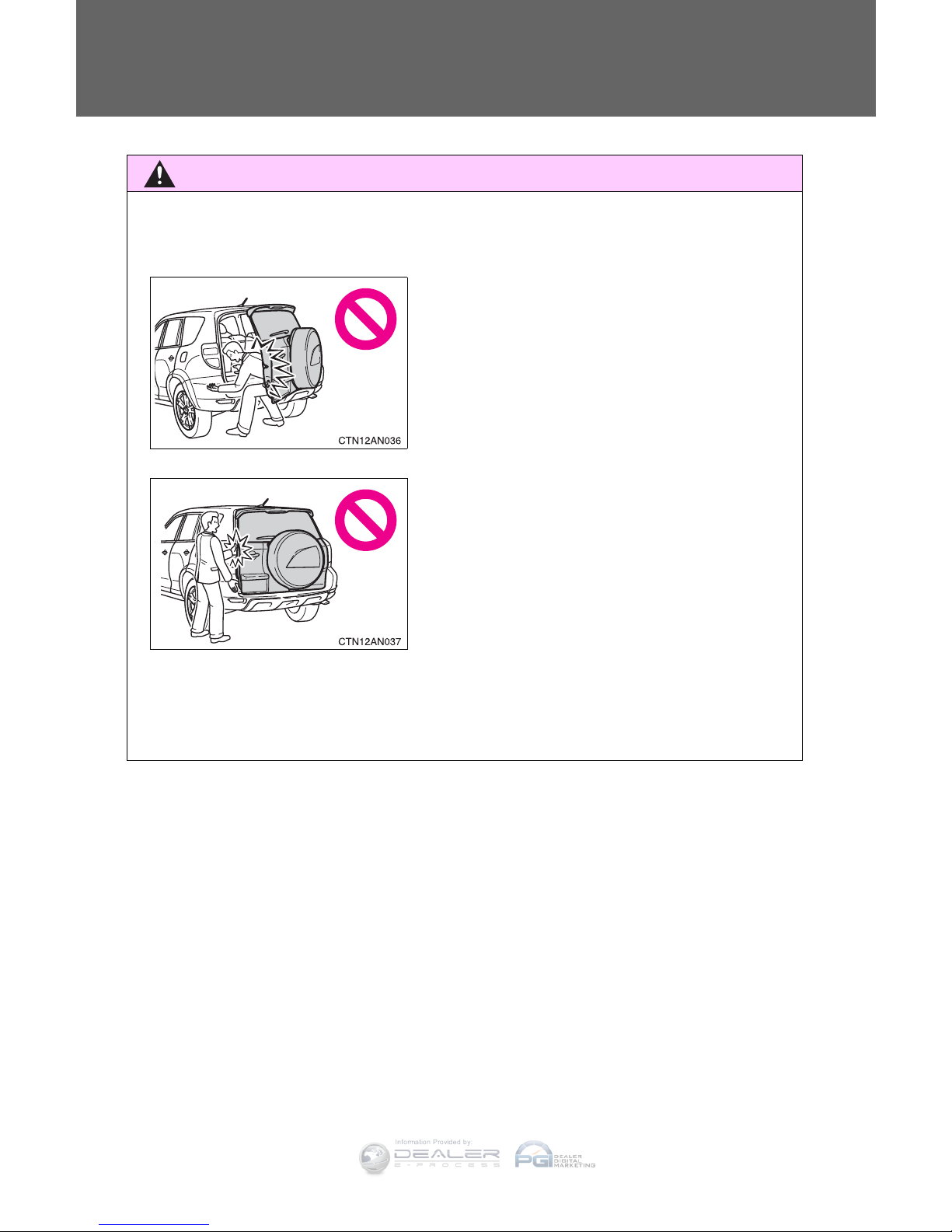

Back door

P. 46

Rear turn signal lights

P. 153

∗: If equipped

Stop/tail and rear side

marker lights

P. 165

Rear
window
wiper

P. 171

License plate lights

P. 165

Side doors

P. 42

Rear
window
defogger

P. 233

License
plate light

P. 165

With spare tire

Spare tire

P. 430

Fuel filler door

P. 88

Roof luggage carrier ∗

P. 198

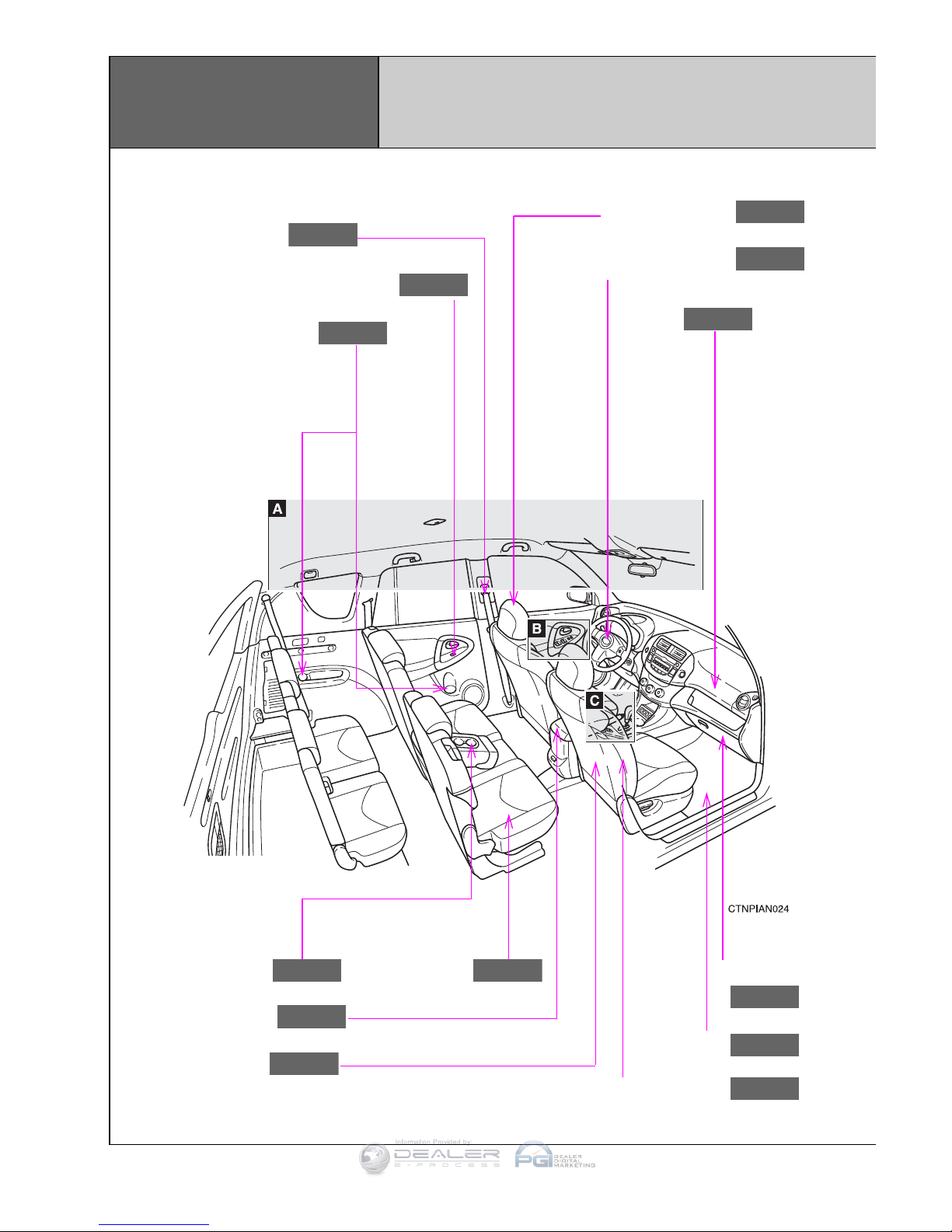

8

Glove box

P. 305

Front seats

P. 49

SRS side airbags ∗

P. 98

Power window switches

P. 81

SRS front passenger
airbag

P. 98

SRS driver airbag

P. 98

Console box

P. 306

Interior

Pictorial index

Floor mat

P. 322

Head restraints

P. 65

Bottle holders

P. 309

Seat belts

P. 68

Rear seats

P. 54

Cup holders

P. 308

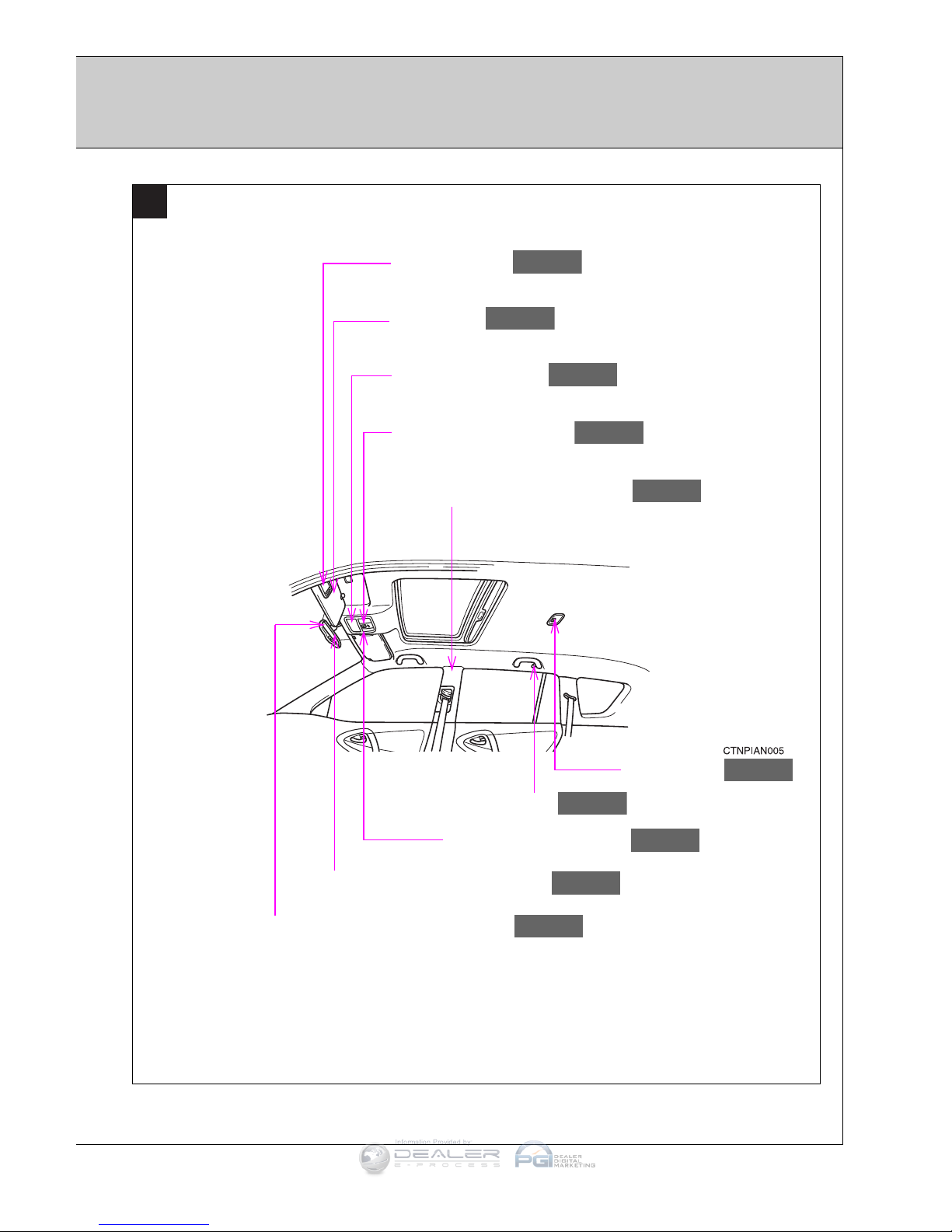

9

A

Vanity mirrors

P. 313

Moon roof switches ∗

P. 84

Sun visors

P. 312

SRS curtain shield airbags ∗

P. 98

∗: If equipped

Interior light

P. 302

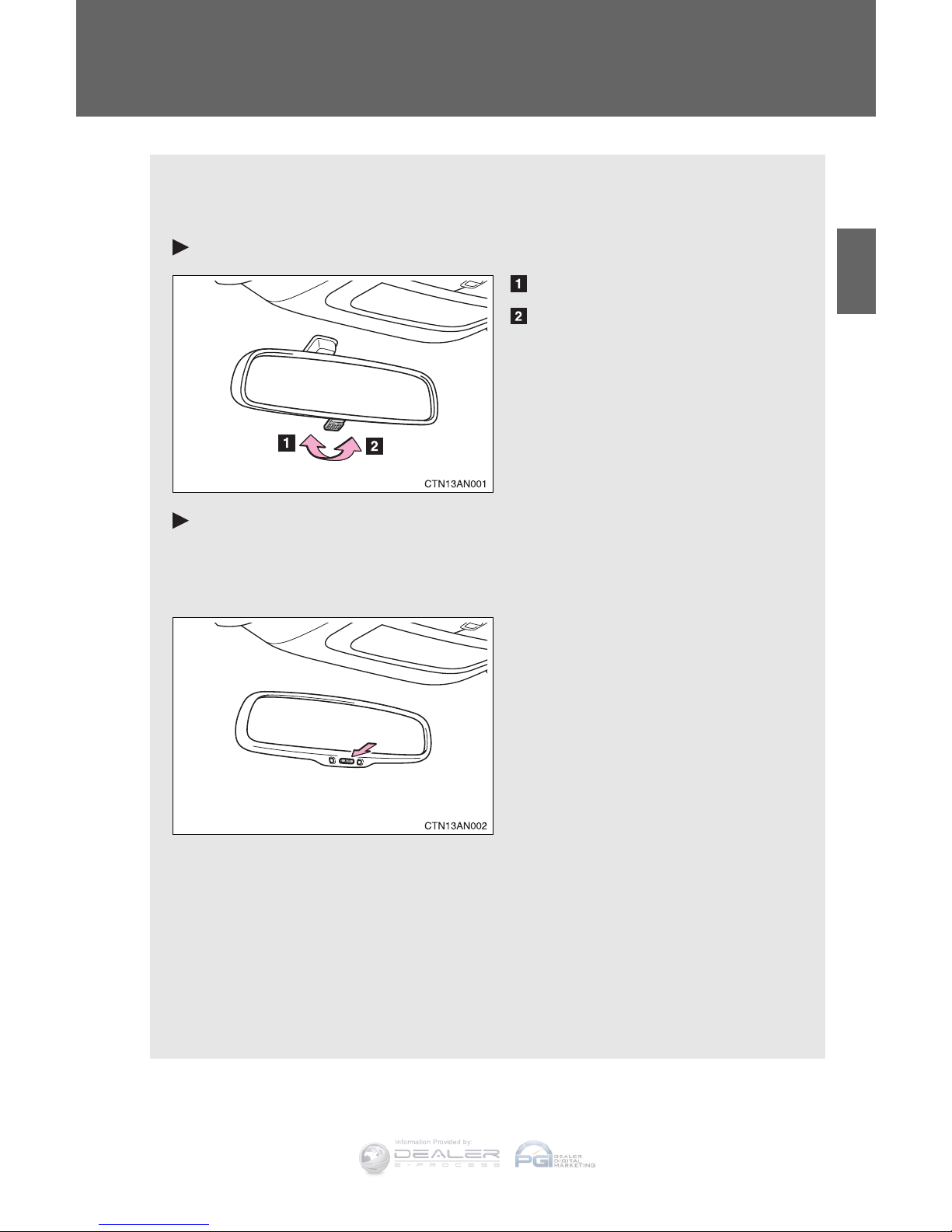

Anti-glare inside rear view mirror

P. 77

Personal/interior lights

P. 301

Overhead console

P. 307

Rear view monitor system ∗

P. 175

Coat hooks

P. 321

10

B

Window lock switch

P. 81

Power window switches

P. 81

Door lock switch

P. 43

Inside door lock buttons

P. 43

Pictorial index

Interior

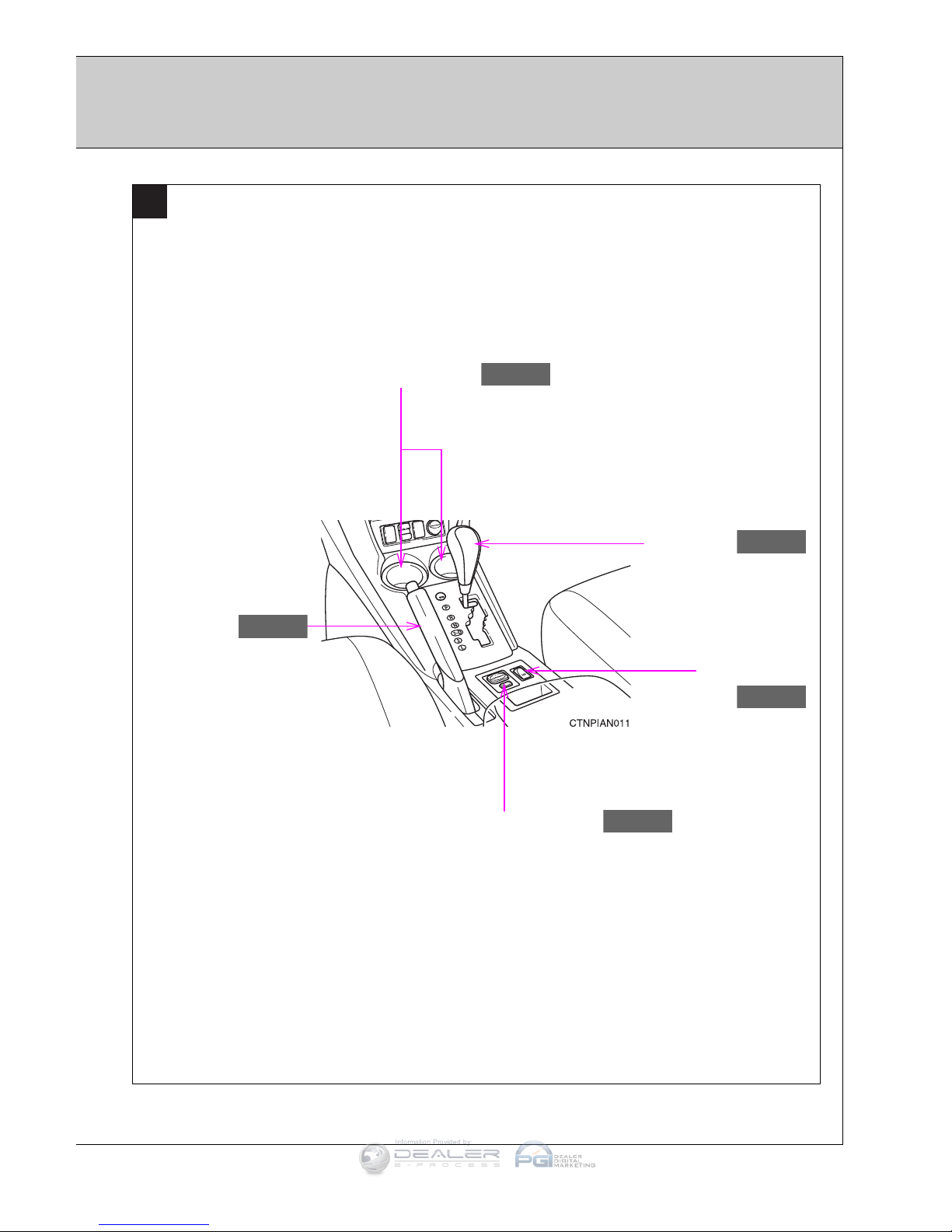

11

C

Shift lever

P. 150

Outside rear view mirror switches

P. 79

Parking brake lever

P. 154

AUX adapter

P. 262

Cup holders

P. 308

12

Tilt and telescopic steering lock release lever

P. 76

Headlight switch

Turn signal lever

Fog light switch

∗

P. 165

P. 153

P. 168

Windshield wiper and washer switch
Rear window wiper and washer switch

P. 169

P. 171

Fuel filler door opener

P. 88

Emergency flasher
switch

P. 406

Four-wheel drive lock switch ∗

P. 192

Pictorial index

Instrument panel

Gauges and meters

P. 156

Audio system
Navigation system *

P. 236

Hood release lever

P. 346

Horn

P. 155

13

A

Instrument panel light control dial

P. 157

“DAC” switch ∗

P. 189

Power outlet main switch ∗

P. 315

∗: If equipped

*: Refer to “Navigation System Owner’s Manual ”.

14

B

Cruise control switch

P. 172

“DISP” switch

P. 163

Audio remote control switches ∗,*

P. 263

Without hands-free phone system

Engine (ignition) switch
(without smart key system)

P. 147

Instrument panel

Pictorial index

With hands-free phone system

Cruise control switch

P. 172

“DISP” switch

P. 163

Audio remote control switches

P. 263

Talk switch

P. 271

Telephone switch

P. 271

Engine (ignition) switch
(without smart key system)

P. 147

15

With an automatic air conditioning system

With a manual air conditioning system

C

Air conditioning system

P. 220

Rear window defogger switch
Outside rear view mirror defogger switch ∗

P. 233

P. 233

Engine (ignition) switch
(with smart key system)

P. 143

Air conditioning system

P. 225

Rear window and outside rear view mirror defogger switch

P. 233

Security indicator

P. 92

Security indicator

P. 92

∗: If equipped

*: Refer to “Navigation System Owner’s Manual ”.

16

D

Windshield wiper de-icer switch ∗

P. 235

Cup holders

P. 308

Seat heater switch ∗

P. 318

Power outlet

P. 315

Enhanced VSC
OFF switch

P. 183

Instrument panel

Pictorial index

17

Luggage compartment

Pictorial index

Luggage cover ∗

P. 325

Second seatback release lever ∗

P. 57

Grocery bag hooks

P. 323

Storage boxes ∗

P. 323

Cargo hooks

P. 323

∗: If equipped

Power outlet

P. 315

24

1-1. Key information

Keys

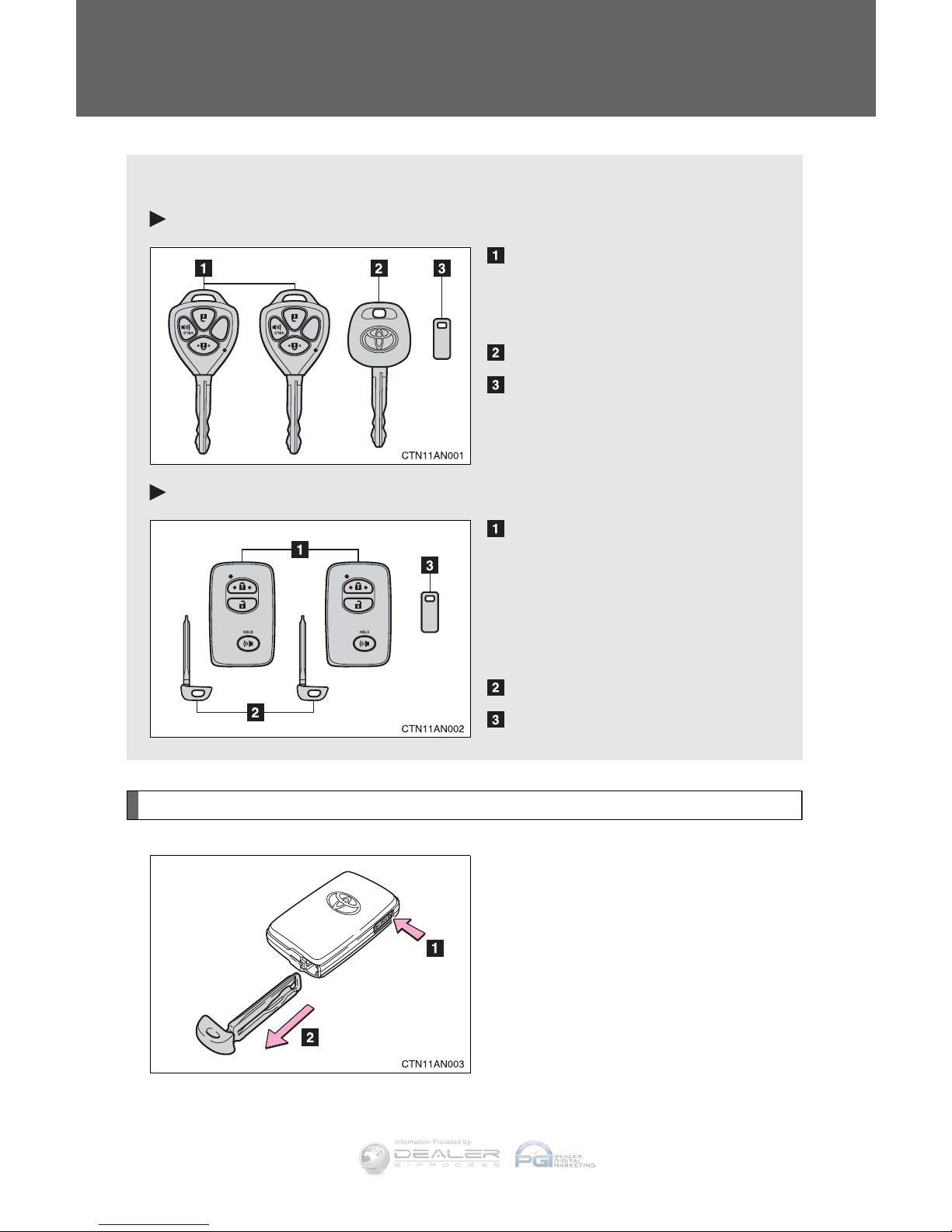

Using the mechanical key (vehicles with smart key system)

Take out the mechanical ke y.

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key . If the electronic
key battery is depleted or the
entry function does not operate
properly, you will need the
mechanical key.
(→P. 451

)

The following keys are provided with the vehicle.

Vehicles without smart key system

Master keys

Operating the wireless remote
control function (→P. 38)

Valet key
Key number plate

Vehicles with smart key system

Electronic keys

• Operating the smart key
system (→P. 26)

• Operating the wireless
remote control function
(→P. 38)

Mechanical keys
Key number plate

25

1-1. Key information

1

Before driving

■ When required to leave a key to the vehicle with a parking attendant

Lock the glove box as circumstances demand. (→P. 305)
Vehicles without smart key system: Carry the master key for your own use

and leave the valet key only with the attendant.
Vehicles with smart key system: Remove the mechanical key for your own

use and provid

e the attendant with the electronic key only.

■ Key number plate

Keep

the plate in a safe place such as your wallet, not in the vehicle. In the

event that a key

is lost, a new key can be made by your T

oyota dealer using

the key number plate. (→P. 450)

■ When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft,
make sure you

do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc, ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.

NOTICE

■ To prevent key damage

● Do not subj ect the keys to strong shocks, expose them to high tempera-

tures by placing them in direct sunlight, or get them wet.

● Do not expose the keys to electromagnetic materials or attach any mate-

rial that blocks electromagnetic waves to the key surface.

● Do not disassemble the key.

26

1-2. Opening, closing and locking the doors

Smart key system

∗

The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

Locks and unlocks the doors (→P. 27)
Locks and unlocks the back door (→P. 27)
Starts the engine (→P. 143)

Electronic key

Electronic key

Electronic key

∗: If equipped

27

1-2. Opening, closing and locki ng the doors

1

Before driving

Unlocking and locking the doors and back door (front and back
door handles only)

Grip the handle to unlock the
doors.

Make sure to touch the sensor on
the back of the handle.

The doors cannot be unlocked for
3 seconds after the doors are
lo

cked.

Press the lock button to lock the
doors.

28

1-2. Opening, closing and locking the doors

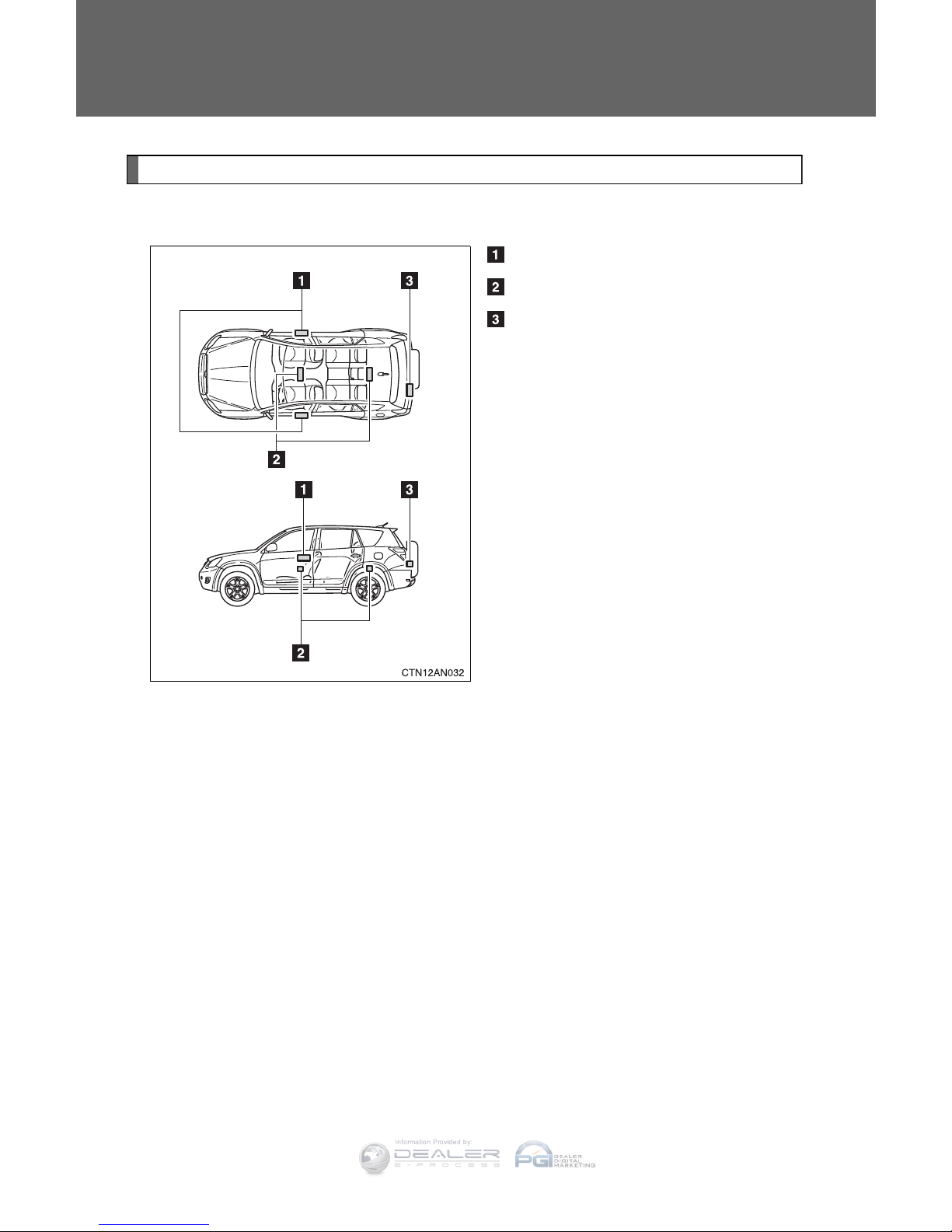

Antenna location and effective range

■ Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage

compartment

29

1-2. Opening, closing and locki ng the doors

1

Before driving

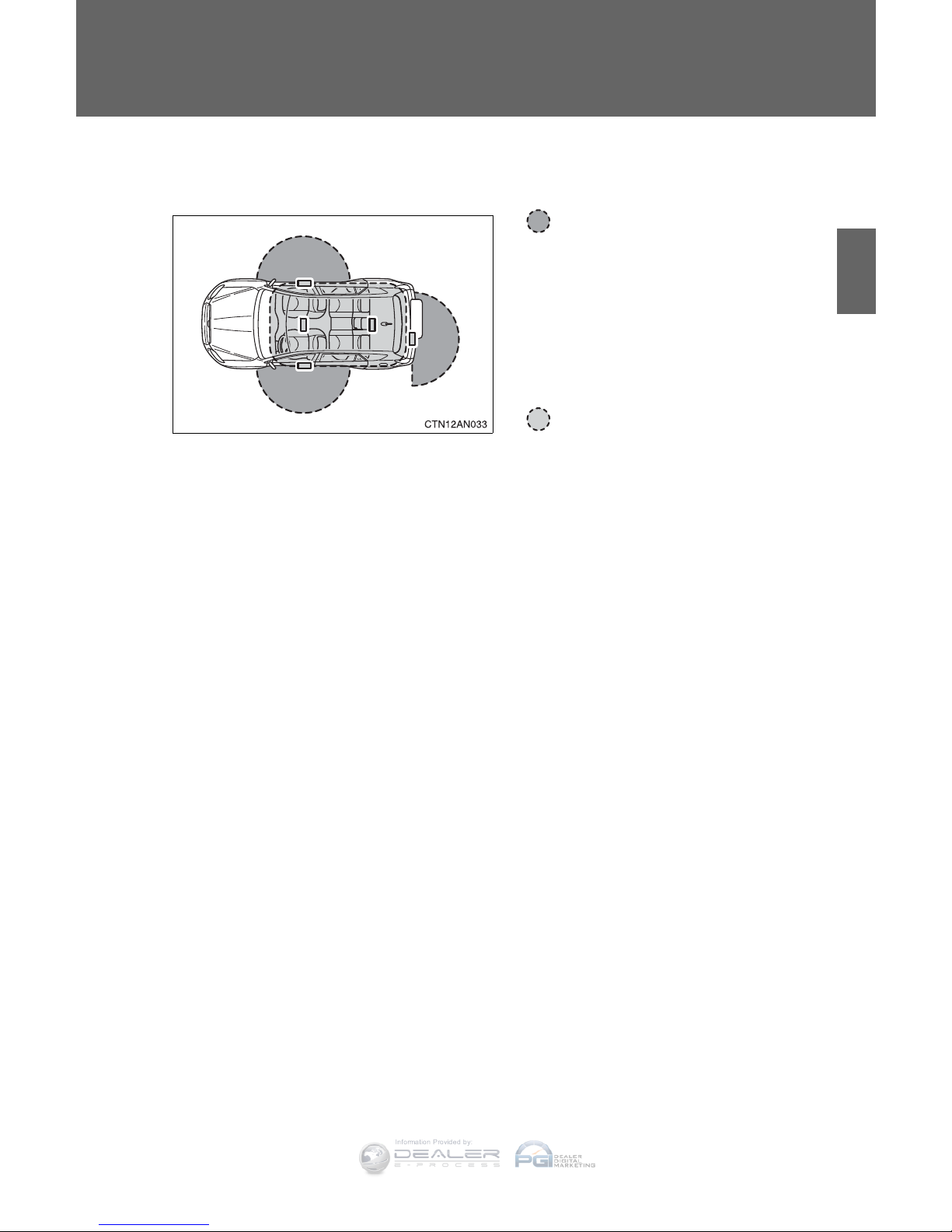

■ Effective range (areas within which the electronic key is

detected)

When locking or unlocking
the doors

The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the outside front
door handles and back door.

When starting the engine
or changing “ENGINE
START ST

OP” switch

modes

The system can be operated
when the electronic key is
inside the vehicle.

30

1-2. Opening, closing and locking the doors

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■ Conditions affecting operation

The smart key system uses weak radio waves. In the following situations,
the communication between

the electronic key and the v

ehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Ways of coping: →P. 451)

● When the electronic key battery is depleted

● Near

a TV tower , electric power plant, gas station, radio st ation, large dis-

play, airport or other facility that

generates strong radio waves or electri-

cal noise

● When carrying a portable radio, cellular phone, cordless phone or other

wireless communica

tion devices

● When the electronic key is in

contact with, or is covered by a metallic

object

● When multiple electron

ic keys are in

the vicinity

● When carrying or using the elec

tronic key together with the following

devices that emit radio waves

• Another vehicle’s electronic key

• A wireless key that emits radio waves

• Personal computer

● If

window tint with a metallic content or metallic objects is attached to the

rear window

■ Switching the door unlock function

It is possible to set which

doors the entry function unlocks.

Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, push and hold

or for approximately 5 seconds while pushing

on the key.

STEP

1

STEP

2

31

1-2. Opening, closing and locki ng the doors

1

Before driving

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at
least 5 seconds, and repeat step 2.)

■ Battery-saving function

In the following circumstances, the entry function is disabled in order to pre­vent the vehicle and electronic key batteries from discharging.

● When the entry function has not been used for 2 weeks or more

● When the electronic key has been left within approximately 3 ft. (1 m) of

the vehicle for 10 minutes or more

The system will resume operation when...

● The vehicle is locked using the door handle lock button.

● The vehicle is locked/unlocked using the wireless remote control func-

tion. (→P. 38)

● The vehicle is locked/unlocked using the mechanical key. (→P. 451)

Mode Unlocking doors Beep

Driver’s door

unlocking mode

Hold the driver's door han­dle to unlock only the
driver's door.

Exterior: Beeps twice
Interior: Pings once

Hold the front passenger’s
door handle to unlock all
doors

All doors unlocking

mode

Hold either front and back
door handle to unlock all
doors

Exterior: Beeps twice
Interior: Pings once

32

1-2. Opening, closing and locking the doors

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years. (The battery becomes depleted

even if the electronic key is not used.) If the smart key system or the
wireless remote control function does not operate, or the detection area
becomes smaller , the battery may be depleted. Replace the battery when
necessary. (→P. 380)

● If the battery becomes low, an alarm will sound in the cabin when the

engine stops. (→P. 33)

● To avoid serious deterioration, do not leave the electronic key within 3 ft.

(1 m) of the following electrical appliances that produce a magnetic field:

•TVs

• Personal computers

• Recharging cellular phones or cordless phones

• Table lamps

■ To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not func­tion.)

■ Note for the entry function

● Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases.

• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.

• The electronic key is on the instrument panel, luggage cover or floor, in
the glove box when the engine is started or “ENGINE START STOP”
switch modes are changed.

● As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone.

● Even if the electronic key is not inside the vehicle, it may be possible to

start the engine if the electronic key is near the window.

33

1-2. Opening, closing and locki ng the doors

1

Before driving

● The doors may unloc k if a large amount of water splashes on the door

handle, such as in the rain or in a car wash. (The doors will automatically
be locked after approximately 60 seconds if the doors are not opened
and closed.)

● Gripping the door handle when wearing a glove may not unlock the door.

● If the wireless remote control is used to lock the doors when the elec-

tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)

■ When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warning lights are
used to prevent the theft of the vehicle and accidents resulting from errone­ous operation.

● When any warning lights come on:

Take appropriate measures in response to which warning light comes on.
(→P. 418)

34

1-2. Opening, closing and locking the doors

● When an alarm sounds:

Take appropriate measures according to the following table.

Alarm Situation Correction procedure

Exterior alarm
sounds once for
2 seconds

Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartment.

Retrieve the elec­tronic key from the
passenger compart­ment and lock the
doors again.

Exterior alarm
sounds once for
60 seconds

Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START ST OP” switch OFF.

Turn the “ENGINE
START STOP” switch
OFF and lock the
doors again.

Exterior alarm
sounds once for
10 seconds

Tried to lock the vehicle
using the entry function
while a door is open.

Close all of the doors
and lock the doors
again.

Interior alarm
sounds continu­ously

Tried to open the door and
exit the vehicle without
shifting the shift lever to P.

Shift the shift lever to
P.

Interior alarm
beeps repeatedly

Switched to ACCESSORY
mode while the driver's
door is open. (Opened the
driver's door when the
“ENGINE START STOP”
switch is in ACCESSORY
mode.)

Turn the “ENGINE
START STOP” switch
OFF and close the
driver's door.

Turned the “ENGINE
ST ART STOP” switch OFF
while the driver's door is
open.

Close the driver's
door.

35

1-2. Opening, closing and locki ng the doors

1

Before driving

■ If the smart key system does not operate properly

● Locking and unlocking the doors: Use the mechanical key. (→P. 451)

● Starting the engine. (→P. 451)

■ When the electronic key battery is fully depleted

→P. 380

Alarm Situation Correction procedure

Interior and exte­rior alarms sound
continuously.

Tried to close the driver’s
door after carrying the key
outside the vehicle with the
“ENGINE START STOP”
switch in IGNITION ON or
ACCESSORY mode and
without the shift lever
being in P.

Shift the shift lever to
P, turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again.

Interior alarm
beeps once.

The electronic key has a
low battery.

Replace the electronic
key battery.

Tried to start the engine
without the electronic key
being present, or when the
electronic key was not
functioning normally.

Start the engine with
the electronic key
present.

Interior alarm
beeps once and
exterior alarm
sounds 3 times.

Tried to close the driver’s
door after carrying the key
outside the vehicle without
turning the “ENGINE
START ST OP” switch OFF.

Turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again.

An occupant carried the
electronic key outside the
vehicle and closed the
door when the “ENGINE
START STOP” switch was
in IGNITION ON or
ACCESSORY mode.

Bring the electronic
key back into the vehi­cle.

36

1-2. Opening, closing and locking the doors

■ Customization that can be configured at Toyota dealer

It is possible to deactivate the smart key system etc.
(Customizable features →P. 488)

■ Certification for the smart key system

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF-2
FCC ID: HYQ14AAB

FCC ID: HYQ13BZS
FCC ID: HYQ14ABK

FCC ID: HYQ13CZA

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer­ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ­ing interference that may cause undesired operation of the device.

37

1-2. Opening, closing and locki ng the doors

1

Before driving

CAUTION

■ Caution regarding interference with electronic devices

● People with implanted pacemakers or cardiac defibrillators should keep

away from smart key system antennas. (→P. 28) The radio waves may
affect the operation of such devices. If necessary, the entry function can
be disabled. Ask your Toyota dealer for details, such as the frequency of
radio waves and timing of emitting the radio waves. Then, consult your
doctor to see if you should disable the entry function.

● User of any electrical medical device other than implanted pacemakers

and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.

Ask your Toyota dealer for details for disabling the entry function.

38

1-2. Opening, closing and locking the doors

Wireless remote control

■ Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that

the doors have been lock

ed/unlocked. (Locked: Once; Unlocked:

Twice)

The wireless remote control can be used to lock and unlock the vehi­cle from outside the vehicle.

Vehicles without smart key system

Locks all doors
Pushing and holding:

Sounds alarm
Unlocks all doors
Pressing the button unlocks

the driver’

s door. Pressing
the button again within 3
seconds unlocks the other
doors.

Vehicles with smart key system

Locks all doors
Unlocks all doors
Pressing the button unlocks

the dr

iver’s door. Pressing
the button again within 3
seconds unlocks the other
doors.

Pushing and holding:
Sounds alarm

39

1-2. Opening, closing and locki ng the doors

1

Before driving

■ Panic mode

Vehicles without smart key system

Vehicles with smart key system

■ Door lock buzzer

If a door is not fully closed, a buzzer sounds continuously if an attempt to
lock the door is made. Fully close the door to stop the buzzer, and lock the
vehicle once more.

■ Key battery depletion

Vehicles without smart key system

The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the key is not used.) If the wireless remote control function does not
operate, the battery may be depleted. Replace the battery when necessary.
(→P. 380)

Vehicles with smart key system

→P. 380

When is pushed for longer than
about one second, an alarm will sound for
about 60 seconds and the vehicle lights
will flash to deter any person from trying
to break into or damage your vehicle.

To stop the alarm, push any button on the
wireless remote control.

When is pushed for longer than
about one second, an alarm will sound for
about 60 seconds and the vehicle lights
will flash to deter any person from trying
to break into or damage your vehicle.

To stop the alarm, push any button on the
wireless remote control.

40

1-2. Opening, closing and locking the doors

■ If the wireless remote control does not operate

Vehicles without smart key system

Locking and unlocking the doors: Use the key. (→P. 42)

Vehicles with smart key system

● Locking and unlocking the doors: Use the mechanical key. (→P. 451)

● Starting the engine. (→P. 143)

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.

■ Conditions affecting operation

Vehicles without smart key system

The wireless remote control function may not operate normally in the follow­ing situations.

● Near a TV tower, radio station, electric power plant, airport or other facil-

ity that generates strong radio waves

● When carrying a portable radio, cellular phone or other wireless commu-

nication devices

● When multiple wireless keys are in the vicinity

● When the wireless key is in contact with, or is covered by a metallic

object

● When a wireless key (that emits radio waves) is being used nearby

● When the wireless key has been left near an electrical appliance such as

a personal computer

Vehicles with smart key system

→P. 30

■ Customization that can be configured at Toyota dealer

Settings (e.g. wireless remote control) can be changed.
(Customizable features →P. 488)

41

1-2. Opening, closing and locki ng the doors

1

Before driving

■ Certification for wireless remote control (vehicles without smart key

system)

For vehicles sold in the U.S.A.

FCC ID: HYQ12BBY
FCC ID: HYQ13BBZ

FCC ID: HYQ12BDC
FCC ID: HYQ13BDC

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer­ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ­ing interference that may cause undesired operation of the device.

■ Certification for wireless remote control (vehicles with smart key sys-

tem)

→P. 36

42

1-2. Opening, closing and locking the doors

Side doors

The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.

■ Entry function (vehicles with smart key system)

→P. 26

■ Wireless remote control

→P. 3

8

■ Key

Vehicles without smart key system

Locks all doors
Unlocks all doors

Turning the key unlocks the
driver's door. Turning the key
again within 3 seconds unlocks
the other doors.

Vehicles with smart key system
The doors can also be locked and unlocked with the mechanical

key. (→P. 451)

43

1-2. Opening, closing and locki ng the doors

1

Before driving

■ Door lock switch

Locks all doors
Unlocks all doors

■ Inside lock button

Locks the door
Unlocks the door

Pulling the door handle can
open the front door even if the
lock button is in the lock posi­tion.

44

1-2. Opening, closing and locking the doors

Locking the front doors from the outside without the wireless
remote control or key

Move the inside door lock button to the lock position.
Close the door.

Rear door child-protector locks

The door cannot be opened from
inside the vehicle when the child­protector lock is set.

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

STEP

1

STEP

2

45

1-2. Opening, closing and locki ng the doors

1

Before driving

■ When all the doors are locked with the entry function (vehicles with

smart key system), wireless remote control or key

The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the entry
function (vehicles with smart key system), wireless

remote control or key.

■ The doors ca

nnot be locked when

V

ehicles without smart key system

The key is in the engine switch and either front door is open.

Vehicles with smart key system

The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode, o

r the electronic key is lef

t inside the vehicle.

Depending on the position of the electronic key, the key may not be detected
correctly and the door ma

y be locked.

■ Customization that can be configured at T

oyot

a dealer

Settings (e.g. door unlocking function) can be changed.
(Customizable features →P. 488

)

CAUTION

■ To prevent an accident

Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

● Always use a seat belt.

● Always lock the doors.

● Ensure that all doors are properly closed.

● Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehi­cle and it may result in serious injury or death.

Be especially careful for the front doors, the doors may be opened even if
the inside lock buttons are in locked position.

● Set the rear door child protector locks when children are seated in the rear

seats.

46

1-2. Opening, closing and locking the doors

Back door

■ Customization that can be configured at Toyota dealer

Settings (e.g. wireless remote control) can be changed.
(Customizable features →P. 488

)

CAUTION

■ Caution while driving

● Keep the back door closed while driving.

If the back door is left open, it may hit near-by objects while driving or lug­gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri­ous health hazard. Make sure to close the back door before driving.

● Before driv ing the vehicle, make sure that the back door is fully closed. If

the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.

● Never let anyone sit in the luggage compartment. In the event of sudden

braking or a collision, they are susceptible to death or serious injury.

The back door can be opened using the back door handle. The back
door can be locked and unlocked using the wireless remote control,
entry function (vehicles with smart key system) or door lock switch.

■ Entry function (vehicles with smart key system)

→P. 27

■ Wireless remote control

→P. 38

■ Door lock

s

witch

→P. 43

47

1-2. Opening, closing and locki ng the doors

1

Before driving

CAUTION

■ Caution while parking

If the open back door hides the stop, tail or rear turn signal lights, other road
users must be warned of the presence of your vehicle by a warning triangle
or other device.

■ When children are in the vehicle

Observe the following precautions.
Failure to do so may result in death or serious injury.

● Do not leave children alone in the luggage compartment.

If a child is accidentally locked in the luggage compartment, they could
overheat.

● Do not allow a child to open or close the back door.

Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

■ Operating the back door

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri­ous injury.

● When opening or closing the back door, thoroughly check to make sure

the surrounding area is safe.

● If anyone is in the vicinity, make sure they are safe and let them know that

the back door is about to open or close.

48

1-2. Opening, closing and locking the doors

CAUTION

● Use caution when opening or c losing the back door in windy weather as it

may move abruptly in strong wind.

● Do not attach any accessories other than genuine Toyota parts to the back

door . Such additional weight on the back door may interfere with the safety
opening and closing operation of the back door.

● The back door may close if it is not

opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.

● When closing the back door, take extra

care to prevent your fingers etc. from
being caught.

● When closing the back door, make sure

to press it lightly on its outer surface.

49

1

Before driving

1-3. Adjustable components (seats, mirrors, steering wheel)

Front seats

Manual seat

Seat position adjustment
lever

Seatback angle adjustment
lever

Vertical height adjustment
lever (driver’s side only)

50

1-3. Adjustable components (seats, mirrors, steering wheel)

Power seat (driver’s side only)

Seat position adjustment
switch

Seatback angle adjustment
switch

Seat cushion (front) angle
adjustment switch

Vertical height adjustment
switch

Seat lumbar support adjust­ment switch

51

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

Flattening front seatbacks

The front seats can be moved into a flat seat arrangement.

Manual seat

Slide the second seats as far back as possible. (→P. 54)
Remove the front head restraint. (→P. 65)

Slide the front seat further for­ward than the front-most lock
position.

Pull the seatback angle adjust­ment lever up to unlock and pus h
down

the seatback.

After returning the seat to its origi­nal position, be certain to replace
the head restraint.

STEP

1

STEP

2

STEP

3

STEP

4

52

1-3. Adjustable components (seats, mirrors, steering wheel)

Power seat

Slide the second seats as far back as possible. (→P. 54)
Remove the front head restraint. (→P. 65)

Push the seat position adjusting
switch forward to slide the seat
to the front-most position.

Move the seatback angle adjust­ing switch backward to flatten
the

seatback.

After returning the seat to its origi­nal position, be certain to replace
the head restraint.

Active head restraints

When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for­ward and upward to help reduce
th

e ri

sk of whiplash on the seat

occupant.

STEP

1

STEP

2

STEP

3

STEP

4

53

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

■ Active head restraints

Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may appear the head
restraint inner structure. These do not indicate problems.

CAUTION

■ Seat adjustment

● Be careful that the seat does not hit passengers or luggage.

● Do not recline the seat more than necessary when the vehicle is in motion

to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.

● Manual seat only: After adjusting the seat, make sure that the seat is

locked in position.

Inner
structure

During
rear-end
collision

54

1-3. Adjustable components (seats, mirrors, steering wheel)

Rear seats

■ Second seats

Vehicles with third seat

Seat position adjustment
levers

Seatback angle adjustment
levers

When a person sits in the sec­ond center position, align all
seatbacks at the same angle.

55

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

Vehicles without third seat

Seat position adjustment
levers

Seatback angle adjustment
levers

When a person sits in the sec­ond center position, align all
seatbacks at the same angle.

56

1-3. Adjustable components (seats, mirrors, steering wheel)

Moving a second seats for third seats entry (vehicles with third seats)

■ Getting in the vehicle (right side only)

Pull the lever forward and fold
down the seatback. The seat will
slide fo

rward.

After passengers are in, lift up the
seatback and return the seat to
the original position.

■ Third seats (if equipped)

The third seats do not have a
seat adjustment function.

57

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

Folding second seats

Folding down the second seats will enlarge the luggage compart­ment.

■ Before folding the second seats

S

tow the second center seat belt . (→P. 70)

Make sure the outside seat belt
passes through the hanger when
folding the second seat.

This prevents the shoulder belt
from being damaged.

Stow the second seat belt buck­les.

Lower the head restraint to the lowest position. (→P. 65)
Raise the armrest until it locks. (→P. 320)

STEP

1

STEP

2

STEP

3

STEP

4

STEP

5

58

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Folding second seats

Slide the second seats as far back as possible. (→P. 54)

From inside

Pull down the seatback angle
adjustment lever and fold down
the seatback.

From outside (vehicles without third seats)

Open the back door and pull the
lock release lever to fold

down

the second seat.

STEP

1

STEP

2

STEP

2

59

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

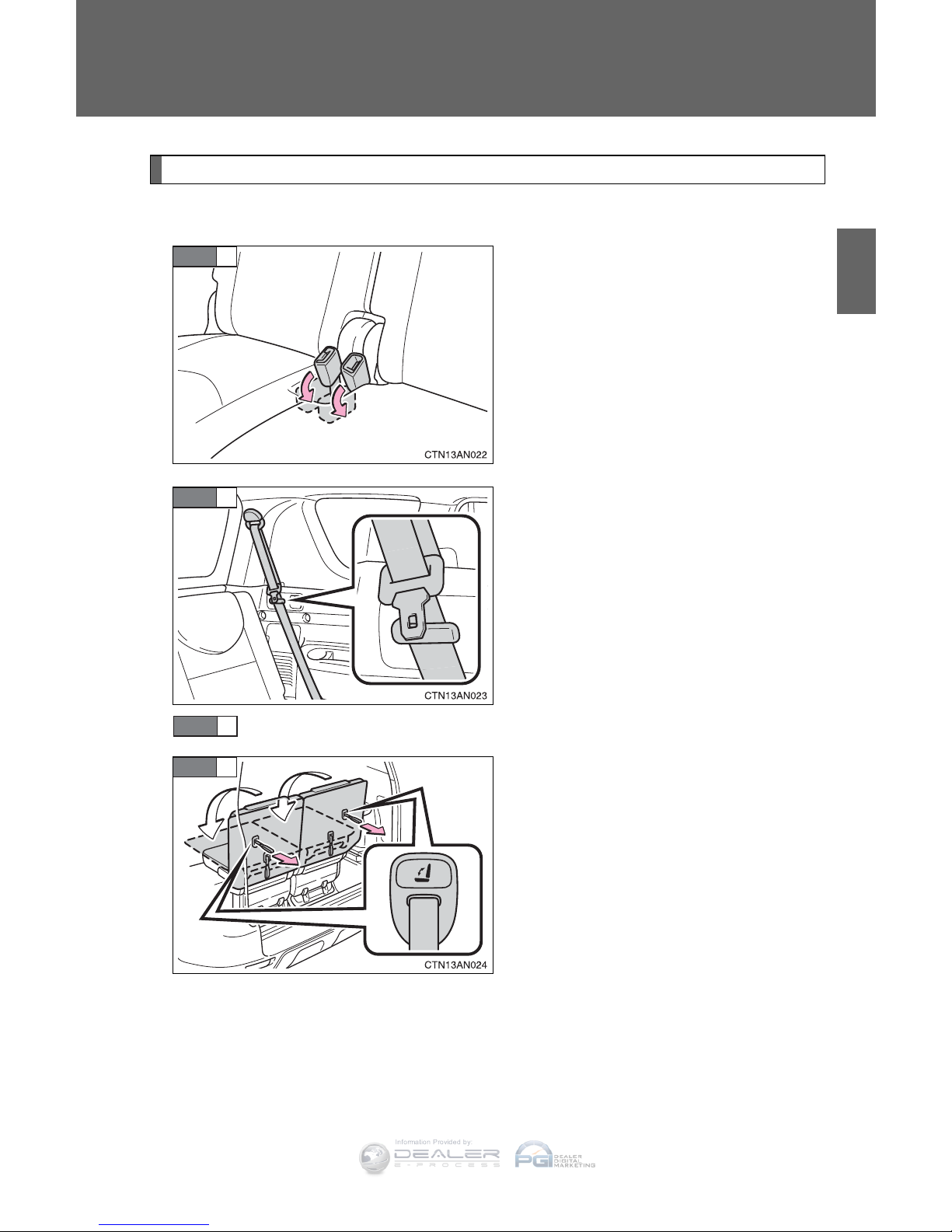

Stowing third seats (vehicles with third seats)

■ Before stowing the third seats

Stow the third seat belt buckles.

Pass the seat belts through the
seat belt

hang

ers.

This prevents the shoulder belt
from being damaged.

Lower the head restraint to the lowest position. (→P. 65)

Pull the seatback lock release
strap to fold

down the seatback.

Make sure it is locked securely.

STEP

1

STEP

2

STEP

3

STEP

4

60

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Stowing third seats

Pull and hold the seat lock
release

strap and lift up the seat
rearward and then push the seat
down.

Push the seat on the front side
a

gainst the

floor and push the
seat on rear side against the
floor.

Make sure it is locked securely.

STEP

1

STEP

2

61

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

■ Returning third seats

Pull the seat lock release strap,
lift the sea

t up and move the seat

forward. Lock the seat into place.

Make sure it is locked securely.

Pull the seatback lock release
strap and raise the seatback.

If the seat does not lift up when
the seat lock release strap is
pulled, lock the seatback again.

STEP

1

STEP

2

62

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat adjustment

Observe the following precautions.
Failure to do so may result in death or serious injuries.

● The seat belts provide maximum protection in a frontal or rear collision

when the driver and the front passenger are sitting up straight and well
back in the seats.

If you are reclined, the lap belt may slide past your hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt.

● Be careful not to get your hands or feet pinched in the seat.

● Do not adjust the seat while the vehicle is moving as the seat may unex-

pectedly move and cause the driver to lose control of the vehicle.

● Be careful that the seat does not hit a passenger or luggage.

● Do not put objects under the seats.

Otherwise, the objects may interfere with the seat-lock mechanism or
unexpectedly push up the seat position adjustment lever and the seat may
suddenly move, causing the driver to lose control of the vehicle.

● Avoid reclining the seatback any more than needed.

● Adjust both seat cushions to the same positi on and align all seatbacks at

the same angle when a person sits in the rear center position.
Otherwise, the person cannot wear the seat belt properly and this may

cause death or serious injuries in a collision.

63

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

CAUTION

■ When folding second seats

● Do not fold the second seatback when passengers sit or luggage is placed

on the seat.

● Do not allow passengers to ride on the folded seat or in the luggage com-

partment while driving.

● Make sure that no passengers or luggage are on the rear seats.

● Make sure the seatback is securely locked by pushing forward and rear-

ward on the top of the seatback.
Failure to do so will prevent the seat belt from operating properly.

■ When stowing third seats

● Make sure that no passenger or luggage are on the seats. Then, hold the

seat and slowly move it.
Otherwise, people may be injured or luggage may be damaged if the seat

hits them.

● Make sure the seat is securely locked by pushing forward and rearward on

the top of the seatback or by trying to pull up the edge of the bottom cush­ion.

Failure to do so will prevent the seat belt from operating properly.

● Make sure the seat belts are not twisted or caught in the seatback and are

arranged in their proper position ready for use.

● Do not stow or return the seats when you are inside the vehicle in order to

prevent pinching your hands or feet in the seat.
Be sure to stow and return the seats from outside the vehicle.

64

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ After adjusting a seat

● After adjusting the seat position, try sliding it forward and backward to

make sure it is locked in position.

● After adjusting the seatback, push your body adjust the seatback to make

sure it is locked in position.

● Make sure the seat belts are not twisted or caught in the seatback and are

arranged in their proper position and are ready for use.

NOTICE

■ Before folding the seats

To prevent damage to the seat belt buckles, stow them before folding the
seatback.

65

1

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

Head restraints

Head restraints are provided for all seats.

Front seats

Up

Pull the head restraints up.

Down

Push the head restraint down
while pushing the lock release
button.

Second seats

Third seats (if equipped)

Lock release button

Lock release buttons

Lock
release
button

66

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Removing the head restraints

Except second center seat

Second center seat

■ Installing the head restraints

Except second center seat

Pull the head restraint up while pushing
the lock release button.

Align the head restraint with the installa­tion holes and push it down while press­ing the lock release button.

67

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

Second center seat

■ Adjusting the height of the head restraints

■ Adjusting the rear seat head restraints

Always raise the head restraint one level from the stowed position when
using.

CAUTION

■ Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.

● Use the head restraints designed for each respective seat.

● Adjust the head restraints to the correct position at all times.

● After adjusting the head restraints, push down on them and make sure

they are locked in position.

● Do not drive with the head restraints removed.

Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

68

1-3. Adjustable components (seats, mirrors, steering wheel)

Seat belts

Make sure that all occupants are wearing their seat belts before driv­ing the vehicle.

■ Correct use of the seat belts

● Extend the shoulder belt so

that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul­der.

● Position

the lap belt as low

as

possible over the hips.

● Adjust the position of the
seatback. Sit up straig

ht

and well back in the seat.

● Do not twist the seat belt.

■ Fastening and releasing the seat belt

Fastening the belt

Push the tab into the buckle
until a clicking sound is heard.

Releasing the belt

Press the release button.

Release button

69

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

Second center seat belt

The second center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation.

Make sure that the buckle is
securely latched ready for use of
the

center seat

belt.

Matches the tab with hook
end.

Matches the tab with round
end.

■ Adjusting the height of the belt (front seats)

Down
Up

Move the height adjuster up
and down as needed.

70

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Releasing method

The second center seat belt can be completely released only when
necessary such as when folding down the second seats.

Insert the key into the hole on
the

center se

at belt buckle to
release the tab (with hook end),
and allow the belt to retract.

Stow the seat belt tabs in the
cover located

on the roof as

show

n.

Seat belt pretensioners (front seats)

The pretensioner helps the seat
belt to quickly restrain the occu­pant by retracting the seat belt
w

hen

the vehicle is subjected to
certain types of severe frontal
collision or a vehicle rollover.

The pretensioner may not acti­vate in the event of a minor frontal
impact, a side impact or a

rear

impact.

STEP

1

STEP

2

71

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

■ Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then
retracted even

slightly, the

belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. (→P. 121)

■ Pr

egnant women

■ People suffering illness

Obtain medical advice and wear the seat belt in the proper way

.

Obtain medical advice and wear the seat
belt in the proper way. (→P. 68)

Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu­pants. Extend the shoulder belt com­pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.

If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.

72

1-3. Adjustable components (seats, mirrors, steering wheel)

■ When not using the rear seat belts

Second seats

Third seats

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult
size.

● Use a child restraint system appropriate for the child, until the child

becomes large enough to properly wear the vehicle's seat belt. (→P. 1 17)

● When the child becomes large enough to properly wear the vehicle's seat

belt, follow the instructions on P. 68 regarding seat belt usage.

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli­sions.

Pass the outer seat belts through the seat
belt hangers and secure the seat belt
plates to prevent the shoulder belts from
being damaged.

Pass the seat belts through the seat belt
hangers to prevent the shoulder belts
from being damaged.

73

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

■ Seat belt extender

CAUTION

Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or severe injury.

■ Wearing a seat belt

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

● Each seat belt should be used by one person only. Do not use a seat belt

for more than one person at once, including children.

● Toyota recommends that children be seated in the rear seat and always

use a seat belt and/or an appropriate child restraint system.

● Do not recline the seat any more than necessary to achieve a proper seat-

ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.

● Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

■ Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (→P. 69)

If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toyota
dealer free of charge.

74

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat belt pretensioners

● Do not place anything, such as a cushion, on the front passenger's seat.

Doing so will disperse the passenger's weight, which prevents the sensor
from detecting the passenger's weight properly. As a result, the seat belt
pretensioner for the front passenger's seat may not activate in the event of
a collision.

● If the pretensioner has activated, the SRS warning light will come on. In

that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.

■ Child restraint lock function belt precaution

Do not allow children to play with the child restraint lock function belt. If the
belt becomes twisted around a child’s neck, it will not be possible to pull the
belt out leading to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

■ Seat belt damage and wear

● Do not damage the seat belts by allowing the belt, plate, or buckle to be

jammed in the door.

● Inspect the seat belt system periodically . Check for cuts, fraying, and loose

parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.

● Ensure that the belt and tab are locked and the belt is not twisted.

If the seat belt does not function correctly , immediately contact your Toyota
dealer.

● Replace the seat assembly, including the belts, if your vehicle has been

involved in a serious accident, even if there is no obvious damage.

● Do not attempt to install, remove, modify, disassemble or dispose of the

seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.

75

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

CAUTION

■ When using the second center seat belt

■ Using a seat belt extender

● Do not wear the seat belt extender if you can fasten the seat belt without

the extender.

● Do not use the seat belt extender when installing a child restraint system

because the belt will not securely hold the child restraint system, increas­ing the risk of death or serious injury in the event of an accident.

● The personalized extender may not be safe on another vehicle, when

used by another person, or at a different seating position other than the
one originally intended.

NOTICE

■ When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

Do not use the second center seat belt
with either buckle released.

Fastening only one of the buckles may
result in death or serious injury in case of
sudden braking or a collision.

76

1-3. Adjustable components (seats, mirrors, steering wheel)

Steering wheel

CAUTION

■ Caution while driving

Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.

■ After adjusting the steering wheel

Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

The steering wheel can be adjusted to a comfortable position.

Hold the steering wheel and
press the lever down.

Adjust to the ideal position by
moving the steerin

g wheel

horizontally and vertically.

After adjustment, pull the lever
up to secure the steering
wheel.

STEP

1

STEP

2

77

1

1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

Anti-glare inside rear view mirror

Glare from the headlights of vehicles behind can be reduced by
using the following functions.

Manual anti-glare inside rear view mirror

Normal position
Anti-glare position

Auto anti-glare inside rear view mirror
In automatic mode, sensors are used to detect the headlights of

vehicles behind and the reflected light is automatically reduced .

Turns automatic mode on/off

The indicator comes on when
automatic mode is turned ON.

Vehicles without smart key
system:
The

mirror will revert to the
automatic mode each time the
engine switch

is turned to the

“ON” position.
Vehicles with smart key sys-

tem:
The mirror will revert to the
automatic mode each

time the

“ENG

INE START STOP”
switch is turned to IGNITION
ON mode.
