Toshiba TDP-SC25, TDP-S25, TDP-SW25 Specifications

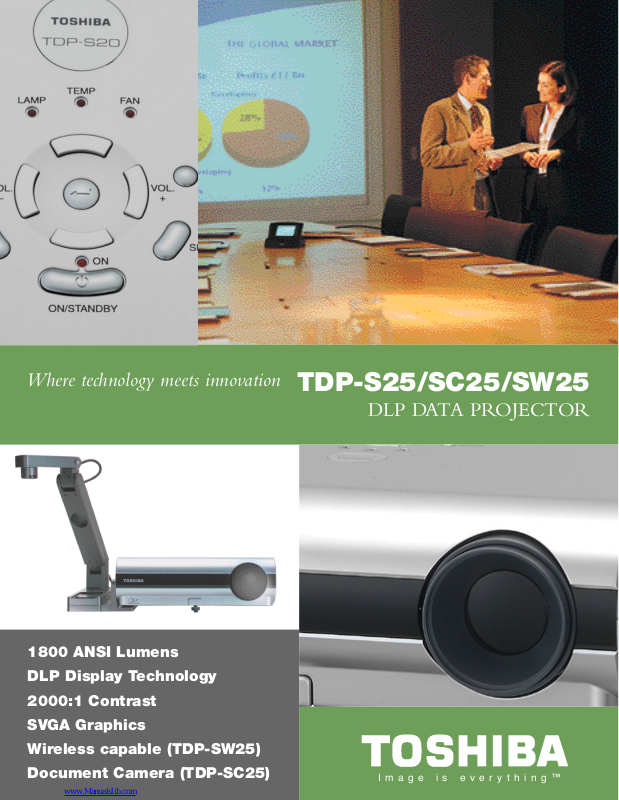

TDP-S25/SC25/SW25

Where technology meets innovation

DLP DATA PROJECTOR

1800 ANSI Lumens

DLP Display Technology

2000:1 Contrast

SVGA Graphics

Wireless capable (TDP-SW25)

Document Camera (TDP-SC25)

I m a g e i s e v e r y t h i n g ™

TDP-S25/SC25/SW25

191 McNabb Street,

Markham, Ont. Canada L3R 8H2

w w w . t o s h i b a . c a

New, impressive design

Optical Zoom Lens

S-Video terminal

Video terminal

2 Computer in terminals

Audio terminals

Distributed by:

Model TDP-S25 / TDP-SC25 / TDP-SW25

Device Display technology 0.55" DMD

resolution 800 x 600 4:3 SVGA Panel
number of pixels 480,000
Lens 1.2x manual focus/manual zoom
F/f (mm) F=2.0-2.2, f=18.2mm-21.84mm

Light Source (low mode) 160W (135W)
Operating Temperature 5 to 35 deg C
Lamp life up to 3000 hours
Brightness (lm) Standard 1800
Contrast ratio 2000:1
Operation Noise Standard 36dB

Low 33dB
Projection Distance 100 inches / 3.3m
Scanning Frequency Horizontal 15-93kHz

Vertical 50-85Hz
Input Terminal RGB x 2: D-sub15 Terminal

Component Video (YPbPr) x 1: D-sub15 terminal (Common with RGB input)

S-Video x 1: S terminal

Composite Video x 1: RCA terminal

RGB Audio x 1: Stereo Mini jack

Audio x 2: RCA x 2 (L/R)
Output Terminal RGB x 1: D-sub15 terminal

Audio x 1: Stereo Mini jack (Variable audio out)
Other Terminal Control RS232C (Mini DIN8 pin)

USB for service use only
Input Signal Video NTSC, PAL, SECAM

Color difference 480i, 480p, 576i, 576p, 1080i, 720p

RGB VGA, SVGA (True) / XGA, SXGA, UXGA (Compressed)
Keystone Correction Manual, Vertical 15 degree each Up/Down
Auto Set Yes
Speaker 1W monaural

Model Name of
replacement Lamp TLPLV4

Model TDP-S25 TDP-SC25 TDP-SW25

Wireless 80211B No No Yes

PC Card No No Yes

Projection Camera No Yes No
Weight lbs 6.61 8.6 6.8
Size Inches W 11 2/8 x D 10 x H 3 7/8 W 14 4/8 x D 10 2/8 x H 3 7/8 W 11 2/8 x D 10 x H 3 7/8
Power Consumption W W230 230 240
Power Source V 100-240 (50/60Hz) 100-240 (50/60Hz) 100-240 (50/60Hz)
Remote Control keys Yes Simple Simple Simple with 0 to 9
Others Carry Bag Yes Yes Yes

80211B Card No No Yes
Accessories User's Manual (CD-ROM) Yes Yes Yes

Quick Manual Yes Yes Yes

RGB Cable (3m) Yes Yes Yes

RGB Cable (0.2m) No Yes No

Quality Presentations at a Very
Competitive Price.

This entry level Toshiba unit is low on price but high
on Value. It offers features which are usually only
found on much higher priced units. Standard features
on the TDP-S25 projector are keystone correction,
optical zoom lens, variety of connectivity including 2
15 pin computer inputs, monitor output plus S-Video
and Composite Video. The TDP-SC25 also features
document camera capabilites, d i s p l a ying 3-D
products, literature and photos.
