SERVICE MANUAL

DIGITAL VIDEO

DVD VIDEO PLAYER

SD-210EB

FILE NO. 810-200103

SD-210EE

SD-210EL

Jun., 2001

LASER BEAM CAUTION LABEL

When the power supply is being turned on, you may not remove this laser cautions label. If it removes, radiation of a laser may be recceived.

PREPARATION OF SERVICING

Pickup Head consists of a laser diode that is very susceptible to external static electricity. Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement,

its life might be shortened. When replacing, use a conductive mat, soldering iron with ground wire, etc. to protect the laser diode from damage by static electricity.

And also, the LSI and IC are same as above.

Ground conductive wrist strap for body.

Soldering iron with ground wire or ceramic type

Conductive mat

The ground resistance between the ground line and the ground is less than 10W.

1. OPERATING INSTRUCTIONS Specifications

2. LOCATION OF MAIN PARTS AND MECHANISM PARTS 2-1. Location of Main Parts 2-2. Location of Mechanism Parts

CONTENTS

SECTION 1

GENERAL DESCRIPTIONS

3. TROUBLESHOOTING 3-1. Main Circuit 3-1-1. Servo System 3-1-2. Location Diagram of Servo Test Point

PART REPLACEMENT AND ADJUSTMENT PROCEDURES

1. REPLACEMENT OF MECHANICAL PARTS 1-1. Cabinet Replacement 1-1-1. Top Cover 1-1-2. Clamper Stay 1-1-3. Tray Panel 1-1-4. Front Panel and Tray 1-1-5. Rear Panel 1-2. PC Board Replacement 1-2-1. Main PC Board 1-2-2. Power PC board 1-2-3. Front PC Board 1-2-4. Output-RGB PC Board

1. STANDING PC BOARDS FOR SERVICING

2. CIRCUIT SYMBOLS AND SUPPLEMENTARY EXPLANATION 2-1. Precautions for Part Replacement 2-2. Solid Resistor Indication 2-3. Capacitance Indication 2-4. Inductor Indication 2-5. Waveform and Voltage Measurement 2-6. Others

3. PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM

4. BLOCK DIAGRAMS 4-1. Overall Block Diagram 4-2. Power Supply Block Diagram 4-3. Front Display, Power Switch Block Diagram 4-4. Main Block Diagrams 4-5. Output-RGB Block Diagram

SECTION 2

1-3. Mechanism Parts 1-3-1. Mechanism Chassis Assembly 1-3-2. Loading Belt 1-3-3. Loading Motor 1-3-4. Sub Chassis (with a pickup mechanism) 1-3-5. Pickup Mechanism Assembly 1-3-6. Gear A Assembly, Gear B and

Rack Gear Assembly

1-3-7. Feed Motor

SECTION 3

SERVICING DIAGRAMS

5. CIRCUIT DIAGRAMS 5-1. Power Supply Circuit Diagram 5-2. Front Display, Power Switch Circuit Diagram 5-3. Main Circuit Diagram 5-4. Output-RGB Circuit Diagram 5-5. Motor System Circuit Diagrams

6. PC BOARDS 6-1. Power Supply PC Board 6-2. Power Switch PC Board 6-3. Output-RGB PC Board 6-4. Main PC Board 6-5. Front Display PC Board

SAFETY PRECAUTION NOTICE ABBREVIATIONS

1. Integrated Circuit (IC)

2. Capacitor (Cap)

3. Resistor (Res)

SECTION 4

PARTS LIST

4. EXPLODED VIEWS 4-1. Packing Assembly 4-2. Chassis Assembly 4-3. Mechanism Assembly

5. PARTS LIST

GENERAL DESCRIPTIONS

SECTION 1

GENERAL DESCRIPTIONS

1. OPERATING INSTRUCTIONS (SD-210EB)

SECTION 1

Introduction

SAFETY PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET . REFER SERVICING TO QUALIFIED PERSONNEL ONL Y .

CAUTION: This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location see service procedure.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prev ent direct exposure to laser beam, do not try to open the enclosure. Visible and invisible laser radiation when open and interlocks defeated. DO NOT STARE INTO BEAM.

CLASS 1 LASER PRODUCT

In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.

Model No. Serial No. Retain this information for future reference.

The following information applies only to SD-210EB, the model for U.K.

General Information

If the socket outlets in your home are not suitable for the plug supplied with this unit, the plug must be cut off and an appropriate one fitted.

The plug severed from this mains lead must be destroyed as it is hazardous if inserted into a live socket.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the mains lead of this unit may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire that is coloured blue must be connected to the terminal in the plug which is marked with the letter N or coloured black. The wire that is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not connect either wire to the earth terminal which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

Use a 5A fuse which is approved by ASTA or BSI to BS1362. Always replace the fuse cover after changing the fuse.

Location of the required label

The rating plate and the safety caution are on the rear of the unit.

Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS

OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MA Y BE EXPOSED T O DANGEROUS VOL T AGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stov es, or other apparatus (including amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10.Only use attachments/accessories specified by the manufacturer.

Introduction

11.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a car t is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

12.Unplug this apparatus during lightning storms or when unused for long periods of time.

S3125A

Introduction

IMPORTANT SAFETY INSTRUCTIONS

13.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14.When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

15.Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16.Never insert objects of any kind into this apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the apparatus.

17.Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury.

18.Do not place a heavy object on or step on the apparatus. The object may f all, causing serious personal injury and serious damage to the apparatus.

19. Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and apparatus malfunction.

Introduction

Precautions

Notes on handling

When shipping the DVD video player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. Do not use volatile liquids, such as insect spray, near the DVD video player. Do not leave rubber or plastic products in contact with the DVD video player for a long time. They will leave marks on the finish. The top and rear panels of the DVD video player may become warm after a long period of use. This is not a malfunction. When the DVD video player is not in use, be sure to remove the disc and turn off the power. If you do not use the DVD video player for a long period, the unit may not function properly in the future. Turn on and use the DVD video player occasionally.

Notes on locating

Place the DVD video player on a level surface. Do not use it on a shaky or unstable surface such as a wobbling table or inclined stand. The loaded disc may come off the proper position and cause damage to the DVD video player. When you place this DVD video player near a TV, radio, or VTR, the playback picture may become poor and the sound may be distorted. In this case, place the DVD video player away from the TV, radio, or VTR.

Notes on moisture condensation

Moisture condensation damages the DVD video player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD video player.

Moisture condensation occurs during the following cases.

When you bring the DVD video player directly from a cold place to a warm place. When you use the DVD video player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit. In summer, when you use the DVD video player in a hot and humid place just after you move the unit from an air conditioned room. When you use the DVD video player in a humid place.

Optical pick-up

lens

It’s too

warm!

Notes on cleaning

Use a soft, dry cloth for cleaning.

For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD video player. If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

To obtain a clear picture

The DVD video player is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

Do not use the DVD video player when moisture condensation may occur.

If you use the DVD video player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD video player to the wall outlet, turn on the DVD video player, and leave it for two or three hours. After two or three hours, the DVD video player will have warmed up and evaporated any moisture. Keep the DVD video player connected to the wall outlet and moisture condensation will seldom occur.

Wait!

Wall outlet

Notes on Discs

On handling discs

Do not touch the playback side of the disc.

Playback side

Do not attach paper or tape to discs.

On cleaning discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

Structure of disc contents

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

VIDEO CD/audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

Each title, chapter or track is assigned a number, which is called “title number”, “chapter number” or “track number” respectively. There may be discs that do not hav e these n umbers.

Introduction

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth. Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight or near heat sources. Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier. Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

Notes on copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Introduction

Notes on Discs (continued)

About this owner’s manual

This owner’s manual explains the basic instructions of this DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD video player may not respond to all operating commands. This is not a defect in the DVD video player. Refer to instruction notes of discs.

“

” may appear on the TV screen during operation.

A “

” means that the operation is not permitted by the

DVD video player or the disc.

Notes on region numbers

The region number of this DVD video player is 2. If region numbers, which stand for their playable area, are printed on your DVD video disc and you do not find

ALL

, disc playback will not be allowed by the player.

(In this case, the DVD video player will display a message on-screen.)

On VIDEO CDs

This DVD video player supports VIDEO CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.

• VIDEO CD not equipped with PBC function (Version 1.1)

Sound and movie can be played on this DVD video player in the same way as an audio CD.

• VIDEO CD equipped with PBC function (Version 2.0)

In addition to operation of a VIDEO CD not equipped with the PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the TV screen (Menu Playback). Some of the functions described in this owner’s manual may not work with some discs.

Playable discs

This DVD video player can play the following discs.

Disc Mark

DVD video discs

VIDEO CDs

Audio CDs

The following discs are also available.

CD-R/RW discs recorded by CD-DA method can be played. Some CD-R/RW discs may be incompatible.

DIGITAL VIDEO

CD-R CD-RW

Contents

Audio

video (moving pictures)

Audio video

(moving

pictures)

Audio

Disc Size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

(CD

single)

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM, DVD-RW, etc., even if they may be labeled marks listed above.

• This DVD video player uses the PAL/NTSC colour system, and cannot play DVD video discs recorded in any other colour system (SECAM, etc.).

Maximum

playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Approx. 74 minutes

Approx. 20 minutes

Approx. 74 minutes

Approx. 20 minutes

Table of Contents

Introduction

SAFETY PRECAUTIONS ..........................2

IMPORTANT SAFETY INSTRUCTIONS ...4

Precautions ...............................................8

Notes on Discs..........................................9

Notes on region numbers ............................... 10

Table of Contents ................................... 11

Identification of Controls .......................12

Front panel ..................................................... 12

Rear panel......................................................12

DVD display .................................................... 13

Remote control ............................................... 14

Loading batteries............................................15

Operating with the remote control .................. 15

Connections

Connecting to a TV.................................16

Connecting to a TV

(Using the SCART socket) ........................... 16

Connecting to a TV

(Using the component video jacks) .............. 16

Connecting to a TV

(Using the phono type jacks)........................ 17

Connecting to Optional Equipment ......18

Connecting to an amplifier equipped with a

Dolby Digital decoder ................................... 18

Connecting to an amplifier equipped with

Dolby Pro Logic Surround ............................ 18

Connecting to an amplifier equipped with a

DTS decoder ................................................ 18

Connecting to an amplifier equipped with an

MPEG2 audio decoder.................................19

Connecting to an amplifier equipped with a

digital audio input ......................................... 19

Basic playback

Playing a Disc .........................................20

Basic playback................................................20

Playing in fast reverse or fast forward

directions......................................................22

Playing frame by frame...................................22

Playing in slow-motion.................................... 23

Resuming playback from the same location... 23

Locating a Specific Title, Chapter , or

Track ........................................................24

Locating a title using the top menu................. 24

Locating a title by entering the title number.... 24

Locating a specific chapter or track directly.... 25

Locating a specific chapter or track................25

Advanced playback

Accessing a Specific Location Directly ...

Entering the time of the desired location ........ 26

Playing Repeatedly.................................27

Repeating a title, chapter, or track..................27

Repeating a specific segment ........................ 27

Playing in a Favorite Order....................28

Setting titles, chapters, or tracks in a favorite

order.............................................................28

Playing in Random Order.......................29

Playing titles, chapters or tracks in random

order.............................................................29

Zooming a Picture ..................................30

Zooming a picture........................................... 30

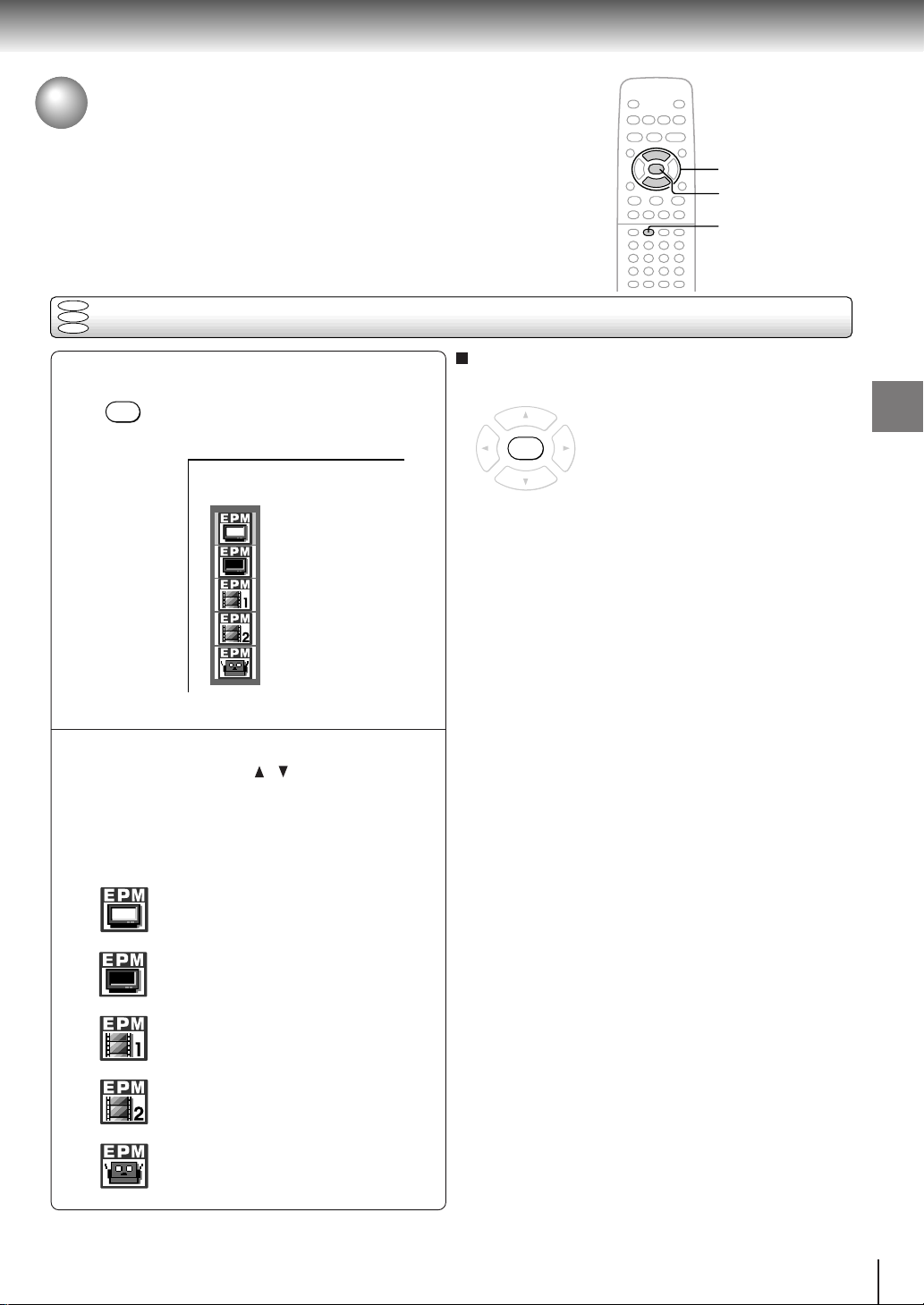

Selecting the Picture Enhancement

(E.P.M.) .....................................................31

Selecting the picture enhancement ................ 31

Selecting the Sound Enhancement

(E.A.M.) ....................................................32

Selecting the sound enhancement ................. 32

Selecting the Camera Angle ..................33

Changing the camera angle ........................... 33

Selecting Subtitles .................................34

Selecting a subtitle language .........................34

Selecting a Language.............................35

Selecting a playback audio setting ................. 35

Operating in the On-screen Display Mode .....

Operating in the on-screen display mode....... 36

Function setup

Customizing the Function Settings ......38

Setting procedure ........................................... 38

Setting details.................................................40

Others

Table of Languages ................................47

Before Calling Service Personnel .........48

Specifications .........................................49

Introduction

Identification of Controls

See the page in for details.

Front panel

ON/STANDBY indicator

ON/STANDBY

ON/STANDBY button

Rear panel

Disc tray

DVD display

PAUSE button

OPEN/CLOSE button

STOP button

PLAY button

PLAYSTOP

PAUSE SKIPOPEN/CLOSE

SKIP buttons

VIDEO OUT (Y/PB/PR) (Component video) jacks

VIDEO OUT jack

VIDEO OUT

VIDEO Y P

ANALOG

BITSTREAM/PCM COAXIAL AUDIO OUT jack

ANALOG AUDIO OUT (L/R) jacks

S VIDEO OUT jack

When connecting the optical digital cable, remove the cap and fit the connector into the jack firmly. When not using the jack, keep the cap inserted to protect it from dust intrusion.

BITSTREAM/PCM OPTICAL

18 19

16 17

AUDIO OUT jack

AUDIO OUT

B PR

COAXIAL OPTICAL

BITSTREAM/PCM

AV (SCART) socket

AC inlet

AC IN

Power cord

DVD display

Pressing of the FL DIM button on the remote control changes the brightness of the display.

Total playing time indicator

FL DIM

Normal

Dimmed

Introduction

Off

Play mode indicator

Chapter number indicator

Title number indicator

Memory playback indicator

Track number

Random playback indicator

M A-BR

TITLE TOTAL

indicator

CHP TRK

DVD

VCD

Multifunctional indicator (indicates operating status or messages, etc.)

DVD/VIDEO CD/CD indicator

When you start playback, the elapsed time indicators appear. Pressing the FL SELECT button switches them to the title/chapter/track number indicators. Some discs may not permit this operation.

The indicators vary depending on the kinds of discs you play.

Angle icon indicator

Repeat playback indicator

DVD video disc

• During playback:

Example

DVD

Some discs may not display chapter numbers or elapsed time.

TITLE

Playing chapter 3 of title 2

CHP

VIDEO CD

• During playback:

Example

TRK

VCD

Playing track 6

Some discs may not display track numbers or elapsed time.

Audio CD

• During playback:

Example

TRK

Playing track 6

Introduction

Identification of Controls (continued)

The instructions in this manual describe the functions on the remote control. See the page in for details.

Remote control

OPEN/CLOSE

OPEN/CLOSE button REV button

FWD

ON/STANDBY button

SKIPREV

FWD button

PAUSE/STEP button STOP button

TOP MENU button

Direction buttons

( / / / ) CLEAR button

ANGLE button

SETUP button DISPLAY button

SUBTITLE button E.A.M. button E.P.M. button

Number buttons

34 32 31

21 22

PAUSE/STEP

TOP MENU

CLEAR

ANGLE SUBTITLE AUDIO

SETUP SLOWZOOMDISPLAY

E.A.M. E.P.M.

456

RANDOM

STOP PLAY

ENTER

FL SELECT

MEMORY

REPEAT

RETURN

FL DIM

+10

A-B RPT

SKIP buttons PLAY button

ENTER button

MENU button*

RETURN button

AUDIO button

SLOW button ZOOM button

FL DIM button

FL SELECT button T button

RANDOM button MEMORY button

A-B RPT button REPEAT button

* MENU button

Use the MENU button to display the menu included on many DVD video discs. To operate a menu, follow the instructions in “Locating a title using the top menu.”

About the illustrations of the battery compartment

There are two types of battery compartment in the supplied remote controls. (This does not mean a difference in performance between the two.) Refer to either illustration depending on the actual remote control.

Loading batteries

Operating with the remote control

Introduction

Open the cover.

Insert batteries (R6 size).

Make sure to match the + and – on the batteries to the marks inside the battery compartment.

Close the cover.

Notes on batteries

Improper use of batteries may cause battery leakage and corrosion. To operate the remote control correctly, follow the instructions below.

• Do not insert batteries into the remote control in the wrong direction.

• Do not charge, heat, open, or short-circuit the batteries. Do not throw batteries into a fire.

• Do not leave dead or exhausted batteries in the remote control.

• Do not use different types of batteries together, or mix old and new batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

• If the remote control does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

Point the remote control at the remote sensor and press the buttons.

30°

Within about 7 m

Distance: About 7 m from the front of the remote Angle: About 30° in each direction of the front of

* Do not expose the remote sensor of the DVD video

Notes on the remote control

• Direct the remote control at the remote sensor of the DVD video player.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water or put anything wet on the remote control.

• Do not open the remote control.

sensor the remote sensor

player to a strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the DVD video player via the remote control.

Connections

Connecting to a TV

Connect the DVD video player to your TV.

For details of output sound, see 35. Connect the DVD video player directly to your TV. If you connect the DVD video player to a VTR, TV/VTR

combination or video selector, the playback picture may be distorted as DVD video discs are copy protected.

Connecting to a TV (Using the SCART socket)

• Normal TV

• TV compatible with

SCART cable

S video signals

• RGB monitor To AV

R ANALOG

B PR

COAXIAL OPTICAL

BITSTREAM/PCM

AUDIO OUT

VIDEO OUT

VIDEO Y P

To SCART input

• Make the following setting.

On-screen

display

Normal TV

TV compatible with S video signals

RGB monitor

See “Customizing the Function Settings” beginning from

“Video Out Select”

“Video”

“S Video”

“RGB”

“Audio Out Select”

“Analog 2ch”

Connecting to a TV (Using the component video jacks)

To PB

TV or monitor with component video inputs

To PR video input

To Y

VIDEO

OUT

VIDEO

OUT

To PR

VIDEO

OUT

Signal flow

AC IN

To wall outlet

Signal flow

To audio input

• Make the following setting.

On-screen display

TV or monitor with component video inputs

See “Customizing the Function Settings” beginning from 38.

“Video Out Select”

To PB video input

T o Y video input

“Video”

“S Video”

Audio cable

“Audio Out Select”

“Analog 2ch”

ANALOG

B PR

COAXIAL OPTICAL

BITSTREAM/PCM

AUDIO OUT

VIDEO OUT

VIDEO Y P

To ANALOG AUDIO OUT (R: red, L: white)

Component video outputs/inputs

Some TVs or monitors are equipped with

To wall outlet

component video inputs. Connecting to these inputs allows you to enjoy higher quality picture playback.

Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, R-Y, B-Y or Y, C

B, CR)

In some TVs or monitors, the colour levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

AC IN

Connecting to a TV (Using the phono type jacks)

Select the connection type depending on the TV. (TV equipped with an S video input / Normal TV)

TV equipped with an S video input

Signal flow

Connections

input

To audio input

Normal TV

To STo audio

To video input (yellow)

Audio/video cable

To S VIDEO OUT

S video cable

Audio cable

To VIDEO OUT

(yellow)

VIDEO OUT

VIDEO Y P

ANALOG

VIDEO OUT

VIDEO Y P

ANALOG

AUDIO OUT

BPR

COAXIAL OPTICAL

BITSTREAM/PCM

To ANALOG AUDIO OUT (R:red, L:white)

AUDIO OUT

B PR

COAXIAL OPTICAL

BITSTREAM/PCM

To ANALOG AUDIO OUT (R:red, L:white)

AC IN

To wall outlet

Signal flow

AC IN

• Make the following setting.

On-screen

display

TV equipped with an S video input

Normal TV

See “Customizing the Function Settings” beginning from

“Video Out Select”

“S Video”

No need to set.

“Audio Out Select”

“Analog 2ch”

To wall outlet

Notes

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD video player away from the tuner and radio.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

• If your television set has one audio input, connect the DVD video player to a Y cable adapter (not supplied) and then connect to your TV.

Connections

Connecting to Optional Equipment

You can enjoy high quality dynamic sounds by connecting the DVD video player to optional audio equipment.

For connection to your TV, see “Connecting to a TV” For details of output sound, see

Connecting to an amplifier equipped with a Dolby Digital decoder

: Front speaker : Rear speaker

: Center speaker : Signal flow

: Sub woofer

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD video player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. ©1992-1997 Dolby Laboratories. All rights reserved.

• Use DVD video discs encoded via the Dolby Digital recording

Amplifier equipped with a Dolby Digital decoder

To OPTICAL type digital audio input

To COAXIAL type digital audio input

VIDEO OUT

VIDEO Y P

75 Ω coaxial cable

Optical digital cable

BPR

COAXIAL OPTICAL

BITSTREAM/PCM

ANALOG

AUDIO OUT

Connect either.

system.

• Make the following setting.

On-screen display

“Audio Out Select”

Recording system

Select:

“Bitstream”

Page

Connecting to an amplifier equipped with Dolby Pro Logic Surround

Dolby Pro Logic Surround

You can enjoy the dynamic realistic sound of Dolby Pro Logic Surround by connecting an amplifier and speaker system (right and left front speakers, a center speaker, and one or two rear speakers).

With an amplifier equipped with Dolby Digital Connect the equipment the same way as described in “Connecting to an amplifier equipped with a Dolby Digital decoder.” Refer to that amplifier’s owner’s manual and set the amplifier so you can enjoy Dolby Pro Logic Surround sound.

With an amplifier not equipped with Dolby Digital Connect the equipment as follows.

• Make the following setting.

On-screen display

“Audio Out Select”

Select:

“Analog 2ch”

Page

38 41

Amplifier equipped with Dolby Pro Logic Surround

To audio input

VIDEO Y P

VIDEO OUT

R ANALOG

B PR

COAXIAL OPTICAL

AUDIO OUT

BITSTREAM/PCM

To ANALOG AUDIO OUT

* Connect one or two rear speakers.

Audio cable

The output sound from the rear speakers will be monaural even if you connect two rear speakers.

Connecting to an amplifier equipped with a DTS decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs. If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVD video discs or audio CDs.

Amplifier equipped with a DTS decoder

To OPTICAL type digital audio input

To COAXIAL type digital audio input

VIDEO Y P

VIDEO OUT

R ANALOG

AUDIO OUT

BPR

COAXIAL OPTICAL

BITSTREAM/PCM

Connect either.

75 Ω coaxial cable

Optical digital cable

Be sure to set “Audio Out Select” to “Analog 2ch” when you enjoy sounds of Dolby Pro Logic Surround using this connection.

“DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.

• Use DVD video discs or audio CDs encoded via the DTS recording system.

• Make the following setting.

On-screen display Select:

“Bitstream”“Audio Out Select”

Recording system DTS

Page

38 41

Warning

• When you are connecting (via the BITSTREAM/PCM AUDIO OUT jack) an AV decoder that does not have Dolby Digital, Digital Theater Systems (DTS) or MPEG2 decoding function, be sure to set “Audio Out Select” to “PCM” from the on-

screen displays

. Otherwise, high volume sound may damage your hearing as well as the speakers.

• When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog stereo jacks. To avoid possible damage to the audio system, you should take proper precautions when the ANALOG AUDIO OUT (L/R) jacks of the DVD video player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the BITSTREAM/PCM AUDIO OUT jack of the DVD video player.

Connecting to an amplifier equipped with an MPEG2 audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs with dynamic realistic sound by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG2 audio processor.

• Use DVD video discs encoded via

Amplifier equipped with an MPEG2 audio decoder

To OPTICAL type digital audio input

To COAXIAL type digital audio input

VIDEO OUT

VIDEO Y P

75 Ω coaxial cable

Optical digital cable

BPR

COAXIAL OPTICAL

BITSTREAM/PCM

ANALOG

AUDIO OUT

Connect either.

the MPEG2 recording system.

• Make the following setting.

On-screen display

“Audio Out Select”

Recording system

Select:

“Bitstream”

MPEG

Connecting to an amplifier equipped with a digital audio input

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers).

Amplifier equipped with a digital audio input

To OPTICAL type digital audio input

To COAXIAL type digital audio input

VIDEO Y P

75 Ω coaxial cable

Optical digital cable

VIDEO OUT

BPR

COAXIAL OPTICAL

BITSTREAM/PCM

ANALOG

AUDIO OUT

Connect either.

• Make the following setting.

On-screen display Select:

“PCM”“Audio Out Select”

Connections

Page

38 41

Page

38 41

Notes

• DO NOT connect the BITSTREAM/PCM AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Dolby Digital Receiver. This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the BITSTREAM/PCM AUDIO OUT jack of the DVD video player.

• Connect the BITSTREAM/PCM AUDIO OUT jack of the DVD video player to the “OPTICAL” or “COAXIAL” input of a Receiver or Processor.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Basic playback

OPEN/CLOSE

Playing a Disc

This section shows you the basics on how to play a disc.

CAUTION

Keep your fingers well clear of the disc tr ay as it is closing. Neglecting to do so may cause serious personal injury.

ON/STANDBY indicator

ON/STANDBY

DVD VCD

Basic playback

Preparations

• When you want to view a disc, turn on the TV and select the video input connected to the DVD video player.

• When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to the DVD video player.

Press ON/STANDBY.

When the DVD video player is turned on for the first time, a message appears. Press ENTER, and make the proper settings before proceeding to step 2.

The DVD video player turns on and the colour of the ON/STANDBY indicator changes from red (standby) to green (on).

Press OPEN/CLOSE.

The disc tray opens.

Press OPEN/CLOSE to close the disc

tray.

Playback starts.

OPEN/CLOSE

If you insert a DVD video disc that contains a top menu, a menu may appear. See “Locating a title using the top menu.”

• You may need to press the TOP MENU or MENU button to display disc menu (depending on the actual DVD video disc.)

DVD display

STOP

2, 4

PLAY

PLAYSTOP

PAUSE SKIPOPEN/CLOSE

PAUSE

Place the disc on the disc tray.

With the playback side down

• There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD video player to malfunction.

• Do not place a disc which is unplayable in this DVD video player.

T o start playback in the stop mode

Press PLAY.

PLAY

OPEN/CLOSE

2, 4 1

PAUSE/STEP PLAY

STOP MENU

ENTER

TOP MENU

To obtain a higher quality picture

Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing a DVD video disc because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use with this DVD video player, you should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.

About

The

DVD VCD CD

icons on the heading bar show the playable discs for the

function described under that heading.

DVD

: You can use this function with DVD video discs.

VCD

: You can use this function with VIDEO CDs.

: You can use this function with audio CDs.

To pause playback (still mode)

Press P AUSE/STEP during pla ybac k.

PAUSE/STEP

To resume normal playback, press the PLAY button.

• Sound is muted during still mode.

To stop playback

Press STOP.

STOP

To remove the disc

Press OPEN/CLOSE.

Remove the disc after the disc tray opens completely.

Be sure to press the OPEN/CLOSE button to close the disc tray after you remove the disc.

About the screen saver

If you pause a picture of a DVD video disc and leave it still for a long while, the screen saver of the DVD video player automatically appears (when “Screen Saver” is set to “On”

). To turn off the screen saver, press the

PLAY button.

Automatic Power Off function

If the DVD video player is stopped, or the screen saver is engaged for approximately 20 minutes, the DVD video player will automatically turn itself off.

Basic playback

Notes

• Do not move the DVD video player during playback. Doing so may damage the disc.

• Use the OPEN/CLOSE button to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD video player to malfunction.

• Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the STOP button on your remote control once the movie is completed.

Basic playback

Playing a Disc (continued)

You can play discs at various speeds, and resume playback from the location where you stopped playback.

DVD VCD

Playing in fast reverse or fast forward directions

REV FWD

PLAY STOP

PAUSE/STEP SLOW

Press REV or FWD during playback.

REV FWD

DVD

Playing frame by frame

VCD

REV: Fast reverse playback FWD: Fast forward playback

Each time you press the REV or FWD button, the playback speed changes.

Press PAUSE/STEP during still playback.

PAUSE/STEP

Each time you press the PAUSE/ STEP button, the picture advances one frame.

T o resume normal playback

Press PLAY.

PLAY

Notes

• The DVD video player mutes sound and omits subtitles during reverse and forward scan of DVD video discs. However, the DVD video player plays sound during fast forward or fast reverse play of audio CDs.

• The playback speed may differ depending on the disc.

T o resume normal playback

Press PLAY.

PLAY

Note

The sound is muted during frame by frame playback.

DVD

Playing in slow-motion

VCD

Press SLOW during playback.

SLOW

DVD VCD

Resuming playback from the same location

Each time you press the SLOW button, the slow-motion speed changes.

Press STOP at the location where you want to interrupt playback.

STOP

The DVD video player memorizes the location where playback is stopped.

Press PLAY.

PLAY

The DVD video player resumes playback from the location where you stopped playback.

Press PLAY.

Notes

• The sound is muted during slow-motion playback.

• The playback speed may differ depending on the disc.

To start playback from the beginning regardless of the location where you stopped playback

1 Press STOP twice.

2 Press PLAY.

• If you want to return to the beginning of a DVD video

To resume normal playback

PLAY

STOP

PLAY

disc, open and close the disc tray once with the OPEN/CLOSE button before pressing the PLAY button.

The DVD video player’s memory is cleared.

DVD

Playback starts from the beginning of the current title.

VCD

Playback starts from the

beginning of the disc.

Basic playback

Notes

• The DVD video player’s memory is also cleared when: –you change the parental lock setting 44 or select a disc

menu language 42.

–you open the disc tray.

• There may be a difference in the location where playback resumes depending on the disc.

• Settings you changed using the on-screen displays while the DVD video player keeps a location in the memory may function only after the memory is cleared.

Basic playback

ENTER

Locating a Specific Title, Chapter, or Track

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

DVD

Locating a title using the top menu

Track 1

VIDEO CD/audio CD

Track 2 Track 3 Track 4 Track 5

Press TOP MENU.

TOP MENU

The top menu appears on the TV screen.

e.g.

TITLE 1

TITLE 3

TITLE 2

TITLE 4

Press / / / to select the title you want.

If the titles in the top menu are

ENTER

DVD

Locating a title by entering the title number

assigned a number, you can directly locate a specific title by pressing its designated number with the number buttons.

Press T .

Make sure that the space of “T (Title)” is highlighted. (You can shift the highlight using the

/ buttons.)

e.g.

–:––:––

Notes

• The instructions above describe basic procedures which may vary depending on the contents of the DVD video disc. If different instructions appear on the TV screen, follow those instructions.

• If you display the top menu during playback and press the TOP MENU button again without selecting any title, the DVD video player may resume playback from the point where you first pressed the TOP MENU button (depending on the actual DVD video disc.)

• This method of locating a title is available only on a disc that contains a top menu.

• Instruction notes of discs may refer to the button that displays the top menu as TITLE button.

Notes

• Pressing the CLEAR button resets the title and chapter numbers. To clear the “T (Title)” and “C (Chapter)” display, press the T button several times.

• This method of locating a title is available only on a disc that contains title numbers.

Press ENTER.

Playback starts from chapter 1 of the selected title.

Enter the number for the title you want, using / or the number buttons.

e.g. To select title 2

To select title 12

Press PLAY.

PLAY

Playback starts from chapter 1 of the selected title.

PLAY

TOP MENU SKIP

PLAY

/ / /

ENTER CLEAR

T Number buttons

DVD VCD

Locating a specific chapter or track directly

Press T .

If you are using a VIDEO CD/audio CD, skip steps 1 and 2, then at step 3, enter the number for the track you want using the number buttons.

e.g.

–:––:––

Press to highlight the space of “C (Chapter).”

ENTER

e.g.

–:––:––

Enter the number for the chapter or track you want, using / or the

number buttons.

When you use the number buttons, you can use the +10 button to select numbers from 10 through

99. e.g. To select chapter or track 25

Press PLAY.

To select a title and chapter number at the same time

Perform step 1, and enter a title number you want in the space of “T (Title)” using the number buttons or the buttons then perform steps 2 to 4.

Note

Pressing the CLEAR button resets the title and chapter numbers. To clear the “T (Title)” and “C (Chapter)” display, press the T button several times.

Playback starts from the selected chapter or track.

Basic playback

DVD VCD

Locating a specific chapter or track

+10 +10

Press SKIP or repeatedly to display the chapter or track number you want.

Playback starts from the selected chapter or track.

SKIP

To locate succeeding chapters or tracks

Playback starts from the beginning of the current chapter or track. When you press twice, playback starts from the beginning of the preceding chapter or track.

Notes

• Some titles may not display chapter numbers.

• If you press and hold the SKIP or button on the front panel during playback, the DVD video player performs fast reverse or fast forward playback. You can vary the speed by pressing the button repeatedly. To locate chapters or tracks during fast reverse or fast forward playback, first press the PLAY button to resume normal playback, then use the SKIP or button.

• When you set “Title Stop” to “Off” 45, you can access chapters in another title. If you go back to the preceding title by pressing the SKIP button, the DVD video player locates the first chapter of the title. When “Title Stop” is set to “On,” you can access chapters only within the current title.

Advanced playback

Accessing a Specific Location Directly

You can access a specific location by entering its corresponding time (hours, minutes, seconds).

DVD VCD

Entering the time of the desired location

Press T three times.

You may have to press further depending on the disc. Press the button repeatedly until the clock icon is highlighted.

e.g.

–:––:––

Press the number buttons to enter the time.

e.g.

1 2 5 3 0

1:25:30

Press PLAY.

PLAY

Playback starts from the desired location.

Notes

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you specified.

• This method for accessing specific locations is available only within the current title of the DVD video disc or within the current track of the VIDEO CD/audio CD.

Playing Repeatedly

You can play a specific title, chapter, track, or segment repeatedly. (Title repeat, chapter/track repeat, A-B repeat)

DVD VCD

Repeating a title, chapter , or track

PLAY

CLEAR

REPEAT A-B RPT

Press REPEAT.

REPEAT

DVD VCD

Repeating a specific segment

Each time you press the REPEAT button, the repeat mode changes as follows.

Chapter Repeat

DVD

Chapter Repeat

Title Repeat

DVD

VCD

Track Repeat

DVD VCD

All Repeat

Repeat Off

Repeats the current chapter.

Repeats the current title. Repeats the current track.

Repeats the entire disc.

Resumes normal playback.

Press A-B RPT at the beginning of the segment (point A) you want to play

repeatedly.

A-B RPT

A–

Press A-B RPT again at the end of the segment (point B).

A-B RPT

The DVD video player automatically returns to point A and starts repeat playback of the selected segment (A-B).

Press PLAY.

Note

Some discs may not permit repeat operation.

Notes

• Some discs may not permit A-B repeat operation.

• You cannot set the A-B repeat function for a segment that includes multiple camera angles 33.

• You can specify a segment only within the current title or track (VIDEO CD).

• There may be a slight difference between point A and the location where playback actually resumes depending on the disc.

PLAY

The DVD video player starts repeat playback. Press the PLAY button within about 5 seconds after you press the REPEAT button.

To resume normal playback

Press CLEAR.

CLEAR

To resume normal playback

Press CLEAR.

CLEAR

Advanced playback

A–B

Advanced playback

Playing in a Favorite Order

You can combine your favorite titles, chapters, or tracks and play them in the order you determine. Y ou can program up to 30 selections into the memory. (Memory playback)

DVD VCD

Setting titles, chapters, or tracks in a favorite order

/ / /

CLEAR

2 1

Insert a disc and press MEMORY during stop.

MEMORY

The following display appears.

e.g.

---

T: Title number CT: Chapter number

or track number

---

Select the items in the order you want by pressing the number buttons, then

ENTER for each item.

Each time you press the / button, the spaces of “T” and “CT” are highlighted in turn. Highlight where you want to enter, then press the corresponding number buttons.

To select another chapter in the same title, you do not need to select the title number.

To select tracks from a VIDEO CD/audio CD in order, press the number buttons for the track, then press the ENTER button for each selection you want.

Note

The space of “T (Title)” may be showing a number. Neglect this number when using a VIDEO CD/audio CD.

T o change the programmed selections

1 While the display appears on the TV screen, press

/ / / to move the highlighted bar to the item

you want to change.

2 Change the selection following the instructions in

step 2.

T o cancel the programmed selections

1 While the display appears on the TV screen, press

/ to move the highlighted bar to the item you

want to cancel.

2 Press CLEAR.

T o resume normal playback from memory playback

Press CLEAR.

CLEAR

The memory playback indicator disappears.

T o program during playback

If you press the MEMORY button during playback, a programming display appears. Follow steps 2 and 3.

Notes

• Some discs may not permit memory playback operation.

• If you press the REPEAT button during memory playback, the DVD video player repeats the current memory playback.

• If you press the MEMORY or RETURN button while the display appears on the TV screen, the display disappears.

• The programmed selections will be cleared when you turn off the DVD video player.

Press PLAY while the display appears on the TV screen.

PLAY

The DVD video player starts memory playback.

Playing in Random Order

You can play titles, chapters within a title, or tracks in random order. (Random playback)

DVD VCD

Playing titles, chapters or tracks in random order

CLEAR

Press RANDOM.

RANDOM

DVD

VCD

Each time you press the RANDOM button, the random playback mode changes as follows.

Chapter Random

Title Random

Track Random

Random Off

If you press the RANDOM button during playback, the DVD video player automatically starts random playback after finishing the current title, chapter or track.

Plays chapters within the current title in random order.

Plays titles in random order.

Plays tracks in random order.

Resumes normal playback.

To resume normal playback

Press CLEAR.

CLEAR

Advanced playback

Notes

• Some discs may not permit random playback operation.

• You cannot use the random playback function in conjunction with the memory playback function.

Press PLAY.

PLAY

The DVD video player starts random playback. Press the PLAY button within about 5 seconds after you press the RANDOM button.

Advanced playback

/ / /

ZOOM

CLEAR

ENTER

Zooming a Picture

You can magnify areas within a picture.

DVD

Zooming a picture

Press ZOOM during normal, slow or still playback.

ZOOM

The DVD video player enters the zoom playback mode and displays the icon.

e.g.

: As you repeatedly press the ENTER

(or ZOOM) button while “ZOOM” is selected, the magnification level changes. Variation of the levels includes reducing.

: If you press the ENTER button while

“EXIT” is selected, you can turn off the icon, keeping the current magnification level.

You can shift the highlight within the icon by the

/ / / buttons.

T o resume normal playback

While “ZOOM” is selected, press ZOOM repeatedly to turn off the icon. Picture restores the size when the icon disappears.

ZOOM

• The ENTER button cannot cancel zoom playback if you have turned off the icon by selecting “EXIT.” To restore normal picture size, press the ZOOM button to display the icon, then further press the ZOOM button until the icon turns off.

Notes

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as described.

• Zooming does not work on subtitles or menus included on DVD video discs.

• While the icon is displayed, the / / / buttons cannot work on menus included on DVD video discs. If you want to view the menus, turn off the icon.

• The magnification level varies depending on the picture size you select.

/ / /

CLEAR

ENTER

If you press and hold the buttons, the zoom point shifts.

Pressing the CLEAR button restores the zoom point to the center of the picture.

Selecting the Picture Enhancement (E.P.M.*)

ENTER

You can easily switch the picture enhancement to your preference.

*E.P.M.: Enhanced Picture Mode

DVD VCD

Selecting the picture enhancement

Press E.P.M.

E.P.M.

The picture enhancement selection appears.

ENTER

1, 2

To turn off the picture enhancement selection

Press ENTER.

Alternatively leave the DVD video player unoperated for about 5 seconds after having made the selection.

Note

Actual effects to pictures may vary depending on the TV. Make the selection to your preference.

Advanced playback

Select the picture enhancement by pressing E.P.M. or / .

Each time you press the button, the picture enhancement changes.

Light: Brighter than in “Normal”.

Normal: Standard black level.

Movie 1: To raise brightness to clarify details.

Movie 2: To deepen colours.

Animation: To raise contrast enhancing colours.

Advanced playback



ENTER

Selecting the Sound Enhancement (E.A.M.*)

You can easily switch the sound enhancement to your preference.

*E.A.M.: Enhanced Audio Mode

DVD VCD

Selecting the sound enhancement

Press E.A.M.

E.A.M.

The sound enhancement selection appears.

Select the sound enhancement by pressing E.A.M. or / .

Each time you press the button, the sound enhancement changes.

Normal: Normal sound.

ENTER

1, 2

To turn off the audio enhancement selection

Press ENTER.

Alternatively leave the DVD video player unoperated for about 5 seconds after having made the selection.

Notes

• Actual effects to sounds may vary depending on the speakers. Make the selection to your preference.

• Actual effects to sounds may vary depending on the disc.

• When the DVD video player is connected to an amplifier equipped with Dolby Pro Logic Surround, select “Normal”. Otherwise, Dolby Pro Logic Surround may function differently than usual.

• Selecting “Dialogue” disables “Dynamic Range Control” function 41.

Spatializer® 3-Dimensional Sound Processing provided by Desper Products. Inc. Certain audio features of this product manufactured under a license from Desper Products, Inc., Spatializer device are trademarks owned by Desper Products, Inc.

and the circle-in-square

3D (N-2-2): To obtain expansive virtual surround sound effects from just two speakers.

Dialogue: To control dynamic range to make dialogues easier to hear (only when playing a DVD video disc recorded on the Dolby Digital recording system).

• To use this enhancement on sounds output from the BITSTREAM/PCM AUDIO OUT jack, be sure to set “Audio Out Select” to “PCM”.

Selecting the Camera Angle

If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.

DVD

Changing the camera angle

2 1, 2

CLEAR

Press ANGLE while playing a scene recorded with multiple angles.

ANGLE

While playing a scene recorded with multiple angles, the angle icon ( flashes in the DVD display . Press the ANGLE button while the angle icon is flashing.

1 2 3

Press ANGLE or / while the angle number is displayed on the TV screen.

ANGLE

ENTER

Each time you press the ANGLE button, the camera angle changes.

You can change the camera angle directly by pressing the number buttons corresponding to its angle number instead of using the buttons.

To turn off the angle number display

Press CLEAR.

CLEAR

)

Notes

• You can change the camera angle during still playback. The camera angle changes to the new setting when you resume normal playback.

• If you pause a picture immediately after changing a camera angle, the resumed playback picture may not display the new camera angle.

Advanced playback

SUBTITLE

/ / /

CLEAR

Selecting Subtitles

You can display subtitles on the TV screen and select a subtitle language from those included on the DVD video disc.

Bonsoir!Good evening! `Buenas tardes!

DVD

Selecting a subtitle language

Press SUBTITLE during playback.

SUBTITLE

The current subtitle setting is displayed.

e.g.

Off

JPN 1 FRE 1 SPA 1

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

Press SUBTITLE or / while the subtitle setting is displayed on the TV screen.

SUBTITLE

ENTER

Each time you press the SUBTITLE button, the subtitle languages included on the DVD video disc change.

To turn off the subtitle setting display, press the CLEAR or ENTER button.

To turn subtitles on or off

1 Press SUBTITLE during playback.

SUBTITLE

2 Press

the TV screen, to select “On” or “Off.”

Notes

• Some DVD video discs are set to display subtitles automatically, and you cannot turn them off even if you set the subtitle function to off.

• During some scenes, the subtitles may not appear immediately after you select “On.”

• Some DVD video discs will allow you to make subtitle selections and turn subtitles on or off only via the disc menu.

/ while the subtitle setting is displayed on

ENTER

Notes

• When you turn on the DVD video player or replace a disc, the player returns to the initial default setting 42. When you select a subtitle language which is not included on the disc, the DVD video player plays a prior language programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language.

Selecting a Language

ENTER

You can select a preferred language and sound recording system from those included on the DVD video disc.

Good morning!

DVD

Selecting a playback audio setting

VCD

Bonjour!

¡Buenos días!

2 1, 2

CLEAR

Press AUDIO during playback.

AUDIO

The current audio setting is displayed.

Press AUDIO or / while the audio setting is displayed on the TV screen.

AUDIO

Each time you press the AUDIO button, the audio settings included

e.g.

on the DVD video disc change.

ENG1 PCM 2CH ENG2 D 2CH

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

Selecting sound channels of VIDEO CDs

You can switch left and right channels by pressing the AUDIO button repeatedly during playback.

AUDIO

To turn off the audio setting display, press the CLEAR button.

Notes

• When you turn on the DVD video player or replace a disc, player returns to the initial default setting 42. If you select a sound track which is not included on the disc, the DVD video player plays a prior sound track programmed on the disc.

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate language from the selections on the disc menu.

If you press the

/ buttons, you

can select output sound format.

Advanced playback

Output sound conversion table (sampling frequency/quantization bit)

Audio selection from the menu

“Bitstream” “Analog 2ch”

jack

Bitstream 48 kHz/16 bit 48 kHz/20 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

Bitstream Bitstream

44.1 kHz/16 bit 44.1 kHz/16 bit

ANALOG AUDIO

OUT jacks

48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit

48 kHz/16 bit

44.1 kHz/16 bit44.1 kHz/16 bit

BITSTREAM/PCM

Bitstream 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

Bitstream

44.1 kHz/16 bit

Discs

DVD video

discs

VIDEO CDs

Audio CDs

Recording system

Dolby Digital

Linear PCM

MPEG1, MPEG2

MPEG1

Linear PCM

BITSTREAM/PCM

48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 96 kHz/16 bit 96 kHz/20 bit 96 kHz/24 bit

DTS

44.1 kHz/16 bit

DTS

and output jacks on the rear panel

4138

jack

ANALOG AUDIO

OUT jacks 48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 96 kHz/16 bit 96 kHz/20 bit 96 kHz/24 bit

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

44.1 kHz/16 bit 44.1 kHz/16 bit 44.1 kHz/16 bit

44.1 kHz/16 bit44.1 kHz/16 bit

: 3D (N-2-2) sound enhancement can function.

BITSTREAM/PCM

jack

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

44.1 kHz/16 bit

“PCM”

ANALOG AUDIO

OUT jacks

48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit

44.1 kHz/16 bit (Noise)Bitstream(Noise)Bitstream(Noise)Bitstream

Advanced playback

DISPLAY

ENTER

Operating in the On-screen Display Mode

When you turn on the on-screen display, you can view information on operational status and access the features and settings on-screen.

DVD VCD

Operating in the on-screen display mode

Press DISPLAY.

DISPLAY

The following display appears. Each time you press the DISPLAY button, the on-screen display changes as follows. If you press the feature. When you select an icon ( See the pages in

/ buttons to select an icon, then press the ENTER button, you can access the

), no need to press the ENTER button.

for details on the features.

e.g. When playing a DVD video disc

3 0:08:162

Press DISPLAY again.

-0:21:28

: Title number (Track number)

To locate a title or track using the number.

: Chapter number

To locate a chapter using the number.

: Elapsed time of the current title

To enter the time to locate a desired location.

: Audio setting

: Subtitle setting

: Angle setting

: To turn off the display.

: Title number (Track number)

To locate a title or track using the number.

: Chapter number

To locate a chapter using the number.

: Remaining time of the current title

To enter the time to locate a desired location.

: E.A.M. (Enhanced Audio Mode) setting

: E.P.M. (Enhanced Picture Mode) setting

: To zoom a picture.

Press DISPLAY again.

: “Audio Out Select” setting

BST: Bitstream 2CH: Analog 2ch PCM: PCM

: To turn off the display.

(continued)

: Title number (Track number)

To locate a title or track using the number.

: Chapter number

To locate a chapter using the number.

Advanced playback

Press DISPLAY again.

2 3

To turn off the on-screen display, press DISPLAY again.

0:08:16

OFF

9.6

: To stop playback.

: Playback starts from the beginning of the

current chapter or track.

: Fast reverse playback

: To start playback.

: Fast forward playback

: To locate succeeding chapters or tracks.

: To slow motion playback.

: To pause playback.

: To turn off the display.

The on-screen display will vary depending on the disc.

DVD

: Data transfer rate (Mbit/s)

= Amount of picture, sound and subtitle data in the DVD video disc transferred per second. The larger the value is, the more data processed, but this does not necessarily insure better picture quality.

: CD-Text

Displays CD-Text data if included on the audio CDs. (Some letters may not be displayed properly depending on the disc.)

VCD

: The on-screen display turns off.

Function setup

SETUP

Customizing the Function Settings

You can change the default settings to customize performance to your preference.

DVD VCD

Setting procedure

RETURN

3, 4 1, 6

Press SETUP during stop.

SETUP

The following on-screen display appears.

Picture TV Shape PAL/Auto Video Out Select

4:3 LB PAL Video

Press / to select a symbol for the setting you want to change.

(See the next page.)

ENTER

Picture performance settings

Output sound settings

Press / to select the setting you want to change, then press ENTER.

ENTER

Change the selection by / or other buttons, by referring to the

corresponding pages 39, then press ENTER.

ENTER

Repeat steps 3 and 4 to change other settings.

To select another operation, go back to step 2.

Press SETUP.

The on-screen display disappears.

Language settings

Display settings

Operational settings

Initial settings

To return to the previous display

Press RETURN.

RETURN

Notes

• The on-screen display disappears when you press the SETUP button.

• The SETUP button can function even during normal playback, however some operations may be inaccessible, and a message will appear. In this case, try again after playback is stopped.

Setting Details

Page

TV Shape

DVD

To select a picture size according to the aspect

ratio of your TV.

PAL/Auto

Video Out Select

Audio Out Select

Dynamic Range Control

DVD VCD

VCD

To select the video system of a disc.

DVD

To select the video output type corresponding to your TV system

DVD

To select an output sound format

VCD

corresponding to your system connection.

DVD

To turn on or off a function that makes faint

sounds easier to hear even if you lower the volume during late hours playback.

Karaoke Vocal

DVD

To turn on or off the vocal output during DVD

KARAOKE disc playback.

On-Screen Language

Disc Menu Language

Audio Language

DVD

To select a preferred language for on-screen

VCD

displays.

DVD

To select a preferred language for disc menus.

DVD

To select a preferred language for the sound

Function setup

track.

Subtitle Language

On-Screen Displays

Background

Screen Saver

DVD

To select a preferred language for subtitles.

DVD

To turn on or de-activate the operational status

VCD

display on the TV screen.

DVD

To select the background colour or background

VCD

picture.

DVD

To turn the screen saver on or off.

Pause/Still

Parental Lock

Title Stop

PBC

On-screen Language TV Shape Audio Out Select

DVD

To select the resolution of still pictures. (Field/Frame)

DVD

To turn the parental lock function on or off.

DVD

To turn on or off a feature that automatically stops playback after a title has been viewed.

VCD

To use the menu screen when playing a PBCcontrollable VIDEO CD.

DVD

To install the initial system setting.

VCD

Function setup

Customizing the Function Settings (continued)

Setting details


TV Shape

DVD

TV Shape PAL/Auto Video Out Select

4:3 LB PAL Video

4:3 Letterbox: Select when a standard 4:3 TV is

connected. Displays theatrical images with masking bars above and below the picture.

4:3 Normal: Select when a standard 4:3 TV is

connected. Displays pictures cropped to fill your TV screen. Either or both sides of the picture are cut off.

16:9 Widescreen: Select when a 16:9 wide TV is

connected.

Notes

• The displayable picture size is preset on the DVD video disc. Therefore, the playback picture of some DVD video discs may not conform to the picture size you select.

• When you play DVD video discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV shape setting.

• If you select “16:9 Widescreen” and you own a 4:3 TV set, the DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Always be sure that your TV shape conforms to the actual TV in use.

Video Out Select

Video: Select when connected to a normal TV.

DVD VCD

S Video: Select when connected to a TV compatible

with S video signals. 16

RGB: Select when connected to an RGB monitor.

Notes

• When you connect a TV equipped with the component video inputs, select “Video” or “S Video”.

• If the on-screen display disappears immediately after you select “RGB”, you can restore it by connecting the DVD player using the VIDEO OUT (yellow) jack.

PAL/Auto

DVD VCD

PAL: To play a PAL disc. Connect a PAL TV to view a

picture.

Auto:The DVD video player automatically identifies

PAL or NTSC video system of a disc. Connect a multisystem TV (PAL/NTSC compatible) to view a picture. A playback picture may be distorted when detected a signal change between PAL and NTSC on the disc.

Audio

Audio Out Select Dynamic Range Control Karaoke Vocal

Audio Out Select

DVD VCD CD

Bitstream On Off

Select the output sound format corresponding to your system connection. For details of sound recording systems, see 35.

Bitstream: Select when connected to an amplifier

equipped with a Dolby Digital, DTS,

MPEG1 or MPEG2 decoder.

The DVD video player outputs digital audio information in the bitstream format when you play a DVD video disc recorded on the Dolby Digital, DTS, MPEG1 or MPEG2 recording system.

Karaoke Vocal

DVD

Off: The primary vocal is not output. On: The primary vocal is output when it is recorded

on the disc.

Notes

• The vocal output feature is used during playback of Dolby Digital (multi-channel) recorded DVD KARAOKE discs. This feature allows you to turn off vocal audio tracks, or restore them for background accompaniment.

• When playing KARAOKE, connect appropriate audio equipment such as an amplifier to the DVD video player.

Function setup

Analog 2ch: Select when connected to a TV, or

Dolby Pro Logic or stereo system via

the analog audio jacks.

PCM: Select when connected to a 2 channel

digital stereo amplifier.

The DVD video player outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1 or MPEG2 recording system.

Dynamic Range Control

DVD

Off: Full dynamic range is maintained. On: Dynamic range is reduced.

Notes

• This function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Reduction may differ depending on the DVD video disc.

Function setup

Language

Disc Menu Language Audio Language Subtitle Language

On-Screen Language

ENG English

French German Others Code

ENG ENG – – –

Customizing the Function Settings (continued)

Setting details

Language

On-Screen Language Disc Menu Language Audio Language Subtitle Language

On-Screen Language

ENG ENG ENG – – –

DVD VCD CD

English: To view on-screen displays in English. Français:To view on-screen displays in French. Deutsch: To view on-screen displays in German.

Audio Language

English: To play sound tracks in English. French: To play sound tracks in French. German: To play sound tracks in German. Others: To make a further choice.

1) Obtain the abbreviation of the preferred

2) Select the first character by pressing the

3) Press the

After pressing the ENTER button, follow steps 1) - 4) below.

language from the list buttons.

/ buttons to shift and select the

second character by pressing the

DVD

/ buttons.

Disc Menu Language

DVD

English: To display disc menus in English. French: To display disc menus in French. German: To display disc menus in German. Others: To make a further choice.

After pressing the ENTER button, follow steps 1) - 4) below.

1) Obtain the abbreviation of the preferred language from the list

2) Select the first character by pressing the buttons.

3) Press the second character by pressing the

/ buttons to shift and select the

/ buttons.

Language On-Screen Language Disc Menu Language Audio Language Subtitle Language

ENG English ENG

French German

ENG

Others

– – –

Code

4) Press the ENTER button.

Note

Some DVD video discs may not include your preselected language. In this case, the DVD video player automatically displays disc menus consistent with the disc’s initial language setting.

4) Press the ENTER button.

Note

Some DVD video discs may be played in a different language than you selected. A prior language may be programmed on the disc.

Subtitle Language

DVD

English: To display subtitles in English. French: To display subtitles in French. German: To display subtitles in German. No Subtitle: To disable subtitles. Others: To make a further choice.

After pressing the ENTER button, follow steps 1) - 4) below.

1) Obtain the abbreviation of the preferred language from the list

2) Select the first character by pressing the

buttons.

DVD VCD CD

3) Press the / buttons to shift and select the

Display

Background Screen Saver

On-Screen Displays

On Gray On

second character by pressing the

Language On-Screen Language Disc Menu Language Audio Language Subtitle Language

/ buttons.

ENG English ENG

French German

ENG

No Subtitle

– – –

Others Code

4) Press the ENTER button.

Notes

• Some DVD video discs may be set to display subtitles in a different language than you selected. A prior subtitle language may be programmed on the disc.

• Some DVD video discs allow you to change subtitle selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate subtitle language from the selection on the disc menu.

On-Screen Displays

DVD VCD CD

Off: Operational modes (e.g. “ ”, “ ”) are not

displayed.

On: Operational modes (e.g. “ ”, “ ”) are

displayed on-screen.

Background

Blue: Blue background. Gray: Gray background. Picture: To use the picture which appears when you

Jacket: To use the jacket picture included on some

turn on the DVD video player as a background.

discs as a background. If it is not included, a gray background will be substituted.

Function setup

Screen Saver

DVD

Off: The screen saver is disengaged. On: The screen saver operates.

Function setup

Customizing the Function Settings (continued)

Setting details

Operation

Pause/Still

DVD

Pause/Still Parental Lock Title Stop PBC

Auto Off Off On

Auto: For normal use. Still and fast motion images

can be paused.

Frame: The resolution of still pictures is improved,

so that you can make a motionless picture more clearer when you pause it.

Parental Lock

DVD

DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental lock level and the way a DVD video disc can be controlled may vary from disc to disc. For example, if the disc allowed you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or lock out playback of the disc altogether.

• DVD video discs may or may not respond to the parental lock settings. This is not a defect in the DVD video player. Make sure this function works with your DVD video discs.

Off: The parental lock feature does not function.

After pressing the ENTER button, follow step 1) below.

On: To activate the parental lock feature or change

the settings. After pressing the ENTER button, follow steps

1) - 3) below.

Operation Pause/Still Parental Lock Title Stop PBC

Auto Off

Off Off

Security Code

– – – –

1) Press the number buttons to create a personal 4-digit security code, then press the ENTER button. If you make a mistake before pressing the ENTER button, press the CLEAR button and enter your 4-digit security code again.

2) Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list below.

Country/Area AUSTRALIA BELGIUM CANADA CHINA CHINA HONG KONG DENMARK FINLAND FRANCE GERMANY INDONESIA ITALY JAP AN MALAYSIA NETHERLANDS NORWAY PHILIPPINES RUSSIAN FEDERATION SINGAPORE SPAIN SWEDEN SWITZERLAND TAIWAN THAILAND UNITED KINGDOM UNITED STATES

Code

BE CA CN HK DK

FR DE

ID IT

JP MY

NL NO PH RU SG

SE CH

TH GB US

a) Select the first character by pressing the

/ buttons.

b) Press the

the second character by pressing the

/ buttons to shift and select

buttons.

c) Press the ENTER button.

3) Press the / buttons to select the parental lock level, then press the ENTER button.

Operation Pause/Still Parental Lock Title Stop PBC

Auto Off Off On

Area Code Level

U 7

You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function. For example, when you select level 7, discs rated higher than level 7 are locked out and cannot be played.

The parental lock level is equivalent to the following USA movie ratings.

Level 7: NC-17 Level 6: R Level 4: PG 13 Level 3: PG Level 1: G

The parental lock levels for other countries/areas than U.S. are included for future use. Check the appropriate parental lock level when you buy a DVD video disc equipped with the parental lock feature in the future.

Title Stop

DVD

Off: The DVD video player continues after playback

of a title is completed.

On: The DVD video player stops after playback of a

title is completed.

VCD

PBC

Off: When playing a VIDEO CD without using the

menu.

On: To use the menu when playing a PBC-featured

VIDEO CD.

Function setup

To change the parental lock level

Follow steps 1) - 3).

To change your 4-digit security code

1) After selecting “On” or “Off,” press the STOP

button four times, then press the ENTER button.

STOP STOP STOP STOP

ENTER

The 4-digit security code is cleared.

2) Press the number buttons to create a new

4-digit security code.

3) Press the ENTER button.

Function setup

Customizing the Function Settings (continued)

Setting details

Initial Setup On-Screen Language TV Shape Audio Out Select

ENG 4:3 LB Bitstream

Initial Setup

DVD VCD CD

1) Press the / buttons to select “On-Screen Language,” and press the ENTER button.

ENTER

2) Select a language pressing the

ENTER

/ buttons,

and press the ENTER button. See page

, “On-Screen Language. ”

ENTER

3) Make your selection in the same manner as step 1) then step 2).

See page See page

, “TV Shape. ”

, “Audio Out Select.”

Table of Languages

Table of languages and their abbreviations

Abbreviation

– – –

CHI (ZH) DUT (NL) ENG (EN) FRE (FR) GER (DE) ITA (IT) JPN (JA) KOR (KO) MAY (MS) SPA (ES)

AA AB AF AM AR AS AY AZ BA BE BG BH BI BN BO BR CA CO CS CY DA DZ EL EO ET EU FA FI FJ FO FY GA GD GL

Language

No alternate language Chinese Dutch English French German Italian Japanese Korean Malay Spanish Afar Abkhazian Afrikaans Amharic Arabic Assamese Aymara Azerbaijani Bashkir Belorussian Bulgarian Bihari Bislama Bengali, Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish Bhutani Greek Esperanto Estonian Basque Persian Finnish Fiji Faroese Frisian Irish Scottish Gaelic Galician

Abbreviation

GN GU HA HI HR HU HY IA IE IK IN IS IW JI JW KA KK KL KM KN KS KU KY LA LN LO LT LV MG MI MK ML MN MO MR MT MY NA NE NO OC OM OR PA PL PS

Language

Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue Inupiak Indonesian Icelandic Hebrew Yiddish Javanese Georgian Kazakh Greenlandic Cambodian Kannada Kashmiri Kurdish Kirghiz Latin Lingala Laotian Lithuanian Latvian, Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Maltese Burmese Nauru Nepali Norwegian Occitan (Afan) Oromo Oriya Panjabi Polish Pashto, Pushto

Abbreviation

PT QU RM RN RO RU RW SA SD SG SH SI SK SL SM SN SO SQ SR SS ST SU SV SW TA TE TG TH TI TK TL TN TO TR TS TT TW UK UR UZ VI VO WO XH YO ZU

Language

Portuguese Quechua Rhaeto-Romance Kirundi Rumanian Russian Kinyarwanda Sanskrit Sindhi Sango Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian Siswati Sesotho Sundanese Swedish Swahili Tamil Telugu Tajik Thai Tigrinya Turkmen Tagalog Setswana Tongan Turkish Tsonga Tatar Twi Ukrainian Urdu Uzbek Vietnamese Volapük Wolof Xhosa Yoruba Zulu

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and correction

Symptom

No power.

The DVD video player turned off by itself.

No picture.

No sound.

The playback picture has occasional distortion.

Brightness is unstable or noises are present in the playback pictures.

The DVD video player does not start playback.

Playback does not follow the course of the disc’s program.

Buttons do not work.

The remote control does not work properly.

Cause

• The power plug is disconnected.

• The automatic power off function turned the unit off.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The audio cable is not connected securely.

• The audio receiver or TV is turned off.

• The setting of output sound format is incorrect.

• The disc is dirty.

• It is in fast forward or fast reverse playback.

• The effect of copy protection.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• The parental lock function is set.

• It is in the mode of repeat playback, memory playback, etc.

• Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operations.

• The remote control is not pointed at the remote sensor of the DVD video player.

• The remote control is too far from the DVD video player.

• The batteries in the remote control are exhausted.

Correction

• Connect the power plug securely into the wall outlet.

• Press the PLAY button.

• Select the appropriate video input mode on the TV so the picture from the DVD video player appears on the TV screen.

• Connect the video cable securely into the appropriate jacks.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD video player.

• Connect the audio cable securely into the appropriate jacks.

• Turn on the equipment connected with the audio cable.

• Select the proper audio setting.

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Connect the DVD video player directly to the TV. Avoid connecting the DVD video player to a VCR or TV/VCR combination.

• Insert a disc.

• Insert a playable disc. (Check the disc type and colour system.)

• Place the disc with the playback side down.

• Place the disc correctly inside the guide on the disc tray.

• Clean the disc.

• Cancel the parental lock function or change the parental lock level.

• These operations may prevent a proper progress of the contents.

• Turn the power on or off with the Power button. Or disconnect the power plug and insert it into the wall outlet again.

• Point the remote control at the remote sensor of the DVD video player.

• Operate the remote control within about 7 m.

• Replace the batteries with new ones.

Page

16, 17

16, 17 18, 19

35, 38

9 –

20 10

38, 44

–

Specifications

DVD video player / outputs / supplied accessories

DVD Video Player

Power supply 100-240 V AC, 50/60 Hz Power consumption 18 W Mass 2.4 kg External dimensions 430 × 81 × 225 mm (W/H/D) Signal system PAL/3.58 NTSC Laser Semiconductor laser, wavelength 650/780 nm Frequency range DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz Signal-to-noise ratio More than 112 dB Audio dynamic range More than 108 dB Harmonic distortion Less than 0.002 % Wow and flutter Below measurable level (less than ±0.001 % (W.PEAK)) Operating conditions Temperature: 5 °C to 35 °C, Operation status: Horizontal

Others

Outputs

Video output (SCART) 1.0 V (p-p), 75 Ω, SCART socket × 1 Video output (phono type) 1.0 V (p-p), 75 Ω, negative sync., pin jack × 1 S video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin × 1

Component video output (Y) 1.0 V (p-p), 75 Ω, negativ e sync., pin jack × 1

B)/(PR) 0.7 V (p-p), 75 Ω, pin jac k × 2

(P Audio output (SCART) 2.0V (rms), 220 Ω, SCART socket × 1 Audio output (BITSTREAM/PCM Optical connector × 1

OPTICAL) Audio output (BITSTREAM/PCM 0.5V (p-p), 75 Ω, pin jack × 1

COAXIAL) Audio output (ANALOG AUDIO OUT) 2.0 V (rms), 220 Ω, pin jacks (L, R) × 1

Supplied Accessories

Audio/video cable ................................................. 1

Remote control (SE-R0047 or SE-R0049) ........... 1

Batteries (R6) ....................................................... 2

Power cord............................................................ 1

• Designs and specifications are subject to change without notice.

2. LOCATION OF MAIN PARTS AND MECHANISM PARTS

2-1. Location of Main Parts

Disc motor PC board Feed motor PC board

EU02 Power supply PC board

EU04 Power SW PC board

Loading motor PC board

EU09 Output-RGB PC board

EU01 Main PC board

EU03 Front display PC board

Fig. 1-2-1

2-2. Location of Mechanism Parts

Tra

Clamper sta

Fig. 1-2-2 Mechanism chassis assembly (Top side)

Loading moto

PC board

Mechanism chassis

Fig. 1-2-3 Mechanism chassis assembly (Bottom side)

Loading belt

Gea

Kick lever

Loading motor

Disc motor

Gea

Cam Slide

Fig. 1-2-4 Mechanism chassis assembly (Internal side)

Note:

When servicing, note that this model has two types of the pickup mechanism assembly.

For the SD-210EB/EE/EL, only Type A is a service part. Type B can be changed to Type A pickup free from any performance problem.

Front damper

Rack gear assembly

Gear A

Gear B assembly

Rear damper

Front dampe

Pickup assembly

Sub chassis

Rear dampe

Fig. 1-2-5 Pickup mechanism chassis assembly (Top side)

Fig. 1-2-6 Pickup mechanism chassis assembly (Bottom side)

Feed moto

PC boar

Front damper

Rack gear assembly

Gear A

Gear B assembly

Rear damper

Front dampe

Pickup assembly

Sub chassis

Rear dampe

Fig. 1-2-7 Pickup mechanism chassis assembly (Top side)

Fig. 1-2-8 Pickup mechanism chassis assembly (Bottom side)

Feed moto

PC boar

3. TROUBLESHOOTING

3-1. Main Circuit

3-1-1. Servo System

(1) Initial Operation after Power ON

Power ON

Send each LSI hard RST command and initial command.

Pickup head is positioned at transmission initial position.

Is tray closed?

Pin 5 of CN502,

TCLS=L

Disc presence/absence and disc judgement

Is a disc present?

DVD or CD initial setting.

Tray close operation Pin 126 of IC605: LDMP = H/L Pin 127 of IC605: LDMN = L

Tray stops. Pin 126 of IC605: LDMP = H Pin 127 of IC605: LDMN = L

Laser OFF Display: INSERT DISC Monitor screen: NO DISC

Is tray closed?

Pin 5 of CN502:

TCLS = L

DVD single (single-layer)

DVD single Initial setting.

DVD single

(single-layer)/DVD dual

(dual-layer)/CD?

DVD dual (dual-layer)

DVD dual Initial setting.

To each disc playback process.

Fig. 1-3-1

CD Initial setting.

Pickup (P.U.) transmission initial operation does not occur.

The pickup transmission initial operation is carried out to determine the initial position by transmitting the pickup to the innermost position once (start-limit switch (pin 4 of CN503) develops "L".) and to the external direction at low speed (start-limit switch develops "H", turning off the switch.).

Does pulse of

1.65V 1.65V develop at pin 162 of IC401?

Check feed gear.

Check BUS between IC401 and IC605 and oscillation.

Fig. 1-3-2

2-1

"No disc" misjudgement display of

disc presence.

Does lens move with

UP/DOWN full stroke in

focus direction?

Does focus search

voltage of 1.65V 0.4V develop

at pin 1 of IC503 (E537)?

Does search signal

output at both edges of focus coil?

(Pins 15 to 18 of CN501)

Check pickup head and wiring.

Is laser current normal?

Does RFSB signal

develop more than 0.3V?

Check peripheral circuit of IC605.

Check IC401.

Check IC502.

Fig. 1-3-3

Check IC502.

Lens cleaning.

Replace pickup head.

2-2

Check laser operating current.

Check laser current. I min lop I max

Check pins 13, 14 and 15 of IC502 serial bus.

Check peripheral circuits of IC502, Q501, Q502.

Check solder removal of the short land for laser diode protection.

Check FE and RFSB signal

lop I max

lop I min

Check wiring for pickup head.

Replace pickup

mechanism.

lop 200 mA

Laser operating current

DVD Iop

DVD Iop = Voltage between (E559 and E591) /10

CD Iop = Voltage between (E536 and E591) /10

CD Iop

min 20mA 20mA

35mA 45mA

80mA 80mA

typ max

CAUTION The laser ray emitting out from the pickup head is very harmful to your eyes. Keep your eyes from the objective lens at least 300mm distance during the pickup head operating. When you perform solder removal work, please turn OFF a set power supply and perform the ground of human body and a tool.

To turn on each laser diode forcibly, press the following buttons on the remote controller. DVD LD: ZOOM, 0, 3, 0, ZOOM CD LD: ZOOM, 0, 3, 1, ZOOM After checked the laser current, press POWER or OPEN/CLOSE button to turn it off.

V : 500 mV/div H : 2 ms/div

CD disc

detection waveform

Disc kind misjudgement

(Initial setting is NG.)

Check IC502.

Lens cleaning.

Replace pickup head.

Are FE and RFSB

signals for each disc normal?

Check peripheral circuit of IC605.

Fig. 1-3-4

DVD single (single-layer) disc

detection waveform

TP405 FE signal

TP503 RFSB signal

V : 500 mV/div H : 2 ms/div

Fig. 1-3-6 Fig. 1-3-7 Fig. 1-3-8

1.65V

Fig. 1-3-5

DVD dual (dual-layer) disc

detection waveform

V : 500 mV/div H : 2 ms/div

(2) Picture appears (PLAY)

PLAY

2-1

Disc motor (D.M.) forced

accelleration (500 ms)

Focus search

Is forcus servo

CLV servo ON.

Tracking balance adjustment

Tracking servo ON.

Focus gain adjustment

Tracking gain adjustment

ON?

Repeat three times.

Automatic adjustment is carried out when a disc is replaced after power ON.

Focus balance adjustment

RF gain adjustment

Does NG continue

more than 3 s.?

Disc playback NG

Is address code

possible to read?

Search Picture appears.

Fig. 1-3-9

Disc motor (D.M.) does not rotate.

Does pin 117 of IC401

(TP409) PLCK oscillate around

10 MHz ?

Check peripheral circuit of IC402.

Check peripheral circuits of IC402.

Check disc motor and wiring.

Do signals output to

pins 4 to 9 of CN501?

Check IC502.

Focus servo is NG.

Are FE, RFSB,

FSON signals normal?

Check peripheral circuit of IC604.

Check wiring for

pickup head.

Lens cleaning.

Replace pickup

mechanism.

Fig. 1-3-10

Focus servo ON signal waveform

Focus search Focus servo on

Fig. 1-3-12

FE signal Pin 150 (TP405) of IC401

0.3V

1.65V

0.3V

RFSB signal Pin 152 (TP503) of IC401

Fig. 1-3-11

Signal waveform at

tracking servo ON (DVD)

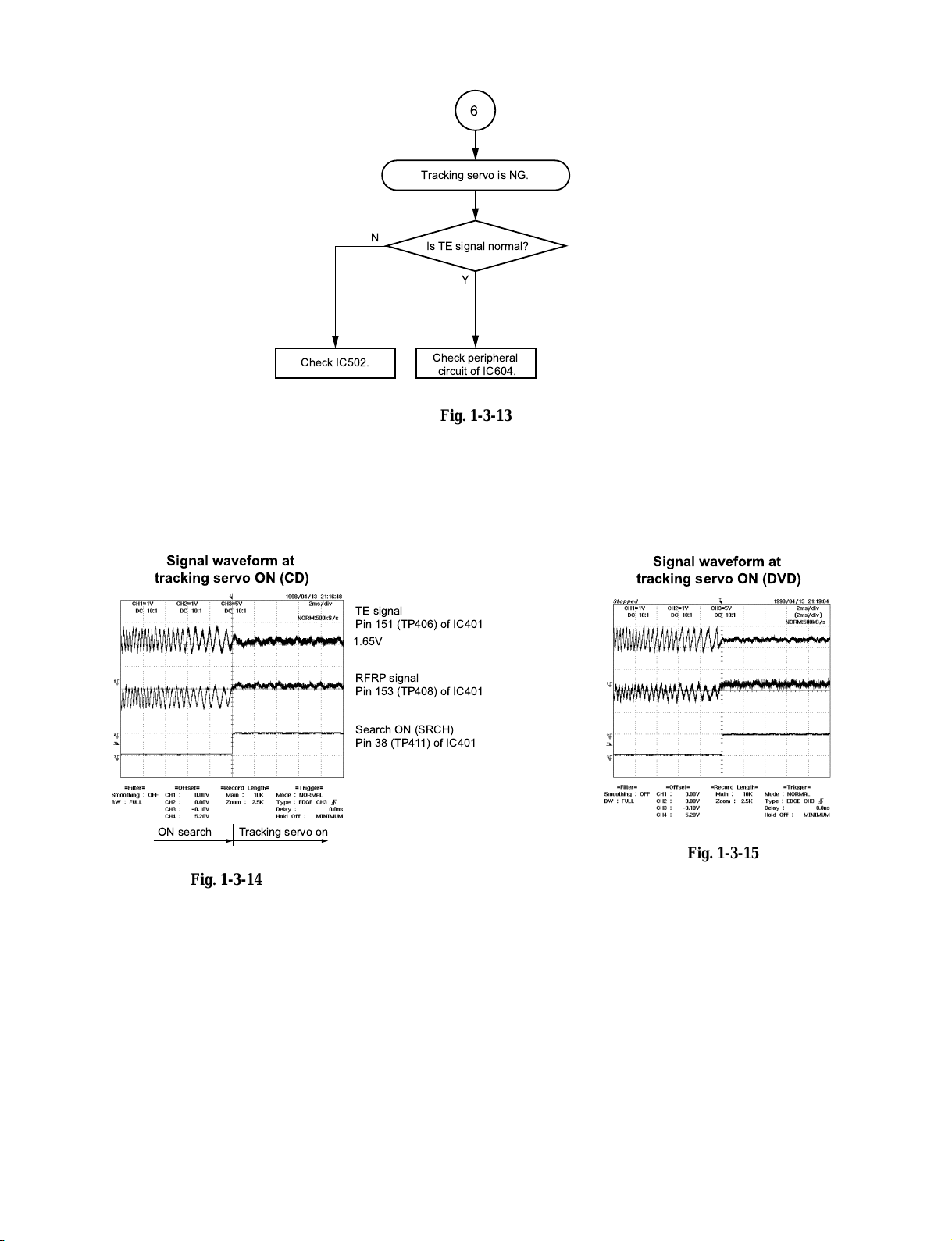

Tracking servo is NG.

Signal waveform at

tracking servo ON (CD)

Check IC502.

TE signal Pin 151 (TP406) of IC401

1.65V

RFRP signal Pin 153 (TP408) of IC401

Is TE signal normal?

Check peripheral

circuit of IC604.

Fig. 1-3-13

ON search Tracking servo on

Search ON (SRCH) Pin 38 (TP411) of IC401

Fig. 1-3-15

Fig. 1-3-14

Disc playback is NG (DVD).

Is PLL locked?

(Refer to waveforms.)

Check signal process system following to IC402.

Check peripheral circuits of IC401 and IC604.

Fig. 1-3-16

Does pulse of

L = 1.65V and H = 3.3V

develop at pin 131 and

L = 0V and H = 1.65V

develop at pin 132

of IC401?

Does RF output

higher than 1 V(p-p)

develop at pin 30 (TP502)

of IC502?

Pin 43 of IC502 = 2.4V Pin 44 of IC502 = 3.0V

Check peripheral circuits of IC502 and IC401.

Check peripheral circuits of IC401 and IC604.

Check IC502.

Lens cleaning.

Pickup mechanism

replacement

DVD RF signal

Fig. 1-3-17

CD RF signal

DVD RF signal Pin 30 (TP502) of IC502

V : 500 mV/div H : 50 ns/div

CD RF signal Pin 30 (TP502) of IC502

PLL works as a servo loop to generate a clock signal for reading RF signal binary data. With the PLL locked, the eye pattern is identified clearly when triggered with the read clock PLCK.

DVD playback waveform

DVD RF signal Pin 30 (TP502) of IC502

DVD PLCK Pin 117 (TP409) of IC401

CH1 : TP502 DVDRF 500 mV/div CH2 : TP409 DVDPLCK 5 V/div

50 ns/div

Fig. 1-3-19

CD playback waveform

CD RF signal Pin 30 (TP502) of IC502

Fig. 1-3-18

V : 500 mV/div H : 100 ns/div

CH1 : TP502 CDRF 500 mV/div CH2 : TP409 CDPLCK 5 V/div

100 ns/div

Fig. 1-3-20

CD PLCK Pin 117 (TP409) of IC401

3-1-2. Location Diagram of Servo Test Point

E536 (CD)

E559 (DVD)

E591 (+5V) TP503 RFSB TP504 RFCT

TP502 RFO

CN502

CN603

IC503

IC606

IC605

CN503

IC502

CN601

IC401

CN501

IC201

CN701

IC304

IC301

TP401 VRFED TP408 RFRP

TP405 FE

TP406 TE

TP410 FLGA

TP411 FLGB

TP409 PLCK

TP412 VMCK

Fig. 1-3-21

SECTION 2

PART REPLACEMENT AND

ADJUSTMENT PROCEDURES

CAUTIONS BEFORE STARTING SERVICING

Electronic parts are susceptible to static electricity and may easily damaged, so do not forget to take a proper grounding treatment as required.

Many screws are used inside the unit. To prevent missing, dropping, etc. of the screws, always use a magnetized screwdriver in servicing. Several kinds of screws are used and some of them need special cautions. That is, take care of the tapping screws securing molded parts and fine pitch screws used to secure metal parts. If they are used improperly, the screw holes will be easily damaged and the parts can not be fixed.

ADJUSTMENT PROCEDURES

PART REPLACEMENT AND

1. REPLACEMENT OF MECHANICAL PARTS

1-1. Cabinet Replacement

1-1-1. Top Cover

1. Remove five screws (1) and remove the top cover (2).

Top cover (2)

Screw (1)

Screws (1)

Screw (1)

1-1-2. Clamper Stay

1. Remove two screws (1).

2. Release two claws and remove the clamper stay (2).

Clamper stay (2)

Claw

SECTION 2

Screws (1) Clamper stay (2)

Clamper stay (2)

Claw

Fig. 2-1-1

Spring

Claws

Fig. 2-1-2

1. The spring for tray side pressure is inserted into the portion “A”. (Refer to Fig. 2-1-2.)

2. By referring to Fig. 2-1-3, insert the spring normally and mount the clamper stay.

This part should be touched to the left side of the tray.

1-1-3. Tray Panel

1. Slide the slider (2) of the mechanism chassis assembly (1) with a screwdriver, etc. in the arrow direction, so that the tray (3) is ejected.

Note:

• Take care not to damage the pickup and other parts.

Screwdriver

Mechanism chassis assembly

Press down by finger unitil fix the clamper assembly

No floating

Fig. 2-1-3

Tray

Spring

Floating NG

Slider (2)

Mechanism chassis assembly (1)

Tray (3)

Front panel

Fig. 2-1-4

1. Eject the tray (3).

2. Twist the tray panel (4) a little in the arrow A direction with the tray (3) hold by hand to release two claws and lift up the tray panel (4) in the arrow B direction, then the tray panel (4) is removed. (Refer to Fig. 2-1-5.)

3. When mounting the tray panel (4), insert the tray panel (4) along the grooves of the both sides of the tray (3) until clicking.

Tray (3)

• Confirm that the mark of the gear matches with the triangle mark on the reverse side of the tray in the tray close status. (The gear is rotated with the slider locks.) (Refer to Fig. B.)

Gear (4) Triangle mark

Fig. A

Tray (3)

Claws

Tray panel (4)

Fig. 2-1-5

1-1-4. Front Panel and Tray

1. Remove the flexible cable (1).

2. Release four claws and remove the front panel (3).

3. Pull out the tray (2) to this side.

Position of the line

Pickup mechanism assembly

Gear (4)

Tray rack gear

Slider

Triangle markMarking

Tray (2)

Gear

Fig. B

Claw

Tray (2)

Claws

Front panel (3)

Flexible cable (1)

Claw

Fig. 2-1-6

Note:

• Insert the tray (2) with the front side of the pickup mechanism assembly descended. (The slider positions to the left side.)

• The gears are required to match their phases each other. After setting the gear (4) as shown in the figure “A”, insert the tray (2). When inserting a tray (2), push the rack gear side shown by the arrow.

Fig. 2-1-7

1-1-5. Rear Panel

1. Remove eight screws (1) and remove the rear panel (2).

Screws (1)

Rear panel (2)

Screws (1)

Fig. 2-1-8

1-2. PC Board Replacement

1-2-1. Main PC Board Note:

• Before removing the main PC board (5), be sure to short-circuit the laser diode output land.

After replacing, open the land as it was after inserting the flexible cables (1).

1. Remove the top cover. (Refer to item 1-1-1.)

2. Remove five flexible cables (1) and remove one connector (2).

3. Remove four screws (3).

4. Remove three screws (4) and remove the main PC board (5).

Note:

• When mounting, be sure to twist the wire for the connector (3) several times.

Twist more than 7 times.

1-2-2. Power PC board

1. Peel off two tapes (1).

2. Remove two connectors (2).

3. Remove four screws (3).

4. Remove two screws (4) and remove the power supply PC board (5).

Note:

• When mounting, be sure to twist the wire for the connectors (2) several times.

Twist more than 9 times.

Power supply PC board (5)

Connector (2)

Screws (3)

Tapes (1)

Flexible cables (1)

Screw (3)

Plate spring

Main PC board (5)

Pickup head

Connector (2)

Pickup head

Connector (2)

Plate spring

Screws (4)

Screw (3)

Screws (4)

Fig. 2-1-10

Laser diode output lands

Type A Type B

Laser diode output lands

Fig. 2-1-9

1-2-3. Front PC Board

1. Remove the front panel. (Refer to item 1-1-4.)

2. Remove six screws (1) and remove the front display PC board (2)

3. Remove two screws (3) and remove the power switch PC board (4).

Power SW PC board (4)

Screws (3)

Front display PC board (2)

Screws (1)

1-3. Mechanism Parts

1-3-1. Mechanism Chassis Assembly Note:

• When removing the mechanism chassis assembly (3), be sure to short-circuit the laser diode output land before removing the connector and the flexible cables.

After replacing, open the land as it was after inserting the connector and flexible cables.

1. Remove the tray. (Refer to items 1-1-3 and 1-1-4.)

2. Remove three flexible cables (1).

3. Remove four screws (2) and remove the mechanism chassis assembly (3).

Type A

Screws (2)

Mechanism chassis assembly (3)

Pickup head

Fig. 2-1-11

1-2-4. Output-RGB PC Board

1. Remove two screws (1).

2. Remove the flexible cable (2).

3. Peel off the tape (3).

4. Remove the connector (4) and remove the OutputRGB PC board (5).

Tape (3)

Connector (4)

Output-RGB PC board (5)

Flexible cable (2)

Screws (1)

Flexible cables (1)

Fig. 2-1-13

Laser diode output lands

Type B

Pickup head

Laser diode output lands

Fig. 2-1-12

1-3-2. Loading Belt

1. Remove the gear (1) by releasing the claw.

2. Remove the gear (2).

3. Remove the gear (3) and the loading belt (4).

4. Replace the loading belt (4) with a new one.

5. When mounting, perform the reverse order of the removal.

Note:

• When mounting the loading belt (4), twisting and attaching of a grease, etc. are not allowed.

Gear (1)

Gear (2)

Loading belt (4)

1-3-3. Loading Motor

1. Remove the loading belt. (Refer to item 1-3-2.)

2. Remove two screws (1) and two claws. Then remove the loading motor (2) (with the loading motor PC board (3) attached).

3. Desolder the terminal section of the loading motor (2) and remove the loading motor PC board (3).

4. Replace the loading motor (2) with a new one.

5. When mounting, perform the reverse order of the removal.

Note:

• When replacing the loading motor, meet the polarity phase of the terminals. (Mount the motor with the label positioned as shown in Fig. 2-1-15.)

Screws (1)

Claw

Mechanism chassis assembly

Fig. 2-1-14

Gear (3)

Mechanism chassis assembly

Claws

Loading motor (2)

Desolder

Motor label side

Loading motor PC board (3)

Fig. 2-1-15

1-3-4. Sub Chassis (with a pickup mechanism)

1. Turn the mechanism chassis assembly (1) upside down.

2. Remove one screw (2) and one washer (3) release the boss “A” from the claw. Then remove the sub chassis (4) (with the pickup mechanism) by sliding in the arrow direction.

3. When mounting, perform the reverse order of the removal.

Note:

• When mounting the sub chassis (4) (with the pickup mechanism), first, insert the boss “C” along the groove of the cam slider up/down cam (5) and next, the boss “B” and “A”.

• The boss “A” may be used with washers. (One or two washers are used to prevent from the slust rattling. In some cases, no washer is used.)

When the washer(s) is used, be sure to assemble as it was without losing.

Screw (2)

Washer

Sub chassis (4) (with the pickup mechanism attached)

Boss C

Boss A

1-3-5. Pickup Mechanism Assembly

1. Remove four screws (1) and four washers (2) then remove the pickup mechanism assembly (3).

1. Replace the pickup mechanism assembly (3) with a new one.

2. When mounting, perform the reverse order of the removal.

Screws (1)

Washars (2)

Damper (Blue)

Damper (Black)

Dampe (Blue)

Washer (3)

Claw

Boss B

Groove

Boss A

Boss B

Fig. 2-1-16

Groove

Cam slider up/down cam (5)

Mechanism chassis assembly (1)

Groove

Damper (Black)

Pickup mechanism assembly (3)

Fig. 2-1-17

Note:

• The dampers’ color differs when used for the front side and the rear.

• When mounting the pickup mechanism assembly (2) with the screws (1), push the pickup mechanism assembly (2) downward without being caught and tighten the screws (1) after placing the washer with the damper bent.

Screw (1)

Pickup mechanism assembly (2)

Damper

Washer (2)

Fig. 2-1-18

1-3-6. Gear B Assembly, Gear A and Rack Gear

Assembly

1. Remove one screw (3) and remove the gear B assembly (1).

2. Remove the gear A (2).

3. Remove one screw (5) and remove the rack gear assembly (4).

Positioning holes

Pickup Head (5)

Gear B assembly (1)

Screw (5)

Rack gear assembly (4)

Gear A (2)

Screw (3)

Fig. 2-1-19

Gear B assembly (1)

Pickup mechanism assembly

Gear A (2)

Pickup mechanism assembly

Rack gear assembly (4)

Fig. 2-1-20

Note:

• Mount the gear B assembly (1) and the gear A (2) with their gear teeth placed more than one tooth at least inside the shaded portion.

Innermost position of pickup head

Within the position shown by the shaded portion.

1. When mounting, perform the reverse order of the removal.

2. Mount the gear B assembly (1) by pushing the pickup head (5) to the disc motor side (arrow A direction) and shifting the upper gear of the rack gear assembly (4) in the arrow B direction. (Refer to Fig. 2-1-20.)

3. Fit the positioning holes on the upper gear and lower gear of the gear B assembly (1) and mount on the pickup mechanism assembly with the phase matched.

At this time, note that the phase of the gear B assembly (1) and the gear A (2) shows the status in the Fig. 2-1-21.

Rack gear assembly (4)

Gear A (2)

Fig. 2-1-21

Gear B assembly (1)

1-3-7. Feed Motor

1. Remove the gear B assembly and the gear A. (Refer to item 1-3-6.)

2. Remove two screws (1) and remove the feed motor (2) (with the feed motor PC board (3) attached). (Refer to Fig. 2-1-22.)

3. Desolder the terminals of the feed motor (2) and remove the feed motor PC board (3).

1. Tighten the feed motor (2) on the pickup mechanism assembly with two screws (1).

2. Insert the feed motor PC board (3) with the positioning pin on the chassis matched and solder the terminals.

3. Perform the reverse order of the removal.

Note:

• After mounting, put the lead wires through the notch of the pickup mechanism assembly.

• When replacing the loading motor, meet the polarity phase of the terminals. (Mount the motor with the label positioned as shown in Fig. 2-1-22.)

Pickup mechanism assembly

Notch

Lead wires

Screws (1)

Feed motor (2)

Motor label side

Desolder

Feed motor PC board (3)

Fig. 2-1-22

SECTION 3

SERVICING DIAGRAMS

1. STANDING PC BOARDS FOR SERVICING

EU02 Power supply PC board

EU09 Output-RGB PC board

SERVICING DIAGRAMS

SECTION 3

EU01 Main PC board

EU04 Power SW PC board

EU03 Front display PC board

Fig. 3-1-1

2. CIRCUIT SYMBOLS AND SUPPLEMENTARY EXPLANATION

100k

Rated Wattage Type Tolerance

100

Temperature response

Rated voltage

Tolerance

2-1. Precautions for Part Replacement

• In the schematic diagram, parts marked (ex. F801) are critical part to meet the safety regulations,

so always use the parts bearing specified part codes (SN) when replacing them.

2-2. Solid Resistor Indication

Unit None ...........Ω

K ...........kΩ

M ........... MΩ

Tolerance None ...........±5%

B ...........±0.1%

C ...........±0.25%

D ...........±0.5%

F ...........±1%

G ...........±2%

K ...........±10%

M ........... ±20%

Rated Wattage (1) Chip Parts

None......... 1/16W

(2) Other Parts

None......... 1/6W

Other than above, described in the Circuit Diagram.

Type None ...........Carbon film

S ...........Solid

R ...........Oxide metal film

W ...........Metal film

W ...........Cement

FR ...........Fusible

• Using the parts other than those specified shall violate the regulations, and may cause troubles such as operation failures, fire etc.

Eg. 1

FIg. 3-2-1

2-3. Capacitance Indication

Symbol

Unit None ...........F

Rated voltage None ...........50V

Tolerance (1) Ceramic, plastic, and film capacitors of which

Temperature characteristic None ...........SL

(Ceramic capacitor) For others, temperature characteristics are

Static electricity capacity Sometimes described with abbreviated letters as (Ceramic capacitor) shown in Eg. 3.

...........Electrolytic, Special electrolytic

...........Non polarity electrolytic

...........Ceramic, plastic

...........Film

...........Trimmer

µ ...........µF

p ...........pF

For other than 50V and electrolytic capacitors, described in the Circuit Diagram.

capacitance are more than 10 pF.

None ...........±5% or more

B ...........±0.1%

C ...........±0.25%

D ...........±0.5%

F ...........±1%

G ...........±2%

(2) Ceramic, plastic, and film capacitors of which

capacitance are 10 pF or less.

None ...........more than ±5% pF

B ...........±0.1 pF

C ...........±0.25 pF

(3) Electrolytic, Trimmer

Tolerance is not described.

described. (For capacitors of 0.01 µF and no indications are described as F.)

Eg. 2

Fig. 3-2-2

Eg. 3

104

10x10

pF (0.1mF)

Temperature characteristic (or Temperature characteristic+ Static electricity capacity tolerance)

Fig. 3-2-3

2-4. Inductor Indication

Type name

Type Tolerance

Unit None ...........Η

µ ...........µH

m ...........mH

Tolerance None ...........±5%

B ...........±0.1%

C ...........±0.25%

D ...........±0.5%

F ...........±1%

G ...........±2%

K ...........±10%

M ........... ±20%

2-5. Waveform and Voltage Measurement

• The waveforms for CD/DVD and RF shown in the circuit diagrams are obtained when a test disc is played back.

• All voltage values except the waveforms are expressed in DC and measured by a digital voltmeter.

2-6. Others

• The parts indicated with "NC" or "KETU" etc. are not used in the circuits of this model.

Eg. 4

Fig. 3-2-4

Eg. 5

Fig. 3-2-5

3. PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM

EU02 POWER

EU04 POWER SW

CN803

CN801 Board-in

CN802 Board-in

CN103

4 3 2 1

1 2 3 4 5 6 1 2 3 4 5 6 7 8 9

4 3 2 1

Mechanism

4P Press-fit

E+12V VCC+9V VCC+5V

GND

16P(10P+6P) Press-fit

VCC+9.0V

GND

VCC-9.0V

PWON E+5.0V

E+6.0V VDD+5.0V VDD+3.3V VDD+3.3V

GND GND

M+8V

MGND

VKK-31V

F-(0.0)

F+(3.7V)

W501

FFC 1mm 23P

23 22 21 20 19 18 17 16 15 14 13

PUH

12 11 10

9 8 7 6 5 4 3 2 1

W502

FFC 1.25mm 6P

6 5 4

TRAY

3 2 1

W503

FFC 1mm 8P

8 7 6 5

MOTOR

4 3 2 1

W102

WIRE 2mm AWG26#2651

GND

E+5V POWLED POWKEY

VCC

LD2 MON2 VOR2

GND

VREF

VCC

F0 E0 A0 D0 C0 B0 F+ TT+

FVCC GND

LD MON VOR

GND

LDMP TOPN LDMN

TCLS TRAY

FMN FMP GND LMT DMN DMP VCC

DMFG

1 2 3 4

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

9 10

11 12 13 14 15 16 17 18 19 20 21 22 23

1 2 3 4 5 6

1 2 3 4 5 6 7 8

EU09 OUTPUT-RGB

CNV02 Board-in

CN701

CN501

CN502

CN503

CN102

W301 FFC 1mm 11P

EU01 MAIN

W602

FFC 1mm 13P

EU03 FRONT

C/C/CV/-IN

V/V/G-IN

C/C/CV/-IN

V/V/G-IN

PWRCNT

RSTOX

U/U/B-IN

V/V/R-IN

VGND

U/U/B-IN

V/V/R-IN

VGND

HMUTE

E+5V

101112

CNV01

RGBON

CN301

CN603

DSPRST

DSPSI

CN101

SOUTX

ASP1

SOUTX

ASP1

DSPCKX

DSPS0

Lch-IN

AGND

987654321

Lch-IN

AGND

987654321

DSTBX

GND

Rch-IN

123456789

Rch-IN

CN601

121110

VKK-31V

F+

GND

TXD

CTS

RXD

RTS

F-

123456789

Fig. 3-3-1

4. BLOCK DIAGRAMS

4-1. Overall Block Diagram

Tray

Motor

SPM

PUH

Feed

Motor

PUH Driver

Motor Driver

RF Amp.

IC502 TA1323F

M11B11664A-30T

IC402

IC401

TC94A03F

1M-DRAM

Interated Data

processor

IC201 MSM514800C-70JSR1

4M-DRAM

IC202 TC203G08AF-0103

Track Buffer

MAIN PROCESSOR UNIT

27MHz Xtal OSC

IC901 AD1959YRSRL

Audio-DAC

IC912 NJM4580E

Audio LPF

Amplifire

Data/Control Bus DVD AV Data

IEC958 Audio Out

Analog Audio Out

IC503 BA5813FM-E2

IC606 MBM29F800BA-55PFTN

8M-FROM

EE-PROM

IC601 S-24C04BFJ-TB

IC605

TMP94C251AF

SW POWER SUPPLY

Main-CPU

1M-DRAM

IC603 M11B11664A-30T

IC301

ZR36732

X601

9MHz CeraOSC

AV-1Chip Processor

16M-S-DRAM

IC305,306 HY57V161610DTC-8

Display

(FL)

Display-CPU

FRONT DISPLAY UNIT

IC101 TMP87CH74AF-2C07

IC304 MM1540AFBE

Video Driver

ICV01 MM1540AFBE

Video Driver

OUTPUT-RGB UNIT

YPBPR/S Composite

AV 21P-RGB

Fig.3-4-1

4-2. Power Supply Block Diagram

Fig. 3-4-2

4-3. Front Display, Power Switch Block Diagram

4-3-1. Front Display

Fig. 3-4-3

4-3-2. Front Display Pattern

Fig. 3-4-4

4-3-3. Front Display, Power Switch Block Diagram

Fig. 3-4-5

4-4. Main Block Diagrams

4-4-1. Servo System Block Diagram

Fig.3-4-6

4-4-2. Logical System Block Diagram

Fig. 3-4-7

4-5. Output-RGB Block Diagram

Fig. 3-4-8

2 5 6 7 89

5. CIRCUIT DIAGRAMS

5-1. Power Supply Circuit Diagram

10134

Fig. 3-5-1

Power Supply Circuit Diagram

Q802

Drain-Sourse

ON MODE (AC230V 50Hz in)

V:100 V/div H:2 ms/div

C-4

Q802

Gate-Sourse

ON MODE (AC230V 50Hz in)

V:5 V/div H:2 ms/div

C-3

Fig. 3-5-2

2 5 6 7 89

5-2. Front Display, Power Switch Circuit Diagram

10134

Fig. 3-5-3

Front Display, Power Switch Circuit Diagram

IC101, Pin

X-OUT

V: 2 V/div H: 100 ns/div

STB G1

V: 2 V/div H: 5 ms/div

E-4

E-5

D-5

IC101, Pin

SCK

V: 2 V/div H: 5 ms/div

V: 10 V/div H: 5 ms/div

D-5

C-4

D-4

IC101, Pin

V: 2 V/div H: 5 ms/div

V: 10 V/div H: 5 ms/div

D-5

Fig. 3-5-4

5-3. Main Circuit Diagrams

5-3-1. New Main ICs Information

ZR36732

TMP94C251AF(Z)

TMP87CH74AF-2C07

120

121

108

109

160

144

TA1319P/TA1319AP

S-814A50AUC-BDO-T2

BA5813FM-E2

AD1959YRSRL

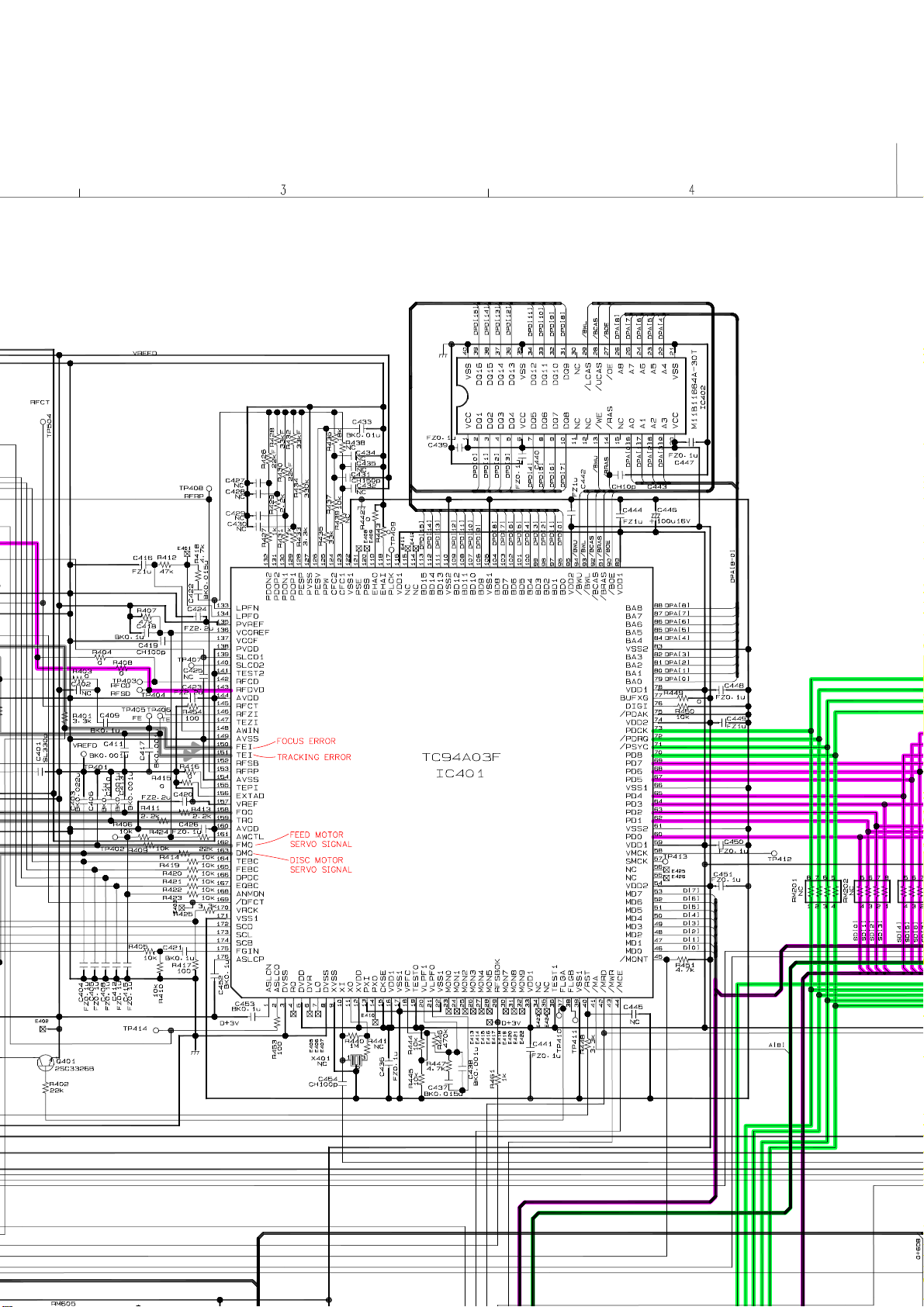

5-3-2. Main Circuit Diagram

Fig. 3-5-5

5-3-2. Main Circuit Diagram

Fig. 3-5-5

Main Circuit Diagram

Output-RGB Circuit Diagram

J301 Composite

video output

CVBS output 75W terminated 100% color bar

V: 500 mV/div H: 20 ms/div

J301 (a) S-video output Y (b) S-video output C

S-Y/C 75W terminated 100% color bar

(a) Y

(b) C

V: 500 mV/div H: 20 ms/div

J301 Y/PB/P

output

E-7

D-7

J301 L ch output

/ R ch output

(1 kHz, FS)

J301 COAXIAL

-DIGITAL OUTPUT

L ch output

R ch output

V: 2 V/div H: 200 ms/div

75W terminated

V: 500 mV/div H: 0.1 ms/div

E-7 E-7

D-7

6 JV01 SCART output

(Video out select : RGB)

NTSC 100% color bar (Play) 75Ω terminated

(a)

Pin : CV

(b)

Pin : B Pin : G

(c)

Pin : R

(d)

C-10

V: 1 V/div H: 20 µs/div

V: 500 mV/div H: 20 µs/div

Component output 75W terminated 100% color bar (Play)

V: 500 mV/div H: 20 ms/div

Fig. 3-5-6

Toshiba SD-210 Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
