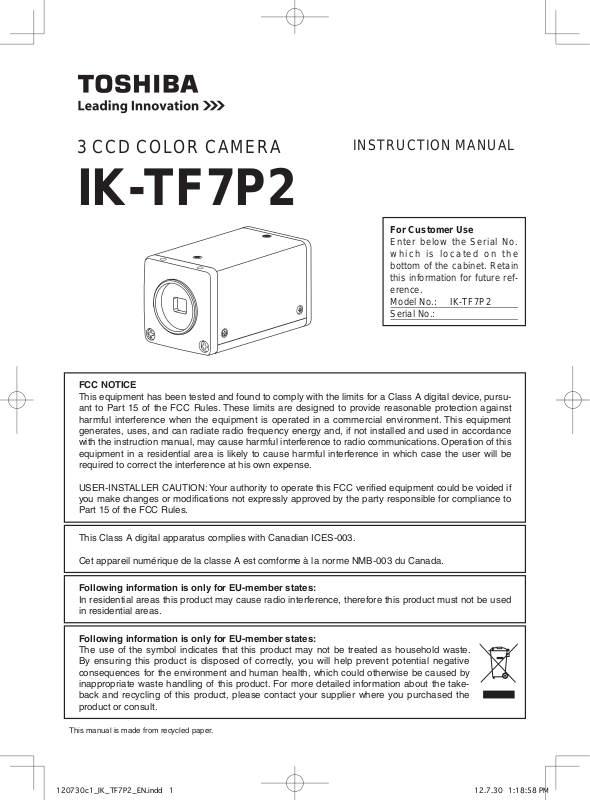

3 CCD COLOR CAMERA

INSTRUCTION MANUAL

IK-TF7P2

For Customer Use

Enter below the Serial No. which is located on the bottom of the cabinet. Retain this information for future reference. Model No.: IK-TF7P2 Serial No.:

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

USER-INSTALLER CAUTION: Your authority to operate this FCC veriﬁed equipment could be voided if you make changes or modiﬁcations not expressly approved by the party responsible for compliance to Part 15 of the FCC Rules.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est comforme à la norme NMB-003 du Canada.

Following information is only for EU-member states:

In residential areas this product may cause radio interference, therefore this product must not be used in residential areas.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about the takeback and recycling of this product, please contact your supplier where you purchased the product or consult.

This manual is made from recycled paper.

Page 2

SAFETY PRECAUTIONS

Safety icons

This manual contains safety instructions that must be observed in order to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classiﬁed according to the seriousness of the risk, and the icons highlight these instructions as follows:

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Stop operation immediately if any abnormality or defect occurs.

Use during an abnormal condition; such as emitting smoke, burning odors, damage from dropping, invasion of foreign objects, etc. may result in ﬁre and/or electric shock. Immediately disconnect the power source and contact your dealer.

Avoid installing in a shower room or a bathroom.

This may result in ﬁre and/or electric shock.

Do not operate in places where the product may get wet.

This may result in ﬁre and/or electric shock.

Do not repair, disassemble and/or modify by yourself.

This may result in fire and/or electric shock. Be always sure to contact your dealer for internal repair, check and cleaning of the product.

Use the speciﬁed power supply.

Otherwise, ﬁre or electrical shock may occur.

Do not place anything on top of the unit.

Foreign materials, such as metals or liquids into the product may result in ﬁre and/or electrical shock.

Do not put the product on an unstable, slanted on vibrating surface.

The product dropping or falling may cause serious injury.

Do not touch the product or any connection cables during a thunderstorm.

This may result in shock.

Page 3

Note the following instructions when installing.

• Do not cover the product with any material.

• Do not place the product on any confined Inflammable material such as a

carpet or blanket.

• Do not place the product in a narrow space, as this may cause heat to buildup

inside the product.

Failure to follow the above cautions may result in ﬁre.

Do not place the product in direct sunshine and/or high temperature.

Temperature build up inside the product may result in ﬁre.

Avoid placing in humid, smoky, vaporized or dusty places.

This may result in ﬁre and/or electric shock.

Do not point the lens directly at the sun and/or intensive light such as direct sunlight, etc.

Focusing of the light may cause eye injury and/or ﬁre.

Ask your dealer to perform a periodical check and internal cleaning (approx. once every ﬁve years).

Dust inside the product may result in re. For check and cleaning cost, please

consult your dealer.

Disclaimer

We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the user in any of the following cases:

1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions.

2. Malfunction or non-function resulting in indirect, additional or consequential damages, including but not limited to loss of expected income and suspension of business activities.

3. Incorrect use not in compliance with instructions in this instruction manual.

4. Malfunctions resulting from misconnection to other equipment.

5. Repairs or modiﬁcations made by the user or caused to be made by the user and carried out by an unauthorized third party.

6. Notwithstanding the foregoing, Toshiba’s/TAIS liabilities shall not, in any circumstances, exceed the purchase price of the product.

There may be a conflict with the Copyright Law and other laws when a customer uses, displays, distributes, or exhibits an image picked up by the camera without permission from the copyright holder. Please also note that transfer of an image or ﬁle covered by copyright is restricted to use within the scope permitted by the Copyright Law. Customer is responsible for complying with all copyright laws.

Protection of Personal Information

Images taken by the camera that reveal the likeness of an individual person may be considered personal information. To disclose, exhibit or transmit those images over the internet or otherwise, consent of the person may be required.

Page 4

Limitation of Usage

The product is not designed for any “critical applications.” “Critical applications” means life support systems, exhaust or smoke extraction applications, medical applications, commercial aviation, mass transit applications, military applications, homeland security applications, nuclear facilities or systems or any other applications where product failure could lead to injury to persons or less of life or catastrophic property damage. Accordingly, [Toshiba/TAIS] disclaims any and all liability arising out of the use of the product in any critical applications.

TABLE OF CONTENTS

1. CAUTIONS ON USE AND INSTALLATION .....5

2. COMPONENTS ................................................5

3. NAMES AND FUNCTIONS ..............................6

4. CONNECTION ..................................................7

4. 1 Standard Connection ................................ 7

4. 2 Cautions on Connection ............................7

4. 3 Connector Pin Assignments ......................7

4. 4 How to use “EMI core” ..............................8

5. OPERATION .....................................................9

5. 1 White Balance ........................................... 9

5. 2 Gain ........................................................10

5. 3 Shading Correction ................................. 10

6. ITEMS CONTROLLED BY THE SCREEN

DISPLAY ......................................................... 11

MODE SETTING BY ON SCREEN DISPLAY

7. 1 Using the Menus ..................................... 12

7. 2 Menus ..................................................... 13

( 1 ) SHUTTER (Electronic shutter) ................13

(1. 1) Changing the setting in

MANU mode.................................14

(1. 2) Changing the setting in

SS (synchro. scan) mode .............15

(1. 3) Changing the setting in

E.TRG mode ................................16

(1. 3. 1) Changing the setting in

1P SNR mode ...........................16

(1. 3. 2) Changing the setting in

1P SR mode .............................17

(1. 3. 3) Changing the setting in

PW SNR mode .........................18

(1. 3. 4) Changing the setting in

PW SR mode ............................19

(1. 3. 5) Changing the setting in

RR mode...................................19

(1. 4) Changing each setting in

AUTO mode .................................20

( 2 ) GAIN (Video gain) ...................................20

(2. 1) Changing the setting in GAIN.......20

( 3 ) WHT BAL (White balance) ......................21

Changing the setting in AWB

(3. 1) (Automatic White Balance) mode (3. 2) Changing the setting in MANU

(Manual) mode .............................21

....12

...21

( 4 ) PROCESS ..............................................22

(4. 1) Changing gamma correction ........22

(4. 2) Changing master pedestal ...........22

(4. 3) Changing R pedestal ...................22

(4. 4) Changing B pedestal ....................22

(4. 5) Changing noise reduction ............22

( 5 ) SHADING ................................................23

( 6 ) SYNC ......................................................25

( 7 ) OPTION ..................................................25

( 8 ) Returning to factory settings ...................25

7. 3 Synchro. Scan Operation ........................26

( 1 ) Setting by 1H ..........................................26

( 2 ) Setting by the frame ................................26

7. 4 E. TRG (External trigger) ........................27

( 1 ) 1P SNR (1 Pulse Trigger

Sync Non Reset) .....................................27

( 2 ) 1P SR (1 Pulse Trigger Sync Reset) .......28

( 3 ) PW SNR (Pulse width trigger

SYNC-NON RESET) ...............................29

( 4 ) PW SR (Pulse width trigger

SYNC-RESET) ........................................30

( 5 ) RR (Reset restart) ...................................31

Changing V.SHAD. (Vertical Shading)

(5. 1)

correction mode ...........................24

(5. 2)

Changing the manual V.SHAD. (Vertical

Shading) correction setting (5. 3)

Changing C.SHAD. (Corner Shading)

correction mode ...........................24

(5. 4)

Changing the manual C.SHAD. (Corner

Shading) correction setting ............24

(6. 1) Adjusting horizontal phase ...........25

(7. 1) Changing serial communication

baud rate ......................................25

(1. 1) 1 Pulse Trigger SYNC-NON

RESET Picture Output Timing .....27

(2. 1) 1 Pulse Trigger SYNC-RESET

Picture Output Timing .................. 28

(3. 1) Pulse Width Trigger SYNC-NON

RESET Picture Output Timing .....29

(4. 1) 1 Pulse Width Trigger SYNC-RESET Picture

(5. 1) Long Term Exposure ....................31

(5. 2) Input Timing Chart Example.........31

Output Timing ..................30

.............24

Page 5

7. 5 Partial Read ............................................ 32

( 1 ) Par tial Scanning OFF

(All pixels scanning) ................................32

( 2 ) Par tial Scanning ON ...............................32

( 3 ) When Par tial Scanning Mode is ON .......33

7. 6 External Sync .......................................... 34

8. INPUT OUTPUT SIGNAL SPECIFICATIONS 35

9. CCDOUTPUTWAVEFORMTIMINGCHART 36

10.BEFOREMAKINGASERVICECALL ...........37

11. SPECIFICATIONS ..........................................37

12. EXTERNAL APPEARANCE DIAGRAM.........38

( 1 ) External sync signal polarity ...................34

( 2 ) External sync frequency range ...............34

( 3 ) Using the unit with external sync signal .. 34

(3. 1) H (horizontal) phase adjustment ..34

This product is a 3CCD color camera with digital video output.

CAUTIONS ON USE AND INSTALLATION1.

•Handlingtheunit.

Do not drop, jolt, or vibrate, as this may result in

damage to the unit and may cause problems.

Treat the camera cables carefully to prevent cable problems, such as breaks in the cable and loose connections.

•Installthecamerainalocationfreefromnoise.

If the camera or the cables are located near power utility lines or a TV, etc. undesirable noise may appear on the screen. In such a case, try to change the location of the camera or the cable wiring. Consult with a service personnel, if the noise still appears after changing the location or the cable wiring.

•Operatingambienttemperatureandhumidity.

Do not use the camera in places where temperature

and humidity exceed the specifications. Picture quality will deteriorate and internal parts may be damaged.

Be particularly careful when using in places exposed to direct sunlight. When shooting in hot environments, depending on the conditions of the object and the camera (for example when the gain is increased), noise in the form of vertical strips or white dots may occur. This is not a malfunction.

•When notusingthecameraforextendedperiods

of time.

Switch the control unit off and disconnect the power supply.

•Avoidusingorstoringthecamerainthefollowing places:

Places ﬁlled with highly ﬂammable and corrosive gas.

Places near gasoline, benzene, or paint thinner.

Places subject to strong vibration.

Places containing chemicals (such as pesticides), rubber or vinyl products for extended periods of time.

•Donotshootintenselight.

If there is an intense light at a location on the screen such as a spot light, a blooming and smearing may occur. When intense light enters, vertical stripes may appear on the screen. This is not a malfunction. Ghosts may occur when there is an intense light near the object. In this case, change the shooting angle.

•Moire

A moire pattern is an interference pattern generated when two repetitive line patterns overlap. This is not a malfunction. Eliminating the repetitive line patterns, or aligning the two patterns, will eliminate the moire.

•Handlingoftheprotectioncap.

Keep the protection cap away from children as they may pose a choking hazard. The protection cap protects the image sensing plane when the lens is removed from the camera head, do not discard.

•Whencleaningthecamera.

Unplug the power source before cleaning. Clean with a soft dry cloth only. Do not use chemicals or chemically treated cloths. Chemicals may damage coatings and printed letters. When cleaning the lens, use lens cleaning paper.

COMPONENTS2.

(1) Camera Control Unit ...................................................................................................................... 1

(2) Accessories

(a) Instruction manual .................................................................................................................. 1

(b) EMI core ................................................................................................................................. 1

Page 6

NAMES AND FUNCTIONS3.

[ Bottom ]

DATA UP (AWB) button

Prism faceplate

(AWB)

DISP

DATA

PAGE

PAGE button

DC IN 12V

[ Rear ][ Front ]

Prism faceplate The protection cap is attached on the lens mount portion. After removing the cap,



mount the lens. Be careful not to scratch or touch the optical area.

DISP button Used when switching the display.



PAGE button Used when switching to the menu and when selecting the menus.



MENU UP button Select the function to be conﬁrmed or changed on the menu.



MENU DOWN button Select the function to be conﬁrmed or changed on the menu.



DATA UP (AWB) button Changes the value of the function selected by the MENU (UP/DOWN) button. (Also



used when using AWB.)

DATA DOWN button Changes the value of the function selected by the MENU (UP/DOWN) button.



DIGITAL terminal 8-bit RGB, digital signal, and sync signals are output in the Camera Link format.



Trigger signal and external sync signal (HD, VD) are inputs.

Mode switching signal for partial scanning is input.

Accepts serial communication control signals and a DC power input (12V).

DC IN 12V terminal Accept a DC power input (12V).



Mounting holes M3 Used to mount the camera.



Mounting holes M2 Used to mount the camera.



DC IN 12V terminal

DISP button

MENU UP button

DATA DOWN button

MENU DOWN button

DIGITAL terminal

Page 7

CONNECTION4.

113

(3M) or equivalent.

Connector used: HR10A-7P-4PB (HIROSE electronics Co. Ltd) or equivalent.

Standard Connection4. 1

Lens

Cable (not included)

IK-TF7P2

Less than 4 mm

DC IN 12V

DC power supply

Frame grabber board,

image process equipment etc.

Monitor

Cautions on Connection4. 2

• When connecting the camera cables, be sure to unplug the power source of the camera and the other equipment connected to it.

• We suggest using a C mount lens made for a 3CCD color camera.

When using another lens, the best camera performance of this camera may not be obtained. (For example, low resolution may occur, focus may be lost through the range of a zoom lens, and ﬂare, ghost or shading may occur) Furthermore, in order to avoid damaging the mounting portion of the camera head, use a lens which has projection dimension from the mounting base of less than 0.157”(4mm).

• The camera may be powered in two ways: (1) Supplied to the DC IN 12V terminal

• For DC power supply connecting to DC IN 12V terminal, use UL listed and/or CSA approved unground-

ing type AC adaptor with the speciﬁcations described below.

Power supply voltage : DC12V±10%

Current rating : More than 830 mA Ripple voltage : Less than 50 mV(p–p) Connector : HR10A–7P–4S by HIROSE electronics Co. Ltd

• For DC power supply connecting to DC IN 12V terminal, use class II DC power supply approved according to EN60950-1 in Europe.

(2) Supplied to the DIGITAL terminal

• Supply the DC power supply (DC10V-DC13V) to pins 1 and 26 of the cable (sold separately).

• When using PoCL (power over camera link) to power the camera, use a standard PoCL cable.

* Use only one power supply type at a time.

Pins 1, 2 : 12V

Pins 3, 4 : GND

DC IN 12V DIGITAL Function I/O

1 +12V 1 +12V 14 GND – 2 +12V 2 X0- 15 X0+ O 3 GND 3 X1- 16 X1+ O 4 GND 4 X2- 17 X2+ O

Connector Pin Assignments4. 3

5 Xclk- 18 Xclk+ O

6 X3- 19 X3+ O 7 SerTC+ 20 SerTC- Serial communication control (RXD) I 8 SerTFG- 21 SerTFG+ Serial communication control (TXD) O

9 CC1- 22 CC1+ Trigger pulse input I 10 CC2+ 23 CC2- Partial scanning control I 11 CC3- 24 CC3+ External HD input I 12 CC4+ 25 CC4- External VD input I 13 GND 26 +12V –

Connector used: 12226-51000-00

Page 8

How to use “EMI core”4. 4

An EMI core is shipped with this camera.

When power is supplied to the DC IN terminal, this part must be used as in the drawing below.

If not used, unnecessary radio waves may be emitted.

DC IN terminal

Power cable: 2 turns

Camera

* Mount this core as close as possible to the camera.

EMI core

Page 9

OPERATION5.

Refer to the item “ 4. CONNECTION”, connect each component correctly.



Turn on the power source of the connected equipment and the camera.



Point the lens at the object, adjust the lens iris, focus, etc..



Refer to the item “5.1 White Balance”, to do the adjustment.



Refer to the items “5.2 Gain, 7. MODE SETTING BY ON SCREEN DISPLAY”, select the necessary items.



WhiteBalance5. 1

For the white balance adjustment of this unit, AWB (Automatic White Balance) and MANU (Manual white balance) adjustments are provided. To select the desired mode, refer to the items “7.2 (3) WHT BAL (White balance)” and “7.

MODE SETTING BY ON SCREEN DISPLAY”.

(AutomaticWhiteBalance)

Outline Adjust white balance by displaying a white object



inside the area set by AWB menu and pressing

the [DATA UP] button.

Note When the shutter mode is E.TRG, AWB is not

available.

AWB (Automatic white balance)

• Set the MODE to AWB on the WHT BAL menu.

Perform the C.TEMP (color temperature conversion) setting, if necessary. (Refer to the item “7.2 (3) WHT BAL (White balance)”.) 3200K : Appropriate for indoor shooting. 5600K : Appropriate for outdoor shooting.

• If the index menu/menu is displayed, press the [DISP] button to disable the character display on the menu.

• Shoot a known white object that lls the screen and push [DATA UP] button for approx. 1 second.

• The character AWB blinks on the screen when the AWB starts.

• The character AWB stops blinking when the AWB nishes, and the result is displayed for approx. 1 second.

AWB 

Adjust the white balance manually using the WHT BAL menu while shooting a white object.

Adjustment is performed by confirming with a monitor etc.

MANU

(ManualWhiteBalance)

Result displayed Meaning

AWB OK Automatic white balance adjustment ﬁnished correctly. AWB NGLEVEL LOW AWB NGLEVEL

HIGH

AWB NG C.TEMPLOW

AWB NG

C. TEMP HIGH

AWB NG NOTAVAILABLE AWB NG Automatic white balance adjustment cannot be performed for other reasons. Such as no

Automatic white balance adjustment cannot be performed because the video level is too low. Set the video level propely. Automatic white balance adjustment cannot be performed because the video level is too high. Set the video level propely. Automatic white balance adjustment cannot be performed because the color temperature is too low. If the C.TEMP is set to 5600K, set to 3200K. If the message appears with the C.TEMP set to 3200K, change the illumination or use a color temperature conversion ﬁlter. Automatic white balance adjustment cannot be performed because the color temperature is too high. If the C.TEMP is set to 3200K, set to 5600K. If the message appears with the C.TEMP set to 5600K, change the illumination or use the color temperature conversion ﬁlter. Automatic white balance adjustment cannot be performed because the shutter speed mode is E.TRG mode.

white area is included in an object, etc.

Page 10

MANU (Manual white balance)



• Set the MODE to MANU on the WHT BAL menu. (Refer to the item “7.2 (3) WHT BAL (white balance)”.)

• Shoot a known white object, adjust the white balance adjusting the levels of R GAIN and B GAIN on the menu,

conﬁrming with a monitor etc. (Refer to the item “7.2 (3) (3.2) Changing the setting in MANU mode”.)

Gain5. 2

When the image is dark even if the lens iris is open, change the gain (video gain) to get the proper video level. For the gain adjustment of the unit, MANU (Manual) and OFF (0 dB) modes are provided. Select the mode on the GAIN menu. (Refer to the item “7.2 (2) GAIN (Video gain)”.)

MANU (Manual gain)



Gain adjustment is performed on the GAIN menu. The adjustment range is from 0dB to 18dB in 1dB steps. (Refer to the item “7.2 (2) (2.1) (a) Changing the gain in MANU mode”.)

OFF



Gain is ﬁxed at 0 dB.

Shading Correction5. 3

Due to the lens used or the environmental condition, vertical color shading may occur at the top and bottom of the

screen and at the corners. In this case, the shading correction can decrease the color shading. For the shading cor-

rection of the unit, MANU (Manual shading correction) and OFF (no shading correction) modes for V.SHAD. (Vertical Shading) and C.SHAD. (Corner Shading) are provided. Select the mode on the SHADING menu. (Refer to the “7.2 (5) (5.2) Changing the manual V.SHAD. (Ver tical Shading) correction setting” and “7.2 (5) (5.4) Changing the manual C.SHAD. (Corner Shading) correction setting”.)

MANU (Manual Shading)



Adjust the correction amount on the SHADING menu by conrming with a monitor or a waveform monitor.

OFF



The status is no shading correction.

*Theshadingcorrectioniseffectivewhenthelensirisorzoomratioisxed.UsetheunitbysettingV.SHAD.

and C.SHAD. to OFF.

Page 11

ITEMS CONTROLLED BY THE SCREEN DISPLAY6.

Item Available selections

MODE MANU, SS, E. TRG, AUTO MANU E. TRG 1P SNR, 1P SR, PW SNR, PW SR, RR 1P SNR

MANU speed

Partial read OFF 1H/796H~795H/796H, OFF, 2FRM~512FRM Partial read 40fps 1H/580H~579H/580H, OFF, 2FRM~512FRM

Electronic shutter

Syncro. scan.

Partial read

Trigger (1P SNR/SR)

Trigger (PW SNR/SR) ,

1P exposure time 0.01ms~30ms 30 ms AUTO Level -100~0~100 0 AUTO Peak/Average 00:10~05:05~10:00 05:05

Gain

MODE MANU, OFF OFF MANU 0dB~18dB 0dB

balance

MODE AWB, MANU AWB

White

Color temperature 3200K, 5600K 3200K MANUAL R GAIN -100~0~100 0 MANUAL B GAIN -100~0~100 0 GAMMA ON, OFF OFF

Process

Master pedestal -64~0~64 0 R pedestal -64~0~64 0 B pedestal -64~0~64 0 NR ON, OFF OFF V. Shading correction mode MANU, OFF MANU V. Shading manual correction MANU C. Shading correction mode MANU, OFF MANU

Shading

C. Shading manual correction MANU R SIZE MANU R GAIN MANU R POSI MANU B SIZE MANU B GAIN MANU B POSI

Sync

H phase adjustment -100~0~100 0

Option

Baud rate 9600 bps, 19200 bps 9600 bps

Partial read 42fps 1H/553H~552H/553H, OFF, 2FRM~512FRM Partial read 50fps 1H/465H~464H/465H, OFF, 2FRM~512FRM Partial read 60fps 1H/387H~386H/387H, OFF, 2FRM~512FRM Partial read 70fps 1H/332H~331H/332H, OFF, 2FRM~512FRM Partial read 80fps 1H/290H~289H/290H, OFF, 2FRM~512FRM Partial read 90fps 1H/258H~257H/258H, OFF, 2FRM~512FRM

OFF, 1/100s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/4000s, 1/10000s, 1/25000s, 1/50000s, 1/1000000s

40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

-128~0~127 0

0~63

-32~0~31

-32~0~31 0~63

-32~0~31

Preset value

(Factory setting)

OFF

0 0 0 0 0 0

Page 12

MODE SETTING BY ON SCREEN DISPLAY7.

Video signal output

Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The contents once set are memorized even if the power source is turned off, so it is unnecessary to set again when using the unit next time. When the setting is performed, select the menu of the item to be set. (Use an appropriate monitor to display an image with a higher signal format than XGA.)

Using the Menus7. 1

When the power is turned on, the normal screen showing only the video signal appears. Change the output to each

screen (video signal output, Index menu, and menus) by using the [DISP], [PAGE], [MENU UP], [MENU DOWN], [DATA UP], and [DATA DOWN] buttons.

* A menu is selected when pushing the [PAGE] button after moving the “

DOWN] button while the Index menu is displayed.

POWER ON

Index menu

DISP

” on the screen by the [MENU UP], [MENU

PAGE

SHUTTER GAIN PROCESS SYNC

MANU

E. TRG 1P SR

E. TRG

1P SNR

E. TRG

PW SR

E. TRG

PW SNR

E. TRG

AUTO

PAGE

MANU

OFF

PAGE

WHT BAL

AWB

MANU

PAGE

Menues

GAMMA

PAGE PAGE

GAMMA

OFF

PED

MANU

SHADING

V.SHAD.

MANU

V.SHAD.

OFF

C.SHAD.

MANU

C.SHAD.

OFF

INT

EXT

PAGE

OPTION

BAUD RATE

PAGE

Page 13

Menus7. 2

• Select the menu to change the setting by referring to the item “7.1 Using the Menus”.

• When the [MENU UP], [MENU DOWN] buttons are pushed, the “

Move the “

Note:

When performing the mode setting in the menu display while selecting ON in “PART” (Partial Read: refer to

page 32) and E.TRG in “MODE”, the screen display and camera operation switch to normal mode. After closing

the MENU, it returns to the previous mode.

” to the item whose setting you wish to change.

SHUTTER (Electronic shutter)( 1 )

The electronic shutter has four modes; MANU (Manual), SS (Synchro. Scan), E.TRG (External trigger), and AUTO (Auto Shutter). Move the “ “E.TRG”, and “AUTO”.

” to “MODE” and push [DATA UP], [DATA DOWN] button to select the desired mode among “MANU”, “SS”,

” on the screen moves up and down.

MANUAL : It is possible to select the exposure time from eleven speed setting; OFF, 1/100s, 1/250s, 1/500s,

SS : Shutter speed can be set by the horizontal scanning time (1H) unit or by the number of frames.

E.TRG : Exposure is performed and images are output by external trigger. E.TRG includes the ﬁve modes

1/1000s, 1/2000s, 1/4000s, 1/10000s, 1/25000s, 1/50000s, 1/100000s. When not using the electronic shutter, select OFF.

Note:

When setting a rapid shutter speed, sensitivity degrades according to the speed. When a discharging light such as ﬂuorescent lamp, etc. is used for the illumination, the ﬂicker may be excessive.

described below. (For details of speciﬁcations, refer to the item “7.4 E.TRG (External trigger)”.)

• 1P SNR (1 Pulse Sync Non Reset) The charge begins to accumulate to each CCD pixels after the trigger pulse is received, and

1 frame images are output according to the internal vertical sync signal timing. The exposure/ accumulation time can be set from 0.01 to 30 ms. The trigger signal timing can be set to either the rising or falling edge.

• 1P SR (1 Pulse Sync Reset) The charge begins to accumulate to each CCD pixels after the trigger pulse is received.

Upon completion of accumulation the vertical sync signal is reset and 1 frame images are output. The exposure/accumulation time can be set from 0.01 to 30 ms. The trigger signal timing can be set to either the rising or falling edge.

• PW SNR (Pulse width trigger Sync Non Reset) The charge begins to accumulate to each CCD pixels after the trigger pulse is received, and 1

frame images are output according to the internal vertical sync signal timing. This is the mode to set the exposure period by the pulse width of the trigger. The trigger signal polarity can be set to either the positive or negative polarity.

• PW SR (Pulse width trigger Sync Reset) The charge begins to accumulate to each CCD pixels after the trigger pulse is received.

Upon completion of accumulation the vertical sync signal is reset and 1 frame images are output. This is the mode to set the exposure period by the pulse width of the trigger. The trigger signal polarity can be set to either the positive or negative polarity.

• RR (Reset restart)

Input of an external reset-restart signal permits one screen of information to be output at an arbitrary timing.

AUTO : Exposure time is automatically controlled to obtain the speciﬁed video level.

Page 14

Changing the setting in MANU mode(1. 1)

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

Move up down

Select the desired

by pushing MENU UP, DOWN

SHUTTER

MODE MANU MANU 100 OUT.P

value by pushing DATA UP, DOWN

OFF

• Shutter mode MANU, SS, E.TRG, AUTO

• Shutter speed setting OFF, 100 (1/100s), 250 (1/250s), 500 (1/500s) 1000 (1/1000s), 2000 (1/2000s), 4000 (1/4000s) 10000 (1/10000s), 25000 (1/25000s) 50000 (1/50000s)100000 (1/100000s)

• Partial scanning switch（PART switch） OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

(a) Changing the shutter speed

Move the “



Select the shutter speed by pushing [DATA UP], [DATA DOWN] buttons.



” to MANU by pushing [MENU UP], [MENU DOWN] buttons.

(b) Partial scanning setting

Move the “



Select the mode by pushing [DATA UP], [DATA DOWN] buttons.



Move “



Select a desired settings by pushing [DATA UP], [DATA DOWN] buttons.



” to OUT.P by pushing [MENU UP], [MENU DOWN] buttons.

” to the current value by pushing [MENU UP], [MENU DOWN] buttons.

* The preset value of partial scanning is not displayed, when OUT.P is OFF.

Page 15

Changing the setting in SS (synchro. scan) mode(1. 2)

Move up down

Select the desired

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

by pushing MENU UP, DOWN

SHUTTER

MODE SS SS OFF OUT.P

(a) Changing the shutter speed setting

Move the “



Select the shutter speed by pushing [DATA UP], [DATA DOWN] buttons.



(b) Partial scanning setting

Move the “



Select the mode by pushing [DATA UP], [DATA DOWN] buttons.



Move “



Select a desired settings by pushing [DATA UP], [DATA DOWN] buttons.



* The preset value of partial scanning is not displayed, when OUT.P is OFF.

Note:

The slow shutter speed may increase the ﬁxed pattern noise and/or the white pixels. This is a characteristic of

CCD, and is not a symptom of malfunction.

” to SS by pushing [MENU UP], [MENU DOWN] buttons.

” to OUT.P by pushing [MENU UP], [MENU DOWN] buttons.

” to the current value by pushing [MENU UP], [MENU DOWN] buttons.

value by pushing DATA UP, DOWN

OFF

• Shutter mode MANU, SS, E.TRG, AUTO

• Synchro. scanning setting refer to the item "7.3 Synchro. Scan Operation".

• Partial scanning switch（PART switch） OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

Page 16

Changing the setting in E.TRG mode(1. 3)

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

The E.TRG has ﬁve modes; 1P SNR, 1P SR, PW SNR, PW SR, RR. First move the “

” to MODE and select E. TRG, then move the “ ” to E.TRG and select the desired E.TRG mode.

Changing the setting in 1P SNR mode( 1.3. 1)

Move up down by pushing MENU UP, DOWN

Select the desired value by pushing DATA UP, DOWN

SHUTTER

MODE E.TRG E.TRG 1P SNR TRG.P EXP. 30ms OUT.P OFF

• Shutter mode MANU, SS, E.TRG, AUTO

• E.TRG mode

1P SNR, 1P SR, PW SNR, PW SR, RR

• Input trigger pulse setting at 1P SNR and 1P SR Input trigger pulse : positive polarity

Input trigger pulse : negative polarity

• Exposure time setting at 1P SNR and 1P SR

0.01 ms 0.02 ms 0.4 ms 1 ms 20 ms 30 ms

0.01 ms step

• Partial scanning switch（PART switch）

OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

(a) Changing the polarity of the input trigger pulse setting

Move the “



Select either



” to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.

, by pushing [DATA UP], [DATA DOWN] buttons.

(b) Changing 1P SNR exposure time setting

Move the “



Select the exposure time by pushing [DATA UP], [DATA DOWN] buttons.



” to EXP. by pushing [MENU UP], [MENU DOWN] buttons.

Move the “



Select the mode by pushing [DATA UP], [DATA DOWN] buttons.



Move “



Select a desired settings by pushing [DATA UP], [DATA DOWN] buttons.



” to OUT.P by pushing [MENU UP], [MENU DOWN] buttons.

” to the current value by pushing [MENU UP], [MENU DOWN] buttons.

* The preset value of partial scanning is not displayed, when OUT.P is OFF.

0.02 ms step

0.1 ms step

1 ms

step

2 ms

step

Page 17

Changing the setting in 1P SR mode( 1.3. 2)

Move up down

Select the desired

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

by pushing MENU UP, DOWN

SHUTTER

MODE E.TRG E.TRG 1P SR TRG.P EXP. 30ms OUT.P OFF

Changing the polarity of the input trigger pulse setting(a)

Move the “



Select either



Changing 1P SR exposure time setting(b)

Move the “



Select the exposure time by pushing [DATA UP], [DATA DOWN] buttons.



Changing the partial scanning setting(c)

Move the “



Select the mode by pushing [DATA UP], [DATA DOWN] buttons.



Move “



Select a desired settings by pushing [DATA UP], [DATA DOWN] buttons.



* The preset value of partial scanning is not displayed, when OUT.P is OFF.

” to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.

” to EXP. by pushing [MENU UP], [MENU DOWN] buttons.

” to OUT.P by pushing [MENU UP], [MENU DOWN] buttons.

” to the current value by pushing [MENU UP], [MENU DOWN] buttons.

value by pushing DATA UP, DOWN

• Shutter mode MANU, SS, E.TRG, AUTO

• E.TRG mode

1P SNR, 1P SR, PW SNR, PW SR, RR

• Input trigger pulse setting at 1P SNR and 1P SR

• Exposure time setting at 1P SNR and 1P SR

• Partial scanning switch（PART switch）

, , by pushing [DATA UP], [DATA DOWN] buttons.

Input trigger pulse : positive polarity Input trigger pulse : negative polarity

0.01 ms 0.02 ms 0.4 ms 1 ms 20 ms 30 ms

0.01 ms

step

OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

0.02 ms

step

0.1 ms

step

1 ms

step

2 ms

step

Page 18

ChangingthesettinginPWSNRmode( 1.3. 3)

Move up down

Select the desired

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

by pushing MENU UP, DOWN

SHUTTER

MODE E.TRG E.TRG PW SNR TRG.P OUT.P OFF

(a) Changing the polarity of the input trigger pulse setting

Move the “



Select either



(b) Changing the partial scanning setting

Move the “



Select the mode by pushing [DATA UP], [DATA DOWN] buttons.



Move “



Select a desired settings by pushing [DATA UP], [DATA DOWN] buttons.



* The preset value of partial scanning is not displayed, when OUT.P is OFF.

Note:

The longer the storage time with extended exposures, the more visible certain characteristics of CCD cameras

become: ﬁxed pattern noise, white pixels, etc.

” to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.

” to OUT.P by pushing [MENU UP], [MENU DOWN] buttons.

” to the current value by pushing [MENU UP], [MENU DOWN] buttons.

value by pushing DATA UP, DOWN

• Shutter mode MANU, SS, E.TRG, AUTO

• E.TRG mode

1P SNR, 1P SR, PW SNR, PW SR, RR

• Input trigger pulse setting at PW SNR and PW SR Input trigger pulse : positive polarity

Input trigger pulse : negative polarity

• Partial scanning switch（PART switch）

OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

, by pushing [DATA UP], [DATA DOWN] buttons.

Page 19

ChangingthesettinginPWSRmode( 1.3. 4)

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

Move up down

Select the desired

E.40fps, E.42fps, E.50fps, E.60fps, E.70fps, E.80fps, E.90fps

by pushing MENU UP, DOWN

SHUTTER

MODE E.TRG E.TRG PW SR TRG.P OUT.P OFF

(a) Changing the polarity of the input trigger pulse setting

Move the “



Select either



Note:

The longer the storage time with extended exposures, the more visible certain characteristics of CCD cameras

become: ﬁxed pattern noise, white pixels, etc.

Move up down by pushing MENU UP, DOWN

MODE E.TRG E.TRG RR OUT.P

” to TRG.P by pushing [MENU UP], [MENU DOWN] buttons.

Changing the setting in RR mode( 1.3. 5)

SHUTTER

value by pushing DATA UP, DOWN

• Shutter mode MANU, SS, E.TRG, AUTO

• E.TRG mode

1P SNR, 1P SR, PW SNR, PW SR, RR

• Input trigger pulse setting at PW SNR and PW SR Input trigger pulse : positive polarity

Input trigger pulse : negative polarity

• Partial scanning switch（PART switch）

OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

, by pushing [DATA UP], [DATA DOWN] buttons.

Select the desired value by pushing DATA UP, DOWN

• Shutter mode MANU, SS, E.TRG, AUTO

• E.TRG mode

1P SNR, 1P SR, PW SNR, PW SR, RR

OFF

• Partial scanning switch（PART switch）

OFF, 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

(a) Changing the partial scanning setting

Move the “



Select the mode by pushing [DATA UP], [DATA DOWN] buttons.



Note:

The longer the storage time with extended exposures, the more visible certain characteristics of CCD cameras

become: ﬁxed pattern noise, white pixels, etc.

” to OUT.P by pushing [MENU UP], [MENU DOWN] buttons.

Page 20

Changing each setting in AUTO mode(1. 4)

• Shutter mode MANU, SS, E.TRG, AUTO

Move up down

Select the desired

• Manual gain adjustment 0 dB to 18 dB (1 dB step)

Move up down

Select the desired

by pushing MENU UP, DOWN

SHUTTER

MODE AUTO LEVEL 0 PEAK/AVE.

Changing the AUTO shutter level(a)

Move the “



Select the shutter level by pushing [DATA UP], [DATA DOWN] buttons.



Changingtheautoshutterdetection(PEAK/AVE.ratio)(b)

Move the “



Select the PEAK/AVE. ratio by pushing [DATA UP], [DATA DOWN] buttons.



” to LEVEL by pushing [MENU UP], [MENU DOWN] buttons.

” to PEAK/AVE. by pushing [MENU UP], [MENU DOWN] buttons.

value by pushing DATA UP, DOWN

00:10

• Auto shutter level adjustment

-100 ~ 100

• Peak/Average ratio adjustment

00:10 ~ 10:00

GAIN(Videogain)( 2 )

When the image is dark even if the lens iris is open, change the gain (video gain) to get the proper video level. For the gain adjustment of the unit, MANU (Manual) and OFF (0dB) modes are provided.

MANU (Manual gain)



Gain adjustment is performed on the GAIN menu. The adjustment range is from 0dB to 18dB in 1dB steps. OFF



Gain is ﬁxed at 0dB.

Move the “ ” to MODE, push the [DATA UP], [DATA DOWN], and select one of the two modes between MANU and OFF.

Changing the setting in GAIN(2. 1)

by pushing MENU UP, DOWN

 

value by pushing DATA UP, DOWN

GAIN

MODE MANU MANU 0dB

Changing the gain in MANU mode(a)

Move the “

Adjust the manual gain by pushing [DATA UP], [DATA DOWN] buttons.

” to MANU by pushing [MENU UP], [MENU DOWN] buttons.

• Gain mode MANU, OFF

Page 21

WHTBAL(Whitebalance)( 3 )

* These values may not be changed during AWB mode.

Move up down

Select the desired

• Color temperature setting 3200, 5600

WHT BAL has two modes; AWB, MANU. Move the “ MANU.

” to MODE, push the [DATA UP], [DATA DOWN], and select one of the two modes between AWB and

ChangingthesettinginAWB (AutomaticWhiteBalance)mode(3. 1)

by pushing MENU UP, DOWN

WHT BAL

MODE AWB

R GAIN 0 B GAIN 0

C.TEMP 3200

Changing color temperature setting(a)

Move the “



Select either 3200 or 5600 by pushing [DATA UP], [DATA DOWN] buttons.



Move up down by pushing MENU UP, DOWN

MODE MANU R GAIN 0 B GAIN C. TEMP 3200

” to C.TEMP by pushing [MENU UP], [MENU DOWN] buttons.

Changing the setting in MANU (Manual) mode(3. 2)

WHT BAL

value by pushing DATA UP, DOWN

Select the desired value by pushing DATA UP, DOWN

• White balance mode (AWB, MANU)

Automatically adjusting value for red gain and blue gain are shown on the screen

• Color temperature setting 3200, 5600

• White balance mode AWB, MANU

• Red gain adjustment -100 to 100

• Blue gain adjustment -100 to 100

 

Changing the red gain(a)

Move the “

Adjust the red gain by pushing [DATA UP], [DATA DOWN] buttons.

Changing the blue gain(b)

Move the “

Adjust the blue gain by pushing [DATA UP], [DATA DOWN] buttons.

” to R GAIN by pushing [MENU UP], [MENU DOWN] buttons.

” to B GAIN by pushing [MENU UP], [MENU DOWN] buttons.

Page 22

PROCESS( 4 )

• Master pedestal adjustment -64 to 64

Move up down

Select the desired

• Gamma Correction (GAMMA)

Select either OFF or ON of Gamma Correction.

• Master Pedestal (M. PED)

Adjust the Pedestal level of each RGB.

• R Pedestal (R. PED)

Adjust the Pedestal level of Red.

• B Pedestal (B. PED)

Adjust the Pedestal level of Blue.

• Noise Reduction

Select either OFF or ON of Noise Reduction.

by pushing MENU UP, DOWN

















value by pushing DATA UP, DOWN

PROCESS

GAMMA M.PED 0 R.PED 0 B.PED NR

Changing gamma correction(4. 1)

Move the “

Select the gamma correction by pushing [DATA UP], [DATA DOWN] buttons.

Move the “

Adjust the master pedestal by pushing [DATA UP], [DATA DOWN] buttons.

Move the “

Adjust the R pedestal by pushing [DATA UP], [DATA DOWN] buttons.

Move the “

Adjust the B pedestal by pushing [DATA UP], [DATA DOWN] buttons.

” to GAMMA by pushing [MENU UP], [MENU DOWN] buttons.

Changing master pedestal(4. 2)

” to M. PED by pushing [MENU UP], [MENU DOWN] buttons.

Changing R pedestal(4. 3)

” to R. PED by pushing [MENU UP], [MENU DOWN] buttons.

Changing B pedestal(4. 4)

” to B. PED by pushing [MENU UP], [MENU DOWN] buttons.

OFF

• Gamma correction ON/OFF

• R pedestal adjustment -64 to 64

• B pedestal adjustment -64 to 64

• Noise reduction ON/OFF

Changing noise reduction(4. 5)

Move the “



Select the noise reduction by pushing [DATA UP], [DATA DOWN] buttons.



” to NR by pushing [MENU UP], [MENU DOWN] buttons.

Page 23

SHADING( 5 )

-128 to 127

• B position adjustment -32 to 31

Due to the lens used or the environmental condition, vertical color shading may occur at the top and bottom of the

screen and at the corners. In this case, the shading correction can decrease the color shading. For the shading correction of the unit, you can select among MANU (Manual shading correction) or OFF (no shading correction) for

V.SHAD. (Vertical Shading) and C.SHAD. (Corner Shading).

MANU (Manual Shading correction)



Adjust the correction amount on the SHADING menu by conrming with a monitor or a waveform monitor.

• R size (R SIZE) low

Adjust the red correction area of the corner. 0

• R gain (R GAIN) low

Adjust the red correction level. -32

• R position (R POSI) Left low

Adjust the red correction area on left and right side. -32

• B size (B SIZE)

Adjust the blue correction area of the corner.

• B gain (B GAIN)

Adjust the blue correction level.

• B position (B POSI)

Adjust the blue correction area on left and right side.

OFF



The status is no shading correction.

*Theshadingcorrectioniseffectivewhenthelensirisorzoomratioisxed.UsetheunitbysettingV.SHAD

and C.SHAD. to OFF.

high

high 63

Right low 31

Move up down by pushing MENU UP, DOWN

SHADING

V.SHAD. MANU

MANU 0

C.SHAD. MANU

R SIZE 0 R GAIN 0 R POSI 0 B SIZE 0 B GAIN 0 B POSI 0

Select the desired value by pushing DATA UP, DOWN

• Vertical Shading mode setting (MANU/OFF)

• Manual Vertical Shading mode adjustment

• Corner Shading mode setting (MANU/OFF)

• R size adjustment 0 to 63

• R gain adjustment -32 to 31

• R position adjustment -32 to 31

• B size adjustment 0 to 63

• B gain adjustment -32 to 31

Page 24

ChangingV.SHAD.(VerticalShading)correctionmode(5. 1)

Move the “



Select the V.SHAD. mode setting by pushing [DATA UP], [DATA DOWN] buttons.



Note:

The alignment value for vertical shading is xed to “0” when selecting V.SHAD. OFF.

MANU is not displayed in the menu.

Move the “



Adjust the MANU V.SHAD. by pushing [DATA UP], [DATA DOWN] buttons.



Move the “



Select the C.SHAD. mode setting by pushing [DATA UP], [DATA DOWN] buttons.



Note:

The alignment value for corner shading is xed to “0” when selecting C.SHAD. OFF.

MANU is not displayed in the menu.

Changing the red size setting(a)

Move the “



Adjust the R size by pushing [DATA UP], [DATA DOWN] buttons.



Changing the red gain setting(b)

Move the “



Adjust the R gain by pushing [DATA UP], [DATA DOWN] buttons.



” to V.SHAD by pushing [MENU UP], [MENU DOWN] buttons.

ChangingthemanualV.SHAD.(VerticalShading)correctionsetting(5. 2)

” to MANU by pushing [MENU UP], [MENU DOWN] buttons.

Changing C.SHAD. (Corner Shading) correction mode(5. 3)

” to C.SHAD by pushing [MENU UP], [MENU DOWN] buttons.

Changing the manual C.SHAD. (Corner Shading) correction setting(5. 4)

” to R SIZE by pushing [MENU UP], [MENU DOWN] buttons.

” to R GAIN by pushing [MENU UP], [MENU DOWN] buttons.

Changing red position setting(c)

Move the “



Adjust the R position by pushing [DATA UP], [DATA DOWN] buttons.



Changing blue size setting(d)

Move the “



Adjust the B size by pushing [DATA UP], [DATA DOWN] buttons.



Changing blue gain setting(e)

Move the “



Adjust the B gain by pushing [DATA UP], [DATA DOWN] buttons.



Changing blue position setting(f)

Move the “



Adjust the B position by pushing [DATA UP], [DATA DOWN] buttons.



” to R POSI by pushing [MENU UP], [MENU DOWN] buttons.

” to B SIZE by pushing [MENU UP], [MENU DOWN] buttons.

” to B GAIN by pushing [MENU UP], [MENU DOWN] buttons.

” to B POSI by pushing [MENU UP], [MENU DOWN] buttons.

Page 25

SYNC( 6 )

• H PHASE adjustment -100 to 100

Move up down

Select the desired

Set the speed to the baud rate setting

When an external sync signal is input, the display menu changes from INT (internal sync) to EXT (external sync) automatically.

by pushing MENU UP, DOWN

SYNC

MODE EXT H PHASE 0

Adjusting horizontal phase(6. 1)

Move the “



Adjust the horizontal phase by pushing [DATA UP], [DATA DOWN] buttons.



” to H PHASE by pushing [MENU UP], [MENU DOWN] buttons.

value by pushing DATA UP, DOWN

• Sync system display

OPTION( 7 )

Changing serial communication baud rate(7. 1)

Move the “



Select either 9600 or 19200 by pushing [DATA UP], [DATA DOWN] buttons.



Move up down by pushing MENU UP, DOWN

” to BAUD RATE by pushing [MENU UP], [MENU DOWN] buttons.

Select the desired value by pushing DATA UP, DOWN

OPTION

BAUD RATE

9600

• Serial baud rate setting 9600, 19200 Communication speed setting.

on the personal computer side.

Returning to factory settings( 8 )

All the settings can be returned to the factory default status (preset status).

(1) If characters are displayed on the screen, press the [DISP] button to disable the character display. (2) Push [MENU DOWN] and [DATA DOWN] buttons simultaneously for approx. 1 second.

(3) The preset operation starts. When the preset operation ﬁnishes, the character PRESET OK is displayed for

approx. 1 second.

Page 26

Synchro. Scan Operation7. 3

(video interval image)

The shutter speed can be set by the horizontal scanning period (1H) or by the number of frames.

Setting by 1H( 1 )

1H/796H ~ 795H/796H stands for the setting by the 1H and the shutter speed can be set by the 1H (43.05 µs). When operating Partial Scanning or binning, the number’s listed below can be used for setting.

Partial scanning OFF Partial scanning 40fps, E.40fps Partial scanning 42fps, E.42fps Partial scanning 50fps, E.50fps Partial scanning 60fps, E.60fps Partial scanning 70fps, E.70fps Partial scanning 80fps, E.80fps Partial scanning 90fps, E.90fps

Setting by the frame( 2 )

2FRM to 512FRM stand for the setting (long period exposure) by the frame. The video signal stored during the frame period set is output as 1 frame video image at a frame interval speciﬁed.

(Internal VD)

1H/796H ~ 795H/796H 1H/580H ~ 579H/580H 1H/553H ~ 552H/553H 1H/465H ~ 464H/465H 1H/387H ~ 386H/387H 1H/332H ~ 331H/332H 1H/290H ~ 289H/290H 1H/258H ~ 257H/258H

RGB data

FVAL

LVAL, DAVL

n+1n

(4FRM setting)

Page 27

E. TRG (External trigger)7. 4

(video interval image)

Charge begins to accumulate after the trigger input to CC1 of the DIGITAL terminal, and 1 frame images are output.

There are four modes: 1P SNR, 1P SR, PW SNR, PW SR.

1P SNR (1 Pulse Trigger Sync Non Reset)( 1 )

Charge begins to accumulate after the trigger input to CC1 of the DIGITAL terminal, and 1 frame images are output.

1 Pulse Trigger SYNC-NON RESET Picture Output Timing(1. 1)

Trigger*

External HD IN*

External VD IN*

(Internal VD)

RGB data

FVAL

LVAL, DVAL

Negative polarity mode

Positive polarity mode

About 1 µs

Exposure period*

About 1H

28H (Partial scanning OFF) 25H (Partial scanning 40fps) 27H (Partial scanning 42fps) 33H (Partial scanning 50fps) 39H (Partial scanning 60fps) 43H (Partial scanning 70fps) 46H (Partial scanning 80fps) 48H (Partial scanning 90fps)

The internal VD falling edge is within the exposure period and thus video is not output. *

*1: External input signal *2: Exposure time is determined by the setting of “7. 2 (1.3) Changing the setting in E.TRG mode”.

*3: Video is output at the falling edge of the internal VD following completion of the exposure period.

The video and FVAL/LVAL/DVAL have a paired relationship.

*4: When NR is set to ON, 1H is increased.

Note:

When the next trigger is input before completion of the output of the video corresponding to the trigger, there will be an effect on the video.

Page 28

1P SR (1 Pulse Trigger Sync Reset)( 2 )

(video interval image)

Charge begins to accumulate after the trigger input to CC1 of the DIGITAL terminal, the vertical sync signal is reset

and frame images are output.

1 Pulse Trigger SYNC-RESET Picture Output Timing(2. 1)

Negative polarity mode

Trigger*

Positive polarity mode

About 1 µs

*1: External input signal *2: Exposure time is determined by the setting of “7. 2 (1.3) Changing each setting in E.TRG mode”.

*3: VD is generated after 0 to 1H following the completion of the exposure period and the video is synchronized to

this and output.

*4: When NR is set to ON, 1H is increased.

(Internal VD)

RGB data

FVAL

LVAL, DVAL

Exposure completion

Exposure period*

0 to 1H*

Note:

When the next trigger is input before completion of the output of the video corresponding to the trigger, there will be an effect on the video.

Page 29

PWSNR(PulsewidthtriggerSYNC-NONRESET)( 3 )

(video interval image)

)

The trigger input to CC1 of the DIGITAL terminal develops 1 frame images.

PulseWidthTriggerSYNC-NONRESETPictureOutputTiming(3. 1)

Trigger*

Negative polarity mode

External HD IN*

External VD IN*

(Internal VD)

RGB data

FVAL

LVAL, DVAL

*1: External input signal

*2: Exposure time = Trigger pulse width + 6 µs

(Valid trigger pulse width is 2 µs or greater for external trigger shutter operation.)

*3: Video is output at the falling edge of the internal VD following completion of the exposure period.

The video and FVAL/LVAL/DVAL have a paired relationship.

*4: When NR is set to ON, 1H is increased.

Note:

When the next trigger is input before completion of the output of the video corresponding to the trigger, there will be an effect on the video.

About 1 µs

Exposure period*

About 7 µs

About 1H

Positive polarity mode

Exposure period*

The internal VD falling edge is within the exposure period and thus video is not output.

Page 30

PWSR(PulsewidthtriggerSYNC-RESET)( 4 )

(video interval image)

The trigger input to the CC1 of the DIGITAL terminal develops 1 frame images.

1PulseWidthTriggerSYNC-RESETPictureOutputTiming(4. 1)

Trigger*

Negative polarity mode

Positive polarity mode

*1: External input signal *2: Exposure time = Trigger pulse width + 6 µs

(Valid trigger pulse width is 2 µs or greater for external trigger shutter operation.)

*3: VD is generated after 0 to 1H following the completion of the exposure period and the video is synchronized to

this and output.

*4: When NR is set to ON, 1H is increased.

(Internal VD)

RGB data

FVAL

LVAL, DVAL

About 1 µs

Exposure completion

About 7 µs

Exposure period*

0 to 1H

Note:

When the next trigger is input before completion of the output of the video corresponding to the trigger, there will be an effect on the video.

Page 31

RR (Reset restart)( 5 )

(video interval image)

Input of an external reset-restart signal (CC4 of the DIGITAL terminal: External VD input) permits one screen of

information to be output at an arbitrary timing.

Long Term Exposure(5. 1)

When sufﬁcient sensitivity is not obtained under normal operating conditions or capturing the trail of a moving object is desired, the reset-restart function allows high-sensitivity images by extending the exposure time. To achieve this,

please input (from an external source) a VD signal that has an expanded VD pulse and VD pulse interval.

Input Timing Chart Example(5. 2)

External HD IN

External VD IN

V reset

About 1H

(Internal VD)

V reset

About 1H

RGB data

FVAL

LVAL, DVAL

Exposure period

Exposure period Exposure period

1 frame

1 frame=

796H (Partial scanning OFF) 580H (Partial scanning 40fps) 553H (Partial scanning 42fps) 465H (Partial scanning 50fps) 387H (Partial scanning 60fps) 332H (Partial scanning 70fps) 290H (Partial scanning 80fps) 258H (Partial scanning 90fps)

Note:

External VD interval: more than 1 frame

Page 32

Partial Read7. 5

Video interval

1/40s (580H):When 40fps is selected 1/70s (332H):When 70fps is selected 1/42s (553H):When 42fps is selected 1/80s (290H):When 80fps is selected 1/50s (465H):When 50fps is selected 1/90s (258H):When 90fps is selected 1/60s (387H):When 60fps is selected

Partial Scanning OFF (All pixels scanning)( 1 )

In this mode, every pixels independent signal is output from the DIGITAL connector each 1/29.2s.


1/29.2s (796H)

Partial Scanning ON( 2 )

In this mode, the pixel signal of the vertical center portion of the image is output from the DIGITAL connector.

In the E. partial scanning control signal).

CC2 E.40fps E.42fps E.50fps E.60fps

CC2 E.70fps E.80fps E.90fps

fps mode, the partial scanning and all the pixels scanning can be switched by the DIGITAL terminal (CC2:

‘ L’ Partial scanning 40fps Partial scanning 42fps Partial scanning 50fps Partial scanning 60fps

‘H’ All pixels scanning All pixels scanning All pixels scanning All pixels scanning

‘ L’ Partial scanning 70fps Partial scanning 80fps Partial scanning 90fps

‘H’ All pixels scanning All pixels scanning All pixels scanning

Video interval


Page 33

WhenPartialScanningModeisON( 3 )

(Internal VD)

FVAL

LVAL, DVAL

RGB data

(video interval image)

Blanking interval

Mode Total A Blanking interval B Video interval C Blanking interval D 40fps 580H 25H 542H 13H 42fps 553H 27H 512H 14H 50fps 465H 33H 412H 20H 60fps 387H 39H 322H 26H 70fps 332H 43H 259H 30H 80fps 290H 46H 211H 33H 90fps 258H 48H 175H 35H

Video interval

Video period

Blanking interval

Total

Page 34

External Sync7. 6

External

Match the phase.

When using the unit with an external sync signal, input HD and VD to CC3 and CC4 of the DIGITAL terminal.

When the external sync signal is input, the camera automatically switches its sync from the internal sync to the external sync. The operation is as shown below, depending on the unit’s status and how external sync signals are input.

Shutter mode HD input VDinput Note

At time of SYNC-NON RESET mode

At time of SYNCRESET mode

At time of reset restart Y Y HD is synchronized to external. Video is output due to VD input.

At time of manual shutter

Either Y or N is permitted.

External sync signal polarity( 1 )

HD: 2 to 5V(p-p) Negative VD: 2 to 5V(p-p) Negative

N N Internal sync mode Y Y External sync mode N Y Only V reset is applied due to VD input. Normally not used. Y N HD is synchronized to external, but video is not output because

N Y HD is synchronized to the inside of the camera. Video is output

N N Internal sync mode Y Y External sync mode Y N HD is synchronized to external. Normally not used. N Y Disabled

there is no VD input. Normally not used. Internal sync mode. The presence of VD is ignored, and after a

speciﬁed time after a trigger input, V reset is applied.

HD is synchronized to external. The presence of VD is ignored,

and after a speciﬁed time after a trigger input, V reset is applied.

due to VD input.

N Video is not output because there is no VD input. Normally not

used.

External sync frequency range( 2 )

(External sync with HD, VD) Within ±1% (at horizontal sync frequency of 23.229 kHz)

Using the unit with external sync signal( 3 )

When adjusting H (horizontal) phase refer to the item “7.2 (6) (6.1) Adjusting horizontal phase”.

H (horizontal) phase adjustment(3. 1)

Observe the external sync signal and the LVAL signal output waveform of the unit with a dual trace oscilloscope, and adjust H phase so that the H phases match.

Sync. signal

LVAL signal output

Page 35

INPUT OUTPUT SIGNAL SPECIFICATIONS8.

(1)HDInputSpecications (2)VDInputSpecications

2.0µs 5.0µs

( 3 ) Trigger Pulse Speciﬁcations

5H 21H

More than 2 µs

(4)ExternalHD/VDInputPhaseSpecications

The phase relationship of the external HD and VD should correspond to the center phase (i.e., the external HD falling edge) as illustrated in the above diagram.

ExternalVDfallingedge:

Please input within about 100 clock cycles of the standard center phase.

Note that V sync of the video is output with a delay of about 2H from the external VD at the time of reset-restart

and the external trigger mode.

In the normal mode:

Continuously with the HD period of 43.05 μs and VD period of 34.27 ms (partial scanning 40fps: 24.97 ms, 42fps:

23.81 ms, 50fps: 20.02 ms, 60fps: 16.66 ms, 70fps: 14.29ms, 80fps: 12.49 ms, 90fps: 11.11 ms). Phase timing is as illustrated in the above diagram (with only the falling edge applicable).

In the reset-restart/external trigger mode:

Continuously with the HD period of 43.05 μs. VD (reset) is at an arbitrary timing with the phase of HD being within

the standard of the above diagram.

(Positive polarity mode)

(Negative polarity mode)

External VD falling edge

External HD

100 100

Center

Unit : Clock 1 clk=33.9ns

Page 36

CCDOUTPUTWAVEFORMTIMINGCHART9.

(29.5 MHz)

LVAL, DVAL

CCD output signal

One horizontal scan interval 1270 clk

RGB data

Pixel Clock

(1)HorizontalOutputWaveformTimingChart

(43.05 µs)

(2)VerticalOutputWaveformTimingChart

FVAL

LVAL, DVAL

CCD output signal

246 clk

(8.34µs)

40 clk

164 clk

29 clk

3 clk

5 clk

Optical black

clk

Horizontal blanking interval 246 clk

portion

Horizontal transfer

stop interval

Dummy

pixels

Optical black

portion

(8.34 µs)

*1: Invalid data are output during a horizontal blanking interval.

796H

28H

(1205µs)

796

123456789

778

777

779

10111213141516

1 1 2 3 4 5 6 7

1718192021222324252627

123456789

33.9 ns

Total effective pixels 1034 clk

Output video interval 1024 clk

(34.71 µs)

clk=33.9 ns

796

123456789

1011121314151617181920

768H

778

777

779

1 1 2 3 4 5 6 7

Optical black

RGB data

portion

Dummy

Optical black

pixels

portion

Vertical blanking interval 28H

(1205µs)

Optical black

portion

Dummy

Optical black

pixels

portion

Vertical blanking interval 28H

(1205µs)

Page 37

BEFOREMAKINGASERVICECALL10.

Symptom Items to be checked

No image

Poor color

• Is the power supplied correctly?

• Is the lens iris adjusted correctly?

• Are the cables connected correctly?

• Is the shutter mode set correctly?

• Is the image process equipment set correctly?

• Is the monitor adjusted correctly?

• Is the white balance of the camera adjusted correctly?

• Is there enough illumination?

SPECIFICATIONS11.

Power supply DC 10V ~ DC 13.2V

Power consumption Approx. 3.1W (When the DC power supply is 12V)

Pick-up system RGB, 3CCD

Image sensor 1/3inch All pixels CCD

Scanning System Progressive scan

Video output pixels Horizontal pixels : 1024, Vertical : 768

Pixel clock frequency 29.5MHz

Sync signal frequency Horizontal : 23.229kHz, Vertical : 29.18Hz

Sync system Internal/External (Automatic switching)

Sensitivity F6.8 standard (2000 lx, 3000K)

Minimum illumination 14 lx (F2.2, Sensitivity + 18 dB, 3000K)

Lens mount C mount (ﬂange back : 17.526 mm in-air)

Ambient temperature 0 to 40°C (32 to 104°F)

Ambient humidity Less than 90%

Weight Approx. 158g (0.338lbs)

External dimension 44 (W) x 44 (H) x 78 (D) mm

White balance AWB (Automatic white balance), MANUAL (Manual)

Gain MANUAL (Manual), OFF (0 dB)

Partial scanning 40fps, 42fps, 50fps, 60fps, 70fps, 80fps, 90fps

Output signal 8-bit RGB, Digital output (Camera Link format)

Sync signal output FVAL, LVAL, DVAL (Positive polarity)

External sync input HD : CC3 (LVDS input) Negative polarity

External trigger input CC1 (LVDS input), More than 2 μs pulse width

Partial scanning control signal input

Interface Serial data interface : Ser TC (RXD), Ser TFG (TXD)

The designs and speciﬁcations are subject to change without notice. If any change occurs, we will revise the manual, etc.

(Effective pixels Horizontal : 1034, Vertical : 779)

(1.73” (W) x 1.73” (H) x 3.07” (D)) (except for protruded portion)

Pixel Clock

VD : CC4 (LVDS input) Negative polarity

CC2 (LVDS input)

Page 38

EXTERNAL APPEARANCE DIAGRAM12.

Unit : mm [inch]

∗ inch=mm/25.4

[0.20]

[1.02]

2-M3 Depth 3

[1.73]

[0.20]

[0.87]

[1.02]

[0.98]

[3.07]

[2.20]

[0.98]

4-M2 Depth 3

6.3

[0.25]

4-M3 Depth 3

[1.02]

[1.34]

19.2

[0.76]

[0.47]

8.2

2-M2

[0.32]

Page 39

Page 40

The Imaging Systems Division of Toshiba America Information Systems, Inc. ("ISD") makes the following limited warranty

Limited Warranty – TOSHIBA CCD Camera

with regard to this CCD Camera ("Product"). These limited warranties apply to the Original End-User ("You").

One (1) Year Limited Warranty of Labor and Parts ISD warrants that this Product will perform in accordance with specifications for a period of one (1) year from the date of purchase by the Original End-User. During this one (1) year period, ISD will repair or replace the Product, if it does not perform as warranted. In order to take advantage of this Limited Warranty, You must: (a) deliver the Product to an ISD Authorized Service Provider ("ASP"); and (b) pay all transportation and insurance charges for shipment of the Product to the ASP. ISD reserves the right to substitute factory refurbished parts in place of those in need of repair.

Instruction Manual (Owner’s Manual):

You should read the Instruction Manual (Owner’s Manual) thoroughly before operating this Product. Before seeking warranty service, you should check the troubleshooting guide in the Instruction Manual (Owner’s Manual) and follow the instructions to correct the problem.

Your Responsibilities

This Limited

1. You must provide the bill of sale or proof of purchase at the time that warranty service is required.

2. You must notify an ASP within thirty (30) days after You discover that the Product does not perform in accordance with

3. All warranty servicing of this product must be made by an ISD Authorized Service Provider.

4. You must pack the Product in its original carton using the original packing material, then insert the original carton

DISCLAIMERS: ALL OTHER EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE

REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCT. IN NO EVENT WILL ISD OR ITS PARENT COMPANY OR ANY ASP BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES IN EXCESS OF THE

PURCHASE PRICE OF THE PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND, INCLUDING ANY DIRECT OR CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH OF CONTRACT, TORT OR OTHERWISE, OR WHETHER ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF ISD, ITS PARENT COMPANY, OR

AN ASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES

FOR SOME PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY SHALL BE VOID IF THE PRODUCT OR PARTS HAVE BEEN SUBJECTED TO MISUSE,

ABUSE, ACCIDENT, IMPROPER INSTALLATION, IMPROPER MAINTENANCE, OR USE IN VIOLATION OF ISD’S

WRITTEN INSTRUCTIONS, OR WHERE THE PRODUCT HAS BEEN ALTERED OR MODIFIED WITHOUT ISD’S PRIOR

AUTHORIZATION, OR UPON THE REMOVAL OR ALTERATION OF ISD’S FACTORY SERIAL NUMBER. LABOR

SER

COVERED BY THIS LIMITED WARRANTY.

How to Obtain Warranty Service – Step-By-Step Procedures:

To obtain warranty service, You should:

1. Contact an ASP for warranty service within thirty (30) days after the Product fails to comply with specifications.

2. Arrange for shipment of the Product to an ASP.

3. Securely pack the Product as described above, insure the carton, and include a letter explaining the problem and a copy

4. Prepay all transportation and insurance costs.

No person, agent, distributor, dealer, authorized service provider, or company is authorized to change, modify, or extend the terms of this Limited Warranty in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of ISD arising under this Limited Warranty or under any statute, or law of the United States or any state thereof, is hereby limited to one (1) year from the date You discover or should have discovered the problem. This limitation does not apply to implied warranties arising under state law. Some states do not permit limitation of the time within which You may bring an action beyond the limits provided by state law, so the above provision may not apply to You. This Limited Warranty gives You specific legal rights and You may also have other rights which vary from state to state.

TOSHIBA AMERICA INFORMATION SYSTEMS, INC.

Imaging Systems Division 9740 Irvine Boulevard, Irvine, CA 92618-1697

Warranty is subject to the following conditions:

specifications during the Limited Warranty period.

containing the Product into another carton with additional packing material before shipping the Product to an ASP.

OR INDIRECT DAMAGES, LOST PROFITS, LOST SAVINGS OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY

VICE CHARGES FOR PRODUCT INSTALLATION, SET UP AND ADJUSTMENT OF CONTROLS ARE NOT

of the bill of sale or proof of purchase.

Questions? If you have any questions, please check ISD’s Web Site for support and a current e-mail contact to where you can send e-mails:

Web Site: http://www.toshibacameras.com//

Toshiba IK-TF7P2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
