CMOS COLOR CAMERA
INSTRUCTION MANUAL
IK-HR1D
For Customer Use
Enter below the Serial #
which is located on the
bottom of the cabinet. Retain
this information for future reference.
Model # IK-HR1D
Serial #
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided if
you make changes or modifications not expressly approved by the party responsible for compliance to
Part 15 of the FCC Rules.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est comforme à la norme NMB-003 du Canada.
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about the takeback and recycling of this product, please contact your supplier where you purchased the
product or consult.
This manual is made from recycled paper.
SAFETY PRECAUTIONS
Safety icons
This manual contains safety instructions that must be observed in order to avoid potential
hazards that could result in personal injuries, damage to your equipment, or loss of data.
These safety cautions have been classified according to the seriousness of the risk, and the
icons highlight these instructions as follows:
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
Stop operation immediately if any abnormality or defect occurs.
Use during an abnormal condition; such as emitting smoke, burning odors, damage
from dropping, invasion of foreign objects, etc. may result in fire and/or electrical
shock. Immediately disconnect the power source and contact your dealer.
Avoid installing in a shower room or a bathroom.
This may result in fire and/or electrical shock.
Do not operate in places where the product may get wet.
This may result in fire and/or electrical shock.
Do not repair, disassemble and/or modify by yourself.
This may result in fire and/or electrical shock. Always be sure to contact your
dealer for internal repair, check and cleaning of the product.
Use the specified power supply.
Otherwise, fire or electrical shock may occur.
Do not place anything on top of the unit.
Foreign materials, such as metals or liquids, getting into the product may result
in fire and/or electrical shock.
Do not put the product on an unstable, slanted or vibrating surface.
The product dropping or falling may result in serious injury.
Do not touch the product or any connection cables during a thunderstorm.
This may result in electrical shock.
2
Note the following instructions when installing.
• Do not cover the product with any material.
• Do not place the product on any inflammable material such as a carpet or
blanket.
• Do not place the product in a confined space, as this may cause heat to
build up inside the product.
Failure to follow the above cautions may result in fire.
Do not place the product in direct sunshine and/or high temperature.
Temperature build up inside the product may result in fire.
Avoid placing in humid, smoky, or dusty places.
This may result in fire and/or electrical shock.
Do not point the lens directly at the sun and/or intensive light such as di-
rect sunlight, etc.
Focusing of the light may result in eye injury and/or fire.
Ask your dealer to perform a periodical check and internal cleaning (approx.
once every five years).
Dust inside the product may result in fire. For check and cleaning cost, please
consult your dealer.
Disclaimer
We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the
user in any of the following cases:
1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions.
2. Malfunction or non-function resulting in indirect, additional or consequential damages, including
but not limited to loss of expected income and suspension of business activities.
3. Incorrect use not in compliance with instructions in this instruction manual.
4. Malfunctions resulting from misconnection to other equipment.
5. Repairs or modifications made by the user or caused to be made by the user and carried out by
an unauthorized third party.
6. Notwithstanding the foregoing, Toshiba’s liabilities shall not, in any circumstances, exceed the
purchase price of the product.
Copyright and Right of Portrait
There may be a conflict with the Copyright Law and other laws when a customer uses, displays,
distributes, or exhibits an image picked up by the camera without permission from the copyright
holder. Please also note that transfer of an image or file covered by copyright is restricted to use
within the scope permitted by the Copyright Law.
Protection of Personal Information
Images taken by the camera that reveal the likeness of an individual person may be considered
personal information. To disclose, exhibit or transmit those images over the internet or otherwise,
consent of the person may be required.
3
Limitation of Usage
The product is not designed for any “critical applications.” “Critical applications” means life support
systems, exhaust or smoke extraction applications, medical applications, commercial aviation, mass
transit applications, military applications, homeland security applications, nuclear facilities or systems
or any other applications where product failure could lead to injury to persons or loss of life or
catastrophic property damage. Accordingly, [Toshiba/TAIS] disclaims any and all liability arising out of
the use of the product in any critical applications.
TABLE OF CONTENTS
1 CAUTIONS ON USE AND INSTALLATION ............................................
2 COMPONENTS .......................................................................................
3
NAMES AND FUNCTIONS......................................................................
CONNECTION........................................................................................
4
4.1 Standard Connection ..................................................................................................
4.2 Cautions on Connection..............................................................................................
4.3 Connection on Rear Panel..........................................................................................
4.3A Connector Pin Assignments .....................................................................................
5
OPERATION............................................................................................
5.1 White Balance ..............................................................................................................
5.2 Gain .............................................................................................................................
5.3 Switching I/P mode ......................................................................................................
6
ITEMS CONTROLLED BY THE ON SCREEN DISPLAY........................
7 MODE SETTING BY THE ON SCREEN DISPLAY ................................

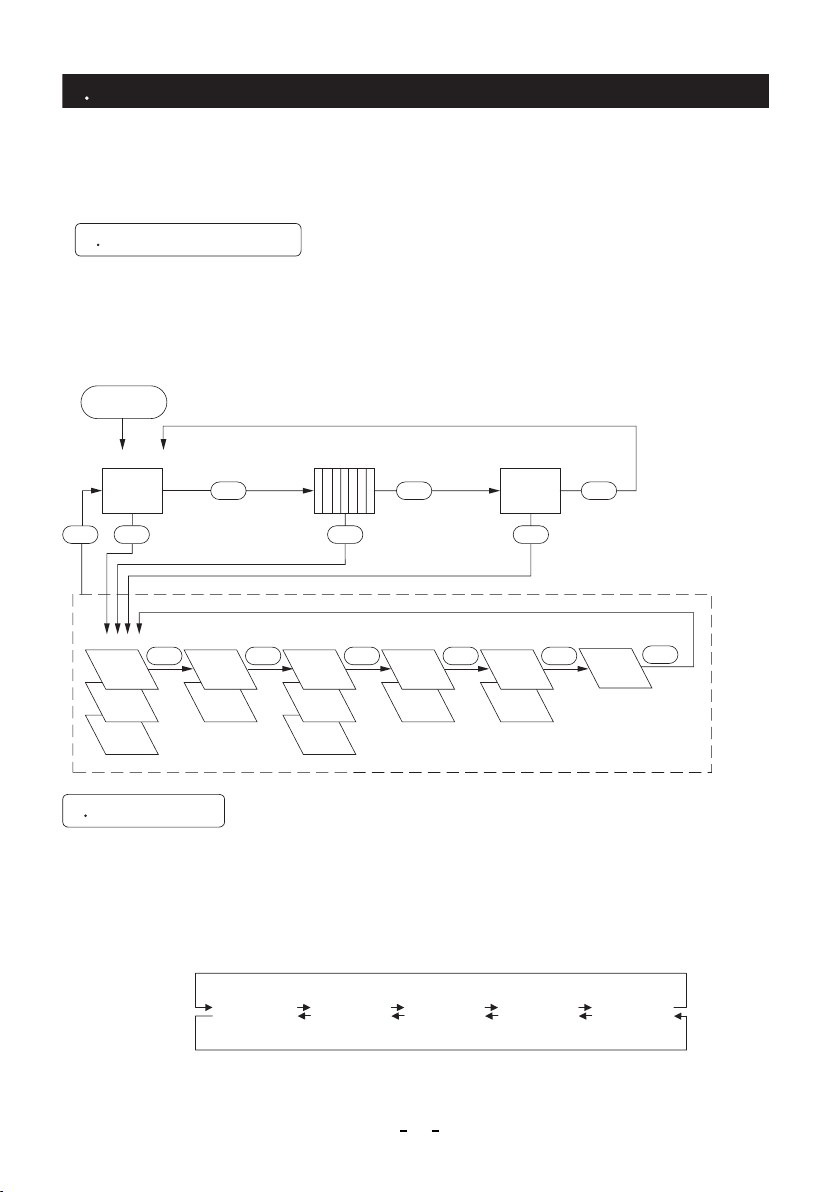

7.1 Using the Menus.........................................................................................................
7.2 Scene File ................................................................................................................... 14
7.3 Menus .........................................................................................................................
(1) SHUTTER (Electronic shutter) ....................................................................................
(1.1) Changing the setting in AUTO mode ...................................................................
(1.2) Changing the setting in MANUAL mode ..............................................................
(1.3) Changing the setting in SS (Synchro Scan) mode ..............................................
(2) GAIN (Video gain) .......................................................................................................
(2.1) Changing gain in MANUAL mode........................................................................
(3) W HT BAL (White Balance) ..........................................................................................
(3.1) Changing the setting in AWB (Automatic W hite Balance) mode ........................
(3.2) Changing the setting in ATW (Automatic Tracking White balance) mode .........
(3.3) Changing gain in MANUAL mode .......................................................................
(4) PROCESS ...................................................................................................................
(4.1) Changing gamma correction ON/OFF ................................................................
(4.2) Changing gamma correction level .......................................................................
(4.3) Changing detail (outline) gain..............................................................................
(4.4) Changing DTL B. FRQ (detail boost frequency)...............................................
(4.5) Changing master pedestal ..................................................................................
(5) MATRIX(Matrix color correction).................................................................................
(5.1) Changing Matrix color correction ON/OFF ..........................................................
(5.2) Changing MATRIX setting ...................................................................................
10
10
13
14
15
15
17
18
18
21
23
24
6
6
7
8
8
8
9
9
12
12
14
15
17
18
18
20
22
22
22
23
23
24
24
4
(6) OPTION.......................................................................................................................
(6.1) Changing a type of output monitors .................................................................... 25 25
(6.2) Changing I/P MODE ...........................................................................................
(6.3) Changing RS 232C baud rate ............................................................................
(7) Returning to factory settings .......................................................................................
8 BEFORE MAKING SERVICE CALL........................................................
9 SPECIFICATIONS..................................................................................
10 EXTERNAL APPEARANCE DIAGRAM................................................
25
25
25
26
26
27
5
1. CAUTIONS ON USE AND INSTALLATION
Handling the unit.
•
Do not drop, jolt, or vibrate, as this may result in
damage to the unit. This may cause problems.
Treat the camera cables carefully to prevent
cable problems, such as breaks in the cable and
loose connections.
Install the camera in a location free from noise.
•
If the camera or the cables are located near power
utility lines or a TV, etc. undesirable noise may appear on the screen. In such a case, try to change
the location of the camera or the cable wiring.
Operating ambient temperature and humidity.
•
Do not use the camera in places where temperature and humidity exceed the specifications. Picture quality will deteriolate and internal parts may
be damaged.
Be particularly careful when using in places exposed to direct sunlight. When shooting in hot
places, depending on the conditions of the object
and the camera (for example when the gain is increased), noise in the form of vertical strips or
white dots may occur.
This is not a malfunction.
When not using the camera for extended
•
periods of time.
Switch the control unit off and disconnect the
power supply.
Avoid using or storing the camera in the fol-
•
lowing places:
Places filled with highly flammable gas.
Places near gasoline, benzene, or paint thinner.
Places subject to strong vibration.
Places containing chemicals (such as pesticides),
rubber or vinyl products for extended periods of
time.
Do not shoot intense light.
•
When intense light enters, vertical stripes or
transverse band may appear on the screen. This
is not a malfunction. Ghosts may occur when
there is an intense light near the object. In this
case, change the shooting angle.
Moire
•
A moire pattern is an interference pattern
generated when two repetitive line patterns
overlap. This is not a malfunction. Eliminating the
repetitive line patterns, or aligning the two
patterns, will eliminate the moire.
Handling of the protection cap.
•
Keep the protection cap away from children as
they may pose a choking hazard. The protection
cap protects the image sensing plane when the
lens is removed from the camera head, do not
discard.
When cleaning the camera.
•
Unplug the power source before cleaning. Clean
with a soft dry cloth only. Do not use any chemicals
or chemically treated cloths. Chemicals may
damage coatings, printing or the paint work.
When cleaning the lens, use lens cleaning paper.
Installation without a tripod.
•
Before installing the camera, make sure that the
location can withstand the total weight of the
camera.
If this is not the case, reinforce the area to
prevent the unit from dropping, which may result
in damage to the unit or personal injury.
This camera is for indoor use only.
•
2. COMPONENTS
1 Camera ................................................................................................................... 1
2 Accessories
a Instruction manual ........................................................................................1
6
3. NAMES AND FUNCTIONS
11
[ Bottom ]
Prism faceplate
㽲
㽳
DC IN 12V terminal
㽴
REMOTE terminal
㽵
DISP button
PAGE button
㽶
㽷
MENU UP button
MENU DOWN button
㽸
㽹
DATA UP (AWB) button
DATA DOWN button
㽺
㽻
DVI-I terminal
㽼
Mounting holes M3
Mounting holes M2
㽽
Prism faceplate
1
REMOTE terminal
3
2
DC IN 12V terminal
4
DISP button
6
MENU UP button
8
DATA UP (AWB) button
9
DATA DOWN button
7
MENU DOWN button
PAGE button
5
10
DVI-I terminal
[ Rear ][ Front ]
12
The protection cap is attached on the lens mount portion. After removing the cap,
mount the lens. Be careful not to scratch or touch the optical area.
Accepts a DC power input (12V).
To connect to a RS-232C device for remote control function.
Used when switching the display.
Used when switching to the menu and when selecting the menus.
Select the function to be confirmed or changed on the menu.
Select the function to be confirmed or changed on the menu.
Changes the value of the function selected by the MENU (UP/DOWN) button. (Also
used when using AWB.)
Changes the value of the function selected by the MENU (UP/DOWN) button.
Outputs DVI-I to connect to a DVI monitor.
Used to attach the camera to a mount. When using a tripod, attach the mounting
bracket: JK-KTF1 (option) to these holes.
Used to attach the camera to a mount.
7
4 CONNECTION
4 1 Standard Connection
DVI monitor
Lens (option)
IK-HR1D
Less than 11 mm [0.433”]
DVI terminal
DC power supply
(option)
DVI cable
(not supplied)
DC IN 12V
4 2 Cautions on Connection
䊶 When connecting the camera cables, be sure to turn off the CMOS color camera and
any other equipment connected to it.
䊶 For DC power supply connecting to DC IN 12V terminal, use UL listed and/or CSA
approved ungrounded type AC adaptor with the specifications described below.
䋺
Power supply voltage
Current rating
Ripple voltage
Connector
We suggest using a C mount lens accepted mega pixel. When using other lenses,
䊶
the best camera performance of this camera may not be obtained.
(For example, low resolution may occur, focus may be lost through the range of
a zoom lens, and flare, ghost may occur.)
Furthermore, in order to avoid damaging the mounting portion of the camera head,
use a lens which has projection dimension from the mounting base of less than
0.433" (11mm.)
12V DC㫧10%
䋺
More than 830mA
䋺 Less than 50mV (p-p
䋺 HR10A-7P-4S by HIROSE electronics Co. Ltd
Pins 1, 2 䋺 12V
Pins 3, 4 䋺 GND
(The maximum voltage must not exceed 16V DC.)
)
(not supplied)
* This camera outputs 1080p and 1080i for the video signal. The output mode is
not controlled automatically for the monitor resolution. Please control the
monitor resolution, and switch the mode to "1080p" or "1080i."
If this camera in the output mode does not accept a monitor, the monitor will not
display anything. Refer to the item "5.3 Switching I/P mode" for the operation.
* DVI standard
DVI (Digital Visual Interface) is an interface standard for connecting flat panel
displays (such as liquid crystal display).
DVI connector has three types : DVI-I (digital and analog), DVI-D (digital only),
and DVI-A (analog only) in accordance with a mounting signal conductor.
Please use a DVI cable (not supplied) for an input terminal to connect this
camera.
8
4 3 Connection on Rear Panel
Rear panel view
1
㪩㪜㪤㪦㪫㪜
23
1
2
3
1
9
17
4. 3A Connector Pin Assignments
4
2
3
4
5
6
7
8
C2
10
11
12
18
19
20
C1
13
14
15
16
C3
21
C4
22
23
24
C5
DC IN 12V terminal
1 +12V
2 +12V
3 GND
4 GND
REMOTE terminal
TXD
1
RXD
2
3
GND
DVI-I terminal
Data2-
1
Data2+
2
3
Data2 Shield (GND)
4
NC
5
NC
6
NC
7NC
8 Analog Vertical Sync
1 Analog Red
C
4
Analog Horizontal Sync
C
Data1-
9
Data1+
10
11
Data1 Shield (GND)
12
NC
13
NC
14
+5V
15 GND
16 Hot Plug Detect
C2 Analog Green
5 Analog GND
C
Data0-
17
Data0+
18
19
Data0 Shield (GND)
20
NC
NC
21
22
Clock Shield (GND)
23 Clock+
24 ClockC
3 Analog Blue
* For connecting to the REMOTE terminal, use a shielded cable. Connect a cable correctly,
or it may be damaged.
9
5 OPERATION
㽲 Refer to the item "4. CONNECTION", and connect the equipment correctly.
㽳 Turn on the connected equipment and the camera.
Aim the lens at the object, adjust the lens iris adjustment, focus adjustment, etc.
㽴
㽵 Refer to the item “5.1 White Balance”, make the adjustment.
Refer to the items “5.2 Gain”, “5.3 Switching I/P mode”, “7. MODE SETTING BY THE ON SCREEN
㽶
DISPLAY”, select the necessary items.
5 1 White Balance
For white balance adjustment of this unit, ATW (Automatic Tracking White balance), AWB (Automatic
White Balance) and MANUAL (Manual white balance) adjustments are provided. Refer to the item “7.3 (3)
WHT BAL (White Balance)”, select the desired mode.
ATW
Automatic Tracking
䋨䋨䋨䋨䋨
White Balance䋩䋩䋩䋩
Outline
Features
Notes
(1) AWB(Automatic White Balance)
Set the MODE to AWB on the WHT BAL menu.
㽲
Perform the C.TEMP (color temperature conversion) setting, if necessary.
(Refer to the item “7.3 (3) WHT BAL (W hite Balance)”.)
3200K䋺Appropriate for indoor shooting.
5600K䋺Appropriate for outdoor shooting.
If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP]
㽳
button to disable the color bar pattern or the character display on the menu.
㽴
Shoot a known white object entirely in the area set by the AW B menu (refer to the item “7.3 (3) (3.1) (d)
Confirming the contents of the zone area selected by AWB” ) and press [DATA UP] button for approx. 1 second.
The character AWB blinks on the screen when the AWB starts.
㽵
The character AWB stops blinking when the AW B finishes, and the result is displayed for approx. 1 second.
㽶
The camera measures the
object color temperature and
adjusts the white balance
automatically.
Tracks variations of color
temperature and adjusts white
balance automatically.
If illumination is low, white
balance may not be corrected.
䋨Automatic White Balance䋩䋩䋩䋩
䋨䋨
Adjust white balance by
displaying the white object
inside the area set by AWB
menu and pressing the
[DATA UP] button.
Measurement accuracy is
higher than ATW. This
mode is effective when
shooting under less variations of color temperature.
AWB
MANUAL
䋨䋨䋨䋨Manual White Balance䋩䋩䋩䋩
Adjust the white balance
manually using the WHT
BAL menu while shooting
the white object.
Artificial white balance setting.
The manual adjustment is
most effective under shooting
conditions with no color
temperature variation.
Adjustment is performed by
confirming with a monitor.
10
MeaningDisplay
AWB OK
AWB NG
LEVEL LOW
AWB NG
LEVEL HIGH
AWB NG
C. TEMP LOW
AWB NG
C. TEMP HIGH
AWB NG
(2) MANUAL(Manual white balance)
Set the MODE to MANUAL on the W HT BAL menu.
㽲
(Refer to the item “7.3 (3) WHT BAL (White Balance)”.)
Shoot a known white object, set the white balance by adjusting the levels of R GAIN and B GAIN on the
㽳
menu, confirming with a monitor or a vector scope.
(Refer to the item “7.3 (3) (3.3) Changing gain in MANUAL mode”.)
Automatic white balance adjustment finished correctly.
Automatic white balance adjustment cannot be performed because the video level is
too low.
Adjust the video level by increasing the illumination or opening the lens iris.
Automatic white balance adjustment cannot be performed because the video level is
too high.
Adjust the video level by decreasing the illumination or closing the lens iris.
Automatic white balance adjustment cannot be performed because the color
temperature is too low.
If the C.TEMP is set to 5600K, set to 3200K.
If the message appears with the C.TEMP set to 3200K, change the illumination or
use a color temperature conversion filter.
Automatic white balance adjustment cannot be performed because the color
temperature is too high.
If the C.TEMP is set to 3200K, set to 5600K.
If the message appears with the C.TEMP set to 5600K, change the illumination or
use the color temperature conversion filter.
Automatic white balance adjustment cannot be performed for other reasons. Such as
no white area is included in an object, etc.
11
52 Gain
When the image is dark even if the lens iris is open, change the gain (video gain) to get the desired video level.
For gain adjustment of the unit, MANUAL (Manual), OFF (0 dB) modes are provided. Select the mode on
the GAIN menu. (Refer to the item “7.3 (2) GAIN (Video gain)”.)
(1) MANUAL(Manual gain)
Gain adjustment is performed on the GAIN menu. The adjustm ent range is from 0 to 12dB in 1dB steps.
(Refer to the item “7.3 (2) (2.1) Changing gain in MANUAL mode”.)
(2) OFF
Gain is fixed at 0 dB.
Note:
White, red, green, or blue dots may occur when the gain is increased. This is not a malfunction, just
certain characteristics of the CMOS sensor becoming more visible.
5 3 Switching I/P mode
1080 progressive and 1080 interlace for the video output mode can be selected.
By turning on power while [DATA UP], [DATA DOWN] button is pressed, the output mode is switched.
When switching the video output to "1080p", turn on power while [DATA UP] button is pressed.
Output mode becomes 1080 progressive mode. "1080p" is displayed on the screen.
When switching the video output to "1080i", turn on power while [DATA DOWN] button is pressed.
Output mode becomes 1080 interlace mode. "1080i" is displayed on the screen.
12
6 ITEMS CONTROLLED BY THE ON SCREEN DISPLAY
Available selectionsItem
Electronic shutter Gain
AUTO level
AUTO peak : average
AUTO response speed
AUTO area PRESET A, PRESET B, PRESET C,
MANUAL speed OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s
Syncro. scan
White balance Process Option
AWB R PAINT
AWB B PAINT
AWB area PRESET A, PRESET B, PRESET C,
ATW R PAINT
ATW B PAINT
MANUAL R GAIN
MANUAL B GAIN
Gamma correction level 0
Detail gain
Detail boost frequency
Master pedestal
R hue
R gain
Matrix color correction
G hue
G gain
B hue
B gain
Ye hue
Ye gain
Cy hue
Cy gain
Mg hue
Mg gain
Monitor
I/P mode
-100 0 100
00 10 05 05 10 5000 05
1 10 20
PRESET D, PRESET E
1/2000s, 1/4000s, 1/8000s, 1/16000s, 1/32000s
2/1125H 1123/1125H
MANUAL, OFFMODE
-10 0 10
-10 0 10
PRESET D, PRESET E
-10 0 10
-10 0 10
-100 0 100
-100 0 100
-10 0 10
-7 7 0
HIGH, NORMAL, LOW
-128 0 127
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
-15 0 15
PC, TV
1080p, 1080i
Preset value
(Factory setting)
MANUALAUTO, MANUAL, SSMODE
0
10
PRESET A
OFF
1123/1125H
OFF
0dB0dB 12dBMANUAL gain
AWBAWB, ATW, MANUALMODE
3200K3200K, 5600KColor temperature
0
0
PRESET A
0
0
0
0
ONFFO,NOGamma correction
0
HIGH
0
ONON, OFFColor correction ON/OFF
0
0
0
0
0
0
0
0
0
0
0
0
PC
1080p
9600bps9600bps, 19200bpsRS232C baud rate
13
7 MODE SETTING BY THE ON SCREEN DISPLAY
Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The
contents once set are memorized in the scene files (A, B, C, D, E) selected, so if the power turns off, it is
unnecessary to set the values again when using the unit next time. When the setting is performed, select
the menu of the item to be set.
7 1 Using the Menus
When the unit is powered on, the normal screen showing only the video signal appears. Change the
output to each screen (video signal output, color bar screen, index menu, and menus) by using the
[DISP], [PAGE], [MENU UP], [MENU DOWN], [DATA UP], and [DATA DOWN] buttons.
* A menu is selected when pushing the [PAGE] button after moving the “㸢” on the screen by the [MENU
UP], [MENU DOWN] button while the Index menu is displayed.
POWER ON
Video signal output
DISP
PAG E
DISP
1.SHUTTER 2.GAIN 3.WHT BAL 4.PROCESS 5.MATRIX 6.OPTION
AUTO
MANUAL
SS
PAG E
MANUAL
OFF
Menus
PAG E
Color bar screen
DISP DISP
PAGE PAGE
PAG E PAGE PAGE
GAMMA
ON
GAMMA
OFF
MANUAL
Index menu
NOAWB
OFFATW
PAGE
7 2 Scene File
Five scene files (A, B, C, D, E) are available as user memories for this unit. These are chosen depending
on shooting conditions. By pressing [DATA UP], [DATA DOWN] buttons while [DISP] button is pressed
and the index menu is displayed, the camera operation is changed immediately from the currently
selected scene file to the next. on shooting conditions. By pressing [DATA UP], [DATA DOWN] buttons
while the Index menu is displayed, the camera operation is changed immediately from the currently
selected scene file to the next.
䌛DATA UP䌝
FILE A ޓޓFILE B ޓޓFILE C ޓޓFILE D ޓޓFILE E
䌛DATA DOWN䌝
Note:
Scene file does not contain the data of set "OPTION."
(Refer to the item "7.3 Menus" (6) "OPTION" for the "OPTION" setting.)
14
䋩
7 3 Menus
䊶 Select the menu to change the setting by referring to the item “7.1 Using the Menus”.
䊶 When the [MENU UP], [MENU DOWN] buttons are pressed, the “㸢” on the screen moves up and down.
Move the “㸢” to the item whose setting you wish to change.
1 SHUTTER䋨䋨Electronic shutter
The electronic shutter has three modes; AUTO, MANUAL, SS(Synchro Scan).
Press the “Page” button to enter the Shutter Page. Use the “Data Up/Down” buttons to select the Shutter
Mode.
AUTO 䋺 The exposure time is controlled automatically to obtain the video level set.
MANUAL 䋺 It is possible to select the exposure time from eleven speed settings; OFF (1/60s), 1/100s,
1/125s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/4000s, 1/8000s, 1/16000s, 1/32000s.
SS 䋺 Shutter speed can be set by the horizontal scanning time (1H) unit.
Note:
When setting a rapid shutter speed, sensitivity degrades according to the speed.
When an object is moving rapidly, the monitor may display the image distorted and/or
When the shutter speed setting is high, the hue may change depending on shooting
䋨䋨䋨䋨1䋮䋮䋮䋮1䋩䋩䋩䋩 Changing the setting in AUTO mode
Move up and down
by pressing
MENU UP,DOWN
AUTO ޓޓMANUAL ޓޓSS
䌛DATA UP䌝
䌛DATA DOWN䌝
When a discharging light such as fluorescent lamp, etc. is used for the illumination,
the flicker may be large.
blurred. This is not a malfunction, just certain character of the rolling shutter system.
conditions or objects.
Select the desired
value by pressing
DATA UP,DOWN
Shutter mode AUTO, MANUAL, SS
-- 1 SHUTTER -- <FILE A>
MODE
LEVEL
PEAK AVE 05
SPEED
AREA
< MODE = AUTO>
AUTO
0
05
10
PRESET A
Video level adjustment -100 to 100
Peak and average ratio adjustment 00 10 to 10 00
Automatic shutter response speed adjustment 1 to 20
Automatic shutter area selection
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E
(a) Changing the video level in the automatic shutter mode
㽲 Move the “㸢” to LEVEL by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the video level by pressing [DATA UP], [DATA DOWN] buttons.
The value increases by pressing [
DATA UP
]
-100 0 100
The value increases by pressing [
DATA DOWN
]
15
(b) Changing the automatic shutter detection (ratio between peak and average value)
㽲 Move the “㸢” to PEAK/AVE by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the ratio between peak and average value by presshing [DATA UP], [DATA DOWN] buttons.
(Peak:Average)
The peak value increases by pressing [
DATA UP
]
00:10 05:05 10:00
The peak value decreases by pressing [
DATA DOWN
]
(c) Changing the automatic shutter response speed
㽲 Move the “㸢” to SPEED by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the response speed by presshing [DATA UP], [DATA DOWN] buttons.
The response speed becomes faster by pressing [
DATA UP
]
1 10 20
The response speed becomes slower by pressing [
DATA DOWN
]
(d) Changing the automatic shutter zone area
㽲 Move the “㸢” to AREA by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the measurement light area by pressing [DATA UP], [DATA DOWN] buttons.
䌛DATA UP䌝
PRESET A PRESET B PRESET C PRESET D PRESET E
䌛DATA DOWN䌝
The available picture area is shown by the shading correction on the screen that is parted in 64.
PRESET A PRESET B PRESET D PRESET C
PRESET E
Note:
These picture areas are not displayed on the screen.
16
䋨䋨䋨䋨1䋮䋮䋮䋮2䋩䋩䋩䋩 Changing the setting in MANUAL mode
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
-- 1 SHUTTER -- <FILE A>
MODE MANUAL
MANUAL OFF
< MODE = MANUAL>
Shutter mode AUTO, MANUAL, SS
Shutter speed setting
OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s,
1/2000s, 1/4000s, 1/8000s, 1/16000s, 1/32000s
(a) Changing the shutter speed
㽲 Move the “㸢” to MANU by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the shutter speed by pressing [DATA UP], [DATA DOWN] buttons.
䌛DATA UP䌝
O F F 1/100s 1/125s 1/250s 1/500s 1/1000s 1/2000s 1/4000s 1/8000s 1/16000s 1/32000s
䌛DATA DOWN䌝
Note:
These figures of shutter speed are approximate. The accurate shutter speed is calculated using the
following mathematical formula.
Shutter speed (s) = 1/67433 (Hz) × n (n : 2 to 1123 (integral number))
䋨䋨䋨䋨1䋮䋮䋮䋮3䋩䋩䋩䋩 Changing the setting in SS (Synchro Scan) mode
Move up and down
by pressing
MENU UP,DOWN
-- 1 SHUTTER -- <FILE A>
MODE SS
SYNCHRO SCAN 1123/1125H
Select the desired
value by pressing
DATA UP,DOWN
Shutter mode AUTO, MANUAL, SS
Synchro scan setting
2/1125H 1123/1125H
< MODE = SS >
(a) Changing the shutter speed setting
㽲 Move the “㸢” to SYNCHRO SCAN by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the shutter speed by pressing [DATA UP], [DATA DOWN] buttons.
䌛DATA UP䌝
2/1125H ޓ1123/1125H
䌛DATA DOWN䌝
17
2 GAIN (Video gain)
GAIN has two modes; MANUAL, OFF.
Move the “ ” to MODE, press the [DATA UP], [DATA DOWN], and select one of the two modes :
MANUAL, OFF. In the OFF mode, gain is fixed to 0dB.
䋨䋨䋨䋨2䋮䋮䋮䋮1䋩䋩䋩䋩 Changing gain in MANUAL mode
㸢
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
-- 2 GAIN -- <FILE A>
MODE
MANUAL
MANUAL
0dB
Gain mode MANUAL, OFF
Manual gain setting
0dB to 12dB (1dB step)
㽲 Move the “㸢” to MANUAL by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of manual gain by pressing [DATA UP], [DATA DOWN] buttons.
䌛DATA UP䌝
0dB 12dB
䌛DATA DOWN䌝
䋨䋨䋨䋨3䋩䋩䋩䋩 WHT BAL(White Balance)
The WHT BAL has three modes; AWB, ATW , MANUAL.
Move the “ ” to MODE, press the [DATA UP], [DATA DOWN], and select one of the three modes :
AWB, ATW, MANUAL.
䋨䋨䋨䋨3䋮䋮䋮䋮1䋩䋩䋩䋩 Changing the setting in AWB(Automatic White Balance) mode
㸢
Move up and down
by pressing
MENU UP,DOWN
-- 3 WHT BAL -- <FILE A>
MODE
R PAINT
B PAINT
C TEMP
AREA
Select the desired
value by pressing
DATA UP,DOWN
AWB
0
0
3200K
PRESET A
White balance mode setting AWB, ATW, MANUAL
R PAINT adjustment -10 to 10
B PAINT adjustment -10 to 10
Color temperature setting 3200K, 5600K
AWB area
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E
18
(a) Changing R PAINT
㽲 Move the “㸢” to R PAINT by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of red paint by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
] ޓRed is increased.
-10 0 10
Red is decreased. ޓ [
DATA DOWN
]
(b) Changing B PAINT
㽲 Move the “㸢” to B PAINT by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of blue paint by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
] ޓBlue is increased.
-10 0 10
Blue is decreased. ޓ [
DATA DOWN
]
(c) Changing color temperature setting
㽲 Move the “㸢” to C.TEMP by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either 3200K or 5600K by pressing [DATA UP], [DATA DOWN] buttons.
(d) Confirming the contents of the zone area selected by AWB
㽲 Move the “㸢” to AREA DISP by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired area by pressing [DATA UP], [DATA DOWN] buttons.
The available picture area is shown by the shading correction on the screen that is parted in 64.
PRESET A PRESET B PRESET D PRESET C
PRESET E
Note:
These picture areas are not displayed on the screen.
19

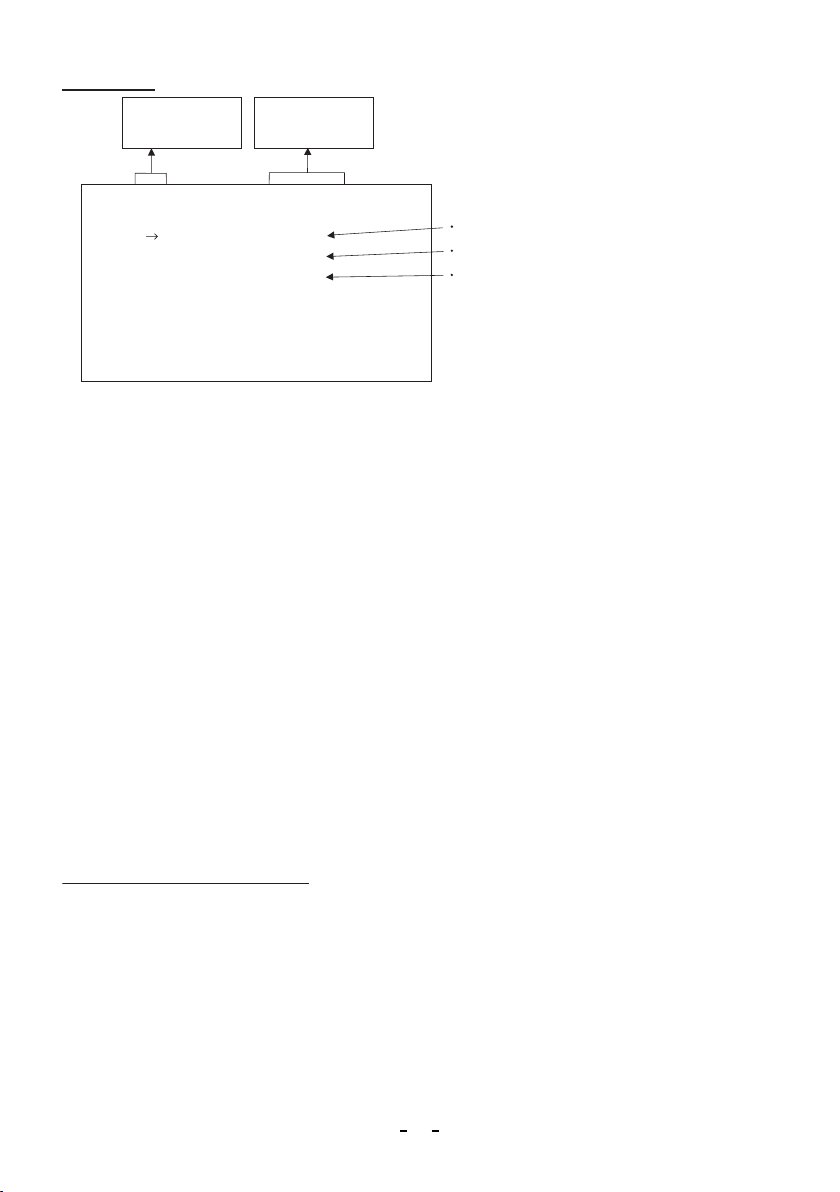

䋨䋨䋨䋨3䋮䋮䋮䋮2䋩䋩䋩䋩 Changing the setting in ATW(Automatic Tracking White balance) mode
Move up and down
by pressing
MENU UP,DOWN
-- 3 WHT BAL -- <FILE A>
MODE
R PAINT
B PAINT
Select the desired
value by pressing
DATA UP,DOWN
ATW
0
0
White balance mode AWB, ATW, MANUAL
R PAINT adjustment -10 to 10
B PAINT adjustment -10 to 10
(a) Changing R PAINT
㽲 Move the “㸢” to R PAINT by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of red paint by pressing [DATA UP], [DATA DOWN] buttons.
[
] ޓRed is increased.
DATA UP
-10 0 10
Red is decreased. ޓ [
DATA DOWN
]
(b) Changing B PAINT
㽲 Move the “㸢” to B PAINT by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of blue paint by pressing [DATA UP], [DATA DOWN] buttons.
-10 0 10
Blue is decreased. ޓ [
[
] ޓBlue is increased.
DATA UP
DATA DOWN
]
20
䋨䋨䋨䋨3䋮䋮䋮䋮3䋩䋩䋩䋩 Changing gain in MANUAL mode
Move up and down
by pressing
MENU UP,DOWN
Select the desired
value by pressing
DATA UP,DOWN
White balance mode AWB, ATW, MANUAL
-- 3 WHT BAL -- <FILE A>
MODE
R GAIN
B GAIN
C TEMP
MANUAL
0
0
3200k
Red gain adjustment -100 to 100
Blue gain adjustment -100 to 100
Color temperature setting 3200K, 5600K
(a) Changing the red gain
㽲 Move the “㸢” to R GAIN by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of red gain by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
] ޓRed is increased.
-100 0 100
Red is decreased. ޓ [
DATA DOWN
]
(b) Changing the blue gain
㽲 Move the “㸢” to B GAIN by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of blue gain by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
] ޓBlue is increased.
-100 0 100
Blue is decreased. ޓ [
DATA DOWN
]
(c) Changing color temperature setting
㽲 Move the “㸢” to C.TEMP by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either 3200K or 5600K by pressing [DATA UP], [DATA DOWN] buttons.
21

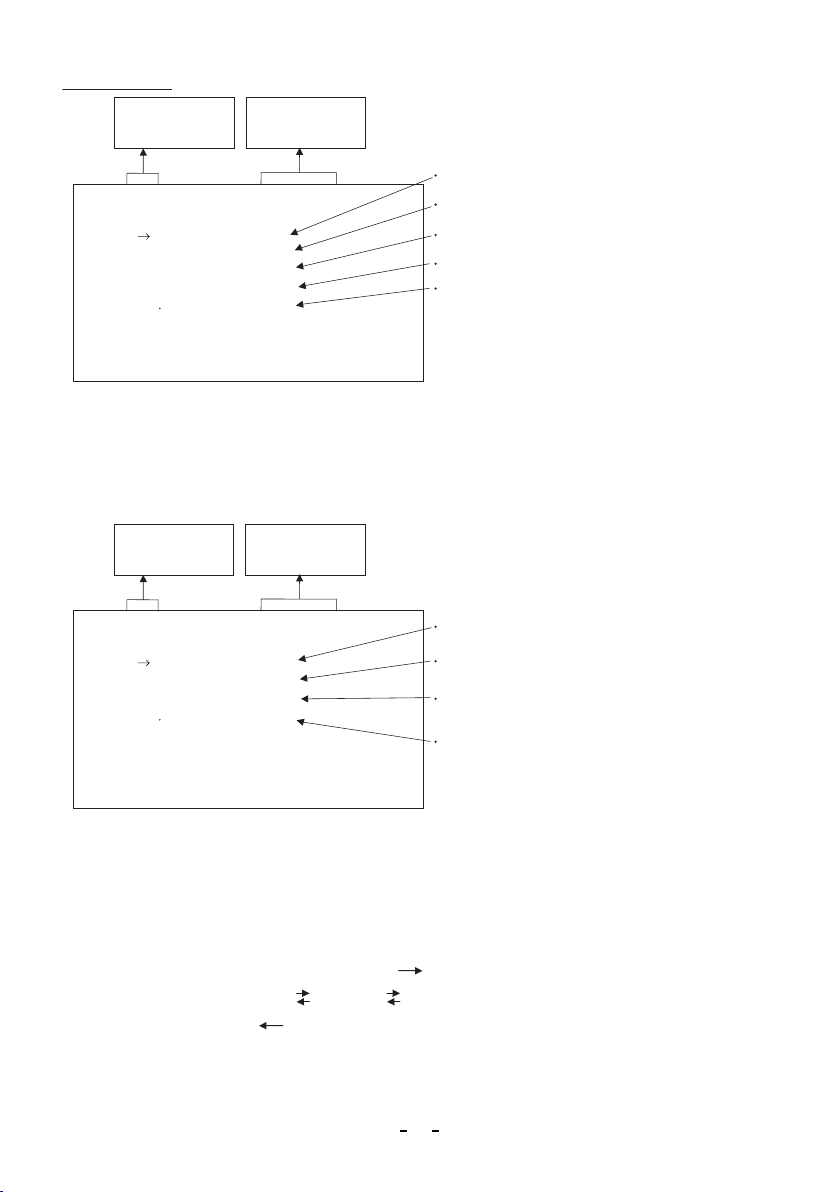

䋨䋨䋨䋨4䋩䋩䋩䋩 PROCESS
Move up and down
by pressing
MENU UP,DOWN
-- 4 PROCESS -- <FILE A>
GAMMA ON/OFF
GAMMA
DTL GAIN
DTL B.FRQ
M PED
䋨䋨䋨䋨4䋮䋮䋮䋮1䋩䋩䋩䋩 Changing gamma correction ON/OFF
㽲 Move the “㸢” to GAMMA ON/OFF by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either ON or OFF by pressing [DATA UP], [DATA DOW N] buttons.
Select the desired
value by pressing
DATA UP,DOWN
ON
0
0
HIGH
0
Gamma correction ON, OFF
Gamma correction level setting -10 to 10
Detail gain setting -7 to 7
Detail boost frequency HIGH, NORMAL, LOW
Master pedestal setting -128 to 127
Move up and down
by pressing
MENU UP,DOWN
-- 4 PROCESS -- <FILE A>
GAMMA ON/OFF
DTL GAIN
DTL B.FRQ
M PED
Menu when GAMMA OFF is selected.
Select the desired
value by pressing
DATA UP,DOWN
OFF
0
HIGH
0
Gamma correction ON, OFF
Detail gain setting -7 to 7
Detail boost frequency HIGH, NORMAL, LOW
Master pedestal setting -128 to 127
䋨䋨䋨䋨4䋮䋮䋮䋮2䋩䋩䋩䋩 Changing gamma correction level
㽲 Move the “㸢” to GAMMA by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of gamma correction level by pressing [DATA UP], [DATA DOW N] buttons.
[
DATA UP
Correction amount
]
becomes larger.
-10 0 10
Correction amount
becomes smaller.
[
DATA DOWN
]
* When OFF is selected in GAMMA ON/OFF selection line, the gamma correction level cannot
be changed.
22
䋨䋨䋨䋨4䋮䋮䋮䋮3䋩䋩䋩䋩 Changing detail (outline) gain
㽲 Move the “㸢” to DTL GAIN by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of the detail gain by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
] ޓThe detail increases.
-7 0 7
The detail decreases. ޓ [
DATA DOWN
]
䋨䋨䋨䋨4䋮䋮䋮䋮4䋩䋩䋩䋩 Changing DTL B.FRQ (detail boost frequency)
㽲 Move the “㸢” to DTL B.FRQ by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the detail boost frequency by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
]
LOW NORMAL HIGH
[
DATA DOWN
]
䋨䋨䋨䋨4䋮䋮䋮䋮5䋩䋩䋩䋩 Changing master pedestal
㽲 Move the “㸢” to M. PED by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of the master pedestal by pressing [DATA UP], [DATA DOW N] buttons.
-128 0 127
M. PED decreases. ޓ [
[
DATA UP
] ޓM. PED increases.
DATA DOWN
]
23
䋨䋨䋨䋨5䋩䋩䋩䋩 MATRIX(Matrix color correction)
Move up and down
by pressing
MENU UP,DOWN
Red hue setting
Red gain setting
Green hue setting
Green gain setting
Blue hue setting
Blue gain setting Magenta gain setting
-- 5 MATRIX -- <FILE A>
MATRIX ON
R HUE 0 Ye HUE 0
R GAIN 0 Ye GAIN 0
G HUE 0 Cy HUE 0
G GAIN 0 Cy GAIN 0
B HUE 0 Mg HUE 0
B GAIN 0 Mg GAIN 0
䋨䋨䋨䋨5䋮䋮䋮䋮1䋩䋩䋩䋩 Changing Matrix color correction ON/OFF
㽲 Move the “㸢” to MATRIX by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either ON or OFF by pressing [DATA UP], [DATA DOW N] buttons.
䋨䋨䋨䋨5䋮䋮䋮䋮2䋩䋩䋩䋩 Changing MATRIX setting
㽲 Move the “㸢” to the desired item by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select the desired value of color by pressing [DATA UP], [DATA DOWN] buttons.
[
DATA UP
-15 0 15
[
DATA DOWN
Select the desired
value by pressing
DATA UP,DOWN
]
]
Matrix color correction
Yellow hue setting
Yellow gain setting
Cyan hue setting
Cyan gain setting
Magenta hue setting
ON, OFF
* When matrix color correction is set to OFF, the color cannot be adjusted.
24
䋨䋨䋨䋨6䋩䋩䋩䋩 OPTION
Move up and down
by pressing
MENU UP,DOWN
-- 6 OPTION -- <FILE A>
MONITOR
I/P MODE
BAUD RATE
䋨䋨䋨䋨6䋮䋮䋮䋮1䋩䋩䋩䋩 Changing a type of output monitors
㽲 Move the “㸢” to MONITOR by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either PC or TV by pressing [DATA UP], [DATA DOWN] buttons.
PC: When using PC as an output monitor.
䊶
TV: When using TV as an output monitor.
䊶
䋨䋨䋨䋨6䋮䋮䋮䋮2䋩䋩䋩䋩 Changing I/P MODE
Interlace or progressive can be selected.
㽲 Move the “㸢” to I/P MODE by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either 1080p or 1080i by pressing [DATA UP], [DATA DOWN] buttons.
1080p: When using 1080 progressive.
䊶
1080i: When using 1080 interlace.
䊶
Note:
Select a monitor that has 1080 progressive and/or interlace modes, or the monitor will not display
the image correctly. Refer to the item "5.3 Switching I/P mode" if selecting a wrong monitor.
䋨䋨䋨䋨6䋮䋮䋮䋮3䋩䋩䋩䋩 Changing RS 232C baud rate
㽲 Move the “㸢” to BAUD RATE by pressing [MENU UP], [MENU DOWN] buttons.
㽳 Select either 9600bps or 19200bps by pressing [DATA UP], [DATA DOWN] buttons.
Select the desired
value by pressing
DATA UP,DOWN
PC
1080p
9600bps
MONITOR PC, TV
I/P MODE 1080p, 1080i
RS232C baud rate 9600bps, 19200bps
䋨䋨䋨䋨7䋩䋩䋩䋩 Returning to factory settings
The current setting can be returned to the factory default status (preset status).
(1) If the color bar pattern or characters are displayed on the screen, press the [DISP] button to disable the
color bar pattern and character display.
(2) Press [MENU DOWN] and [DATA DOWN] buttons simultaneously for approx. 1 second.
(3) The preset operation starts. When the preset operation finishes, the character PRESET OK is displayed
for approx. 1 second.
* The only selected scene file can be returned to the factory default status. Follow the instruction as
above for every scene file when all scene files are returned to the factory default status.
25
8. BEFORE MAKING SERVICE CALL
䍃
No picture
Poor color
Is power supplied correctly?
䍃
Is the lens iris adjusted correctly?
䍃
Are the camera and video cables connected correctly?
䍃
Is the shutter mode set correctly?
䍃
Is the monitor on, and in working condition?
䍃
Is I/P mode set correctly?
䍃
Is the monitor adjusted correctly?
䍃
Is the white balance of the camera adjusted correctly?
(in modes other than automatic tracking)
䍃
Is the matrix color correction set correctly?
䍃
Is the illumination sufficient?
9. SPECIFICATIONS
Items to be checkedSymptom
Image sensor
Output pixels
Signal system
Scanning system
Scan frequency
Sensitivity
Minimum illumination
SN ratio 54 dB standard (gain 0 dB Y-conversion*)
Output signal
Sync system
Sync signal output
White balance
Gain
Scene file
Remote control
Lens mount C mount
Power supply
Power consumption Approx. 4.2 W
Weight Approx. 146 g (0.322 lbs)
External dimension
Operating temperature
Operating humidity Less than 90% (non condensing)
* The SN ratio is calculated using a Y signal. Because this camera outputs a RGB signal, the Y is calculated using the following
mathematical formula: Y=xR+yG+zB (where x, y and z are coefficients).
Design and specifications are subject to change without notice.
1/3 inch color CMOS sensor (Rolling shutter)
Horizontal : 1920, Vertical : 1080
1080/59.94i, 1080/59.94p
Progressive
Horizontal : 67.43 kHz, Vertical : 59.94 Hz
F 4 standard (2000 lx, 3000K)
16 lx standard (50 IRE, F1.4, gain 㧗12 dB,
gamma setting ON (setting value 0), 3000 K)
DVI-I (Digital RGB, Analog RGB) DVI-I terminal
Internal
H SYNC : 5 V + 0.5 V / -1.0 V (Positive polarity) DVI-I terminal
V SYNC : 5 V + 0.5 V / -1.0 V (Positive polarity) DVI-I terminal
ATW䋨Automatic tracing white balance䋩, AWB䋨Automatic white balance䋩,
MANUAL䋨Manual䋩
MANUAL (Manual), OFF (0 dB)
A, B, C, D, E
Serial data interface (RS232C)
12V DC㫧10% (The maximum voltage must not exceed 16V DC.)
44(W) × 44(H) × 78(D) mm (1.73”(W) 㬍㩷1.73”(H) 㬍㩷3.07”(D) )
㷄㷄
(32㫦
㫦
F) to 400 F to 104
26
10. EXTERNAL APPEARANCE DIAGRAM
2-M3 Depth 3
[0.118]
26 [1.02]
Unit : mm [inch]
7.8
[0.31]
32.51[1.28]
44 [1.73]
5 [0.2]
78 [3.07]
44 [1.73]
22 [0.87]
[Front] [Rear]
25 [0.98]
56 [2.2]
25 [0.98]
4-M2 Depth 3 [0.118]
4-M3 Depth 3 [0.118]
26 [1.02]
5 [0.2]
26 [1.02]
25 [0.98]
10.65 [0.42]
#4-40UNC
27
Limited Warranty – TOSHIBA CMOS Color Camera
The Imaging Systems Division of Toshiba America Information Systems, Inc. ("ISD") makes the following limited warranties
with regard to this CMOS color Camera ("Product"). These limited warranties extend to the Original End-User ("You[r]").
One (1) Year Limited Warranty of Labor and Parts
ISD warrants that this Product will perform in accordance with specifications for a period of one (1) year from the date of
purchase by the Original End-User. During this one (1) year period, ISD will repair or replace the Product, if it does not
perform as warranted. In order to take advantage of this Limited Warranty, You must: (a) deliver the Product to an ISD
Authorized Service Provider ("ASP"); and (b) pay all transportation and insurance charges for shipment of the Product to the
ASP. ISD reserves the right to substitute factory refurbished parts in place of those in need of repair.
Instruction Manual (Owner’s Manual):
You should read the Instruction Manual (Owner’s Manual) thoroughly before operating this Product. Before seeking warranty
service, you should check the troubleshooting guide in the Instruction Manual (Owner’s Manual) and follow the instructions to
correct the problem.
Your Responsibilities
This Limited Warranty is subject to the following conditions:
1. You must provide the bill of sale or proof of purchase at the time that warranty service is required.
2. You must notify an ASP within thirty (30) days after You discover that the Product does not perform in accordance with
specifications during the Limited Warranty period.
3. All warranty servicing of this product must be made by an ISD Authorized Service Provider.
4. You must pack the Product in its original carton using the original packing material, then insert the original carton
containing the Product into another carton with additional packing material before shipping the Product to an ASP.
DISCLAIMERS:
ALL OTHER EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. SOME STATES DO
NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE
REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCT. IN NO EVENT WILL ISD OR ITS PARENT
COMPANY OR ANY ASP BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND, INCLUDING ANY
DIRECT OR INDIRECT DAMAGES, LOST PROFITS, LOST SAVINGS OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY
OR CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH OF CONTRACT, TORT OR OTHERWISE, OR WHETHER
ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF TAIS, ITS PARENT COMPANY, OR
AN ASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR SOME PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY
VARY FROM STATE TO STATE.
THIS LIMITED WARRANTY SHALL BE VOID IF THE PRODUCT OR PARTS HAVE BEEN SUBJECTED TO MISUSE,
ABUSE, ACCIDENT, IMPROPER INSTALLATION, IMPROPER MAINTENANCE, OR USE IN VIOLATION OF ISD’S
WRITTEN INSTRUCTIONS, OR WHERE THE PRODUCT HAS BEEN ALTERED OR MODIFIED WITHOUT ISD’S PRIOR
AUTHORIZATION, OR UPON THE REMOVAL OR ALTERATION OF ISD’S FACTORY SERIAL NUMBER. LABOR
SERVICE CHARGES FOR PRODUCT INSTALLATION, SET UP AND ADJUSTMENT OF CONTROLS ARE NOT
COVERED BY THIS LIMITED WARRANTY.
How to Obtain Warranty Service – Step-By-Step Procedures:
To obtain warranty service, You should:
1. Contact an ASP for warranty service within thirty (30) days after the Product fails to comply with specifications.
2. Arrange for shipment of the Product to an ASP.
3. Securely pack the Product as described above, insure the carton, and include a letter explaining the problem and a copy
of the bill of sale or proof of purchase.
4. Prepay all transportation and insurance costs.
Questions? If you have any questions, please check ISD’s Web Site or send an e-mail as follows:
Web Site: http://www.toshiba.com/taisisd/indmed
E-mail: CCTVtech.support@tais.toshiba.com
No person, agent, distributor, dealer, authorized service provider, or company is authorized to change, modify, or extend the
terms of this Limited Warranty in any manner whatsoever. The time within which an action must be commenced to enforce
any obligation of ISD arising under this Limited Warranty or under any statute, or law of the United States or any state thereof,
is hereby limited to one (1) year from the date You discover or should have discovered the problem. This limitation does not
apply to implied warranties arising under state law. Some states do not permit limitation of the time within which You may bring
an action beyond the limits provided by state law, so the above provision may not apply to You. This Limited Warranty gives
You specific legal rights and You may also have other rights which vary from state to state.
TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
Imaging Systems Division
9740 Irvine Boulevard, Irvine, CA 92618-1697
Copyright © 2008 Toshiba America, Inc. All rights reserved.
Loading...
