Toshiba CS8560D User Manual

Download

B/W CCD Camera

Model CS8560D

Specifications

(Ver.1.0)

Contents

1. Product Descript i on ·························6

2. Features·············································· 6

3. Configuration····································7

4. Option Unit········································ 7

5. Operation Mode································7

6. Specifications·····································24

7. Timing Chart·····································32

8. External View Drawi ng ···················40

D4130891A

Important Safety Precautions

BEFORE USE - GENERAL SAFETY INSTRUCTIONS

This specifications contains important information for the operator (user) and/or people in the vicinity to avoid personal injury, or property damage.

Prior to use, read this specifications carefully to fully understand its instructions for correct use. •

• After reading, keep operation manual near the equipment for future reference.

WARNINGS & CAUTIONS

Indication

Meaning

WARNING

CAUTION

Notes

*1 Catastrophic bodily injury means loss of eyesight, burns (high and low temperatured), shock,

fracture, poisoning, etc. which leaves a sequela and repuire hospitalization or prolonged treatment.

*2 Bodily injury means injuries, burns and electric shock which does not require hospitalization

or prolonged treatment.

*3 Property damage means extended harm to home, household effects, domesticated animals, and

pets.



Graphic symbol definitions

Indication Meaning

This mark indicates a prohibited action that must not be carried out. The actual prohibited action is indicated in the symbol or nearby graphically or described in



text. This mark indicates a mandatory action that must not be carried out. The actual

instruction is indicated in the symbol or nearby graphically or described in text.

This indicates the existence of a hazard that death or catastrophic bodily injury(*1) may result from improper use.

This indicates the existence of a hazard that bodily injury(*2) or property damage(*3) may result from improper use.



●Handling Precautions



Stop operation immediately when any abnormality or defect occurs.

Use during an abnormal condition; such as emitting smoke, burning odors, damage from dropping invasion of foreign objects, etc. may cause fire and/or





electric shock. Be always sure to disconnect the power plug from the electrical outlet (socket) at once and contact your dealer.

Do not operate in places with possibility of becoming wet.

This may cause fire and/or electric shock.

Do not repair, disassemble and/or modify by yourself.

This may cause fire and/or electric shock. Be always sure to contact your dealer for internal repair, check and cleaning of the product.



WARNING

D4130891A

Don’t place things or materials on the unit.

Ingress of foreign materials such as metallic things and liquid into the unit may



cause a fire or an electric shock.

Do not put the product in an unstable, slanting and/or vibrated place.



Drop and/or fail of the product may cause injury.

Do not touch the power cord or other connection cables during a thunderstorm.



This might cause electric shock.

Use the specified power supply.



Use of an unspecified power supply may result in fire or electric shock.

Do not be handled roughly, damaged, fabricated, bent forcefully, pulled, twisted, bundled, placed under heavy objects or heated the power cord , connection cable.



Otherwise, fire or electric shock may result.



CAUTION

Note the following instructions when installing.

-Do not wrap the product in an inflammable material, such as cloth.

-Do not put the product in a narrow space, since the heat generated from the



product may be difficult to emanate. If you do not follow the above, the heat generated by the product may cause fire.

Avoid setting in humid, smoky, vaporized or dusty places. A fire or an electric shock may occur in such places.



This may cause fire and/or electric shock.

Do not put the product in direct sunshine and/or high temperature.



The temperature inside the product may cause fire.

Use the specified DC power cable or connection cable.



Otherwise, a fire or an electric shock may occur.

Turn OFF the power in the case of connection.

Turn OFF the power in the case of connection of power cable or connection



cable.

Otherwise, an electric shock or a malfunction may occur.

Do not expose its camera head to any intensive light (such as direct sunlight).



Otherwise, its inner image pickup device might get damaged.

Avoid short-circuiting signal output.



Otherwise, a malfunction may occur.

Avoid giving a strong shock against the camera body.

It might cause a breakdown or damage. If your camera is used in a system where its camera connector is subjected to strong repetitive shocks, its camera connector is possible to break down. If



you intend to use your camera in such a situation, if possible, bundle and fix a camera cable in the place near the camera, and do not transmit a shock to the camera connector.

Ask your dealer to perfom a periodical check and internal cleaning (approx. once every five years).



Dust inside the product may cause fire and/or trouble. For check and cleaning cost, please consult your dealer.



D4130891A

DISCLAIMER (LIMITED WARRANTY)

We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the user in any of the following cases;

z Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether

intentional or accidental; use under extreme operating conditions.

z Malfunction or non-function resulting in indirect, additional or consequential damages,

including but not limited to loss of expected income and suspension of business activities.

z Incorrent use not in compliance with instructions in this instruction specifications and manual. z Malfunctions resulting from misconnection to other equipment. z Repairs or modifications made by the user or caused to be made by the user and carried out by

an unauthorized third party.

z Notwithstanding the foregoing, Teli’s liabilities shall not, in any circumstances, exceed the

purchase price of the product.

z About the item which does not have a publication in the specifications and manual of this

product, it considers as the outside for a guarantee.



RESTRICTION FOR USE

z Should the equipment be used in the following conditions or environments, give consideration

to safelty measures and inform us of such usage:

1. Use of the equipment in the conditions or environment contrary to those specified, or use outdoors.

2. Use of the equipment in applications sxpected to cause potential hazard to people or propety, which require special safety measures to be adopted.

z This product can be used under diverse operating conditions. Determination of applicability of

equipment or devices concerned shall be determined after analysis or testing as necessary by the designner of such equipment or devices, or personnel related to the specifications. Such designer or personnel shall assure the performance and safety of the equipment or devices.

z This product is not designed or manufactured to be used for control of equipment directly

concerned with human life (*1) or equipment relating to maintenance of of public services/functions involving factors of safety (*2). Therefore, the product shall not be used for such applications.

(*1): Equipment directly concerned with human life refers to.

- Medical equipment such as life-support systems, equipment for prerating theaters.

- Exhaust control equipment for exhaust gases such as toxic fumes or smoke.

- Equipment mandatory to be installed by various laws and regulations such as the Fire Act or Building Standard Law

- Equipment related to the above.

(*2) : Equipment relating to maintenance of public services/functions involving factors of

safety refers to.

- Traffic control systems for air transportations, railways, roads, or marine transportation

- Equipment for nuclear power generation

- Equipment related to the above



D4130891A

CAUTIONS ON USE

z Carefully handle the units.

Do not drop, or give a strong shock or vibration to the camera. This may cause problems. Treat the camera cables carefully to prevent cable problems, such as cable breakdown and loosened connections.

z Operating ambient temperature and humidity.

Do not use the camera in places where temperature and humidity exceed the specifications. Picture quality will lower and internal parts may be damaged. Be particularly careful when using in places exposed to direct sunlight. When shooting in hot places, depending on the conditions of the object and the camera (for example when the gain is increased), noise in the form of vertical strips or white dots may occur. This is not a malfunction.

z Restriction for the lens combination

This camera might form a ghost to image area depending on the combination of a lens and an illumination with this camera. But this is not a failure of this camera. Therefore, please check the combination of the lens and the illumination with this camera when use. When mounting a lens, take extra caution so that the lens is not tilted, nor does flaw exist at the lens-mount-screw part. Also check to confirm that no dirt nor other foreign object is put inside Improper mounting might cause the parts to become locked.

z Do not shoot under intense light.

Avoid intense light such as spot light on part of the screen because it may cause blooming or smears. If intense light falls on the screen, vertical stripes may appear on the screen, but this is not a malfunction.

z Do not expose the camera’s image-pickup-plane to sunlight or other intense light directly.

Its inner CCD (charge-coupled device) might be damaged.

z Moire

When thin stripe patterns are shot, stripe patterns that are not actually there (moire) may appears as interference stripes. This is not a malfunction.

z Undesirable noise

If the camera or the cables are located near something which emit strong magnetism or near something which emit strong electric wave, undesirable noise may appear on the screen. In such a case, try to change the location of the camera or the cable wiring.

z Handling of the protection cap

When the camera is not in use, put a lens-cap onto the camera head for protection of the image-pickup-plane.

z When not using the camera for a longtime.

Stop supplying power for safety.

z When cleaning the camera

Always turn off the power and clean with a piece of soft dry cloth. To remove stubborn stains, use a soft cloth soaked in diluted acid-free detergent. Do not use alcohol, benzine, thinner, etc. If used, coating and printed letters may be discolored. In case the image-pickup-plane should be settled with fine dust, dirt, or scratched, ask your dealer for technical advice.

z Wastes of this product should be separated and discarded in compliance with the various

national and local ordinances.



D4130891A

1. PRODUCT DESCRIPTION

Model CS8560D is an integrated type B/W CCD camera with a VGA format all-pixel-data readout CCD. This model has twice greater driving frequency of conventional cameras to achieve fast-speed data-processing. The model is suited for high-speed, high-resolution image processing use. Its compact, light-weight body is ideal for system integration.

2. FEATURES

(1) Double-speed scan

This model reads out image-data twice as fast as conventional cameras do.

(2) All pixel's data readout

With its built-in all-pixel-data-readout CCD, this model can read out image-data just in approximately 1/60 sec. A frame-shutter reads out all data even under RTS (Random Trigger Shutter) mode.

(3) High vertical resolution

As all pixel's data are read out even under RTS mode (in 1/60 sec.), images with no deterioration in vertical resolution are obtained.

(4) Square grid pattern CCD

Pixel's in CCD are aligned in square grid pattern. This makes it easier to perform computation correctly for image processing use.

(5) External Sync.

The camera is switched over to external synchronization operation automatically when external HD signal is input.

(6) Random trigger shutter function

With a built-in RTS, the camera’s CCD starts light-exposure in synchronization with external trigger signals. This function enables the camera to capture fast-moving subjects at constant position for precise image processing.

(7) Restart / Reset

Under the restart / reset mode, this model can capture images at an arbitrary timing cued by external VD signal.

(8) Multiple shutter

With this shutter, this model capture images at an arbitrary timing cued by external trigger signal, and then outputs video at an arbitrary timing cued by external VD signal.

(9) Partial-scan

Under the partial scan mode, only 1/2 or 1/4 screen center portion of image information is read out, resulting in a faster operation.

(10) Ultra-compact & light-weight camera head

The model features its ultra-compact and light-weight camera head, freeing you from your integration-space-problem. In addition, it has an excellent shock and vibration resistance.

D4130891A

3. CONFIGURATION

(1) Camera body··································································· 1 (2) Accessory

Operation Manual(Japanese)··········································· 1 Operation Manual(English)············································· 1

4. OPTION UNIT

(1) DC SYNC IN cable ············Model name : CPRC3700 [2m,3m,5m,10m] (2) Camera adapter ··················Model name : CA170 (3) Camera-mounting kit···········Model name : CPT8560 (4) Camera-connector fixing hardware

*Contact your dealer / distributor for details of option units. *Conformity of an option part and EMC conditions

About the conformity of EMC standard of this machine, it has guaranteed in the conditions combined with the above-mentioned option part. When used combined parts other than specification of our company, I ask you to have final EMC conformity checked of a visitor with a machine and the whole equipment.

5. OPERATION MODE

(1) GAIN selection (Camera rear-panel SW)

Switches sensitivity setting

(1-1) FIX------------------- Factory-prefixed gain (1-2) MANU---------------Gain is adjustable via the manual gain potentiometer (M.GAIN)

(2) Video output mode selection (Camera rear-panel DIP SW)

Switches video format

(2-1) 1/60: 1/60s ----------Non-interlace mode

As all pixels are read out in 1/60s, you will get images with the higher V resolution.

(2-2) 1/120: 1/120s ------- 2:1 interlace MIX mode

As vertical pixels are added in readout, the sensitivity is same as that of 1/60s non-interlace mode during electronic shutter OFF. Twice greater sensitivity is obtained under shutter-speed range of 1/200 – 1/20000.

(3) RTS (Random Trigger Shutter) exposure selection (Camera rear-panel DIP SW)

Switches light exposure mode under RTS mode

(3-1) FIX mode ----------- Rear DIP SW

Exposure-time control via rear-panel DIP switch

(3-2) PULSE W mode---- TRIG signal pulse width control

Exposure-time control via TRIG signal pulse width

D4130891A

(4) Shutter mode selection (Camera rear-panel DIP SW or TRIG signal IN [Automatic])

Switches shutter mode

(4-1) NOR mode---------- Normal electronic shutter

Exposure control via internal sync signal High-speed shutter: From 1/20,000s through OFF (8 position)

(4-2) RTS mode----------- Random trigger shutter

Exposure control via ext. trigger or ext. sync input Timing charts are shown below. (TRIG timing: Positive) Notes: * RTS selection is automatic with TRIG status

** Neither under FIX nor PULSE W mode, RTS doesn’t

work if Electronic shutter speed SW is set in OFF position.

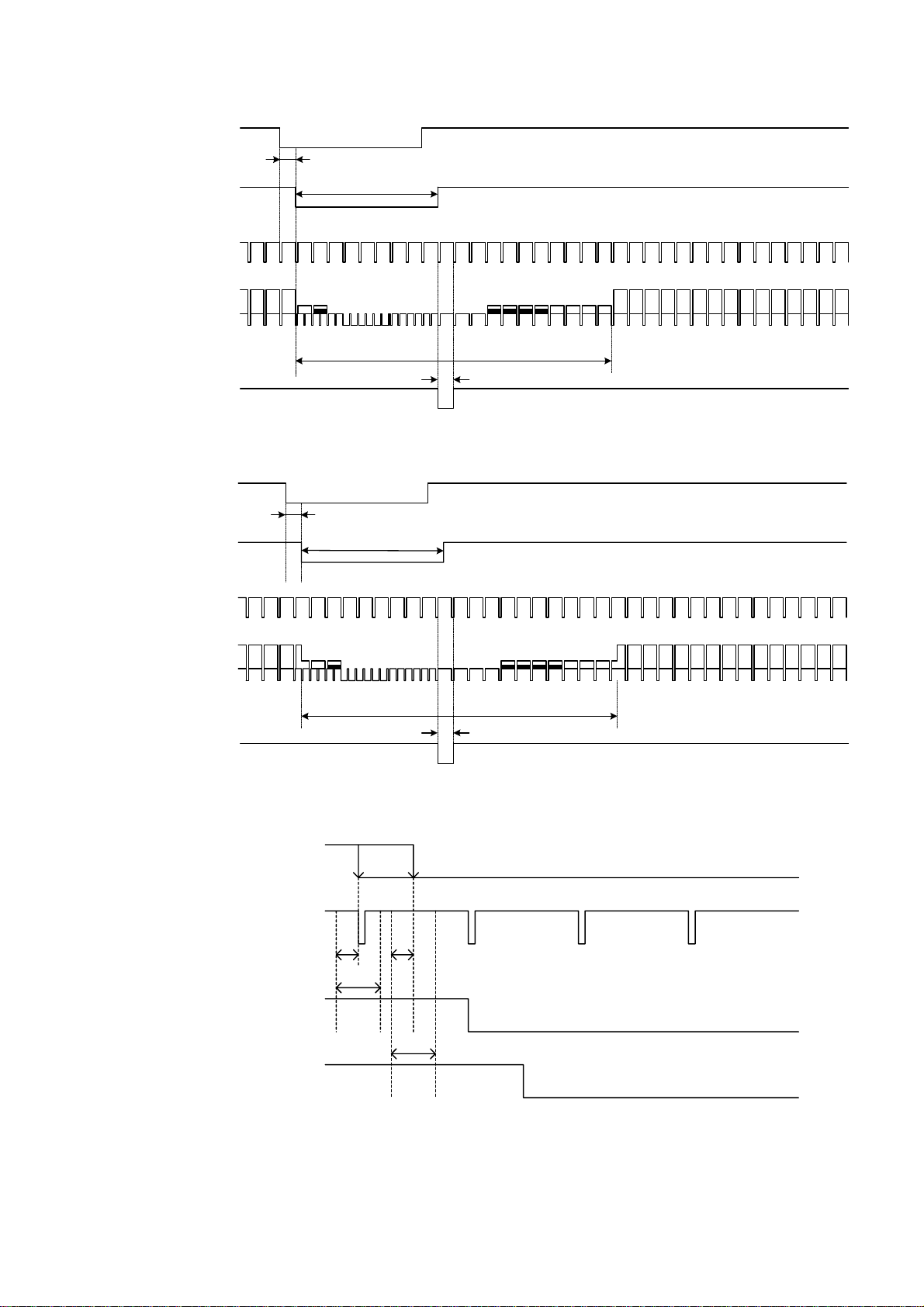

(a)Non-reset mode (Under internal sync / external sync --- Consecutive VD IN)

Exposure starts at the timing of TRIG signal IN. After each exposure is completed, the camera outputs video at each next VD IN timing.

1/60s Non-interlace

□

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN

(Positive)

INT/EXT VD

TRIG IN not acceptable for

1V after mode chenge

CCD Exposure

Exposure time

(E-shutter speed or

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

Outputs VD,V-SYNC

during standby

pulse width)

Outputs video at the next VD

timing after exposure

Definite

Random trigger shutterNormal shutter

Normal shutter

1/120s 2:1 Interlace

□

TRIG IN

(Positive)

INT/EXT VD

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

TRIG IN not acceptable for

1V after mode chenge

EVEN

ODD


Outputs VD,V-SYNC

during standby

Exposure time

(E-shutter speed or

pulse width)

Outputs video at the next VD

timing after exposure

ODD


ODD EVEN ODD EVENODD EVENODD EVENEVEN

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

ODD EVENODD EVENODD EVENODD EVENEVEN

EVEN image

ODD EVEN

ODD

Definite

EVEN

WEN OUT

[Option]

Normal shutter

Random trigger shutter Normal shutter

D4130891A

(b) Non-reset mode (Under external sync --- Single VD IN)

After TRIG IN and exposure, the camera goes into standby until next ext. VD IN.

1/60s Non-interlace

□

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

TRIG IN

TRIG IN not acceptable for

1V after mode chenge

(Positive)

EXT VD

CCD Exposure

Exposure time

(E-shutter speed or

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

In sync with ext.VD during standby

(No video output)

Normal shutter

pulse width)

Outputs video at the next VD

timing after exposure

Definite

Random trigger shutter Normal shutter

*Don’t provide ext. VD IN during exposure. ** After automatic return, fix ext. VD IN at Hi.

1/120s 2:1 Interlace

□

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD phase.

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

ODD

phase

TRIG IN

(Positive)

EXT VD

TRIG IN not acceptable for

1V after mode chenge

ODD

phase

ODD EVEN EVEN ODD

EVEN phase

CCD Exposure

VIDEO OUT

WEN OUT (Standard)

WEN OUT

[Option]

Exposure time

(E-shutter speed or

ODD EVEN ODD

In sync with ext.VD during standby

(No video output)

pulse width)

EVEN

ODD EVEN

Outputs video at the next VD

timing after exposure

Random trigger shutterNormal shutter

EVEN image

ODD


ODD

Definite

Normal shutter

*Don’t provide ext. VD IN during exposure. ** After automatic return, fix ext. VD IN at Hi.

D4130891A

(c)V-reset mode (Under internal sync / external sync --- No VD IN)

Exposure starts at the timing of TRIG signal IN. After each exposure is completed, the camera outputs video immediately by resetting VD. (HD is not reset)

1/60s Non-interlace

□

TRIG IN not acceptable for

TRIG IN

(Positive)

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

VD,V-SYNC pause during standby

1V after mode chenge

Exposure time

(E-shutter speed or

pulse width)

VD,V-SYNC output for 1V only

Random trigger shutterNormal shutter

1/120s 2:1 Interlace

□

Irrespective of TRIG IN phase, the camera always outputs ODD field image.

TRIG IN not acceptable for

TRIG IN

(Positive)

1V after mode chenge

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

Definite

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

Normal shutter

CCD Exposure

ODD image

VIDEO OUT

VD,V-SYNC pause during standby

WEN OUT

(Standard)

WEN OUT

[Option]

Normal shutter

(d) SYNC reset mode (Under internal sync)

Exposure starts at TRIG signal input timing, resets HD, and outputs video immediately after exposure by resetting VD.

* Available under FIX mode only.

1/60s Non-interlace

□

TRIG IN

(Positive)

CCD Exposure

VIDEO OUT

VD,V-SYNC pause during standby

WEN OUT

(Standard)

Exposure time

EVEN

(E-shutter speed or


pulse width)

TRIG IN not acceptable for

1V after mode chenge

Exposure time

(E-shutter speed)

ODD


ODD ODDODD EVEN

VD,V-SYNC output for 1V only

Random trigger shutter Normal shutter

VD,V-SYNC output for 1V only

ODD


Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

Definite

WEN OUT

[Option]

Normal shutter Random trigger shutter

Normal shutter

D4130891A

1/120s 2:1 Interlace

□

Irrespective of TRIG IN phase, the camera always outputs ODD field image.

Automatically returns to normal shutter if fixed H level (after approx. 1/6s)

ODD


Definite

TRIG IN

(Positive)

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

TRIG IN not acceptable for

1V after mode chenge

ODD

EVEN


VD,V-SYNC pause during standby

Normal shutter

Exposure time

(E-shutter speed)

ODD


ODD ODDODD EVEN

VD,V-SYNC output for 1 V only

Random trigger shutter Normal shutter

(4-3) MULTIPLE SHUTTER mode

Multiple shutter operation is available by providing TRIG IN more than one time before

ext. VD IN. (Non-reset mode, single VD, consecutive VD IN)

1/60s Non-interlace

□

TRIG IN

(Positive)

EXT VD

CCD Exposure

Exposure time

(E-shutter speed or

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

pulse width)

Three exposures are mixed and output

here

1/120s 2:1 Interlace

□

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD phase.

TRIG IN

(Positive)

EXT VD

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

ODD

phase

ODD


Exposure time

(E-shutter speed or

pulse width)

Three exposures are mi xed and output here

EVEN phase

EVEN image

WEN OUT

[Option]

D4130891A

RTS TRIG IN notes



1/60s Non-interlace

INT VD

INT HD

VIDEO OUT

WEN OUT (Standard)

1/120s Interlace ODD Field

INT VD

INT HD

VIDEO OUT

WEN OUT (Standard)

1/120s Interlace EVEN Field

INT VD

INT HD

VIDEO OUT

WEN OUT (Standard)

2345678

111213151416171819202122232425

TRIG invalid period

Video output time

1 2 3 4 5 490 492 494

2345678

111213151416171819202122232425

45236

TRIG invalid period Video output time

2345678

111213151416171819202122232425

34125

7 8

TRIG invalid period Video output time

484 485

483 484

510

259

511

260 488

489

260 487

488

512

261

513

262 492

493

262 491

492

514

263

515

264

516

265

517

266

518

267

519

268

520

269

521

270

* TRIG becomes invalid even if TRIG (exposure start) is inputted during TRIG invalid period. * An image may be affected if TRIG (exposure start) is inputted during the video output time. * An imege may not be outputted normally if exposure is terminated during the video output time.

Exposure time delay under RTS



When the RTS is active, both in FIX mode and PULSE W mode, there is a time delay of approximately 1.4 micro s until the start of exposure after the rising edge of TRIG signal (positive).

Exposure time under pulse width mode



Under RTS pulse mode, the exposure time is determined by the pulse width. More exactly, the actual time is the pulse width plus approximately 8.0 micro s.

TRIG IN

Pulse width

CCD

Exposure

Exposure delay time = Approximately 1.4 micro s

Exposure time = Pulse width + Approx. 8.0 micro s

D4130891A

(5-4) Restart / Reset

The restart / reset function is available with the ext.VD signal. You can get an arbitrary slower shutter speed than normal shutter and random trigger shutter.

Here are some notes; * The shutter speed (exposure time) is determined by ext. VD signal interval. ** This function is enabled when the rear-panel shutter speed DIP SW is OFF. *** Supply consecutive HD.

1/60s Non-interlace

□

EXT VD IN

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

The exposure time is

determined by VD interval

1/120s 2:1 Interlace

□

Video output field (ODD/EVEN) is determined by ext. VD falling edge and ext. HD phase.

EVEN phase

EVEN image

EVEN

EXT VD IN

CCD Exposure

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

ODD

phase

ODD


ODD

The exposure time is

determined by VD interval

D4130891A

(5) Partial-scan mode selection (Camera rear-panel DIP SW)

Switches partial-scan mode

Note: Sometimes phenomenon called as “whiteout” occurs at the top of the screen when

there is strong incident light entering in the wide area of a CCD, however, this is not a malfunction. If this occurs, reduce the amount of incoming rays.

(5-1)1/2 Partial-scan (Rear-panel SW: #8-OFF, #9-ON) --- Screen center 1/2 readout

1/60s Non-interlace

□

Under 1/60s non-interlace mode, only the center portion of 227H out of the total effective lines 494H (excluding BLK time) is read out. Available both under external / internal mode.

130H

227H

137H

High-speed

transfer

Normal-

speed

transfer

High-speed

transfer

Under normal shutter (Electronic shutter OFF)

■

Notes: * Under ext. sync, the ext. VD should be 1V = 262H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

131

357 131 357

227H

<V-reset>

Normal-

speed

transfer

VIDEO OUT

14H

High-

speed

transfer

WEN OUT

(Standard)

WEN OUT

[Option]

21H

V BLK

(Include

High-speed

transfer)

227H

VIDEO output

time

262H 262H

Under other shutter modes

■

VIDEO OUT

WEN OUT

(Standard)

21H

V BLK

(Include

High-speed

transfer)

131

227H

VIDEO output

time

357

14H

High-

speed

transfer

<Non-reset>

(263H)

WEN OUT

[Option]

*1:Arbitrary under ext .sync *2:See "7.TIMING CHART (4)WEN timing".

D4130891A

1/120s 2:1 Interlace

□

Under 1/120s interlace mode, only the center portion of 207H out of the total effective lines 485H (excluding BLK time) is read out. Available both under external / internal mode.

ODD Field

73H

103H

High-speed

trasfer

Normal-

speed

transfer

103H

Normal-

speed

transfer

66.5H

High-speed

transfer

EVEN Field

72.5H

104H

66H

High-speed

transfer

Normal-

speed

transfer

High-speed

transfer

104H

Normal-

speed

transfer

Under normal shutter (Electronic shutter OFF)

■

Notes: * Under ext. sync, the ext. VD should be 1V = 131.5H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

ODD image EVEN image

154 155

358 359

153 154

359 360

<V-reset>

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

21H

V BLK

(Include

High-speed

transfer)

9H 8.5H 9H

103H

VIDEO output

time

131.5H 131.5H

High-

speed

transfer

0.5H

20.5H

V BLK

(Include

High-speed

transfer)

104H

VIDEO output

time

High-

speed

transfer

D4130891A

Under other shutter modes

■

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

VIDEO OUT

WEN OUT

(Standard)

21H

V BLK

(Include

High-speed

transfer)

20.5H

V BLK

(Include

High-speed

transfer)

8.5H

154 155

153 154

ODD image

103H

VIDEO output

time

*210H

EVEN image

104H

VIDEO output

time

359 360

358 359

High-

speed

transfer

High-

speed

transfer

<Non-reset>

(131.5H)

8.5H

(132H)

WEN OUT

[Option]

*29.5H

*1:Arbitrary under ext.sync *2:See "7.TIMING CHART (4)WEN timing".

D4130891A

(5-2)1/4 Partial-scan (Rear-panel SW: #8-ON, #9-ON) --- Screen center 1/4 readout

1/60s Non-interlace

□

Under 1/60s non-interlace mode, only the center portion of 81H out of the total effective lines 494H (excluding BLK time) is read out. Available both under external / internal mode.

200H

81H

213H

High-speed

transfer

Normal-

speed

transfer

High-speed

transfer

Under normal shutter (Electronic shutter OFF)

■

Notes: * Under ext. sync, the ext. VD should be 1V = 131H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

201 281 201 281

81H

Normal-

speed

transfer

VIDEO OUT

28H

V BLK

(Include

High-speed

transfer)

81H

Video output

time

22H

High

-speed

transfer

131H 131H

WEN OUT

(Standard)

WEN OUT

[Option]

Under other shutter modes

■

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

201

28H

V BLK

(Include

High-speed

transfer)

4H *2

81H

Video output

time

281

22H

High

-speed

transfer

<Non-reset>

(394H)

*1:Arbitrary under ext.sync *2:See "7.TIMING CHART (4)WEN timing".

D4130891A

1/120s 2:1 Interlace

□

Under 1/120s interlace mode, only the center portion of 61H out of the total effective lines 485H (excluding BLK time) is read out. Available both under external / internal mode.

ODD Field

103H

30H

109.5H

High-speed

transfer

Normal-

speed

transfer

High-speed

transfer

30H

Normal-

speed

transfer

EVEN Field

102.5H

31H

109H

High-speed

transfer

Normal-

speed

transfer

High-speed

transfer

31H

Normal-

speed

transfer

Under normal shutter (Electronic shutter OFF)

■

Notes: * Under ext. sync, the ext. VD should be 1V = 65.5H.

** Under normal shutter, set the rear-panel DIP SW #6, #7 in OFF.

ODD image EVEN image

214 215

272 273

213 214

273 274

VIDEO OUT

24H

V BLK

(Include

High-speed

transfer)

30H

Video output

time

65.5H 65.5H

11H

High

-speed

transfer

0.5H

23.5H

V BLK

(Include

High-speed

transfer)

Video output

31H

time

11H

High

-speed

transfer

WEN OUT (Standard)

8.5H

WEN OUT

[Option]

8.5H

D4130891A

Under other shutter modes

■

VIDEO OUT

WEN OUT

(Standard)

WEN OUT

[Option]

VIDEO OUT

WEN OUT

(Standard)

<Non-reset>

(197.5H)

24H

V BLK

(Include High-

speed

transfer)

214 215

ODD im age

30H

Video output

time

272 273

transfer

11H

High

-speed

9H 8.5H

*210H

EVEN image

31H

Video output

time

273 274

11H

High

-speed

transfer

(197H)

23.5H

V BLK

(Include High-

speed

transfer)

213 214

9H8.5H

WEN OUT

[Option]

*29.5H

*1:Arbitrary und er ext.sync *2:See "7.TIMING CHART (4)WEN timing".

D4130891A

(5-3) Programmable partial

By designating the high-speed transfer portion with external PARTIAL signal input, the camera read out only the portion of CCD area necessary for your application. This is available under ext. sync.

EXT VD

EXT HD

PARTIAL PULSE

VIDEO OUT

(Conditions)

The starting point of external partial signal is [

The external partial signal is controlled at each ext. HD falling edge. Set the start / finish of

the external partial signal in 1H increments.

The number of 1H high-speed transfer line is 10 lines. The actual lines are determined by

the external partial signal “hi” period. (Minimum: 2H = 20 lines)

Set video output time more than 30H. And high-speed transfer time (the external partial

signal “hi” period) before video output time is is as follows; from 2H through 22H under 1/60s non-interlace mode from 2H through 11H under 1/120s interlace mode

After high-speed transfer, 2H is allocated to blank transfer period. Normal transfer starts at

the next line.

VIDEO OUT vertical blanking is;

V. blanking = [

Example follows below. (High-speed 2H = 20 lines (minimum), Normal-speed 70 lines + BLK 2H)

Note:

Items shown as [Option] in this document is not included in your purchase as

standard components. Contact our dealer / distributor for details.

[Option]

a(H)

[ *1 ]

1](H) + n(H) + BLK transfer [2(H)] – 1H

1(H)

10 Line

n(H) Total line = n(H) x 10 line

Start Finish

High-speed trans. n(H)

[*1]

a(H)

1/60s non-interlace

6.0

1] from the falling edge of ext. VD.

2(H)

BLK trans. 2(H) Normal-speed

1/120s Interlace

1st field 2nd field

12.0 11.5

D4130891A

1/60s Non-interlace

□

The timing is as follows;

EXT.VD

VIDEOOUT

(Normalscan)

WENOUT

(Standard)

ＯＢ２ライン

High-speed

10H

68H

416H

20H 494H

VBLK

transfer Normal-

speed

transfer

High-speed

transfer

Normal-

68H

speed

transfer

494

Partial Pulse

VIDEOOUT

(Partialscan)

WENOUT

(Standard)

WENOUT

(Normalshuttermode)

[Option]

WENOUT

(Othershuttermode)

[Option]

9H 68H

VBLK

70H

VIDEOOUT

*1:Arbitraryunderext.sync. *2:PartialoveractuallineisOK. *3:See"7.TIMINGCHART(4)WENTiming".

7811

(448H)

D4130891A

1/120s 2:1 Interlace, ODD field

□

ＯＢ２ライン

13H

68H

High-speed

transfer Normal-

speed

transfer

68H

Normal-

speed

transfer

161.5H

High-speed

transfer

The timing is as follows;

ODDFeild

EXT.VD

VIDEOOUT

(Normalscan)

WENOUT

(Standard)

20H 242.5H

VBLK

8 9

492 493

(179.5H)

Partial Pulse

VIDEOOUT

(Partilscan)

WENOUT

(Standard)

WENOUT

(Normalshuttermode)

[Option]

WENOUT

(Othershuttermode)

[Option]

12H

15H 68H

VBLK

10H

34 35

70H

168 169

VIDEOOUT

*1:Arbitraryunderext.sync. *2:PartialoveractuallineisOK. *3:See"7.TIMINGCHART(4)WENTiming".

D4130891A

1/120s 2:1 Interlace, EVEN field

□

ＯＢ２ライン

12.5H

68H

High-speed

transfer

Normal-

speed

transfer

68H

Normal-

speed

transfer

162H

High-speed

transfer

The timing is as follows;

EVENFeild

EXT.VD

VIDEOOUT

(Normalscan)

WENOUT

(Standard)

Partial Pulse

VIDEOOUT

(Partialscan)

WENOUT

(Standard)

20H 242.5H

VBLK

8.5H

11.5H

14.5H 68H

VBLK

8.5H

7 8

70H

33 34

VIDEOOUT

167 168

(180H)

491 492

(Normalshuttermode)

(Othershuttermode)

Note:

Items shown as [Option] in this document is not included in your purchase as

standard components. Contact our dealer / distributor for details.

WENOUT

[Option]

WENOUT

[Option]

9.5H

*1:Arbitraryunderext.sync. *2:PartialoveractuallineisOK. *3:See"7.TIMINGCHART(4)WENTiming".

D4130891A

6. SPECIFICATIONS

[Basic spec]

(1) Image sensor All Pixel’s Data Read-out Interline CCD

Total pixels 692(H) x 504(V) Active pixel 659(H) x 494(V) Video output pixels 648(H) x 494(V) (Under non-interlace) Scanning area 4.88(H) x 3.66(V) mm (=Equivalent to 1/3 type CCD size)

Unit cell size 7.4(H) x 7.4(V) micro m (Square-grid array) (2) TV system Special format (Non-conforming to EIA) (3) Scanning lines 525 lines (4) Interlace 1/60s Non-interlace mode

1/120s 2:1 Interlace mode

Switching via rear-panel DIP SW (5) Sync system Internal/External automatic switch-over (6) Aspect ratio 4:3 (7) Video output VS 1.0V(p-p) / 75Ω, DC coupled, 1 line (AC as (8) Resolution 485 TV lines(H)

485 lines (350 TV lines)(V) (9) S/N Standard: 52dB(p-p)/rms (Initial factory setting) (10) Illumination Standard 400 lx (F5.6)

Minimum 4 lx (F1.4) (GAIN MAX, Approx. 50% video output) (11) Gain FIX (Fixed) gain: Factory-shipped preset level

MANU (Manual) gain: Setting through GAIN VR

FIX / MANU switching via rear-panel DIP SW (12) Gamma correction Gamma = 1 (Fixed) (13) White-clip level Approx. 840mV(p-p) (Excluding SYNC) (14) Power source DC12V ±10%

[Option]

)

Ripple voltage: 50mV(p-p) or less (15) Power consumption Approx. 1.5W

[Internal sync spec]

(1) Base clock frequency 24.545MHz (1CLK) ±200ppm (2) H sync frequency 31.468kHz (1H = 780CLK) (3) V sync frequency 59.94Hz (Under non-interlace)

119.88Hz (Under 2:1 interlace)

Note:

Items shown as [Option] in this document is not included in your purchase as standard components. Contact our dealer / distributor for details.

D4130891A

[External sync spec]

(1) Ext. sync input signal HD/VD (2) Input impedance 75-ohm / High impedance 10k-ohm (switching via rear-panel SW) (Initial factory setting: High) (3) Input level From 2 through 5V (p-p) under high impedance input From 2 through 4V (p-p) under 75-ohm input (4) Interlace 1/60s non-interlace or 1/120s 2:1 interlace (5) Polarity Negative (6) Pulse width HD: 3.2 +/- 1 micro s (LOW)

VD: From 125 through 400 micro s (LOW) (7) Repeating frequency f

(8) Phase difference HD/VD: 0 +/- 5.0 micro s, 1/fH/2 +/- 5.0 micro s

[Shutter trigger spec]

Exposure-starting-cue signal in random trigger shutter mode

= 31.468kHz +/- 1%

= fH/262.5 or fH/525

(1) Input level LOW level: From 0 through 0.5V(p-p)

HIGH level: From 4 through 5V(p-p) (2) Input impedance High impedance (10k-ohm) (3) Capture timing Rising edge detection (Positive)

(Falling edge detection (Negative) as

[Option]

(4) Pulse width Minimum 2 micro s

Maximum 1/8s

[Sync signal spec]

(1) Readout signal WEN readout timing pulse (2) Polarity Negative (Positive under VIDEO output mode (3) Pulse width 1H output (Available under VIDEO output mode

VIDEOOUT

WENOUT

（1H）

WENOUT

(VIDEOoutput)

[Option]

(4) Output circuit

* Set WEN termination to be high impedance.

WEN

100 50

WEN OUT

Items shown as [Option] in this document is not included in your purchase as standard

Note:

components. Contact our dealer / distributor for details.

)

[Option]

NEGA

POSI

)

[Option]

)

D4130891A

[Electronic shutter spec]

(1)Normal shutter Shutter-speed setting via rear-panel SW (Initial: OFF)

8 steps switch-able (= OFF, 1/200s, 1/500s, 1/1000s, 1/2000s, 1/4000s,

1/8000s, 1/20000s)

(2)RTS

(a)Operation mode

No. Reset Exposure Sync

1 Internal 2 Consecutive HD / Consecutive VD IN 3 Consecutive HD / Single VD IN

Non-reset

4 Internal 5 Consecutive HD / Consecutive VD IN 6 Consecutive HD / Single VD IN 7 Internal

V-reset

8 Consecutive HD IN 9 SYNC reset Internal

10 Internal

V reset

11 Consecutive HD IN

Rear SW

(FIX mode)

TRIG pulse width

(PULSE width mode)

Rear SW

(FIX mode)

TRIG pulse width

(PULSE width mode)

Notes : * RTS mode automatically switches over through TRIG IN

**RTS disabled under Electronic shutter OFF

(b)Multiple shutter Multiple shutter via ext. trigger signal and ext. VD signal

Notes : * Operation like No.3, 6 above

(3)Restart / Reset Restart / reset available via ext. VD signal

[Partial scan]

(1)Operation mode

No Scan mode Sync Reset E-shutter Normal E-shutter RTS

1 Non-reset Enabled 2 V-reset Disabled 3 Consecutive HD VD IN Non-reset Enabled 4 Consecutive HD (VD) IN V-reset Disabled 5 Non-reset Enabled 6 V-reset Disabled 7 Consecutive HD VD IN Non-reset Enabled 8 Consecutive HD (VD) IN V-reset Disabled 9 Programmable Consecutive HD VD IN Non-reset E nabled

Note: Items shown as [Option] in this document is not included in your purchase as

(Switching via rear panel DIP SW, Initial OFF)

Notes : * The exposure-time (shutter-speed) is determined by ext.

VD interval. ** Enabled when rear-panel DIP SW OFF. ***Provide Consecutive HD.

Internal

1/2 partial

Internal

1/4 partial

[Option]

Enabled

standard components. Contact our dealer / distributor for details.

[Option]

D4130891A

(2) Reset mode

As shown in (1) above, non-reset and V-reset is available.

([Option]: Doesn’t come as standard. Contact our dealer / distributor for details)

(a) non-reset (Electronic shutter enabled)

VD doesn’t get reset after video readout. The interval of VD signal is as follows.

1/60s non-interlace 525H 525H

1/120s interlace 262.5H 262.5H

VIDEO OUT

*Note: Under normal shutter mode, when non-reset is selected on partial scan,

electronic shutter is valid.

Please note that the exposure time is shortened than the setting value

when the external VD is input at shorter than the above VD interval.

(b) V-reset (Electronic shutter disabled)

VD does get reset after video readout. Under internal sync, the interval of VD signal is as follows.

(3) Partial signal

VIDEO OUT

[Option]

1/60s non-interlace 262H 131H

1/120s interlace 131.5H 65.5H

VD interval

Programmable mode input signal

(a) Input level LOW level: From 0 through 0.5V

HIGH level: From 4 through 5V

1/2 partial scan 1/4 partial scan

Partial A Partial B Partial C

VD Interval

1/2 partial scan 1/4 partial scan

Partial A Partia l B Partial C Partial EPartial D

Note:

(b) Input impedance High impedance (10kΩ) (c) Polarity Positive (Hi: High-speed transfer)

Items shown as [Option] in this document is not included in your purchase as standard

components. Contact our dealer / distributor for details.

D4130891A

[Mechanical spec]

(1) External dimension 29 x 29 x 39.5(D) mm (Not including protrusion)

Refer to the attached external view drawing (2) Weight Approximately 42g (3) Lens mount C mount (4) GND / insulation Circuit GND - Chassis electrically conducted

[Ambient condition]

(1)Environment condition

Performance guaranteed Temperature: From 0 through 40 °C

Humidity: From 30 through 90 % (No condensing)

Operation guaranteed Temperature: From -5 through 45 °C

Humidity: From 10 through 90 % (No condensing)

Storage Temperature: From -20 through 60 °C

Humidity: From 10 through 90 % (No condensing)

(2)EMC conditions (Electro-Magnetic Compatibility)

EMI (Electro-Magnetic Interference)

EN61000-6-4 Conformity

EMS (Electro-Magnetic Susceptibility)

EN61000-6-2 Conformity

*Conformity of EMC conditions

About the conformity of the EMC standard of this machines, it has guaranteed in the conditions combined with the option part of 4th clause. When used combining parts other than specification of our company, I ask you to have final EMC conformity checked of a visitor with a machine and the whole equipment.

D4130891A

[Connector pin assignment]

(1) Compatible connector HR10A-10P-12S (Supplied by HIROSE ELEC.) (2) Pin assignment

No.

1 DC12V GND 2 DC12V 3 VIDEO GND 4 VIDEO OUT 5 HD GND 6 HD IN 7 VD IN 8 TRIG GND NC

9 NC TRIG IN 10 WEN OUT GND 11 TRIG IN DC12V NC 12 VD GND PARTIAL

Signal

(Standard)

Connector pin layout

①

⑨

②

③

⑪

④

12 pin male

⑩

⑫

⑤

[Option]

⑧

⑦

⑥

Picture Rear-panel camera connector

(Rear-view)

Signal

Note:

Notes : *Before connecting / disconnecting the connector, make sure the camera power is OFF.

**For board connection, check compatibility.

Items shown as [Option] in this document is not included in your purchase as standard

components. Contact our dealer / distributor for details.

D4130891A

[Switch setting]

(

)

(

)

(

)

(1) CCU rear-panel DIP SW

No. Function OFF ON

GAIN selection

(GAIN)

E-shutter-speed

(SHUT)

Video output

mode

VIDEO

Shutter mode

(SMODE)

Partial scan

(PART)

RTS Exposure

EXP

Notes: * Initial factory setting: All OFF

(Table 1) Electronic shutter-speed (Table 2) Partial-scan

Shutter-speed No.2 No.3 No.4

OFF OFF OFF OFF 1/200s ON OFF OFF 1/500s OFF ON OFF

1/1,000s ON ON OFF 1/2,000s OFF OFF ON 1/4,000s ON OFF ON 1/8,000s OFF ON ON

1/20,000s ON ON ON

Notes :

*Don’t set Electronic shutter-speed in OFF under RTS mode.

Factory-set

GAIN

See shutter-speed tabl e (Table 1)

1/60s non-interlace 1/120s interlace

See shutter-mode table (Table 3)

See partial-scan table (Table 2)

FIX mode PULSE W mode

Manual GAIN

adjustable

via GAIN

Partial scan No.8 No.9

OFF OFF OFF

Not acceptable ON OFF

1/2 partial OFF ON 1/4 partial ON ON

GAIN SHUT

VIDEO SMODE

PART

EXP

1 2

O N

3 4 5 6 7 8 9 0

(Table 3) Shutter-mode

Random

trigger

Random

trigger

Notes :

(2)CCU rear-panel SW

Shutter mode

V reset OFF OFF

SYNC reset ON OFF

Non-reset OFF ON

Not acceptable

Non-reset

Multiple shutter

Non-reset ON OFF Consecutive VD

V reset OFF ON No VD

Restart / Reset

No.6 No.7

ON ON

OFF OFF Single VD

ON ON Single VD

SYNC

Internal sync

Ext. sync

HD IN

* Under normal shutter mode partial-scan, set No.6,7 in OFF.

**Under PULSE W mode, SYNC reset is disabled.

Function SW Selected Function

HIGH HIGH impedance (Initial factory setting) Ext. SYNC IN impedance

(HD/VD)

75Ω 75Ω

D4130891A

[Relative Spectrum Response]

*Including lens characteristics, Excluding light source characteristics

[Optical black characteristics]

Effective

Image Area

504 494

31 659

692

Device structure

Total pixels : 692(H) x 504(V) Effective pixels : 659(H) x 494(V) Optical black Horizontal : 2pixels --- 31pixels Vertical : 8pixels --- 2pixels

D4130891A

7. TIMING CHART

(1)H rate timing

1CLK=40.74ns

EXT HD

±0.5µs

78CLK

(3.18µs)

INT HD

659

656 655

648CLK 4CLK

7CLK

2CLK

659

4CLK 31CLK 72CLK 16CLK

656 655

648CLK

(26.40µs)

Effective pixels = 659CLK

1 7 8

B 1

Opt.

Dummy

H. trans.

Opt.Blk.

V-OUT Effective pixels

Blk.

54CLK

pixels

pause

H. blanking

132CLK(5.38µs)

H.SYNC

CAM

OUT

VIDEO

(2.20µs)

60CLK

(2.44µs)

18CLK

(0.73µs)

780CLK(31.78µs)

Horizontal scan (1H)

OUT

WEN

D4130891A

(2) 1/60s Non-interlace mode

EXT VD IN

INT VD

INT HD

1H delay

523

524

123456789

525

VIDEO

OUT

WEN OUT (Standard)

Ext. VD – Ext. HD phase difference

EXTVDIN

101112131415161718

V.Blanking

20H

1920212223

OB OB OB OB OB OB OB

1 494493492

512

513

514

515

516

OB OB

517

12345

525

EXTHDIN

INTVD

TP2

TP1

TP1:10.0us TP2:5.0us

D4130891A

(3) 1/120s 2:1 Interlace mode

ODD (1st field)

EXT VD IN

INT VD

INT HD

VIDEO OUT

487 488

523

524

489 490

1H delay

525

491 492

493 494

WEN OUT (Standard)

EVEN (2nd field)

EXT VD IN

INT VD

1H delay

INT HD

VIDEO OUT

486 487

260

488 489

261

490 491

262

492 493

WEN OUT (Standard)

123456789

OB OB

263

264

265

266

267

268

269

270

494

101112131415161718

V. Blanking

271

272

273

274

275

20H

276

277

V. Blanking

20H

278

19202122232425262728293031

101112131415161718192021222324252627282930

280

281

282

283

284

285

286

287

789

11121314151617181920212223242526272829303132333435

OB1OBOBOBOBOB

OBOBOBOBOBOBOB

234

279

12345

288

289

290

291

292

293

294

333435

3233343536

295

296

297

Ext. VD – Ext. HD phase difference

EXTVDIN

EXTHDIN

INTVD

(1) (2)

TP3

TP1

TP2

TP1:ODDresetrange TP2:EVENresetrange TP3:5.0us

(1)

(2)

ODD

EVEN

10.0us

D4130891A

(4) WEN timing

(a)Normal shutter mode

<1/60s Non interlace mode>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan V-reset mode (Standard)

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan Non-reset mode [Option]

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

4H 521H

V.Blanking

* 1/2 partial scan : 258H 1/4 partial scan : 127H

V.Blanking

4H 521H 3H

High-speed

transfer

High-speed

transfer

494

V.Blanking

D4130891A

<1/120s Interlace mode ODD Field>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan V-reset mode (Standard)

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan Non-reset mode [Option]

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

10H 252.5H

V.Blanking

8 9

High-speed

* 1/2 partial scan : 121.5H 1/4 partial scan : 55.5H

10H

High-speed

492 493

8.5H

transfer

252.5H 8.5H

494

V.Blanking

8.5H10H

494

V.BlankingV.Blanking

V.Blanking

<1/120s Interlace mode EVEN Field>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan V-reset mode (Standard)

INT VD

VIDEO OUT

(Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan Non-reset mode [Option]

INT VD

VIDEO OUT

(Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking V.Blanking

9.5H 253H 9H

V.Blanking

9.5H

7 8

High-speed

transfer

* 1/2 partial scan : 122H 1/4 partial scan : 56H

High-speed

491

492

OB OB

V.Blanking

9H9.5H

transfer

OB OB

V.Blanking

253H 9H

D4130891A

(b)RTS Non-reset mode (Consecutive VD)

<1/60s Non interlace mode>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

1 2

494

521H 3H

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

<1/120s Interlace mode ODD Field>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN O UT (Standard)

WEN O UT

[Option]

Under partial scan mode

INT VD

VIDEO OUT

(Partial scan)

WEN O UT (Standard)

WEN O UT

[Option]

V.Blanking

10H

V.Blanking

10H

8 9

<1/120s Interlace mode EVEN Field>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN O UT (Standard)

WEN O UT

[Option]

V.Blanking

9.5H

7 8

High-speed

transfer

521H 3H

492 493

252.5H

High-speed

transfer

252.5H 8.5H

253H

494

491

492

V.Blanking

8.5H

V.Blanking

Under partial scan mode

INT VD

VIDEO OUT

(Partial scan)

WEN O UT (Standard)

WEN O UT

[Option]

V.Blanking

9.5H

High-speed

transfer

OB OB

253H 9H

V.Blanking

D4130891A

(c)RTS Non-reset mode (Single VD) / V-reset mode / SYNC-reset mode

<1/60s Non interlace mode>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

521H

494

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

* 1/2 partial scan : 258H 1/4 partial scan : 127H Programable partial scan : Arbitrary [Option]

<1/120s Interlace mode ODD Field>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

10H

V.Blanking

10H

8 9

* 1/2 partial scan : 121 .5H 1/4 partial scan : 55.5H Programable partial s can : Arbitrary [Opti on]

<1/120s Interlace mode EVEN Field>

*Under Non-reset mode (Single VD) only.

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

9.5H

7 8

High-speed

transfer

252.5H

High-speed

transfer

494

8.5H

491 492

253H 9H

492 493

OB OB

V.Blanking

8.5H

V.Blanking

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

9.5H

High-speed

transfer

OB OB

* 1/2 partial scan : 122H 1/4 partial scan : 56H Programable partial scan : Arbitrary [Option]

V.Blanking

D4130891A

(d)Restart / reset mode

<1/60s Non interlace mode>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

1 2

521H 3H

494

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

<1/120s Interlace mode ODD Field>

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

10H

V.Blanking

10H

8 9

<1/120s Interlace mode EVEN Field>

High-speed

transfer

521H 3H

492 493

252.5H

High-speed

transfer

252.5H 8.5H

494

V.Blanking

8.5H

V.Blanking

Under normal scan mode

INT VD

VIDEO OUT

(Normal scan)

WEN OUT (Standard)

WEN OUT

[Option]

Under partial scan mode

INT VD

VIDEO OUT (Partial scan)

WEN OUT (Standard)

WEN OUT

[Option]

V.Blanking

9.5H

V.Blanking

9.5H

7 8

253H 9H

High-speed

transfer

OB OB

253H 9H

491 492

OB OB

V.Blanking

D4130891A

8. EXTERNAL-VIEW DRAWING

D4130891A

Head Office:

(Overseas Sales Department) Phone: +81-42-589-8771 Fax: +81-42-589-8774

The design and specification is subject to change without notice.

7-1, 4 chome, Asahigaoka, Hino-shi, Tokyo, 191-0065, Japan

URL:

http://www.toshiba-teli.co.jp

D4130891A

Toshiba CS8560D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Specifications

Indication

Meaning

WARNING

CAUTION

Switches video format

ODD Field

EVEN Field

ODD Field

EVEN Field

Ext. VD – Ext. HD phase difference
